USER MANUAL 011461 CyberData Systems

1.0 Out-of-Box and Prior to Final Installation

1.1. Verify that you have received all of the parts listed on the Installation Quick Reference placemat.

1.2. Download the current manual, otherwise known as an Operation Guide, which is available in the Downloads tab at the following webpage: http://www.cyberdata.net/voip/011461/

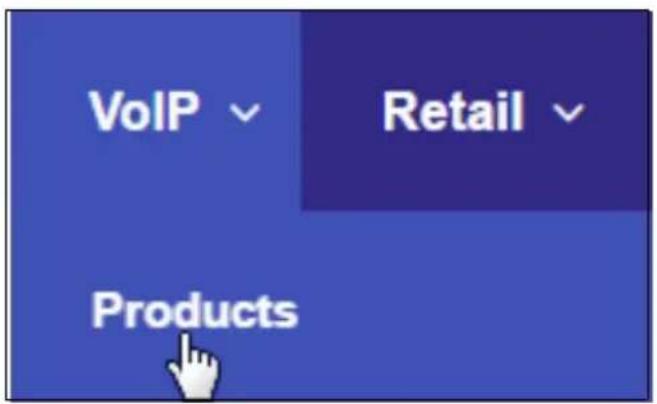

Note You can also navigate to the Downloads tab by going to www.CyberData.net and following the steps that are indicated by the following figures:

1

VoIP Retail Products

2

SIP

3

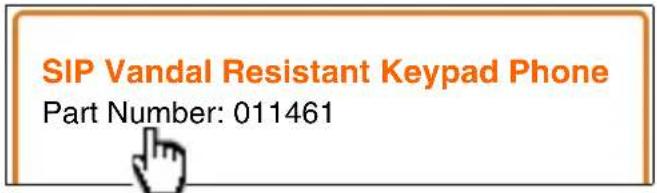

SIP Vandal Resistant Keypad Phone Part Number: 011461

4

Downloads

2.0 Select Power Source

PoE Switch PoE Injector
Set PoE power type to Class 0 = 15.4W C	AT6 cable recommended—for longer distances
	Be sure you are using a non-PoE switch or port
Make sure port is not in trunk mode
Set port to full duplex/ 100Mbps

3.0 Power Test

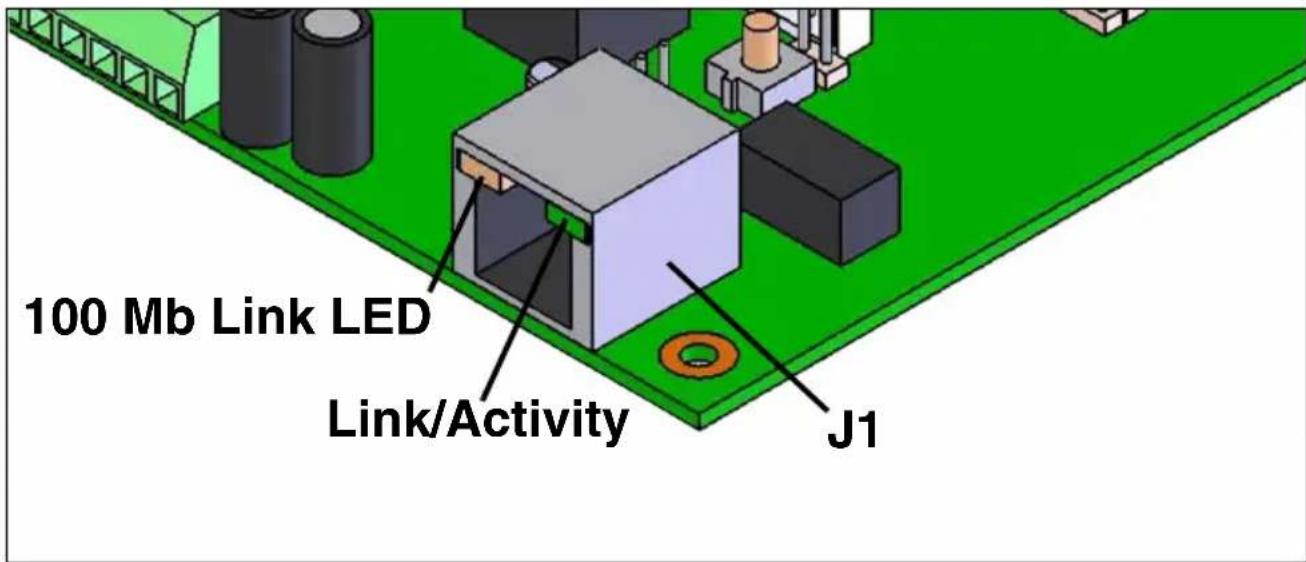

3.1. Plug in the CyberData device and monitor the LED activity above the ethernet port on the board. See the following figure:

100 Mb Link LED Link/Activity J1

3.2. The amber 100 Mb Link LED blinks off once during the boot up process when the device begins DHCP addressing and autoprovisioning attempts, and then comes on again and remains constant (solid amber). The green Link/Activity LED may be blinking depending on the network activity.
Note The default DHCP addressing timeout is 60 seconds. The device will attempt DHCP addressing 12 times with a 3 second delay between tries and eventually fall back to the programmed static IP address (by default 10.10.10.10) if DHCP addressing fails. The DHCP Timeout is configurable in the device's Network settings.
3.3. When the device has completed the initialization process, press and hold the RESET switch (SW1 button) for 3 seconds to announce the IP address. This concludes the power test. Go to Section 4.0, "Connecting to a Network in a Test Environment".

4.0 Connecting to a Network in a Test Environment

Note The following connections are usually needed for this procedure:

• Computer
• PoE switch or injector
• CyberData device

4.1. In a test environment, use a computer that is connected to the same switch as a single CyberData device. Note the subnet of the test computer.
4.2. Use the CyberData Discovery Utility program to locate the device on the network. You can download the Discovery Utility program from the following link:

http://www.cyberdata.net/assets/common/discovery.zip

4.3. Wait for initialization to complete before using the Discovery Utility program to scan for a device. The device will show the current IP address, MAC address, and serial number.
4.4. Select the device.
4.5. Click Launch Browser. If the IP address is in a reachable subnet from the computer that you are using to access the device, the Discovery Utility program should be able to launch a browser window pointing to the device's IP address.
4.6. Log on to the web interface by using the default username (admin) and password (admin) to configure the device.
4.7. Perform an audio test by pressing the Test Audio button that is located at the bottom of the Device Configuration page. If the audio test message is clearly audible, then your CyberData device is functioning properly.
4.8. The device is now ready to be set for your desired network configuration. You may search the Compatible IP-PBX Servers index for available sample VoIP phone system configurations and set up guides at the following website address:

http://www.cyberdata.net/connecting-to-ip-pbx-servers/

5.0 Contacting CyberData VoIP Technical Support

We encourage you to access our Technical Support help desk at the following address:

http://support.cyberdata.net/

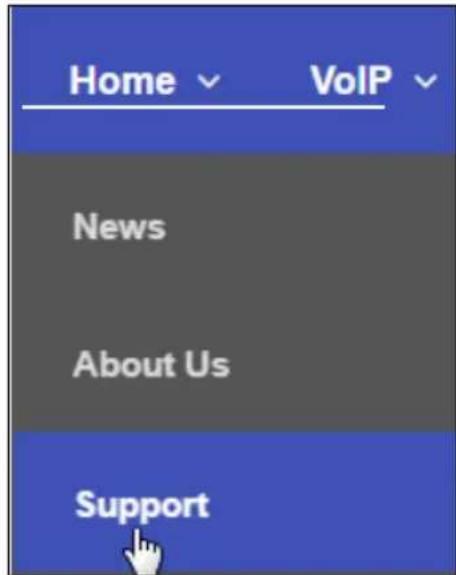

Note You can also access the Technical Support help desk by navigating through menus on the CyberData website (www.CyberData.net) as shown in the following figure:

Home VoIP News About Us Support

The Technical Support help desk provides the options of accessing documentation for your CyberData product, browsing the knowledge base, and submitting a troubleshooting ticket.

Please be advised requests for Returned Materials Authorization (RMA) numbers require an active VoIP Technical Support ticket number. A product will not be accepted for return without an approved RMA number.
