USER MANUAL nüvi 154 GARMIN

nüvi® 140/150 series

Owner's Manual

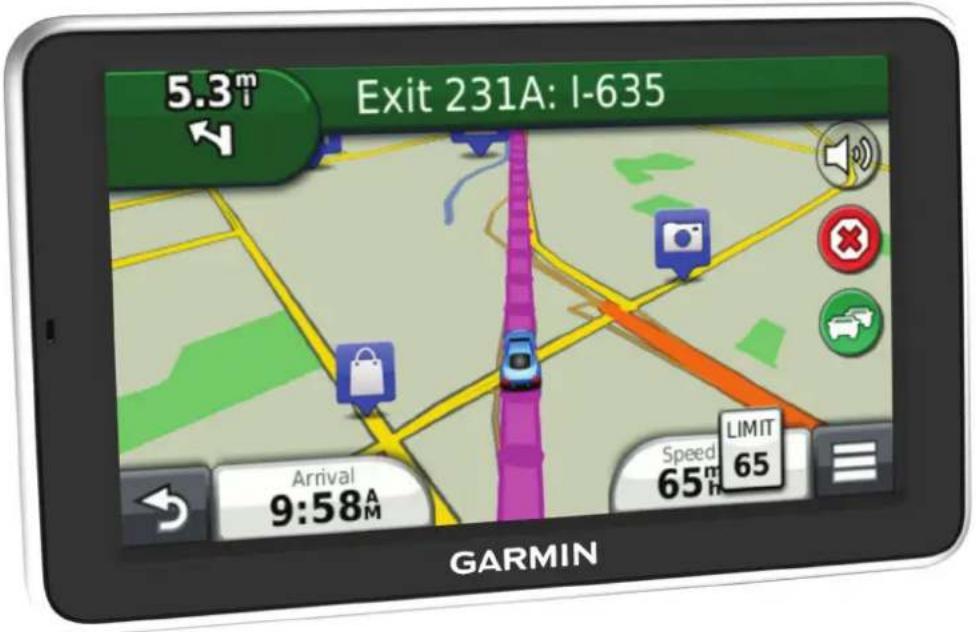

5.3m Exit 231A: I-635 Arrival 9:58A Speed LIMIT 65m 65m GARMIN

All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com for current updates and supplemental information concerning the use of this product.

Garmin ^® , nüvi ^® , and the Garmin logo are trademarks of Garmin Ltd. or its subsidiaries, registered in the USA and other countries. These trademarks may not be used without the express permission of Garmin.

BaseCamp™, HomePort™, MapSource®, myGarmin™, ecoRoute™, myTrends™, nüMaps Guarantee™, and nüMaps Lifetime™ are trademarks of Garmin Ltd. or its subsidiaries. These trademarks may not be used without the express permission of Garmin.

microSD™ and the microSDHC logo are trademarks of SD-3C, LLC. Windows®, Windows Vista®, and Windows XP® are registered trademarks of Microsoft Corporation in the United States and other countries. Mac® is a trademark of Apple Inc.

Table of Contents

Getting Started.... 1

Connecting the Device to Vehicle Power.... 1

Support and Updates.... 1

Setting Up Garmin Express.... 1

nüMaps Guarantee™ 1

Traffic and Map Features.... 1

Turning Off the Device.... 1

Resetting the Device.... 1

Entering and Exiting Sleep Mode.... 1

Adjusting the Screen Brightness.... 1

Adjusting the Volume.... 1

Status Bar Icons.... 1

Satellite Signals.... 2

Transportation Modes.... 2

Battery Information....2

Using the On-Screen Buttons.... 2

Using the On-Screen Keyboard.... 2

Adding a Shortcut.... 2

Removing a Shortcut.... 2

Finding Locations.... 2

Locations....2

Finding a Location by Category.... 2

Finding a Location Using the Search Bar...... 2

Changing the Search Area.... 2

Editing Location Information...... 2

Search Tools.... 3

Finding an Address.... 3

Finding a City.... 3

Finding an Intersection.... 3

Finding a Location Using Coordinates.... 3

Finding a Location by Browsing the Map.... 3

Finding a Location Using Quick Search.... 3

Saving a Home Location.... 3

Going Home 3

Editing Your Home Location Information.... 3

Finding Recently Found Destinations.... 3

Clearing the List of Recently Found Locations.... 3

Finding Parking.... 3

Saving a Parking Spot.... 3

Setting a Simulated Location.... 3

Saving Locations.... 3

Saving a Location.... 3

Saving Your Current Location.... 4

Editing a Saved Location.... 4

Assigning Categories to a Saved Location.... 4

Sharing a Saved Location.... 4

Deleting a Saved Location.... 4

Navigation......4

Starting a Route.... 4

Starting a Route to a Saved Location.... 4

Previewing Multiple Routes.... 4

Automobile Routes....4

Using the Navigation Map.... 4

Adding a Point to a Route.... 4

Taking a Detour....4

Stopping the Route.... 4

About Exit Services.... 5

Navigating to an Exit.... 5

Finding Upcoming Points of Interest...... 5

Avoiding Road Features.... 5

Avoiding Transit Types....5

Navigating Off Road....5

Pedestrian Routes.... 5

Following a Pedestrian Route.... 5

Using the Pedestrian Navigation Map.... 5

Pedestrian Map Icons.... 5

Map Pages...... 5

Customizing the Map Layers.... 5

Viewing the Trip Log.... 5

Changing the Map Data Field.... 5

Changing the Map Perspective.... 5

Customizing Map Buttons.... 5

Changing the Map Dashboard.... 5

Viewing a List of Turns.... 5

Viewing the Entire Route on the Map.... 6

Viewing the Next Turn.... 6

Viewing Junctions....6

Viewing Traffic Alerts.... 6

Viewing the Trip Information Page.... 6

Resetting Trip Information...... 6

Viewing Current Location Information.... 6

Finding Nearby Services....6

Using the Apps....6

Using Help....6

Searching Help Topics...... 6

About ecoRoute....6

Setting Up the Vehicle....6

Changing the Fuel Price....6

Calibrating the Fuel Economy.... 6

About ecoChallenge....6

Viewing Fuel Economy Information....7

Mileage Reports....7

Resetting ecoRoute Information.... 7

Planning a Trip....7

Editing a Trip Itinerary.... 7

Navigating to a Saved Trip.... 7

Editing a Saved Trip.... 7

Viewing Pictures....7

Viewing a Slideshow....7

Setting a Picture as Wallpaper....7

Deleting Pictures....7

Viewing Previous Routes and Destinations.... 7

Using the World Clock....7

Viewing the World Map....7

Setting an Alarm....7

Finding Your Last Parking Spot.... 7

Using the Calculator....8

Converting Units 8

Setting Currency Conversion Rates 8

Using the Language Guide....8

Selecting Languages in the Language Guide.... 8

Translating Words and Phrases.... 8

Using a Bilingual Dictionary....8

Traffic....8

Disabling Traffic....8

About the Traffic Icon 8

Traffic on Your Route 8

Viewing Traffic on Your Route....8

Manually Avoiding Traffic on Your Route.... 8

Taking an Alternate Route....9

Viewing Traffic on the Map....9

Traffic in Your Area....9

Searching for Traffic Incidents....9

Viewing a Traffic Incident on the Map.... 9

Understanding Traffic Data....9

Traffic Subscriptions....9

Subscription Activation....9

Adding a Subscription....9

Data Management....9

File Types....9

About Memory Cards....9

Installing a Memory Card....9

Connecting the Device to Your Computer.... 9

Transferring Data From Your Computer.... 9

Disconnecting the USB Cable....9

Deleting Files....9

Customizing the Device.... 10

Map and Vehicle Settings.... 10

Enabling Maps.... 10

Navigation Settings.... 10

Calculation Mode.... 10

Display Settings.... 10

Capturing Screenshots.... 10

Traffic Settings.... 10

About Traffic Subscriptions.... 10

Viewing Traffic Subscriptions.... 10

Units and Time Settings.... 10

Language and Keyboard Settings.... 10

Proximity Alerts Settings.... 10

Device and Privacy Settings.... 11

Appendix....11

Power Cables.... 11

Device Care.... 11

Cleaning the Outer Casing.... 11

Avoiding Theft.... 11

Erasing User Data.... 11

Extending the Battery Life.... 11

Changing the Fuse in the Vehicle Power Cable.... 11

Mounting on Your Dashboard.... 11

Removing the Device from the Mount.... 11

Removing the Suction Cup from the Windshield.... 11

Updating Maps and Software with Garmin Express™....11

Purchasing Additional Maps.... 12

Safety Cameras.... 12

Custom Points of Interest.... 12

Installing POI Loader.... 12

Using the POI Loader Help Files.... 12

Finding Custom POIs.... 12

Purchasing Accessories.... 12

Troubleshooting.... 12

My device is not acquiring satellite signals.... 12

The suction cup will not stay on my windshield.... 12

The device does not charge in my vehicle.... 12

My battery does not stay charged for very long.... 13

The battery gauge does not seem accurate.... 13

My device does not appear as either a portable device or a

removable drive or volume on my computer.... 13

Index....14

Getting Started

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Connecting the Device to Vehicle Power

WARNING

This product contains a lithium-ion battery. To prevent the possibility of personal injury or product damage caused by battery exposure to extreme heat, store the device out of direct sunlight.

Before you use your device on battery power, you should charge it.

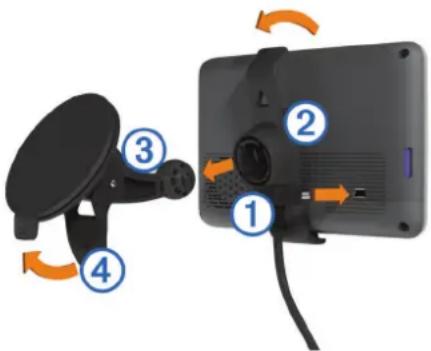

1 Plug the vehicle power cable ① into the USB port on the device.

Diagram showing a device's front panel with labeled parts and directional arrows indicating rotation or movement.

2 Press the mount ② onto the suction cup ③ until it snaps into place.
3 Press the suction cup to the windshield, and flip the lever ④ back toward the windshield.
4 Fit the tab on the top of the mount into the slot on the back of the device.
5 Press the bottom of the mount into the device until it clicks.
6 Plug the other end of the vehicle power cable into a power outlet in your vehicle.

Support and Updates

Garmin ^® Express provides easy access to these services for your device.

• Product registration
• Software and map updates
• Product manuals
  • Vehicles, voices, and other extras

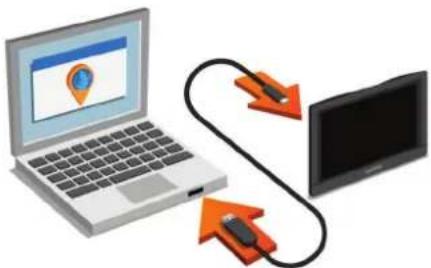

Setting Up Garmin Express

1 Plug the small end of the USB cable into the port on the device.
2 Plug the larger end of the USB cable into an available USB port on your computer.
3 Go to www.garmin.com/express.
4 Follow the on-screen instructions.

nüMaps Guarantee™

Your device may be eligible for a free map update within 90 days of first acquiring satellites while driving. Go to www.garmin.com/numaps for terms and conditions.

Traffic and Map Features

Some models include traffic features and subscriptions to lifetime maps.

T: This model supports RDS traffic (where available).

LM: This model includes a nüMaps Lifetime™ subscription, which provides quarterly map updates for the useful life of your device. For terms and conditions go to www.garmin.com/us/maps/numaps_lifetime.

LMT: This model includes a nüMaps Lifetime subscription, lifetime traffic subscription, and a traffic receiver.

Activating Lifetime Maps

NOTE: Lifetime Maps are not applicable to products that do not have pre-loaded maps.

NOTE: Lifetime Maps entitle you to receive map updates when and as such updates are made available by Garmin during the useful life of one compatible Garmin product or as long as Garmin receives map data from a third party supplier, whichever is shorter. For the meaning of a product's "useful life" and for other important terms and conditions, go to www.garmin.com /numapslifetime.

1 Go to www.garmin.com/express.
2 Follow the on-screen instructions.

NOTE: If you register the device, you can receive e-mail notifications when a map update is available.

Turning Off the Device

1 Hold the power key until a prompt appears on the screen. The prompt appears after five seconds. If you release the power key before the prompt appears, the device enters sleep mode.
2 Select Off.

Resetting the Device

You can reset your device if it stops functioning.

Hold the power key for 10 seconds.

Entering and Exiting Sleep Mode

You can use sleep mode to conserve battery power when your device is not in use. While in sleep mode, your device uses very little power and can wake instantly for use.

TIP: You can charge your device faster by putting it in sleep mode while charging the battery.

Press the power key ①.

Front view of a Garmin tablet device with no visible text or symbols on the screen or body.

Adjusting the Screen Brightness

1 Select Settings > Display > Brightness.
2 Use the slider bar to adjust the brightness.

Adjusting the Volume

1 Select Volume.
2 Select an option:

• Use the slider bar to adjust the volume.
• Select to mute the device.

Status Bar Icons

The status bar is located at the top of the main menu. The status bar icons display information about features on the

device. You can select some icons to change settings or view additional information.

	GPS signal status
	Transportation mode indicator
9:10A	Current time
	Battery status

Satellite Signals

After the device is turned on, it begins acquiring satellite signals. The device may need a clear view of the sky to acquire satellite signals. When at least one of the . . .rs is green, your device has acquired satellite signals.

For more information about GPS, go to www.garmin.com/aboutGPS.

Viewing GPS Signal Status

Hold .for three seconds.

Transportation Modes

Routing and navigation are calculated differently based on your transportation mode. The current transportation mode is indicated by an icon in the status bar.

	Automobile mode
	Pedestrian mode

Choosing a Transportation Mode

Select car.

Battery Information

After the device is connected to power, it begins to charge.

☐ in the status bar indicates the status of the internal battery. To increase the accuracy of the battery gauge, you should fully discharge the battery and then fully charge it. Do not unplug the device until it is fully charged.

Using the On-Screen Buttons

• Select to return to the previous menu screen.
• Hold to quickly return to the main menu.
• Select or to see more choices.
• Hold to scroll faster.
• Select to see a menu of options for the current screen.

Using the On-Screen Keyboard

See "Language and Keyboard Settings" to change the keyboard layout (Language and Keyboard Settings).

• Select delete a search entry.
• Select to delete a character.
• Select to change the keyboard language mode.
• Select 16.29/er special characters, such as punctuation marks.
• Select to change character capitalization.

Adding a Shortcut

You can add shortcuts to the Where To? menu. A shortcut can point to a location, a category, or a search tool.

The Where To? menu can contain up to 36 shortcut icons.

1 Select Where To? > Add Shortcut.
2 Select an item.

Removing a Shortcut

1 Select Where To? > Remove Shortcut(s).
2 Select the shortcut to remove.
3 Select the shortcut again to confirm.

Finding Locations

Locations

The detailed maps loaded in your device contain locations, such as restaurants, hotels, auto services, and detailed street information. You can use categories to browse for nearby businesses and attractions. You can also search for addresses, coordinates, cities, and intersections.

Finding a Location by Category

1 Select Where To?
2 Select a category, or select Categories.
3 If necessary, select a subcategory.
4 Select a location.

Searching Within a Category

To narrow your search results, you can search within some categories.

1 Select Where To?.
2 Select a category, or select Categories.
3 If necessary, select a subcategory.
4 If necessary, enter all or part of the name in the search bar.

Finding a Location Using the Search Bar

You can use the search bar to search for locations by entering a category, brand name, address, or city name.

1 Select Where To?.
2 Select Enter Search in the search bar.
3 Enter all or part of the search term. Suggested search terms appear below the search bar.

4 Select an option:

• To search for a type of business, enter a category name (for example, "movie theaters").
• To search for a business name, enter all or part of the name.
• To search for an address near you, enter the street number and street name.
• To search for an address in another city, enter the street number, street name, city, and state.
• To search for a city, enter the city and state.
• To search for coordinates, enter latitude and longitude coordinates.

5 Select an option:

• To search using a suggested search term, select the term.
• To search using the text you entered, select .Q

6 If necessary, select a location.

Changing the Search Area

1 From the main menu, select Where To?.
2 Select Searching Near.
3 Select an option.

Editing Location Information

You can change the address or phone number for a location that appears in the search results.

1 Search for a location.
2 From the search results, select a location.
3 Select i
4 Select ➞ Edit.
5 Select Address or Phone Number, and enter the new information.

Search Tools

Search tools allow you to search for specific types of locations by responding to on-screen prompts.

Finding an Address

NOTE: The order of the steps may change depending on the map data loaded on your device.

1 Select Where To? > Address.
2 Enter the address number, and select Done.
3 Enter the street name, and select Next.
4 If necessary, select Searching Near to change the city, state, or province.
5 If necessary, select the city, the state, or the province.
6 If necessary, select the address.

Finding a City

1 Select Where To? > Categories > Cities.
2 Select Enter Search.
3 Enter a city name, and select Q
4 Select a city.

Finding an Intersection

1 Select Where To? > Categories > Intersections.
2 Select an option:
- Select a state or province.
- To change the country, state, or province, select State or Country, and enter a name.
3 Enter the first street name, and select Next.
4 If necessary, select the street.
5 Enter the second street name, and select Next.
6 If necessary, select the street.
7 If necessary, select the intersection.

Finding a Location Using Coordinates

You can find a location using latitude and longitude coordinates. This can be helpful when geocaching.

1 Select Where To? > Categories > Coordinates.
2 If necessary, select and change the coordinate format or datum.
3 Select the latitude coordinate.
4 Enter the new coordinate, and select Done.
5 Select the longitude coordinate.
6 Enter the new coordinate, and select Done.
7 Select View on Map.

Finding a Location by Browsing the Map

Before you can find places included in the map data, such as restaurants, hospitals, and fuel stations, you must enable the map layer for places along the road (Customizing the Map Layers).

1 Select View Map.
2 Drag and zoom the map to display the area to search.
3 If necessary, select Q and select a category icon to view only a specific category of places. Location markers (for a blue dot) appear on the map.
4 Select an option:
- Select a location marker.
- Select a point, such as a street, intersection, or address location.
5 If necessary, select the location description to view additional information.

Finding a Location Using Quick Search

After you have performed a search for a point of interest, certain categories may display a Quick Search list that displays the last four destinations you selected.

1 Select Where To?
2 Select a category, or select Categories.
3 If applicable, select a destination from the Quick Search list.
4 If necessary, select the appropriate destination.

Saving a Home Location

You can set your home location for the location you return to most often.

1 Select Where To? > ≡ Set Home Location.
2 Select Enter My Address, Use Current Location, or Recently Found.

The location is saved as "Home" in the Saved menu.

Going Home

Select Where To? > Go Home.

Editing Your Home Location Information

1 Select Where To? > Saved > Home.
2 Select i
3 Select ≧ Edit.
4 Enter your changes.
5 Select Done.

Finding Recently Found Destinations

Your device stores the last 50 destinations you have found.

1 Select Where To? > Recent.

2 Select a location.

Clearing the List of Recently Found Locations

Select Where To? > Recent > = > Clear > Yes.

Finding Parking

1 Select Where To? > Categories > Parking.
2 Select a parking location.

Saving a Parking Spot

1 Select Apps > Last Spot.

2 Select ≈ Save.

Setting a Simulated Location

If you are indoors or not receiving satellite signals, you can use the GPS to set a simulated location.

1 Select Settings > Navigation > GPS Simulator.
2 From the main menu, select View Map.
3 Tap the map twice to select an area.
The address of the location appears at the bottom of the screen.
4 Select the location description.
5 Select Set Location.

Saving Locations

Saving a Location

1 Search for a location (Finding a Location by Category).
2 From the search results, select a location.
3 Select i
4 Select ≧ Save.
5 If necessary, enter a name, and select Done.

Saving Your Current Location

1 From the map, select the vehicle icon.
2 Select Save.
3 Enter a name, and select Done.
4 Select OK.

Editing a Saved Location

1 Select Where To? > Saved.
2 If necessary, select a category.
3 Select a location.
4 Select i
5 Select ≧ Edit.
6 Select an option:

• Select Name.
• Select Phone Number.
• Select Categories to assign categories to the saved location.
• Select Change Map Symbol to change the symbol used to mark the saved location on a map.

7 Edit the information.

8 Select Done.

Assigning Categories to a Saved Location

You can add custom categories to organize your saved locations.

NOTE: Categories appear in the saved locations menu after you have saved at least 12 locations.

1 Select Where To? > Saved.
2 Select a location.
3 Select i
4 Select ≡ Edit > Categories.
5 Enter one or more category names, separated by commas.
6 If necessary, select a suggested category.
7 Select Done.

Sharing a Saved Location

If you save the location of a business that is not in the map data, you can share the location with Garmin so that it can be added to future map updates and shared with the Garmin community.

1 Select Where To? > Saved.
2 If necessary, select a category.
3 Select a location.
4 Select i
5 Select ≧ Share Place.

Deleting a Saved Location

NOTE: Deleted locations cannot be recovered.

1 Select Where To? > Saved.
2 Select ≡ Delete Saved Places.
3 Select the box next to the saved locations to delete, and select Delete.

Navigation

Starting a Route

1 Search for a location (Locations).
2 Select a location.
3 Select Go!.

Starting a Route to a Saved Location

1 Select Where To? > Saved.
2 If necessary, select a category, or select All Saved Places.
3 Select a location.
4 Select Go!.

Previewing Multiple Routes

1 Search for a location (Finding a Location by Category).
2 From the search results, select a location.
3 Select Routes.
4 Select a route.

Automobile Routes

NOTICE

The speed limit feature is for information only and does not replace your responsibility to abide by all posted speed limit signs and to use safe driving judgment at all times. Garmin will not be responsible for any traffic fines or citations you receive for failing to follow all applicable traffic laws and signs.

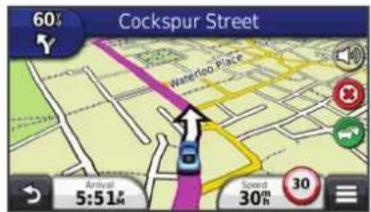

The route is marked with a magenta line. A checkered flag marks your destination.

As you travel, the device guides you to the destination with voice prompts, arrows on the map, and directions at the top of the map. If you depart from the original route, the device recalculates the route and provides new directions.

60: Cockspur Street Waterloo Place Arrival 5:51m Speed 30m 30h

Using the Navigation Map

1 Select View Map.
2 Select anywhere on the map.
3 Select an option:
• To zoom in or out, select ⬣. —
• To switch between North Up and 3-D views, select .
• To view specific categories when not navigating a route, select Q
• To center the map on your current location, select .

Adding a Point to a Route

Before you can add a point, you must be navigating a route.

1 From the map, select ↩ Where To?.
2 Search for a location.
3 Select a location.
4 Select Go!.
5 Select Add to Active Route.

Taking a Detour

While navigating a route, you can use detours to avoid obstacles ahead of you, such as construction zones.

While navigating, select Detour.

Stopping the Route

From the map, select ≈ .

About Exit Services

While you navigate a route, you can find gas, food, lodging, and restrooms near upcoming exits.

Services are listed under tabs by category.

Gas

Food

Lodging

Restrooms

Navigating to an Exit

1 From the map, select > Exit Services > .

2 Select Go!.

Finding Upcoming Points of Interest

1 From the map, select > Up Ahead.

2 Select a tab.

3 Select a point of interest.

Avoiding Road Features

1 Select Settings > Navigation > Avoidances.

2 Select the road features to avoid on your routes, and select Save.

Avoiding Transit Types

NOTE: Transit types are available when cityXplorer™ maps are loaded.

1 Select Settings > Navigation > Public Transit.

2 Select the transit type to avoid on your routes, and select Save.

Navigating Off Road

If you are not following roadways as you navigate, you can use Off Road mode.

1 Select Settings > Navigation.

2 Select Calculation Mode > Off Road > Save.

The next route will be calculated as a straight line to the location.

Pedestrian Routes

Following a Pedestrian Route

In Pedestrian mode, your route is displayed on a two-dimensional map.

NOTE: cityXplorer maps are not included with the device. Go to http://my.garmin.com to purchase cityXplorer maps.

NOTE: You can change the types of public transit and limit the distance spent walking during a pedestrian route.

Using the Pedestrian Navigation Map

- Select À to switch between sections of the route.

- Select Á to view the route itinerary.

Pedestrian Map Icons

• When you are navigating in Pedestrian mode, indicates your approximate position and your direction of travel on the map.
• The circle around indicates the accuracy of your position on the map. A smaller circle means the displayed position is more accurate.
• The yellow icons indicate the navigation method used in each section of the route. For example, when you see, you should board a bus at that point in the route.
• The black dots on the map indicate public transit stops along your route.

Map Pages

Customizing the Map Layers

You can customize which data appear on the map, such as icons for points of interest and road conditions.

1 Select Settings > Map & Vehicle > Map Layers.
2 Select the layers to include on the map, and select Save.

Viewing the Trip Log

Your device keeps a trip log, which is a record of the path you have traveled.

1 Select Settings > Map & Vehicle > Map Layers.

2 Select the Trip Log check box.

Changing the Map Data Field

1 From the map, select a data field. NOTE: You cannot customize Speed.
2 Select a type of data to display.
3 Select Save.

Changing the Map Perspective

1 Select Settings > Map & Vehicle > Driving Map View.
2 Select an option:

• Select Track Up to display the map in two dimensions (2-D), with your direction of travel at the top.
• Select North Up to display the map in 2-D with north at the top.
• Select 3-D to display the map in three dimensions.

Customizing Map Buttons

You can include up to three icons on the right side of the main map.

1 Select Settings > Map & Vehicle > Map Buttons.
2 Select an icon, and select OK.
3 Select.
4 Select a different icon.

Changing the Map Dashboard

The dashboard displays trip information at the bottom of the map. You can select different dashboards to change the style and the layout of the information.

1 Select Settings > Map & Vehicle > Dashboards.
2 Use the arrows to select a dashboard.
3 Select Save.

Viewing a List of Turns

While navigating a route, you can view all of the turns and maneuvers for your entire route and the distance between turns.

1 While navigating a route, select the text bar on the top of the map.
2 Select a turn.

The details for the turn appear. If available, an image of the junction appears for junctions on major roadways.

Viewing the Entire Route on the Map

1 While navigating a route, select the navigation bar at the top of the map.
2 Select ≧ Map.

Viewing the Next Turn

While navigating an automobile route, a preview of the next turn, lane change, or other maneuver appears in the upper-left corner of the map.

The preview includes the distance to the turn or maneuver and the lane in which you should be traveling, if available.

From the map, select view the next turn on the map.

Viewing Junctions

While navigating a route, you can view the junctions on major roadways. When you approach a junction in a route, the image of that junction appears briefly, if available.

From the map, select view the junction, if available.

Viewing Traffic Alerts

While navigating a route, a traffic alert may appear in the navigation bar.

Select the alert to view more information.

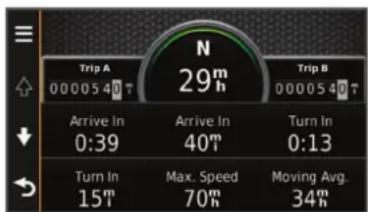

Viewing the Trip Information Page

The trip information page displays your present speed and provides statistics about your trip.

NOTE: If you make frequent stops, leave the device turned on, so it can accurately measure elapsed time during the trip.

From the map, select Speed.

Trip A 0000540 T N 29m Trip B 0000540 T Arrive In 0:39 Arrive In 40m Turn In 0:13 Turn In 15m Max. Speed 70m Moving Avg. 34m

Resetting Trip Information

1 From the map, select Speed.
2 Select ≡ Reset Field(s).
3 Select an option:

• When not navigating a route, select Select All to reset every data field except the speedometer, on the first page.
• Select Reset Trip Data to reset the information on the trip computer.
• Select Reset Max. Speed to reset the maximum speed.
• Select Reset Trip B to reset the odometer.

Viewing Current Location Information

You can use the Where Am I? page to view information about your current location. This feature is helpful if you need to tell emergency personnel your location.

From the map, select the vehicle.

Finding Nearby Services

You can use the Where Am I? page to find nearby services, such as fuel, hospitals or police stations.

1 From the map, select the vehicle.
2 Select a category.

Using the Apps

Using Help

Select Apps > Help to view information about using the device.

Searching Help Topics

Select Apps > Help > Q

About ecoRoute

The ecoRoute ^™ feature calculates the fuel economy and the fuel price of navigating to a destination, and offers tools for improving fuel efficiency.

The data provided by the ecoRoute feature is an estimate only.

To receive more-accurate fuel reports for your specific vehicle and driving habits, calibrate the fuel economy (Calibrating the Fuel Economy).

NOTE: ecoRoute is available only in Automobile mode.

Setting Up the Vehicle

The first time you use the ecoRoute features, you must enter vehicle information.

1 Select Apps > ecoRoute.
2 Follow the on-screen instructions.

Changing the Fuel Price

1 Select Apps > ecoRoute > At the Pump.
2 Enter the current price of fuel, and select Next.
3 Select Yes.

Calibrating the Fuel Economy

You can calibrate the fuel economy to receive more-accurate fuel reports for your specific vehicle and driving habits. You should calibrate when you fill up your fuel tank.

1 Select Apps > ecoRoute > At the Pump.
2 Enter the current fuel price.
3 Enter the amount of fuel the vehicle has used since the last time the fuel tank was filled.
4 Enter the distance you have traveled since the last time the fuel tank was filled.
5 Select Next.

The device calculates the average vehicle fuel economy.

6 Select Save.

About ecoChallenge

ecoChallenge helps you maximize the vehicle fuel economy by scoring your driving habits. The higher your ecoChallenge scores, the more fuel you have saved. The ecoChallenge collects data and calculates a score whenever your device is moving and in Automobile transportation mode.

Viewing ecoChallenge Scores

Select Apps > ecoRoute > ecoChallenge.

About the ecoChallenge Score

Acceleration: Displays your score for smooth and gradual acceleration. You lose points for rapid acceleration.

Braking: Displays your score for smooth and gradual braking. You lose points for hard braking.

Overall: Displays an average of the speed, acceleration, and braking score.

Speed: Displays your score for driving your vehicle at the optimal speed for conserving fuel.

Removing the ecoChallenge Score From the Map Select Ⓞ > ≡ > Settings > Hide > Save.

Resetting the ecoChallenge Scores

1 Select Apps > ecoRoute > ecoChallenge.

2 Select ≈ Reset.

Viewing Fuel Economy Information

1 Select Apps > ecoRoute > Fuel Economy.

2 Select a section of the graph to zoom in.

Mileage Reports

Mileage reports provide the distance, the time, the average fuel economy, and the fuel cost of navigating to a destination.

A mileage report is created for every route that you drive. If you stop a route on your device, a mileage report is created for the distance you traveled.

Viewing a Mileage Report

You can view saved mileage reports on the device.

TIP: You can connect the device to your computer and access mileage reports in the Reports folder on the device.

1 Select Apps > ecoRoute > Mileage Report.

2 Select a report.

Resetting ecoRoute Information

1 Select Apps > ecoRoute > Vehicle Profile.

2 Select ≡ Reset.

Planning a Trip

You can use the trip planner to create and save a trip with multiple destinations.

1 Select Apps > Trip Planner.

2 Select New Trip.

3 Select Select Start Location.

4 Search for a location (Finding a Location by Category).

5 Select Select.

6 To add additional locations, select +

7 Select Next.

8 Enter a name, and select Done.

Editing a Trip Itinerary

1 Select Apps > Trip Planner.

2 Select a saved trip.

3 Select an option.

- To change the arrival or departure time, select a location in the trip.

• To record how long you will stay at a location, select a location in the trip, and select Duration.

- To change the transportation mode or route preference for a trip leg, select a leg, and select Transportation Mode.

- To view the trip on the map, select Map.

Navigating to a Saved Trip

1 Select Apps > Trip Planner.

2 Select a saved trip.

3 Select Go!.

4 Select your next destination, and select Start.

Editing a Saved Trip

1 Select Apps > Trip Planner.

2 Select a saved trip.

3 Select

4 Select an option:

- Select Rename Trip.

- Select Edit Destinations to add and delete a location, or to change the order of locations.

- Select Delete Trip.

- Select Optimize Order to arrange the stops on your trip in the most-efficient order.

Viewing Pictures

You can view pictures that you have stored in the device or on a memory card. See Data Management for more information about loading pictures on the device.

1 Select Apps > Picture Viewer.

2 Select ↑ or ↓ scroll through the images.

3 Select a picture.

Viewing a Slideshow

1 Select Apps > Picture Viewer.

2 Select ▷

3 While a slideshow is playing, select the screen to stop the slideshow.

Setting a Picture as Wallpaper

1 Select Apps > Picture Viewer.

2 Select a picture.

3 Select ≧ Set as Wallpaper.

4 Use the on-screen markings to adjust the wallpaper.

5 Select Done.

Deleting Pictures

1 Select Apps > Picture Viewer.

2 Select a picture.

3 Select ≧ Delete > Yes.

Viewing Previous Routes and Destinations

Before you can use this feature, you must enable the travel history feature (Device and Privacy Settings).

You can view your previous routes and places you have stopped on the map.

Select Apps > Where I've Been.

Using the World Clock

1 Select Apps > World Clock.

2 If necessary, select a city, enter a city name, and select Done.

Viewing the World Map

Select Apps > World Clock >

Nighttime hours appear in the shaded area of the map.

Setting an Alarm

1 Select Apps > Alarm Clock.

2 Set a time.

3 Select the Alarm On check box.

Finding Your Last Parking Spot

When you disconnect the device from vehicle power while the device is on, your current location is saved as a parking spot.

Select Apps > Last Spot.

Using the Calculator

Select Apps > Calculator.

Converting Units

1 Select Apps > Unit Converter.
2 If necessary, select the button next to Convert, select a measurement category, and select Save.
3 If necessary, select a unit button, select a unit of measurement, and select Save.
4 Select the field below the unit you want to convert.
5 Enter the number, and select Done.

Setting Currency Conversion Rates

This feature is not available in all areas.

You can update the currency conversion rates for the unit converter.

1 Select Apps > Unit Converter.
2 Select the button next to Convert.
3 Select Currency, and select Save.
4 If necessary, select a currency button, select a different currency, and select Save.
5 Select the button at the bottom of the screen that displays the currency conversion rates.
6 Select the box next to a currency.
7 Enter a value, and select Done.
8 Select OK.

Using the Language Guide

Use the Language Guide to look up and translate words or phrases.

Select Apps > Language Guide.

Selecting Languages in the Language Guide

You can select the languages you want to use when translating words and phrases.

1 Select Apps > Language Guide > Words and Phrases.
2 Select ➡ Language.
3 Select From, select the language to translate from, and select Save.
4 Select To, select the language to translate to, and select Save.

Translating Words and Phrases

1 Select Apps > Language Guide > Words and Phrases.
2 Select a category and subcategories.
3 If necessary, select Qenter a keyword, and select Done.
4 Select a word or a phrase.
5 Select to listen to the translation.

Using a Bilingual Dictionary

1 Select Apps > Language Guide > Bilingual Dictionaries.
2 Select a dictionary.
3 If necessary, select Qenter a word, and select Done.
4 Select a word.
5 Select to listen to the translation.

Traffic

NOTICE

Garmin is not responsible for the accuracy or timeliness of the traffic information.

Traffic information may not be available in all areas or countries. For information about traffic receivers and coverage areas, go to www.garmin.com/traffic.

A traffic receiver is included in some packages, built into either the vehicle power cable or the device, and is an optional accessory for all models.

• Traffic alerts appear on the map when there are traffic incidents along your route or in your area.
• The device must be connected to vehicle power to receive traffic information through a traffic receiver.
• The powered traffic receiver and the device may need to be in data range of a station transmitting traffic data to receive traffic information.
• You do not need to activate the subscription included with your device or traffic receiver.
• If your device includes an external traffic antenna, you should always leave the external antenna plugged in for the best traffic reception.

Disabling Traffic

1 Select Settings > Traffic.
2 Clear the Traffic check box.

About the Traffic Icon

When you are receiving traffic information, a traffic icon appears on the map. The traffic icon changes color to indicate the severity of traffic conditions.

Gray: Traffic information is not available.

Green: Traffic is flowing freely.

Red: Traffic is not moving or moving very slowly. There is a severe delay.

Yellow: Traffic is moving, but there is a delay. There is moderate traffic congestion.

Traffic on Your Route

When a traffic delay occurs on your route, an alert appears on the map, and the device calculates an alternate route to avoid the delay. You can choose whether to use alternate routes automatically, or upon request. See Traffic Settings for more information (Traffic Settings). Your device may route you through a traffic delay if a better alternative route does not exist. The delay time is added into your estimated time of arrival automatically.

Viewing Traffic on Your Route

1 While navigating a route, select 📄
2 Select Traffic on Route.
A list of traffic events appears, organized by their location on the route.
3 Select an event.

Manually Avoiding Traffic on Your Route

1 From the map, select
2 Select Traffic on Route.
3 If necessary, use the arrows to view other traffic delays on your route.
4 Select ≈ Avoid.

Taking an Alternate Route

1 While navigating an automobile route, select 📂
2 Select Alternate Route.
3 Select a route.

Viewing Traffic on the Map

The traffic map shows color-coded traffic flow and delays on nearby roads.

1 From the map, select
2 Select Incidents.

Traffic in Your Area

Searching for Traffic Incidents

1 From the main menu, select Apps > Traffic.
2 Select Incidents.
3 Select an item in the list.
4 If there is more than one incident, use the arrows to view additional incidents.

Viewing a Traffic Incident on the Map

1 From the traffic map, select 📄
2 Select an incident.

Understanding Traffic Data

The traffic legend explains the icons and colors used on the traffic map.

1 From the map, select ≧ Traffic.
2 Select Legend.

Traffic Subscriptions

Subscription Activation

You do not need to activate the subscription included with your FM traffic receiver. The subscription activates automatically after your device acquires satellite signals while receiving traffic signals from the pay service provider.

Adding a Subscription

You can purchase traffic subscriptions for other regions or countries.

1 From the main menu, select Traffic.
2 Select Subscriptions > +
3 Write down the FM traffic receiver unit ID.
4 Go to www.garmin.com/fmtraffic to purchase a subscription and get a 25-character code.

The traffic subscription code cannot be reused. You must obtain a new code each time you renew your service. If you own multiple FM traffic receivers, you must obtain a new code for each receiver.

5 Select Next on the device.
6 Enter the code.
7 Select Done.

Data Management

You can store files on your device. The device has a memory card slot for additional data storage.

NOTE: The device is not compatible with Windows ^® 95, 98, Me, Windows NT ^® , and Mac ^® OS 10.3 and earlier.

File Types

The device supports these file types.

• Maps and GPX waypoint files from myGarmin™ mapping software, including MapSource®, BaseCamp™, and HomePort™ (Custom Points of Interest).
• GPI custom POI files from Garmin POI Loader (Installing POI Loader).

About Memory Cards

You can purchase memory cards from an electronics supplier, or purchase pre-loaded Garmin mapping software (www.garmin.com). In addition to map and data storage, the memory card can be used to store files such as maps, images, geocaches, routes, waypoints, and custom POIs.

Installing a Memory Card

The device supports microSD ^TM and microSDHC memory cards.

1 Insert a memory card into the slot on the device.
2 Press it in until it clicks.

Connecting the Device to Your Computer

You can connect the device to your computer using a USB cable.

1 Plug the small end of the USB cable into the port on the device.
2 Plug the larger end of the USB cable into a port on your computer.

A picture of your device connected to a computer appears on the device screen.

Depending on your computer operating system, the device appears as either a portable device, a removable drive, or a removable volume.

Transferring Data From Your Computer

1 Connect the device to your computer (Connecting the Device to Your Computer).

Depending on your computer operating system, the device appears as either a portable device, a removable drive, or a removable volume.

2 On your computer, open the file browser.
3 Select a file.
4 Select Edit > Copy.
5 Browse to a folder on the device.

NOTE: For a removable drive or volume, you should not place files in the Garmin folder.

6 Select Edit > Paste.

Disconnecting the USB Cable

If your device is connected to your computer as a removable drive or volume, you must safely disconnect your device from your computer to avoid data loss. If your device is connected to your Windows computer as a portable device, it is not necessary to safely disconnect.

1 Complete an action:

• For Windows computers, select the Safely Remove Hardware icon in the system tray, and select your device.
• For Mac computers, drag the volume icon to the trash.

2 Disconnect the cable from your computer.

Deleting Files

NOTICE

If you do not know the purpose of a file, do not delete it. Your device memory contains important system files that should not be deleted.

1 Open the Garmin drive or volume.

2 If necessary, open a folder or volume.
3 Select a file.
4 Press the Delete key on your keyboard.

Customizing the Device

Map and Vehicle Settings

To open the Map and Vehicle settings, from the main menu, select Settings >Map & Vehicle.

Vehicle: Changes the icon to represent your position on the map. Go to www.garmingarage.com for more icons.

Driving Map View: Sets the perspective on the map.

Pedestrian Map View: Sets the perspective on the map.

Map Detail: Sets the level of detail on the map. More detail may cause the map to draw slower.

Map Theme: Changes the color of the map data.

Map Buttons: Sets which buttons are included on the map. You can include up to three buttons.

Map Layers: Sets the data that appears on the map page (Customizing the Map Layers).

Dashboards: Sets the map dashboard layout.

myMaps: Sets which installed maps the device uses.

Enabling Maps

You can enable map products installed on your device.

TIP: To purchase additional map products, go to http://buy.garmin.com.

1 Select Settings > Map & Vehicle > myMaps.
2 Select a map.

Navigation Settings

To open the Navigation settings page, from the main menu, select Settings > Navigation.
Calculation Mode: Sets route preference.
Avoidances: Sets road features to avoid on a route.
Custom Avoidances: Allows you to avoid specific roads or areas.
Advanced Detours: Allows you to select the length of a detour.
Limit Walking: Controls the maximum walking distance included in the pedestrian route.
Public Transit: Enables or disables transit types.
Safe Mode: Disables all functions that require significant operator attention and could become a distraction while driving.
GPS Simulator: Stops the device from receiving a GPS signal, and saves battery power.

Calculation Mode

Select Settings > Navigation > Calculation Mode.
The route calculation is based on road speeds and vehicle acceleration data for a given route.
Faster Time: Calculates routes that are faster to drive but can be longer in distance.
Shorter Distance: Calculates routes that are shorter in distance but can take more time to drive.
Less Fuel: Calculates routes that could use less fuel than other routes.
Off Road: Calculates a direct line from your location to your destination.

Display Settings

To open the Display settings page, from the main menu, select Settings > Display.

Color Mode: Sets the device to display day or night colors. You can select Auto to allow the device to automatically set day or night colors based on the time of day.

Brightness: Adjusts the display brightness.

Display Timeout: Sets the amount of idle time before your device enters sleep mode.

Screenshot: Allows you to take a picture of the device screen. Screenshots are saved in the Screenshot folder of the device storage.

Capturing Screenshots

1 Select Settings > Display.

2 Select the Screenshot check box.

3 Select take a screenshot.

The picture file is saved in the screenshots folder on the device drive.

Traffic Settings

To open the traffic settings page, from the main menu, select Settings > Traffic.

Traffic: Enables traffic.

Current Provider: Sets the traffic provider to use for traffic data. Auto selects the best available traffic data automatically.

Subscriptions: Lists current traffic subscriptions.

About Traffic Subscriptions

You can purchase additional subscriptions or a renewal if your subscription expires. Go to http://www.garmin.com/traffic.

Viewing Traffic Subscriptions

Select Settings > Traffic > Subscriptions.

Units and Time Settings

To open the Units and Time settings page, from the main menu, select Settings > Units & Time.

Current Time: Sets the device time.

Time Format: Allows you to select a 12-hour, 24-hour, or UTC display time.

Units: Sets the unit of measure used for distances.

Language and Keyboard Settings

To open the Language and Keyboard settings page, from the main menu, select Settings > Language & Keyboard.

Voice Language: Sets the language for voice prompts.

Text Language: Sets all on-screen text to the selected language.

NOTE: Changing the text language does not change the language of user-entered data or map data, such as street names.

Keyboard Language: Sets the language for your keyboard.

Keyboard Layout: Sets the keyboard layout.

Proximity Alerts Settings

Select Settings > Proximity Alerts.

Audio: Sets the style of alert that plays when you approach proximity points.

Alerts: Sets the type of proximity points for which alerts are played.

Device and Privacy Settings

To open the Device settings page, from the main menu, select Settings > Device.

About: Displays the software version number, the unit ID number, and information on several other software features.

EULAs: Displays the end-user license agreements that apply to your choice.

NOTE: You need this information when you update the system software or purchase additional map data.

Travel History: Allows the device to record information for the myTrends™, Where I've Been, and Trip Log features.

Clear Travel History: Clears your travel history for the myTrends, Where I've Been, and Trip Log features.

Appendix

Power Cables

Your device can be powered various ways.

• Vehicle power cable
• USB cable
  • AC adapter (optional accessory)

Device Care

NOTICE

Avoid dropping your device.

Do not store the device where prolonged exposure to extreme temperatures can occur, because it can cause permanent damage.

Never use a hard or sharp object to operate the touchscreen, or damage may result.

Cleaning the Outer Casing

NOTICE

Avoid chemical cleaners and solvents that can damage plastic components.

1 Clean the outer casing of the device (not the touchscreen) using a cloth dampened with a mild detergent solution.
2 Wipe the device dry.

Cleaning the Touchscreen

1 Use a soft, clean, lint-free cloth.
2 If necessary, lightly dampen the cloth with water.
3 If using a dampened cloth, turn off the device and disconnect the device from power.
4 Gently wipe the screen with the cloth.

Avoiding Theft

• Remove the device and mount from sight when not in use.
• Remove the residue left on the windshield by the suction cup.
• Do not keep your unit in the glove compartment.
• Register your device at http://my.garmin.com.

Erasing User Data

NOTE: This process erases all items you have saved to the device.

1 Turn the device on.
2 Hold your finger on the lower-right corner of the screen until a message appears.
3 Select Yes to erase all user data.
All original settings are restored.

Extending the Battery Life

• Keep your device away from extreme temperatures.
• Put the device in sleep mode (Entering and Exiting Sleep Mode).
• Decrease the screen brightness (Display Settings).
• Do not leave your device in direct sunlight.
• Decrease the volume (Adjusting the Volume).
• Shorten the display timeout time (Display Settings).

Changing the Fuse in the Vehicle Power Cable

NOTICE

When replacing the fuse, do not lose any of the small pieces and make sure they are put back in the proper position. The vehicle power cable does not work unless it is assembled correctly.

If your device does not charge in your vehicle, you may need to replace the fuse located at the tip of the vehicle adapter.

1 Unscrew the end piece ①.

Diagram showing four labeled parts of a mechanical device with numbered annotations

TIP: You may need to use a coin to remove the end piece.

2 Remove the end piece, the silver tip ②, and the fuse ③.
3 Install a 2 A fast-blow fuse.
4 Place the silver tip in the end piece.
5 Screw the end piece back into the vehicle power cable ④.

Mounting on Your Dashboard

NOTICE

The permanent mounting adhesive is extremely difficult to remove after it is installed.

Use the mounting disk to mount your device to the dashboard and comply with certain state regulations. See www.garmin.com for more information.

1 Clean and dry the dashboard where you are placing the disk.
2 Remove the backing from the adhesive on the bottom of the disk.
3 Place the disk on the dashboard.
4 Remove the clear plastic cover from the top of the disk.
5 Place the suction cup mount on top of the disk.
6 Flip the lever down (toward the disk).

Removing the Device from the Mount

Tilt the device forward.

Removing the Suction Cup from the Windshield

1 Flip the lever on the suction cup toward you.
2 Pull the tab on the suction cup toward you.

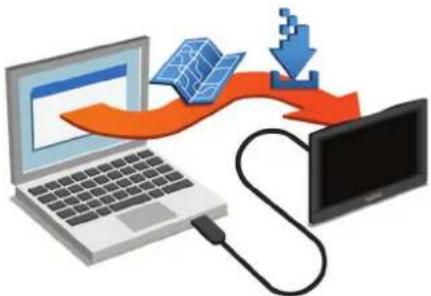

Updating Maps and Software with Garmin Express™

You can use Garmin Express software to download and install the latest map and software updates for your device. Map updates provide the latest available mapping data to ensure your device continues to calculate accurate and efficient routes

to your destinations. Garmin Express is available for Windows and Mac computers.

1 On your computer, go to www.garmin.com/express.

2 Select an option:

- To install on a Windows computer, select Download for Windows.

• To install on a Mac computer, select Mac Version.

Illustration of a laptop connected to a folder with an orange arrow, no text or symbols present

3 Open the downloaded file, and follow the on-screen instructions to complete the installation.

4 Start Garmin Express.

5 Connect your Garmin device to your computer using a USB cable.

Illustration of a laptop connected to a monitor via cable, showing data transfer (no text or symbols)

The Garmin Express software detects your device.

6 Enter an email address for product registration (optional).

7 Click Save Device.

8 Click Check for Updates.

A list of available map and software updates appears.

9 Select the updates to install.

10 Click Install Now.

The Garmin Express software downloads and installs the updates onto your device. Map updates are very large, and this process may take a long time on slower Internet connections.

Purchasing Additional Maps

1 Go to your device product page at (www.garmin.com).

2 Click the Maps tab.

3 Follow the on-screen instructions.

Safety Cameras

NOTICE

Garmin is not responsible for the accuracy of or the consequences of using a custom point of interest or a safety camera database.

Information about safety camera locations and speed limits is available in some areas. Go to www.garmin.com/safetycameras to check availability or to purchase a subscription or one-time update. You can purchase a new region or extend an existing subscription at any time.

You can update safety cameras for an existing safety camera subscription by going to http://my.garmin.com. You should update your device frequently to receive the most up-to-date safety camera information.

For some devices and regions, basic safety camera data may be included with your device. Included data does not include updates or a subscription.

Custom Points of Interest

Custom POIs are customized points on the map. They can contain alerts that let you know if you are near a designated point or if you are traveling faster than a specified speed.

Installing POI Loader

You can create or download custom POI lists on your computer and install them on your device using POI Loader software.

1 Go to www.garmin.com/poiloader.
2 Follow the on-screen instructions.

Using the POI Loader Help Files

For more information on the POI loader, refer to the Help file. With the POI loader open, click Help.

Finding Custom POIs

Before you can find custom POIs, you must load custom POIs on your device using the POI Loader software (Installing POI Loader).

1 Select Where To? > Categories.
2 Scroll to the Other Categories section, and select a category.

Purchasing Accessories

Go to http://buy.garmin.com.

Troubleshooting

My device is not acquiring satellite signals

• Verify the GPS simulator is turned off (Navigation Settings).
  • Take your device out of parking garages and away from tall buildings and trees.
• Remain stationary for several minutes.

The suction cup will not stay on my windshield

1 Clean the suction cup and windshield with rubbing alcohol.
2 Dry with a clean, dry cloth.
3 Mount the suction cup (Connecting the Device to Vehicle Power).

The device does not charge in my vehicle

• Check the fuse in the vehicle power cable (Changing the Fuse in the Vehicle Power Cable).
• Verify the vehicle is turned on and is supplying power to the power outlet.
• Verify the interior temperature of the vehicle is between 32^ and 113^ (between 0^ and 45^ ).
• Verify that the fuse is not broken in the vehicle power outlet.

My battery does not stay charged for very long

• Decrease the screen brightness (Display Settings).
• Shorten the display timeout (Display Settings).
• Decrease the volume (Adjusting the Volume).
• Put the device in sleep mode when not in use (Entering and Exiting Sleep Mode).
• Keep your device away from extreme temperatures.
• Do not leave your device in direct sunlight.

The battery gauge does not seem accurate

1 Allow the device to fully discharge.
2 Fully charge the device without interrupting the charge cycle.

My device does not appear as either a portable device or a removable drive or volume on my computer

1 Disconnect the USB cable from your computer.
2 Turn off the device.
3 Plug the USB cable into a USB port on your computer and into your device.

TIP: Your device should be connected directly to a USB port on your computer and not to a USB hub.

The device automatically turns on and goes into MTP mode or USB mass storage mode. A picture of the device connected to a computer appears on the device screen.

Index

Symbols

2-D map view 5

3-D map view 5

A

accessories 12

addresses, finding 3

alarm 7

alerts

audio 10

proximity points 10

safety cameras 10

traffic 6

audio, proximity points 10

avoidances 5

road features 5

B

battery

charging 1, 2, 12

maximizing 11, 13

problems 13

brightness 1

C

cables, power 11

calculator 8

calibrating fuel economy 6

cameras, safety 12

changing search area 2

charging the device 1, 2, 12

cleaning the device 11

cleaning the touchscreen 11

clock 7

computer, connecting 9, 13

converting

currency, converting 8

units 8

coordinates 3

current location 6

custom POIs 12

customizing 5

customizing the device 10

D

dashboard mount 11

deleting

all user data 9

trips 7

destinations. See locations

detours 4

device care 11

directions 5

display settings 10

driving directions 5

E

ecoChallenge 6

ecoChallenge score 6

resetting 7

ecoRoute 6,7

calibrating fuel economy 6

ecoChallenge score 6,7

mileage report 7

mileage reports 7

vehicle profile 6

EULAs 11

exit services 5

extras, custom points of interest 12

F

files

supported types 9

transferring 9

finding locations. 2 See also locations

addresses 3

browsing the map 3

categories 2

cities 3

coordinates 3

intersections 3

using the map 3

finding services, up ahead 5

fuel, prices 6

fuel economy. 6, 7 See also ecoRoute

fuel price, changing 6

fuse, changing 11

G

Garmin Express 1

registering the device 1

updating software 1, 11

geocaching

going home 3

GPS 2

H

help. 6 See also product support

home

editing location 3

going 3

setting locations 3

-

icons, traffic 8

ID number 11

intersections, finding 3

J

junction view 6

K

keyboard 2

language 10

layout 10

L

language 8

keyboard 10

voice 10

map layers, customizing 5

map perspective 5

map view

2-D 5

3-D 5

maps 4, 10

browsing 3

data layout 5

detail level 10

layers 5

lifetime 1

nüMaps Guarantee 1

nüMaps Lifetime 1

pedestrian 5

purchasing 12

theme 10

traffic conditions 9

updating 1, 11

viewing routes 6

memory card 9

microSD card, installing 9

mileage reports 7

mounting the device

automobile 1

dashboard 11

removing from mount 11

suction cup 1, 11

N

navigation

off-road 5

pedestrian 5

previewing routes 4

settings 10

next turn 6

nüMaps Guarantee 1

nüMaps Lifetime 1

0

off-road navigation 5

on-screen buttons 2

P

parking 3

last spot 3,7

picture viewer 7

deleting pictures 7

POI. 12 See also point of interest (POI)

POI Loader 12

points of interest (POI Loader) 12

points of interest (POI)

custom 12

extras 12

POI Loader 12

power cables 11

changing the fuse 11

vehicle 1

power key 1

product registration 1

product support 6

proximity points alerts, settings 10

Q

Quick Search 2

R

recently found locations 3

registering the device 1

renaming trips 7

reports, mileage 7

resetting

device 1

trip data 6

routes 4

adding a point 4

calculation mode 10

previewing 4

starting 4

stopping 4

viewing on the map 6

S

safety cameras, subscriptions 12

satellite signals 2

viewing 2

saved locations 4, 7

categories 4

deleting 4

editing 4

Saved locations 4

saving, current location 4

screen, brightness 1

screenshots 10

capturing 10

search bar 2

settings 10, 11

shortcuts

adding 2

deleting 2

simulated locations 3

sleep mode 1

software

updating 1, 11

version 11

subscriptions

nüMaps Lifetime 1

traffic 1

suction cup 11

T

theft, avoiding 11

time settings 10

traffic 8, 10

activating a subscription 9

adding subscriptions 9

alerts 6

alternate route 8,9

avoiding 8

data 9

disabling 8

icons 8

incidents 9

lifetime subscriptions 1

searching for delays 8, 9

transportation modes 2

travel history 11

trip computer 6

trip information

resetting 6

viewing 6

trip log, viewing 5

trip planner 7

editing a trip 7

troubleshooting 12, 13

turn list 5

U

unit converter 8

unit ID 11

up ahead, finding services 5

updates

maps 11

software 11

USB, disconnecting 9

user data, deleting 9, 11

V

vehicle power cable 1

vehicle profile 6

volume, adjusting 1

W

wallpaper 7

Where Am I? 4, 6

www.garmin.com/support

[phone] + 32 2 67

0800 770 4960 1-866-429-92

[phone]

[phone]

[phone]

[phone]

[phone] [phone]

[phone]+390236

([phone] 080

[phone]

00800 4412 454

[phone]

([phone] +386 4 2

0861 GARMIN (427 646)

[phone]

[phone]

[phone] +886 2 264.

0808 238 0000

[phone]

[phone]

20 ct./Anruf. a. d.

deutschen Festnetz,
