USER MANUAL CTPesf 3016 Comfort LIEBHERR

Operating instructions

Refrigerator and freezer

EN

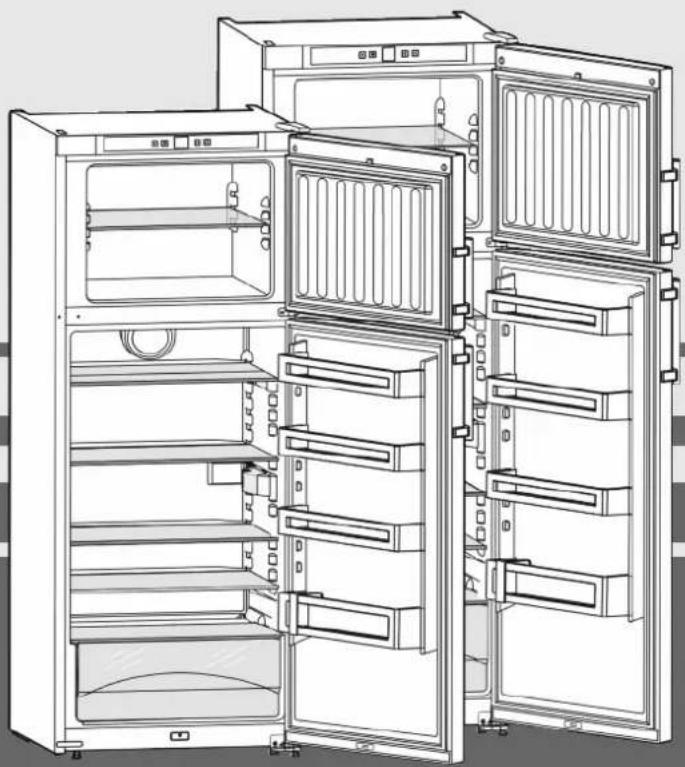

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

20190801

7082864 - 00

CT(P)(esf)(sl)30../33

LIEBHERR

Contents

1 Appliance at a glance.... 2

1.1 Overview of the appliance and equipment.... 2

1.2 Appliance range of use.... 2

1.3 Conformity.... 3

1.4 Product data....3

1.5 External dimensions of the appliance.... 3

1.6 Saving energy....3

2 General safety information.... 3

3 Controls and displays.... 4

3.1 Operating controls....4

3.2 Temperature display.... 4

4 Putting into operation....5

4.1 Transporting the appliance.... 5

4.2 Installing the appliance....5

4.3 Changing over the door hinges.... 6

4.4 Insertion into a row of kitchen units....7

4.5 Disposing of packaging....8

4.6 Connecting the appliance....8

4.7 Switching on the appliance....8

5 Control....8

5.1 Brightness of the temperature display....8

5.2 Child proofing....8

5.3 Refrigerator compartment....9

5.4 Freezer compartment.... 10

6 Maintenance.... 11

6.1 Manual defrosting.... 11

6.2 Cleaning the appliance.... 11

6.3 Replacing the interior illumination with LED lamp..... 12

6.4 Customer service.... 12

7 Malfunctions.... 13

8 Decommissioning.... 14

8.1 Switching off the appliance.... 14

8.2 Taking the appliance out of service.... 14

9 Disposing of the appliance.... 14

The manufacturer works constantly on the further development of all the types and models. Therefore please understand that we have to reserve the right to make design, equipment and technical modifications.

To get to know all the benefits of your new appliance, please read the information contained in these instructions carefully.

The instructions apply to several models. Differences may occur. Text relating only to specific appliances is marked with an asterisk (*).

Instructions for action are marked with a ▶, the results of action are marked with a ▷.

1 Appliance at a glance

1.1 Overview of the appliance and equipment

Note

▶ Place food inside the appliance as shown in the diagram. This allows the appliance to save energy during operation.

▶ Shelves, drawers and baskets are arranged for optimum energy efficiency on delivery.

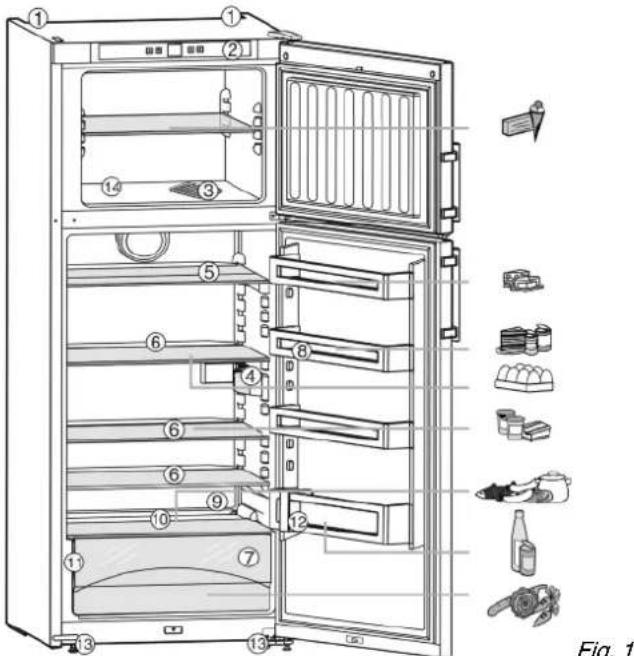

Labeled diagram of a refrigerator interior showing numbered compartments and corresponding food items

(1) Lifting handles (rear)

(2) Operating controls

(3) Ice-cube tray

(4) Interior light

(5) Shelf, separable

(6) Shelf, adjustable

(7) Vegetable bins

(8) Door rack, adjustable

(9) Drain opening

(10) Coldest area

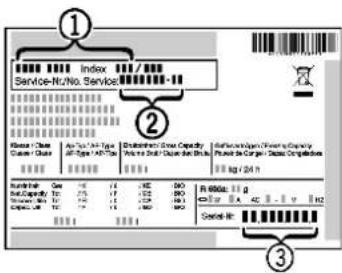

(11) Type plate

(12) Door rack for large bottles

(13) Adjustable feet, front lifting handles, rear rollers for transport

(14) Freezer compartment

1.2 Appliance range of use

Intended use

The appliance is only suitable for cooling food products in a domestic or household-like environment. This includes, for example, use:

• in staff kitchens, bed and breakfast establishments,
• by guests in country houses, hotels, motels and other accommodation,
• for catering and similar services in the wholesale trade.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

- Storing and refrigerating medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Device Directive 2007/47/EC

- Use in areas at risk of explosions

Misusing the appliance may lead to damage to the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is designed to operate in restricted ambient temperatures. The climate classifica-

tion applying to your appliance is printed on the rating plate.

Note

▶ Keep to the specified ambient temperatures in order to guarantee that the appliance works properly.

Climate classification	for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C

1.3 Conformity

The refrigerant circuit has been tested for leaks. This appliance complies with the applicable safety stipulations and with directives 2014/35/EU, 2014/30/EU, 2009/125/EG, 2011/65/EU and 2010/30/EU.

1.4 Product data

Product data is included with the appliance, as per Directive (EU) 2017/1369. The complete product data sheet is available on the Liebherr website under Downloads.

1.5 External dimensions of the appliance

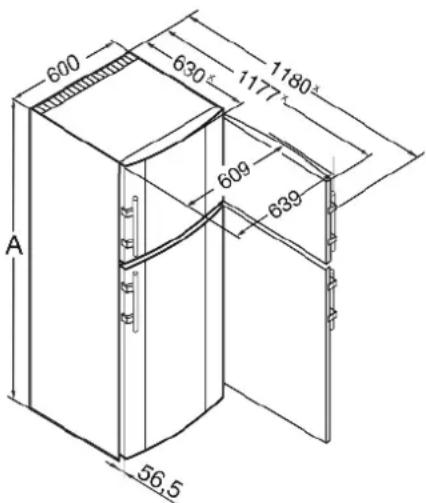

600 630 1177 1180 609 639 A 56.5

Fig. 2

	A (mm)
CTP(esf) 30.. 1611
CTP(esf) 33.. 1761
CT(sl) 33.. 1761

^x For appliances supplied with wall spacers, the measurement increases by 35 mm (see 4.2).

1.6 Saving energy

• Pay attention to good ventilation. Do not cover ventilation holes or grids.

• Always keep the fan air slits clear.

• Do not install the appliance in direct sunlight, next to an oven, radiator or similar.

• Energy consumption is dependent on the installation conditions, e.g. ambient temperature (see 1.2). If the ambient temperature deviates from the standard temperature of 25^ , the energy consumption may differ.
• Open the appliance for as short a time as possible.
• The lower the temperature is set the higher the energy consumption.
• Arrange the food in an organised way (see 1).
• Keep all food properly packed and covered. This prevents frost from forming.
• Only take food out for as long as necessary so that it doesn't warm up too much.
• Inserting warm food: allow to cool down to room temperature first.
• Thaw frozen food in the refrigerator.
• If there is a thick layer of frost in the appliance: defrost the appliance.

Dust deposits increase energy consumption:

- For refrigerators with heat exchangers dust the metal grid on the back of the appliance once a year.

2 General safety information

Danger for the user:

• This device can be used by children and people with impaired physical, sensory or mental abilities or with a lack of experience and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting hazards. Children must not play with this appliance. Cleaning and user maintenance work must not be carried out by children without adult supervision. Children aged between 3 and 8 are allowed to load and unload the appliance. Children below the age of 3 must be kept away from the appliance unless they are under continuous adult supervision.
• When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.
• In the event of a fault pull out the mains plug or deactivate the fuse.
• Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.
• Repairs, interventions on the appliance and the replacement of mains connection line may only be carried out by After-Sales Service or other suitably trained specialist personnel.
• Only assemble, connect and dispose of the appliance according to the instructions.
• Please keep these instructions in a safe place and pass them on to any subsequent owners.

- Special lights, such as LED lights on the appliance, are used to illuminate the interior of the appliance and are not suitable for room lighting.

Fire hazard:

- The coolant used (information on the model plate) is eco-friendly but also flammable. Any leaking coolant may ignite.

• Do not damage the refrigerant circuit pipes.
• Do not use an open flame or other source of ignition inside the appliance.
• Do not use electrical appliances inside the appliance (e.g. steam cleaners, heaters, ice cream makers, etc.).

• If the refrigerant leaks: remove any naked flames or ignition sources from the vicinity of the leakage point. Properly air the room. Inform customer services.

• Do not store explosives or sprays using combustible propellants such as butane, propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

• Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appliance on fire.
• Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.

Danger of tipping and falling:

- Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

- Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

- Avoid lasting skin contact with cold surfaces or refrigerated/frozen food or take protective steps, e.g. wear gloves. Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Danger of injury and damage:

• Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.
• Do not use sharp implements to remove the ice.

Danger of crushing:

- Do not hold the hinge when opening and closing the door. Fingers may get caught.

Symbols on the appliance:

	The symbol can be located on the compressor. It refers to the oil in the compressor and indicates the following danger: Swallowing or inhaling can be fatal. This is only relevant for recycling. There is no danger in normal operation.
	This symbol is found on the compressor and indicates the danger of flammable materials.
	A sticker to this effect may be applied to the rear of the appliance. It refers to the foam-padded panels in the door and/or the housing. This is only relevant for recycling. Do not remove the sticker.

Please observe the specific information in the other sections:

	DANGER	identifies a situation involving direct danger which, if not obviated, may result in death or severe bodily injury.
	WARNING	identifies a dangerous situation which, if not obviated, may result in death or severe bodily injury.
	CAUTION	identifies a dangerous situation which, if not obviated, may result in minor or medium bodily injury.
	NOTICE	identifies a dangerous situation which, if not obviated, may result in damage to property.
	Note	identifies useful information and tips.

3 Controls and displays

3.1 Operating controls

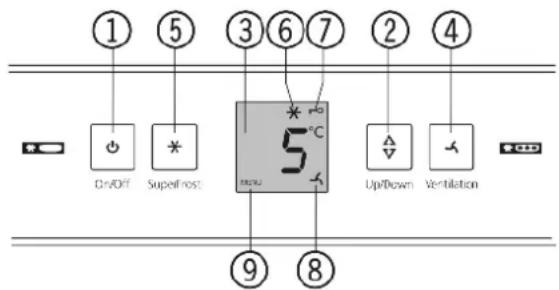

① ⑤ ③ ⑥ ⑦ ② ④ On/Off Superrost 5°C Up/Down Ventilation ⑨ ⑧

Fig. 3

(1) On/Off button
(2) Adjustment button
(3) Temperature display, fridge section
(4) Ventilation button
(5) SuperFrost button

(6) SuperFrost symbol
(7) Child lock symbol
(8) Ventilation symbol
(9) Menu symbol

3.2 Temperature display

During normal operation, the display shows:

- the average cooling temperature

The temperature display flashes if/when:

- You change the temperature setting

The following displays indicate a fault. Possible causes and solutions: (see 7).

- F0 to F9

4 Putting into operation

4.1 Transporting the appliance

CAUTION

Risk of injury and danger of damage as a result of incorrect transport!

▶ Transport the appliance in a packed condition.
▶ Transport the appliance upright.
▶ Do not transport the appliance without assistance.

4.2 Installing the appliance

WARNING

Fire hazard due to dampness!

If live parts or the mains lead become damp this may cause short circuits.

The appliance is designed for use in enclosed areas. Do not operate the appliance outdoors or in areas where it is exposed to splash water or damp conditions.

WARNING

Risk of fire due to short circuit!

If the mains cable/connector of the appliance or of another appliance touch the rear of the appliance, the mains cable/connector may be damaged by the appliance vibrations, leading to a short circuit.

▶ Stand the appliance so that it is not touched by connectors or main cables.
▶ Do not plug the appliance or any others into sockets located near the rear of the appliance.

WARNING

Fire hazard due to refrigerant!

The coolant used is eco-friendly but also flammable. Any leaking coolant may ignite.

▶ Do not damage the piping of the refrigeration circuit.

WARNING

Fire hazard and danger of damage!

▶ Do not place appliances emitting heat e.g. microwaves, toasters etc. on the appliance!

WARNING

Blocked ventilation openings pose a risk of fire and damage!

▶ Always keep the ventilation openings clear. Always ensure that the appliance is properly ventilated!

NOTICE

Risk of damage due to condensate!

▶ Do not install the appliance directly alongside a further refrigerator/freezer.

Note

If you have several appliances next to one another, leave a gap of 100mm between appliances. Otherwise condensation will build up between the units.

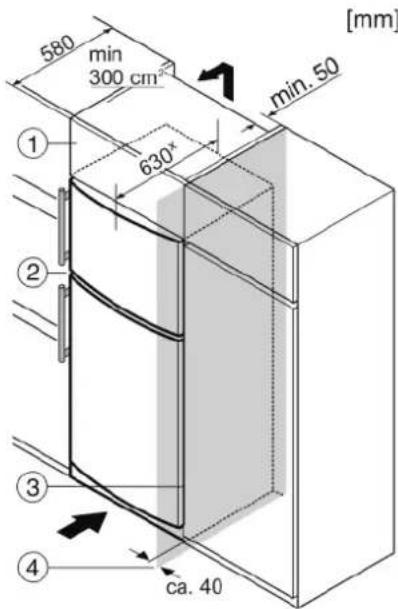

Architectural diagram of a double door with cabinet and doorways, showing dimension 100 (no text or symbols)

Fig. 4

☐ Before you connect the appliance, report any damage immediately to the delivery company.
☐ The floor of the installation site must be horizontal and even.
☐ Do not install the appliance in direct sunlight, next to an oven, radiator or similar.
☐ Install the appliance with the rear panel up against the wall and always use the supplied wall spacers (see below).
☐ Only ever move the appliance when it is empty.
☐ The surface supporting the appliance must be at the same level as the surrounding floor.
☐ Do not install the appliance on your own.
☐ The more coolant there is in the appliance, the larger the room in which the appliance is installed must be. If the room is too small, any leak may create a flammable mixture of gas and air. For each 8 g of coolant the installation space must be at least 1 m ^3 . Information on the coolant is on the model plate inside the appliance.
▶ Detach the connecting cable from the rear of the appliance, removing the cable holder at the same time because otherwise there will be vibratory noise!
▶ Remove the protective film from the outside of the appliance.*

NOTICE

The stainless steel doors are finished with a high quality surface coating and must not be treated with the enclosed care product, ^*

as otherwise the surface coating will be damaged.

▶ Please only use a soft clean cloth to wipe the coated door surfaces.
▶ Only use a stainless steel care product on the stainless steel side walls, applying it evenly in the direction of polishing. Subsequent cleaning will then be easier.
▶ Use only a soft clean cloth to wipe side walls and door surfaces with a paint finish.
▶ Remove the protective film from the decorative trims.
▶ Remove all transit supports.

The spacers supplied with some appliances must be used to achieve the stated energy consumption. These will extend the depth of the appliance by approx. 35 mm. The appliance is fully functional if the spacers are not used, but does have a slightly higher energy consumption.

In the case of an appliance with enclosed wall spacers, mount the wall spacers on the back of the appliance at the top left and right.

Technical line drawing of a mechanical assembly with no visible text or symbols

▶ Dispose of packaging material (see 4.5).

▶ Align the appliance so that it stands firmly and on a level by applying the accompanying spanner to the adjustable-height feet (A) and using a spirit level.

▶ Then support the door: Extend the adjustable foot at the turn hinge (B) until it rests on the floor and then make a further 90° turn.

Pure electrical circuit lines without any symbols

Note

▶ Clean the appliance (see 6.2).

If the appliance is installed in a very damp environment, condensate may form on the outside of the appliance.

▶ Always see to good ventilation at the installation site.

4.3 Changing over the door hinges

You can change over the door hinges if necessary.

Ensure that the following tools are to hand:

Torx® 25
Torx® 15
□ Screwdriver
☐ Cordless screwdriver, if necessary
☐ Second person for fitting work, if needed

▶ Remove any food from the door racks before removing the door, so that no food falls out.

Diagram of a door frame with labeled components and directional arrows indicating movement or assembly.

Fig. 5

▶ Close the upper door.

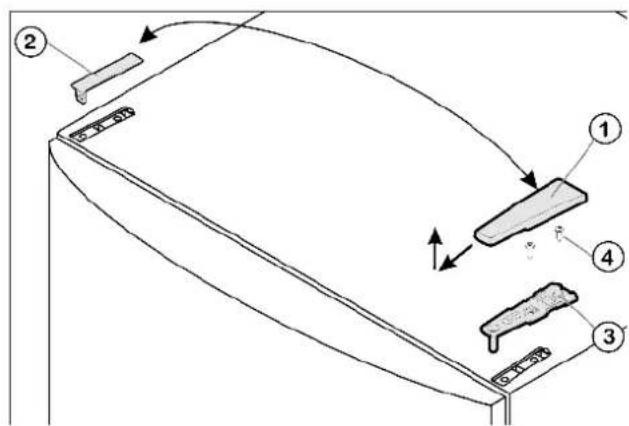

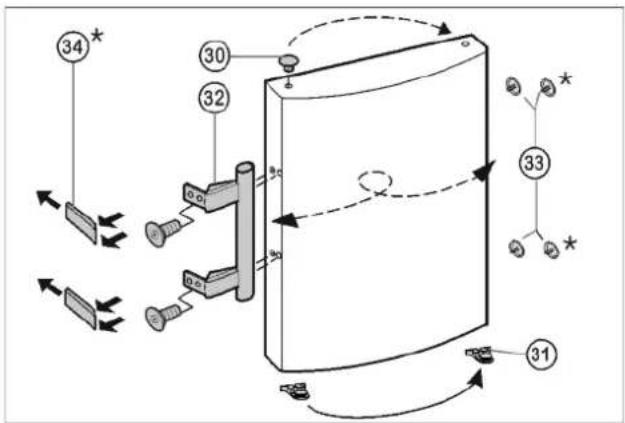

▶ Pull off the cover Fig. 5 (1) forwards and upwards.
▶ Lift off the cover Fig. 5 (2).

CAUTION

Risk of injury if the door tips!

▶ Take good hold of the door. ▶ Set down the door carefully

▶ Unscrew the upper turn hinge Fig. 5 (3) (2x Torx® 25) Fig. 5 (4) and lift it off.

▶ Lift up the upper door and set it aside.

▶ Close the lower door.
▶ Draw the middle bearing pin Fig. 6 (11) out of the turn hinge and lower door.
▶ Remove the plastic cap Fig. 6 (10).

CAUTION

Risk of injury if the door tips!

▶ Take good hold of the door.
▶ Set down the door carefully.

▶ Open the lower door.
▶ Unscrew the middle turn hinge (2x Torx® 25). Fig. 6 (13)
▶ Lift up the door and set it aside.

4.3.3 Transferring the middle bearing elements

Toix® 25

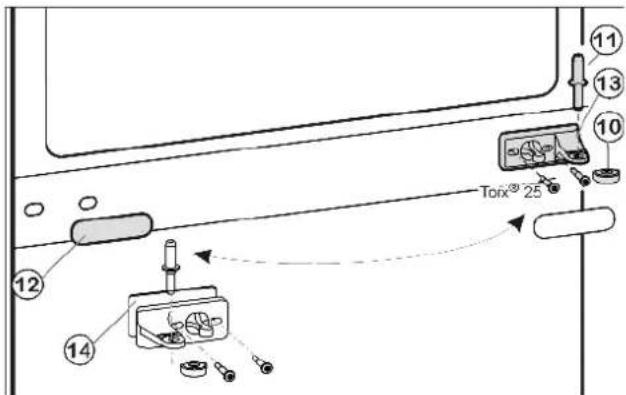

Fig. 6

▶ Carefully detach the cover panel Fig. 6 (12).

▶ Turn the middle turn hinge Fig. 6 (13) with the washer Fig. 6 (14) through 180° and screw it firmly into place on the new hinge side (with 4 Nm).

▶ Turn the cover panel Fig. 6 (12) through 180° and snap it into place again on the new handle side.

4.3.4 Transferring the lower bearing elements

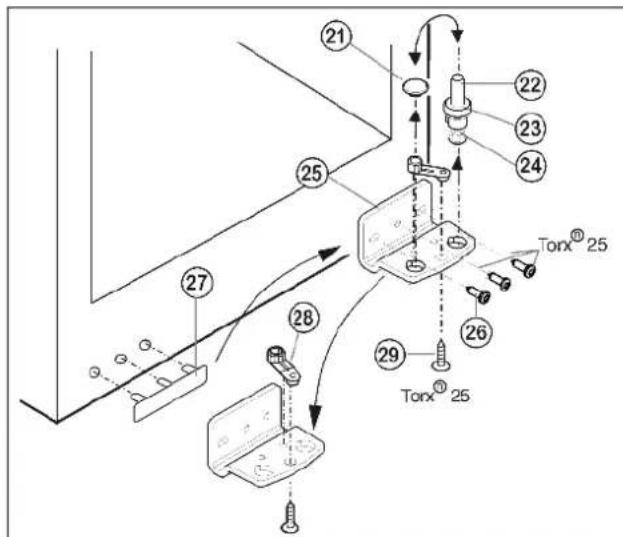

21 22 23 24 25 26 27 28 29 Tonx® 25 Tonx® 25

Fig. 7

▶ Lift out the bearing pin Fig. 7 (22) together with washer Fig. 7 (23) and foot Fig. 7 (24).

▶ Lift off the stopper Fig. 7 (21).

▶ Unscrew Fig. 7 (26) the turn hinge Fig. 7 (25).

▶ Unscrew Fig. 7 (29) the bearing element Fig. 7 (28), transfer it to the opposite location hole of the turn hinge and screw it firmly into place.

▶ Carefully lift off the cover on the handle side Fig. 7 (27) and transfer it to the opposite side.

▶ Screw the turn hinge Fig. 7 (25) firmly into place on the new hinge side, possibly using a cordless screwdriver (with 4 Nm).

▶ Re-insert the stopper Fig. 7(21) into the other hole.

▶ Re-insert the bearing pin Fig. 7 (22) together with washer and foot. In so doing, pay attention that the locating lug points backwards

4.3.5 Transferring the handles

On both the upper and lower door:

▶ Transfer the spring clamp Fig. 8 (31): Depress the latch nose and pull the spring clamp off over it.

▶ Slide the spring clamp into place on the new hinge side until it clicks into place.

Technical diagram of a mechanical assembly with labeled component 31 and directional arrow

Fig. 8

Technical diagram of a mechanical or electrical component with numbered parts and directional arrows indicating motion or assembly.

Fig. 9

▶ Lift the stopper Fig. 9 (30) out of the door bearing bush and transfer it.

▶ Detach door handle Fig. 9 (32), stopper Fig. 9 (33) and pressure plates Fig. 9 (34) and transfer to the opposite side.
▶ When fitting the pressure plates on the opposite side, make sure they snap properly into place*

4.3.6 Fitting the lower door

▶ Place the lower door from above onto the lower bearing pin Fig. 7 (22).
▶ Close the door.
▶ Place the plastic cap Fig. 6 (10) back onto the middle turn hinge Fig. 6 (13).
▶ Place the middle bearing pin Fig. 6 (11) in the lower door, on the new hinge side, through the middle turn hinge Fig. 6 (13).

4.3.7 Fitting the upper door

▶ Place the upper door on the middle bearing pin Fig. 6 (11).
▶ Insert the upper turn hinge Fig. 5 (3) in the door on the new hinge side.
Screw the upper turn hinge firmly into place (with 4 Nm) (2x Torx® 25) Fig. 5 (4). Possibly make preliminary holes with a bradawl or use a cordless screwdriver.
▶ Apply the cover Fig. 5 (1) and cover Fig. 5 (2) to the opposite side from the outside and snap them into place.

4.3.8 Aligning the doors

▶ If necessary, align the doors to the appliance housing by way of the two oblong holes in the bottom turn hinge Fig. 7 (25) and middle turn hinge Fig. 6 (13). To do so, unscrew the middle screw in the bottom turn hinge Fig. 7 (25).

WARNING

Risk of injury due to the door dropping out! If the bearing parts are not screwed into place firmly enough, the door may drop out. This may lead to severe injuries. What is more, the door may not close and therefore the appliance may fail to cool properly.

▶ Screw the turn hinges firmly into place with 4 Nm.
▶ Check all of the screws and retighten if necessary.

4.4 Insertion into a row of kitchen units

580 min 300 cm² 630° min. 50 [mm] ① ② ③ ④ ca. 40

(1) Stack cabinet
(2) Appliance
Fig. 10
(3) Kitchen cabinet
(4) Wall

^x For appliances supplied with wall spacers, the measurement increases by 35 mm (see 4.2).

The appliance can be built into kitchen units. A top cupboard Fig. 10 (2) can be added above the appliance in order to bring the appliance Fig. 10 (1) up to the height of the fitted kitchen units.

When installing with kitchen units (max. depth 580 mm), the appliance can be positioned directly next to the kitchen cabinet Fig. 10 (3). The appliance will project by 34 mm ^x at the sides and 50 mm ^x in the centre of the appliance in relation to the kitchen cabinet front.

NOTICE

Danger of overheating due to insufficient air ventilation!

The compressor may be damaged if there is insufficient air ventilation.

▶ Take care to ensure adequate air ventilation.

▶ Observe the ventilation requirements.

Ventilation requirements:

- At the back of the stack cabinet there has to be a ventilation duct of at least 50 mm depth throughout the width of the stack cabinet.

- The cross section of the ventilation gap below the ceiling must be at least 300 cm^2 .

- the larger the ventilation space, the more energy-saving the appliance is in operation.

If the appliance is installed with the hinges next to a wall Fig. 10 (4), the distance between appliance and wall has to be at least 40 mm. This corresponds to the projection of the handle when the door is open.

4.5 Disposing of packaging

WARNING

Danger of suffocation due to packing material and plastic film!

▶ Do not allow children to play with packing material.

The packaging is made of recyclable materials:

- corrugated board/cardboard

- expanded polystyrene parts

- polythene bags and sheets

- polypropylene straps

- nailed wooden frame with polyethylene panel*

▶ Take the packaging material to an official collecting point.

4.6 Connecting the appliance

NOTICE

Failure to connect properly

Damage to the electronics.

▶ Do not use a standalone inverter.

▶ Do not use an energy saving plug.

WARNING

Failure to connect properly

Fire hazard.

▶ Do not use an extension cable.

▶ Do not use distributor blocks.

The type of current (alternating current) and voltage at the installation site have to conform with the data on the type plate (see 1).

The socket must be properly earthed and fused. The tripping current for the fuse must be between 10 A and 16 A.

The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.

▶ Check the electrical connection.

▶ Plug in the power plug.

4.7 Switching on the appliance

Note

▶ When the fridge section is switched on, the freezer section switches on automatically as well.

The appliance should have been operating for about 4 hours before you stock it with frozen food. Only place frozen goods in the freeze compartment once it is cold.

▶ Press the On/Off button Fig. 3 (1).
The temperature display lights up. The fridge and freezer sections are switched on.
▷ If "DEMO" is displayed, demo mode is activated. Please contact the after sales service.

5 Control

5.1 Brightness of the temperature display

You can adjust the brightness of the temperature display to the light conditions of the room in which the appliance is installed.

The function works with the door closed and is not relevant for appliances with a concealed screen.

5.1.1 Setting the brightness

The brightness is adjustable between h 0 (minimum brightness) and h 5 (maximum brightness).

▶ Activate setting mode by pressing the SuperFrost button, Fig. 3 (5), for approx. 5 sec.
The Menu symbol is shown on the display, Fig. 3 (9).
▷ c flashes on the display.
▶ Use the adjustment button, Fig. 3 (2), to select h.
▶ Briefly confirm with the SuperFrost button, Fig. 3 (5).
The display shows the last set brightness value.

▶ Use the adjustment button, Fig. 3 (2), to set the desired value from h 0 to h 5.
▶ Briefly confirm the newly set brightness value with the SuperFrost button Fig. 3 (5).
▷ h flashes on the display.
▷ The brightness is set.
▶ After making the change, deactivate setting mode: Press the On/Off button Fig. 3 (1) once.
The temperature display shows the temperature again.

If setting mode is already activated but you would like to keep the old brightness value setting:

▶ Press the On/Off button Fig. 3 (1) twice to deactivate setting mode.
The temperature display shows the temperature again.

5.2 Child proofing

The child-proofing function enables you to make sure that the appliance is not inadvertently switched off by playing children.

5.2.1 Setting the child lock

To switch on the function:

▶ Activate setting mode: press the SuperFrost button Fig. 3 (5) for approx. 5 seconds.
The Menu symbol Fig. 3 (9) is shown on the display.
▷ c flashes on the display.
▶ Briefly confirm with the SuperFrost button, Fig. 3 (5).
▷ cl appears in the display.
▶ Briefly confirm with the SuperFrost button, Fig. 3 (5).
▷ The child lock symbol Fig. 3 (7), lights up on the display.
▷ c flashes on the display.

The child lock function is switched on. If setting mode is to be terminated:

▶ Briefly press the On/Off button Fig. 3 (1).

-or-

▶ Wait for 5 minutes.

The temperature display shows the temperature again.

To switch off the function:

▶ Activate setting mode: press the SuperFrost button Fig. 3 (5) for approx. 5 seconds.
▷ The Menu symbol Fig. 3 (9) is shown on the display.
▷ c flashes on the display.
▶ Briefly confirm with the SuperFrost button, Fig. 3 (5).
▷ c0 appears in the display.
▶ Briefly confirm with the SuperFrost button, Fig. 3 (5).
▷ The child lock symbol Fig. 3 (7) goes out.
▷ c flashes on the display.
The child lock function is switched off. If setting mode is to be terminated:
▶ Briefly press the On/Off button Fig. 3 (1).

-or-

▶ Wait for 5 minutes.

The temperature display shows the temperature again.

5.3 Refrigerator compartment

The natural circulation of air in the refrigerator compartment results in zones differing in temperature. It is coldest directly above the vegetable drawers and at the rear wall. It is warmest at the top front of the compartment and in the door.

5.3.1 Food refrigeration

Note

The energy consumption increases and the cooling performance decreases if the ventilation is inadequate.

▶ Always keep the air slits of the fan free.

▶ Store perishable food such as ready-to-serve dishes, meat products and sausages in the coldest zone. Place butter and preserves in the upper area and in the door (see 1).
▶ Use recyclable plastic, metal, aluminium and glass containers and cling film for wrapping.
▶ Always store raw meat and fish in clean, sealed containers on the bottom shelf of the refrigerator, to prevent them coming into contact with or dripping onto other foods.
▶ Always store liquids and food which is subject to odour or taste transfer in closed containers or cover them.
▶ Use the front area of the refrigerator compartment floor only for briefly putting down cooled products, e.g. when rearranging and sorting. However do not leave cooled products there otherwise they may be pushed back or tipped over when the door is closed.
▶ Do not store food too close together to enable good air circulation.

5.3.2 Setting the temperature

The temperature depends on the following factors:

• the frequency of opening the door
• how long the door is open for
• the room temperature of the installation location
• the type, temperature and quantity of the food

Recommended temperature setting: 5 °C

An average temperature of approx. -18 °C is then established in the freezer compartment.

The temperature is changed sequentially. Once the 2 °C setting is reached, the sequence starts again at 9 °C.

▶ Call up temperature function: press the setting button Fig. 3 (2).

The previously-set value will flash in the temperature display.

▶ Change the temperature in 1 °C steps: Press the setting button Fig. 3 (2) until the required temperature is indicated in the temperature display.

▶ Change temperature continually: hold down setting button.

During adjustment the value flashes on the display.

The new setting is adopted approx. 5 seconds after the last time the button was pressed and the set temperature is again displayed. The temperature in the interior gradually adjusts to the new value.

5.3.3 Fan

With the fan you can rapidly cool large quantities of fresh food or achieve a relatively even distribution of temperature across all the storage levels.

The forced-air cooling is to be recommended:

• at high room temperature (above33 °C)
• at high humidity

The forced-air cooling uses slightly more energy. To save energy, the fan switches off automatically when the door is open.

The fan may also run even when the fan function is switched off. This is expected behaviour and entirely normal when room temperature is below 18 °C and the SuperFrost function is switched on.

▷ The fan symbol Fig. 3 (8) shines.
The fan is active. In some appliances, the fan is only activated when the compressor is running.

▶ Briefly press the fan button Fig. 3 (4).
▷ The fan symbol Fig. 3 (8) goes out.
▷ The fan is switched off.

5.3.4 Shelves

Moving or removing shelves

The shelves are prevented from being pulled out accidentally by pull out stops.

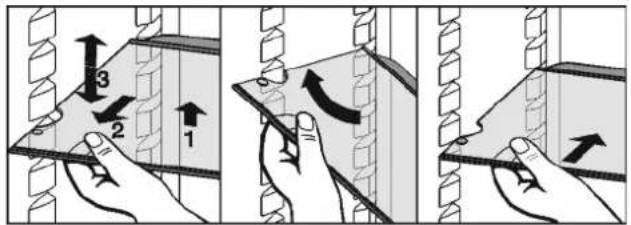

Diagram illustrating three steps of fabric cutting or fastening process with numbered arrows indicating movement direction

Fig. 12

▶ Lift the shelf and pull forward a little.
▶ Adjust the height of the shelf. To do this move the slots along the supports.
▶ In order to remove the shelf fully, place it at a slant and pull out towards the front.
▶ Insert shelf with the raised edge pointing upwards at the back.
▷ The food does not freeze onto the rear wall.

Dismantling shelves

▶ The shelves can be dismantled for cleaning.

Pure diagram of a tilted rectangular object with directional arrows indicating flow or movement (no text or symbols)

5.3.5 Using the sectioned shelf

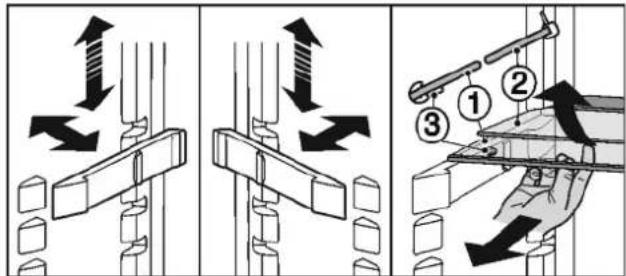

Diagram illustrating three mechanical or electrical assembly steps with directional arrows and numbered components

Fig. 13

Adjusting the height:

▶ Pull the glass plates out forwards one by one.

▶ Remove the support from the catch mechanism and click into place at the required height.

Using both shelves:

▶ Lift the top glass plate and pull the bottom glass plate forwards.

The glass plate (1) with the pull out stops must be at the front so that the stops (3) point downward.

5.3.6 Door racks

Moving the storage rack

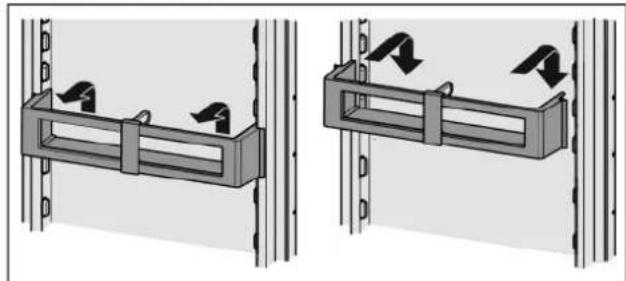

Two mechanical assembly diagrams showing bracket and mounting details with directional arrows (no text or symbols)

Fig. 14

Dismantling door racks

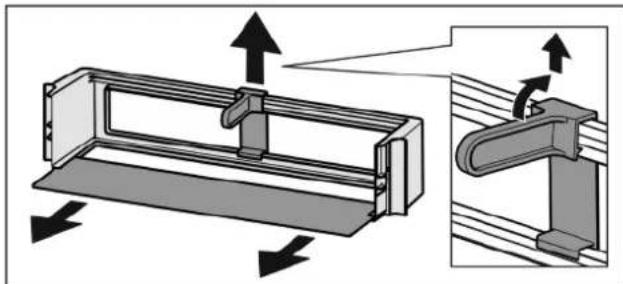

Technical diagram of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Fig. 15
▶ The door racks can be dismantled for cleaning.

5.4 Freezer compartment

You can store frozen food, make ice cubes and freeze fresh food in the freezer compartment.

5.4.1 Freezing food

The rating plate indicates the maximum quantity of fresh food you can freeze within 24 hours (see 1) under "Freezing capacity ... kg/24h".

A vacuum is generated after the door is closed. After closing the door, wait for about 1 minute and then it opens more easily.

CAUTION

Risk of injury due to broken glass! Bottles and cans containing drinks may burst when being frozen. This applies particularly to sparkling drinks. ▶ Do not freeze bottles and cans containing drinks!

So that the food is rapidly frozen through to the core, do not exceed the following quantities per pack

• Fruit, vegetables up to 1 kg
• Meat up to 2.5 kg
  Pack the food in portions in freezer bags, reusable plastic, metal or aluminium containers

5.4.2 Storage life

Standard values for the storage life of various types of food in the freezer compartment:
Ice-cream 2 to 6 months
Sausage, ham	2 to 6 months
Bread, bakery products	2 to 6 months
Game, pork	6 to 10 months
Fatty fish	2 to 6 months
Lean fish	6 to 12 months
Cheese	2 to 6 months
Poultry, beef	6 to 12 months
Vegetables, fruit	6 to 12 months

The values indicated for storage life are standard ones.

5.4.3 Thawing food

• in the refrigerator compartment
• in a microwave oven
• in a conventional or fan oven
• at room temperature
  ▶ Remove only as much food as is required. Use thawed food as quickly as possible.

▶ Food once thawed should be re-frozen only in exceptional cases.

5.4.4 SuperFrost

With this function you can freeze fresh food quick through to the core. The appliance operates with maximum refrigeration. The noise of the refrigeration unit may be temporarily louder as a result.

In addition, frozen food already in storage is given a “cold reserve”. The food stays frozen longer as a result when you defrost the appliance.

You can freeze as many kilograms of fresh food within 24 hrs as is indicated on the type plate under "Freezing capacity ... kg/24hrs". This maximum freezing quantity can vary depending on model and climate class.

You have to activate SuperFrost in good time, depending on how much fresh food is to be frozen: about 6 hours before placing the food inside in case of small amounts and about 24 hours in advance in case of the maximum amount of food to be frozen.

Wrap produce and spread it out as far as possible. Do not allow produce to be frozen to touch produce that is already frozen to prevent the latter thawing.

You do not have to activate SuperFrost in the following cases:

- when placing frozen food in the freezer

- when freezing up to approx. 2 kg fresh food daily

Freezing with SuperFrost

▶ Briefly press the SuperFrost button Fig. 3 (5).

Fig. 16

The SuperFrost symbol Fig. 3 (6) shines.
The freezer temperature drops, the appliance operates with the maximum refrigerating capacity.

Note

▶ Pressing the SuperFrost button can cause the compressor to switch on up to 8 minutes later, thanks to the integrated switch-on delay. This delay increases the service life of the compressor.

In case of a small amount of food to be frozen:

▶ wait approx. 6 h.
In case of the maximum amount of food to be frozen (see type plate):
▶ wait about 24 h.
▶ Place produce in the freezer compartment so that it touches the base or sides.
▷ SuperFrost is automatically deactivated after about 65 h.
TheSuperFrost button Fig. 3 (6) extinguishes once freezing is completed.
The temperature range set for the normal mode shines in the temperature display.
The appliance continues to operate in the energy-saving, normal mode.

To save energy SuperFrost can switch switched off, even before the full 65 hours of freezing time has elapsed, by pressing the SuperFrost button Fig. 3 (5) again. Only switch off SuperFrost once the temperature is -18 °C or colder.

5.4.5 Shelves

Moving shelves

▶ To remove the shelf: lift up at the front and pull out.
▶ To put the shelf back: simply push in as far as it will go.

1 2

6 Maintenance

6.1 Manual defrosting

Fridge compartment:

The refrigerator compartment is defrosted automatically. The defrost water evaporates as a result of the heat of the compressor. Drops of water on the rear wall are perfectly normal.

▶ Regularly clean the drain opening to allow the water to flow away (see 6.2).

Freezer compartment:

A layer of frost or ice can build up in the freezer compartment after a long period of operation.

The layer of frost or ice builds up faster if the appliance is opened often or if the food is warm when placed inside. However, a thick layer of ice will increase the appliance's energy consumption. You should therefore defrost the appliance regularly.

Thawing process:

WARNING

Danger of injury and damage

▶ Do not use any mechanical aids or other means not recommended by the manufacturer in order to accelerate the defrosting process.
▶ Do not use electrical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.
▶ Do not use sharp implements to remove the ice.
▶ Do not damage the pipework in the refrigerant circuit.

▶ Switch on SuperFrost one day before defrosting.
The frozen goods are provided with a "cold reserve".
▶ Switch off the appliance.
▷ The temperature display goes out.
▷ If the temperature display does not go out, the child lock function (see 5.2) is active.
▶ Pull out the power plug or switch off the fuse.
▶ Place a pan with hot, not boiling water on a middle shelf.

▷ Defrosting is speeded up.
▶ Leave the door of the appliance open while defrosting.
▶ Remove detached pieces of ice.
▶ If necessary, pick up defrost water several times, using a sponge or cloth.
▶ Clean the appliance (see 6.2).

6.2 Cleaning the appliance

Clean the appliance regularly.

WARNING

Risk of injury and damage as a result of hot steam!

Hot steam can lead to burns and can damage the surfaces.

▶ Do not use any steam cleaners!

NOTICE

Incorrect cleaning damages the appliance!

▶ Do not use cleaning agents in concentrated form.
▶ Do not use any scouring or abrasive sponges or steel wool.
▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

▶ Do not use chemical solvents.

▶ Do not damage or remove the type plate on the inside of the appliance. It is important for the customer service.

▶ Do not pull off, bend or damage cables or other components.

▶ Do not allow any cleaning water to enter the drain channel, ventilation grille or electrical parts.

▶ Please use soft cleaning cloths and a universal pH-neutral cleaning agent.

▶ Please use cleaning and care products suitable for contact with foodstuffs in the appliance interior.

▶ Empty appliance.

▶ Pull out the power plug.

▶ Remove the dust from the ventilation grid in the compressor recess on the back of the appliance twice year.

▷ Dust deposits increase energy consumption.

▶ Clean plastic outer and inner surfaces with lukewarm water and a little washing-up liquid.

▶ Only use a soft clean cloth to wipe side walls with a paint finish. In the case of heavy soiling, use lukewarm water with neutral cleaning agent.

▶ Use only a soft clean cloth to wipe door surfaces with a paint finish. In the case of heavy soiling, use a little water or neutral cleaning agent. A micro-fibre cloth can be used optionally.*

Do not apply stainless steel cleaning agent to glass or plastic surfaces to prevent them from being scratched. Darker areas at the beginning and quite an intensive colour of the stainless steel surface are normal.*

NOTICE

The stainless steel doors are treated with a high quality surface coating and must not be treated with stainless steel care products.*

as otherwise the surface coating will be damaged.

▶ Coated door surfaces, painted side walls and painted door surfaces must only be wiped with a soft, clean cloth. If they are very dirty, use a little water or a neutral cleaner. A microfibre cloth may also be used. If they are dirty, clean

▶ stainless steel side walls with an off-the-shelf stainless steel cleaner. Then apply the stainless steel cleaning agent evenly in the direction of the grain.

Do not treat the lettering on the painted door surfaces with harsh, abrasive agents. Wipe off any dirt with a soft cloth and some water or neutral cleaner.*

▶ Clean drain hole: Remove deposits with a narrow instrument, e.g. a cotton bud.

▶ Most of the parts can be dismantled for cleaning: see the relevant chapter.

▶ Clean drawers by hand with lukewarm water and a little washing up liquid.
▶ Clean other items of equipment by hand with lukewarm water and a little washing-up liquid.

After cleaning:

▶ Wipe dry the appliance and items of equipment.

▶ Connect the appliance and switch it on again.

▶ Switch on SuperFrost (see 5.4.4). When the temperature is sufficiently cold:

▶ Put the food back inside.

6.3 Replacing the interior illumination with LED lamp

In the device, an LED lamp is used as standard illumination for the interior space.

When an incandescent bulb is used:

☐ Use an incandescent lamp with max. 15 W and E14 socket.
☐ Power supply (AC) and voltage at the operating point must comply with the details on the rating plate (see 1).

When a LED is used:

☐ Use only the original LED lamp from the manufacturer. The lamp can be obtained through customer service or a specialist dealer (see 6.4).

WARNING

Risk of injury from LED light!

The light intensity of the LED lighting corresponds to risk group RG 2.

If the cover is removed:

▶ Do not look directly into the light at close quarters through optical lenses. Doing so may damage your eyes.

WARNING

Fire hazard from the LED light!

If different LED lights are used, there is a danger of overheating or fire.

▶ Use the manufacturer's original LED light.

▶ Switch off the appliance.

▶ Pull out the mains plug or switch off/unscrew the fuse.

▶ Take hold of the lamp cover at the top and bottom Fig. 17(1).

▶ Disengage the lamp cover at the back and detach it Fig. 17(2).

▶ Replace the lamp Fig. 17 (3).

▶ Clip the back end of the cover in and clip the sides into place.

Technical diagram showing mechanical assembly with labeled components and directional arrows

Fig. 17

6.4 Customer service

First check whether you can correct the fault yourself by reference to the list (see 7). If this is not the case, please contact the customer service whose address is given in the enclosed customer service list.

WARNING

Risk of injury if repair work is not carried out professionally!

▶ Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see 6)

▶ Read the appliance designation Fig. 18 (1), service No. Fig. 18 (2) and serial No. Fig. 18 (3) off the type plate located inside the appliance on the left-hand side.

Index Service-Rc/No. Service Name: China Customer: China An Type: A/C Type All Order: A/B/All Order Description: Group Capillary Please use the Label or Name to be a Cancer, Cancer, Cancer, Cancer Ref: 01-02 (A) 42 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Number: 16 Count: 13 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: 10 Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: Not Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contact: No Applicable Contract No Applicable

Fig. 18

▶ Notify the customer service, specifying the fault, appliance designation Fig. 18 (1), service No. Fig. 18 (2) and serial No. Fig. 18 (3).
This will help us to provide you with a faster and more accurate service.
▶ Keep the appliance closed until the customer service arrives.
▷ The food will stay cool longer.
▶ Pull out the mains plug (not by pulling the connecting cable) or switch off the fuse.

7 Malfunctions

Your appliance is designed and manufactured for a long life span and reliable operation. If a malfunction nonetheless occurs during operation, check whether it is due to a handling error. In this case you will have to be charged for the costs incurred, even during the warranty period. You may be able to rectify the following faults yourself:

Appliance does not work.

→ The appliance is not switched on.
▶ Switch on the appliance.
→ The power plug is not properly inserted in the wall socket.
▶ Check power plug.
→ The fuse of the wall socket is not in order.
▶ Check fuse.

The compressor runs for a long time.

→ The compressor switches to a low speed when little cold is needed. Although the running time is increased as a result, energy is saved.
This is normal in energy-saving models.
→ SuperFrost is activated.
The compressor runs for longer in order to rapidly cool the food. This is normal.

A LED on the bottom rear of the appliance (at the compressor) flashes regularly every 15 seconds\*.

→ The inverter is equipped with a diagnostic LED.

The flashing is normal.

Excessive noise.

→ Due to the various speed steps, speed-regulated* compressors can generate different running noises.
The sound is normal.

A bubbling and gurgling noise.

→ This noise comes from the refrigerant flowing in the refrigeration circuit.
The sound is normal.

A quiet clicking noise.

→ The noise is produced whenever the refrigeration unit (motor) automatically switches on or off.
The sound is normal.

A hum. It is briefly a little louder when the refrigeration unit (the motor) switches on.

→ The refrigeration increases automatically when the SuperFrost, function is activated, fresh food has just been placed in the appliance or the door has been left open for a while.

The sound is normal.
→ The ambient temperature is too high.
▶ Solution: (see 1.2)

A low hum.

→ The sound is produced by air flow noise of the fan.

The sound is normal.

Vibration noises

→ The appliance is not standing firmly on the floor. As a result objects and adjacent units start to vibrate when the refrigerator is running.
▶ Align the appliance using the adjustable feet.
▶ Keep bottles and jars apart.

The temperature display indicates: F0 to F9

→ There is a fault.
▶ Please contact the after-sales service (see 6).

DEMO shines in the temperature display.

→ The demo mode is activated.
▶ Please contact the after-sales service (see 6).

The outer surfaces of the appliance are warm\*.

→ The heat of the refrigeration circuit is used to prevent condensate from forming.
This is normal.

The temperature is not cold enough.

→ The door of the appliance is not properly closed.
▶ Close the door of the appliance.
→ Insufficient ventilation.
▶ Keep ventilation grille clear, and clean it.
→ The ambient temperature is too high.
▶ Solution: (see 1.2).
→ The appliance was opened too frequently or for too long.
▶ Wait to see whether the appliance reaches the required temperature by itself. If not, please contact the after sales service (see 6).
→ Too much fresh food was placed inside without SuperFrost.
▶ Solution: (see 5.4.4)
→ The temperature is incorrectly set.
▶ Set the temperature to a colder setting and check after 24 hours.
→ The appliance is too close to a source of heat (stove, heater etc).
▶ Change the position of the appliance or the source of heat.

The internal light does not come on.

→ The appliance is not switched on.
▶ Switch the appliance on.
→ The door was open for longer than 15 minutes.
The internal light switches itself off automatically after about 15 minutes if the door is open.
→ If the inside light does not come on but the temperature display is lit up, the lamp (if model comes with an LED lamp) needs replacing.

WARNING

Risk of injury from LED light!

The light intensity of the LED lighting corresponds to risk group RG 2.

If the cover is removed:

▶ Do not look directly into the light at close quarters through optical lenses. Doing so may damage your eyes.

▶ Change the lamp (see 6).

8 Decommissioning

8.1 Switching off the appliance

Note

▶ To switch off the entire appliance you only need to switch off the fridge section. The freezer section is switched off as well automatically.
▶ Press the On/Off button Fig. 3 (1), for approx. 2 sec.
▷ The temperature display goes dark. The appliance is switched off.
▷ The interior lighting goes out.

8.2 Taking the appliance out of service

▶ Empty the appliance.
▶ Switch off the appliance (see 8).
▶ Remove mains connector.
▶ Clean the appliance (see 6.2).

▶ Leave the door open to prevent odour.

9 Disposing of the appliance

The appliance contains some reusable materials and should be disposed of properly - not simply with unsorted household refuse. Appliances which are no longer needed must be disposed of in a professional and appropriate way, in accordance with the current local regulations and laws.

When disposing of the appliance, ensure that the refrigeration circuit is not damaged to prevent uncontrolled escape of the refrigerant it contains (data on type plate) and oil.

▶ Disable the appliance.
▶ Pull out the plug.
▶ Cut through the connecting cable.

EN
