Creative Pen Tablet HS64

Precautions

1. Please read this manual carefully before using, and keep it well for future reference.
2. Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.
3. Don't expose this product to water or other liquids. Take care to never spill liquids onto the tablet and pen. Exposing this product to water or other liquids may cause product malfunction or electrical shock.
4. Do not place the tablet on where is unstable or a height for children reaching easily in order to avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side switch, or other movable parts may accidentally be pulled out if children are biting on them.
5. Power off your tablet in locations where/when electronic devices is not allowed. Because the tablet may cause other electronic devices to malfunction in some locations where/when the use of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
6. Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or pen. Such action may cause heat generation, ignition, electronic shock, or other damage, including human injury. Disassembling the product will void your warranty.
7. While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks or other dangers.
8. Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock.

Contents

1. Product Overview .... 3

1.1 Tablet Introduction ...... 3
1.2 Product and Accessories 3
1.3 Connecting to Computer.... 4
1.4 Connecting to Android Phone.... 5
1.5 Driver Installation.... 5
1.6 Pen Nib Replacement.... 6

2. Product Basic Operation....7

2.1 Using The Pen 7

3. Function Setting....9

3.1 Device Connection Prompt 9
3.2 Working Area Setting 9
3.3 Press Keys Function Setting 11
3.4 Pen Buttons Function Setting.... 11
3.5 Pressure Sensitivity Setting.... 12
3.6 Pen Pressure Testing 12
3.7 Enable the Windows Ink feature.... 13
3.8 Data Export and Import 13

4. Specifications 14

5. Trouble Shooting....15

5.1 Possible Breakdowns Related to TABLET.... 15
5.2 Possible Breakdowns Related to SYSTEM 15

1. Product Overview

1.1 Tablet Introduction

Thanks for choosing HUION® HS64 creative pen tablet. This is a new generation of professional battery-free drawing tablet, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience.

To give you a better understanding and using of your tablet, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Macintosh systems.

1.2 Product and Accessories

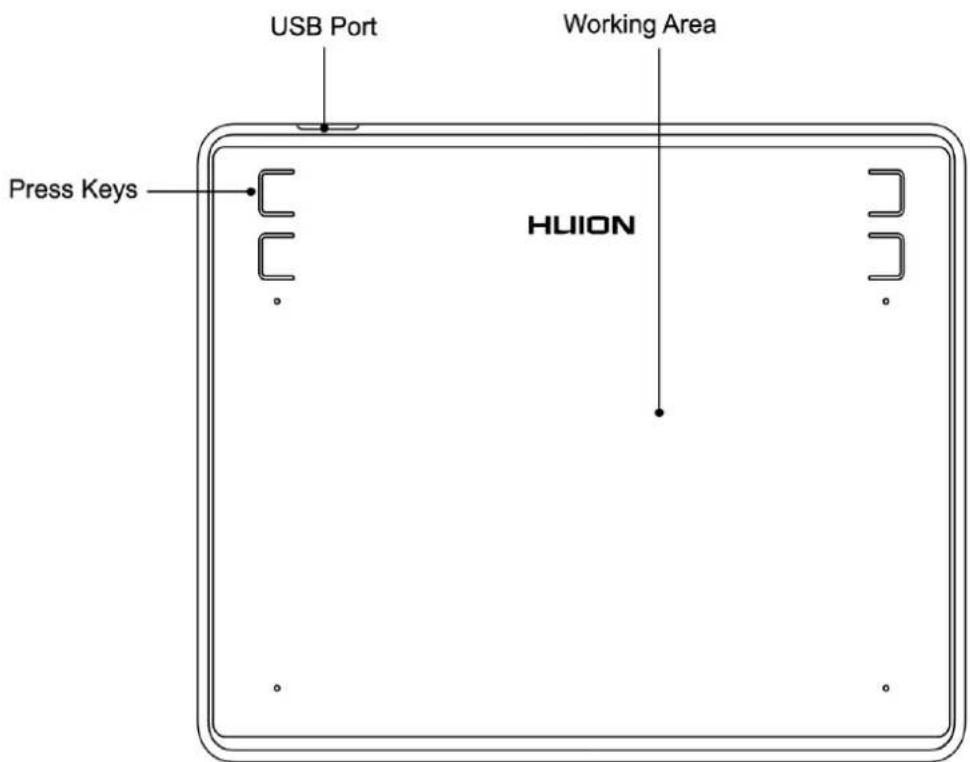

1.2.1 Graphics Tablet

USB Port Working Area Press Keys HLION

1.2.2 Packing List

Pen Tablet

Battery-free Pen

Micro USB Cable

OTG Adapter (Micro-USB)

Pen Nib Clip

Replacement Nibs

Quick Start Guide

OTG Adapter (USB-C)

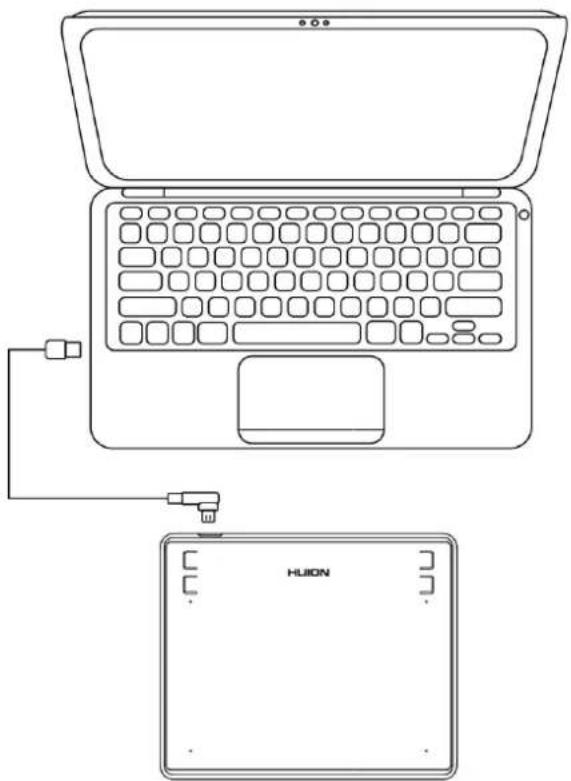

1.3 Connecting to Computer

1. Connect the tablet to your computer with USB cable.

Line drawing of a laptop and a Huawei HUAON device connected via cable (no text or symbols on the devices themselves)

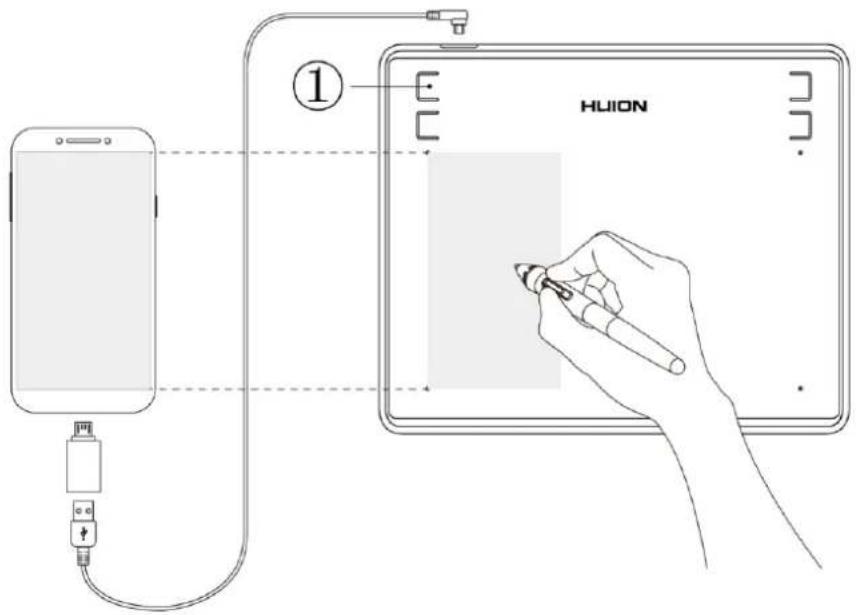

1.4 Connecting to Android Phone

1. Please make sure your phone & pad OS is as following: Android OS 6.0 or later
2. For some models, you need to go phone or pad "Settings" then enable "OTG" function.
3. Choose the right OTG Adapter from package, which depends on USB port type of your phone, then connect pen tablet to your phone following the illustrations below:

① HUION

Notes:

1. The pen tablet can works without installing any driver into your phone.
2. Once connected, the tablet will automatically enter phone mode, in which the pen can only work in the left gray area(102x63.75mm).
3. If not recognized the tablet to phone mode, please press the button ① for 3 seconds to enter phone mode.
4. Please note that the press keys of pen tablet and digital pen are not supported in phone mode.

1.5 Driver Installation

1.5.1 OS Support

Windows 7 or later, macOS 10.12 or later

1.5.2 Install Driver

Please download the driver from our website: www.huion.com/download

After finishing installation, you can find the driver icon 📋 in the system tray area, which means the driver was installed successfully; when you connect the tablet to computer, the icon will change to color 🔒, which means the driver has already recognized the tablet and you can start using it now.

Notice:

1. Before installing, you need to uninstall other driver of similar products, including the old driver of this product.
2. Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistake.

1.6 Pen Nib Replacement

The nib will be wear off after using for a long time, then you need to replace a new nib.

1. Use the pen nib clip to pull the old nib straight out of the pen.
2. Insert a new pen nib into the stylus pen and push the nib until it stops.

Line drawing of two hands holding a pen, no text or symbols present

①

Line drawing of two hands holding a pen, no text or symbols present

②

Line drawing of a hand holding a pen, with no visible text or symbols

③

2. Product Basic Operation

2.1 Using The Pen

2.1.1 Hold the pen

Hold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.

Line drawing of a hand holding a pen, writing on paper (no text or symbols present)

Notice: When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter the sleep mode.

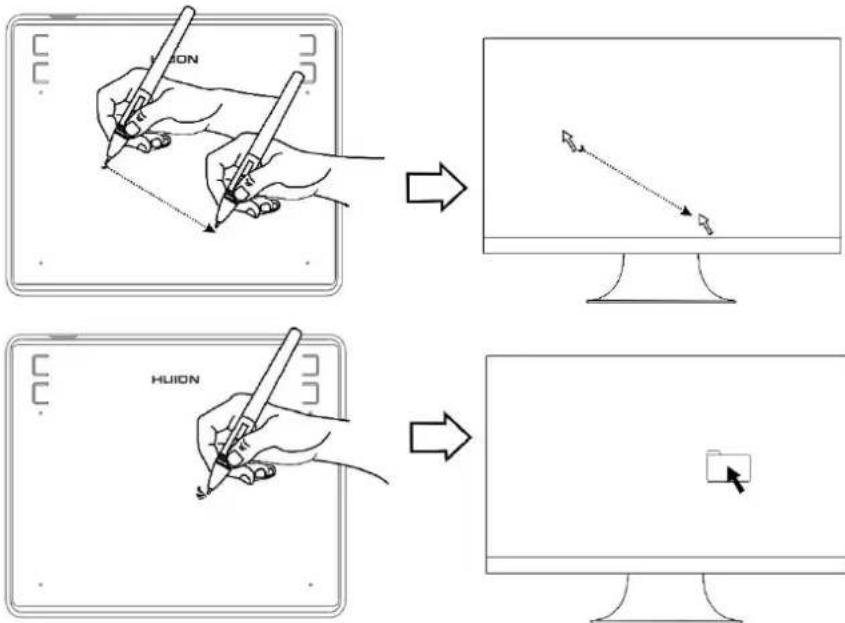

2.1.2 Position the cursor

Move the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly.

Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.

Diagram illustrating the step-by-step application of HUION on a screen, showing hand-drawn sketch and resulting diagram.

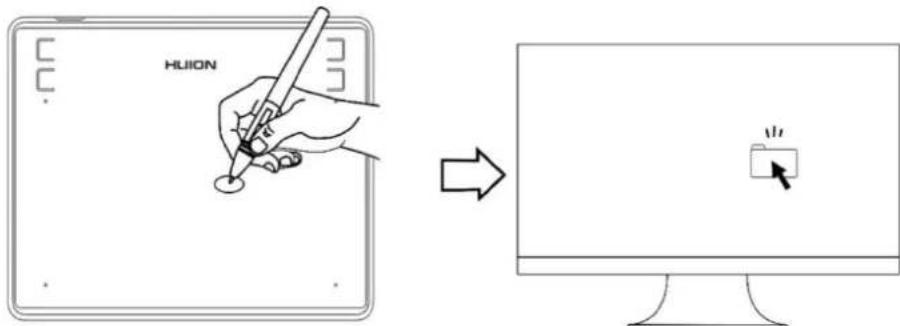

2.1.3 Click

Use the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.

HUION

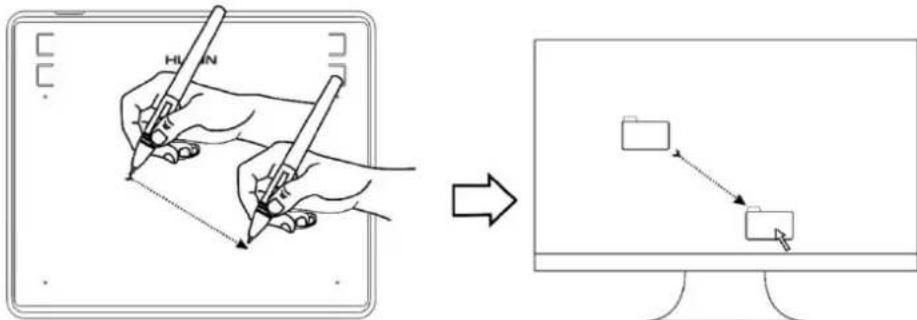

2.1.4 Move

Select the object, then slide the pen tip across the screen to move it.

Diagram illustrating the process of editing a rectangle using a pen, showing before and after states with directional arrows.

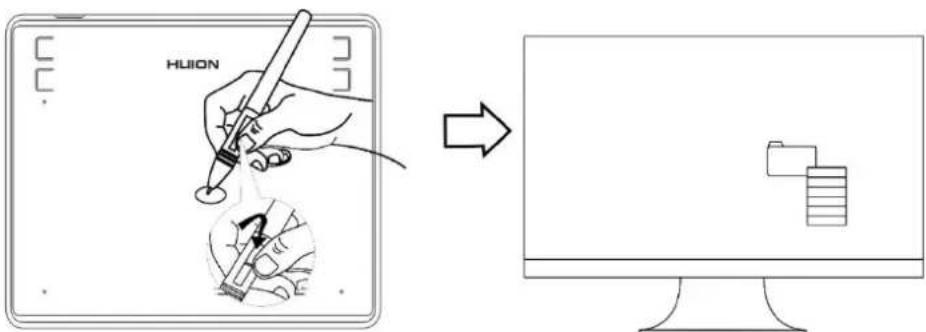

2.1.5 Use the side buttons

The buttonson the pen can be set to two different customizable functions.

You can use the buttons whenever the pen tip is within 10mm of the tablet active area.

You do not have to touch the pen tip to the tablet in order to use the switch.

HUION

3. Function Setting

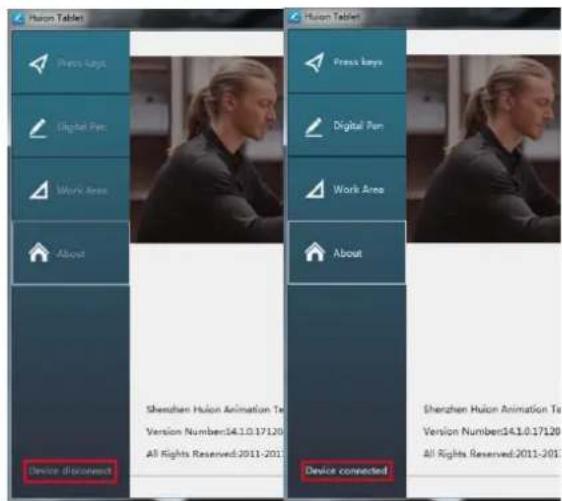

3.1 Device Connection Prompt

1. Device disconnected: The computer does not recognize the tablet.
2. Device connected: The computer has recognized the tablet.

Huon Tablet Press tags Digital Maps Work Area About Device disconnect Shenzhen Huion Animation To Version Number:24.1.0.17120 All Rights Reserved:2011-2011 Press keys Digital Pen Work Area About Device connected Shenzhen Huion Animation To Version Number:14.1.0.17120 All Rights Reserved:2011-2011

3.2 Working Area Setting

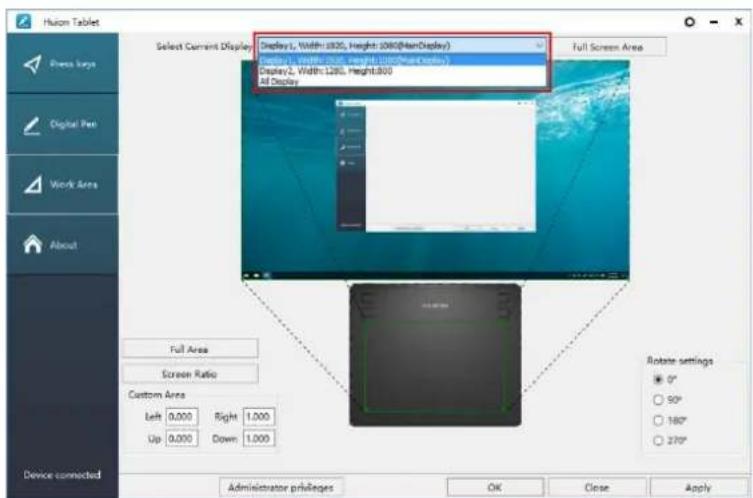

3.2.1 Using Multiple Monitors

Select the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen.

By default the entire active area of tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface which you are going to map to.

If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor and the screen cursor is displayed on each monitor simultaneously.

Husion Tablet Select Current Display Display1, Width:200, Height:200(MaxDisplay) Display2, Width:200, Height:200 All Display Full Screen Area Full Area Screen Ratio Custom Area Left 0.000 Right 1.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected Administrator privileges OK Close Apply

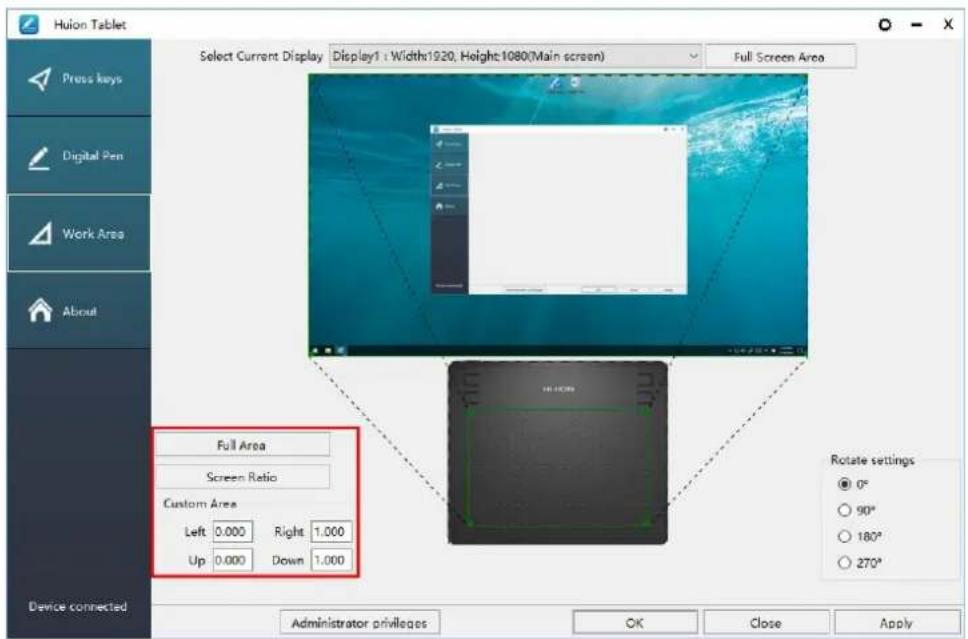

3.2.2 Working Area Setting

Define the tablet area that will be mapped to the screen area.

1. Full Area: the entire active area of the tablet. This is the default setting.
2. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area.

Huion Tablet Select Current Display Display1 : Width:1920, Height:1080(Main screen) Full Screen Area Full Area Screen Ratio Custom Area Left 0.000 Right 1.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected Administrator privileges OK Close Apply

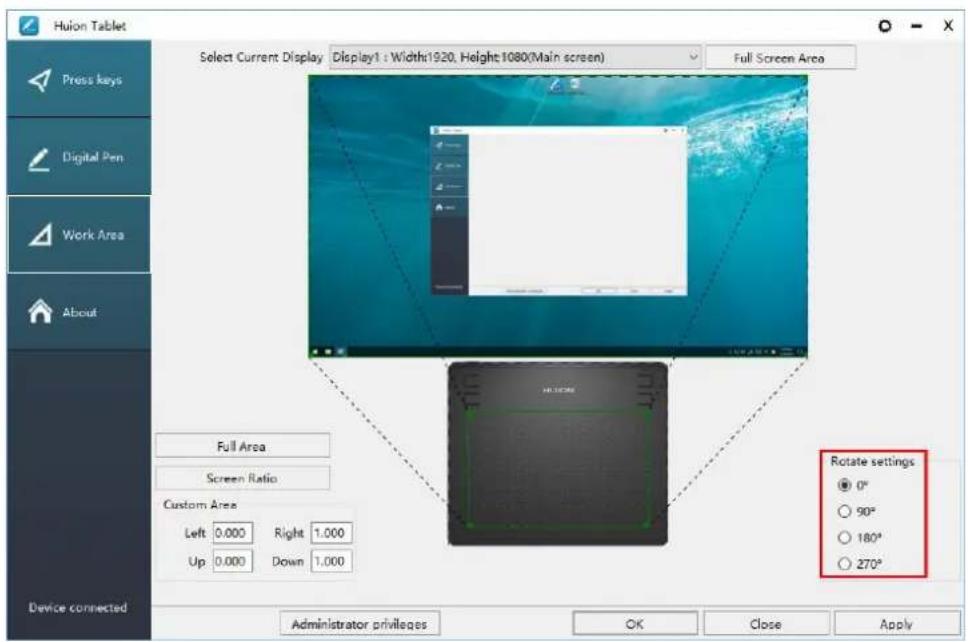

3.2.3 Rotate Working Area

By changing the direction of the tablet to adapt to the left and right hand operation. You can rotate the tablet by 0^,90^,180^ or 270^ .

Huion Tablet Select Current Display Display1 : Width:1920, Height:1080(Main screen) Full Screen Area Press keys Digital Pen Work Area About Full Area Screen Ratio Custom Area Left 0.000 Right 1.000 Up 0.000 Down 1.000 Rotate settings ● 0° ○ 90° ○ 180° ○ 270° Device connected Administrator privileges OK Close Apply

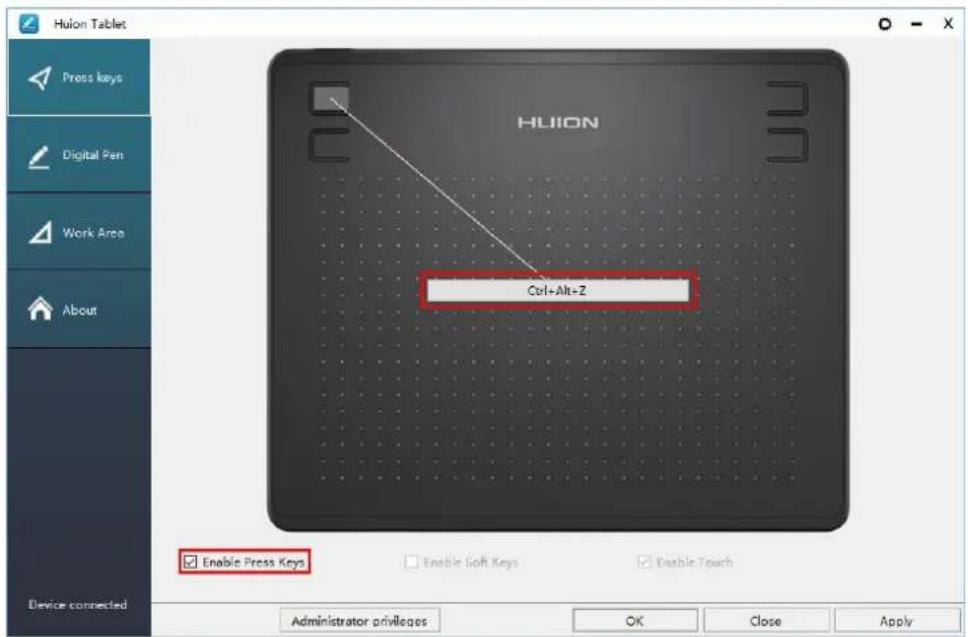

3.3 Press Keys Function Setting

Default Setting: Place the cursor on the press key or click the press key to find the default values.

Customized Setting: Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.

Enable/Disable Press Keys: Check/Uncheck" Enable Press Keys"

Hulon Tablet Press keys Digital Pen Work Area About Ctrl+Alt+Z Enable Press Keys Enable Soft Keys Enable Touch Device connected Administrator privileges OK Close Apply

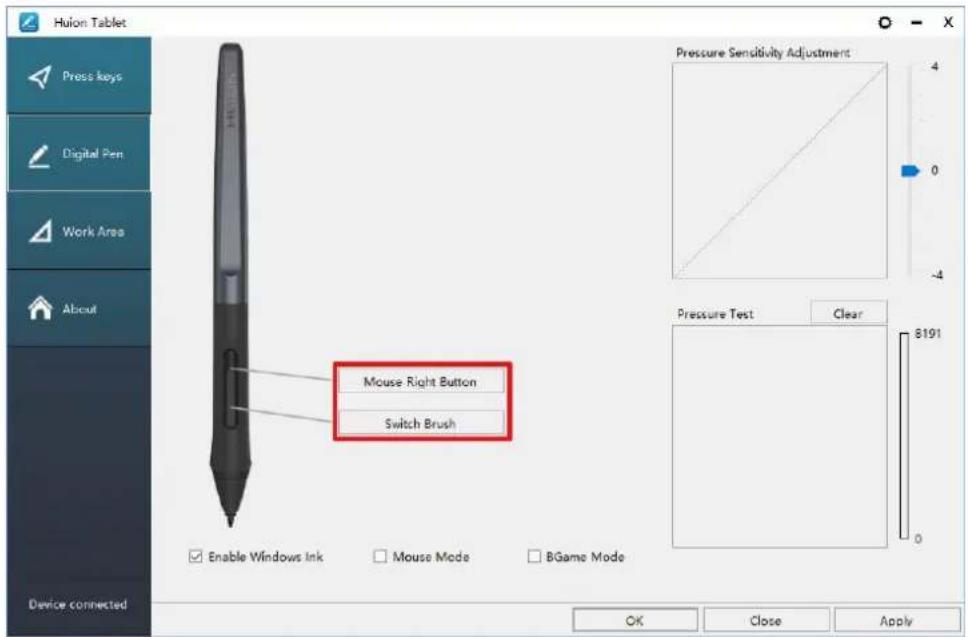

3.4 Pen Buttons Function Setting

Select the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.

Hulon Tablet Press keys Digital Pen Work Area About Device connected Mouse Right Button Switch Brush Enable Windows Ink Mouse Mode BGame Mode Pressure Sensitivity Adjustment Pressure Test Clear OK Close Apply

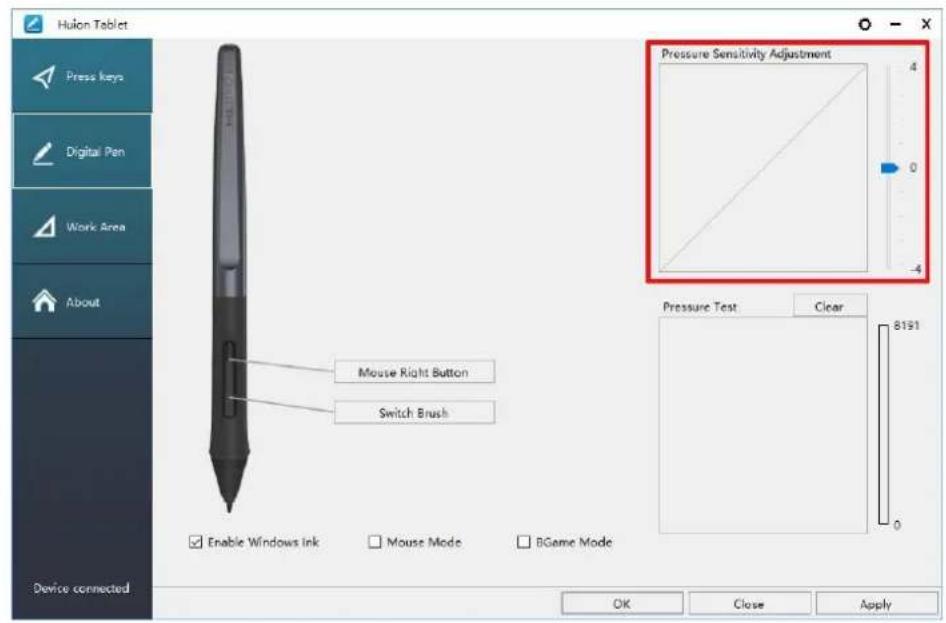

3.5 Pressure Sensitivity Setting

The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.

Hulion Tablet Press keys Digital Pen Work Area About Device connected Mouse Right Button Switch Brush Enable Windows Ink Mouse Mode BGame Mode Pressure Sensitivity Adjustment Pressure Test Clear 8191 OK Close Apply

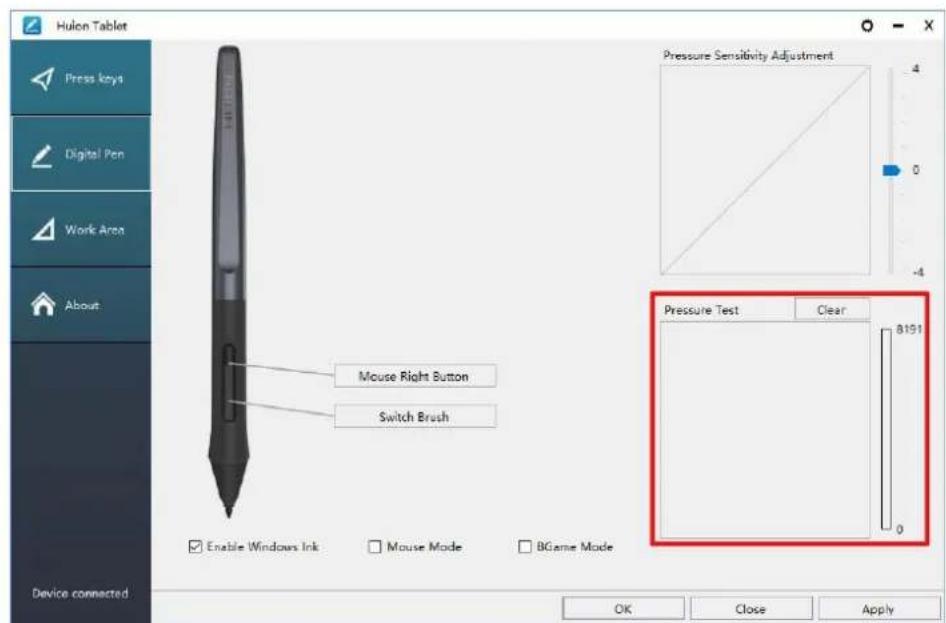

3.6 Pen Pressure Testing

Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level. Click “Clear” button to clear all the ink.

Hulon Tablet Press keys Digital Pen Work Area About Device connected Mouse Right Button Switch Brush Enable Windows Ink Mouse Mode BGame Mode Pressure Sensitivity Adjustment Pressure Test Clear 8191 0 4 0 -4 OK Close Apply

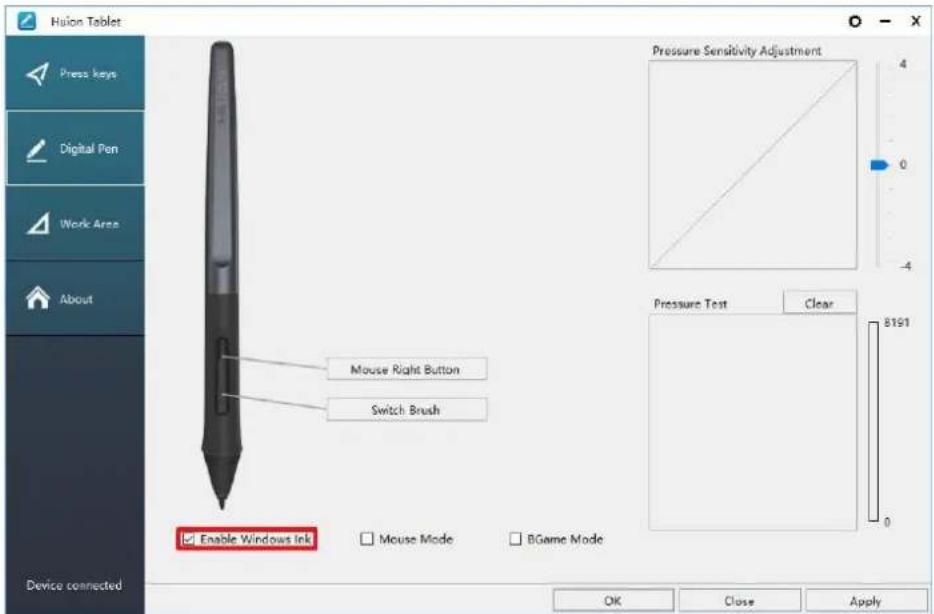

3.7 Enable the Windows Ink feature

Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft Office、Windows Journal、Adobe Photoshop CC、SketchBook 6 and so on.

Hulon Tablet Press keys Digital Pen Work Area About Device connected Mouse Right Button Switch Brush Enable Windows Ink Mouse Mode BGame Mode Pressure Sensitivity Adjustment Pressure Test Clear 8191 OK Close Apply

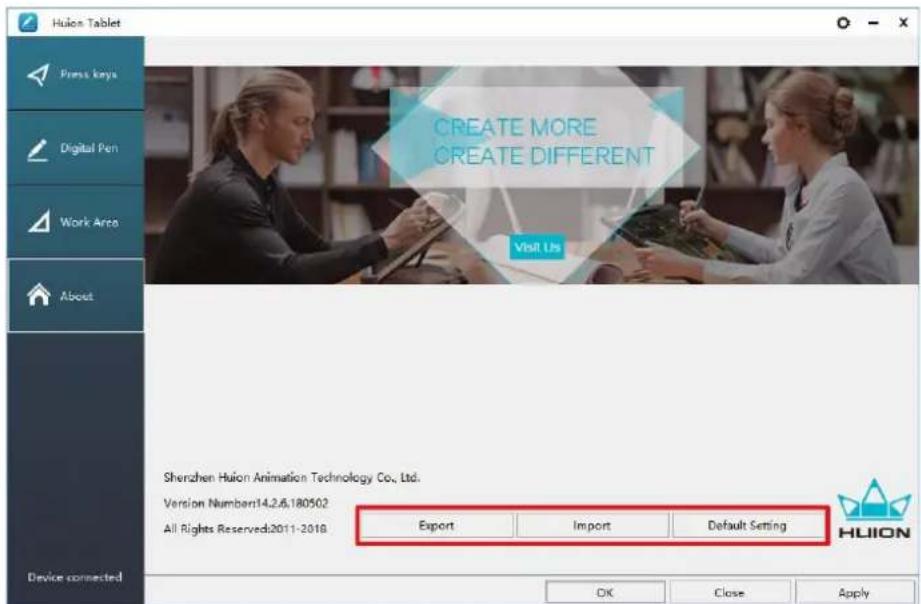

3.8 Data Export and Import

The driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.

Huion Tablet Press keys Digital Pen Work Area About CREATE MORE CREATE DIFFERENT Visit Us Shenzhen Huion Animation Technology Co., Ltd. Version Number:14.2.6.180502 All Rights Reserved:2011-2018 Export Import Default Setting Device connected OK Close Apply

4. Specifications

Creative Tablet
Model	HS64
Touch Technology	Battery-free Electromagnetic Resonance
Working Area	160 x 102mm(6.3 x 4in)
Dimension	200 x 166 x 8mm
Net Weight	258g
Touch Resolution	5080LPI
Report Rate	266PPS
Pen Sensing Height	10mm
Interface	Micro USB
Press Keys	4 Customized Press Keys
OS Support	Windows 7 or later,macOS 10.12 or later
Digital Pen
Model	PW100
Dimension	163 x Φ14.5 mm
Weight	13 g
Pressure	8192 Levels
Accuracy	±0.3mm

5. Trouble Shooting

5.1 Possible Breakdowns Related to TABLET

Abnormal Phenomena	Possible Solutions
There is no pressure in the graphics software but the cursor moves	You may have installed other tablet drivers or opened the drawing software when installing the driver. Please uninstall all drivers and close the drawing software, then reinstall the Huion driver. It’s better to restart your computer after finishing the installation.’
The pen does not work	1. Make sure you are using the pen that originally came with your tablet.2. Make sure you installed the driver correctly.
Press Keys does not work	1. Make sure the Press Keys function were enabled in the driver.2. Make sure you have correctly defined the Press Keys.3. Check if the press lock switch is on the unlock position.
The computer can’t enter sleep mode	When you are not using the tablet, please do not put the pen on the tablet surface, which will keep the computer awake.
The side button of the pen doesn’t work	When pressing the side button, please make sure that the nib didn’t touch the tablet surface and the distance between the nib and surface is within 10mm.

5.2 Possible Breakdowns Related to SYSTEM

Abnormal Phenomena	Possible Solutions
The computer can’t recognize the tablet or the wireless receiver	Make sure the USB port is functional, if not, please change to another USB port.
