USER MANUAL GT-FS-02uk Easy Home
Spend a little Live a lot
EASY ^ HOME

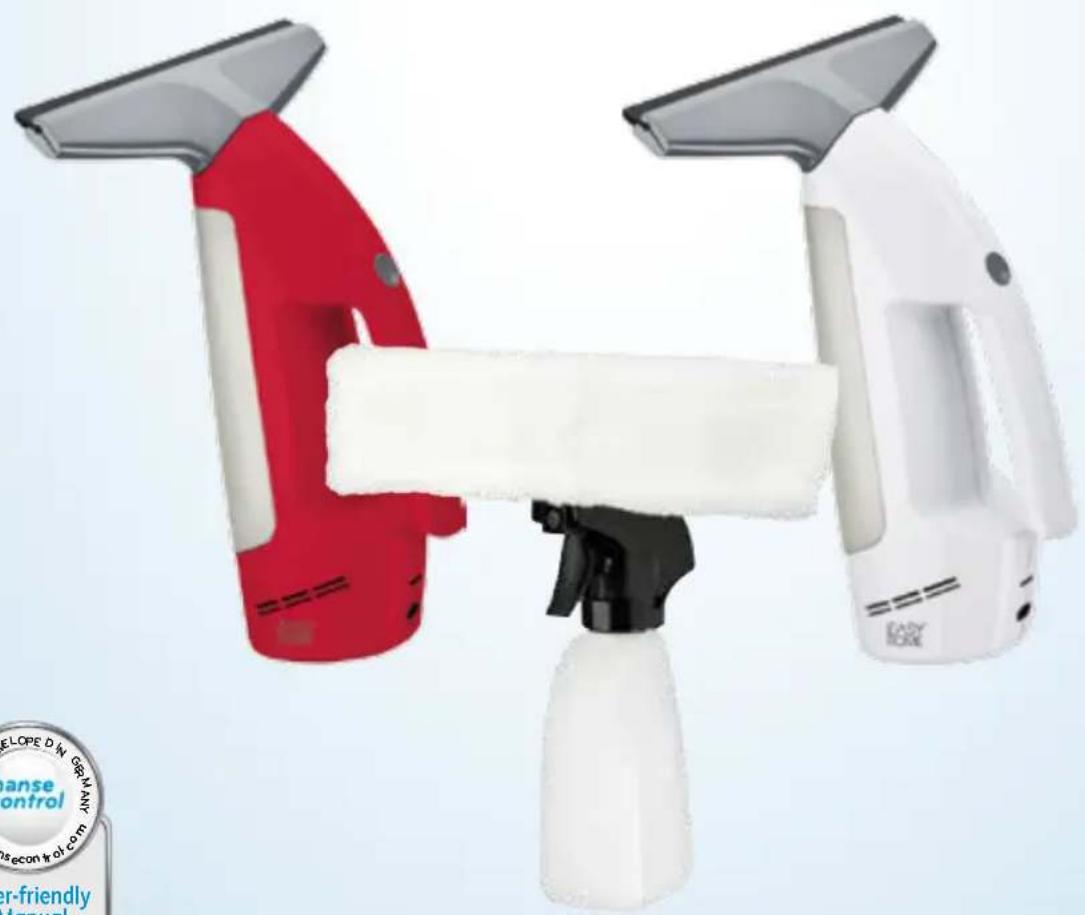

ELECTRIC WINDOW CLEANER
www.aldi.co.uk
+VIDEO
QR codes take you where you want to go quickly and easily
Whether you require product information, spare parts or accessories, details on warranties or aftersales services, or if you want to watch a product demonstration video, our QR codes will take you there in no time at all.
What is a QR code?
A QR code (QR = Quick Response) is a type of matrix that can be read with a smartphone camera and that contains a link to a website or contact details, for example.
Advantage: You do not need to manually enter a website address or contact details.
How it works
To scan the QR code, all you need is a smartphone with QR code reader software and an internet connection. This type of software can be downloaded for free from your app store.
Try it out now
Just scan the QR code with your smartphone and find out more about the ALDI product you have purchased.
Your ALDI Service Portal
All details mentioned above can also be found in the ALDI Service Portal at www.aldi.co.uk.
Overview 4
Product contents/device parts......6
General information....7
Reading and storing the user manual ....7
Explanation of symbols 7
Safety 8
Proper use 8
Safety notes 8
First use....12
Checking the window cleaner and product contents ..... 12
Assembling the window cleaner 13
Charging the rechargeable battery 13
Operation....14
Cleaning surfaces 14
Vacuuming surfaces....15
Emptying the dirty water tank 15
Cleaning 15
Cleaning the sprayer 16
Washing the microfibre cover 16
Cleaning the window cleaner....16
Storage 17
Troubleshooting....17
Technical data ......17
Declaration of conformity....18
Disposal.... 18
Disposing of the packaging 18
Disposing of the window cleaner....18
A


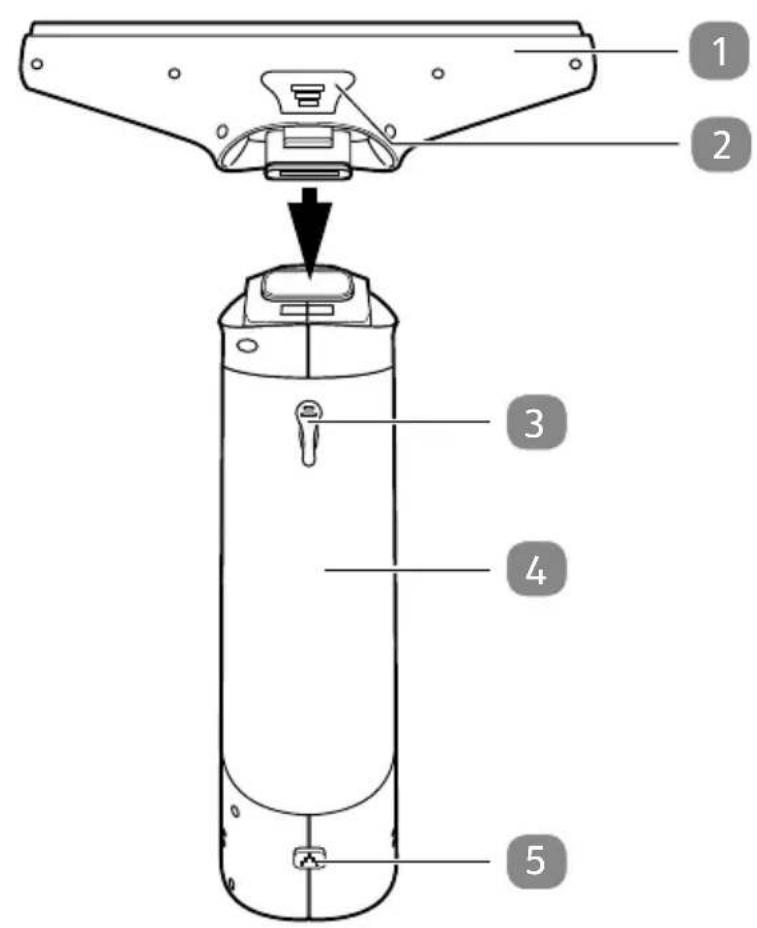

1 Squeegee
2 Lock/unlock button for the squeegee
3 Rubber closure
4 Dirty water tank
5 Lock/unlock button for the dirty water tank

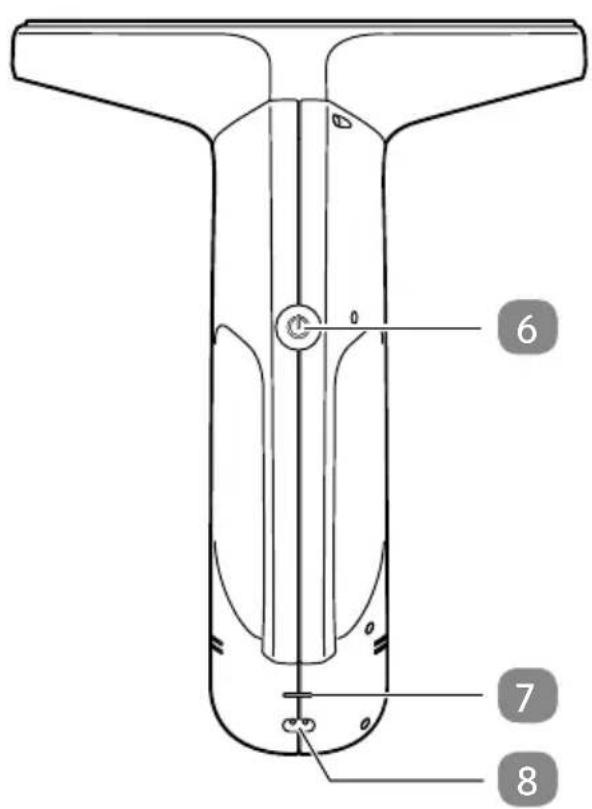

6 On/Off switch
7 Battery status light
8 Charging socket

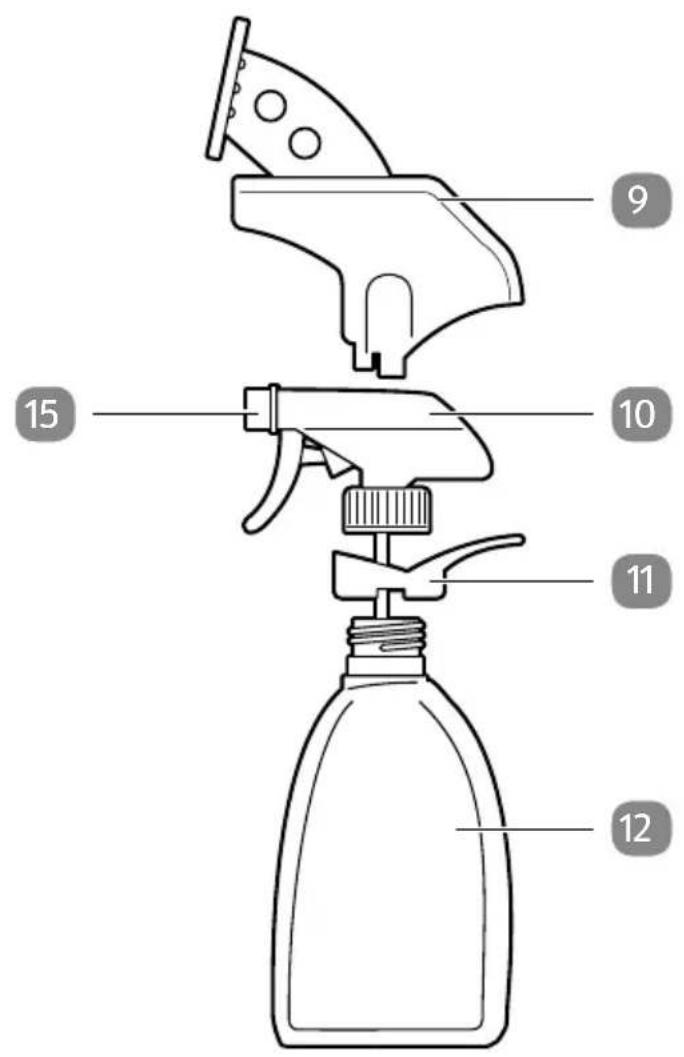

9 Wiper attachment
10 Spray pistol
11 Attachment ring
12 Water bottle
13 Microfibre cover, 2×

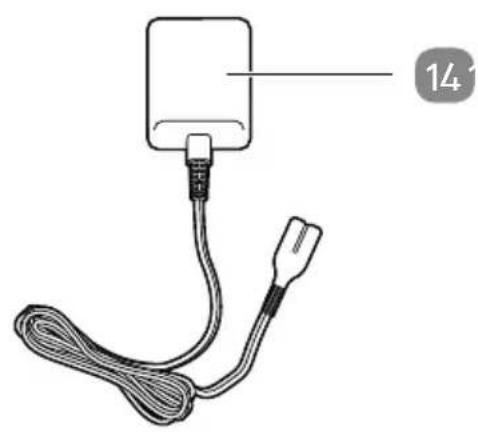

14 Charger
15 Nozzle
General information
Reading and storing the user manual
This user manual accompanies this electric window cleaner (referred to below only as the “window cleaner”). It contains important information on start-up and handling.
Before using the window cleaner, read the user manual carefully.
This particularly applies for the safety notes. Failure to heed this user manual may result in severe injury or damage to the window cleaner.
The user manual is based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guidelines and laws.
Keep the user manual for future use. If you pass the window cleaner on to third parties, please be absolutely sure to include this user manual.
Explanation of symbols
The following symbols and signal words are used in this user manual, on the window cleaner or on the packaging.
WARNING!
This signal symbol/word designates a hazard with moderate degree of risk which may lead to death or severe injury if not avoided.
CAUTION!
This signal symbol/word designates a hazard with low risk that, if not avoided, may result in minor or moderate injury.
NOTICE!
This signal word warns against potential damages to property.
This symbol provides you with useful supplementary information on setup and handling.
Declaration of conformity (see chapter “Declaration of conformity”): Products marked with this symbol meet all applicable Community regulations for the European Economic Area.
The charger of the window cleaner is compliant with protection class 2.
This symbol indicates that the window cleaner and charger may only be used indoors.
Safety
Proper use
The window cleaner is exclusively designed for cleaning windows and other smooth surfaces which are suitable for this purpose, when they are wet. It is only intended for private use and is not suitable for commercial use.
Only use the window cleaner as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The window cleaner is not a children's toy.
The manufacturer or vendor accepts no liability for damage caused by improper or incorrect use.
Safety notes
WARNING!
Risk of electric shock!
A faulty electrical installation or excessive mains voltage may result in an electric shock.
- Only connect the charger of the window cleaner if the mains voltage of the socket corresponds to the nameplate specification.
- Only connect the charger of the window cleaner to an easily accessible socket so that you can quickly disconnect the window cleaner from the mains in the event of a fault.
- Do not operate the window cleaner if it is visibly damaged or if the mains cord or mains plug is defective.
- If the window cleaner, the mains cord or the charger are damaged, the manufacturer, its after-sales support or a person with similar qualifications must replace it. Repairs carried out by an unqualified person increases the safety risk to the user.
- Do not open the housing – have a qualified professional carry out the repairs. Contact a qualified workshop for this. Liability and warranty claims are waived in the event of repairs performed by the user, improper connection of the device or incorrect operation.
- Only parts that comply with the original device information may be used for repairs. This window cleaner contains electrical and mechanical parts which are essential for providing protection against sources of danger.
- The charger of the window cleaner must not be operated with an external timer or separate telecontrol system.
- Do not immerse the window cleaner, the charger or the mains cord in water or other liquids. Clean the window cleaner with a damp cloth.
- Never touch the charger with damp hands.
- Never pull the charger out of the socket by the mains cord. Always do this by taking hold of the charger.
- Never use the mains cord as a carrying handle.
- Keep the window cleaner, the charger and the mains cord away from open flames and hot surfaces.
- Lay the mains cord so that it does not pose a tripping hazard.
- Do not kink the mains cord and do not lay it over sharp edges.
- Only use the window cleaner in indoor areas. Never operate it in wet rooms or in the rain.
- Never store the window cleaner such that there is a risk of it falling into a tub or a basin.
- Never reach to retrieve an electrical device if it has fallen in water. In such a case, immediately disconnect the mains plug if the charger is connected to it.
- Do not insert any objects which conduct electricity, e.g. a screwdriver, into the charging socket.
- Only use the enclosed charger to charge the window cleaner.
WARNING!
Danger for children and persons with impaired physical, sensory or mental capacities (e.g. partially disabled persons, older persons with reduced physical and mental capacities) or lack of experience and knowledge (e.g. older children).
- This window cleaner may be used by persons with impaired physical, sensory or mental capacities or those lacking experience and knowledge, provided that they are supervised or have been instructed in how to safely use the window cleaner and have understood the risks associated with operating it. Children must not play with the window cleaner. Cleaning and user maintenance must not be performed by children.
- Keep children away from the window cleaner and the connector cable of the charger.
- Do not leave the window cleaner unattended while in operation.
- Do not allow children to play with the accessory parts of the window cleaner.
- Make sure that children do not insert any objects in the window cleaner.
- Keep children away from the packaging material and do not allow them to play with it. Children may get caught in it when playing and suffocate.
WARNING!
Fire hazard!
Vacuuming up oxidising materials, embers and ashes can lead to fires.
- Do not vacuum up any burning or smouldering objects like cigarettes, matches or ashes with the window cleaner.
- Do not vacuum up any inflammable or combustible liquids (e.g. petrol) with the window cleaner. Do not use window cleaners in areas where such liquids may be.
CAUTION!
Risk of chemical burns!
Any battery fluid which may leak out can lead to irritation.
- Do not use the window cleaner if battery fluid is leaking out of it. Contact the manufacturer, its customer service or a similarly qualified person in this case.
- Do not allow battery fluid to come into contact with skin, eyes or mucus membranes. In the event of contact with battery fluid, immediately flush the applicable areas with plenty of clean water and consult a doctor immediately.
NOTICE!
Risk of damage!
Improper handling of the window cleaner may result in damage to the window cleaner.
- Only use the window cleaner on smooth surfaces which have been pre-cleaned when wet. The blade will wear out otherwise and will develop grooves.
- Never place the window cleaner on or near hot surfaces (e.g. hotplates).
- Ensure that the mains cord and charger do not come into contact with hot or sharp parts.
- Never expose the window cleaner to high temperatures (e.g. heat sources) or the effects of the weather (e.g. rain). Never fill the window cleaner with liquid.
-
Do not immerse the window cleaner, the charger or the mains cord in water or other liquids. Clean the window cleaner with a damp cloth and do not use a steam cleaner to clean it. Otherwise, you could damage the window cleaner.
-
Never place the window cleaner in the dishwasher. It would be destroyed as a result.
- Only use commercially-available glass cleaners for the window cleaner. Do not use spirit or foaming cleaners.
- Do not vacuum up any cords, long threads, sharp objects or splinters of glass using the window cleaner.
- Do not vacuum up any chemical products (e.g. plaster, cement) with the window cleaner.
- Never use the window cleaner without the dirty water tank attached.
- Do not cover the ventilation slits while working.
- Stop using the window cleaner if its plastic parts exhibit cracks, are chipped or are deformed. Only replace damaged parts with corresponding original spare parts.
- Do not point the spray jet towards devices that contain electrical components. They may be damaged as a result.
First use
Checking the window cleaner and product contents
NOTICE!
Risk of damage!
If you are not cautious when opening the packaging with a sharp knife or other pointy object, you may quickly damage the window cleaner.
- Be very careful when opening.
- Take the window cleaner out of the packaging.
- Check whether the delivery is complete (see fig. A and B).
- Check whether the window cleaner or the individual parts are damaged. If this is the case, do not use the window cleaner. Contact the manufacturer at the service address specified on the warranty card.
Assembling the window cleaner
- Hold down the lock/unlock button for the squeegee 2.
- Attach the squeegee 1 to the window cleaner.
- Release the lock/unlock button for the squeegee.
Charging the rechargeable battery
NOTICE!
Risk of damage!
Improperly charging the rechargeable battery may damage the rechargeable battery.
- Do not charge the rechargeable battery at temperatures below +5 °C or above +40 °C. Otherwise, you could damage the rechargeable battery.
Before first use, the rechargeable battery must be charged for 5 hours. The housing of the window cleaner may become warm during the charging process.
When the rechargeable battery is almost empty, the motor will switch itself off and the battery status light will blink for approx. 60 seconds. The rechargeable battery will then need to be recharged.
- Connect the charger 14 to the charging socket 8.
- Connect the charger to a properly installed socket.
During the charging process the battery status light 7 will glow red.
If the battery status light glows green, the rechargeable battery is fully charged and the window cleaner is ready for use.
- Remove the charger from the charging socket.
You can now use the window cleaner.
The rechargeable battery should be fully recharged after every use. Thanks to the use of a Li-Ion rechargeable battery, no “memory effect” will occur.
Operation
Cleaning surfaces
CAUTION!
Risk of injury!
Improper use of the sprayer may cause injuries.
- Do not point the spray jet directly into the eyes.
Before cleaning using the window cleaner, you must clean the relevant surfaces using water. The sprayer with the detachable wiper attachment is suitable for this.
- Fit the attachment ring 11 to the threading on the water bottle 12 (see fig. B).
When doing so, pay attention to the notches on the threading.
The notches in the attachment ring must point to the sides.
The attachment ring must engage audibly.
- Fill the water bottle with clear tap water. If required, add a product which is suitable for window cleaning to it.
- Insert the hose of the spray pistol 10 into the water bottle and screw the spray pistol onto the water bottle.
- Set the nozzle 15 to STREAM or SPRAY.
The nozzle is closed when it is set to the OFF position.
- Attach the wiper attachment 9 to the spray pistol.
- Pull a microfibre cover 13 over the mounting bracket of the wiper attachment and secure it using the hook-and-loop fastener.
- Spray the surface to be cleaned.
- To clean the surface which has been sprayed, wipe it using the microfibre cover.
- Repeat this process for heavily soiled surfaces.
For very heavy soiling, you should rinse out or change the microfibre cover in between uses.
Vacuuming surfaces
- Push the on/off switch 6.
The battery status light 7 will glow red.
- Move the blade of the squeegee 1 slowly over the wet surface.
The liquid is vacuumed up and suctioned into the dirty water tank 4 in the process.
- Hold the window cleaner parallel to the surface on which the squeegee is to be used. Only then is the blade at the correct angle.
- Always switch the window cleaner off between the different steps when working. This will mean the charge of the rechargeable battery will last longer.
-
Take note of how full the dirty water tank is and empty it when the maximum fill level is reached.
-
Reposition the blade at the top once you have dried a length of the surface.
- Once the surface is dry, switch the window cleaner off, by pressing on the on/off switch once again.
The battery status light will extinguish. - Remove any streaks or residual moisture with a dry cloth.
Emptying the dirty water tank
The window cleaner must be switched off.
- Remove the rubber closure 3 on the dirty water tank 4.
- Pour the dirty water out and then reattach the dirty water tank using the rubber closure.
Cleaning
NOTICE!
Risk of short circuit!
Water that has penetrated the housing may cause a short circuit.
- Never immerse the window cleaner in water.
- Make sure that no water penetrates the housing.
NOTICE!
Risk of damage!
Improper handling of the window cleaner may result in damage.
- Do not use any aggressive cleaning agents, brushes with metal or nylon bristles or sharp or metallic cleaning utensils such as knives, hard scrapers or the like. They could damage the surfaces.
- Never place the window cleaner in the dishwasher. It would be destroyed as a result.
Cleaning the sprayer
- Remove the wiper attachment 9 by pulling it slightly forwards and upwards.
- Unscrew the spray pistol 10 from the water bottle 12 and remove the dirty water.
- Remove the microfibre cover 13.
- Wipe all parts with a damp cloth. If necessary, use a mild cleaning agent.
- Then wipe all parts dry with a soft cloth.
Washing the microfibre cover
- Wash the microfibre cover 13 in the washing machine at a temperature of 60^ .
- Do not use a fabric softener as this will severely compromise the cleaning power and suction capacity of the microfibres.
The microfibre cover must not be wrung out, bleached, dried in a drying machine or ironed.
Cleaning the window cleaner
In order to clean the window cleaner thoroughly, it must be taken apart.
- Ensure that the window cleaner is not attached to the charger 14.
- Let the window cleaner cool off completely.
- Press the lock/unlock button for the squeegee 2 and detach the squeegee 1 from the window cleaner by pulling it.
- Clean the squeegee with a soft, slightly dampened cloth. Press the lock/unlock button for the dirty water tank 5 and take the dirty water tank 4 out of the window cleaner.
- Rinse the dirty water tank with clean tap water and then wipe it dry.
- Clean the housing from the outside with a soft, slightly dampened cloth. If necessary, use a mild cleaning agent.
- Then wipe all parts dry with a soft cloth.
Storage
All parts must be completely dry before being stored.
- Always store the window cleaner in an upright position, in a dry, frost-free place.
- Store the squeegee in such a way that no load is placed on the blade and no pressure marks form.
- Protect the window cleaner from direct sunlight.
- Ensure that the window cleaner is stored out of reach of children and closed securely.
Troubleshooting
| Problem | Possible cause Solution | |
| The window cleaner is not working. | The rechargeable battery is not charged. | - Recharge the rechargeable battery (see chapter “Charging the rechargeable battery”). |
| The charger is still attached to the window cleaner. | - Detach the charger from the window cleaner. | |
| The window cleaner is not vacuuming up the water properly. | The suction angle is incorrect. | - Position the window cleaner parallel to the surface you wish to clean. |
Technical data
Window cleaner
Article number: 94266
Model: GT-FS-02uk
Rechargeable battery: Li-Ion 2,200 mAh; 3.7 V
Protection rating: IPX4
Operating time: at least 45 minutes if the rechargeable battery is fully charged
Material of the microfibre cover: 85 % polyester, 15 % nylon
Charger
Model: ZDM050080BS
Input voltage: 100–240 V\~, 50/60 Hz, 0.2 A
Output voltage: 5 V /800 mA
Protection class: II
As our products undergo continual development and improvement, technical changes and changes to the product design are possible.
This user manual can also be downloaded as a PDF file from our homepage www.gt-support.de.
Declaration of conformity
The product is guaranteed to conform with legally prescribed standards. For the complete declaration of conformity, visit the website www.gt-support.de.
Disposal
Disposing of the packaging
Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and film via the recyclable material collection service.
Disposing of the window cleaner
(Applicable in the European Union and other European states with systems for the separate collection of reusable waste materials)
Old devices must not be disposed of with household waste!
If the window cleaner can no longer be used, every user is required by law to dispose of old devices separately from their household waste, e.g. at a collection point in their district/ borough. This ensures that old devices are recycled in a professional manner and also rules out negative consequences for the environment. For this reason, electrical equipment is marked with the symbol shown here.
Batteries and rechargeable batteries must not be disposed of with household waste!
As a consumer, you are required by law to turn in all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, at a collection point in your district/borough or in a retail outlet so that they can be disposed of in an environmentally-friendly manner.
Bringthe entire window cleaner (including the rechargeable battery) to your collection point and make sure that it is in an uncharged state!
* labelled with: Cd = cadmium, Hg = mercury, Pb = lead
Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first 3 years after date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention. In the unlikely event of such an occurrence, or if you require any information about the product, please contact us via our helpline support services, details of which are to be found both in this manual and on the product itself.
