Product type	Multifunction laser printer (print, copy, scan, optional fax)
Functions	Print, copy, scan, digital send, fax (f/c/z models), mobile printing, USB print/scan
Print speed	Up to 45 ppm (letter), 43 ppm (A4)
Paper input capacity	Tray 1: 100 sheets; Tray 2: 550 sheets; optional 550-sheet feeders (up to 3); total max 2300 sheets
Duplex printing	Automatic (standard)
Scanner type	Flatbed with 100-page automatic document feeder (ADF), dual-head for single-pass duplex scanning
Connectivity	Ethernet 10/100/1000, Hi-Speed USB 2.0, optional wireless (HP Jetdirect 3100w/2900nw), NFC/BLE, walk-up USB port
Display	8-inch color touchscreen control panel (c and z models include physical keyboard)
Memory	1.75 GB base, expandable to 3.75 GB (via optional DIMM)
Dimensions (base printer)	Closed: 497 x 482 x 496 mm (H x W x D); Open: 750 x 482 x 674 mm
Weight (base printer)	23 kg (50.8 lb)
Power consumption (typical)	850 W printing, 14.5 W ready, 2.5 W sleep (actual values may vary; refer to product label)
Supported operating systems	Windows 7/8/8.1/10 (32/64-bit), Windows Server 2008 R2/2012/2012 R2/2016, macOS 10.12 Sierra, 10.13 High Sierra; Linux/UNIX via web
Mobile printing	HP ePrint, Wi-Fi Direct, AirPrint, Android embedded printing, HP Smart app, Google Cloud Print
Security features	HP Trusted Platform Module (optional), encrypted hard disk (optional), cartridge policy & protection, IP Security, lock formatter
Supplies	HP 89A (CF289A), 89X (CF289X), 89Y (CF289Y) toner cartridges; staple cartridge Q7432A
Maintenance	HP 200 ADF Roller Replacement Kit (B5L52A); optional customer self-repair parts available
Included accessories	Convenience stapler (on f/c/z models); hardware integration pocket; easy-access USB port; optional stand, additional trays, memory
Warranty	Refer to HP warranty documentation; one-year limited warranty standard (may vary by region)

Frequently Asked Questions - Enterprise Flow MFP M528 HP

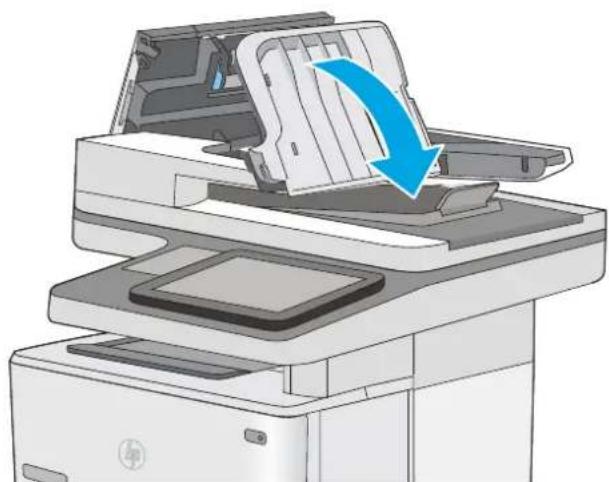

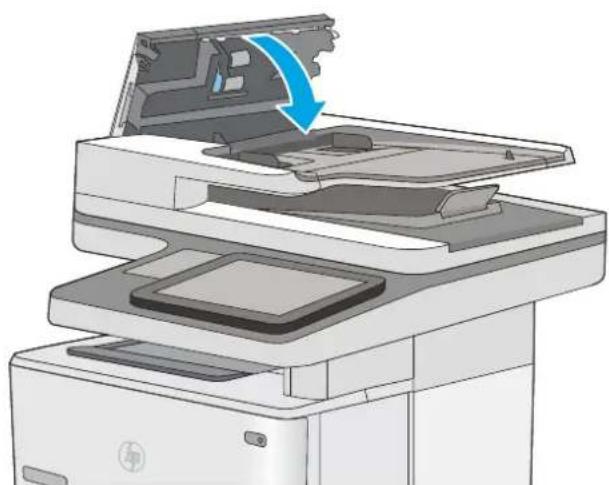

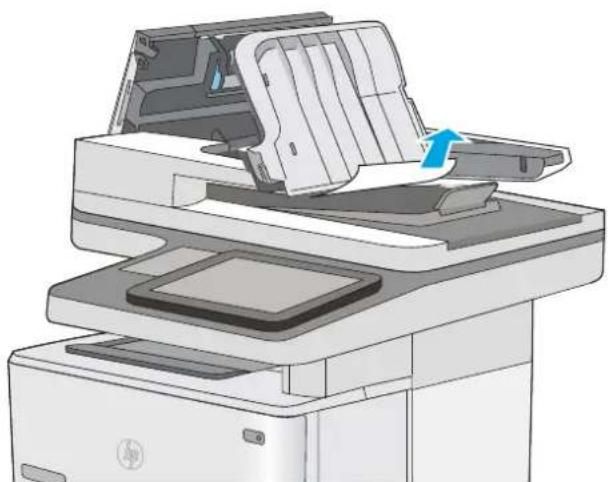

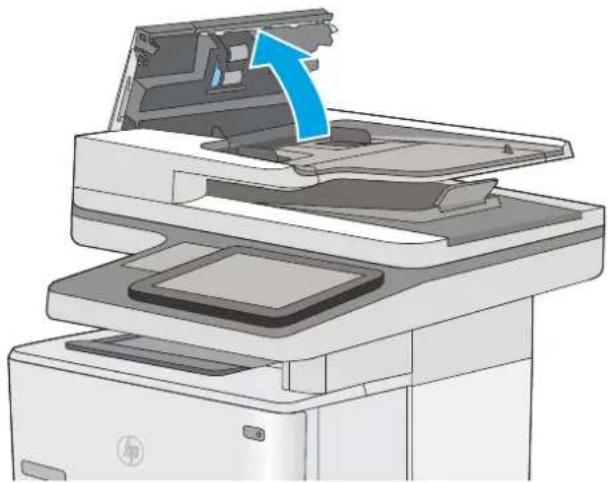

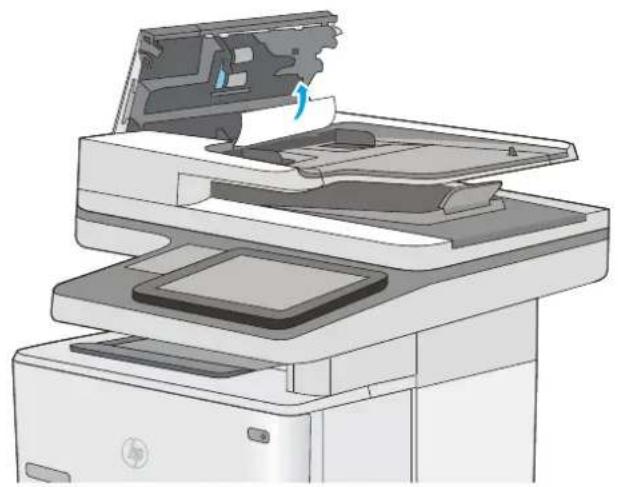

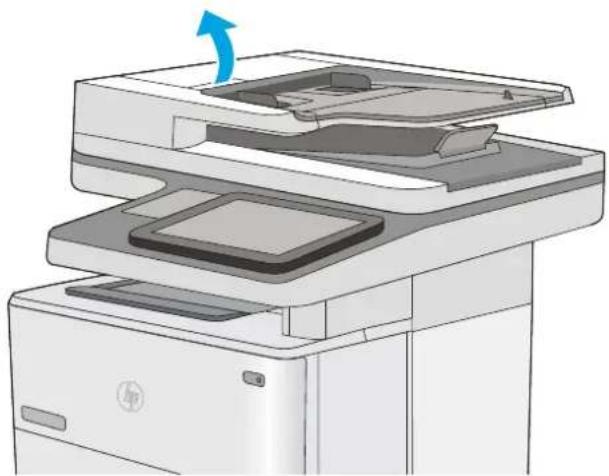

How do I clear a paper jam in the document feeder?

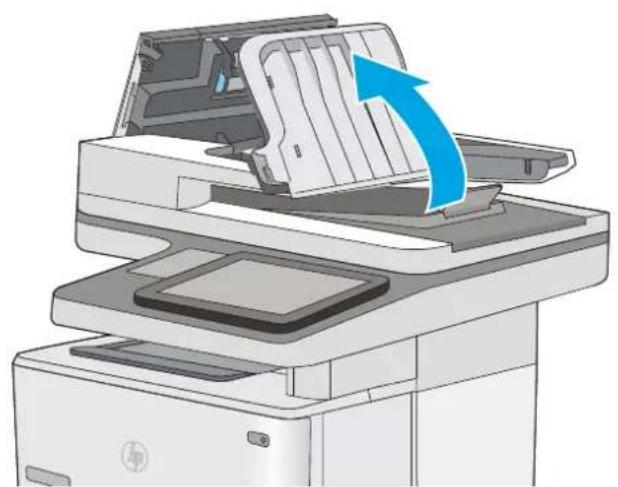

Open the document-feeder cover, gently remove any jammed paper from the ADF path, then close the cover. Refer to the printer control panel for error codes (e.g., 31.13.yz).

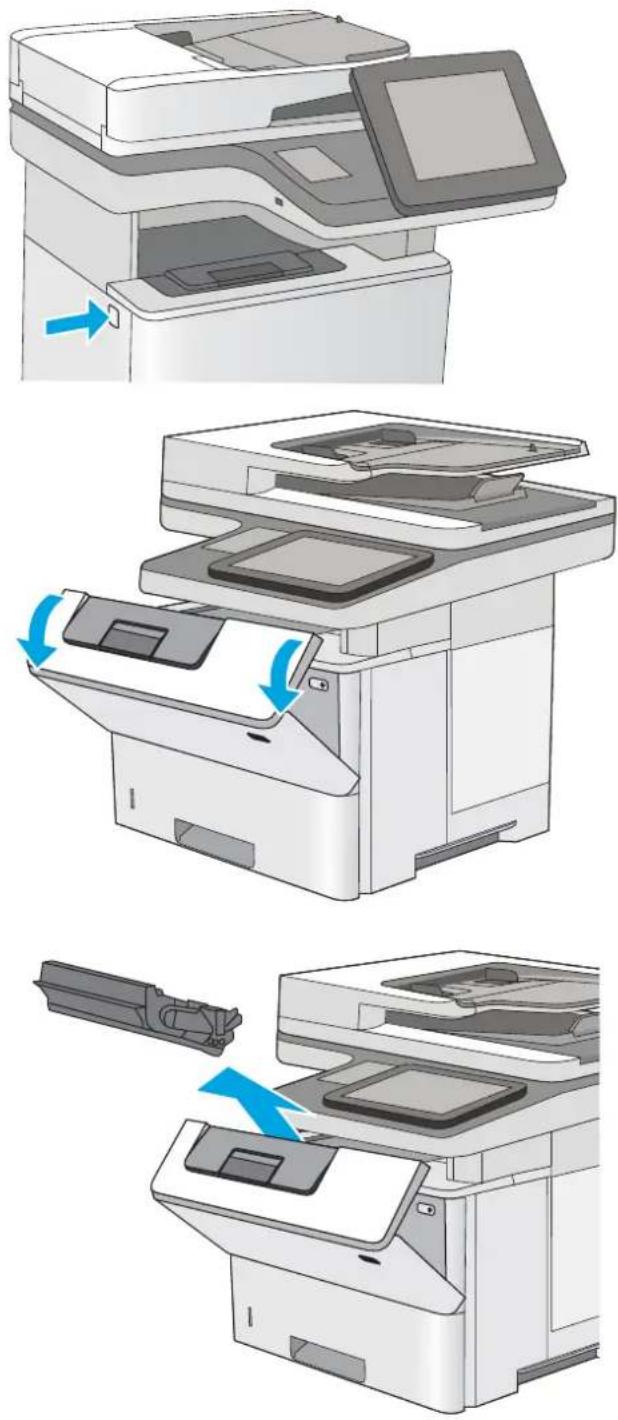

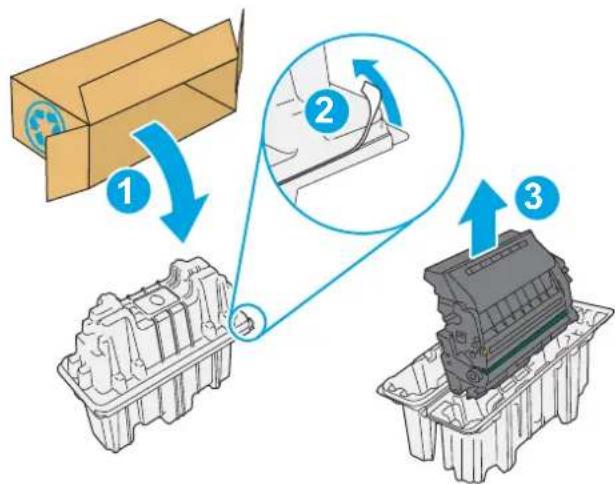

How do I replace the toner cartridge?

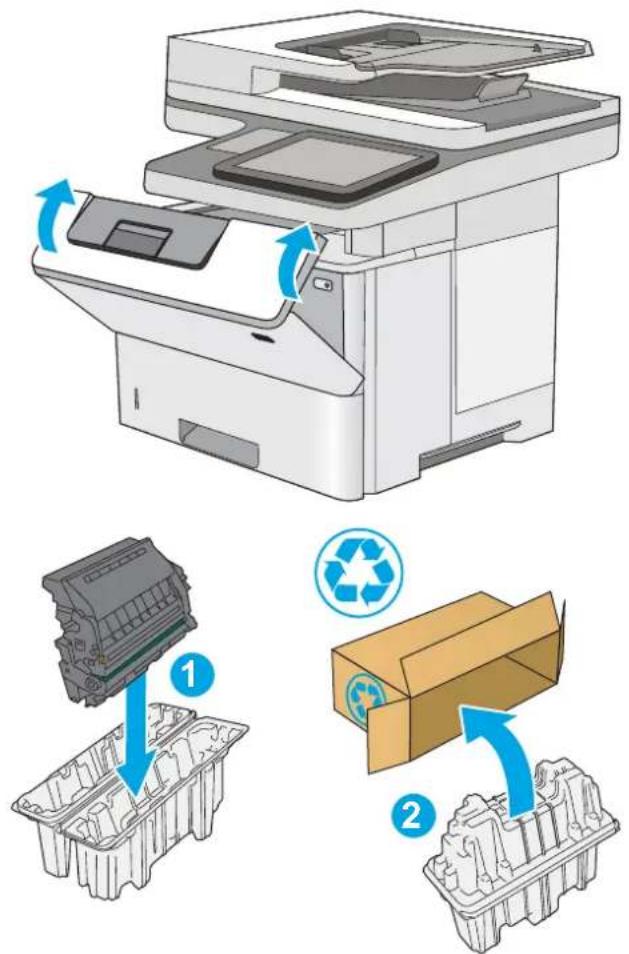

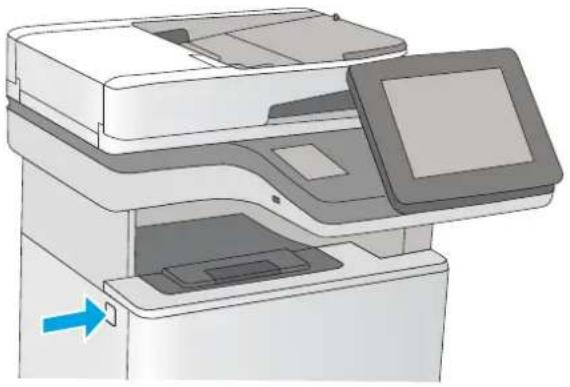

Press the top-cover release button, open the front door, remove the old cartridge, rock the new cartridge gently, insert it, and close the door. Use only genuine HP cartridges (89A/89X/89Y).

Can I print from a USB flash drive?

Yes. Insert the USB drive into the easy-access USB port (left side of control panel). Make sure the port is enabled in the printer settings. Then select the document to print from the control panel.

How do I enable duplex printing on Windows?

In the Print dialog, open printer properties, go to the Finishing tab, and select 'Print on both sides'. Confirm and print. Ensure the paper type supports duplex.

What should I do if the printer displays 'Cartridge is low'?

You can continue printing until quality degrades. To adjust the low cartridge warning, go to Settings > Manage Supplies > Set 'Cartridge low' threshold. Order a replacement cartridge when needed.

How do I connect the printer to a wireless network?

This printer requires an optional wireless accessory (HP Jetdirect 3100w or 2900nw). After installing, use the control panel to go to Settings > Network > Wireless and follow the setup wizard.

How do I scan a document to email?

Set up Scan to Email via the HP Embedded Web Server (EWS). Configure the outgoing SMTP server and network identification. Then from the control panel, select Scan > Email, enter recipient, and send.

What is the maximum paper weight the printer supports?

Tray 1 supports up to 200 g/m² (bypass mode), Tray 2 and optional trays support up to 120 g/m². For envelopes and labels, use Tray 1 only.

How do I reset the printer to factory settings?

From the control panel, go to Settings > Service > Restore Defaults. Alternatively, access the HP Embedded Web Server (EWS) and navigate to Troubleshooting > Restore Factory Settings.

Why is my fax not sending?

Check the phone line connection, ensure the fax accessory is enabled (Configuration Page > Fax Accessory Page), and verify the recipient number. Also disable call waiting or JBIG if necessary.

USER MANUAL Enterprise Flow MFP M528 HP

Line drawing of a printer with a digital display and paper tray (no text or symbols)

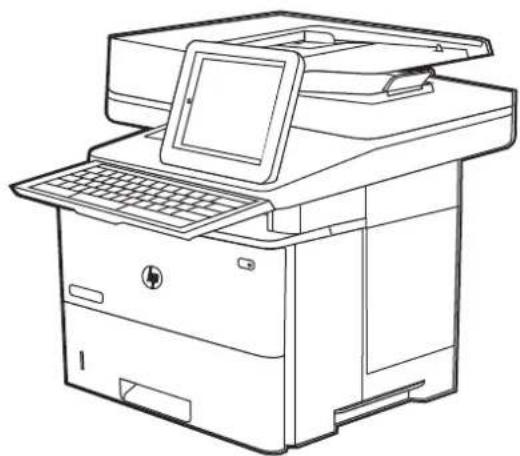

Line drawing of a printer with front panel and keyboard (no text or symbols)

HP LaserJet Enterprise MFP M528

User Guide

Copyright and License

© Copyright 2019 HP Development Company, L.P.

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Edition 1, 4/2019

Trademark Credits

Adobe ^® , Adobe Photoshop ^® , Acrobat ^® , and PostScript ^® are trademarks of Adobe Systems Incorporated.

Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.

macOS is a trademark of Apple Inc., registered in the U.S. and other countries.

AirPrint is a trademark of Apple Inc., registered in the U.S. and other countries.

Google™ is a trademark of Google Inc.

Microsoft ^® , Windows ^® , Windows ^® XP, and Windows Vista ^® are U.S. registered trademarks of Microsoft Corporation.

UNIX ^® is a registered trademark of The Open Group.

Table of contents

1 Printer overview .... 1

Warning icons .... 1

Potential shock hazard 3

Printer views 4

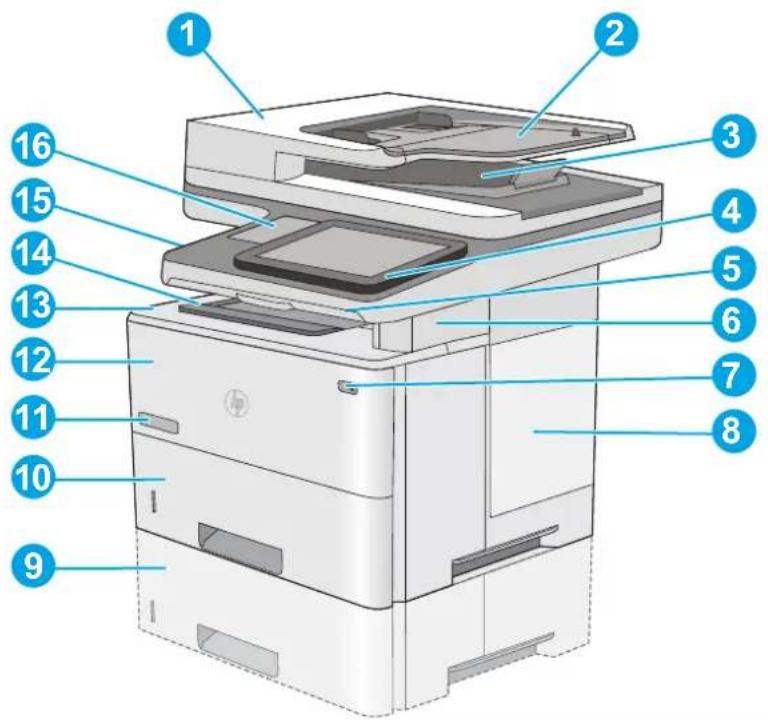

Printer front view 4

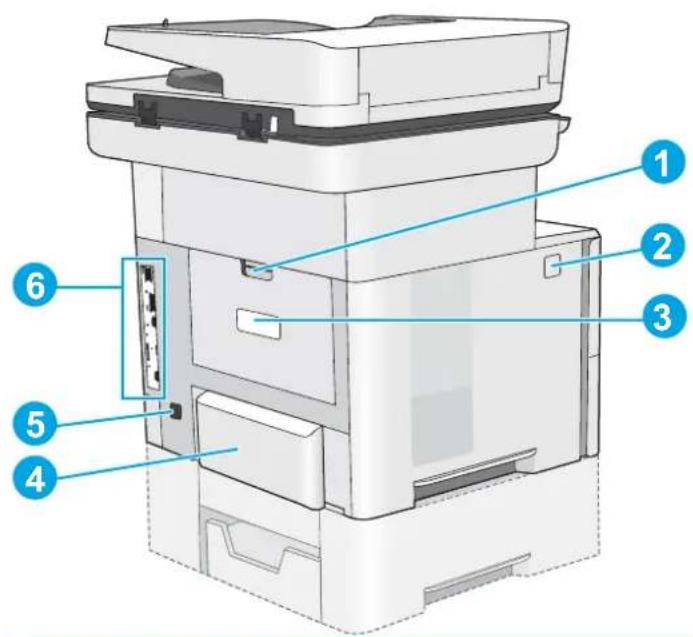

Printer back view 5

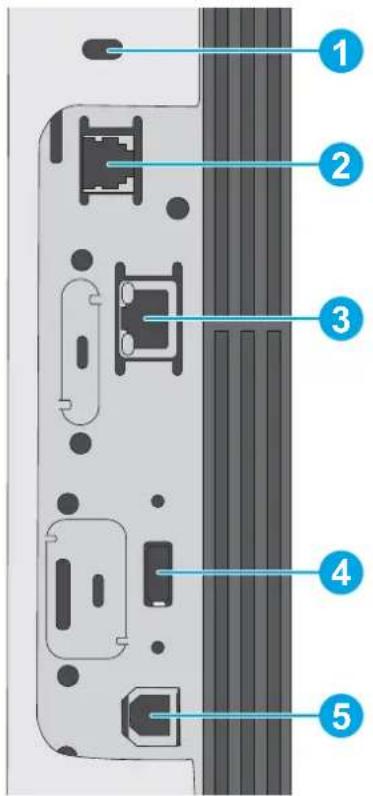

Interface ports 6

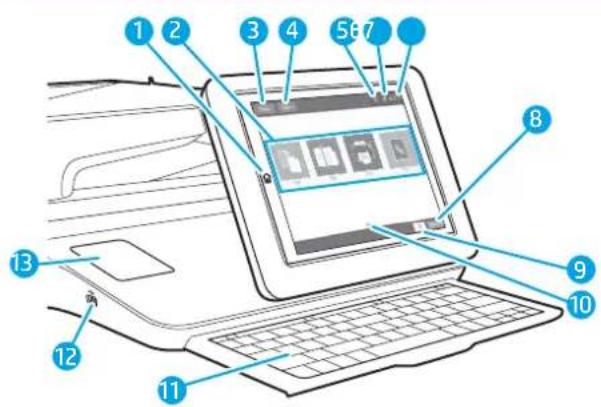

Control-panel view 7

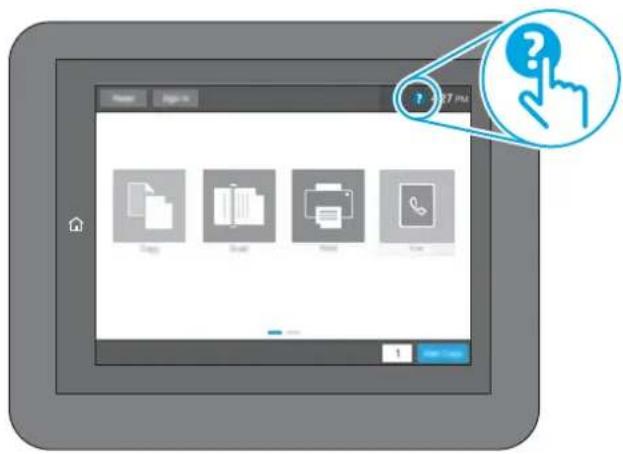

How to use the touchscreen control panel 8

Printer specifications 10

Technical specifications 10

Supported operating systems 12

Mobile printing solutions 14

Printer dimensions 14

Power consumption, electrical specifications, and acoustic emissions 15

Operating-environment range 15

Printer hardware setup and software installation 16

2 Paper trays 17

Introduction 17

Load paper to Tray 1 18

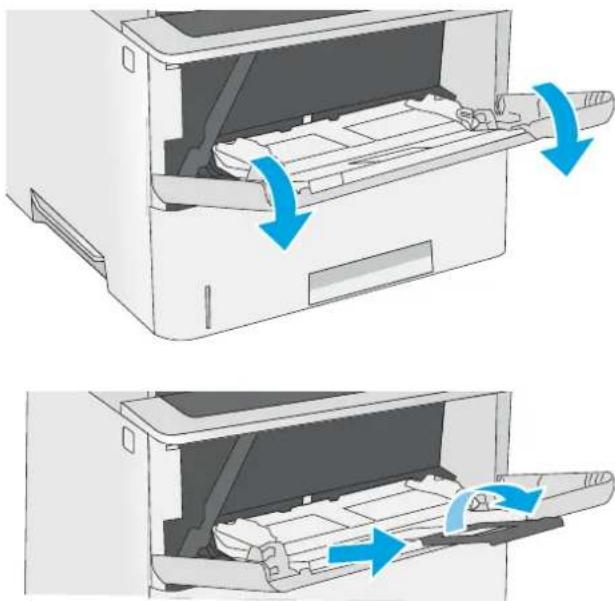

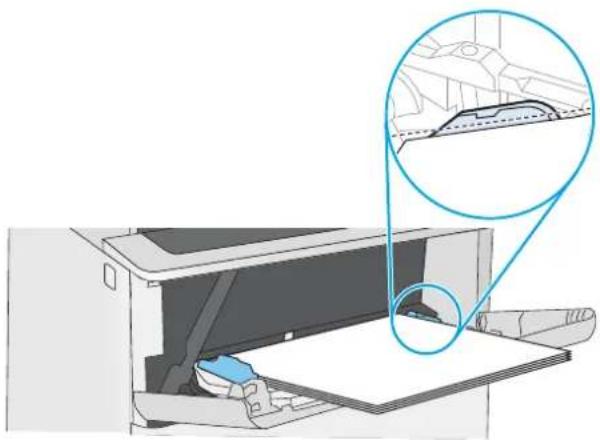

Load paper to Tray 1 (multipurpose tray) 18

Tray 1 paper orientation .... 19

Use alternative letterhead mode 20

Enable Alternative Letterhead Mode by using the printer control-panel menus 20

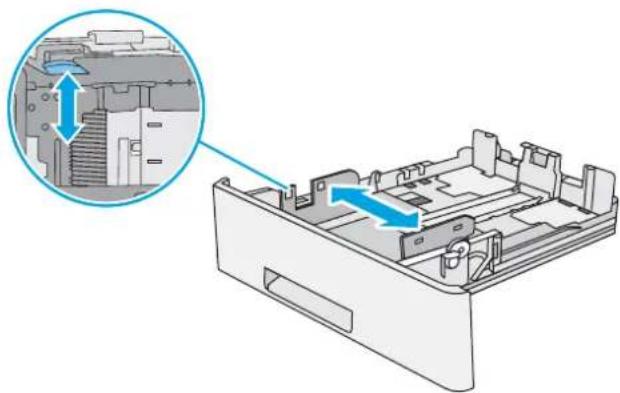

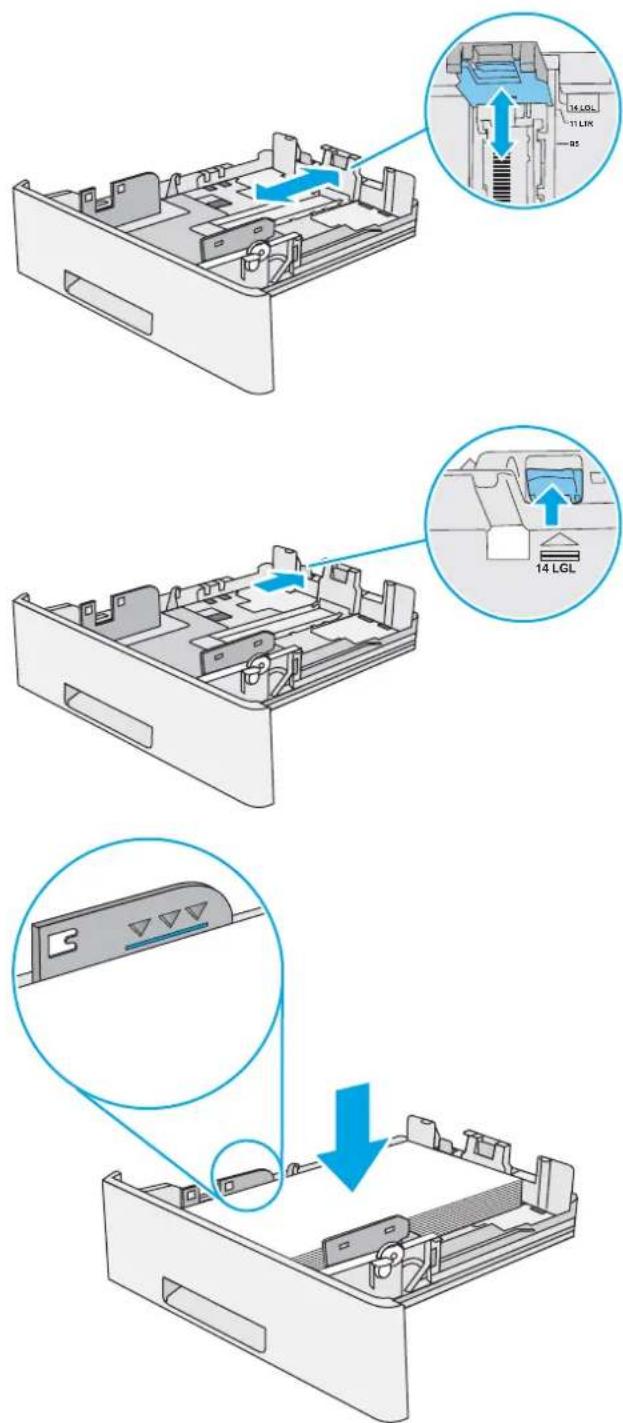

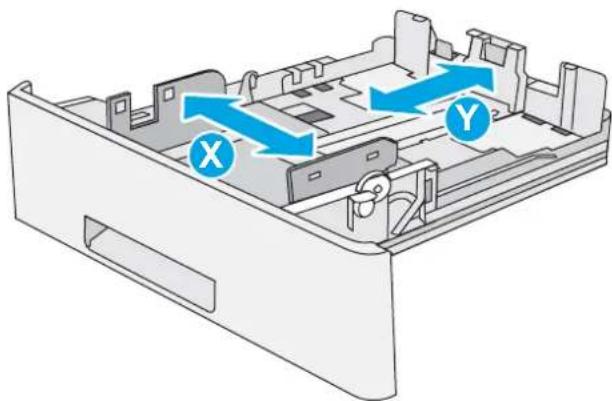

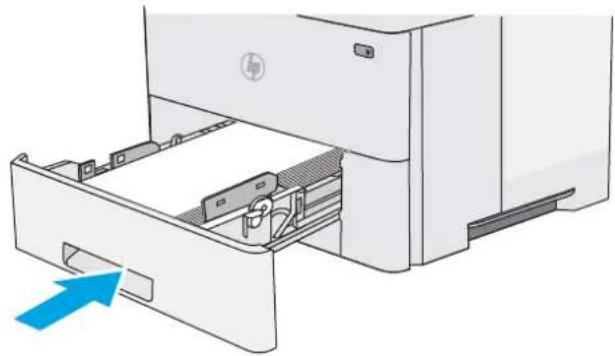

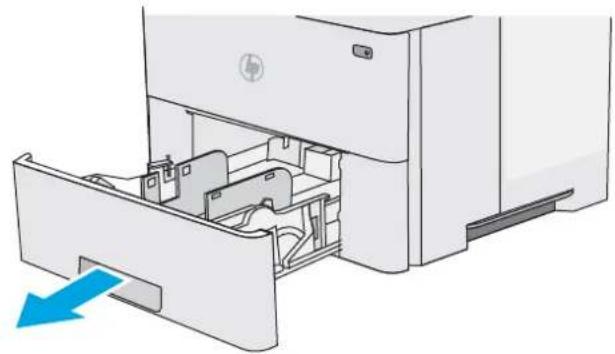

Load paper to Tray 2 and the 550-sheet trays 21

Load paper to Tray 2 and the 550-sheet trays 21

Tray 2 and the 550-sheet trays paper orientation 23

Use alternative letterhead mode 20

Enable Alternative Letterhead Mode by using the printer control-panel menus 20

Load and print envelopes 25

Print envelopes 25

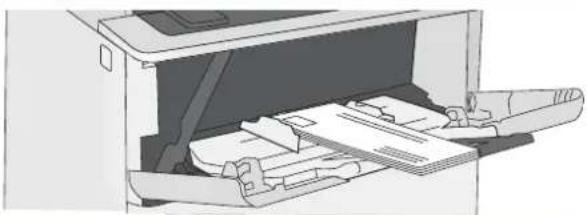

Envelope orientation 25

Load and print labels 26

Manually feed labels 26

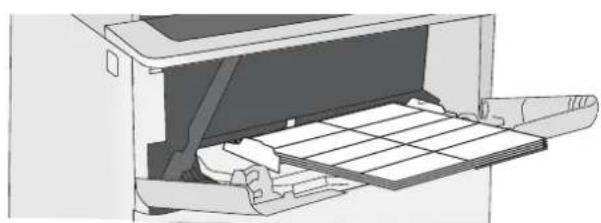

Label orientation 26

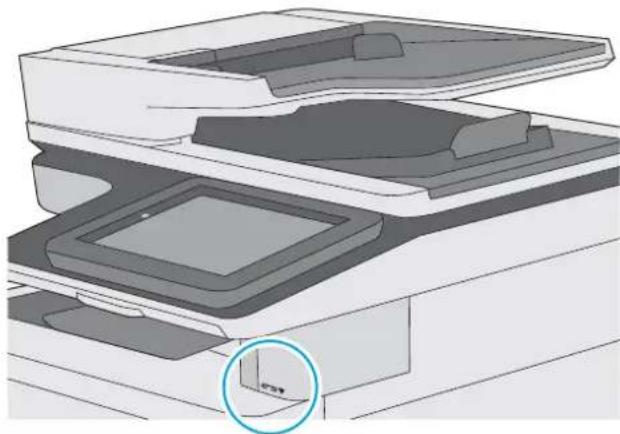

Use the convenience stapler (f, c, and z models) 27

Use the stapler 27

3 Supplies, accessories, and parts 29

Order supplies, accessories, and parts 30

Ordering 30

Supplies and accessories 30

Maintenance/long-life consumables 31

Customer self-repair parts 31

Configure the HP toner-cartridge-protection supply settings 33

Introduction 33

Enable or disable the Cartridge Policy feature 34

Use the printer control panel to enable the Cartridge Policy feature 34

Use the printer control panel to disable the Cartridge Policy feature 34

Use the HP Embedded Web Server (EWS) to enable the Cartridge Policy feature 34

Use the HP Embedded Web Server (EWS) to disable the Cartridge Policy feature 35

Troubleshoot Cartridge Policy control panel error messages 35

Enable or disable the Cartridge Protection feature 36

Use the printer control panel to enable the Cartridge Protection feature 36

Use the printer control panel to disable the Cartridge Protection feature 36

Use the HP Embedded Web Server (EWS) to enable the Cartridge Protection feature ..... 37

Use the HP Embedded Web Server (EWS) to disable the Cartridge Protection feature .... 37

Troubleshoot Cartridge Protection control panel error messages 38

Replace the toner cartridge 39

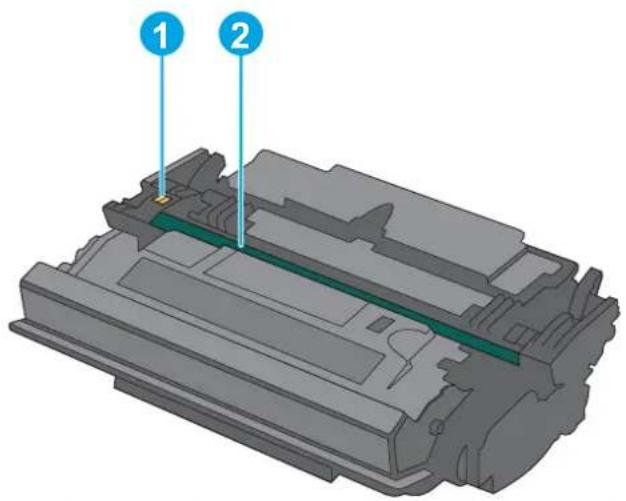

Cartridge information 39

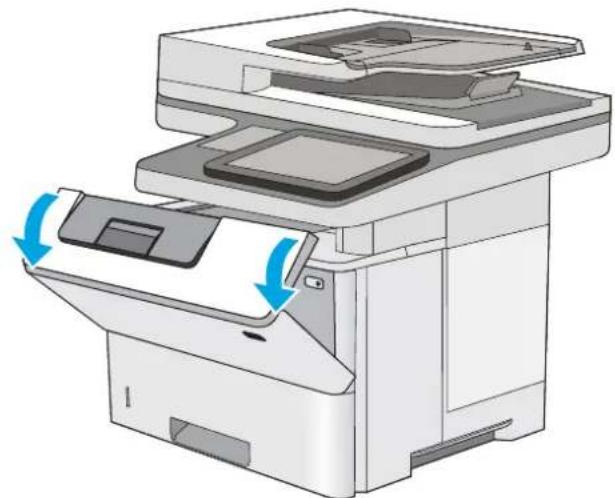

Remove and replace the cartridge 40

Replace the staple cartridge (f, c, and z models) 44

Introduction 44

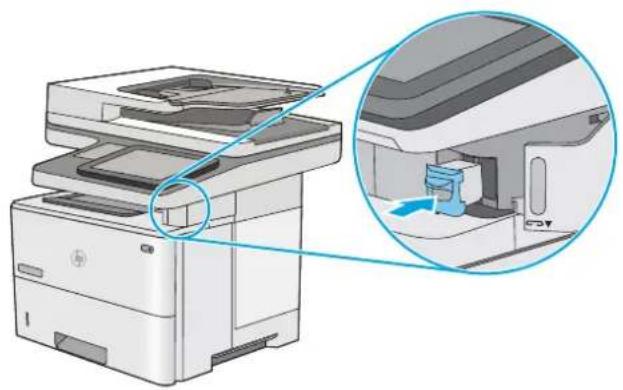

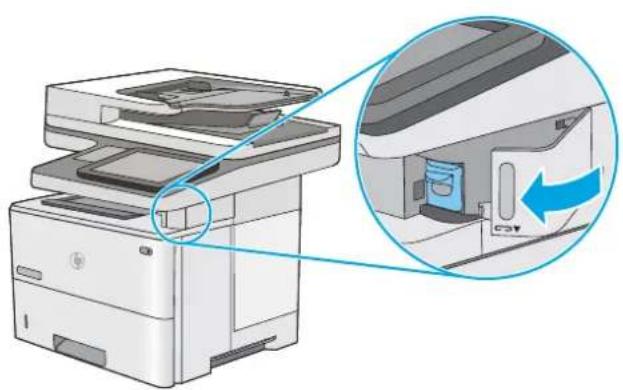

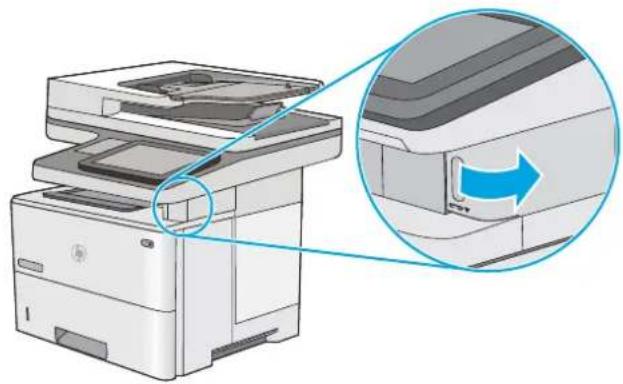

Remove and replace the staple cartridge 44

4 Print 47

Print tasks (Windows) 48

How to print (Windows) 48

Automatically print on both sides (Windows) 48

Manually print on both sides (Windows) 49

Print multiple pages per sheet (Windows) 49

Select the paper type (Windows) 50

Additional print tasks 51

Print tasks (macOS) 52

How to print (macOS) 52

Automatically print on both sides (macOS) 52

Manually print on both sides (macOS) 52

Print multiple pages per sheet (macOS) 53

Select the paper type (macOS) 53

Additional print tasks 51

Store print jobs on the printer to print later or print privately 55

Introduction 55

Create a stored job (Windows) 55

Create a stored job (macOS) 56

Print a stored job 57

Delete a stored job 58

Delete a job that is stored on the printer 58

Change the job storage limit 58

Information sent to printer for Job Accounting purposes 58

Mobile printing 59

Introduction 59

Wi-Fi, Wi-Fi Direct Print, NFC, and BLE printing 60

Enable wireless printing 60

Change the Wi-Fi Direct name 60

HP ePrint via email 61

AirPrint 61

Android embedded printing 62

Print from a USB flash drive 63

Enable the USB port for printing 64

Method one: Enable the USB port from the printer control panel 64

Method two: Enable the USB port from the HP Embedded Web Server (network-connected printers only) 64

Print USB documents 64

Print using high-speed USB 2.0 port (wired) 66

Enable the high-speed USB port for printing 67

Method one: Enable the high-speed USB 2.0 port from the printer control panel menus ....67

Method two: Enable the high-speed USB 2.0 port from the HP Embedded Web Server (network-connected printers only) 67

5 Copy 69

Make a copy 69

Copy on both sides (duplex) 71

Additional copy tasks 72

6 Scan 73

Set up Scan to Email 74

Introduction 74

Before you begin 74

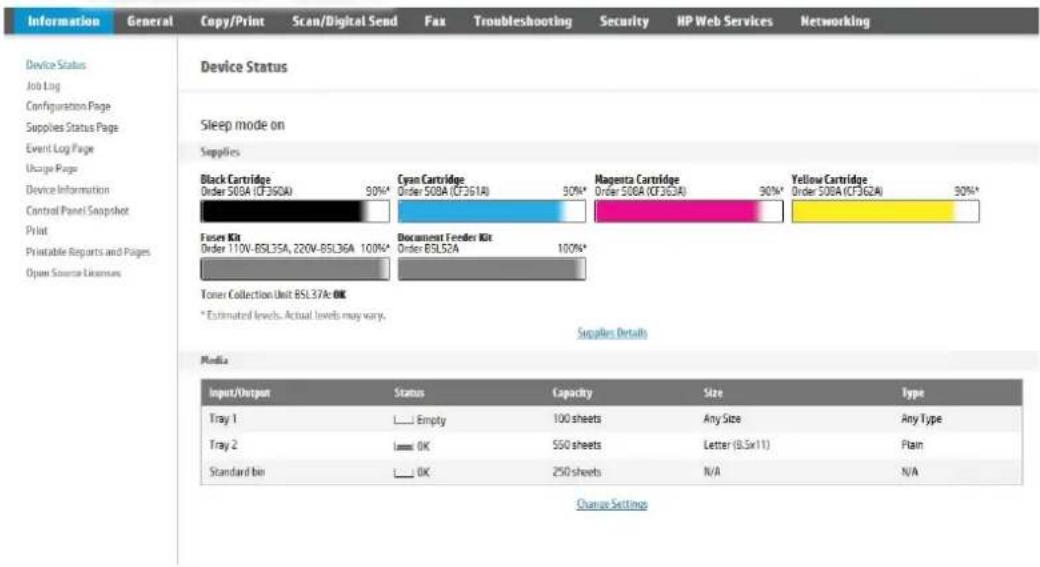

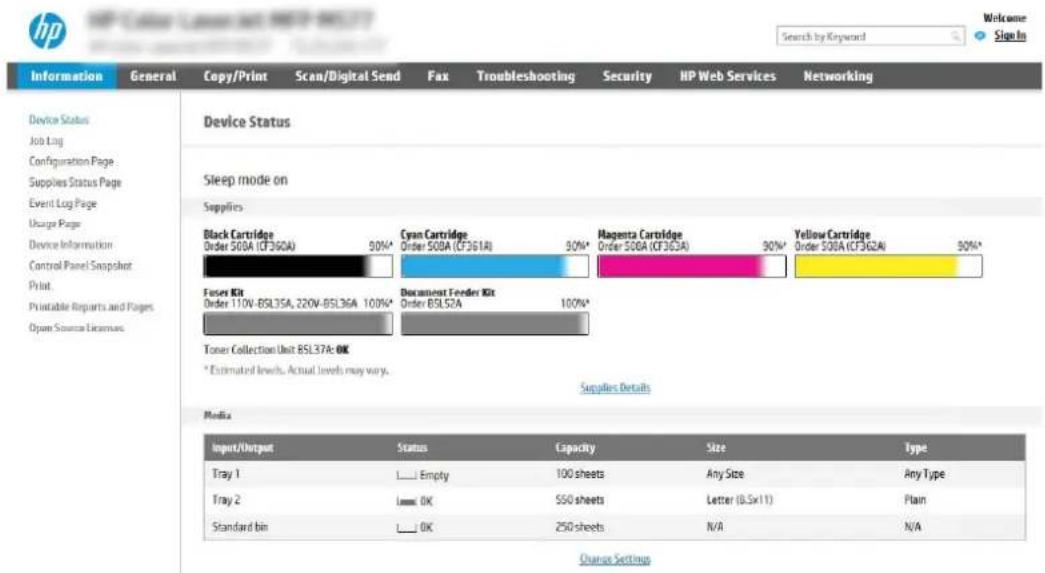

Step one: Access the HP Embedded Web Server (EWS) 74

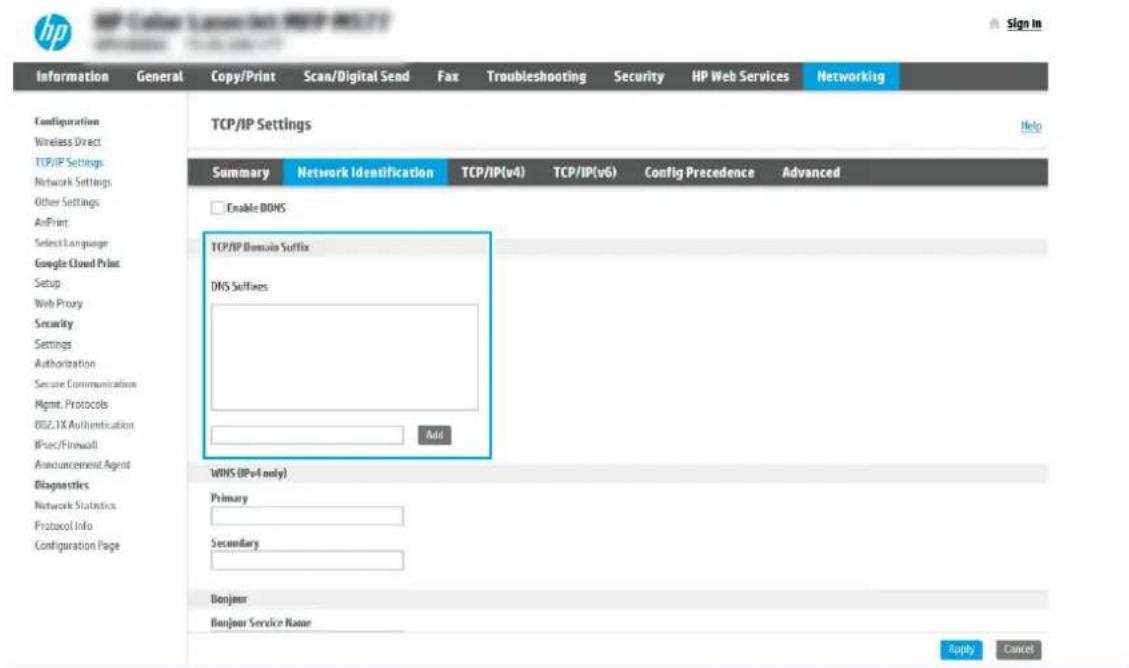

Step two: Configure the Network Identification settings 75

Step three: Configure the Send to Email feature 77

Method one: Basic configuration using the Email Setup Wizard 77

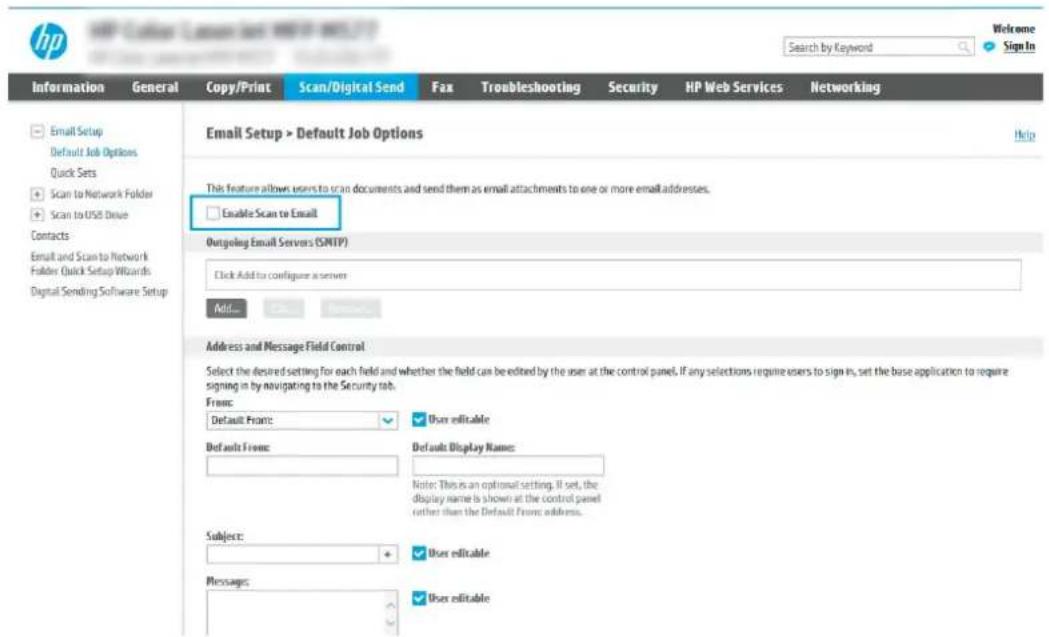

Method two: Advanced configuration using the Email Setup 80

Step four: Configure the Quick Sets (optional) 84

Step five: Set up Send to Email to use Office 365 Outlook (optional) 86

Introduction 86

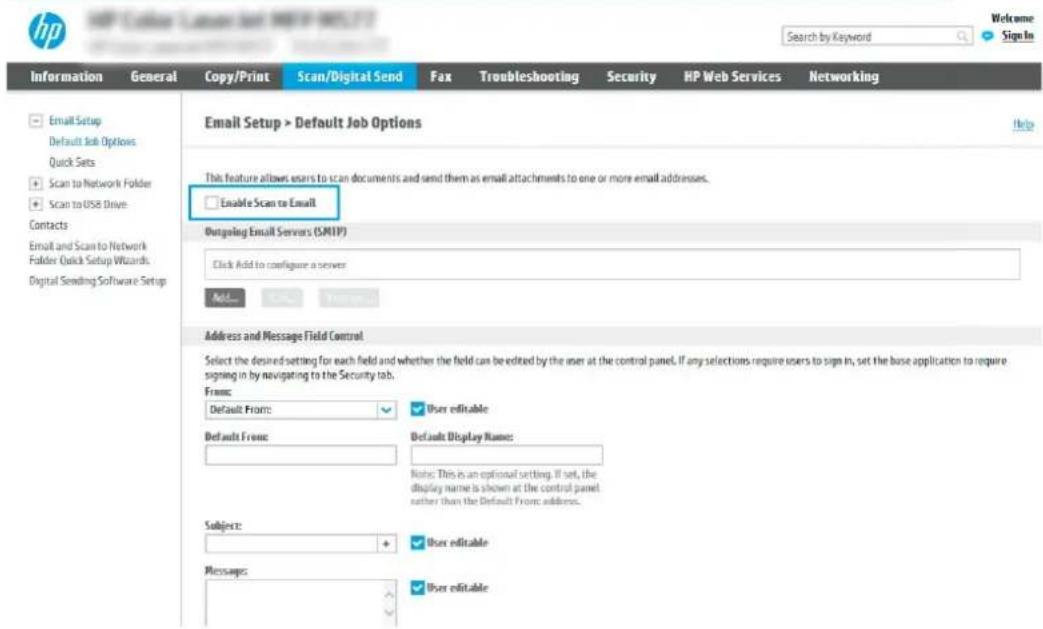

Configure the outgoing email server (SMTP) to send an email from an Office 365

Outlook account 86

Set up Scan to Network Folder 88

Introduction 88

Before you begin 88

Step one: Access the HP Embedded Web Server (EWS) 74

Step two: Set up Scan to Network Folder 90

Method one: Use the Scan to Network Folder Wizard 90

Method two: Use Scan to Network Folder Setup 92

Step one: Begin the configuration 92

Step two: Configure the Scan to Network Folder settings 93

Step three: Complete the configuration 102

Set up Scan to SharePoint® (Flow models only) 103

Introduction 103

Before you begin 103

Step one: Access the HP Embedded Web Server (EWS) 74

Step two: Enable Scan to SharePoint® and create a Scan to SharePoint Quick Set 104

Scan a file directly to a Microsoft® SharePoint site 106

Quick set scan settings and options for Scan to SharePoint ^® 107

Set up Scan to USB Drive 109

Introduction 109

Step one: Access the HP Embedded Web Server (EWS) 74

Step two: Enable Scan to USB Drive 110

Step three: Configure the Quick Sets (optional) 110

Default scan settings for Scan to USB Drive setup 111

Default file settings for Save to USB Setup 111

Scan to email 113

Introduction 113

Scan to email 113

Scan to job storage 116

Introduction 116

Scan to job storage on the printer 116

Print from job storage on the printer 118

Scan to network folder 119

Introduction 119

Scan to network folder 119

Scan to SharePoint 121

Introduction 121

Scan to SharePoint 121

Scan to USB drive 123

Introduction 123

Scan to USB drive 123

Use HP JetAdvantage business solutions 124

Additional scan tasks 125

7 Fax 127

Set up fax 128

Introduction 128

Set up fax by using the printer control panel 128

Change fax configurations 129

Fax dialing settings 129

General fax send settings 130

Fax receive settings 130

Send a fax 131

Additional fax tasks 133

8 Manage the printer 135

Advanced configuration with the HP Embedded Web Server (EWS) 136

Introduction 136

How to access the HP Embedded Web Server (EWS) 136

HP Embedded Web Server features 138

Information tab 138

General tab 138

Copy/Print tab 139

Scan/Digital Send tab 140

Fax tab 141

Supplies tab 142

Troubleshooting tab 142

Security tab 142

HP Web Services tab 143

Networking tab 143

Other Links list 145

Configure IP network settings 146

Printer sharing disclaimer 146

View or change network settings 146

Rename the printer on a network 146

Manually configure IPv4 TCP/IP parameters from the control panel 147

Manually configure IPv6 TCP/IP parameters from the control panel 147

Link speed and duplex settings 148

Printer security features 149

Introduction 149

Security statements 149

Assign an administrator password 150

Use the HP Embedded Web Server (EWS) to set the password 150

Provide user access credentials at the printer control panel 150

IP Security 151

Encryption support: HP High Performance Secure Hard Disks 151

Lock the formatter 151

Energy-conservation settings 152

Print with EconoMode 153

Configure EconoMode from the print driver 153

Configure EconoMode from the printer control panel 153

Set the sleep timer and configure the printer to use 1 watt or less of power 153

Set the sleep schedule 154

HP Web Jetadmin 154

Software and firmware updates 154

9 Solve problems 155

Customer support 156

Control panel help system 156

Reset factory settings 157

Introduction 157

Method one: Reset factory settings from the printer control panel 157

Method two: Reset factory settings from the HP Embedded Web Server (network-connected printers only) 157

A "Cartridge is low" or "Cartridge is very low" message displays on the printer control panel 158

Change the "Very Low" settings 159

Change the "Very Low" settings at the control panel 159

For printers with fax capability 159

Order supplies 159

Printer does not pick up paper or misfeeds 160

Introduction 160

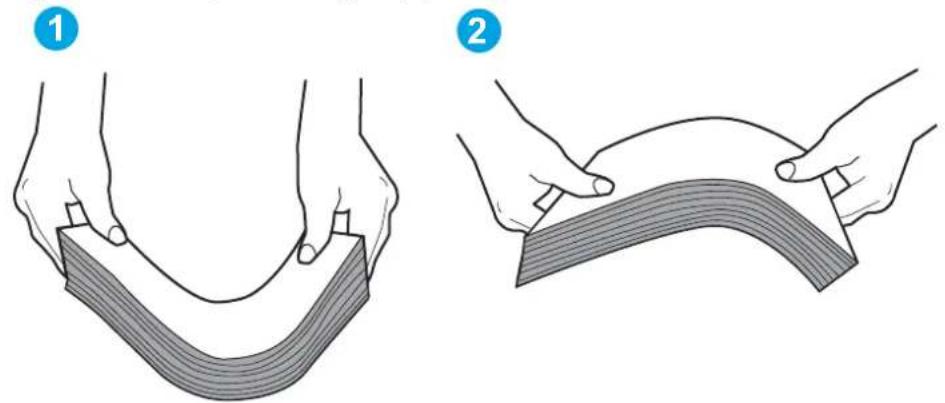

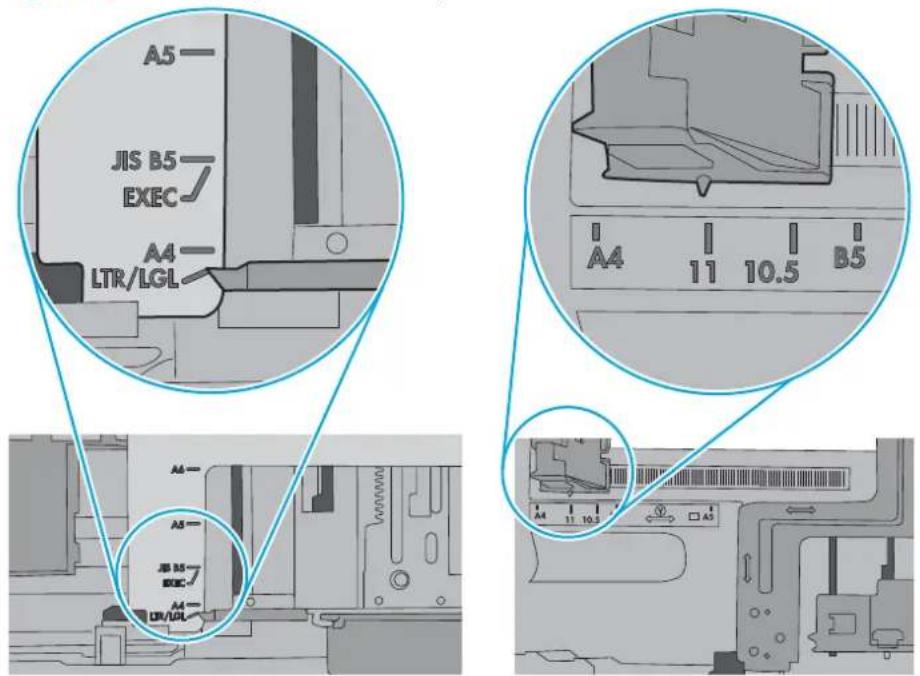

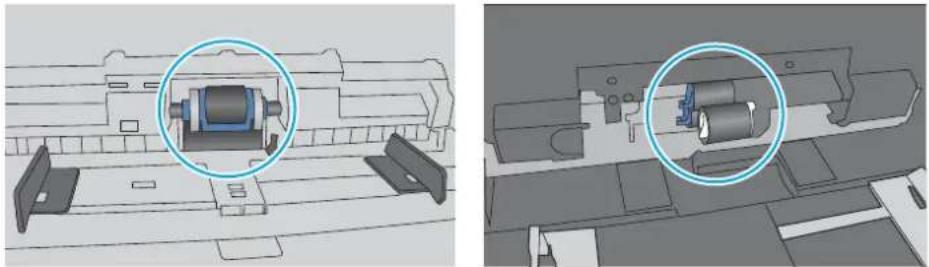

The printer does not pick up paper 160

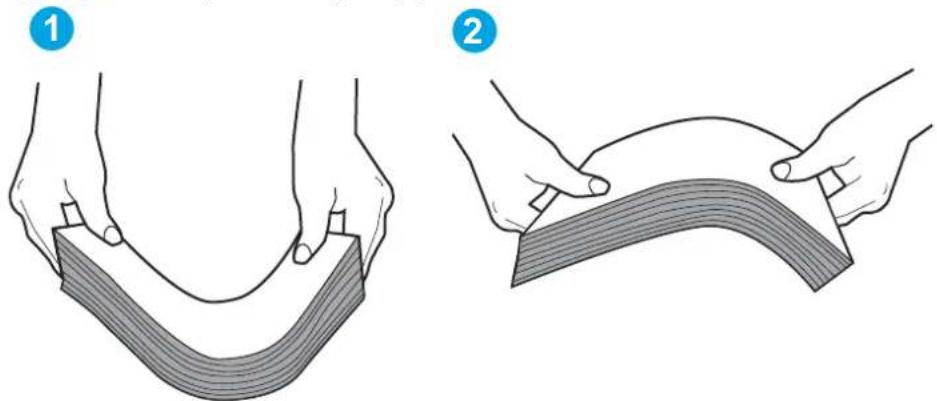

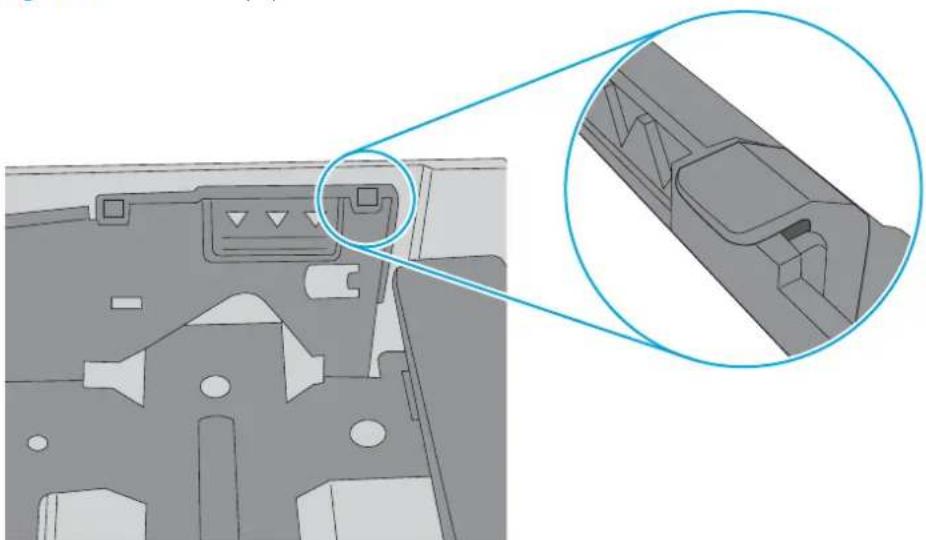

The printer picks up multiple sheets of paper 162

The document feeder jams, skews, or picks up multiple sheets of paper 165

Clear paper jams 167

Introduction 167

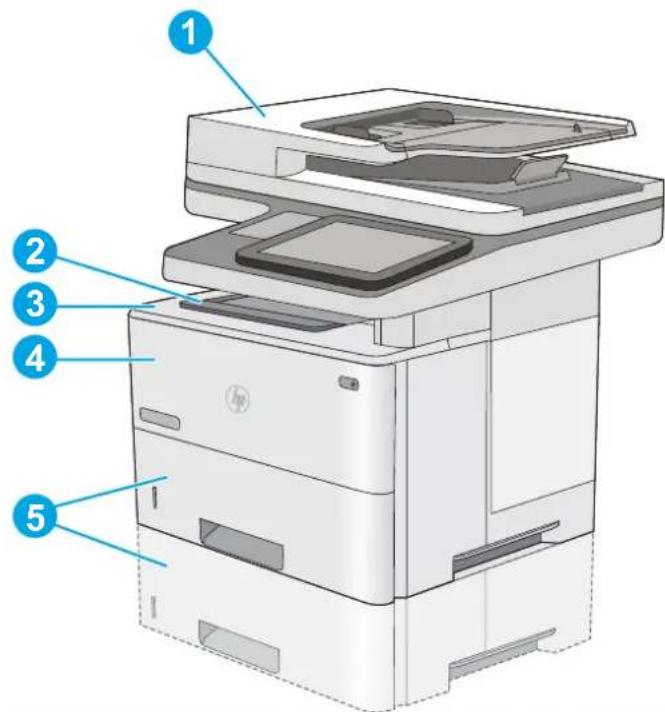

Paper jam locations 167

Auto-navigation for clearing paper jams 168

Experiencing frequent or recurring paper jams? 168

Clear paper jams in the document feeder—31.13.yz 168

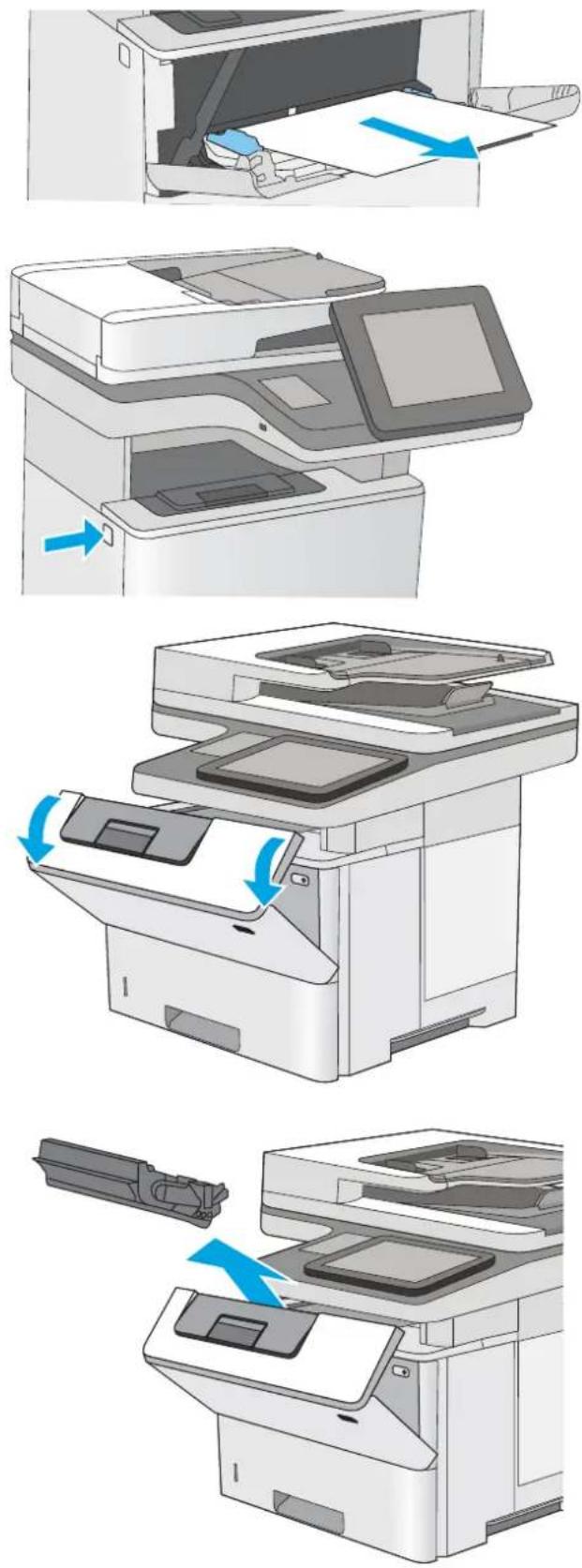

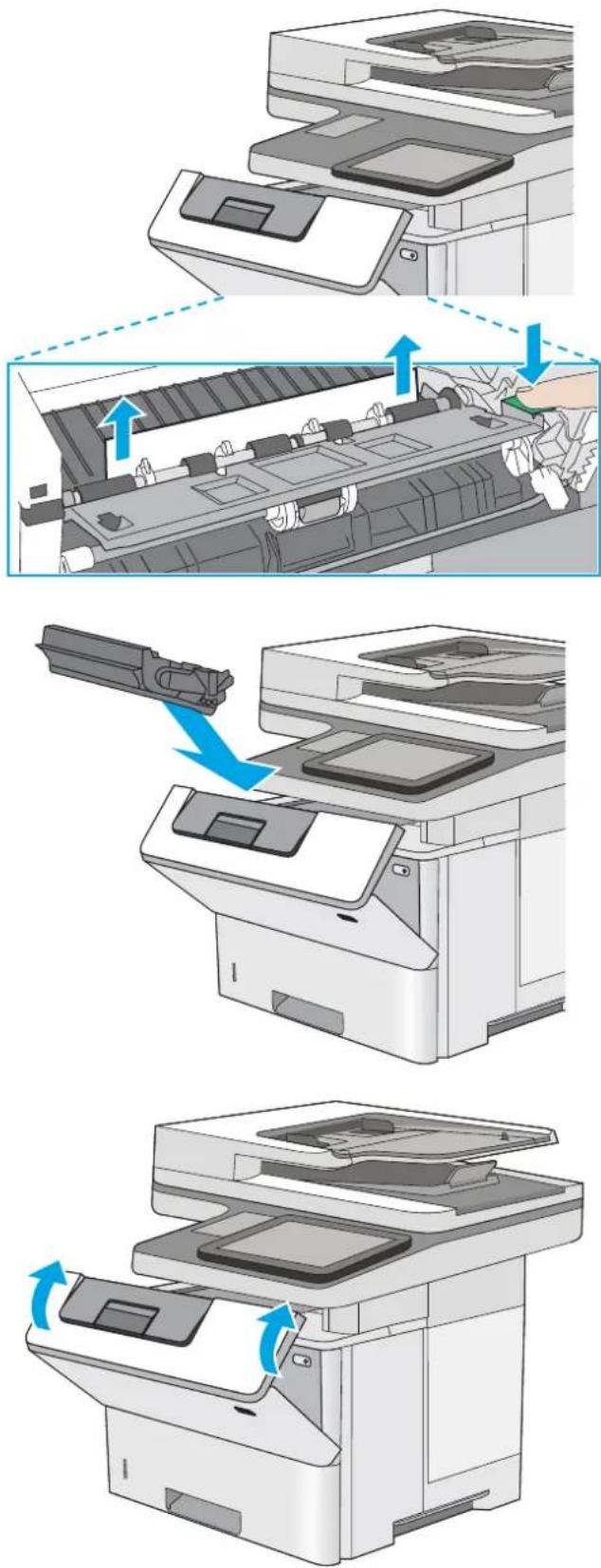

Clear paper jams in tray 1—13.A1 172

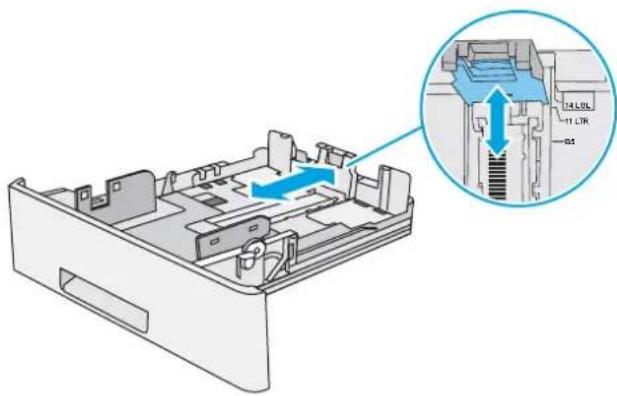

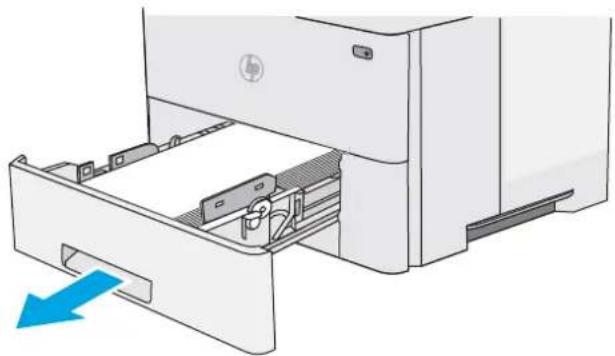

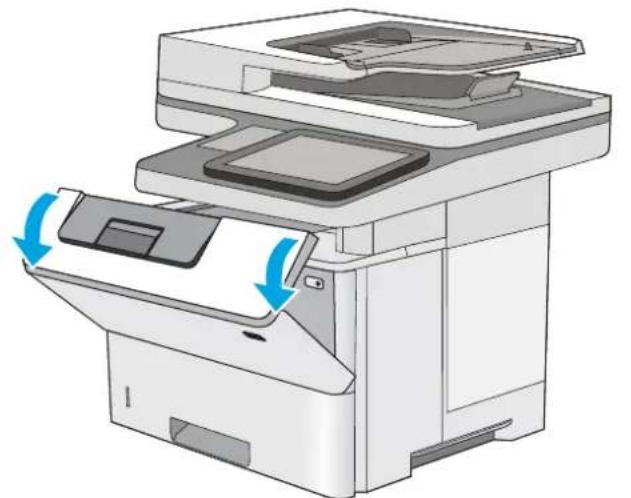

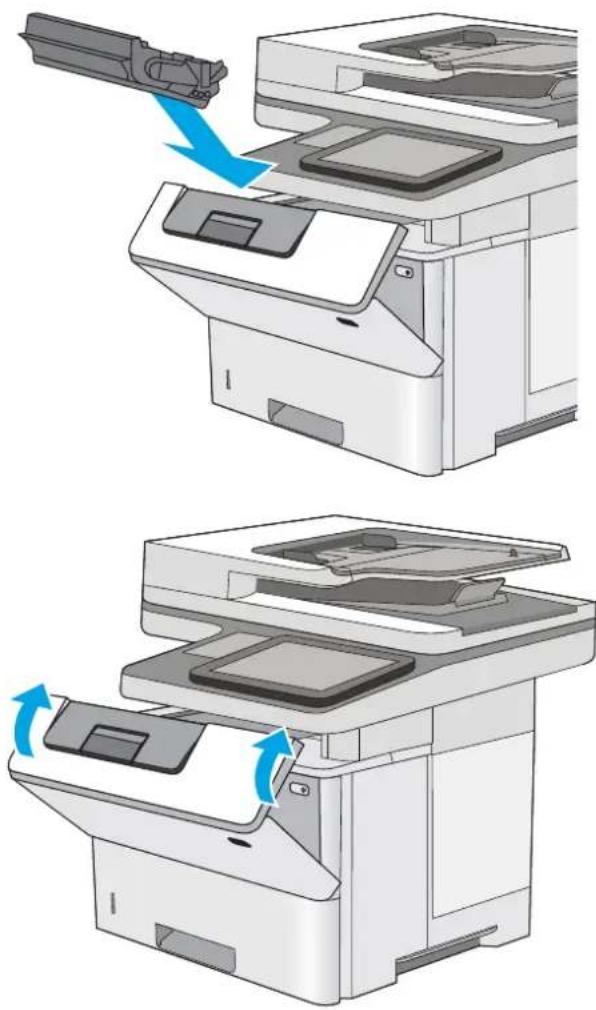

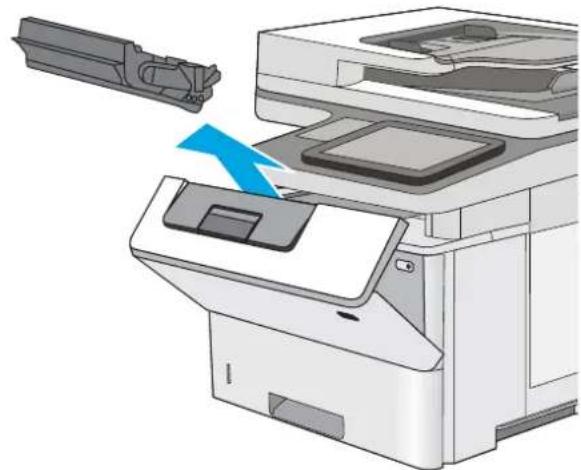

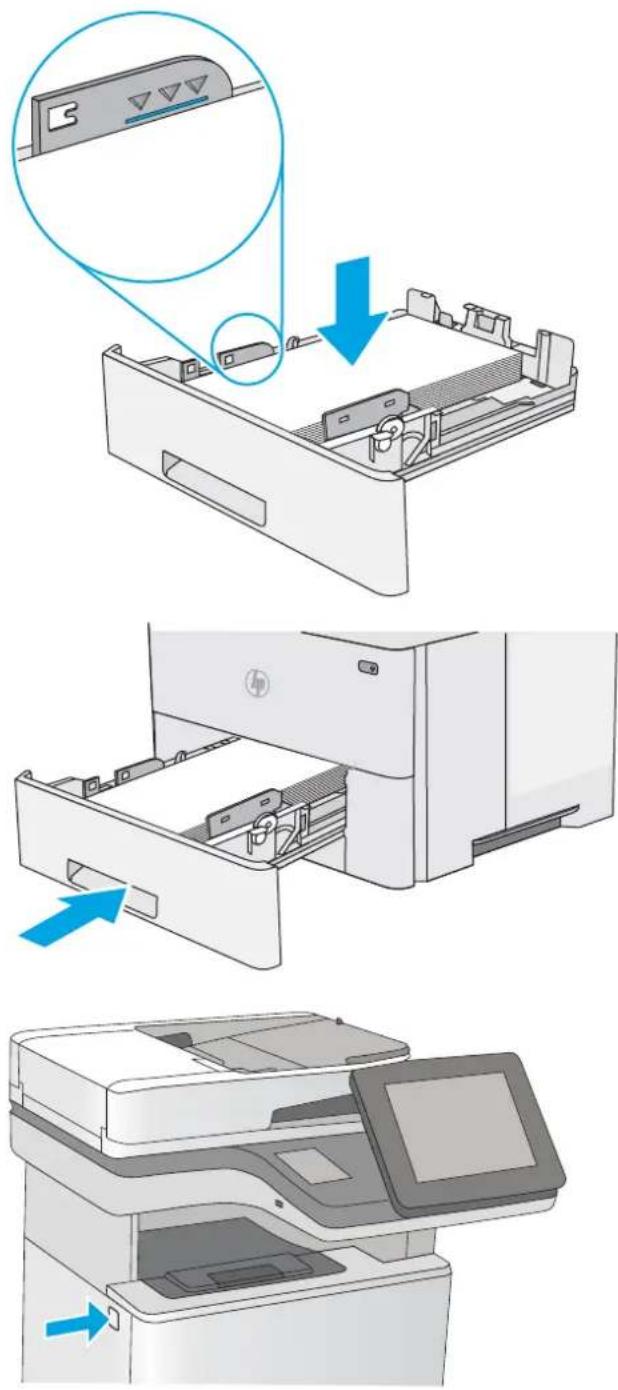

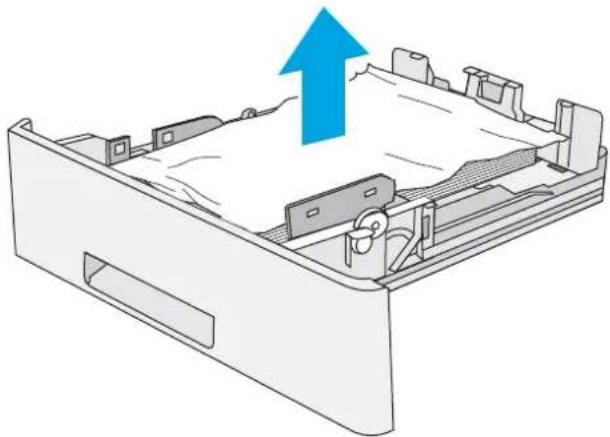

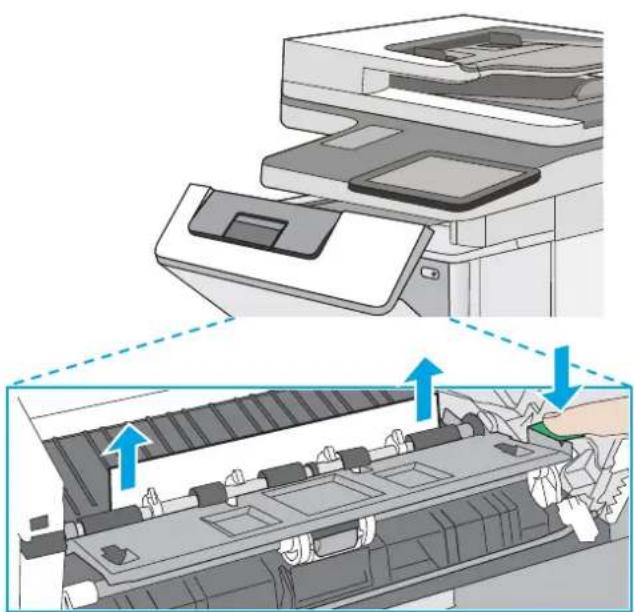

Clear paper jams in tray 2, tray 3, tray 4, tray 5—13.A2, 13.A3, 13.A4, 13.A5....175

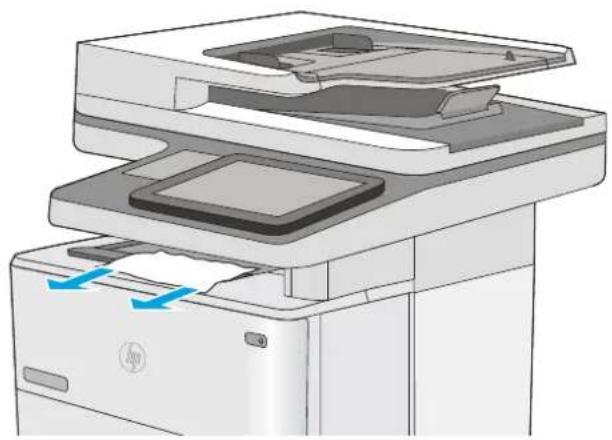

Clear paper jams in the output bin—13.E1 178

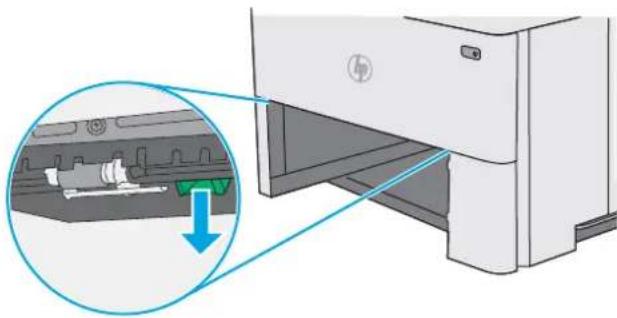

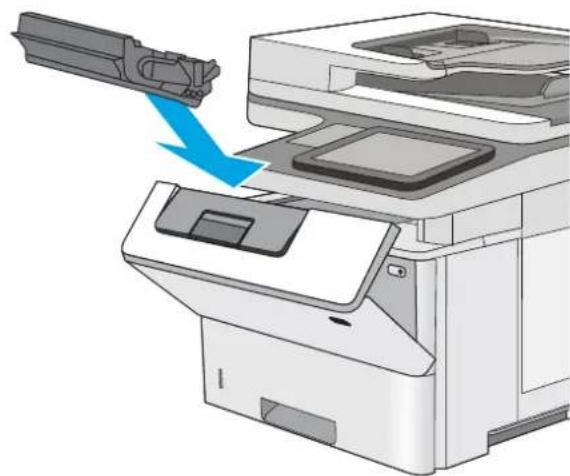

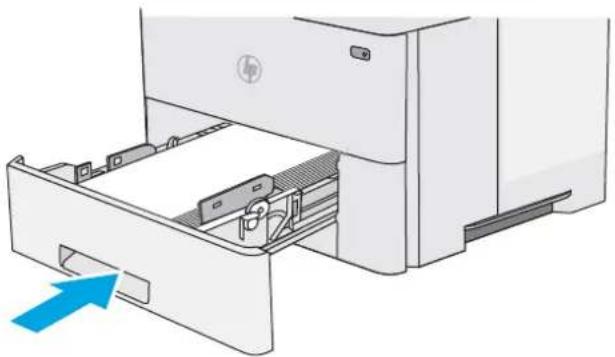

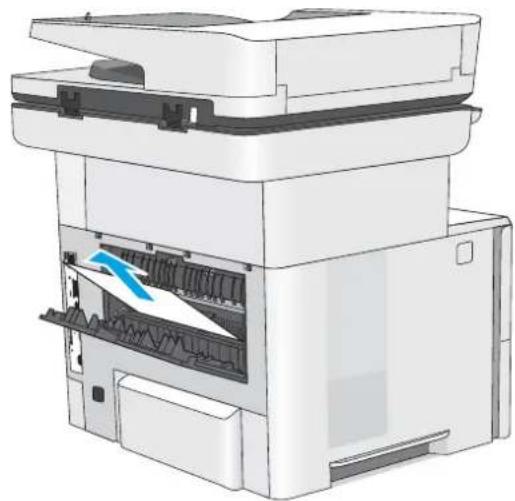

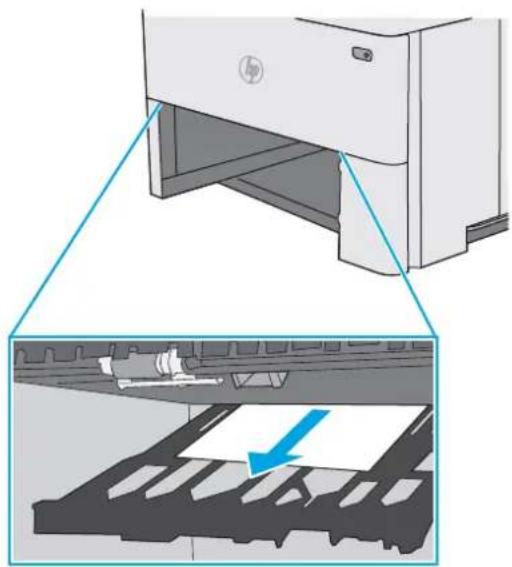

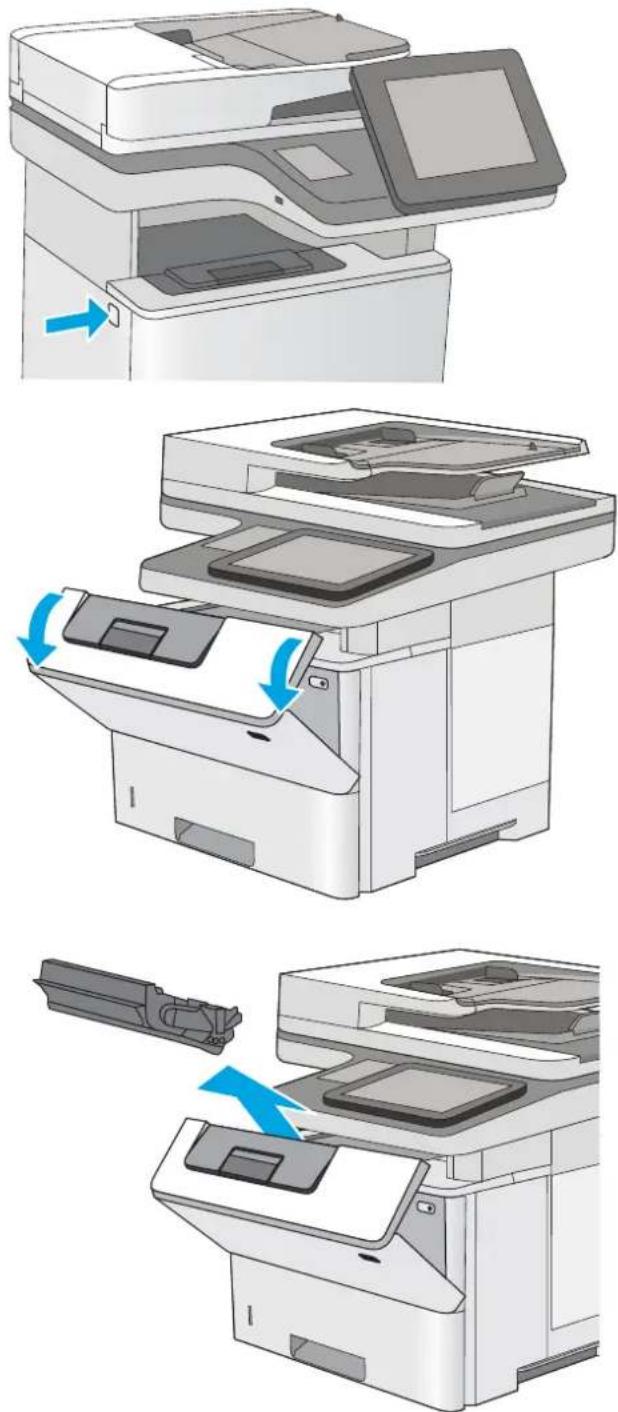

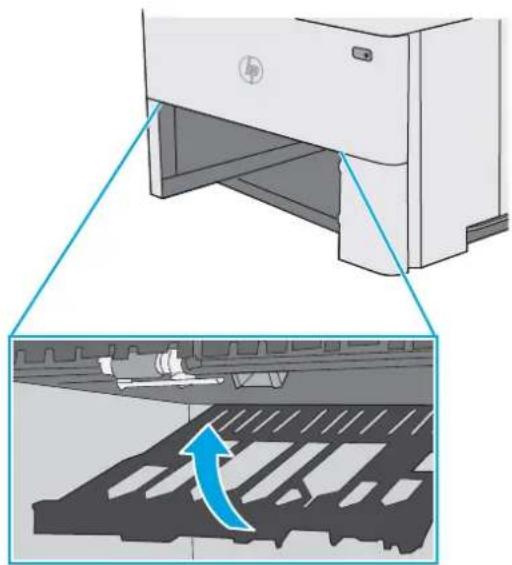

Clear paper jams in the duplexer—13.CX.XX, 13.DX.XX 179

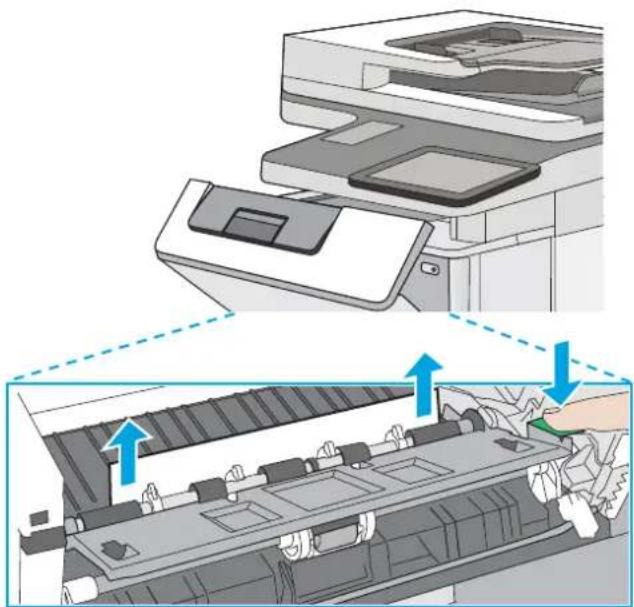

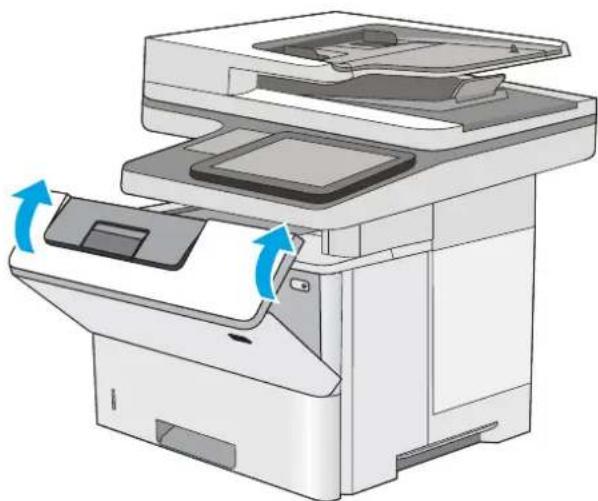

Clear paper jams in the toner-cartridge area 184

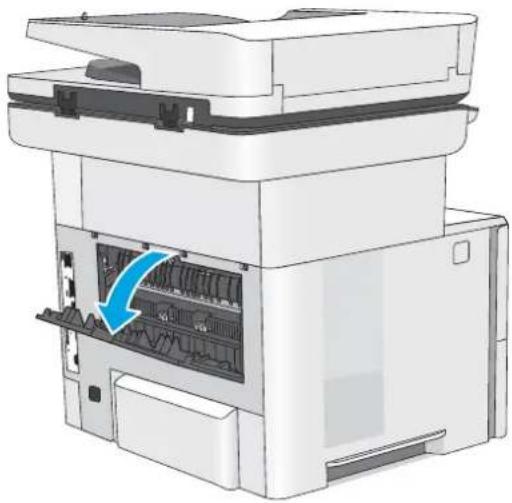

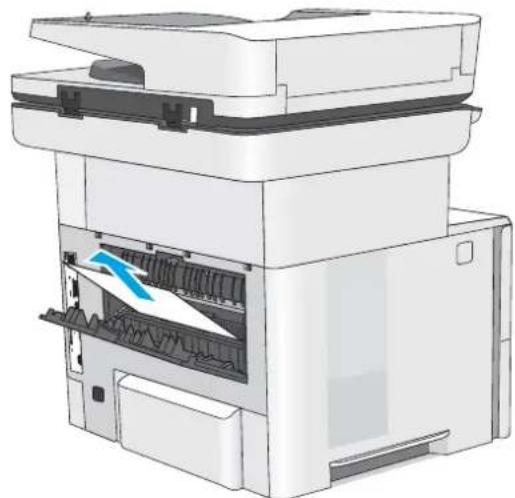

Clear paper jams in the fuser—13.B9, 13.B2, 13.FF 186

Resolve print-quality problems 188

Introduction 188

Troubleshoot print quality 189

Update the printer firmware 189

Print from a different software program 189

Check the paper-type setting for the print job 190

Check the paper type setting on the printer 190

Check the paper type setting (Windows) 190

Check the paper type setting (macOS) 190

Check toner-cartridge status 191

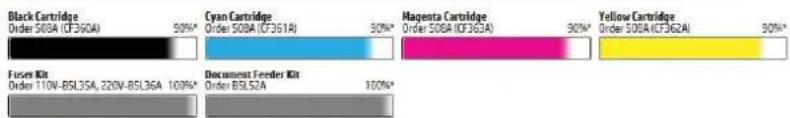

Step one: Print the supplies status page 191

Step two: Check supplies status 191

Print a cleaning page 191

Visually inspect the toner cartridge or cartridges 192

Check paper and the printing environment 193

Step one: Use paper that meets HP specifications 193

Step two: Check the environment 193

Step three: Set the individual tray alignment 193

Try a different print driver 194

Check the EconoMode settings 194

Adjust print density 195

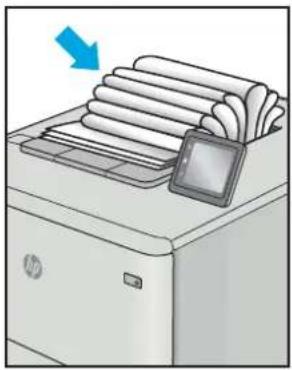

Troubleshoot image defects 195

Improve copy image quality 203

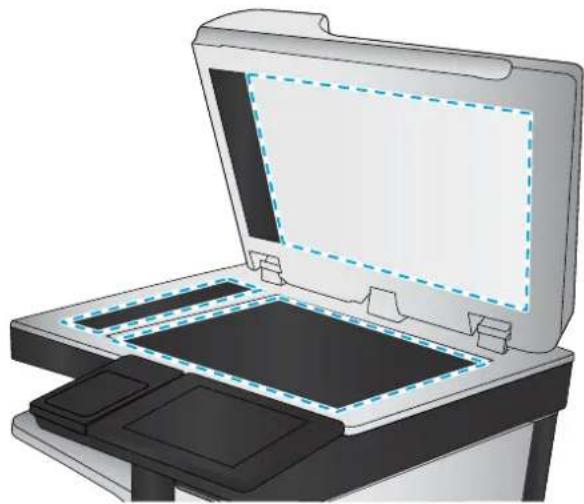

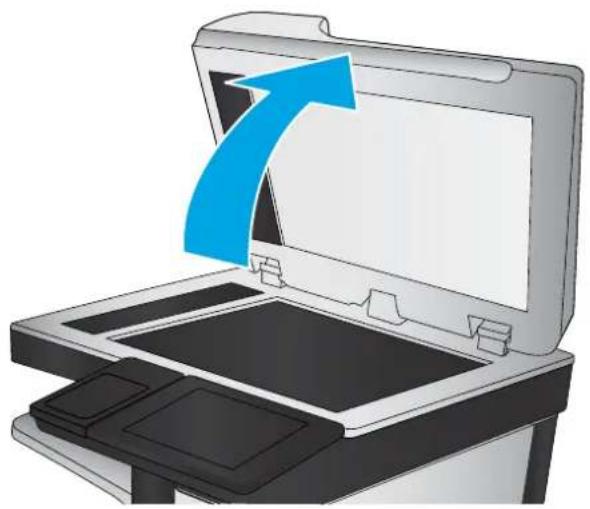

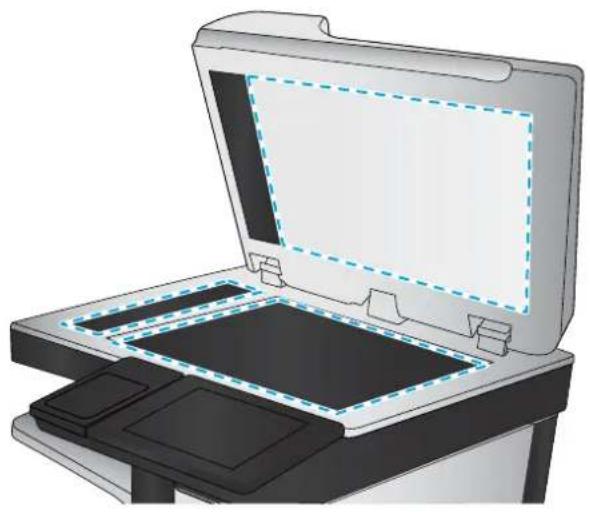

Check the scanner glass for dirt and smudges 203

Calibrate the scanner 204

Check the paper settings 206

Check the paper selection options 206

Check the image-adjustment settings 206

Optimize copy quality for text or pictures 206

Edge-to-edge copying 207

Improve scan image quality 208

Check the scanner glass for dirt and smudges 203

Check the resolution settings 209

Check the color settings 210

Check the image-adjustment settings 210

Optimize scan quality for text or pictures 211

Check the output-quality settings 211

Improve fax image quality 213

Check the scanner glass for dirt and smudges 203

Check the send-fax resolution settings 214

Check the image-adjustment settings 215

Optimize fax quality for text or pictures 215

Check the error-correction settings 215

Check the fit-to-page setting 216

Send to a different fax machine 216

Check the sender's fax machine 216

Solve wired network problems 217

Introduction 217

Poor physical connection 217

The computer is unable to communicate with the printer 217

The printer is using incorrect link and duplex settings for the network 218

New software programs might be causing compatibility problems 218

The computer or workstation might be set up incorrectly 218

The printer is disabled, or other network settings are incorrect 218

Solve wireless network problems 219

Introduction 219

Wireless connectivity checklist 219

The printer does not print after the wireless configuration completes 220

The printer does not print, and the computer has a third-party firewall installed 220

The wireless connection does not work after moving the wireless router or printer 220

Cannot connect more computers to the wireless printer 221

The wireless printer loses communication when connected to a VPN 221

The network does not appear in the wireless networks list 221

The wireless network is not functioning 221

Reduce interference on a wireless network 222

Solve fax problems 223

Checklist for solving fax problems 224

What type of phone line are you using? 224

Are you using a surge-protection device? 224

Are you using a phone company voice-messaging service or an answering machine? . 224

Does your phone line have a call-waiting feature? 225

Check fax accessory status 225

General fax problems 226

The fax failed to send 226

An Out of Memory status message displays on the printer control panel 226

Print quality of a photo is poor or prints as a gray box 226

You touched the Stop button to cancel a fax, but the fax was still sent 226

No fax address book button displays 226

Not able to locate the Fax settings in HP Web Jetadmin 226

The header is appended to the top of the page when the overlay option is enabled ..... 227

A mix of names and numbers is in the recipients box 227

A one-page fax prints as two pages 227

A document stops in the document feeder in the middle of faxing 227

The volume for sounds coming from the fax accessory is too high or too low 227

USB flash drive is not responding 228

Method one: Enable the USB port from the printer control panel 64

Method two: Enable the USB port from the HP Embedded Web Server (network-connected printers only) 64

Index 229

1 Printer overview

Review the location of features on the printer, the physical and technical specifications of the printer, and where to locate setup information.

• Warning icons
  • Potential shock hazard
  Printer views
  • Printer specifications

• Printer hardware setup and software installation

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

Warning icons

Use caution if you see a warning icon on your HP printer, as indicated in the icon definitions.

• Caution: Electric shock

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

- Caution: Hot surface

Warning symbol depicting steam rising inside a triangle, indicating heat or smoke hazard.

- Caution: Keep body parts away from moving parts

Warning symbol with two gear icons inside a triangle (no text or numbers)

- Caution: Sharp edge in close proximity

Warning sign depicting a hand holding a device with a lightning bolt symbol, commonly used in safety or hazard prevention.

• Warning

Warning symbol image with exclamation mark inside triangle

Potential shock hazard

Review this important safety information.

• Read and understand these safety statements to avoid an electrical shock hazard.
• Always follow basic safety precautions when using this product to reduce risk of injury from fire or electric shock.
• Read and understand all instructions in the user guide.

Observe all warnings and instructions marked on the product.

• Use only a grounded electrical outlet when connecting the product to a power source. If you do not know whether the outlet is grounded, check with a qualified electrician.
  Do not touch the contacts on any of the sockets on the product. Replace damaged cords immediately.
• Unplug this product from wall outlets before cleaning.
• Do not install or use this product near water or when you are wet.
  • Install the product securely on a stable surface.
  • Install the product in a protected location where no one can step on or trip over the power cord.

Printer views

Locate key features on the printer and the control panel.

Printer front view
Printer back view
- Interface ports
• Control-panel view

Printer front view

Locate features on the front of the printer.

Diagram of a HP printer with numbered parts for identification

1 Document-feeder cover (access for clearing jams)

2 Document-feeder input tray

3 Document-feeder output binNOTE: When feeding long paper through the document feeder, extend the paper stop at the right side of the output bin.

4 Control panel with color touchscreen display (tilts up for easier viewing)

5 Physical keyboard (c and z models only). Pull the keyboard straight out to use it.

6 Convenience stapler (c, f, and z models only)

7 On/off button

8 Formatter cover

9 Optional 1 x 550-sheet paper feeder (Tray 3)

NOTE: Each printer model accepts up to three optional 1 x 550-sheet feeders (Trays 3, 4, and 5).

10 Tray 2

11 Model name

12 Tray 1

13 Top cover (access to the toner cartridge)

NOTE: The release button for the top cover is on the left side of the printer.

14 Standard output bin

15 Easy-access USB port (on the left side of the control panel support)

Insert a USB flash drive for printing or scanning without a computer or to update the printer firmware.

NOTE: An administrator must enable this port before use.

16 Hardware integration pocket (for connecting accessory and third-party devices)

Printer back view

Locate features on the back of the printer.

Diagram of a printer internal structure with numbered parts labeled 1 through 6

1 Rear door (access for clearing jams)

2 Top-cover-release button

3 Serial number and product number label

4 Dust cover for Tray 2 (flips up when legal-size paper is loaded)

5 Power connection

6 Formatter (contains the interface ports)

Interface ports

Locate the interface ports on the printer formatter.

Diagram of a device rear panel with numbered components for identification

1 Slot for a cable-type security lock
2 Fax port (f, c, and z models only. The port is covered for the dn models.)
3 Local area network (LAN) Ethernet (RJ-45) network port
4 USB port for connecting external USB devices (this port might be covered)

NOTE: For easy-access USB printing, use the USB port near the control panel.

5 Hi-Speed USB 2.0 printing port

Control-panel view

The control panel provides access to the printer features and indicates the current status of the printer.

• How to use the touchscreen control panel

Return to the Home screen at any time by touching the Home button on the left side of the printer control panel, or touch the Home button in the upper-left corner of most screens.

NOTE: The features that appear on the Home screen can vary, depending on the printer configuration.

Labeled diagram of a laptop showing numbered components for identification

1	Home button Select the Home button to return to the printer Home screen at any time.
2	Applications area	Select any of the icons to open the application. Swipe the screen sideways to access more applications.NOTE: The available applications vary by printer. The administrator can configure which applications appear and the order in which they appear.
3	Reset button	Select the Reset button to clear changes, release the printer from a paused state, display hidden errors, and restore the default settings (including the language and keyboard layout).
4	Sign In or Sign Out button	Select the Sign In button to open the Sign In screen.Select the Sign Out button to sign out of the printer. The printer restores all options to the default settings.NOTE: This button displays only if the administrator has configured the printer to require permission for access to features.
5	Information button	Select the Information button to access a screen that provides access to several types of printer information. Select the buttons at the bottom of the screen for the following information:Display Language: Change the language setting from this screen.Sleep Mode: Place the printer into sleep mode from this screen.Wi-Fi Direct: View information for how to connect directly to the printer using a phone, tablet, or other device with Wi-Fi.Wireless: Use this screen to view and change wireless connection settings (some models require an optional wireless accessory).Ethernet: Use this screen to view and change Ethernet connection settings.HP Web Services: Find information to connect and print to the printer using HP Web Services (ePrint).Fax Number: View the printer fax number (for f and z models and for the dn model only when the optional fax accessory is installed).
6	Help button Select the Help button to open the embedded help system.The system provides a list of help topics or information about a topic when using the Home screen, an app, an option, or a feature.
7	Current time Displays the current time.
8	Copy button	Select the Copy button to start a copy job.
9	Copies count The copy count indicates the number of copies that the printer is set to make.
10	Home-screen page indicator	The Home screen has multiple pages. This icon indicates the number of pages and which page is currently active. Swipe the screen sideways to scroll between pages.
11	Keyboard(c and z models only)	This printer includes a physical keyboard. The keys are mapped to a language in the same way the virtual keyboard on the printer touchscreen is mapped. Whenever the keyboard layout for the virtual keyboard changes, the keys on the physical keyboard are remapped to match the new settings.NOTE: In some locations, the printer comes with adhesive keyboard overlays to customize the keys for different languages.
12	Easy-access USB port	Insert a USB flash drive for printing or scanning without a computer or to update the printer firmware.NOTE: An administrator must enable this port before use.
13	Hardware integration pocket	For connecting accessory and third-party devices.

How to use the touchscreen control panel

Use the following actions to use the printer touchscreen control panel.

Action Description Example
Touch Touch an item on the screen to select that item or open that menu. Also, when scrolling through menus, briefly touch the screen to stop the scrolling.	Touch the Settings icon to open the Settings app.
Swipe	Touch the screen and then move your finger horizontally to scroll the screen sideways.	Swipe until the Settings app displays.
Scroll	Touch the screen and then move your finger vertically to scroll the screen up and down. When scrolling through menus, briefly touch the screen to stop the scrolling.	Scroll through the Settings app.

Printer specifications

• Technical specifications
• Supported operating systems
• Mobile printing solutions
Printer dimensions
• Power consumption, electrical specifications, and acoustic emissions
• Operating-environment range

IMPORTANT: The following specifications are correct at the time of publication, but they are subject to change. For current information, see www.hp.com/support/ljM528mfp.

Technical specifications

Model name M528dn M528f M528c Flow M528z
Product number 1PV64A 1PV65A 1PV66A 1PV67A
Paper handling Tray 1 (100-sheet capacity) Included Included Included Included
	Tray 2 (550-sheet capacity) Included Included Included Included
	Tray 3 (550-sheet capacity)	Optional Optional Optional Optional
	NOTE: The printer is limited to a total of five input trays, including combination of MP tray, main cassette, and stackable, 2,300 pages max. input.
	Convenience stapler Not available	Included Included Included
	Automatic duplex printing	Included Included Included Included
Connectivity	10/100/1000 Ethernet LAN connection with IPv4 and IPv6	Included Included Included Included
	Hi-Speed USB 2.0	Included Included Included Included
	Print server for wireless network connectivity	Optional Optional Included Optional
	Walk-up USB port	Included Included Included Included
	Hardware Integration Pocket for connecting accessory and third-party devices	Included Included Included Included
	HP Internal USB Ports	Optional Optional Optional Optional
	HP Jetdirect 3100w BLE/NFC/Wireless Accessory	Optional Optional Optional Included
	HP Jetdirect 2900nw Print Server accessory for wireless connectivity	Optional Optional Optional Optional
	Wi-Fi Bluetooth Low Energy (BLE) Direct	Not available Not available Not available Included
Memory 1.75 GB base memoryNOTE: The base memory is expandable to 3.75 GB by adding a DIMM memory module.		Included Included Included Included
Mass storage 16 GB embedded Multi-Media Controller (eMMC)		Included Not available Not available Not available
	500 GB HP Secure High-Performance Hard Disk	Optional Included Included Included
Security HP Trusted Platform Module for encrypting all data that passes through the printer		Optional Optional Optional Optional
Control-panel display and keyboard	Color touchscreen control panel	Included Included Included Included
	Physical keyboard Not available Not available Included Included
Print Prints 45 pages per minute (ppm) on letter and 43 ppm on A4-size paper		Included Included Included Included
	USB printing	Included Included Included Included
	Mobile/cloud printing	Not available Not available Not available		Included
	Store jobs in the printer memory to print later or print privately	Not available Not available Not available Included
Fax		Optional Included Included Included
Copy and Scan	Copies 45 pages per minute (ppm) on letter and 40 ppm on A4-size paper	Included Included Included Included
	100-page document feeder with dual-head scanning for single-pass duplex copying and scanning	Included Included Included Included
	HP EveryPage Technologies including ultrasonic multi-feed detection	Not available Not available Included Included
	Embedded optical character recognition (OCR) provides the ability to convert printed pages into text that can be edited or searched using a computer	Not available Not available Included Included
	SMART Label feature provides paper-edge detection for automatic page cropping	Not available Not available Included Included

Model name M528dn M528f M528c Flow M528z
Product number 1PV64A 1PV65A 1PV66A 1PV67A

	Automatic page orientation for pages that have at least 100 characters of text	Not available Not available Included Included
	Automatic tone adjustment sets contrast, brightness, and background removal for each page	Not available Not available Included Included
Digital Send Send documents to E-mail, USB, and shared folders on a network		Not available Not available Included Included
	Send documents to SharePoint®	Not available Not available Included Included

Supported operating systems

Use the following information to ensure printer compatibility with your computer operating system.

Linux: For information and print drivers for Linux, go to www.hp.com/go/linuxprinting.

UNIX: For information and print drivers for UNIX®, go to www.hp.com/go/unixmodelscripts.

The following information applies to the printer-specific Windows HP PCL 6 print drivers, HP print drivers for macOS, and to the software installer.

Windows: Download HP Easy Start from 123.hp.com/LaserJet to install the HP print driver. Or, go to the printer-support website for this printer, www.hp.com/support/ljM528mfp, to download the print driver or the software installer to install the HP print driver

macOS: Mac computers are supported with this printer. Download HP Easy Start either from 123.hp.com/LaserJet or from the Printer Support page, and then use HP Easy Start to install the HP print driver.

1. Go to 123.hp.com/LaserJet.

2. Follow the steps provided to download the printer software.

Table 1-1 Supported operating systems and print drivers

Operating system Print driver installed (for Windows, or the installer on the web for macOS)		Notes
Windows 7, 32-bit and 64-bit The "HP PCL 6" printer-specific print driver is installed for this operating system as part of the software installation.
Windows 8, 32-bit and 64-bit The "HP PCL 6" printer-specific print driver is installed for this operating system as part of the software installation.		Windows 8 RT support is provided through Microsoft IN OS Version 4, 32-bit driver.
Windows 8.1, 32-bit and 64-bit	The "HP PCL-6" V4 printer-specific print driver is installed for this operating system as part of the software installation.	Windows 8.1 RT support is provided through Microsoft IN OS Version 4, 32-bit driver.
Windows 10, 32-bit and 64-bit	The "HP PCL-6" V4 printer-specific print driver is installed for this operating system as part of the software installation.
Windows Server 2008 R2, SP 1, 64-bit The PCL 6 printer-specific print driver is available for download from the printer-support website. Download the driver, and then use the Microsoft Add Printer tool to install it.
Windows Server 2012, 64-bit The PCL 6 printer-specific print driver is available for download from the printer-support website. Download the driver, and then use the Microsoft Add Printer tool to install it.
Windows Server 2012 R2, 64-bit The PCL 6 printer-specific print driver is available for download from the printer-support website. Download the driver, and then use the Microsoft Add Printer tool to install it.
Windows Server 2016, 64-bit The PCL 6 printer-specific print driver is available for download from the printer-support website. Download the driver, and then use the Microsoft Add Printer tool to install it.
macOS 10.12 Sierra, macOS 10.13 High Sierra	Download HP Easy Start from 123.hp.com/LaserJet, and then use it to install the print driver.

NOTE: Supported operating systems can change. For a current list of supported operating systems, go to www.hp.com/support/ljM528mfp for HP's all-inclusive help for the printer.

NOTE: For details on client and server operating systems and for HP UPD driver support for this printer, go to www.hp.com/go/upd. Under Additional information, click the links.

Table 1-2 Minimum system requirements

Windows macOS
•Internet connection	•Internet connection
•Dedicated USB 1.1 or 2.0 connection or a network connection	•Dedicated USB 1.1 or 2.0 connection or a network connection
•2 GB of available hard-disk space	•1.5 GB of available hard-disk space
•1 GB RAM (32-bit) or 2 GB RAM (64-bit)

NOTE: The Windows software installer installs the HP Smart Device Agent Base service. The file size is approximately 100 kb. Its only function is to check for printers connected via USB hourly. No data is collected. If a USB printer is found, it then tries to locate a JetAdvantage Management Connector (JAMc) instance on the network. If a JAMc is found, the HP Smart Device Agent Base is securely upgraded to a full Smart Device Agent from JAMc, which will then allow printed pages to be accounted for in a Managed Print Services (MPS) account. The driver-only web packs downloaded from hp.com for the printer and installed through the Add Printer wizard do not install this service.

To uninstall the service, open the Windows Control Panel, select Programs or Programs and Features, and then select Add/Remove Programs or Uninstall a Program to remove the service. The file name is HPSmartDeviceAgentBase.

Mobile printing solutions

HP offers multiple mobile printing solutions to enable easy printing to an HP printer from a laptop, tablet, smartphone, or other mobile device. To see the full list and to determine the best choice, go to www.hp.com/go/LaserJetMobilePrinting.

NOTE: Update the printer firmware to ensure all mobile printing capabilities are supported.

Wi-Fi Direct (wireless models only, with HP Jetdirect 3100w NFC/BLE Wireless accessory installed)
- Wireless Station (wireless models only, with HP Jetdirect 3100w NFC/BLE Wireless accessory or HP 2900nw wireless print server installed)
- HP ePrint via email (requires HP Web Services to be enabled and the printer to be registered with HP Connected)

• HP Smart app
- Google Cloud Print
AirPrint
- Android Printing
HP Roam

Printer dimensions

Table 1-3 Dimensions for the base printer

Printer fully closed Printer fully opened
Height 497 mm (19.6 in) 750 mm (29.5 in)
Depth Tray 2 dust cover closed: 496 mm (19.5 in)	674 mm (26.5 in)
Tray 2 dust cover open: 559 mm (22.0 in)
Width 482 mm (19.0 in) 482 mm (19.0 in)
Weight 23 kg (50.8 lb)
Depth Tray closed: 376 mm (14.8 in)
Tray opened: 569 mm (22.4 in)
Width 410 mm (16.1 in)
Weight 1.4 kg (3 lb)

Table 1-4 Dimensions for the 1 x 550-sheet paper feeder
Height 130 mm (5.1 in)

Table 1-5 Dimensions for the printer stand

Height 381 mm (15.0 in)

Depth Door closed: 632 mm (24.9 in)

Door opened and rear castors rotated: 865 mm (34.0 in)

Width Door closed: 600 mm (23.6 in)

Door opened and rear castors rotated: 630 mm (24.8 in)

Weight 9.0 kg (20 lb)

These values are subject to change. For current information, go to www.hp.com/support/ljM528mfp.

Table 1-6 Dimensions for the printer with three 1 × 550 -sheet paper feeders and the stand

Printer fully closed Printer fully opened

Height 1268 mm (49.9 in) 1521 mm (59.9 in)

Depth 632 mm (24.9 in) 865 mm (34.0 in)

Width 600 mm (23.6 in) 630 mm (24.8 in)

Weight 36.2 kg (79.8 lb)

These values are subject to change. For current information, go to www.hp.com/support/ljM528mfp.

Power consumption, electrical specifications, and acoustic emissions

See www.hp.com/support/ljM528mfp for current information.

CAUTION: Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer and void the printer warranty.

Operating-environment range

Table 1-7 Operating-environment specifications

Environment Recommended Allowed

Temperature 17° to 25°C (62.6° to 77°F) 15° to 30°C (59° to 86°F)

Relative humidity 30% to 70% relative humidity (RH) 10% to 80% RH

Printer hardware setup and software installation

For basic setup instructions, see the Hardware Installation Guide that came with the printer. For additional instructions, go to HP support on the web.

Go to www.hp.com/support/ljM528mfp for HP's all-inclusive help for the printer. Find the following support:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

2 Paper trays

Discover how to load and use the paper trays, including how to load special items such as envelopes and labels.

Introduction
- Load paper to Tray 1
- Load paper to Tray 2 and the 550-sheet trays
- Load and print envelopes
- Load and print labels
• Use the convenience stapler (f, c, and z models)

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

Introduction

Use caution when loading the paper trays.

CAUTION: Do not extend more than one paper tray at a time.

Do not use paper tray as a step.

Keep hands out of paper trays when closing.

All trays must be closed when moving the printer.

Load paper to Tray 1

The following information describes how to load paper into Tray 1.

• Load paper to Tray 1 (multipurpose tray)
Tray 1 paper orientation
• Use alternative letterhead mode

Load paper to Tray 1 (multipurpose tray)

This tray holds up to 100 sheets of 75g / m^2 (20 lb) paper or 10 envelopes.

NOTE: Select the correct paper type in the print driver before printing.

CAUTION: To avoid jams, never add or remove paper from Tray 1 during printing.

1. Grasp the handle on either side of Tray 1, and pull it forward to open it.

2. Pull out the tray extension to support the paper.

Two-step diagram showing a printer's internal structure with blue arrows indicating motion, no text or symbols present.

1. Spread the paper guides to the correct size, and then load paper in the tray. For information about how to orient the paper, see Tray 1 paper orientation on page 19.

Make sure that the paper fits under the fill line on the paper guides.

NOTE: The maximum stack height is 10 mm (0.4 in), or approximately 100 sheets of 75 g/m² (20 lb) paper.

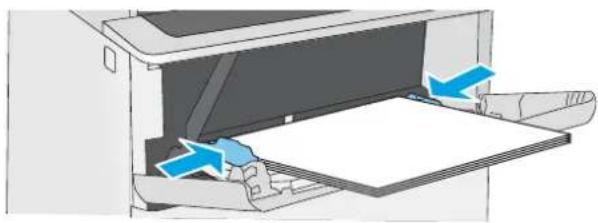

1. Adjust the side guides so that they lightly touch the paper stack, but do not bend it.

Diagram of a printer's internal structure showing paper feeding into a printer (no text or symbols present)

Illustration of a printer's internal structure with blue arrows indicating motion or movement (no text or symbols)

Tray 1 paper orientation

Paper type Single-sided printing Duplex printing and Alternative Letterhead Mode

Letterhead, preprinted, or prepunched Face-up

Top edge leading into the printer

Illustration of a printer with paper being inserted (no text or symbols visible)

Face-down

Bottom edge leading into the printer

Illustration of a printer with paper being inserted (no text or symbols visible)

Use alternative letterhead mode

Use the Alternative Letterhead Mode feature to load letterhead or preprinted paper into the tray the same way for all jobs, whether printing to one side of the sheet of paper or to both sides. When using this mode, load paper as for automatic duplex printing.

- Enable Alternative Letterhead Mode by using the printer control-panel menus

Enable Alternative Letterhead Mode by using the printer control-panel menus

Use the Settings menu to set the Alternative Letterhead Mode setting

1. From the Home screen on the printer control panel, open the Settings menu.

2. Open the following menus:

3. Copy/Print or Print

4. Manage Trays
   ●Alternative Letterhead Mode

5. Select Enabled, and then touch the Save button or press the OK button.

Load paper to Tray 2 and the 550-sheet trays

The following information describes how to load paper into Tray 2 and the optional 550-sheet trays.

• Load paper to Tray 2 and the 550-sheet trays
  • Tray 2 and the 550-sheet trays paper orientation
  • Use alternative letterhead mode

NOTE: The procedure to load paper for the 550-sheet trays is the same as for Tray 2. Only Tray 2 is shown here.

CAUTION: Do not extend more than one paper tray at a time.

Load paper to Tray 2 and the 550-sheet trays

The following information describes how to load paper in Tray 2 and the optional 550-sheet trays. These trays hold up to 550 sheets of 75g / m^2 (20 lb) paper.

NOTE: The procedure to load paper for the 550-sheet trays is the same as for Tray 2. Only Tray 2 is shown here.

NOTE: Do not extend more than one paper tray at a time.

1. Open the tray.

NOTE: Do not open this tray while it is in use.

1. Before loading paper, adjust the paper-width guides by squeezing the adjustment latches and sliding the guides to the size of the paper being used.

Diagram of a HP printer internal structure showing paper feed, paper holder, and paper tray (no text or symbols)

Technical illustration of a mechanical device with internal components and directional arrows indicating movement (no text or symbols)

1. Adjust the paper-length guide by squeezing the adjustment latch and sliding the guide to the size of the paper being used.

2. To load legal-size paper into the tray, squeeze the lever on the back of the tray that is to the left of center, and then extend the tray back to the correct paper size.

NOTE: This step does not apply to other paper sizes.

1. Load paper into the tray. For information about how to orient the paper, see Tray 2 and the 550-sheet trays paper orientation on page 23.

NOTE: Do not adjust the paper guides tightly against the paper stack. Adjust them to the indentations or markings in the tray.

NOTE: To prevent jams, adjust the paper guides to the correct size and do not overfill the tray. Be sure that the top of the stack is below the tray full indicator, as shown in the enlargement in the illustration.

Technical diagram showing three steps of a device's internal structure with labeled ports and directional arrows indicating movement.

1. Close the tray.

Diagram of a HP printer drawer with an arrow indicating the open lid (no text or symbols present)

1. The tray configuration message displays on the printer control panel.
2. If the paper size and type shown is not correct, select Modify to choose a different paper size or type.

For custom-size paper, specify the X and Y dimensions for the paper when the prompt displays on the printer control panel.

3D diagram of a printer casing with internal components and directional arrows indicating movement (no text or symbols)

Tray 2 and the 550-sheet trays paper orientation

Paper type Single-sided printing Duplex printing and Alternative Letterhead Mode

Letterhead, preprinted, or prepunched Face-down

Top edge at the front of the tray

Technical line drawing of a mechanical device housing with internal components (no text or symbols)

Face-up

Bottom edge at the front of the tray

3D technical illustration of a mechanical device with internal components and mounting bracket (no text or symbols)

Use alternative letterhead mode

Use the Alternative Letterhead Mode feature to load letterhead or preprinted paper into the tray the same way for all jobs, whether printing to one side of the sheet of paper or to both sides. When using this mode, load paper as for automatic duplex printing.

- Enable Alternative Letterhead Mode by using the printer control-panel menus

Enable Alternative Letterhead Mode by using the printer control-panel menus

Use the Settings menu to set the Alternative Letterhead Mode setting

1. From the Home screen on the printer control panel, open the Settings menu.

2. Open the following menus:

3. Copy/Print or Print

4. Manage Trays
   ●Alternative Letterhead Mode

5. Select Enabled, and then touch the Save button or press the OK button.

Load and print envelopes

Use only tray 1 to print on envelopes. Tray 1 holds up to 10 envelopes.

• Print envelopes
  • Envelope orientation

Print envelopes

To print envelopes using the manual feed option, follow these steps to select the correct settings in the print driver, and then load the envelopes into the tray after sending the print job to the printer.

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

NOTE: To access these features from a Windows 8 or 8.1 Start screen, select Devices, select Print, and then select the printer.

1. Click the Paper/Quality tab.

2. In the Paper size drop-down list, select the correct size for the envelopes.

3. In the Paper type drop-down list, select Envelope.
4. In the Paper source drop-down list, select Manual feed.
5. Click the OK button to close the Document Properties dialog box.
6. In the Print dialog box, click the OK button to print the job.

Envelope orientation

Load envelopes in Tray 1 face up, with the short, postage end leading into the printer.

Illustration of a printer with paper sheets being inserted (no text or symbols visible)

Load and print labels

To print on sheets of labels, use tray 1. Tray 2 and the optional 550-sheet trays do not support labels.

Manually feed labels
- Label orientation

Manually feed labels

Use the manual feed mode for Tray 1 to print sheets of labels.

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

NOTE: To access these features from a Windows 8 or 8.1 Start screen, select Devices, select Print, and then select the printer.

1. Click the Paper/Quality tab.
2. In the Paper size drop-down list, select the correct size for the sheets of labels.
3. In the Paper type drop-down list, select Labels.
4. In the Paper source drop-down list, select Manual feed.
5. Click the OK button to close the Document Properties dialog box.
6. In the Print dialog box, click the Print button to print the job.

Label orientation

Labels need to be loaded in a specific manner in order to print correctly.

Tray How to load labels

Tray 1 Load sheets of labels face-up with the top of the sheet leading into the printer.

Diagram of a printer's internal structure showing paper feeding into a slot (no text or symbols)

Use the convenience stapler (f, c, and z models)

The convenience stapler can staple up to 20 sheets of 75g / m^2 (20 lb) paper.

Use the stapler

CAUTION: To avoid damage to the printer, do not attempt to staple materials other than paper.

3D technical illustration of a mechanical assembly with layered components and a highlighted section (no text or symbols)

Use the stapler

1. Insert the stack of paper into the slot on the front of the stapler.

2. Wait for the stapler to staple the sheets. The stapler activates when it senses paper, and it makes a stapling sound.

NOTE: If the printer is in Sleep mode, there might be a short delay.

1. Remove the stapled paper from the slot.

3 Supplies, accessories, and parts

Order supplies or accessories, replace the toner cartridges, or remove and replace another part.

• Order supplies, accessories, and parts
- Configure the HP toner-cartridge-protection supply settings

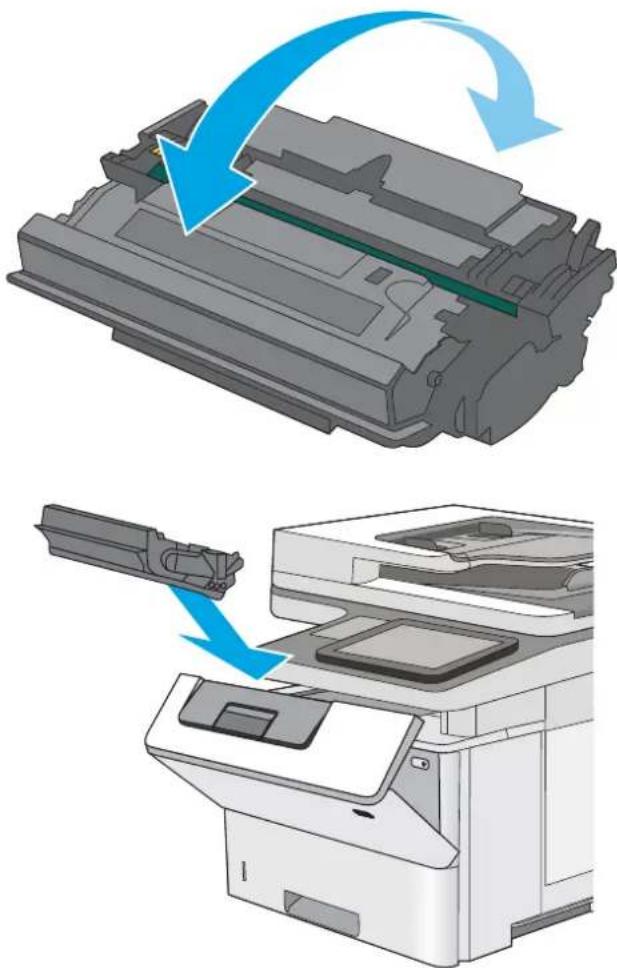

- Replace the toner cartridge
- Replace the staple cartridge (f, c, and z models)

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

Order supplies, accessories, and parts

• Ordering
  • Supplies and accessories
  • Maintenance/long-life consumables
• Customer self-repair parts

Ordering

Order supplies and paper www.hp.com/go/SureSupply
Order genuine HP parts or accessories www.hp.com/buy/parts
Order through service or support providers Contact an HP-authorized service or support provider.
Order using the HP Embedded Web Server (EWS) To access, in a supported web browser on your computer, enter the printer IP address or host name in the address/URL field. The EWS contains a link to the HP SureSupply website, which provides options for purchasing Original HP supplies.

Supplies and accessories

Item Description Cartridge number Part number
Supplies
HP 89A Black Original LaserJet Toner Cartridge	Black LaserJet toner cartridge 89A CF289A
HP 89X High Yield Black Original LaserJet Toner Cartridge	Black LaserJet toner cartridge 89X CF289X
HP 89Y Extra High Yield Black Original LaserJet Toner Cartridge	Black LaserJet toner cartridge 89Y CF289Y
HP Staple Cartridge Refill Replacement staple cartridges for the printer.		Not applicable Q7432A
Accessories
HP LaserJet 550-sheet Paper Tray Optional 550-sheet paper feederNOTE: The printer supports up to three 1 x 550-sheet paper feeders unless other input devices are present.		Not applicable F2A72A
HP LaserJet Printer Stand	Optional printer stand	Not applicable	F2A73A
HP 1 GB DDR 3x32 144-Pin 800 MHz SODIMM	Optional DIMM for expanding the memory	Not applicable E5K48A
HP Trusted Platform Module	Automatically encrypts all data that passes through the printer	Not applicable F5S62A
HP Secure High Performance Hard Disk Drive	Optional secure HDD Not applicable B5L29A
HP LaserJet MFP Analog Fax Accessory 700	Optional fax accessory for the dn model Not applicable 2EH31A

Item Description Cartridge number Part number
HP Jetdirect 2900nw Print Server USB wireless print server accessory Not applicable J8031A
HP JetDirect 3100w BLE/NFC/Wireless Accessory	Wi-Fi direct accessory for “touch” printing from mobile devices	Not applicable 3JN69A
HP Internal USB ports Two internal USB ports for connecting third-party devices		Not applicable B5L28A
HP Foreign Interface Harness Optional port for connecting third-party devices		Not applicable B5L31A
HP Accessibility Kit Accessibility kit including button adhesives and an accessibility handle		Not applicable 2TD64A
HP USB Universal Card Reader USB proximity card reader Not applicable X3D03A

Maintenance/long-life consumables

Maintenance/LLC Kit	Part number Estimated life	1
HP 200 ADF Roller Replacement Kit B5L52A		50,000 pages*

HP Maintenance/Long Life Consumables (LLC) life specifications are estimations based on the LLC life test conditions listed below. Actual individual life/yield during normal use varies depending on usage, environment, paper and other factors. Estimated life is not an implied guarantee or warrantable.

\*The LLC life test conditions

• Print coverage: 5% evenly distributed across the page
• Environment: 17° to 25°C (62.6° to 77°F); 30%-70% relative humidity (RH)
  • Media size: Letter/A4
  • Media weight: 75 g/m ^2 (20 lb) plain media
  • Job size: 4 pages
• Short edge feed (A3) (i.e., Legal size media)

Factors that can reduce life from the conditions above:

• Media narrower than Letter/A4 widths (thermal slowdowns equal more rotations)
• Paper heavier than 75 g/m ^2 (20 lb) (heavier media creates higher stress on printer components)
• Print jobs smaller than 4 pages (smaller jobs mean more thermal cycling and more rotations)

Customer self-repair parts

Customer Self-Repair (CSR) parts are available for many HP LaserJet printers to reduce repair time. More information about the CSR program and benefits can be found at www.hp.com/go/csr-support and www.hp.com/go/csr-faq.

Genuine HP replacement parts can be ordered at www.hp.com/buy/parts or by contacting an HP-authorized service or support provider. When ordering, one of the following will be needed: part number, serial number (found on back of printer), product number, or printer name.

• Parts listed as Mandatory self-replacement are to be installed by customers, unless you are willing to pay HP service personnel to perform the repair. For these parts, on-site or return-to-depot support is not provided under the HP printer warranty.
• Parts listed as Optional self-replacement can be installed by HP service personnel at your request for no additional charge during the printer warranty period.

Item Description Self-replacement options Part number

1 x 550 Sheet Feeder Kit Replacement 1 x 550-sheet feeder Mandatory F2A72A
Secure Hard Disk Drive Replacement hard disk drive Mandatory B5L29A
HP 1 GB DDR 3x32 144-Pin 800 MHz SODIMM	Replacement memory DIMM Mandatory E5K48A
HP Trusted Platform Module kit Replacement trusted platform module Mandatory F5S62A
HP Jetdirect 2900nw Print Server Replacement USB wireless print server accessory		Mandatory J8031A
HP JetDirect 3100w BLE/NFC/Wireless Accessory	Replacement Wireless Direct Print accessory for “touch” printing from mobile devices	Mandatory 3JN69A
HP Internal USB Ports Replacement internal USB ports		Mandatory B5L28A
HP LaserJet Keyboard Overlay Kit for Simplified Chinese & Traditional Chinese (z models only)	Keyboard overlay	Mandatory A7W12A
HP LaserJet Keyboard Overlay Kit Swedish (z models only)	Keyboard overlay	Mandatory A7W14A

Configure the HP toner-cartridge-protection supply settings

A network administrator can configure the toner-cartridge-protection settings using the printer control panel or the HP Embedded Web Server (EWS).

Introduction
- Enable or disable the Cartridge Policy feature
- Enable or disable the Cartridge Protection feature

Introduction

Use HP Cartridge Policy and Cartridge Protection to control which cartridges are installed in the printer and protect the cartridges that are installed from theft.

In HP Web Jetadmin, the settings are located under the Device Management pane in the following menu chain: Config > Supplies > Cartridge Policy or Cartridge Protection.

These features are available with HP FutureSmart versions 3 and later.

• Cartridge Policy: This feature protects the printer from counterfeit toner cartridges by allowing only genuine HP cartridges to be used with the printer. Using genuine HP cartridges ensures the best possible print quality. When someone installs a cartridge that is not a genuine HP cartridge, the printer control panel displays a message that the cartridge is unauthorized and it provides information explaining how to proceed.
• Cartridge Protection: This feature permanently associates toner cartridges with a specific printer, or fleet of printers, so they cannot be used in other printers. Protecting cartridges protects your investment. When this feature is enabled, if someone attempts to transfer a protected cartridge from the original printer into an unauthorized printer, that printer will not print with the protected cartridge. The printer control panel displays a message that the cartridge is protected, and it provides information explaining how to proceed.

CAUTION: After enabling cartridge protection for the printer, all subsequent toner cartridges installed in the printer are automatically and permanently protected. To avoid protecting a new cartridge, disable the feature before installing the new cartridge.

Turning the feature off does not turn off protection for cartridges that are currently installed.

Both features are off by default. Follow these procedures to enable or disable them.

Enable or disable the Cartridge Policy feature

The Cartridge Policy feature can be enabled or disabled using the control panel or the Embedded Web Server (EWS).

• Use the printer control panel to enable the Cartridge Policy feature
• Use the printer control panel to disable the Cartridge Policy feature
• Use the HP Embedded Web Server (EWS) to enable the Cartridge Policy feature
• Use the HP Embedded Web Server (EWS) to disable the Cartridge Policy feature
- Troubleshoot Cartridge Policy control panel error messages

NOTE: Enabling or disabling this feature might require entering an administrator password.

Use the printer control panel to enable the Cartridge Policy feature

From the printer control panel, a network administrator can enable the Cartridge Policy feature. This allows only genuine HP cartridges to be used with the printer.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

- Manage Supplies

- Cartridge Policy

1. Select Authorized HP.

Use the printer control panel to disable the Cartridge Policy feature

From the printer control panel, a network administrator can disable the Cartridge Policy feature. This removes the restriction that only genuine HP cartridges can be used.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

- Manage Supplies

- Cartridge Policy

1. Select Off.

Use the HP Embedded Web Server (EWS) to enable the Cartridge Policy feature

From the EWS, a network administrator can enable the Cartridge Policy feature. This allows only genuine HP cartridges to be used with the printer.

1. Open the HP Embedded Web Server (EWS):

a. From the Home screen on the printer control panel, touch the Information i icon, and then touch the Network 🔒 icon to display the IP address or host name.

b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Open the Copy/Print tab.
2. From the left navigation pane, select Manage Supplies.
3. In the Supply Settings area, select Authorized HP from the Cartridge Policy drop-down list.
4. Click the Apply button to save the changes.

Use the HP Embedded Web Server (EWS) to disable the Cartridge Policy feature

From the EWS, a network administrator can disable the Cartridge Policy feature. This removes the restriction that only genuine HP cartridges can be used.

1. Open the HP Embedded Web Server (EWS):

a. From the Home screen on the printer control panel, touch the Information i icon, and then touch the Network icon to display the IP address or host name.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Open the Copy/Print tab.
2. From the left navigation pane, select Manage Supplies.
3. In the Supply Settings area, select Off from the Cartridge Policy drop-down list.
4. Click the Apply button to save the changes.

Troubleshoot Cartridge Policy control panel error messages

Review the recommended actions for Cartridge Policy error messages.

Error message Description Recommended action
10.0X.30 Unauthorized<Color> Cartridge The administrator has configured this printer to use only genuine HP supplies that are still under warranty. The cartridge must be replaced to continue printing.	Replace the cartridge with a genuine HP toner cartridge.If you believe you purchased a genuine HP supply, visitwww.hp.com/go/anticounterfeit to determine if the toner cartridge is a genuine HP cartridge, and learn what to do if it is not a genuine HP cartridge.

Enable or disable the Cartridge Protection feature

The Cartridge Protection feature can be enabled or disabled using the control panel or the Embedded Web Server (EWS).

• Use the printer control panel to enable the Cartridge Protection feature
• Use the printer control panel to disable the Cartridge Protection feature
• Use the HP Embedded Web Server (EWS) to enable the Cartridge Protection feature
• Use the HP Embedded Web Server (EWS) to disable the Cartridge Protection feature
- Troubleshoot Cartridge Protection control panel error messages

NOTE: Enabling or disabling this feature might require entering an administrator password.

Use the printer control panel to enable the Cartridge Protection feature

From the printer control panel, a network administrator can enable the Cartridge Protection feature. This protects the cartridges associated with the printer from being stolen and used in other printers.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

- Manage Supplies

- Cartridge Protection

1. Select Protect Cartridges.
2. When the printer prompts to confirm, select Continue to enable the feature.

CAUTION: After enabling cartridge protection for the printer, all subsequent toner cartridges installed in the printer are automatically and permanently protected. To avoid protecting a new cartridge, disable the feature before installing the new cartridge.

Turning the feature off does not turn off protection for cartridges that are currently installed.

Use the printer control panel to disable the Cartridge Protection feature

From the printer control panel, a network administrator can disable the Cartridge Protection feature. This removes protection for any new cartridges installed in the printer.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Open the following menus:

3. Manage Supplies

4. Cartridge Protection

5. Select Off.

Use the HP Embedded Web Server (EWS) to enable the Cartridge Protection feature

From the EWS, a network administrator can enable the Cartridge Protection feature. This protects the cartridges associated with the printer from being stolen and used in other printers.

1. Open the HP Embedded Web Server (EWS):

a. From the Home screen on the printer control panel, touch the Information i icon, and then touch the Network 🔒 icon to display the IP address or host name.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Open the Copy/Print tab.
2. From the left navigation pane, select Manage Supplies.
3. In the Supply Settings area, select Protect cartridges from the Cartridge Protection drop-down list.
4. Click the Apply button to save the changes.

CAUTION: After enabling cartridge protection for the printer, all subsequent toner cartridges installed in the printer are automatically and permanently protected. To avoid protecting a new cartridge, disable the feature before installing the new cartridge.

Turning the feature off does not turn off protection for cartridges that are currently installed.

Use the HP Embedded Web Server (EWS) to disable the Cartridge Protection feature

From the EWS, a network administrator can disable the Cartridge Protection feature. This removes protection for any new cartridges installed in the printer.

1. Open the HP Embedded Web Server (EWS):

a. From the Home screen on the printer control panel, touch the Information icon, and then touch the Network icon to display the IP address or host name.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Open the Copy/Print tab.
2. From the left navigation pane, select Manage Supplies.
3. In the Supply Settings area, select Off from the Cartridge Protection drop-down list.
4. Click the Apply button to save the changes.

Troubleshoot Cartridge Protection control panel error messages

Review the recommended actions for Cartridge Protection error messages.

Error message Description Recommended action
10.0X.57 ProtectedCartridge The cartridge can only be used in the printer or fleet of printers that initially protected it using HP Cartridge Protection.The Cartridge Protection feature allows an administrator to restrict cartridges to work in only one printer or fleet of printers. The cartridge must be replaced to continue printing.		Replace the cartridge with a new toner cartridge.

Replace the toner cartridge

Replace the toner cartridge if you receive a message on the printer, or if you have print quality problems.

• Cartridge information
• Remove and replace the cartridge

Cartridge information

Continue printing with the current cartridge until redistributing the toner no longer yields acceptable print quality. To redistribute the toner, remove the toner cartridge from the printer and gently rock the cartridge back and forth about its horizontal axis. For graphical representation, see cartridge replacement instructions. Reinsert the toner cartridge into the printer and close the cover.

To purchase cartridges or check cartridge compatibility for the printer, go to HP SureSupply at www.hp.com/go/SureSupply. Scroll to the bottom of the page and verify that the country/region is correct.

Item Description Cartridge number Part number
HP 89A Black Original LaserJet Toner Cartridge	Black LaserJet toner cartridge 89A CF289A
HP 89X High Yield Black Original LaserJet Toner Cartridge	Black LaserJet toner cartridge 89X CF289X
HP 89Y Extra High Yield Black Original LaserJet Toner Cartridge	Black LaserJet toner cartridge 89Y CF289Y

NOTE: High-yield toner cartridges contain more toner than standard cartridges for increased page yield. For more information, go to www.hp.com/go/learnaboutsupplies.

Do not remove the toner cartridge from its package until it is time to replace it.

CAUTION: To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover the green imaging drum if the toner cartridge must be removed from the printer for an extended period of time.

The following illustration shows the toner-cartridge components.

Technical diagram of a mechanical component with labeled parts 1 and 2

1 Memory chip
2 Imaging drum

CAUTION: Do not touch the imaging drum. Fingerprints can cause print-quality problems.

CAUTION: If toner gets on clothing, wipe it off by using a dry cloth and wash the clothes in cold water. Hot water sets toner into fabric.
NOTE: Information about recycling used toner cartridges is in the toner-cartridge box.

Remove and replace the cartridge

1. Press the top-cover-release button on the left side of the printer.

Illustration of a printer with a paper airplane and control panel (no text or symbols)

1. Open the front door.
2. Grasp the handle of the used toner cartridge and pull out to remove it.
3. Remove the new toner cartridge from its protective shell by tearing off the plastic strip and opening the package. Save all packaging for recycling the used toner cartridge.

Illustration of a printer with blue arrows indicating motion or operation, showing internal components and no text or symbols.

Illustration of a printer with a blue arrow indicating the process, showing internal components and a separate part (no text or symbols present)

Diagram illustrating engine component assembly steps with numbered instructions and labeled components

1. Hold both ends of the toner cartridge and rock it 5-6 times.

2. Align the toner cartridge with its slot, and then insert the toner cartridge into the printer.

Illustration of a printer's internal structure and external assembly, showing a blue arrow indicating rotation or assembly (no text or symbols present)

1. Close the front door.

2. Pack the used toner cartridge into the box that the new cartridge came in. See the enclosed recycling guide for information about recycling.

In the U.S. and Canada, a pre-paid shipping label is included in the box. In other countries/regions, go to www.hp.com/recycle to print a pre-paid shipping label.

Adhere the pre-paid shipping label to the box, and return the used cartridge to HP for recycling.

Diagram illustrating the process of a printer's internal structure and recycling mechanism, showing steps from receipt to disposal.

Replace the staple cartridge (f, c, and z models)

Install a new staple cartridge when your current cartridge is empty.

Introduction
- Remove and replace the staple cartridge

Introduction

The following information provides instructions to replace the staple cartridges.

Remove and replace the staple cartridge

1. Open the stapler door.

NOTE: Opening the stapler door disables the stapler.

Illustration of a printer with an inset showing the paper being inserted into a slot (no text or symbols present)

1. Remove the staple cartridge from the printer.

Illustration of a printer with an inset showing the internal structure (no text or symbols visible)

1. Insert the new staple cartridge into the opening inside the stapler door.

Illustration of a printer with an inset close-up showing the printer's internal structure (no text or symbols present)

1. Close the stapler door.

Illustration of a printer with an inset showing the internal structure and a blue directional arrow (no text or symbols)

4 Print

Print using the software, or print from a mobile device or USB flash drive.

• Print tasks (Windows)
• Print tasks (macOS)
• Store print jobs on the printer to print later or print privately
- Mobile printing
• Print from a USB flash drive
• Print using high-speed USB 2.0 port (wired)

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

Print tasks (Windows)

Learn about common printing tasks for Windows users.

• How to print (Windows)
• Automatically print on both sides (Windows)
• Manually print on both sides (Windows)
• Print multiple pages per sheet (Windows)
• Select the paper type (Windows)
• Additional print tasks

How to print (Windows)

Use the Print option from a software application to select the printer and basic options for your print job.

The following procedure describes the basic printing process for Windows.

1. From the software program, select the Print option.
2. Select the printer from the list of printers. To change settings, click the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

In Windows 10, 8.1, and 8, these applications will have a different layout with different features from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:

• Windows 10: Select Print, and then select the printer.
• Windows 8.1 or 8: Select Devices, select Print, and then select the printer.

For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.

NOTE: For more information, click the Help (?) button in the print driver.

1. Click the tabs in the print driver to configure the available options. For example, set the paper orientation on the Finishing tab, and set the paper source, paper type, paper size, and quality settings on the Paper/Quality tab.
2. Click the OK button to return to the Print dialog box. Select the number of copies to print from this screen.
3. Click the Print button to print the job.

Automatically print on both sides (Windows)

If your printer has an automatic duplexer installed, you can automatically print on both sides of the paper. Use a paper size and type supported by the duplexer.

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

In Windows 10, 8.1, and 8, these applications will have a different layout with different features from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:

• Windows 10: Select Print, and then select the printer.
• Windows 8.1 or 8: Select Devices, select Print, and then select the printer.

For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.

1. Click the Finishing tab.
2. Select Print on both sides. Click OK to close the Document Properties dialog.
3. In the Print dialog, click Print to print the job.

Manually print on both sides (Windows)

Use this procedure for printers that do not have an automatic duplexer installed or to print on paper that the duplexer does not support.

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

In Windows 10, 8.1, and 8, these applications will have a different layout with different features from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:

• Windows 10: Select Print, and then select the printer.
• Windows 8.1 or 8: Select Devices, select Print, and then select the printer.

For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.

1. Click the Finishing tab.
2. Select Print on both sides (manually), and then click OK to close the Document Properties dialog.
3. In the Print dialog, click Print to print the first side of the job.
4. Retrieve the printed stack from the output bin, and place it in Tray 1.
5. If prompted, select the appropriate control panel button to continue.

Print multiple pages per sheet (Windows)

When you print from a software application using the Print option, you can select an option to print multiple pages on a single sheet of paper. For example, you might want to do this if you are printing a very large document and want to save paper.

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

In Windows 10, 8.1, and 8, these applications will have a different layout with different features from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:

• Windows 10: Select Print, and then select the printer.
• Windows 8.1 or 8: Select Devices, select Print, and then select the printer.

For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.

1. Click the Finishing tab.
2. Select the number of pages per sheet from the Pages per sheet drop-down.
3. Select the correct Print page borders, Page order, and Orientation options. Click OK to close the Document Properties dialog.
4. In the Print dialog, click Print to print the job.

Select the paper type (Windows)

When you print from a software application using the Print option, you can set the paper type you are using for your print job. For example, if your default paper type is Letter, but you are using a different paper type for a print job, select that specific paper type.

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then click the Properties or Preferences button to open the print driver.

NOTE: The name of the button varies for different software programs.

In Windows 10, 8.1, and 8, these applications will have a different layout with different features from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:

• Windows 10: Select Print, and then select the printer.
• Windows 8.1 or 8: Select Devices, select Print, and then select the printer.

For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.

1. Click the Paper/Quality tab.
2. Select the paper type from the Paper type drop-down list.
3. Click OK to close the Document Properties dialog. In the Print dialog, click Print to print the job.

If the tray needs to be configured, a tray configuration message displays on the printer control panel.

1. Load the tray with the specified type and size of paper, and then close the tray.
2. Touch the OK button to accept the detected type and size, or touch the Modify button to choose a different paper size or type.
3. Select the correct type and size, and then touch the OK button.

Additional print tasks

Locate information on the Web for performing common printing tasks.

Go to www.hp.com/support/ljM528mfp.

Instructions are available for print tasks, such as the following:

• Create and use printing shortcuts or presets
• Select the paper size, or use a custom paper size
• Select the page orientation
• Create a booklet
  • Scale a document to fit a specific paper size
  • Print the first or last pages of the document on different paper
• Print watermarks on a document

Print tasks (macOS)

Print using the HP printing software for macOS, including how to print on both sides or print multiple pages per sheet.

• How to print (macOS)
• Automatically print on both sides (macOS)
• Manually print on both sides (macOS)
• Print multiple pages per sheet (macOS)
• Select the paper type (macOS)
• Additional print tasks

How to print (macOS)

The following procedure describes the basic printing process for macOS.

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then select other menus to adjust the print settings.
   NOTE: The name of the item varies for different software programs.
4. Click the Print button.

Automatically print on both sides (macOS)

NOTE: This information applies to printers that include an automatic duplexer.

NOTE: This feature is available if you install the HP print driver. It might not be available if you are using AirPrint.

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Layout menu.
   NOTE: The name of the item varies for different software programs.
4. Select a binding option from the Two-Sided drop-down list.
5. Click the Print button.

Manually print on both sides (macOS)

NOTE: This feature is available if you install the HP print driver. It might not be available if you are using AirPrint.

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Manual Duplex menu.

NOTE: The name of the item varies for different software programs.

1. Click the Manual Duplex box, and select a binding option.
2. Click the Print button.
3. Go to the printer, and remove any blank paper that is in Tray 1.
4. Retrieve the printed stack from the output bin and place it with the printed-side facing down in the input tray.
5. If prompted, touch the appropriate control panel button to continue.

Print multiple pages per sheet (macOS)

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Layout menu.

NOTE: The name of the item varies for different software programs.

1. From the Pages per Sheet drop-down list, select the number of pages that you want to print on each sheet.
2. In the Layout Direction area, select the order and placement of the pages on the sheet.
3. From the Borders menu, select the type of border to print around each page on the sheet.
4. Click the Print button.

Select the paper type (macOS)

1. Click the File menu, and then click the Print option.
2. Select the printer.
3. Click Show Details or Copies & Pages, and then click the Media & Quality menu or the Paper/Quality menu.

NOTE: The name of the item varies for different software programs.

1. Select from the Media & Quality or Paper/Quality options.

NOTE: This list contains the master set of options available. Some options are not available on all printers.

• Media Type: Select the option for the type of paper for the print job.
- Print Quality: Select the resolution level for the print job.
- Edge-To-Edge Printing: Select this option to print close to the paper edges.

1. Click the Print button.

Additional print tasks

Locate information on the Web for performing common printing tasks.

Go to www.hp.com/support/ljM528mfp.

Instructions are available for print tasks, such as the following:

• Create and use printing shortcuts or presets
• Select the paper size, or use a custom paper size
• Select the page orientation
• Create a booklet
  • Scale a document to fit a specific paper size
  • Print the first or last pages of the document on different paper
• Print watermarks on a document

Store print jobs on the printer to print later or print privately

Introduction
• Create a stored job (Windows)
• Create a stored job (macOS)
- Print a stored job
- Delete a stored job
• Information sent to printer for Job Accounting purposes

Introduction

The following information provides procedures for creating and printing documents that are stored on the USB flash drive. These jobs can be printed at a later time or printed privately.

Create a stored job (Windows)

Store jobs on the USB flash drive for private or delayed printing.

1. From the software program, select the Print option.
2. Select the printer from the list of printers, and then select Properties or Preferences.

NOTE: The name of the button varies for different software programs.

In Windows 10, 8.1, and 8, these applications will have a different layout with different features from what is described below for desktop applications. To access the print feature from a Start screen app, complete the following steps:

• Windows 10: Select Print, and then select the printer.
• Windows 8.1 or 8: Select Devices, select Print, and then select the printer.

For the HP PCL-6 V4 driver, the HP AiO Printer Remote application downloads additional driver features when More settings is selected.

1. Click the Job Storage tab.
2. Select a Job Storage Mode option:

• Proof and Hold: Print and proof one copy of a job, and then print more copies.

- Personal Job : The job does not print until you request it at the printer control panel. For this job-storage mode, you can select one of the Make Job Private/Secure options. If you assign a personal identification number (PIN) to the job, you must provide the required PIN at the control panel. If you encrypt the job, you must provide the required password at the control panel. The print job is deleted from memory after it prints and is lost if the printer loses power.

• Quick Copy: Print the requested number of copies of a job and store a copy of the job in the printer memory so you can print it again later.

• Stored Job: Store a job on the printer and allow other users to print the job at any time. For this job-storage mode, you can select one of the Make Job Private/Secure options. If you assign a personal identification number (PIN) to the job, the person who prints the job must provide the required PIN at the control panel. If you encrypt the job, the person who prints the job must provide the required password at the control panel.

• To use a custom user name or job name, click the Custom button, and then enter the user name or the job name.

Select which option to use if another stored job already has that name:

• Use Job Name + (1-99): Append a unique number to the end of the job name.

• Replace Existing File: Overwrite the existing stored job with the new one.

• Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the Print button to print the job.

Create a stored job (macOS)

Store jobs on the USB flash drive for private or delayed printing.

1. Click the File menu, and then click the Print option.

2. In the Printer menu, select the printer.

3. By default, the print driver displays the Copies & Pages menu. Open the drop-down list, and then click the Job Storage menu.

NOTE: If the Job Storage menu is not showing, close the Print window and then reopen it to activate the menu.

1. In the Mode drop-down list, select the type of stored job.

• Proof and Hold: Print and proof one copy of a job, and then print more copies.
- Personal Job: The job does not print until someone requests it at the printer control panel. If the job has a personal identification number (PIN), provide the required PIN at the control panel. The print job is deleted from memory after it prints and is lost if the printer loses power.
- Quick Copy: Print the requested number of copies of a job and store a copy of the job in the printer memory to print it again later.
- Stored Job: Store a job on the printer and allow other users to print the job at any time. If the job has a personal identification number (PIN), the person who prints the job must provide the required PIN at the control panel.

1. To use a custom user name or job name, click the Custom button, and then enter the user name or the job name.

Select which option to use if another stored job already has that name.

• Use Job Name + (1–99): Append a unique number to the end of the job name.

• Replace Existing File: Overwrite the existing stored job with the new one.

• If you selected the Stored Job or Personal Job option in step 4, you can protect the job with a PIN. Type a 4-digit number in the Use PIN to Print field. When other people attempt to print this job, the printer prompts them to enter this PIN number.

• Click the Print button to process the job.

Print a stored job

Use the following procedure to print a job that is stored in the printer memory.

1. From the Home screen on the printer control panel, navigate to the Print application, and then select the Print icon.
2. Select Print from Job Storage.
3. Select Choose, and then select the name of the folder where the job is stored.
4. Select the name of the job. If the job is private or encrypted, enter the PIN or password.

5. To adjust the number of copies, select the number of copies field in the bottom-left corner of the screen. Use the keypad to enter the number of copies to print.

6. Select Start or print to print the job.

Delete a stored job

You can delete documents that have been saved to the printer when they are no longer needed. You also can adjust the maximum number of jobs for the printer to store.

• Delete a job that is stored on the printer
  • Change the job storage limit

Delete a job that is stored on the printer

Use the control panel to delete a job that is stored in the printer memory.

1. From the Home screen on the printer control panel, navigate to the Print application, and then select the Print icon.
2. Select Print from Job Storage.
3. Select Choose, and then select the name of the folder where the job is stored.
4. Select the name of the job. If the job is private or encrypted, enter the PIN or password.
5. Select the Trash button to delete the job.

Change the job storage limit

When a new job is stored in the printer memory, the printer overwrites any previous jobs with the same user and job name. If a job is not already stored under the same user and job name, and the printer needs additional space, the printer might delete other stored jobs starting with the oldest.

To change the number of jobs that the printer can store, complete the following procedure:

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

- Copy/Print or Print

- Manage Stored Jobs

- Temporary Job Storage Limit

1. Use the keypad to enter the number of jobs that the printer stores.
2. Select OK or Done to save the setting.

Information sent to printer for Job Accounting purposes

Printing jobs sent from drivers on the client (e.g., PC) may send personally identifiable information to HP's Printing and Imaging devices. This information may include, but is not limited to, user name and client name from which the job originated that may be used for job accounting purposes, as determined by the Administrator of the printing device. This same information may also be stored with the job on the mass storage device (e.g., disk drive) of the printing device when using the job storage feature.

Mobile printing

Introduction
• Wi-Fi, Wi-Fi Direct Print, NFC, and BLE printing
HP ePrint via email
AirPrint
• Android embedded printing

Introduction

HP offers multiple mobile printing solutions to enable easy printing to an HP printer from a laptop, tablet, smartphone, or other mobile device. To see the full list and to determine the best choice, go to www.hp.com/go/LaserJetMobilePrinting.

Wi-Fi, Wi-Fi Direct Print, NFC, and BLE printing

• Enable wireless printing
  • Change the Wi-Fi Direct name

HP provides Wi-Fi Direct Print, Near Field Communication (NFC), and Bluetooth Low Energy (BLE) printing for printers with a supported HP Jetdirect 3100w BLE/NFC/Wireless Accessory. This accessory is available as an option for HP printers that include a hardware-integration pocket (HIP).

These features enable Wi-Fi capable (mobile) devices to make a wireless network connection directly to the printer without using a wireless router.

The printer does not need to be connected to the network for this mobile walk-up printing to work.

Use Wi-Fi Direct Print to print wirelessly from the following devices:

• iPhone, iPad, or iPod touch using Apple AirPrint
• Android mobile devices using the Android embedded print solution

For more information on wireless printing, go to www.hp.com/go/LaserJetMobilePrinting.

NFC, BLE, and Wi-Fi Direct Print capabilities can be enabled or disabled from the printer control panel.

Enable wireless printing

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Open the following menus:

3. Networking

4. Wi-Fi Direct

5. Status

6. Select On, and then select OK to enable wireless printing.

Change the Wi-Fi Direct name

NOTE: In environments where more than one model of the same printer is installed, it might be helpful to provide each printer a unique Wi-Fi Direct Name for easier printer identification for HP Wi-Fi Direct printing. The Wireless network names, e.g., Wireless, Wi-Fi Direct, etc. are available on the Information screen by selecting the Information icon, and then selecting the Network icon or the Wireless icon(1)

Complete the following procedure to change the printer Wi-Fi Direct name:

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Open the following menus:

3. Networking

4. Wi-Fi Direct

5. Wi-Fi Direct Name

6. Use the keypad to change the name in the Wi-Fi Direct Name text field, and then select OK.

HP ePrint via email

Use HP ePrint to print documents by sending them as an email attachment to the printer's email address from any email enabled device.

To use HP ePrint, the printer must meet these requirements:

• The printer must be connected to a wired or wireless network and have Internet access.
  HP Web Services must be enabled on the printer, and the printer must be registered with HP Connected.

Follow this procedure to enable HP Web Services and register with HP Connected:

1. Open the HP Embedded Web Server (EWS):

a. From the Home screen on the printer control panel, select the Information i icon, and then select the Network icon to display the IP address or host name.
b. From a computer on the same network as the printer, open a web browser. In the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Click the HP Web Services tab.
2. Select the option to enable Web Services.

NOTE: Enabling Web Services might take several minutes.

1. Go to www.hpconnected.com to create an HP ePrint account and complete the setup process.

AirPrint

Direct printing using Apple's AirPrint is supported for iOS and from Mac computers running macOS 10.7 Lion and newer. Use AirPrint to print directly to the printer from an iPad, iPhone (3GS or later), or iPod touch (third generation or later) in the following mobile applications:

Mail
•Photos
Safari
iBooks
- Select third-party applications

To use AirPrint, the printer must be connected to the same network (sub-net) as the Apple device. For more information about using AirPrint and about which HP printers are compatible with AirPrint, go to www.hp.com/go/MobilePrinting.

NOTE: Before using AirPrint with a USB connection, verify the version number. AirPrint versions 1.3 and earlier do not support USB connections.

Android embedded printing

HP's built-in print solution for Android and Kindle enables mobile devices to automatically find and print to HP printers that are either on a network or within wireless range for Wi-Fi Direct printing.

The print solution is built into many versions of the operating system.

NOTE: If printing is not available on your device, go to the Google Play > Android apps and install the HP Print Service Plugin.

For more information on how to use Android embedded printing and which Android devices are supported, go to www.hp.com/go/MobilePrinting.

Print from a USB flash drive

This printer features easy-access USB printing, for quickly printing files without sending them from a computer.

• Enable the USB port for printing
  • Print USB documents

The printer accepts standard USB flash drives in the USB port near the control panel. It supports the following types of files:

.pdf
.prn
.pcl
. ps
.cht

Enable the USB port for printing

The USB port is disabled by default. Before using this feature, enable the USB port.

• Method one: Enable the USB port from the printer control panel
• Method two: Enable the USB port from the HP Embedded Web Server (network-connected printers only)

Use one of the following methods to enable the port:

Method one: Enable the USB port from the printer control panel

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus
3. Copy/Print or Print
4. Enable Device USB
5. Select Enabled to enable the USB port.

Method two: Enable the USB port from the HP Embedded Web Server (network-connected printers only)

1. From the Home screen on the printer control panel, select the Information icon, and then select the Network icon to display the IP address or host name
2. Open a web browser, and in the address line, type the IP address exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a There is a problem with this website's security certificate message when attempting to open the EWS, click Continue to this website (not recommended).

Choosing Continue to this website (not recommended) will not harm the computer while navigating within the EWS for the HP printer.

1. Select the Copy/Print tab for MFP models or the Print tab for SFP models.
2. In the left menu, select Print from USB Drive Settings.
3. Select Enable Print from USB Drive.
4. Click Apply.

Print USB documents

1. Insert the USB flash drive into the easy-access USB port.

NOTE: The port might be covered. For some printers, the cover flips open. For other printers, pull the cover straight out to remove it.

1. From the Home screen on the printer control panel, navigate to the Print application, and then select the Print icon.

2. Select Print from USB Drive.

3. Select Choose, select the name of the document to print, and then select Select.

NOTE: The document might be in a folder. Open folders as necessary.

1. To adjust the number of copies, touch the box to the left of the Print button, and then select the number of copies from the keypad that opens. Select the Close button to close the keypad.
2. Select Print to print the document.

Print using high-speed USB 2.0 port (wired)

- Enable the high-speed USB port for printing

Enable the high-speed USB port for printing

This printer features a high-speed USB 2.0 port for wired USB printing. The port is located in the interface ports area and is disabled by default. Use one of the following methods to enable the port. Once the port is enabled, install the product software in order to print using this port.

• Method one: Enable the high-speed USB 2.0 port from the printer control panel menus
- Method two: Enable the high-speed USB 2.0 port from the HP Embedded Web Server (network-connected printers only)

Method one: Enable the high-speed USB 2.0 port from the printer control panel menus

Use the control panel to enable the port.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Open the following menus

3. General

4. Enable Device USB

5. Select the Enabled option.

Method two: Enable the high-speed USB 2.0 port from the HP Embedded Web Server (network-connected printers only)

Use the HP EWS to enable the port.

1. Find the printer IP address. On the printer control panel, select the Information button, and then select the Network icon to display the IP address or host name.
2. Open a web browser, and in the address line, type the IP address exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

https://10.10.XXXXX/

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Select the Security tab.
2. On the left side of the screen, select General Security.

3. Scroll down to the Hardware Ports and select the check box to enable both of the items:

4. Enable Device USB

5. Enable Host USB plug and play

6. Click Apply.

5 Copy

Make copies with the printer, learn how to copy a two-sided document, and locate additional copy tasks on the web.

Make a copy
• Copy on both sides (duplex)
• Additional copy tasks

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

Make a copy

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. From the Home screen on the printer control panel, navigate to the Copy application, and then select the Copy icon.
3. In the Options pane, select the number of copies.
4. Select Optimize Text/Picture to optimize for the type of image being copied: text, graphics, or photos. Select one of the predefined options.
5. Set options marked with a yellow triangle before using the preview feature.

NOTE: After the preview scan, these options are removed from the main Options list and are summarized in the Pre-scan Options list. To change any of these options, discard the preview and start over.

Using the preview feature is optional.

1. Touch the right pane of the screen to preview the document. In the preview screen, use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

Use these buttons to toggle between two-page view and thumbnail view. More options are available in thumbnail view than in two-page view.

Use these buttons to zoom in or out on the selected page.

NOTE: Select only one page at a time to use these buttons.

Use this button to rotate the page 180 degrees.

NOTE: This button is available only in the thumbnail view.

Use this button to delete the selected pages.

NOTE: This button is available only in the thumbnail view.

Use these buttons to rearrange the pages within the document. Select one or more pages and move them to the left or right.

NOTE: These buttons are available only in the thumbnail view.

Use this button to add a page to the document. The printer prompts to scan additional pages.

Use this button to clear the changes made in the preview and start over.

1. When the document is ready, touch Start to begin copying.

Copy on both sides (duplex)

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. From the Home screen on the printer control panel, navigate to the Copy application, and then select the Copy icon.
3. In the Options pane, select Original Sides, and then select the option that describes the original document:
4. Use Automatically detect to detect whether the original is printed on one or both sides of the page.
5. Use 1-sided for originals that are printed on one side of the page.
6. Use 2-sided (book-style) for originals that flip on the right/left edge of the page, like books. If the image is portrait, the output flips on the long edge of the page. If the image is landscape, the output flips on the short edge of the page.

7. Use 2-sided (flip-style) for originals that flip on the top/bottom edge of the page, like calendars. If the image is portrait, the output flips on the short edge of the page. If the image is landscape, the output flips on the long edge of the page.

8. Select Output Sides, and then select one of these options:

9. Match original: The output will match the format of the original. For example, if the original is 1-sided, the output will be 1-sided. However, if the administrator has restricted 1-sided printing and the original is 1-sided, the output will be 2-sided book-style.

10. 1-sided: The output will be 1-sided. However, if the administrator has restricted 1-sided printing, the output will be 2-sided book-style.
11. 2-sided (book-style): The output will flip on the right/left edge of the page, like a book. If the image is portrait, the output flips on the long edge of the page. If the image is landscape, the output flips on the short edge of the page.

12. 2-sided (flip-style): The output will flip on the top/bottom edge of the page, like a calendar. If the image is portrait, the output flips on the short edge of the page. If the image is landscape, the output flips on the long edge of the page.

13. Set options marked with a yellow triangle before using the preview feature.

NOTE: After the preview scan, these options are removed from the main Options list and are summarized in the Pre-scan Options list. To change any of these options, discard the preview and start over.

Using the preview feature is optional.

1. Touch the right pane of the screen to preview the document. In the preview screen, use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

Use these buttons to toggle between two-page view and thumbnail view. More options are available in thumbnail view than in two-page view.

Use these buttons to zoom in or out on the selected page.

NOTE: Select only one page at a time to use these buttons.

Use this button to rotate the page 180 degrees.

NOTE: This button is available only in the thumbnail view.

Use this button to delete the selected pages.

NOTE: This button is available only in the thumbnail view.

Use these buttons to rearrange the pages within the document. Select one or more pages and move them to the left or right.

NOTE: These buttons are available only in the thumbnail view.

Use this button to add a page to the document. The printer prompts to scan additional pages.

Use this button to clear the changes made in the preview and start over.

1. When the document is ready, touch Start to begin copying.

Additional copy tasks

Locate information on the Web for performing common copy tasks.

Go to www.hp.com/support/ljM528mfp.

Instructions are available for copy tasks, such as the following:

• Copy or scan pages from books or other bound documents
  • Copy mixed-size documents
  • Copy or scan both sides of an identification card
• Copy or scan a document into a booklet format

6 Scan

Scan using the software, or scan directly to email, a USB flash drive, a network folder, or another destination.

• Set up Scan to Email
• Set up Scan to Network Folder
• Set up Scan to SharePoint® (Flow models only)
• Set up Scan to USB Drive
• Scan to email
• Scan to job storage
• Scan to network folder
• Scan to SharePoint
• Scan to USB drive
  • Use HP JetAdvantage business solutions
  • Additional scan tasks

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

Set up Scan to Email

The printer has a feature that enables it to scan a document and send it to one or more email addresses.

Introduction
Before you begin
- Step one: Access the HP Embedded Web Server (EWS)
- Step two: Configure the Network Identification settings
- Step three: Configure the Send to Email feature
• Step four: Configure the Quick Sets (optional)
Step five: Set up Send to Email to use Office 365 Outlook (optional)

Introduction

To use this scan feature, the printer must be connected to a network; however, the feature is not available until it has been configured. There are two methods for configuring Scan to Email, the Scan to Email Setup Wizard for basic and Email Setup for advanced.

Use the following information to set up the Scan to Email feature.

Before you begin

To set up the Scan to Email feature, the printer must have an active network connection.

Administrators need the following information before beginning the configuration process.

• Administrative access to the printer
  • DNS suffix (e.g., companyname.com)
• SMTP server (e.g., smtp.mycompany.com)

NOTE: If you do not know the SMTP server name, SMTP port number, or authentication information, contact the email/Internet service provider or system administrator for the information. SMTP server names and port names are typically found by doing an Internet search. For example, use terms like "Gmail smtp server name" or "Yahoo smtp server name" to search.

- SMTP server authentication requirements for outgoing email messages, including the user name and password used for authentication, if applicable.

NOTE: Consult your email service provider's documentation for information on digital sending limits for your email account. Some providers may temporarily lock your account if you exceed your sending limit.

Step one: Access the HP Embedded Web Server (EWS)

Open the EWS to start the set-up process.

1. From the Home screen on the printer control panel, touch the Information icon, and then touch the Network icon to display the IP address or host name.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

HP Calendar Camera List (MINT-MSL37) Search by Keyword Welcome Sign In Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Device Status Sleep mode on Supplies Black Cartridge Order 500A (CF360A) 90% Cyan Cartridge Order 500A (CF361A) 90% Hagenta Cartridge Order 500A (CF362A) 90% Yellow Cartridge Order 500A (CF362A) 90% Fuser Kit Order 110V-8SL35A, 220V-8SL36A 100% Document Feeder Kit Order BSL52A 100% Toner Collection Unit BSL37A: OK * Estimated levels. Actual levels may vary. Supplies Details Media Input/Output Status Capacity Size Type Tray 1 Empty 100 sheets Any Size Any Type Tray 2 OK 550 sheets Letter (B.Sx11) Plain Standard bin OK 250 sheets N/A N/A Orange Settings

Step two: Configure the Network Identification settings

NOTE: Configuring email setup on the Networking tab is an advanced process and might require the assistance of a system administrator.

1. Using the EWS top navigation tabs, click Networking.

NOTE: For configuring the network settings for use with Office 365, Step five: Set up Send to Email to use Office 365 Outlook (optional) on page 86

1. In the left navigation pane, click TCP/IP Settings. A username/password might be required to access the Network Identification tab of the EWS.

2. On the TCP/IP Settings dialog, click the Network Identification tab.

3. If DNS is required on the network, in the TCP/IP Domain Suffix area, verify that the DNS suffix for the email client being used is listed. DNS suffixes have this format: companyname.com, gmail.com, etc.

hp HP Cable Linux Net HSP.NET Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Configuration Wireless Direct TCP/IP Settings Network Settings Other Settings AnPrint Select Language Google Cloud Print Setup Web Proxy Security Settings Authorization Secure Communication Mgmt. Protocols BIZ.1X Authentication IPsec(Firewall) Announcement Agent Diagnostics Network Statistics Protocol Info Configuration Page TCP/IP Settings Help Summary Network Identification TCP/IP(v4) TCP/IP(v6) Config Precedence Advanced Enable DOHS TCP/IP Domain Suffix DNS Suffixes Add WINS (IPv4 only) Primary Secondary Bonjour Bonjour Service Name Apply Cancel

NOTE: If the Domain Name suffix is not set up, use the IP address.

1. Click Apply.
2. Click OK.

Step three: Configure the Send to Email feature

The two options for configuring Send to Email are the Email Setup Wizard for basic configuration and Email Setup for advanced configuration. Use the following options to configure the Send to Email feature:

• Method one: Basic configuration using the Email Setup Wizard
• Method two: Advanced configuration using the Email Setup

Method one: Basic configuration using the Email Setup Wizard

This option opens the Email Setup Wizard in the HP Embedded Web Server (EWS) for basic configuration.

1. Using the EWS top navigation tabs, click Scan/Digital Send.
2. In the left-navigation pane, click Email and Scan to Network Folder Quick Setup Wizards.
3. In the Email and Scan to Network Folder Quick Setup Wizards dialog, click the Email Setup link.

NOTE: If a message displays indicating that the Scan to Email feature is disabled, click Continue to proceed with the configuration and enable the Scan to Email feature upon completion.

HP Online Connection Wizard Search by Keyword Welcome Sign In Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Email and Scan to Network Folder Quick Setup Wizards Use this series of screens to quickly set up or modify the default settings for the Scan to Email feature, which allows users to send scanned images as email attachments. For complete setup, go to the Email Setup name. Email Email Setup Use this series of screens to quickly set up or remove Save to Network Folder Quick Sets, which allow users to save scanned documents to a shared folder on the network. For complete setup, go to the Save to Network Folder Setup page. Scan to Network Folder Save to Network Folder Quick Set Wizard

1. On the Configure Email Servers (SMTP) dialog, select one of the following options and complete the steps:

Option one: Use a server already in use by Email

▲ Select Use a server already in use by Email, and then click Next.

NOTE: This option finds outgoing SMTP servers inside your firewall only.

Option two: Search network for outgoing email server

a. Select Search network for outgoing email server, and then click Next.

b. Select the appropriate server from the Configure Email Server (SMTP) list, and then click Next.

c. Select the option that describes the server's authentication requirements:

– Server does not require authentication: Select Server does not require authentication, and then click Next.

-OR-

– Server requires authentication: From the drop-down list, select an authentication option:

Use credentials of user to connect after Sign In at the control panel: Select Use credentials of user to connect after Sign In at the control panel, and then click Next.

-OR-

Always use these credentials: Select Always use these credentials, enter the User name and Password, and then click Next.

Option three: Add SMTP server

a. Select Add SMTP server

b. Enter the Server Name and Port Number, and then click Next.

NOTE: In most cases, the default port number does not need to be changed.

NOTE: If you are using a hosted SMTP service such as Gmail, verify the SMTP address, port number, and SSL settings from the service provider's website or other sources. Typically, for Gmail, the SMTP address is smtp.gmail.com, port number 465, and the SSL should be enabled.

Please refer to online sources to confirm these server settings are current and valid at the time of configuration.

c. Select the appropriate server authentication option:

– Server does not require authentication: Select Server does not require authentication, and then click Next.

-OR-

– Server requires authentication: Select an option from the Server requires authentication dropdown list:

Use credentials of user to connect after Sign In at the control panel: Select Use credentials of user to connect after Sign In at the control panel, and then click Next.

-OR-

○ Always use these credentials: Select Always use these credentials, enter the User name and Password, and then click Next.

1. On the Configure Email Settings dialog, enter the following information about for the sender's email address, and then click Next.

NOTE: When setting up the From, Subject, and Message fields, if the User editable check box is unchecked, users will not be able to edit those fields at the printer control panel when sending an email.

Option Description
From(Required)	Select one of the following options from the From drop-down list:User's address (sign-in required)Default From: Enter a default email address and display name in the Default From Email Address and Default Display Name fieldsNOTE: Create an email account for the printer, and use this address for the default email address.NOTE: Configure the email feature so that users must sign in before using it. This prevents users from sending an email from an address that is not their own.
Subject(Optional)	Provide a default subject line for the email messages.
Message(Optional)	Create a custom message.To use this message for all emails sent from the printer, clear the User editable check box for Message.

1. In the Configure File Scan Settings area, set the default scanning preferences, and then click Next.

Option Description
File Type	Select the default file type that the for the scanned document:
	●PDF
	●JPEG
	●TIFF
	●MTIFF
	●XPS
	●PDF/A
Color/Black Select the default color setting for the scanned document:
Quality and File Size Select the default output quality for the scanned document:
●Low (small file)
●Medium
●High (large file)
Resolution Select the default scan resolution for the scanned document:
●75 dpi
●150 dpi
●200 dpi
●300 dpi
●400 dpi
●600 dpi

1. Review the Summary area, and then click Finish to complete the setup.

Method two: Advanced configuration using the Email Setup

1. Using the EWS top navigation tabs, click Scan/Digital Send, and then click Email Setup in the left navigation pane.

NOTE: By default, the Email Setup page displays the basic settings for Scan to Email setup. To access additional settings, click the Advanced Settings button at the bottom of the page.

1. On the Email Setup dialog, select the Enable Send to Email check box. If this check box is not selected, the feature is unavailable at the printer control panel.

HP Coupon License (SNTP) - 00137 Search by Keyword Welcome Sign In Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Email Setup > Default Job Options This feature allows users to scan documents and send them as email attachments to one or more email addresses. Enable Scan to Email Outgoing Email Servers (SMTP) Click Add to configure a server Add... Address and Message Field Control Select the desired setting for each field and whether the field can be edited by the user at the control panel. If any selections require users to sign is, set the base application to require signing in by navigating to the Security tab. From: Default From: User editable Default From: Default Display Name: Note: This is an optional setting. If set, the display name is shown at the control panel rather than the Default From address. Subject: + User editable Messages: User editable

1. In the Outgoing Email Servers (SMTP) area, complete the steps for one of the following options:

- Select one of the displayed servers

- Click Add to start the SMTP wizard.

1. In the SMTP wizard, select one of the following options:

Option one: I know my SMTP server address or host name: Enter the address of an SMTP server, and then click Next
Option two: If you do not know the address of the SMTP server, select Search network for outgoing email server, and then click Next. Select the server, and then click Next.

NOTE: If an SMTP server was already created for another printer function, the Use a server already in use by another function option displays. Select this option, and then configure it to be used for the email function.

1. On the Set the basic information necessary to connect to the server dialog, set the options to use, and then click Next.

NOTE: Some servers have problems sending or receiving emails that are larger than 5 megabytes (MB). These problems can be prevented by entering a number in Split emails if larger than (MB).

NOTE: In most cases, the default port number does not need to be changed. However, when using the Enable SMTP SSL Protocol option, port 587 must be used.

NOTE: If you are using Google™ Gmail for email service, select the Enable SMTP SSL Protocol check box. Typically, for gmail, the SMTP address is smtp.gmail.com, port number 465, and the SSL should be enabled.

Please refer to online sources to confirm these server settings are current and valid at the time of configuration.

1. On the Server Authentication Requirements dialog, select the option that describes the server's authentication requirements:

- Server does not require authentication, and then click Next.

- Server requires authentication

From the drop-down box, select Use credentials of user to connect after Sign In at the control panel, and then click Next.
From the drop-down box, select Always use these credentials, enter the Username and Password, and then click Next.

NOTE: If using a signed-in user's credentials, set email to require sign in by the user on the printer control panel. Deny device guest access to email by clearing the check box for email in the Device Guest column in the Sign in and Permission Policies area on the Access Control dialog of the Security tab. The icon in the check box changes from a check mark to a lock.

1. On the Server Usage dialog, choose the printer functions that will send email through this SMTP server, and then click the Next button.

NOTE: If the server requires authentication, a user name and password for sending automatic alerts and reports from the printer will be required.

1. On the Summary and Test dialog, enter a valid email address in the Send a test email to: field, and then click Test.

2. Verify that all of the settings are correct, and then click Finish to complete the outgoing email server set up.

3. In the Address and Message Field Control area, enter a From: setting and any of the other optional settings.

Address and Message Field Control settings:

Feature Description
Address Field Restrictions1	Specify whether users must select an email address from an address book or whether users are allowed to enter in an email address manually.CAUTION: If Users must select from address book is selected, and any of the address fields are also set as User editable, changes to those editable fields also change the corresponding values in the address book.To prevent users from changing contacts in the Address Book at the printer control panel, go to the Access Control page on the Security tab, and deny Device Guest access to address book modifications.
Allow invalid email address formats1	Select to allow an invalid email address format.
User editable	To use the Default From address and Default Display Name for all emails sent from this printer (unless a user is signed in), do not select the User editable check box.When setting up the address fields, if the User editable check box is unchecked, users will not be able to edit those fields at the printer control panel when sending an email. For send-to-me functionality, clear the User editable check boxes for all of the address fields, including the From:To:CC:, and BCC: fields, and then set that user's send email From: their own email address and To: their own email address.
Default From: and Default Display Name:	Provide an email address and name to use for the From: address for the email message.NOTE: Create an email account for the printer, and use this address for the default email address.NOTE: Configure the email feature so that users must sign in before using it. This prevents users from sending an email from an address that is not their own.
To:1	Provide a To (recipient) email address for emails.
CC:2	Provide a CC email address for emails.
BCC:3	Provide a BCC email address for emails.
Subject: Provide a default subject line for the email messages.
Message:	Create a custom message. To use this message for all emails sent from the printer, clear or do not select the User editable check box for Message:.

1 This setting is available only on the Advanced Settings page.

1. In the Signing and Encryption area, set the signing and encryption preferences.

NOTE: These settings are available only on the Advanced Settings page.

Signing and Encryption settings:

Feature Description
Signing Select whether to sign the security certificate.
	Select the User editable check box to make this setting editable at the printer control panel.
Hashing Algorithm	Select the algorithm to use for signing the certificate.
Encryption Select whether to encrypt the email.
	Select the User editable check box to make this setting editable at the printer control panel.
Encryption Algorithm Select the algorithm to use for encrypting the email.
Attribute for Recipient Public Key	Enter which attribute to use to retrieve the recipient's public key certificate from LDAP.
Use the recipient public key certificate to verify the recipient	Select this setting to use the recipient's public key certificate to verify the recipient.

1. In the Notification Settings area, select when users will receive notifications about sent emails. The default setting is using the signed in user's email address. If the recipient email address is blank, no notification is sent.

2. In the Scan Settings area, set the default scanning preferences.

NOTE: These settings are available only on the Advanced Settings page.

Scan settings:

Feature Description
Original Size Select the page size of the original document.
Original Sides Select whether the original document is single-sided or double-sided.
Optimize Text/Picture Select to optimize for the output of a particular type of content.
Content Orientation	Select the way the content of the original document is placed on the page: Portrait or Landscape.
Background Cleanup	Select a value to remove faint images from the background or to remove a light background color.
Darkness Select a value to adjust the darkness of the file.
Contrast Select a value to adjust the contrast of the file.
Sharpness	Select a value to adjust the sharpness of the file.
Image Preview	Select whether to require or make optional a displayed preview of the job or to disable a preview.
Cropping Options	Select whether or not to allow a job to be cropped and the type of cropping option.
Erase Edges	Select this setting to specify the width of edge margins to be erased, in either inches or millimeters, for the front side and back side of a job.

1. In the File Settings area, set the default file settings preferences.

File settings:

Feature	Description
File Name Prefix ^1	Set the default file name prefix used for files saved to a network folder.
Feature Description
File Name	Default file name for the file to be saved.Select the User editable check box to make this setting editable at the printer control panel.
File Name Suffix1	Set the default file name suffix used for files saved to a network folder.Duplicate filename suffix default [filename]_YYYYMMDDT
File Name Preview1	Enter a file name, and then click the Update Preview button.
File Numbering Format1	Select a file name format for when the job is divided into multiple files.
Add numbering when job has just one file (ex._1-1)1	Select this setting to add numbering to a file name when the job is only one file instead of multiple files.
File Type	Select the file format for the saved file.Select the User editable check box to make this setting editable at the printer control panel.
High Compression (smaller file)1	Select this setting to compress the scanned file, which reduces the file size. However, the scanning process for a High compression file might take longer than for a Normal compression file.
PDF encryption1	If the file type is PDF, then this option encrypts the output PDF file. A password must be specified as part of the encryption. The same password must be used to open the file. The user will be prompted to enter a password prior to scanning their job if one has not been set prior to pressing start.
Resolution	Set the resolution for the file. Higher resolution images have more dots per inch (dpi), so they show more detail. Lower resolution images have fewer dots per inch and show less detail, but the file size is smaller.
Quality and File Size	Select the quality for the file. Higher-quality images require a larger file size than lower-quality images, and they take more time to send.
Color/Black Specify whether copies are to be printed in color, black and gray, or black only.
Suppress blank pages1	If the Suppress blank pages option is enabled, blank pages will be ignored.
Create Multiple Files1	Select this setting to scan pages into separate files based on a predetermined maximum number of pages per file.

1 This setting is available only on the Advanced Settings page.

1. Review the selected options to verify that they are accurate, and then click Apply to complete the setup.

Step four: Configure the Quick Sets (optional)

Quick Sets are optional short-cut jobs that can be accessed on the main Home screen or within the Quick Sets application at the printer.

1. In the Email Setup area of the left navigation pane, click Quick Sets.
2. Select one of the following options:

- Select an existing Quick Set under Quick Sets Application in the table.

-OR-

- Click Add to start the Quick Set Wizard.

1. If you selected Add, the Quick Sets Setup page opens. Complete the following information:

- Quick Set Name: Enter a title for the new Quick Set.

- Quick Set Description: Enter a description of the Quick Set.

- Quick Set Start Option: To set how the Quick Set starts, click either Enter application, then user presses Start or Start instantly when selected from the Home Screen.

1. Define the following settings for the Quick Set: Address and Message Field Control, Signing and Encryption, Notification Settings, Scan Settings, File Settings.

2. Click Finish to save the Quick Set.

Step five: Set up Send to Email to use Office 365 Outlook (optional)

Introduction
- Configure the outgoing email server (SMTP) to send an email from an Office 365 Outlook account

Introduction

Microsoft Office 365 Outlook is a cloud-based email system provided by Microsoft which uses Microsoft's Simple Mail Transfer Protocol (SMTP) server to send or receive emails. Complete the following to enable the printer to send an email with an Office 365 Outlook account from the control panel.

NOTE: You must have an email address account with Office 365 Outlook to configure the settings in the EWS.

Configure the outgoing email server (SMTP) to send an email from an Office 365 Outlook account

1. Using the EWS top navigation tabs, click Networking.
2. In the left navigation pane, click TCP/IP Settings.
3. In the TCP/IP Settings area, click the Network Identification tab.
4. If DNS is required on the network, in the TCP/IP Domain Suffix area, verify that the DNS suffix for the email client being used is listed. DNS suffixes have this format: companyname.com, Gmail.com, etc.

hp HP Cloud Client Application www.hp.com/ Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Configuration Wireless Direct TCP/IP Settings Network Settings Other Settings AnPrint Select Language Google Cloud Print Setup Web Proxy Security Settings Authorization Secure Communication Mgmt. Protocols DIG-1X Authentication IPsec/Firewall Announcement Agent Diagnostics Network Statistics Protocol Info Configuration Page TCP/IP Settings Help Summary Network Identification TCP/IP(v4) TCP/IP(v6) Config Precedence Advanced Enable DOHS TCP/IP Domain Suffix DNS Softlines Add WINS (IPv4 only) Primary Secondary Bonjour Bonjour Service Name Apply Cancel

NOTE: If the Domain Name suffix is not set up, use the IP address.

1. Click Apply.
2. Click the Scan/Digital Send tab.

3. On the left navigation pane, click Email Setup.

4. On the Email Setup page, select the Enable Send to Email check box. If this check box is not available, the feature is unavailable at the printer control panel.

HP Email Setup > Default Job Options Search by Keyword Welcome Sign In Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Email Setup > Default Job Options This feature allows users to scan documents and send them as email attachments to one or more email addresses. Enable Scan to Email Outgoing Email Servers (SUIF) Click Add to configure a server Add... Address and Message Field Control Select the desired setting for each field and whether the field can be edited by the user at the control panel. If any selections require users to sign in, set the base application to require signing in by navigating to the Security tab. From: Default From: User editable Default From: Default Display Name: Note: This is an optional setting. If set, the display name is shown at the control panel rather than the Default From address. Subject: + User editable Messages: User editable

1. In the Outgoing Email Servers (SMTP) area, click Add to start the SMTP wizard.
2. In the I know my SMTP server address or host name field, type smtp.onoffice.com, and then click Next.
3. On the Set the basic information necessary to connect to the server dialog, in the Port Number field, type 587.

NOTE: Some servers have problems sending or receiving emails that are larger than 5 megabytes (MB). These problems can be prevented by entering a number in Split emails if larger than (MB).

1. Select the Enable SMTP SSL Protocol check box, and then click Next.
2. On the Server Authentication Requirements dialog, complete the following information:

a. Select Server requires authentication.
b. From the drop-down list, select Always use these credentials
c. In the Username field, type the Office 365 Outlook email address.
d. In the Password field, type the Office 365 Outlook account password, and then click Next.

1. On the Server Usage dialog, choose the printer functions that will send email through this SMTP server, and then click the Next button.
2. On the Summary and Test dialog, enter a valid email address in the Send a test email to: field, and then click Test.
3. Verify that all of the settings are correct, and then click Finish to complete the outgoing email server set up.

Set up Scan to Network Folder

Introduction
Before you begin
• Step one: Access the HP Embedded Web Server (EWS)
• Step two: Set up Scan to Network Folder

Introduction

This document explains how to enable and configure the Scan to Network Folder function. The printer has a feature that enables it to scan a document and save it to a network folder. To use this scan feature, the printer must be connected to a network; however, the feature is not available until it has been configured. There are two methods for configuring Scan to Network Folder, the Save to Network Folder Setup Wizard for basic setup and Save to Network Folder Setup for advanced setup.

Before you begin

NOTE: To set up the Scan to Network Folder feature, the printer must have an active network connection.

Administrators need the following items before beginning the configuration process.

• Administrative access to the printer
  The fully-qualified domain name (FQDN) (e.g., \servername.us.companyname.net\scans) of the destination folder OR the IP address of the server (e.g., \16.88.20.20\scans).

NOTE: The use of the term "server" in this context refers to the computer where the shared folder resides.

Step one: Access the HP Embedded Web Server (EWS)

Open the EWS to start the set-up process.

1. From the Home screen on the printer control panel, touch the Information icon, and then touch the Network icon to display the IP address or host name.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Device Status Sleep mode on Supplies Black Cartridge Order 500A (CF360A) 50%* Cyan Cartridge Order 500A (CF261A) 50% Magenta Cartridge Order 500A (CF362A) 90% Yellow Cartridge Order 500A (CF362A) 90% Fuser Kit Order 110V-8SL35A, 220V-8SL36A 100% Document Feeder Kit Order BSL52A 100% Toner Collection Unit BSL37A: OK * Estimated levels. Actual levels may vary. Supplies Details Media Input/Output Status Capacity Size Type Tray 1 Empty 100 sheets Any Size Any Type Tray 2 OK 550 sheets Letter (B.Sx11) Plain Standard bin OK 250 sheets N/A N/A Change Settings

Step two: Set up Scan to Network Folder

• Method one: Use the Scan to Network Folder Wizard
• Method two: Use Scan to Network Folder Setup

Method one: Use the Scan to Network Folder Wizard

This option opens the setup wizard that is in the HP Embedded Web Server (EWS) for the printer. The setup wizard includes the options for basic configuration.

NOTE: Before you begin: To display the printer's IP address or host name, touch the Information icon, and then touch the Network icon on the printer's control panel.

1. Using the EWS top navigation tabs, click Scan/Digital Send tab. The Email and Scan to Network Folder Quick Setup Wizards dialog opens.
2. In the left-navigation pane, click Email and Scan to Network Folder Quick Setup Wizards.
3. Click the Save to Network Folder Quick Set Wizard link.
4. On the Add or Remove a Save to Network Folder Quick Set dialog, click Add.

NOTE: Quick Sets are short-cut jobs that can be accessed on the printer Home screen or within the Quick Sets application.

NOTE: The Save to Network Folder feature can be minimally configured without creating a quick set. However, without the quick set, users must enter the destination folder information at the control panel for each scan job. A quick set is required to include Save to Network Folder metadata.

1. On the Add Folder Quick Set dialog, complete the following information:

a. In the Quick Set Title field, type a title.

NOTE: Name the Quick Set something that users can understand quickly (e.g., "Scan and save to a folder").

b. In the Quick Set Description field, type a description explaining what the Quick Set will save.

c. Click Next.

1. On the Configure Destination Folder dialog, complete the following information:

a. In the UNC Folder Path field, type a folder path where the scan will go.

The folder path can either be the fully-qualified domain name (FQDN) (e.g., \ \servername.us.companyname.net\scans) or the IP address of the server (e.g., \16.88.20.20\scans). Be sure that the folder path (e.g., \scans) follows the FQDN or IP address.

NOTE: The FQDN can be more reliable than the IP address. If the server gets its IP address via DHCP, the IP address can change. However, the connection with an IP address might be faster because the printer does not need to use DNS to find the destination server.

b. From the Authentication Settings drop-down, select one of the following options:

• Use credentials of user to connect after Sign In at the control panel
  ●Always use these credentials

NOTE: If Always use these credentials is selected, a user name and password must be entered in the corresponding fields, and the printer's access to the folder must be verified by clicking Verify Access.

c. In the Windows Domain field, type the Windows domain.

TIP: To find the Windows domain in Windows 7, click Start, click Control Panel, click System.

To find the Windows domain in Windows 8, click Search, enter System in the search box, and then click System.

The domain is listed under Computer name, domain, and workgroup settings.

d. Click Next.

1. On the Configure File Scan Settings dialog, set the default scanning preferences for the Quick Set, and then click Next.
2. Review the Summary dialog, and then click Finish.

Method two: Use Scan to Network Folder Setup

This option enables advanced configuration of the Save to Network Folder feature using the HP Embedded Web Server (EWS) for the printer.

• Step one: Begin the configuration
- Step two: Configure the Scan to Network Folder settings
• Step three: Complete the configuration

NOTE: Before you begin: To display the printer's IP address or host name, touch the Information icon, and then touch the Network icon on the printer's control panel.

Step one: Begin the configuration

1. Click the Scan/Digital Send tab.
2. On the left navigation menu, click the Scan to Network Folder Setup link.

Step two: Configure the Scan to Network Folder settings

• Step one: Begin the configuration
• Dialog one: Set the Quick Set name, description, and options for user interaction at the control panel
• Dialog two: Folder Settings
  • Dialog three: Notification settings
  • Dialog four: Scan Settings
• Dialog five: File Settings
• Dialog six: Summary

Step one: Begin the configuration

1. On the Scan to Network Folder Setup page, select the Enable Scan to Network Folder check box. If this box is not selected, the feature is unavailable at the printer control panel.
2. In the Scan to Network Folder area of the left navigation pane, click Quick Sets. Click Add to open the Quick Sets Setup dialog.

NOTE: Quick Sets are short-cut jobs that can be accessed on the printer Home screen or within the Quick Sets application.

NOTE: The Scan to Network Folder feature can be minimally configured without creating a quick set. However, without the quick set, users must enter the destination folder information at the control panel for each scan job. A quick set is required to include Scan to Network Folder metadata.

Complete all of the settings in the Quick Set Setup to fully configure the Scan to Network Folder feature.

Dialog one: Set the Quick Set name, description, and options for user interaction at the control panel

Use the Set the button location for the Quick Set and options for user interaction at the control panel dialog to configure where the Quick Set button will display on the printer control panel and to configure the level of user interaction at the printer control panel.

1. In the Quick Set Name field, type a title.

NOTE: Name the Quick Set something that users can understand quickly (e.g., "Scan and save to a folder").

1. In the Quick Set Description field, type a description explaining what the Quick Set will save.
2. From the Quick Set Start Option list, select one of the following options:

- Option one: Enter application, then user presses Start

- Option two: Start instantly upon selection

Select one of the following prompt options :

• Prompt for original sides
• Prompt for additional pages
• Require Preview

NOTE: If Start instantly upon selection is selected, the destination folder must be entered in the next step.

1. Click Next.

Dialog two: Folder Settings

Use the Folder Settings dialog to configure the types of folders the printer sends scanned documents to.

• Configure the destination folder for scanned documents
  • Select the destination folder permissions

There are two types of destination folders to select from:

• Shared folders or FTP folders
• Personal shared folders

There are two types of folder permissions to select from:

• Read and write access
• Write access only

The following information describes how to configure the folder settings.

HP Folder Launch (at MFP MQLT)

Search by Keyword

Welcome

Sign In

Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Email Setup Default Job Options Quick Sets Scan to Network Folder Default Job Options Quick Sets Scan to USB Drive Contacts Email and Scan to Network Folder Quick Setup Wizards Digital Sending Software Setup Quick Sets Setup Folder Settings Standard shared folders are a simple UNC path without any variables. Personal shared folder paths are retrieved after a user sign is in. An example would be a user's Home folder specified in Microsoft Active Directory. Save to shared folders or FTP folders Click Add to create a destination Add... Save to a personal shared folder Requires user sign-in and information specific to the user to create folder path. Send only to folders with read and write access This option supports folder verification and job notifications. Verify folder access prior to job start When unchecked, users can save jobs more quickly but jobs may fail if the folder is unavailable. Allow sending to folders with write access only This option does not support folder verification or job notifications. Prevous Next Finish Cancel

Configure the destination folder for scanned documents

• Option 1: Configure the printer to save to a shared folder or FTP folder
- Option 2: Configure the printer to save to a personal shared folder

Select one of the following options to set up a destination folder.

Option 1: Configure the printer to save to a shared folder or FTP folder

To save scanned documents to a standard shared folder or an FTP folder, complete the following steps:

1. If it is not already selected, select Save to shared folders or FTP folders.
2. Click Add.... The Add Network Folder Path dialog opens.
3. On the Add Network Folder Path dialog, select one of the following options:

- Option one: Save to a standard shared network folder

HP Customer Connection (FTP) 98527 Search by Keyword Welcome Sign In Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Email Setup Default Job Options Quick Sets Scan to Network Folder Default Job Options Quick Sets Scan to USB Drive Contacts Email and Scan to Network Folder Quick Setup Wizards Digital Sending Software Setup Quick Sets Setup Add Network Folder Path Save to a standard shared network folder UNC Folder Path:* Custom Subfolder: (1 path)(path) Appends a custom subfolder at end of the folder path. Restrict subfolder access to user Folder Path Preview: Update Preview Some Custom Subfolder values will be updated only when the Quick Set is used. Authentication Settings: Use credentials of user to connect after Sign In at the control panel Windows Domain: Save to an FTP Server A Workstation or Server that has a File Transfer Protocol (FTP) service installed and configured. OK Cancel

NOTE: For more information about creating shared network folders see Set up a shared folder (c04431534).

1. If it is not already selected, select Save to a standard shared network folder.
2. In the UNC Folder Path field, type a folder path.
   The folder path can either be the fully-qualified domain name (FQDN) (e.g., \ \servername.us.companyname.net\scans) or the IP address of the server (e.g., \ \16.88.20.20\scans). Be sure that the folder path (e.g., \scans) follows the FQDN or IP address.

NOTE: The FQDN can be more reliable than the IP address. If the server gets its IP address via DHCP, the IP address can change. However, the connection with an IP address might be faster because the printer does not need to use DNS to find the destination server.

1. To automatically create a subfolder for scanned documents in the destination folder, select a format for the subfolder name from the Custom Subfolder list. To restrict the subfolder access to the user who creates the scan job, select Restrict subfolder access to user.

2. To view the complete folder path for scanned documents, click Update Preview.

3. From the Authentication Settings list, select one of the following options:

4. Use credentials of user to connect after Sign In at the control panel
5. Always use these credentials

NOTE: If Always use these credentials is selected, a user name and password must be entered in the corresponding fields.

1. In the Windows Domain field, type the Windows domain.

NOTE: To find the Windows domain in Windows 7, click Start, click Control Panel, click System.

To find the Windows domain in Windows 8, click Search, enter System in the search box, and then click System. The domain is listed under Computer name, domain, and workgroup settings.

NOTE: If a shared folder is set to be accessed by everyone, values for a workgroup name (default is "Workgroup"), a user name and password must be entered in the corresponding fields. However, if the folder is within a particular user's folders and not Public, the user name and password of that user must be used.

NOTE: An IP address might be necessary instead of a computer name. Many home routers do not handle computer names well, and there is no Domain Name Server (DNS). In this case, it is best to set up a static IP address on the shared PC to alleviate the problem of DHCP assigning a new IP address. On a typical home router, this is done by setting a static IP address that is on the same subnet, but outside the DHCP address range.

1. Click OK.

- Option two: Save to an FTP Server

HP Computer Server and WSPR10327 Search by Keyword Welcome Sign In Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Email Setup Default Job Options Quick Sets Scan to Network Folder Default Job Options Quick Sets Scan to USB Drive Contacts Email and Scan to Network Folder Quick Setup Wizards Digital Sending Software Setup Quick Sets Setup Add Network Folder Path Save to a standard shared network folder Save to an FTP Server A Workstation or Server that has a File Transfer Protocol (FTP) service installed and configured. FTP Servers:* Port: 21 FTP Folders Path: (Folder/subfolder) Custom Subfolder: + Server hostname or IP address (Folder/subfolder) Append's a custom subfolder at end of the folder path. Folders Path Preview: Update Preview Some Custom Subfolder values will be updated only when the Quick Set is used. FTP Transfer Mode Passive This is an advanced setting. User Names: Password: Verify Access OK Cancel HP Instant Support Shop for Supplies Product Support © Copyright 2010-2016 HP Development Compens. L.P.

NOTE: If an FTP site is outside the firewall, a proxy server must be specified under the network settings. These settings are located in the EWS Networking tab, under the Advanced options.

1. Select Save to an FTP Server.
2. In the FTP Server field, type the FTP server name or IP address.
3. In the Port field, type the port number.

NOTE: In most cases, the default port number does not need to be changed.

1. To automatically create a subfolder for scanned documents in the destination folder, select a format for the subfolder name from the Custom Subfolder list.
2. To view the complete folder path for scanned documents, click Update Preview.
3. From the FTP Transfer Mode list, select one of the following options:

oPassive

○Active

1. In the Username field, type the user name.
2. In the Password field, type the password.
3. Click Verify Access to confirm the destination can be accessed.
4. Click OK.

Option 2: Configure the printer to save to a personal shared folder

To save scanned documents to a personal shared folder, complete the following steps:

NOTE: This option is used in domain environments where the administrator configures a shared folder for each user. If the Save to a personal shared folder feature is configured, users will be required to sign in at the printer control panel using Windows credentials or LDAP authentication.

1. Select Save to a personal shared folder.
2. In the Retrieve the device user's home folder using this attribute field, type the user's home folder in the Microsoft Active Directory.

NOTE: Verify that the user knows where this home folder is located on the network.

1. To add a user name subfolder at the end of the folder path, select Create subfolder based on user name.

To restrict the subfolder access to the user who creates the scan job, select Restrict subfolder access to user.

Select the destination folder permissions

• Option 1: Configure read and write access
• Option 2: Configure write access only

Select one of the following options to set up destination folder permissions.

Option 1: Configure read and write access

To send scanned documents to a folders configured for read and write access, complete the following steps:

NOTE: Send only to folders with read and write access supports folder verification and job notification.

1. If it is not already selected, select Send only to folders with read and write access.
2. To require the printer to verify folder access before starting a scan job, select Verify folder access prior to job start.
   NOTE: Scan jobs can complete more quickly if Verify folder access prior to job start is not selected; however, if the folder is unavailable, the scan job will fail.

1. Click Next.

Option 2: Configure write access only

To send scanned documents to a folder configured for write access only, complete the following steps:

NOTE: Allow sending to folders with write access only does not support folder verification or job notification

NOTE: If this option is selected, the printer cannot increment the scan filename. It sends the same filename for all scans.

Select a time-related filename prefix or suffix for the scan filename, so that each scan is saved as a unique file, and does not overwrite a previous file. This filename is determined by the information in the File Settings dialog in the Quick Set Wizard.

1. Select Allow sending to folders with write access only.
2. Click Next.

Dialog three: Notification settings

On the Notification Settings dialog, complete one of the following tasks:

NOTE: In order to send notification emails, the printer must be set up to use an SMTP server for sending email jobs. For more information about setting up the SMTP server for sending emails see Set up Scan to Email (c04017973).

- Option one: Do not notify

1. Select Do not notify.

2. To prompt the user to review their notification settings, select Prompt user prior to job start, and then click Next.

- Option two: Notify when job completes

1. Select Notify when job completes.
2. Select the method for delivering the notification from the Method Used to Deliver Notification list.
   If the method of notification selected is Email, type the email address in the Notification Email Address field.
3. To include a thumbnail of the first scanned page in the notification, select Include Thumbnail.
4. To prompt the user to review their notification settings, select Prompt user prior to job start, and then click Next.

- Option three: Notify only if job fails

1. Select Notify only if job fails.
2. Select the method for delivering the notification from the Method Used to Deliver Notification list.
   If the method of notification selected is Email, type the email address in the Notification Email Address field.
3. To include a thumbnail of the first scanned page in the notification, select Include Thumbnail.
4. To prompt the user to review their notification settings, select Prompt user prior to job start, and then click Next.

Dialog four: Scan Settings

On the Scan Settings dialog, set the default scanning preferences for the Quick Set, and then click Next.

Scan settings:

Feature Description
Original Size Select the page size of the original document.
Original Sides Select whether the original document is single-sided or double-sided.
Optimize Text/Picture Select to optimize for the output of a particular type of content.
Content Orientation	Select the way the content of the original document is placed on the page: Portrait or Landscape.
Background Cleanup	Select a value to remove faint images from the background or to remove a light background color.
Darkness Select a value to adjust the darkness of the file.
Contrast Select a value to adjust the contrast of the file.
Sharpness Select a value to adjust the sharpness of the file.
Image Preview	Select whether to require or make optional a displayed preview of the job or to disable a preview.
Cropping Options	Select whether or not to allow a job to be cropped and the type of cropping option.
Erase Edges	Select this setting to specify the width of edge margins to be erased, in either inches or millimeters, for the front side and back side of a job.

Dialog five: File Settings

On the File Settings dialog, set the default file settings for the Quick Set, and then click Next.

File settings:

Feature Description
File Name Prefix	Set the default file name prefix used for files saved to a network folder.
File Name	Default file name for the file to be saved.Select the User editable check box to make this setting editable at the printer control panel.
File Name Suffix	Set the default file name suffix used for files saved to a network folder.
File Name Preview	Enter a file name, and then click the Update Preview button.
File Numbering Format	Select a file name format for when the job is divided into multiple files.
Add numbering when job has just one file (ex._1-1)	Select this setting to add numbering to a file name when the job is only one file instead of multiple files.
File Type	Select the file format for the saved file.Select the User editable check box to make this setting editable at the printer control panel.
High Compression (smaller file)	Select this setting to compress the scanned file, which reduces the file size. However, the scanning process for a High compression file might take longer than for a Normal compression file.
PDF encryption	If the file type is PDF, then this option encrypts the output PDF file. A password must be specified as part of the encryption. The same password must be used to open the file. The user will be prompted to enter a password prior to scanning their job if one has not been set prior to pressing start.
Resolution	Set the resolution for the file. Higher resolution images have more dots per inch (dpi), so they show more detail. Lower resolution images have fewer dots per inch and show less detail, but the file size is smaller.
Quality and File Size	Select the quality for the file. Higher-quality images require a larger file size than lower-quality images, and they take more time to send.
Color/Black Specify whether copies are to be printed in color, black and gray, or black only.
Suppress blank pages	If the Suppress blank pages option is enabled, blank pages will be ignored.
Meta Data File Format	Use the drop-down list to select the file format for meta-data information.
Create Multiple Files	Select this setting to scan pages into separate files based on a predetermined maximum number of pages per file.

Dialog six: Summary

On the Summary dialog, review the Summary dialog, and then click Finish.

Step three: Complete the configuration

1. In the left-navigation pane, click Scan to Network Folder.
2. On the Scan to Network Folder page, review the selected settings, and then click Apply to complete the setup.

Set up Scan to SharePoint® (Flow models only)

Use Scan to SharePoint ^® to scan documents directly to a Microsoft ^® SharePoint site. This feature eliminates the need to scan the documents to a network folder, USBflash drive, or e-mail message, and then manually upload the files to the SharePoint site.

Introduction
Before you begin
- Step one: Access the HP Embedded Web Server (EWS)
- Step two: Enable Scan to SharePoint® and create a Scan to SharePoint Quick Set
- Scan a file directly to a Microsoft® SharePoint site
- Quick set scan settings and options for Scan to SharePoint®

Introduction

Set up the Scan to SharePoint ^® feature, and then scan documents directly to a SharePoint ^® site.

Scan to SharePoint ^® supports all scanning options, including the ability to scan documents as images or use the OCR features to create text files or searchable PDFs.

The feature is disabled by default. Enable Save to Sharepoint ^® in the HP Embedded Web Server (EWS).

NOTE: The Scan to Sharepoint ^4 feature is available only on workflow-equipped printers.

Before you begin

Before this procedure can be completed, the destination folder that the scanned files will be saved to must exist on the SharePoint site, and write access must be enabled to the destination folder. Scan to SharePoint is disabled by default.

Step one: Access the HP Embedded Web Server (EWS)

Open the EWS to start the set-up process.

1. From the Home screen on the printer control panel, touch the Information i icon, and then touch the Network - Icon to display the IP address or host name.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

烟台联合能源股份

(四)公司2016年度利润分配方案

Search by Keyword

Welcome

Sign In

Information

General

Copy/Print

Scan/Digital Send

Fax

Troubleshooting

Security

HP Web Services

Networking

Device Status

joblog

Configuration Page

Supplies Status Page

Event Log Page

Shape Page

Device Information

Control Panel Snapshot

Print

Printable Reports and Pages

Оцен Source Encounters

Device Status

Sleep mode on

Supplies

Black Cartridge Order 508A (CF360A) 50%* Cyan Cartridge Order 508A (CF361A) 50%* Magenta Cartridge Order 508A (CF362A) 50%* Yellow Cartridge Order 508A (CF362A) 50% Fuses Kit Order 110V-85L35A, 220V-85L36A 100%* Document Feeder Kit Order B3L52A 100%*

Toner Collection Unit ESL37A: OK

* Estimated levels. Actual levels may vary.

Supplies Details

Media

Input/Output	Status	Capacity	Size	Type
Tray 1	[] Empty	100 sheets	Any Size	Any Type
Tray 2	[] OK	550 sheets	Letter (8.5x11)	Plain
Standard bin	[] OK	250 sheets	N/A	N/A

Change Settings

Step two: Enable Scan to SharePoint® and create a Scan to SharePoint Quick Set

Follow these steps to enable the Scan to SharePoint feature and create a Scan to SharePoint Quick Set:

1. Using the top navigation tabs, click Scan/Digital Send.
2. In the left navigation pane, click Scan to SharePoint®.

NOTE: Quick Sets are short-cut jobs that can be accessed on the printer Home screen or within the Quick Sets application.

1. Select Enable Scan to SharePoint ^® , and then click Apply.
2. In the Scan to SharePoint® area of the left navigation pane, click Quick Sets. Click Add to launch the Quick Set Wizard.
3. Enter a Quick Set Name (for example, "Scan to Sharepoint") and a Quick Set Description.
4. Select a Quick Set Start Option to determine what occurs after selecting a Quick Set on the printer control panel, and then click the Next button.
5. Use the following steps to add the path to the SharePoint folder.

a. Click Add on the SharePoint® Destination Settings page to open the Add SharePoint® Path page.
b. Open another browser window, navigate to the SharePoint folder to use, and then copy the folder path for the SharePoint folder from that browser window.
c. Paste the SharePoint folder path into the SharePoint® Path: field.
d. By default, the printer overwrites an existing file that has the same file name as the new file. Clear Overwrite existing files so that a new file with the same name as an existing file is given an updated time/date stamp.
e. Select an option from the Authentication Settings drop-down menu. Select whether it is necessary to sign in to the SharePoint site with credentials, or store the credentials within the Quick Set.

NOTE: Use credentials of user to connect after Sign In at the control panel is selected in the Authentication Settings drop-down menu, the logged-in user must have permissions to write to the specified SharePoint site.

NOTE: For security purposes, the printer does not display credentials entered in the Quick Set Wizard.

f. Click OK to complete the SharePoint path setup and navigate back to the SharePoint Destination Settings page.

1. Select Verify folder access prior to job start to ensure that the SharePoint folder specified as the destination folder is accessible each time the Quick Set is used. If this option is not selected, jobs can be saved to the SharePoint folder more quickly. However, if this option is not selected and the SharePoint folder is inaccessible the job will fail.

2. Click Next.

3. Set a Condition on Which to Notify: on the Notification Settings page. This setting configures the Quick Set to either not notify, or to send email messages or print a summary page if a job either completes successfully or fails. Select one of the following options from the Condition on Which to Notify: drop-down menu:

4. Select Do not notify for the Quick Set to not perform any notification action when a job completes successfully or fails.

5. Select Notify when job completes to for the Quick Set to send a notification when a job completes successfully.
6. Select Notify only if job fails to for the Quick Set to send a notification only when a job fails.

Selecting either Notify when job completes or Notify only if job fails requires the Method Used to Deliver Notification: to be set. Select from the following options:

- Email: Use this option to send an email when the selected notification condition occurs. This option requires a valid email address in the Notification Email Address: field.

NOTE: To use the email notification feature, first configure the email feature on the printer.

- Print: Use this option to print the notification when the selected notification condition occurs.

NOTE: Select Include Thumbnail for either notification option to include a thumbnail image of the first page of the scanned page of the job.

1. Click Next.

2. Select options from the Scan Settings page, and then click Next. For more information, see Table 6-1 Scan settings for Scan to SharePoint® on page 107.

3. Select options from the File Settings page, and then click Next. For more information, see Table 6-2 File settings for Scan to SharePoint on page 107.

4. Review the summary of settings, and then click the Finish button to save the Quick Set, or click the Previous button to edit the settings.

Scan a file directly to a Microsoft® SharePoint site

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. From the Home screen on the printer control panel, navigate to the Scan application, select the Scan icon, and then select Scan to SharePoint®.

NOTE: It might be necessary to sign in to the printer to use this feature.

1. To select a Quick Set, in the Quick Sets and Defaults area touch Load. Select a Quick Set, and then touch Load.

2. Touch the File Name: text field to open a keyboard, and then type the name for the file using either the on-screen keyboard or the physical keyboard. Touch Enter

3. Touch Options to view and configure settings for the document.

4. Touch the right pane of the screen to preview the document. In the preview screen, use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

Use these buttons to toggle between single-page view and thumbnail view. More options are available in thumbnail view than in single-page view.

Use these buttons to zoom in or out on the selected page. NOTE: Select only one page at a time to use these buttons.

Use this button to rotate the page 180 degrees. NOTE: This button is available only in the thumbnail view.

Use this button to delete the selected pages. NOTE: This button is available only in the thumbnail view.

Use these buttons to rearrange the pages within the document. Select one or more pages and move them to the left or right. NOTE: These buttons are available only in the thumbnail view.

Use this button to add a page to the document. The printer prompts to scan additional pages.

Use this button to clear the changes made in the preview and start over.

Touch this button to collapse the preview screen and return to the Copy screen.

7. Touch the Start button to save the file.

Quick set scan settings and options for Scan to SharePoint®

The following tables list the settings and options available in the Quick Set Wizard when adding, editing, or copying a Scan to SharePoint® Quick Set.

Table6-1 Scan settings for Scan to SharePoint®

Feature Description
Original Size Select the page size of the original document.
Original Sides Select whether the original document is single-sided or double-sided.
Optimize Text/Picture Select to optimize for the output of a particular type of content.
Content Orientation	Select the way the content of the original document is placed on the page: Portrait or Landscape.
Background Cleanup	Select a value to remove faint images from the background or to remove a light background color.
Darkness Select a value to adjust the darkness of the file.
Contrast Select a value to adjust the contrast of the file.
Sharpness Select a value to adjust the sharpness of the file.
Image Preview	Select whether to require or make optional a displayed preview of the job or to disable a preview.
Cropping Options	Select whether or not to allow a job to be cropped and the type of cropping option.
Erase Edges	Select this setting to specify the width of edge margins to be erased, in either inches or millimeters, for the front side and back side of a job.

Table 6-2 File settings for Scan to SharePoint

Feature Description
File Name Prefix	Set the default file name prefix used for files to be saved.
File Name	Default file name for the file to be saved.Select the User editable check box to make this setting editable at the printer control panel.
File Name Suffix	Set the default file name suffix used for files to be saved.Duplicate filename suffix default [filename]_YYYYMMDDT
File Name Preview	Enter a file name, and then click the Update Preview button.
File Numbering Format	Select a file name format for when the job is divided into multiple files.
Add numbering when job has just one file (ex._1-1)	Select this setting to add numbering to a file name when the job is only one file instead of multiple files.
File Type	Select the file format for the saved file.Select the User editable check box to make this setting editable at the printer control panel.
High Compression (smaller file)	Select this setting to compress the scanned file, which reduces the file size. However, the scanning process for a High compression file might take longer than for a Normal compression file.
PDF encryption	If the file type is PDF, then this option encrypts the output PDF file. A password must be specified as part of the encryption. The same password must be used to open the file. The user will be prompted to enter a password prior to scanning their job if one has not been set prior to pressing start.
Resolution	Set the resolution for the file. Higher resolution images have more dots per inch (dpi), so they show more detail. Lower resolution images have fewer dots per inch and show less detail, but the file size is smaller.
Quality and File Size	Select the quality for the file. Higher-quality images require a larger file size than lower-quality images, and they take more time to send.
Color/Black Specify whether copies are to be printed in color, black and gray, or black only
Suppress blank pages	If the Suppress blank pages option is enabled, blank pages will be ignored.
Create Multiple Files	Select this setting to scan pages into separate files based on a predetermined maximum number of pages per file.

Set up Scan to USB Drive

Introduction
- Step one: Access the HP Embedded Web Server (EWS)
- Step two: Enable Scan to USB Drive
- Step three: Configure the Quick Sets (optional)
• Default scan settings for Scan to USB Drive setup
Default file settings for Save to USB Setup

Introduction

The printer has a feature that enables it to scan a document and save it to a USB flash drive. The feature is not available until it has been configured through the HP Embedded Web Server (EWS).

Step one: Access the HP Embedded Web Server (EWS)

Open the EWS to start the set-up process.

1. From the Home screen on the printer control panel, touch the Information icon, and then touch the Network icon to display the IP address or host name.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

HP-Calber Customer and MHT-MSL37 Search by Keyword Welcome Sign In Information General Copy/Print Scan/Digital Send Fax Troubleshooting Security HP Web Services Networking Device Status Sleep mode on Supplies Black Cartridge Order 500A (CF360A) 90% Cyan Cartridge Order 500A (CF361A) 90% Hagenta Cartridge Order 500A (CF362A) 90% Yellow Cartridge Order 500A (CF362A) 90% Fuser Kit Order 110V-BSL35A, 220V-BSL36A 100% Document Feeder Kit Order BSL52A 100% Toner Collection Unit BSL37A: OK * Estimated levels. Actual levels may vary. Supplies Details Media Input/Output Status Capacity Size Type Tray 1 L... Empty 100 sheets Any Size Any Type Tray 2 L### OK 550 sheets Letter (B.Sx11) Plain Standard bin L... OK 250 sheets N/A N/A Change Settings

Step two: Enable Scan to USB Drive

1. Select the Security tab.
2. Scroll to Hardware Ports and make sure that Enable Host USB plug and play is enabled.
3. Select the Copy/Print tab for MFP models or the Print tab for SFP models.
4. Select the Enable Save to USB check box.
5. Click Apply at the bottom of the page.

NOTE: Most devices ship with hard disk drives (HDDs) already installed. In some cases, additional storage devices can be added via USB. Verify whether the Save to USB feature needs to be expanded to USB and hard drive

Step three: Configure the Quick Sets (optional)

NOTE: Quick Sets are short-cut jobs that can be accessed on the printer Home screen or within the Quick Sets application.

1. In the Scan to USB Drive area of the left navigation pane, click Quick Sets.
2. Select one of the following options:
3. Select an existing Quick Set under Quick Sets Application in the table.
   -OR-

4. Click Add to start the Quick Set Wizard.

5. If you selected Add, the Quick Sets Setup page opens. Complete the following information:

6. Quick Set Name: Enter a title for the new Quick Set.

7. Quick Set Description: Enter a description of the Quick Set.

8. Quick Set Start Option: To set how the Quick Set starts, click either Enter application, then user presses Start or Start instantly when selected from the Home Screen.

9. Select a default location where scanned files are saved on USB storage devices inserted into the USB port on the control panel, and then click Next. The default location options are:

10. Save at root directory of the USB storage device

11. Create or place in this folder on the USB Storage Device — The path to the folder on the USB storage device must be specified when using this file location option. A backslash \ must be used to separate folder\subfolder names in the path.

12. Select an option from the Condition on Which to Notify: drop-down list, and then click Next.

This setting determines if, or how, users are notified when a Save To USB Quick Set job completes or fails. The options for the Condition on Which to Notify: setting are:

• Do not notify
• Notify when job completes

• Notify only if job fails

• Choose the Scan Settings for the Quick Set, and then click Next.

NOTE: For more information on the available scan settings, see Default scan settings for Scan to USB Drive setup on page 111

1. Choose the File Settings for the Quick Set, and then click Next.

NOTE: For more information on the available file settings, see Default scan settings for Scan to USB Drive setup on page 111

1. Review the summary of settings, and then click Finish to save the Quick Set, or click Previous to edit the settings.

Default scan settings for Scan to USB Drive setup

Table 6-3 Scan settings for Scan to USB Drive Setup:

Feature Description
Original Size Select the page size of the original document.
Original Sides Select whether the original document is single-sided or double-sided.
Optimize Text/Picture Select to optimize for the output of a particular type of content.
Content Orientation	Select the way the content of the original document is placed on the page: Portrait or Landscape.
Background Cleanup	Select a value to remove faint images from the background or to remove a light background color.
Darkness Select a value to adjust the darkness of the file.
Contrast Select a value to adjust the contrast of the file.
Sharpness Select a value to adjust the sharpness of the file.
Image Preview	Select whether to require or make optional a displayed preview of the job or to disable a preview.
Cropping Options	Select whether or not to allow a job to be cropped and the type of cropping option.
Erase Edges	Select this setting to specify the width of edge margins to be erased, in either inches or millimeters, for the front side and back side of a job.

Default file settings for Save to USB Setup

Table 6-4 File settings for Save to USB Setup:

Option name Description
File Name Prefix	Set the default file name prefix used for files saved to a network folder.
File Name	Default file name for the file to be saved.Select the User editable check box to make this setting editable at the printer control panel.
File Name Suffix	Set the default file name suffix used for files saved to a network folder.Duplicate filename suffix default [filename]_YYYYMMDDT
File Name Preview	Enter a file name, and then click the Update Preview button.
File Numbering Format	Select a file name format for when the job is divided into multiple files.
Add numbering when job has just one file (ex. _1-1)	Select this setting to add numbering to a file name when the job is only one file instead of multiple files.
File Type	Select the file format for the saved file.Select the User editable check box to make this setting editable at the printer control panel.
High Compression (smaller file)	Select this setting to compress the scanned file, which reduces the file size. However, the scanning process for a High compression file might take longer than for a Normal compression file.
PDF encryption	If the file type is PDF, then this option encrypts the output PDF file. A password must be specified as part of the encryption. The same password must be used to open the file. The user will be prompted to enter a password prior to scanning their job if one has not been set prior to pressing start.
Resolution	Set the resolution for the file. Higher resolution images have more dots per inch (dpi), so they show more detail. Lower resolution images have fewer dots per inch and show less detail, but the file size is smaller.
Quality and File Size	Select the quality for the file. Higher-quality images require a larger file size than lower-quality images, and they take more time to send.
Color/Black Specify whether copies are to be printed in color, black and gray, or black only.
Suppress blank pages	If the Suppress blank pages option is enabled, blank pages will be ignored.
Create Multiple Files	Select this setting to scan pages into separate files based on a predetermined maximum number of pages per file.

Scan to email

Introduction
- Scan to email

Introduction

The printer has a feature that enables it to scan a document and send it to one or more email addresses.

Scan to email

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. From the Home screen on the printer control panel, navigate to the Scan application, select the Scan icon, and then select Scan to Email.

NOTE: If prompted, type your user name and password.

1. Touch the To field to open a keyboard.

NOTE: If you are signed in to the printer, your user name or other default information might appear in the From field. If so, you might not be able to change it.

1. Specify the recipients by using one of these methods:

Enter the address in the To field. To send to multiple addresses, separate the addresses with a semicolon, or select the Enter button on the touchscreen keyboard after typing each address.

a. Select the Contacts button that is next to the To field to open the Contacts screen.
b. Select the appropriate contact list.
c. Select a name or names from the list of contacts to add the name to the recipients list, and then select Add.

1. Complete the Subject, File Name, and Message fields by touching the field and using the touchscreen keyboard to enter information. Select the Close button whenever you need to close the keyboard.

2. To load a Quick Set, select Load, select the Quick Set, and then select Load under the Quick Sets list.

NOTE: Quick Sets are predefined settings for various types of output, such as Text, Photograph, and High Quality. You can select a Quick Set to view the description.

1. To configure settings, such as File Type and Resolution, Original Sides, and Content Orientation, select Options in the lower left corner, and then select the settings from the Options menus. Select Done if prompted.
2. Optional Preview: Touch the right pane of the screen to preview the document. You can use the Expand and Collapse buttons on the left side of the preview pane to expand and collapse the preview screen.

Expand button Collapse button

Use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

Toggle between the two-page view and the thumbnail view. More options are available in the thumbnail view than in the two-page view.

Zoom in or out on the selected page. NOTE: Select only one page at a time to use these buttons.

Rotate the page 180 degrees. NOTE: This button is available only in the thumbnail view.

Delete the selected pages. NOTE: This button is available only in the thumbnail view.

Rearrange the pages within the document. Select one or more pages and move them to the left or right. NOTE: These buttons are available only in the thumbnail view.

Add a page to the document. The printer prompts you to scan additional pages.

Clear the changes made in the preview and start over.

1. When the document is ready, select Send to email it.

NOTE: The printer might prompt you to add the email address to the contact list.

Scan to job storage

Introduction
- Scan to job storage on the printer
• Print from job storage on the printer

Introduction

The printer has a feature that enables it to scan a document and save it to a job storage folder on the printer. You can retrieve the document from the printer and print it when needed.

NOTE: Before you can scan to a storage folder on the printer, your printer administrator or IT department must use the HP Embedded Web Server to enable the feature and configure the settings.

Scan to job storage on the printer

Use this procedure to scan a document and save it to a job storage folder on the printer so that you can print copies at any time.

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. From the Home screen on the printer control panel, navigate to the Scan application, select the Scan icon, and then select Scan to Job Storage.

NOTE: If prompted, enter your user name and password.

1. Select the default storage folder name shown under Folder.

NOTE: If the printer administrator has configured the option, you can create a new folder. Follow these steps to create a new folder:

a. Select the New Folder icon.

b. Select the New Folder field, type the folder name, and then select OK.

1. Make sure that you have selected the correct folder.

2. Touch the Job Name text field to open a touchscreen keyboard, type the name for the file, and then select the Enter button.

3. To make the job private, select the PIN button, enter a four-digit PIN in the PIN field, and then close the touchscreen keypad.

4. To configure settings, such as Sides and Content Orientation, select Options in the lower left corner, and then select the settings from the Options menus. Select Done for each setting if prompted.

5. Optional Preview: Touch the right pane of the screen to preview the document. You can use the Expand and Collapse buttons on the left side of the preview pane to expand and collapse the preview screen.

Expand button Collapse button

Use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

Toggle between the two-page view and the thumbnail view. More options are available in the thumbnail view than in the two-page view.

Zoom in or out on the selected page. NOTE: Select only one page at a time to use these buttons.

Rotate the page 180 degrees. NOTE: This button is available only in the thumbnail view.

Delete the selected pages. NOTE: This button is available only in the thumbnail view.

Rearrange the pages within the document. Select one or more pages and move them to the left or right. NOTE: These buttons are available only in the thumbnail view.

Add a page to the document. The printer prompts you to scan additional pages.

Clear the changes made in the preview and start over.

1. When the document is ready, select Save to save the file to the storage folder.

Print from job storage on the printer

Use this procedure to print a scanned document that is in a job storage folder on the printer.

1. From the Home screen on the printer control panel, navigate to the Print application, select the Print icon, and then select Print from Job Storage.
2. Under Stored Jobs to Print, select Choose, select the folder in which the document is saved, select the document, and then select Select.
3. If the document is private, enter the four-digit PIN in the Password field, and then select OK.
4. To adjust the number of copies, touch the box to the left of the Print button, and then select the number of copies from the keypad that opens. Select the Close button to close the keypad.
5. Select Print to print the document.

Scan to network folder

Introduction
- Scan to network folder

Introduction

The printer can scan a file and save it in a shared folder on the network.

Scan to network folder

Use this procedure to scan a document and save it to a network folder.

NOTE: You might be required to sign in to the printer to use this feature.

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. From the Home screen on the printer control panel, navigate to the Scan application, select the Scan icon, and then select Scan to Network Folder.

3. Specify a folder destination. Folder options must first be configured by the printer administrator.

4. To select a folder location that the administrator already set up, select Load under Quick Sets and Defaults, select the folder, and then select Load.

5. To specify a new folder location, touch the Folder Paths field to open a touchscreen keyboard, type the path to the folder, and then select the Enter button. Enter user credentials if prompted and then select Save to save the path.

NOTE: Use this format for the path: \server\folder, where "server" is the name of the server that hosts the shared folder, and "folder" is the name of the shared folder. If the folder is nested inside other folders, complete all necessary segments of the path to reach the folder. For example: \server\folder\folder

NOTE: The Folder Paths field might have a pre-defined path, and it might not be editable. In this situation, the administrator has configured this folder for common access.

1. Touch the File Name text field to open a touchscreen keyboard, type the name for the file, and then select the Enter button.
2. To configure settings, such as File Type and Resolution, Original Sides, and Content Orientation, select Options in the lower left corner, and then select the settings from the Options menus. Select Done for each setting if prompted.
3. Optional Preview: Touch the right pane of the screen to preview the document. You can use the Expand and Collapse buttons on the left side of the preview pane to expand and collapse the preview screen.

Expand button Collapse button

Two empty rectangular boxes with left and right arrow indicators, no text or symbols present.

Use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

	Toggle between the two-page view and the thumbnail view. More options are available in the thumbnail view than in the two-page view.
	Zoom in or out on the selected page.NOTE: Select only one page at a time to use these buttons.
	Rotate the page 180 degrees.NOTE: This button is available only in the thumbnail view.
	Delete the selected pages.NOTE: This button is available only in the thumbnail view.
	Rearrange the pages within the document. Select one or more pages and move them to the left or right.NOTE: These buttons are available only in the thumbnail view.
	Add a page to the document. The printer prompts you to scan additional pages.
	Clear the changes made in the preview and start over.

1. When the document is ready, select Send to save the file to the network folder.

Scan to SharePoint

Introduction
- Scan to SharePoint

Introduction

If you have a workflow-equipped printer, you can scan a document and send it to a Microsoft® SharePoint site. This feature eliminates the need to scan the documents to a network folder, USB flash drive, or email message, and then manually upload the files to the SharePoint site.

Scan to SharePoint® supports all scanning options, including the ability to scan documents as images or use the OCR features to create text files or searchable PDFs.

NOTE: Before you can scan to SharePoint, your printer administrator or IT department must use the HP Embedded Web Server to enable the feature and set it up.

Scan to SharePoint

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. From the Home screen on the printer control panel, navigate to the Scan application, select the Scan icon, and then select Scan to SharePoint®.

NOTE: It might be necessary to sign in to the printer to use this feature.

1. To select a Quick Set, touch Select under Quick Sets, select a Quick Set, and then select Load.

2. Select the File Name: text field to open a keyboard, type the name for the file, and then select the Enter button.

3. To configure settings, such as File Type and Resolution, Sides, and Content Orientation, select Options in the lower left corner, and then select the settings from the Options menus. Select Done if prompted.

4. Optional Preview: Touch the right pane of the screen to preview the document. You can use the Expand and Collapse buttons on the left side of the preview pane to expand and collapse the preview screen.

Expand button Collapse button

Two empty rectangular boxes with left and right arrow indicators, no text or symbols present.

Use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

	Toggle between the two-page view and the thumbnail view. More options are available in the thumbnail view than in the two-page view.
	Zoom in or out on the selected page.NOTE: Select only one page at a time to use these buttons.
	Rotate the page 180 degrees.NOTE: This button is available only in the thumbnail view.
	Delete the selected pages.NOTE: This button is available only in the thumbnail view.
	Rearrange the pages within the document. Select one or more pages and move them to the left or right.NOTE: These buttons are available only in the thumbnail view.
	Add a page to the document. The printer prompts you to scan additional pages.
	Clear the changes made in the preview and start over.

1. When the document is ready, select Send to save it to the SharePoint location.

Scan to USB drive

Introduction
- Scan to USB drive

Introduction

The printer can scan a file and save it to a USB flash drive.

Scan to USB drive

NOTE: You might be required to sign in to the printer to use this feature.

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. Insert the USB drive into the USB port near the printer control panel.
3. From the Home screen on the printer control panel, navigate to the Scan application, select the Scan icon, and then select Scan to USB Drive.
4. Select the USB drive under Destination, and then select the save location (either the root of the USB drive or an existing folder).
5. Touch the File Name text field to open a touchscreen keyboard, type the name for the file, and then select the Enter button.
6. To configure settings, such as File Type and Resolution, Original Sides, and Content Orientation select Options in the lower left corner, and then select the settings from the Options menus. Select Done if prompted.
7. Optional Preview: Touch the right pane of the screen to preview the document. You can use the Expand and Collapse buttons on the left side of the preview pane to expand and collapse the preview screen.

Expand button Collapse button

Two empty rectangular boxes with left and right arrow indicators, no text or symbols present.

Use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

	Toggle between the two-page view and the thumbnail view. More options are available in the thumbnail view than in the two-page view.
	Zoom in or out on the selected page. NOTE: Select only one page at a time to use these buttons.
	Rotate the page 180 degrees. NOTE: This button is available only in the thumbnail view.
	Delete the selected pages. NOTE: This button is available only in the thumbnail view.
	Rearrange the pages within the document. Select one or more pages and move them to the left or right. NOTE: These buttons are available only in the thumbnail view.
	Add a page to the document. The printer prompts you to scan additional pages.
	Clear the changes made in the preview and start over.

1. When the document is ready, select Save to save the file to the USB drive.

Use HP JetAdvantage business solutions

HP JetAdvantage solutions are workflow and printing solutions that are easy-to-use, and both network and cloud-based. HP JetAdvantage solutions are designed to help businesses of all types, including healthcare, financial services, manufacturing, and public sector, manage a fleet of printers and scanners.

HP JetAdvantage Solutions include:

• HP JetAdvantage Security solutions
• HP JetAdvantage Management solutions

• HP JetAdvantage Workflow solutions
• HP JetAdvantage Mobile Printing solutions

For more information about HP JetAdvantage business workflow and printing solutions, go to www.hp.com/go/PrintSolutions.

Additional scan tasks

Go to www.hp.com/support/ljM528mfp.

Instructions are available for performing specific scan tasks, such as the following:

• Copy or scan pages from books or other bound documents
• Send a scanned document to a folder in the printer memory
• Copy or scan both sides of an identification card
  • Copy or scan a document into a booklet format

7 Fax

Configure the fax features, and send and receive faxes using the printer.

• Set up fax
  • Change fax configurations
  Send a fax
  • Additional fax tasks

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

Set up fax

Introduction
• Set up fax by using the printer control panel

Introduction

This information applies to fax and Flow models, or to other printers when an optional analog fax accessory has been installed. Before continuing, connect the printer to a phone line (for analog fax) or to an Internet or network fax service.

Set up fax by using the printer control panel

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

•Fax

- Internal Fax Modem Setup

NOTE: If the Internal Fax Modem Setup menu does not appear in the menu listing, LAN or Internet fax might be enabled. When LAN or Internet fax is enabled, the analog fax accessory is disabled and the Internal Fax Modem Setup menu does not display. Only one fax feature, either LAN fax, analog fax, or Internet fax, can be enabled at a time. To use analog fax when LAN fax is enabled, use the HP Embedded Web Server to disable LAN fax.

1. Select the location from the list on the right side of the screen, and then select Next.
2. Touch the Company Name text field, and use the keypad to type the company name.
3. Touch the Fax Number text field, and use the keypad to type the sending fax number. Select Next.
4. Verify that the date and time settings are correct. Make changes as necessary, and then select Next.
5. If a dialing prefix is required for sending faxes, touch the Dialing Prefix text field, and use the keypad to enter the number.
6. Review all the information on the left pane, and then select Finish to complete the fax setup.

Change fax configurations

Fax dialing settings
• General fax send settings
Fax receive settings

NOTE: The settings configured using the control panel override any settings made in the HP Embedded Web Server.

Fax dialing settings

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

•Fax
- Fax Send Settings
- Fax Dialing Settings

Configure any of the following settings, and then select Done:

Menu item Description
Redial on Error	The Redial on Error feature sets the number of times a fax number will be redialed when an error occurs during a fax transmission.
Redial on No Answer	The Redial on No Answer setting selects the number of times the fax accessory redials if the number dialed does not answer. The number of retries is either 0 to 1 (used in the U.S.) or 0 to 2, depending on the location setting. The interval between retries is set by the redial interval setting.
Redial on Busy	The Redial on Busy setting selects the number of times (0 through 9) the fax accessory redials a number when the number is busy. The interval between retries is set by the Redial Interval setting.
Redial Interval	The Redial Interval setting selects the number of minutes between retries if the number dialed is busy or not answering, or if an error occurs.NOTE: You might observe a redial message on the control panel when both the Redial on Busy and Redial on No Answer settings are set to off. This occurs when the fax accessory dials a number, establishes a connection, and then loses the connection. As a result of this error condition, the fax accessory performs three automatic redial attempts regardless of the redial settings. During this redial operation, a message displays on the control panel to indicate that a redial is in progress.
Fax Send Speed	The Fax Send Speed setting sets the modem bit rate (measured in bits per second) of the Analog Fax modem while sending a fax.Fast (v.34 – 33.6k)Medium (v.17 – 14.4k)Slow (v.29 – 9.6k)
Line Monitor Volume	Use the Line Monitor Volume setting to control the printer's dialing volume level when sending faxes.
Dialing Mode	The Dialing Mode setting sets the type of dialing that is used: either tone (touch-tone phones) or pulse (rotary-dial phones).
Dialing Prefix	The Dialing Prefix setting allows you to enter a prefix number (such as a "9" to access an outside line) when dialing. This prefix number is automatically added to all phone numbers when dialed.
Detect dial tone	The Detect dial tone setting determines whether the fax checks for a dial tone before sending a fax.

General fax send settings

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

•Fax
- Fax Send Settings
●General Fax Send Settings

Configure any of the following settings, and then select Done:

Menu item Description
Fax Number Confirmation	When the Fax Number Confirmation feature is enabled, the fax number must be entered twice to ensure that it was entered correctly. The feature is disabled by default.
PC Fax Send	Use the PC Fax Send feature to send faxes from a PC. This feature is enabled by default.
Error Correction Mode	Normally, the fax accessory monitors the signals on the telephone line while it is sending or receiving a fax. If the fax accessory detects an error during the transmission and the Error Correction Mode setting is on, the fax accessory can request that the error portion of the fax be sent again.The Error Correction Mode feature is enabled by default. You should turn it off only if you are having trouble sending or receiving a fax and if you are willing to accept the errors in the transmission and a probable quality reduction in the image. Turning off the setting might be useful when you are trying to send a fax overseas or receive one from overseas, or if you are using a satellite telephone connection.NOTE: Some VoIP providers might suggest turning off the Error Correction Mode setting. However, this is not usually necessary.
Fax Header	Use the Fax Header feature to control whether the header is appended to the top, and content is shifted down, or if the header is overlaid on top of the previous header.

Fax receive settings

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

•Fax
- Fax Receive Settings
- Fax Receive Setup

Configure any of the following settings, and then select Done:

Menu item Description
Receive Mode	TheReceive Modesetting determines how the fax accessory receives fax jobs. Select one of the following options:●Automatic●TAM●Fax/Tel●Manual
Rings to Answer	The Rings to Answersetting determines the number of times the phone rings before the call is answered by the fax accessory.NOTE:The default range for the available options for the Rings to Answersetting is location-specific. The range of possible Rings to Answeroptions is limited by location.If the fax accessory is not answering, and the Rings to Answersetting is 1, try increasing it to 2.
Ring Volume	The Ring Volumersetting allows you to adjust the ringer volume.
Fax Receive Speed	Touch the Fax Receive Speeddrop down menu and select one of the following options:●Fast (v.34 – 33.6k)●Medium (v.17 – 14.4k)●Slow (v.29 – 9.6k)
Extension Phone	This setting allows you use a separate telephone in conjunction with the fax functions.
Allow Reprinting This setting allows you to reprint received faxes.
Receive to PC This setting allows you to receive faxes directly to your computer.
Fax Polling This setting allows you to enable or disable the fax polling function.
Fax/Tel Ring Time	This setting determines the number of times the phone rings before the fax/tel mode initiates.

Send a fax

1. Place the document face-down on the scanner glass, or place it face-up in the document feeder and adjust the paper guides to fit the size of the document.
2. From the Home screen on the printer control panel, navigate to the Fax application, and then select the Fax icon.. You might be prompted to type a user name and password.
3. Specify the recipients by using one of these methods:

▲ Touch the Fax Recipients text field, and then use the keypad to enter the fax number. To send to multiple fax numbers, separate the numbers with a semicolon, or select the Enter button on the touchscreen keyboard after typing each number.

a. Select the Contacts ☐ button that is next to the Fax Recipients field to open the Contacts screen.

b. Select the appropriate contact list.

c. Select a name or names from the list of contacts to add to the recipients list, and then select Add.

1. To load a Quick Set, select Load, select the Quick Set, and then select Load under the Quick Sets list.

NOTE: Quick Sets are predefined settings for various types of output, such as Text, Photograph, and High Quality. You can select a Quick Set to view the description.

1. To configure settings, such as Resolution, Sides, and Content Orientation, select Options in the lower left corner, and then select the settings from the Options menus. Select Done if prompted.

2. Optional Preview: Touch the right pane of the screen to preview the document. You can use the Expand and Collapse buttons on the left side of the preview pane to expand and collapse the preview screen.

Expand button Collapse button

Two empty rectangular boxes with left and right arrow indicators, no text or symbols present.

Use the buttons on the right of the screen to adjust the preview options and to rearrange, rotate, insert, or remove pages.

Toggle between the two-page view and the thumbnail view. More options are available in the thumbnail view than in the two-page view.

Zoom in or out on the selected page.

NOTE: Select only one page at a time to use these buttons.

Rotate the page 180 degrees.

NOTE: This button is available only in the thumbnail view.

Delete the selected pages.

NOTE: This button is available only in the thumbnail view.

Rearrange the pages within the document. Select one or more pages and move them to the left or right.

NOTE: These buttons are available only in the thumbnail view.

Add a page to the document. The printer prompts you to scan additional pages.

Clear the changes made in the preview and start over.

1. When the document is ready, select Send to send the fax.

Additional fax tasks

Locate information on the Web for performing common fax tasks.

Go to www.hp.com/support/ljM528mfp.

Instructions are available for fax tasks, such as the following:

• Create and manage fax speed dial lists
• Configure fax billing codes
• Use a fax printing schedule
• Block incoming faxes
• Fax archiving and forwarding

8 Manage the printer

Utilize management tools, configure security and energy-conservation settings, and manage firmware updates for the printer.

• Advanced configuration with the HP Embedded Web Server (EWS)
- Configure IP network settings
• Printer security features
• Energy-conservation settings
HP Web Jetadmin
• Software and firmware updates

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates
- Join support forums
• Find warranty and regulatory information

Advanced configuration with the HP Embedded Web Server (EWS)

Introduction
• How to access the HP Embedded Web Server (EWS)
• HP Embedded Web Server features

Introduction

Use the HP Embedded Web Server to manage printing functions from a computer instead of the printer control panel.

• View printer status information
• Determine the remaining life for all supplies and order new ones
• View and change tray configurations
• View and change the printer control-panel menu configuration
• View and print internal pages
- Receive notification of printer and supplies events
• View and change network configuration

The HP Embedded Web Server works when the printer is connected to an IP-based network. The HP Embedded Web Server does not support IPX-based printer connections. Internet access is not needed to open and use the HP Embedded Web Server.

When the printer is connected to the network, the HP Embedded Web Server is automatically available.

NOTE: The HP Embedded Web Server is not accessible beyond the network firewall.

How to access the HP Embedded Web Server (EWS)

1. From the Home screen on the printer control panel, select the Information i icon, and then select the Network icon to display the IP address or host name.
2. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

To use the HP Embedded Web Server, the browser must meet the following requirements:

Windows® 7

• Internet Explorer (version 8.x or greater)
• Google Chrome (version 34.x or greater)
  ●Firefox (version 20.x or greater)

Windows® 8 or greater

• Internet Explorer (version 9.x or greater)
• Google Chrome (version 34.x or greater)
• Firefox (version 20.x or greater)

macOS

● Safari (version 5.x or greater)
- Google Chrome (version 34.x or greater)

Linux

• Google Chrome (version 34.x or greater)
• Firefox (version 20.x or greater)

HP Embedded Web Server features

Information tab
- General tab
• Copy/Print tab
- Scan/Digital Send tab
Fax tab
Supplies tab
Troubleshooting tab
• Security tab
HP Web Services tab
- Networking tab
Other Links list

Information tab

Table8-1 HP Embedded Web Server Information tab

Menu Description
Device Status	Shows the printer status and shows the estimated life remaining of HP supplies. The page also shows the type and size of paper set for each tray. To change the default settings, click the Change Settings link.
Configuration Page	Shows the information found on the configuration page.
Supplies Status Page Shows the status of the supplies for the printer.
Event Log Page	Shows a list of all printer events and errors. Use the HP Instant Support link (in the Other Links area on all HP Embedded Web Server pages) to connect to a set of dynamic web pages that help solve problems. These pages also show additional services available for the printer.
Usage Page	Shows a summary of the number of pages the printer has printed, grouped by size, type, and paper print path.
Device Information	Shows the printer network name, address, and model information. To customize these entries, click the Device Information menu on the General tab.
Control Panel Snapshot Shows an image of the current screen on the control panel display.
Printable Reports and Pages	Lists the internal reports and pages for the printer. Select one or more items to print or view.
Open Source Licenses	Shows a summary of the licenses for open source software programs that can be used with the printer.

General tab

Table 8-2 HP Embedded Web Server General tab

Menu Description
Control Panel Customization Reorder, show, or hide features on the control-panel display.
	Change the default display language and keyboard layouts.
Quick Sets	Configure jobs that are available in the Quick Sets area of the Home screen on the printer control panel.
Alerts Set up email alerts for various printer and supplies events.
Control Panel Settings App	Shows the Settings app options that are available on the printer control panel.
General Settings	Configure how the printer recovers from jams and other general printer settings.
AutoSend	Configure the printer to send automated emails regarding printer configuration and supplies to specific email addresses.
Edit Other Links	Add or customize a link to another website. This link displays in the footer area on all HP Embedded Web Server pages.
Ordering Information	Enter information about ordering replacement toner cartridges. This information displays on the supplies status page.
Device Information	Name the printer and assign an asset number to it. Enter the name of the primary contact who will receive information about the printer.
Language Set the language in which to display the HP Embedded Web Server information.
Firmware Upgrade	Download and install printer firmware upgrade files.
Date/Time Settings Set the date and time or synchronize with a network time server.
Energy Settings	Set or edit a wake time, sleep time, and sleep delay for the printer. Set a different schedule for each day of the week and for holidays.
	Set which interactions with the printer cause it to wake from sleep mode.
Back up and Restore	Create a backup file that contains printer and user data. If necessary, use this file to restore data to the printer.
Reset Factory Settings	Restore printer settings to the factory defaults.
Solution Installer	Install third-party software packages that extend or modify the functionality of the printer.
Job Statistics Settings	Provides connection information about third-party job-statistics services.
Quota Settings	Provides connection information about third-party job-quota services.

Copy/Print tab

Table 8-3 HP Embedded Web Server Copy/Print tab

Menu Description
Print from USB Drive Settings	Enable or disable the Print from USB Drive menu on the control panel.
Manage Stored Jobs	Enable or disable the ability to store jobs in the printer memory.Configure job-storage options.
Default Print Options	Configure the default options for print jobs.
Restrict Color(Color printers only)	Permit or restrict color printing and copying.Specify permissions for individual users or for jobs that are sent from specific software programs.
PCL and PostScript Settings	Adjust the PCL and PostScript settings for all print jobs, including copy jobs and received faxes.
Print Quality	Configure the print quality settings, including color adjustment, image registration, and allowed paper types.
Copy Settings	Configure the default options and Quick Sets for copy jobs.NOTE: If job-specific copy setting options are not set from the control panel at the start of a job, the default settings will be used for the job.
Manage Trays Configure settings for paper trays.

Scan/Digital Send tab

Table 8-4 HP Embedded Web Server Scan/Digital Send tab

Menu Description
Scan to Email Settings	Configure the default email settings for digital sending, including the following:Settings for the outgoing mail (SMTP) serverSettings for Email Quick Sets jobsDefault message settings, such as the "From" address and the subject lineSettings for digital signatures and encryptionSettings for email notificationsDefault scan settings for email jobsDefault file settings for email jobs
Scan to Network FolderSettings	Configure the network folder settings for digital sending, including the following:Settings for Quick Sets jobs saved in a network folderSettings for notificationsDefault scan settings for jobs saved in a network folderDefault file settings for jobs saved in a network folder
Scan to SharePoint® Settings(Flow models only)	Configure the Microsoft SharePoint® settings for digital sending, including the following:Settings for Quick Sets jobs saved in a document library on the SharePoint® siteDefault settings for jobs saved in a document library on the SharePoint® site
Scan to USB Drive Settings	Configure the USB settings for digital sending, including the following:Settings for Quick Sets jobs saved on a USB flash driveSettings for notificationsDefault scan settings for jobs saved on a USB flash driveDefault file settings for jobs saved on a USB flash drive
Contacts Manage contacts, including the following:Add email addresses into the printer one at a time.Import a large list of frequently-used email addresses on to the printer all at once, rather than adding them one at a time.Export contacts from the printer into a .CSV file on the computer to use as a data backup, or import the records onto another HP printer.Edit email addresses that have already been saved in the printer.
Email and Scan to Network Folder Quick Setup Wizards	Configure the printer to send scanned images as email attachments.Configure the printer to save scanned images to network-folder Quick Sets. Quicks Sets provide easy access to files saved on the network.
Digital Sending Software Setup	Configure settings related to using optional Digital Sending software.

Fax tab

Table8-5 HP Embedded Web Server Fax tab

Menu Description
Fax Send Setup	Configure settings for sending faxes, including the following:Default settings for outgoing faxesSettings for fax Quick Sets jobsSettings for notificationsDefault setting for sending faxes using the internal fax modemSettings for using a LAN fax serviceSettings for using an Internet fax service
Fax Speed Dials Manage speed dials, including the following:Import .CSV files containing email addresses, fax numbers, or user records, so that they can be accessed on this printer.Export email, fax, or user records from the printer into a file on the computer to use as a data backup, or import the records onto another HP printer.
Fax Receive Setup	Configure default print options for incoming faxes, and set up a fax printing schedule.
Fax Archive and Forwarding	Enable or disable fax archiving and fax forwarding, and configure basic settings for each:Fax archiving is a method to send a copy of all incoming and outgoing faxes to an email address, a network folder, or an FTP server.Fax forwarding is a method to forward incoming faxes to a different fax device.
Fax Activity Log	Contains a list of the faxes that have been sent from or received by this printer.

Supplies tab

Table 8-6 HP Embedded Web Server Supplies tab

Menu Description
Manage Supplies	Configure how the printer reacts when supplies reach a Very Low state.

Troubleshooting tab

Table 8-7 HP Embedded Web Server Troubleshooting tab

Menu Description
General Troubleshooting	Select from a variety of reports and tests to help solve problems with the printer.
Online Help Link to HP cloud-based online help to assist in troubleshooting printing issues.
Diagnostic Data	Export printer information to a file that can be useful for detailed problem analysis.
NOTE: This item is available only if an administrator password is set from the Security tab.
Calibration/Cleaning(Color printers only)	Enable the automatic cleaning feature, create and print the cleaning page, and select an option to calibrate the printer immediately.
Restore Factory Settings Restore printer settings to factory defaults.
Firmware Upgrade	Download and install printer firmware upgrade files.

Security tab

Table 8-8 HP Embedded Web Server Security tab

Menu Description
General Security Settings for general security, including the following:
	Configure an administrator password to restrict access to certain features on the printer.
	Set PJL password for processing PJL commands.
	Set file system access and firmware upgrade security.
	Enable or disable the Host USB port on the control panel or the USB connectivity port on the formatter for printing directly from a computer.
	View the status of all security settings.
Account Policy Enable administrator account settings.
Access Control	Configure access to printer functions for specific individuals or groups, and select the method individuals use to sign in to the printer.
Protect Stored Data	Configure and manage the internal hard drive for the printer.
	Configure settings for jobs that are stored on the printer hard drive.
Manage Remote Apps	Manage or whitelist remote apps by importing or deleting certificates that allow devices to use this product.
Certificate Management	Install and manage security certificates for access to the printer and the network.
Web Service Security	Allow resources on this printer to be accessed by web pages from different domains. If no sites are added to the list, then all sites are trusted.
Self Test	Verify that the security functions are running according to expected system parameters.

HP Web Services tab

Use the HP Web Services tab to configure and enable HP Web Services for this printer. It is necessary to Enable HP Web Services to use the HP ePrint feature.

Table 8-9 HP Embedded Web Server HP Web Services tab

Menu Description
Web Services Setup Connect this printer to HP Connected on the web by enabling HP Web Services.
Web Proxy	Configure a proxy server if there are issues enabling HP Web Services or connecting the printer to the Internet.
HP JetAdvantage Access solutions that extend the capabilities of the printer
Smart Cloud Print	Enable Smart Cloud Print, which allows access to web-based apps that extend the capabilities of the printer.

Networking tab

Use the Networking tab to configure and secure network settings for the printer when it is connected to an IP-based network. This tab does not display if the printer is connected to other types of networks.

Table 8-10 HP Embedded Web Server Networking tab

Menu Description
Configuration
Wireless Station Configure the initial wireless settings
Wi-Fi Direct	Configure Wi-Fi Direct settings for printers that include embedded Wi-Fi Direct Print and NFC printing or that have a wireless accessory installed.
	NOTE: The configuration options available depend on the print server model.
TCP/IP Settings	Configure TCP/IP settings for IPv4 and IPv6 networks.
	NOTE: The configuration options available depend on the print server model.
Network Settings	Configure IPX/SPX, AppleTalk, DLC/LLC, and SNMP settings, depending on the print server model.
Other Settings	Configure general printing protocols and services supported by the print server. The available options depend on the print server model, but can include firmware update, LPD queues, USB settings, support information, and refresh rate.
AirPrint Enable, set up, or disable network printing from Apple supported printers.
Select Language	Change the language displayed by the HP Embedded Web Server. This page displays if the web pages support multiple languages. Optionally, select supported languages through language-preference settings in the browser.
Select Location Select a country/region for the printer.
Google Cloud Print
Setup Set up Google Cloud Print options.
Web Proxy Configure proxy settings.
Security
Settings View and restore current security settings to factory-default values.
Authorization	Control configuration management and use of this printer, including the following:Set or change the administrator password to control access to configuration parameters.Request, install, and manage digital certificates on the HP Jetdirect print server.Limit host access to this printer through an Access Control List (ACL) (for selected print servers on IPv4 networks only).
Secure Communication	Configure security settings.
Mgmt. Protocols	Configure and manage security protocols for this printer, including the following:Set the security management level for the HP Embedded Web Server, and control traffic over HTTP and HTTPS.Configure the SNMP (Simple Network Management Protocol) operation. Enable or disable the SNMP v1/v2c or SNMP v3 agents on the print server.Control access through protocols that may not be secure, such as printing protocols, print services, discovery protocols, name resolution services, and configuration-management protocols.
802.1X Authentication	Configure 802.1X authentication settings on the Jetdirect print server as required for client authentication on the network, and reset the 802.1X authentication settings to factory-default values.CAUTION: When changing the 802.1X authentication settings; the printer might lose its connection. To reconnect, it might be necessary to reset the print server to a factory-default state and reinstall the printer.
IPsec/Firewall	View or configure a Firewall policy or an IPsec/Firewall policy.
Announcement Agent	Enable or disable the HP Device Announcement Agent, set the configuration server, and configure mutual authentication using certificates.
Diagnostics
Network Statistics	Display network statistics that are collected and stored on the HP Jetdirect print server.
Protocol Info	View a list of network-configuration settings on the HP Jetdirect print server for each protocol.
Configuration Page	View the HP Jetdirect configuration page, which contains status and configuration information.

Other Links list

Configure which links display in the footer of the HP Embedded Web Server by using the Edit Other Links menu on the General tab.

NOTE: The following are the default links.

Table 8-11 HP Embedded Web Server Other Links list

Menu Description
HP Instant Support	Connect to the HP website to find solutions to printer problems.
Shop for Supplies	Connect to the HP SureSupply website for information on purchasing original HP supplies, such as cartridges and paper.
Product Support	Connect to the support site for the printer to search for help on various topics.

Configure IP network settings

• Printer sharing disclaimer
• View or change network settings
- Rename the printer on a network
• Manually configure IPv4 TCP/IP parameters from the control panel
• Manually configure IPv6 TCP/IP parameters from the control panel
• Link speed and duplex settings

Printer sharing disclaimer

HP does not support peer-to-peer networking, as the feature is a function of Microsoft operating systems and not of the HP printer drivers. Go to Microsoft at www.microsoft.com.

View or change network settings

Use the HP Embedded Web Server to view or change IP configuration settings.

1. Open the HP Embedded Web Server (EWS):

a. From the Home screen on the printer control panel, touch the Information icon, and then touch the Network icon to display the IP address or host name.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Click the Networking tab to obtain network information. Change settings as needed.

Rename the printer on a network

To rename the printer on a network so that it can be uniquely identified, use the HP Embedded Web Server.

1. Open the HP Embedded Web Server (EWS):

a. From the Home screen on the printer control panel, touch the Information icon, and then touch the Network icon to display the IP address or host name.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Open the General tab.

2. On the Device Information page, the default printer name is in the Device Name field. You can change this name to uniquely identify this printer.

NOTE: Completing the other fields on this page is optional.

1. Click the Apply button to save the changes.

Manually configure IPv4 TCP/IP parameters from the control panel

Use the control-panel Settings menus to manually set an IPv4 address, subnet mask, and default gateway.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

●Networking
- Ethernet
•TCP/IP
•IPV 4 Settings
- Config Method

1. Select the Manual option, and then touch the Save button.
2. Open the Manual Settings menu.
3. Touch the IP Address, Subnet Mask, or Default Gateway option.
4. Touch the first field to open a keypad. Enter the correct digits for the field, and then touch the OK button. Repeat the process for each field, and then touch the Save button.

Manually configure IPv6 TCP/IP parameters from the control panel

Use the control-panel Settings menus to manually set an IPv6 address.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. To enable manual configuration, open the following menus:

3. Networking

4. Ethernet
   •TCP/IP

5. IPV6 Settings

6. Select Enable, and then select On.

7. Select the Enable Manual Settings option, and then touch the Done button.

8. To configure the address, open the Address menu, and then touch the field to open a keypad.

9. Use the keypad to enter the address, and then touch the OK button.

10. Touch Save.

Link speed and duplex settings

NOTE: This information applies only to Ethernet networks. It does not apply to wireless networks.

The link speed and communication mode of the print server must match the network hub. For most situations, leave the printer in automatic mode. Incorrect changes to the link speed and duplex settings might prevent the printer from communicating with other network devices. To make changes, use the printer control panel.

NOTE: The printer setting must match the setting for the network device (a network hub, switch, gateway, router, or computer).

NOTE: Making changes to these settings causes the printer to turn off and then on. Make changes only when the printer is idle.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Open the following menus:

3. Networking

4. Ethernet

5. Link Speed

6. Select one of the following options:

7. Auto: The print server automatically configures itself for the highest link speed and communication mode allowed on the network.

8. 10T Half: 10 megabytes per second (Mbps), half-duplex operation
   ●10T Full: 10 Mbps, full-duplex operation
   ●10T Auto: 10 Mbps, automatic-duplex operation
   ●100TX Half: 100 Mbps, half-duplex operation
   ●100TX Full: 100 Mbps, full-duplex operation
   ●100TX Auto: 100 Mbps, automatic-duplex operation
   ●1000T Full: 1000 Mbps, full-duplex operation

9. Touch the Save button. The printer turns off and then on.

Printer security features

Introduction
• Security statements
- Assign an administrator password
IP Security
• Encryption support: HP High Performance Secure Hard Disks
- Lock the formatter

Introduction

The printer includes several security features to restrict who has access to configuration settings, to secure data, and to prevent access to valuable hardware components.

Security statements

The printer supports security standards and recommended protocols that help you keep the printer secure, protect critical information on your network, and simplify the way you monitor and maintain the printer.

Assign an administrator password

Assign an administrator password for access to the printer and the HP Embedded Web Server so that unauthorized users cannot change the printer settings.

• Use the HP Embedded Web Server (EWS) to set the password
• Provide user access credentials at the printer control panel

Use the HP Embedded Web Server (EWS) to set the password

1. Open the HP Embedded Web Server (EWS):

a. From the Home screen on the printer control panel, touch the Information i icon, and then touch the Network 📁 icon to display the IP address or host name.
b. Open a web browser, and in the address line, type the IP address or host name exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a message indicating that accessing the website might not be safe, select the option to continue to the website. Accessing this website will not harm the computer.

1. Click the Security tab.

2. Open the General Security menu.

3. In the area labeled Set the Local Administrator Password, enter the name to associate with the password in the Username field.

4. Enter the password in the New Password field, and then enter it again in the Verify Password field.

NOTE: To change an existing password, first enter the existing password in the Old Password field.

1. Click the Apply button.

NOTE: Make note of the password and store it in a safe place. The administrator password cannot be recovered. If the administrator password is lost or forgotten, contact HP Support at support.hp.com for the assistance required to completely reset the printer.

Provide user access credentials at the printer control panel

Some features on the printer control panel can be secured so that unauthorized people cannot use them. When a feature is secured, the printer prompts you to sign in before you can use it. You can also sign in without waiting for a prompt by selecting Sign In from the printer control panel.

Typically, the credentials for signing in to the printer are the same as for signing in to the network. Consult the network administrator for this printer if you have questions about which credentials to use.

1. From the Home screen on the printer control panel, select Sign In.

2. Follow the prompts to enter the credentials.

NOTE: To maintain security for the printer, select Sign Out when you have finished using the printer.

IP Security

IP Security (IPsec) is a set of protocols that control IP-based network traffic to and from the printer. IPsec provides host-to-host authentication, data integrity, and encryption of network communications.

For printers that are connected to the network and have an HP Jetdirect print server, you can configure IPsec by using the Networking tab in the HP Embedded Web Server.

Encryption support: HP High Performance Secure Hard Disks

The hard disk provides hardware-based encryption so you can securely store sensitive data without impacting printer performance. This hard disk uses the latest Advanced Encryption Standard (AES) and has versatile time-saving features and robust functionality.

Use the Security menu in the HP Embedded Web Server to configure the disk.

Lock the formatter

The formatter has a slot that you can use to attach a security cable. Locking the formatter prevents someone from removing valuable components from it.

Energy-conservation settings

• Print with EconoMode
- Set the sleep timer and configure the printer to use 1 watt or less of power
- Set the sleep schedule

Print with EconoMode

This printer has an EconoMode option for printing drafts of documents. Using EconoMode can use less toner. However, using EconoMode can also reduce print quality.

• Configure EconoMode from the print driver
• Configure EconoMode from the printer control panel

HP does not recommend the full-time use of EconoMode. If EconoMode is used full-time, the toner supply might outlast the mechanical parts in the toner cartridge. If print quality begins to degrade and is no longer acceptable, consider replacing the toner cartridge.

NOTE: If this option is not available in the print driver, set it using the printer control panel.

Configure EconoMode from the print driver

1. From the software program, select the Print option.
2. Select the printer, and then click the Properties or Preferences button.
3. Click the Paper/Quality tab.
4. Click the EconoMode check box to enable the feature, and then click OK.

Configure EconoMode from the printer control panel

Use the printer control panel to change the EconoMode setting.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Open the following menus:

3. Copy/Print or Print

4. Default Print Options
   •Economode

5. Select On or Off to enable or disable the feature.

Set the sleep timer and configure the printer to use 1 watt or less of power

The sleep settings affect how much power the printer uses, the wake/sleep time, how quickly the printer enters sleep mode, and how quickly the printer wakes up from sleep mode.

To configure the printer to use 1 watt or less of power while in sleep mode, enter times for both the Sleep after Inactivity and Auto Off after sleep settings.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Open the following menus:

3. General
   •Energy Settings

4. Sleep Settings

5. Select Sleep after Inactivity to specify the number of minutes the printer is inactive before it enters sleep mode. Enter the appropriate time period.

6. Select Auto Off after sleep to put the printer into a deeper power save mode after a period of sleep. Enter the appropriate time period.

NOTE: By default, the printer will wake from Auto Off in response to any activity other than USB or Wi-Fi. For greater energy settings, you can set it to wake only to the power button by selecting Shut down (wake on power button only).

1. Select Done to save the settings.

Set the sleep schedule

Use the Sleep Schedule feature to configure the printer to automatically wake or go into Sleep mode at specific times on specific days of the week.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

- General

- Energy Settings

- Sleep Schedule

1. Select the New Event button, and then select the type of event to schedule: Wake Event or Sleep Event.
2. For a wake or sleep event, configure the time and the days of the week for the event. Select Save to save the setting.

HP Web Jetadmin

HP Web Jetadmin is an award-winning, industry-leading tool for efficiently managing a wide variety of networked HP products, including printers, multifunction printers, and digital senders. This single solution allows you to remotely install, monitor, maintain, troubleshoot, and secure your printing and imaging environment — ultimately increasing business productivity by helping you save time, control costs, and protect your investment.

HP Web Jetadmin upgrades are periodically made available to provide support for specific product features. Go to www.hp.com/go/webjetadmin for more information.

Software and firmware updates

HP regularly updates features that are available in the printer firmware. To take advantage of the most current features, update the printer firmware. Download the most recent firmware update file from the web:

Go to www.hp.com/support/ljM528mfp. Click Drivers & Software.

9 Solve problems

Troubleshoot problems with the printer. Locate additional resources for help and technical support.

• Customer support
  • Control panel help system
• Reset factory settings
  A "Cartridge is low" or "Cartridge is very low" message displays on the printer control panel
  • Printer does not pick up paper or misfeeds
  Clear paper jams
• Resolve print-quality problems
• Improve copy image quality
• Improve scan image quality
• Improve fax image quality
• Solve wired network problems
• Solve wireless network problems
• Solve fax problems
  • USB flash drive is not responding

For video assistance, see www.hp.com/videos/LaserJet.

The following information is correct at the time of publication. For current information, see www.hp.com/support/ljM528mfp.

For more information:

HP's all-inclusive help for the printer includes the following information:

• Install and configure
- Learn and use
- Solve problems
- Download software and firmware updates

• Join support forums
  • Find warranty and regulatory information

Customer support

Get telephone support for your country/regionHave the printer name, serial number, date of purchase, and problem description ready	Country/region phone numbers are on the flyer that was in the box with the printer or atsupport.hp.com.
Get 24-hour Internet support, and download software utilities and drivers	www.hp.com/support/ljM528mfp
Order additional HP service or maintenance agreements www.hp.com/go/carepack
Register the printer www.register.hp.com	____

Control panel help system

The printer has a built-in Help system that explains how to use each screen. To open the Help system, touch the Help button in the upper-right corner of the screen.

START 7.1PM Copy Build Print Save

For some screens, the Help opens to a global menu where you can search for specific topics. You can browse through the menu structure by touching the buttons in the menu.

Some Help screens include animations that show specific procedures, such as clearing paper jams.

If the printer alerts of an error or warning, touch the Help button to open a message that describes the problem. The message also contains instructions to help solve the problem.

Reset factory settings

Resetting the printer settings to the factory-set defaults can help resolve problems.

Introduction
• Method one: Reset factory settings from the printer control panel
• Method two: Reset factory settings from the HP Embedded Web Server (network-connected printers only)

Introduction

Use one of the following methods to reset the printer settings to the original settings from the factory.

Method one: Reset factory settings from the printer control panel

Use the printer control panel to restore the settings to their original values.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:
3. General

4. Reset Factory Settings

5. Select Reset.

A verification message advises that completing the reset function might result in loss of data.

1. Select Reset to complete the process.

NOTE: The printer restarts automatically after the reset operation completes.

Method two: Reset factory settings from the HP Embedded Web Server (network-connected printers only)

Use the HP EWS to reset the printer settings to the original settings.

1. On the printer control panel, select the Information ⓘ button, and then select the Network 📁 icon to display the IP address or host name.
2. Open the General tab.
3. On the left side of the screen, click Reset Factory Settings.
4. Click the Reset button.

NOTE: The printer restarts automatically after the reset operation completes.

A “Cartridge is low” or “Cartridge is very low” message displays on the printer control panel

• Change the "Very Low" settings
Order supplies

Cartridge is low: The printer indicates when a toner cartridge level is low. Actual toner cartridge life remaining may vary. Consider having a replacement available to install when print quality is no longer acceptable. The toner cartridge does not need to be replaced now.

Continue printing with the current cartridge until redistributing the toner no longer yields acceptable print quality. To redistribute the toner, remove the toner cartridge from the printer and gently rock the cartridge back and forth about its horizontal axis. For graphical representation, see cartridge replacement instructions. Reinsert the toner cartridge into the printer and close the cover.

Cartridge is very low: The printer indicates when the toner cartridge level is very low. Actual toner cartridge life remaining may vary. Consider having a replacement available to install when print quality is no longer acceptable. The toner cartridge does not need to be replaced now unless the print quality is no longer acceptable.

HP's Premium Protection Warranty expires near the end of useable cartridge life. Check the Supplies Status Page or the HP Embedded Web Server (EWS) for the status.

Change the "Very Low" settings

You can change the way the printer reacts when supplies reach the Very Low state. You do not have to re-establish these settings when you install a new cartridge.

• Change the "Very Low" settings at the control panel
  • For printers with fax capability

Change the "Very Low" settings at the control panel

Change the setting at the printer control panel.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Open the following menus:

3. Manage Supplies

4. Very Low Behavior

5. Black Cartridge or Color Cartridges

6. Select one of the following options:

7. Select the Stop option to set the printer to stop printing when the cartridge reaches the Very Low threshold.

8. Select the Prompt to continue option to set the printer to stop printing when the cartridge reaches the Very Low threshold. You can acknowledge the prompt or replace the cartridge to resume printing.
9. Select the Continue option to set the printer to alert you that the cartridge is very low, and to continue printing beyond the Very Low setting without interaction. This can result in unsatisfactory print quality.

For printers with fax capability

When the printer is set to the Stop or Prompt to continue option, there is some risk that faxes will not print when the printer resumes printing. This can occur if the printer has received more faxes than the memory can hold while the printer is waiting.

The printer can print faxes without interruption when it passes the Very Low threshold if you select the Continue option for the cartridge, but print quality might degrade.

Order supplies

Order supplies and paper http://www.hp.com/go/SureSupply

Order through service or support providers Contact an HP-authorized service or support provider.

Order using the HP Embedded Web Server (EWS) To access, in a supported web browser on your computer, enter the printer IP address or host name in the address/URL field. The EWS contains a link to the HP SureSupply website, which provides options for purchasing Original HP supplies.

Printer does not pick up paper or misfeeds

Introduction
• The printer does not pick up paper
• The printer picks up multiple sheets of paper
The document feeder jams, skews, or picks up multiple sheets of paper

Introduction

The following solutions can help solve problems if the printer is not picking up paper from the tray or is picking up multiple sheets of paper at one time. Either of these situations can result in paper jams.

The printer does not pick up paper

If the printer does not pick up paper from the tray, try these solutions.

1. Open the printer and remove any jammed sheets of paper. Verify that no torn remnants of paper remain inside the printer.
2. Load the tray with the correct size of paper for the job.

3. Make sure the paper size and type are set correctly on the printer control panel.

4. Make sure the paper guides in the tray are adjusted correctly for the size of paper. Adjust the guides to the appropriate indentation in the tray. The arrow on the tray guide should line up exactly with the marking on the tray.

NOTE: Do not adjust the paper guides tightly against the paper stack. Adjust them to the indentations or markings in the tray.

The following images show examples of the paper-size indentations in the trays for various printers. Most HP printers have markings similar to these.

Figure 9-1 Size markings for Tray 1 or the multipurpose tray

A3/A4 LTR/11X17 B4/B5 EXEC A3 A4 11 B4 8.5

Figure 9-2 Size markings for cassette trays

A5 JIS B5 EXEC A4 LTR/LGL A4 11 10.5 B5 A4 11 10.3 A4 11 10.3

1. Verify that the humidity in the room is within specifications for this printer and that paper is being stored in unopened packages. Most reams of paper are sold in moisture-proof wrapping to keep paper dry.

In high-humidity environments, paper at the top of the stack in the tray can absorb moisture, and it might have a wavy or uneven appearance. If this happens, remove the top 5 to 10 sheets of paper from the stack.

In low-humidity environments, excess static electricity can cause sheets of paper to stick together. If this happens, remove the paper from the tray, and flex the stack by holding it at each end and bringing the ends up to form a U shape. Then, rotate the ends down to reverse the U shape. Next, hold each side of the stack of paper, and repeat this process. This process releases individual sheets without introducing static electricity. Straighten the paper stack against a table before returning it to the tray.

Figure 9-3 Technique for flexing the paper stack

Two-step illustration showing hands holding a flexible band, labeled 1 and 2 (no text or symbols on the bands)

1. Check the printer control panel to see if it is displaying a prompt to feed the paper manually. Load paper, and continue.

2. The rollers above the tray might be contaminated. Clean the rollers with a lint-free cloth dampened with warm water. Use distilled water, if it is available.

CAUTION: Do not spray water directly on to the printer. Instead, spray water on the cloth or dab the cloth in water and wring it out before cleaning the rollers.

The following image shows examples of the roller location for various printers.

Figure 9-4 Roller locations for Tray 1 or the multipurpose tray

Technical diagram showing two views of a mechanical assembly with highlighted components (no text or symbols present)

The printer picks up multiple sheets of paper

If the printer picks up multiple sheets of paper from the tray, try these solutions.

1. Remove the stack of paper from the tray and flex it, rotate it 180 degrees, and flip it over. Do not fan the paper. Return the stack of paper to the tray.

NOTE: Fanning the paper introduces static electricity. Instead of fanning the paper, flex the stack by holding it at each end and bringing the ends up to form a U shape. Then, rotate the ends down to reverse the U shape. Next, hold each side of the stack of paper, and repeat this process. This process releases individual sheets without introducing static electricity. Straighten the paper stack against a table before returning it to the tray.

Figure 9-5 Technique for flexing the paper stack

Two-step illustration showing hands holding a curved object, labeled 1 and 2 (no text or symbols on the objects)

1. Use only paper that meets HP specifications for this printer.
2. Verify that the humidity in the room is within specifications for this printer, and that paper is being stored in unopened packages. Most reams of paper are sold in moisture-proof wrapping to keep paper dry.

In high-humidity environments, paper at the top of the stack in the tray can absorb moisture, and it might have a wavy or uneven appearance. If this happens, remove the top 5 to 10 sheets of paper from the stack.

In low-humidity environments, excess static electricity can cause sheets of paper to stick together. If this happens, remove the paper from the tray, and flex the stack as described above.

1. Use paper that is not wrinkled, folded, or damaged. If necessary, use paper from a different package.

2. Make sure the tray is not overfilled by checking the stack-height markings inside the tray. If it is overfilled, remove the entire stack of paper from the tray, straighten the stack, and then return some of the paper to the tray.

The following images show examples of the stack-height markings in the trays for various printers. Most HP printers have markings similar to these. Also make sure that all sheets of paper are below the tabs near the stack-height marks. These tabs help hold the paper in the correct position as it enters the printer.

Figure 9-6 Stack-height markings

Diagram illustrating the internal components of an airplane cabin, showing seatbelt opening and down assembly with red arrows indicating parts of the seatbelt.

Figure 9-7 Tab for the paper stack

Technical diagram of a mechanical component with an inset close-up view showing internal structure (no text or symbols)

1. Make sure the paper guides in the tray are adjusted correctly for the size of paper. Adjust the guides to the appropriate indentation in the tray. The arrow on the tray guide should line up exactly with the marking on the tray.

NOTE: Do not adjust the paper guides tightly against the paper stack. Adjust them to the indentations or markings in the tray.

The following images show examples of the paper-size indentations in the trays for various printers. Most HP printers have markings similar to these.

Figure 9-8 Size markings for Tray 1 or the multipurpose tray

A3/A4 LTR/11X17 B4/B5 EXEC A3 A4 11 B4 8.5

Figure 9-9 Size markings for cassette trays

A5 JIS B5 EXEC A4 LTR/LGL A4 11 10.5 B5 A4 11 10.3 A4 11 10.3

1. Make sure the printing environment is within recommended specifications.

The document feeder jams, skews, or picks up multiple sheets of paper

NOTE: This information applies to MFP printers only.

The original might have something on it, such as staples or self-adhesive notes, that must be removed.
- Check that all rollers are in place and that the roller-access cover inside the document feeder is closed.
- Make sure that the top document-feeder cover is closed.
- The pages might not be placed correctly. Straighten the pages and adjust the paper guides to center the stack.
- The paper guides must be touching the sides of the paper stack to work correctly. Make sure that the paper stack is straight and the guides are against the paper stack.
The document feeder input tray or output bin might contain more than the maximum number of pages. Make sure the paper stack fits below the guides in the input tray, and remove pages from the output bin.
- Verify that there are no pieces of paper, staples, paper clips, or other debris in the paper path.
- Clean the document-feeder rollers and the separation pad. Use compressed air or a clean, lint-free cloth moistened with warm water. If misfeeds still occur, replace the rollers.
- From the Home screen on the printer control panel, scroll to and touch the Supplies button. Check the status of the document-feeder kit, and replace it if necessary.

Clear paper jams

Introduction
Paper jam locations
• Auto-navigation for clearing paper jams
Experiencing frequent or recurring paper jams?
• Clear paper jams in the document feeder—31.13.yz
• Clear paper jams in tray 1—13.A1
• Clear paper jams in tray 2, tray 3, tray 4, tray 5—13.A2, 13.A3, 13.A4, 13.A5
• Clear paper jams in the output bin—13.E1
Clear paper jams in the duplexer—13.CX.XX, 13.DX.XX
• Clear paper jams in the toner-cartridge area
• Clear paper jams in the fuser—13.B9, 13.B2, 13.FF

Introduction

The following information includes instructions for clearing paper jams from the printer.

Paper jam locations

Diagram of an HP printer with numbered parts labeled 1 to 5 for identification.

1 Document feeder

2 Output bin

3 Top cover and toner-cartridge area

4 Tray 1

5 Tray 2 and the optional 550-sheet trays

NOTE: Remove Tray 2 to access jams in the duplexer.

Auto-navigation for clearing paper jams

The auto-navigation feature assists in clearing jams by providing step-by-step instructions on the control panel. When you complete a step, the printer displays instructions for the next step until you have completed all steps in the procedure.

Experiencing frequent or recurring paper jams?

To reduce the number of paper jams, try these solutions.

NOTE: To see a video that demonstrates how to load paper in a way that reduces the number of paper jams, click here.

1. Use only paper that meets HP specifications for this printer.
2. Use paper that is not wrinkled, folded, or damaged. If necessary, use paper from a different package.
3. Use paper that has not previously been printed or copied on.
4. Make sure the tray is not overfilled. If it is, remove the entire stack of paper from the tray, straighten the stack, and then return some of the paper to the tray.
5. Make sure the paper guides in the tray are adjusted correctly for the size of paper. Adjust the guides so they are touching the paper stack without bending it.
6. Make sure that the tray is fully inserted in the printer.
7. If you are printing on heavy, embossed, or perforated paper, use the manual feed feature and feed sheets one at a time.
8. Open the Trays menu on the printer control panel. Verify that the tray is configured correctly for the paper type and size.
9. Make sure the printing environment is within recommended specifications.

Clear paper jams in the document feeder—31.13.yz

The following information describes how to clear paper jams in the document feeder. When a jam occurs, the control panel displays an animation that assists in clearing the jam.

1. Lift the latch to release the document-feeder cover.

Illustration of a HP printer with a blue arrow indicating the paper's edge, showing internal components (no text or symbols)

1. Open the document-feeder cover.

Illustration of a printer's internal structure showing paper feeding into a tray, with a blue arrow indicating the process (no text or symbols present)

1. Remove any jammed paper.

2. Lift the document-feeder input tray.

Illustration of a printer's internal structure showing paper feeding into a tray (no text or symbols visible)

Illustration of a printer with an open lid and blue arrow indicating compression or disassembly (no text or symbols present)

1. Remove any jammed paper.

Illustration of a HP printer with paper feed being inserted (no text or symbols visible)

1. Lower the document-feeder input tray.

Illustration of a printer with an open lid and blue arrow indicating a process (no text or symbols present)

1. Close the document-feeder cover.

NOTE: Verify that the latch on the top of the document-feeder cover is completely closed.

Illustration of a printer's internal structure showing paper feeding into a stack, with a blue arrow indicating the process (no text or symbols present)

NOTE: To avoid jams, make sure the guides in the document-feeder input tray are adjusted against the document, without bending the document. To copy narrow documents, use the flatbed scanner. Remove all staples and paper clips from original documents.

NOTE: Original documents that are printed on heavy, glossy paper can jam more frequently than originals that are printed on plain paper.

Clear paper jams in tray 1—13.A1

Use the following procedure to clear paper jams in Tray 1. When a jam occurs, the control panel displays an animation that assists in clearing the jam.

1. If most of the sheet of paper is visible in the tray, slowly pull the jammed paper out of the printer. Make sure that the entire sheet is removed. If it tears, continue with the following steps to find the remnants.

If most of the sheet of paper has been pulled inside the printer, continue with the following steps.

1. Press the top-cover-release button on the left side of the printer.

2. Open the front door.

3. Remove the toner cartridge.

1. Lift the jam-access cover and slowly remove any jammed paper. Be careful not to tear the paper.

2. Reinsert the toner cartridge.

3. Close the front door.

Diagram illustrating the process of printer handling and packaging, showing steps from receipt to shipment with blue arrows indicating movement.

Clear paper jams in tray 2, tray 3, tray 4, tray 5—13.A2, 13.A3, 13.A4, 13.A5

Use the following procedure to check for paper in all possible jam locations related to Tray 2 and the 550-sheet trays. When a jam occurs, the control panel displays an animation that assists in clearing the jam.

1. Remove the tray from the printer.
2. Remove the paper from the tray, and discard any damaged paper.
3. Verify that the rear paper guide is adjusted to the indentation for the correct paper size. If necessary, pinch the release and move the rear paper guide to the correct position. It should click into place.

Diagram of a HP printer drawer with a blue arrow indicating compression or disassembly (no text or symbols present)

3D technical illustration of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Technical diagram of a computer case with internal components and a magnified inset showing a mechanical component (no text or symbols)

1. Load the paper into the tray. Make sure that the stack is flat at all four corners and that the top of the stack is below the maximum-height indicators.

2. Reinsert and close the tray.

3. Press the top-cover-release button on the left side of the printer.

Diagram illustrating the process of printer printing and disassembly, showing steps from receipt to output with blue arrows indicating removal.

1. Open the front door.
2. Remove the toner cartridge.
3. Lift the jam-access cover and slowly remove any jammed paper. Be careful not to tear the paper.

Illustration of a printer with blue arrows indicating motion or operation, showing internal components and no text or symbols.

Illustration of a printer with a blue arrow indicating a process or operation, showing no text or symbols present.

Illustration of a printer's internal structure with arrows indicating process flow (no text or symbols)

1. Reinsert the toner cartridge.

2. Close the front door.

Two-step illustration of a printer's internal structure showing the process from opening to closing (no text or symbols present)

Clear paper jams in the output bin—13.E1

Use the following procedure to check for paper in all possible jam locations in the output bin. When a jam occurs, the control panel displays an animation that assists in clearing the jam.

1. If paper is visible in the output bin, grasp the leading edge and remove it.

Illustration of a HP printer with internal components and a blue directional arrow indicating motion (no text or symbols)

Clear paper jams in the duplexer—13.CX.XX, 13.DX.XX

Use the following procedure to check for paper in all possible jam locations in the automatic duplexer. When a jam occurs, the control panel displays an animation that assists in clearing the jam.

1. Remove Tray 2 from the printer.

Diagram of a HP printer drawer with a blue arrow indicating compression or disassembly (no text or symbols present)

1. Pull forward on the green tab inside the tray area to release the duplex pan.

Diagram of a printer with a magnified inset showing internal components (no text or symbols)

1. Remove any jammed paper.

2. Close the duplex pan.

3. Reinsert and close the tray.

Diagram showing a printer with a paper feeding into a slot, and a magnified view of the slot being cut (no text or symbols present)

Diagram showing a printer with a paper feeding into a slot, and a magnified view of the slot being cut with a blue arrow indicating motion (no text or symbols present)

Diagram of a HP printer drawer with an arrow indicating the paper's direction (no text or symbols present)

1. Open the rear door.
2. Remove any jammed paper.
3. Close the rear door

Diagram of a printer internal structure showing internal components and a blue arrow indicating a process (no text or symbols present)

Illustration of a printer with internal structure and paper feed, showing paper movement (no text or symbols)

Diagram of an HP printer internal structure showing internal components and a blue arrow indicating a loading or movement (no text or symbols present)

1. Press the top-cover-release button on the left side of the printer.

2. Open the front door.

3. Remove the toner cartridge.

Three-step illustration of a printer's internal processing process, showing step-by-step assembly and disassembly (no text or symbols)

1. Lift the jam-access cover and slowly remove any jammed paper. Be careful not to tear the paper.
2. Reinsert the toner cartridge.
3. Close the front door.

Diagram showing a printer's internal structure with arrows indicating process flow (no text or symbols present)

Illustration of a printer with a blue arrow pointing to a component, showing no text or symbols.

Illustration of a printer with two blue arrows indicating rotation or movement (no text or symbols present)

Clear paper jams in the toner-cartridge area

Use the following procedure to check for paper in all possible jam locations in the toner-cartridge area. When a jam occurs, the control panel displays an animation that assists in clearing the jam.

1. Press the top-cover-release button on the left side of the printer.

2. Open the front door.

3. Remove the toner cartridge.

1. Lift the jam-access cover and slowly remove any jammed paper. Be careful not to tear the paper.
2. Reinsert the toner cartridge.
3. Close the front door.

Diagram showing a printer's internal structure with arrows indicating process flow (no text or symbols present)

Illustration of a printer with a blue arrow pointing to a component, showing no text or symbols.

Illustration of a printer with two blue arrows indicating rotation or movement (no text or symbols present)

Clear paper jams in the fuser—13.B9, 13.B2, 13.FF

Use the following procedure to clear paper jams in the rear door and fuser area. When a jam occurs, the control panel displays an animation that assists in clearing the jam.

NOTE: The fuser is hot while the printer is in use. Wait for the fuser to cool before clearing jams.

1. Open the rear door.

Illustration of a printer with internal circuitry and a blue arrow indicating a process (no text or symbols present)

1. Remove any jammed paper.

2. Close the rear door

3D diagram of a printer with internal structure and paper feed, showing no text or symbols

3D diagram of an HP printer internal structure showing internal components and a blue arrow indicating a loading or operation (no text or symbols present)

Resolve print-quality problems

Introduction
- Troubleshoot print quality

Introduction

Use the information below to troubleshoot print-quality problems, including issues with image quality.

The troubleshooting steps can help resolve the following defects:

• Blank pages
• Black pages
• Curled paper
  Dark or light bands
• Dark or light streaks
  Fuzzy print
• Gray background or dark print
  • Light print
• Loose toner
• Missing toner
  • Scattered dots of toner
• Skewed images
  • Smears
  Streaks

Troubleshoot print quality

To resolve print-quality issues, try these steps in the order presented.

• Update the printer firmware
  • Print from a different software program
• Check the paper-type setting for the print job
• Check toner-cartridge status
  • Print a cleaning page
  • Visually inspect the toner cartridge or cartridges
  • Check paper and the printing environment
  • Try a different print driver
  • Check the EconoMode settings
• Adjust print density
• Troubleshoot image defects

To troubleshoot specific image defects, see Troubleshoot Image Defects.

Update the printer firmware

Try upgrading the printer firmware.

See www.hp.com/support for more information.

Print from a different software program

Try printing from a different software program. If the page prints correctly, the problem is with the software program from which you were printing.

Check the paper-type setting for the print job

Check the paper type setting when printing from a software program and the printed pages have smears, fuzzy or dark print, curled paper, scattered dots of toner, loose toner, or small areas of missing toner.

• Check the paper type setting on the printer
  • Check the paper type setting (Windows)
• Check the paper type setting (macOS)

Check the paper type setting on the printer

Check the paper type setting on the printer control panel, and change the setting as needed.

1. Open the tray.
2. Verify that the tray is loaded with the correct type of paper.
3. Close the tray.
4. Follow the control panel instructions to confirm or modify the paper type settings for the tray.

Check the paper type setting (Windows)

Check the paper type setting for Windows, and change the setting as needed.

1. From the software program, select the Print option.
2. Select the printer, and then click the Properties or Preferences button.
3. Click the Paper/Quality tab.

4. From the Paper Type drop-down list, click the More... option.

5. Expand the list of Type is: options.

6. Expand the category of paper types that best describes your paper.

7. Select the option for the type of paper you are using, and click the OK button.

8. Click the OK button to close the Document Properties dialog box. In the Print dialog box, click the OK button to print the job.

Check the paper type setting (macOS)

Check the paper type setting for macOS, and change the setting as needed.

1. Click the File menu, and then click the Print option.
2. In the Printer menu, select the printer.
3. By default, the print driver displays the Copies & Pages menu. Open the menus drop-down list, and then click the Paper/Quality menu.
4. Select a type from the Media Type drop-down list.
5. Click the Print button.

Check toner-cartridge status

Follow these steps to check the estimated life remaining in the toner cartridges and if applicable, the status of other replaceable maintenance parts.

• Step one: Print the supplies status page
• Step two: Check supplies status

Step one: Print the supplies status page

The supplies status page indicates the cartridge status.

1. From the Home screen on the printer control panel, navigate to the Reports application, and then select the Reports icon.
2. Select the Configuration/Status Pages menu.
3. Select Supplies Status Page, and then select Print to print the page.

Step two: Check supplies status

1. Look at the supplies status report to check the percent of life remaining for the toner cartridges and, if applicable, the status of other replaceable maintenance parts.
   Print quality problems can occur when using a toner cartridge that is at its estimated end of life. The supplies status page indicates when a supply level is very low. After an HP supply has reached the very low threshold, HP's premium protection warranty on that supply has ended.
   The toner cartridge does not need to be replaced now unless the print quality is no longer acceptable. Consider having a replacement available to install when print quality is no longer acceptable.
   If you determine that you need to replace a toner cartridge or other replaceable maintenance parts, the supplies status page lists the genuine HP part numbers.

2. Check to see if you are using a genuine HP cartridge.

A genuine HP toner cartridge has the word "HP" on it, or has the HP logo on it. For more information on identifying HP cartridges go to www.hp.com/go/learnaboutsupplies.

Print a cleaning page

During the printing process paper, toner, and dust particles can accumulate inside the printer and can cause print-quality issues such as toner specks or spatter, smears, streaks, lines, or repeating marks.

Follow these steps to clean the printer paper path.

1. From the Home screen on the printer control panel, navigate to the Support Tools application, and then select the Support Tools icon.

2. Select the following menus:

3. Maintenance

4. Calibration/Cleaning

5. Cleaning Page

6. Select Print to print the page.

A Cleaning... message displays on the printer control panel. The cleaning process takes a few minutes to complete. Do not turn the printer off until the cleaning process has finished. When it is finished, discard the printed page.

Visually inspect the toner cartridge or cartridges

Follow these steps to inspect each toner cartridge.

1. Remove the toner cartridges from the printer.
2. Check the memory chip for damage.
3. Examine the surface of the green imaging drum.

CAUTION: Do not touch the imaging drum. Fingerprints on the imaging drum can cause print-quality problems.

1. If you see any scratches, fingerprints, or other damage on the imaging drum, replace the toner cartridge.
2. Reinstall the toner cartridge, and print a few pages to see if the problem has resolved.

Check paper and the printing environment

• Step one: Use paper that meets HP specifications
• Step two: Check the environment
• Step three: Set the individual tray alignment

Step one: Use paper that meets HP specifications

Some print-quality problems arise from using paper that does not meet HP specifications.

● Always use a paper type and weight that this printer supports.
- Use paper that is of good quality and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, staples, and curled or bent edges.
- Use paper that has not been previously printed on.
- Use paper that does not contain metallic material, such as glitter.
- Use paper that is designed for use in laser printers. Do not use paper that is designed only for use in Inkjet printers.
• Use paper that is not too rough. Using smoother paper generally results in better print quality.

Step two: Check the environment

The environment can directly affect print quality and is a common cause for print-quality or paper-feeding issues. Try the following solutions:

• Move the printer away from drafty locations, such as open windows or doors, or air-conditioning vents.
  • Make sure the printer is not exposed to temperatures or humidity outside of printer specifications.
• Do not place the printer in a confined space, such as a cabinet.

- Place the printer on a sturdy, level surface.

- Remove anything that is blocking the vents on the printer. The printer requires good air flow on all sides, including the top.

- Protect the printer from airborne debris, dust, steam, grease, or other elements that can leave residue inside the printer.

Step three: Set the individual tray alignment

Follow these steps when text or images are not centered or aligned correctly on the printed page when printing from specific trays.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.

2. Select the following menus:

3. Copy/Print or Print

4. Print Quality

5. Image Registration

6. Select Tray, and then select the tray to adjust.

7. Select Print Test Page, and then follow the instructions on the printed pages.
8. Select Print Test Page again to verify the results, and then make further adjustments if necessary.
9. Select Done to save the new settings.

Try a different print driver

Try a different print driver when printing from a software program and the printed pages have unexpected lines in graphics, missing text, missing graphics, incorrect formatting, or substituted fonts.

Download any of the following drivers from the HP Web site: www.hp.com/support/ljM528mfp.

HP PCL.6 driver	If available, this printer-specific print driver supports older operating systems like Windows ^ XP and Windows Vista ^ . For a list of supported operating systems, go towww.hp.com/go/support.
HP PCL 6 driver	This printer-specific print driver supports Windows 7 and newer operating systems that support version 3 drivers. For a list of supported operating systems, go towww.hp.com/go/support.
HP PCL-6 driver	This printer-specific print driver supports Windows 8 and newer operating systems that support version 4 drivers. For a list of supported operating systems, go towww.hp.com/go/support.
HP UPD PS driver	Recommended for printing with Adobe ^ software programs or with other highly graphics-intensive software programsProvides support for printing from postscript emulation needs, or for postscript flash font support
HP UPD PCL 6	Recommended for printing in all Windows environmentsProvides the overall best speed, print quality, and printer feature support for most usersDeveloped to align with Windows Graphic Device Interface (GDI) for best speed in Windows environmentsMight not be fully compatible with third-party and custom software programs that are based on PCL 5

Check the EconoMode settings

HP does not recommend the full-time use of EconoMode. If EconoMode is used full-time, the toner supply might outlast the mechanical parts in the toner cartridge. If print quality begins to degrade and is no longer acceptable, consider replacing the toner cartridge.

NOTE: This feature is available with the PCL 6 print driver for Windows. If you are not using that driver, you can enable the feature by using the HP Embedded Web Server.

Follow these steps if the entire page is too dark or too light.

1. From the software program, select the Print option.
2. Select the printer, and then click the Properties or Preferences button.

3. Click the Paper/Quality tab, and locate the Print Quality area.

4. If the entire page is too dark, use these settings:

5. Select the 600 dpi option, if available.

6. Select the EconoMode check box to enable it.
   If the entire page is too light, use these settings:
7. Select the FastRes 1200 option, if available.

8. Clear the EconoMode check box to disable it.

9. Click the OK button to close the Document Properties dialog box. In the Print dialog, click the OK button to print the job.

Adjust print density

Use the printer control panel to adjust the print density.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

- Copy/Print or Print

- Print Quality

- Toner Density

1. Move the slider toward either Less or More to the desired density setting.

Troubleshoot image defects

Review examples of image defects and steps to resolve these defects.

Table 9-1 Image defects table quick reference

Sample Description Possible solutions
Table 9-8 Light print on page 200 Table 9-6 Gray background or dark printon page 199		Table 9-4 Blank page — No print on page 198
AaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc	AaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCcAaBbCc

Table 9-1 Image defects table quick reference (continued)

Sample Description Possible solutions

Table 9-3 Black page on page 197 Table 9-2 Banding defects on page 197 Table 9-10 Streak defects on page 202

Solid dark gray image with no visible content, text, or symbols.

Pure black background with three horizontal white lines, no text or symbols present

Two vertical white lines on a dark background, resembling stylized text or symbols (no readable characters or numbers)

Table 9-5 Fixing/fuser defects on page 198

Table 9-7 Image placement defects on page 199

LP

Table 9-9 Output defects on page 201

Illustration of a HP printer with a paper lid and arrow indicating compression (no text or symbols)

Image defects, no matter the cause, can often be resolved using the same steps. Use the following steps as a starting point for solving image defect issues.

1. Reprint the document. Print quality defects can be intermittent in nature or can go away completely with continued printing.
2. Check the condition of the cartridge or cartridges. If a cartridge is in a Very Low state (it has passed the rated life), replace the cartridge.
3. Make sure that the driver and tray print mode settings match the media that is loaded in the tray. Try using a different ream of media or a different tray. Try using a different print mode.
4. Make sure that the printer is within the supported operating temperature/humidity range.
5. Make sure that the paper type, size, and weight are supported by the printer. See the printer support page at support.hp.com for a list of the supported paper sizes and types for the printer.

NOTE: The term "fusing" refers to the part of the printing process where toner is affixed to paper.

The following examples depict letter-size paper that has passed through the printer short-edge first.

Table 9-2 Banding defects

Sample Description Possible solutions
	Dark or light lines which repeat down the length of the page, and are wide-pitch and/or impulse bands. They might be sharp or soft in nature. The defect displays only in areas of fill, not in text or sections with no printed content.	1. Reprint the document.2. Try printing from another tray.3. Replace the cartridge.4. Use a different paper type.5. Enterprise models only: From the Home screen on the printer control panel, go to the Adjust Paper Types menu, and then choose a print mode that is designed for a slightly heavier media than what you are using. This slows the print speed and might improve the print quality.6. If the issue persists, go tosupport.hp.com.

Table 9-3 Black page

Sample Description Possible solutions
	The entire printed page is black.
	1. Visually inspect the cartridge to check for damage.
	2. Make sure that the cartridge is installed correctly.
	3. Replace the cartridge
	4. If the issue persists, go tosupport.hp.com.

Table 9-4 Blank page — No print

Sample Description Possible solutions
	The page is completely blank and contains no printed content.1. Make sure that the cartridges are genuine HP cartridges.2. Make sure that the cartridge is installed correctly.3. Print with a different cartridge.4. Check the paper type in the paper tray and adjust the printer settings to match. If necessary, select a lighter paper type.5. If the issue persists, go tosupport.hp.com.

Table 9-5 Fixing/fuser defects

Sample Description Possible solutions
	Slight shadows or offsets of the image are repeated down the page. The repeated image might fade with each recurrence.	1. Reprint the document.2. Check the paper type in the paper tray and adjust the printer settings to match. If necessary, select a lighter paper type.3. If the issue persists, go tosupport.hp.com.
	Toner rubs off along either edge of the page. This defect is more common at the edges of high-coverage jobs, and on light media types, but can occur anywhere on the page.	1. Reprint the document.2. Check the paper type in the paper tray and adjust the printer settings to match. If necessary, select a heavier paper type.3. Enterprise models only: From the printer control panel, go to theEdge-to-Edgemenu and then selectNormal.Reprint the document.4. Enterprise models only: From the printer control panel, selectAuto Include Marginsand then reprint the document.5. If the issue persists, go tosupport.hp.com.

Table 9-6 Gray background or dark print

Sample Description Possible solutions
	The image or text is darker than expected and/or the background is gray.	1. Make sure that the paper in the trays has not already been run through the printer.2. Use a different paper type.3. Reprint the document.4. Mono models only: From the Home screen on the printer control panel, go to theAdjust Toner Densitymenu, and then adjust the toner density to a lower level.5. Make sure that the printer is within the supported operating temperature and humidity range.6. Replace the cartridge.7. If the issue persists, go tosupport.hp.com.

Table 9-7 Image placement defects

Sample Description Possible solutions
	The image is not centered, or is skewed on the page. The defect occurs when the paper is not positioned properly as it is pulled from the tray and moves through the paper path.	1. Reprint the document.2. Remove the paper and then reload the tray. Make sure that all the paper edges are even on all sides.3. Make sure that the top of the paper stack is below the tray-full indicator. Do not overfill the tray.4. Make sure that the paper guides are adjusted to the correct size for the paper. Do not adjust the paper guides tightly against the paper stack. Adjust them to the indentations or markings in the tray.5. If the issue persists, go tosupport.hp.com.

Table 9-8 Light print

Sample Description Possible solutions
	The printed content is light or faded on the entire page.	1. Reprint the document.2. Remove the cartridge, and then shake it to redistribute the toner.3. Mono models only: Make sure that the EconoMode setting is disabled, both at the printer control panel and in the print driver.4. Make sure that the cartridge is installed correctly.5. Print a Supplies Status Page and check the life and usage of the cartridge.6. Replace the cartridge.7. If the issue persists, go tosupport.hp.com.

Table 9-9 Output defects

Sample Description Possible solutions
	Printed pages have curled edges. The curled edge can be along the short or long side of the paper. Two types of curl are possible:Positive curl: The paper curls toward the printed side. The defect occurs in dry environments or when printing high-coverage pages.Negative curl: The paper curls away from the printed side. The defect occurs in high-humidity environments or when printing low-coverage pages.	1. Reprint the document.2. Positive curl: From the printer control panel, select a heavier paper type. The heavier paper type creates a higher temperature for printing.Negative curl: From the printer control panel, select a lighter paper type. The lighter paper type creates a lower temperature for printing. Try storing the paper in a dry environment prior to use, or use freshly-opened paper.3. Print in duplex mode.4. If the issue persists, go tosupport.hp.com.
	The paper does not stack well in the output tray. The stack might be uneven, skewed, or the pages might be pushed out of the tray and onto the floor. Any of the following conditions can cause this defect:Extreme paper curlThe paper in the tray is wrinkled or deformedThe paper is a non-standard papertype, such as envelopesThe output tray is too full	1. Reprint the document.2. Extend the output bin extension.3. If the defect is caused by extreme paper curl, refer to the troubleshooting steps for "Output curl."4. Use a different paper type.5. Use freshly-opened paper.6. Remove the paper from the output tray before the tray gets too full.7. If the issue persists, go tosupport.hp.com.

Table 9-10 Streak defects

Sample Description Possible solutions
	Light vertical streaks that usually span the length of the page. The defect displays only in areas of fill, not in text or sections with no printed content.	1. Reprint the document.2. Remove the cartridge, and then shake it to redistribute the toner.3. If the issue persists, go tosupport.hp.com.NOTE: Both light and dark vertical streaks can occur when the printing environment is outside the specified range for temperature or humidity. Refer to your printer's environmental specifications for allowable temperature and humidity levels.
	Dark vertical lines which occur down the length of the page. The defect might occur anywhere on the page, in areas of fill or in sections with no printed content.	1. Reprint the document.2. Remove the cartridge, and then shake it to redistribute the toner.3. Print a cleaning page.4. Check the toner level in the cartridge.5. If the issue persists, go tosupport.hp.com.

Improve copy image quality

If the printer is having copy quality problems, try the following solutions in the order presented to resolve the issue.

• Check the scanner glass for dirt and smudges
  • Calibrate the scanner
• Check the paper settings
• Check the image-adjustment settings
• Optimize copy quality for text or pictures
• Edge-to-edge copying

Try these few simple steps first:

• Use the flatbed scanner rather than the document feeder.
• Use high-quality originals.

- When using the document feeder, load the original document into the feeder correctly, using the paper guides, to avoid unclear or skewed images.

If the problem still exists, try these additional solutions. If they do not fix the problem, see "Improve print quality" for further solutions.

Check the scanner glass for dirt and smudges

Over time, specks of debris might collect on the scanner glass and white plastic backing, which can affect performance. Use the following procedure to clean the scanner if the printed pages have streaks, unwanted lines, black dots, poor print quality, or unclear text.

1. Press the power button to turn the printer off, and then disconnect the power cable from the electrical outlet.

Circular icon with a power button and blue arrow, no text or symbols present

1. Open the scanner lid.

2. Clean the scanner glass and the document feeder strips with a soft cloth or sponge that has been moistened with nonabrasive glass cleaner.

CAUTION: Do not use abrasives, acetone, benzene, ammonia, ethyl alcohol, or carbon tetrachloride on any part of the printer; these can damage the printer. Do not place liquids directly on the glass or platen. They might seep and damage the printer.

NOTE: If you are having trouble with streaks on copies when you are using the document feeder, be sure to clean the small strip of glass on the left side of the scanner.

1. Dry the glass and white plastic parts with a chamois or a cellulose sponge to prevent spotting.

2. Connect the power cable to an outlet, and then press the power button to turn the printer on.

Illustration of a printer with an open lid and a blue arrow pointing to the cover (no text or symbols)

3D diagram of a laptop with open lid and internal tray, showing no text or symbols

Calibrate the scanner

If the copied image is not positioned correctly on the page, follow these steps to calibrate the scanner.

NOTE: When using the document feeder, make sure to adjust the guides in the input tray so they are against the original document.

1. From the Home screen on the printer control panel, navigate to the Support Tools application, and then select the Support Tools icon.

2. Open the following menus:

3. Maintenance

4. Calibration/Cleaning

5. Calibrate Scanner

6. Touch the Start button to start the calibration process. Follow the on-screen prompts.

7. Wait while the printer calibrates, and then try copying again.

Check the paper settings

Follow these steps if copied pages have smears, fuzzy or dark print, curled paper, or areas where pigment has dropped out.

• Check the paper selection options

Check the paper selection options

1. From the Home screen on the printer control panel, navigate to the Copy application, and then select the Copy icon.
2. Select Options, and then scroll to and select Paper Selection.
3. Select Paper size, and then select one of the predefined options.
4. Select Paper type, and then select one of the predefined options.
5. Select Paper tray, and then select one of the predefined options.
6. Select Done to save the paper selection options.

Check the image-adjustment settings

Adjust these additional settings to improve copy quality:

• Sharpness: Clarify or soften the image. For example, increasing the sharpness could make text appear crisper, but decreasing it could make photos appear smoother.
• Darkness: Increase or decrease the amount of white and black used in colors in scanned images.
• Contrast: Increase or decrease the difference between the lightest and the darkest color on the page.
• Background Cleanup: Remove faint colors from the background of scanned images. For example, if the original document is printed on colored paper, use this feature to lighten the background without affecting the darkness of the image.

• Automatic Tone: Available for Flow printers only. The printer automatically adjusts the Darkness, Contrast, and Background Cleanup settings to the most appropriate for the scanned document.

• From the Home screen on the printer control panel, navigate to the Copy application, and then select the Copy icon.

• Select Options, and then scroll to and select Image Adjustment.
• Adjust the sliders to set the levels, and select Done.
• Select Copy to start the copy job.

NOTE: These settings are temporary. After you have finished the job, the printer returns to the default settings.

Optimize copy quality for text or pictures

Optimize the copy job for the type of image being copied: text, graphics, or photos.

1. From the Home screen on the printer control panel, navigate to the Copy application, and then select the Copy icon.

2. Select Options, and then select Optimize Text/Picture.

3. Select one of the predefined options.

4. Select Copy to start the copy job.

NOTE: These settings are temporary. After you have finished the job, the printer returns to the default settings.

Edge-to-edge copying

Use this feature to avoid shadows that can appear along the edges of copies when the original document is printed close to the edges.

1. From the Home screen on the printer control panel, navigate to the Copy application, and then select the Copy icon.
2. Select Options, and then select Edge-To-Edge.
3. Select the Edge-To-Edge output option if the original document is printed close to the paper edges.
4. Select Copy to start the copy job.

Improve scan image quality

• Check the scanner glass for dirt and smudges
• Check the resolution settings
• Check the color settings
• Check the image-adjustment settings
• Optimize scan quality for text or pictures
• Check the output-quality settings

Try these few simple steps first:

• Use the flatbed scanner rather than the document feeder.
• Use high-quality originals.

- When using the document feeder, load the original document into the feeder correctly, using the paper guides, to avoid unclear or skewed images.

If the problem still exists, try these additional solutions. If they do not fix the problem, see "Improve print quality" for further solutions.

Check the scanner glass for dirt and smudges

Over time, specks of debris might collect on the scanner glass and white plastic backing, which can affect performance. Use the following procedure to clean the scanner if the printed pages have streaks, unwanted lines, black dots, poor print quality, or unclear text.

1. Press the power button to turn the printer off, and then disconnect the power cable from the electrical outlet.

Circular icon with a power button and an arrow, no text or symbols present

1. Open the scanner lid.

2. Clean the scanner glass and the document feeder strips with a soft cloth or sponge that has been moistened with nonabrasive glass cleaner.

CAUTION: Do not use abrasives, acetone, benzene, ammonia, ethyl alcohol, or carbon tetrachloride on any part of the printer; these can damage the printer. Do not place liquids directly on the glass or platen. They might seep and damage the printer.

NOTE: If you are having trouble with streaks on copies when you are using the document feeder, be sure to clean the small strip of glass on the left side of the scanner.

1. Dry the glass and white plastic parts with a chamois or a cellulose sponge to prevent spotting.
2. Connect the power cable to an outlet, and then press the power button to turn the printer on.

Illustration of a printer with an open lid and a blue arrow pointing to the cover (no text or symbols)

Illustration of a laptop with open screen and control panel, showing internal components (no text or symbols)

Check the resolution settings

NOTE: Setting the resolution to a high value increases the file size and the scan time.

Follow these steps to adjust the resolution setting:

1. From the Home screen on the printer control panel, navigate to the Scan application, and then select the Scan icon.

2. Select one of the following Scan features:

3. Scan to Email

4. Scan to Network Folder

5. Scan to USB Drive

6. Scan to SharePoint®

7. Select Options, and then select File Type and Resolution.

8. Select one of the predefined Resolution options, and then select Done.
9. Select Send or Save to start the scan.

Check the color settings

Follow these steps to adjust the color setting:

1. From the Home screen on the printer control panel, navigate to the Scan application, and then select the Scan icon.

2. Select one of the following Scan features:

3. Save to Device Memory

4. Scan to E-mail
5. Scan to Network Folder
6. Scan to USB

7. Scan to SharePoint®

8. Touch the Options button.

9. In the Options pane, scroll to and select Color/Black.

10. Select one of the predefined options.
11. Touch the Send button.

Check the image-adjustment settings

Adjust these additional settings to improve scan quality:

• Sharpness: Clarify or soften the image. For example, increasing the sharpness could make text appear crisper, but decreasing it could make photos appear smoother.
  • Darkness: Increase or decrease the amount of white and black used in colors in scanned images.
• Contrast: Increase or decrease the difference between the lightest and the darkest color on the page.
• Background Cleanup: Remove faint colors from the background of scanned images. For example, if the original document is printed on colored paper, use this feature to lighten the background without affecting the darkness of the image.

• Automatic Tone: Available for Flow printers only. The printer automatically adjusts the Darkness, Contrast, and Background Cleanup settings to the most appropriate for the scanned document.

• From the Home screen on the printer control panel, navigate to the Scan application, and then select the Scan icon.

• Select one of the following Scan features:

• Scan to E-mail

• Scan to Network Folder
• Scan to USB Drive
• Scan to Job Storage

• Scan to SharePoint®

• Select Options, and then select Image Adjustment.

• Adjust the sliders to set the levels, and then select Done.

• Select Send or Save to start the scan.

NOTE: These settings are temporary. After you have finished the job, the printer returns to the default settings.

Optimize scan quality for text or pictures

Optimize the scan job for the type of image being scanned: text, graphics, or photos.

1. From the Home screen on the printer control panel, navigate to the Scan application, and then select the Scan icon.

2. Select one of the following Scan features:

3. Scan to E-mail

4. Scan to Network Folder
5. Scan to USB Drive
6. Scan to Job Storage

7. Scan to SharePoint®

8. Select Options, and then select Optimize Text/Picture.

9. Select one of the predefined options.
10. Select Send or Save to start the scan.

NOTE: These settings are temporary. After you have finished the job, the printer returns to the default settings.

Check the output-quality settings

This setting adjusts the level of compression when saving the file. For the highest quality, select the highest setting.

1. From the Home screen on the printer control panel, navigate to the Scan application, and then select the Scan icon.

2. Select one of the following Scan features:

3. Scan to Email

4. Scan to Network Folder

5. Scan to USB Drive

6. Scan to SharePoint®

7. Select Options, and then select File Type and Resolution.

8. Select one of the predefined Quality and File Size options, and then select Done.
9. Select Send or Save to start the scan.

Improve fax image quality

If the printer is having fax quality problems, try the following solutions in the order presented to resolve the issue.

• Check the scanner glass for dirt and smudges
• Check the send-fax resolution settings
• Check the image-adjustment settings
• Optimize fax quality for text or pictures
• Check the error-correction settings
• Check the fit-to-page setting
• Send to a different fax machine
• Check the sender's fax machine

Try these few simple steps first:

• Use the flatbed scanner rather than the document feeder.
• Use high-quality originals.

- When using the document feeder, load the original document into the feeder correctly, using the paper guides, to avoid unclear or skewed images.

If the problem still exists, try these additional solutions. If they do not fix the problem, see “Improve print quality” for further solutions.

Check the scanner glass for dirt and smudges

Over time, specks of debris might collect on the scanner glass and white plastic backing, which can affect performance. Use the following procedure to clean the scanner if the printed pages have streaks, unwanted lines, black dots, poor print quality, or unclear text.

1. Press the power button to turn the printer off, and then disconnect the power cable from the electrical outlet.

Circular icon with a power button and an arrow, no text or symbols present.

1. Open the scanner lid.

2. Clean the scanner glass and the document feeder strips with a soft cloth or sponge that has been moistened with nonabrasive glass cleaner.

CAUTION: Do not use abrasives, acetone, benzene, ammonia, ethyl alcohol, or carbon tetrachloride on any part of the printer; these can damage the printer. Do not place liquids directly on the glass or platen. They might seep and damage the printer.

NOTE: If you are having trouble with streaks on copies when you are using the document feeder, be sure to clean the small strip of glass on the left side of the scanner.

1. Dry the glass and white plastic parts with a chamois or a cellulose sponge to prevent spotting.

2. Connect the power cable to an outlet, and then press the power button to turn the printer on.

Illustration of a printer with an open lid and a blue arrow pointing to the cover (no text or symbols)

3D diagram of a printer or scanner device with open lid and internal components, no text or symbols present

Check the send-fax resolution settings

Follow these steps to adjust the resolution of outgoing faxes.

NOTE: Increasing the resolution increases the fax size and send time.

1. From the Home screen on the printer control panel, navigate to the Fax application, and then select the Fax icon.
2. Select Options.
3. In the Options pane, scroll to and select Resolution.
4. Select one of the predefined options, and then select Send to send the fax.

Check the image-adjustment settings

Adjust these additional settings to improve send-fax quality:

• Sharpness: Clarify or soften the image. For example, increasing the sharpness could make text appear crisper, but decreasing it could make photos appear smoother.
• Darkness: Increase or decrease the amount of white and black used in colors in scanned images.
• Contrast: Increase or decrease the difference between the lightest and the darkest color on the page.
• Background Cleanup: Remove faint colors from the background of scanned images. For example, if the original document is printed on colored paper, use this feature to lighten the background without affecting the darkness of the image.

• Automatic Tone: Available for Flow printers only. The printer automatically adjusts the Darkness, Contrast, and Background Cleanup settings to the most appropriate for the scanned document.

• From the Home screen on the printer control panel, navigate to the Fax application, and then select the Fax icon.

• Select Options.

• In the Options pane, scroll to and select Image Adjustment.

• Adjust the sliders to set the levels, and then select Done.

• Select Send to send the fax.

NOTE: These settings are temporary. After you have finished the job, the printer returns to the default settings.

Optimize fax quality for text or pictures

Optimize the fax job for the type of image being scanned: text, graphics, or photos.

1. From the Home screen on the printer control panel, navigate to the Fax application, and then select the Fax icon.
2. Select Options.
3. In the Options pane, scroll to and select Optimize Text/Picture.
4. Select one of the predefined options.
5. Select Send to send the fax.

NOTE: These settings are temporary. After you have finished the job, the printer returns to the default settings.

Check the error-correction settings

The Error Correction Mode setting might be disabled, which can reduce image quality. Follow these steps to re-enable the setting.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

•Fax
- Fax Send Settings
- General Fax Send Settings

1. Select the Error Correction Mode option. Touch the Done button.

Check the fit-to-page setting

If the Fit to Page setting is enabled, and the incoming fax is larger than the default page size, the printer attempts to scale the image to fit the page. If this setting is disabled, larger images split across multiple pages.

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus:

•Fax

- Fax Receive Settings

- Default Job Options

- Fit to Page

1. Select the On option to enable the setting, or select the Off option to disable it.

Send to a different fax machine

Try sending the fax to a different fax machine. If the fax quality is better, the problem is related to the initial recipient's fax machine settings or supplies status.

Check the sender's fax machine

Ask the sender to try sending from a different fax machine. If the fax quality is better, the problem is with the sender's fax machine. If a different fax machine is unavailable, ask the sender to consider making the following changes:

• Make sure the original document is on white (not colored) paper.
• Increase the fax resolution, quality level, or contrast settings.
• If possible, send the fax from a computer software program.

Solve wired network problems

Introduction
• Poor physical connection
• The computer is unable to communicate with the printer
The printer is using incorrect link and duplex settings for the network
• New software programs might be causing compatibility problems
• The computer or workstation might be set up incorrectly
The printer is disabled, or other network settings are incorrect

Introduction

Certain types of problems can indicate there is a network communication problem. These problems include the following issues:

Poor physical connection

1. Verify that the printer is attached to the correct network port using a cable of the correct length.
2. Verify that cable connections are secure.
3. Look at the network port connection on the back of the printer, and verify that the amber activity light flashes indicating network traffic, and the green link-status light is continuously lit indicating a network link.
4. If the problem continues, try a different cable or port on the hub.

The computer is unable to communicate with the printer

1. Test network communication by pinging the network.

a. Open a command-line prompt on your computer.

• For Windows, click Start, click Run, type cmd, and then press Enter.
• For macOS, go to Applications, then Utilities, and open Terminal.

b. Type ping followed by the IP address for your printer.

c. If the window displays round-trip times, the network is working.

1. If the ping command failed, verify that the network hubs are on, and then verify that the network settings, the printer, and the computer are all configured for the same network (also known as subnet).
2. Open the printer properties and click the Ports tab. Verify that the current IP address for the printer is selected. The printer IP address is listed on the printer configuration page.
3. If you installed the printer using the HP standard TCP/IP port, select the box labeled Always print to this printer, even if its IP address changes.
4. If you installed the printer using a Microsoft standard TCP/IP port, use the printer's hostname instead of the IP address.
5. If the IP address is correct, delete the printer and then add it again.

The printer is using incorrect link and duplex settings for the network

HP recommends leaving these settings in automatic mode (the default setting). If you change these settings, you must also change them for your network.

New software programs might be causing compatibility problems

Verify that any new software programs are correctly installed and that they use the correct print driver.

The computer or workstation might be set up incorrectly

1. Check the network drivers, print drivers, and the network redirection settings.
2. Verify that the operating system is configured correctly.

The printer is disabled, or other network settings are incorrect

1. Review the printer's configuration/networking pages to check the status of the network settings and protocols.
2. Reconfigure the network settings if necessary.

Solve wireless network problems

Introduction
• Wireless connectivity checklist
• The printer does not print after the wireless configuration completes
The printer does not print, and the computer has a third-party firewall installed
The wireless connection does not work after moving the wireless router or printer
- Cannot connect more computers to the wireless printer
The wireless printer loses communication when connected to a VPN
The network does not appear in the wireless networks list
• The wireless network is not functioning
- Reduce interference on a wireless network

Introduction

Use the troubleshooting information to help resolve issues.

NOTE: To determine whether HP NFC, Wi-Fi, BLE, or other wireless printing capabilities are enabled on the printer, print a configuration page from the printer control panel.

NOTE: If you have been experiencing intermittent loss of network connectivity, first update the printer firmware. For instructions on how to update the printer firmware, go to http://support.hp.com, search for your printer, and then search on "update the firmware."

Wireless connectivity checklist

• For printers that do not support simultaneous wired and wireless connections, verify that the network cable is not connected.
• Verify that the printer and the wireless router are turned on and have power. Also make sure that the wireless radio in the printer is turned on. (The wireless network indicator is solid when the printer is connected to a wireless network, and blinking when it is searching for a wireless network.)

- Verify that the service set identifier (SSID) is correct:

• For a wireless connection to your network, confirm that your mobile device is connecting to the correct router/access point.
  — For a Wi-Fi Direct connection, print a configuration page to determine the printer's SSID.

If you are not sure that the SSID is correct, run the wireless setup again.

• With secured networks, verify that the security information is correct. If the security information is incorrect, run the wireless setup again.

• If the wireless network is working correctly, try accessing other computers on the wireless network. If the network has Internet access, try connecting to the Internet over a wireless connection.

• Verify that the encryption method (AES or TKIP) is the same for the printer as it is for the wireless access point (on networks using WPA security).

• Verify that the printer is within the range of the wireless network. For most networks, the printer must be within 30 m (100 ft) of the wireless access point (wireless router).
• Verify that obstacles do not block the wireless signal. Remove any large metal objects between the access point and the printer. Make sure poles, walls, or support columns containing metal or concrete do not separate the printer and wireless access point.
• Verify that the printer is located away from electronic devices that might interfere with the wireless signal. Many devices can interfere with the wireless signal including motors, cordless phones, security system cameras, other wireless networks, and some Bluetooth devices.

- Verify that the print driver is installed on the computer.

- Verify that you have selected the correct printer port.

- Verify that the computer and printer connect to the same wireless network.

- If your environment has multiple wireless signals and you need the printer to support dual band networks on both 2.4 GHz and 5 GHz, install the HP Jetdirect 2900nw print server accessory.

- For macOS, verify that the wireless router supports Bonjour.

The printer does not print after the wireless configuration completes

1. Make sure that the printer is turned on and in the ready state.
2. Turn off any third-party firewalls on your computer.
3. Make sure that the wireless network is working correctly.
4. Make sure that your computer is working correctly. If necessary, restart the computer.
5. Verify that you can open the printer HP Embedded Web Server from a computer on the network.

The printer does not print, and the computer has a third-party firewall installed

1. Update the firewall with the most recent update available from the manufacturer.
2. If programs request firewall access when you install the printer or try to print, make sure that you allow the programs to run.
3. Temporarily turn off the firewall, and then install the wireless printer on the computer. Enable the firewall when you have completed the wireless installation.

The wireless connection does not work after moving the wireless router or printer

1. Make sure that the router or printer connects to the same network that your computer connects to.
2. Print a configuration page.
3. Compare the service set identifier (SSID) on the configuration page to the SSID in the printer configuration for the computer.
4. If the numbers are not the same, the devices are not connecting to the same network. Reconfigure the wireless setup for the printer.

Cannot connect more computers to the wireless printer

1. Make sure that the other computers are within the wireless range and that no obstacles block the signal. For most networks, the wireless range is within 30 m (100 ft) of the wireless access point.
2. Make sure that the printer is turned on and in the ready state.
3. Make sure there are not more than 5 concurrent Wireless Print Direct users.
4. Turn off any third-party firewalls on your computer.
5. Make sure that the wireless network is working correctly.
6. Make sure that your computer is working correctly. If necessary, restart the computer.

The wireless printer loses communication when connected to a VPN

• Typically, you cannot connect to a VPN and other networks at the same time.

The network does not appear in the wireless networks list

- Make sure the wireless router is turned on and has power.

- The network might be hidden. However, you can still connect to a hidden network. Make sure the router/access point is advertising the SSID by checking for its SSID in the available networks seen by your mobile device.

The wireless network is not functioning

1. For printers that do not support simultaneous wired and wireless connections, make sure that the network cable is disconnected.
2. To verify if the network has lost communication, try connecting other devices to the network.
3. Test network communication by pinging the network.

a. Open a command-line prompt on your computer.

• For Windows, click Start, click Run, type cmd, and then press Enter.
• For macOS, go to Applications, then Utilities, and open Terminal.

b. Type ping followed by the router IP address.

c. If the window displays round-trip times, the network is working.

1. Make sure that the router or printer connects to the same network that the computer connects to.

a. Print a configuration page.
b. Compare the service set identifier (SSID) on the configuration report to the SSID in the printer configuration for the computer.
c. If the numbers are not the same, the devices are not connecting to the same network. Reconfigure the wireless setup for the printer.

Reduce interference on a wireless network

The following tips can reduce interference in a wireless network:

• Keep the wireless devices away from large metal objects, such as filing cabinets, and other electromagnetic devices, such as microwaves and cordless telephones. These objects can disrupt radio signals.
• Keep the wireless devices away from large masonry structures and other building structures. These objects can absorb radio waves and lower signal strength.
• Position the wireless router in a central location in line of sight with the wireless printers on the network.

Solve fax problems

Use the following sections to solve issues involving the printer fax functions.

• Checklist for solving fax problems
• General fax problems

Checklist for solving fax problems

Use the following checklist to help identify the cause of any fax-related problems you encounter:

• What type of phone line are you using?
Are you using a surge-protection device?
Are you using a phone company voice-messaging service or an answering machine?

- Does your phone line have a call-waiting feature?

- Check fax accessory status

Are you using the fax cable supplied with the fax accessory? This fax accessory has been tested with the supplied fax cable to meet RJ11 and functional specifications. Do not substitute another fax cable; the analog-fax accessory requires an analog-fax cable. It also requires an analog phone connection.

- Is the fax/phone line connector seated in the outlet on the fax accessory? Make sure that the phone jack is correctly seated in the outlet. Insert the connector into the outlet until it "clicks."

NOTE: Verify that the phone jack is connected to the fax port rather than to the network port. The ports are similar.

Is the phone wall jack working properly? Verify that a dial tone exists by attaching a phone to the wall jack. Can you hear a dial tone, and can you make or receive a phone call?

What type of phone line are you using?

• Dedicated line: A standard analog fax/phone line assigned to receive or send faxes.

NOTE: The phone line should be for printer fax use only and not shared with other types of telephone devices. Examples include alarm systems that use the phone line for notifications to a monitoring company.

PBX system: A business-environment phone system. Standard home phones and the fax accessory use an analog phone signal. Some PBX systems are digital and might not be compatible with the fax accessory. You might need an interfacing Analog Telephone Adapter (ATA) to connect the fax machine to digital PBX systems.
- Roll-over lines: A phone system feature where a new call "rolls over" to the next available line when the first incoming line is busy. Try attaching the printer to the first incoming phone line. The fax accessory answers the phone after it rings the number of times set in the rings-to-answer setting.

Are you using a surge-protection device?

A surge-protection device can be used between the wall jack and the fax accessory to protect the fax accessory against electrical power passed through the phone lines. These devices can cause some fax communication problems by degrading the quality of the phone signal. If you are having problems sending or receiving faxes and are using one of these devices, connect the printer directly to the phone jack on the wall to determine whether the problem is with the surge-protection device.

Are you using a phone company voice-messaging service or an answering machine?

If the rings-to-answer setting for the messaging service is lower than the rings-to-answer setting for the fax accessory, the messaging service answers the call, and the fax accessory cannot receive faxes. If the rings-to-

answer setting for the fax accessory is lower than that of the messaging service, the fax accessory answers all calls.

Does your phone line have a call-waiting feature?

If the fax telephone line has an activated call-waiting feature, a call-waiting notice can interrupt a fax call in progress, which causes a communication error. Ensure that a call-waiting feature is not active on the fax telephone line.

Check fax accessory status

If the analog-fax accessory does not appear to be functioning, print a Configuration Page report to check the status.

1. From the Home screen, scroll to and select Reports.
2. Open the following menus:

- Configuration/Status Pages

- Configuration Page

1. Touch the Print button to print the report, or touch the View button to view the report on the screen. The report consists of several pages.

NOTE: The printer IP address or host name is listed on the Jetdirect Page.

On the Fax Accessory Page of the Configuration Page, under the Hardware Information heading, check the Modem Status. The following table identifies the status conditions and possible solutions.

NOTE: If the Fax Accessory Page does not print, there might be a problem with the analog fax accessory. If you are using LAN fax or Internet fax, those configurations could be disabling the feature.

Operational / Enabled1	The analog-fax accessory is installed and ready.
Operational / Disabled1	The fax accessory is installed, but you have not configured the required fax settings yet.The fax accessory is installed and operational; however, the HP Digital Sending utility has either disabled the printer fax feature or has enabled LAN fax. When LAN fax is enabled, the analog-fax feature is disabled. Only one fax feature, either LAN fax or analog fax, can be enabled at a time.NOTE: If LAN fax is enabled, the Scan to Fax feature is unavailable on the printer control panel.
Non-Operational / Enabled/Disabled1	The printer has detected a firmware failure. Upgrade the firmware.
Damaged / Enabled/Disabled1	The fax accessory has failed. Reseat the fax accessory card and check for bent pins. If the status is still DAMAGED, replace the analog-fax accessory card.

ENABLED indicates that the analog-fax accessory is enabled and turned on; DISABLED indicates that LAN fax is enabled (analog fax is turned off).

General fax problems

The following are some common fax problems.

The fax failed to send
• An Out of Memory status message displays on the printer control panel
• Print quality of a photo is poor or prints as a gray box
• You touched the Stop button to cancel a fax, but the fax was still sent
• No fax address book button displays
• Not able to locate the Fax settings in HP Web Jetadmin
The header is appended to the top of the page when the overlay option is enabled
• A mix of names and numbers is in the recipients box
• A one-page fax prints as two pages
• A document stops in the document feeder in the middle of faxing
The volume for sounds coming from the fax accessory is too high or too low

The fax failed to send

JBIG is enabled, and the receiving fax machine does not have JBIG capability.

Turn off the JBIG setting.

An Out of Memory status message displays on the printer control panel

The printer storage disk is full.

Delete some stored jobs from the disk. From the Home screen on the printer control panel, touch the Retrieve from Device Memory button. Open the list of stored jobs or stored faxes. Select a job to delete, and then touch the Delete button.

Print quality of a photo is poor or prints as a gray box

You are using the wrong page-content setting or the wrong resolution setting.

Try setting the Optimize Text/Picture option to Photograph setting.

You touched the Stop button to cancel a fax, but the fax was still sent

If the job is too far along in the sending process, you cannot cancel the job.

This is normal operation.

No fax address book button displays

None of the contacts in the selected contacts list have fax information associated with them.

Not able to locate the Fax settings in HP Web Jetadmin

Fax settings in HP Web Jetadmin are located under the device's status page drop-down menu.

Select Digital Sending and Fax from the drop-down menu.

The header is appended to the top of the page when the overlay option is enabled

For all forwarded faxes, the printer appends the overlay header to the top of a page.

This is normal operation.

A mix of names and numbers is in the recipients box

Names and numbers can both display, depending on where they are from. The fax address book lists names, and all other databases list numbers.

This is normal operation.

A one-page fax prints as two pages

The fax header is being appended to the top of the fax, pushing text to a second page.

To print a one page fax on one page, set the overlay header to overlay mode, or adjust the fit-to-page setting.

A document stops in the document feeder in the middle of faxing

A jam is in the document feeder.

Clear the jam, and send the fax again.

The volume for sounds coming from the fax accessory is too high or too low

The volume setting needs to be adjusted.

Adjust the volume in the Fax Send Settings menu and the Fax Receive Settings menu.

USB flash drive is not responding

The USB port is disabled by default. Before using this feature, enable the USB port.

• Method one: Enable the USB port from the printer control panel
• Method two: Enable the USB port from the HP Embedded Web Server (network-connected printers only)

Use one of the following methods to enable the port:

Method one: Enable the USB port from the printer control panel

1. From the Home screen on the printer control panel, navigate to the Settings application, and then select the Settings icon.
2. Open the following menus

- Copy/Print or Print

- Enable Device USB

1. Select Enabled to enable the USB port.

Method two: Enable the USB port from the HP Embedded Web Server (network-connected printers only)

1. From the Home screen on the printer control panel, select the Information icon, and then select the Network icon to display the IP address or host name
2. Open a web browser, and in the address line, type the IP address exactly as it displays on the printer control panel. Press the Enter key on the computer keyboard. The EWS opens.

NOTE: If the web browser displays a There is a problem with this website's security certificate message when attempting to open the EWS, click Continue to this website (not recommended).

Choosing Continue to this website (not recommended) will not harm the computer while navigating within the EWS for the HP printer.

1. Select the Copy/Print tab for MFP models or the Print tab for SFP models.
2. In the left menu, select Print from USB Drive Settings.
3. Select Enable Print from USB Drive.
4. Click Apply.

Index

Symbols/Numerics

2,000-sheet high-capacity input tray clear jams 167

3-bin stapler/stacker clear staple jams 167

550-sheet paper trays part numbers 30

550-sheet trays jams 167

A

accessories

ordering 30

overview 29

part numbers 30

acoustic specifications 15

AirPrint 59, 61

alternative letterhead mode 18, 20, 21, 24

Android devices printing from 59, 62

B

bin, output

locating 4

Bonjour

identifying 136

browser requirements

HP Embedded Web Server 136

C

calibrate

colors 188

scanner 203

cartridge

order numbers 39

part numbers 39

replacing 39

cartridge policy 33, 34

cartridge protection 33, 36

checklist

wireless connectivity 219

cleaning

glass 203, 208, 213

paper path 188, 189

color options

changing, Windows 188

color theme

changing, Windows 188

colors

calibrate 188

control panel

help 156

locating 4

locating features 4, 7

copy

optimize for text or pictures 203

copy settings

HP Embedded Web Server 136, 138, 139

copying

overview 69

customer support

online 156

D

default gateway, setting 146

deleting

stored jobs 55, 58

digital send settings

HP Embedded Web Server 136, 138, 140

digital sending

folders 119

printer memory 116

sending documents 113

USB 123

dimensions, printer 14

document feeder

jams 167

paper-feeding problems 160, 165

double-sided printing

Mac 52

Windows 48

duplex printing

Mac 52

duplex printing (double-sided)

settings (Windows) 48

Windows 48

duplexing

manually (Mac) 52

manually (Windows) 48

E

easy-access USB printing 63

EconoMode setting 188, 189

edge-to-edge copying 203

electrical specifications 15

Embedded Web Server

changing network settings 146

changing printer name 146

opening 146

Embedded Web Server (EWS)

assigning passwords 149, 150

features 136

network connection 136

energy use, optimizing 152

envelopes

orientation 18, 19

envelopes, loading 25

Ethernet (RJ-45)

locating 4, 6

Explorer, versions supported

HP Embedded Web Server 136

F

fax

feeding problems 223, 226

optimize for text or pictures 213

overview 127

required settings 128

settings 129

setup 128

fax port

locating 4, 6

fax settings

HP Embedded Web Server 136, 138, 141

required 128

feeding problems 223, 226

folders

sending to 119

formatter

locating 4, 5

fuser

jams 167

G

gateway, setting default 146

general configuration

HP Embedded Web Server 136, 138

genuine HP cartridges 33, 34

glass, cleaning 203, 208, 213

H

hard disks

encrypted 149, 151

hard drive

part number 30

Help button

locating 4, 7

help, control panel 156

Hi-Speed USB 2.0 printing port locating 4, 6

Home button

locating 4, 7

HP Customer Care 156

HP Embedded Web Server

changing network settings 146

changing printer name 146

copy settings 136, 138, 139

digital send settings 136, 138, 140

fax settings 136, 138, 141

general configuration 136, 138

HP Web Services 136, 138, 143

information pages 136, 138

network settings 136, 138, 143

opening 146

other links list 136, 138, 145

print settings 136, 138, 139

scan settings 136, 138, 140

security settings 136, 138, 142

supplies 142

troubleshooting tools 136, 138, 142

HP Embedded Web Server (EWS)

features 136

network connection 136

HP ePrint 59

HP ePrint software 59

HP JetAdvantage business solutions 124

HP Web Jetadmin 154

HP Web Services

enabling 136, 138, 143

|

image quality

check toner-cartridge status 188, 189, 191

information pages

HP Embedded Web Server 136, 138

interface ports

locating 4, 6

Internet Explorer, versions supported HP Embedded Web Server 136

IP Security 149, 151

IPsec 149, 151

IPv4 address 146

IPv6 address 146

J

jams

2,000-sheet high-capacity input tray 167

550-sheet trays 167

auto-navigation 167, 168

causes of 167, 168

document feeder 167

fuser 167

locations 167

stapler/stacker accessory 167

staples in the 3-bin stapler/stacker 167

Tray 1 167

Tray 2 167

Jetadmin, HP Web 154

JetAdvantage 124

jobs, stored

creating (Windows) 55

deleting 55, 58

Mac settings 55

printing 55

K

keyboard

locating 4

L

label

orientation 26

labels

printing (Windows) 48

printing on 26

labels, loading 26

LAN port

locating 4, 6

loading

paper in Tray 1 18

paper in Tray 2 and the 550-sheet trays 21

local area network (LAN)

locating 4, 6

lock

formatter 149, 151

lower-right door

clear jams 167

M

Mac driver settings

Job Storage 55

managing network 146

managing the printer overview 135

manual duplex

Mac 52

Windows 48

margins, small

copying 203

memory

included 10

memory chip (toner)

locating 39

mobile printing

Android devices 59, 62

mobile printing, software supported 14

multiple pages per sheet

printing (Mac) 52

printing (Windows) 48

N

Near Field Communication printing 59, 60

Netscape Navigator, versions

supported

HP Embedded Web Server 136

network

printer name, changing 146

settings, changing 146

settings, viewing 146

network duplex settings, changing 146

Network Folder, scan to 119

network link speed settings, changing 146

network settings

HP Embedded Web Server 136, 138, 143

networks

default gateway 146

HP Web Jetadmin 154

IPv4 address 146

IPv6 address 146

subnet mask 146

supported 10

NFC accessory

part number 30

NFC connect and print 59, 60

0

on/off button

locating 4

online help, control panel 156

online support 156

operating systems, supported 12

optimize copy images 203

optimize fax images 213

optimize scanned images 208

ordering

supplies and accessories 30

other links list

HP Embedded Web Server 136, 138, 145

output bin

clear jams 167

locating 4

P

pages per minute 10

pages per sheet

selecting (Mac) 52

selecting (Windows) 48

paper

jams 167, 168

loading Tray 1 18

loading Tray 2 and the 550-sheet trays 21

selecting 188, 189, 193

Tray 1 orientation 18, 19

Tray 2 and the 550-sheet trays orientation 21, 23

paper jams

2,000-sheet high-capacity input tray 167

550-sheet trays 167

document feeder 167

fuser 167

locations 167

stapler/stacker accessory 167

Tray 1 167

Tray 2 167

paper pickup problems

solving 160, 162

paper trays

overview 17

part numbers 30

paper type

selecting (Windows) 48

paper types

selecting (Mac) 52

paper, ordering 30

part numbers

accessories 30

replacement parts 30, 31

supplies 30, 31

toner cartridge 30

toner cartridges 30

parts

overview 29

ports

locating 4, 6

potential shock hazard 3

power

consumption 15

power connection

locating 4, 5

power switch

locating 4

power usage

1 watts or less 152

print media

loading in Tray 1 18

print on both sides

Mac 52

manually, Windows 48

Windows 48

print settings

HP Embedded Web Server 136, 138, 139

printer

overview 1

printer memory

sending to 116

printer memory, scan to 116

printer specifications

overview 10

printing

from USB storage accessories 63

overview 47

stored jobs 55

printing on both sides

settings (Windows) 48

private printing 55

product number

location 4, 5

protect cartridges 33, 36

R

rear door

locating 5

replacement parts

part numbers 30, 31

replacing

staples 44

toner cartridge 39

required settings fax 128

reset factory settings 157

right door jams 167

RJ-45 port locating 4, 6

S

Save to printer memory 116

scan settings HP Embedded Web Server 136, 138, 140

Scan to Network Folder 119 initial setup 88

Scan to USB Drive 123 enabling 109

scanner calibrate 203 glass cleaning 203, 208, 213

scanning optimize for text or pictures 208 overview 73

scanning to email sending documents 113

scanning to folder 119

scanning to printer folder 116

scanning to printer memory 116

scanning to USB 123

security settings HP Embedded Web Server 136, 138, 142

security encrypted hard disk 149, 151 included 10

sending to email sending documents 113

serial number locating 4, 5

settings fax 129 reset to factory (default) settings 157

Sign In button locating 4, 7

Sign Out button locating 4, 7

sleep delay setting 152

small margins 203

special paper printing (Windows) 48

specifications electrical and acoustic 15

speed, optimizing 152

stand part number 30

staple jams 3-bin stapler/stacker 167

stapler troubleshooting 27 using 27

stapler/stacker accessory clear jams 167

staples replacing 44

Start Copy button locating 4

status, fax accessory page 223, 224

storage, job Mac settings 55

store print jobs 55

stored jobs creating (Mac) 55 creating (Windows) 55 deleting 55, 58 printing 55

storing jobs with Windows 55

subnet mask 146

supplies HP Embedded Web Server 142 low threshold settings 158 ordering 30

overview 29 part numbers 30, 31

replacing staples 44 replacing toner cartridge 39 using when low 158

support online 156

supported operating systems 12

system requirements HP Embedded Web Server 136

T

TCP/IP manually configuring IPv4 parameters 146 manually configuring IPv6 parameters 146

technical specifications 10

technical support online 156

toner cartridge components 39 low threshold settings 158 order numbers 39 part numbers 30, 39 replacing 39 using when low 158

toner cartridges part numbers 30

toner-collection unit locating 4

touchscreen locating features 4, 7

transparencies printing (Windows) 48

Tray 1 jams 167 loading envelopes 25 paper orientation 18, 19

Tray 2 jams 167

Tray 2 and the 550-sheet trays loading 21 paper orientation 21, 23

trays capacity 10

included 10

locating 4 use alternative letterhead mode 20, 24

troubleshooting check toner-cartridge status 188, 189, 191

jams 167, 168 network problems 217 overview 155

paper feed problems 160 wired network 217 wireless network 219

troubleshooting tools

HP Embedded Web Server 136, 138, 142

two-sided printing

settings (Windows) 48

U

USB

sending to 123

USB port

enabling 63, 64, 66, 67, 228

locating 4, 6

USB ports, optional

part number 30

USB storage accessories

printing from 63

W

web browser requirements

HP Embedded Web Server 136

websites

customer support 156

HP Web Jetadmin, downloading 154

weight, printer 14

Wi-Fi Direct Print 14, 59, 60

wireless network

troubleshooting 219

wireless network interference 219, 222

wireless print server

part number 30
