USER MANUAL G257HU ACER

Copyright © 2014. Acer Incorporated. All Rights Reserved.

Acer LCD Monitor User Guide Original Issue: 12/2014

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Acer LCD Monitor User Guide

Model number: ____ Serial number: ____ Date of purchase: ____ Place of purchase: ____

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

Information for your safety and comfort

Safety instructions

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Special notes on LCD monitors

The following are normal with the LCD monitor and do not indicate a problem.

• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the power switch and then turn it on again to make sure the flicker disappears.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• The LCD screen has 99.99% or more effective pixels. It may include blemishes of 0.01% or less such as a missing pixel or pixel lit all the time.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the power switch for a few hours.

Cleaning your monitor

Please carefully follow these guidelines when cleaning the monitor:

• Always unplug the monitor before cleaning.
- Use a soft cloth to wipe the screen and cabinet front and sides.

Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet.

Safe listening

To protect your hearing, follow these instructions.

• Gradually increase the volume until you can hear it clearly and comfortably and without distortion.
  • After setting the volume level, do not increase it after your ears have adjusted.
• Limit the amount of time listening to music at high volume.
• Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.

Warnings

• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
• Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
• To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
• Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage internal devices.
• The adapter is only used for this monitor, do not be used for other purposes.
• Your device uses one of the following power supplies: Manufacture: Shenzhen Honor Electronic Co., Ltd: ADS-40SG-19-3 19040G (40W)
  Manufacture: Delta Electronics Inc.: ADP-40KD (40W)
  Manufacture: Liteon Technology Corp.: PA-1051-91 (50W)
  Manufacture: Shenzhen Honor Electronic Co., Ltd: ADS-65BI-19-3 19050G (50W)

Using electrical power

- This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local

power company.

• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
• This product's power cord is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power cord plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.6 meters (15 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed
• liquid was spilled into the product
• the product was exposed to rain or water
• the product has been dropped or the case has been damaged
• the product exhibits a distinct change in performance, indicating a need for service
- the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Potentially explosive environments

Switch off your device in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.

Additional safety information

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

IT Equipment Recycling Information

Acer is strongly committed to environmental protection and views recycling, in the form of salvaging and disposal of used equipment, as one of the company's top priorities in minimizing the burden placed on the environment.

We at Acer are very conscious of the environmental effects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.

For more information and help when recycling, please go to this website:

http://www.acer-group.com/public/Sustainability/sustainability01.htm

Visit www.acer-group.com for further information on the features and benefits of our other products.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/sustainability01.htm

LCD pixel statement

The LCD unit is produced with high-precision manufacturing techniques. Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.

This product has been shipped enabled for power management:

• Activate display's Sleep mode within 15 minutes of user inactivity.
• Activate computer's Sleep mode within 30 minutes of user inactivity.
• Wake the computer from Sleep mode by pushing the power button.

Tips and information for comfortable use

Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.

Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:

• numbness, or a burning or tingling sensation
  • aching, soreness or tenderness
  • pain, swelling or throbbing
  • stiffness or tightness
• coldness or weakness

If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.

The following section provides tips for more comfortable computer use.

Finding your comfort zone

Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:

• refrain from staying too long in one fixed posture
- avoid slouching forward and/or leaning backward
- stand up and walk around regularly to remove the strain on your leg muscles

Taking care of your vision

Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting,

poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.

Eyes

• Rest your eyes frequently.
- Give your eyes regular breaks by looking away from the monitor and focusing on a istant point.
- Blink frequently to keep your eyes from drying out.

Display

• Keep your display clean.
• Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
• Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.

• Eliminate glare and reflections by:

• placing your display in such a way that the side faces the window or any light source

• minimizing room light by using drapes, shades or blinds
  • using a task light
• changing the display's viewing angle
  • using a glare-reduction filter
• using a display visor, such as a piece of cardboard extended from the display's top front edge

- Avoid adjusting your display to an awkward viewing angle.

- Avoid looking at bright light sources, such as open windows, for extended periods of time.

Developing good work habits

Develop the following work habits to make your computer use more relaxing and productive:

• Take short breaks regularly and often.
• Perform some stretching exercises.
- Breathe fresh air as often as possible.
• Exercise regularly and maintain a healthy body.

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

Contact Person: Mr. RU Jan, e-mail:[e-mail]

And,

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone]

www.acer.it

Declare under our own responsibility that the product:

Product: LCD Monitor

Trade Name: Acer

Model Number: G257HU

SKU Number: G257HU xxxxxx; ("x" = 0\~9, a \~ z, A \~ Z, or blank)

To which this declaration refers conforms to the relevant standard or other standardizing documents:

• EN55022:2010 Class B; EN55024:2010
• EN 61000-3-2:2006+A1:2009+A2:2009, Class D
EN61000-3-3:2008
• EN60950-1:2006/A11:2009/A1:2010+A12:2011
• Regulation (EC) No. 1275/2008; EN 50564:2011; IEC 62301:2011
EN50581:2012

We hereby declare above product is in compliance with the essential requirements and other relevant provisions of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC, and RoHS Directive 2011/65/EU and Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

Year to begin affixing CE marking 2014.

RU Jan / Sr. Manager

Regulation, Acer Inc.

Dec.15, 2014

Date

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product: LCD Monitor

Model Number:

G257HU

SKU Number:

G257HU xxxxxx

$$ \left(" \mathrm{x}" = 0 \sim 9, \mathrm{a} \sim \mathrm{z}, \text { or } \mathrm{A} \sim \mathrm{Z}\right) $$

Name of Responsible Party: Acer America Corporation

Address of Responsible Party:

333 West San Carlos St.

Suite 1500

San Jose, CA 95110

U.S.A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147

Information for your safety and comfort iii

Safety instructions iii

Special notes on LCD monitors iii

Cleaning your monitor iii

Accessibility

Safe listening iv

Warnings

Using electrical power iv

Product servicing v

Potentially explosive environments vi

Additional safety information vi

IT Equipment Recycling Information vi

Disposal instructions vi

LCD pixel statement vii

Tips and information for comfortable use vii

Finding your comfort zone vii

Taking care of your vision viii

Developing good work habits viii

Declaration of Conformity ix

Federal Communications Commission Declaration of

Conformity x

Unpacking 1

Attaching the base (for selected models) 2

Screen position adjustment 3

Connecting the adapter and AC Power cord 3

Power saving 3

Display Data Channel (DDC) 4

Connector pin assignment 4

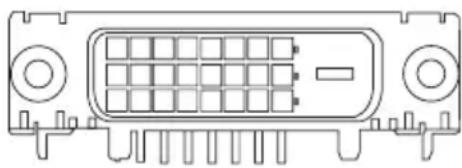

24-pin color display signal cable 4

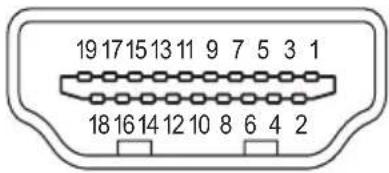

19-pin color display signal cable 5

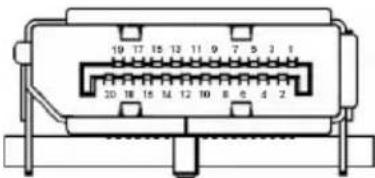

20-pin color display signal cable 5

Standard timing table 6

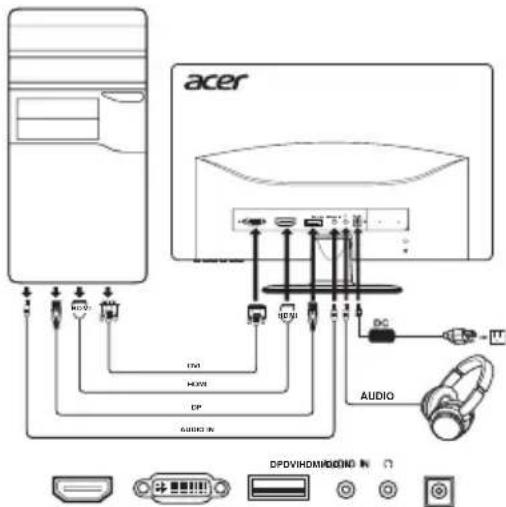

Installation 7

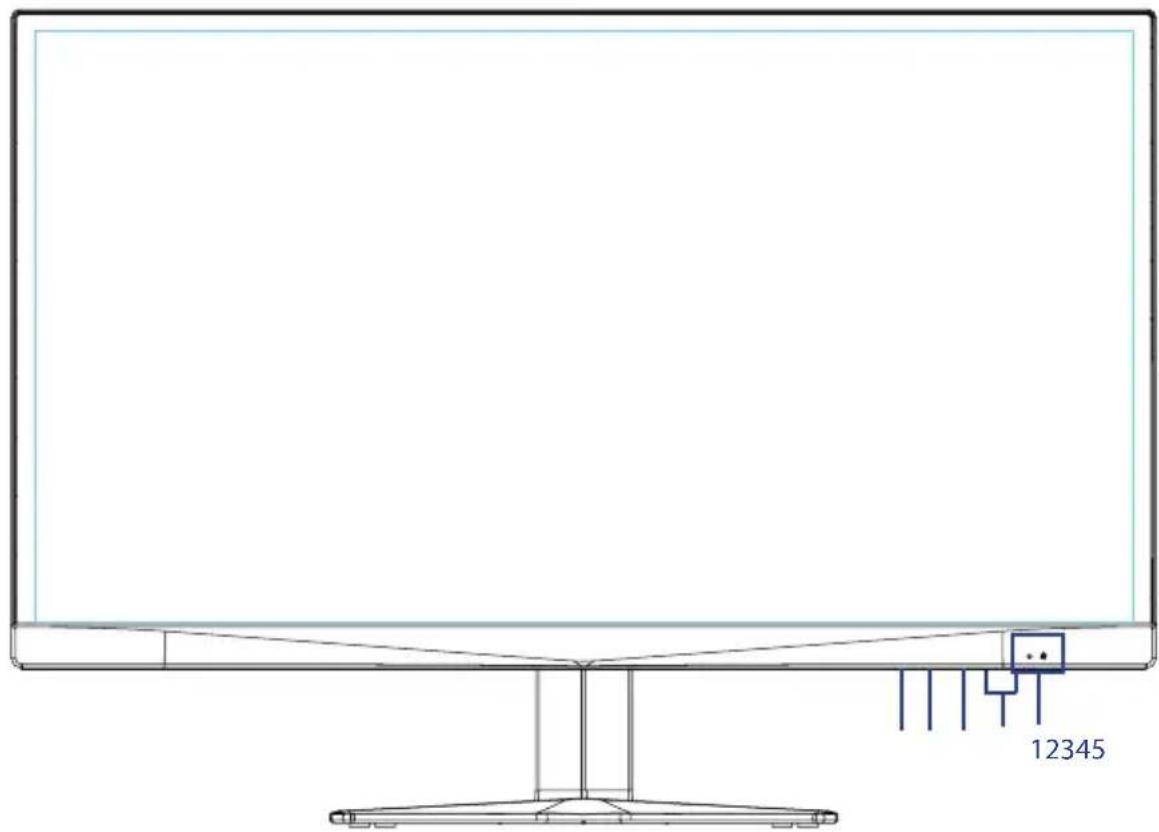

Users controls 8

Panel controls 8

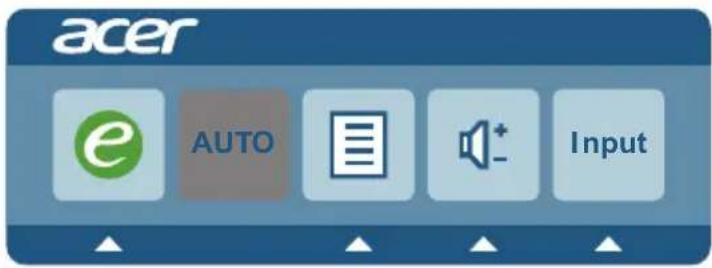

Using the Shortcut Menu 9

Acer eColor Management 10

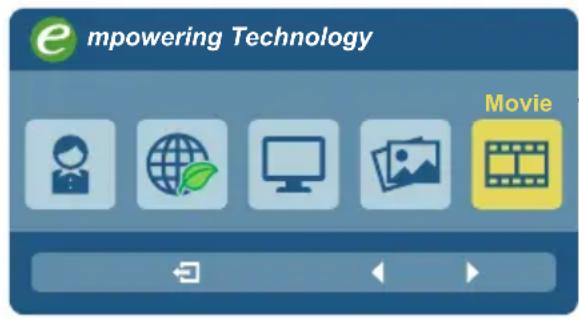

Operation instructions 10

Features and benefits 10

Using the OSD Menus 11

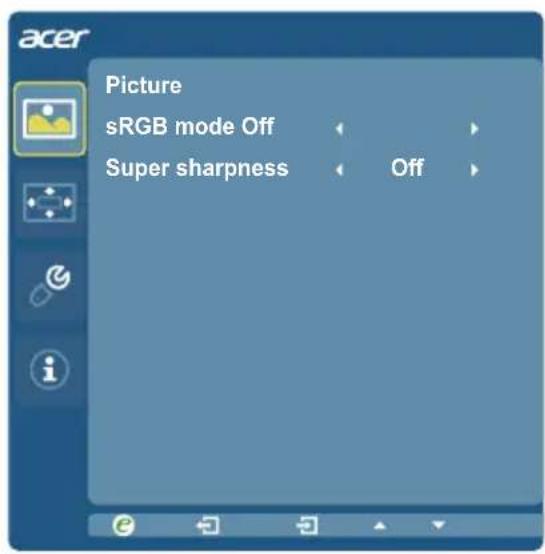

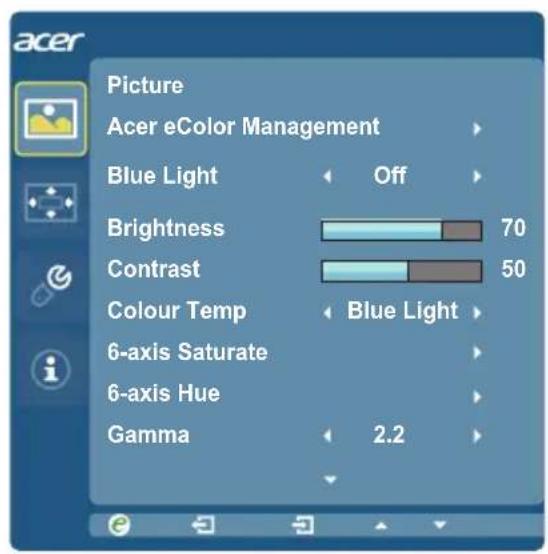

Picture Menu 11

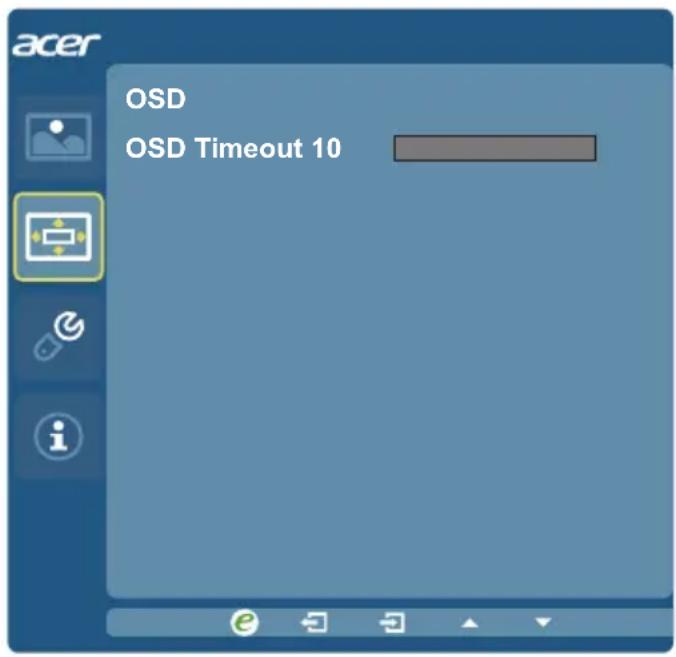

OSD Menu 12

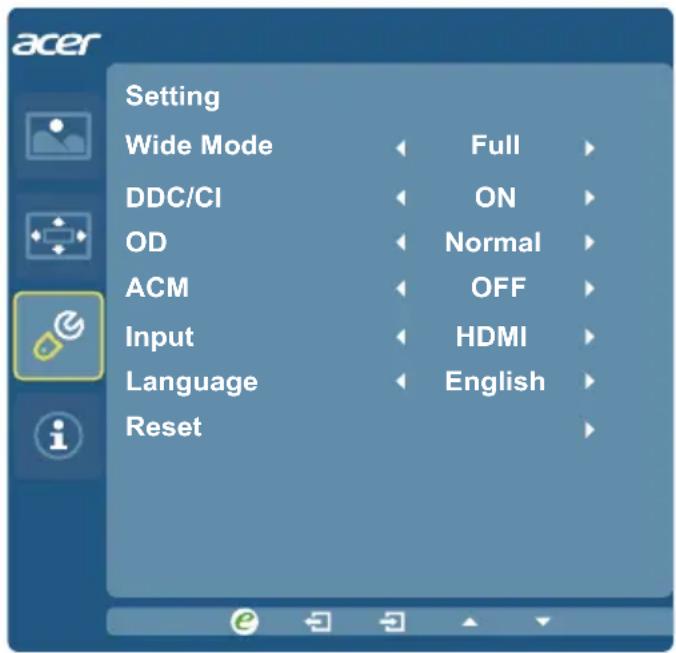

Setting Menu 13

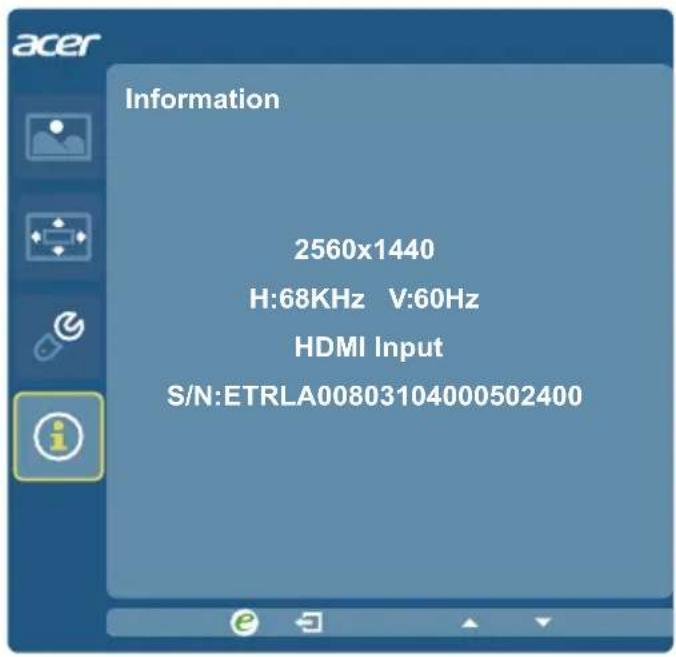

Information Menu 14

Troubleshooting

DVI/HDMI/DP Mode (Optional) 15

Unpacking

Please check that the following items are present when you unpack the box, and save the packing materials in case you need to ship or transport the monitor in the future.

LCD monitor Quick start guide Audio cable

(Optional)

Line drawing of a flat-screen computer monitor with no text or symbols on the screen

DP Cable (Optional)

LIC MONITOR aser Graech Guide

HDMI cable (Optional)

Simple line drawing of a U-shaped tube with two side connectors (no text or symbols)

AC Power cord

Pure diagram of a coiled cable with connectors, no text or symbols present

DVI cable (Optional)

Line drawing of a flexible network cable with terminal connectors (no text or symbols)

AC Adapter

Line drawing of a single cord with two terminal plugs (no text or symbols)

Line drawing of two connected 550V D-sub cables (no text or symbols)

Simple line drawing of a USB cable with a rectangular connector (no text or symbols)

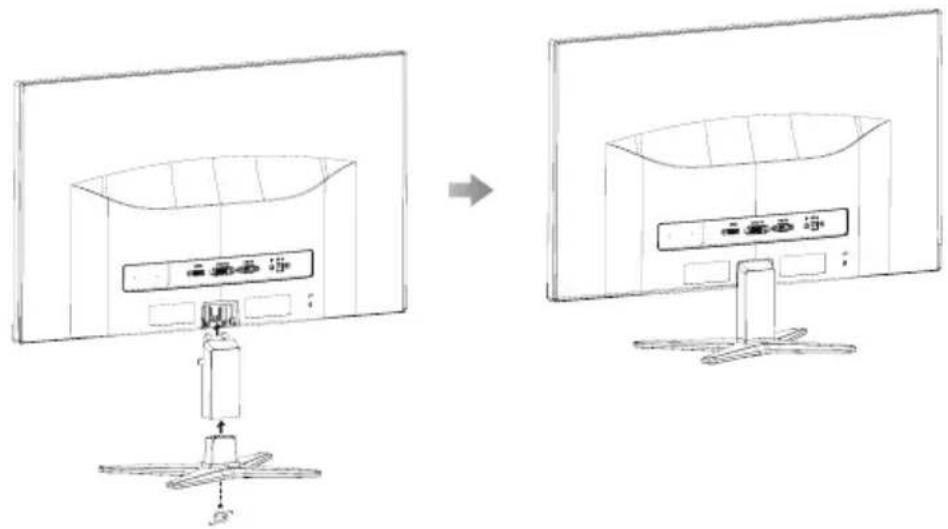

Attaching the base (for selected models)

Note: Remove the monitor and monitor base from its packaging. Carefully place the monitor face-down on a stable surface -- use a cloth to avoid scratching the screen.

Diagram showing device transformation from a TV unit to a display unit, with Chinese labels indicating components and directional arrows.

1 Attach the monitor stand arm to the base.
2 Ensure that the base is locked onto the monitor stand arm.
- Secure the base to the monitor stand arm by turning the white screw using the integrated tab or a suitable coin. (for selected models)

Note: Take care when performing the installation to avoid injuring yourself.

Screen position adjustment

To optimize the viewing position, you can adjust the monitor tilt, using both of your hands to hold the edges of the monitor. The monitor can be adjusted to 15 degrees up or 5 degrees down.

5° 15°

Connecting the adapter and AC Power cord

• Check first to make sure that the power cord you use is the correct type required for your area.
• The monitor has a universal power supply that allows operation in either 100/120 V AC or 220/240 V AC voltage area. No user-adjustment is required.
• Plug one end of the AC power cord to the Adapter, and plug the other end into an AC outlet.
• For units using 120 V AC: Use a UL-listed cord set, type SVT wire and plug rated 10 A/125 V.

- For units using 220/240 V AC: Use a cord set consisting of H05VV-F cord and plug rated 10 A/250 V. The cord set should have the appropriate safety approvals for the country in which the equipment will be installed.

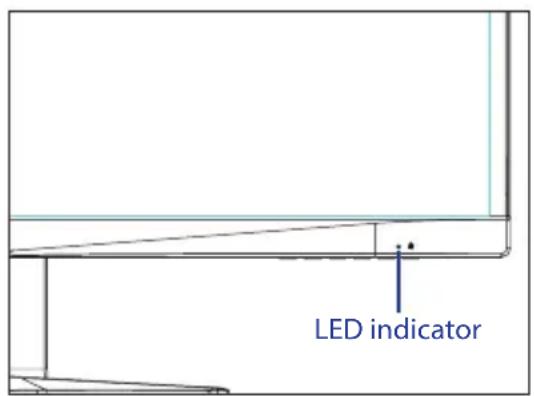

Power saving

The monitor will be switched to "power saving" mode by the control signal from the display controller, as indicated by the blinking blue light.

Mode LED light

On Blue

Standby/Power saving Blinking Blue

The power saving mode will be kept until a control signal has been detected or the keyboard or mouse is activated. The recovery time from "power saving" mode back to "on" is around 3 seconds.

LED indicator

Display Data Channel (DDC)

To make installation easier, so long as your system supports the DDC protocol, the monitor is able to plug-and-play. The DDC is a communication protocol through which the monitor automatically informs the host system about its capabilities; for example, supported resolutions and corresponding timing. The monitor supports the DDC2B standard.

24-pin color display signal cable

Technical line drawing of a 25-pin electronic component (no text or symbols)

PIN No. Description PIN No. Description

1 TMDS data 2- 13 TMDS data 3+

2 TMDS data 2+ 14 +5 V power

3 TMDS data 2/4 shield 15 DVI detect

4 TMDS data 4- 16 Hot-plug detection

5 TMDS data 4+ 17 TMDS data 0-

6 DDC clock 18 TMDS data 0+

7 DDC data 19 TMDS data 0/5 shield

8 NC 20 TMDS data 5-

9 TMDS data 1- 21 TMDS data 5+

10 TMDS data 1+ 22 TMDS clock shield

11 TMDS data 1/3 shield 23 TMDS clock+

12 TMDS data 3- 24 DDC TMDS clock-

19-pin color display signal cable

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

PIN No. Description PIN No. Description

1 TMDS Data2+ 2 TMDS Data2 Shield

3 TMDS Data2- 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1-

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+

11 TMDS Clock Shield 12 TMDS Clock-

13 CEC 14 Reserved (N.C. on device)

15 SCL 16 SDA

17 DDC/CEC Ground 18 +5V Power

19 Hot Plug Detect

20-pin color display signal cable

10 17 15 12 11 9 7 5 2 1 20 18 15 14 12 10 8 6 4 2

PIN No. Description PIN No. Description
1 ML_Lane 0+	2 GND
3 ML_Lane 0-	4 ML_Lane 1+
5 GND	6 ML_Lane 1-
7 ML_Lane 2+	8 GND
9 ML_Lane 2-	10 ML_Lane 3+
11 GND	12 ML_Lane 3-
13 CONFIG1	14 CONFIG2
15 AUX CH+	16 GND
17 AUX CH-	18 Hot Plug
19 Return	20 DP_PWR

Standard timing table

Mode	Resolution(active dot)	Resolution(total dot)	HorizontalFrequency (KHz)	VerticalFrequency (Hz)	Nominal PixelClock (MHz)
VGA	640x480@60Hz 8	00 x 525 31.	469 59.940 25.175
	640x480@72Hz 8	32 x 520 37.	361 72.809 31.500
	640x480@75Hz 8	40 x 500 37.	500 75.000 31.500
MAC 64	0x480@66.66Hz 86	4x525 35.000	66.667 30.240
VESA 72	0x400@70Hz 900x4	49 31.469 70	0.087 28.322
SVGA	800x600@56Hz 1	024 x 625 35	.156 56.250 36.000
	800x600@60Hz 1	056 x 628 37	.879 60.317 40.000
	800x600@72Hz 1	040 x 666 48	.077 72.188 50.000
	800x600@75Hz 1	056x625 46	.375 75.000 49.500
MAC 83	2x624@74.55Hz 11	52x667 49.72	2 74.550 57.		280
XGA	1024x768@60Hz	1344x806 48	363 60.004 65.000
	1024x768@70Hz	1328x806 56	476 70.069 75.000
	1024x768@75Hz	1312x800 60	023 75.029 78.750
MAC	1152x870@75Hz	1456x915 68	.681 75.062	100.000
VESA	1152x864@75Hz	1600x900	67.500 75.000	108.000
	1280x960@60Hz	1800x1000	60.000	60.000	108.000
SXGA	1280x1024@60Hz	1688x1066	63.981 60.020	108.000
	1280x1024@75Hz	1688x1066	79.976 75.025	135.000
VESA	1280x720@60Hz	1650x750	45.000 60.000 74.250
WXGA	1280x800@60Hz	1680x831	49.7 02 59.810	83.500
WXGA+	1440x900@60Hz	1904x934	55.935	59.887	106.500
WSXGA+	1680x1050@60Hz	2240*1089	65.290	59.954	146.250
FHD	1920x1080@60Hz	2200x1125	67.500	60.000	148.500
QHD	2560x1440@60Hz	2720x1481	88.787	59.951	241.500

Installation

To install the monitor on your host system, please follow the steps below:

Steps

1 Connect the video cable

a Make sure both the monitor and computer are switched off.

b Connect the digital cable

(1) Make sure both the monitor and computer are switched off.
(2) DVI Cable (Optional, only Dual-Input Model)
a. Make sure both the monitor and computer are powered-OFF. b. Connect the DVI cable to the computer.

(3) HDMI Cable (Optional, only HDMI-Input Model)

a. Make sure both the monitor and computer are powered-OFF. b. Connect the HDMI cable to the computer.

(4) DP Cable (Optional, only DP-Input Model)

a. Make sure both the monitor and computer are powered-OFF. b. Connect the DP cable to the computer.

c Connect the audio cable (Optional, only Audio-input Model).

2 Connect the adapter

a Connect the AC cord to the adapter.

b Connect one end of the adapter to the monitor and the other end to a properly grounded, AC outlet.

a Connect the AC cord to the adapter.
b Connect one end of the adapter to the monitor and the other end to a properly grounded, AC outlet.

3 Turn on the monitor and computer

Turn on the monitor first, then the computer. This sequence is very important.

4 If the monitor does not function properly, please refer to the troubleshooting section

to diagnose the problem.

acer DPO MOSI DC MOSI DC AUDIO AUDIO IN DPOVHDMMDDINO IN

Note: Audio output is only for audio output model.

In order to prevent damage to the monitor, do not lift the monitor by its base.

Users controls

12345

Panel controls

No. Item Description
1 Power button/indicator		Turn the monitor on/off.Blue indicates power on. Blinking blue indicates standby/power saving mode.
2	< / > button	Press the < / > button to navigate to the desired function, and press the Menu button to select the function. Press the < / > button to change the settings of the current function.
3 Menu/Enter button		Press to view the OSD menu. Press it again to enter a selection in the OSD menu.
4	Auto/Exit button	When the OSD menu is active, press this button to exit the OSD menu.When the OSD menu is inactive, press this button for two seconds to activate the Auto Adjustment function and the monitor will automatically optimize the display position, focus, and clock of your display. (For VGA mode only)
5	Empowering Key Press this button to open the Acer eColor Management OSD and access the scenario modes.

Using the Shortcut Menu

acer e AUTO Input

Press any of the function buttons (Empowering Key, Auto button, or Menu button) to open the shortcut menu. The shortcut menu lets you quickly select the most commonly accessed settings.

Icon Item Description
	Empowering Press the Empowering Key to open the Acer eColor Management and access the scenario modes.
	Auto Press the Auto button to activate the Auto Adjustment function and the monitor will automatically optimize the display position, focus, and clock of your display. (For VGA mode only)
	Menu Press the Menu button to activate the OSD menu.
	Volume Press the Volume button to adjust volume. (Optional, only Audio-Input Model)
	Input Press the Input button to select from different video sources that may be connected to your monitor. (Optional, only Dual-Input Model or HDMI-Input Model)

Acer eColor Management

Operation instructions

1 Press the Empowering Key to open the Acer eColor Management OSD menu and access the scenario modes.

empowering Technology Movie

GraphicsStandardECOUser

2 Press the < / > button to select the desired mode.
3 Press the Auto button to confirm the selection and exit Acer eColor Management.

Features and benefits

Icon Mode type Description
	User mode User-defined. Settings can be fine-tuned to suit any situation.
	ECO mode Adjusts the settings to reduce power consumption.
	Standard mode Default settings. Reflects native display capability.
	Graphic mode Enhances colors and emphasizes fine detail. Pictures and photographs appear in vibrant colors with sharp detail.
	Movie mode Displays scenes in clearest detail. Presents great visuals, even in unsuitably-lit environments.

Using the OSD Menus

Note: The following content is for general reference only. Actual product specifications may vary.

Your LCD monitor is equipped with an on-screen display (OSD) menu for making various adjustments and settings.

Press the Menu button to open the OSD menu. You can use the OSD menu to adjust the picture quality, OSD timeout, and general settings.

Picture Menu

The Picture menu is used for adjusting the picture quality.

acer Picture Acer eColor Management Blue Light Off Brightness 70 Contrast 50 Colour Temp Blue Light 6-axis Saturate 6-axis Hue Gamma 2.2

acer Picture sRGB mode Off Super sharpness Off

1 Press the Menu button to bring up the OSD menu.

2 Press the < / > button to select 📋 Picture and press the Menu button to enter the Picture menu.

The following options are available in the Picture menu: Acer ecolor Management, Blue Light, Brightness, Contrast, 6-axis Saturate, 6-axis Hue, sRGB mode, Super sharpness, and Colour Temp.

3 Press the < / > button to scroll through the Picture options, and press the Menu button to enter its sub-menu.

4 Press the < / > button to adjust/select the setting and press the Auto button to confirm.

OSD Menu

The OSD menu is used for adjusting the OSD menu location and the timeout setting.

acer OSD OSD Timeout 10

1 Press the Menu button to bring up the OSD menu.
2 Press the </> button to select 📄 OSD and press the Menu button to enter the OSD menu.
3 To adjust the OSD H.Position / V.Position, press the Menu button to enter its submenu.
4 Press the < / > button to to adjust the target position and press the Auto button to confirm.

Setting Menu

The Setting menu is used for adjusting the general settings for current input signal such as aspect ratio, OSD language, and etc.

acer Setting Wide Mode DDC/CI OD ACM Input Language Reset Full ON Normal OFF HDMI English

1 Press the Menu button to bring up the OSD menu.
2 Press the < / > button to select ⚙ Setting and press the Menu button to enter the Setting menu.

The following options are available in the Setting menu: Wide Mode, DDC/CI, OD, ACM, Input, Language, and Reset.

3 Press the < / > button to scroll through the Setting options, and press the Menu button to enter its sub-menu.
4 Press the < / > button to adjust/select the setting and press the Auto button to confirm.

Information Menu

The Information menu displays the basic information of the LCD monitor.

acer Information 2560x1440 H:68KHz V:60Hz HDMI Input S/N:ETRLA00803104000502400

1 Press the Menu button to bring up the OSD menu.
2 To view the basic information of the LCD monitor, press the < / > button to select Information.

Troubleshooting

Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem.

DVI/HDMI/DP Mode (Optional)

Problem LED status Remedy

No picture visible Blue Using the OSD menu, adjust brightness andcontrast to maximum or reset to their defaultsettings.

Off Check the power switch.Check if the AC power cord is properlyconnected to the monitor.

Blinking Blue Check if the video signal cable is properlyconnected at the back of monitor.Check if the computer system is switched onand in power saving/standby mode.
