USER MANUAL AM-95-SE Watson
Slim Li-ion Battery with LED and 3-Stud or V-Mount
Thank you for choosing Watson Pro
Please read this user manual carefully, and keep it for reference before using the battery.
SAFETY INSTRUCTIONS
• Make sure the battery is fully charged before use.
- When not in use, remove the battery from its device. Some electronic equipment will draw current even when the switch is off.
- Do not short-circuit the terminals. This battery is protected with an internal self-resetting fuse, but short circuits may still cause severe damage to the battery.
- Do not attempt to open the battery case under any circumstances.
- Do not remove the battery from any equipment that is powered on. Always power off your equipment before removing the battery.
- Use the battery only under proper environmental conditions: 14°F to 122°F (-10°C to 50°C) and with a relative humidity (RH) less than 85%.
- Storage environment: short-term (one month) -4°F to 122°F (-20°C to 50°C) and RH 45% to 75%; medium-term (three months) -4°F to 104°F (-20°C to 40°C) and RH 45% to 75%; long-term (one year) 23°F to 86°F (-5°C to 30°C) and RH 45% to 75%.
- The battery may be warm during use or recharging. This is normal.
- The battery should be charged up to 50% for long-term storage. After 4 months of storage, the battery will require a recharge up to 50%.
- Keep the battery out of fire, heat, and high pressure.
- Do not expose the battery to rain or moisture.
- Do not drop the battery or expose it to strong shocks.
- Keep this unit away from water and any flammable gases or liquids.
- Clean the battery and terminals with a clean, soft, and dry cloth.
- When operation time has noticeably decreased, the battery may need to be replaced.
- Keep this product away from children.
• Store the battery in a cool, dry place.
• All images are for illustrative purposes only.

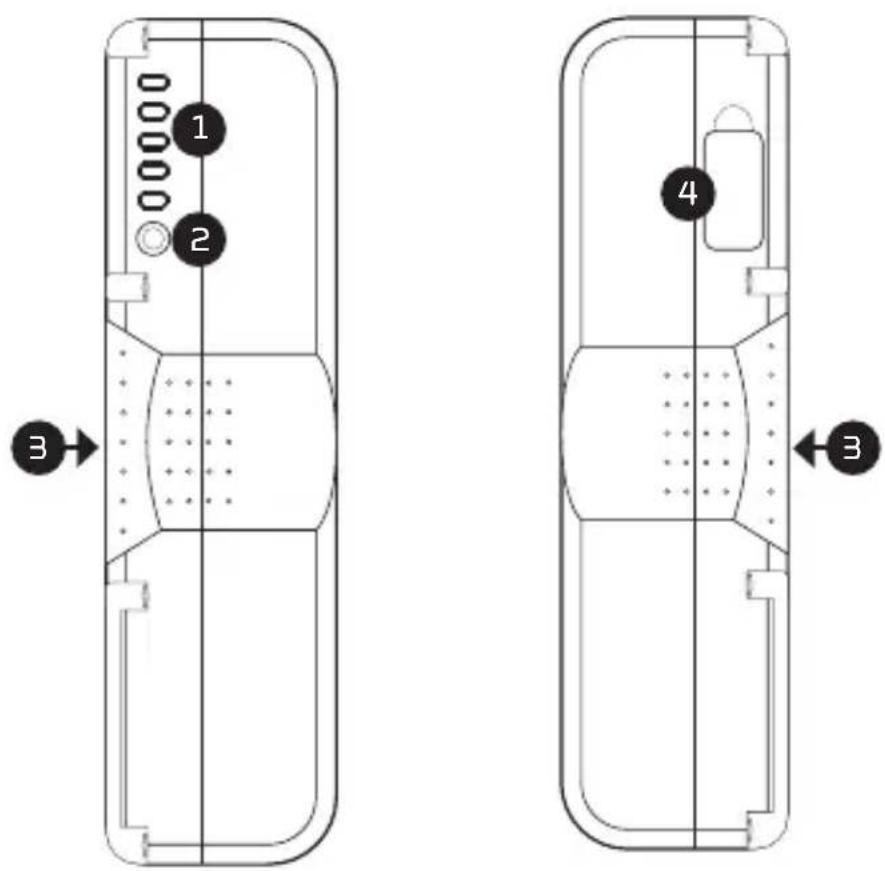

OVERVIEW
- Battery-level LED meter Shows the remaining battery capacity. When the capacity reaches less than 9%, the bottom LED will flash.
- Battery-level check button
- V-Mount/3-stud mount interface
4 D-tap port 12 V, 8.5 A max.
PRODUCT FEATURES
- Five-segment battery-level indicators for real-time monitoring of remaining battery capacity.
• Built-in D-tap connector powers your camera accessories.
• Built-in intelligent control circuit for protection against over-current, low voltage, overheating, and short circuits.
| Mount Type | VM-95-SE: V-MountAM-95-SE: 3-stud mount |
| Chemistry Lithium-ion | |
| Capacity 95 Wh / 6.6 Ah | |
| Output Voltage 14.4 V | |
| Maximum Load 100 W / 8.5 A | |
| Average Runtime Approx 2.5 hr. at 35 W | |
| Accessory Port D-tap | |
| D-Tap Output 12 V / 8.5 A (max) | |
| Dimensions (H × W × D) | 6 × 3.7 × 1.5 in. (15.2 × 9.5 × 3.7 cm) |
| Weight 1.5 lb. (711 g) | |
