USER MANUAL Apollo Twin Universal Audio

A Letter from Bill Putnam Jr.

Thank you for choosing this Apollo Twin X audio interface to become a part of your studio. We know that any new piece of gear requires an investment of time and money — and our goal is to make your investment pay off.

Universal Audio interfaces like Apollo Twin X exemplify a commitment to craftsmanship that we've forged over the past 60 years — from our original founding in the 1950s by my father, Bill Putnam Sr., to our current mission combining the best of both classic analog and modern digital audio technologies.

Starting with its high-quality I/O and superior A/D and D/A conversion, Apollo Twin X's superior sonic performance serves as its foundation.

This is just the beginning however, as Apollo Twin X lets you power the full range of UAD plug-ins in real time, including classic mic preamps, EQs, dynamics processors, reverbs, guitar amps, and much more. With more than 100 acclaimed UAD plug-ins at your fingertips, the sonic choices are limitless.*

At UA, we are dedicated to the idea that technology should serve the creative process, inspiring our customers to go further. These are the ideals my father embodied with his classic designs, and we like to think this spirit lives on today in products like Apollo Twin X.

Please feel free to reach out to us via our website www.uaudio.com, and via our social media channels. We look forward to hearing from you, and thank you once again for choosing Universal Audio.

Sincerely,

Abstract line drawing with curved strokes and a loop (no text or symbols)

Bill Putnam Jr.

*All trademarks are recognized as property of their respective owners. Individual UAD Powered Plug-Ins sold separately.

Table Of Contents

Tip: Click any section or page number to jump directly to that page.

A Letter from Bill Putnam Jr. 2

Introduction 4

World-Class Conversion. Timeless Analog Sound. 4

Apollo Twin X Features 7

Operational Overview....9

About Apollo Twin X Documentation 11

Additional Resources 12

Quick Start 13

Installation Notes 13

Connection Notes 14

Hardware Setup.... 15

Software Setup.... 16

Connect to Input Sources and Monitor System.... 17

Setting Hardware I/O Levels.... 18

Controls & Connectors....19

Controls Overview 19

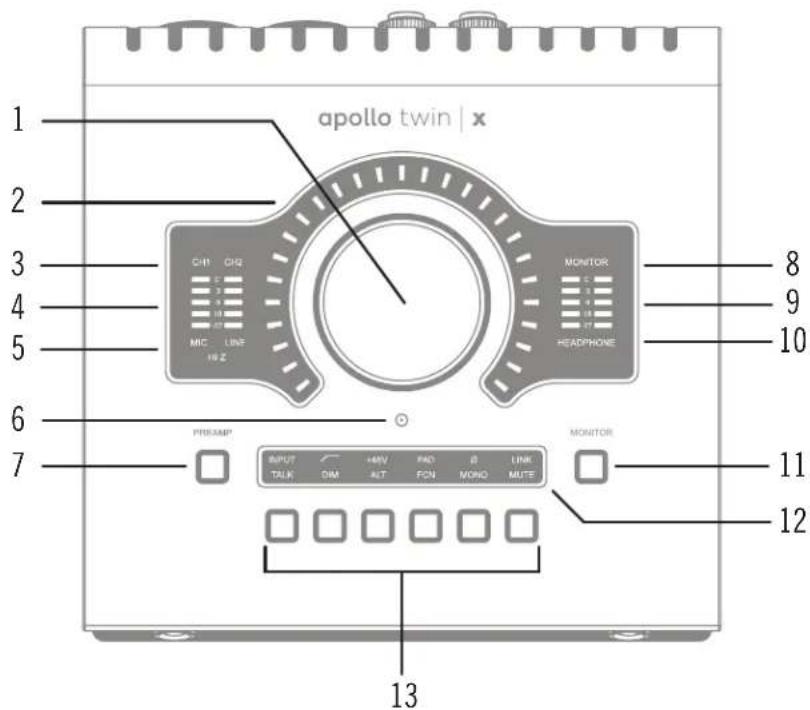

Top Panel 22

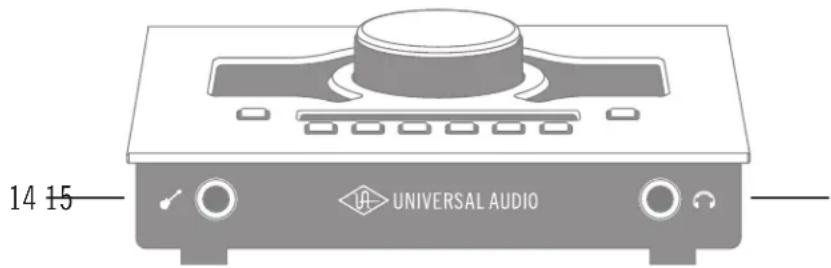

Front Panel 27

Side Panel 27

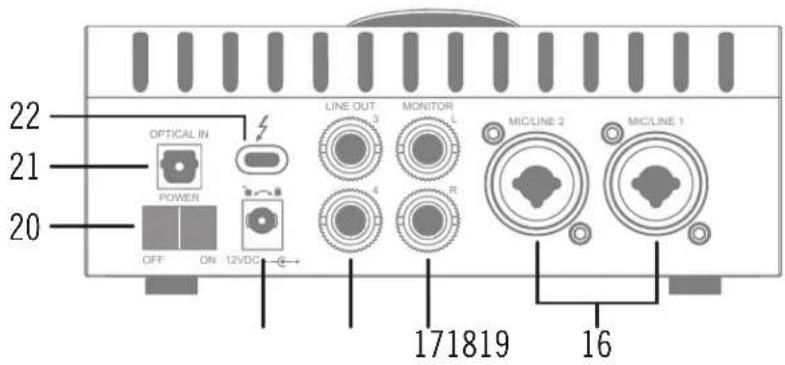

Rear Panel 28

Specifications 30

Hardware Block Diagram 33

Troubleshooting 34

Notices....35

Warranty 35

Maintenance 35

Repair Service 35

Important Safety Information 36

Technical Support....39

Universal Audio Knowledge Base 39

YouTube Support Channel 39

Universal Audio Community Forums 39

Contact Universal Audio Support 39

Introduction

World-Class Conversion. Timeless Analog Sound.

UA Audio Interfaces are the world's most acclaimed professional recording interfaces for Mac and Windows — delivering enhanced audio conversion with the tone, feel, and flow of analog recording.

Built upon UA's 60-year heritage of audio craftsmanship, Apollo Twin X starts with two Unison™-enabled mic preamps. Together with its included bundle of UAD analog emulation plug-ins — which you can track through in real time with UAD-2 DUO or QUAD Core processing — Apollo Twin X is born to make records.

Now You Can:

• Record with world-class Apollo A/D and D/A conversion — as heard on hundreds of hit records
• Cascade up to 4 Apollo interfaces and 6 UAD-2 devices over Thunderbolt, adding DSP and I/O as your studio grows
• Mix with UAD plug-ins like the included Teletronix® LA-2A and 1176 compressors, Pultec® EQs, and 610-B Preamp
• Track with near-zero latency through preamp emulations from Neve®, API®, Manley® and more using Unison™ technology*

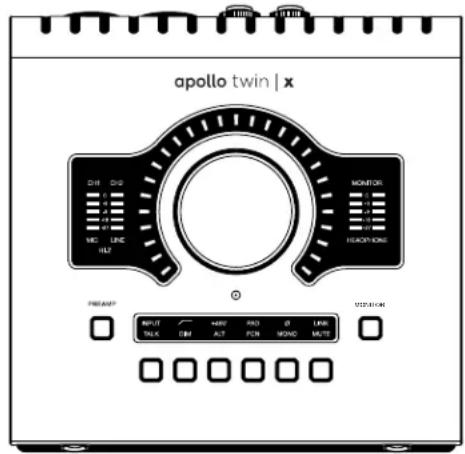

apollo twin | x DHF D20 MONITOR 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3 2.4 2.5 2.6 2.7 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.7 3.8 3.9 4.0 4.1 4.2 4.3 4.4 4.5 4.6 4.7 4.8 4.9 5.0 5.1 5.2 5.3 5.4 5.5 5.6 5.7 5.8 5.9 6.0 6.1 6.2 6.3 6.4 6.5 6.6 6.7 6.8 6.9 7.0 7.1 7.2 7.3 7.4 7.5 7.6 7.7 7.8 7.9 8.0 8.1 8.2 8.3 8.4 8.5 8.6 8.7 8.8 8.9 9.0 9.1 9.2 9.3 9.4 9.5 9.6 9.7 9.8 9.9 10.0

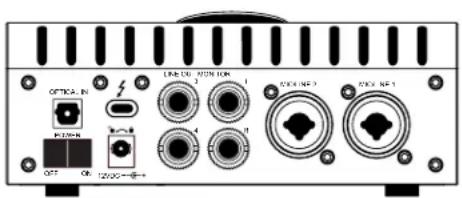

OPTICS IN USB OR VCOM FOR 3 1 VCK INF-3 VCK INF-1 4 1 2 OPT ON 12/00

Illustration of a Universal Audio audio device with no visible text or symbols on the body

Unison Technology: The Genuine Sound of Neve, API & Manley Preamps

Apollo Twin X features two Unison-enabled mic preamps, letting you track through exacting mic preamp emulations from Neve, SSL, API, Manley, and Universal Audio. An Apollo exclusive, Unison technology nails the tone of these sought-after tube and solid state mic pres — including their input impedance, gain stage “sweet spots,” and the component-level circuit behaviors of the original hardware.

The secret to Unison is its hardware-software integration between Apollo's mic preamps and its onboard UAD-2 QUAD or DUO Core DSP Acceleration. Simply place a Unison preamp plug-in on your mic input in Apollo Console software, and it physically reconfigures the Apollo interface's impedance — so you can tap into the classic sounds of the world's most recorded mic preamps.

*Includes the “Realtime Analog Classics” UAD plug-in bundle. Other UAD plug-ins sold separately.

A Full Suite of Classic Analog Processing Onboard

Right out of the box, Apollo Twin X provides a suite of incredible analog emulation plug-ins including the world's only authentic Teletronix LA-2A, 1176LN, Pultec EQs, and the Unison-enabled UA 610-B Tube Preamp. Developed by UA's world-renowned team of algorithm engineers, these Realtime Analog Classics plug-ins set the standard by which all other hardware emulation plug-ins are judged.

From the tube warmth of the Pultec EQ on guitars, to the gentle limiting of the LA-2A on vocals, your recordings will take a giant leap forward in rich, sonically complex analog sound.

Access the World of UAD Powered Plug-Ins

Beyond the included Realtime Analog Classics plug-ins, Apollo Twin X lets you tap into the full library award-winning UAD Powered Plug-Ins — including vintage EQs, Compressors, Reverbs, Tape Machines and more — at near-zero latency, regardless of your audio software's buffer size and without taxing your computer's CPU.

With exclusive emulations from Neve, Studer, Manley, API, Ampex, Lexicon, Fender, and more, ^* it's like having an endless analog studio, right on your desktop. And unlike competing interfaces, these DSP-powered plug-ins are also available in your DAW for mixing.

Next-Generation A/D and D/A Conversion

Of course, the heart of any audio interface is the quality of its conversion. Apollo Twin X improves upon the original Apollo Twin's gold-standard audio quality with completely redesigned A/D and D/A conversion — giving you increased dynamic range and ultra-low THD. This next-generation conversion results in breathtaking clarity, depth, and accuracy in your recordings.

Apollo: The Choice of New-School Professionals

Apollo is the confirmed choice of hit-making professionals, used to record landmark albums by many famous artists. The Apollo range of interfaces has earned numerous industry awards from Sound on Sound, Future Music, and Electronic Musician — as well as the prestigious 2016 TEC Award for computer audio hardware.

Improved Monitoring and Built-In Talkback Mic

The new Apollo Twin X offers greatly improved monitor functionality versus the original Twin — with Mute, DIM, Mono, and ALT speaker switching. It also includes dedicated monitor remote controls and a built-in Talkback mic for easy communication with talent and/or recording slate cues. These features, combined with Apollo Twin X's scalability, make it the new standard for professional desktop recording.

Build a Networked Studio

Apollo Twin X offers up to 10 x 6 simultaneous input/output channels. Thanks to Apollo Expanded software, users of any Thunderbolt-equipped Apollo audio interfaces can combine up to four Apollos and six total UAD-2 devices — adding I/O and DSP as your studio grows. Apollo Twin X makes the perfect intelligent desktop controller for a full Apollo system.

Now with Vintage Amps

Apollo Twin X also includes Unison technology on its front panel instrument input, giving you access to dead-on emulations of guitar and bass amps like the Fender '55 Tweed Deluxe, Marshall Plexi Super Lead 1959, and the Ampeg B-15N Bass Amplifier.

A Sleek, Low-latency App

Console is Apollo Twin X's software control interface. Its intuitive, analog console-style design provides realtime tracking and monitoring with UAD Powered Plug-Ins, Channel Strip presets, Drag & Drop functionality, dynamically resizable windows, and more.

FAIRCHILD AKG lexicon Neve MANLEY TELETRONIX Lapit CHANDLER LIMITED MXR Sonnox Antares AMPEX OCEAN WAY RECORDING Fender PULTEC EMT Marshall Ampesq STUDER Capitol Eventide EDEN dbx PROFESSIONAL PRODUCTS Solid State Logic SOUND | Vision spl shadow hills helios eIMS Little Labs moog™ KORG

Apollo Twin X Features

Key Features

• Best in class audio quality with improved 24-bit/192 kHz conversion
• Realtime UAD Processing — monitor and track through vintage compressors, EQs, tape machines, and guitar amp/pedal plug-ins with near-zero latency
• Two premium mic/line preamps; two line outs; front-panel Hi-Z instrument input and headphone output
• Unison™ technology for stunning models of classic mic preamps and guitar amps
  • Built-in talkback microphone for communication and recording
• Monitor remote functions can replace dedicated monitor controllers
  • UAD-2 DUO or QUAD DSP processing onboard
• Thunderbolt 3 connection for blazing-fast PCIe speed on modern computers
• Uncompromising analog design, superior components, and premium build quality throughout
• Cascade up to four Thunderbolt-equipped Apollos and six total UAD-2 devices — adding I/O and DSP as needed

All Features

Audio Interface

• Sample rates up to 192 kHz at 24-bit word length (96 kHz max on S/PDIF inputs)
• Up to 10 x 6 simultaneous input/output channels

- Two channels of analog-to-digital conversion via:

• Two balanced mic/line inputs
  • One Hi-Z instrument input

- Six channels of digital-to-analog conversion via:

• Digitally-controlled stereo monitor outputs
- Stereo headphone outputs
• Line outputs 3-4

- Up to eight channels of digital inputs via:

• Eight channels ADAT optical with S/MUX for high sample rates, or
• Two channels S/PDIF optical with sample rate conversion

Microphone Preamplifiers

• Two high-resolution, ultra-transparent, digitally-controlled analog mic preamps
• Front panel and software control of all preamp parameters
• Low cut filter, 48V phantom power, 20 dB pad, polarity inversion, and stereo linking

Monitoring

• Independently-addressable stereo monitor outputs
• Independently-addressable stereo headphone outputs
• Independently-addressable line outputs 3-4 can be used for additional cue mix
• Front panel control of level, mute, dim, mono, alternate speakers, and talkback
  • Built-in talkback microphone for communication and recording
• All outputs are DC coupled

UAD-2 Inside

• Two (DUO) or four (QUAD) SHARC ^ DSP processor cores onboard
  • Realtime UAD Processing on all analog and digital inputs
• Same features and functionality as other UAD-2 devices when used with a DAW
• Complete UAD Powered Plug-Ins library is available online

Software

Console application:

• Enables tracking and/or monitoring with Realtime UAD Processing
• Remote control of Apollo Twin X features and functionality
  • Virtual I/O for routing DAW tracks through Console
• Two independent stereo Auxiliary buses

Console Recall plug-in:

• Saves Apollo Twin X configurations inside DAW sessions for easy recall
  • Facilitates control of Apollo Twin X monitoring features from within the DAW
  • VST, RTAS, AAX 64, and Audio Units plug-in formats

UAD Meter & Control Panel application:

- Configures global UAD settings and monitors system usage

Other

• Attractive and durable desktop form factor
• Locking power supply prevents accidental disconnection
• Easy firmware updates
  • One year warranty includes parts and labor

Package Contents

• Apollo Twin X unit
• Power supply with (3) region-specific AC cables (Changeable AC cables for USA, UK, and EU)
  • Getting Started URL card

Operational Overview

Audio Interface

First and foremost, Apollo Twin X is a premium 10 x 6 Thunderbolt 3 audio interface with world-class 24-bit/192 kHz audio conversion. Apollo Twin X connects to the outputs and inputs of other audio gear, and performs analog-to-digital (A/D) and digital-to-analog (D/A) audio conversions on the gear's signals. The digital audio signals are routed into and out of the host computer via the high-speed PCIe protocol, which is carried on a single Thunderbolt 3 cable.

Apollo Twin X leverages Universal Audio's expertise in DSP acceleration, UAD Powered Plug-Ins, and analog hardware design by integrating the latest cutting edge technologies in high-performance A/D-D/A conversion, DSP signal reconstruction, and connectivity. Apollo Twin X acts as an audio interface with integrated DSP effects for tracking and monitoring, a fully integrated UAD-2 DSP accelerator for mixing and mastering, as well as a complete monitoring controller.

About Realtime UAD Processing

Apollo Twin X has the ability to run UAD Powered Plug-Ins in realtime. Apollo's groundbreaking DSP + FPGA technology enable UAD plug-ins to run with latencies in the sub-2ms range, and multiple plug-ins can be stacked in series without additional latency. Realtime UAD Processing facilitates the ultimate sonic experience while monitoring and/or tracking.

Note: Apollo Twin X, as with other UAD-2 devices, can only load UAD Powered Plug-Ins, which are specifically designed to run on UAD-2 DSP accelerators. Native (host CPU-based) plug-ins cannot run on the UAD-2 DSP.

Console Software

Important: Console is integral to unleashing the power of Apollo Twin X. For complete details about how to use Console and Realtime UAD Processing, refer to the Apollo Software Manual.

The included Console companion software application runs on the host computer and is used to control Apollo Twin X mixing and input monitoring with Realtime UAD Processing, access the audio interface I/O settings, and more. Console's analog-style workflow is designed to provide quick access to the most commonly needed features in a familiar, easy-to-use mixer interface.

Realtime UAD Processing is a special function that is available only within Console. All of Apollo Twin X's analog and digital inputs can perform Realtime UAD Processing simultaneously, and Console inputs with (or without) Realtime UAD Processing can be routed into the DAW for recording.

Console controls Apollo Twin X's digital mixer so you can monitor Apollo Twin X's inputs (with or without Realtime UAD Processing) without using any other audio software such as a DAW.

UAD Powered Plug-Ins in a DAW

Apollo Twin X and UAD plug-ins can also be used with a DAW without the use of Console. UAD plug-ins loaded within the DAW operate like other (non-UAD) plug-ins, except the processing occurs on the Apollo Twin X DSP instead of the host computer's processor. In this scenario, UAD plug-ins are subject to the latencies incurred by I/O buffering.

For details about using UAD Powered Plug-Ins in a DAW, see the UAD System Manual.

Standalone Use

Although the Console application is required to utilize all Apollo Twin X features, the hardware unit can be used as a digital mixer with limited functionality without a Thunderbolt 3 connection to a host computer.

All currently active I/O assignments, signal routings, and monitor settings are saved to internal firmware when Apollo Twin X is powered down and persist when power is re-applied. Therefore the last-used settings are always available even when a host computer is not connected.

Note that UAD plug-in instantiations are not retained on power down, because the plug-in files reside on the host computer. However, if UAD plug-ins are active when Apollo Twin X's connection to the host system is lost (if the Thunderbolt 3 cable is unplugged), the current UAD plug-in configurations remain active for processing until Apollo Twin X is powered down.

Note: Standalone use is unavailable when cascading multiple Apollo units.

About Apollo Twin X Documentation

Documentation for Apollo Twin X and UAD Powered Plug-Ins are separated by areas of functionality, as described below. The user manuals are placed on the system drive during software installation. They can also be downloaded at help.uaudio.com.

Apollo Manual Files

Note: All manual files are in PDF format. PDF files require a free PDF reader application such as Preview (included with macOS) or Edge (included with Windows 10).

Apollo Hardware Manuals

Each Apollo model has a unique hardware manual. The Apollo hardware manuals contain complete hardware-related details about one specific Apollo model. Included are detailed descriptions of all hardware features, controls, connectors, and specifications.

Note: Each hardware manual contains the unique Apollo model in the file name.

Apollo Software Manual

The Apollo Software Manual is the companion guide to the Apollo hardware manuals. It contains detailed information about how to configure and control all Apollo software features using the Console application, Console Settings window, Console Recall plug-in, and Talkback. Refer to the Apollo Software Manual to learn how to operate the software tools and integrate Apollo's functionality into the DAW environment.

Note: Each Apollo system connection type (Thunderbolt, FireWire, USB) has a unique software manual.

UAD System Manual

The UAD System Manual is the operation manual for Apollo's UAD-2 functionality and applies to the entire UAD-2 product family. It contains detailed information about installing and configuring UAD devices, the UAD Meter & Control Panel application, buying optional plug-ins at the UA online store, and more. It includes everything about UAD except Apollo-specific information and individual UAD plug-in descriptions.

UAD Plug-Ins Manual

The features and functionality of all individual UAD Powered Plug-Ins developed by Universal Audio are detailed in the UAD Plug-Ins Manual. Refer to this document to learn about the operation, controls, and user interface of each UAD plug-in title that is developed by UA.

Direct Developer Plug-In Manuals

UAD Powered Plug-Ins includes plug-in titles created by our Direct Developer partners. Documentation for these 3rd-party plug-ins are separate files written and provided by the plug-in developers. The file names for these plug-in manuals are the same as the plug-in titles.

Accessing Installed Documentation

All user manuals are placed on the drive during software installation. Either of these methods can be used to access installed documentation:

• Choose Documentation from the Help menu within the Console application.
• Click the Product Manuals button in the Help panel within the UAD Meter & Control Panel application.

Manuals are also available online at: help.uaudio.com

Host DAW Documentation

Each host DAW software application has its own particular methods for configuring and using audio interfaces and plug-ins. Refer to the host DAW's documentation for specific instructions about using audio interface and plug-in features within the DAW.

Additional Resources

For additional resources, or if you need to contact Universal Audio for assistance, see the Technical Support page.

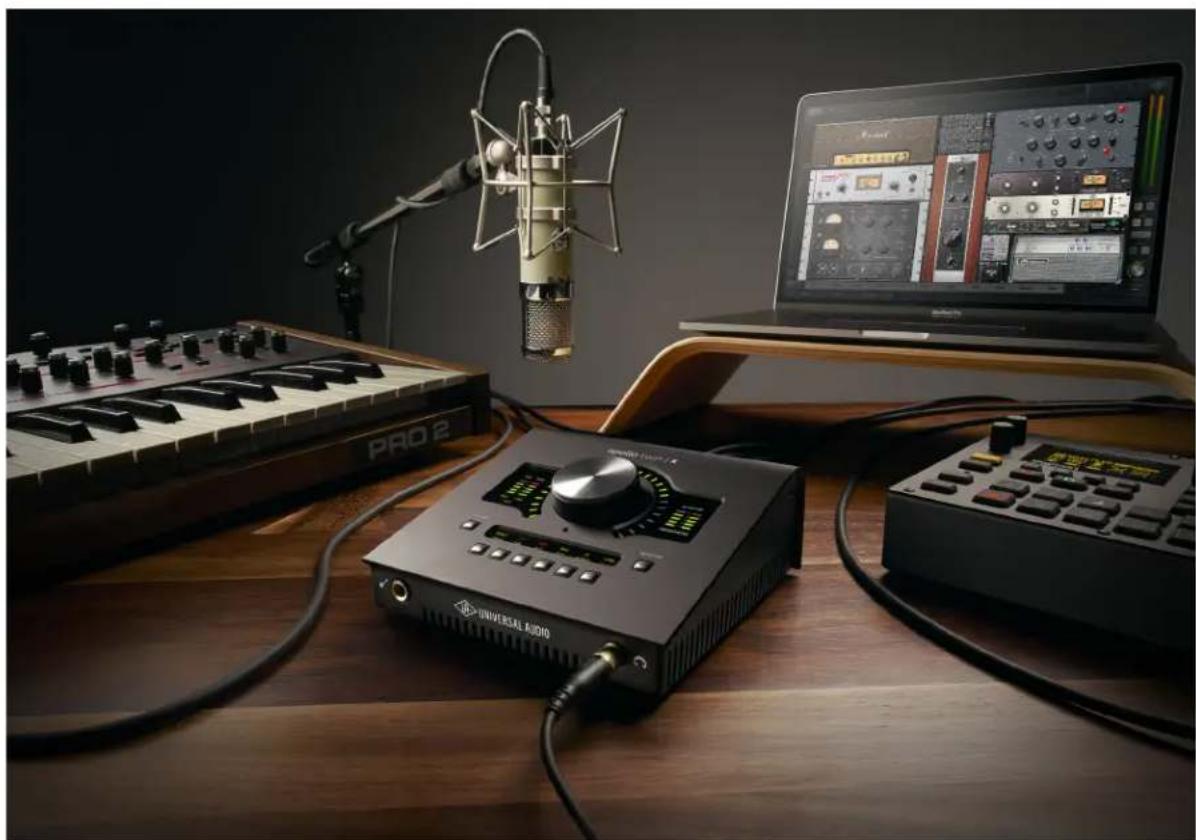

Studio setup with audio equipment including a CD mixer, a laptop displaying multiple audio player screens, and a microphone on top (no visible text or symbols)

Quick Start

Before you can use Apollo Twin X, you need to complete these steps:

1. Connect to your computer with a Thunderbolt 3 cable (not included).

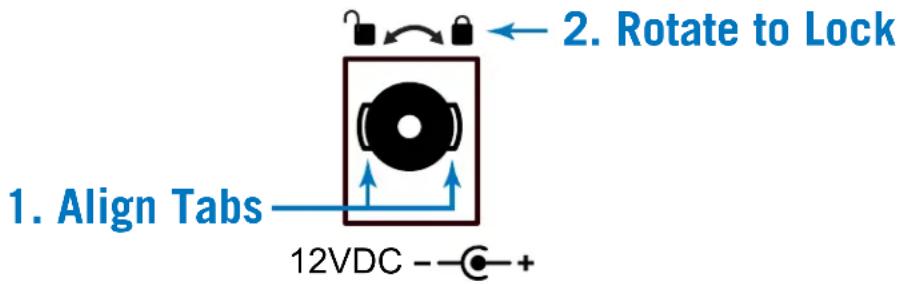

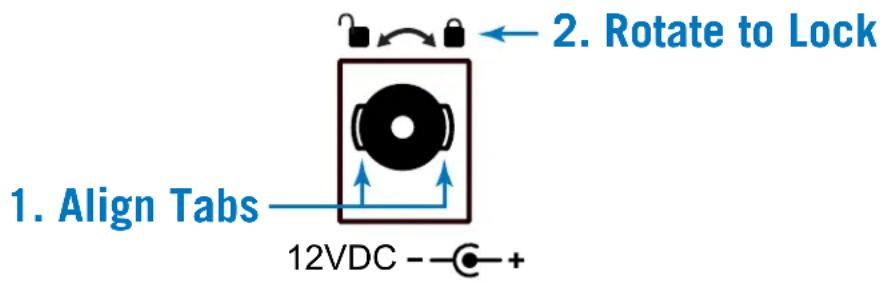

2. Connect to AC power.
3. Download and install the latest UAD software.
4. Register your Apollo hardware.
5. Authorize your UAD plug-ins.

Additionally, you'll want to learn these essential Apollo Twin X operations:

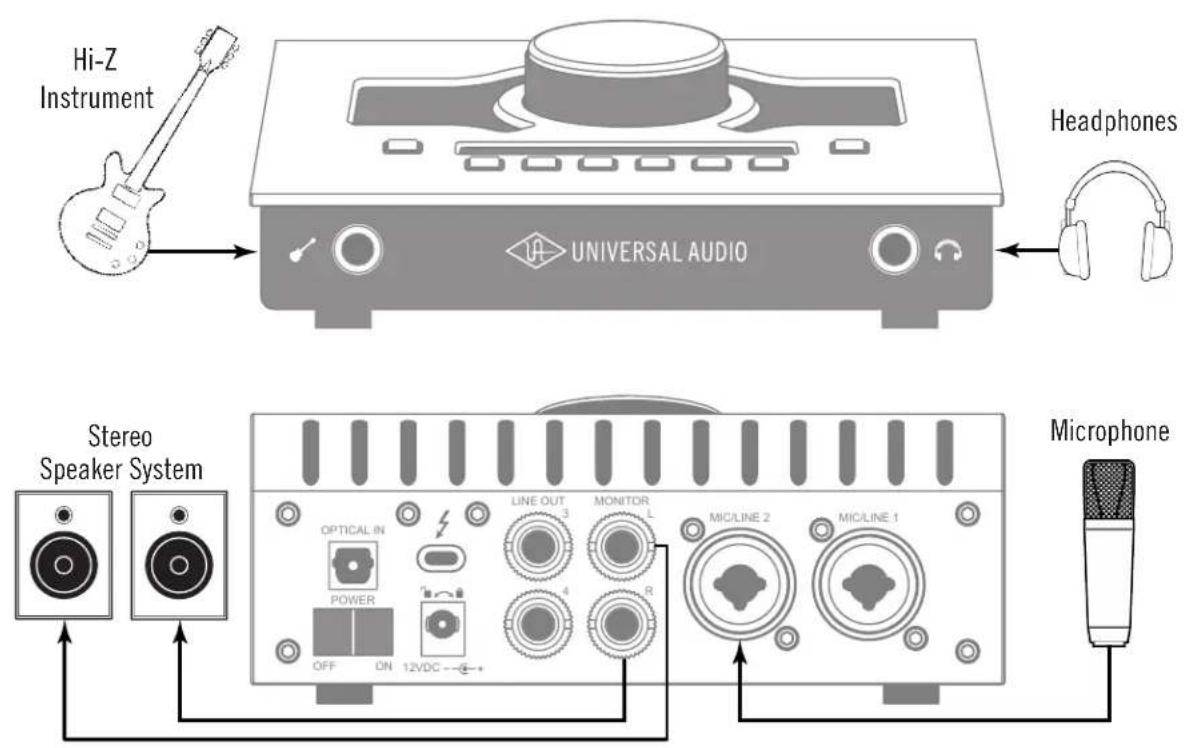

• Connect to Input Sources and Monitor System – How to connect your audio gear.
• Setting Hardware I/O Levels – Learn how to adjust Mic/Line/Instrument input gain levels and monitor/headphone output volume levels.

This chapter will guide you through these steps. For assistance, see the Technical Support page.

Installation Notes

• Locate the interface on a flat surface so its feet will maintain airflow beneath the unit.
• The location should be sturdy enough to securely hold its weight and withstand the pressure of operating the top panel controls.
• Allow space at the front and rear of the unit for cable connections.
• Do not block the cooling vents on the bottom or sides of the unit.

• As with any sound system, the following steps are recommended to avoid audio spikes in your speakers and headphones:

• Power on the speakers last, after all other devices (including Apollo Twin X) are powered on.

• Power off the speakers first, before all other devices (including Apollo Twin X) are powered off.
• Remove headphones from ears before powering Apollo Twin X on or off.

Connection Notes

Thunderbolt 3

• Apollo Twin X must be connected via a Thunderbolt 3 cable (not included) to a computer that has an available Thunderbolt 3 port.*
• Apollo Twin X cannot be bus powered via Thunderbolt 3. The included external power supply must be used.

*Note: With Mac computers only, Apollo Twin X can be connected to Thunderbolt 1 and Thunderbolt 2 computer ports via the Apple Thunderbolt 3 to Thunderbolt 2 adapter. Visit help.uaudio.com for details.

About Thunderbolt 3 Ports and Cables

Important: Although Thunderbolt 3 always uses USB-C connectors, not all USB-C ports are Thunderbolt 3 ports. Similarly, not all USB-C cables are Thunderbolt 3 cables. Always connect Apollo Twin X to a Thunderbolt 3 port with a Thunderbolt 3 cable.

USB-C is not Thunderbolt 3

Thunderbolt 3 uses USB-C connections to transfer data and power. However, USB-C is simply a connector type; it doesn't determine the type of data used by the connector. For example, USB-C connections can be used for Thunderbolt 3, USB 3.1, and other data protocols, so USB-C connections are not always interchangeable.

Does your USB-C connector support Thunderbolt 3?

To determine if a USB-C port or cable connector supports Thunderbolt 3, look for the Thunderbolt icon. The Thunderbolt icon on a USB-C port or cable means the connector supports Thunderbolt 3. Alternately, confirm Thunderbolt 3 compatibility with the device and/or cable manufacturer.

Close-up of a black USB cable with a lightning bolt symbol on its tip (no text or labels visible)

Close-up of a black electronic device's rear panel showing a stylized battery icon (no text or symbols)

Thunderbolt icon on USB-C cable (left) and USB-C port (right)

Apollo Expanded

- When more I/O and/or DSP is needed, up to four Apollo interfaces and six UAD devices total can be cascaded together via Thunderbolt in a multiple-unit configuration. For complete details about multi-unit cascading, refer to the Apollo Thunderbolt Software Manual.

Note: A maximum of one UA desktop audio interface model (Arrow, Apollo Twin, Apollo Twin MkII, Apollo Twin X, or Apollo x4) can be combined within a single Thunderbolt system.

Hardware Setup

Connect to Computer

1. Connect a Thunderbolt 3 cable (not included) to the Thunderbolt 3 port on Apollo Twin X's rear panel.
2. Connect the other end of the Thunderbolt 3 cable to an available Thunderbolt 3 port* on the computer.

*Note: With Mac computers only, Apollo Twin X can be connected to Thunderbolt 1 and Thunderbolt 2 ports by using the Apple Thunderbolt 3 to Thunderbolt 2 Adapter in conjunction with a Thunderbolt 2 cable. With Windows computers, connections to Thunderbolt 1 or Thunderbolt 2 ports are not supported.

Connect to Power

Caution: Before powering Apollo Twin X on or off, lower the volume of the monitor speakers (if connected) and remove headphones from your ears.

1. Connect the included power supply to an AC outlet (Apollo Twin X cannot be bus powered).
2. Connect the locking power supply barrel to the rear panel of Apollo Twin X. Align the two tabs on the power cable's connector to the notches on the input, then rotate the barrel clockwise to prevent accidental disconnection.

Important: After ensuring the locking barrel tabs are aligned with the chassis slots and the barrel is fully inserted, rotate the barrel to secure the connector.

1. Align Tabs 12VDC --●-+

1. Apply power to Apollo Twin X using the rear panel's power switch. Apollo Twin X is now ready for Software Setup.

Software Setup

Note: Items on this overview page are detailed in the Apollo Software Manual. See About Apollo Twin X Documentation for related information.

System Requirements

All system requirements must be met for Apollo Twin X to operate properly. Before proceeding with installation, see the system requirements in the Apollo Software Manual.

Software Installation, Registration, and Authorization

UAD software must be installed to use Apollo Twin X and UAD plug-ins. The UAD Powered Plug-Ins software installer places the software onto the computer's startup drive. After installation, you'll register your hardware and authorize your UAD plug-ins.

Important: For optimum results, connect and power Apollo Twin X before installing the UAD software.

Our Web Pages Guide You

The Universal Audio website guides you through the initial process of UAD software installation, hardware registration, and UAD plug-in authorization. These procedures are also detailed in the Apollo Software Manual.

To begin the installation, registration, and authorization process, visit:

www.uaudio.com/register

If you've already registered your Apollo Twin X but want to update to a newer version of UAD software, the latest software is available at: www.uaudio.com/downloads

System Configuration

Complete details about setting up the Apollo Twin X system, including how to integrate with a DAW and related information, are included in the Apollo Software Manual.

Console Application

The companion Console application is the software interface for the Apollo Twin X hardware. Console controls Apollo Twin X and its digital mixing, monitoring, and Realtime UAD Processing features. Console is also used to configure Apollo Twin X's I/O settings such as sample rate, clock source, and reference levels.

For complete details about how to operate Console, refer to the Apollo Software Manual.

UA Support Videos

Many instructional videos are available to help you get started with Apollo Twin X. For assistance, see the Technical Support page.

Connect to Input Sources and Monitor System

One typical Apollo Twin X audio setup is illustrated below. For complete details about all of Apollo Twin X's connectors and controls, see Controls & Connectors.

Hi-Z Instrument UNIVERSAL AUDIO Headphones Stereo Speaker System Optical IN LINE OUT 3 MONITOR 4 R OFF ON 12VDC - MIC/LINE 2 MIC/LINE 1 Microphone

Typical Apollo Twin X audio connections. In this example, the mic is connected to channel 2, so the mic and the instrument (which connects to channel 1) can be used at the same time.

Setting Hardware I/O Levels

This section explains how to set input gain levels for the hardware inputs (mic, line, and Hi-Z) and adjust volume levels for the hardware outputs (monitors and headphones). Refer to the Top Panel illustration for the control names and numbers mentioned below.

Caution: Before proceeding, lower the volume of the monitor speakers and remove headphones from your ears.

Set Input Gains

1. Select the input channel to be adjusted by pressing the PREAMP button (7) until the Channel Selection Indicator (3) displays the channel (CH1 or CH2).
2. Select the input type (mic or line) by pressing the INPUT button (13-a) until the Input Type indicator (5) displays the desired input jack* (see note below).
3. Adjust the channel's gain by rotating the LEVEL knob (1) until the input meter for the channel (4) approaches maximum, but does not reach the red clip LED when the loudest input signal is present. If the level is too high to avoid clipping (when the red "C" LED illuminates), enable the PAD (13-d).
4. To set the input gain for the other input channel, repeat steps 1 - 3.

Adjust Output Volumes

1. Select the output volume to be adjusted (monitor or headphone) by pressing the MONITOR button (11) until the Monitor Selected (8) or Headphone Selected (10) indicator is lit.
2. Set the volume level by carefully increasing the LEVEL knob (1) until the desired volume is reached (you may need to adjust the volume of the speaker system).
3. To set the other output volume (monitor or headphone), repeat steps 1 - 2.

Mute (and Unmute) Monitor Outputs

1. Select the Monitor outputs by pressing the MONITOR button (11) until the Monitor Selected (8) indicator is lit.
2. Press the MUTE button (13-l) to mute the monitor outputs. The Monitor Selected Indicator (8) is red when the monitors are muted. When in MONITOR Mode, the Volume Level Indicator LEDs (2) are also red.
3. To toggle the monitor mute state, press the MUTE button (13-I) whenever Monitor (8) is selected.

Notes:

• *The Hi-Z input is automatically selected, overriding the channel 1 Mic and Line inputs, when a 14 " mono TS (tip-sleeve) plug is connected to the Hi-Z Instrument jack (14) on the front panel.
• To control both channels simultaneously when a stereo source is connected, press the LINK button (13-f) when an input is selected (3).
• Line outputs 3 & 4 are accessed and controlled via software only (Console or DAW).
• Refer to the Apollo Software Manual to learn how to configure the audio interface settings, use the Console application and Realtime UAD Processing, and more.

Controls & Connectors

Complete details about the Apollo Twin X hardware controls and all connector jacks on the front and rear panels are provided in this chapter.

Note: To learn how to set input gain levels (mic, line, and Hi-Z) and output volumes (monitors and headphones), see Setting Hardware I/O Levels in the Quick Start chapter.

Controls Overview

Some Apollo Twin X controls have multiple functions. The function of each control depends on the current operating mode and the current settings within that mode. To control a particular function, the control must be activated.

Operating Modes

Apollo Twin X's top panel has two operating modes: Preamp and Monitor. The function and availability of the top panel controls vary depending on the active operating mode. The active mode is selected with the PREAMP and MONITOR buttons. Each mode is explained in greater detail below.

Note: All top panel functions can be operated concurrently (without switching modes) from within the companion Console software application. See the Apollo Software Manual for details.

PREAMP Mode

When Apollo Twin X is in Preamp mode, the top panel controls are related to input functions only. To adjust input functions, press the PREAMP button to enter Preamp mode and activate the input channel controls.

Important: Apollo Twin X must be in Preamp mode to modify preamp gain levels and other input options.

Note: Output functions (monitor and headphone) cannot be performed in Preamp mode. Press the MONITOR button to perform output functions.

Preamp Channels

Apollo Twin X has two independent analog input channels for A/D conversion. Each input channel has a preamplifier. The input channel preamplifiers are independently controlled when in Preamp mode.

Preamp Controls

Apollo Twin X has one set of preamp input channel controls. The input channel controls adjust all preamp functions for the currently selected input channel only.

Selected Channel

The currently selected input channel is shown by the CH1 and CH2 indicators at the upper left of the main display panel, above the input meters. When a channel is selected, its indicator is lit.

Note: The preamp controls adjust the functions for the currently selected channel.

Changing Channels

When in Preamp mode, press the PREAMP button to change the selected channel so its controls can be adjusted. Press PREAMP again to switch back to the other input channel.

Input Source

The Mic, Line, or Hi-Z input source is routed into the channel's preamplifier. The active input source jack is shown by the indicators below the input meters. When an input is selected, its indicator is lit.

The MIC (XLR) or LINE ( 14 ) combo inputs on the rear panel are selected by the pressing the INPUT button when the channel is selected. The Hi-Z input (available on channel 1 only) is selected automatically when an instrument cable is plugged into the Hi-Z input on the front panel.

Note: Only one input jack at a time (Mic, Line, or Hi-Z) can be used as a channel's input source.

Preamp Gain

The Level knob adjusts the amount of preamp gain (input signal level) for the currently selected input channel.

Preamp Options

Each input channel has a set of preamp options. The preamp options for the currently selected input channel are activated using the row of six buttons when in Preamp mode.

The current state of the preamp options are indicated in the upper row of the options display panel above the six option buttons. Available options are dim when inactive, bright when enabled, and unlit when unavailable.

Note: Not all preamp options are available with all input types. For specific details, see the Top Panel Controls section later in this chapter.

MONITOR Mode

When Apollo Twin X is in Monitor mode, the top panel controls are related to output functions only. To adjust output functions, press the MONITOR button to enter Monitor mode and activate the monitor and headphone controls.

Note: Input functions cannot be performed in Monitor mode. Press the PREAMP button to perform input functions.

Important: Apollo Twin X must be in Monitor mode to change the volume of the monitor/headphone outputs and other output options.

Stereo Outputs

Apollo Twin X has two stereo outputs that can be controlled with the top panel hardware: Monitor and Headphone. These stereo outputs are controlled when in Monitor mode.

Note: Line outputs 3 and 4 are controlled with software only.

Stereo Output Controls

The Level knob is used to set the volume level for each stereo output independently. The Level knob adjusts the volume for the currently selected stereo output. By switching the selected output with the MONITOR button, the other output volume can be adjusted.

Stereo Output Selection

The currently selected stereo output is shown by the MONITOR and HEADPHONE indicators at the right of the main display, above and below the output meters. When a stereo output is selected, its indicator is lit.

Note: The Level knob adjusts the volume for the currently selected stereo output.

Changing Stereo Outputs

When in Monitor mode, press the MONITOR button to change the selected stereo output. Press MONITOR again to switch to the other output.

Monitor Options

Apollo Twin X has monitor options that perform the functions of a dedicated monitor controller. The monitor options are controlled using the row of six buttons when in MONITOR Mode.

The current state of the monitor options are indicated in the lower row of the options display panel above the option buttons. Available options are dim when inactive, bright when enabled, and unlit when unavailable.

Note: Not all monitor options are always available. For specific details, see the Top Panel Controls section later in this chapter.

Top Panel

Refer to the illustration below for numbered control descriptions in this section.

apollo twin | x 1 2 3 4 5 6 7 8 9 10 MIC LINE 19 Z MONITOR HEADPHONE PHRAMP INPUT TALK +48V DIM ALT PAN NONO MUTE MONITOR 11 12 13

Top panel elements

(1) Level Knob

The Level knob controls multiple functions. The knob's current function is selected with the PREAMP (7) and MONITOR (11) buttons.

When in PREAMP Mode, rotate clockwise to increase the amount of preamp gain for the currently selected input channel (3). When in MONITOR Mode, rotate clockwise to increase the monitor or headphones volume, depending on the stereo output currently selected (8 or 10) with the MONITOR (11) button.

Unison Integration

The Level knob can also be used to control Unison-enabled UAD preamp, guitar/bass amp, and pedal plug-in parameters. See the Apollo Software Manual for complete Unison details.

(2) Preamp Gain & Volume Level Indicator LEDs

The LEDs surrounding the Level knob indicate the relative level of the selected function (either input channel preamp gain or monitor/headphone volume).

Note: The Volume Level Indicator LEDs are RED when MONITOR (8) is selected and MUTE (13-I) is enabled.

(3) Channel Selection Indicators

The currently selected input channel is indicated by the lit channel name above its input meter (CH1 or CH2). Press the PREAMP button (7) to switch between channels 1 & 2.

(4) Input Meters

The two input meters display signal levels for each of the analog input channels. Reduce a channel's preamp gain (see Set Input Gains) if its red clip LED illuminates.

(5) Input Source Indicators

These indicators show which input source jack (MIC, LINE, or HI-Z) is active for the selected input channel. Use the Input Select button (13-a) to switch between the MIC (XLR) and LINE ( 14 ) rear panel combo jack inputs. The Hi-Z input is selected automatically when an instrument cable is plugged into the Hi-Z jack on the front panel.

(6) Talkback Microphone

The built-in talkback mic is located inside of this hole. The talkback function is configured in the companion Console software and can be activated with the TALK button (13-g) when Monitor mode is active.

Caution: The talkback microphone is sensitive. To avoid equipment damage, do not insert any object into the mic hole, apply pressurized air into the mic hole, or use a vacuum over the mic hole.

(7) PREAMP Button

Press this button to enter PREAMP Mode and activate the input channel controls. Press again to alternate the selected input channel (3) between CH1 and CH2.

(8) MONITOR Selected Indicator

When MONITOR is lit, the Level knob (1) controls volume of the monitor outputs (16). Press the MONITOR button (11) to activate the monitor controls (you may need to press it more than once).

Note: The MONITOR indicator is RED when the monitor outputs are muted.

(9) Stereo Output Meters

These meters display the main stereo signal output bus levels.* The main output bus levels are independent of monitor and headphone volume levels. Reduce levels feeding the output(s) if a red “C” (clip) LED at the top of the Output Meters illuminates.

*Exception: If HEADPHONE is currently selected on Apollo Twin X and the Headphone Source within the CUE OUTPUTS window in Console is set to HP, these output meters indicate the level being sent to the headphone bus via Console's headphone sends and/or the DAW.

(10) Headphone Selected Indicator

When HEADPHONE is lit, the Level knob (1) controls the volume of the headphones output (14). Press the MONITOR button (9) to activate the headphones volume control (you may need to push it twice).

(11) Monitor Button

Press this button to enter MONITOR Mode and activate the monitor and headphone controls. Press again to alternate between control of monitor and headphone volumes with the Level knob (1).

Note: Indicators (8) and (10) determine which volume (MONITOR or HEADPHONE) can be controlled with the Level knob (1).

(12) Options Display

This panel displays the state of the preamp and monitor options, which are controlled by the six Option Buttons (13).

In Preamp mode, the upper row displays the preamp options and the lower row is unlit. In Monitor mode, the lower row displays the monitor options and the upper row is unlit.

(13) Option Buttons

Each of the six Option Buttons has dual functions. In Preamp mode, the buttons control the preamp options for the currently selected input channel. In Monitor mode, the buttons control the monitor and headphone options. The individual options for both modes are detailed in this section.

Unison Integration

In Preamp mode, the Option Buttons can also be used to control Unison-enabled UAD preamp, guitar/bass amp, and pedal plug-in parameters. See the Apollo Software Manual for complete Unison details.

INPUT TALK DIM +48V ALT PAD FCN Ø MONO LINK MUTE

Options Display (12) and Option Buttons (13)

Preamp Options

When in PREAMP Mode, the Option Buttons control the preamp options (described as a - f below) for an input channel when that channel is selected (3). Press the PREAMP button (7) to enter Preamp mode and change the preamp options for the currently selected channel.

A preamp option is active when its indicator in the upper row of the Options Display (12) is lit, and inactive when its indicator is dim. If the indicator is unlit, the option is unavailable.

Note: In MONITOR mode, the preamp options cannot be modified and the upper row of the Options Display is unlit.

a b c d e f INPUT +48V PAD ∅ LINK

Preamp options

(a) INPUT Select

Selects the active input source jack for the currently selected channel. The current selection is displayed by the Input Source Indicators (5).

Press to alternate between the MIC (XLR) and LINE ( 14 ) combo inputs on the rear panel. The Hi-Z input is selected automatically whenever a 14 ” mono TS (tip-sleeve) plug is connected to the front panel’s Hi-Z Instrument jack (14). If MIC/LINE cannot be selected, unplug the cable in the Hi-Z jack.

Note: Hi-Z input is available for channel 1 only.

(b) FILTER

Enables a low cut (high pass) rumble filter with a cutoff frequency of 75 Hz.

(c) +48V

Enables +48-volt phantom power for the mic input. Phantom power is typically needed for condenser microphones. +48V is available for the microphone (XLR) inputs only.

Caution: To avoid potential equipment damage, disable +48V phantom power on the input channel before connecting or disconnecting its XLR input.

(d) PAD

Attenuates (lowers) the XLR mic input signal level by 20 dB. PAD is not available for the line inputs or the Hi-Z instrument input.

(e) POLARITY ∅

Inverts the polarity (aka “phase”) of the input signal. Polarity inversion can help reduce phase cancellations when more than one microphone is used to record a single source.

(f) LINK

Links input channels 1 and 2 as a stereo pair. When linked, preamp control adjustments are applied to both channels.

Note: Only the same type of inputs can be linked (Mic+Mic or Line+Line). The Hi-Z input cannot be linked to a Mic or Line input.

Monitor Options

When in MONITOR Mode, the Option Buttons control the monitor options (described as g – h below). Press the MONITOR button (11) to enter Monitor mode and enable the monitor options.

A monitor option is active when its indicator in the lower row of the Options Display (12) is lit, and inactive when the indicator is dim. If the indicator is unlit, the option is unavailable.

The TALK, DIM, ALT, and FCN functions are configured in the companion Console software application. See the Apollo Software Manual for details.

Note: In Preamp mode, the monitor options cannot be modified and the lower row of the Options Display is unlit.

TALK DIM ALT FCN MONO MUTE ghijkl

Monitor options

(g) TALK

Activates the built-in talkback microphone and the DIM function. Press and release the button quickly to latch the function. To momentarily activate the function and deactivate when the button is released, press for longer than 0.5 seconds.

(h) DIM

Reduces the monitor output volume level. The amount of DIM attenuation is set in the companion Console software.

Press and release the button quickly to latch the function. To momentarily activate the function and deactivate when the button is released, press for longer than 0.5 seconds.

(i) ALT (Alternate)

Switches the main monitor mix to an alternate set of outputs. This function is only available when the ALT COUNT setting in the Settings>Hardware panel within the companion Console software is set to a non-zero value.

(j) FCN (Function)

This switch can be assigned to control one of three monitoring functions. FCN is only available when Apollo Twin X is combined with other Thunderbolt-equipped Apollo models in a multi-unit cascading configuration.

(k) MONO

Sums the left and right signals of the stereo monitor mix into a monophonic signal. MONO applies to the monitor outputs only. It does not apply to the headphone outputs.

(I) MUTE

Mutes the monitor outputs. When MUTE is active, the MONITOR Selected Indicator (8) is always lit RED (including when in Preamp mode). When MUTE is active in Monitor mode, the Volume Level Indicators (2) are also RED.

Note: MUTE does not apply to the headphone outputs. Headphone outputs cannot be muted.

Front Panel

Refer to the illustration below for numbered control descriptions in this section.

14 15 UNIVERSAL AUDIO

Front panel elements

(14) Hi-Z Instrument Input

Connect any guitar, bass, or other high impedance instrument here. This jack automatically overrides the channel 1 mic and line inputs.

Levels for the Hi-Z input are set using the same method as the mic and line inputs.

Note: This jack accepts a 14 " mono TS (tip-sleeve) plug only.

(15) Headphone Output

Connect 14 " stereo headphones here. Volume is controlled with the Level knob (1) when HEADPHONE (10) is selected with the MONITOR button (11).

Side Panel

Kensington Security Slot (not shown)

The anti-theft security slot on the side panel connects to any standard Kensington lock.

Rear Panel

Refer to the illustration below for numbered control descriptions in this section.

Note: All rear panel 14 " jacks can accept unbalanced TS (tip-sleeve) or balanced TRS (tip-ring-sleeve) plugs.

22 21 20 OPTICAL IN POWER OFF ON 12VDC LINE OUT 3 MONITOR L 4 R MIC/LINE 2 MIC/LINE 1 171819 16

Rear panel elements

(16) Mic/Line Combo Inputs 1 & 2

The input jacks for preamp channels 1 & 2 accept either a male XLR plug for connecting to the mic input, or a 14 phone plug for connecting to the line input.

The input jack that is used for the preamp channel (mic or line) is specified with the Input Select button (13-a).

Caution: To avoid potential equipment damage, disable +48V phantom power on the channel before connecting or disconnecting its XLR input.

(17) Monitor Outputs

Connect the powered monitor speakers (or speaker system amplifier inputs) here. Volume is controlled with the Level knob (1) when MONITOR is selected (8) with the MONITOR button (11). The Monitor Outputs are DC coupled.

(18) Line Outputs 3 & 4

These 14 " phone outputs are accessed via software (Console or DAW). Line outputs 3 & 4 are typically used to send audio to other equipment. The Line Outputs are DC coupled.

(19) Power Supply Input

The included power supply must be connected here (Apollo Twin X cannot be bus powered). Rotate locking connector to prevent accidental disconnection.

Important: After ensuring the locking barrel tabs are aligned with the chassis slots and the barrel is fully inserted, rotate the barrel to secure the connector to the chassis.

1. Align Tabs 12VDC -- ⊙ +

(20) Power Switch

This rocker switch applies power to Apollo Twin X. Switch to OFF when not in use.

Caution: Before powering Apollo Twin X, lower the volume of the monitor speakers and remove headphones from your ears.

(21) Optical Input

This is a TOSLINK input for connection to other gear with an optical ADAT or S/PDIF output.

Note: The connection protocol to be used (ADAT or S/PDIF) is specified in the Settings>Hardware panel within the companion Console software.

(22) Thunderbolt 3 Port

Connect the Thunderbolt 3 cable (not included) from the host computer here. A Thunderbolt 3 connection to the computer is required to use all Apollo Twin X features and UAD Powered Plug-Ins.

Note: With Mac computers only, Apollo Twin X can be connected to Thunderbolt 1 and Thunderbolt 2 ports by using the Apple Thunderbolt 3 to Thunderbolt 2 Adapter in conjunction with a Thunderbolt 2 cable. With Windows computers, connections to Thunderbolt 1 or Thunderbolt 2 ports on are not supported.

Specifications

All specifications are typical performance unless otherwise noted. Tested with the Audio Precision APx555 Audio Analyzer under the following conditions: 48 kHz internal sample rate, 24-bit sample depth, 20 kHz measurement bandwidth, balanced input & output (except single-ended headphone output), and internal clock.

SYSTEM
I/O Complement
Microphone Inputs Two
High Impedance (Hi-Z) Instrument Inputs One
Analog Line Inputs Two
Analog Line Outputs (DC coupled) Two (four including Monitor outputs)
Analog Monitor Outputs (DC coupled) Two (one stereo pair)
Headphone Output One stereo
Digital Input One (ADAT or S/PDIF, selectable)
Thunderbolt 3 Port One
A/D – D/A Conversion
Simultaneous A/D conversion Two channels
Simultaneous D/A conversion Six channels
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
Bit Depth Per Sample 24
Analog Round-Trip Latency	1.1 milliseconds @ 96 kHz sample rate
Analog Round-Trip Latency through four UAD legacy plug-ins (included) via Console software	1.1 milliseconds @ 96 kHz sample rate (no additional latency via Realtime UAD Processing)

(continued)

ANALOG I/O

Microphone Inputs 1 & 2

Frequency Response 20 Hz - 20 kHz, ±0.05 dB

Dynamic Range 123 dB (A-weighted)

Total Harmonic Distortion + Noise -115 dB (1 kHz @ -1 dBFS)

Maximum Input Level (PAD on) 25.6 dBu

Default Input Impedance 5.5K Ohms (variable via Unison plug-ins)

Gain Range +10 dB to +65 dB

Pad Attenuation (switchable per input) 20 dB (variable via Unison plug-ins)

Phantom Power +48V (switchable per mic input)

Connector Type XLR Female, pin 2 positive (Combo XLR/TRS)

Hi-Z Input

Frequency Response 20 Hz - 20 kHz, ±0.05 dB

Dynamic Range 121 dB (A-weighted)

Total Harmonic Distortion + Noise -108 dB (1 kHz @ -1 dBFS)

Maximum Input Level (at minimum gain) 12.2 dBu

Default Input Impedance 1M Ohms (variable via Unison plug-ins)

Gain Range +10 dB to +65 dB

Connector Type 14 " Female TS Unbalanced

Line Inputs 1 & 2

Frequency Response 20 Hz - 20 kHz, ±0.05 dB

Dynamic Range 122 dB (A-weighted)

Total Harmonic Distortion + Noise -114 dB (1 kHz @ -1 dBFS)

Maximum Input Level (at minimum gain) 20.2 dBu

Input Impedance 10K Ohms

Gain Range +10 dB to +65 dB

Connector Type 1/4" Female TRS Balanced

Line Outputs 1 & 2

Frequency Response 20 Hz - 20 kHz, ±0.05 dB

Dynamic Range 126 dB (A-weighted)

Total Harmonic Distortion + Noise -117 dB (1 kHz @ -1 dBFS)

Maximum Output Level 20.2 dBu

Output Impedance 100 Ohms

Connector Type 1/4" Female TRS Balanced

Monitor Outputs L & R

Frequency Response 20 Hz - 20 kHz, ±0.1 dB

Dynamic Range 127 dB (A-weighted)

Total Harmonic Distortion + Noise -117 dB

Maximum Output Level 20.2 dBu

Output Impedance 100 Ohms

Connector Type 14 " Female TRS Balanced

Stereo Headphone Output

Frequency Response 20 Hz - 20 kHz, ±0.1 dB

Dynamic Range 124 dB (A-weighted)

Total Harmonic Distortion + Noise -98 dB (1 kHz @ -1 dBFS)

Maximum Output Power (into 300 ohm load) 96 mW RMS

Connector Type 14 " Female TRS Stereo

(continued)

DIGITAL INPUT
Connector Type Optical TOSLINK JIS F05
S/PDIF
Format IEC 958
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96
S/PDIF Input Channels Two (Stereo L/R)
ADAT
Format ADAT Digital Lightpipe with S/MUX
Supported Sample Rates (kHz) 44.1, 48, 88.2, 96, 176.4, 192
ADAT Input Channels @ 44.1 kHz, 48 kHz Channels 1 – 8
ADAT Input Channels @ 88.2 kHz, 96 kHz Channels 1 – 4
ADAT Input Channels @ 176.4 kHz, 192 kHz Channels 1 – 2
Clock Synchronization Sources
Internal, ADAT, S/PDIF Conditional per selected digital input type
ELECTRICAL
Power Supply External AC-to-DC Power Supply, Level VI compliant
AC Input Connector Type IEC C8, non-polarized
AC Requirements 100V – 240V AC, 50 – 60 Hz
DC Connector Type Male plug, 2.1 mm x 5.5 mm, center positive
DC Requirements 12 VDC, ±5%
Maximum Power Consumption	15 Watts (when portable host computer not charging)
ENVIRONMENTAL
Ambient Temperature Range	32° to 104° F (0° to 40° C)
MECHANICAL
Dimensions
Width	6.31" (16.03 cm)
Height	2.60" (6.6 cm)
Depth, Chassis Only	5.86" (14.88 cm)
Depth, Including Knob & Jack Protrusions	6.20" (15.75 cm)
Shipping Box (Length x Width x Height)	8" x 8" x 5.5" (20.32 cm x 20.32 cm x 13.97 cm)
Weight
Shipping Weight (with box & accessories)	3.85 pounds (1.75 kg)
Weight (bare unit)	2.35 pounds (1.07 kg)
Package Contents
Apollo Twin X Unit (DUO or QUAD)
External Power Supply
AC Power Cable (IEC C7, non-polarized)	Region Specific (US, UK, or EU)
Getting Started URL Card

Hardware Block Diagram
    subgraph_INPUT_CHANNEL_1["INPUT CHANNEL 1"]
        A["XLR FEMALE"] --> B["+48V ON/OFF"]
        B --> C["MIC PAD IN/OUT"]
        C --> D["MIC/LINE SELECT"]
        D --> E["MIC-LINE/HI-Z SELECT"]
        E --> F["INPUT GAIN 10–65 dB"]
        F --> G["AVD"]
        G --> H["LOW-CUT ON/OFF"]
        H --> I["POLARITY CONTROL"]
        I --> J["DSP"]
        J --> K["MIXER CLOCKING / SYNC SYSTEM CONTROL"]
    end

    subgraph_INPUT_CHANNEL_2["INPUT CHANNEL 2"]
        L["XLR FEMALE"] --> M["+48V ON/OFF"]
        M --> N["MIC PAD IN/OUT"]
        N --> O["MIC/LINE SELECT"]
        O --> P["INPUT GAIN 10–65 dB"]
        P --> Q["AVD"]
        Q --> R["LOW-CUT ON/OFF"]
        R --> S["POLARITY CONTROL"]
        S --> T["DSP"]
        T --> U["PLL"]

    end

    subgraph_OUTPUT_Outputs_LR["MONITOR OUTPUTS L/R"]
        V["OUTPUT VOLUME"] --> W["DSP"]
        W --> X["D/A"] --> Y["MONITOR OUT 1/4" TRS"]
        Y --> Z["LINE OUTPUTS 3-4"]
        Z --> AA["D/A"] --> AB["LINE OUT 1/4" TRS"]
        AB --> AC["+4dBu/-10dBV SELECT"]
        AC --> AD["Pad Works on Stereo Pairs DSP"]
        AD --> AE["D/A"] --> AF["LINE OUT 1/4" TRS"]
        AF --> AG["HEADPHONES L/R"]
        AH["S/PDIF, ADAT/SMUX OPTICAL INPUT"] --> AI["TOSLINK"] --> AJ["THUNDERBOLT™ 3 HOST INTERFACE"]
        AK["TYPE-C"] --> AL["Apollo Twin X Hardware Block Diagram v02"]

    subgraph_HEADPHONES_LR["HEADPHONES L/R"]
        AM["OUTPUT VOLUME"] --> AN["DSP"]
        AN --> AO["D/A"] --> AP["HEADPHONES OUT 1/4" TRS"]
        AP --> AQ["SHARC® DSP"] --> AR["DRAM"] --> AS["QUAD"]
        AT["ARM® PROCESSOR"] --> AU["EEPROM"] --> AV["TOP PANEL"]
    end

    A --> B --> C --> D --> E --> F --> G --> H --> I --> J --> K
    L --> M --> N --> O --> P --> Q
    M --> N --> O --> P --> Q
    N --> P --> Q
    P --> R --> S --> T --> U --> V
    R --> V --> W
    S --> W --> X
    T --> X --> Y
    U --> Y
    V --> Z
    W --> AA
    X --> AB
    Y --> AC
    Z & AA & AB & AC & AD & AE & AF & AG & AH & AI & AJ & AK & AK

Troubleshooting

If Apollo Twin X isn't behaving as expected, some common troubleshooting items to confirm are below. If you are still experiencing issues after performing these checks, contact Technical Support.

SYMPTOM ITEMS TO	CHECK
Unit won't power on	Confirm power supply connector is fully inserted, then twist barrel to lockConfirm Power switch is in “ON” positionConfirm AC power is available at wall socket by plugging in a different device
Unit is not recognized by computer	Confirm Thunderbolt 3 cable is fully inserted at both endsConfirm latest Apollo Twin X software is installed (reinstall if necessary)Power off entire system, power on Apollo Twin X, then start computerTry a different Thunderbolt 3 cable
No monitor output	Confirm connections, power, and volume of monitoring systemConfirm Apollo Twin X monitor level is turned up (press MONITOR button first)Confirm monitor outputs are not muted (push MUTE button when in Monitor mode)Confirm monitor LEDs are active (check signal flows)
Can't hear mic or line input(s)	Confirm mic/line switch setting is correct for the channel (CH1 or CH2)Confirm mic/line setting matches the input plug for the channel (XLR or 1⁄4")Confirm preamp gain is turned up for the channel(s)For channel 1, confirm nothing is plugged into the Hi-Z input
Can't hear mic input(s) • Confirm +48V phantom power is enabled if required by microphone
Can't hear Hi-Z input	Confirm volume on connected device is turned upConfirm Hi-Z input plug is 1/4" mono TS (TRS cables cannot be used with Hi-Z input)
Preamp controls have no effect on channel	Confirm desired channel is selected for control (push PREAMP button repeatedly to select CH1 or CH2)
Can't adjust digital input levels	Signal levels for digital inputs are adjusted at the device connected to those inputsUAD plug-ins in Console can be used to add or reduce signal gain if desired
Audio glitches and/or dropouts during DAW playback	Increase I/O buffer size setting (Mac: in DAW settings; Windows: in Console settings)If syncing to external digital clock via optical input, confirm clocking setups (confirm optical cable connections, matching sample rates, and that all devices are synchronized to one master clock device)
Undesirable echo/phasing	Confirm input monitoring is not enabled in both Console and DAWDisable software input monitoring if monitoring via Console (recommended)Mute all Console inputs if software input monitoring via DAW
Static and/or white noise is heard when nothing is plugged in	Mute or lower preamp gain to minimum on unused preamp channels (mic preamps can emit noise even when nothing is plugged in)Some UAD plug-ins model the noise characteristics of the original equipment (defeat the noise model in the UAD plug-in interface, or mute the channel containing the plug-in to temporarily mute the noise)
Various LEDs inside the unit are blinking	This is normal operational behavior and can be safely ignored
Apollo Twin X is behaving unexpectedly	As a last resort, perform a hardware reset on the unit by following these steps:Power off Apollo Twin XPress and hold the PREAMP, FILTER, and POLARITY buttonsPower on Apollo Twin X while continuing to hold all three controlsAfter all front panel LEDs flash rapidly for several seconds, release the controls

Notices

Warranty

Universal Audio provides a limited warranty on all UA hardware products. To learn more, visit help.uaudio.com. The limited warranty gives you specific legal rights. You may also have other rights which vary by state or country.

Maintenance

• CAUTION: To reduce the risk of electric shock, do not open the unit.
• Apollo Twin X does not contain a fuse or any other user-replaceable parts. The unit is internally calibrated at the factory. No internal user adjustments are available.
• Any modifications to the unit, unless expressly approved by Universal Audio, could void the User's authority to operate the equipment.

Repair Service

If you are having trouble with Apollo Twin X, first check all system setups, connections, operating instructions, and the Troubleshooting chart. If that doesn't help, contact our technical support team.

To learn about repair service, or for technical support, visit help.uaudio.com.

Important Safety Information

Before using this unit, be sure to carefully read the applicable items of these operating instructions and the safety suggestions. Afterwards, keep them handy for future reference. Take special care to follow the warnings indicated on the unit, as well as in the operating instructions.

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat source such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use with attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use the caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Description of symbols used

The lightning flash represented by the arrow symbol in an equilateral triangle is intended to alert users to the presence of high voltage within the unit that could cause an electrical shock hazard.

The exclamation mark in an equilateral triangle is intended to alert users to the existence of important instructions in the manual relating to the use and maintenance of the unit.

Compliance

Note: Any modifications to the unit, unless expressly approved by Universal Audio, could void the User's authority to operate the equipment.

This product, Apollo Twin X, complied with the following requirements:

• Subpart B of Part 15 of FCC Rules for Class B digital device
• Canada: Innovation, Science and Economic Development Canada Interference Causing Equipment Standard ICES-003, “Information Technology Equipment (ITE) – Limits and methods of measurement,” Issue 6, dated January 2016 (class B)
• Japan: VCCI-CISOR 32:2016 "Technical Requirements" for multimedia equipment (class B)
• EN 55022:2010, “Information technology equipment – Radio disturbance characteristics – Limits and method of measurements (Class B)
• CISPR 22:2008, “Information technology equipment – Radio disturbance characteristics – Limits and method of measurement” (Class B)
• EN 55032:2012, “Electromagnetic compatibility of multimedia equipment – Emission Requirements”
• CISPR 32:2012, “Electromagnetic compatibility of multimedia equipment – Emissions requirements”
• EN 55024:2010 “Information technology equipment – Immunity characteristics. Limits and method of measurement”
• CISPR 24:2010 +A1:2015 “Information technology equipment- Immunity characteristics. Limits and method of measurement.”
• TCVN 7189:2009 “Information technology equipment- Radio disturbance characteristics – Limits and method of measurements”
  • Korea: KN32/KN35 2015 Multimedia Class B

Disclaimer

The information contained in this manual is subject to change without notice. Universal Audio, Inc. makes no warranties of any kind with regard to this manual, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Universal Audio, Inc. shall not be liable for errors contained herein or direct, indirect, special, incidental, or consequential damages in connection with the furnishing, performance, or use of this material.

End User License Agreement

Your rights to the Software are governed by the accompanying End User License Agreement, a copy of which can be found at: www.uaudio.com/eula

Trademarks

Universal Audio, the Universal Audio “diamond” logo, Apollo, Apollo Twin, Arrow, UAD, UAD Powered Plug-Ins, UAD-2 Live Rack, Powered Plug-Ins, Unison technology, 1176, 1176LN, LA-2A, LA-3A, OX, OX Amp Top Box, Century Tube Channel Strip, DreamVerb, EQP-1A, Helios, Oxide, Teletronix, and “Analog Ears | Digital Minds,” are among the trademarks, trade names, and service marks owned by UA, many of which are registered in the United States and in other countries. This is not a comprehensive list of all UA trademarks. All other trademarks depicted herein are property of their respective owners.

Copyright

Copyright ©2019 Universal Audio, Inc. All rights reserved.

This manual and any associated software, artwork, product designs, and design concepts are subject to copyright protection. No part of this document may be reproduced, in any form, without prior written permission of Universal Audio, Inc.

Technical Support

Universal Audio Knowledge Base

The UA Knowledge Base is your complete technical resource for configuring, operating, troubleshooting, and repairing UA products.

You can watch helpful support videos, search the Knowledge Base for answers, get updated technical information that may not be available elsewhere, and more.

UA Knowledge Base

YouTube Support Channel

The Universal Audio Support Channel at youtube.com includes helpful support videos for setting up and using UA products.

UA YouTube Support Channel

Universal Audio Community Forums

The unofficial UA discussion forums are a valuable resource for all Universal Audio product users. This website is independently owned and operated.

www.uadforum.com

Contact Universal Audio Support

To contact UA support staff for technical or repair assistance, please visit:

help.uaudio.com

UNIVERSAL AUDIO
