REX VT-6000 - Tripod Magnus - Free user manual and instructions

Product Type	Two-Stage Video Tripod with Fluid Head
Brand	Magnus
Model	REX VT-6000
Load Capacity	17 lb (7.7 kg)
Maximum Working Height	65 in (165.1 cm)
Minimum Working Height	29.3 in (74.4 cm)
Folded Length	33.5 in (85.1 cm)
Weight	12.2 lb (5.5 kg)
Materials	Anodized aluminum alloy
Bubble Level	Yes, unilluminated
Head Mount Type	75mm Half Ball
Counterbalance System	Stepped, spring loaded (3 positions)
Quick-Release Plate	4.7 × 2 × 0.4 in (12 × 5 × 1 cm)
Camera Mounting Screw	1/4"-20 and 3/8"-16
Built-In Balance Plate	Yes
Tilt Drag	Stepped, fluid (0-3)
Tilt Range	+50° / -70°
Pan Drag	Stepped, fluid (0-3)
Pan Range	360°
Pan-Handle Rosettes	2 (left and right)
Leg Stages / Sections	Two stage
Leg Lock Type	Flip lock
Independent Leg Spread	Yes
Spreader	Mid level (adjustable)
Feet	Spiked (non-retractable) with removable nonslip rubber feet
Included Accessories	Shoulder strap, padded carry case
Warranty	Five-year limited warranty

Frequently Asked Questions - REX VT-6000 Magnus

What is the maximum load capacity of the Magnus REX VT-6000?

The maximum load capacity is 17 lb (7.7 kg).

How do I adjust the pan drag?

Use the stepped pan drag control on the head. Select 0 to turn drag off, and higher numbers (1-3) to increase tension for slower panning.

What is the counterbalance system and how does it work?

The VT-6000 has a three-position stepped spring-loaded counterbalance. Select 0 for no tension, and higher numbers for heavier cameras to keep the head horizontal when released.

How do I attach the quick-release plate?

Slide the quick-release plate into the head until it clicks. Ensure the QR plate locking lever is engaged. Press the QR plate release button to remove.

Can I use both 1/4"-20 and 3/8"-16 camera screws?

Yes, the camera mounting screw holes accommodate both 1/4"-20 and 3/8"-16 screws.

How do I clean and maintain the tripod?

Wipe the tripod with a damp cloth. Do not use solvents or abrasive cleaners. Store in the padded carry case when not in use.

What safety precautions should I follow?

Never set up or move the tripod with a camera mounted. Always lock legs and stabilize before mounting. Do not exceed load capacity. Do not leave camera unattended.

What is the warranty period and how do I claim it?

The product has a five-year limited warranty. To claim, contact Magnus Customer Service for an RMA number and return the product with proof of purchase.

Can I replace the rubber feet?

Yes, the rubber feet are removable. The tripod also has non-retractable spikes for use on soft surfaces.

Is the bubble level illuminated?

No, the bubble level is unilluminated.

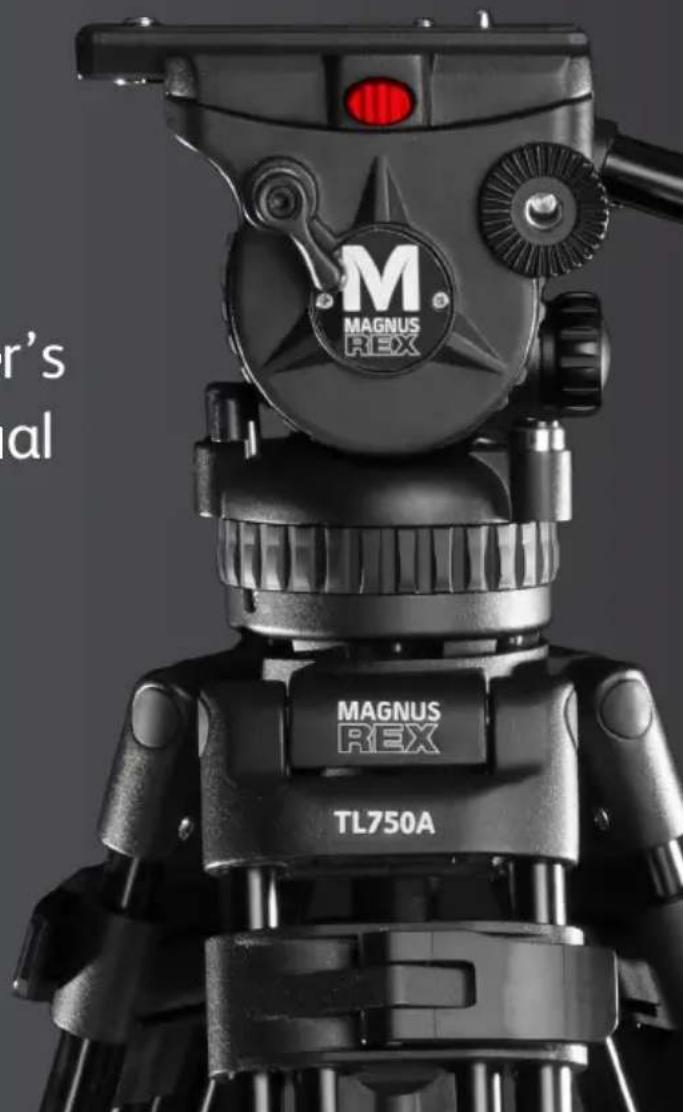

USER MANUAL REX VT-6000 Magnus

Red stylized letter M logo on gray background (no text or symbols)

MAGNUS

REX

VT-6000

6000H/TL750A

Two-Stage Video Tripod with Fluid Head

Owner's Manual

M MAGNUS REX MAGNUS REX TL750A

Thank you for choosing Magnus.

The Magnus REX VT-6000 tripod is designed with features that professional videographers and cinematographers require of their camera-support systems. It’s constructed with sturdy, high-grade aluminum legs with flip locks that provide stable support in the most demanding environments. With advanced features like stepped pan, tilt, and counterbalance controls, this head will accommodate most on-the-go productions. Whatever the shooting style, the VT-6000 delivers dependable camera security as well as smooth and fluid camera movement.

Precautions

• Please read and follow these instructions, and keep this manual in a safe place.
• Never set up or pull down a tripod while a camera is mounted.
• Do not move the tripod or adjust the legs while a camera is mounted.
• Do not exceed the maximum weight capacity of the tripod.
• Never leave a camera unattended on the tripod.
• The camera should be securely fastened to the quick-release plate before mounting onto the tripod.
• Never mount a camera to the tripod until all tripod legs are locked and stabilized.
• Do not stand on, rest on, or hang anything from the mid-level spreader.
• Do not lift or move the tripod by the head.
• Keep hands clear of the inside of the legs, to avoid trapping fingers.
• Safe operation of the tripod is the user's responsibility.
  • All images are for illustrative purposes only.

Specifications

General

Load Capacity: 17 lb. (7.7 kg)

Maximum Working Height: 65 in. (165.1 cm)

Minimum Working Height: 29.3 in. (74.4 cm)

Folded Length: 33.5 in. (85.1 cm)

Weight: 12.2 lb. (5.5 kg)

Materials: Anodized aluminum alloy

Bubble Level: Yes

Head

Counterbalance System: Stepped, spring loaded

Quick-Release Plate: 4.7 × 2 × 0.4 in. (12 × 5 × 1 cm)

Quick-Release Safety: Yes

Camera Mounting Screw: 1/4"-20, 3/8"-16

Built-In Balance Plate: Yes

Tilt Drag: Stepped, fluid

Tilt Range: +50°/-70°

Tilt Lock: Yes

Pan Drag: Stepped, fluid

Pan Range: 360°

Pan Lock: Yes

Pan-Handle Rosettes: 2 (left and right)

Leveling Bubble / Illuminated: Yes, unilluminated

Head Mount Type: 75mm Half Ball

Legs

Material: Anodized aluminum alloy

Head Attachment Fitting: 75 mm bowl

Leg Stages / Sections: Two stage

Leg Lock Type: Flip lock

Independent Leg Spread: Yes

Spreader: Mid level (adjustable)

Spiked / Retractable Feet: Nonretractable spikes with removable nonslip rubber feet

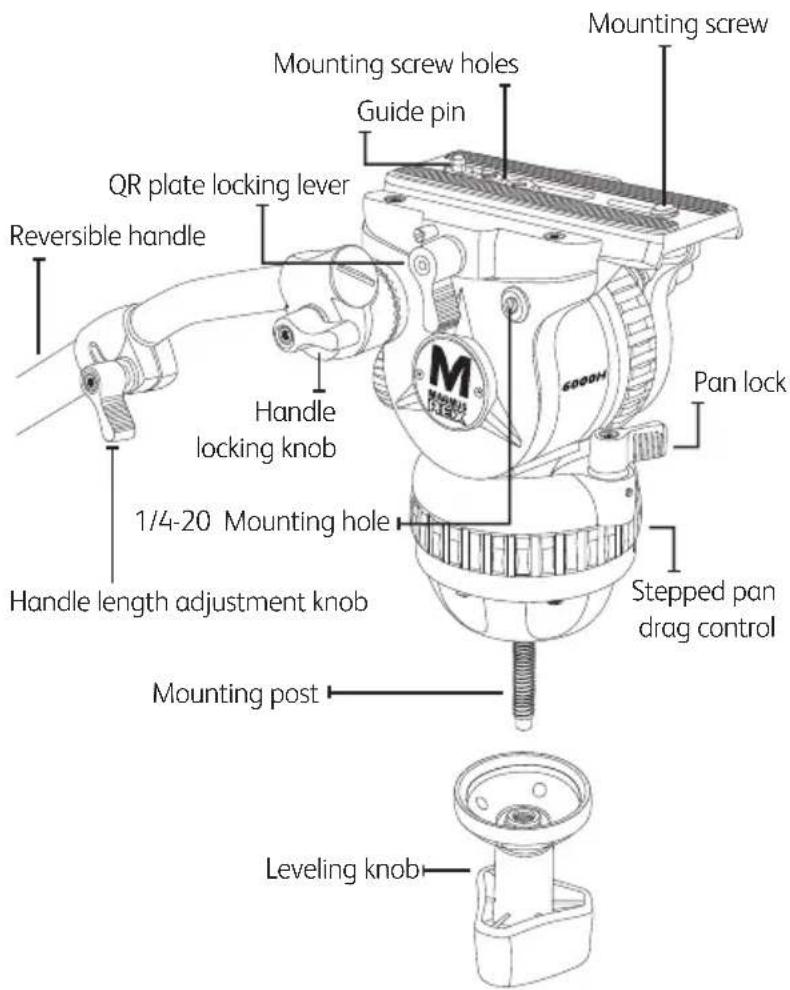

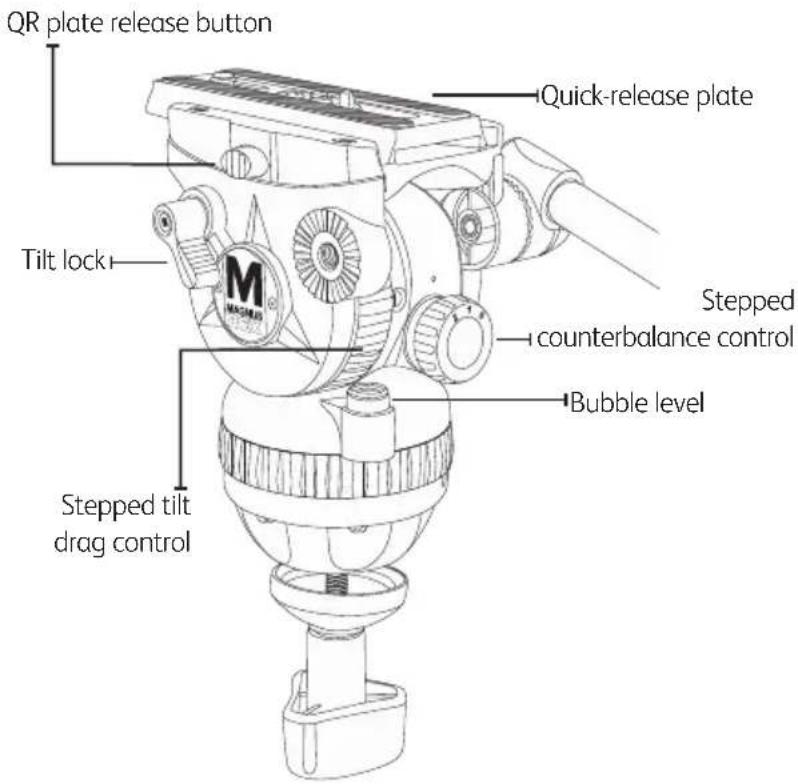

Head (6000H)

QR plate release button Quick-release plate Tilt lock Stepped counterbalance control Bubble level Stepped tilt drag control

Mounting screw Mounting screw holes Guide pin QR plate locking lever Reversible handle Handle locking knob 1/4-20 Mounting hole Handle length adjustment knob Mounting post Stepped pan drag control Leveling knob

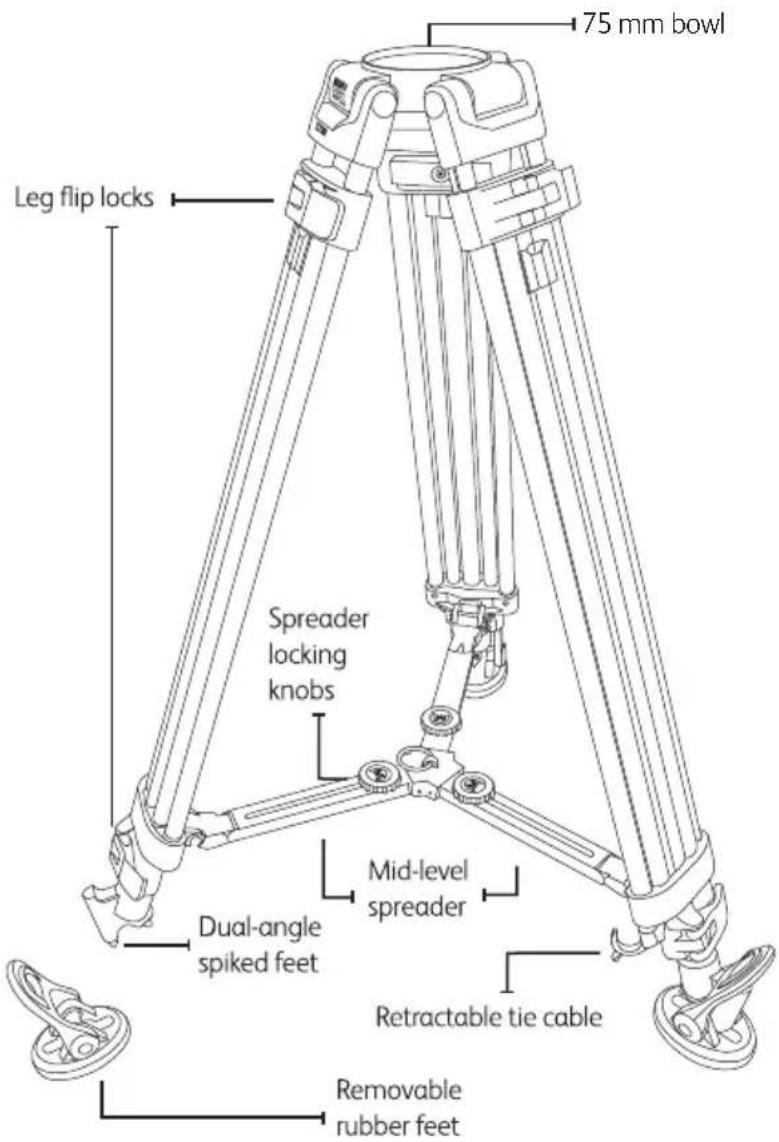

Tripod (TL750A)

75 mm bowl Leg flip locks Spreader locking knobs Dual-angle spiked feet Mid-level spreader Retractable tie cable Removable rubber feet

Also Includes

• Shoulder strap
• Padded carry case

Operating the VT-6000

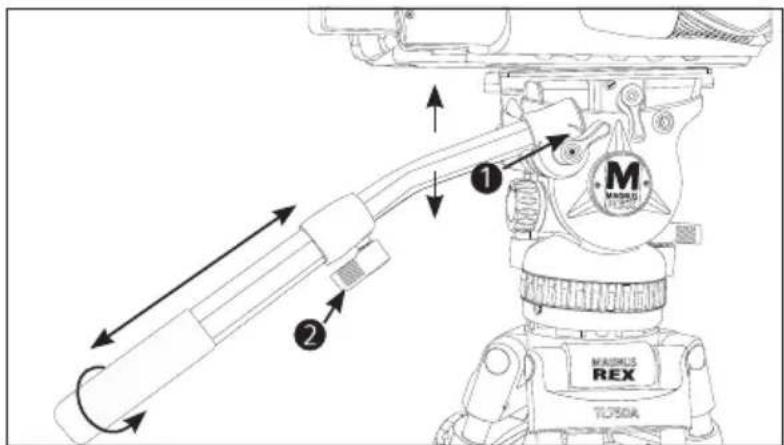

Handle

Loosen the handle locking knob to adjust the vertical angle of the handle and to turn the handle to adjust the curve angle.1

Use the length adjustment knob to lengthen or shorten the handle.②

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Tilt Control

Turn the tilt lock clockwise to lock the tilting action.1

Stepped tilt drag control: Select from 0 to 3 to increase tension.② Adjust depending on the weight of the camera and the speed of the tilting motion.

Technical diagram of a camera or radar system with labeled components and directional arrows indicating motion or assembly.

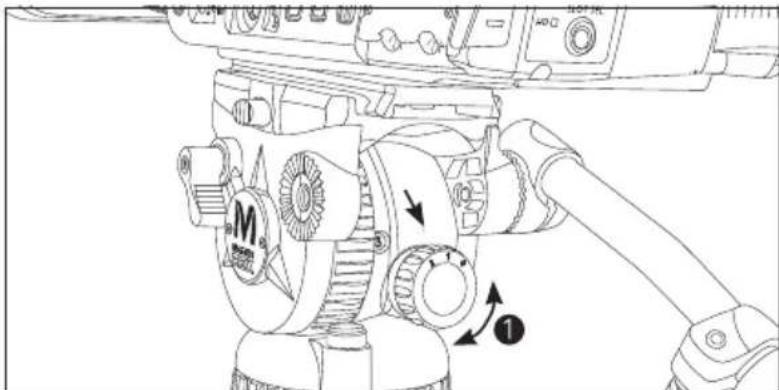

Counterbalance Control

The VT-6000 has a three-position stepped spring-loaded counterbalance, which returns the head to the horizontal position when the handle is released.

Select 0 to turn the counterbalance tension off. Select higher numbers to increase the tension, depending on the camera's weight. Heavier cameras should have greater tension. ^1

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

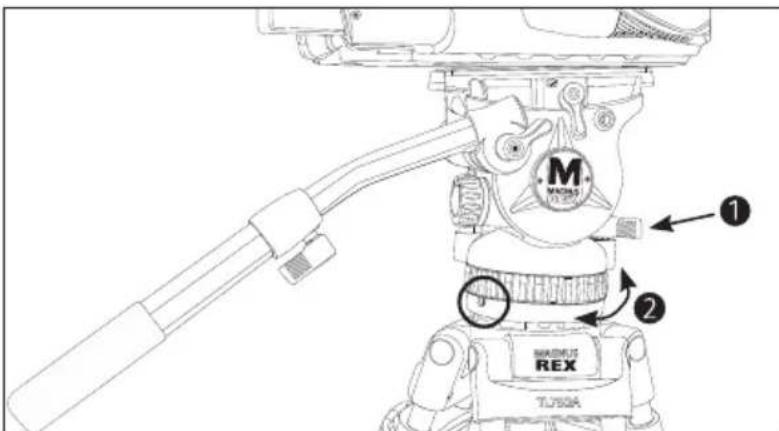

Pan Control

Turn the pan lock clockwise to lock the panning motion1

Stepped pan drag control: Select 0 to turn the pan drag off. Select higher numbers to increase the pan drag tension, depending on the desired panning speed. ^2

M VCHS 10.250 ① ② RADUS REX TJ50A

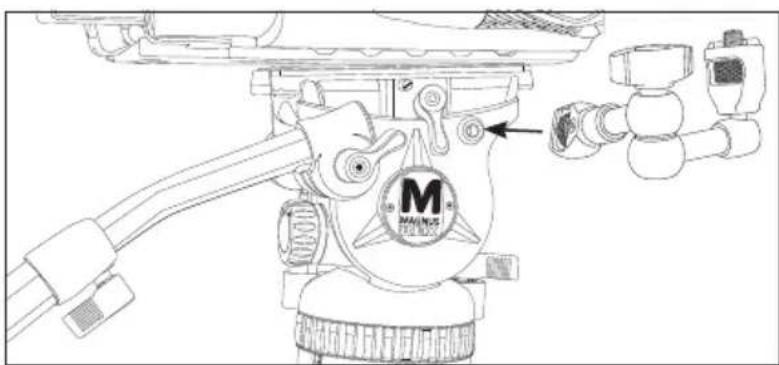

Extra Mount

The front left and right sides of the VT-6000 have a 1/4-20 threaded mounting hole to attach accessories like articulating arms.

Technical line drawing of a mechanical device with labeled components (no readable text or symbols)

Five-Year Limited Warranty

This MAGNUS product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of five (5) years from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Magnus Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Magnus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.magnustripods.com or call Customer Service at 212-594-2353.

MAGNUS®

A Gradus Group Brand

Product warranty provided by the Gradus Group.

www.gradusgroup.com

Magnus is a registered trademark of the Gradus Group.

© 2019 Gradus Group LLC. All rights reserved.
