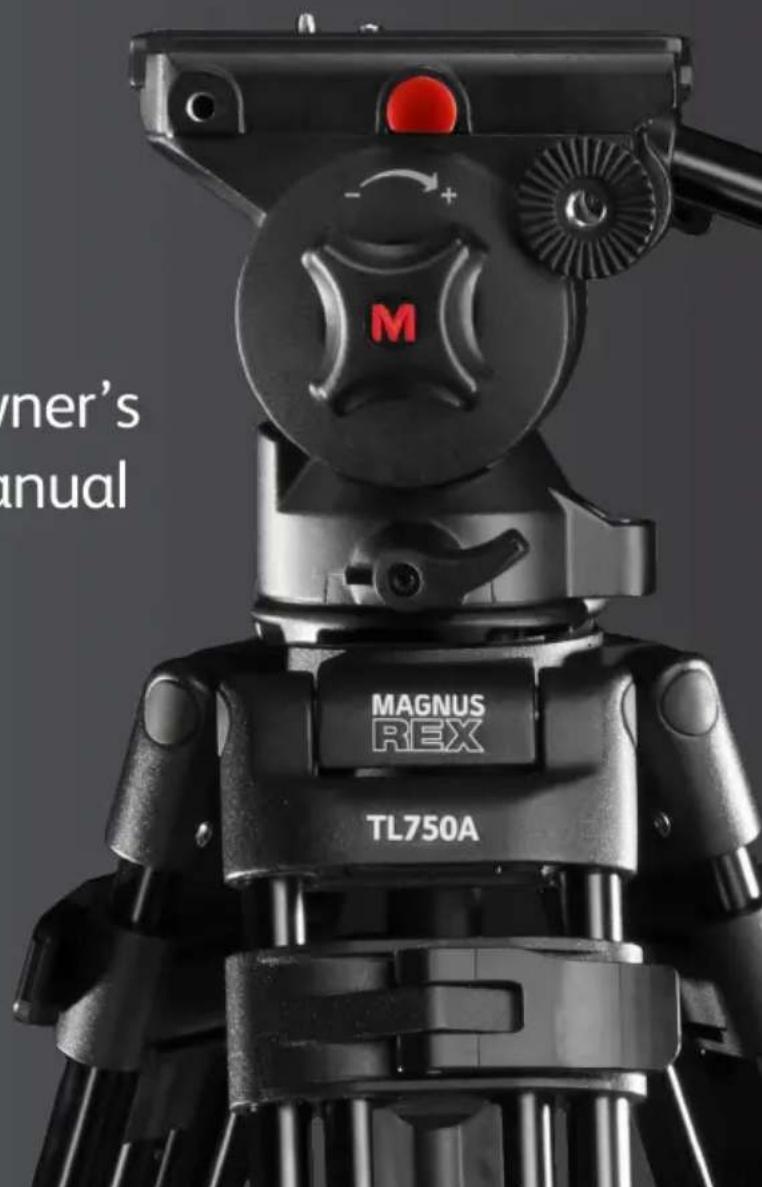

USER MANUAL REX VT-5000 Magnus

Two-Stage Video Tripod with Fluid Head

Owner's Manual

owner's manual M MAGNUS REX TL750A

Thank you for choosing Magnus.

The Magnus REX VT-5000 tripod is designed with advanced features that professional videographers and cinematographers need for their camera-support systems and shooting styles. It’s constructed with sturdy, high-grade aluminum legs with flip locks that provide stable support in the most demanding environments. The video head delivers secure positioning and smooth camera movement with fixed pan and fluid drag adjustment controls.

Precautions

• Please read and follow these instructions, and keep this manual in a safe place.
• Never set up or pull down a tripod while a camera is mounted.
• Do not move the tripod or adjust the legs while a camera is mounted.
• Do not exceed the maximum weight capacity of the tripod.
• Never leave a camera unattended on the tripod.
• The camera should be securely fastened to the quick-release plate before mounting onto the tripod.
• Never mount a camera to the tripod until all tripod legs are locked and stabilized.
• Do not stand on, rest on, or hang anything from the mid-level spreader.
• Do not lift or move the tripod by the head.
• Keep hands clear of the inside of the legs, to avoid trapping fingers.
• Safe operation of the tripod is the user's responsibility.
• All images are for illustrative purposes only.

Specifications

General

Load Capacity: 17 lb. (7.7 kg)

Maximum Working Height: 64.25 in. (163.2 cm)

Minimum Working Height: 29 in. (73.6 cm)

Folded Length: 32.6 in. (82.8 cm)

Weight: 11.2 lb. (5.1 kg)

Materials: Anodized aluminum alloy

Bubble Level: Yes

Head

Counterbalance System: Spring loaded

Quick-Release Plate: 4.7 × 2 × 0.4 in. (12 × 5 × 1 cm)

Quick-Release Safety: Yes

Camera Mounting Screw: 1/4"-20, 3/8"-16

Built-In Balance Plate: Yes

Tilt Drag: Adjustable, fluid

Tilt Range: +70°/-80°

Tilt Lock: Yes

Pan Drag: Fixed, fluid

Pan Range: 360°

Pan Lock: Yes

Pan-Handle Rosettes: 2 (left and right)

Leveling Bubble / Illuminated: Yes, unilluminated

Head Mount Type: 75 mm half ball

Legs

Material: Anodized aluminum alloy

Head Attachment Fitting: 75 mm bowl

Leg Stages / Sections: Two stage

Leg Lock Type: Flip lock

Independent Leg Spread: Yes

Spreader: Mid level (adjustable)

Spiked / Retractable Feet: Nonretractable spikes with removable nonslip rubber feet

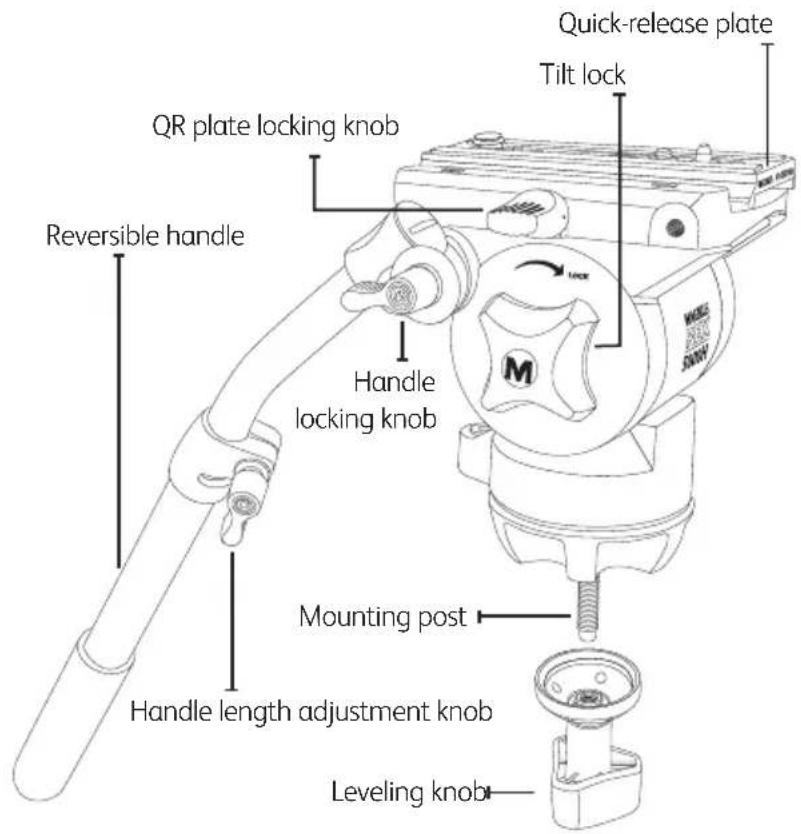

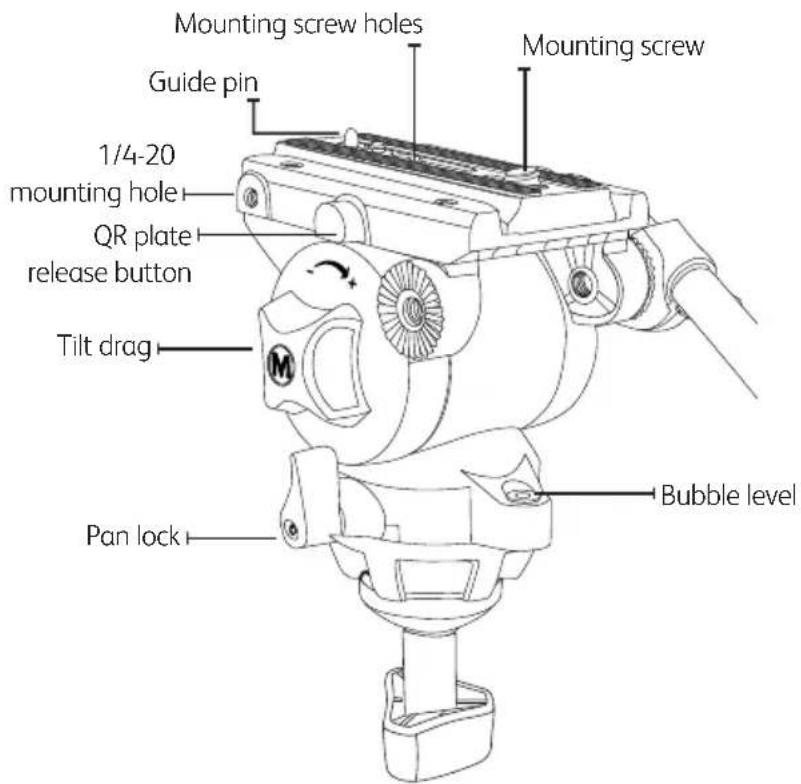

Head (5000H)

Quick-release plate Tilt lock QR plate locking knob Handle locking knob Reversible handle Handle length adjustment knob Mounting post Leveling knob

Mounting screw holes Guide pin 1/4-20 mounting hole QR plate release button Tilt drag Pan lock Mounting screw Bubble level

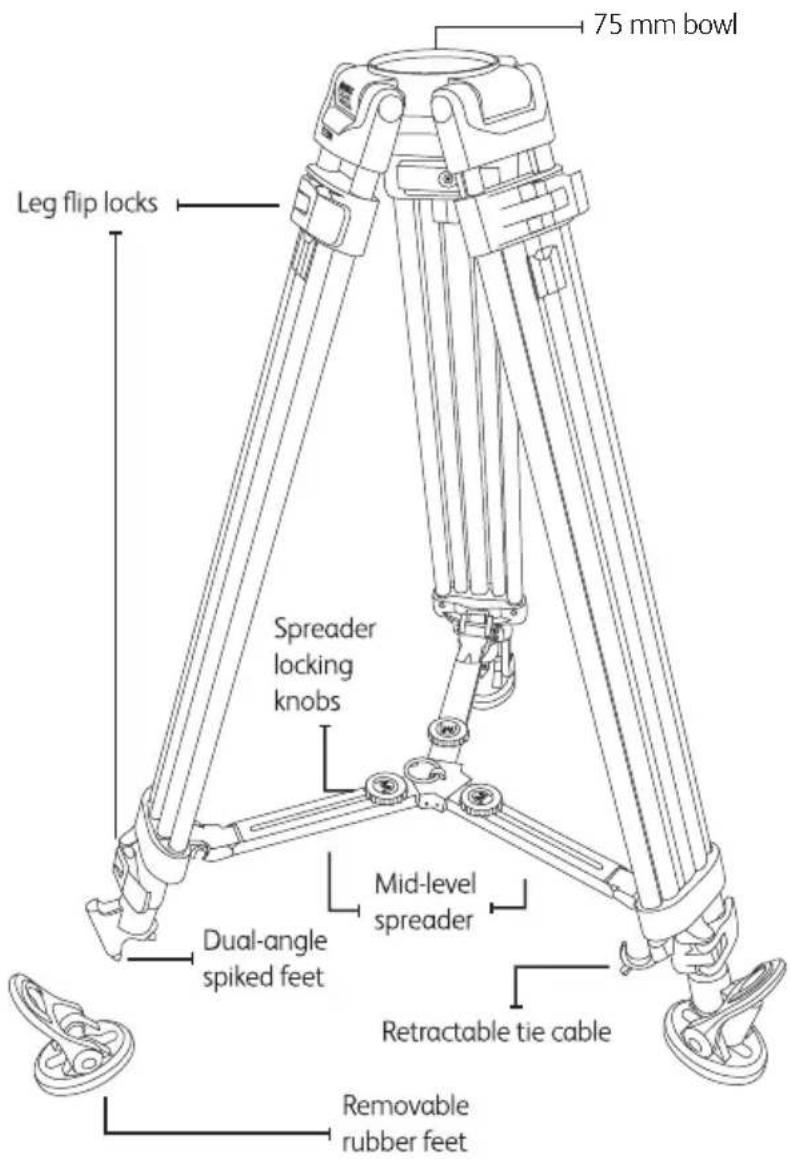

Tripod (TL750A)

75 mm bowl Leg flip locks Spreader locking knobs Dual-angle spiked feet Mid-level spreader Retractable tie cable Removable rubber feet

Also Includes

• Shoulder strap
• Padded carry case

Operating the VT-5000

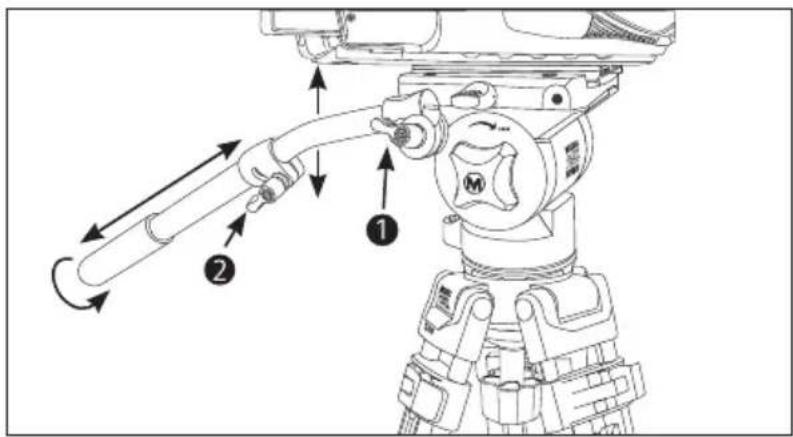

Handle

Loosen the handle locking knob 1 to adjust the vertical angle of the handle and to turn the handle to adjust the curve angle.

Use the length adjustment knob ② to lengthen or shorten the handle.

Technical diagram of a camera or surveying instrument with labeled parts and directional arrows indicating motion or assembly.

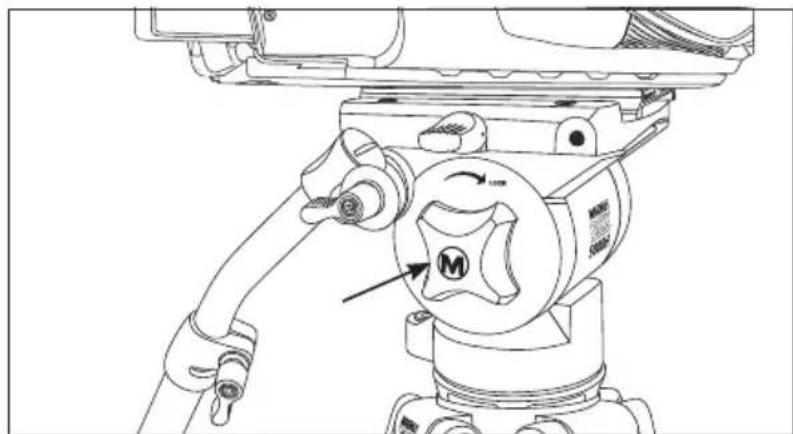

Tilt Control

Turn the tilt lock clockwise to lock the tilting action.

Technical line drawing of a robotic arm with labeled parts (no text or symbols present)

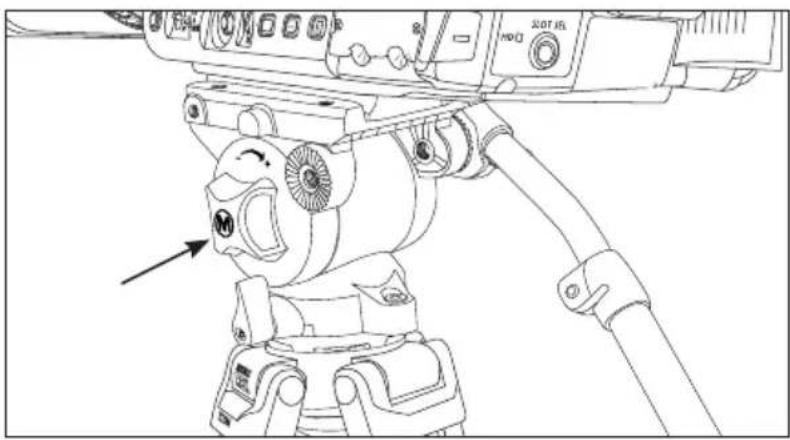

The VT-5000 has a fixed spring-loaded counterbalance which returns the head to a vertical position when the handle is released. The more you increase the tilt drag, the slower the head will return to vertical.

Turn the tilt drag knob clockwise to increase the tension.

Technical line drawing of a mechanical device with no visible text or symbols

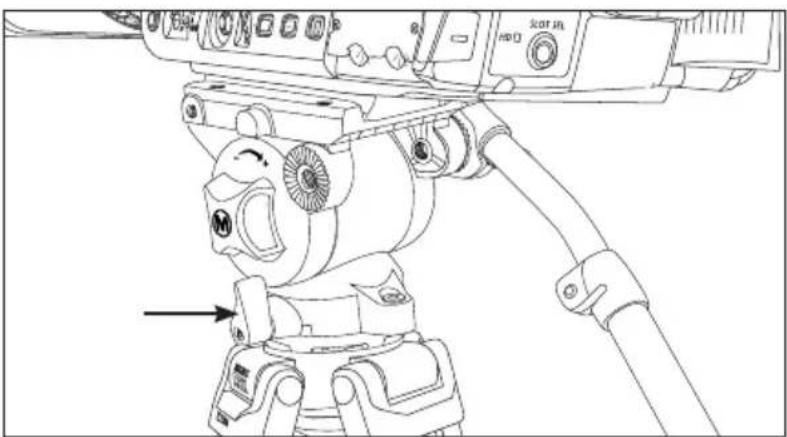

Pan Control

The VT-5000 is designed with fixed pan to ensure smooth panning. When the panning motion is unlocked, the head will always have the same amount of tension.

Turn the pan lock a quarter-turn clockwise to lock the panning motion.

Technical line drawing of a mechanical device with attached cable and adjustment knobs (no text or symbols)

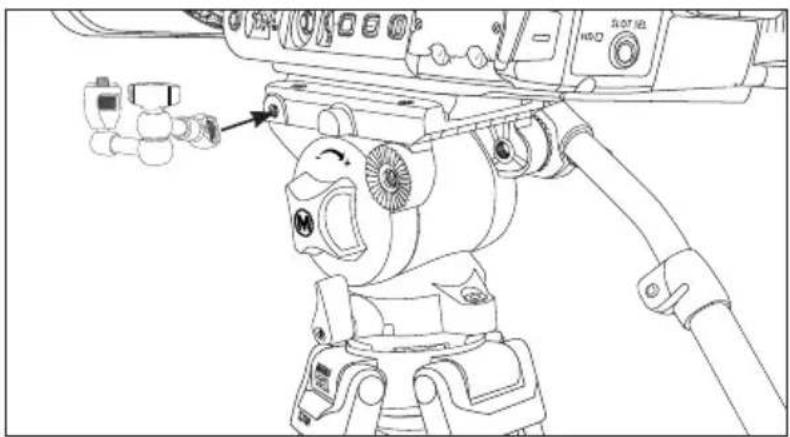

Extra Mount

Both front sides of the VT-5000 incorporate a 1/4-20 mounting hole to attach accessories like articulating arms.

Technical line drawing of a mechanical device with no visible text or symbols

Five-Year Limited warranty

This MAGNUS product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of five (5) years from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Magnus Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Magnus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.magnustripods.com or call Customer Service at 212-594-2353.

MAGNUS®

A Gradus Group Brand

Product warranty provided by the Gradus Group.

www.magnustripods.com

Magnus is a registered trademark of the Gradus Group.

© 2019 Gradus Group LLC. All rights reserved.
