Safety information Electrical safety

• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
• When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
• Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
• Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
• Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
• If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.

Operation safety

• Before installing the motherboard and adding components, carefully read all the manuals that came with the package.
• Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
• To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
• Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may be exposed to moisture.
• Place the product on a stable surface.
• If you encounter technical problems with the product, contact a qualified service technician or your retailer.

About this guide

This user guide contains the information you need when installing and configuring the motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports. It includes descriptions of the switches, jumpers, and connectors on the motherboard.

• Chapter 2: BIOS information

This chapter discusses changing system settings through the BIOS Setup menus. Detailed descriptions for the BIOS parameters are also provided.

Where to find more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when completing a task.

CAUTION: Information to prevent damage to the components when completing a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key. Example: means that you must press the Enter or Return key.

+ + If you must press two or more keys simultaneously, the key names are linked with a plus sign (+).

Package contents

Check your motherboard package for the following items.

Motherboard	ASUS PRIME B360M-C motherboard
Cables	2 x Serial ATA 6.0 Gb/s cables
Accessories	1 x ASUS I/O Shield1 x M.2 screw package
Application DVD Support DVD
Documentation	1 x User Guide

If any of the above items is damaged or missing, contact your retailer.

PRIME B360M-C specifications summary

CPU	LGA1151 socket for Intel® 8th Generation CoreTM i7 / i5 / i3, Pentium®, and Celeron® processors*Supports Intel® 14nm CPUSupports Intel® Turbo Boost Technology 2.0*** The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.** Refer to www.asus.com for Intel® CPU support list.
Chipset	Intel® B360 Chipset
Memory	4 x DIMMs, maximum 64GB, DDR4 2666/2400/2133 MHz, non-ECC, un-buffered memoryDual-channel memory architectureSupports Intel® Extreme Memory Profile (XMP)* Hyper DIMM support is subject to the physical characteristics of individual CPUs. Please refer to Memory QVL for details.** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.*** Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Expansion slots	1 x PCI Express 3.0/2.0 x16 slot2 x PCI Express 3.0/2.0 x1 slots1 x PCI slot
Graphics	Integrated graphics processor - Intel® HD Graphics supportMulti-VGA output support: 2 x DP/HDMI/VGA ports- Supports DisplayPort with maximum resolution of 4096 x 2304 @60Hz- Supports HDMI with maximum resolution of 4096 x 2160 @24Hz / 2560 x 1600@60Hz- Supports VGA with maximum resolution of 1920 x 1200 @60HzSupports up to three displays simultaneouslySupports Intel® InTruTM 3D/Quick Sync Video/Clear Video HD Technology/InsiderTMMaximum shared memory of 1024MB
USB	Intel® B360 Chipset:- 4 x USB 3.1 Gen 2 (up to 10Gbps) ports (4 ports at back panel, @Type A)- 2 x USB 3.1 Gen 1 (up to 5Gbps) ports (2 ports at mid-board)- 6 x USB 2.0/1.1 ports (4 ports at mid-board; 2 ports at back panel, @Type A)

(continued on the next page)

PRIME B360M-C specifications summary

Storage	Intel® B360 Chipset:- 6 x SATA 6.0 Gb/s ports (gray)- 2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices with IRST support (1@SATA*& PCIe mode, 1@PCIe x4 with Optane memory)- Intel® OptaneTM Memory Ready* SATA mode shares with SATA6G_2 port.
LAN Intel	® I219V Gigabit LAN Phy
Audio	Realtek® ALC887 8-channel High Definition Audio CODEC- Supports jack-detection and front panel jack-retasking
ASUS special features	Bespoke Motherboard Design & Business Motherboard Focused Features :- ASUS Self- Recovering BIOS: Automatically recovers BIOS update once crash happens- ASUS Event Log: Records activities of system and provides information in BIOS- ASUS Commercial BIOS kit: Speeds up BIOS update solution by partial BIOS design- Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment- Overcurrent Protection: Short circuit prevention, protects your systemEasy Assembly Design :- Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
Rear panel I/O ports	1 x PS/2 keyboard port (purple)1 x PS/2 mouse port (green)2 x DisplayPort ports1 x HDMI port1 x D-Sub port1 x LAN (RJ-45) port4 x USB 3.1 Gen 2 (up to 10Gbps) ports (@Type A)2 x USB 2.0/1.1 ports (@Type A)3 x Audio jacks support 8-channel audio output** Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
Internal connectors	1 x USB 3.1 Gen 1 (up to 5Gbps) connector supports additional 2 USB 3.1 Gen 1 ports (19-pin)2 x USB 2.0/1.1 connectors support additional 4 USB 2.0/1.1 ports1 x 4-pin CPU Fan connector2 x 4-pin Chassis Fan connectors6 x SATA 6.0Gb/s connectors2 x M.2 Socket 3 (for M Key)1 x Front panel audio connector (AAFP)1 x System panel connector1 x 24-pin EATX Power connector

(continued on the next page)

PRIME B360M-C specifications summary

Internal connectors	1 x 8-pin EATX 12V Power connector1 x Speaker connector2 x COM headers1 x LPT port header1 x Chassis Intrusion header1 x Clear CMOS header1 x MONO-out header(with Amp IC)1 x TPM header1 x LPC debug header
BIOS features	128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS Self- Recovering BIOS, ASUS Event log, ASUS Commercial Kit
Manageability WOL, PXE
Support DVD	DriversASUS Commercial BIOS KitsASUS Watchdog timer
OS support Windows ® 10 (64-bit)
Form factor mATX form factor: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

Specifications are subject to change without notice.

Product introduction

1

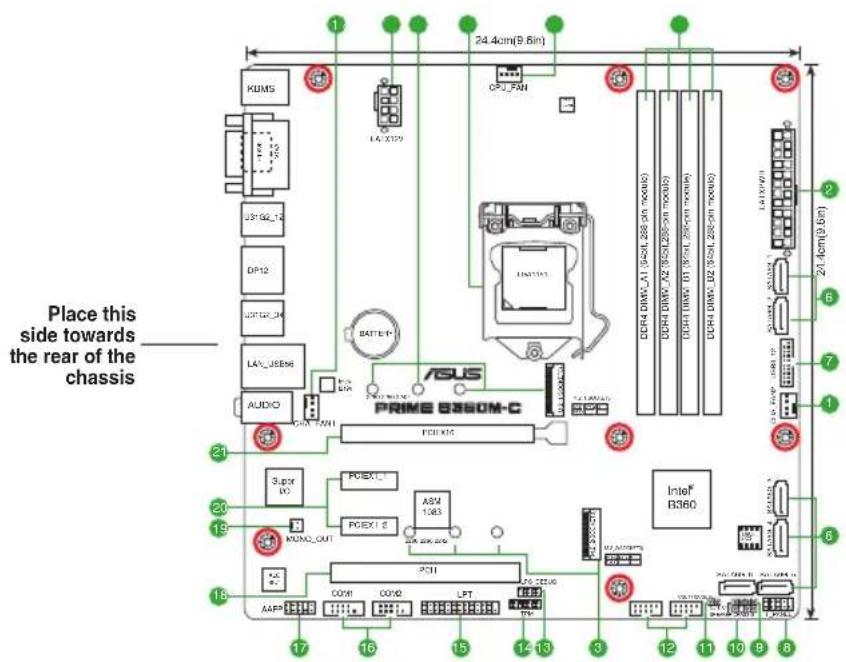

Motherboard overview

• Unplug the power cord from the wall socket before touching any component.
• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.
• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.
• Unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage to motherboard components.

Place this side towards the rear of the chassis 24.4cm(9.6in) KUMS LAVX79 OPJ_FAN USP GL_12 DP12 LAVGL_24 LAV_USE86 AUDIO ASUS PRIME 6360M-C FDEX10 Super IO POEX1 POEX1 E ASV 1.065 MINO_OUT PCI1 AAPP COPR COP42 LFT 24.4cm(9.6in) DER4 DIMC-A1 (9/24) 288 on mouse(s) DER4 DIMC-A2 (9/24) 288 on mouse(s) DER4 DIMC-B1 (9/24) 288 on mouse(s) DER4 DIMC-B2 (9/24) 288 on mouse(s) DAVX79 LEAFW01 LEAFW02 LEAFW03 LEAFW04 LEAFW05 LEAFW06 LEAFW07 LEAFW08 LEAFW09 LEAFW10 LEAFW11 LEAFW12 LEAFW13 LEAFW14 LEAFW15 LEAFW16 LEAFW17 LEAFW18 LEAFW19 LEAFW20 LEAFW21 LEAFW22 LEAFW23 LEAFW24 LEAFW25 LEAFW26 LEAFW27 LEAFW28 LEAFW29 LEAFW30 LEAFW31 LEAFW32 LEAFW33 LEAFW34 LEAFW35 LEAFW36 LEAFW37 LEAFW38 LEAFW39 LEAFW40 LEAFW41 LEAFW42 LEAFW43 LEAFW44 LEAFW45 LEAFW46 LEAFW47 LEAFW48 LEAFW49 LEAFW50 LEAFW51 LEAFW52 LEAFW53 LEAFW54 LEAFW55 LEAFW56 LEAFW57 LEAFW58 LEAFW59 LEAFW60 LEAFW61 LEAFW62 LEAFW63 LEAFW64 LEAFW65 LEAFW66 LEAFW67 LEAFW68 LEAFW69 LEAFW70 LEAFW71 LEAFW72 LEAFW73 LEAFW74 LEAFW75 LEAFW76 LEAFW77 LEAFW78 LEAFW79 LEAFW80

Scan the QR code to get the detailed pin definitions.

QR code image containing encoded data, no visible human-readable text

ASUS PRIME B360M-C

1

CPU and chassis fan connectors (4-pin CPU\_FAN, 4-pin CHA\_FAN 1/2)

Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors! The CPU_FAN connector supports a CPU fan of maximum 1A (12 W) fan power.

2

ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)

Correctly orient the ATX power supply plugs into these connectors and push down firmly until the connectors completely fit.

• For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12 V Specification 2.0 (or later version) and provides a minimum power of 350 W.
• We recommend that you use a PSU with higher power output when configuring a system with more power-consuming devices or when you intend to install additional devices. The system may become unstable or may not boot up if the power is inadequate.
• If you are uncertain about the minimum power supply requirement for your system, refer to the Recommended Power Supply Wattage Calculator at http://support.asus.com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

3

M.2 socket 3

These sockets allow you to install an M.2 (NGFF) SSD module.

These M.2 sockets support M Key and 2242/2260/2280 storage devices.

4

Intel® LGA1151 CPU socket

Install Intel ^® LGA1151 CPU into this surface mount LGA1151 socket, which is designed for 8th Generation Intel ^® Core ^TM i7 / i5 / i3, Pentium ^® , and Celeron ^® processors.

For more details, refer to Central Processing Unit (CPU).

5

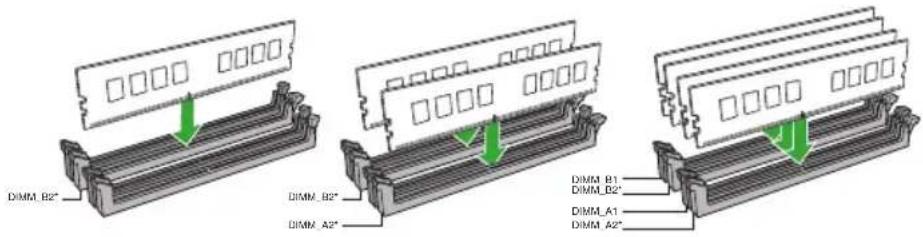

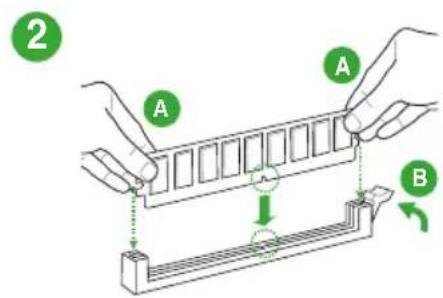

DDR4 DIMM slots

Install 2 GB, 4 GB, 8 GB, and 16 GB unbuffered non-ECC DDR4 DIMMs into these DIMM sockets.

For more details, refer to System memory.

6

Intel® B360 Serial ATA 6.0Gb/s connectors (7-pin SATA6G\_1\~4)

These connectors connect to Serial ATA 6.0 Gb/s hard disk drives via Serial ATA 6.0 Gb/s signal cables.

USB 3.1 Gen 1 (up to 5Gbps) connector (20-1 pin U31G1\_12)

Connect a USB 3.1 Gen 1 module to this connector for additional USB 3.1 Gen 1 front or rear panel ports. This connector complies with USB 3.1 Gen 1 specifications and provides faster data transfer speeds of up to 5 Gbps, faster charging time for USB-chargeable devices, optimized power efficiency, and backward compatibility with USB 2.0.

System panel connector (10-1 pin F\_PANEL)

This connector supports several chassis-mounted functions.

Speaker connector (4-pin SPEAKER)

The 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

10 Chassis intrusion header (4-1 pin CHASSIS)

This header is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event.

By default, the pin labeled "Chassis Signal" and "Ground" are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature.

11 Clear RTC RAM (2-pin CLRTC)

This header allows you to clear the CMOS RTC RAM data of the system setup information such as date, time, and system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.
2. Use a metal object such as a screwdriver to short the two pins.
3. Plug the power cord and turn ON the computer.
4. Hold down the key during the boot process and enter BIOS setup to re-enter data.

If the steps above do not help, remove the onboard battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the battery.

USB 2.0 connectors (10-1 pin USB78,USB1112)

Connect a USB module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis. These USB connectors comply with USB 2.0 specifications and support up to 480Mbps connection speed.

LPC Debug header

This header allows connection to a LPC debug card.

• Scan the QR code to view the meaning of each debug code.
• Debug codes are only available for ASUS LPC debug card.
• Contact your region sales representative for LPC debug header ordering.

QR code image containing encoded data, no visible human-readable text

TPM connector (14-1 pin TPM)

This connector supports a Trusted Platform Module (TPM) system, which can securely store keys, digital certificates, passwords, and data. A TPM system also helps enhance network security, protects digital identities, and ensures platform integrity.

LPT connector (26-1 pin LPT)

The LPT (Line Printing Terminal) connector supports devices such as a printer. LPT standardizes as IEEE 1284, which is the parallel port interface on IBM PC-compatible computers.

Serial port connectors (10-1 pin COM)

Connect the serial port module cable to any of these connectors, then install the module to a slot opening at the back of the system chassis.

Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports HD Audio standard. Connect one end of the front panel audio I/O module cable to this connector.

• We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard's high-definition audio capability.
• If you want to connect a high-definition front panel audio module to this connector, set the Front Panel Type item in the BIOS setup to [HD Audio]. By default, this connector is set to [HD Audio].

PCI slot

The PCI slot supports cards such as a LAN card, SCSI card, USB card, and other cards that comply with PCI specifications.

Mono out header (2-pin MONO\_OUT)

This internal mono out header allows connection to an internal, low power speaker for basic system sound capability. You can connect a 3W speaker to this header, but the subsystem is capable of driving a speaker load of 2 Ohms at 2 Watts (rms).

PCI Express 3.0/2.0 x1 slots

This motherboard has two PCI Express 3.0/2.0 x1 slots that support PCI Express x1 network cards, SCSI cards, and other cards that comply with the PCI Express specifications.

PCI Express 3.0/2.0 x16 slot

This motherboard supports a PCI Express 3.0/2.0 x16 graphic card that complies with the PCI Express specifications.

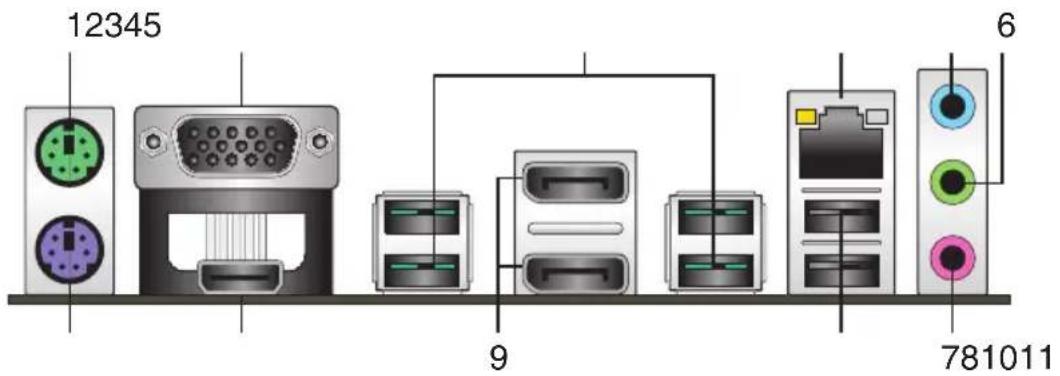

Rear panel connectors

12345 9 781011

1. PS/2 Mouse port (green). This port is for a PS/2 mouse.
2. Video Graphics Adapter (VGA) port. This 15-pin port is for a VGA monitor or other VGA-compatible devices.
3. USB 3.1 Gen 2 (up to 10Gbps) ports. These 9-pin Universal Serial Bus (USB) ports are for USB 3.1 Gen 2 devices.
4. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area Network (LAN) through a network hub.

LAN port LED indications

Activity/Link LED Speed LED
Status Description Status Description
Off No link OFF	10Mbps connection
Orange Linked	ORANGE 100Mbps connection
Orange (Blinking)	Data activity	GREEN 1Gbps connection
Orange (Blinking then steady)	Ready to wake up from S5 mode

1. Line In port (light blue). This port connects to the tape, CD, DVD player, or other audio sources.

2. Line Out port (lime). This port connects to a headphone or a speaker. In the 4.1, 5.1 and 7.1-channel configurations, the function of this port becomes Front Speaker Out.

3. Microphone port (pink). This port connects to a microphone.

Refer to the audio configuration table for the function of the audio ports in 2.1, 4.1, 5.1, or 7.1-channel configuration.

Audio 2.1, 4.1, 5.1 or 7.1-channel configuration

Port	Headset2.1-channel	4.1-channel 5.1-channel 7.1-channel
Light Blue (Rear panel) Line In Rear Speaker Out Rear Speaker Out Rear Speaker Out
Lime (Rear panel) Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink (Rear panel) Mic In Mic In Bass/Center Bass/Center
Lime (Front panel) -	-	-Side Speaker Out

To configure a 7.1-channel audio output:

Use a chassis with HD audio module in the front panel to support a 7.1-channel audio output.

1. USB 2.0 ports. These 4-pin Universal Serial Bus (USB) ports are for USB 2.0/1.1 devices.
2. DisplayPorts. These ports are for a DisplayPort-compatible device.
3. HDMI port. This port is for a High-Definition Multimedia Interface (HDMI) connector, and is HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content.
4. PS/2 Keyboard port (purple). This port is for a PS/2 keyboard.

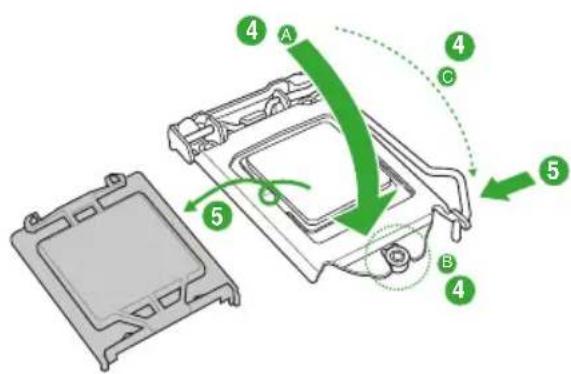

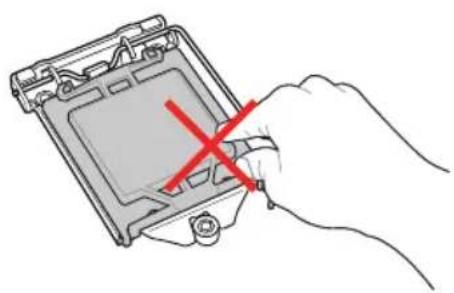

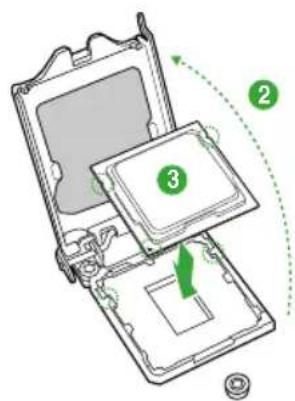

Central Processing Unit (CPU)

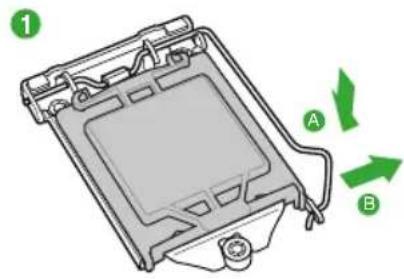

This motherboard comes with a surface mount LGA1151 socket designed for the 8th Generation Intel® Core™ i7 / Core™ i5 / Core™ i3, Pentium® and Celeron® processors.

Technical line drawing of a mechanical device with wheels and a central component (no text or symbols)

Unplug all power cables before installing the CPU.

• Ensure that you install the correct CPU designed for the LGA1151 socket only. DO NOT install a CPU designed for LGA1150, LGA1155 and LGA1156 sockets on the LGA1151 socket.
• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components.
• Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1151 socket.
• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

Installing the CPU

Hand holding a device with a red X mark, no visible text or symbols

Diagram of a device with labeled components A and B, showing internal wiring and green directional arrows (no text or symbols beyond labels)

Diagram showing a device's internal components with numbered annotations and directional arrows indicating motion or assembly.

Diagram showing a device component with labeled parts A, B, C, and directional arrows indicating movement or assembly.

Apply the Thermal Interface Material to the CPU heatsink and CPU before you install the heatsink and fan if necessary.

System memory

Overview

This motherboard comes with four Double Data Rate 4 (DDR4) Dual Inline Memory Module (DIMM) sockets. The figure illustrates the location of the DDR4 DIMM sockets:

DIMM_B1 DIMM_B2" DIMM A1 DIMM A2"

Channel Sockets

Channel A DIMM_A1 & DIMM_A2*

Channel B DIMM_B1 & DIMM_B2*

• You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.
• Always install DIMMs with the same CAS latency. For optimal compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with the retailer to get the correct memory modules.
• DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel ^ 8th Gen. 6-core or higher processors.
• Memory modules with memory frequency higher than 2133 MHz and its corresponding timing or the loaded X.M.P. Profile is not the JEDEC memory standard. The stability and compatibility of these memory modules depend on the CPU's capabilities and other installed devices.

- The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value.

• Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).

Recommended memory configuration

DIMM_B2" DIMM_B2" DIMM_A2" DIMM_B1 DIMM_B2" DIMM_A1 DIMM_A2"

Installing a DIMM

Simple line drawing of a lever with a green arrow indicating rotation (no text or symbols)

2 A A B

To remove a DIMM

B A

BIOS information

2

Scan the QR code to view the BIOS update guide.

QR code image containing encoded data, no visible human-readable text

The system will automatically active ASUS Self-Recovering BIOS after reboot from the BIOS update failure.

ASUS Self-Recovering BIOS

ASUS-exclusive BIOS protection technology automatically recovers the system's BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall your hardware.

• Ensures safe BIOS updates
• Requires no additional software
• Provides automatic update failure detection and recovery
• Reduces maintenance frequency and costs

BIOS setup program

Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program.

Entering BIOS Setup at startup

To enter BIOS Setup at startup:

Press or during the Power-On Self Test (POST). If you do not press or , POST continues with its routines.

Entering BIOS Setup after POST

To enter BIOS Setup after POST:

• Press ++ simultaneously.
• Press the reset button on the system chassis.
• Press the power button to turn the system off then back on. Do this option only if you failed to enter BIOS Setup using the first two options.

Using the power button, reset button, or the ++ keys to force reset from a running operating system can cause damage to your data or system. We recommend you always shut down the system properly from the operating system.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.
• Visit the ASUS website at www.asus.com to download the latest BIOS file for this motherboard.
• If the system becomes unstable after changing any BIOS setting, load the default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey F5.
• If the system fails to boot after changing any BIOS setting, try to clear the CMOS and reset the motherboard to the default value. See section Motherboard overview for information on how to erase the RTC RAM.

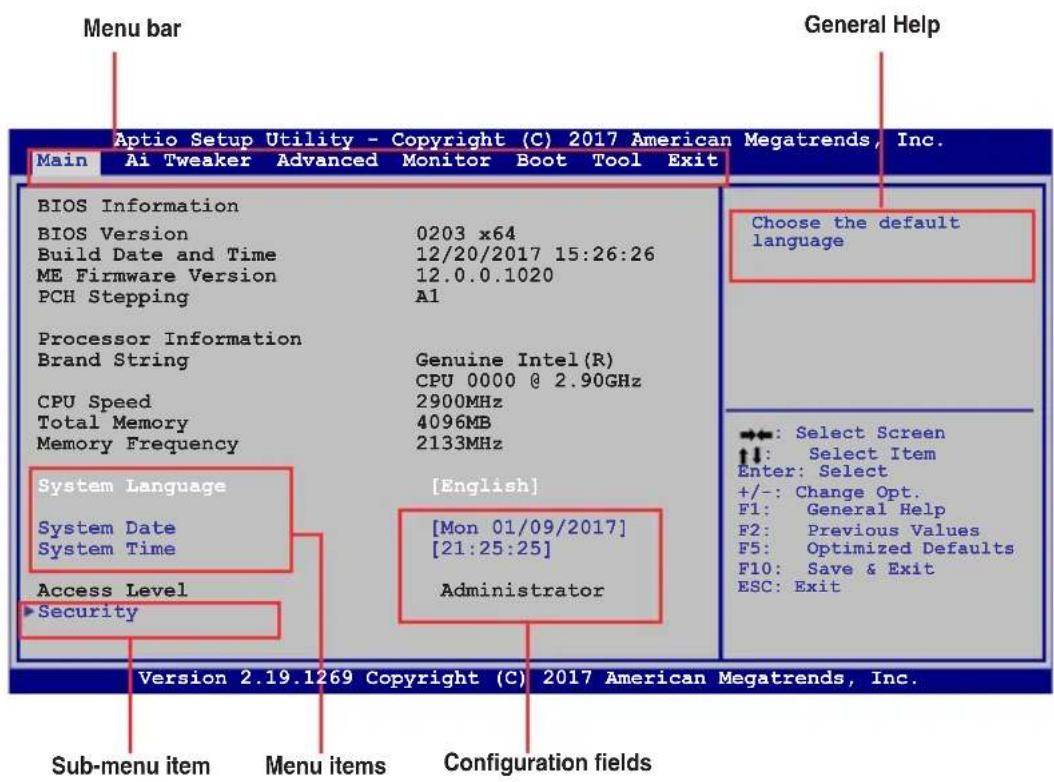

BIOS menu screen

Menu bar Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc. Main Ai Tweaker Advanced Monitor Boot Tool Exit General Help BIOS Information BIOS Version 0203 x64 Build Date and Time 12/20/2017 15:26:26 ME Firmware Version 12.0.0.1020 PCH Stepping A1 Processor Information Brand String Genuine Intel(R) CPU Speed 2900MHz Total Memory 4096MB Memory Frequency 2133MHz System Language [English] System Date [Mon 01/09/2017] System Time [21:25:25] Access Level Administrator Security Sub-menu item Menu items Configuration fields Choose the default language →: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F5: Optimized Defaults F10: Save & Exit ESC: Exit Version 2.19.1269 Copyright (C) 2017 American Megatrends, Inc.

Event Log

You can access Event Log from the Tool menu.

Main Ai Tweaker Advanced Monitor Boot Tool Exit
ASUS EZ Flash 3 Utility User profile ASUS SPD Information Event Log	Show Event Logs in setup.
	:Select Screen ↑: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F5: Optimized Defaults F10: Save & Exit ESC: Exit
Version 2.19.1269 Copyright (C) 2017 American Megatrends, Inc.

A built-in event log enables easier troubleshooting by capturing useful system information, including:

Event Category Description Event Log
BIOS Updates	Update status, latest version and update time	BIOS updated from xxxx to xxxxBIOS update successful
AC Power loss Abnormal power loss events		AC Power Loss4S Forced Shutdown
RTC reset Real-time-clock (RTC) reset time RTC time reset has occurred
Chassis instrusion	Record of when the chassis has been opened	A chassis intrusion has occurred
Hardware changes	Modifications to the CPU, memory or HDDs	New CPU InstalledHDD has been changed!Memory has been changed!
BIOS Updates	USB current*, CPU temperature**, and CPU voltage events**	USB Over Current occurredCPU Over Heating Error!CPU Over Voltage Error!

* Record of when USB Over Current occurs

** Record of when CPU temperature rises above 75°C

***Record of when CPU Voltage reaches below 0 mV or above 1550mV

Exit menu

The Exit menu items allow you to load the optimal default values for the BIOS items, and save or discard your changes to the BIOS items.

Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Main Ai Tweaker Advanced Monitor Boot Tool Exit
Load Optimized Defaults Save Changes & Reset Discard Changes & Exit Launch EFI Shell from USB drives	Exit system setup without saving any changes.
	→←:Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F5: Optimized Defaults F10: Save & Exit ESC: Exit

Load Optimized Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When you select this option or if you press , a confirmation window appears. Select OK to load the default values.

Save Changes & Reset

Once you are finished making your selections, choose this option from the Exit menu to ensure the values you selected are saved. When you select this option or if you press , a confirmation window appears. Select OK to save changes and exit.

Discard Changes & Exit

This option allows you to exit the Setup program without saving your changes. When you select this option or if you press , a confirmation window appears. Select OK to discard changes and exit.

Launch EFI Shell from USB drives

This option allows you to attempt to launch the EFI Shell application (shellx64.efi) from one of the available USB devices.

Appendix

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
- This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required to assure compliance with FCC regulations. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

ASUS PRIME B360M-C

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

CAN ICES-3(B)/NMB-3(B)

KC: Korea Warning Statement

B급 기기 (가정용 방송통신기자재)

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm.

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Regional notice for California

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Google™ License Terms

Copyright© 2018 Google Inc. All Rights Reserved.

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at:

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.

See the License for the specific language governing permissions and limitations under the License.

ASUS PRIME B360M-C

English ASUSTeK Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of related Directives. Full text of EU declaration of conformity is available at: www.asus.com/support

Address 4F, No. 150, Li-Te Road, Peitou, Taipei 112, Taiwan

Telephone [phone]

Fax [phone]

Web site www.asus.com

Technical Support

Telephone [phone]

Fax [phone], ext. 9101#

Online support http://qr.asus.com/techserv

ASUS COMPUTER INTERNATIONAL (America)

Address 800 Corporate Way, Fremont, CA 94539, USA

Telephone [phone]

Fax [phone]

Web site http://www.asus.com/us/

Technical Support

Support fax [phone]

Telephone [phone]

Online support http://qr.asus.com/techserv

ASUS COMPUTER GmbH (Germany and Austria)

Address Harkort Str. 21-23, 40880 Ratingen, Germany

Fax [phone]

Web site http://www.asus.com/de

Online contact http://eu-rma.asus.com/sales

Technical Support

Telephone [phone]

Support Fax [phone]

Online support http://qr.asus.com/techserv

ASUS PRIME B360M-C

A-5

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

Responsible Party Name: Asus Computer International

Address: 800 Corporate Way, Fremont, CA 94539.

Phone/Fax No: [phone]/[phone]

hereby declares that the product

Product Name : Motherboard

Model Number : B360M-C

Conforms to the following specifications:

☒ FCC Part 15, Subpart B, Unintentional Radiators

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
