| Product Type | LCD Monitor |
| Brand | Acer |
| Model | V6 V206HQL (206HQL) |
| Screen Size | 20 inches (diagonal) |
| Resolution | 1366 x 768 (WXGA) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 60 Hz |
| Connectivity | 1 x VGA (D-Sub), 1 x DVI (optional), 1 x HDMI (optional) |
| Audio | Built-in speakers with audio input |
| Tilt Adjustment | -5° to +25° |
| Power Supply | 100-240 V AC, 50/60 Hz |
| Power Consumption | Approx. 20 W (typical), < 0.5 W in standby |
| Weight | Approx. 3.5 kg (with stand) |
| Dimensions (with stand) | Approx. 467 x 346 x 185 mm |
| Features | Blue Light Filter, Adaptive Contrast Management (ACM), DDC/CI, Plug and Play |
| Certifications | ENERGY STAR, FCC, CE, RoHS |
| Included Accessories | AC power cord, quick start guide; VGA, DVI, HDMI cables (optional) |
| Cleaning Instructions | Unplug monitor, use soft cloth, avoid liquids |
| Safety Features | Grounded plug, ventilation slots, power management |
Frequently Asked Questions - V6 V206HQL ACER
User questions about V6 V206HQL ACER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Screen in PDF format for free! Find your manual V6 V206HQL - ACER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. V6 V206HQL by ACER.
USER MANUAL V6 V206HQL ACER
Copyright © 2012. Acer Incorporated. All Rights Reserved.
Acer LCD Monitor User's Guide Original Issue: 12/2012
Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.
Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your computer. All correspondence concerning your unit should include the serial number, model number and purchase information.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.
Acer LCD Monitor User's Guide
Model number: ____
Serial number: ____
Date of purchase: ____
Place of purchase: ____
Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
Special notes on LCD monitors
The following are normal with the LCD monitor and do not indicate a problem.
- Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the power switch and then turn it on again to make sure the flicker disappears.
- You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
- The LCD screen has 99.99% or more effective pixels. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all the time.
- Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the power switch for a few hours.
- Acer monitor is purposed for video and visual display of information obtained from electronic devices.
Information for your safety and comfort
Safety instructions
Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.
Cleaning your monitor
Please carefully follow these guidelines when cleaning the monitor:
• Always unplug the monitor before cleaning.
• Use a soft cloth to wipe the screen and cabinet front and sides.
Connecting/disconnecting the device
Observe the following guidelines when connecting and disconnecting power from the LCD monitor:
- Make sure the monitor is attached to its base before connecting the power cord to the AC power outlet.
• Make sure both the LCD monitor and the computer are turned off before connecting any cable or unplugging the power cord. - If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.
iv
Accessibility
Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power from the equipment, be sure to unplug the power cord from the electrical outlet.
Safe listening
To protect your hearing, follow these instructions.
- Gradually increase the volume until you can hear it clearly and comfortably and without distortion.
• After setting the volume level, do not increase it after your ears have adjusted. - Limit the amount of time listening to music at high volume.
- Avoid turning up the volume to block out noisy surroundings.
• Turn the volume down if you can't hear people speaking near you.
Warnings
• Do not use this product near water.
- Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
- Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.
- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.
- To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
- Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage internal devices.
Using electrical power
- This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
- Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
- If an extension co rd is used with this product, make sure that the total
ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
- Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
- This product's power cord is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the power cord plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.
Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.
Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.
- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, type SPT-2, rated 7 A 125 V minimum, VDE approved or its equivalent, 4.5 meters (15 feet) maximum length.
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel when:
• the power cord or plug is damaged, cut or frayed
- liquid was spilled into the product
• the product was exposed to rain or water
• the product has been dropped or the case has been damaged
- the product exhibits a distinct change in performance, indicating a need for service
• the product does not operate normally after following the operating instructions
Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.
Potentially explosive environments
Switch off your device in any area with a potentially explosive atmosphere and obey all signs and instructions. Potentially explosive atmospheres include areas where you would normally be advised to turn off your vehicle engine. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. Switch off the device near gas pumps at service stations. Observe restrictions on the use of radio equipment in fuel depots, storage and distribution areas; chemical plants; or where blasting operations are in progress. Areas with a potentially explosive atmosphere are often, but not always, marked. They include below deck on boats, chemical transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or butane), and areas where the air contains chemicals or particles such as grain, dust or metal powders.
Additional safety information
Your device and its enhancements may contain small parts. Keep them out of the reach of small children.
IT Equipment Recycling Information
Acer is strongly committed to environmental protection and views recycling, in the form of salvaging and disposal of used equipment, as one of the company's top priorities in minimizing the burden placed on the environment.
We at Acer are very conscious of the environmental effects of our business and strive to identify and provide the best working procedures to reduce the environmental impact of our products.
For more information and help when recycling, please go to this website: http://www.acer-group.com/public/Sustainability/
Visit www.acongroup for further information on the features and benefits of our other products.
Disposal instructions
Do not throw this electronic device into the trash when discarding.
To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and
Electronics Equipment (WEEE) regulations, visit
http://www.acer-group.com/public/Sustainability/
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques.
Nevertheless, some pixels may occasionally misfire or appear as black or red dots. This has no effect on the recorded image and does not constitute a malfunction.
viii
This product has been shipped enabled for power management:
- Activate the Display Sleep mode within 5 minutes of user inactivity.
- Wake the monitor when it is in Active Off mode, move the mouse or press any keyboard key.
Tips and information for comfortable use
Computer users may complain of eyestrain and headaches after prolonged use. Users are also at risk of physical injury after long hours of working in front of a computer. Long work periods, bad posture, poor work habits, stress, inadequate working conditions, personal health and other factors greatly increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis or other musculoskeletal disorders. The following symptoms may appear in the hands, wrists, arms, shoulders, neck or back:
- numbness, or a burning or tingling sensation
• aching, soreness or tenderness
• pain, swelling or throbbing
• stiffness or tightness
• coldness or weakness
If you have these symptoms, or any other recurring or persistent discomfort and/or pain related to computer use, consult a physician immediately and inform your company's health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or raising your sitting height to achieve maximum comfort. Observe the following tips:
• refrain from staying too long in one fixed posture
• avoid slouching forward and/or leaning backward
- stand up and walk around regularly to remove the strain on your leg muscles
Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room lighting, poorly focused screens, very small typefaces and low-contrast displays could stress your eyes. The following sections provide suggestions on how to reduce eyestrain.
Eyes
• Rest your eyes frequently.
- Give your eyes regular breaks by looking away from the monitor and focusing on a distant point.
- Blink frequently to keep your eyes from drying out.
Display
- Keep your display clean.
- Keep your head at a higher level than the top edge of the display so your eyes point downward when looking at the middle of the display.
- Adjust the display brightness and/or contrast to a comfortable level for enhanced text readability and graphics clarity.
- Eliminate glare and reflections by:
- placing your display in such a way that the side faces the window or any light source
-
minimizing room light by using drapes, shades or blinds
• using a task light
• changing the display's viewing angle
• using a glare-reduction filter
• using a display visor, such as a piece of cardboard extended from the display's top front edge -
Avoid adjusting your display to an awkward viewing angle.
- Avoid looking at bright light sources, such as open windows, for extended periods of time.
Developing good work habits
Develop the following work habits to make your computer use more relaxing and productive:
• Take short breaks regularly and often.
• Perform some stretching exercises.
- Breathe fresh air as often a s possible.
• Exercise regularly and maintain a healthy body.
Declaration of Conformity
We,
Acer Incorporated
8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan
And,
Acer Italy s.r.l.
We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:
EMC Directive: 2014/30/EU
EN55032:2012/AC:2013 Class B
EN 55024:2010
EN61000-3-2:2014 Class D
EN61000-3-3:2013
LVD Directive: 2014/35/EU
EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013
RoHS Directive: 2011/65/EU
EN 50581:2012
☒ ErP Directive: 2009/125/EC
☒ Regulation (EC) No. 1275/2008; EN 50564:2011
Year to begin affixing CE marking: 2017.
RU Jan / Sr. Manager
Acer Incorporated (Taipei, Taiwan)
Mar. 05, 2017
Date
Acer America Corporation
333 West San Carlos St., Suite 1500
San Jose, CA 95110, U. S. A.
Tel : 254-298-4000
Fax:254-298-4147
www.acer.com
Federal Communications Commission Declaration of Conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
The following local Manufacturer /Importer is responsible for this declaration:
Product:
LCD
Monitor
Model Number:
206HQL
SKU Number:
206HQL xxxxxx
("x" = 0\~9, a \~ z, A \~ Z or Blank)
Name of Responsible Party: Acer America Corporation
Address of Responsible Party: 333 West San Carlos St.
Suite 1500
San Jose, CA 95110
U. S. A.
Contact Person: Acer Representative
Phone No.: 254-298-4000
Fax No.: 254-298-4147
Special notes on LCD monitors iii
Information for your safety and comfort iii
Safety instructions iii
Cleaning your monitor iii
Connecting/disconnecting the device iii
Accessibility iv
Safe listening iv
Warnings iv
Using electrical power iv
Product servicing v
Additional safety information vi
IT equipment recycling information vi
Disposal instructions vii
LCD pixel statement vii
Tips and information for comfortable use viii
Federal Communications Commission
Declaration of Conformity xi
Unpacking 1
Attaching/removing the base 2
Screen position adjustment 2
Connecting the power cord 5
Power saving
Display Data Channel (DDC)

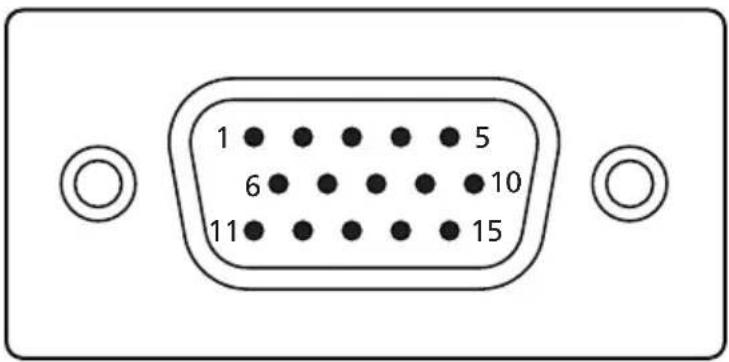

Connector pin assignment 6
Standard timing table 8
Installation 9
User controls 10
How to adjust a setting 11
Acer eColor Management 12
User 13
Troubleshooting 1
VGA mode 1
DVI/HDMI mode 16
Unpacking
Please check that the following items are present when you unpack the box, and save the packing materials in case you need to ship or transport the monitor in the future.
LCD monitor Quick start guide
Audio Cable (Option)
DVI cable (Option)
AC power cord


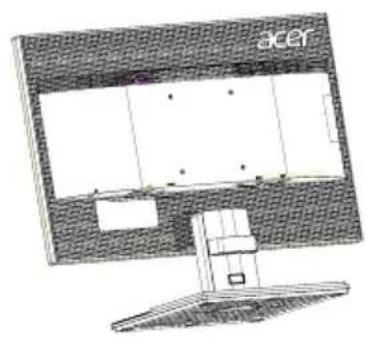

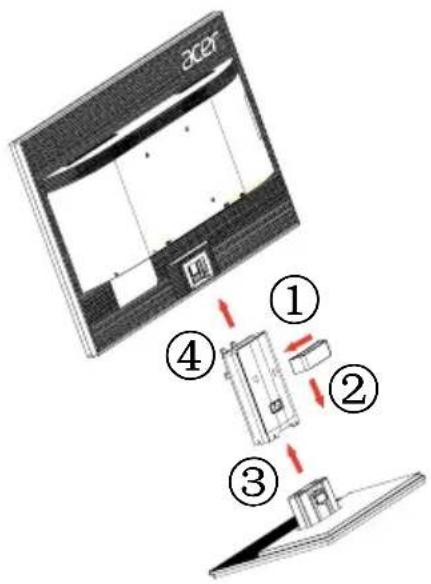

Attaching the Base
Note: Remove the monitor and monitor base from its packaging. Carefully place the monitor face-down on a stable surface -- use a cloth to avoid scratching the screen.


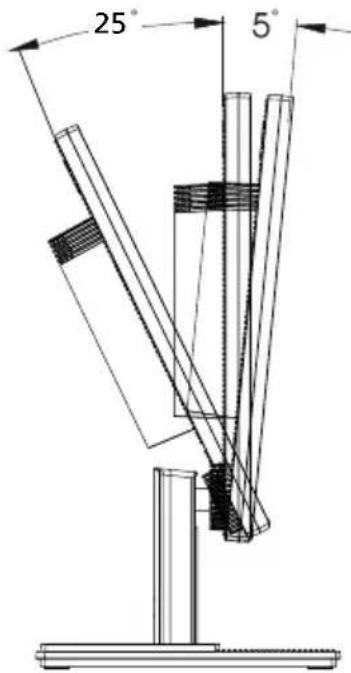

Screen position adjustment
To optimize the viewing position, you can adjust the monitor tilt by using both of your hands to hold the edges of the monitor as shown below. The monitor can be adjusted to 25 degrees up or 5 degrees down.
- Check first to make sure that the power cord you use is the correct type required for your area.
- The monitor has a universal power supply that allows operation in either 100/120 V AC or 220/240 V AC voltage area. No user-adjustment is required.
- Plug one end of the power cord to the AC inlet, and plug the other end into an AC outlet.
- For units using 120 V AC: Use a UL-listed cord set, type SVT wire and plug rated 10 A/125 V.
- For units using 220/240 V AC: Use a cord set consisting of H05VV-F cord and plug rated 10 A/250 V. The cord set should have the appropriate safety approvals for the country in which the equipment will be installed.
Power saving
The monitor will be switched to "power saving" mode by the control signal from the display controller, as indicated by the amber-colored power LED.
| Mode LED light |
| On Blue |
| Power saving Amber |
The power saving mode will be kept until a control signal has been detected or the keyboard or mouse is activated. The recovery time from "power saving" mode back to "on" is around 3 seconds.
Display Data Channel (DDC)
To make installation easier, so long as your system supports the DDC protocol, the monitor is able to plug-and-play. The DDC is a communication protocol through which the monitor automatically informs the host system about its capabilities; for example, supported resolutions and corresponding timing. The monitor supports the DDC2B standard.
Connector pin assignment
| PIN No. Description PIN No. Description |
| 1 Red 9 +5 V |
| 2 Green 10 Logic ground |
| 3 Blue 11 Monitor ground |
| 4 Monitor ground 12 DDC-serial data |
| 5 DDC-return 13 H-sync |
| 6 R-ground 14 V-sync |
| 7 G-ground 15 DDC-serial clock |
| 8 B - g r o u n d |
| PIN No. Description PIN No. Description | |||||||||||
| 1 TMDS data 2- 13 NC | |||||||||||
| 2 TMDS data 2+ 14 +5 V power | |||||||||||
| 3 TMDS data 2/4 shield 15 GND (return for +5 V hsync.vsync) | |||||||||||
| 4 NC 16 Hot-plug detection | |||||||||||
| 5 | N | C | 1 | 7 | T | M | D | S | d | a | t |
| 6 | D | D | C | c | l | o | c | k | 1 | 8 | T |
| 7 DDC data 19 TMDS data 0/5 shield | |||||||||||
| 8 | N | C | 2 | 0 | N | C | |||||
| 9 TMDS data 1- 21 NC | |||||||||||
| 10 TMDS data 1+ 22 TMDS clock shield | |||||||||||
| 11 TMDS data 1/3 shield 23 TMDS clock+ | |||||||||||
| 12 NC 24 DDC TMDS clock- | |||||||||||
| PIN No. | Description | PIN No. | Description |
| 1 | TMDS Data2+ | 2 | TMDS Data2 Shield |
| 3 | TMDS Data2-4 | TMDS Data1+ | |
| 5 | TMDS Data1 Shield | 6 | TMDS Data1- |
| 7 | TMDS Data0+ | 8 | TMDS Data0 Shield |
| 9 | TMDS Data0- 10 TMDS Clock+ | ||
| 11 | TMDS Clock Shield | 12 | TMDS Clock- |
| 13 | CEC | 14 | Reserved (N.C. on device) |
| 15 | SCL | 16 | SDA |
| 17 | DDC/CEC Ground | 18 | +5V Power |
| 19 | Hot Plug Detect | ||
* only for certain models
Standard timing table
| Mode Resolution | ||||
| 1 VGA 640 x 480 60 Hz | ||||
| 2 VGA 640 x 480 72 Hz | ||||
| 3 VGA 640 x 480 75 Hz | ||||
| 4 MAC 640 x 480 66.66 Hz | ||||
| 5 VESA 720 x 400 70 Hz | ||||
| 6 SVGA 800 x 600 56 Hz | ||||
| 7 SVGA 800 x 600 60 Hz | ||||
| 8 SVGA 800 x 600 72 Hz | ||||
| 9 SVGA 800 x 600 75 Hz | ||||
| 10 MAC 832 x 624 74.55 Hz | ||||
| 11 XGA 1024 x 768 60 Hz | ||||
| 12 XGA 1024 x 768 70 Hz | ||||
| 13 XGA 1024 x 768 75 Hz | ||||
| 14 VESA 1280 x 720 60 Hz | ||||
| 15 WXGA 1280 x 800 60 Hz | ||||
| 16 | WXGA | 1366 x 768 | 60 | Hz |
Installation
To install the monitor on your host system, please follow the steps below:
Steps

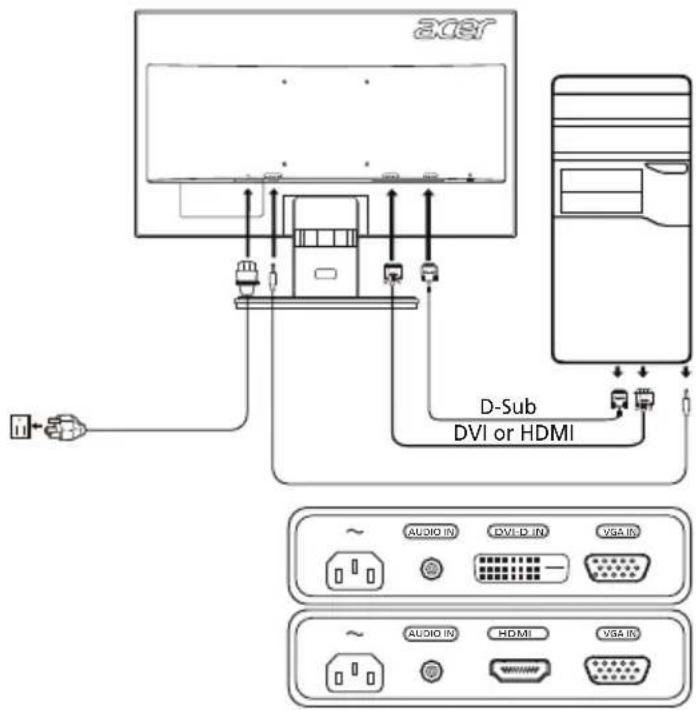

1 Connect the video cable
a Make sure both the monitor and computer are switched off.
b Connect the VGA video cable to the computer.
c Connect the digital cable (only for dual-input models).
(1) Make sure both the monitor and computer are switched off.
(2) Connect one end of the 24-pin DVI cable to the back of the monitor and the other end to the computer's port.
d Connect the digital cable (only for HDMI models)
(1) Make sure both the monitor and computer are switched off.
(2) Connect one end of the 19-pin HDMI cable to the back of the monitor and the other end to the computer's port.
2 Connect the power cord
Connect the power cord to the monitor, then to a properly grounded AC outlet.
3 Optional: Connect the audio input socket(AUDIO IN) of the LCD monitor and the line-out port on the computer with the audio cable.
4 Turn on the monitor and computer
Turn on the monitor first, then the computer. This sequence is very important.
5 If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem.
Base Controls
| Icon Item Description | ||
 | Power button/indicator | Turns the monitor on/off. Blue indicates power on. Amber indicates standby/power saving mode. |
 | OSD functions | Press to view the OSD. Press again to enter a selection in the OSD. |
 | Input button Press to toggle input sources. | |
 | Volume/Blue Light | Press to activate the volume sliding scale. (Selective models)Press to activate the Blue Light menu. (Selective models) |
 | Brightness | Press the key to open the Brightness control and set it to your preferred level. |
 | Mode Press to trigger Mode control. | |
Adjusting the OSD settings
Note: The following content is for general reference only. Actual product specifications may vary.
Note: This product qualifies for ENERGY STAR in the “factory default” setting and this is the setting in which power savings will be achieved. Changing the factory default picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for ENERGY STAR rating.
The OSD (on-screen display) can be used for adjusting the settings of your LCD Monitor. Press the MENU key to open the OSD. You can use the OSD to adjust the picture quality, OSD position and general settings. For advanced settings, please refer to following page:

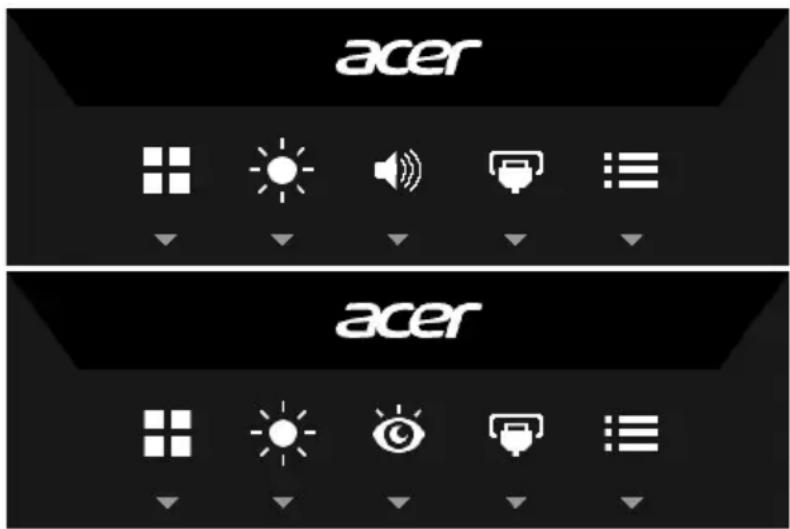

Main Page
- Brightness
- Volume (Selective models) Blue Light (Selective models)
- Input selection
- Function menu

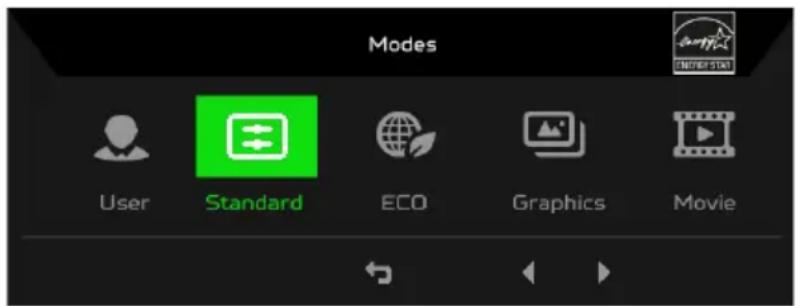

Turn Mode on or off
From any function page, press to open the Modes control and select which user-defined profile to use (please see The Function page section for more information).


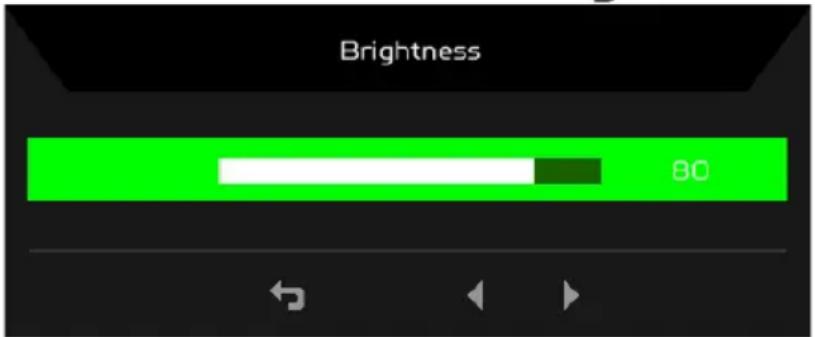

Adjusting the Brightness setting
Open the Brightness control and select the brightness setting using the arrows. When you are done, use to go back one level.


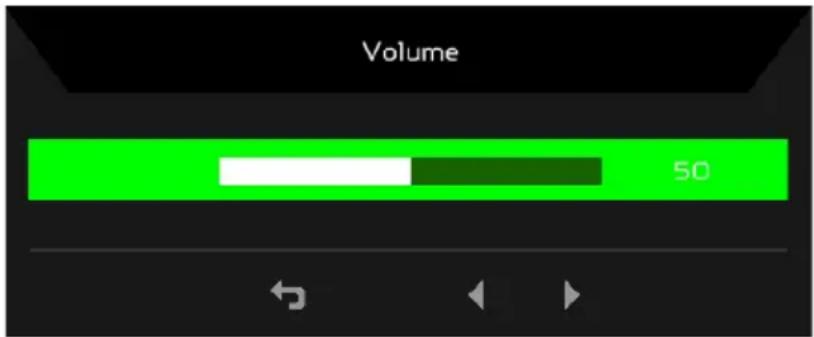

Brightness 80Adjusting the Volume (Selective models)
Open the Volume control and set the volume using the arrows. When you are done, use to go back one level.
Note: Adjustment of the volume control as well as the equalizer to other settings than the center position may increase the ear/headphone output voltage and therefore the sound pressure level.

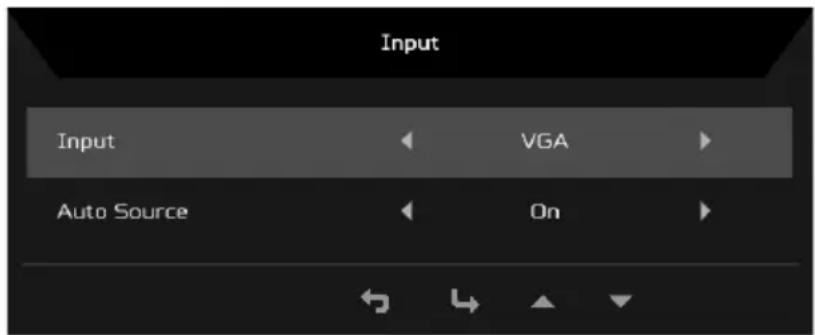

Selecting the Input
Open the input control and select an available input source. When you are done, use to go back one level.
Open the Function page to select a menu function, and adjust the settings which you want using the arrows. You can also view your monitor's system information from this page. When you are done, use to go back one level.

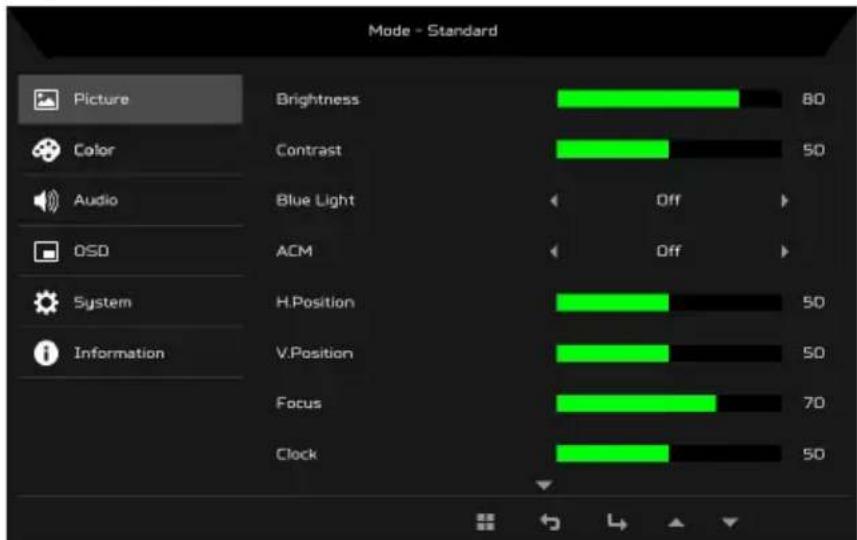

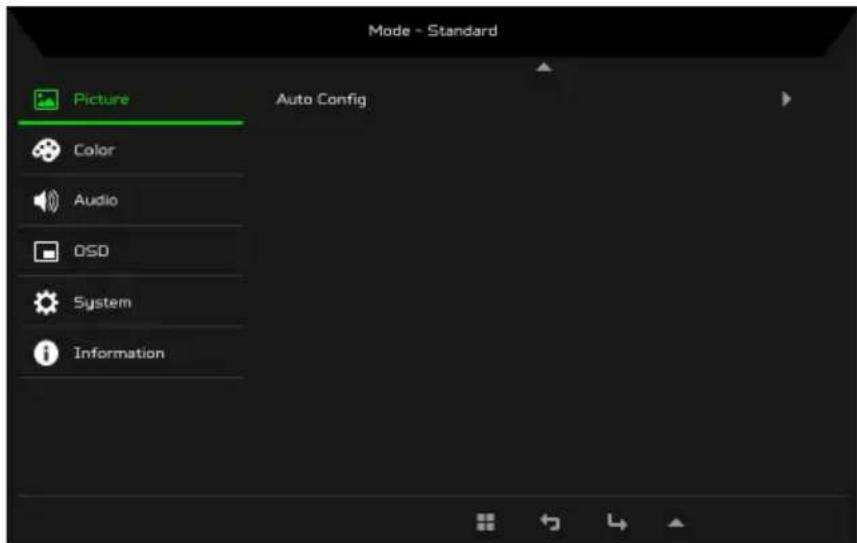

Adjusting the Picture
- Using the ▲/▼ keys, select Picture from the OSD. Then navigate to the setting you wish to adjust.
- Use the ◀/▶ keys to adjust the sliding scales.
- Brightness: Adjust the brightness from 0 to 100.
Note: Adjusts the balance between light and dark shades.
- Contrast: adjust the contrast from 0 to 100.
Note: Sets the degree of difference between light and dark areas.
- Blue Light: filter out blue light by adjusting different Blue Light showing ratio - 80%, 70%, 60%, 50%.
Note: Higher values allow more blue light through. For the best protection, select a lower value.
- ACM: Turn ACM on or off. The default is off.
- H. Position: Adjust the horizontal position from 0 to 100.
- V. Position: Adjust the vertical position from 0 to 100.
- Focus: Adjust the focus from 0 to 100.
- Clock: Adjust the clock from 0 to 100.

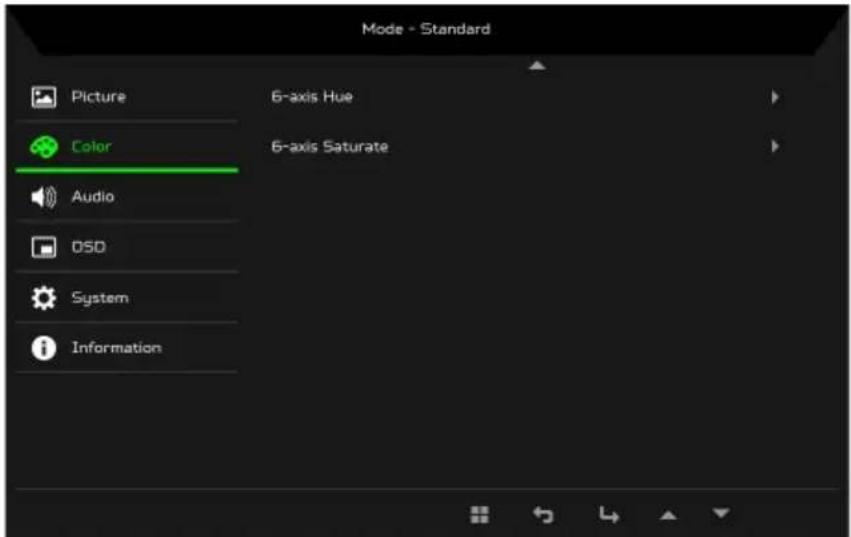

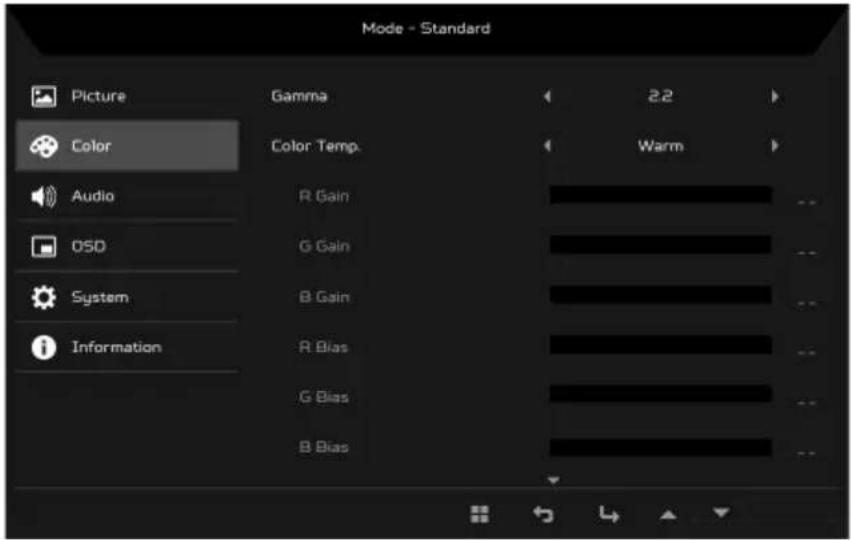

Adjusting the Color
- Using the ▲/▼ keys, select Color from the OSD. Then navigate to the setting you wish to adjust.
- Use the ◀/▶ keys to select setting.
- Gamma mode allows you to adjust the luminance tone. The default value is 2.2 (standard value for Windows).
- Color temperature: Default is warm. You can choose Warm, Normal, Cool, Bluelight or User.
- 6-axis Hue: Adjust the red, green, blue, yellow, magenta and cyan hue.
- 6-axis Saturate: Adjust the red, green, blue, yellow, magenta and cyan saturation.

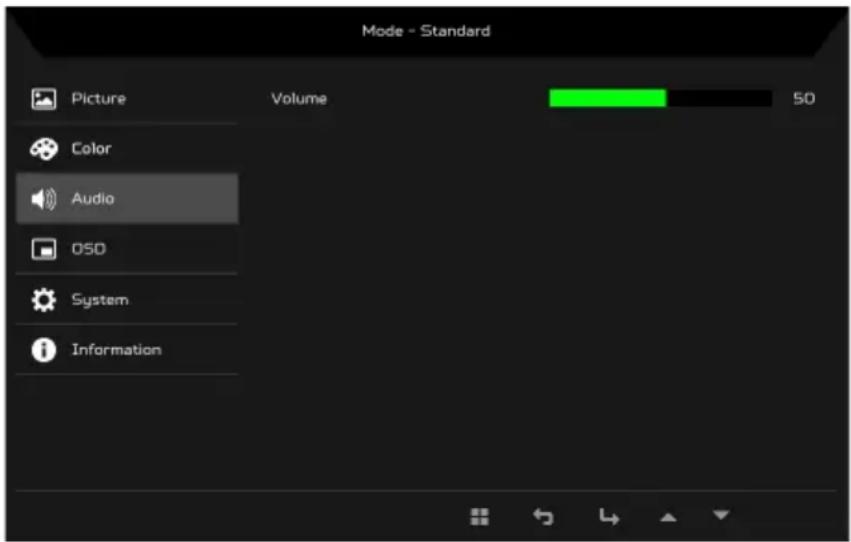

Adjusting the Audio (Selective models)
- Using the ▲/▼ keys, select Audio from the OSD. Then navigate to the setting you wish to adjust.
- Use the ◀/▶ keys to select setting.
- Volume: Adjusts the volume.

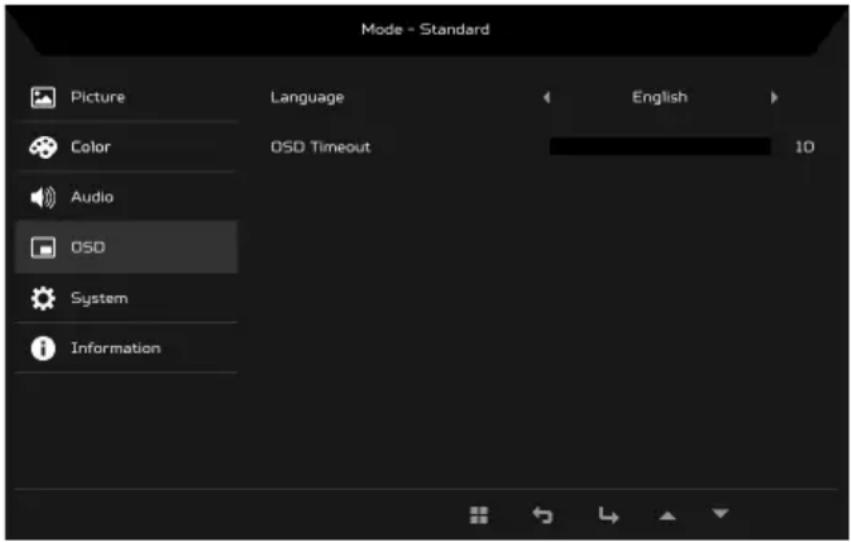

Adjusting the OSD
- Using the ▲/▼ keys, select OSD from the OSD. Then navigate to the setting you wish to change.
- Use the ◀/▶ keys to adjust any sliding scales.
- Language: Set the OSD menu language.
- OSD Timeout: Adjust the delay before turning the off the OSD menu.

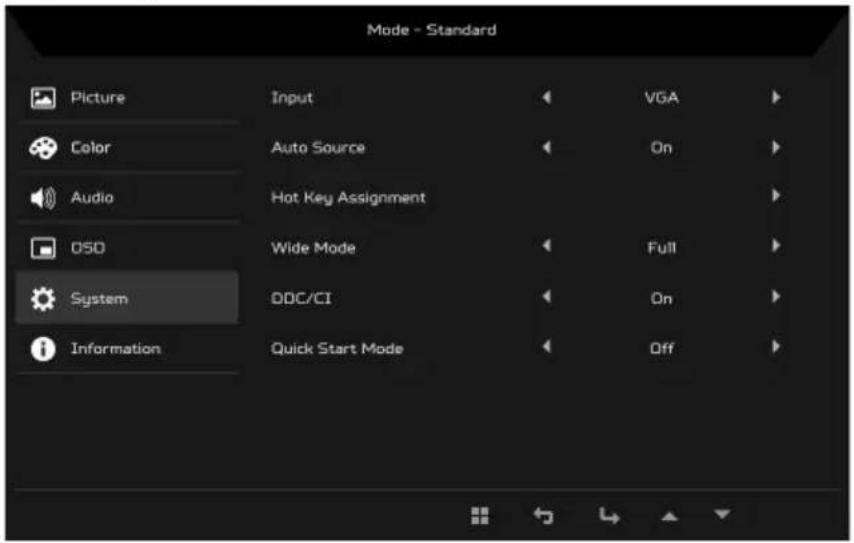

Adjusting the System
- Using the ▲/▼ keys, select System from the OSD. Then navigate to the setting you wish to adjust.
- Use the ◀/▶ keys to select the setting.
- Input: Select the source from an available input source.
- Auto Source: Automatically searches for available input sources.
- Hotkey Assignment: Select the function of Hotkey 1 or Hotkey 2.
- Wide Mode: You can select which screen aspect you are using. The options are Full and Aspect.
- DDC/CI: Allows the monitor settings to be set through the software on the PC.
Note: DDC/CI, short for Display Data Channel/Command Interface, which allows monitor controls to be sent via software.
- Quick Start Mode: Enable monitor rapidly.

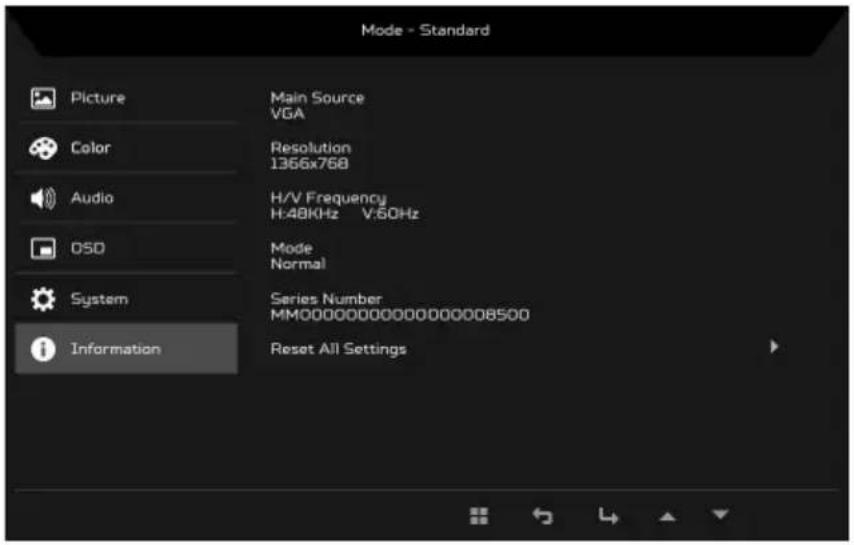

Product information
- Using the ▲/▼ keys, select Information to view the basic information for your monitor and current input.
- Reset All Settings: Resets all settings to the factory defaults.
Troubleshooting
Before sending your LCD monitor for servicing, please check the troubleshooting list below to see if you can self-diagnose the problem.
VGA mode
| Problem LED status Remedy | |
| No picture visible Blue Using the OSD, adjust brightness andcontrast to maximum or reset to theirdefault settings. | |
| Off Check the power switch. | |
| Check if the power cord is properlyconnected to the monitor. | |
| Amber Check if the video signal cable isproperly connected at the back ofmonitor. | |
| Check if the computer system isswitched on and in power saving/standby mode. | |
| Unstable picture Check if the specification of graphicsadapter and monitor is in compliancewhich may be causing the input signalfrequency mismatch. | |
| Abnormal picture Image is missing,off-center, too large or toosmall on thescreen. | Using the OSD, adjust focus, clock, H-position and V-position with non-standard signals. |
| Check the display setting on yoursystem. In case of a missing image,please select another resolution orvertical refresh rate. | |
| Wait for a few seconds after adjustingthe size of the image before changingor disconnecting the signal cable orswitching off the monitor. | |
DVI/HDMI mode
| Problem LED status Remedy | |
| No picture visible Blue Using the OSD, adjust brightness andcontrast to maximum or reset to theirdefault settings. | |
| Off Check the power switch. | |
| Check if the AC power cord is properlyconnected to the monitor. | |
| Amber Check if the video signal cable isproperly connected at the back ofmonitor. | |
| Check that the computer system isswitched on and in power saving/standby mode. | |
Acer's ENERGY STAR qualified products save you money by reducing energy costs and helps protect the environment without sacrificing features or performance. Acer is proud to offer our customers products with the ENERGY STAR mark.
What is ENERGY STAR?
Products that are ENERGY STAR qualified use less energy and prevent greenhouse gas emissions by meeting strict energy efficiency guidelines set by the U.S. Environmental Protection Agency. Acer is committed to offer products and services worldwide that help customers save money, conserve energy and improve the quality of our environment. The more energy we can save through energy efficiency, the more we reduce greenhouse gases and the risks of climate change. More information refers to http://www.energystar.gov.
Acer ENERGY STAR qualified products:
- Produce less heat and reduce cooling loads, and warmer climates.
- Automatically go into "display sleep" within 5 minutes of inactivity.
- Wake the monitor when it is in Active Off mode, move the mouse or press any keyboard key.
ENERGY STAR and the ENERGY STAR mark are registered U.S. marks
