USER MANUAL BSK-651-N BRIGMTON
surfing technology
Electric scooter handle with attached sensor and motor components, shown with wiring diagrams (no text or symbols)natural_image
Two black electric scooters with labeled parts, shown from different angles (① and ②), no text or symbols present.natural_image
Two black electric scooters with labeled parts: one showing a wheel assembly and the other a mechanical component (no text or symbols present)natural_image
Top-down view of a black electric scooter with blue and purple motion arrows indicating speed, no visible text or symbols.FUNCIONAMIENTO
surfing technology


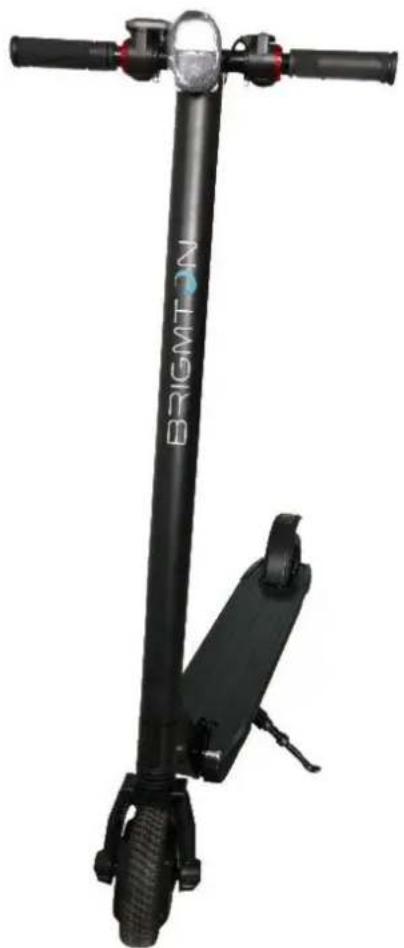

SMART SCOOTER
BSK 651 (N-A-R)
IMPORTANT
The use of adults or minors (12 years and older) ALWAYS under the supervision of an adult is recommended. Not recommended for children under 12 years.
A learning process is required for the use of this device. Just as the learning process to drive a bicycle or a motorcycle requires practice, the use of the electric scooter needs practice before making any moves, turns or raising the speed. Using it without a proper learning process can lead to injury.
It should be noted that the speed achieved can vary depending on the weight of the driver, type of ground, temperature, driving style, etc.
ALWAYS wear protections such as helmet, knee pads, elbow pads and protective gloves.
- We do not recommend using the device on public roads.
- Do not use the device on rainy days, in addition to the risk of water damage to electronic equipment.
- Check the legal regulations on the use of these devices in your country.
Our company can not be held responsible for an improper use of the device. We recommend that you carry out the learning process before using the device.
The skate can only transport one person.
MAINTENANCE INSTRUCTIONS
CLEANING
To clean the skate, use a damp cloth. If you need to scrape dirt, use a soft stiff brush and then a damp cloth. In case the dirt is very sticky you can use a little toothpaste. Remember to wipe with a damp cloth after this.
Be sure to keep the skid off while cleaning and make sure you cover the load inlet to avoid problems with the electronic components.
Do not use alcohol, gasoline, kerosene or other volatile or corrosive chemical components. This can damage both the appearance and the internal structure of the scooter. Also, do not use a pressure water gun or running water.
CONSERVATION
Store the scooter in a cool, dry environment when not in use. Avoid leaving it outside, as it is not manufactured for use in wet areas. It is also not recommended to expose it to high temperatures caused by direct sunlight for a long time.
BATTERY
MAINTENANCE
Do not exceed the permitted operating temperature, above or below, for a
prolonged period of time. For example, do not leave the scooter in a car in the sun in summer or place the batteries near the fire, etc.
Avoid completely discharging the batteries, it is better to charge them while there is still power in them. This will prolong the life of the battery. Also if you drive the skate in very cold or warm areas, you can decrease the time of use of the batteries. It is not a failure of the batteries, but it is their normal behavior.
Important: Even with fully charged batteries, by not using it for a prolonged period, you can download them.
It is forbidden to disassemble the battery tube. Only its manipulation in Official Technical Services or adhered Workshops is allowed.

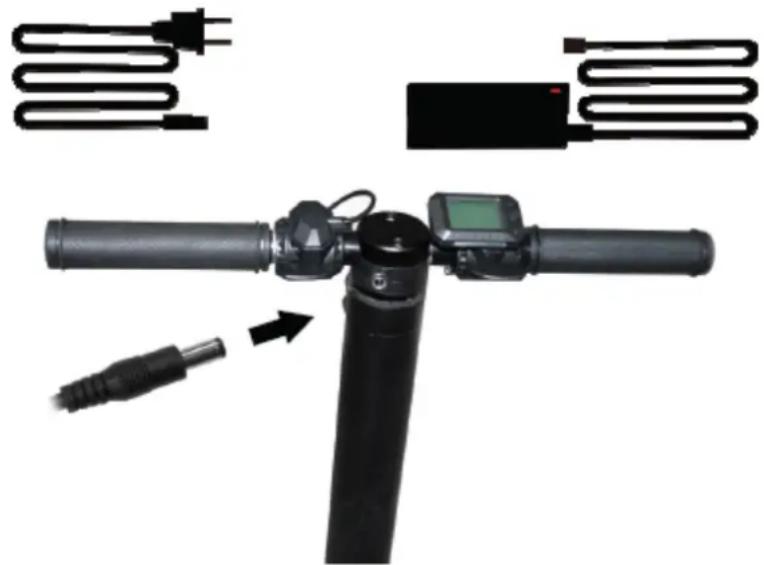

PREPARATION
Fully charge the battery before use.
- Putting the driver at risk
- Damage to the device due to overload (these damages are not covered by the guarantee).
Respect the maximum and minimum load: Maximum: 120 Kg.

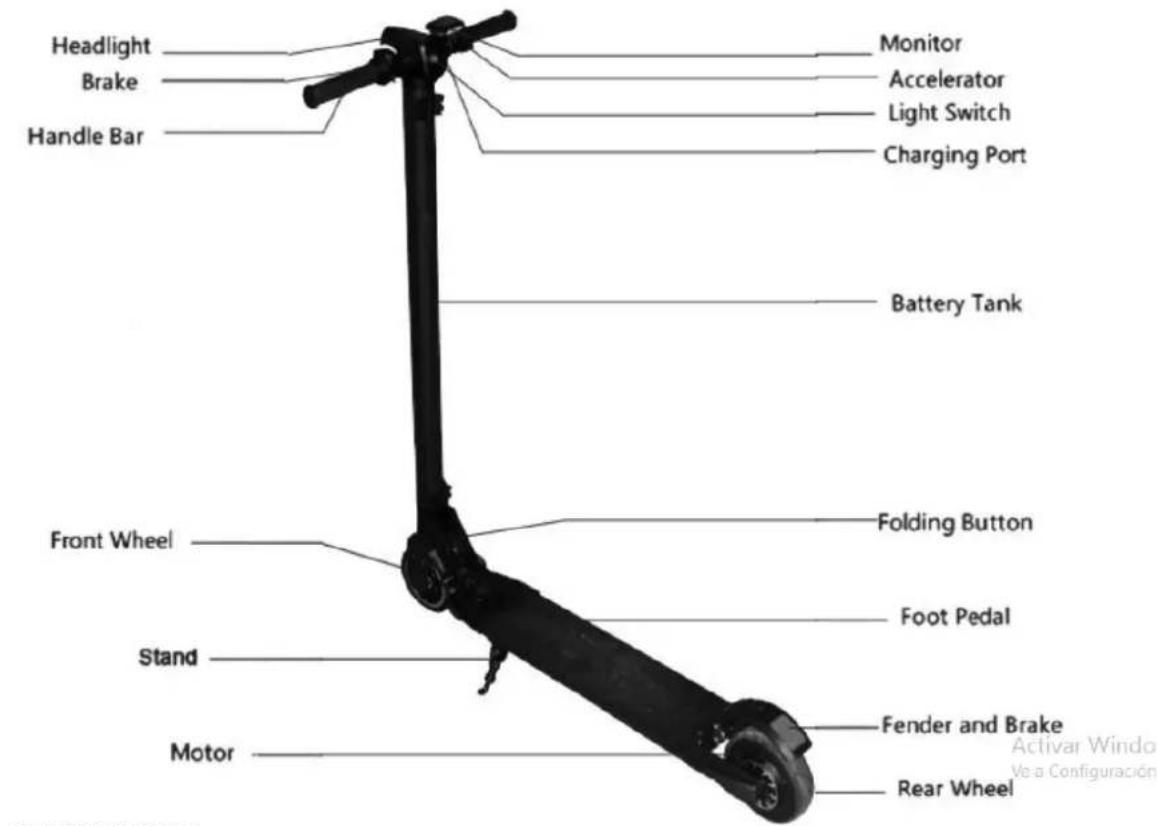

CONTROLS

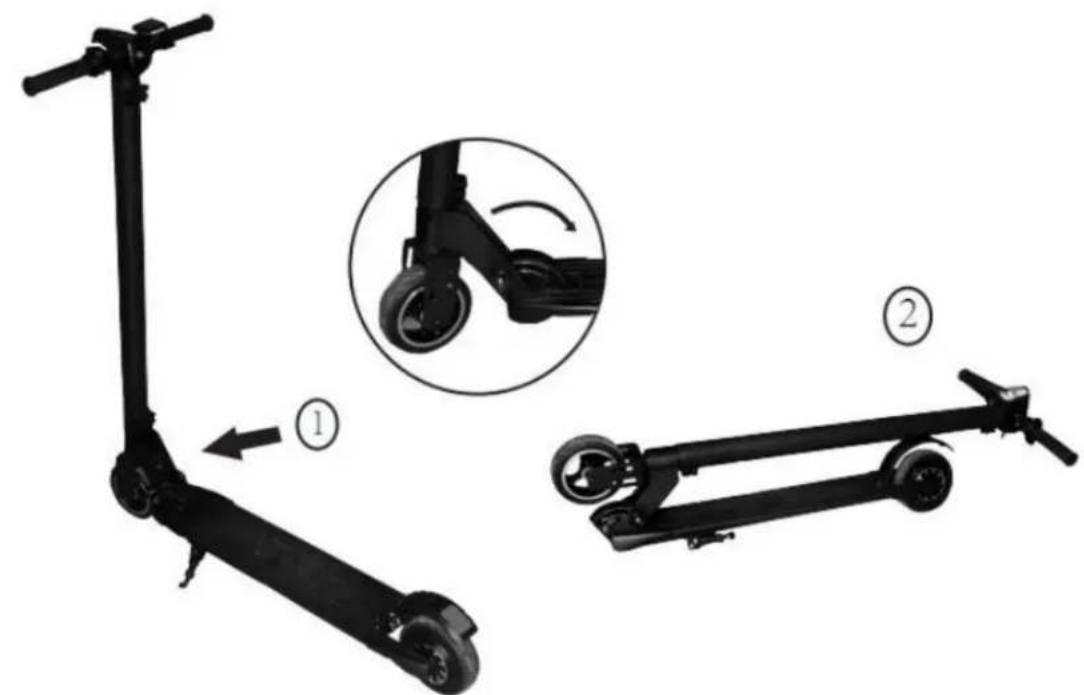

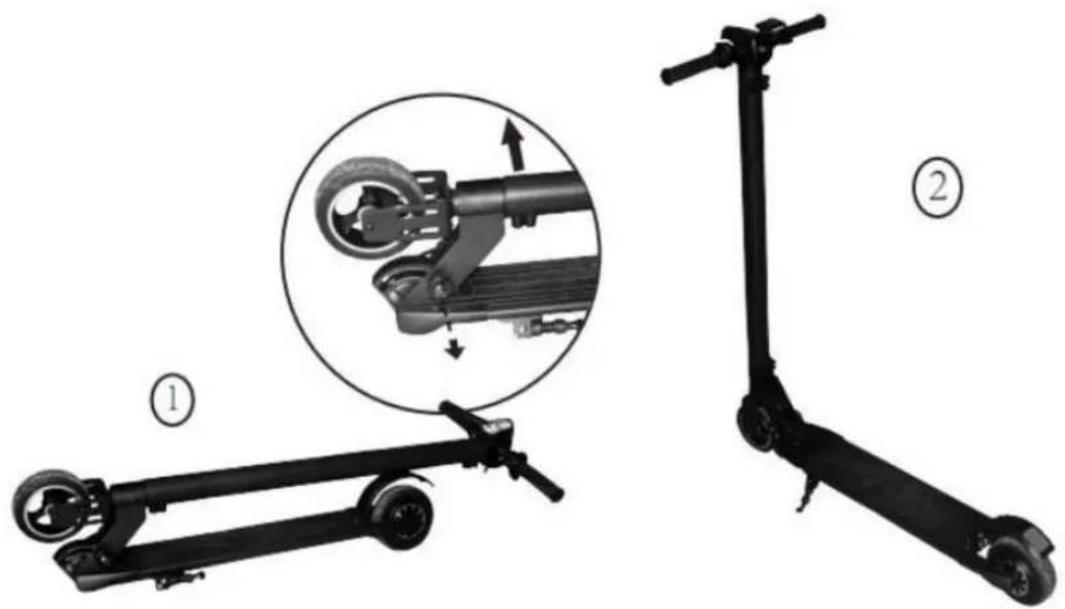

OPEN/CLOSE


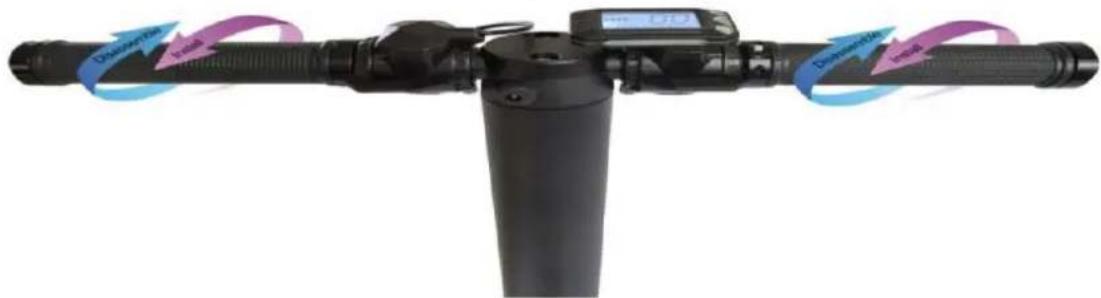

MOUNTING
Before using, you must fix the two parts of the handlebar. Turn in the indicated direction each one of the pieces:
ROSA: Assembly
OPERATION
Press the power button on the screen for 3 seconds to turn on the skate.
The accelerator and brake are electronic. The higher the pulsation, the greater the acceleration or braking. The accelerator is on the right side and the brake on the left side. When the brake is applied, the accelerator does not work. Use the mechanical aid brake, pressing the rear fender with your foot.
Always keep both hands on the handlebar.

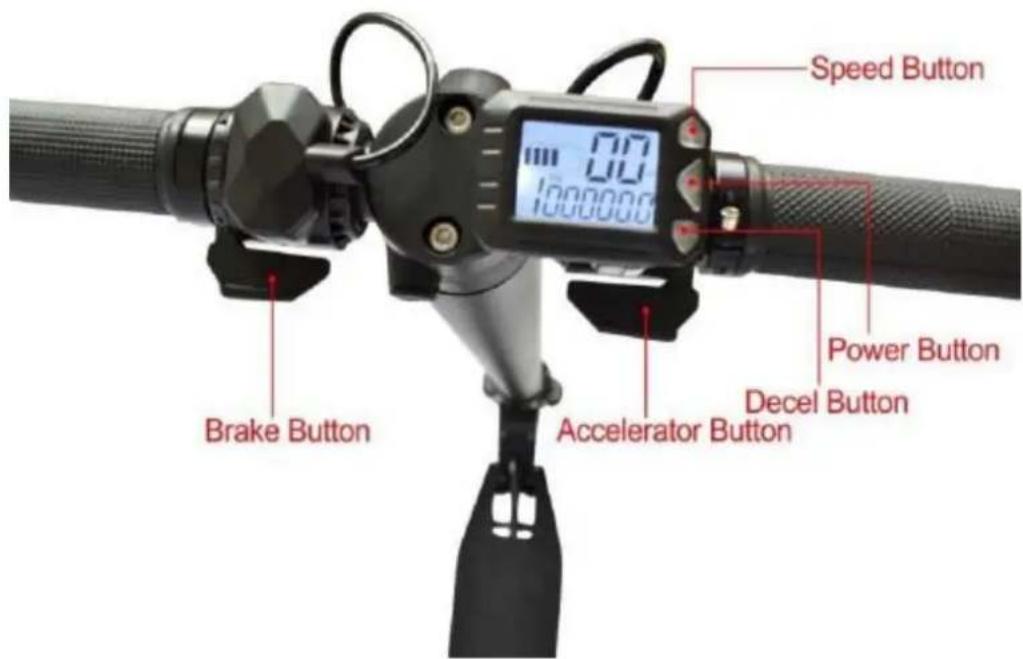

SCREEN
Press the power button to turn on the skate.
Press the up / down buttons to change the speed mode: 1/2/3
Look for a flat, open area to handle the skate for the first time.
The marker shows information about the current speed and the distance traveled.
Battery indicator: The battery and instantaneous consumption are shown, so that when it is rolling, the strength of the indicator will decrease and when it stops, it will return to the state of charge at the moment of stopping.
Briefly press the On/Off button to see different information on the screen.
NOTE: The duration of the battery will depend on factors such as load weight, surface inclination, power to which it circulates, etc.
SECURITY INFORMATION - WARNING
- Learn to drive safely before driving at higher speeds. Falling, losing control, crashing, including violating the rules of the user manual can cause injuries.
- Speed and range may differ based on driver weight, track type, temperature and driving style.
- Be sure to wear a helmet and protective clothing before using the skate.
- Be sure to read the user manual carefully before using the skate.
- Only for use in dry weather.
- We do not recommend the use on public roads.
- Please be sure to check with the local regulations of your country the use of this product.
- The weight limitation of the operator is to guarantee the safety of the operator and reduce the damage due to overload.
- Never turn violently when driving fast.
- When the skate enters the stop state, the system will automatically block the machine. It can be unlocked when the power button is pressed. When the battery has run out or the system offers information with safety shutdown, please do not continue to drive the skid; otherwise, it can not be balanced due to the lack of a battery.
- When driving the skate, make sure that all safety precautions are taken. You must wear a helmet, knee pads, elbow pads and other protective equipment.
- The driver should not wear loose or hanging clothes, laces, etc. that can get caught in the wheels of the skate.
- The skate is only for personal entertainment. It is not allowed to drive on public roads.
- Skate driving on motor vehicle lanes is not allowed.
- Children, elderly or pregnant women are not allowed to drive the scooter.
- Those people with a reduced balance ability should not drive the skate.
- Do not drive the skateboard under the influence of alcoholic beverages or any other substance.
- Do not carry items while driving.
- The skate can only carry one person.
- Do not start or stop suddenly.
- Avoid driving on steep slopes.
- Do not drive the skate against a fixed object.
- Do not drive in dark or poorly lit places.
- Driving the skate is at your own risk due to any accident or damage it may cause.
- Make sure the speed of the vehicle is safe for you and others and be ready to stop at any time while it is running.
- When driving the skate, please stay at a distance from others to avoid collisions.
- When you turn you must use the center of gravity of your body; the violent change in the center of gravity can cause damage.
- Do not drive when it rains.
- Avoid driving with obstacles and avoid snow, ice, and surfaces with poor grip.
- Avoid driving on articles made of cloth, on small branches or stones.
- Avoid driving in confined spaces or where there is an obstacle.
- Jumping to get on or off the skate can cause damage that is not covered by the warranty
- Make sure that the skate, the charger and the DC power socket of the unit are kept dry.
- Note: Use ONLY the charger that is attached. The use of any other charger may damage the product or create other potential risks.
- Connect the power adapter to the DC power port of the scooter and to a standard power outlet. Make sure that the green indicator on the adapter illuminates.
- When the red indicator on the charger lights, this indicates that it is charging properly; otherwise check if the line is properly connected.
- When the charger indicator light changes from red to green, this indicates that the battery is fully charged. In this case, please stop loading it. Overloading will affect the battery life.
- The product should not be charged for prolonged periods of time.
- Never load the product without supervision.
- The product should only be charged at temperatures between 0^ C and +45°C.
- If charging at higher or lower temperatures, there is a risk that battery performance will be reduced and there is a potential risk of product damage and personal injury.
- Load and store the product in an open and dry area, away from flammable materials.
- Do not load it in sunlight or near live flames.
- Do not load the product immediately after use. Allow the product to cool for one hour before loading it.
- If the product is left to other people, for example, during a holiday period, it must be partially charged (20-50% load). Not fully charged
- When shipped from the factory, the product has often only been partially loaded. Keep the product partially charged until it is used.
- The skate must be cooled for at least 1 hour before packing.
- It should not be left outside in a hot car in the sun.
- When loading, do not drive the skate!
- Always keep the protective cap connected to the DC connector!
- Just remove the plug when loading the skate!
- After charging is complete, remove the DC plug and reconnect it to the protective plug on the DC connector.
"Features can change without notice"
BRIGMTON
surfing technology
IMPORTED
FERSON ELECTRÓNICA, S.A.
CIF: A-41111881
SANTA CLARA DE CUBA 12
TEL/FAX: 954256645/954256822
SEVILLA
ESPAÑA
Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:
DIRECTIVAS EMC
EN 60204-1:2006+A1:2009
EN ISO 12100:2010
EN 60335-1: 2012 + A11:2014
EN 71-1-2014
EN 71-2-2011+A1:2014
EN 71-3-2013+A1:2014
2011/65/EU
2016/42/EC
