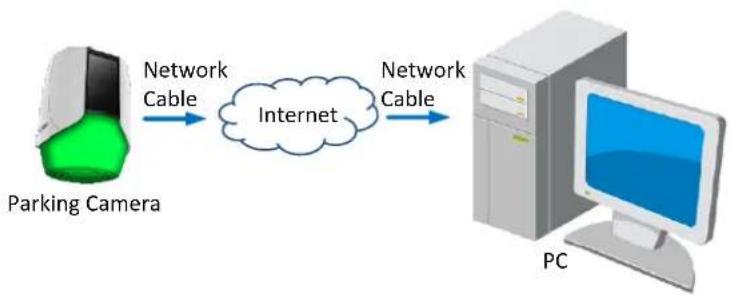

4.2.1 Stac IP Connection 16
4.2.2 Dynamic IP Connecon 17

CHAPTER 5 ACCESSING TO THE PARKING CAMERA....20

5.1 ACCESSING BY WEB BROWSERS....20
5.2 ACCESSING BY CLIENT SOFTWARE 21

CHAPTER 6 CONFIGURING WI-FI SETTINGS....23

6.1 CONFIGURING Wi-Fi CONNECTION IN MANAGE AND AD-HOC MODES 23
6.2 EASY WI-FI CONNECTION WITH WPS FUNCTION 27
6.3 IP PROPERTY SETTINGS FOR WIRELESS NETWORK CONNECTION 29

CHAPTER 7 CONFIGURING BLUETOOTH ....30

CHAPTER 8 LIVE VIEW....31

CHAPTER 9 CONFIGURING PARKING CAMERA....33

9.1 CONFIGURING LOCAL PARAMETERS....33

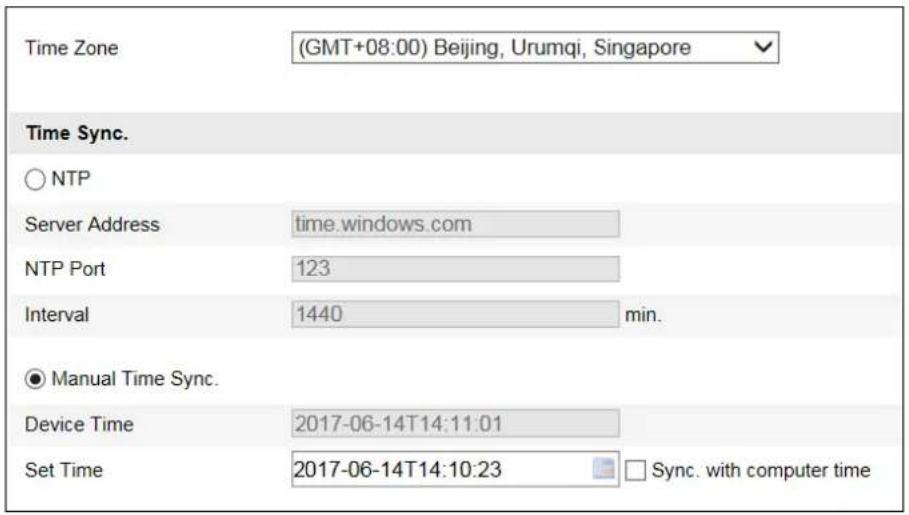

9.2 CONFIGURING TIME SETTINGS 34
9.3 CONFIGURING NETWORK SETTINGS 36

9.3.1 Conguring TCP/IP Sengs 36
9.3.2 Conguring Port Sengs....37
9.3.3 Conguring PPPoE Sengs....38
9.3.4 Conguring DDNS Sengs 39
9.3.5 Conguring SNMP Sengs....42

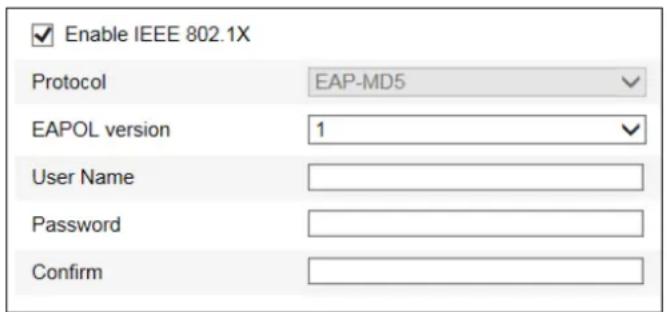

9.3.6 Conguring 802.1X Sengs....44
9.3.7 Conguring QoS Sengs 45
9.3.8 Conguring UPnP™ Sengs 45
9.3.9 Email Sending Triggered by Alarm 46

9.3.10 Conguring NAT (Network Address Translaon) Sengs 48
9.3.11 Conguring FTP Sengs....48

9.4 CONFIGURING VIDEO AND AUDIO SETTINGS 49

9.4.1 Conguring Video Sengs 49
9.4.2 Conguring ROI Encoding 51

9.5 CONFIGURING IMAGE PARAMETERS 52

9.5.1 Conguring Display Sengs....52
9.5.2 Conguring OSD Sengs....56
9.5.3 Conguring Text Overlay Sengs 56
9.5.4 Conguring Privacy Mask 57

9.6 CONFIGURING AND HANDLING ALARMS 58

9.6.1 Conguring Moon Detecon 58
9.6.2 Conguring Handling Excepon....60

CHAPTER 10 CONFIGURING PARKING SPACE DETECTION 62

10.1 CONFIGURING DETECTION RULES 62
10.2 CONFIGURING PARKING SPACE INDICATOR....64
10.3 UPLOADING PICTURES....66
10.4 CHECKING PARKING SPACE STATUS....68
10.5 TYPICAL APPLICATIONS 68

10.5.1 Internal Indicator Applicaon 68
10.5.2 Alternate Indicator Control Applicaon 69
10.5.3 External Indicator Applicaon....70
10.5.4 Special Parking Space Applicaon 71

CHAPTER 11 CONFIGURING STORAGE SETTINGS....72

11.1 CONFIGURING NAS SETTINGS....72
11.2 CONFIGURING RECORDING SCHEDULE 74

CHAPTER 12 PLAYBACK....76

CHAPTER 13 SEARCHING LOG....78

CHAPTER 14 OTHERS....79

14.1 MANAGING USER ACCOUNTS 79
14.2 CONFIGURING RTSP AUTHENTICATION....80
14.3 CONFIGURING ANONYMOUS VISIT....81
14.4 FILTERING IP ADDRESS....82
14.5 VIEWING DEVICE INFORMATION 83
14.6 MAINTENANCE 84

14.6.1 Reboong the Camera 84
14.6.2 Restoring Default Sengs 84
14.6.3 Exporng/Imporng Conguraon File....84
14.6.4 Upgrading the System....85

14.7 CONFIGURING RS-485 SETTINGS 85
14.8 CONFIGURING SERVICE SETTINGS 86

APPENDIX 87

APPENDIX 1 SADP SOFTWARE INTRODUCTION....87

APPENDIX 2 PORT MAPPING....90

Chapter 1 Overview

1.1 Product Introduction

DS-TCPX4X(D)(-KB) series parking camera is the smart camera developed for the parking lot. It is applied in the parking guidance and find my car system to detect whether the parking space is occupied or not. It is integrated with parking space status indicator which can indicate red, green, yellow, blue, cyan, white and magenta colors.

The camera can be widely applied in the environment with low illumination but requirement of high-quality image, such as underground garage, bar, upscale hotel, commercial complex, garden, etc. The applicable models and the corresponding functions are shown as below.

Model	Description
DS-TCP045(-B)	0.7 MP single-lens parking camera with 4 mm or 6 mm lens selectable, monitoring 1 parking space of 1 direction; Embedded parking space status indicator; Optional iBeacon module for indoor positioning and navigation.
DS-TCP145(-KB)	1.3 MP single-lens parking camera with 4 mm or 6 mm lens selectable, monitoring 2 or 3 parking spaces of 1 direction; Embedded parking space status indicator; Optional iBeacon module for indoor positioning and navigation; Optional controllable external indicator of multi-interfaces.
DS-TCP345(-KB)	3.0 MP single-lens parking camera with 2.8 mm or 4 mm lens selectable, monitoring 2 or 3 parking spaces of 1 direction; Embedded parking space status indicator; Optional iBeacon module for indoor positioning and navigation; Optional controllable external indicator of multi-interfaces.
DS-TCP345D(-B)	3.0 MP dual-lens parking camera with 2.8 mm lens, monitoring 6 parking spaces of 2 directions; Embedded parking space status indicator; Optional iBeacon module for indoor positioning and navigation.

i NOTE

• -K means multi-interfaces. The models with -K can connect the parking space indicators. -B means iBeacon function. D means dual lens.
  ● The use manual mainly describes DS-TCP145 series parking cameras.

1.2 Features and Functions

- HD 0.7/1.3/3.0 MP camera and applicable to the low-illumination scene like

parking lot;

● 3D DNR technology can effectively reduce the image noise;
● Integrated with the VCA function to intelligently detect the parking space status;
- Adopts the energy-saving LED with high brightness and low consumption;
- Two network interfaces supporting network power supply and camera network cascade;
- Embedded iBeacon module supporting indoor personnel positioning. It can realize navigation when used with APP to provide mobile iOS SDK or Android SDK;
● Supports accessing by the web browser (Google Chrome, IE) to realize the live view, parameters configuration, status check and network storage;
- ROI encoding;
- Dual-stream;
● Remote upgrade and maintenance;
● Supports network connection with easy installation and maintenance.

1.3 Appearance and Structure

The structure of parking camera is shown as below.

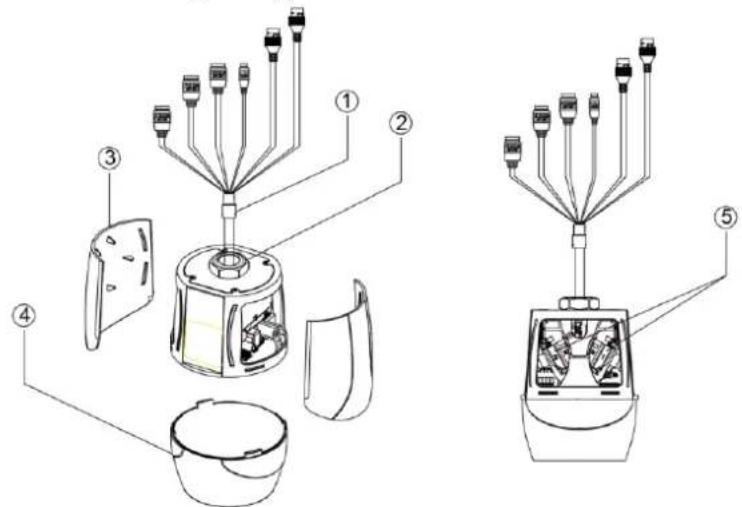

Technical diagram of a device's internal components with numbered labels indicating parts of each part.

① Combination Cable
② Mounting Nut
③ Side Cover
④ Bottom Cover
⑤ Lens Component

Figure 1-1 Parking Camera Structure

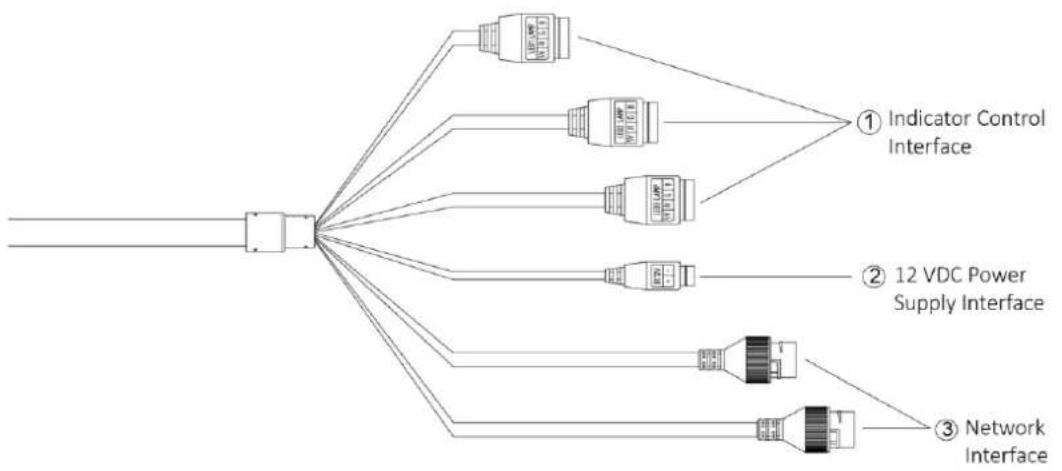

The combination cable includes three interfaces for indicator control, one 12 VDC power supply interface, and two network interfaces, as shown below.

Figure 1-2 Combination Cable Description

i NOTE

For the lens component, if there are two groups of lens, the camera is dual-lens parking camera. If there is only one lens, the camera is single-lens parking camera.

Indicator Control Wiring

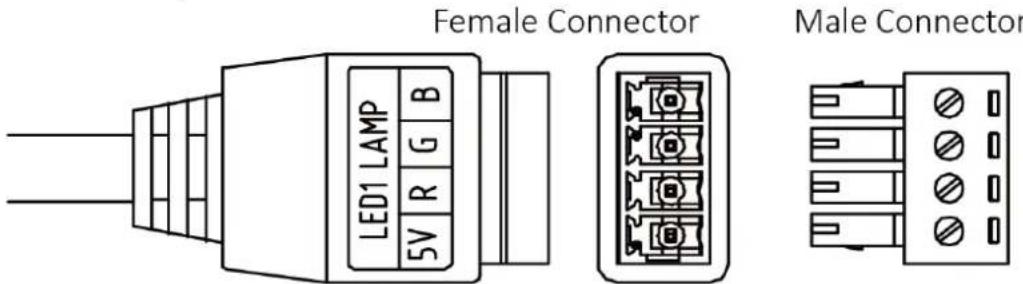

When installing external indicator, face the male connector to the female connector, and then connect the lines of external indicator to the male connector according to the 5V and RGB sequence marked on the female indicator.

LED1 LAMP 5V R G B Female Connector Male Connector

Figure 1-3 Indicator Control Interfaces

Two Network Interfaces

The two network interfaces design supports network power supply and camera network cascade (Any adjacent two cameras can be connected via network. Multiple cameras can be connected in the hand-in-hand mode as shown below.).


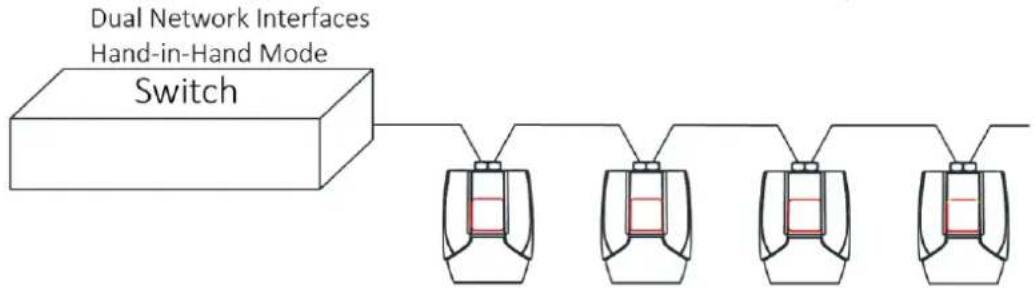

Figure 1-4 Dual Network Interfaces Hand-in-Hand Mode Connection

Chapter 2 Installation

Before you start:

Make sure the device is intact and all the components are complete.

Purpose:

The parking camera can be installed on various types of bearing body. The installation below takes the example of installing the camera on bridge. Make sure the bridge installation is done before installing the parking camera. Refer to the following steps for parking camera installation.

NOTE

The bridge should be thick enough, and the weight capacity of bridge should be 3 times of the total weights of parking cameras at least.

Steps:

1. Punch a hole on the bridge. The diameter of the hole should be a little larger than that of the stud on the bottom of the parking camera (30 mm).

Simple geometric diagram showing a circle inside a parallelogram (no text or symbols)

Figure 2-1 Punch a Hole

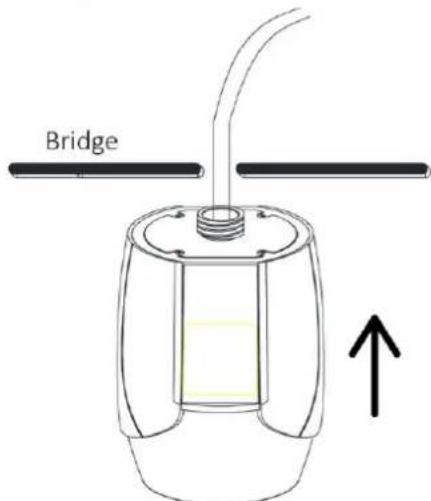

1. Install the parking camera. Pass the integration cable on the bottom of the camera through the hole on the bridge, and embed the stud to the hole.

Bridge

Figure 2-2 Install Parking Camera

1. Install the clamp nut. Pass the clamp nut of the parking camera through the integration cable, ring the nut to the stud, and rotate it to the end clockwise to fix the camera to the bridge.

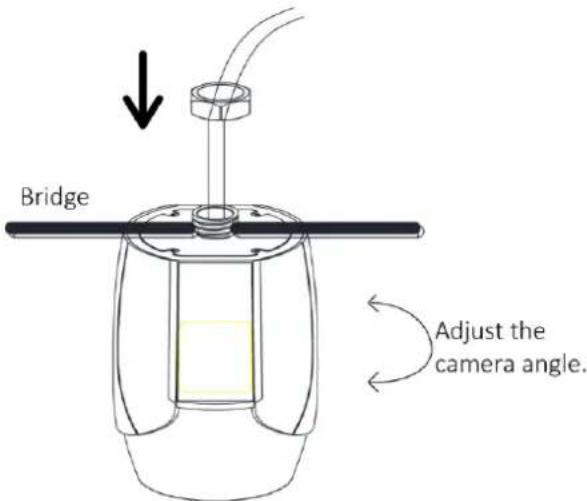

Bridge Adjust the camera angle.

Figure 2-3 Install Clamp Nut

i NOTE

Before rotating the clamp nut, adjust the camera angle according to the horizontal direction shown in Figure 2-3.

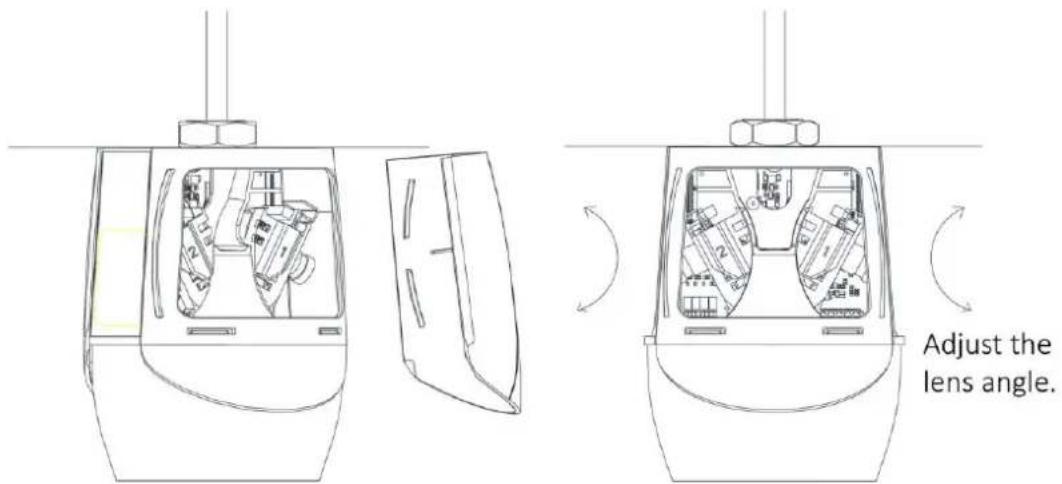

1. Remove the side cover of the parking camera. Rotate the lens component according to the vertical direction shown in Figure 2-4 to adjust the pitch angle of the lens. 0 to 30^ is supported.

Adjust the lens angle.

Figure 2-4 Remove Side Cover and Adjust Pitch Angle of Lens

1. Connect the circuit of the parking camera. Adjust the camera image to the required scene. Install the side cover to the parking camera.

Chapter 3 System Requirement

Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 /

Server 2003 / Server 2008 32bits

CPU: Intel Pentium IV 3.0 GHz to Core i7-4000 series or higher, depending on different video resolutions

RAM: 1G or higher

Display: 1024×768 resolution or higher

Web Browser: Internet Explorer 7.0 and above version, Safari 5.02 and above version, Mozilla Firefox 3.5 and above version and Google Chrome8 and above versions.

Chapter 4 Network Connection

Before you start:

- If you want to set the parking camera via a LAN (Local Area Network), please refer to Section 4.1 Setting the Parking Camera over the LAN.

- If you want to set the parking camera via a WAN (Wide Area Network), please refer to Section 4.2 Setting the Parking Camera over the WAN.

4.1 Setting the Parking Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the parking camera in the same subnet with your computer, and install the SADP or iVMS-4200 software to search and change the IP address of the parking camera.

NOTE

For the detailed introduction of SADP, please refer to Appendix 1.

4.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a parking camera and a computer:

- To test the parking camera, you can directly connect the parking camera to the computer with a network cable as shown in Figure 4-1.

- Refer to the Figure 4-2 to set parking camera over the LAN via a switch or a router.

Figure 4-1 Direct Connection


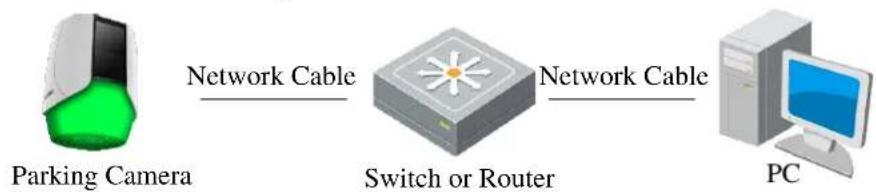

Figure 4-2 Connection via a Switch or a Router

4.1.2 Detecting and Changing the IP Address

You need the IP address to visit the parking camera.

Steps:

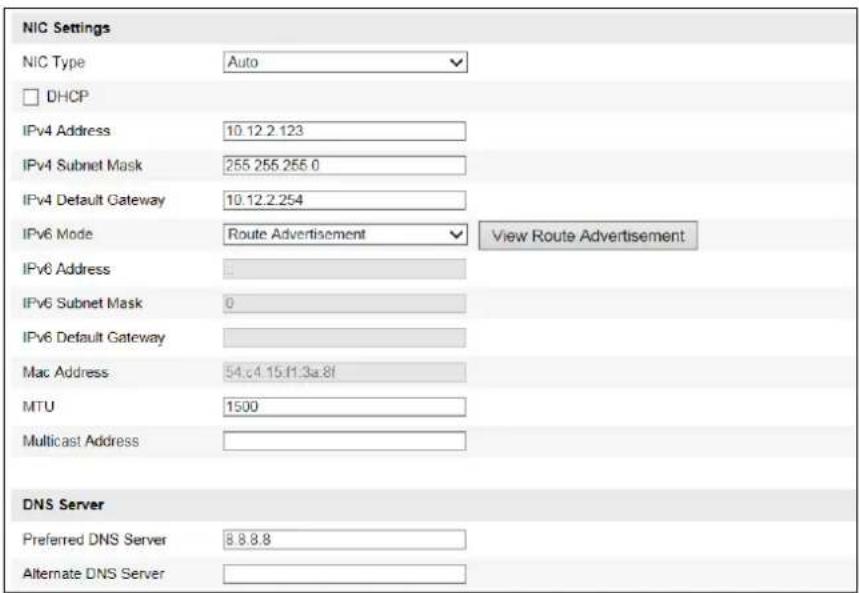

1. To get the IP address, you can choose either of the following methods:

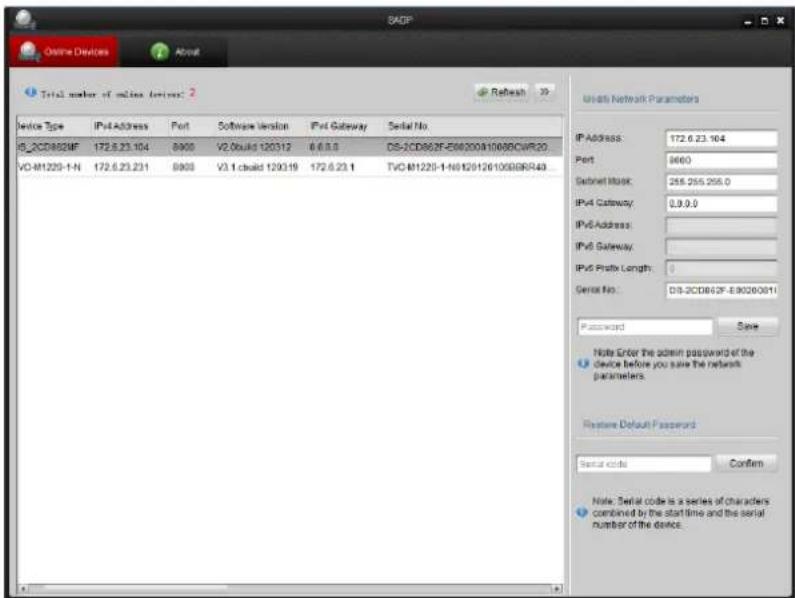

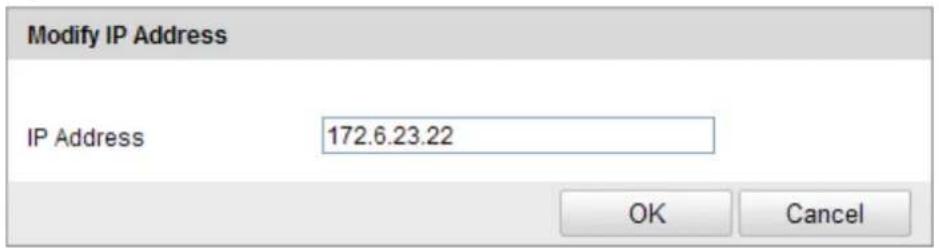

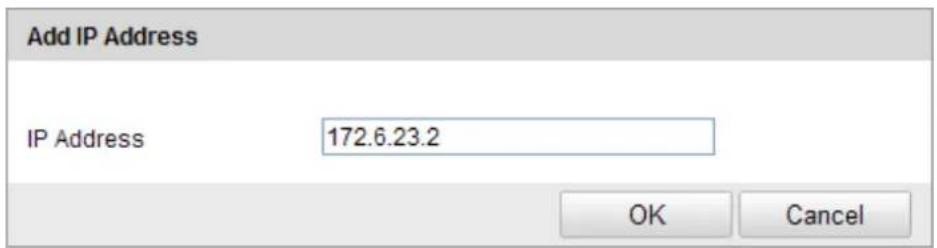

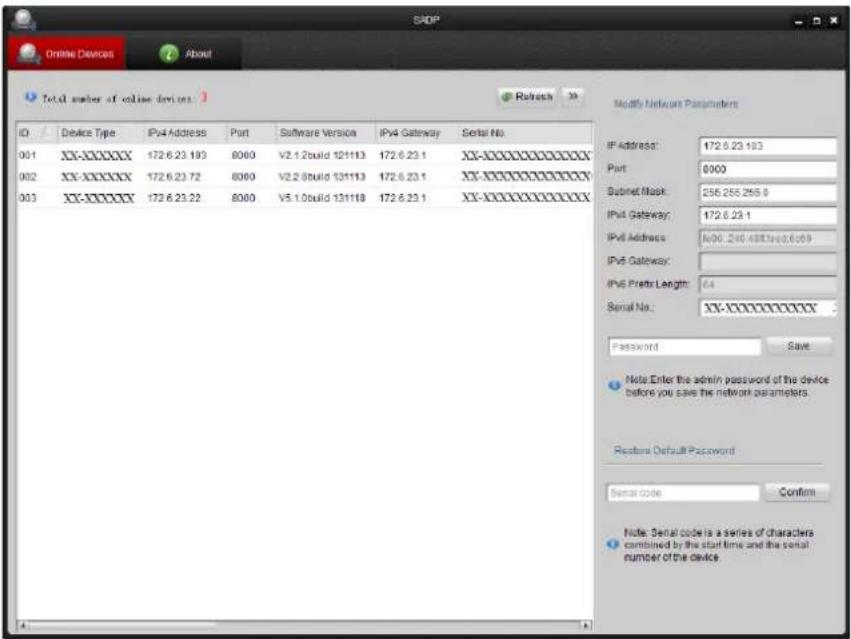

Use SADP, a software tool which can automatically detect the online parking cameras in the LAN and list the device information including IP address, subnet mask, port number, device serial number, device version, etc., shown in Figure 4-3.
Use the iVMS-4200 client software to list the online devices. Please refer to the user manual of iVMS-4200 client software for detailed information.

1. Change the IP address and subnet mask to the same subnet as that of your computer.
2. Enter the IP address of parking camera in the address field of the web browser to view the live video.

NOTE

● The default IP address is 192.0.0.64 and the port number is 8000.
- For accessing the parking camera from different subnets, please set the gateway for the parking camera after you logged in. For detailed information, please refer to Chapter 9.3.1 Configuring TCP/IP Settings.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

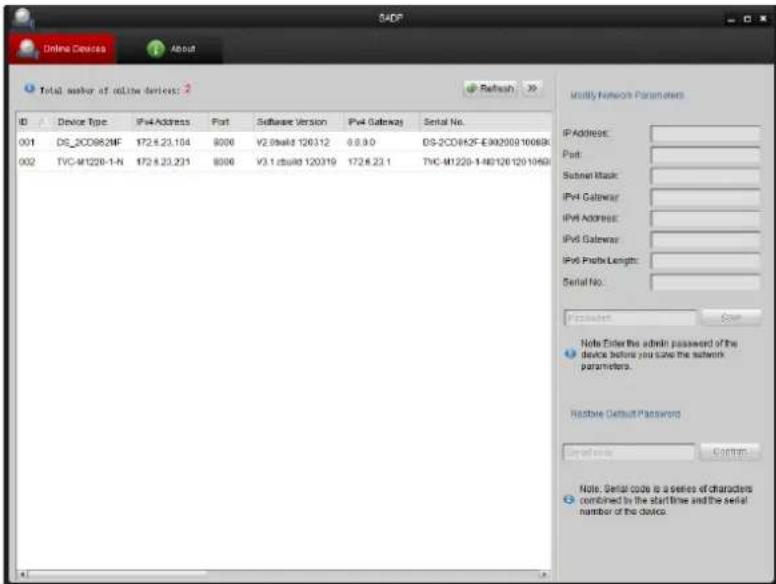

SADP Online Devices About Total number of online devices: ID Device Type IPv4 Address Port Software Version IPv4 Gateway Serial No. 001 XX-XXXXXXXX 172.6.23.193 8060 V2.1.2build 121113 172.6.23.1 XX-XXXXXXXXXXXXX 002 XX-XXXXXXXX 172.6.23.72 8060 V2.2.8build 131113 172.6.23.1 XX-XXXXXXXXXXXXX 003 XX-XXXXXXXX 172.6.23.22 8060 V5.1.0build 131118 172.6.23.1 XX-XXXXXXXXXXXXX Modify Network Parameters IF Address: 172.6.23.193 Port: 0000 Subnet Mask: 256.255.255.9 IPv4 Gateway: 172.6.23.1 IPv4 Address: NoG_246_48E19ee0.6e9 IPv4 Gateway: IPv6 Prefix Length: 64 Serial No: XX-XXXXXXXXXXXXX Password Save Note Enter the admin password of the device before you save the network parameters. Restore Default Password Serial code Confirm Note: Serial code is a series of characters combined by the start time and the serial number of the device.

Figure 4-3 SADP Interface

4.2 Setting the Parking Camera over the WAN

Purpose:

This section explains how to connect the parking camera to the WAN with a static IP or a dynamic IP.

4.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the parking camera via a router or connect it to the WAN directly.

- Connecting the parking camera via a router

Steps:

1. Connect the parking camera to the router.

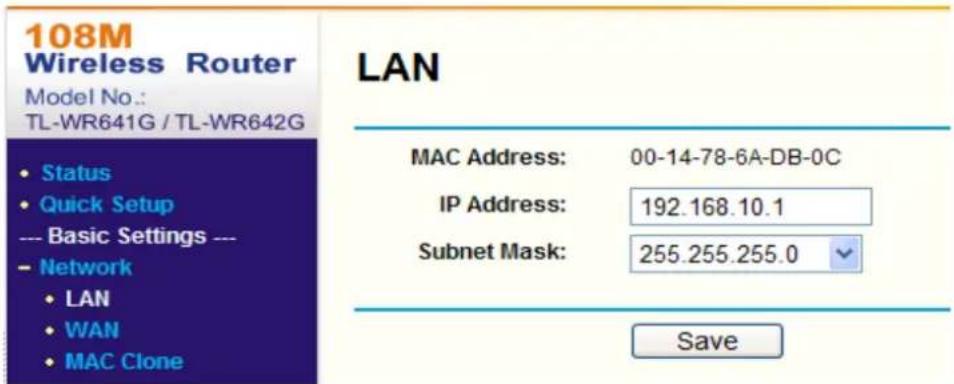

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 4.1.2 Detecting and Changing the IP Address for detailed IP address configuration of the camera.
3. Save the static IP in the router.

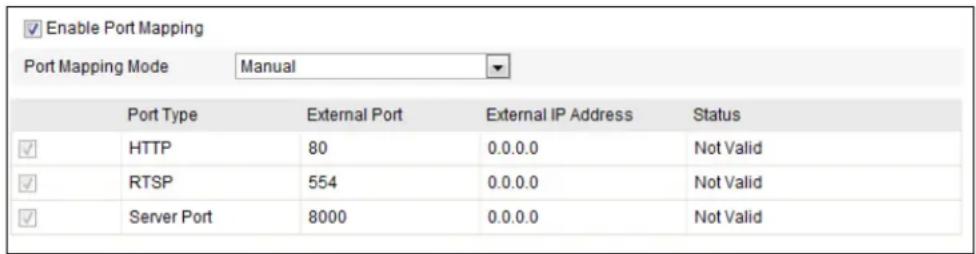

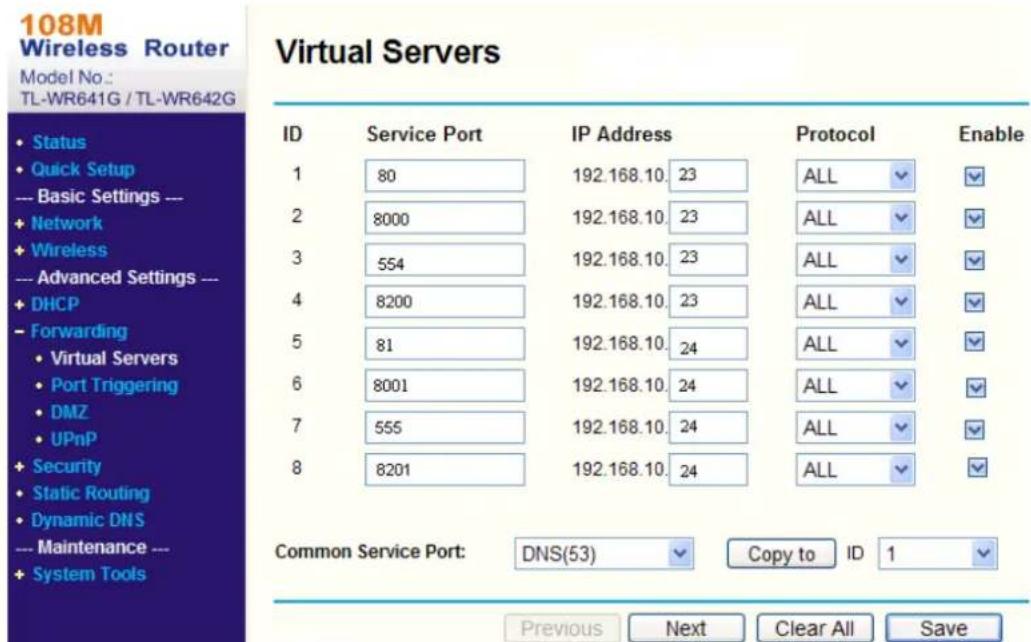

4. Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary according to the different routers. Please call the router manufacturer for assistance with port mapping.

Refer to Appendix 2 for detailed information about port mapping.

1. Visit the parking camera through a web browser or the client software over the internet.


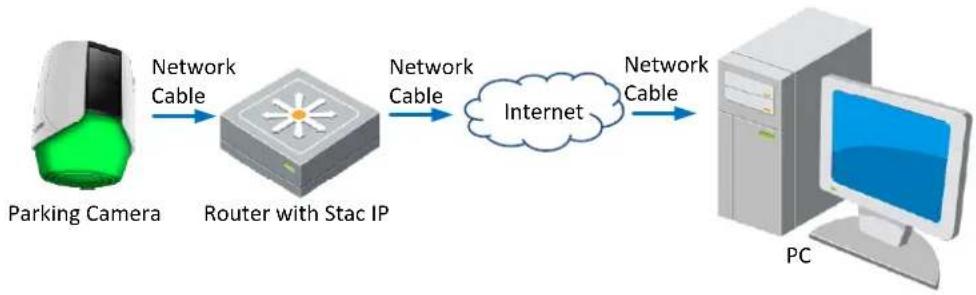

Figure 4-4 Accessing the Camera through Router with Static IP

- Connecting the parking camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 4.1.2 Detecting and Changing the IP Address for detailed IP address configuration of the camera.

Figure 4-5 Accessing the Camera with Static IP Directly

4.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the parking camera to a modem or a router.

- Connecting the parking camera via a router

Steps:

1. Connect the parking camera to the router.

2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Section 4.1.2 Detecting and Changing the IP Address for detailed LAN configuration.

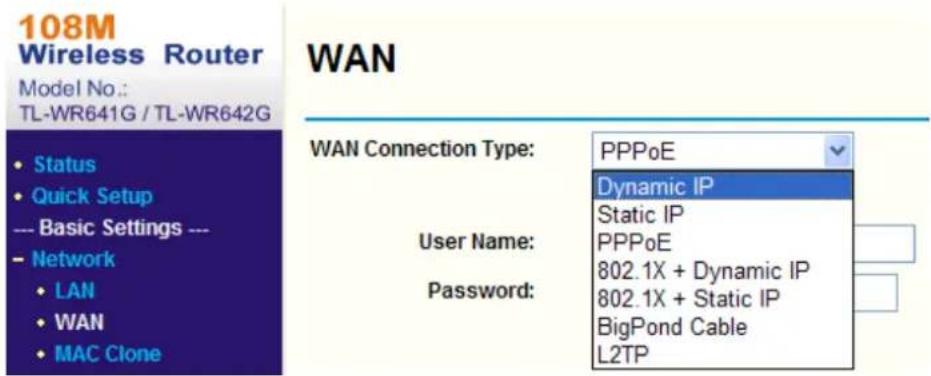

3. In the router, set the PPPoE user name, password and confirm the password.

WARNING

STRONG PASSWORD RECOMMENDED—We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly,

especially in the high security system, resetting the password monthly or weekly can better protect your product.

1. Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary depending on different routers. Please call the router manufacturer for assistance with port mapping.

NOTE

Refer to Appendix 2 for detailed information about port mapping.

1. Apply a domain name from a domain name provider.
2. Configure the DDNS settings in the setting interface of the router.
3. Visit the camera via the applied domain name.

- Connecting the parking camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the parking camera. Refer to Chapter 9.3.3 Configuring PPPoE Settings for detailed configuration.

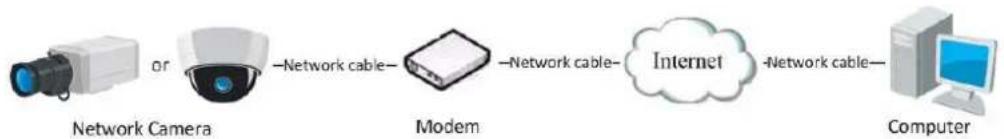


Figure 4-6 Accessing the Camera with Dynamic IP

NOTE

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow the steps below for normal domain name resolution and private domain name resolution to solve the problem.

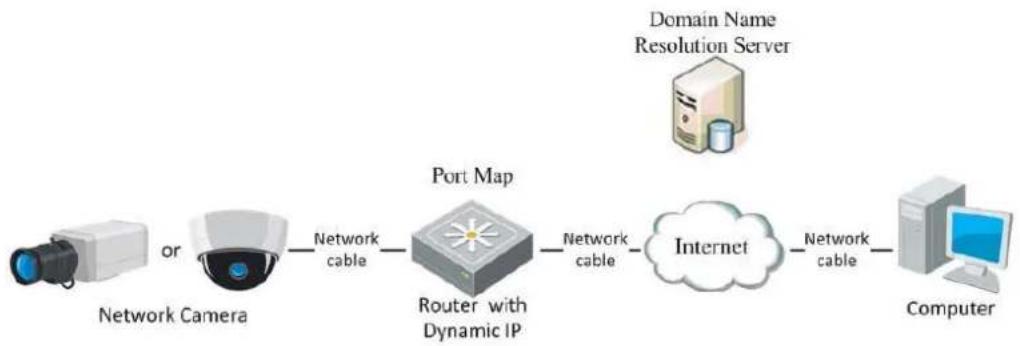

♦ Normal Domain Name Resolution

Figure 4-7 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

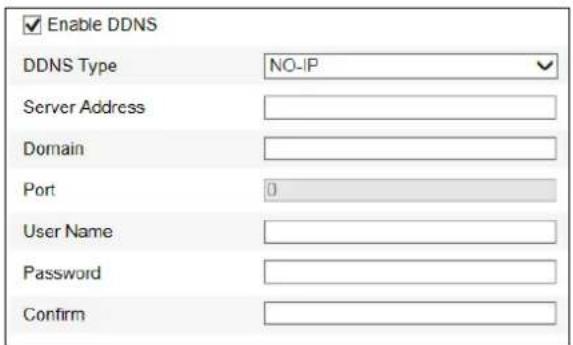

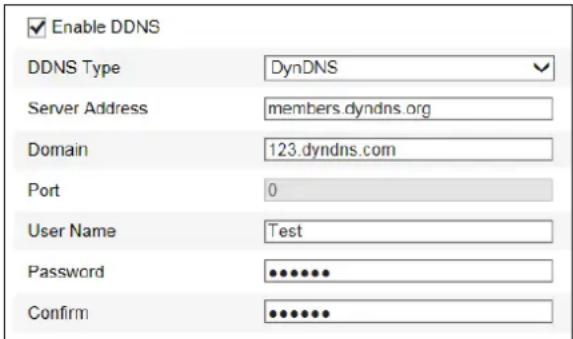

2. Configure the DDNS settings in the DDNS Settings interface of the parking camera. Refer to Chapter 9.3.4 Configuring DDNS Settings for

detailed configuration.

1. Visit the camera via the applied domain name.
   ◆ Private Domain Name Resolution


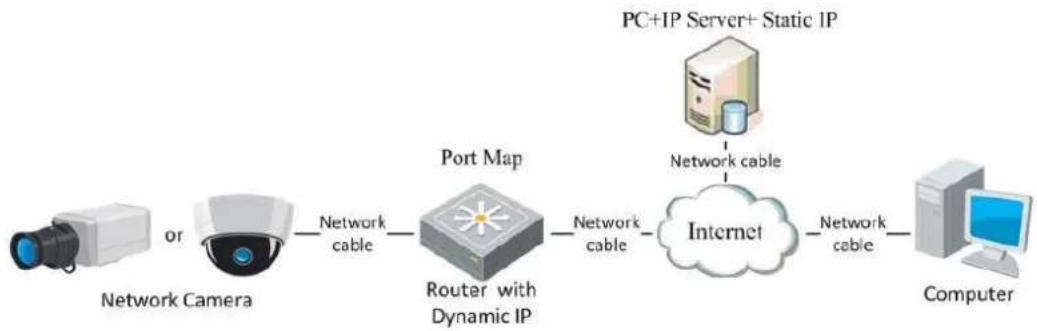

Figure 4-8 Private Domain Name Resolution

Steps:

1. Install and run the IP Server software in a computer with a static IP.
2. Access the parking camera through the LAN with a web browser or the client software.

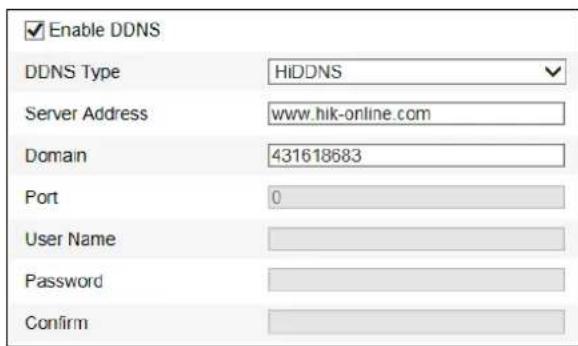

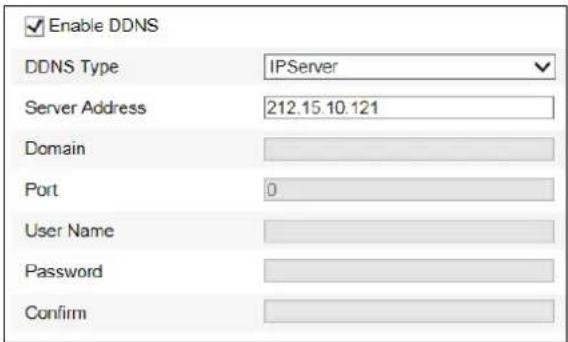

3. Enable DDNS and select IP Server as the protocol type. Refer to Chapter 9.3.4 Configuring DDNS Settings for detailed configuration.

Chapter 5 Accessing to the Parking Camera

5.1 Accessing by Web Browsers

Steps:

1. Open the web browser.
2. Input the IP address of the parking camera in the address bar, e.g., 192.0.0.64 and press the Enter key to enter the login interface.
3. Input the user name and password and click Login.

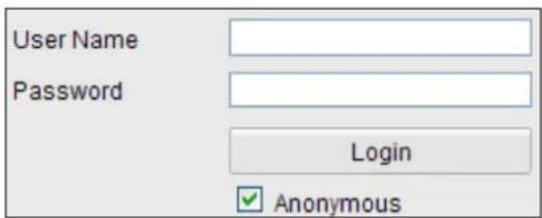

HIKVISION English User Name Password Login

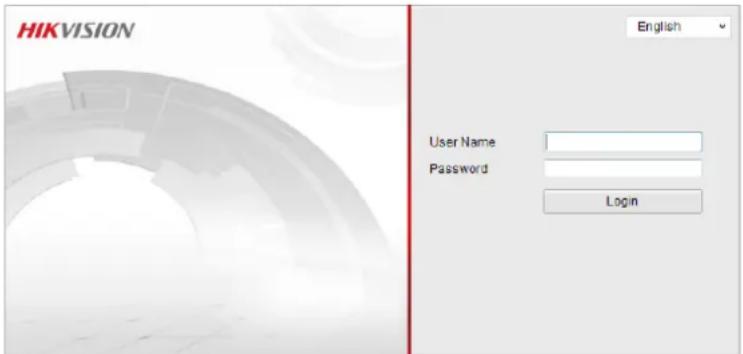

Figure 5-1 Login Interface

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

1. Install the plug-in before viewing the live video and operating the camera. Please follow the installation prompts to install the plug-in.

Live View Playback Log Configuration admin | Logout Sub Stream Main Stream Webcomponents Please click here to download and install the plug in. Close the browser when installing the plug in.

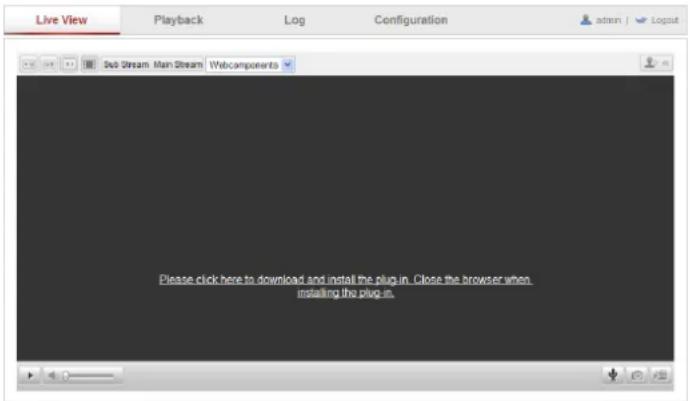

Figure 5-2 Download and Install Plug-in

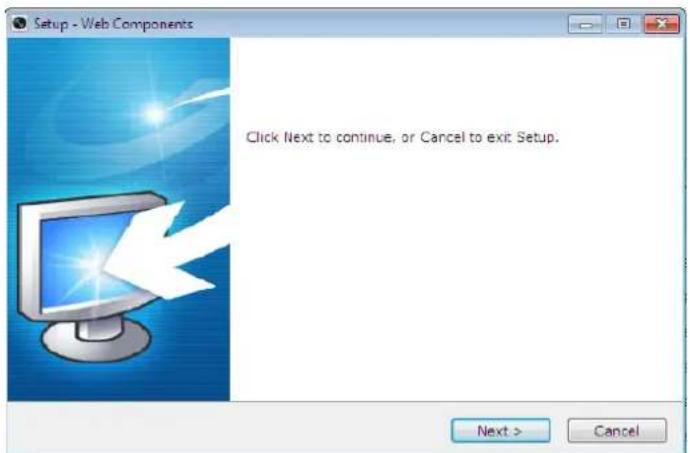

Setup - Web Components Click Next to continue, or Cancel to exit Setup. Next > Cancel

Figure 5-3 Install Plug-in (1)

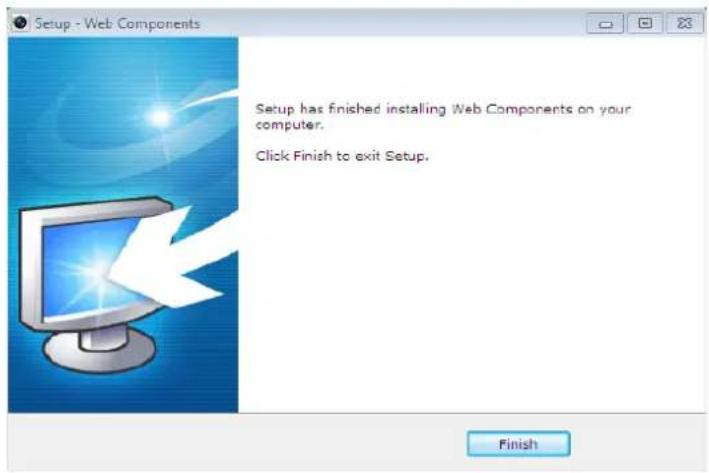

Setup - Web Components Setup has finished installing Web Components on your computer. Click Finish to exit Setup. Finish

Figure 5-4 Install Plug-in (2)

NOTE

You may have to close the web browser to install the plug-in. Please reopen the web browser and log in again after installing the plug-in.

5.2 Accessing by Client Software

The product CD contains the iVMS-4200 client software. You can view the live video and manage the camera with the software.

Follow the installation prompts to install the software. The control panel and live view interface of iVMS-4200 client software are shown as below.

File System View Tool Help iVMS-4200 root 15:45:19 Control Panel Event Management Main View Remote Playback Record Schedule Operation and Control Main View Viewing live video, controlling PTZ functionality and setting image parameters Remote Playback Searching the record files and playback E-map Adding, modifying, deleting and basic operations of E-map Maintenance and Management Device Management The management of the devices and groups, adding, deleting, and the configuration of the resources. Event Management Configuration of alarm, abnormal parameters and image actions of the servers. Recent Schedule Configure the recording schedule and related parameters. Account Management Adding, deleting users and assigning the permissions. Log Search Search, view and backup local and remote logs. System Configuration Configure general parameters. Data and statistics HeatMap The statistical data to see the heat PeopleCounting The statistical data to see the people counting.

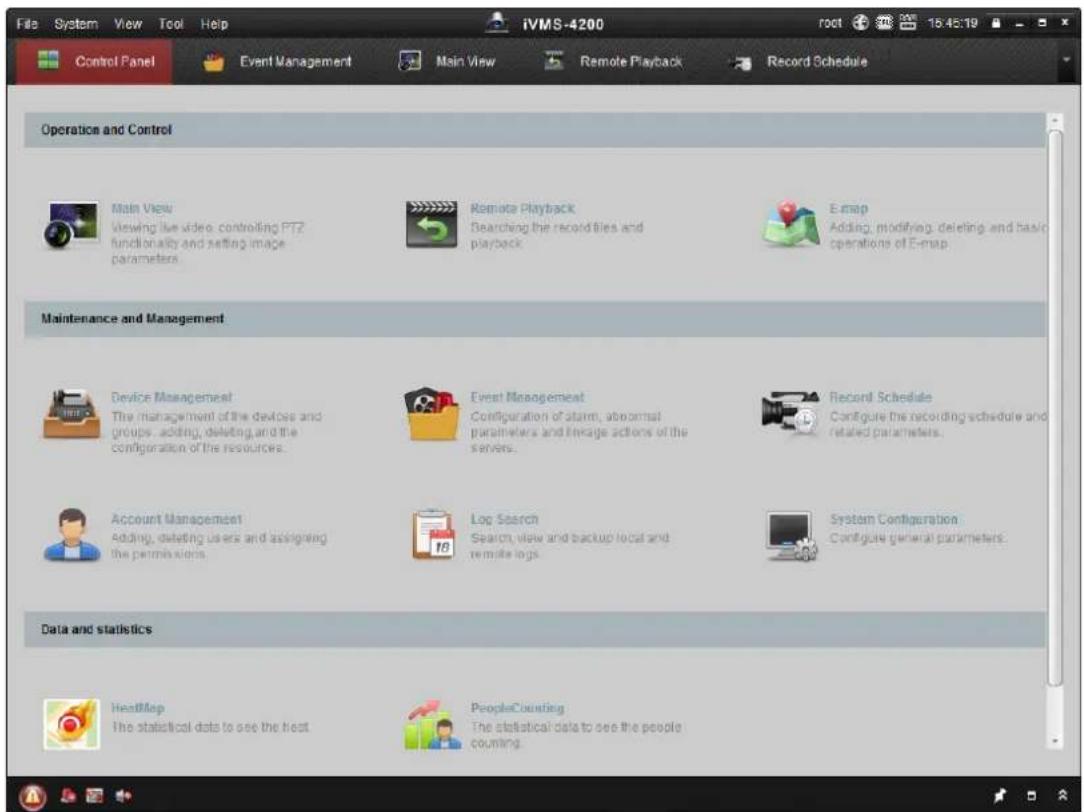

Figure 5-5 iVMS-4200 Control Panel

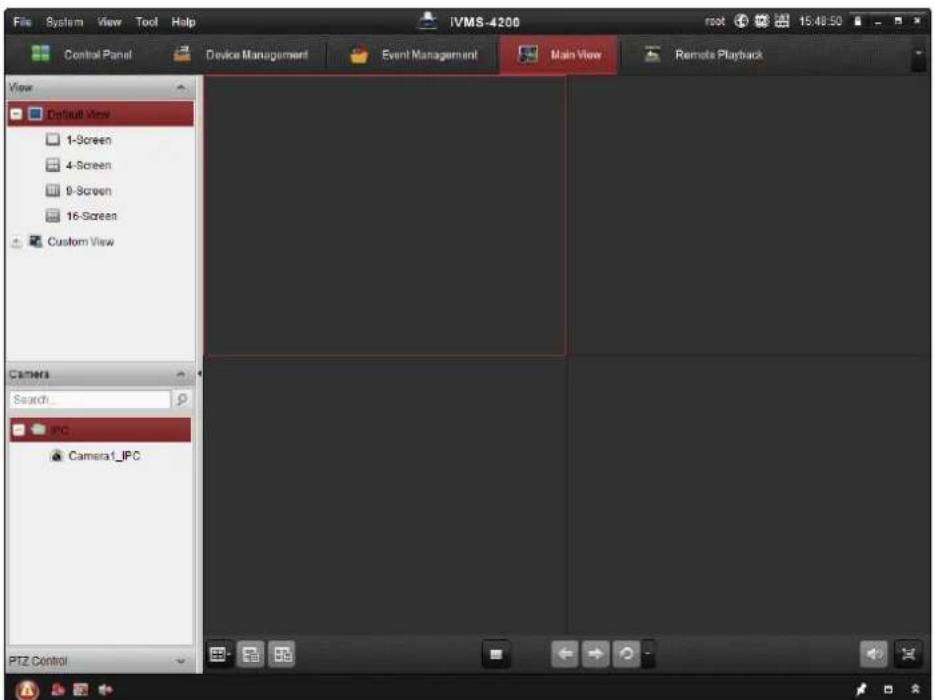

File System View Tool Help iVMS-4200 Control Panel Device Management Event Management Main View Remote Playback View Default View 1-Screen 4-Screen 9-Screen 16-Screen Custom View Camera Search... IPC Camera_IPC PTZ Control

Figure 5-6 iVMS-4200 Main View

i NOTE

For detailed information about the software, please refer to the user manual of the iVMS-4200.

Chapter 6Configuring Wi-Fi Settings

Purpose:

By connecting to the wireless network, you don't need to use cable of any kind for network connection, which is very convenient for the actual surveillance application.

This chapter is only applicable for the cameras with the built-in Wi-Fi module.

6.1 Configuring Wi-Fi Connection in Manage and Ad-hoc Modes

Before you start:

A wireless network must be configured.

● Wireless Connection in Manage Mode

Steps:

1. Enter the Wi-Fi configuration interface.

Configuration> Advanced Configuration> Network> Wi-Fi

Wireless List							Search
No.	SSID	Working Mode	Security Mode	Channel	Signal Strength	Speed(Mbps)
1	belkin54g	infrastructure	NONE	1	94	54
2	Roy Zhong	infrastructure	WPA2-personal	1	78	54
3	yourPC	infrastructure	WPA2-personal	11	37	150
4	Micheal	infrastructure	WPA2-personal	6	31	150
5	APPLE	infrastructure	WPA2-personal	6	31	150

Figure 6-1 Wireless Network List

1. Click Search to search the online wireless connections.

2. Click to choose a wireless connection on the list.

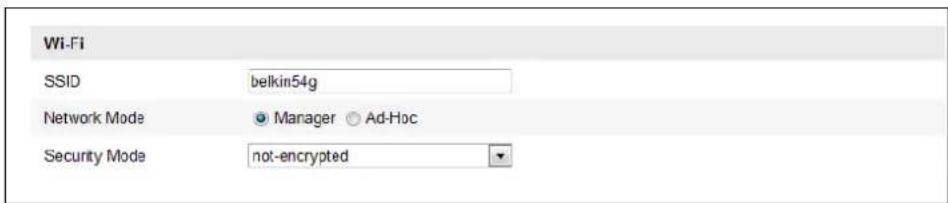

Wi-Fi SSID belkin54g Network Mode Manager Ad-Hoc Security Mode not-encrypted

Figure 6-2 Wi-Fi Setting- Manage Mode

1. Check the checkbox to select the Network mode as Manage, and the Security mode of the network is automatically shown when you select the wireless network, please do not change it manually.

These parameters are exactly identical with those of the router.

1. Enter the key to connect the wireless network. The key should be that of the wireless network connection you set on the router.

● Wireless Connection in Ad-hoc Mode

If you choose the Ad-hoc mode, you don't need to connect the wireless camera via a router. The scenario is the same as you connect the camera and the PC directly with a network cable.

Steps:

1. Choose Ad-hoc mode.

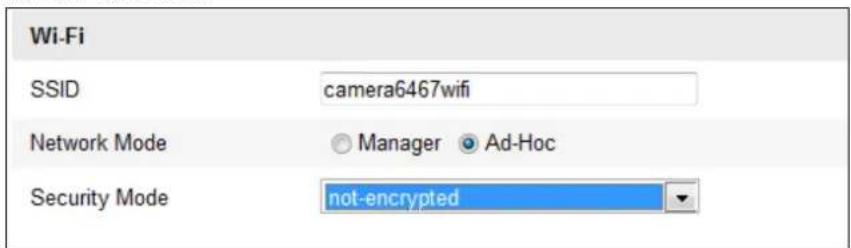

Wi-Fi SSID camera6467wifi Network Mode Manager Ad-Hoc Security Mode not-encrypted

Figure 6-3 Wi-Fi Setting- Ad-hoc

1. Customize a SSID for the camera.
2. Choose the Security Mode of the wireless connection.

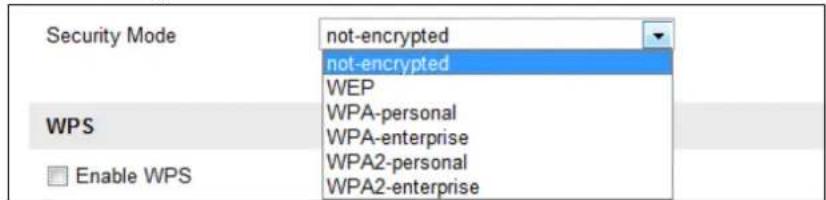

Security Mode not-encrypted not-encrypted WEP WPA-personal WPA-enterprise WPA2-personal WPA2-enterprise WPS Enable WPS

Figure 6-4 Security Mode- Ad-hoc Mode

1. Enable the wireless connection function for your PC.
2. On the PC side, search the network and you can see the SSID of the camera listed.

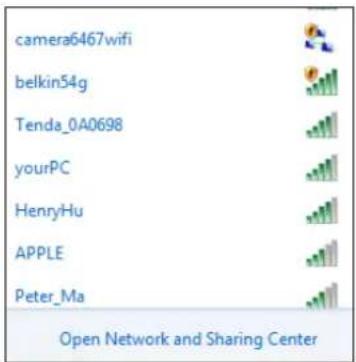

camera6467wifi belkin54g Tenda_0A0698 yourPC HenryHu APPLE Peter_Ma Open Network and Sharing Center

Figure 6-5 Ad-hoc Connection Point

1. Choose the SSID and connect.

Security Mode Description:

Wi-Fi SSID belkin54g Network Mode Manager Ad-Hoc Security Mode not-encrypted not-encrypted WEP WPA-personal WPA-enterprise WPA2-personal WPA2-enterprise WPS Enable WPS PIN Code 99613013 Generate PBC connection Connect

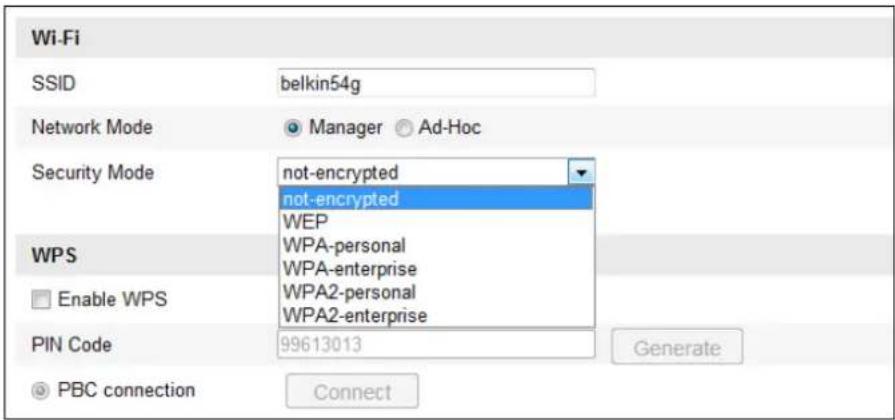

Figure 6-6 Security Mode

You can choose the Security Mode as not-encrypted, WEP, WPA-personal, WPA-enterprise, WPA2-personal, and WPA2-enterprise.

WEP mode:

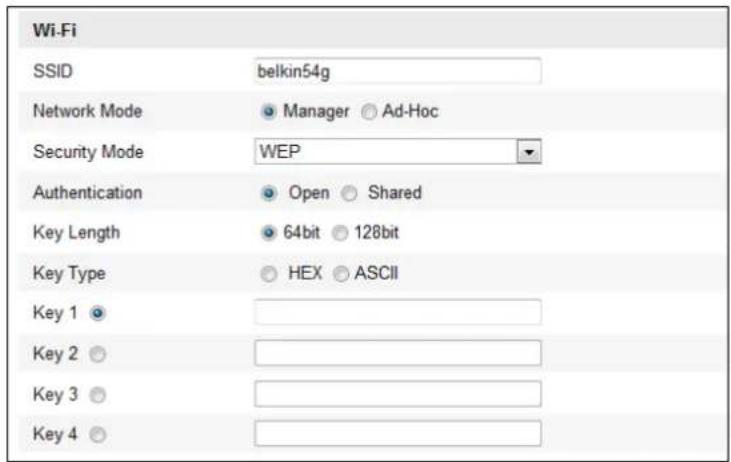

Wi-Fi SSID belkin54g Network Mode Manager Ad-Hoc Security Mode WEP Authentication Open Shared Key Length 64bit 128bit Key Type HEX ASCII Key 1 Key 2 Key 3 Key 4

Figure 6-7 WEP Mode

- Authentication - Select Open or Shared Key System Authentication, depending on the method used by your access point. Not all access points have this option, in which case they probably use Open System, which is sometimes known as SSID Authentication.

● Key Length - This sets the length of the key used for the wireless encryption, 64 or 128 bit. The encryption key length can sometimes be shown as 40/64 and 104/128.

- Key Type - The key types available depend on the access point being used. The following options are available:

HEX - Allows you to manually enter the hex key.

ASCII - In this method the string must be exactly 5 characters for 64-bit WEP and 13 characters for 128-bit WEP.

WPA-personal and WPA2-personal Mode:

Enter the required Pre-shared Key for the access point, which can be a hexadecimal number or a passphrase.

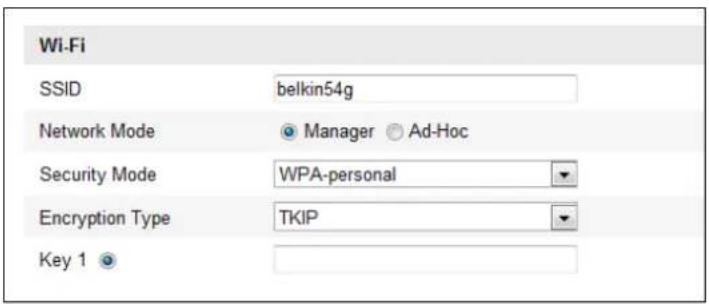

Wi-Fi SSID belkin54g Network Mode Manager Ad-Hoc Security Mode WPA-personal Encryption Type TKIP Key 1

Figure 6-8 Security Mode- WPA-personal

WPA- enterprise and WPA2-enterprise Mode:

Choose the type of client/server authentication being used by the access point; EAP-TLS or EAP-PEAP.

EAP-TLS

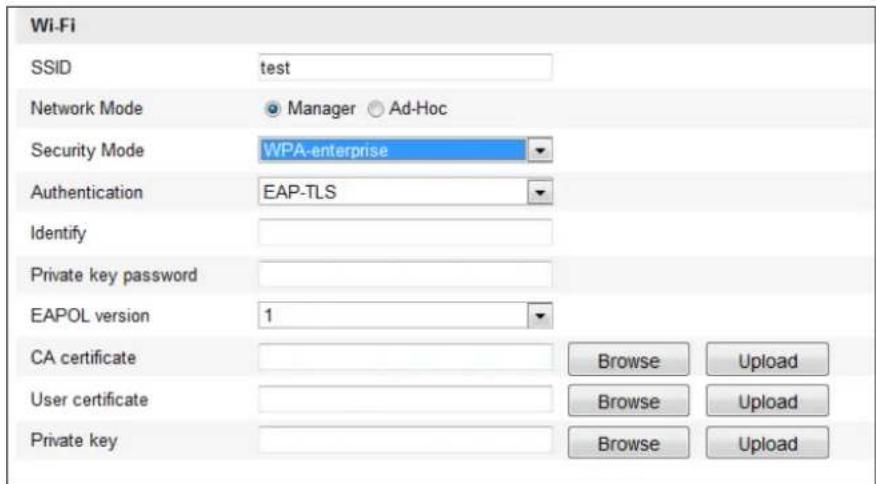

Wi-Fi SSID test Network Mode Manager Ad-Hoc Security Mode WPA-enterprise Authentication EAP-TLS Identify Private key password EAPOL version 1 CA certificate Browse Upload User certificate Browse Upload Private key Browse Upload

Figure 6-9 EAP-TLS

• Identity - Enter the user ID to present to the network.
• Private key password – Enter the password for your user ID.
• EAPOL version - Select the version used (1 or 2) in your access point.
• CA Certificates - Upload a CA certificate to present to the access point for authentication.
  EAP-PEAP:
• User Name - Enter the user name to present to the network
• Password - Enter the password of the network
• PEAP Version - Select the PEAP version used at the access point.
• Label - Select the label used by the access point.
• EAPOL version - Select version (1 or 2) depending on the version used at the access point
• CA Certificates - Upload a CA certificate to present to the access point for authentication

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including

at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

6.2 Easy Wi-Fi Connection with WPS function

Purpose:

The setting of the wireless network connection is never easy. To avoid the complex setting of the wireless connection you can enable the WPS function.

WPS (Wi-Fi Protected Setup) refers to the easy configuration of the encrypted connection between the device and the wireless router. The WPS makes it easy to add new devices to an existing network without entering long passphrases. There are two modes of the WPS connection, the PBC mode and the PIN mode.

i NOTE

If you enable the WPS function, you do not need to configure the parameters such as the encryption type and you don't need to know the key of the wireless connection.

Steps:

WPS Enable WPS PIN Code 48167581 Generate PBC connection Connect Use router PIN code Connect SSID Router PIN code

Figure 6-10 Wi-Fi Settings - WPS

PBC Mode:

PBC refers to the Push-Button-Configuration, in which the user simply has to push a button, either an actual or virtual one (as the button on the configuration interface of the IE browser), on both the Access Point (and a registrar of the network) and the new wireless client device.

1. Check the checkbox of to enable WPS.
2. Choose the connection mode as PBC.

PBC connection

Connect

i NOTE

Support of this mode is mandatory for both the Access Points and the connecting devices.

1. Check on the Wi-Fi router to see if there is a WPS button. If yes push the button and you can see the indicator near the button start flashing, which means the

WPS function of the router is enabled. For detailed operation, please see the user guide of the router.

1. Push the WPS button to enable the function on the camera.

If there is not a WPS button on the camera, you can also click the virtual button to enable the PBC function on the web interface.

1. Click Connect button.

PBC connection

[Connect]

When the PBC mode is both enabled in the router and the camera, the camera and the wireless network is connected automatically.

PIN Mode:

The PIN mode requires a Personal Identification Number (PIN) to be read from either a sticker or the display on the new wireless device. This PIN must then be entered to connect the network, usually the Access Point of the network.

Steps:

1. Choose a wireless connection on the list and the SSID is shown.

Wireless List No. SSID Working Mode Security Mode Channel Signal Strength Speed(Mbps) 10 AP infrastructure WPA2-personal 11 13 54 11 Webber infrastructure WPA2-personal 11 7 54 12 TP-LINK_PocketAP_DFB048 infrastructure WPA2-personal 6 7 150 13 AP1 infrastructure WPA2-personal 11 0 150 14 TP-LINK_PocketAP_C4C210 infrastructure NONE 6 0 150 Wi-Fi SSID AP Network Mode Manager Ad-Hoc Security Mode WPA2-personal Encryption Type TKIP Key 1 WPS Enable WPS PIN Code 48167581 Generate PBC connection Connect Use router PIN code Connect SSID AP Router PIN code

Figure 6-11 Wi-Fi Settings – WPS PIN Mode

1. Choose Use route PIN code.

If the PIN code is generated from the router side, you should enter the PIN code you get from the router side in the Router PIN code field.

1. Click Connect.

Or

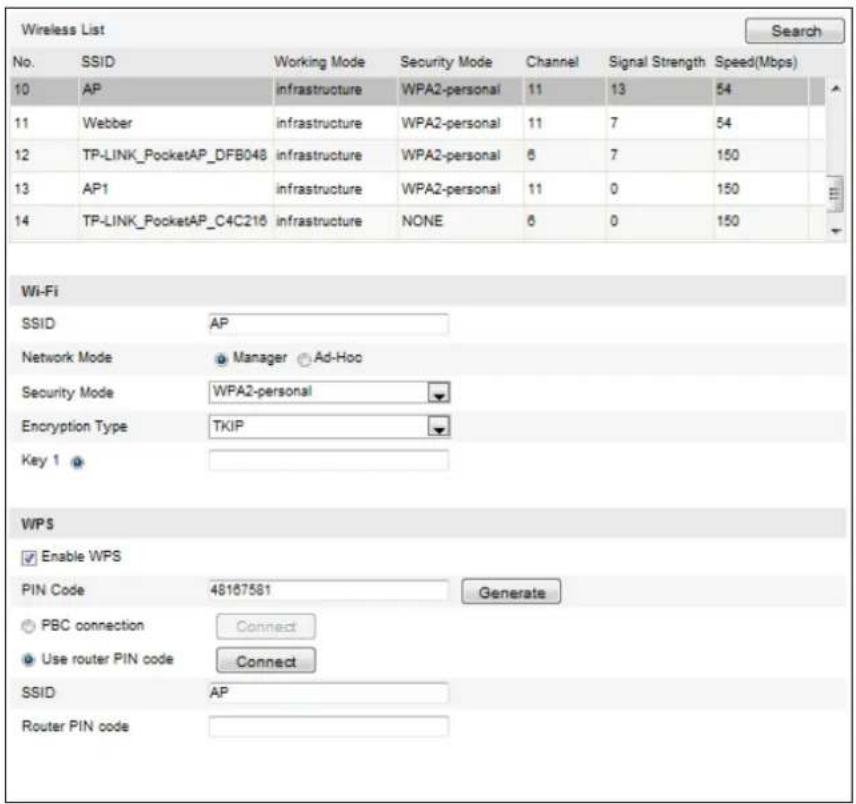

You can generate the PIN code on the camera side. And the expired time for the PIN code is 120 seconds.

1. Click Generate.

1. Enter the code to the router, in the example, enter 48167581 to the router.

6.3 IP Property Settings for Wireless Network Connection

The default IP address of wireless network interface controller is 192.168.1.64. When you connect the wireless network you can change the default IP.

Steps:

1. Enter the TCP/IP configuration interface.

Configuration> Advanced Configuration> Network> TCP/IP

Or

Configuration> Basic Configuration> Network> TCP/IP

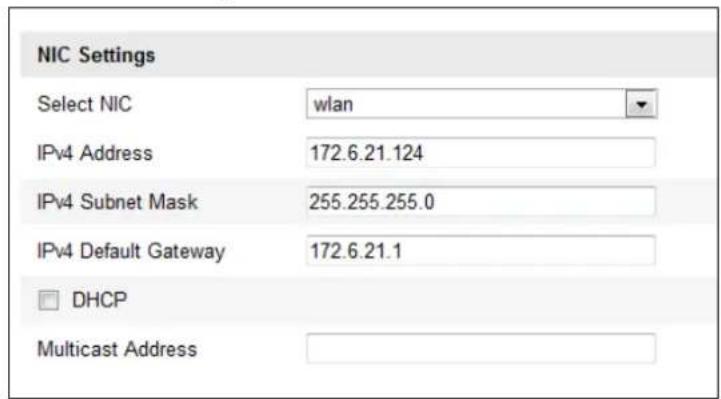

NIC Settings Select NIC wlan IPv4 Address 172.6.21.124 IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 172.6.21.1 DHCP Multicast Address

Figure 6-12 TCP/IP Settings

1. Select the NIC as wlan.
2. Customize the IPv4 address, the IPv4 Subnet Mask and the Default Gateway.

The setting procedure is the same with that of LAN.

If you want to be assigned the IP address you can check the checkbox to enable the DHCP.

Chapter 7 Configuring Bluetooth

Purpose:

You can configure the Bluetooth parameters for the parking camera.

Steps:

1. Enter the Bluetooth configuration interface.

Configuration > Basic Configuration > Bluetooth

Or Configuration > Advanced Configuration > Bluetooth

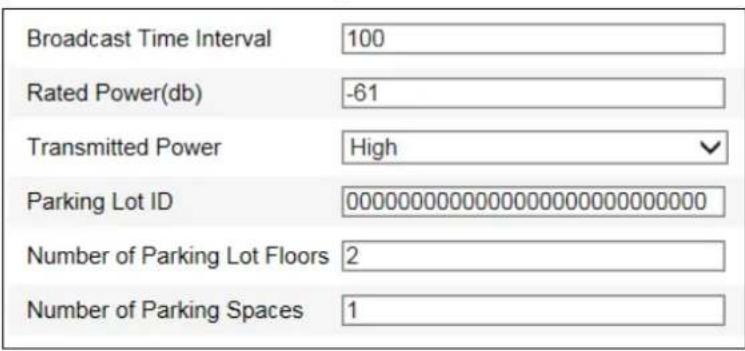

Broadcast Time Interval 100 Rated Power(db) -61 Transmitted Power High Parking Lot ID 00000000000000000000000000 Number of Parking Lot Floors 2 Number of Parking Spaces 1

Figure 7-1 Bluetooth Configuration

1. Configure the parameters.
2. Click Save to save the settings.

Chapter 8 Live View

Purpose:

The live view page allows you to view the real-time video, capture images, and configure video parameters.

Log in to the parking camera to enter the live view page.

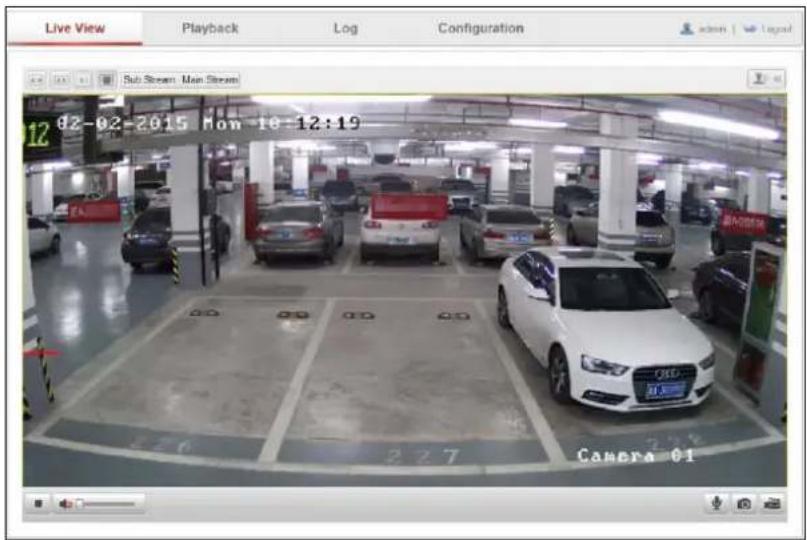

Live View Playback Log Configuration Sub Stream Main Stream 12 02-02-2015 Mon 10:12:19 Camera 01

Figure 8-1 Live View Page

Refer to the table below for the description of the icons on the Live View page.
Table 8-1 Description of Live View Page

Icon	Description	Icon	Description
	Start/Stop live view		Manually capture the pictures
	Display in 4:3/16:9/original/self-adaptive window size		Live view with the main stream/sub-stream
	Start/Stop two-way audio		Audio on and adjust volume /Mute.
	Manual start/stop recording

• Double-click on the live view to switch the current live video into full-screen or return to normal mode from the full-screen.
• Click 4:3 16:9 x1 to display live video in 4:3/16:9/original/self-adaptive window size.
• Click Main Stream / Sub Stream to display live video with the main stream/sub-stream. The main stream is with a relatively high resolution and needs

much bandwidth. The sub-stream is with a low resolution and needs less bandwidth.

• Click ▶ to start live view and the icon turns into ■. Click the icon again to stop live view.
• Click to capture the picture.
• Click 📄 to start recording and the icon turns into 📋. Click the icon again to stop recording.

Chapter 9 Configuring Parking Camera

9.1 Configuring Local Parameters

i NOTE

The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and captured using the web browser and thus the saving paths of them are on the PC running the browser.

Steps:

1. Enter the Local Configuration interface:

Configuration > Local Configuration

Live View Parameters Protocol TCP UDP MULTICAST HTTP Live View Performance Shortest Delay Real Time Balanced Fluency Rules Enable Disable Image Format JPEG BMP Record File Settings Record File Size 256M 512M 1G Save record files to C:\Users\Web\RecordFiles Browse Save downloaded files to C:\Users\Web\DownloadFiles Browse Picture and Clip Settings Save snapshots in live view to C:\Users\Web\CaptureFiles Browse Save snapshots when playback to C:\Users\Web\PlaybackPics Browse Save clips to C:\Users\Web\PlaybackFiles Browse

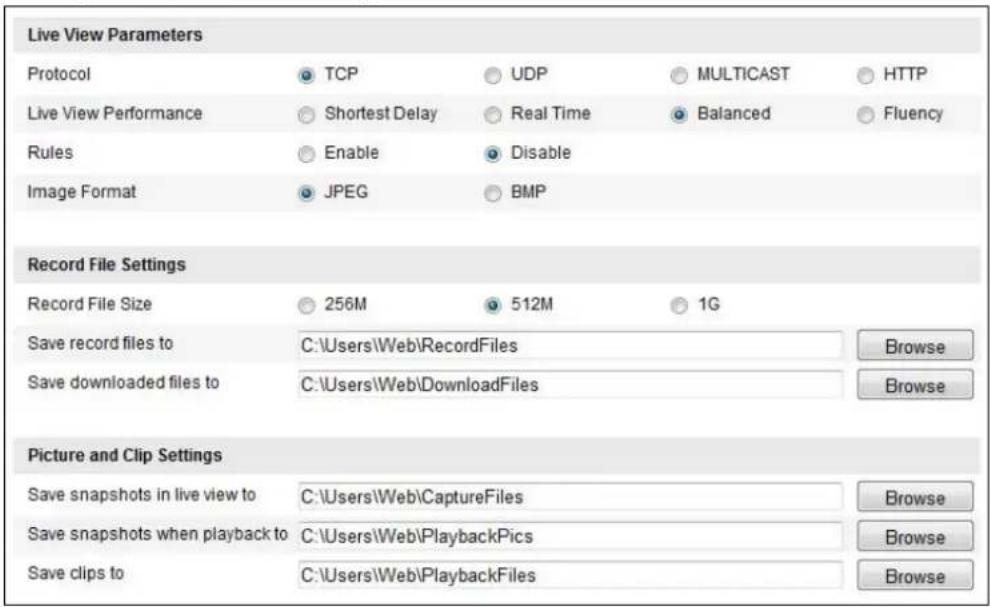

Figure 9-1 Local Configuration Interface

1. Configure the following settings:

● Live View Parameters: Set the protocol type and live view performance.

◆ Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected.

UDP: Provides real-time audio and video streams.

HTTP: Allows the same quality as of TCP without setting specific ports for streaming under some network environments.

MULTICAST: It's recommended to select MCAST type when using the Multicast function. For detailed information about Multicast, refer to Chapter 9.3.1 Configuring TCP/IP Settings.

Live View Performance: Set the live view performance to Shortest Delay,

Real Time, Balanced or Fluency.

Rules: It refers to the rules on your local browser, select enable or disable to display or not display the colored marks when the motion detection, face detection, or intrusion detection is triggered. E.g.: enabled as the rules are, and the face detection is enabled as well, when a face is detected, it will be marked with a green rectangle on the live view.
◆ Image Format: Choose the image format for picture capture.

- Record File Settings: Set the saving path of the recorded video files. Valid for the record files you recorded with the web browser.

Record File Size: Select the packed size of the manually recorded and downloaded video files to 256M, 512M or 1G. After the selection, the maximum record file size is the value you selected.
◆ Save record files to: Set the saving path for the manually recorded video files.
◆ Save downloaded files to: Set the saving path for the downloaded video files in playback mode.

- Picture and Clip Settings: Set the saving paths of the captured pictures and clipped video files. Valid for the pictures you captured with the web browser.

◆ Save snapshots in live view to: Set the saving path of the manually captured pictures in live view mode.
◆ Save snapshots when playback to: Set the saving path of the captured pictures in playback mode.
◆ Save clips to: Set the saving path of the clipped video files in playback mode.

i NOTE

You can click Browse to change the directory for saving the clips and pictures.

1. Click Save to save the settings.

9.2 Configuring Time Settings

Purpose:

You can follow the instructions in this section to configure the time synchronization and DST settings.

Steps:

1. Enter the Time Settings interface:

Configuration > Basic Configuration > System > Time Settings

Or Configuration > Advanced Configuration > System > Time Settings

Time Zone (GMT+08:00) Beijing, Urumqi, Singapore Time Sync. ○ NTP Server Address time.windows.com NTP Port 123 Interval 1440 min. ● Manual Time Sync. Device Time 2017-06-14T14:11:01 Set Time 2017-06-14T14:10:23 Sync. with computer time

Figure 9-2 Time Settings

2. Select the Time Zone.

Select the Time Zone of your location from the drop-down menu.

3. Synchronize time.

◆ Synchronizing Time by NTP Server

(1) Click NTP radio button to enable the NTP function.
(2) Configure the following parameters:

Server Address: IP address of NTP server.

NTP Port: Port of NTP server.

Interval: The time interval between the two synchronizing actions with NTP server.

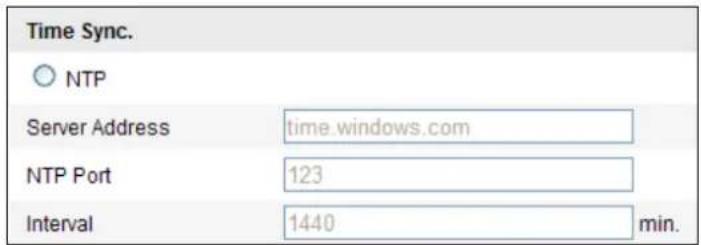

Time Sync. ○ NTP Server Address time.windows.com NTP Port 123 Interval 1440 min.

Figure 9-3 Time Sync. by NTP Server

i NOTE

If the camera is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the camera is set in a customized network, NTP software can be used to establish a NTP server for time synchronization.

♦ Synchronizing Time Manually

Enable the Manual Time Sync function and then click to set the system time from the pop-up calendar.

i NOTE

You can also check the Sync with computer time checkbox to synchronize the time

of the camera with that of your computer.

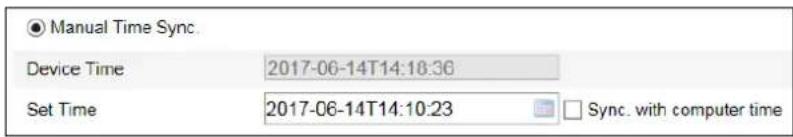

● Manual Time Sync. Device Time 2017-06-14T14:18:36 Set Time 2017-06-14T14:10:23 Sync. with computer time

Figure 9-4 Manual Time Sync.

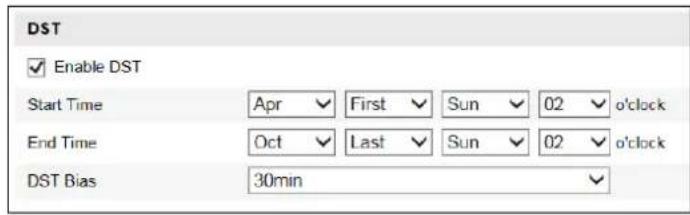

1. Click the DST tab page to enable the DST function and set the date of the DST period.

DST Enable DST Start Time Apr First Sun 02 o'clock End Time Oct Last Sun 02 o'clock DST Bias 30min

Figure 9-5 DST Settings

1. Click Save to save the settings.

9.3 Configuring Network Settings

9.3.1 Configuring TCP/IP Settings

Purpose:

TCP/IP settings must be properly configured before you operate the camera over network. The camera supports both the IPv4 and IPv6. Both versions may be configured simultaneously without conflicting to each other, and at least one IP version should be configured.

Steps:

1. Enter TCP/IP Settings interface:

Configuration > Basic Configuration > Network > TCP/IP

Or Configuration > Advanced Configuration > Network > TCP/IP

NIC Settings NIC Type Auto DHCP IPv4 Address 10.12.2.123 IPv4 Subnet Mask 255.255.255.0 IPv4 Default Gateway 10.12.2.254 IPv6 Mode Route Advertisement View Route Advertisement IPv6 Address ... IPv6 Subnet Mask 0 IPv6 Default Gateway Mac Address 54.c4.15.f1.3a.8f MTU 1500 Multicast Address DNS Server Preferred DNS Server 8.8.8.8 Alternate DNS Server

Figure 9-6 TCP/IP Settings

1. Configure the basic network settings, including the NIC Type, IPv4 or IPv6 Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings and Multicast Address.

2. Click Save to save the settings.

NOTE

● The valid value range of MTU is 1280 \~ 1500.
- The Multicast sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address. Before utilizing this function, you have to enable the Multicast function of your router.
● A reboot is required for the settings to take effect.

9.3.2 Configuring Port Settings

Purpose:

You can set the port No. of the camera, e.g. HTTP port, RTSP port and HTTPS port.

Steps:

1. Enter the Port Settings interface:

Configuration > Basic Configuration > Network > Port Or Configuration > Advanced Configuration > Network > Port

HTTP Port	80
RTSP Port	554
HTTPS Port	443
Server Port	8000

Figure 9-7 Port Settings

1. Set the HTTP port, RTSP port, HTTPS port and server port of the camera.

HTTP Port: The default port number is 80, and it can be changed to any port No. which is not occupied.

RTSP Port: The default port number is 554 and it can be changed to any port No. ranges from 1024 to 65535.

HTTPS Port: The default port number is 443, and it can be changed to any port No. which is not occupied.

Server Port: The default server port number is 8000, and it can be changed to any port No. ranges from 2000 to 65535.

1. Click Save to save the settings.

A reboot is required for the settings to take effect.

9.3.3 Configuring PPPoE Settings

Steps:

1. Enter the PPPoE Settings interface:

Configuration >Advanced Configuration >Network >PPPoE

Enable PPPoE Dynamic IP 0.0.0.0 User Name Password Confirm

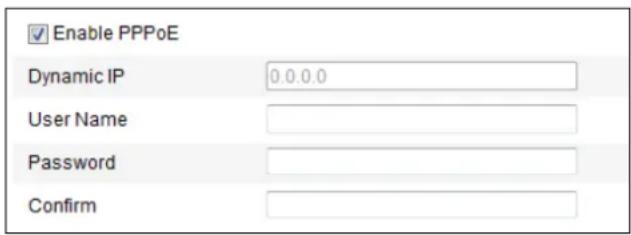

Figure 9-8 PPPoE Settings

1. Check the Enable PPPoE checkbox to enable this feature.
2. Enter User Name, Password, and Confirm password for PPPoE access.

The User Name and Password should be assigned by your ISP.

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

1. Click Save to save the settings.

A reboot is required for the settings to take effect.

9.3.4 Configuring DDNS Settings

Purpose:

If your camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registration on the DDNS server is required before configuring the DDNS settings of the camera.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Steps:

1. Enter the DDNS Settings interface:

Configuration > Advanced Configuration > Network > DDNS

1. Check the Enable DDNS checkbox to enable this feature.
2. Select DDNS Type. Four DDNS types are selectable: HiDDNS, IPServer, NO-IP, and DynDNS.

- DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org).
(2) In the Domain text field, enter the domain name obtained from the DynDNS website.
(3) Enter the Port of DynDNS server.
(4) Enter the User Name and Password registered on the DynDNS website.
(5) Click Save to save the settings.

Enable DDNS DDNS Type DynDNS Server Address members.dyndns.org Domain 123.dyndns.com Port 0 User Name Test Password **** Confirm **** *

Figure 9-9 DynDNS Settings

- IP Server:

Steps:

(1) Enter the Server Address of the IP Server.

(2) Click Save to save the settings.

i NOTE

For the IP Server, you have to apply a static IP, subnet mask, gateway and preferred DNS from the ISP. The Server Address should be entered with the static IP address of the computer that runs the IP Server software.

Enable DDNS DDNS Type IPServer Server Address 212.15.10.121 Domain Port 0 User Name Password Confirm

Figure 9-10 IPServer Settings

i NOTE

For the US and Canada area, you can enter 173.200.91.74 as the server address.

- NO-IP:

Steps:

(1) Choose the DDNS Type as NO-IP.

Enable DDNS DDNS Type NO-IP Server Address Domain Port 0 User Name Password Confirm

Figure 9-11 NO-IP Settings

(2) Enter the Server Address as www.noip.com
(3) Enter the Domain name you registered.
(4) Enter the Port number, if needed.
(5) Enter the User Name and Password.
(6) Click Save and then you can view the camera with the domain name.

• HiDDNS

Steps:

(1) Choose the DDNS Type as HiDDNS.

Enable DDNS DDNS Type HiDDNS Server Address www.hik-online.com Domain 431618683 Port 0 User Name Password Confirm

Figure 9-12 HiDDNS Settings

(2) Enter the Server Address www.hik-online.com.
(3) Enter the Domain name of the camera. The domain is the same with the device alias in the HiDDNS server.
(4) Click Save to save the settings.

A reboot is required for the settings to take effect.

9.3.5 Configuring SNMP Settings

Purpose:

You can set the SNMP function to get camera status, parameters and alarm related information and manage the camera remotely when it is connected to the network.

Before you start:

Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages to the surveillance center.

i NOTE

The SNMP version you select should be the same as that of the SNMP software. And you also need to use the different version according to the security level you required. SNMP v1 provides no security and SNMP v2 requires password for access. And SNMP v3 provides encryption and if you use the third version, HTTPS protocol must be enabled.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Steps:

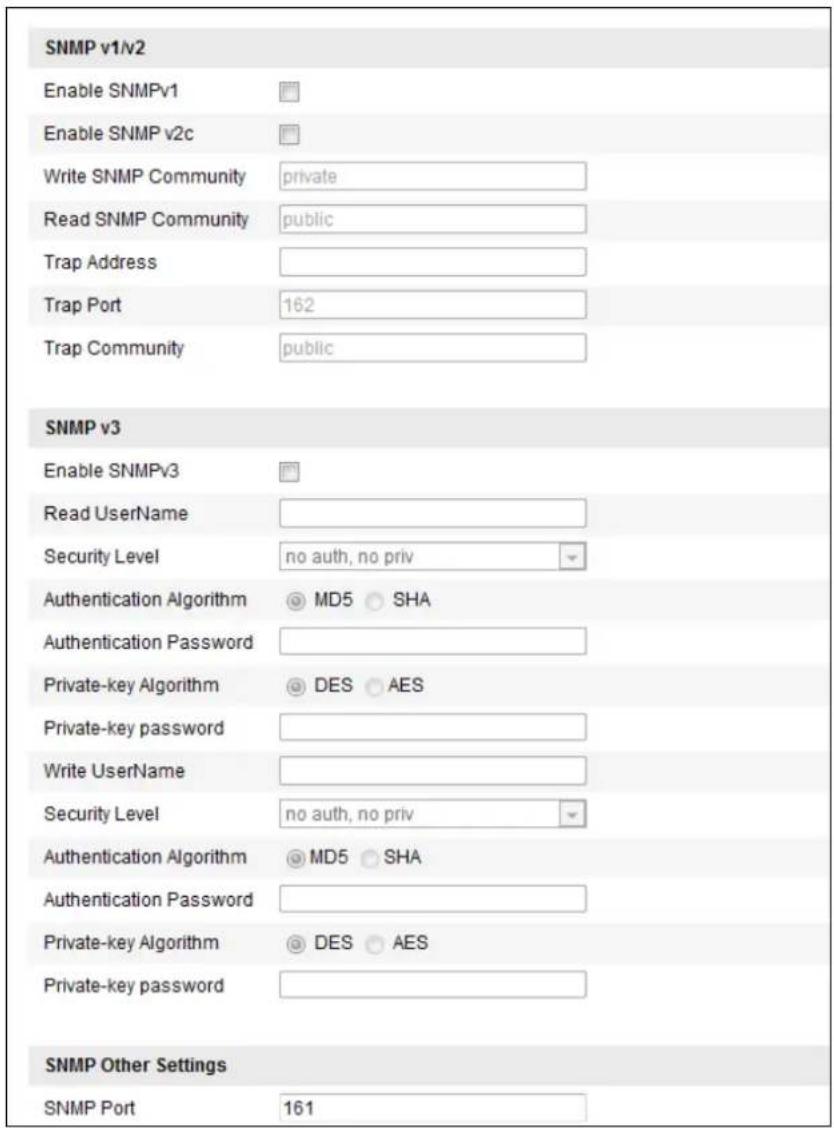

1. Enter the SNMP Settings interface: Configuration > Advanced Configuration > Network > SNMP

SNMP v1/v2 Enable SNMPv1 Enable SNMP v2c Write SNMP Community private Read SNMP Community public Trap Address Trap Port 162 Trap Community public SNMP v3 Enable SNMPv3 Read UserName Security Level no auth, no priv Authentication Algorithm MD5 SHA Authentication Password Private-key Algorithm DES AES Private-key password Write UserName Security Level no auth, no priv Authentication Algorithm MD5 SHA Authentication Password Private-key Algorithm DES AES Private-key password SNMP Other Settings SNMP Port 161

Figure 9-13 SNMP Settings

1. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2c, Enable SNMPv3) to enable the feature.
2. Configure the SNMP settings.

NOTE

The settings of the SNMP software should be the same as the settings you configure here.

1. Click Save to save the settings.

NOTE

A reboot is required for the settings to take effect.

9.3.6 Configuring 802.1X Settings

Purpose:

The parking camera supports IEEE 802.1X standard.

IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN. When devices connect to this network with IEEE 802.1X standard, the authentication is needed. If the authentication fails, the devices don't connect to the network.

Before you start:

The authentication server must be configured. Please apply and register a user name and password for 802.1X in the server.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Steps:

1. Enter the 802.1X Settings interface:

Configuration > Advanced Configuration > Network > 802.1X

Enable IEEE 802.1X Protocol EAP-MD5 EAPOL version 1 User Name Password Confirm

Figure 9-14 802.1X Settings

1. Check the Enable IEEE 802.1X checkbox to enable the feature.
2. Configure the 802.1X settings, including EAPOL version, user name and password.

NOTE

The EAPOL version must be identical with that of the router or the switch.

1. Enter the user name and password to access the server.
2. Click Save to save the settings.

NOTE

A reboot is required for the settings to take effect.

9.3.7 Configuring QoS Settings

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending.

Steps:

1. Enter the QoS Settings interface:

Configuration > Advanced Configuration > Network > QoS

Video/Audio DSCP 0 Event/Alarm DSCP 0 Management DSCP 0

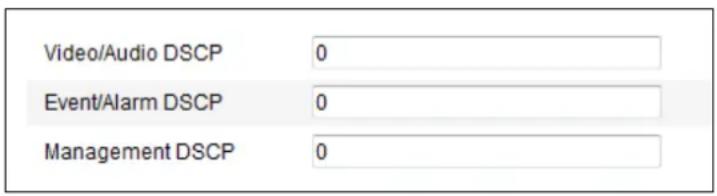

Figure 9-15 QoS Settings

1. Configure the QoS settings, including video / audio DSCP, event / alarm DSCP and Management DSCP.

The valid value range of the DSCP is 0-63. The bigger the DSCP value is, the higher the priority is.

DSCP refers to the Differentiated Service Code Point; and the DSCP value is used in the IP header to indicate the priority of the data.

1. Click Save to save the settings.

A reboot is required for the settings to take effect.

9.3.8 Configuring UPnPTM Settings

Universal Plug and Play (UPnPTM) is a networking architecture that provides compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the home and corporate environments.

With the function enabled, you don't need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the UPnPTM settings interface.
   Configuration > Advanced Configuration > Network > UPnP
2. Check the checkbox to enable the UPnPTM function.
   The name of the device when detected online can be edited.

Enable UPnP™

Friendly Name

HIKVISION DS-TCP145-KB - 77292

Figure 9-16 UPnP Settings

9.3.9 Email Sending Triggered by Alarm

Purpose:

The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.

Before you start:

Please configure the DNS Server settings under Basic Configuration > Network > TCP/IP or Advanced Configuration > Network > TCP/IP before using the Email function.

Steps:

1. Enter the TCP/IP Settings (Configuration > Basic Configuration > Network > TCP/IP or Configuration > Advanced Configuration > Network > TCP/IP) to set the IPv4 Address, IPv4 Subnet Mask, IPv4 Default Gateway and the Preferred DNS Server.

Please refer to Section 7.3.1 Configuring TCP/IP Settings for detailed information.

1. Enter the Email Settings interface:

Configuration > Advanced Configuration > Network > Email

Sender Sender Test Sender's Address [e-mail] SMTP Server smtp.263xmail.com SMTP Port 25 Enable SSL Interval 2s Attached Image Authentication User Name Password Confirm Receiver Receiver1 Test1 Receiver1's Address [e-mail] Receiver2 Receiver2's Address Receiver3 Receiver3's Address

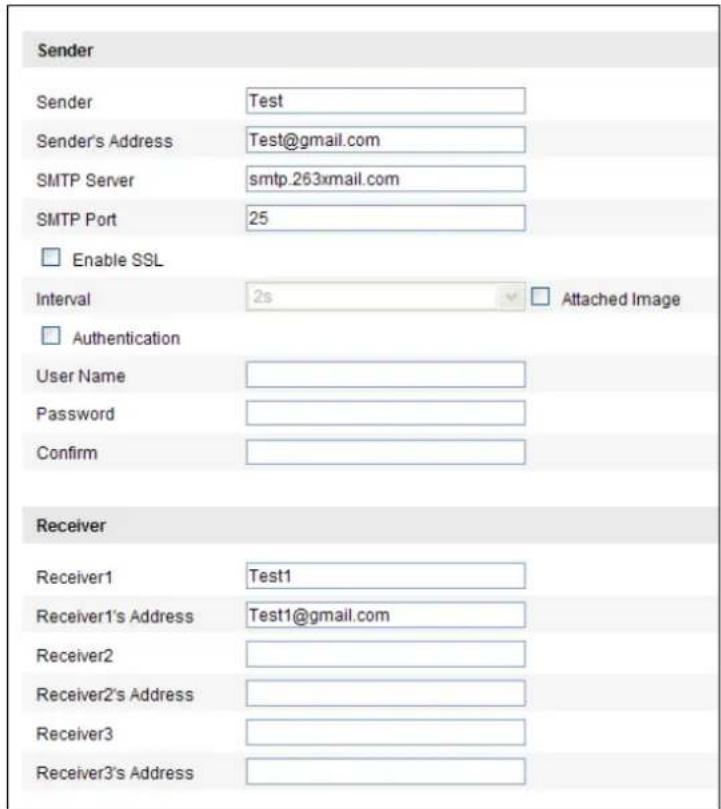

Figure 9-17 Email Settings

1. Configure the following settings:

Sender: The name of the email sender.

Sender's Address: The email address of the sender.

SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25 (not secured). And the SSL SMTP port is 465.

Enable SSL: Check the checkbox to enable SSL if it is required by the SMTP server.

Attached Image: Check the checkbox of Attached Image if you want to send emails with attached alarm images.

Interval: The interval refers to the time between two actions of sending attached pictures.

Authentication (optional): If your email server requires authentication, check this checkbox to use authentication to log in to this server and enter the login user Name and password.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security

system, resetting the password monthly or weekly can better protect your product.

Choose Receiver: Select the receiver to which the email is sent. Up to 2 receivers can be configured.

Receiver: The name of the user to be notified.

Receiver's Address: The email address of user to be notified.

1. Click Save to save the settings.

9.3.10 Configuring NAT (Network Address Translation) Settings

Purpose:

1. Enter the NAT settings interface.

Configuration > Advanced Configuration > Network > NAT

1. Choose the port mapping mode.

To port mapping with the default port numbers:

Choose Port Mapping Mode as Auto.

To port mapping with the customized port numbers:

Choose Port Mapping Mode as Manual.

And for manual port mapping, you can customize the value of the port number by yourself.

Enable Port Mapping Port Mapping Mode Manual Port Type External Port External IP Address Status HTTP 80 0.0.0.0 Not Valid RTSP 554 0.0.0.0 Not Valid Server Port 8000 0.0.0.0 Not Valid

Figure 9-18 Configure NAT Settings

1. Click Save to save the settings.

9.3.11 Configuring FTP Settings

Purpose:

You can configure the FTP server related information to enable the uploading of the captured pictures to the FTP server. The captured pictures can be triggered by events or a timing snapshot task.

Steps:

1. Enter the FTP Settings interface:

Configuration > Advanced Configuration > Network > FTP

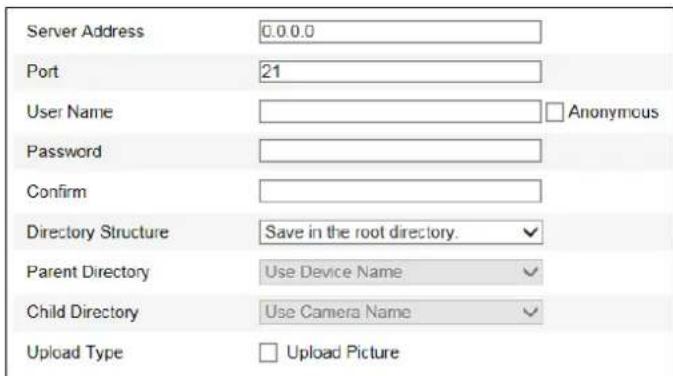

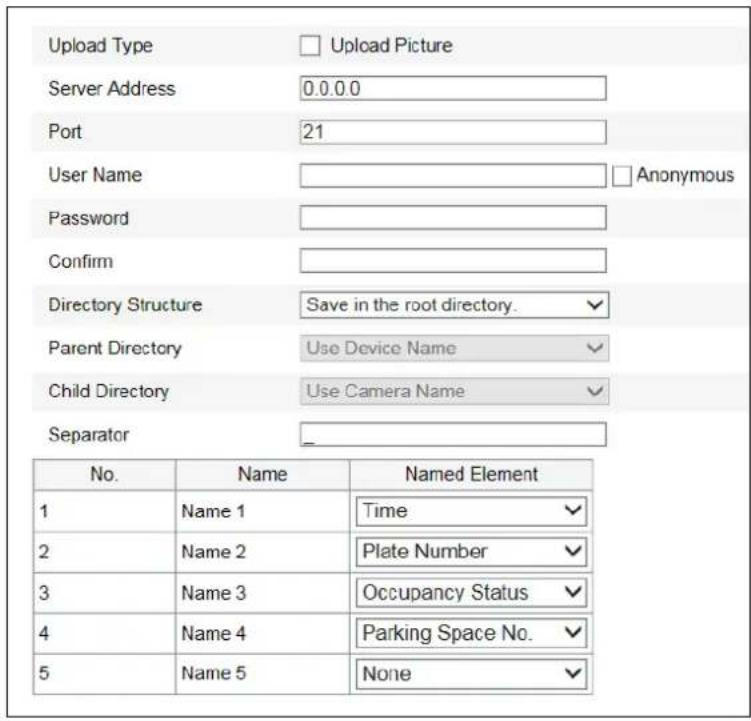

Server Address 0.0.0.0 Port 21 User Name Anonymous Password Confirm Directory Structure Save in the root directory. Parent Directory Use Device Name Child Directory Use Camera Name Upload Type Upload Picture

Figure 9-19 FTP Settings

1. Configure the FTP settings. The user name and password are required for logging in to the FTP server.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Directory: In the Directory Structure field, you can select the root directory, parent directory and child directory. When the parent directory is selected, you have the option to use the Device Name, Device Number or Device IP for the name of the directory; and when the Child Directory is selected, you can use the Camera Name or Camera No. as the name of the directory.

Upload Type: To enable uploading the captured picture to the FTP server.

Anonymous Access to the FTP Server (in which case the user name and password won't be required.): Check the Anonymous checkbox to enable the anonymous access to the FTP server.

i NOTE

The anonymous access function must be supported by the FTP server.

1. Click Save to save the settings.

9.4 Configuring Video and Audio Settings

9.4.1 Configuring Video Settings

Steps:

1. Enter the Video Settings interface: Configuration >Basic Configuration >Video/Audio >Video

Or Configuration > Advanced Configuration > Video/Audio > Video

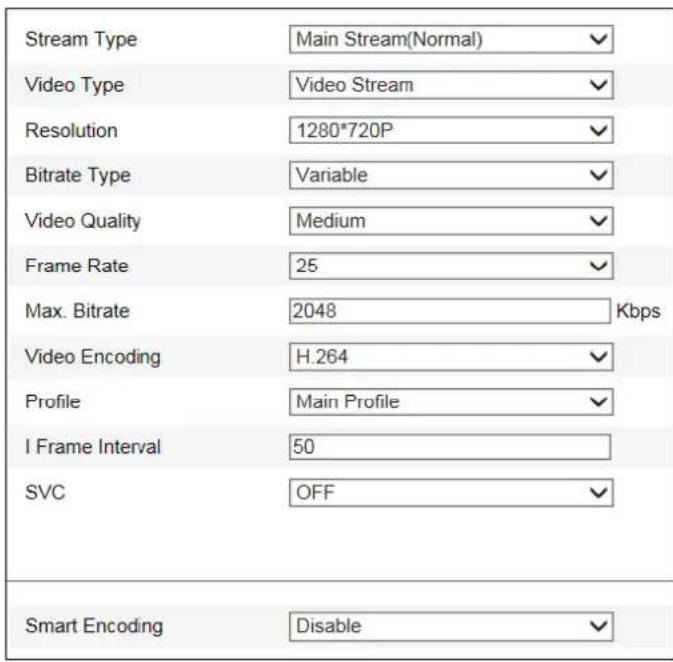

Stream Type Main Stream(Normal) Video Type Video Stream Resolution 1280*720P Bitrate Type Variable Video Quality Medium Frame Rate 25 Max. Bitrate 2048 Kbps Video Encoding H.264 Profile Main Profile I Frame Interval 50 SVC OFF Smart Encoding Disable

Figure 9-20 Video Settings

1. Select the Stream Type of the camera to main stream (normal) or sub-stream.

The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream can be used for live viewing when the bandwidth is limited.

1. You can customize the following parameters for the selected main stream or sub-stream:

Video Type: The video type can only be set as the Video Stream.

Resolution: Select the resolution of the video output.

Bitrate Type: Select the bitrate type to constant or variable.

Video Quality: When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate: Set the frame rate to 1/16\~25 fps. The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout.

Max. Bitrate: Set the max. bitrate to 32\~16384 Kbps. The higher value corresponds to the higher video quality, but the higher bandwidth is required.

Video Encoding: Only H.264 is selectable.

The supported video encoding may differ according to the different platform.

Profile: Only Main Profile is selectable.

I Frame Interval: Set the I-Frame interval to 1\~400.

SVC: Scalable Video Coding is an extension of the H.264/AVC standard. Select

OFF/ON to disable/enable the SVC function. Turn on the function, and the device will automatically extract frames from the original video when the

network bandwidth is insufficient.

Smart Encoding: Enabling this function will reduce the frame rate when the parking space is free to save the storage space.

1. Click Save to save the settings.

9.4.2 Configuring ROI Encoding

Purpose:

ROI (Region of Interest) encoding helps to discriminate the ROI and background information in video compression, which means, the technology assigns more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.

i NOTE

ROI function varies according to different camera models.

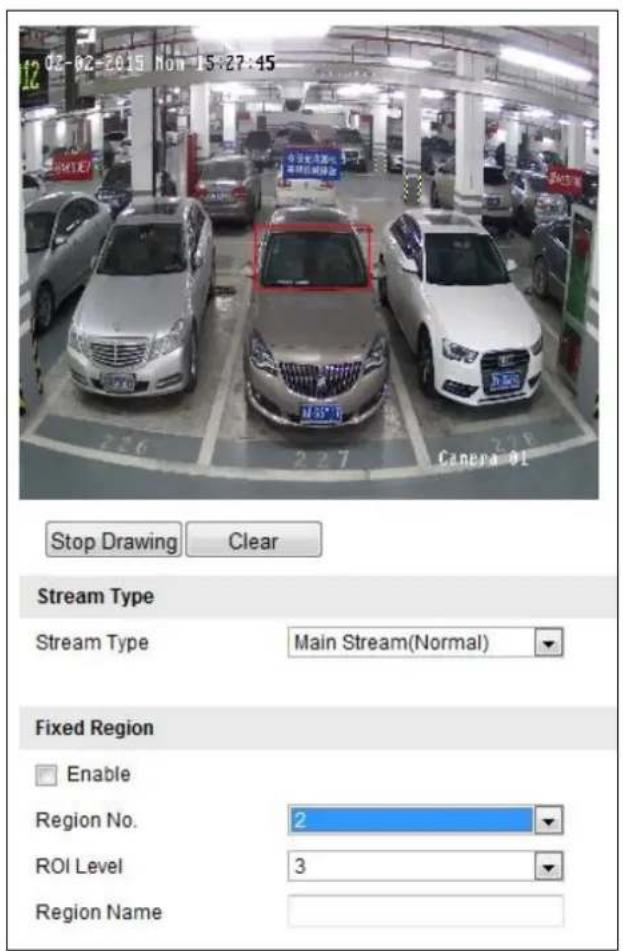

02-02-2015 Mon 15:27:45 Stop Drawing Clear Stream Type Stream Type Main Stream(Normal) Fixed Region Enable Region No. 2 ROI Level 3 Region Name

Figure 9-21 Region of Interest Settings

Configuring Fixed Region for ROI:

Steps:

1. Enter the ROI settings interface:

Configuration> Advanced Configuration> Video/Audio> ROI

1. Check the checkbox of Enable under Fixed Region item.
2. Select the stream type for ROI encoding.
3. Select the region from the drop-down list for ROI settings. There are four fixed regions selectable.
4. Click the Draw Area button, and then drag the mouse to draw the region of interest on the live video.
5. Select the ROI level to set the image quality enhancing level. The larger the value is, the better the image quality is.
6. Input the region name for ROI as desired.
7. Click Save to save the settings.

9.5 Configuring Image Parameters

9.5.1 Configuring Display Settings

Purpose:

You can set the image quality of the camera, including brightness, contrast, saturation, hue, sharpness, etc.

i NOTE

The display parameters vary according to the different camera model. Please refer to the actual interface for details.

Steps:

1. Enter the Display Settings interface:

Configuration > Basic Configuration> Image> Display Settings

Or Configuration > Advanced Configuration> Image> Display Settings

1. Set the image parameters of the camera.

i NOTE

In order to guarantee the image quality in the different illumination, it provides two sets of parameters for user to configure.

Day/Night Auto-Switch

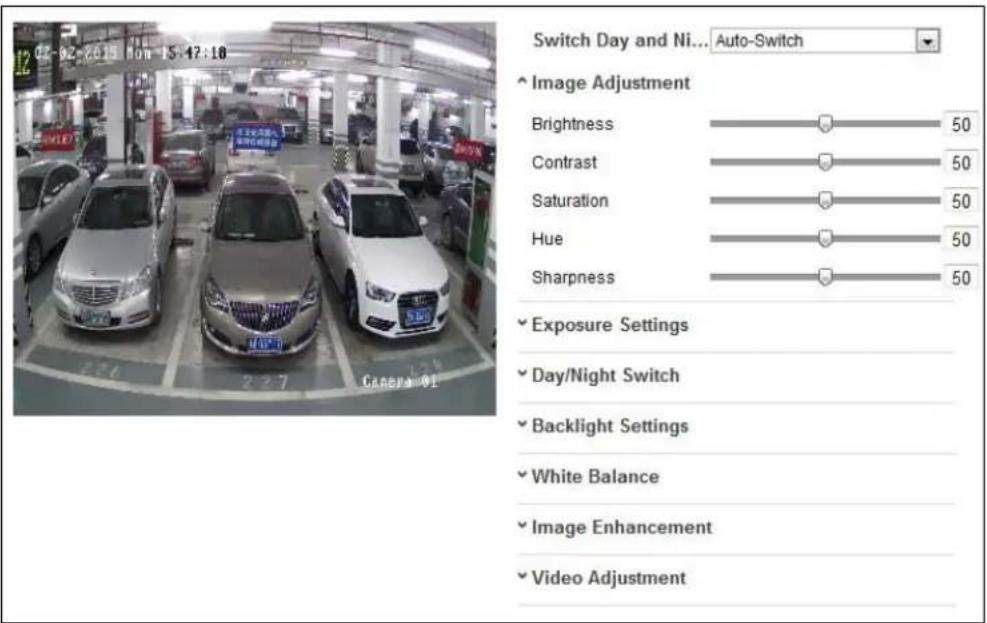

Switch Day and Ni... Auto-Switch ^ Image Adjustment Brightness 50 Contrast 50 Saturation 50 Hue 50 Sharpness 50 ✓ Exposure Settings ✓ Day/Night Switch ✓ Backlight Settings ✓ White Balance ✓ Image Enhancement ✓ Video Adjustment

Figure 9-22 Display Settings of Day/Night Auto-Switch

◆ Image Adjustment

Brightness describes bright of the image, which ranges from 1\~100, and the default value is 50.

Contrast describes the contrast of the image, which ranges from 1\~100, and the default value is 50.

Saturation describes the colorfulness of the image color, which ranges from 1\~100, and the default value is 50.

Hue describes the lightness of the image color, which ranges from 1\~100, and the default value is 50.

Sharpness describes the edge contrast of the image, which ranges from 1\~100, and the default value is 50.

◆ Exposure Settings

If the camera is equipped with the fixed lens, only Manual is selectable, and the iris mode is not configurable.

The exposure time refers to the electronic shutter time, which ranges from 1/3 \~ 1/100,000s. Adjust it according to the actual luminance condition.

The value of gain refers to the gain of the image; you can drag the slider to adjust the value.

◆ Day/Night Switch

Select the day/night switch mode, and configure the smart IR settings from this option.

Day/Night Switch Day/Night Switch Day Smart IR OFF

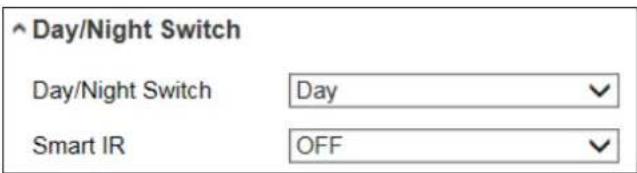

Figure 9-23 Day/Night Switch

Day, Night, Auto, and Schedule are selectable for day/night switch.

Day: the camera stays at day mode.

Night: the camera stays at night mode.

Auto: the camera switches between the day mode and the night mode according to the illumination automatically. The sensitivity ranges from 0\~7, the higher the value is, the easier the mode switches. The filtering time refers to the interval time between the day/night switch. You can set it from 5s to 120s.

Schedule: Set the start time and the end time to define the duration for day/night mode.

◆ Backlight Settings

BLC Area: If you focus on an object against strong backlight, the object will be too dark to be seen clearly. BLC compensates light to the object in the front to make it clear. OFF, Up, Down, Left, Right, Center and customize are selectable.

WDR: Wide Dynamic Range can be used when there is a high contrast of the bright area and the dark area of the scene.

White Balance

White balance is the white rendition function of the camera used to adjust the color temperature according to the environment.

MWB AWB1 Locked WB Incandescent Lamp Warm Light Lamp Natural Light Fluorescent Lamp

Figure 9-24 White Balance

◆ Image Enhancement

Digital Noise Reduction: DNR reduces the noise in the video stream. OFF, Normal Mode and Expert Mode are selectable. Set the DNR level from 0\~100, and the default value is 50 in Normal Mode. Set the DNR level from both space DNR level [0\~100] and time DNR level [0\~100] in Expert Mode.

◆ Video Adjustment

Mirror: It mirrors the image so you can see it inversed. Left/Right, Up/Down, Center, and OFF are selectable.

Rotate: To make a complete use of the 16:9 aspect ratio, you can enable the rotate

function when you use the camera in a narrow view scene.

When installing, turn the camera to the 90 degrees or rotate the 3-axis lens to 90 degrees, and set the rotate mode as on, you will get a normal view of the scene with 9:16 aspect ratio to ignore the needless information such as the wall, and get more meaningful information of the scene.

Video Standard: 50 Hz and 60 Hz are selectable. Choose according to the different video standards; normally 50 Hz for PAL standard and 60 Hz for NTSC standard.

Capture Mode: It's the selectable video input mode to meet the different demands of field of view and resolution.

♦ Other

Some of the camera supports CVBS, SDI, or HDMI output. Please refer to the actual camera model for details.

Day/Night Scheduled-Switch

Day/Night scheduled-switch configuration interface enables you to set the separate camera parameters for day and night to guarantee the image quality in different illumination.

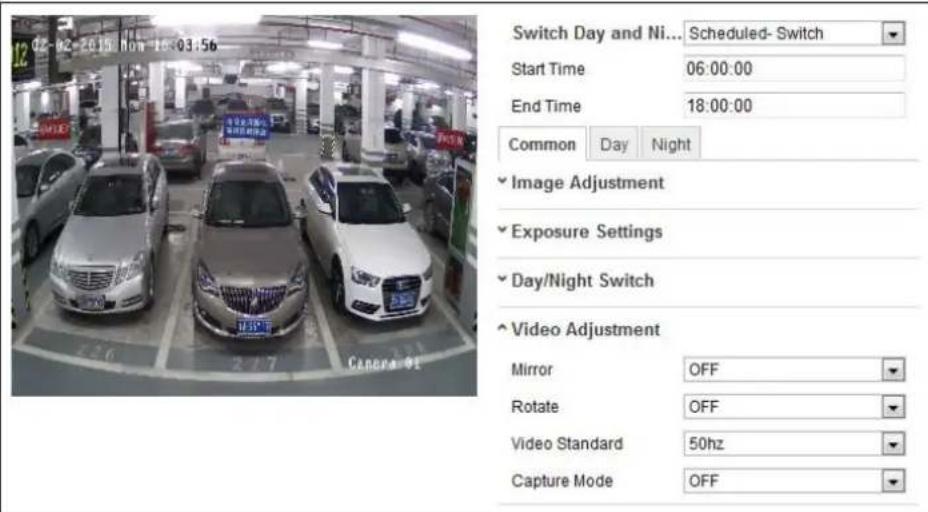

Switch Day and Ni... Scheduled- Switch Start Time 06:00:00 End Time 18:00:00 Common Day Night ✓ Image Adjustment ✓ Exposure Settings ✓ Day/Night Switch ✓ Video Adjustment Mirror OFF Rotate OFF Video Standard 50hz Capture Mode OFF

Figure 9-25 Day/Night Scheduled-Switch Configuration Interface

Steps:

1. Click the time line to select the start time and the end time of the switch.

2. Click Common tab to configure the common parameters applicable to the day mode and night mode.

i NOTE

The detailed information of each parameter please refers to day/night auto switch session.

1. Click Day tab to configure the parameters applicable for day mode.

2. Click Night tab to configure the parameters applicable for night mode.

The settings saved automatically if any parameter is changed.

9.5.2 Configuring OSD Settings

Purpose:

You can customize the camera name and time on the screen.

Steps:

1. Enter the OSD Settings interface:

Configuration > Advanced Configuration > Image > OSD Settings

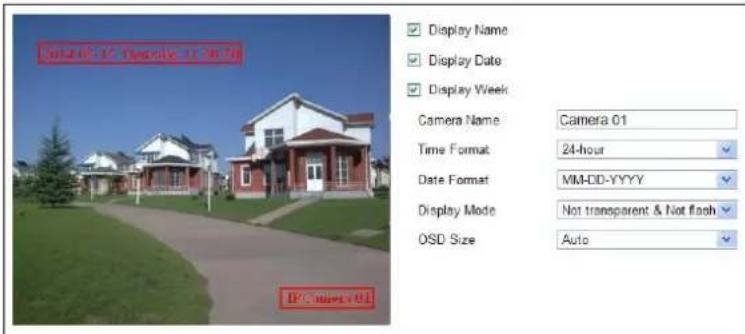

Display Name Display Date Display Week Camera Name Camera 01 Time Format 24-hour Date Format MM-DD-YYYY Display Mode Not transparent & Not flash OSD Size Auto

Figure 9-26 OSD Settings

1. Check the corresponding checkbox to select the display of camera name, date or week if required.
2. Edit the camera name in the text field of Camera Name.
3. Select from the drop-down list to set the time format, date format, display mode and the OSD font size.
4. You can use the mouse to drag the text frame in the live view window to adjust the OSD position.
5. Click Save to activate the above settings.

9.5.3 Configuring Text Overlay Settings

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay Settings interface:

Configuration > Advanced Configuration > Image > Text Overlay

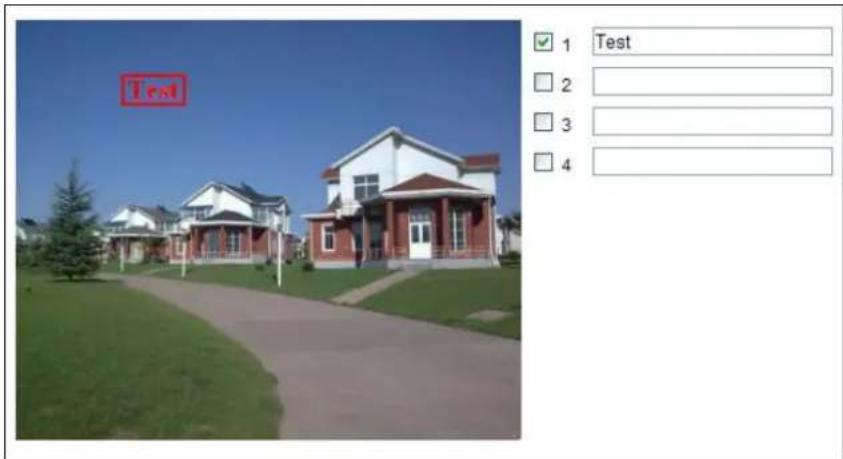

Test 1 Test 2 3 4

Figure 9-27 Text Overlay

1. Check the checkbox in front of textbox to enable the on-screen display.
2. Input the characters in the textbox.
3. (Optional) Use the mouse to drag the red text frame in the live view window to adjust the text overlay position.
4. Click Save to save the settings.

Up to 4 text overlays are configurable.

9.5.4 Configuring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask Settings interface:
   Configuration > Advanced Configuration> Image > Privacy Mask
2. Check the checkbox of Enable Privacy Mask to enable this function.
3. Click Draw Area.

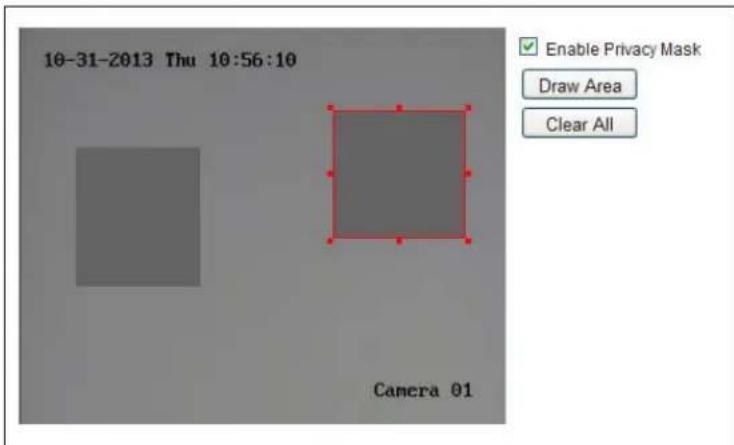

10-31-2013 Thu 10:56:10 Camera 01 Enable Privacy Mask Draw Area Clear All

Figure 9-28 Privacy Mask Settings

1. Click and drag the mouse in the live video window to draw the mask area.

i NOTE

You are allowed to draw up to 4 areas on the same image.

1. Click Stop Drawing to finish drawing or click Clear All to clear all of the areas you set without saving them.
2. Click Save to save the settings.

9.6 Configuring and Handling Alarms

This section explains how to configure the parking camera to respond to alarm events, including motion detection and exceptions. These events can trigger the linkage methods, such as Notify Surveillance Center.

i NOTE

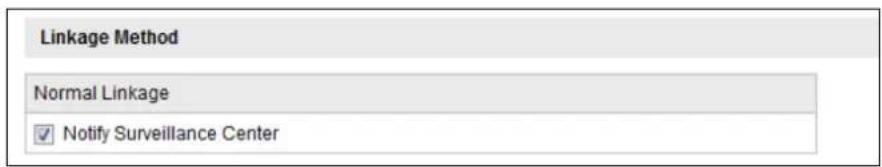

Check the checkbox of Notify Surveillance Center if you want the alarm information to be pushed to PC or mobile client software as soon as the alarm is triggered.

9.6.1 Configuring Motion Detection

Purpose:

Motion detection detects the moving objects in the configured surveillance area, and a series of actions can be taken when the alarm is triggered.

Steps:

1. Set the motion detection Area.

(1) Enter the motion detection settings interface Configuration > Advanced Configuration> Events > Motion Detection
(2) Check the checkbox of Enable Motion Detection.
(3) Check the checkbox of Enable Dynamic Analysis for Motion if you want to mark the detected objects with green rectangles.

i NOTE

Disable rules if you don't want the detected object displayed with the rectangles. Disable from Configuration > Local Configuration > Live View Parameters > Rules.

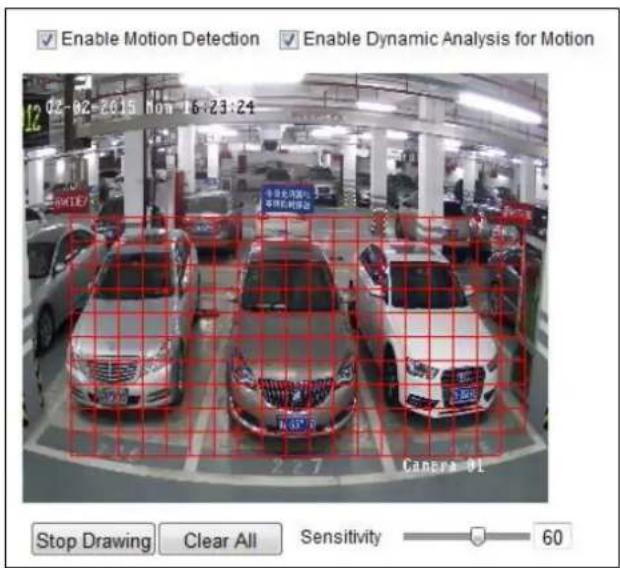

Enable Motion Detection Enable Dynamic Analysis for Motion 02-02-2015 Mon 16:23:24 Stop Drawing Clear All Sensitivity 60

Figure 9-29 Enable Motion Detection

(4) Click Draw Area. Click and drag the mouse on the live video to draw a motion detection area.
(5) Click Stop Drawing to finish drawing one area.
(6) (Optional) Click Clear All to clear all of the areas.
(7) (Optional) Move the slider to set the sensitivity of the detection.

1. Set the arming schedule for motion detection.

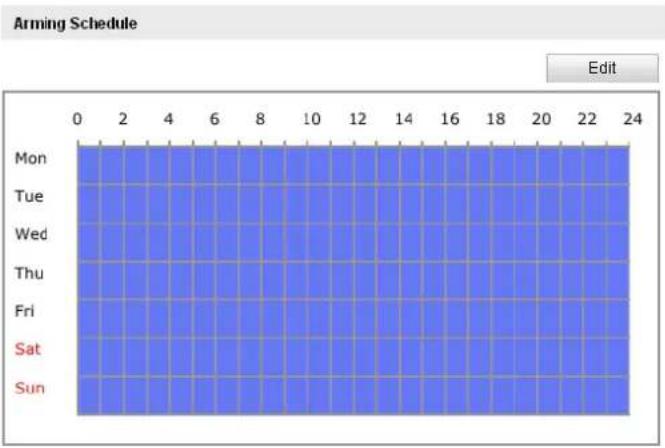

Arming Schedule Edit Mon Tue Wed Thu Fri Sat Sun

Figure 9-30 Arming Schedule

(1) Click Edit to edit the arming schedule.

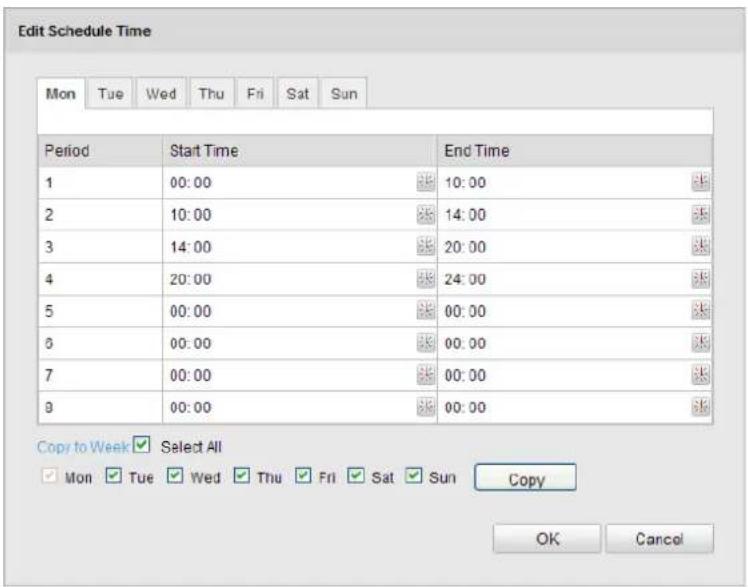

Edit Schedule Time Mon Tue Wed Thu Fri Sat Sun Period Start Time End Time 1 00:00 10:00 2 10:00 14:00 3 14:00 20:00 4 20:00 24:00 5 00:00 00:00 6 00:00 00:00 7 00:00 00:00 8 00:00 00:00 Copy to Week Select All Mon Tue Wed Thu Fri Sat Sun Copy OK Cancel

Figure 9-31 Edit Schedule Time

(2) Choose the day you want to set the arming schedule.
(3) Click ☒ to set the time period for the arming schedule.
(4) (Optional) After you set the arming schedule, you can copy the schedule to other days.
(5) Click OK to save the settings.

i NOTE

The time of each period cannot be overlapped. Up to 8 periods can be configured for each day.

1. Set the alarm actions for motion detection.

Check the checkbox to select the linkage method. Notify Surveillance Center is selectable. If you check it, it will send an exception or alarm signal to remote management software when an event occurs.

Linkage Method Normal Linkage ✓ Notify Surveillance Center

Figure 9-32 Linkage Method

9.6.2 Configuring Handling Exception

The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the cameras.

Steps:

1. Enter the Exception Settings interface:

Configuration > Advanced Configuration> Events > Exception

1. Check the checkbox to set the actions taken for the exception alarm. Notify Surveillance Center, Send Email, and Trigger Alarm Output are selectable. You can specify the linkage method when an event occurs.

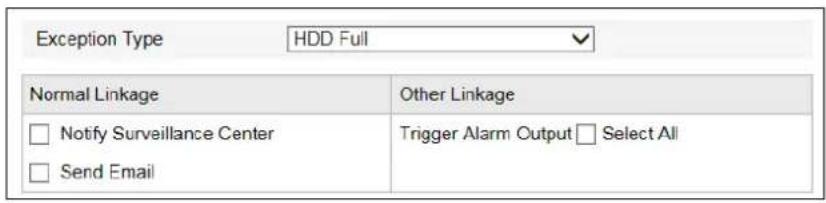

Exception Type HDD Full Normal Linkage Other Linkage Notify Surveillance Center Trigger Alarm Output Select All Send Email

Figure 9-33 Exception Settings

1. Click Save to save the settings.

Chapter 10 Configuring Parking Space Detection

Purpose:

To detecting the parking space, you should enable the VCA function and configure the corresponding parameters. Follow the instructions below to realize the parking space detection.

10.1 Configuring Detection Rules

Steps:

1. Enter the VCA configuration interface.

Configuration > Advanced Configuration > VCA

1. Click the Basic Parameters tab and configure the following parameters.

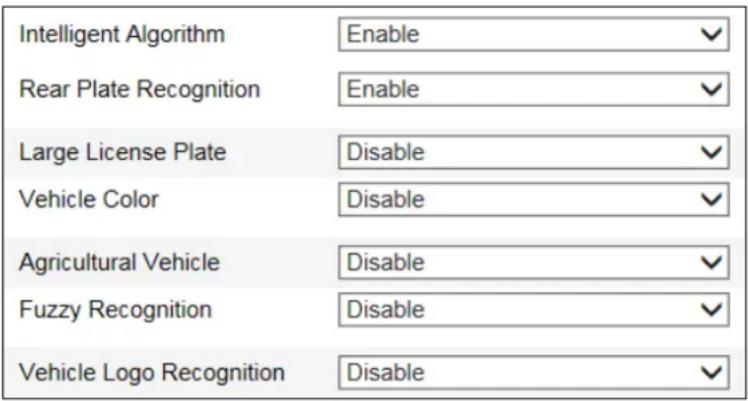

Intelligent Algorithm Enable Rear Plate Recognition Enable Large License Plate Disable Vehicle Color Disable Agricultural Vehicle Disable Fuzzy Recognition Disable Vehicle Logo Recognition Disable

Figure 10-1 Basic Parameters

Intelligent Algorithm: Enable or disable the intelligent algorithm.

Rear Plate Recognition: Enable or disable the license plate recognition when the vehicle is backed into the space.

Large License Plate: Normally, the camera is recommended to be placed about 5 m away from the parking space to ensure the plate recognition accuracy. But if the parking camera is placed much nearer to the space than the recommended distance, the license plate possesses greater pixels in the image which will make it looks large, then you should enable the Large License Plate function to improve the accuracy of the license plate recognition.

Vehicle Color: Enable or disable vehicle color recognition.

Agricultural Vehicle: For the license plate of agricultural vehicles, they are much different from other ones of normal vehicles. Enable the Agricultural Vehicle function to recognize the license plate number of agricultural vehicles.

Fuzzy Recognition: Enable or disable fuzzy recognition of the license plate.

Vehicle Logo Recognition: Enable the function to recognize the logo of the

vehicle.

1. Click the Analytics Parameters tab and configure the following parameters.

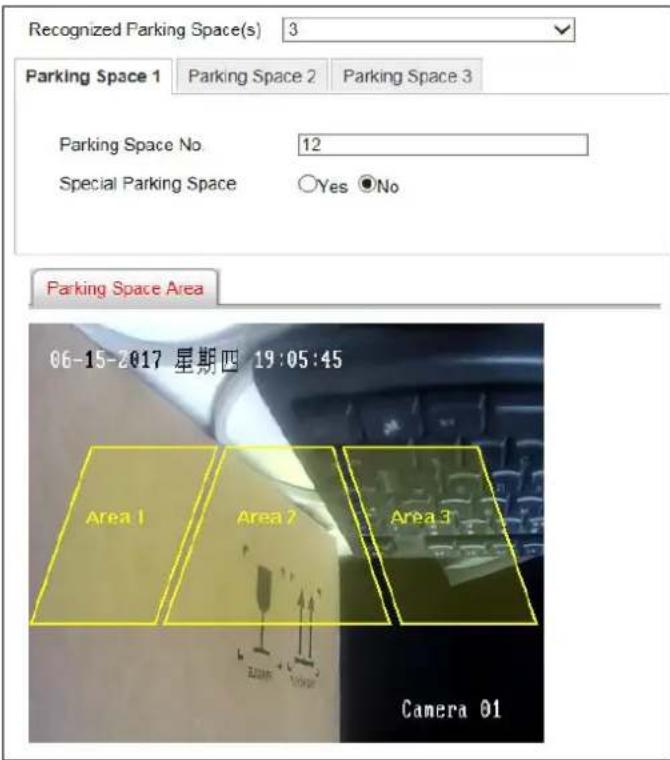

Recognized Parking Space(s) 3 Parking Space 1 Parking Space 2 Parking Space 3 Parking Space No. 12 Special Parking Space Yes No Parking Space Area 06-15-2017 星期四 19:05:45 Area 1 Area 2 Area 3 Camera 01

Figure 10-2 Analytics Parameters

1) Select the number of the Recognized Parking Space(s) from the drop-down list.

NOTE

The selectable value may vary according the camera models.

2) Click the tab of the parking space number to configure the parameters.

3) You can input the Parking Space No. in the text filed (e.g. the space is No. 119 of the parking lot; you may input 119 in the text field).

4) If the space is a special space, click the Yes radio button.

1. Draw parking spaces.

1) According to the number of spaces you set, the quadrilaterals appear in the image.

2) Click a quadrilateral, and drag corner of the quadrilateral to adjust the shape of it, or drag the quadrilateral to adjust the location of it.

3) Repeat the above 2 steps to configure other quadrilaterals.

1. Click Save to save the settings.

10.2 Configuring Parking Space Indicator

Purpose:

The indicator displays the space status, different colors stand for different status. You can select the indicator and the color of different status.

Steps:

1. Enter the space indicator settings interface.

Configuration > Advanced Configuration > Parking Space Indicator

1. Select the indicator in the drop-down list of Indicator Control Mode on your demand, including Internal Indicator, External Indicator, and Internal & External Indicator.

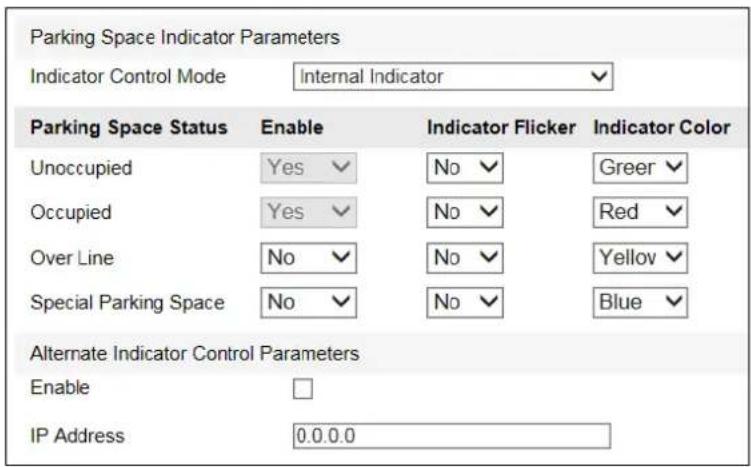

Parking Space Indicator Parameters Indicator Control Mode Internal Indicator Parking Space Status Enable Indicator Flicker Indicator Color Unoccupied Yes No Greer Occupied Yes No Red Over Line No No Yellow Special Parking Space No No Blue Alternate Indicator Control Parameters Enable IP Address 0.0.0.0

Figure 10-3 Configure Internal Indicator

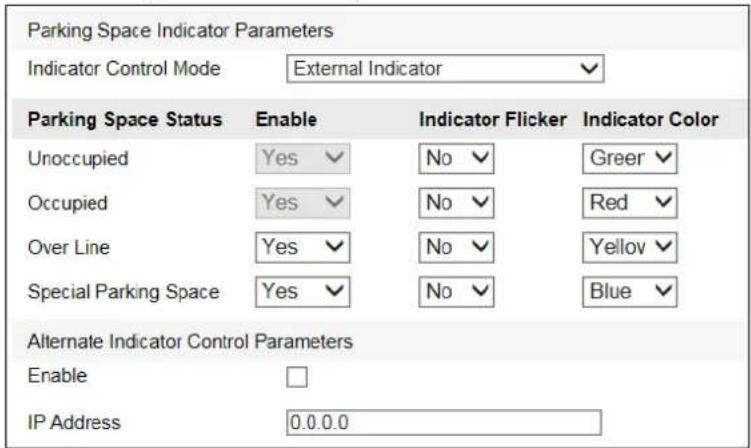

Parking Space Indicator Parameters Indicator Control Mode External Indicator Parking Space Status Enable Indicator Flicker Indicator Color Unoccupied Yes No Greer Occupied Yes No Red Over Line Yes No Yellow Special Parking Space Yes No Blue Alternate Indicator Control Parameters Enable IP Address 0.0.0.0

Figure 10-4 Configure External Indicator

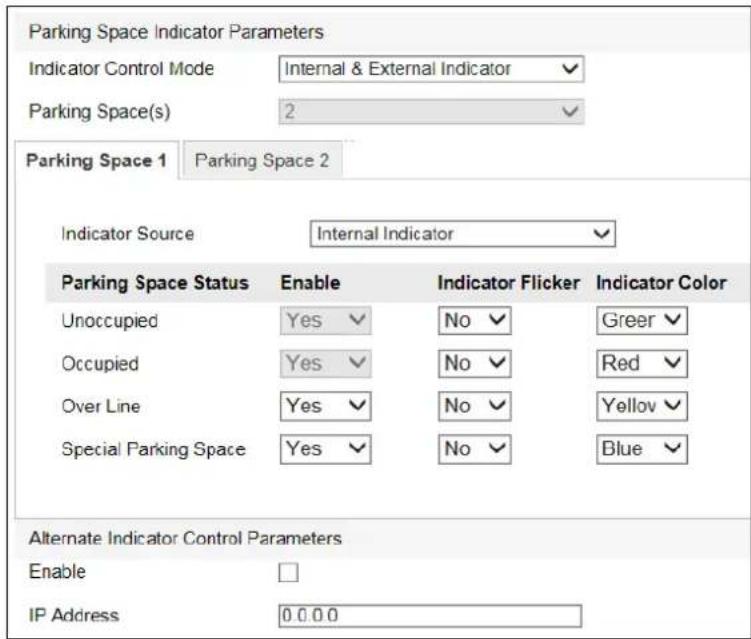

Parking Space Indicator Parameters Indicator Control Mode Internal & External Indicator Parking Space(s) 2 Parking Space 1 Parking Space 2 Indicator Source Internal Indicator Parking Space Status Enable Indicator Flicker Indicator Color Unoccupied Yes No Greer Occupied Yes No Red Over Line Yes No Yellow Special Parking Space Yes No Blue Alternate Indicator Control Parameters Enable IP Address 0.0.0.0

Figure 10-5 Configure Internal & External Indicator

NOTE

● The internal indicator is on the bottom of the camera.
- If you have external indicators, you should connect the indicators to the integration cable of the camera.
● After connecting the external indicators to the camera, power up the camera and the indicator will start the self-test by lighting red, green and blue. If the self-test fails, please check whether the cable connection is right.
- If you select the Internal Indicator or External Indicator, and when all the detected parking spaces are occupied, the indicator turns to the occupied color; when the detected parking spaces are not all occupied, the indicator remains the unoccupied color.
- If you select the Internal & External Indicator, the indicators work at the same time, you can respectively configure the indicator to display the status of each parking space.

1. Set the indicator parameters for different parking space status.

The description of different status is shown below:

Unoccupied: The space is free.

Occupied: The space is occupied by a vehicle.

Over Line: A vehicle occupied two parking spaces.

Special Parking Space: The space is specified to a certain vehicle.

1) If you choose Internal & External Indicator, click the tab of the parking space No. (e.g. Parking Space 1) and select the indicator in the Indicator Source drop-down list.

2) Configure the following parameters on your demand.

Enable: Select Yes or No to enable or disable the indication for the corresponding status.

Indicator Flicker: Set the indicator flicker or not for the corresponding status.

Indicator Color: Choose the color of the indicator for the corresponding status.

1. (Optional) Configure the Alternate Indicator Control Parameters.

The alternate indicator control is applicable to the parking lot that the aisle between the opposite parking spaces is very narrow. After you enable the function, the indicator of the current parking camera can display the status of the opposite space, and vice versa.

1) Check the Enable checkbox.
2) Enter the IP Address of the parking camera of the opposite space.

1. Click Save to save the settings.

10.3 Uploading Pictures

Purpose:

The pictures of the parking spaces can be uploaded to the remote host or FTP. Perform the following instructions to configure the parameters.

- Uploading Pictures to Remote Host

Steps:

1. Enter the remote host settings interface.

Configuration > Advanced Configuration > Picture Uploading > Remote Host

IP Address 0.0.0.0 Port 7200

Figure 10-6 Configure Remote Host

1. Configure the IP Address and the Port number of the remote host.

2. Click Save to save the settings.

- Uploading Pictures to FTP

Steps:

1. Enter the FTP settings interface.

Configuration > Advanced Configuration > Picture Uploading > FTP

Upload Type Server Address Port User Name Password Confirm Directory Structure Save in the root directory. Parent Directory Use Device Name Child Directory Use Camera Name Separator No.NAMENamed Element 1Name 1Time 2Name 2Plate Number 3Name 3Occupancy Status 4Name 4Parking Space No. 5Name 5None

Figure 10-7 Configure FTP

1. Check the checkbox of Upload Picture.
2. Configure the FTP address and port number; and the user name and password are required for FTP server login.

Anonymous Access to the FTP Server (in which case the user name and password won't be required): Check the Anonymous checkbox to enable the anonymous access to the FTP server.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

1. Configure the uploading directory of the FTP.

In the Directory Structure field, you can select the root directory, parent directory and child directory. When the parent directory is selected, you have the option to use the Device Name, Device Number, Device IP Address or Date for the name of the directory; and when the Child Directory is selected, you can use the Camera Name or Camera Number as the name of the directory.

1. Configure the name of the uploaded pictures.

The uploaded pictures can be named by 5 elements, and each element can be customized as Time, Device IP Address, License Plate Number, Occupancy Status, Parking Space No. or None. And you can set the Separator between the elements.

NOTE

The named items cannot be duplicated.

1. (Optional) Normally, a single parking camera detects the status of several spaces, thus the captured picture contains several spaces as well. If you want to divide the picture into several pictures according to the parking spaces, you can enable the Parking Space Picture Division function by selecting Enable in the drop-down list.

Parking Space Picture Divi... Enable

Figure 10-8 Parking Space Picture Division

1. Click Save to save the settings.

10.4 Checking Parking Space Status

1. Enter the space indicator settings interface.

Configuration > Advanced Configuration > Parking Space Indicator > Parking Space Status

1. View the parking space status, including license plate number, indicator flickering status, indicator color, etc.

Parking Space No.	Occupancy Status	Plate No.	Indicator Flickering Status	Indicator Color	Vehicle Color	Vehicle Logo
	Unoccupied		No	Unlit
	Unoccupied		No	Unlit

Figure 10-9 Parking Space Status

10.5 Typical Applications

10.5.1 Internal Indicator Application

NOTE

A parking camera for three parking spaces is taken as the example below.

Refer to Chapter 9.2 Configuring Parking Space Indicator for the internal indicator configuration.

The indicator displays the color of occupied status when the three spaces are all occupied; and the indicator displays the color of unoccupied status when any of the space is free; and the indicator displays the color of over line when a parked vehicle occupies two spaces.

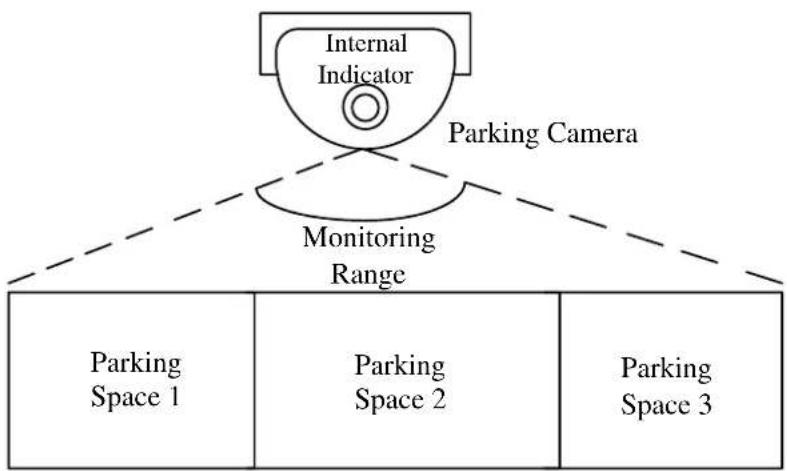

Figure 10-10 Internal Indicator Application

10.5.2 Alternate Indicator Control Application

The alternate indicator control is applicable to the parking lot that the aisle between the opposite parking spaces is very narrow. After you configure the function, the indicator of the current parking camera displays the status of opposite space, and vice versa.

i NOTE

Two parking cameras for six parking spaces is taken as the example below.

Refer to Chapter 9.2 Configuring Parking Space Indicator for the alternate indicator control configuration.

The Parking Camera A controls the Indicator B and detects the status of the Parking Spaces B1-B3, while the Parking Camera B controls the Indicator A and detects the status of the Parking Spaces A1-A3, as shown in the Figure 10-11.

The indicator displays the color of occupied status when the three spaces are all occupied; and the indicator displays the color of unoccupied status when any of the space is free; and the indicator displays the color of over line when a parked vehicle occupies two spaces.

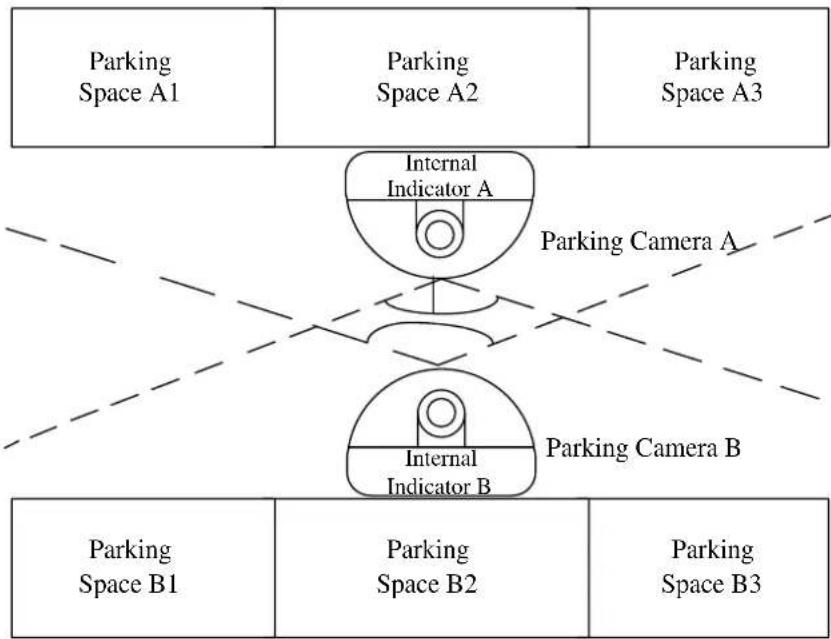

Figure 10-11 Alternate Indicator Application

10.5.3 External Indicator Application

i NOTE

A parking camera for three parking spaces is taken as the example below.

Refer to Chapter 9.2 Configuring Parking Space Indicator for the external indicator configuration.

The indicator displays the color of occupied status when the corresponding space is occupied; and the corresponding indicators display the color of over line when a vehicle occupies two spaces.

Figure 10-12 External Indicator Application

10.5.4 Special Parking Space Application

If the parking space is a special space (as shown in figure below), refer to Chapter 9.2 Configuring Parking Space Indicator for the external indicator configuration.

The external indicator 1 displays the color of the configured special space status, and the occupied or unoccupied status is invalid to the space.

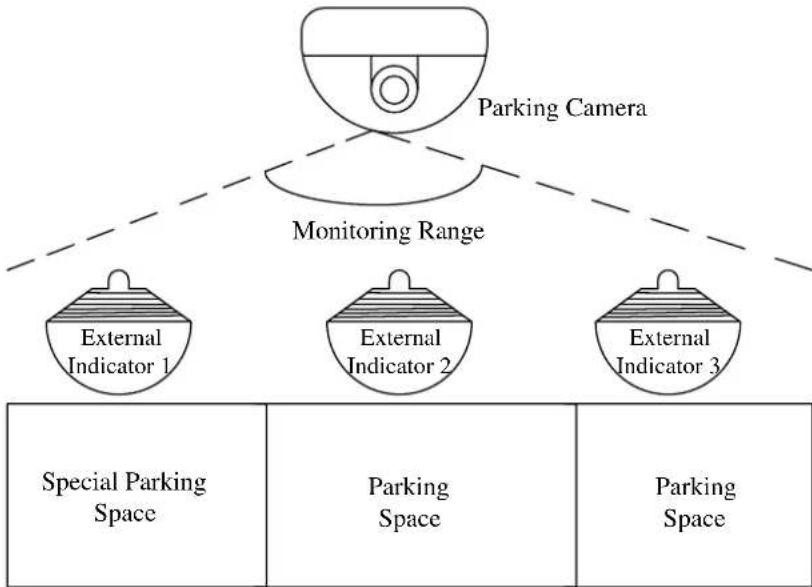

Figure 10-13 Special Parking Space Application

Chapter 11 Configuring Storage Settings

Before you start:

To configure record settings, please make sure that you have the network storage device within the network or the SD card inserted in your camera.

11.1 Configuring NAS Settings

Before you start:

The network disk should be available within the network and properly configured to store the recorded files, log files, etc.

Steps:

1. Add the network disk.

(1) Enter the NAS (Network-Attached Storage) Settings interface:

Configuration > Advanced Configuration > Storage > NAS

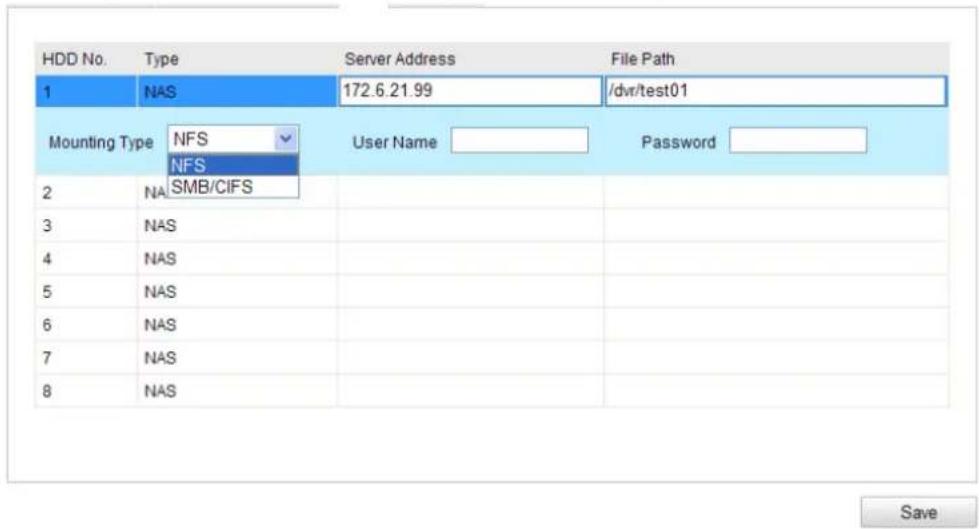

HDD No. Type Server Address File Path 1 NAS 172.6.21.99 /dvr/test01 Mounting Type NFS User Name Password NFS 2 NAS SMB/CIFS 3 NAS 4 NAS 5 NAS 6 NAS 7 NAS 8 NAS Save

Figure 11-1 Add Network Disk

(2) Enter the IP address of the network disk, and enter the file path.
(3) Select the mounting type. NFS and SMB/CIFS are selectable. And you can set the user name and password to guarantee the security if SMB/CIFS is selected.

Please refer to the User Manual of NAS for creating the file path.

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters,

numbers, and special characters.) in order to increase the security of your product.

And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

(4) Click Save to add the network disk.

1. Initialize the added network disk.

(1) Enter the HDD Settings interface (Advanced Configuration > Storage > Storage Management), in which you can view the capacity, free space, status, type and property of the disk.

HDD Device List Format □ HDD No. Capacity Free space Status Type Property Progress □ g 20.00GB 0.00GB Uninitialized NAS R/W Quota Max.Picture Capacity 0.00GB Free Size for Picture 0GB Max. Record Capacity 0.00GB Free Size for Record 0GB Percentage of Picture 25 % Percentage of Record 75 %

Figure 11-2 Storage Management Interface

(2) If the status of the disk is Uninitialized, check the corresponding checkbox to select the disk and click Format to start initializing the disk.

When the initialization completed, the status of disk will become Normal.

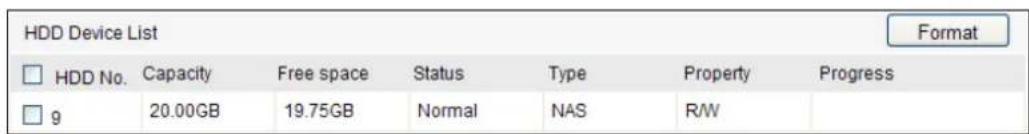

HDD Device List Format □ HDD No. Capacity Free space Status Type Property Progress □ 9 20.00GB 19.75GB Normal NAS R/W

Figure 11-3 View Disk Status

1. Define the quota for record and pictures.

(1) Enter the quota percentage for picture and for record.
(2) Click Save and refresh the browser page to activate the settings.

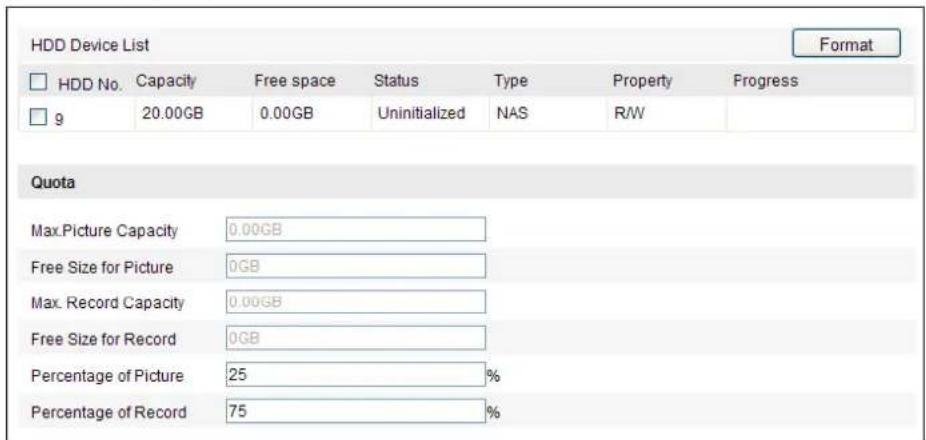

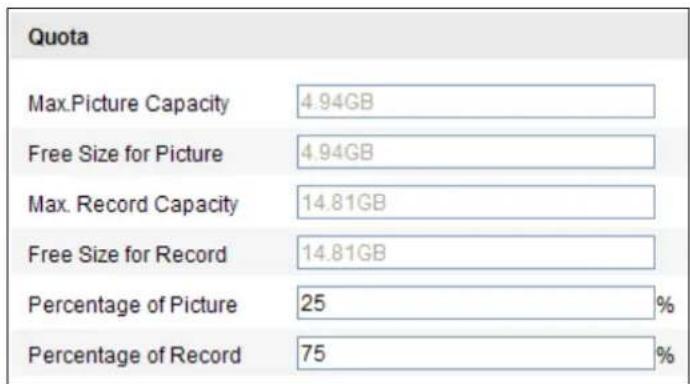

Quota Max.Picture Capacity 4.94GB Free Size for Picture 4.94GB Max. Record Capacity 14.81GB Free Size for Record 14.81GB Percentage of Picture 25 % Percentage of Record 75 %

Figure 11-4 Quota Settings

i NOTE

● Up to 8 NAS disks can be connected to the camera.
- To initialize and use the SD card after insert it to the camera, please refer to the steps of NAS disk initialization.

11.2 Configuring Recording Schedule

Purpose:

There are two kinds of recording for the cameras: manual recording and scheduled recording. In this section, you can follow the instructions to configure the scheduled recording. By default, the record files of scheduled recording are stored in the SD card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule Settings interface:

Configuration > Advanced Configuration > Storage > Record Schedule

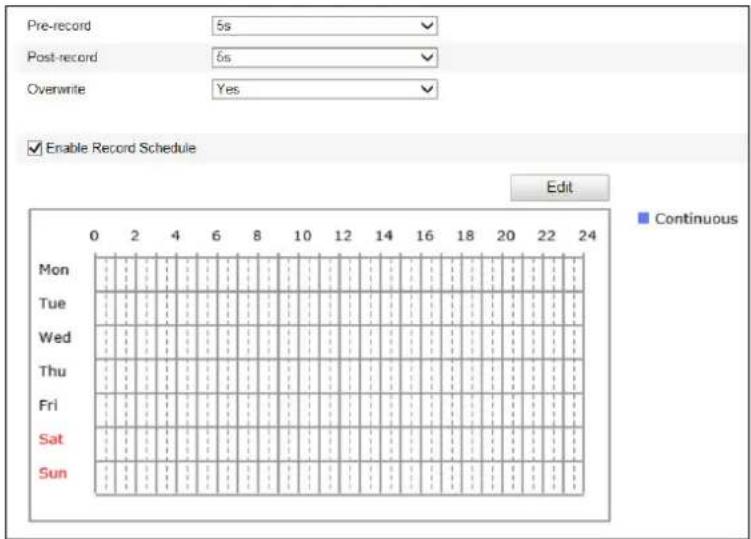

Pre-record 5s Post-record 6s Overwrite Yes Enable Record Schedule Edit Continuous Mon Tue Wed Thu Fri Sat Sun

Figure 11-5 Recording Schedule Interface

1. Check the checkbox of Enable Record Schedule to enable scheduled recording.
2. Set the record parameters of the camera.

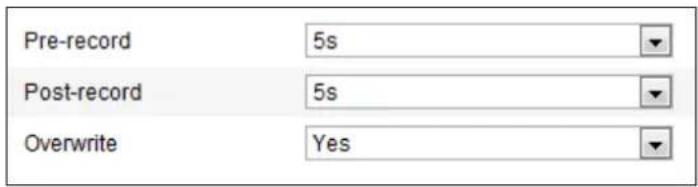

Pre-record 5s Post-record 5s Overwrite Yes

Figure 11-6 Record Parameters

• Pre-record: The time you set to start recording before the scheduled time on the event. For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the camera starts to record at 9:59:55.
  The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s,

25 s, 30 s or not limited.

- Post-record: The time you set to stop recording after the scheduled time or the event. For example, if an alarm triggered recording ends at 11:00, and the post-record time is set as 5 seconds, the camera records until 11:00:05.

The post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

i NOTE

The record parameter configurations vary depending on the camera model.

1. Click Edit to edit the record schedule.

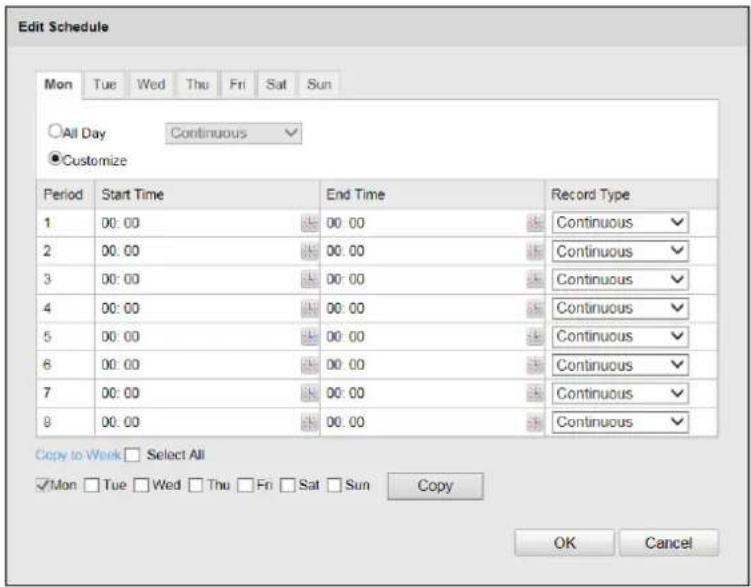

Edit Schedule Mon Tue Wed Thu Fri Sat Sun All Day Continuous Customize Period Start Time End Time Record Type 1 00:00 00:00 Continuous 2 00:00 00:00 Continuous 3 00:00 00:00 Continuous 4 00:00 00:00 Continuous 5 00:00 00:00 Continuous 6 00:00 00:00 Continuous 7 00:00 00:00 Continuous 8 00:00 00:00 Continuous Copy to Work Select All Mon Tue Wed Thu Fri Sat Sun Copy OK Cancel

Figure 11-7 Record Schedule

1. Choose the day to set the record schedule.

(1) Set all-day record or segment record:

If you want to configure the all-day recording, please check the All Day checkbox.

If you want to record in different time sections, check the Customize checkbox. Set the Start Time and End Time.

i NOTE

The time of each segment cannot be overlapped. Up to 8 segments can be configured.

(2) Select a Record Type. The record type can be Continuous for the camera.

Continuous: The video will be recorded automatically according to the time of the schedule.

(3) Check the checkbox of Select All and click Copy to copy settings of this day to the whole week. You can also check any of the checkboxes before the date and click Copy.

(4) Click OK to save the settings and exit the Edit Record Schedule interface.

1. Click Save to save the settings.

Chapter 12 Playback

Purpose:

This section explains how to view the remotely recorded video files stored in the network disks or SD cards.

Steps:

1. Click Playback on the menu bar to enter playback interface.

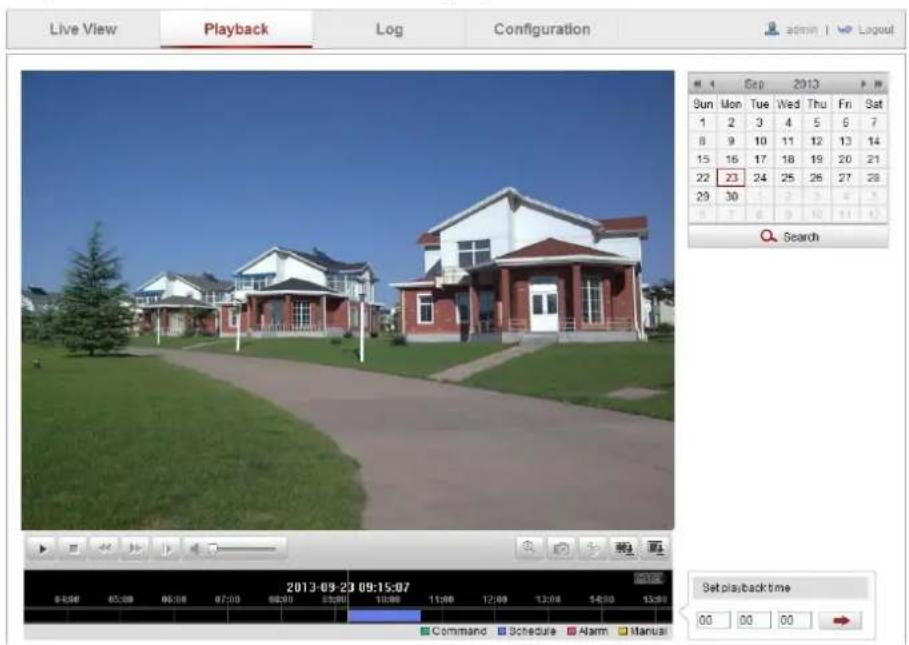

Live View Playback Log Configuration admin | Logout Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Search 20:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 Command Schedule Alarm Manual Set playback time 00 00 00

Figure 12-1 Playback Interface

1. Select the date and click Search.

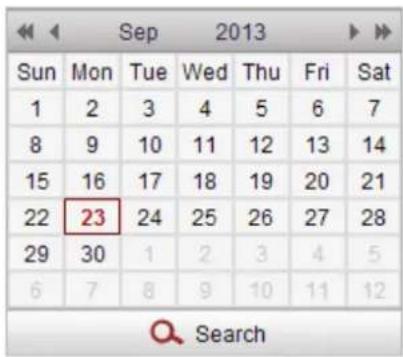

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 1 2 3 4 5 6 7 8 9 10 11 12 Search

Figure 12-2 Search Video

1. Click to play the video files found on this date.

The toolbar on the bottom of Playback interface can be used to control playing process.

Screenshot of a media player control bar with playback, audio, and video icons

Figure 12-3 Playback Toolbar

Table 12-1 Description of Playback Toolbar

Button	Operation	Button	Operation
	Play		Capture a picture
	Pause		Start/Stop clipping video files
	Stop		Audio on and adjust volume/Mute
	Speed down		Download video files
	Speed up		Download captured pictures
	Playback by frame		Enable/Disable digital zoom

i NOTE

• You can choose the file paths locally for downloaded playback video files and pictures in Local Configuration interface. Please refer to Chapter 9.1 Configuring Local Parameters for details.
• Drag the progress bar with the mouse to locate the exact playback point. You can also input the time and click to locate the playback point in the

Set playback time field. You can also click 🔒 to zoom out/in the progress bar.

Set playback time 00 00 00 →

Figure 12-4 Set Playback Time

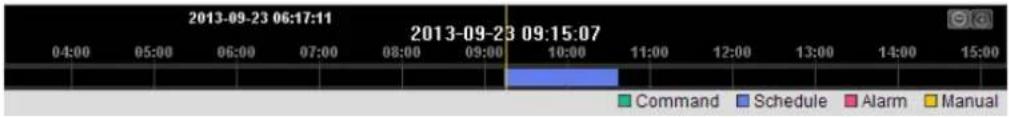

2013-09-23 06:17:11 2013-09-23 09:15:07 04:00 05:00 06:00 07:00 08:00 09:00 10:00 11:00 12:00 13:00 14:00 15:00 Command Schedule Alarm Manual

Figure 12-5 Progress Bar

The different colors of the video on the progress bar stand for the different video types.

Figure 12-6 Video Types

Chapter 13 Searching Log

Purpose:

The operation, alarm, exception and information of the camera can be stored in log files. You can also export the log files on your demand.

Before you start:

Please configure network storage for the camera or insert a SD card in the camera.

Steps:

1. Click Log on the menu bar to enter log searching interface.

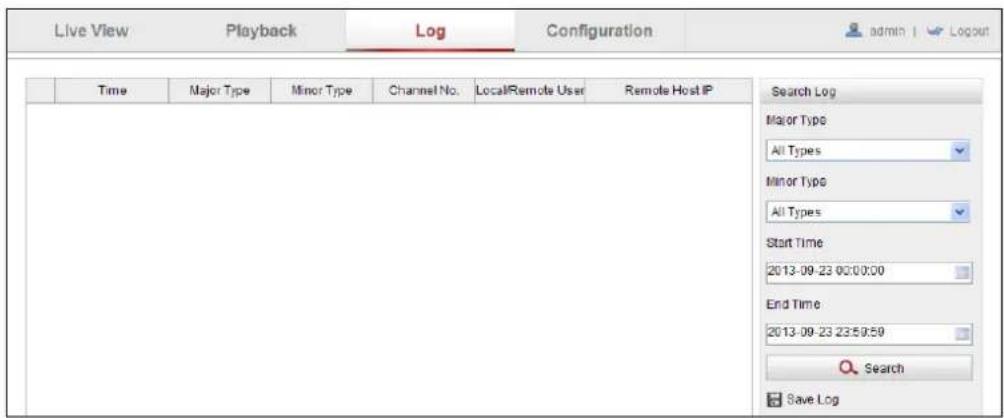

Live View Playback Log Configuration adults1 Logout Time Major Type Minor Type Channel No. LocalRemote User Remote Host IP Search Log Major Type All Types Minor Type All Types Start Time 2013-09-23 00:00:00 End Time 2013-09-23 23:59:59 Search Save Log

Figure 13-1 Log Searching Interface

1. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time.
2. Click Search to search log files. The matched log files will be displayed on the Log interface.

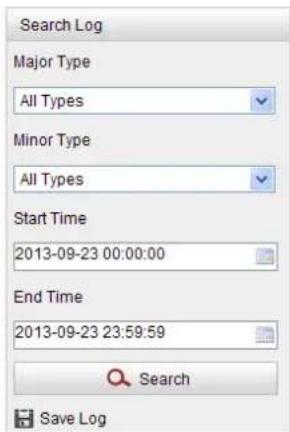

Search Log Major Type All Types Minor Type All Types Start Time 2013-09-23 00:00:00 End Time 2013-09-23 23:59:59 Search Save Log

Figure 13-2 Search Log

1. To export the log files, click Save Log to save the log files in your computer.

Chapter 14 Others

14.1 Managing User Accounts

Enter the User Management interface:

Configuration >Basic Configuration> Security >User

Or Configuration > Advanced Configuration> Security > User

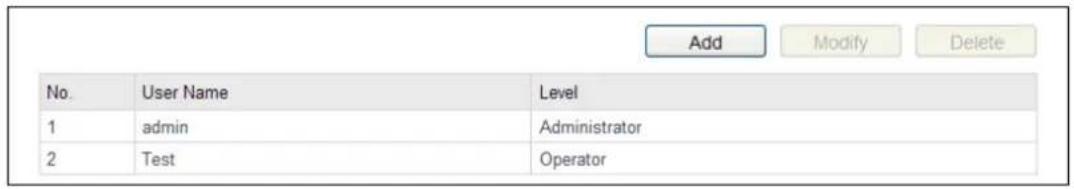

No. User Name Level 1 admin Administrator 2 Test Operator Add Modify Delete

Figure 14-1 User Information

- Adding a User Account

Steps:

1. Click Add to add a user account.

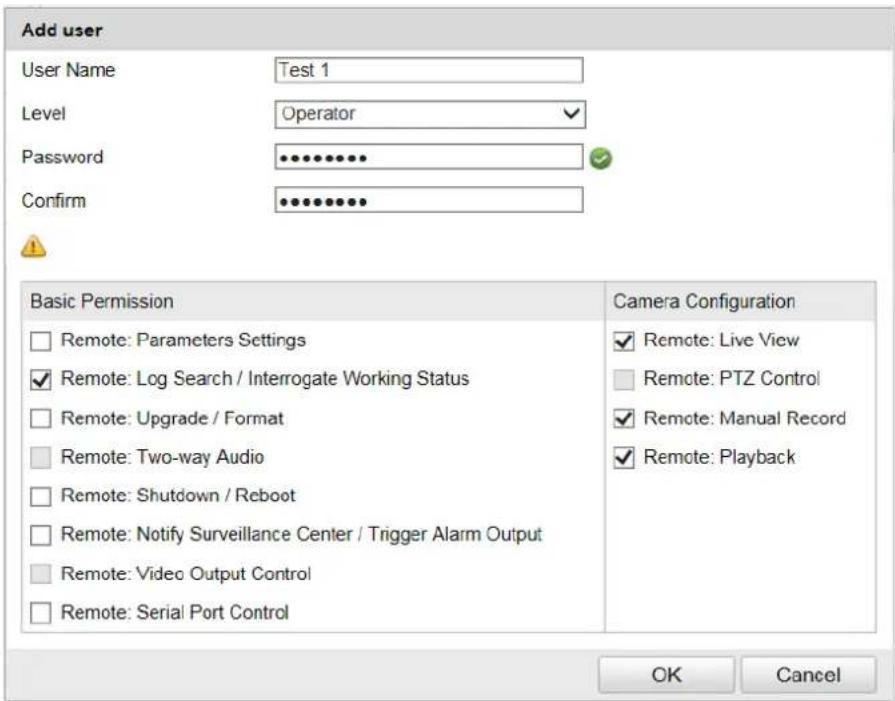

Add user User Name Test 1 Level Operator Password ••••••••• Confirm •••••••••• Basic Permission Camera Configuration Remote: Parameters Settings Remote: Live View Remote: Log Search / Interrogate Working Status Remote: PTZ Control Remote: Upgrade / Format Remote: Manual Record Remote: Two-way Audio Remote: Playback Remote: Shutdown / Reboot Remote: Notify Surveillance Center / Trigger Alarm Output Remote: Video Output Control Remote: Serial Port Control OK Cancel

Figure 14-2 Add a User

1. Configure the user parameters.
2. Click OK to save the settings.

4. WARNING

1. STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case

letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

- Modifying a User Account

Steps:

1. Select a user.
2. Click Modify to modify the user parameters.

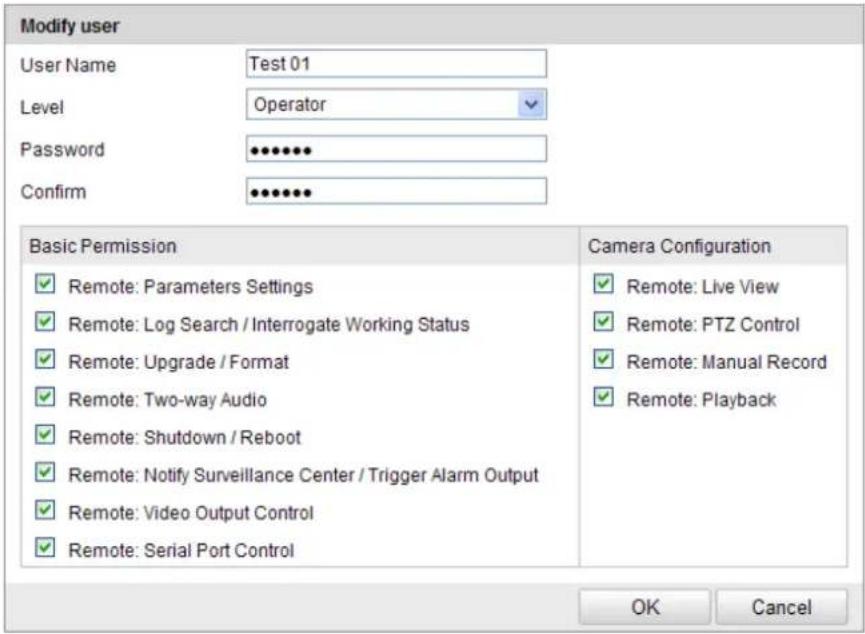

Modify user User Name Test 01 Level Operator Password ••••••• Confirm •••••••• Basic Permission Camera Configuration ✓ Remote: Parameters Settings ✓ Remote: Log Search / Interrogate Working Status ✓ Remote: Upgrade / Format ✓ Remote: Two-way Audio ✓ Remote: Shutdown / Reboot ✓ Remote: Notify Surveillance Center / Trigger Alarm Output ✓ Remote: Video Output Control ✓ Remote: Serial Port Control OK Cancel

Figure 14-3 Modify a User

1. Click OK to save the settings.

- Deleting a User Account

Steps:

1. Select the user you want to delete and click Delete.
2. Click OK on the pop-up dialogue box to delete the user.

You cannot delete the admin account.

14.2 Configuring RTSP Authentication

Purpose:

You can specifically secure the stream data of live view.

Steps:

1. Enter the Authentication interface: Configuration> Advanced Configuration> Security > RTSP Authentication

Authentication basic

Figure 14-4 RTSP Authentication

1. Select the RTSP Authentication type to basic or disable in the drop-down list to enable or disable the RTSP authentication.

If you disable the RTSP authentication, anyone can access the video stream by the RTSP protocol via the IP address.

1. Click Save to save the settings.

14.3 Configuring Anonymous Visit

Purpose:

Enabling this function allows visit for whom doesn't have the user name and password of the device.

Only live view is available for the anonymous user.

Steps:

1. Enter the Anonymous Visit interface:

Configuration> Advanced Configuration> Security > Anonymous Visit

Anonymous Visit Disable

Figure 14-5 Anonymous Visit

1. Set the Anonymous Visit permission to Enable or Disable in the drop-down list to enable or disable the anonymous visit.

2. Click Save to save the settings.

There will be a checkbox of Anonymous the next time you logging in.

User Name Password Login Anonymous

Figure 14-6 Login Interface with an Anonymous Checkbox

1. Check the checkbox of Anonymous and click Login.

By permitting the Anonymous "Live View" function, you may enable others to

access your camera and view live images without providing login credentials. It therefore is critical when permitting the Anonymous "Live View" function to ensure that your camera's field of view does not impact the privacy of individuals whose images might be captured without authorization.

Given its inherent intrusiveness, video surveillance is inappropriate in areas where people have a higher expectation of privacy.

14.4 Filtering IP Address

Purpose:

This function makes it possible for access control.

Steps:

1. Enter the IP Address Filter interface:

Configuration> Advanced Configuration> Security > IP Address Filter

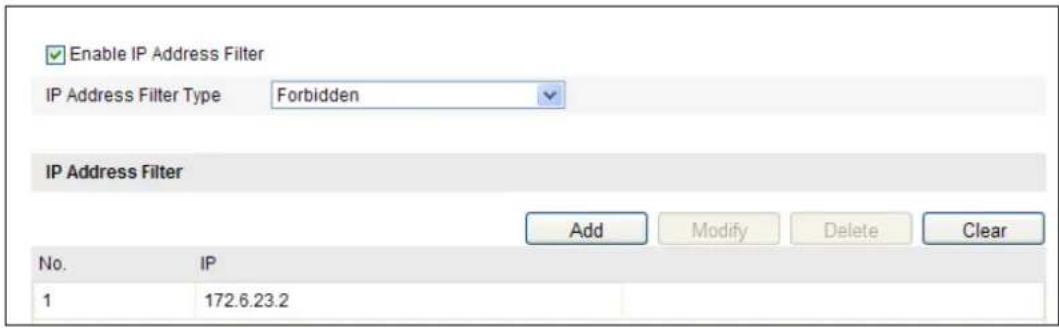

Enable IP Address Filter IP Address Filter Type Forbidden IP Address Filter Add Modify Delete Clear No. IP 1 172.6.23.2

Figure 14-7 IP Address Filter Interface

1. Check the checkbox of Enable IP Address Filter.

2. Select the type of IP Address Filter in the drop-down list. Forbidden and Allowed are selectable.

3. Set the IP Address Filter list.

- Adding an IP Address

Steps:

(1) Click Add to add an IP address.
(2) Input the IP Adreess.

Add IP Address IP Address 172.6.23.2 OK Cancel

Figure 14-8 Add an IP Address

(3) Click OK to save the settings.

- Modifying an IP Address

Steps:

(1) Select an IP address from filter list and click Modify.

(2) Modify the IP address in the text filed.

Modify IP Address IP Address 172.6.23.22 OK Cancel

Figure 14-9 Modify an IP Address

(3) Click OK to save the settings.

- Deleting an IP Address

Select an IP address from filter list and click Delete.

- Clearing all IP Addresses

Click Clear to delete all the IP addresses.

1. Click Save to save the settings.

14.5 Viewing Device Information

Enter the Device Information interface:

Configuration > Basic Configuration > System > Device Information

Or Configuration > Advanced Configuration> System > Device Information

In the Device Information interface, you can edit the Device Name.

Other information of the parking camera, such as Model, Serial No., Firmware Version, Encoding Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed. The information cannot be changed in this menu. It is the reference for maintenance or modification in future.

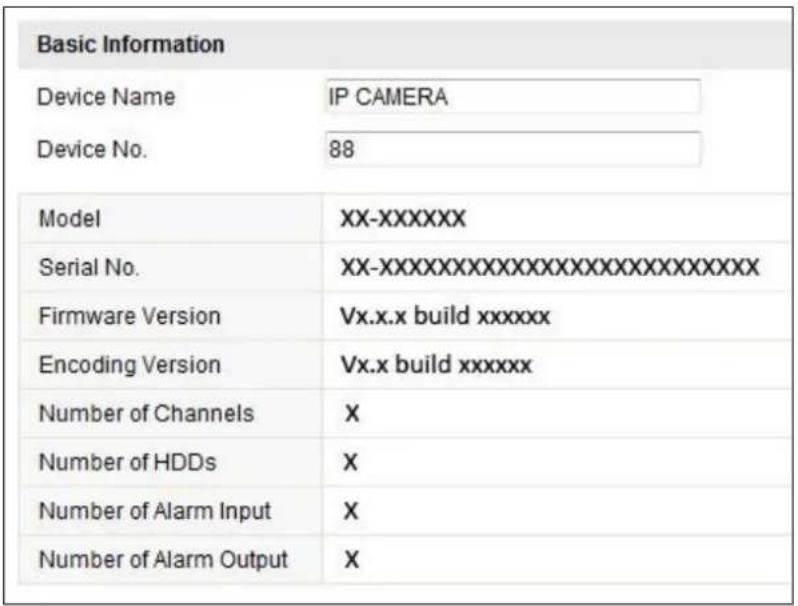

Basic Information Device Name IP CAMERA Device No. 88 Model XX-XXXXXX Serial No. XX-XXXXXXXXXXXXXXXXXXXXXX Firmware Version Vx.x.x build xxxxxx Encoding Version Vx.x build xxxxxx Number of Channels X Number of HDDs X Number of Alarm Input X Number of Alarm Output X

Figure 14-10 Device Information

14.6 Maintenance

14.6.1 Rebooting the Camera

Steps:

1. Enter the Maintenance interface:

Configuration > Basic Configuration> System > Maintenance

Or Configuration > Advanced Configuration> System > Maintenance

1. Click Reboot to reboot the parking camera.

Reboot Reboot Reboot the device.

Figure 14-11 Reboot the Device

14.6.2 Restoring Default Settings

Steps:

1. Enter the Maintenance interface:

Configuration > Basic Configuration > System > Maintenance

Or Configuration > Advanced Configuration> System > Maintenance

1. Click Restore or Default to restore the default settings.

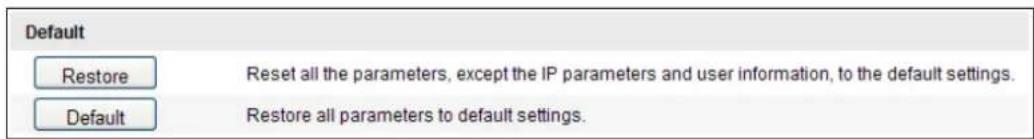

Default Restore Reset all the parameters, except the IP parameters and user information, to the default settings. Default Restore all parameters to default settings.

Figure 14-12 Restore Default Settings

NOTE

After restoring the default settings, the IP address is also restored to the default IP address, please be careful for this action.

14.6.3 Exporting/Importing Configuration File

Purpose:

Configuration file is used for the batch configuration of the camera, which can simplify the configuration steps when there are a lot of cameras needing configuring.

Steps:

1. Enter the Maintenance interface:

Configuration > Basic Configuration > System > Maintenance

Or Configuration>Advanced Configuration> System > Maintenance

1. Click Browse to select the saved configuration file and then click Import to

start importing configuration file.

i NOTE

You need to reboot the camera after importing configuration file.

1. Click Export and set the saving path to save the configuration file in local storage.

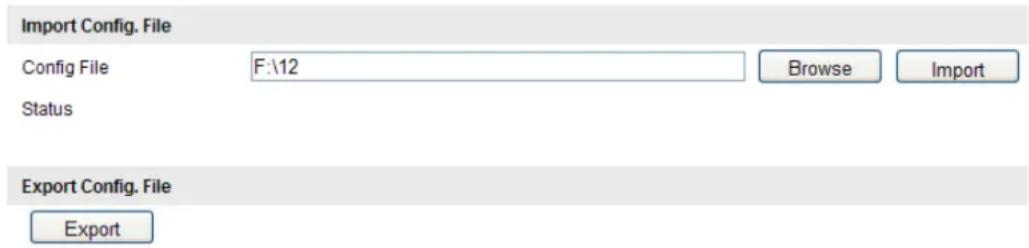

Import Config. File Config File F:\12 Browse Import Status Export Config. File Export

Figure 14-13 Import/Export Configuration File

14.6.4 Upgrading the System

Steps:

1. Enter the Maintenance interface:

Configuration > Basic Configuration > System > Maintenance

Or Configuration > Advanced Configuration> System > Maintenance

1. Select firmware or firmware directory to locate the upgrade file.

Firmware: Locate the exact path of the upgrade file.

Firmware Directory: Only the directory the upgrade file belongs to is required.

1. Click Browse to select the local upgrade file and then click Upgrade to start remote upgrade.

Remote Upgrade Firmware Firmware Firmware Directory Browse Upgrade

Figure 14-14 Remote Upgrade

i NOTE

The upgrading process will take 1\~10 minutes. Please don't disconnect power of the camera during the process, and the camera reboots automatically after upgrade.

14.7 Configuring RS-485 Settings

Purpose:

The RS-485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters should be done before you control the PTZ unit.

Steps:

1. Enter RS-485 Port Setting interface:

Configuration> Advanced Configuration> System > RS485

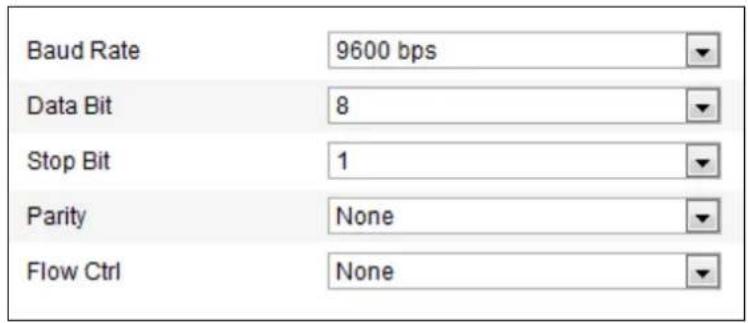

Baud Rate 9600 bps Data Bit 8 Stop Bit 1 Parity None Flow Ctrl None

Figure 14-15 RS-485 Settings

2. Set the RS-485 parameters and click Save to save the settings.

By default, the baud rate is set as 9600 bps, the data bit is 8, the stop bit is 1 and the parity and flow control is none.

NOTE

The Baud Rate, PTZ Protocol and PTZ Address parameters should be exactly the same as the PTZ camera parameters.

14.8 Configuring Service Settings

Purpose:

You can enable IR light for the hardware and illegal login lock for the software.

Steps:

1. Go to Configuration> Advanced Configuration> System > Service.

Hardware ✓ Enable IR Light Software ✓ Enable IllegalLoginLock

Figure 14-16 Service Settings

1. Check the checkbox of Enable IR Light.
2. Check the checkbox of Enable Illegal Login Lock. Then if there is illegal login, it will be locked.
3. Click Save to save the settings.

Appendix

Appendix 1 SADP Soware Introducon

● Description of SADP V 2.0

SADP (Search Active Devices Protocol) is a user-friendly and installation-free online device search tool. It searches the active online devices within your subnet and displays the information of the devices. You can also modify the basic network information of the devices using this software.

- Search active devices online

◆ Search online devices automatically

After launch the SADP software, it automatically searches the online devices every 15 seconds from the subnet where your computer locates. It displays the total number and information of the searched devices in the Online Devices interface. Device information including the device type, IP address, port number, gateway, etc. will be displayed.

SADP Online Devices About Total number of online devices: 2 ID Device Type IPv4 Address Port Software Version IPv4 Gateway Serial No. 001 DS_2CO982MF 172.6.23.104 8000 V2.9build 120312 0.0.0 D0-2CO8KZF-E9020011008KB 002 TVC-M1220-1-N 172.6.23.231 8000 V3.1.cbuild 120319 172.6.23.1 TVC-M1220-1-RB126120106GI Modify Network Parameters IP Address: Port: Submit Black: IPv4 Gateway: IPv4 Address: IPv4 Gateway: IPv4 Prefix Length: Serial No. Password Save Note Enter the admin password of the device before you save the network parameters. Restore Default Password Send note Confirm Note. Serial code is a series of characters combined in the start time and the serial number of the device.

Figure 14-17 Figure A.1.1 Search Online Devices

i NOTE

Device can be searched and displayed in the list in 15 seconds after it went online; it will be removed from the list in 45 seconds after it went offline.

◆ Search online devices manually

You can also click Refresh to refresh the online device list manually. The newly searched devices will be added to the list.

i NOTE

You can click ▲ or ▼ on each column heading to order the information; you can

click to expand the device table and hide the network parameter panel on the

right side, or click << to show the network parameter panel.

- Modify network parameters

Steps:

1. Select the device to be modified in the device list and the network parameters of the device will be displayed in the Modify Network Parameters panel on the right side.
2. Edit the modifiable network parameters, e.g. IP address and port number.
3. Enter the password of the admin account of the device in the Password field and click Save to save the changes.

WARNING

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

SAGP Online Devices About Total number of online devices: 2 Refresh Device Type IPv4 Address Port Software Version IPv4 Gateway Serial No. IP-2CD862MF 172.6.23.104 8900 V2.0build 120312 6.6.8.0 DIS-2CD862F-E64200810680CwR20 VC-M1225-1-N 172.6.23.231 8900 V3.1 build 120319 172.6.23.1 TVC-M1225-1-N/129126105BGR443 Units Network Parameters IP Address: 172.6.23.104 Port: 8900 Socket Mask: 255.255.255.0 IPv4 Gateway: 0.9.9.0 IPv6 Address: IPv6 Gateway: IPv6 Prefix Length: 0 Serial No: DIS-2CD862F-E90260811 Password Save Note Enter the admin password of the device before you save the network parameters. Restore Default Password Serial code Confirm Note: Serial code is a series of characters combined by the start time and the serial number of the device.

Figure 14-18 Figure A.1.2 Modify Network Parameters

Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. You have the responsibility to keep you password properly.

Steps:

1. Contact our technical engineers to get the serial code.

2. Input the code in the Serial code field and click Confirm to restore the default password.

Appendix 2 Port Mapping

The following settings are for TP-LINK router (TL-WR641G). The settings vary depending on different models of routers.

Steps:

1. Select the WAN Connection Type, as shown below:

108M Wireless Router Model No.: TL-WR641G / TL-WR642G WAN Status Quick Setup --- Basic Settings --- Network LAN WAN MAC Clone WAN Connection Type: PPPoE Dynamic IP Static IP User Name: PPPoE Password: 802.1X + Dynamic IP 802.1X + Static IP BigPond Cable L2TP

Figure 14-19 Figure A.2.1 Select the WAN Connection Type

1. Set the LAN parameters of the router as in the following figure, including IP address and subnet mask settings.

108M Wireless Router Model No.: TL-WR641G / TL-WR642G • Status • Quick Setup --- Basic Settings --- - Network • LAN • WAN • MAC Clone LAN MAC Address: 00-14-78-6A-DB-0C IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Save

Figure 14-20 Figure A.2.2 Set the LAN parameters

1. Set the port mapping in the virtual severs of Forwarding. By default, camera uses port 80, 8000 and 554. You can change these ports value with web browser or client software.

Example:

When the cameras are connected to the same router, you can configure the ports of a camera as 80, 8000, and 554 with IP address 192.168.1.23, and the ports of another camera as 81, 8001, 555, 8201 with IP 192.168.1.24. Refer to the steps below:

Steps:

1. As the settings mentioned above, map the port 80, 8000, 554 and 8200 for the parking camera at 192.168.1.23
2. Map the port 81, 8001, 555 and 8201 for the parking camera at 192.168.1.24.
3. Enable ALL or TCP protocols.
4. Check the Enable checkbox and click Save to save the settings.

108M Wireless Router Model No: TL-WR641G / TL-WR642G Virtual Servers ID Service Port IP Address Protocol Enable 1 80 192.168.10.23 ALL ✓ ✓ 2 8000 192.168.10.23 ALL ✓ ✓ 3 554 192.168.10.23 ALL ✓ ✓ 4 8200 192.168.10.23 ALL ✓ ✓ 5 81 192.168.10.24 ALL ✓ ✓ 6 8001 192.168.10.24 ALL ✓ ✓ 7 555 192.168.10.24 ALL ✓ ✓ 8 8201 192.168.10.24 ALL ✓ ✓ Common Service Port: DNS(53) Copy to ID 1 ✓ Previous Next Clear All Save

Figure 14-21 Figure A.2.3 Port Mapping

i NOTE

The port of the parking camera cannot conflict with other ports. For example, some web management port of the router is 80. Change the camera port if it is the same as the management port.

0502031070619

First Choice for Security Professionals
