DS-2CE16H0T-IT1F - Security Camera Hikvision - Free user manual and instructions

USER MANUAL DS-2CE16H0T-IT1F Hikvision

HOT Series Bullet & Dome

Camera

User Manual

User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Type	Model
Type I Camera	DS-2CE16H0T-ITF
	DS-2CE16H0T-ITPF
Type II Camera	DS-2CE16H0T-IT1F
	DS-2CE16H0T-IT3F
	DS-2CE16H0T-IT5F
Type III Camera	DS-2CE56H0T-VPITF
Type IV Camera	DS-2CE56H0T-IRMMF

This manual may contain several technical incorrect places or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info. 2006/66/EC (baery direcve): This product contains a

baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specic baery informaon. The baery is marked with this symbol, which may

include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Warning

This is a class A product. In a domesc environment this product may cause radio interference in which case the user may be required to take adequate measures.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into "Warnings" and "Cauons".

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical speciaons for detailed informaon.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
• Make sure that the plug is rmly connected to the power socket.
• Make sure that the device is rmly fixed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cord, and then contact the service center.
• Never attempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not touch senor modules with ngers.
• Do not place the camera in extremely hot, cold (the operang temperature shall be -40^ to 60^ ), dusty or damp locaons, and do not expose it to high electromagnetic radiation.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
• Do not expose the device to high electromagnetic radiaon or extremely hot, cold, dusty or damp environment.

• To avoid heat accumulation, good ventilaon is required for the operang environment.

• Keep the camera away from liquid while in use for non-water-proof device.

• While in delivery, the camera shall be packed in its original packing, or packing of the same texture.

Mark Descripon
Table 0-1 Mark Descripon

Mark	Descripon
---	DC Voltage

1 Introducon

1.1 Product Features

The main features are as follows:

• High performance CMOS sensor
- IR cut Iter with auto switch
- OSD menu with configurable parameters
• Auto white balance
• Internal synchronizaon
- SMART IR mode
• 3-axis adjustment

1.2 Overview

1.2.1 Overview of Type I Camera

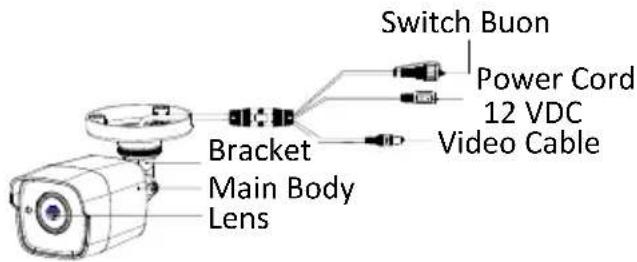

Switch Buon Power Cord 12 VDC Video Cable Bracket Main Body Lens

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.2 Overview of Type II Camera

Switch Buon Power Cord 12 VDC Video Cable Main Body Bracket Lens

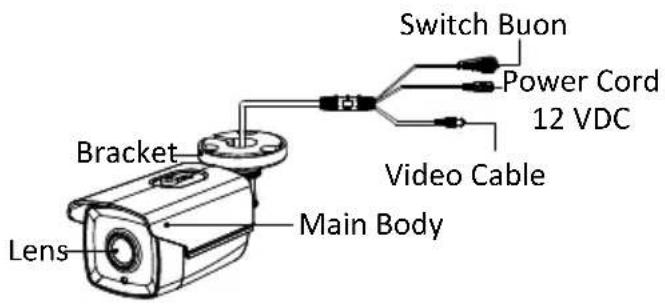

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.3 Overview of Type III Camera

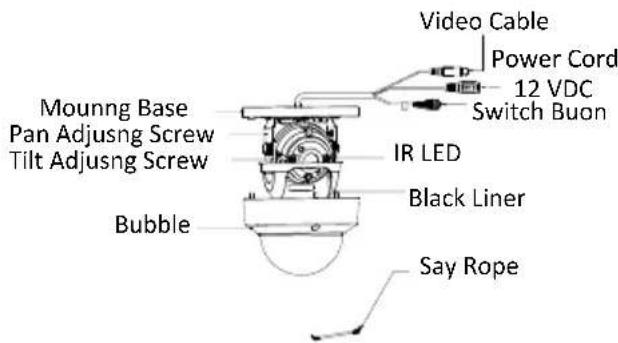

Mounng Base Pan Adjuusng Screw Tilt Adjuusng Screw Bubble Video Cable Power Cord 12 VDC Switch Buon IR LED Black Liner Say Rope

Figure 1-3 Overview of Type III Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.4 Overview of Type IV Camera

Black Liner Camera Adjustng Screw Bubble Switch Buon Power Cord Video Cable

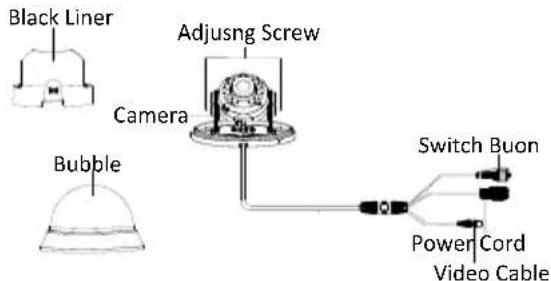

Figure 1-4 Overview of Type III Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

Before you start:

• Make sure that the device in the package is in good condition and all the assembly parts are included.
• Make sure that all the related equipment is power-off during the installaon.
• Check the specification of the products for the installaon environment.
• Check whether the power supply is matched with your power output to avoid the damage.
• Make sure the wall is strong enough to withstand three mes the weight of the camera and the mount.
• If the wall is cement, insert expansion bolts before installing the camera. If the wall is wooden, use self-tapping screws to secure the camera.
• If the product does not funcon properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.

2.1 Ceiling/Wall Mounng of Type I Camera

Steps:

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. Drill the screw holes, and the cable hole (oponal) in the ceiling/wall according to the drill template.

Screw Hole Cable Hole Template Side Opening

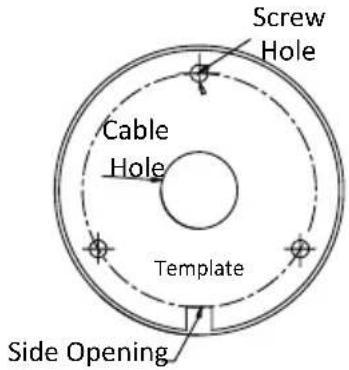

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopng the ceiling outlet to route the cable.

1. Aach the bracket to the ceiling/wall and secure the camera with supplied screws.

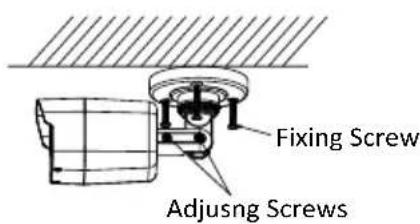

Fixing Screw Adjusng Screws

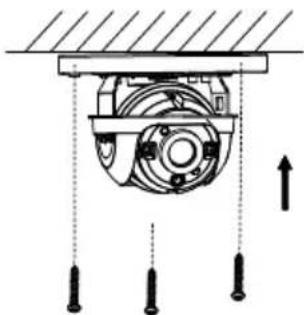

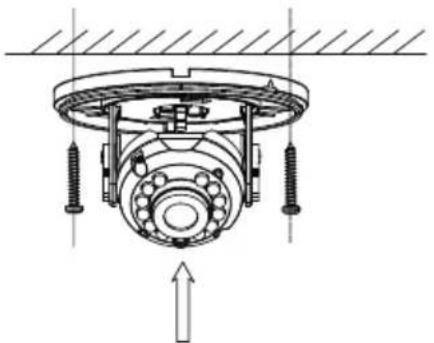

Figure 2-2 Fix the Camera to the Ceiling

Note:

• The supplied screw package contains self-tapping screws, and expansion bolts.
• For cement wall/ceiling, expansion bolts are required to x the camera. For wooden wall/ceiling, self-tapping screws are required.
• Route the cables through the cable hole, or the side opening.

• Connect the corresponding power cord, and video cable.

• Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

Pan Posion [0° to 360°] P Screw Tilt Posion [0° to 180°] T Screw R Screw Rotation Posion [0° to 360°]

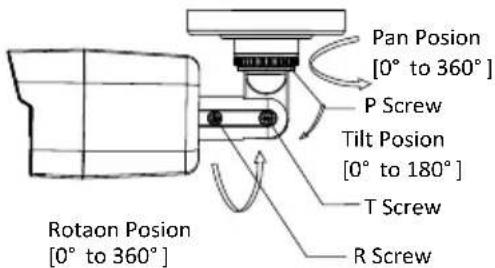

Figure 2-3 3-axis Adjustment

1). Loosen the P screw to adjust the pan posion [0° to 360°]. Tighten the screw aer compleng the adjustment.
2). Loosen the T screw to adjust the lt posion [0° to 180°]. Tighten the screw aer compleng the adjustment.
3). Loosen the R screw to rotate the camera [0° to 360°]. Tighten the screw aer compleng the adjustment.

2.2 Ceiling/Wall Mounng of Type II Camera

Steps:

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. Drill the screw holes according to the drill template, and the cable hole (oponal) on the ceiling.

Screw Hole Dill Tire Top Base Screw hole All: for integral section bracket

Figure 2-4 Drill Template

Note:

Drill the cable hole in the center of the drill template, when adoping ceiling outlet to route the cable.

1. Route the cables through the cable hole (oponal) or the side opening.

2. Fix the camera to the ceiling with supplied screws.

Technical line drawing of a mechanical assembly or lifting device (no text or symbols)

Figure 2-5 Fix the Camera to the Ceiling

Note:

• The supplied screw package contains self-tapping screws, and expansion bolts.

• For cement wall/ceiling, expansion bolts are required to x the camera. For wooden wall/ceiling, self-tapping screws are required.

• Connect the corresponding power cord, and video cable.

• Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the surveillance angle.

0° to 360° 0° to 180° 0° to 360°

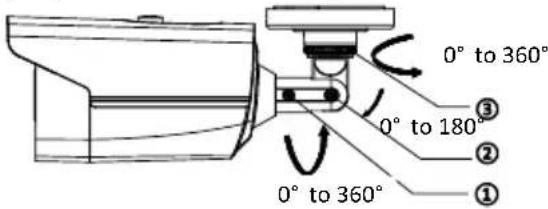

Figure 2-6 3-Axis Adjustment

1). Loosen the No.1 adjusng screw to adjust the rotaon posion [0° to 360°]. Tighten the No.1 adjusng screw.
2). Loosen the No.2 adjusng screw to adjust the Ing posion [0° to 180°]. Tighten the No. 2 adjusng screw.
3). Loosen the No.3 adjusng screw to adjust the pan posion [0° to 360°]. Tighten the No.3 adjusng screw.

2.3 Ceiling Mounng of Type III Camera

Steps:

1. Paste the dill template to the ceiling.
2. Drill the screw holes and cable hole (oponal) in the ceiling according to the drill template.

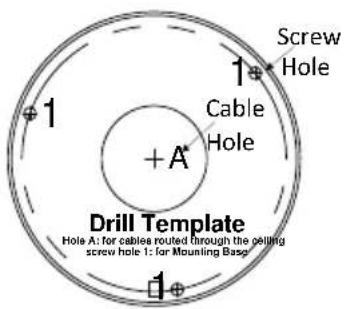

Screw Hole Cable Hole + A* Drill Template Hole A: for cables routed through the oil drilling screw hole 1: for Mounting Base

Figure 2-7 Drill Template

Note:

Cable hole is required, when adopng the ceiling outlet to route cables.

1. Loosen the set screws with a hex wrench (supplied) to remove the bubble.

Technical diagram showing mechanical assembly and component alignment (no text or symbols)

Figure 2-8 Remove the Bubble

1. Fix the moung base on the ceiling with supplied screws.

Mechanical assembly diagram showing a central rotating component with multiple hanging pins (no text or symbols)

Figure 2-9 Fix the Mounng Base

1. Route the cables through the cable hole, or the side opening.

2. Connect the corresponding cables, such as power cord, and video cable.

3. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle

0° to 355° 0° to 75° Adjusng Screw 0° to 355°

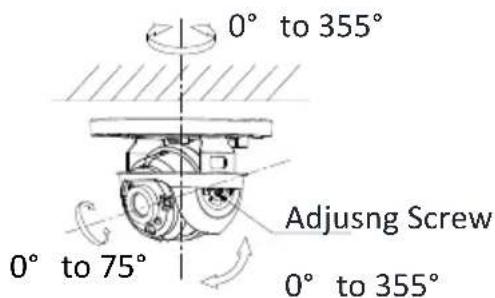

Figure 2-10 Type I Camera 2-Axis Adjustment

1). Loosen the lt adjusng screw to adjust the lt posion [0° to 75°].
2). Hold the camera to adjust the pan posion [0° to 355°].
3). Hold the camera body to adjust the rotaon posion [0° to 355°].

1. Reinstall the bubble, and ghten the screws to nish the installaon.

Technical line drawings of a mechanical or electrical component with three views (top, front, side), no text or symbols present.

Figure 2-11 Bubble Reinstallaon

2.4 Ceiling Mounng of Type IV Camera

Steps:

1. Align the snap joint, and then insert the screw driver to the snap joint.

Align the Snap Joint

Anclockwise

Figure 2-12 Disassemble the Camera

1. Pry the snap joint anclockwise to remove the bubble, and the black liner.

Snap Joint

Figure 2-13 Remove the Bubble

1. Aach the drill template (supplied) to the place where you want to install the camera, and then drill the screw holes, and the cable hole (oponal) according to the drill template on the ceiling.

Note:

Cable hole is required when adopng ceiling outlet to route the cable.

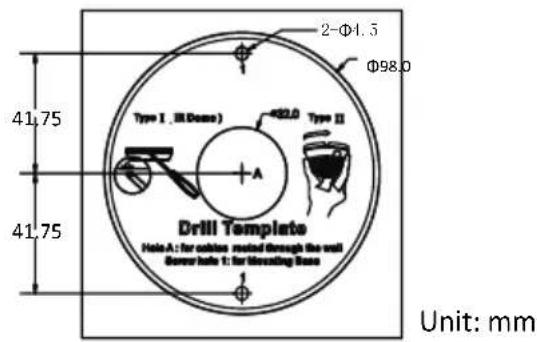

2-Φ1.5 Φ98.0 41.75 Type I, III (Dass) 462.0 Type II Drill Template Note A: for codes mixed through the wall Sensor hole 1: for Mounting Base Unit: mm 41.75

Figure 2-14 Drill Template

1. Aach the moung base to the ceiling, and secure them with supplied screws

Mechanical assembly diagram showing a bearing housing with springs and a central rotating component (no text or labels)

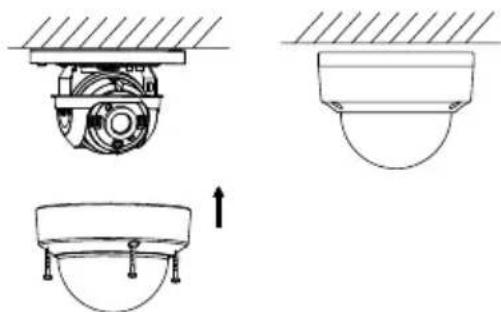

Figure 2-15 Attach the Mounng Base to the Ceiling

1. Route the cables through the cable hole (oponal), or the side opening.

2. Connect the corresponding cables, such as power cord, and video cable.

3. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

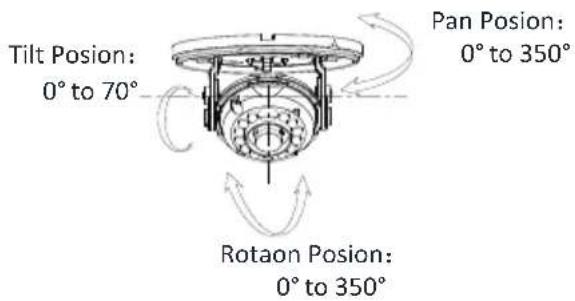

Tilt Posion: 0° to 70° Pan Posion: 0° to 350° Rotaon Posion: 0° to 350°

Figure 2-16 3-axis Adjustment

1). Hold the camera body to adjust the pan position [0° to 350°].
2). Move the camera body up and down to adjust the lt posion [0° to 70°].
3). Rotate the camera body to adjust the rotaon posion [0° to 350°].

1. Put the black liner and bubble back to the camera to nish the installaon.

Purpose:

Call the menu by clicking buon ☐ on the PTZ Control interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the monitor, shown as the gure 3-1.

Camera TVI DVR Monitor

Figure 3-1 Connecon

1. Power on the analog camera, TVI DVR, and the monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking ☐ buon, or call preset No. 95.

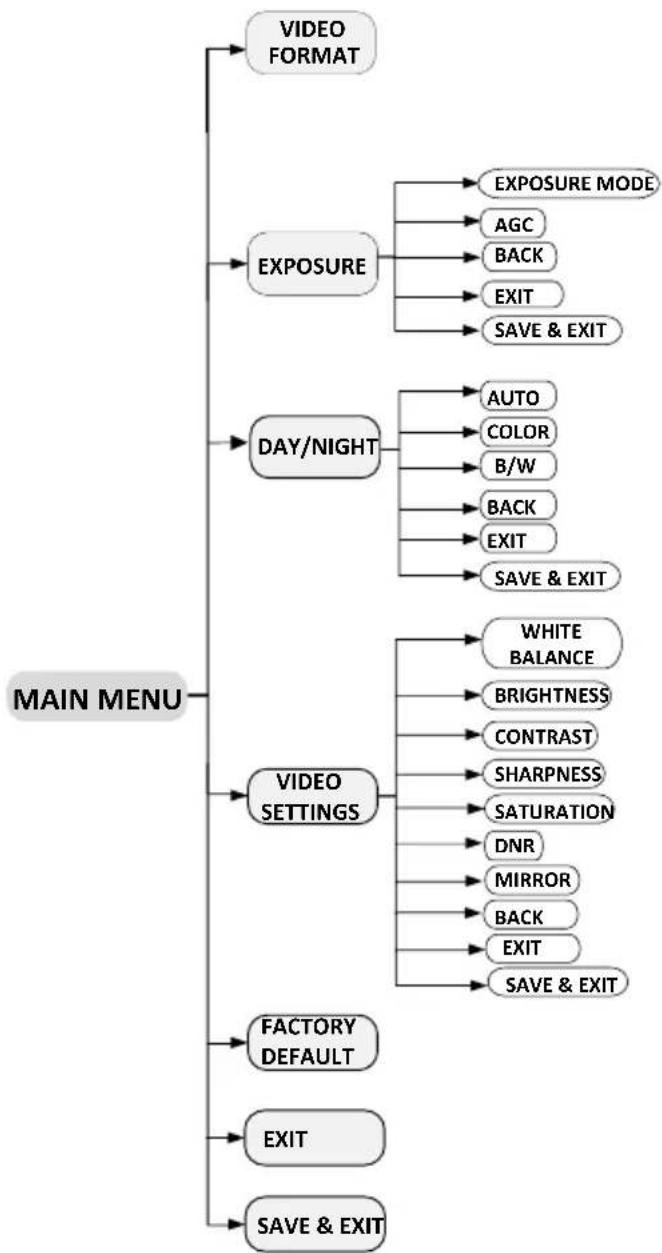


Figure 3-2 Main Menu Overview

1. Click the direcon arrow to control the camera.

1). Click up/down direcon buon to select the item.

2). Click Iris + to conrm the selecon.
3). Click le/right direcon buon to adjust the value of the selected item.

3.1 VIDOE FORMAT

You can set the video format as 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, and 2MP@30fps.

3.2 EXPOSURE

Exposure describes the brightness-related parameters, which can be adjusted by EXPOSURE MODE, and AGC.

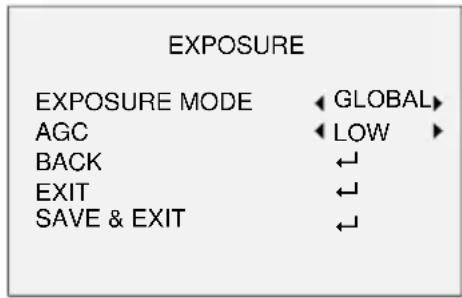

EXPOSURE EXPOSURE MODE ← GLOBAL AGC ← LOW BACK ← EXIT ← SAVE & EXIT ←

Figure 3-3 EXPOSURE

EXPOSURE MODE

You can set the EXPOSURE MODE as GLOBAL, BLC, and DWDR.

- GLOBAL

GLOBAL refers to the normal exposure mode which performs exposure according to the whole image brightness.

• BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensates light for the front object to make it clear, but this may cause the over-exposure of the background, where the light is strong.

- DWDR (Digital Wide Dynamic Range)

The DWDR helps the camera provide clear images even under backlight circumstances. When both very bright and very dark areas simultaneously exist in the image, DWDR balances the brightness level of the whole image to provide clear images with details.

AGC (Automac Gain Control)

It optimizes the clarity of the image in poor light conditions. The AGC level can be set as HIGH, MEDIUM, or LOW. Select OFF to disable the AGC funcon.

Note:

The noise will be amplied, when the AGC is ON.

3.3 DAY/NIGHT

COLOR, BW (Black White), and AUTO are selectable for DAY/NIGHT switch.

COLOR

The image is colored in day mode all the me.

B & W (Black and White)

The image is black and white all the me, and the IR LIGHT turns on in the poor light conditions. You can turn on/o the IR LIGHT and set the value of SMART IR in this menu

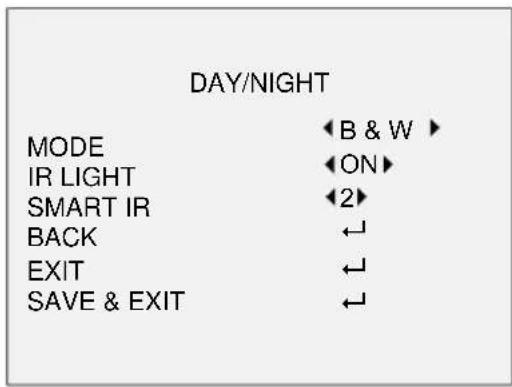

DAY/NIGHT MODE ◀B & W ▶ IR LIGHT ◀ON▶ SMART IR ◀2▶ BACK ←↓ EXIT ←↓ SAVE & EXIT ←↓

Figure 3-4 B & W

- IR LIGHT

You can turn on/o the IR LIGHT to meet the requirements of dierent circumstances.

• SMART IR

The Smart IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 1 to 3. The higher the value is, the more obvious eects are.

AUTO

Automacally switch Color, or BW (Black and White) according to actual scene brightness.

You can turn on/o the IR LIGHT, and set the value of SMART IR in this menu.

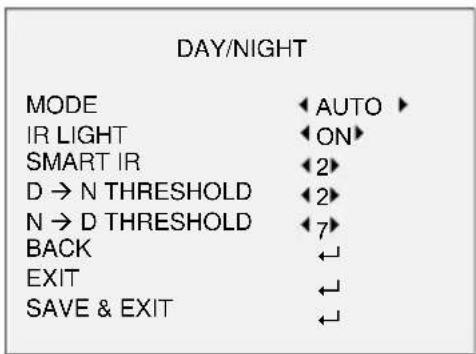

DAY/NIGHT MODE ◀ AUTO ▶ IR LIGHT ◀ ON▶ SMART IR ◀2▶ D → N THRESHOLD ◀2▶ N → D THRESHOLD ◀7▶ BACK ←↓ EXIT ←↓ SAVE & EXIT ←↓

Figure 3-5 AUTO

- IR LIGHT

You can turn on/o the IR LIGHT to meet the requirements of dierent circumstances.

- SMART IR

The Smart IR funcon is used to adjust the light to its most suitable intensity, and prevent the image from over exposure. The SMART IR value can be adjusted from 1 to 3. The higher the value is, the more obvious eects are.

• D→ N Threshold (Day to Night Threshold)

Day to Night Threshold is used to control the sensitivity of switching the day mode to the night mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is.

- N→D Threshold (Night to Day Threshold)

Night to Day Threshold is used to control the sensitivity of switching the night mode to the day mode. You can set the value from 1 to 9. The larger the value is, the more sensitive the camera is.

3.4 VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. WHITE BALANCE, BRIGHTNESS, CONTRAST, SHARPNESS, SARUTATION, DNR, and MIRROR are adjustable.

VIDEO SETTINGS WHITE BALANCE ← BRIGHTNESS ◀ 5 ► CONTRAST ◀ 5 ► SHARPNESS ◀ 5 ► SATURATION ◀ 5 ► DNR ◀ 5 ► MIRROR ◀ OFF ► BACK ← EXIT ← SAVE & EXIT ←

Figure 3-6 VIDEO SETTINGS

WHITE BALANCE

White balance, the white rendition funcon of the camera, is to adjust the color temperature according to the environment. It can remove unrealisc color casts in the image. You can set the mode as AUTO, or MANUAL.

- AUTO

Under AUTO mode, white balance is being adjusted automatically according to the color temperature of the scene illuminaon.

- MANUAL

You can set the R GAIN/B GAIN value from 1 to 255 to adjust the shades of red/blue color of the image.

WHITE BALANCE MODE ◀ MANUAL R-GAIN ◀ 5 ▶ B-GAIN ◀ 5 ▶ BACK ← EXIT ← SAVE & EXIT ←

Figure 3-7 MANUAL MODE

BRIGHTNESS

Brightness refers to the brightness of the image. You can set the brightness value from 1 to 9 to darken or brighten the image. The higher the value is, the brighter the image is.

CONTRAST

This feature enhances the dience in color and light between parts of an image. You can set the CONTRAST value from 1 to 9.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 9.

SATURATION

Adjust this feature to change the saturaton of the color. The value ranges from 1 to 9.

DNR (Digital Noise Reducon)

The DNR funcon can decrease the noise effect, especially when capturing moving images in poor light conditions and delivering more accurate and sharp image. You can set the DNR value from 1 to 9.

MIRROR

OFF, H, V, and HV are selectable for mirror.

OFF: The mirror funcon is disabled.

H: The image ips 180° horizontally.

V: The image ips 180° vercally.

HV: The image flips 180^ both horizontally and vercally.

3.5 FACTORY DEFAULT

Move the cursor to FACTORY DEFAULT and click Iris+ to reset all the sengs to the factory default.

3.6 EXIT

Move the cursor to EXIT and click Iris+ to exit the menu without saving.

3.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the sengs, and exit the menu.
