USER MANUAL IDS-2CD7546G0/S-IZHSY Hikvision

© 2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.

About this Manual

The Manual includes instrucons for using and managing the Product. Pictures, charts, images and all other informaon hereinaer are for descripon and explanaon only. The informaon contained in the Manual is subject to change, without noce, due to rmware updates or other reasons. Please nd the latest version of this Manual at the Hikvision website

(hps://www.hikvision.com/).

Please use this Manual with the guidance and assistance of professionals trained in supporting the Product.

Trademarks

HIKVISION and other Hikvision's trademarks and logos are the properes of

Hikvision in various jurisdicons.

Other trademarks and logos menoned are the properes of their respective owners.

HDMI™: The terms HDMI and HDMI High-Denion Mulmedia Interface, and the HDMI

Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.

YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF

PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN RIGHTS ABUSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Symbol Convenons

The symbols that may be found in this document are dened as follows.

Symbol	Descripon
Danger	Indicates a hazardous situaon which, if not avoided, will or could result in death or serious injury.
Cauon	Indicates a potenally hazardous situaon which, if not avoided, could result in equipment damage, data loss, performance degradaon, or unexpected results.
[ZY7W] Note	Provides additional informaon to emphasize or supplement important points of the main text.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

Laws and Regulaons

- The device should be used in compliance with local laws, electrical safety regulaons, and re prevenon regulaons.

Transportaon

- Keep the device in original or similar packaging while transporng it.

Power Supply

• The input voltage should conform to IEC60950-1 standard: SELV (Safety Extra Low Voltage) and the Limited Power Source. Refer to the appropriate documentaon for detailed informaon.
• Make sure the plug is properly connected to the power socket.
• DO NOT connect mulple devices to one power adapter, to avoid over-heang or re hazards caused by overload.

System Security

- The installer and user are responsible for password and security conguraon and its sengs.

Baery

• Improper use or replacement of the baery may result in explosion hazard.
• Replace with the same or equivalent type only. Dispose of used baeries in conformance with the local codes.

Maintenance

• If the product does not work properly, please contact your dealer or the nearest service center. We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.
• A few device components (e.g., electrolyc capacitor) require regular replacement. The average lifespan varies, so periodic checking is recommended. Contact your dealer for details.

Using Environment

• Make sure the running environment meets the requirement of the device. The operang temperature shall be -30^ to 60^ (-22°F to 140°F), and the operang humidity shall be 95% or less, no condensing.
• When any laser equipment is in use, make sure that the device lens is not exposed to the laser beam, or it may burn out.
• Do not expose the device to high electromagnec radiaon or dusty environments.
• For indoor-only device, place it in a dry and well-venlated environment.
• Do not aim the lens at the sun or any other bright light.

Emergency

- If smoke, odor, or noise arises from the device, immediately turn o the power, unplug the power cable, and contact the service center.

Time Synchronizaon

- Set up camera me manually for the rst me access if the local me is not synchronized with that of the network. Visit the camera via Web browse/client soware and go to me sengs interface.

Contents

Chapter 1 System Requirement ....1

Chapter 2 Device Acvaon and Accessing....2

2.1 Acvate the Device via SADP 2
2.2 Acvate the Device via Browser 2
2.3 Login....3

2.3.1 Plug-in Installaon .... 3
2.3.2 Admin Password Recovery .... 4
2.3.3 Illegal Login Lock....5

Chapter 3 Live View....6

3.1 Live View Parameters....6

3.1.1 Enable and Disable Live View ....6
3.1.2 Adjust Aspect Rao....6
3.1.3 Live View Stream Type....6
3.1.4 Select the Third-Party Plug-in 6
3.1.5 Window Division ...... 7
3.1.6 Light 7
3.1.7 Count Pixel....7
3.1.8 Start Digital Zoom 7
3.1.9 Auxiliary Focus....7
3.1.10 Lens Inializaon 8
3.1.11 Quick Set Live View 8
3.1.12 Lens Parameters Adjustment....8
3.1.13 Conduct 3D Posioning....9

3.2 Set Transmission Parameters ......9
3.3 Set Smooth Streaming....10

Chapter 4 Video and Audio....12

4.1 Video Sengs....12

4.1.1 Stream Type....12
4.1.2 Video Type 13

4.1.3 Resoluon....13
4.1.4 Bitrate Type and Max. Bitrate 13
4.1.5 Video Quality....13
4.1.6 Frame Rate ...... 13
4.1.7 Video Encoding....14
4.1.8 Smoothing....15

4.2 ROI....16

4.2.1 Set ROI 16
4.2.2 Set Face Tracking ROI 16
4.2.3 Set Target Tracking ROI 17
4.2.4 Set License Plate Tracking ROI 17

4.3 Display Info. on Stream....18

4.4 Audio Sengs....18

4.4.1 Audio Encoding....18
4.4.2 Audio Input....18
4.4.3 Audio Output....18
4.4.4 Environmental Noise Filter ...... 19

4.5 Two-way Audio....19

4.6 Display Sengs 19

4.6.1 Scene Mode 19
4.6.2 Image Parameters Switch ...... 23
4.6.3 Video Standard 23
4.6.4 Local Video Output....23

4.7 OSD 23
4.8 Set Privacy Mask....24
4.9 Overlay Picture 24
4.10 Set Target Cropping....25

Chapter 5 Video Recording and Picture Capture....26

5.1 Storage Sengs....26

5.1.1 Set Memory Card....26
5.1.2 Set FTP 27

5.1.3 Set NAS 28
5.1.4 eMMC Protecon 29
5.1.5 Set Cloud Storage 29

5.2 Video Recording .... 30

5.2.1 Record Automacally....30
5.2.2 Record Manually ....31
5.2.3 Set Lite Storage....31
5.2.4 Playback and Download Video 32

5.3 Capture Conguraon....32

5.3.1 Capture Automacally 33
5.3.2 Capture Manually....33
5.3.3 View and Download Picture ...... 33

Chapter 6 Event and Alarm....35

6.1 Basic Event......35

6.1.1 Set Moon Detecon....35
6.1.2 Set Video Tampering Alarm....37
6.1.3 Set PIR Alarm....38
6.1.4 Set Excepon Alarm....39
6.1.5 Set Alarm Input 39
6.1.6 Set Video Quality Diagnosis....39
6.1.7 Set Vibraon Detecon....40

6.2 Smart Event 40

6.2.1 Detect Audio Excepon....41
6.2.2 Set Defocus Detecon....41
6.2.3 Detect Scene Change....42
6.2.4 Set Face Detecon....42
6.2.5 Set Video Loss....43
6.2.6 Set Intrusion Detecon....43
6.2.7 Set Line Crossing Detecon 44
6.2.8 Set Region Entrance Detecon 45
6.2.9 Set Region Exing Detecon....46

6.2.10 Set Unaended Baggage Detecon 47
6.2.11 Set Object Removal Detecon....48
6.2.12 Draw Area....49
6.2.13 Set Size Filter 49

Chapter 7 Network Sengs....51

7.1 TCP/IP 51

7.1.1 Mulcast....52
7.1.2 Mulcast Discovery....52

7.2 SNMP 53
7.3 Set SRTP 53
7.4 Port Mapping....54

7.4.1 Set Auto Port Mapping....54
7.4.2 Set Manual Port Mapping....54
7.4.3 Set Port Mapping on Router 55

7.5 Port....56
7.6 Access to Device via Domain Name....57
7.7 Access to Device via PPPoE Dial Up Connecon 57

7.8 Wireless Dial....58

7.8.1 Set Wireless Dial....58
7.8.2 Set White List....59

7.9 Wi-Fi....59

7.9.1 Connect Wi-Fi Manually....60
7.9.2 Connect Wi-Fi Automacally 60

7.10 Set Network Service 62
7.11 Set ONVIF....63
7.12 Set Alarm Server....63
7.13 Access Camera via Hik-Connect 64

7.13.1 Enable Hik-Connect Service on Camera 65
7.13.2 Set Up Hik-Connect ......66
7.13.3 Add Camera to Hik-Connect 66

Chapter 8 Arming Schedule and Alarm Linkage....68

8.1 Set Arming Schedule ......68
8.2 Linkage Method Sengs....68

8.2.1 Trigger Alarm Output 68
8.2.2 FTP/NAS/Memory Card Uploading 69
8.2.3 Send Email 70
8.2.4 Nofy Surveillance Center 71
8.2.5 Trigger Recording 71
8.2.6 Flashing Light 71
8.2.7 Audible Warning....71

Chapter 9 System and Security ....73

9.1 View Device Informaon 73
9.2 Search and Manage Log 73
9.3 Simultaneous Login 73
9.4 Import and Export Conguraon File....73
9.5 Export Diagnose Informaon....73
9.6 Reboot....74
9.7 Restore and Default 74
9.8 Upgrade 74
9.9 View Open Source Soware License 75
9.10 Time and Date ....75

9.10.1 Synchronize Time Manually....75
9.10.2 Set NTP Server 75
9.10.3 Synchronize Time by Satellite....76
9.10.4 Set DST 76

9.11 Set RS-485....76
9.12 Set RS-232....77
9.13 External Device....77

9.13.1 Supplement Light Sengs 77

9.14 Security 78
9.14.1 Authencaon....78

9.14.2 Set IP Address Filter 79

9.14.3 Set HTTPS....79

9.14.4 Set QoS....80

9.14.5 Set IEEE 802.1X....80

9.14.6 Control Timeout Sengs 80

9.14.7 Search Security Audit Logs 81

9.14.8 Security Reinforcement 81

9.15 Cercate Management 81

9.15.1 Create Self-signed Cercate ....81

9.15.2 Create Cercate Request....82

9.15.3 Import Cercate 82

9.15.4 Install Server/Client Cercate 82

9.15.5 Install CA Cercate....83

9.15.6 Enable Cercate Expiraon Alarm 83

9.16 User and Account 84

9.16.1 Set User Account and Permission....84

9.16.2 Simultaneous Login 85

9.16.3 Online Users 85

Chapter 10 Allocate VCA Resource....86

10.1 Face Capture 86

10.1.1 Set Face Capture....86

10.1.2 Overlay and Capture 87

10.1.3 Face Capture Algorithms Parameters....88

10.1.4 Set Shield Region....89

10.2 Road Trac....90

10.2.1 Set Vehicle Detecon....90

10.2.2 Set Mixed-Trac Detecon Rule....91

10.2.3 Uploading Pictures Sengs....91

10.2.4 Camera Sengs....92

10.2.5 Import or Export Blacklist & Whitelist 92

10.3 Mul-Target-Type Detecon 92

10.3.1 Set Mul-Target-Type Detecon Rule....93
10.3.2 Overlay and Capture 93
10.3.3 Mul-Target-Type Detecon Algorithm Parameters....94
10.3.4 Set Shield Region....95

10.4 Face Counng 95

10.4.1 Set Face Counng Detecon Rule 96
10.4.2 Overlay and Capture 96
10.4.3 Face Counng Algorithm Parameters .....97
10.4.4 View Face Counng Result....98

10.5 Queue Management 98

10.5.1 Set Regional People Queuing-Up....99
10.5.2 Set Waing Time Detecon....99
10.5.3 Queue Management Stascs 100

10.6 Counng....101

10.6.1 Set Counng .... 101
10.6.2 View Counng Stascs....102

10.7 Hard Hat Detecon....103

10.7.1 Set Hard Hat Detecon .... 103

10.8 Face Comparison and Modeling ....104

10.8.1 Face Comparison....104
10.8.2 Face Modeling .... 106

Chapter 11 Open Plaorm....108

11.1 Set Open Plaorm....108

Chapter 12 Set EPTZ .... 110

Chapter 13 Smart Display .... 111

A. Device Command 112
B. Device Communicaton Matrix .... 113

Chapter 1 System Requirement

Your computer should meet the requirements for proper vising and operang the product.

Operang System	Microso Windows XP SP1 and above version
CPU	2.0 GHz or higher
RAM	1G or higher
Display	1024×768 resoluon or higher
Web Browser	Internet Explorer 8.0 and above version, Mozilla Firefox 30.0 to 51, and Google Chrome 31 to 51

Chapter 2 Device Acvaon and Accessing

To protect the security and privacy of the user account and data, you should set a login password to acvate the device when access the device via network.

Note

Refer to the user manual of the soware client for the detailed informaon about the client soware acvaon.

2.1 Acvate the Device via SADP

Search and acvate the online devices via SADP soware.

Before You Start

Access www.hikvision.com to get SADP soware to install.

Steps

1. Connect the device to network using the network cable.
2. Run SADP soware to search the online devices.
3. Check Device Status from the device list, and select Inacve device.
4. Create and input the new password in the password eld, and conrm the password.

Cauon

We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case leers, lower case leers, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

1. Click OK.

Device Status changes into Acve.

1. Oponal: Change the network parameters of the device in Modify Network Parameters.

2.2 Acvate the Device via Browser

You can access and acvate the device via the browser.

Steps

1. Connect the device to the PC using the network cables.
2. Change the IP address of the PC and device to the same segment.

Note

The default IP address of the device is 192.168.1.64. You can set the IP address of the PC from 192.168.1.2 to 192.168.1.253 (except 192.168.1.64). For example, you can set the IP address of the PC to 192.168.1.100.

1. Input 192.168.1.64 in the browser.
2. Set device acvaon password.

Cauon

We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case leers, lower case leers, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, reseng the password monthly or weekly can beer protect your product.

1. Click OK.
2. Input the acvaon password to log in to the device.
3. Oponal: Go to Conguraon → Network → Basic → TCP/IP to change the IP address of the device to the same segment of your network.

2.3 Login

Log in to the device via Web browser.

2.3.1 Plug-in Installaon

Certain operaon systems and web browser may restrict the display and operaon of the camera funcon. You should install plug-in or complete certain sengs to ensure normal display and operaon. For detailed restricted funcon, refer to the actual device.

Operang System	Web Browser	Operaon
Windows	Internet Explorer 8+Google Chrome 57 and earlier versionMozilla Firefox 52 and earlier version	Follow pop-up prompts to complete plug-in installaon.
	Google Chrome 57+Mozilla Firefox 52+	ClicktoDownload Plug-in download and install plug-in.
Mac OS	Google Chrome 57+Mozilla Firefox 52+Mac Safari 16+	Plug-in installaon is not required.Go to Conguraon → Network → Advanced Sengs → Network Service to enable WebSocket or Websockets for normal view. Display and operaon of certain funcons are restricted. For example, Playback and Picture are not available. For detailed restricted funcon, refer to the actual device.

Note

The camera only supports Windows and Mac OS system and do not support Linux system.

2.3.2 Admin Password Recovery

If you forget the admin password, you can reset the password by clicking Forget Password on the login page aer compleng the account security sengs.

You can reset the password by seng the security queson or email.

Note

When you need to reset the password, make sure that the device and the PC are on the same network segment.

Security Queson

You can set the account security during the acvaon. Or you can go to Conguraon → System → User Management, click Account Security Sengs, select the security queson and input your answer.

You can click Forget Password and answer the security queson to reset the admin password when access the device via browser.

Email

You can set the account security during the acvaon. Or you can go to Conguraon → System

→ User Management, click Account Security Sengs, input your email address to receive the vericaon code during the recovering operaon process.

2.3.3 Illegal Login Lock

It helps to improve the security when accessing the device via Internet.

The admin user can set the login aempts with the wrong password. When your login aempts with the wrong password reach the set mes, the device is locked.

Go to Conguraon → System → Security → Security Service, and enable Enable Illegal Login Lock, and set the illegal login aempts.

Chapter 3 Live View

It introduces the live view parameters, funcon icons and transmission parameters sengs.

3.1 Live View Parameters

The supported funcons vary depending on the model.

3.1.1 Enable and Disable Live View

This funcon is used to quickly enable or disable live view of all channels.

• Click to start live view of all channels.
• Click to stop live view of all channels.

3.1.2 Adjust Aspect Rao

Steps

1. Click Live View.
2. Click to select the aspect rao.

• 4:8 refers to 4:3 window size.

• 16:8 refers to 16:9 window size.

- refers to original window size.

- refers to self-adapve window size.

- refers to original rao window size.

3.1.3 Live View Stream Type

Select the live view stream type according to your needs. For the detailed informaon about the stream type selecon, refer to Stream Type.

3.1.4 Select the Third-Party Plug-in

When the live view cannot display via certain browsers, you can change the plug-in for live view according to the browser.

Steps

1. Click Live View.
2. Click to select the plug-in.

When you access the device via Internet Explorer, you can select Webcomponents or

QuickTime.When you access the device via the other browsers, you can select Webcomponents,

QuickTime, VLC or MJPEG.

3.1.5 Window Division

• refers to 1 × 1 window division.
  • refers to 2 × 2 window division.
  • refers to 3 × 3 window division.
  • refers to 4 × 4 window division.

3.1.6 Light

Click to turn on or turn o the illuminator.

3.1.7 Count Pixel

It helps to get the height and width pixel of the selected region in the live view image.

Steps

1. Click 'to enable the funcon.
2. Drag the mouse on the image to select a desired rectangle area.
   The width pixel and height pixel are displayed on the boom of the live view image.

3.1.8 Start Digital Zoom

It helps to see a detailed informaon of any region in the image.

Steps

1. Click Ⓕ to enable the digital zoom.
2. In live view image, drag the mouse to select the desired region.
3. Click in the live view image to back to the original image.

3.1.9 Auxiliary Focus

It is used for motorized device. It can improve the image if the device cannot focus clearly. For the device that supports ABF, adjust the lens angle, then focus and click ABF buon on the device. The device can focus clearly.

Click to focus automacally.

iNote

• If the device cannot focus with auxiliary focus, you can use Lens Inialization, then use auxiliary focus again to make the image clear.
• If auxiliary focus cannot help the device focus clearly, you can use manual focus.

3.1.10 Lens Inializaon

Lens inializaon is used on the device equipped with motorized lens. The funcon can reset lens when long me zoom or focus results in blurred image. This funcon varies according to dierent models.

Manual Lens Inializaon

Click to operate lens inializaon.

Auto Lens Inializaon

Go to Conguraon → System → Maintenance → Lens Correcon to enable this funcon. You can set the arming schedule, and the device will correct lens automacally during the congured me periods.

3.1.11 Quick Set Live View

It oers a quick setup of PTZ, display sengs, OSD, video/audio and VCA resource sengs on live view page.

Steps

1. Click to show quick setup page.

2. Set PTZ, display sengs, OSD, video/audio and VCA resource parameters.

3. For PTZ sengs, see Lens Parameters Adjustment.

4. For display sengs, see Display Sengs.
5. For OSD sengs, see OSD.
6. For audio and video sengs, see Video and Audio.
7. For VCA sengs, see Allocate VCA Resource.

iNote

The funcon is only supported by certain models.

3.1.12 Lens Parameters Adjustment

It is used to adjust the lens focus, zoom and iris.

Zoom

• Click, and the lens zooms in.
• Click, and the lens zooms out.

Focus

• Click □, then the lens focuses far and the distant object gets clear.
• Click ☐, then the lens focuses near and the nearby object gets clear.

PTZ Speed

Slide to adjust the speed of the pan/lt movement.

Iris

• When the image is too dark, click to enlarge the iris.
• When the image is too bright, click to stop down the iris.

3.1.13 Conduct 3D Posioning

3D posioning is to relocate the selected area to the image center.

Steps

1. Click to enable the funcon.
2. Select a target area in live image.

- Le click on a point on live image: the point is relocated to the center of the live image. With no zooming in or out eect.

- Hold and drag the mouse to a lower right posion to frame an area on the live: the framed area is zoomed in and relocated to the center of the live image.

- Hold and drag the mouse to an upper le posion to frame an area on the live: the framed area is zoomed out and relocated to the center of the live image.

1. Click the buon again to turn o the funcon.

3.2 Set Transmission Parameters

The live view image may be displayed abnormally according to the network conditions. In different network environments, you can adjust the transmission parameters to solve the problem.

Steps

1. Go to Conguraon → Local.
2. Set the transmission parameters as required.

Protocol

TCP

TCP ensures complete delivery of streaming data and beer video quality, yet the real-me transmission will be aected. It is suitable for the stable network environment.

UDP

UDP is suitable for the unstable network environment that does not demand high video uency.

MULTICAST

MULTICAST is suitable for the situaon that there are mulple clients. You should set the mulcast address for them before selecon.

iNote

For detailed informaon about mulcast, refer to Mulcast.

HTTP

HTTP is suitable for the situation that the third-party needs to get the stream from the device.

Play Performance

Shortest Delay

The device takes the real-me video image as the priority over the video uency.

Balanced

The device ensures both the real-me video image and the uency.

Fluent

The device takes the video uency as the priority over teal-me. In poor network environment, the device cannot ensure video uency even the uency is enabled.

Custom

You can set the frame rate manually. In poor network environment, you can reduce the frame rate to get auent live view. But the rule informaon may cannot display.

3. Click OK.

3.3 Set Smooth Streaming

It is a funcon to tackle the latency and network congeson caused by unstable network condition, and keep the live view stream on the web browser or the client soware smooth.

Before You Start

Add the device to your client soware and select NPQ protocol in client soware before conguring the smooth streaming funcon.

Be sure that the Bitrate Type is selected as Constant and the SVC is selected as OFF before enabling the funcon. Go to Conguraon → Video/Audio → Video to set the parameters.

Steps

1. Go to the sengs page: Conguraon → Network → Advanced Seings → Smooth Streaming.
2. Check Enable Smooth Streaming.
3. Select the mode for smooth streaming.

Auto

The resoluon and bitrate are adjusted automatically and resoluon takes the priority. The upper limits of these two parameters will not exceed the values you set on Video page. Go to Conguraon → Video/Audio → Video, set the Resoluon and Max. Bitrate before

	you enable smooth streaming funcon. In this mode, the frame rate will be adjusted to the maximum value automacally.
Resoluon Priority	The resoluon stays the same as the set value onVideopage, and the bitrate will be adjusted automacally. Go toConguraon→Video/Audio→Video, set theMax.Bitratebefore you enable smooth streaming funcon. In this mode, the framerate will be adjusted to the maximum value automacally.
Error Correcon	The resoluon and bitrate stay the same as the set values onVideopage. The mode is used to correct the data error during transmission to ensure the image quality. You can set theError CorreconProporonwithin range of 0-100.When the proporon is 0, the data error will be corrected by data retransmission. When the proporon is higher than 0, the error data will be corrected via redundant data that is added to the stream and data retransmission. The higher the value is, the more redundant date will be generated, the more data error would be corrected, but the larger bandwidth would be required. When the proporon is 100, the redundant data will be as large as the original data, and the bandwidth is twice required.

Be sure the bandwidth is sucient in the Error Correcon mode.

1. Save the sengs.

Chapter 4 Video and Audio

This part introduces the conguraon of video and audio related parameters.

4.1 Video Sengs

This part introduces the sengs of video parameters, such as, stream type, video encoding, and resoluon.

Go to seng page: Conguraon → Video/Audio → Video.

4.1.1 Stream Type

For device supports more than one stream, you can specify parameters for each stream type.

Main Stream

The stream stands for the best stream performance the device supports. It usually oers the best resoluon and frame rate the device can do. But high resoluon and frame rate usually means larger storage space and higher bandwidth requirements in transmission.

Sub Stream

The stream usually oers comparatively low resolution opons, which consumes less bandwidth and storage space.

Other Streams

Steams other than the main stream and sub stream may also be oered for customized usage.

Set Custom Video

You can set up additional video streams if required. For custom video streams, you can preview them, but cannot record or play back them.

Steps

iNote

• The funcon is only supported by certain camera models.

• Aer restoring the device (not restore to default sengs), quantity of custom video streams and their names are kept, but the related parameters are restored.

• Click to add a stream.

• Change the stream name as needed.

iNote

Up to 32 leers and symbols (except &, <, >, ', or " ) are allowed for the stream name.

1. Customize the stream parameters (resoluon, frame rate, max. bitrate, video encoding).
2. Oponal: Add stream descripon as needed.
3. Oponal: If a custom stream is not needed, click to delete it.
4. Click Save.

4.1.2 Video Type

Select the content (video and audio) that should be contained in the stream.

Video

Only video content is contained in the stream.

Video & Audio

Video content and audio content are contained in the composite stream.

4.1.3 Resoluon

Select video resoluon according to actual needs. Higher resoluon requires higher bandwidth and storage.

4.1.4 Bitrate Type and Max. Bitrate

Constant Bitrate

It means that the stream is compressed and transmied at a comparatively xed bitrate. The compression speed is fast, but mosaic may occur on the image.

Variable Bitrate

It means that the device automacally adjust the bitrate under the set Max. Bitrate. The compression speed is slower than that of the constant bitrate. But it guarantees the image quality of complex scenes.

4.1.5 Video Quality

When Bitrate Type is set as Variable, video quality is congorable. Select a video quality according to actual needs. Note that higher video quality requires higher bandwidth.

4.1.6 Frame Rate

The frame rate is to describe the frequency at which the video stream is updated and it is

measured by frames per second (fps).

A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout. Note that higher frame rate requires higher bandwidth and larger storage space.

4.1.7 Video Encoding

It stands for the compression standard the device adopts for video encoding.

iNote

Available compression standards vary according to device models.

H.264

H.264, also known as MPEG-4 Part 10, Advanced Video Coding, is a compression standard. Without compressing image quality, it increases compression rao and reduces the size of video le than MJPEG or MPEG-4 Part 2.

H.264+

H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, you can esmate the HDD consumpon by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes. When H.264+ is enabled, Max. Average Bitrate is congorable. The device gives a recommended max. average bitrate by default. You can adjust the parameter to a higher value if the video quality is less sasfactory. Max. average bitrate should not be higher than max. bitrate.

iNote

When H.264+ is enabled, Video Quality, I Frame Interval, Prole and SVC are not congorable.

H.265

H.265, also known as High Eciency Video Coding (HEVC) and MPEG-H Part 2, is a compression standard. In comparison to H.264, it oers beer video compression at the same resolution, frame rate and image quality.

H.265+

H.265+ is an improved compression coding technology based on H.265. By enabling H.265+, you can esmate the HDD consumpon by its maximum average bitrate. Compared to H.265, H.265+ reduces storage by up to 50% with the same maximum bitrate in most scenes. When H.265+ is enabled, Max. Average Bitrate is congorable. The device gives a recommended max. average bitrate by default. You can adjust the parameter to a higher value if the video quality

is less sasfactory. Max. average bitrate should not be higher than max. bitrate.

iNote

When H.265+ is enabled, Video Quality, I Frame Interval, Prole and SVC are not congorable.

I-Frame Interval

I-frame interval denes the number of frames between 2 I-frames.

In H.264 and H.265, an I-frame, or intra frame, is a self-contained frame that can be independently decoded without any reference to other images. An I-frame consumes more bits than other frames. Thus, video with more I-frames, in other words, smaller I-frame interval, generates more steady and reliable data bits while requiring more storage space.

SVC

Scalable Video Coding (SVC) is the name for the Annex G extension of the H.264 or H.265 video compression standard.

The objecve of the SVC standardizaon has been to enable the encoding of a high-quality video bitstream that contains one or more subset bitstreams that can themselves be decoded with a complexity and reconstrucon quality similar to that achieved using the exisng H.264 or H.265 design with the same quantity of data as in the subset bitstream. The subset bitstream is derived by dropping packets from the larger bitstream.

SVC enables forward compatibility for older hardware: the same bitstream can be consumed by basic hardware which can only decode a low-resolution subset, while more advanced hardware will be able to decode high quality video stream.

MPEG4

MPEG4, referring to MPEG-4 Part 2, is a video compression format developed by Moving Picture Experts Group (MPEG).

MJPEG

Moon JPEG (M-JPEG or MJPEG) is a video compression format in which intraframe coding technology is used. Images in a MJPEG format is compressed as individual JPEG images.

Prole

This funcon means that under the same bitrate, the more complex the prole is, the higher the quality of the image is, and the requirement for network bandwidth is also higher.

4.1.8 Smoothing

It refers to the smoothness of the stream. The higher value of the smoothing is, the beer uency

of the stream will be, though, the video quality may not be so sasfactory. The lower value of the smoothing is, the higher quality of the stream will be, though it may appear notuent.

4.2 ROI

ROI (Region of Interest) encoding helps to discriminate the ROI and background informaon in video compression. The technology assigns more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background informaon is less focused.

4.2.1 Set ROI

ROI (Region of Interest) encoding helps to assign more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background informaon is less focused.

Before You Start

Please check the video coding type. ROI is supported when the video coding type is H.264 or H.265.

Steps

1. Go to Conguraon → Video/Audio → ROI.
2. Check Enable.
3. Select Stream Type.
4. Select Region No. in Fixed Region to draw ROI region.

1) Click Drawing.
2) Click and drag the mouse on the view screen to draw the xed region.
3) Click Stop Drawing.

Select the xed region that needs to be adjusted and drag the mouse to adjust its posion.

1. Input the Region Name and ROI Level.
2. Click Save.

The higher the ROI level is, the clearer the image of the detected region is.

1. Oponal: Select other region No. and repeat the above steps if you need to draw mulple xed regions.

4.2.2 Set Face Tracking ROI

When the face tracking funcon is enabled in ROI and the face appears in the live picture, the

image of the face is clearer than that of the surrounding area.

Steps

1. Go to the ROI seng page: Conguraon → Video/Audio → ROI.
2. Check Enable Face Tracking.
3. Select ROI Level in Dynamic Region.

iNote

ROI level means the image quality enhancing level. The larger the value is, the beer the image quality would be.

1. Click Save.

4.2.3 Set Target Tracking ROI

The moving target is clearer than other areas in live image or recordings aer enabling the funcon.

Before You Start

Go to Conguraon → PTZ → Smart Tracking to complete the smart tracking sengs.

Steps

1. Go to Conguraon → Video/Audio → ROI.
2. Check Enable Target Tracking.
3. Set ROI Level for target tracking. The higher the value is, the clearer the target is.
4. Click Save.

4.2.4 Set License Plate Tracking ROI

When the license plate tracking ROI funcon is enabled and the license plate appears in the live picture, the image of the license plate is clearer than that of the surrounding area.

Steps

1. Go to the ROI seng page: Conguraon → Video/Audio → ROI.
2. Check Enable License Plate Tracking.
3. Select ROI Level in Dynamic Region.

iNote

ROI level means the image quality enhancing level. The larger the value is, the beer the image quality would be.

1. Click Save.

4.3 Display Info. on Stream

The informaon of the objects (e.g. human, vehicle, etc.) is marked in the video stream. You can set rules on the connected rear-end device or client soware to detect the events including line crossing, intrusion, etc.

Steps

1. Go to the seng page: Conguraon → Video/Audio → Display Info. on Stream.
2. Check Enable Dual-VCA.
3. Click Save.

4.4 Audio Sengs

It is a funcon to set audio parameters such as audio encoding, environment noise ltering. Go to the audio sengs page: Conguraon → Video/Audio → Audio.

4.4.1 Audio Encoding

Select the audio encoding compression of the audio.

4.4.2 Audio Input

Note

• Connect the audio input device as required.
• The audio input display varies with the device models.

Lineln	Set Audio Input to Lineln when the device connects to the audio input device with the high output power, such as MP3, synthesizer or acve pickup.
Micln	Set Audio Input to Micln when the device connects to the audio input device with the low output power, such as microphone or passive pickup.

4.4.3 Audio Output

Note

Connect the audio output device as required.

It is a switch of the device audio output. You can adjust the output volume as required. When it is disabled, all the device audio cannot output. The audio output display varies with the device

modes.

4.4.4 Environmental Noise Filter

Set it as OFF or ON. When the funcon is enabled, the noise in the environment can be iterated to some extent.

4.5 Two-way Audio

It is used to realize the two-way audio funcon between the monitoring center and the target in the monitoring screen.

Before You Start

• Make sure the audio input device (pick-up or microphone) and audio output device (speaker) connected to the device is working properly. Refer to speciaons of audio input and output devices for device conncon.
• If the device has built-in microphone and speaker, two-way audio funcon can be enabled directly.

Steps

1. Click Live View.
2. Click on the toolbar to enable two-way audio funcon of the camera.
3. Click and select, move the slider to adjust the volume.
4. Click, disable the two-way audio funcon.

4.6 Display Sengs

It oers the parameter sengs to adjust image features.

Go to Conguraon → Image → Display Sengs.

Click Default to restore sengs.

4.6.1 Scene Mode

There are several sets of image parameters predened for dierent installaon environments. Select a scene according to the actual installaon environment to speed up the display sengs.

Image Adjustment

By adjusting the Brightness, Saturaon, Hue, Contrast and Sharpness, the image can be best

displayed.

Exposure Sengs

Exposure is controlled by the combinaon of iris, shuer, and photo sensibility. You can adjust image eect by seng exposure parameters.

In manual mode, you need to set Exposure Time, Gain and Slow Shuer.

Focus

It oers opons to adjust the focus mode and the minimum focus distance.

Focus Mode

Auto

The device focuses automatically as the scene changes. If you cannot get a well-focused image under auto mode, reduce light sources in the image and avoid ashing lights.

Semi-auto

The device focuses once aer the PTZ and lens zooming. If the image is clear, the focus does not change when the scene changes.

Manual

You can adjust the focus manually on the live view page.

Min. Focus Distance

When the distance between the scene and lens is shorter than the Min. Focus Distance, the lens does not focus.

Day/Night Switch

Day/Night Switch funcon can provide color images in the day mode and black/white images in the night mode. Switch mode is congorable.

Day

The image is always in color.

Night

The image is always black/white

Auto

The camera switches between the day mode and the night mode according to the illuminaon automacally.

Scheduled-Switch

Set the Start Time and the End Time to denote the duration for day mode.

Triggered by alarm input

Two trigger modes are available: Day and Night. For example, if the trigger mode is Night, the image turns black and white when the device receives alarm input signal.

Day/Night Switch funcon varies according to models.

Grey Scale

You can choose the range of the Grey Scale as [0-255] or [16-235].

Rotate

When enabled, the live view will rotate 90^ counterclockwise. For example, 1280 × 720 is rotated to 720 × 1280 .

Enabling this funcon can change the eecve range of monitoring in the vercal direcon.

Lens Distoron Correcon

For device equipped with motorized lens, image may appear distorted to some extent. Enable this funcon to correct the distoron.

• This funcon is only supported by certain device equipped with motorized lens.
• The edge of image will be lost if this funcon is enabled.

BLC

If you focus on an object against strong backlight, the object will be too dark to be seen clearly. BLC (backlight compensaon) compensates light to the object in the front to make it clear. If BLC mode is set as Custom, you can draw a red rectangle on the live view image as the BLC area.

WDR

The WDR (Wide Dynamic Range) funcon helps the camera provide clear images in environment with strong illuminaon dierences.

When there are both very bright and very dark areas simultaneously in the eld of view, you can enable the WDR funcon and set the level. WDR automacally balances the brightness level of the whole image and provides clear images with more details.

When WDR is enabled, some other funcons may be not supported. Refer to the actual interface for details.

HLC

When the bright area of the image is over-exposed and the dark area is under-exposed, the HLC (High Light Compression) funcon can be enabled to weaken the bright area and brighten the dark area, so as to achieve the light balance of the overall picture.

White Balance

White balance is the white rendition funcon of the camera. It is used to adjust the color temperature according to the environment.

DNR

Digital Noise Reducon is used to reduce the image noise and improve the image quality. Normal and Expert modes are selectable.

Normal

Set the DNR level to control the noise reducon degree. The higher level means stronger reducon degree.

Expert

Set the DNR level for both space DNR and me DNR to control the noise reducon degree. The higher level means stronger reducon degree.

Defog

You can enable the defog funcon when the environment is foggy and the image is misty. It enhances the subtle details so that the image appears clearer.

EIS

Increase the stability of video image by using jier compensaon technology.

Mirror

When the live view image is the reverse of the actual scene, this funcon helps to display the image normally.

Select the mirror mode as needed.

Note

The video recording will be shortly interrupted when the funcon is enabled.

4.6.2 Image Parameters Switch

The device automacally switches image parameters in set me periods.

Go to image parameters switch seng page: Conguraon → Image → Image Parameters

Switch, and set parameters as needed.

Set Scheduled-switch

Switch the image to the linked scene mode automacally in certain me periods.

Steps

1. Check Scheduled-switch.

2. Select and congregate the corresponding me period and linked scene mode.

For Linked Scene conguraon, refer to Scene Mode.

1. Click Save.

4.6.3 Video Standard

Video standard is an ability of a video card or video display device that denes the amount of colors that are shown and the resoluon. The two most common video standard used are NTSC and PAL. In NTSC, 30 frames are transmied each second. Each frame is made up of 525 individual scan lines. In PAL, 25 frames are transmied each second. Each frame is made up of 625 individual scan lines. Select video signal standard according to the video system in your country.

4.6.4 Local Video Output

If the device is equipped with video output interfaces, such as BNC, CVBS, HDMI, and SDI, you can preview the live image directly by connecng the device to a monitor screen.

Select the output mode as ON/OFF to control the output.

4.7 OSD

You can customize OSD (On-screen Display) informaon such as device name, me/date, font, color, and text overlay displayed on video stream.

Go to OSD seng page: Conguraon → Image → OSD Sengs. Set the corresponding parameters, and click Save to take eect.

Character Set

Select character set for displayed informaon. If Korean is required to displayed on screen, select EUC-KR. Otherwise, select GBK.

Displayed Informaon

Set camera name, date, week, and their related display format.

Text Overlay

Set customized overlay text on image.

OSD Parameters

Set OSD parameters, such as Display Mode, OSD Size, Font Color, and Alignment.

4.8 Set Privacy Mask

The funcon blocks certain areas in the live view to protect privacy. No maer how the device moves, the blocked scene will never be seen.

Steps

1. Go to privacy mask seng page: Conguraon → Image → Privacy Mask.
2. Check Enable Privacy Mask.

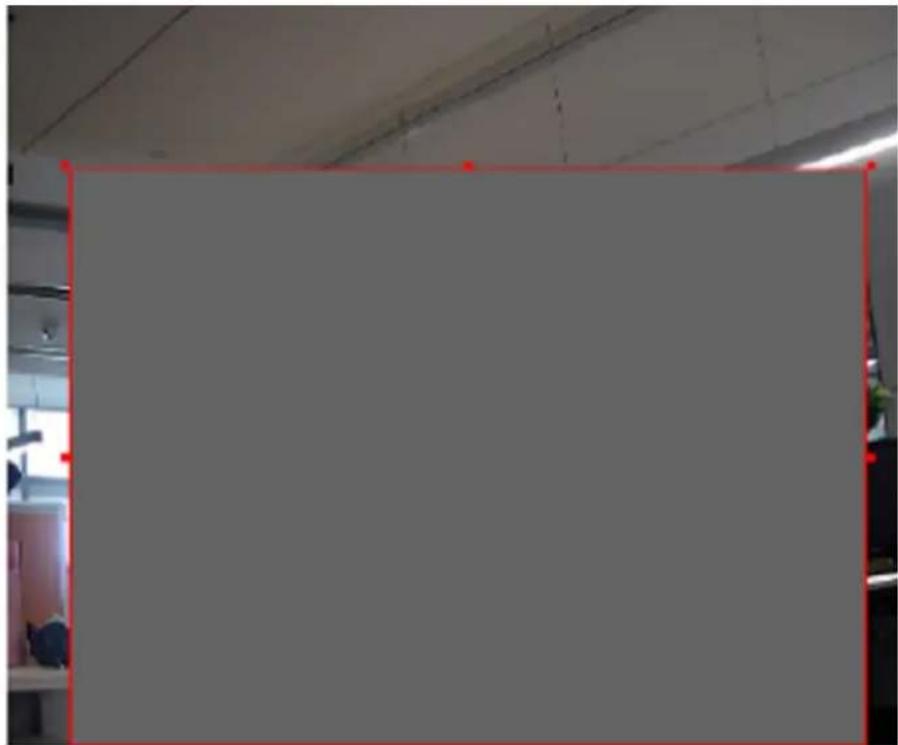

3. Click Draw Area. Drag the mouse in the live view to draw a closed area.

Drag the corners of Adjust the size of the area.

the area

Drag the area Adjust the posion of the area.

Click Clear All Clear all the areas you set.

1. Click Stop Drawing.
2. Click Save.

iNote

Up to 4 areas are supported for seng.

4.9 Overlay Picture

Overlay a customized picture on live view.

Before You Start

The picture to overlay has to be in BMP format with 24-bit, and the maximum picture size is 128 × 128 pixel.

Steps

1. Go to picture overlay seng page: Conguraon → Image → Picture Overlay.
2. Click Browse to select a picture, and click Upload.

The picture with a red rectangle will appear in live view aer successfully uploading.

1. Check Enable Picture Overlay.
2. Drag the picture to adjust its posion.
3. Click Save.

4.10 Set Target Cropping

You can crop the image, transmit and save only the images of the target area to save transmission bandwidth and storage.

Steps

1. Go to Conguraon → Video/Audio → Target Cropping.
2. Check Enable Target Cropping and set Third Stream as the Stream Type.

Aer enabling target cropping, the third stream resolution cannot be congured.

1. Select a Cropping Resoluon.
   A red frame appears in the live view.
2. Drag the frame to the target area.
3. Click Save.

• Only certain models support target cropping and the funcon varies according to dierent camera models.
• Some funcons may be disabled aer enabling target cropping.

Chapter 5 Video Recording and Picture Capture

This part introduces the operaons of capturing video clips and snapshots, playback, and downloading captured les.

5.1 Storage Sengs

This part introduces the conguraon of several common storage paths.

5.1.1 Set Memory Card

If you choose to store the les to memory card, make sure you insert and format the memory card in advance.

Before You Start

Insert the memory card to the camera. For detailed installaon, refer to Quick Start Guide of the camera.

Steps

1. Go to storage management seng page: Conguraon → Storage → Storage Management → HDD Management.
2. Select the memory card, and click Format to start inializing the memory card.
   The Status of memory card turns to Normal from Uninialized, which means the memory card can be used normally.
3. Oponal: Dene the Quota of the memory card. Input the quota percentage for dierent contents according to your need.
4. Click Save.

Detect Memory Card Status

It helps to detect the memory card status of Hikvision memory card. You receive nocaons when your memory card is detected abnormal.

Before You Start

Memory card should be installed to the device.

Steps

1. Go to memory card detecon seng page: Conguraon → Storage → Storage Management → Memory Card Detecon.

2. Click Status Detecon to check the Remaining Lifespan and Health Status of your memory card. Remaining Lifespan

It shows the percentage of the remaining lifespan. The lifespan of a memory card may be

inuenced by factors such as its capacity and the bitrate. You need to change the memory card if the remaining lifespan is not enough.

Health Status

It shows the condition of your memory card. There are three status descripons, good, bad, and damaged. You will receive a nocaon if the health status is anything other than good when the Arming Schedule and Linkage Method are set.

Note

It is recommended that you change the memory card when the health status is not “good”.

1. Click R/W Lock to set the authority of reading and wring to the memory card.

2. Add a LockSelect the Lock Switch as ON.

3. Enter the password.
4. Click Save

Unlock

• If you use the memory card on the camera that locks it, unlocking will be done automatically and no unlocking procedures are required on the part of users.

• If you use the memory card (with a lock) on a dierent camera, you can go to HDD Management interface to unlock the memory card manually. Select the memory card, and click the Unlock buon shown next to the Format buon. Then enter the correct password to unlock it.

• Remove the LockSelect the Lock Switch as OFF.

• Enter the password in Password Sengs.
• Click Save.

Note

• Only admin user can set the R/W Lock.
• The memory card can only be read and write when it is unlocked.

• If the camera, which adds a lock to a memory card, is restored to the factory sengs, you can go to HDD Management interface to unlock the memory card.

• Set Arming Schedule and Linkage Method. Refer to Set Arming Schedule and Linkage Method Sengs for details.

• Click Save.

5.1.2 Set FTP

You can congregate the FTP server to save images which are captured by events or a med snapshot task.

Before You Start

Get the FTP server address rst.

Steps

1. Go to Conguraon → Network → Advanced Sengs → FTP.
2. Congure FTP sengs.

FTP Protocol

FTP and SFTP are selectable. The les uploading is encrypted by using SFTP protocol.

Server Address and Port

The FTP server address and corresponding port.

User Name and Password

The FTP user should have the permission to upload pictures.

If the FTP server supports picture uploading by anonymous users, you can check Anonymous to hide your device informaon during uploading.

Directory Structure

The saving path of snapshots in the FTP server.

Picture Filing Interval

For beer picture management, you can set the picture ling interval from 1 day to 30 days. Pictures captured in the same me interval will be saved in one folder named aer the beginning date and ending date of the me interval.

Picture Name

Set the naming rule for captured pictures. You can choose Default in the drop-down list to use the default rule, that is, IP address_channel number_capture me_event type.jpg (e.g., 10.11.37.189_01_20150917094425492_FACE_DETECTION.jpg). Or you can customize it by adding a Custom Prex to the default naming rule.

1. Check Upload Picture to enable uploading snapshots to the FTP server.
2. Check Enable Automac Network Replenishment.

iNote

Upload to FTP/Memory Card/NAS in Linkage Method and Enable Automac Network Replenishment should be both enabled simultaneously.

1. Click Test to verify the FTP server.
2. Click Save.

5.1.3 Set NAS

Take network server as network disk to store the record les, captured images, etc.

Before You Start

Get the IP address of the network disk rst.

Steps

1. Go to NAS seng page: Conguraon → Storage → Storage Management → Net HDD.
2. Click HDD No.. Enter the server address and le path for the disk.

Server Address

The IP address of the network disk.

File Path

The saving path of network disk les.

Mounng Type

Select le system protocol according to the operaon system.

Enter user name and password of the net HDD to guarantee the security if SMB/CIFS is selected.

1. Click Test to check whether the network disk is available.
2. Click Save.

5.1.4 eMMC Protecon

If you enable eMMC protecon, the lifespan of the eMMC is displayed.

5.1.5 Set Cloud Storage

It helps to upload the captured pictures and data to the cloud. The plaorm requests picture directly from the cloud for picture and analysis. The funcon is only supported by certain models.

Steps

Cauon

If cloud storage is enabled, the pictures are stored in the cloud storage server preferenally.

1. Go to Conguraon → Storage → Storage Management → Cloud Storage.
2. Check Enable Cloud Storage.
3. Set basic parameters.

Protocol Version	The protocol version of the cloud storage server.
Server IP	The IP address of the cloud storage server. It supports IPv4 address.
Serve Port	The port of the cloud storage server. 6001 is the default port and you are not recommended to edit it.
User Name and Password	The user name and password of the cloud storage server.
Picture Storage Pool	The ID of the picture storage region in the cloud storage server. Make

ID

sure storage pool ID and the storage region ID are the same.

1. Click Test to test the congured sengs.
2. Click Save.

5.2 Video Recording

This part introduces the operaons of manual and scheduled recording, playback, and downloading recorded les.

5.2.1 Record Automacally

This funcon can record video automacally during congured me periods.

Before You Start

Select Trigger Recording in event sengs for each record type except Connuous. See Event and Alarm for details.

Steps

1. Go to Conguraon → Storage → Schedule Sengs → Record Schedule.
2. Check Enable.
3. Select a record type.

iNote

The record type is vary according to dierent models.

Connuous

The video will be recorded connuously according to the schedule.

Moon

When moon detecon is enabled and trigger recording is selected as linkage method, object movement is recorded.

Alarm

When alarm input is enabled and trigger recording is selected as linkage method, the video is recorded aer receiving alarm signal from external alarm input device.

Moon | Alarm

Video is recorded when moon is detected or alarm signal is received from the external alarm input device.

Moon & Alarm

Video is recorded only when moon is detected and alarm signal is received from the external alarm input device.

Event

The video is recorded when congured event is detected.

1. Set schedule for the selected record type. Refer to Set Arming Schedule for the seng operaon.
2. Click Advanced to set the advanced sengs.

Overwrite

Enable Overwrite to overwrite the video records when the storage space is full. Otherwise the camera cannot record new videos.

Pre-record

The me period you set to record before the scheduled me.

Post-record

The me period you set to stop recording aer the scheduled me.

Stream Type

Select the stream type for recording.

Note

When you select the stream type with higher bitrate, the actual me of the pre-record and post-record may be less than the set value.

Recording Expiraon

The recordings are deleted when they exceed the expired me. The expired me is congorable. Note that once the recordings are deleted, they can not be recovered.

1. Click Save.

5.2.2 Record Manually

Steps

1. Go to Conguraon → Local.
2. Set the Record File Size and saving path to for recorded les.
3. Click Save.
4. Click to start recording. Click to stop recording.

5.2.3 Set Lite Storage

Aer the lite storage is enabled, the frame rate and bitrate of the video stream can be reduced to lengthen the storage me of the memory card when there is no moving object in the monitoring scenario.

Steps

1. Go to Conguraon → Storage → Storage Management → Lite Storage.

2. Check Enable and set the level. The higher the level is, the larger the frame rate and bitrate are, and the shorter the recommended storage me is.

3. Set the storage me. The device automacally calculates the bitrate and oers the recommended storage me according to the memory card space and level. You are recommended to set the storage me to the device recommended me.

iNote

• If the lite storage is enabled, unformaed memory card will be formaed automacally.
• The displayed available space of the memory card is assigned by default according to Percentage of Record in Storage → Storage Management → Quota. You can adjust it as required.
• Only certain device models support the funcon.

5.2.4 Playback and Download Video

You can search, playback and download the videos stored in the local storage or network storage.

Steps

1. Click Playback.
2. Set search condition and click Search.

The matched video les showed on the ming bar.

1. Click ▶ to play the video les.

2. Click to clip video les.

3. Click K to play video les in full screen. Press ESC to exit full screen.

iNote

Go to Conguraon → Local, click Save clips to to change the saving path of clipped video les.

1. Click ☐ on the playback interface to download les.

1) Set search condition and click Search.
2) Select the video les and then click Download.

iNote

Go to Conguraon → Local, click Save downloaded les to to change the saving path of downloaded video les.

5.3 Capture Conguraon

The device can capture the pictures manually or automacally and save them in congured saving

path. You can view and download the snapshots.

5.3.1 Capture Automacally

This funcon can capture pictures automacally during congured me periods.

Before You Start

If event-triggered capture is required, you should congregate related linkage methods in event sengs. Refer to Event and Alarm for event sengs.

Steps

1. Go to Conguraon → Storage → Schedule Sengs → Capture → Capture Parameters.
2. Set the capture type.

Timing

Capture a picture at the congured me interval.

Event-Triggered

Capture a picture when an event is triggered.

1. Set the Format, Resoluon, Quality, Interval, and Capture Number.
2. Refer to Set Arming Schedule for conguring schedule me.
3. Click Save.

5.3.2 Capture Manually

Steps

1. Go to Conguraon → Local.
2. Set the Image Format and saving path to for snapshots.

JPEG

The picture size of this format is comparatively small, which is beer for network transmission.

BMP

The picture is compressed with good quality.

1. Click Save.
2. Click near the live view or play back window to capture a picture manually.

5.3.3 View and Download Picture

You can search, view and download the pictures stored in the local storage or network storage.

Steps

1. Click Picture.
2. Set search condition and click Search.

The matched pictures showed in the le list.

1. Select the pictures then click Download to download them.

iNote

Go to Conguraon → Local, click Save snapshots when playback to change the saving path of pictures.

Chapter 6 Event and Alarm

This part introduces the conguraon of events. The device takes certain response to triggered alarm.

6.1 Basic Event

6.1.1 Set Moon Detecon

It helps to detect the moving objects in the detecon region and trigger the linkage acons.

Steps

1. Go to Conguraon → Event → Basic Event → Moon Detecon.
2. Check Enable Moon Detecon.
3. Oponal: Highlight to display the moving object in the image in green.

1) Check Enable Dynamic Analysis for Moon.
2) Go to Conguraon → Local.
3) Set Rules to Enable.

1. Select Conguraon Mode, and set rule region and rule parameters.

2. For the informaon about normal mode, see Normal Mode.

3. For the informaon about expert mode, see Expert Mode.

4. Set the arming schedule and linkage methods. For the informaon about arming schedule sengs, see Set Arming Schedule. For the informaon about linkage methods, see Linkage Method Sengs.

5. Click Save.

Expert Mode

You can congregate the moon detecon parameters of day/night switch according to the actual needs.

Steps

1. Select expert mode in Conguraon.
2. Set parameters of expert mode.

Day/Night Switch

OFF: Day/night switch is disabled.

Day/Night Auto-Switch: The system switches day/night mode automatically according to environment. It displays colored image at day and black and white image at night.

Day/Night Scheduled-Switch: The system switches day/night mode according to the schedule. It switches to day mode during the set periods and switches to night mode during the other periods.

Sensitivity

The higher the value of sensitivity is, the more sensitive the moon detecon is. If the sensitivity is set to 0, moon detecon and dynamic analysis do not take eect.

Proporon

It refers to the proporon that a moving object occupies in the drawn area. When the size of the object exceeds the set proporon, moon detecon is triggered.

1. Select an Area and click Draw Area. Click and drag the mouse on the live video, then release the mouse to nish drawing one area.

Outdoor scene with people walking near a paved area, featuring a red bounding box highlighting a low-speed train (no visible text or symbols)

Figure 6-1 Set Rules

Stop Drawing

Finish drawing one area.

Clear All

Delete all the areas.

1. Oponal: Repeat the above steps to set mulple areas.

Normal Mode

You can set moon detecon parameters according to the device default parameters.

Steps

1. Select normal mode in Conguraon.
2. Set the sensitivity of normal mode. The higher the value of sensitivity is, the more sensitive the moon detecon is. If the sensitivity is set to 0, moon detecon and dynamic analysis do not take eect.
3. Click Draw Area. Click and drag the mouse on the live video, then release the mouse to nsh drawing one area.

Exterior view of a paved area with red grid overlay and people in safety gear (no visible text or symbols)

Figure 6-2 Set Rules

Stop Drawing

Stop drawing one area.

Clear All

Clear all the areas.

1. Oponal: You can set the parameters of mulple areas by repeang the above steps.

6.1.2 Set Video Tampering Alarm

When the congured area is covered and cannot be monitored normally, the alarm is triggered and the device takes certain alarm response acons.

Steps

1. Go to Conguraon → Event → Basic Event → Video Tampering.
2. Check Enable.
3. Set the Sensitivity. The higher the value is, the easier to detect the area covering.
4. Click Draw Area and drag the mouse in the live view to draw the area.

Stop Drawing

Finish drawing.

Clear All

Delete all the drawn areas.

Empty whiteboard with red border, no visible text or symbols

Figure 6-3 Set Video Tampering Area

1. Refer to Set Arming Schedule for seng scheduled me. Refer to Linkage Method Sengs for seng linkage method.
2. Click Save.

6.1.3 Set PIR Alarm

A PIR (Passive Infrared) alarm is triggered when an intruder moves within the detector's eld of view. The heat energy dissipated by a person, or any other warm blooded creature such as dogs, cats, etc., can be detected.

Steps

iNote

Only certain models support PIR alarm.

1. Go to Conguraon → Advanced Conguraon → Basic Event → PIR Alarm.
2. Check Enable PIR Alarm.
3. Refer to Set Arming Schedule for seng scheduled me. Refer to Linkage Method Sengs for seng linkage method.
4. Click Save.

6.1.4 Set Excepon Alarm

Excepon such as network disconncon can trigger the device to take corresponding acon.

Steps

1. Go to Conguraon → Event → Basic Event → Excepon.
2. Select Excepon Type.

HDD Full The HDD storage is full.

HDD Error Error occurs in HDD.

Network The device is oine.

Disconnected

IP Address Conicted The IP address of current device is same as that of other device in the network.

Illegal Login Incorrect user name or password is entered.

1. Refer to Linkage Method Sengs for seng linkage method.
2. Click Save.

6.1.5 Set Alarm Input

Alarm signal from the external device triggers the corresponding acons of the current device.

Before You Start

Make sure the external alarm device is connected. See Quick Start Guide for cables conncon.

Steps

1. Go to Conguraon → Event → Basic Event → Alarm Input.
2. Check Enable Alarm Input Handing.
3. Select Alarm Input NO. and Alarm Type from the dropdown list. Edit the Alarm Name.
4. Refer to Set Arming Schedule for seng scheduled me. Refer to Linkage Method Sengs for seng linkage method.
5. Click Copy to... to copy the sengs to other alarm input channels.
6. Click Save.

6.1.6 Set Video Quality Diagnosis

When the video quality of the device is abnormal and the alarm linkage is set, the alarm will be triggered automacally.

Steps

1. Go to Conguraon → Event → Basic Event → Video Quality Diagnosis.

2. Select Diagnosis Type.

3. Set the corresponding parameters.

Alarm Detecon Interval

The me interval to detect the excepon.

Sensitivity

The higher the value is, the more easily the exception will be detected, and the higher possibility of misinformation would be.

Alarm Delay Times

The device uploads the alarm when the alarm reaches the set number of mes.

1. Check Enable, and the selected diagnosis type will be detected.
2. Set arming schedule. See Set Arming Schedule.
3. Set linkage method. See Linkage Method Sengs.
4. Click Save.

iNote

The funcon is only supported by certain models. The actual display varies with models.

6.1.7 Set Vibraon Detecon

It is used to detect whether the device is vibrang. The device reports an alarm and triggers linkage acons if the funcon is enabled.

Steps

1. Go to Conguraon → Event → Basic Event → Vibraon Detecon.
2. Check Enable.
3. Drag the slider to set the detecon sensitivity. You can also enter number to set the sensitivity.
4. Set the arming schedule. See Set Arming Schedule.
5. Set the linkage method. See Linkage Method Sengs.
6. Click Save.

iNote

The funcon is only supported by certain models. The actual display varies with models.

6.2 Smart Event

iNote

• For certain device models, you need to enable the smart event funcon on VCA Resource page rst to show the funcon conguraon page.
• The funcon varies according to dierent models.

6.2.1 Detect Audio Excepon

Audio excepon detecon funcon detects the abnormal sound in the surveillance scene, such as the sudden increase/decrease of the sound intensity, and some certain acons can be taken as response.

Steps

1. Go to Conguraon → Event → Smart Event → Audio Excepon Detecon.
2. Select one or several audio excepon detecon types.

Audio Loss Detecon

Detect sudden loss of audio track.

Sudden Increase of Sound Intensity Detecon

Detect sudden increase of sound intensity. Sensitivity and Sound Intensity Threshold are congorable.

Note

• The lower the sensitivity is, the more significant the change should be to trigger the detecon.
• The sound intensity threshold refers to the sound intensity reference for the detecon. It is recommended to set as the average sound intensity in the environment. The louder the environment sound, the higher the value should be. You can adjust it according to the real environment.

Sudden Decrease of Sound Intensity Detecon

Detect sudden decrease of sound intensity. Sensitivity is congorable.

1. Refer to Set Arming Schedule for seng scheduled me. Refer to Linkage Method Sengs for seng linkage methods.
2. Click Save.

Note

The funcon varies according to dierent models.

6.2.2 Set Defocus Detecon

The blurred image caused by lens defocus can be detected. If it occurs, the device can take linkage acons.

Steps

1. Go to Conguraon → Event → Smart Event → Defocus Detecon.

2. Check Enable.

3. Set Sensitivity. The higher the value is, the more easily the defocus image can trigger the alarm. You can adjust the value according to the actual environment.

4. For the linkage method sengs, refer to Linkage Method Sengs.
5. Click Save.

The funcon is only supported by certain models. The actual display varies with models.

6.2.3 Detect Scene Change

Scene change detecon funcon detects the change of surveillance scene. Some certain acons can be taken when the alarm is triggered.

Steps

1. Go to Conguraon → Event → Smart Event → Scene Change Detecon.
2. Click Enable.
3. Set the Sensitivity. The higher the value is, the more easily the change of scene can be detected. But the detecon accuracy is reduced.
4. Refer to Set Arming Schedule for seng scheduled me. Refer to Linkage Method Sengs for seng linkage method.
5. Click Save.

The funcon varies according to dierent models.

6.2.4 Set Face Detecon

It helps to detect the face in the detecon region. If a face is detected, the device triggers the linkage acons.

Steps

1. Go to Conguraon → Event → Smart Event → Face Detecon.
2. Check Enable Face Detecon.
3. Oponal: Highlight to display the face in the image.

1) Check Enable Dynamic Analysis For Face Detecon.

2) Go to Conguraon → Local, set Rules to Enable.

1. Set Sensitivity. The lower the sensitivity is, the prole of the face or unclear face is more difficult to detect.
2. Set the arming schedule and linkage methods. For the informaon about arming schedule sengs, see Set Arming Schedule. For the informaon about linkage methods, see Linkage Method Sengs.
3. Click Save.

6.2.5 Set Video Loss

This funcon can detect the video signal loss in me and trigger the linkage acon.

Steps

1. Go to Conguraon → Event → Basic Event → Video Loss.
2. Check Enable.
3. Refer to Set Arming Schedule for seng scheduled me. Refer to Linkage Method Sengs for seng linkage method.
4. Click Save.

6.2.6 Set Intrusion Detecon

It is used to detect objects entering and loitering in a pre-dened virtual region. If it occurs, the device can take linkage acons.

Steps

1. Go to Conguraon → Event → Smart Event → Intrusion Detection.
2. Check Enable.
3. Select a Region. For the detecon region sengs, refer to Draw Area.
4. Set rules.

Sensitivity Sensitivity stands for the percentage of the body part of an acceptable target that enters the pre-dened region. Sensitivity = 100 - S1/ST × 100. S1 stands for the target body part that goes across the pre-dened region. ST stands for the complete target body. The higher the value of sensitivity is, the more easily the alarm can be triggered.

Threshold Threshold stands for the threshold for the me of the object loitering in the region. If the me that one object stays exceeds the threshold, the alarm is triggered. The larger the value of the threshold is, the longer the alarm triggering me is.

Object You can specify the object type to be detected and the device only detects the selected type of object.

10x 6x 5x

Figure 6-4 Set Rule

1. Oponal: You can set the parameters of mulple areas by repeang the above steps.
2. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
3. Click Save.

6.2.7 Set Line Crossing Detecon

It is used to detect objects crossing a pre-dened virtual line. If it occurs, the device can take linkage acons.

Steps

1. Go to Conguraon → Event → Smart Event → Line Crossing Detecon.
2. Check Enable.
3. Select one Line and set the size Iter. For the size Iter sengs, refer to Set Size Filter.
4. Click Draw Area and a line with an arrow appears in the live video. Drag the line to the locaon on the live video as desired.
5. Set rules.

Direcon

It stands for the direcon from which the object goes across the line.

A<->B: The object going across the line from both direcons can be detected and alarms are triggered.

A->B: Only the object crossing the congured line from the A side to the B side can be detected.

B->A: Only the object crossing the congured line from the B side to the A side can be detected.

Sensitivity

It stands for the percentage of the body part of an acceptable target that goes across the pre-dened line. Sensitivity = 100 - S1/ST × 100.

S1 stands for the target body part that goes across the pre-dened line. ST stands for the complete target body. The higher the value of

Object

sensitivity is, the more easily the alarm can be triggered.

You can specify the object type to be detected and the device only detects the selected type of object.

Max Min A B

Figure 6-5 Set Rule

1. Oponal: You can set the parameters of mulple areas by repeang the above steps.
2. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
3. Click Save.

6.2.8 Set Region Entrance Detecon

It is used to detect objects entering a pre-dened virtual region from the outside place. If it occurs, the device can take linkage acons.

Steps

1. Go to Conguraon → Event → Smart Event → Region Entrance Detecon.
2. Check Enable.
3. Select one Region. For the region sengs, refer to Draw Area.
4. Select the detecon target. Human and vehicle are available. If the detecon target is not selected, all the detected targets will be reported, including the human and the vehicle.

Max Min #1#

Figure 6-6 Set Rule

1. Oponal: You can set the parameters of mulple areas by repeang the above steps.
2. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Senas.
3. Click Save.

6.2.9 Set Region Exing Detecon

It is used to detect objects exing from a pre-dened virtual region. If it occurs, the device can take linkage acons.

Steps

1. Go to Conguraon → Event → Smart Event → Region Exing Detecon
2. Check Enable.
3. Select one Region. For the detecon region sengs, refer to Draw Area.
4. Select the detecon target. Human and vehicle are available. If the detecon target is not selected, all the detected targets will be reported, including the human and the vehicle.

Max Min Top 1 Top

Figure 6-7 Set Rule

1. Oponal: You can set the parameters of mulple areas by repeang the above steps.
2. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
3. Click Save.

6.2.10 Set Unaended Baggage Detecon

It is used to detect the objects le over in the pre-dened region. Linkage methods can be triggered aer the object is le and stays in the region for a set me period.

Steps

1. Go to Conguraon → Event → Smart Event → Unaended Baggage Detecon.
2. Check Enable.
3. Select one Region. For the detecon region sengs, refer to Draw Area.
4. Set rules.

Sensitivity

Sensitivity stands for the percentage of the body part of an acceptable target that enters the pre-dened region. Sensitivity = 100 - S1/ST × 100. S1 stands for the target body part that goes across the pre-dened region. ST stands for the complete target body. The higher the value of sensitivity is, the more easily the alarm can be triggered.

Threshold

It stands for the me of the objects le in the region. Alarm is triggered aer the object is le and stays in the region for the set me period.

Min Max

Figure 6-8 Set Rule

1. Oponal: You can set the parameters of mulple areas by repeang the above steps.
2. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
3. Click Save.

6.2.11 Set Object Removal Detecon

It detects whether the objects are removed from the pre-dened detecon region, such as the exhibits on display. If it occurs, the device can take linkage acons and the sta can take measures to reduce property loss.

Steps

1. Go to Conguraon → Event → Smart Event → Object Removal Detecon.
2. Check Enable.
3. Select a Region. For the region sengs, see Draw Area.
4. Set the rule.

Sensitivity

Range [1-100]. It stands for the percentage of the body part of an acceptable target that leaves the pre-dened region.

Sensitivity = 100 - S1/ST*100

S1 stands for the target body part that leaves the pre-dened region. ST stands for the complete target body.

Example: If you set the value as 60, a target is possible to be counted as a removed object only when 40 percent body part of the target leaves the region.

Threshold

Range [5-100s], the threshold for the me of the objects removed from the region. If you set the value as 10, alarm is triggered aer the object disappears from the region for 10s.

Interior view of a room with three electronic devices and a yellow bounding box highlighting a component (no visible text or symbols)

Figure 6-9 Set Rule

1. Oponal: Repeat the above steps to set more regions.

2. For the arming schedule sengs, see Set Arming Schedule. For the linkage method sengs, see Linkage Method Sengs.

3. Click Save.

The funcon is only supported by certain models. The actual display varies with the models.

6.2.12 Draw Area

This secon introduces the conguraon of area.

Steps

1. Click Draw Area.

2. Click on the live view to draw the boundaries of the detecon region, and right click to complete drawing.

3. Click Save.

Click Clear All to clear all pre-dened areas.

6.2.13 Set Size Filter

This part introduces the seng of size Iter. Only the target whose size is between the minimum

value and maximum value is detected and triggers alarm.

Steps

1. Click Max. Size, and drag the mouse in the live view to draw the maximum target size.
2. Click Min. Size, and drag the mouse in the live view to draw the minimum target size.
3. Click Save.

Chapter 7 Network Sengs

7.1 TCP/IP

TCP/IP sengs must be properly congured before you operate the device over network. IPv4 and IPv6 are both supported. Both versions can be congured simultaneously without conicng to each other.

Go to Conguraon → Basic Conguraon → Network → TCP/IP for parameter sengs.

NIC Type

Select a NIC (Network Interface Card) type according to your network condition.

IPv4

Two IPv4 modes are available.

DHCP

The device automacally gets the IPv4 parameters from the network if you check DHCP. The device IP address is changed aer enabling the funcon. You can use SADP to get the device IP address.

Note

The network that the device is connected to should support DHCP (Dynamic Host Conguraon Protocol).

Manual

You can set the device IPv4 parameters manually. Input IPv4 Address, IPv4 Subnet Mask, and IPv4 Default Gateway, and click Test to see if the IP address is available.

IPv6

Three IPv6 modes are available.

Route Adversement

The IPv6 address is generated by combining the route adversement and the device Mac address.

Note

Route adverse mode requires the support from the router that the device is connected to.

DHCP

The IPv6 address is assigned by the server, router or gateway.

Manual

Input IPv6 Address, IPv6 Subnet, IPv6 Default Gateway. Consult the network administrator for required informaon.

MTU

It stands for maximum transmission unit. It is the size of the largest protocol data unit that can be communicated in a single network layer transacon. The valid value range of MTU is 1280 to 1500.

DNS

It stands for domain name server. It is required if you need to visit the device with domain name. And it is also required for some applicaons (e.g., sending email). Set Preferred DNS Server and Alternate DNS server properly if needed.

7.1.1 Mulcast

Mulcast is a group communicaon where data transmission is addressed to a group of desnaon devices simultaneously. Aer seng mulcast, you can send the source data eciently to mulple receivers.

Go to Conguraon → Network → Basic Sengs → Mulcast for the mulcast sengs.

IP Address

It stands for the address of mulcast host.

Stream Type

The stream type of the mulcast source.

Video Port

The video port of the selected stream.

Audio Port

The audio port of the selected stream.

FEC Port

The FEC port of the selected stream.

FEC Rao

The rao of forward error correcon.

7.1.2 Mulcast Discovery

Check the Enable Mulcast Discovery, and then the online network camera can be automatically detected by client soware via private mulcast protocol in the LAN.

7.2 SNMP

You can set the SNMP network management protocol to get the alarm event and excepon messages in network transmission.

Before You Start

Before seng the SNMP, you should download the SNMP soware and manage to receive the device informaon via SNMP port.

Steps

1. Go to the sengs page: Conguraon → Network → Advanced Sengs → SNMP.
2. Check Enable SNMPv1, Enable SNMP v2c or Enable SNMPv3.

iNote

The SNMP version you select should be the same as that of the SNMP soware. And you also need to use the dierent version according to the security level required. SNMP v1 is not secure and SNMP v2 requires password for access. And SNMP v3 provides encrypon and if you use the third version, HTTPS protocol must be enabled.

1. Congure the SNMP sengs.
2. Click Save.

7.3 Set SRTP

The Secure Real-me Transport Protocol (SRTP) is a Real-me Transport Protocol (RTP) internet protocol, intended to provide encrypon, message authencaon and integrity, and replay ack protecon to the RTP data in both unicast and mulcast applicaons.

Steps

1. Go to Conguraon → Network → Advanced Sengs → SRTP.
2. Select Server Cercate.
3. Select Encrypted Algorithm.
4. Click Save.

iNote

• Only certain device models support this funcon.
• If the funcon is abnormal, check if the selected cercate is abnormal in cercate management.

7.4 Port Mapping

By seng port mapping, you can access devices through the specied port.

Before You Start

When the ports in the device are the same as those of other devices in the network, refer to Port to modify the device ports.

Steps

1. Go to Conguraon → Network → Basic Sengs → NAT.
2. Select the port mapping mode.

Auto Port Mapping Refer to Set Auto Port Mapping for detailed informaon.

Manual Port Mapping Refer to Set Manual Port Mapping for detailed informaon.

1. Click Save.

1. Check Enable UPnP™, and choose a friendly name for the camera, or you can use the default name.
2. Select the port mapping mode to Auto.
3. Click Save.

UPnP™ funcon on the router should be enabled at the same me.

7.4.2 Set Manual Port Mapping

Steps

1. Check Enable UPnP™, and choose a friendly name for the device, or you can use the default name.
2. Select the port mapping mode to Manual, and set the external port to be the same as the internal port.
3. Click Save.

What to do next

Go to the router port mapping sengs interface and set the port number and IP address to be the same as those on the device. For more informaon, refer to the router user manual.

7.4.3 Set Port Mapping on Router

The following sengs are for a certain router. The sengs vary depending on dierent models of routers.

Steps

1. Select the WAN Connecon Type.
2. Set the IP Address, Subnet Mask and other network parameters of the router.
3. Go to Forwarding → Virtual Severs, and input the Port Number and IP Address.
4. Click Save.

Example

When the cameras are connected to the same router, you can congregate the ports of a camera as 80, 8000, and 554 with IP address 192.168.1.23, and the ports of another camera as 81, 8001, 555, 8201 with IP 192.168.1.24.

108M Wireless Router Model No.: TL-WR641G / TL-WR642G Virtual Servers ID Service Port IP Address Protocol Enable 1 80 192.168.10.23 ALL ✓ ✓ 2 8000 192.168.10.23 ALL ✓ ✓ 3 554 192.168.10.23 ALL ✓ ✓ 4 6200 192.168.10.23 ALL ✓ ✓ 5 81 192.168.10.24 ALL ✓ ✓ 6 8001 192.168.10.24 ALL ✓ ✓ 7 555 192.168.10.24 ALL ✓ ✓ 8 6201 192.168.10.24 ALL ✓ ✓ Common Service Port: DNS(53) Copy to ID 1 ✓ Previous Next Clear All Save

Figure 7-1 Port Mapping on Router

iNote

The port of the network camera cannot conict with other ports. For example, some web management port of the router is 80. Change the camera port if it is the same as the management port.

7.5 Port

The device port can be modified when the device cannot access the network due to port conicts.

! Cauon

Do not modify the default port parameters at will, otherwise the device may be inaccessible.

Go to Conguraon → Network → Basic Sengs → Port for port sengs.

HTTP Port

It refers to the port through which the browser accesses the device. For example, when the HTTP Port is modified to 81, you need to enter hp://192.168.1.64:81 in the browser for login.

HTTPS Port

It refers to the port through which the browser accesses the device with cercate. Cercate vericaon is required to ensure the secure access.

RTSP Port

It refers to the port of real-me streaming protocol.

SRTP Port

It refers to the port of secure real-me transport protocol.

Server Port

It refers to the port through which the client adds the device.

Enhanced SDK Service Port

It refers to the port through which the client adds the device. Cercate vericaon is required to ensure the secure access.

WebSocket Port

TCP-based full-duplex communicaon protocol port for plug-in free preview.

WebSockets Port

TCP-based full-duplex communicaon protocol port for plug-in free preview. Cercate vericaon is required to ensure the secure access.

iNote

• Enhanced SDK Service Port, WebSocket Port, and WebSockets Port are only supported by certain models.
• For device models that support that funcon, go to Conguraon → Network → Advanced Sengs → Network Service to enable it.

7.6 Access to Device via Domain Name

You can use the Dynamic DNS (DDNS) for network access. The dynamic IP address of the device can be mapped to a domain name resoluon server to realize the network access via domain name.

Before You Start

Registraon on the DDNS server is required before conguring the DDNS sengs of the device.

Steps

1. Refer to TCP/IP to set DNS parameters.
2. Go to the DDNS sengs page: Conguraon → Network → Basic Sengs → DDNS.
3. Check Enable DDNS and select DDNS type.

DynDNS

Dynamic DNS server is used for domain name resoluon.

NO-IP

NO-IP server is used for domain name resoluon.

1. Input the domain name informaon, and click Save.
2. Check the device ports and complete port mapping. Refer to Port to check the device port, and refer to Port Mapping for port mapping sengs.
3. Access the device.

By Browsers

Enter the domain name in the browser address bar to access the device.

By Client Soware

Add domain name to the client soware. Refer to the client manual for specific adding methods.

7.7 Access to Device via PPPoE Dial Up Connecon

This device supports the PPPoE auto dial-up funcon. The device gets a public IP address by ADSL dial-up aer the device is connected to a modem. You need to congregate the PPPoE parameters of the device.

Steps

1. Go to Conguraon → Network → Basic Sengs → PPPoE.
2. Check Enable PPPoE.
3. Set the PPPoE parameters.

Dynamic IP

Aer successful dial-up, the dynamic IP address of the WAN is displayed.

User Name

User name for dial-up network access.

Password

Password for dial-up network access.

Conrm

Input your dial-up password again.

1. Click Save.

2. Access the device.

By Browsers	Enter the WAN dynamic IP address in the browser address bar to access the device.
By Client Soware	Add the WAN dynamic IP address to the client soware. Refer to the client manual for details.

Note

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes aer reboong the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (e.g. DynDns.com). Refer to Access to Device via Domain Name for detail informaon.

7.8 Wireless Dial

Data of audio, video and image can be transferred via 3G/4G wireless network.

Note

The funcon is only supported by certain device models.

7.8.1 Set Wireless Dial

The built-in wireless module oers dial-up access to the Internet for the device.

Before You Start

Get a SIM card, and acvate 3G/4G services. Insert the SIM card to the corresponding slot.

Steps

1. Go to Conguraon → Network → Advanced Sengs → Wireless Dial.
2. Check to enable the funcon.
3. Click Dial Parameters to congregate and save the parameters.
4. Click Dial Plan. See Set Arming Schedule for detailed informaon.
5. Oponal: Set White List. See Set White List for detailed informaon.
6. Click Dial Status.

Click Refresh

Refresh the dial status.

Click Disconnect

Disconnect the 3G/4G wireless network.

When the Dial Status turns to Connected, it means a successful dial.

1. Access the device via the IP Address of the computer in the network.

- Input the IP address in the browser to access the device.

- Add the device in client applicaon. Select IP/Domain, and input IP address and other parameters to access the device.

7.8.2 Set White List

Add the mobile phone number of administrator to the white list in order to receive alarm message from the device.

Steps

1. Go to white list sengs page: Conguraon → Advanced Conguraon → Wireless Dial → White List.
2. Check Enable SMS Alarm.
3. Click -in the white list.

1) Input the mobile phone number to receive alarm message.
2) Check Reboot via SMS.
3) Select the certain events, and the mobile phone can receive the alarm message when the event happens.
4) Click Save.
5) Oponal: Repeat the steps above to set mulple recipients.

Modify the white list parameters.

Delete the white list that already set.

Send Test SMS

Send a message to the mobile phone for test.

1. Click Save.

7.9 Wi-Fi

Connect the device to wireless network by seng Wi-Fi parameters.

This funcon is only supported by certain device models.

7.9.1 Connect Wi-Fi Manually

Before You Start

Refer to the user manual of wireless router or AP to set SSID, key, and other parameters.

Steps

1. Go to TCP/IP sengs page: Conguraon → Network → Basic Conguraon → TCP/IP.
2. Select Wlan to set the parameters. Refer to TCP/IP for detailed conguraon.

For stable use of Wi-Fi, it is not recommended to use DHCP.

1. Go to Wi-Fi sengs page: Conguraon → Network → Advanced Conguraon → Wi-Fi.
2. Set and save the parameters.

1) Click Search.
2) Select a SSID, which should be the same as that of wireless router or AP.
The parameters of the network is automacally shown in Wi-Fi.
3) Select the Network Mode as Manage.
4) Input the key to connect the wireless network. The key should be that of the wireless network conneccon you set on the router.

What to do next

Go to TCP/IP sengs page: Conguraon → Network → Basic Conguration → TCP/IP, and click Wlan to check the IPv4 Address and log in the device. See Login for detailed informaon.

7.9.2 Connect Wi-Fi Automacally

The device can connect the Wi-Fi automacally via WPS or QSS protocols, which both support PBC mode and PIN mode.

Use PBC

Set PBC to connect Wi-Fi automacally. PBC refers to the Push-Buon-Conguraon, in which the user simply has to push a buon, either an actual or virtual one (as the Connect buon on the conguraon interface of the IE browser), on both the Access Point (and a registrar of the network) and the new wireless client device.

Before You Start

The operaon should be done within 120 seconds, otherwise the conneccon will fail.

Steps

1. Go to TCP/IP sengs page: Conguraon → Network → Basic Conguraon → TCP/IP.
2. Select Wlan to set the parameters. Refer to TCP/IP for detailed conguraon.

iNote

For stable use of Wi-Fi, it is not recommended to use DHCP.

1. Go to Wi-Fi sengs page: Conguraon → Network → Advanced Conguraon → Wi-Fi.
2. Set Wi-Fi parameters.

1) Check Enable WPS.
2) Select PBC conncon.
3) Check on the Wi-Fi router to see if there is a WPS buon. If yes push the buon and you can see the indicator near the buon start ashing, which means the WPS funcon of the router is enabled. For detailed operaon, please see the user guide of the router.
4) Push the WPS buon to enable the funcon on the camera. If there is not a WPS buon on the camera, you can also click the virtual buon to enable the PBC funcon on the web interface.
5) Click Connect.

1. Click Save.

2. Set PBC code for wireless router or AP.

3. Press the WPS or QSS buon on the wireless router or AP in 120 second to quickly complete the conncon.

4. Refer to the user guide of the router or AP to set PBC code.

5. Go to TCP/IP seng page: Conguraon → Network → Basic Conguraon → TCP/IP, and click Wlan to check the IPv4 Address and log in the device.

6. Input the IP address in the browser to access the device.

7. Add the device in client applicaon. Select IP/Domain, and input IP address and other parameters to access the device.

Use PIN on Device

The device can automatically connect the network by seng the device PIN code parameters in wireless router or AP via WPS or QSS protocols.

Steps

1. Go to TCP/IP sengs page: Conguraon → Network → Basic Conguraon → TCP/IP.
2. Select Wlan to set the parameters. Refer to TCP/IP for detailed conguraon.

iNote

For stable use of Wi-Fi, it is not recommended to use DHCP.

1. Go to Wi-Fi seng page: Conguraon → Network → Advanced Conguraon → Wi-Fi.
2. Check Enable WPS.
3. Click Generate to generate a device PIN code.
4. Refer to the user manual of wireless router or AP to input the code to the router or AP.

5. Go to TCP/IP sengs page: Conguraon → Network → Basic Conguraon → TCP/IP, and click Wlan to check the IPv4 Address and log in the device.

6. Input the IP address in the browser to access the device.

7. Add the device in client applicaon. Select IP/Domain, and input IP address and other parameters to access the device.

Use PIN on Router

The device can automatically connect the network by seng the PIN code of wireless router or AP in device via WPS or QSS protocols.

Before You Start

Get the PIN code and SSID of the router or AP.

Steps

1. Go to TCP/IP sengs page: Conguraon → Network → Basic Conguraon → TCP/IP.

2. Select Wlan to set the parameters. Refer to TCP/IP for detailed conguraon.

iNote

For stable use of Wi-Fi, it is not recommended to use DHCP.

1. Go to Wi-Fi sengs page: Conguraon → Network → Advanced Conguraon → Wi-Fi.
2. Set Wi-Fi parameters.

1) Check Enable WPS.
2) Select Use router PIN code.
3) Enter the PIN code and SSID you get from the router side in the SSID and Router PIN code eld.
4) Click Connect.

1. Click Save.

2. Go to TCP/IP seng page: Conguraon → Network → Basic Conguraon → TCP/IP, and click Wlan to check the IPv4 Address and log in the device.

3. Input the IP address in the browser to access the device.

4. Add the device in client applicaon. Select IP/Domain, and input IP address and other parameters to access the device.

7.10 Set Network Service

You can control the ON/OFF status of certain protocol as desired.

Steps

iNote

This funcon varies according to dierent models.

1. Go to Conguraon → Network → Advanced Sengs → Network Service.
2. Set network service.

WebSocket & WebSockets

WebSocket or WebSockets protocol should be enabled if you use Google Chrome 57 and its above version or Mozilla Firefox 52 and its above version to visit the device. Otherwise, live view, image capture, and digital zoom funcon cannot be used.

If the device uses HTTP, enable WebSocket.

If the device uses HTTPS, enable WebSockets and select the server cercate.

SDK Service & Enhanced SDK Service

Check Enable SDK Service to add the device to the client sware with SDK protocol.

Check Enable Enhanced SDK Service to add the device to the client soware with SDK over TLS protocol.

Note

• If you enable Enhanced SDK Service, you should select the server cercate.
• When set up conncon between the device and the client soware, it is recommended to use Enhanced SDK Service and set the communicaon in Arming Mode to encrypt the data transmission.

TLS (Transport Layer Security)

The device oers TLS1.1 and TLS1.2. Enable one or more protocol versions according to your need.

1. Click Save.

7.11 Set ONVIF

If you need to access to the device through ONVIF protocol, you can congregate the ONVIF user to enhance the network security.

Steps

1. Go to Conguraon → Network → Advanced Sengs → Integraon Protocol.
2. Check Enable ONVIF.
3. Click Add to congregate the ONVIF user.

Delete

Delete the selected ONVIF user.

Modify

Modify the selected ONVIF user.

1. Click Save.
2. Oponal: Repeat the steps above to add more ONVIF users.

7.12 Set Alarm Server

The device can send alarms to desnaon IP address or host name through HTTP, HTTPS, or ISUP protocol. The desnaon IP address or host name should support HTTP, HTTP, or ISUP data

transmission.

Steps

1. Go to Conguraon → Network → Advanced Sengs → Alarm Server.
2. Enter Desnaon IP or Host Name, URL, and Port.
3. Select Protocol.

HTTP, HTTPS, and ISUP are selectable. It is recommended to use HTTPS, as it encrypts the data transmission during communicaon.

1. Click Test to check if the IP or host is available.
2. Click Save.

7.13 Access Camera via Hik-Connect

Hik-Connect is an applicaon for mobile devices. Using the App, you can view live image, receive alarm nocaaon and so on.

Before You Start

Connect the camera to network with network cables.

Steps

1. Get and install Hik-Connect applicaon by the following ways.
   Visit hps://appstore.hikvision.com to download the applicaon according to your mobile phone system. Visit the ocial site of our company. Then go to Support → Tools → Hikvision App Store. Scan the QR code below to download the applicaon.

QR code with a red circular logo in the center, likely linking to a digital resource or website.

If errors like "Unknown app" occur during the installaon, solve the problem in two ways. Visit hps://appstore.hikvision.com/stac/help/index.html to refer to the troublesomeong.Visit hps://appstore.hikvision.com/, and click Installaon Help at the upper right corner of the interface to refer to the troublesomeong.

1. Start the applicaon and register for a Hik-Connect user account.

2. Log in aer registraon.

3. In the app, tap "+" on the upper-right corner and then scan the QR code of the camera to add the camera. You can nd the QR code on the camera or on the cover of the Quick Start Guide of the camera in the package.

4. Follow the prompts to set the network conneccon and add the camera to your Hik-Connect account.

For detailed informaon, refer to the user manual of the Hik-Connect app.

7.13.1 Enable Hik-Connect Service on Camera

Hik-Connect service should be enabled on your camera before using the service.

You can enable the service through SADP soware or Web browser.

Enable Hik-Connect Service via Web Browser

Follow the following steps to enable Hik-Connect Service via Web Browser.

Before You Start

You need to acvate the camera before enabling the service.

Steps

1. Access the camera via web browser.
2. Enter plaorm access conguraon interface. Conguraon → Network → Advanced Sengs → Plaorm Access
3. Select Hik-Connect as the Plaorm Access Mode.
4. Check Enable.
5. Click and read "Terms of Service" and "Privacy Policy" in pop-up window.
6. Create a vericaon code or change the old vericaon code for the camera.

The vericaon code is required when you add the camera to Hik-Connect service.

1. Save the sengs.

Enable Hik-Connect Service via SADP Soware

This part introduces how to enable Hik-Connect service via SADP soware of an acvated camera.

Steps

1. Run SADP soware.
2. Select a camera and enter Modify Network Parameters page.
3. Check Enable Hik-Connect.
4. Create a vericaon code or change the old vericaon code.

iNote

The vericaon code is required when you add the camera to Hik-Connect service.

1. Click and read "Terms of Service" and "Privacy Policy".
2. Conrm the sengs.

7.13.2 Set Up Hik-Connect

Steps

1. Get and install Hik-Connect applicaon by the following ways. Visit hps://appstore.hikvision.com to download the applicaon according to your mobile phone system. Visit the ocial site of our company. Then go to Support → Tools → Hikvision App Store. Scan the QR code below to download the applicaon.

QR code with a red circular logo in the center, likely linking to a digital resource or website.

iNote

If errors like "Unknown app" occur during the installaon, solve the problem in two ways. Visit hps://appstore.hikvision.com/stac/help/index.html to refer to the troublesomeong.Visit hps://appstore.hikvision.com/, and click Installaon Help at the upper right corner of the interface to refer to the troublesomeong.

1. Start the applicaon and register for a Hik-Connect user account.
2. Log in aer registraon.

7.13.3 Add Camera to Hik-Connect

Steps

1. Connect your mobile device to a Wi-Fi.
2. Log into the Hik-Connect app.
3. In the home page, tap "+" on the upper-right corner to add a camera.
4. Scan the QR code on camera body or on the Quick Start Guide cover.

iNote

If the QR code is missing or too blur to be recognized, you can also add the camera by inpung the camera's serial number.

5. Input the vericaon code of your camera.

iNote

• The required vericaon code is the code you create or change when you enable Hik-Connect service on the camera.
• If you forget the vericaon code, you can check the current vericaon code on Plaorm Access conguraon page via web browser.

6. Tap Connect to a Network buon in the popup interface.

7. Choose Wired Connecon or Wireless Connecon according to your camera funcon.

Wireless Connecon	Input the Wi-Fi password that your mobile phone has connected to, and tap Next to start the Wi-Fi conncon process. (Locate the camera within 3 meters from the router when seng up the Wi-Fi.)
Wired Connecon	Connect the camera to the router with a network cable and tap Connected in the result interface.

iNote

The router should be the same one which your mobile phone has connected to.

8. Tap Add in the next interface to nish adding.

For detailed informaon, refer to the user manual of the Hik-Connect app.

Chapter 8 Arming Schedule and Alarm Linkage

Arming schedule is a customized me period in which the device performs certain tasks. Alarm linkage is the response to the detected certain incident or target during the scheduled me.

8.1 Set Arming Schedule

Set the valid me of the device tasks.

Steps

1. Click Arming Schedule.
2. Drag the me bar to draw desired valid me.

Up to 8 periods can be congured for one day.

1. Adjust the me period.

2. Click on the selected me period, and enter the desired value. Click Save.

3. Click on the selected me period. Drag the both ends to adjust the me period.

4. Click on the selected me period, and drag it on the me bar.

5. Oponal: Click Copy to... to copy the same sengs to other days.

6. Click Save.

8.2 Linkage Method Sengs

You can enable the linkage funcons when an event or alarm occurs.

8.2.1 Trigger Alarm Output

If the device has been connected to an alarm output device, and the alarm output No. has been congured, the device sends alarm informaon to the connected alarm output device when an alarm is triggered.

Steps

1. Go to Conguraon → Event → Basic Event → Alarm Output.
2. Set alarm output parameters.

Automac Alarm

For the informaon about the conguraon, see Automac Alarm.

Manual Alarm

For the informaon about the conguraon, see Manual Alarm.

1. Click Save.

Manual Alarm

You can trigger an alarm output manually.

Steps

1. Set the manual alarm parameters.

Alarm Output No.

Select the alarm output No. according to the alarm interface connected to the external alarm device.

Alarm Name

Custom a name for the alarm output.

Delay

Select Manual.

1. Click Manual Alarm to enable manual alarm output.
2. Oponal: Click Clear Alarm to disable manual alarm output.

Automac Alarm

Set the automac alarm parameters, then the device triggers an alarm output automacally in the set arming schedule.

Steps

1. Set automac alarm parameters.

Alarm Output No.

Select the alarm output No. according to the alarm interface connected to the external alarm device.

Alarm Name

Custom a name for the alarm output.

Delay

It refers to the me duraon that the alarm output remains aer an alarm occurs.

1. Set the alarming schedule. For the informaon about the sengs, see Set Arming Schedule.
2. Click Copy to... to copy the parameters to other alarm output channels.
3. Click Save.

8.2.2 FTP/NAS/Memory Card Uploading

If you have enabled and congured the FTP/NAS/memory card uploading, the device sends the alarm informaon to the FTP server, network aached storage and memory card when an alarm is triggered.

Refer to Set FTP to set the FTP server.

Refer to Set NAS for NAS conguraon.

Refer to Set Memory Card for memory card storage conguraon.

8.2.3 Send Email

Check Send Email, and the device sends an email to the designated addresses with alarm informaon when an alarm event is detected.

For email sengs, refer to Set Email.

Set Email

When the email is congured and Send Email is enabled as a linkage method, the device sends an email nocaoon to all designated receivers if an alarm event is detected.

Before You Start

Set the DNS server before using the Email funcon. Go to Conguration → Network → Basic Sengs → TCP/IP for DNS sengs.

Steps

1. Go to email sengs page: Conguraon → Network → Advanced Sengs → Email.
2. Set email parameters.

1) Input the sender's email informaon, including the Sender's Address, SMTP Server, and SMTP Port.
2) Oponal: If your email server requires authencaon, check Authencaon and input your user name and password to log in to the server.
3) Set the E-mail Encrypon.

• When you select SSL or TLS, and disable STARTTLS, emails are sent aer encrypted by SSL or TLS. The SMTP port should be set as 465.
• When you select SSL or TLS and Enable STARTTLS, emails are sent aer encrypted by STARTTLS, and the SMTP port should be set as 25.

iNote

If you want to use STARTTLS, make sure that the protocol is supported by your email server. If you check the Enable STARTTLS while the protocol is not supported by your email sever, your email is sent with no encrypon.

4) Oponal: If you want to receive nocaon with alarm pictures, check Aached Image. The nocaon email has 3 aached alarm pictures about the event with congorable image capturing interval.
5) Input the receiver's informaon, including the receiver's name and address.
6) Click Test to see if the funcon is well congured.

1. Click Save.

8.2.4 Nofy Surveillance Center

Check Nofy Surveillance Center, the alarm informaon is uploaded to the surveillance center when an alarm event is detected.

8.2.5 Trigger Recording

Check Trigger Recording, and the device records the video about the detected alarm event. For recording sengs, refer to Video Recording and Picture Capture

8.2.6 Flashing Light

Aer enabling Flashing Light and seng the Flashing Light Alarm Output, the light ashes when an alarm event is detected.

Set Flashing Alarm Light Output

When events occur, the ashing light on the device can be triggered as an alarm.

Steps

1. Go to Conguraon → Event → Basic Event → Flashing Alarm Light Output.
2. Set Flashing Duraon, Flashing Frequency and Brightness.

Flashing Duraon

The me that the ashing lasts when one alarm happens.

Flashing Frequency

The rate at which the light ashes. High frequency, medium frequency, low frequency, and normally on are selectable.

Brightness

The brightness of the light.

1. Set the arming schedule. See Set Arming Schedule for details.
2. Click Save.

iNote

Only certain device models support the funcon.

8.2.7 Audible Warning

Aer enabling Audible Warning and seng Audible Alarm Output, the built-in speaker of the device or connected external speaker plays warning sounds when an alarm happens. For audible alarm output sengs, refer to Set Audible Alarm Output.

Note

The funcon is only supported by certain camera models.

Set Audible Alarm Output

When the device detects targets in the detecon area, audible alarm can be triggered as a warning.

Steps

1. Go to Conguraon → Event → Basic Event → Audible Alarm Output.

2. Select Sound Type and set related parameters.

3. Select Prompt and set the alarm mes you need.

4. Select Warning and its contents. Set the alarm mes you need.

5. Select Custom Audio. You can select a custom audio le from the drop-down list. If no le is available, you can click Add to upload an audio le that meets the requirement. Up to three audio les can be uploaded.

6. Oponal: Click Test to play the selected audio le on the device.

7. Set arming schedule for audible alarm. See Set Arming Schedule for details.

8. Click Save.

Note

The funcon is only supported by certain device models.

Chapter 9 System and Security

It introduces system maintenance, system sengs and security management, and explains how to congure relevant parameters.

9.1 View Device Informaon

You can view device informaon, such as Device No., Model, Serial No. and Firmware Version. Enter Conguraon → System → System Sengs → Basic Informaon to view the device informaon.

9.2 Search and Manage Log

Log helps locate and troubleshoot problems.

Steps

1. Go to Conguraon → System → Maintenance → Log.
2. Set search conditions Major Type, Minor Type, Start Time, and End Time.
3. Click Search.
   The matched log les will be displayed on the log list.
4. Oponal: Click Export to save the log les in your computer.

9.3 Simultaneous Login

The administrator can set the maximum number of users logging into the system through web browser simultaneously.

Go to Conguraon → System → User Management, click General and set Simultaneous Login.

9.4 Import and Export Conguraon File

It helps speed up batch conguraon on other devices with the same parameters.

Enter Conguraon → System → Maintenance → Upgrade & Maintenance. Choose device parameters that need to be imported or exported and follow the instrucons on the interface to import or export conguraon le.

9.5 Export Diagnose Informaon

Diagnose informaon includes running log, system informaon, hardware informaon.

Go to Conguraon → System → Maintenance → Upgrade & Maintenance, and click Diagnose

Informaon to export diagnose informaon of the device.

9.6 Reboot

You can reboot the device via browser.

Go to Conguraon → System → Maintenance → Upgrade & Maintenance, and click Reboot.

1. Go to Conguraon → System → Maintenance → Upgrade & Maintenance.
2. Click Restore or Default according to your needs.

Restore

Reset device parameters, except user informaon, IP parameters and video format to the default sengs.

Default

Reset all the parameters to the factory default.

Be careful when using this funcon. Aer reseng to the factory default, all the parameters are reset to the default sengs.

9.8 Upgrade

Before You Start

You need to obtain the correct upgrade package.

DO NOT disconnect power during the process, and the device reboots automacally aer upgrade.

Steps

1. Go to Conguraon → System → Maintenance → Upgrade & Maintenance.
2. Choose one method to upgrade.

Firmware

Locate the exact path of the upgrade le.

Firmware Directory

Locate the directory which the upgrade le belongs to.

1. Click Browse to select the upgrade le.
2. Click Upgrade.

9.9 View Open Source Soware License

Go to Conguraon → System → System Sengs → About Device, and click View Licenses.

9.10 Time and Date

You can congregate me and date of the device by congrating me zone, me synchronizaon and Daylight Saving Time (DST).

9.10.1 Synchronize Time Manually

Steps

1. Go to Conguraon → System → System Sengs → Time Sengs.
2. Select Time Zone.
3. Click Manual Time Sync..
4. Choose one me synchronizaon method.

- Select Set Time, and manually input or select date and me from the pop-up calendar.

Check Sync. with computer me to synchronize the me of the device with that of the local PC.

1. Click Save.

9.10.2 Set NTP Server

You can use NTP server when accurate and reliable me source is required.

Before You Start

Set up a NTP server or obtain NTP server informaon.

Steps

1. Go to Conguraon → System → System Sengs → Time Sengs.
2. Select Time Zone.
3. Click NTP.
4. Set Server Address, NTP Port and Interval.

Server Address is NTP server IP address.

1. Click Test to test server conncon.
2. Click Save.

9.10.3 Synchronize Time by Satellite

Note

This funcon varies depending on dierent devices.

Steps

1. Enter Conguraon → System → System Sengs → Time Sengs.
2. Select Satellite Time Sync..
3. Set Interval.
4. Click Save.

9.10.4 Set DST

If the region where the device is located adopts Daylight Saving Time (DST), you can set this funcon.

Steps

1. Go to Conguraon → System → System Sengs → DST.
2. Check Enable DST.
3. Select Start Time, End Time and DST Bias.
4. Click Save.

9.11 Set RS-485

RS-485 is used to connect the device to external device. You can use RS-485 to transmit the data between the device and the computer or terminal when the communicaon distance is too long.

Before You Start

Connect the device and computer or terminal with RS-485 cable.

Steps

1. Go to Conguraon → System → System Sengs → RS-485.
2. Set the RS-485 parameters.

Note

You should keep the parameters of the device and the computer or terminal all the same.

1. Click Save.

9.12 Set RS-232

RS-232 can be used to debug device or access peripheral device. RS-232 can realize communicaon between the device and computer or terminal when the communicaon distance is short.

Before You Start

Connect the device to computer or terminal with RS-232 cable.

Steps

1. Go to Conguraon → System → System Sengs → RS-232.
2. Set RS-232 parameters to match the device with computer or terminal.
3. Click Save.

9.13 External Device

For the device supporting external devices, including the supplement light, wiper on the housing and the LED light, you can control them via the Web browser when it is used with the housing. External devices vary with models.

Brightness

Adjust Low Beam Brightness and High Beam Brightness according to the actual scene.

Timing

The LED light will be turned on by the schedule you set. You should set Start Time and End Time.

Auto

The LED light will be turned on according to the environment illuminaon.

9.13.1 Supplement Light Sengs

You can set supplement light and refer to the actual device for relevant parameters.

Smart Supplement Light

Smart supplement light avoids over exposure when the supplement light is on.

Supplement Light Mode

When the device supports supplement light, you can select supplement light mode.

IR Mode

IR light is enabled.

White Light Mode

White light is enabled.

Mix Mode

Both IR light and white light are enabled.

0

Supplement light is disabled.

Brightness Adjustment Mode

Auto

The brightness adjusts according to the actual environment automacally.

Manual

You can drag the slider or set value to adjust the brightness.

9.14 Security

You can improve system security by seng security parameters.

9.14.1 Authencaon

You can improve network access security by seng RTSP and WEB authencaon.

Go to Conguraon → System → Security → Authencaon to choose authencaon protocol and method according to your needs.

RTSP Authencaon

Digest and digest/basic are supported, which means authencaon informaon is needed when RTSP request is sent to the device. If you select digest/basic, it means the device supports digest or basic authencaon. If you select digest, the device only supports digest authencaon.

RTSP Digest Algorithm

MD5, SHA256 and MD5/SHA256 encrypted algorithm in RTSP authencaon. If you enable the digest algorithm except for MD5, the third-party plaorm might not be able to log in to the device or enable live view because of compatibility. The encrypted algorithm with high strength is recommended.

WEB Authencaon

Digest and digest/basic are supported, which means authencaon informaon is needed when WEB request is sent to the device. If you select digest/basic, it means the device supports digest or basic authencaon. If you select digest, the device only supports digest authencaon.

WEB Digest Algorithm

MD5, SHA256 and MD5/SHA256 encrypted algorithm in WEB authencaon. If you enable the digest algorithm except for MD5, the third-party plaorm might not be able to log in to the device or enable live view because of compatibility. The encrypted algorithm with high strength is recommended.

Note

Refer to the specific content of protocol to view authencaon requirements.

9.14.2 Set IP Address Filter

IP address lter is a tool for access control. You can enable the IP address lter to allow or forbid the visits from the certain IP addresses.

IP address refers to IPv4.

Steps

1. Go to Conguraon → System → Security → IP Address Filter.
2. Check Enable IP Address Filter.
3. Select the type of IP address Iter.

Forbidden

IP addresses in the list cannot access the device.

Allowed

Only IP addresses in the list can access the device.

1. Edit the IP address Iter list.

Add

Add a new IP address or IP address range to the list.

Modify

Modify the selected IP address or IP address range in the list.

Delete

Delete the selected IP address or IP address range in the list.

1. Click Save.

9.14.3 Set HTTPS

HTTPS is a network protocol that enables encrypted transmission and identity authencaon, which improves the security of remote access.

Steps

1. Go to Conguraon → Network → Advanced Sengs → HTTPS.
2. Check Enable to access the camera via HTTP or HTTPS protocol.
3. Check Enable HTTPS Browsing to access the camera only via HTTPS protocol.
4. Select the Server Cercate.
5. Click Save.

Note

If the funcon is abnormal, check if the selected cercate is abnormal in Cercate Management.

9.14.4 Set QoS

QoS (Quality of Service) can help improve the network delay and network congestion by sending the priority of data sending.

Note

QoS needs support from network device such as router and switch.

Steps

1. Go to Conguraon → Network → Advanced Conguration → QoS.
2. Set Video/Audio DSCP, Alarm DSCP and Management DSCP.

Note

Network can identify the priority of data transmission. The bigger the DSCP value is, the higher the priority is. You need to set the same value in router while conguraon.

1. Click Save.

9.14.5 Set IEEE 802.1X

IEEE 802.1x is a port-based network access control. It enhances the security level of the LAN/WLAN. When devices connect to the network with IEEE 802.1x standard, the authencaon is needed.

Go to Conguraon → Network → Advanced Sengs → 802.1X, and enable the funcon. Set Protocol and EAPOL Version according to router informaon.

Protocol

EAP-LEAP, EAP-TLS, and EAP-MD5 are selectable

EAP-LEAP and EAP-MD5

If you use EAP-LEAP or EAP-MD5, the authencaon server must be congured. Register a user name and password for 802.1X in the server in advance. Input the user name and password for authencaon.

EAP-TLS

If you use EAP-TLS, input Idenfy, Private Key Password, and upload CA Cercate, User Cercate and Private Key.

EAPOL Version

The EAPOL version must be idencal with that of the router or the switch.

9.14.6 Control Timeout Sengs

If this funcon is enabled, you will be logged out when you make no operaon (not including

viewing live image) to the device via web browser within the set meout period. Go to Conguraon → System → Security → Advanced Security to complete sengs.

9.14.7 Search Security Audit Logs

You can search and analyze the security log les of the device so as to nd out the illegal intrusion and troubleshoot the security events.

Steps

iNote

This funcon is only supported by certain camera models.

1. Go to Conguraon → System → Maintenance → Security Audit Log.
2. Select log types, Start Time, and End Time.
3. Click Search.

The log les that match the search conditions will be displayed on the Log List.

1. Oponal: Click Export to save the log les to your computer.

9.14.8 Security Reinforcement

Security reinforce is a soluon to enhance network security. With the funcon enabled, risky funcons, protocols, ports of the device are disabled and more secured alternate funcons, protocols and ports are enabled.

Go to Conguraon → System → Security → Advanced Security. Check Security Reinforcement, and click Save.

9.15 Cercate Management

It helps to manage the server/client cercates and CA cercate, and to send an alarm if the cercates are close to expiry date, or are expired/abnormal.

9.15.1 Create Self-signed Cercate

Steps

1. Click Create Self-signed Cercate.
2. Follow the prompt to enter Cercate ID, Country, Hostname/IP, Validity and other parameters.

iNote

The cercate ID should be digits or leers and be no more than 64 characters.

1. Click OK.
2. Oponal: Click Export to export the cercate, or click Delete to delete the cercate to recreate a cercate, or click Cercate Properes to view the cercate details.

9.15.2 Create Cercate Request

Before You Start

Select a self-signed cercate.

Steps

1. Click Create Cercate Request.
2. Enter the related informaon.
3. Click OK.

9.15.3 Import Cercate

Steps

1. Click Import.
2. Click Create Cercate Request.
3. Enter the Cercate ID.
4. Click Browser to select the desired server/client cercate.
5. Select the desired import method and enter the required informaon.
6. Click OK.
7. Oponal: Click Export to export the cercate, or click Delete to delete the cercate to recreate a cercate, or click Cercate Properes to view the cercate details.

iNote

• Up to 16 cercates are allowed.
• If certain funcons are using the cercate, it cannot be deleted.
• You can view the funcons that are using the certificate in the funcons column.
• You cannot create a cercate that has the same ID with that of the exisng cercate and import a cercate that has the same content with that of the exisng cercate.

9.15.4 Install Server/Client Cercate

Steps

1. Go to Conguraon → System → Security → Cercate Management.
2. Click Create Self-signed Cercate, Create Cercate Request and Import to install server/client cercate.

Create self-signed

Refer to Create Self-signed Cercate

cercate

Create cercate request

Refer to Create Cercate Request

Import Cercate

Refer to Import Cercate

9.15.5 Install CA Cercate

Steps

1. Click Import.
2. Enter the Cercate ID.
3. Click Browser to select the desired server/client cercate.
4. Select the desired import method and enter the required informaon.
5. Click OK.

Note

Up to 16 cercates are allowed.

9.15.6 Enable Cercate Expiraon Alarm

Steps

1. Check Enable Cercate Expiraon Alarm. If enabled, you will receive an email or the camera links to the surveillance center that the cercate will expire soon, or is expired or abnormal.
2. Set the Remind Me Before Expiraon (day), Alarm Frequency (day) and Detecon Time (hour).

Note

- If you set the reminding day before expiraon to 1, then the camera will remind you the day before the expiraon day. 1 to 30 days are available. Seven days is the default reminding days.

- If you set the reminding day before expiraon to 1, and the detecon me to 10:00, and the cercate will expire in 9:00 the next day, the camera will remind you in 10:00 the rst day.

1. Click Save.

9.16 User and Account

9.16.1 Set User Account and Permission

The administrator can add, modify, or delete other accounts, and grant dierent permission to dierent user levels.

! Cauon

To increase security of using the device on the network, please change the password of your account regularly. Changing the password every 3 months is recommended. If the device is used in high-risk environment, it is recommended that the password should be changed every month or week.

Steps

1. Go to Conguraon → System → User Management → User Management.
2. Click Add. Enter User Name, select Level, and enter Password. Assign remote permission to users based on needs.

Administrator

The administrator has the authority to all operaons and can add users and operators and assign permission.

User

Users can be assigned permission of viewing live video, seng PTZ parameters, and changing their own passwords, but no permission for other operaons.

Operator

Operators can be assigned all permission except for operaons on the administrator and creang accounts.

Modify Select a user and click Modify to change the password and permission.

Delete Select a user and click Delete.

iNote

The administrator can add up to 31 user accounts.

1. Click OK.

9.16.2 Simultaneous Login

The administrator can set the maximum number of users logging into the system through web browser simultaneously.

Go to Conguraon → System → User Management, click General and set Simultaneous Login.

9.16.3 Online Users

The informaon of users logging into the device is shown.

Go to Conguraon System User Management Online Users to view the list of online users.

Chapter 10 Allocate VCA Resource

VCA resource oers you opons to enable certain VCA funcons according to actual needs. It helps allocate more resources to the desired funcons.

Steps

1. Go to Conguraon → System → System Sengs → VCA Resource.
2. Select desired VCA funcon.
3. Save the sengs.

Note

Some VCA funcons are mutually exclusive. When certain funcon or funcons are selected and saved, others will not be hidden.

10.1 Face Capture

The device can capture the face that appears in the congured area, and the face informaon will be uploaded with the captured picture as well.

Note

• For device that supports face capture, you need to enable the funcon in VCA Resource. Refer to Allocate VCA Resource for details.
• Face capture is only supported by certain models.

10.1.1 Set Face Capture

The face that appears in the congured area can be captured.

Before You Start

To enable the funcon, go to VCA Resource and select Face Capture.

Steps

1. Go to Conguraon → Face Capture.
2. For shield region sengs, refer to Set Shield Region.
3. Select Rule and check Rule.
4. Click to draw the detecon area. It is recommended that the drawn area occupies 1/2 to 2/3 of the live view image.
5. Click and draw a rectangle based on the pupil distance of the face on the live view.

Street scene with a parked car, a red umbrella, and a paved road with directional arrows (no readable text or symbols)

Figure 10-1 Set face capture

The device will detect whether there is a human face in the area by the set minimum pupil distance.

1. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
2. Click Save.
3. For overlay and capture sengs, refer to Overlay and Capture. For advanced parameters sengs, refer to Face Capture Algorithms Parameters.

Result

You can view and download captured face images in Picture. Refer to View and Download Picture for details.

10.1.2 Overlay and Capture

Choose to congure capture parameters and the informaon you want to display on stream and picture.

Display VCA info. on Stream

Display smart informaon on stream, including the target and rules informaon.

Display Target info. on Alarm Picture

Overlay the alarm picture with target informaon.

Target Picture Sengs

Custom, Head Shot, Half-Body Shot and Full-Body Shot are selectable.

If you select Custom, you can customize width, head height and body height as required.

You can check Fixed Value to set the picture height.

Background Picture Sengs

Comparing to target picture, background picture is the scene image oers extra environmental

informaon. You can set the background picture quality and resoluon. If the background image need to be uploaded to surveillance center, check Background Upload.

People Counng Overlay

Select ow overlay type.

Select the daily reset me. Click Manual Reset if you want to reset right now.

Camera

You can set Device No. and Camera Info. for the camera, which can be overlaid on captured picture.

Text Overlay

You can check desired items and adjust their order to display on captured pictures by .↓ ↑ The content of Device No. and Camera Info should be on the same page.

10.1.3 Face Capture Algorithms Parameters

It is used to set and optimize the parameters of the algorithm library for face capture. Go to Conguraon → Face Capture → Advanced Conguraon → Parameters.

Face Capture Version

It lists the version of the algorithms library.

Detecon Parameters

Generaon Speed

The speed to identify a target. The higher the value, the faster the target will be recognized. Seng the value quite low, and if there was a face in the conoured area from the start, this face will not be captured. It can reduce the misinformaon of the faces in the wall painng or posters. The default value of 3 is recommended.

Sensitivity

The sensitivity to identify a target. The higher the value is, the easier a face will be recognized, and the higher possibility of misinformaon would be. The default value of 3 is recommended.

Capture Parameters

Best Shot

The best shot aer target leave the detecon area.

Capture Times

It refers to the capture mes a face will be captured during its stay in the congured area. The default value is 1.

Capture Interval

The frame interval to capture a picture. If you set the value as 1, which is the default value, it means the camera captures the face in every frame.

Capture Threshold

It stands for the quality of face to trigger capture and alarm. Higher value means beer quality should be met to trigger capture and alarm.

Quick Shot

You can dene quick shot threshold and max. capture interval.

Quick Shot Threshold

It stands for the quality of face to trigger quick shot.

Face Exposure

Check the checkbox to enable the face exposure.

Reference Brightness

The reference brightness of a face in the face exposure mode. If a face is detected, the camera adjusts the face brightness according to the value you set. The higher the value, the brighter the face is.

Minimum Duraon

The minimum duraon of the camera exposures the face. The default value is 1 minute.

Note

If the face exposure is enabled, please make sure the WDR funcon is disabled, and the manual iris is selected.

Face Filtering Time

It means the me interval between the camera detectng a face and taking a capture acon. If the detected face stays in the scene for less than the set ltering me, capture will not be triggered. For example, if the face ltering me is set as 5 seconds, the camera will capture the detected face when the face keeps staying in the scene for 5 seconds.

Note

The face ltering me (longer than 0s) may increase the possibility of the actual capture mes less than the set value above.

Restore Default

Click Restore to restore all the sengs in advanced conguraon to the factory default.

10.1.4 Set Shield Region

The shield region allows you to set the specific region in which the set smart funcon rule is invalid.

Steps

1. Select Shield Region.

2. Click to draw shield area. Repeat this step above to set more shield regions.

3. Oponal: Click to delete the drawn areas.
4. Click Save.

10.2 Road Trac

Motor vehicle, non-motor vehicle, and pedestrian can be detected and captured when they enter the set lane to realize rapid detecon and comprehensive surveillance of the targets on road.

Note

Only certain device models support this funcon.

10.2.1 Set Vehicle Detecon

The vehicle that enters the set lane can be detected and the picture of the vehicle and its license plate can be captured and stored. Alarm will be triggered and capture can be uploaded.

Before You Start

Go to Conguraon → System → System Sengs → VCA Resources, and select Road Trac.

Steps

1. Go to Conguraon → Road Trac → Detecon Conguraon, and select Vehicle Detecon as detecon type.
2. Check Enable.
3. Select the lane number.
4. Click and drag the lane line to set its posion, or click and drag the line end to adjust the length and angle of the line.
5. Adjust the zoom rao of the camera so that the size of the vehicle in the image is close to that of the red frame. Only the posion of red frame is adjustable.

Note

Only 1 license plate can be captured at one me for each lane.

1. Select Region and Country/Region.
2. Select the license plate informaon upload mode.

Entrance/Exit

The license plate informaon of the detected vehicle will be uploaded when the vehicle passes the detecon area and triggers the detecon in entrance/exit.

City Street

The license plate informaon of the detected vehicle will be uploaded when the vehicle passes the detecon area and triggers the detecon in city streets.

Alarm Input

It means the input alarm will trigger a license plate capture and recognition acon.

iNote

When Alarm Input is selected, the alarm input A<-1 will automatically be assigned to trigger vehicle detecon and its alarm type is always NO. If the A<-1 alarm input is used to trigger vehicle detecon, it can not be used for other basic events. When Alarm Input is selected and saved, previously congured linkage method for A<-1 will be canceled.

1. Select the Detecon mode.

2. Check Remove Duplicated License Plates ans set the Time Interval. The default me interval is 4 minutes.

iNote

Up to 8 license plates are supported.

1. Set arming schedule and linkage method. For the arming schedule setngs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.

2. Click Save.

10.2.2 Set Mixed-Trac Detecon Rule

The motor vehicle, non-motor vehicle, and pedestrian that enter the set lane can be detected, and the picture of targets can be captured and stored. Alarm will be triggered and capture can be uploaded.

Before You Start

Go to Conguraon → System → System Sengs → VCA Resources, ad select Road Trac.

Steps

1. Go to Conguraon → Road Trac → Detecon Conguraon, and select Mixed-trac Detecon as detecon type.
2. Check Enable.
3. Select the lane number.
4. Select Region and Country/Region.
5. Set arming schedule and linkage method. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
6. Click Save.

10.2.3 Uploading Pictures Sengs

You can set the image parameters of the captured images in vehicle detecon and mixed-trac

detecon.

Go to Conguraon → Road Traic → Picture.

Picture Quality

The larger the value is, the clearer the picture is, but larger storage space is also required.

Picture Size

The larger the value is, the larger the storage space is needed. And the level of network transmission requirement is also higher.

Overlay

You can overlay camera, device or vehicle informaon on the captured image and click to adjust the order of overlay texts.

For camera sengs, go to Conguraon → Road Trac → Camera to set relevant parameters and click Save.

10.2.4 Camera Sengs

You can set the parameters of each camera for beer management.

Go to Conguraon → Road Trac → Camera to set relevant parameters and click Save.

10.2.5 Import or Export Blacklist & Whitelist

You can import and export the blacklist and whitelist as desired, and check the list content in this interface.

Steps

1. Click Browse to open the PC local directory.
2. Find the blacklist & whitelist le and click to select it. Click Open to conrm.

iNote

The le to import should corresponds with the le template that is required by the camera. You are recommended to export an empty Blacklist & Whitelist le from the camera as the template and ll in the content. The le should be in the .xls format and the cell format should be Text.

1. Click Import to import the selected le.
2. Click Export to open the PC local directory.
3. Select a directory in your PC local directory.
4. Name the le in the le name text led.
5. Click Save.

10.3 Mul-Target-Type Detecon

Mul-Target-Type Detecon is to detect, capture and upload data of targets in mulple types,

such as human face, human body, and vehicle.

iNote

For certain device models, you need to enable Mul-Target-Type Detecon on VCA Resource page rst.

10.3.1 Set Mul-Target-Type Detecon Rule

Aer seng the mul-target-type detecon rules and algorithm parameters, the device captures targets of mulple types and triggers linkage acons automacally.

Steps

1. Go to Conguraon → Mul-Target-Type Detecon → Rule.
2. Check Rule.
3. Click, and draw a detecon area on live image.
4. Enter the min. pupil distance in the text eld, or click to draw min. pupil distance.

Min. Pupil Distance

The min. pupil distance refers to the minimum area between two pupils, and it is basic for the device to recognize a face.

1. Set arming schedule. See Set Arming Schedule.
2. Set linkage method. See Linkage Method Sengs.
3. Click Save.

What to do next

Go to Picture to search and view the captured pictures.

Go to Smart Display to see currently captured target pictures.

10.3.2 Overlay and Capture

Choose to congregate capture parameters and the informaon you want to display on stream and picture.

Display VCA info. on Stream

Display smart informaon on stream, including the target and rules informaon.

Display Target info. on Alarm Picture

Overlay the alarm picture with target informaon.

Target Picture Sengs

Custom, Head Shot, Half-Body Shot and Full-Body Shot are selectable.

iNote

If you select Custom, you can customize width, head height and body height as required.

You can check Fixed Value to set the picture height.

Background Picture Sengs

Comparing to target picture, background picture is the scene image oers extra environmental informaon. You can set the background picture quality and resoluon. If the background image need to be uploaded to surveillance center, check Background Upload.

People Counng Overlay

Select ow overlay type.

Select the daily reset me. Click Manual Reset if you want to reset right now.

Camera

You can set Device No. and Camera Info. for the camera, which can be overlaid on captured picture.

Text Overlay

You can check desired items and adjust their order to display on captured pictures by .↓ ↑ The content of Device No. and Camera Info should be on the same page.

10.3.3 Mul-Target-Type Detecon Algorithm Parameters

It is used to set and optimize the parameters of the algorithm library for Mul-Target-Type Detecon.

Go to the Conguraon → Mul-Target-Type Detecon → Advanced Conguraon for conguraon.

HMS Version

It refers to the current algorithm version, which cannot be edited.

Restore Defaults

Click Restore to restore all the sengs in advanced conguraon to the factory default.

Detecon Parameters

Generaon Speed

It is the speed of deciding whether an object in detecon area is a target or not. The higher the value is, the faster the target will be detected. The default value is recommended.

Sensitivity

It is the sensitivity of recognizing a target. The higher the value is, the easier a target will be recognized, and the higher possibility of misinformaon would be. The default value is recommended.

Capture Parameters

Best Shot

Capture Threshold

It refers for the quality of face to trigger capture and alarm. Higher value means beer quality

should be met to trigger capture and alarm.

Face Exposure

Enable the funcon, and the device automacally adjusts exposure level when human faces appear in the scene.

Reference Brightness

It refers to the reference brightness of a face in the face exposure mode. If a face in the actual scene is brighter than the set reference brightness, the device lower the exposure level. If a face in the actual scene is darker than the set reference, the device increases the exposure level.

Minimum Duraon

The extra me the device keeps the face exposure level aer the face disappears in the scene.

Face Filtering Time

It means the me interval between the camera detectng a face and taking a capture acon. If the detected face stays in the scene for less than the set ltering me, capture will not be triggered. For example, if the face ltering me is set as 5 seconds, the camera will capture the detected face when the face keeps staying in the scene for 5 seconds.

10.3.4 Set Shield Region

The shield region allows you to set the specific region in which the set smart funcon rule is invalid.

Steps

1. Select Shield Region.
2. Click ☐ to draw shield area. Repeat this step above to set more shield regions.
3. Oponal: Click to delete the drawn areas.
4. Click Save.

10.4 Face Counng

Face counting detecon can remove the duplicate faces and calculate the number of objects entered or exited a certain congured area.

Note

• For certain device models, you need to select Face Counng on VCA Resource page rst.
• Only certain camera models support this funcon.

10.4.1 Set Face Counng Detecon Rule

Aer seng the face counting detecon rules and algorithm parameters, the device captures targets and triggers linkage acons automacally.

Steps

1. Go to Conguraon → Face Counng → Rule.
2. Check Rule.
3. Enter the min. pupil distance in the text eld, or click to draw the min. pupil distance. The distance of the drawn pupil will be displayed on the box below the live view.

Min. Pupil Distance

The min. pupil distance refers to the minimum square size composed by the area between two pupils, and it is the basic standard for a camera to identify a target.

1. Enter the max. pupil distance in the text eld, or click to draw the max. pupil distance.

Max. Pupil Distance

The max. pupil distance refers to the maximum square size composed by the area between two pupils, and it is the basic standard for a camera to identify a target.

1. Click ☐ to draw the detecon area. Draw an area by le-clicking end-points in the live view window, and right-clicking to nish the area drawing.

2. Click to draw the detecon line. The arrow shows entering direcon, you can click to change the direcon.

3. If the target crosses the counting area along the entering direcon and crosses the detecon line, then it is counted as the entering number.

4. If the target crosses the counting area along the exing direcon and crosses the detecon line, then it is counted as the exing number.

5. Click and to draw region A and B. Make sure the two areas don't overlap. You can click to change the direcon.

6. If the target enters from A region to B region, then it is counted as the entering number.

7. If the target enters from B region to A region, then it is counted as the exing number.

8. Set arming schedule. See Set Arming Schedule.

9. Set linkage method. See Linkage Method Sengs.

10.4.2 Overlay and Capture

Choose to congregate capture parameters and the informaon you want to display on stream and picture.

Display VCA info. on Stream

Display smart informaon on stream, including the target and rules informaon.

Display Target info. on Alarm Picture

Overlay the alarm picture with target informaon.

Target Picture Sengs

Custom, Head Shot, Half-Body Shot and Full-Body Shot are selectable.

iNote

If you select Custom, you can customize width, head height and body height as required.

You can check Fixed Value to set the picture height.

Background Picture Sengs

Comparing to target picture, background picture is the scene image oers extra environmental informaon. You can set the background picture quality and resoluon. If the background image need to be uploaded to surveillance center, check Background Upload.

People Counng Overlay

Select ow overlay type.

Select the daily reset me. Click Manual Reset if you want to reset right now.

Camera

You can set Device No. and Camera Info. for the camera, which can be overlaid on captured picture.

Text Overlay

You can check desired items and adjust their order to display on captured pictures by .↓ ↑ The content of Device No. and Camera Info should be on the same page.

10.4.3 Face Counng Algorithm Parameters

It is used to set and optimize the parameters of the algorithm parameters for Face Counng.

iNote

These funcons vary according to dierent models.

Face Capture Mode

It refers to the current algorithm version, which cannot be edited.

Best Shot

The best shot aer the target leaves the detecon area.

Capture Times

It refers to the capture mes a face will be captured during its stay in the congured area. The default value is 1.

Capture Threshold

It refers to the quality of face to trigger capture and alarm. Higher value means beer quality should be met to trigger capture and alarm.

Face Exposure

The device adjusts the face brightness when it detects face in the image.

Reference Brightness

The reference brightness of a face in the face exposure mode. If a face is detected, the camera adjusts the face brightness according to the value you set. The higher the value, the brighter the face is.

Min. Duraon

The minimum duraon of the camera exposes the face.

iNote

If the face exposure is enabled, make sure the WDR funcon is disabled, and the manual iris is selected.

Real-Time Update Data

Aer enabled, the real-me people counting data will be uploaded to the plaorm.

Data Stascs Cycle

Select the data stascs cycle as required.

Algorithm Validity

The higher the value is, the more difficult it is to detect the target, but the higher the detector accuracy would be.

Restore Defaults

Click Restoreto restore all the sengs in advanced conguraon to the factory defaults.

10.4.4 View Face Counng Result

Steps

1. Go to Applicaon.
2. Set search condition and click Counng.
   Matched results are shown in Face Picture Comparison Stascs and People Counng Stascsarea.

10.5 Queue Management

It is used to count queuing-up people number and waiing me of each person.

iNote

Queue management is only supported by certain models.

10.5.1 Set Regional People Queuing-Up

It is used to count queuing-up persons in dened regions. Alarms are triggered when the alarm threshold condion and the alarm trigger are both met.

Before You Start

To enable the funcon, go to VCA Resource, and select Queue Management.

Steps

1. Go to Conguraon → Queue Management.
2. Select Regional People Queuing-Up.
3. Click Add Region to draw the detecon area and set Region Name and Alarm Interval. Repeat this step above to set more areas.

Alarm Interval

During the set alarm interval, alarms of the same type only trigger one nocaon.

17-23-2018 Tue. 11:46:58 Region 1/28 Photo Box Region 1 Camera 01

Figure 10-2 Set Regional People Queuing-Up

1. Oponal: Check OSD to display the region name and its real-me queuing-up people number.
2. Set Alarm threshold. An alarm is triggered when the alarm threshold condion is met.
3. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
4. Click Save.

10.5.2 Set Waing Time Detecon

It is used to count the waiing me of each person that enters the detecon area. Alarms are triggered when the alarm threshold condion and the alarm trigger are both met.

Before You Start

To enable the funcon, go to VCA Resource, and select Queue Management.

Steps

1. Go to Conguraon → Queue Management.
2. Select Waing Time Detecon.
3. Click Add Region to draw the detector area and set Region Name and Alarm Interval. Repeat this step above to set more areas.

Alarm Interval

During the set alarm interval, alarms of the same type only trigger one nocoon

11-23:2018 Tue 11:46:58 Region 1/28 Negative Region 1 Camera 01

Figure 10-3 Set Waing Time Detecon

1. Set Alarm threshold. An alarm is triggered when the alarm threshold condion is met.
2. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
3. Click Save.
4. Oponal: Enable Display POS Informaon and Rule in Conguraon → Local.

The detecon area and the me people staying in the detecon area can be viewed on the live view.

10.5.3 Queue Management Stascs

Queue management supports data analysis and report output.

Before You Start

For queue management sengs, refer to Set Regional People Queuing-Up and Set Waing Time Detecon.

• Select Queuing-Up Time Analysis and Regional Comparison to compare queuing-up people number of dierent regions.
• Select Queuing-Up Time Analysis and Mul-Level Comparison to compare queuing-up people number of dierent waing me levels.
• Select Queue Status Analysis and Regional Comparison to compare the me and duraon that a queue stays at a certain length in dierent regions.
• Select Queue Status Analysis and Mul-Level Comparison to compare the me and duraon of

the queue at dierent queue length levels.

Steps

iNote

With an on-board memory card installed, the device can save up to one mouth's data. With NO memory card installed, the device can only save up to one week's data.

1. Select the analysis mode.

Queuing-Up Time Analysis

Queuing-Up me analysis calculates people number of dierent waing me levels.

Queue Status Analysis

Queue status analysis calculates the me and duraon that a queue stays a certain length.

1. Select Stasc Type.

Regional Comparison

Mulple regions and one level can be selected for analysis, and an analysis chart can be drawn.

Mul-Level Comparison

Mulple levels and regions can be selected for analysis, and one analysis chart is drawn for each region.

1. Check one or more regions.
2. Set the queue length level. Check one or more desired range checkboxes and input values.
3. Select Report Type and Stascs Time.
4. Click Counng to generate the report.

10.6 Counng

It helps to calculate the number of people entering or exing a certain congured area.

iNote

Counng is only supported by certain models.

10.6.1 Set Counng

It is used to calculate the objects entering and exiting the region, alarm events, and upload data.

Steps

1. Go to Conguraon → Counng.

2. Check Enable Counng.

3. Oponal: Check Enable OSD Overlay, and the real-me number of people entering and exing the region is displayed on the live video.

iNote

The overlay informaon only counts the number of the current day. The number is cleared when the device is restarted or midnight comes. You can also click (to clear the number manually.

1. Set the detecon line and the objects across the line will be detected and counted.

/

Draw a detecon line.

×

Delete the detecon line.

1L

Change the direcon.

#OSD#

Figure 10-4 Set Counng

1. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
2. Click Save.

10.6.2 View Counng Stascs

You can view and export the counting stascs stored in device or memory card.

Before You Start

Go to Set Counng to set queue management rst.

Steps

1. Go to Applicaon.
2. Select Report Type.
3. Select Stascs Type.

4. Select Start Time.

5. Click Counng.

6. Oponal: Click Export to export the counng stascs.

The counting stascs can be viewed in table, line chart, and bar chart.

10.7 Hard Hat Detecon

This funcon detects targets in the set monitoring region who do not wear the hard hat and triggers an alarm.

Note

Only certain device models support the funcon.

10.7.1 Set Hard Hat Detecon

Before You Start

Go to Conguraon → System → System Sengs → VCA Resources to enable Hard Hat Detecon.

Steps

1. Go to Conguraon → Hard Hat Detecon, and check Enable Hard Hat Detecon.
2. Oponal: Set Target Generaon Speed.

Target Generaon Speed

It refers to the target generaon speed of the face entering the detecon region. The greater the value is, the quicker the generaon speed is.

1. Set detecon region.

1) Select detecon region.
2) Click Draw Area, and click and draw the endpoints of the region in the live view image.
3) Right click to nish the drawing.

Click Stop Drawing Finish drawing the region.

Click Clear All Draw the region again.

Figure 10-5 Hard Hat Detecon

1. For the arming schedule sengs, refer to Set Arming Schedule. For the linkage method sengs, refer to Linkage Method Sengs.
2. Click Save.

10.8 Face Comparison and Modeling

For certain device models, you need to enable Mul-Target-Type Detecon or Face Capture on VCA Resource page rst.

10.8.1 Face Comparison

Face comparison serves the purpose of face recognition by comparing the captured faces with those in face picture library.

Set Face Picture Library

Face picture library is used to store modeled human faces and informaon.

Steps

1. Go to Conguraon → Face Picture Library.
2. Create a face picture library.

1) Click to add a face picture library.

2) Input library name, threshold and remarks.

Threshold

Face similarity higher than the set threshold triggers face picture comparison alarm uploading.

3) Click OK.
4) Oponal: Modify a face picture library. Select the desired library and click and change related parameters.
5) Oponal: Delete a library. Select the desired library and click . ✗

1. Add face pictures to the library.

iNote

The picture format should be JPEG, and the size no larger than 300 KB per le.

Add one face picture

Import face pictures in batch

Click Add and upload the face picture with detailed face informaon.

Click Import and select picture path.

iNote

• When you import face pictures in batch, the picture name is saved as the face name. For other face informaon, you should modify one by one manually.

• The vericaon code for exporng and imporng should be a combinaon of 8 to 16 digits, containing numerics, upper case and lower case leers.

• Oponal: Modify face informaon.

1) Select a face picture library.
2) Select the target face picture. You can use the search funcon to locate the picture by inpung search conditions, such as, name and gender, and click Search.
3) Click Modify.
4) Edit detailed informaon.

Face picture is not allowed to change.

5) Click OK.

1. Create models for each face picture in library.

Modeling process builds up face model for each face picture. Face model is required for face picture comparison to take eect.

Modeling

Select one or more face pictures, and click Modeling.

Batch Modeling

Select a face picture library, and click Batch Modeling.

1. Oponal: Repeat to create more face libraries.
2. Click Save.

Set Face Picture Comparison

The funcon compares captured pictures with face pictures in library and outputs comparison result. Comparison result can trigger certain acons when arming schedule and linkage method are set.

Before You Start

You should rst create a face picture library and add face pictures. See Set Face Picture Library.

Steps

1. Go to Conguraon → Comparison and Modeling → Face Comparison and Modeling.
2. Select Face Picture Comparison.
3. Check Enable Face Picture Comparison.
4. Select a face picture library as the reference.
5. Oponal: Check Report Face Comparison Informaon During Mul-Target-Type Capture Alarm, if you want to receive face comparison informaon during mul-target-type capture alarm.
6. Select desired face informaon to upload.
7. Select a face comparison mode.

Best Comparison

The device captures and compares the target face connuously when the face target stays in the detecon area, and upload the best scored face picture and related alarm informaon when the target

face leaves the area.

Quick Comparison

The device capture and compares the target face when the face grading exceeds the set Face Grading Threshold for Capture.

Face Grading Threshold for Capture

The face grading threshold for the device to judge whether to capture and upload the face or not.

Max. Capture Interval

The max. interval between two captures when the target is in the detecon area. The camera takes the capture when it reaches the max. interval even if the face grading does not reach the set threshold.

Quick Setup Mode

Select the mode according to actual using scenarios. In custom mode, you can set Comparison Timeout and Comparison Times.

1. Set arming schedule. See Set Arming Schedule.
2. Set linkage method. See Linkage Method Sengs.

View Face Comparison Result

Steps

1. Go to Applicaon.
2. Set search condition and click Counng.
   Matched results are shown in Face Picture Comparison Stascs area.

10.8.2 Face Modeling

Face modeling serves the purpose of collecting face pictures, creating face models and uploading data to the surveillance center.

Before You Start

Face Capture or Mul-Target-Type detecon should be congured for face picture collecon. See Face Capture or Mul-Target-Type Detecon for conguraon instrucons.

Steps

1. Go to Conguraon → Comparison and Modeling → Face Comparison and Modeling.
2. Select Face Modeling to start.
3. Check Enable Face Modeling.
4. Set parameters for modeling.

Report Face Modeling Informaon in Mul-Target-Type Capture Alarm

When a person triggers the mul-target-type detecon, the alarm informaon includes the

face modeling informaon of the detected face if checked.

Quick Capture

The device starts face modeling when it detects a face which scores higher than the set face grading threshold for capture.

Face Grading Threshold for Capture

The face grading threshold for the device to judge whether to capture and upload the face or not. Higher value means beer picture quality.

Max. Capture Interval

The max. interval between two captures when the target is in the detecon area. The camera takes the capture when it reaches the max. interval even if the face grading does not reach the set threshold.

1. Set arming schedule. See Set Arming Schedule.
2. Set linkage method. See Linkage Method Sengs.

Chapter 11 Open Plaorm

Open plaorm allows you to install the applicaon for the third-party to develop and run its funcon and service.

Note

Only certain device models support the funcon.

11.1 Set Open Plaorm

Steps

1. Go to Conguraon → Open Plaorm.

Note

Before installing the applicaon, please read the Disclaimer at the boom and make sure that the applicaon you want to install t the following condions.

• Each applicaon has its own exclusive name.
• The FLASH memory space that the applicaon takes up is less than the available FLASH memory space of the device.

• The memory and compung power of the applicaon is less than that available memory and compung power of the device.

• In Install Apps, click Browse and select the imported applicaon package.

• Click Import to complete the installaon.

Application Resource memory : 45MB available (total 60MB) flash : 13MB available (total 33MB). Import Application Application Package Browse Import Status Application List No. Application Name Operation Version Memory Used Flash Used Company Status License 1 HEOP TEST DEMO APP V1.1.1 10MB 10MB Hikvision Stopped Free 2 HEOP BASIC DEMO APP V5.5.60 5MB 10MB Hikvision Stopped Inactive Disclaimer

Please note that some applications and/or solutions available below are supplied and/or developed by third parties, not HIKVISION.
YOUR RELIANCE ON THIRD PARTY'S APPLICATION AND/OR SOLUTIONS IS AT YOUR OWN RISK HIKVISION MAKES NO WARRANTIES OR REPRESENTATIONS, EXPRESS OR IMPLIED, AS TO MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ACCURACY, RELIABILITY, SECURITY, OR NONINFRINGEMENT OF THIRD PARTY'S APPLICATIONS AND/OR SOLUTIONS. YOU SHALL BE SOLELY RESPONSIBLE FOR TRANSACTION BETWEEN YOU AND SUCH THIRD PARTY.

Figure 11-1 Open Plaorm

The installed applicaons and their related informaon are displayed in Applicaon List, such as applicaon name, operaon, version, memory used, ash used, company, status and license.

1. Oponal: Set applicaon.

Export log.

Set permission.

Delete the applicaon.

Enable or disable the applicaon.

1. Oponal: In applicaon display, click Browse and import the applicaon cercate.

Chapter 12 Set EPTZ

EPTZ (Electronic PTZ) is a high-resolution function that digitally zooms and pans into porons of the image, with no physical camera movement.

Before You Start

If you want to use the EPTZ funcon, make sure you have select the Fourth Stream in the live view. Fourth stream and EPTZ should be both enabled simultaneously.

Steps

1. Go to Conguraon → EPTZ.
2. Check Enable EPTZ.
3. Check Fourth Stream.
4. Select the Applicaon. Patrol and Auto-tracking are selectable.

Chapter 13 Smart Display

It can display the captured pictures when enabling smart funcons.

Layout Preview

Click and select Layout Preview. Select the contents according to your needs. When you select real-me analysis, you can select the contents only for real-me analysis.

Detecon Aribute

Click and select Detecon Aribute. When you enable this funcon, the aribute informaon of target analysis can be displayed and the informaon you select will be displayed in the aribute analysis area.

A. Device Command

Scan the following QR code to get device common serial port commands.

Note that the command list contains the commonly used serial port commands for all Hikvision network cameras.

B. Device Communicaon Matrix

Scan the following QR code to get device communicaon matrix.

Note that the matrix contains all communicaon ports of Hikvision network cameras.

See Far, Go Further
