Designed for professionals but fit for any gamer, ASTRO Gaming's A40 Headset provides long-lasting comfort and complete audio control, so you can play your way. Most importantly, the A40 delivers unparalleled sound with incredible clarity, allowing you to hear even the subtlest aspects of your game's soundscape. The unidirectional microphone may be worn on either side of the headset, and offers superior vocal communication, clearly capturing your voice without picking up any background noise. You can even decorate your A40 headset by taking advantage of the customizable magnetic speaker tags.

CONGRATULATIONS ON YOUR SOUND INVESTMENT.

A40 HEADSET

PRO WIRED HEADSET

SWAPPABLE MIC

PACKAGE CONTENTS

Contents

So... you've breached the boxy exterior, and you're working your way along the inside. You'll find that your A40 comes bundled with some cables, each has a purpose that's suited to your method of gameplay.

A40 HEADSET

DETACHABLE MICROPHONE

SPEAKER TAGS

A40 MOBILE CABLE

PC SPLITTER CABLE

ASTRO AUDIO

SUPERIOR TOURVEMENT

COMPETITIVE

ASTRO GAMING

CONFIDENTIAL 2013

018185

MOBILE MAC PC 3.5mm3.5mm 3.5mm

Plug the A40 Mobile Cable into the headset and directly into the 3.5mm audio port.
Plug the A40 Mobile Cable into the headset and directly into the Mac's 3.5mm audio port.
Plug the A40 Mobile Cable into the headset and attach the PC Splitter Cable, then plug the corresponding ends into their matching ports [If your PC has an integrated headphone/microphone port, the PC Splitter Cable can be bypassed].

ASTRO AUDIO

SUPERIOR TELENDOMEN

COMPETITIVE

ASTRO GAMING

CONFIDENTIAL 2013

010105

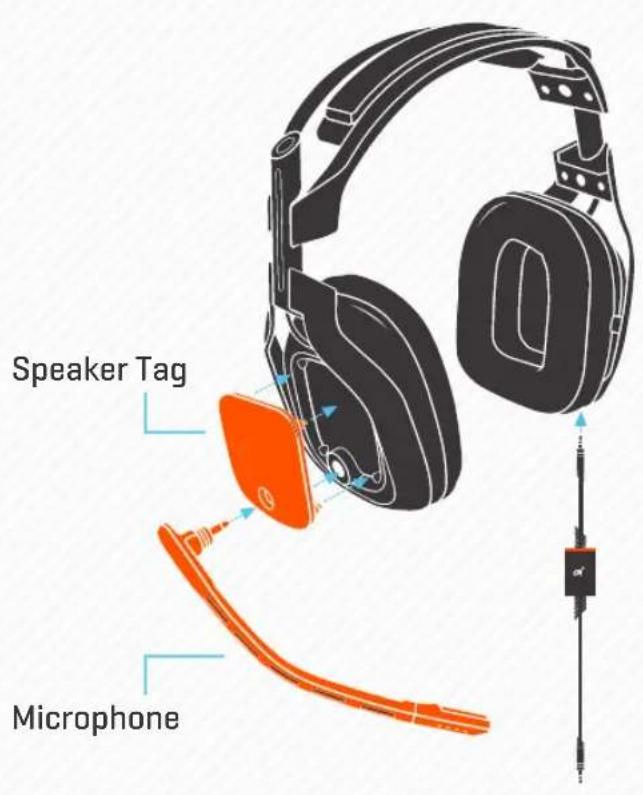

A40 HEADSET

Speaker Tag Microphone

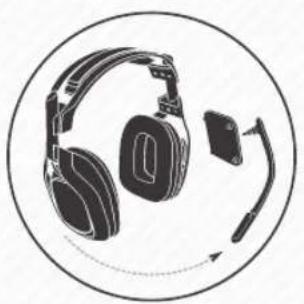

Illustration of a pair of black-and-white headsets with a small device attached, enclosed in a circular frame (no text or symbols)

Mute Switch

Pure electrical circuit lines without any symbols

ASTRO GAMING

CONFIDENTIAL 2013

ETES ON 打印所

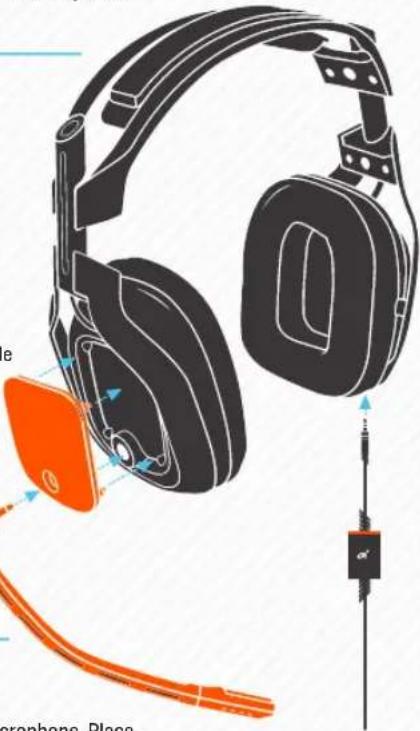

A40 HEADSET

HEAD BAND:

Gently pull on earpieces to adjust size.

SPEAKER TAGS:

Magnetic and interchangeable

Illustration of a pair of black headsets with orange earphones and cable connectors, no text or symbols present.

Mute Switch

Pure electrical circuit lines without any symbols

MICROPHONE:

Detachable unidirectional microphone. Place the speaker-tag with the cut-out on the preferred side and plug in the microphone.

ASTRO AUDIO

SUPERIOR

TOURNAMENT COMPETITIVE

ASTRO GAMING

CONFIDENTIAL 2013

EYES ONLY 010185

SUPPORT

http://www.astrogaming.com/support

Troubleshooting

See the ASTRO Knowledge Base:

http://www.astrogaming.com/faq

All ASTRO Gaming products come with an automatic 1-year warranty. Registration is not required. If you purchased ASTRO products from a 3rd party retailer, you don't need to register it, but you will need to provide proof of purchase for any warranty claims.

SPECS:

Transducer Principle: Dynamic, Open

Frequency Response: 15 - 28,000 Hz

Nominal Impedance: 50 ohms

Weight w/o Cable: 324 g

Characteristic SPL: 104dB

Ear Coupling: Circumaural

Kessel Run Distance: Under 12 Parsecs

Headband Pressure: 2.6 N

Distortion: Less than 0.1%

Connector: 3.5mm Mini-stereo and PC Splitter Cable

Mic: 6.0mm Uni-directional Noise Canceling Mic

US Patent #D613,266,#8,139,807,#8,335,335

ASTRO GAMING

CONFIDENTIAL 2013

EYES ONLY

010105

FCC STATEMENT

Federal Communications Commission (FCC) Statement

15.21

You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1] This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operation of the device.

FCC RF Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC RF Exposure requirements:

This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.

THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT, SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

ASTRO GAMING CONFIDENTIAL 2013 EYES ONLY 010105

CANADA CONFORMITY

INDUSTRY CANADA CONFORMITY STATEMENT / DÉCLARATION DE CONFORMITÉ

D'INDUSTRIE CANADA

This Class B digital apparatus complies with Canadian ICES-003.

CE DECLARATION OF CONFORMITY

Skullcandy, Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Directives 2004/108/EC. A copy of the Declaration of Conformity for this product may be obtained by contacting Skullcandy Inc.

Note on environmental protection:

After the implementation of the European Directive 2012/19/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. Failure to dispose of electronic devices properly may have harmful effects on the environment and human health as a result of the presence of hazardous substances in the products. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilizing old devices, you are making an important contribution to protecting our environment.
