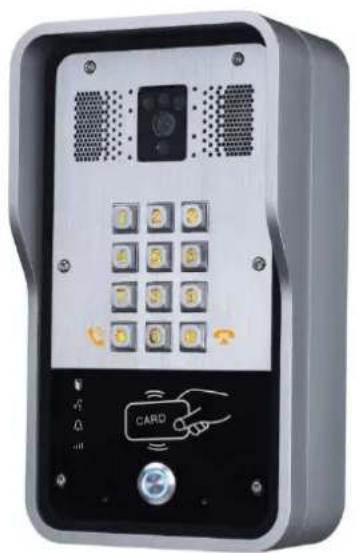

i31S IP Video DoorPhone User Manual V2.0

Front view of a modern mobile phone control unit with keypad and display (no visible text or symbols)

CARD

Document VER	Firmware VER	Explanation	Time
V1.0	2.1.1.2898	Initial issue	20170629
V2.0	2.1.1.2898	Change company address and add IP scan tool downlo address in QIG	20171027

Safety Notices

1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.

2. When using this product, please do not damage the power cord either by forcefully twist it, stretch pull, banding or put it under heavy pressure or between items, otherwise it may cause damage to the power cord, lead to fire or get an electric shock.

3. Before using, please confirm that the temperature and environment is humidity suitable for the product to work. (Move the product from air conditioning room to natural temperature, which may cause this product surface or internal components produce condense water vapor, please open power use it after waiting for this product is natural drying).

4. Please do not let non-technical staff to remove or repair. Improper repair may cause electric shock, fire, malfunction, etc. It will lead to injury accident or cause damage to your product.

5. Do not use fingers, pins, wire, other metal objects or foreign body into the vents and gaps. It may cause current through the metal or foreign body, which may even cause electric shock or injury accident. If any foreign body or objection falls into the product please stop using.

6. Please do not discard the packing bags or store in places where children could reach, if children trap his head with it, may cause nose and mouth blocked, and even lead to suffocation.

7. Please use this product with normal usage and operating, in bad posture for a long time to use this product may affect your health.

8. Please read the above safety notices before installing or using this phone. They are crucial for the sa and reliable operation of the device.

Directory

I Product introduction......

1. Appearance of the product....
2. Description......

II Start Using....

1. Confirm the connection....
   1) Power, Electric Lock, Indoor switch port......
   2) Driving mode of electric-lock(Default in Passive mode).
   3) Wiring instructions....
2. Quick Setting......

III Basic operation....

1. Answer a call....
2. Call....
3. End call....
4. Open the door operation....

IV Page settings......

1. Browser configuration......
2. Password Configuration......
3. Configuration via WEB......

(1) System......
a) Information......
b) Account......
c) Configurations....
d) Upgrade....
e) Auto Provision....
f) Tools....

(2) Network....
a) Basic......

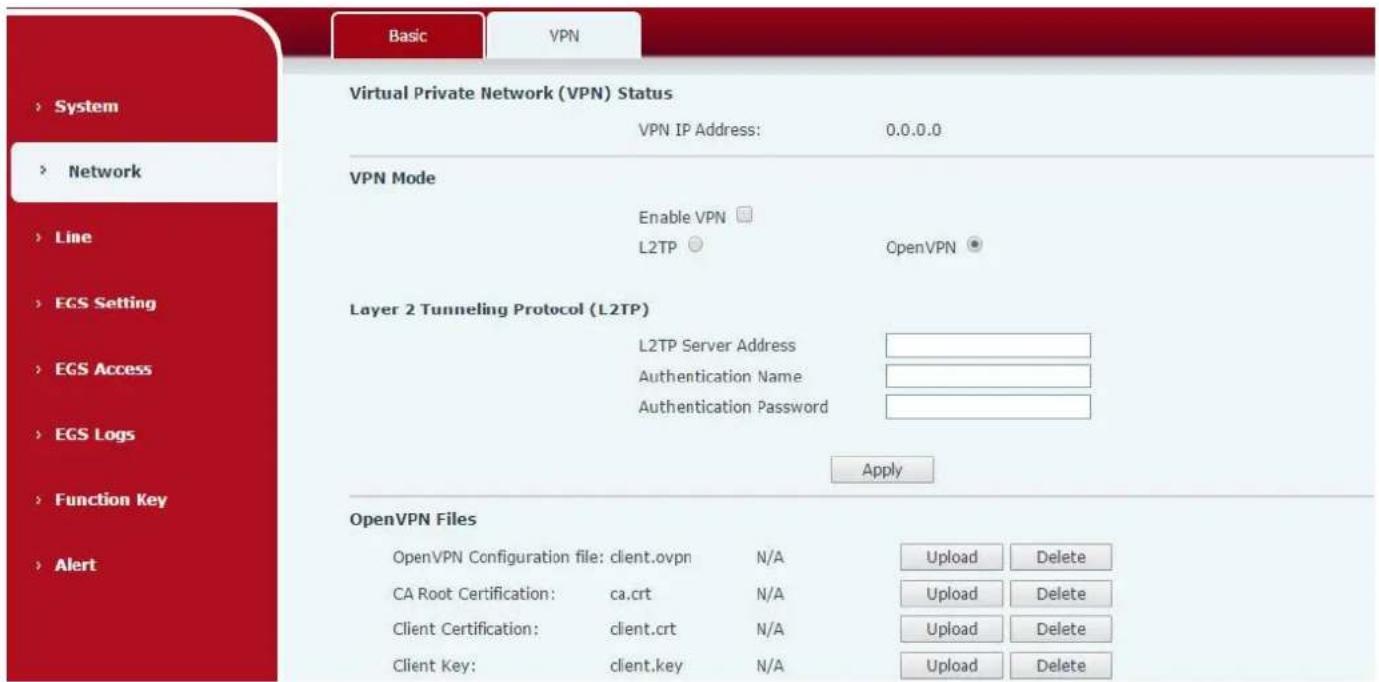

b) VPN....

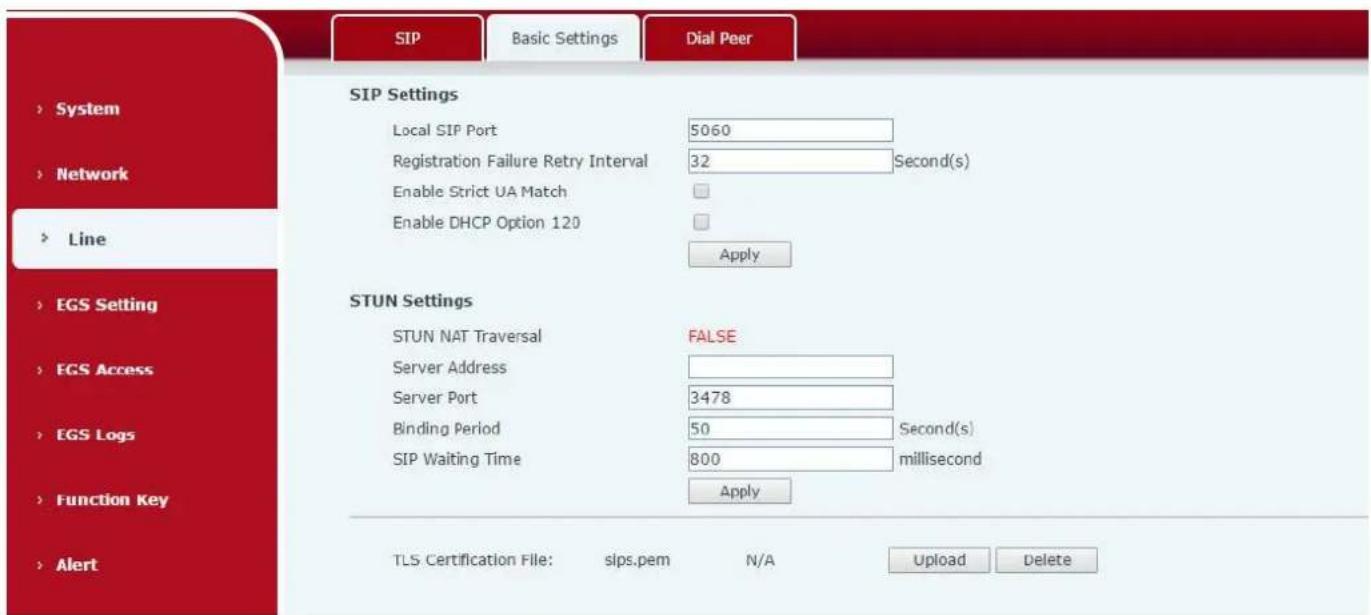

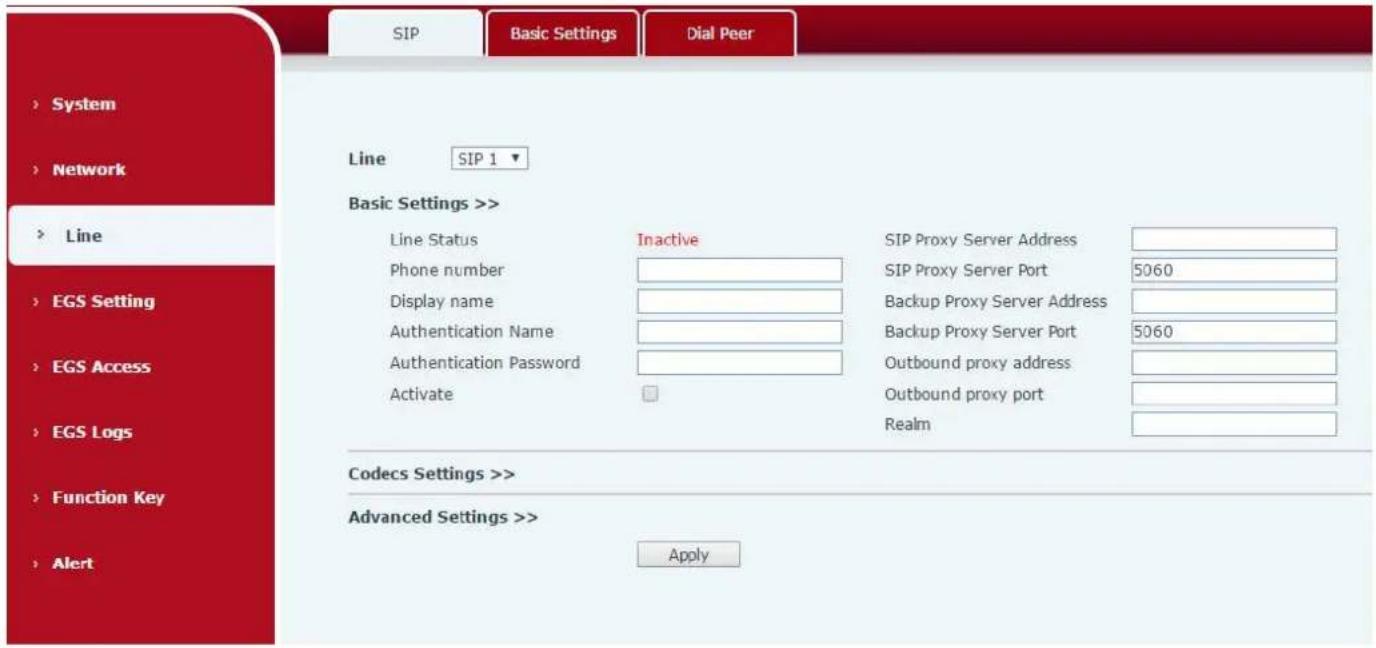

(3) Line....
a) SIP....
b) Basic Settings....

(4) EGS Setting....
a) Features....

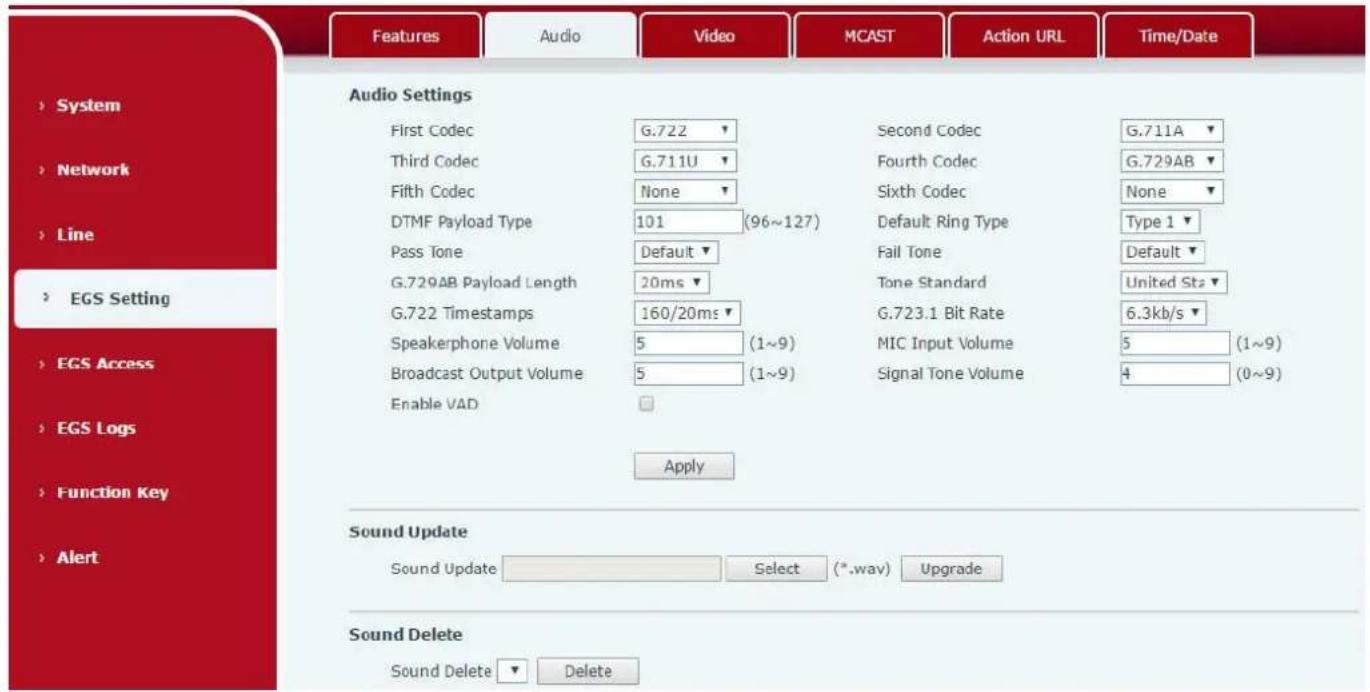

b) Audio....
c) Video....

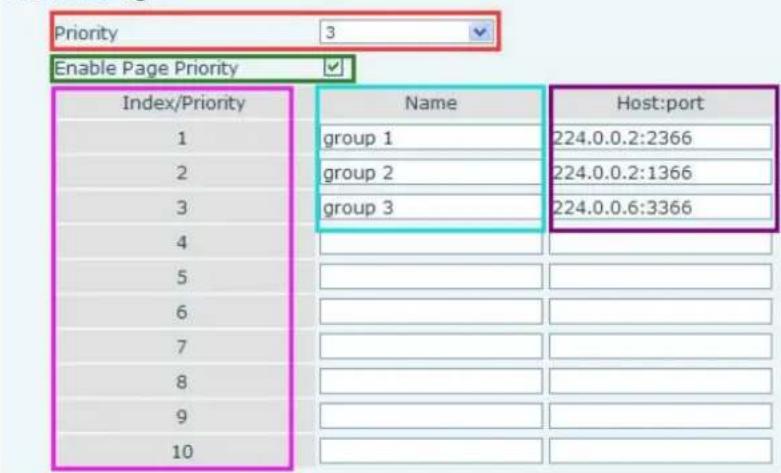

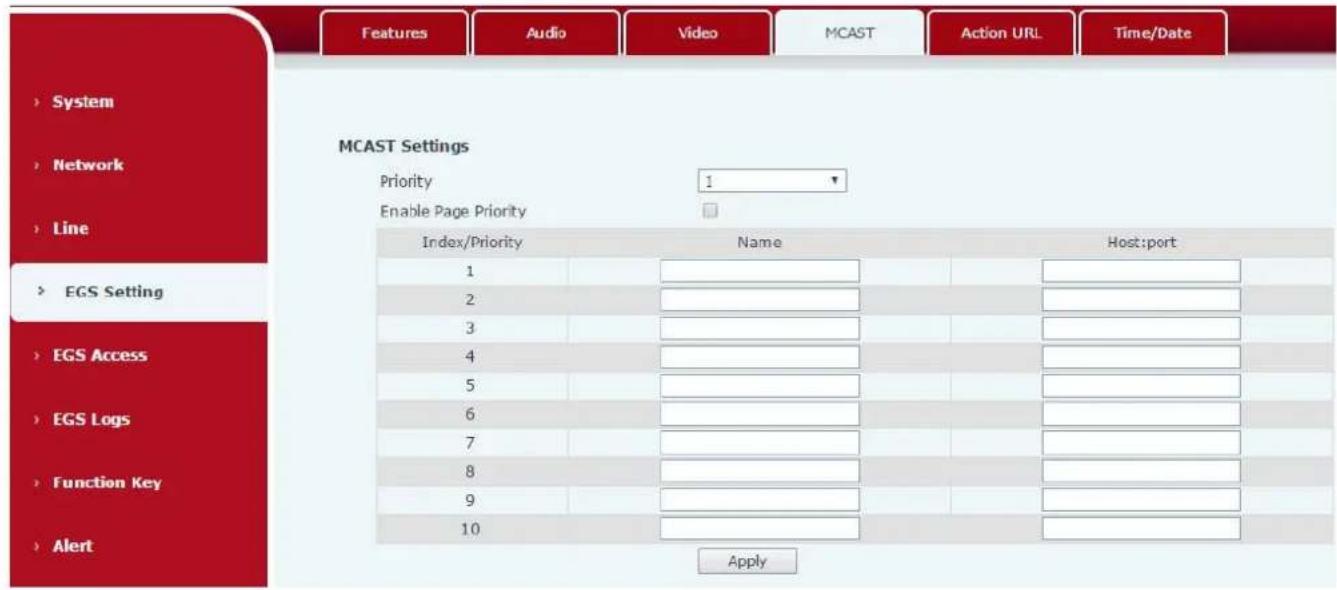

d) MCAST......
e) Action URL....

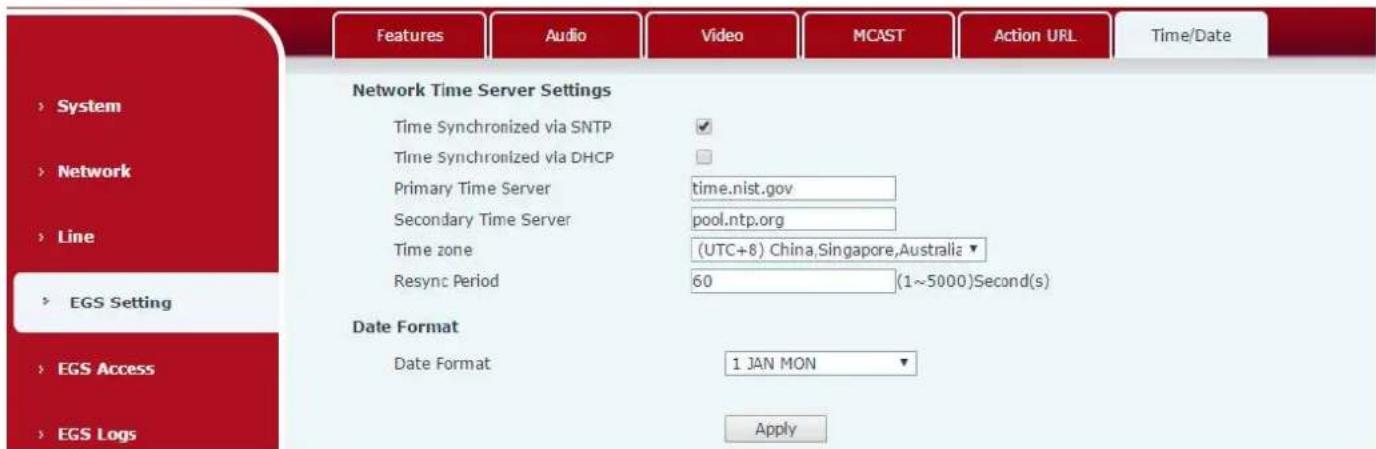

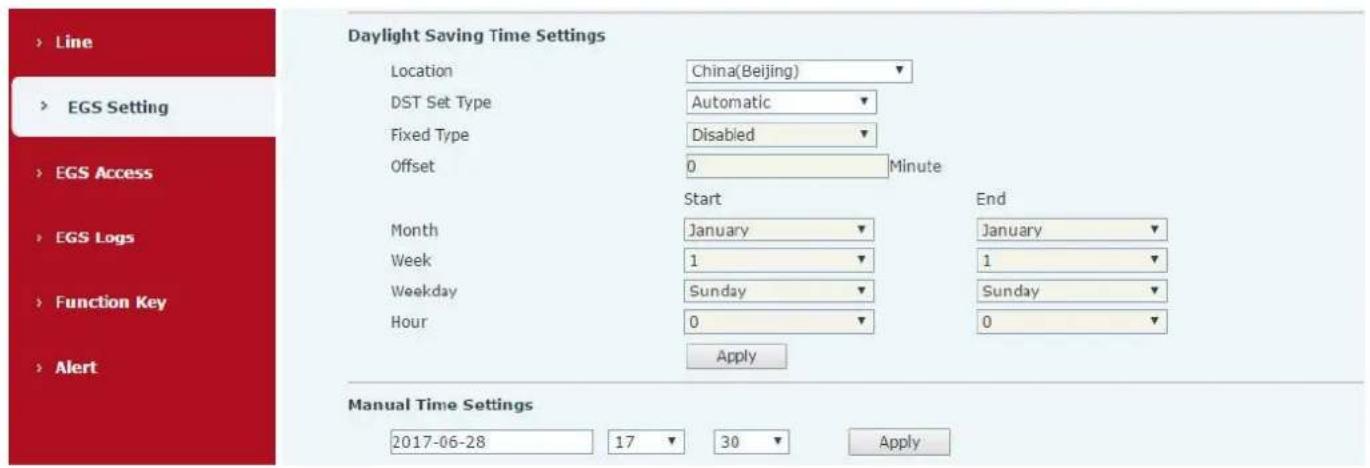

f) Time/Date....

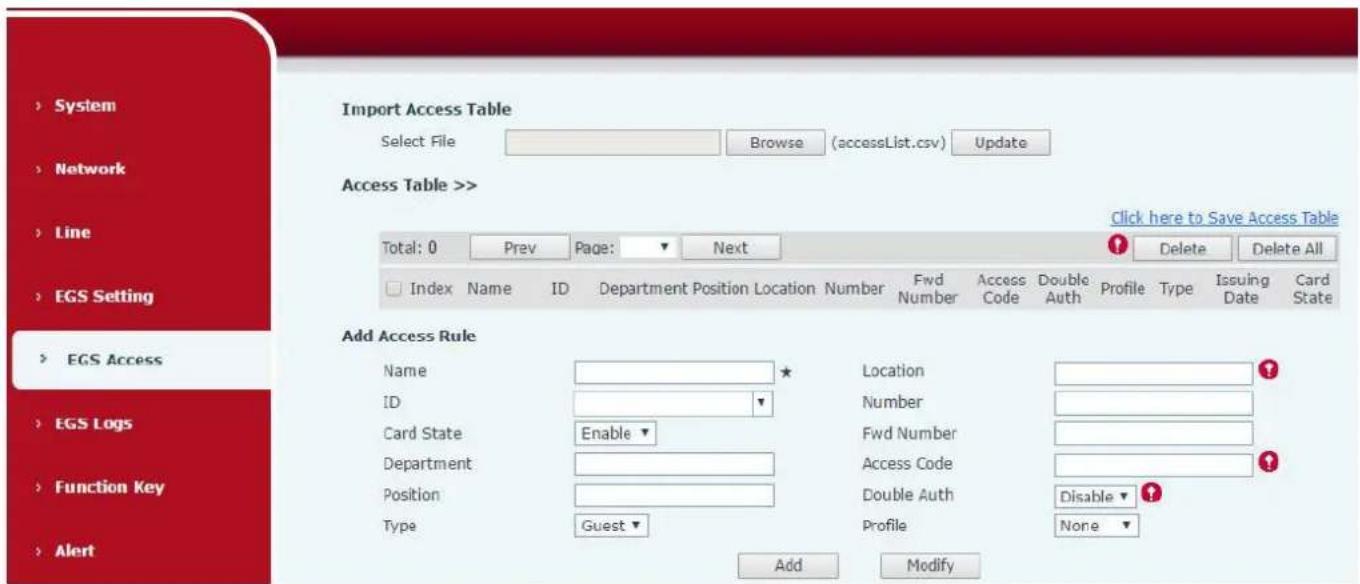

(5) EGS Access....
(6) EGS Logs......

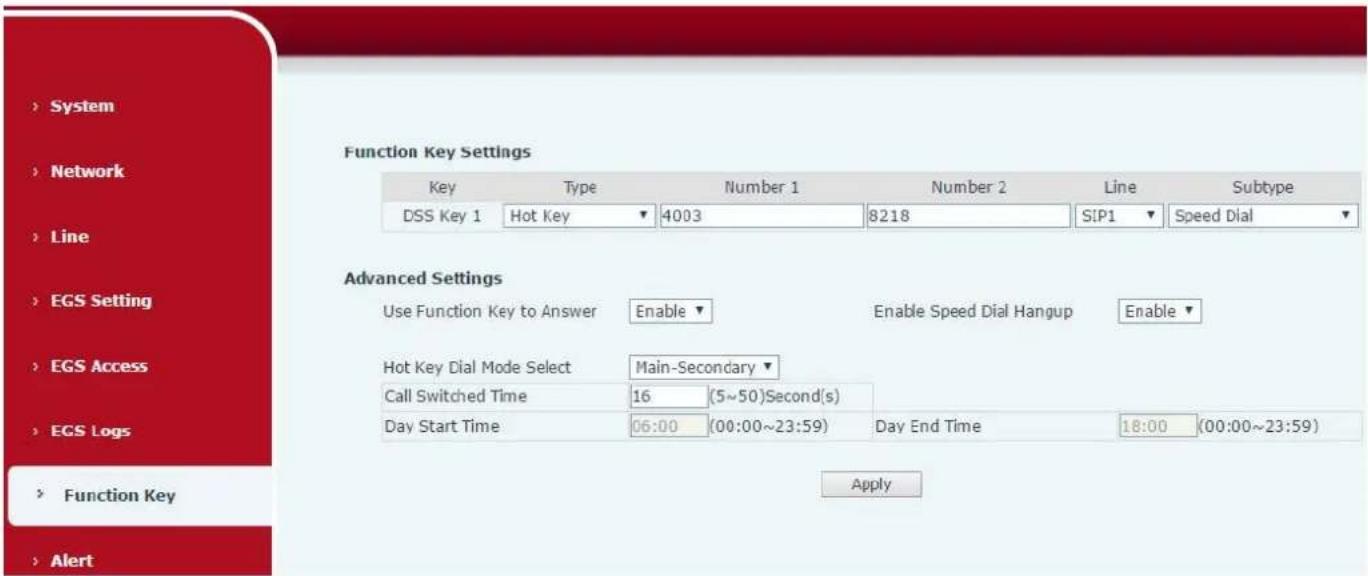

(7) Function Key.....

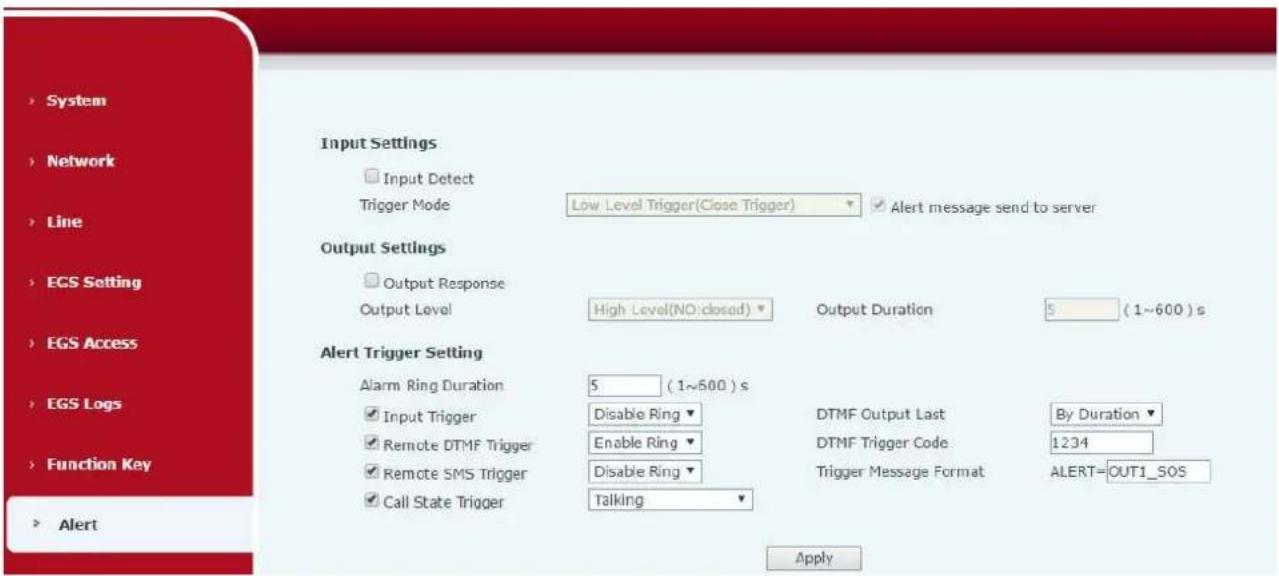

(8) Alert....

V Appendix......

1. Technical parameters......
2. Basic functions......
3. Schematic diagram....

VI Other instructions....

1. Open door modes......
2. Management of card....

I Product introduction

i31S voice access is a full digital network door phone, with its core part adopts mature VoIP solution (Broadcom chip), stable and reliable performance, hands-free adopting digital full-duplex mode, voice loud and clear, generous appearance, solid durable, easy for installation, comfortable keypad and low power consumption.

i31S voice access supports entrance guard control, voice intercom, ID card and keypad remote to open the door.

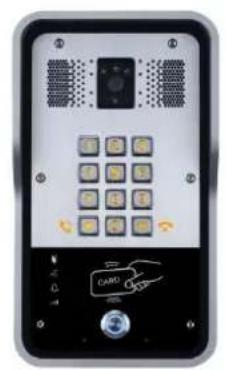

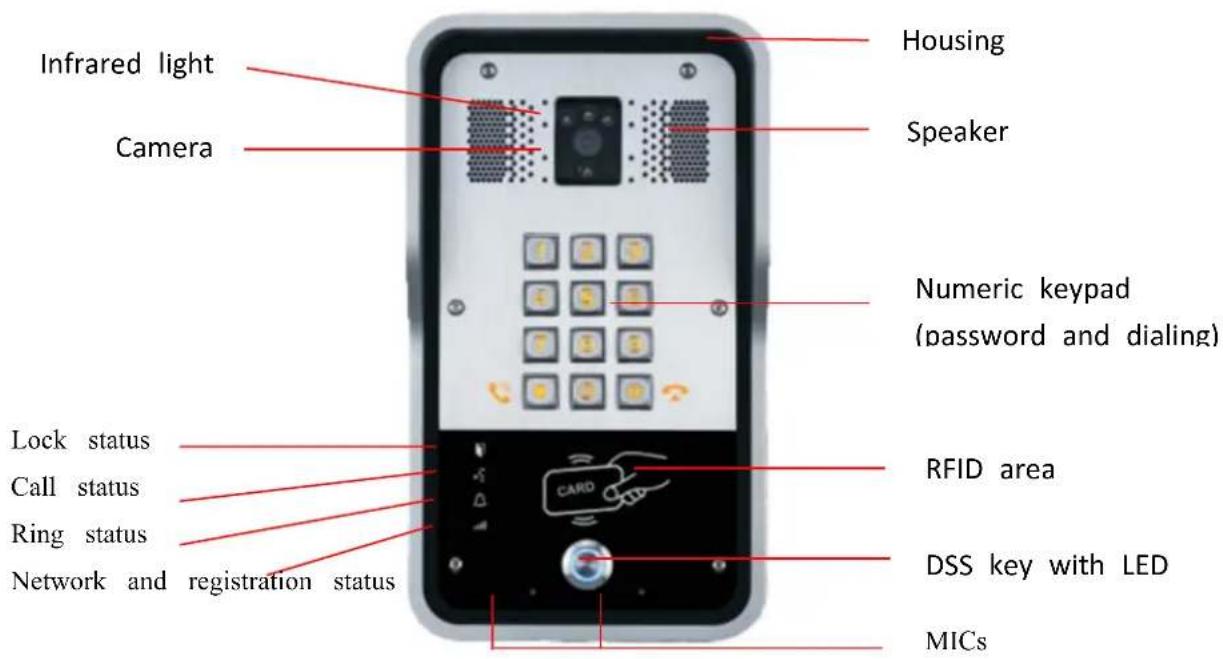

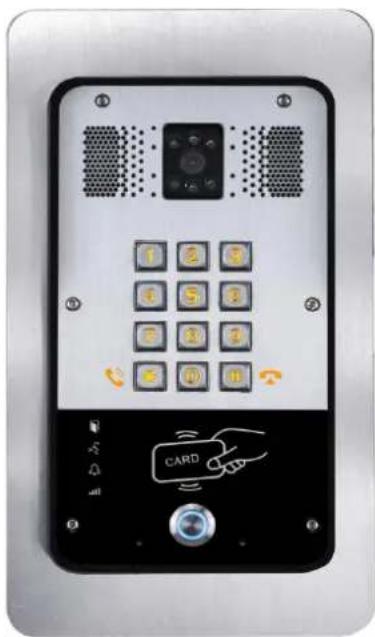

1. Appearance of the product

Front view of a modern mobile phone control unit with keypad and display (no visible text or symbols)

Front view of a modern electronic device with a keypad and control buttons (no readable text or symbols)

2. Description

Buttons and icons	Description	Function
	Numeric keyboard	Input password to open the door or to call.
	programmable keys	Can be set to a variety of functions, in order meet the needs of different occasions
	induction zone	RFID induction area
	Camera	Video signal acquisition and transmission
	Lock Status	Door unlocking: OnDoor locking: Off
	Call status	Standby: OffCall Holding: Blink with 1sCalls: On
	Ring status	Standby: OffRinging: On
	Network/SIPRegistration	Network error: Blink with 1sNetwork running: OffRegistration failed: Blink with 3sRegistration succeeded: On

II Start Using

Before you start to use the equipment, please make the following installation.

1. Confirm the connection

Confirm whether the equipment of the power cord, network cable, electric lock control line connection and the boot-up is normal. (Check the network state of light)

1) Power, Electric Lock, Indoor switch port

Voice access the power supply ways: 12v/DC or POE.

CN7
1	2	3	4	5	6	7
+12V	VSS	NC	COM	NO	S_IN	S_OUT
12V 1A/DC		Electric-lock switch			Indoor switch

2) Driving mode of electric-lock(Default in Passive mode)

Jumper in passive mode

Jumper in active mode

【Note】When the device is in active mode, it can drive 12V/650mA switch output maximum, to which a standard electric-lock or another compatible electrical appliance can be connected.

• When using the active mode, it is 12V DC in output.
• When using the passive mode, output is short control (normally open mode or normally close mode).

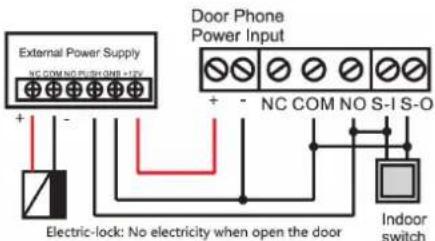

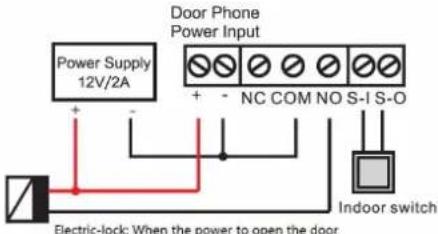

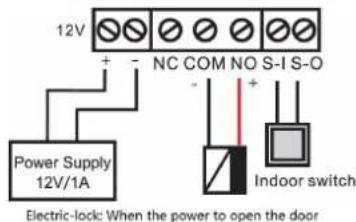

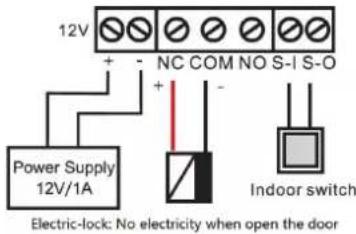

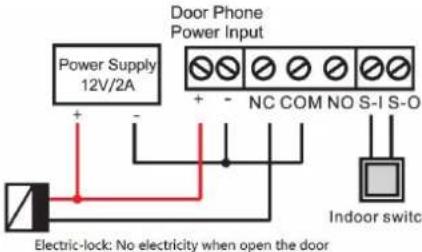

3) Wiring instructions

● NO: Normally Open Contact.
● COM: Common Contact.
● NC: Normally Close Contact.

Driving Mode		Electric lock		Jumper port	Connections
Active	Passive	No electricity when open	When the power to open
√		√
√			√
	√	√
	√		√
	√	√

2. Quick Setting

The product provides a complete function and parameter setting. Users may need to have the network and SIP protocol knowledge to understand the meaning represented by all parameters. In order to let equipment users enjoy the high quality of voice service and low cost advantage brought the device immediately, here we list some basic but compulsory setting options in this section to let users know how to operate without understanding such complex SIP protocols.

In prior to this step, please make sure your broadband Internet online can be normal operated, and complete the connection of the network hardware. The product factory default network mode is DHCP. Thus, only connect equipment with DHCP network environment that network can be automatically connected.

➢ Press and hold “#” key for 3 seconds and the door phone will report the IP address by voice, or using the "iDoorPhoneNetworkScanner.exe" software to find the IP address of the device. (Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe)
Note: when power on, 30s waiting is needed for device running.
Log on to the WEB device configuration.
In a Line page configuration service account, user name, parameters that are required for server address register.
You can set DSS key in the Function key page.
You can set Door Phone parameters in the Webpage (EGS Setting-> Features).

#	IP Address	Serial Number	MAC Address	SW Version	Description
1	172.18.2.94	i31S	00:d8:4a:00:65:4a	2.1.1.2898	i31S IP Door Phone

III Basic operation

1. Answer a call

When a call comes in, the device will answer automatically. If you cancel auto answer feature and see auto answer time, you will hear the bell ring at the set time and the device will auto answer after timeout.

2. Call

Configure shortcut key as hot key and setup a number, then press shortcut key can call the configured number.

3. End call

Enable Release key hang up to end call.

4. Open the door operation

Through the following seven ways to open the door:

1) Input password on the keyboard to open the door.
2) Access to call the owner and the owner enter the remote password to open the door.
3) Owner/other equipment call the access control and enter the access code to open the door. (access code should be included in the list of access configuration, and enable for remote calls to open the door)
4) Swipe the RFID cards to open the door.

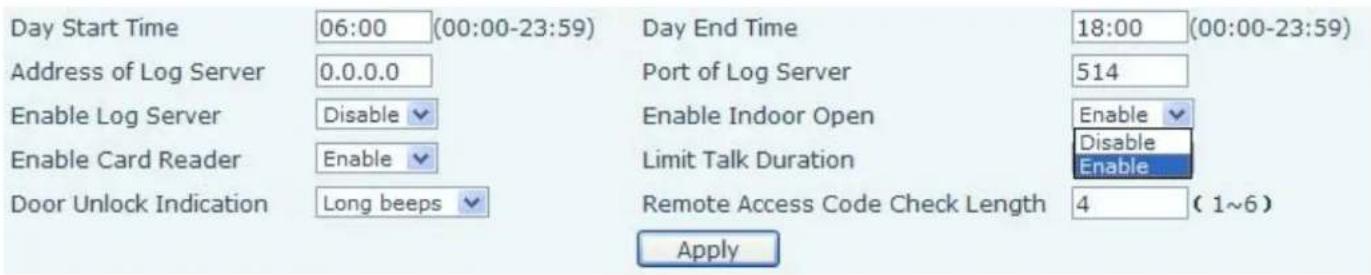

5) By means of indoor switch to open the door.
6) Private access code to open the door.

Enable for local authentication, and set private access code. Input the access code directly under standby mode to open the door. In this way, the door log will record corresponding card number and user name.

7) Active URL control command to open the door.

URL is "http://user:pwd@host/cgi-bin/ConfigManApp.com?key=F_LOCK&code=openCode"

a. User and pwd is Web the user name and password.

b. "openCode" is the remote control code to open the door.

Example: "http://admin:admin@172.18.3.25/cgi-bin/ConfigManApp.com?key="

If access code is input correctly, the device will play sirens sound to prompt access control and the remote user, while input error by low-frequency short chirp.

Password input successfully followed by high-frequency sirens sound, while input error is followed by

high-frequency short chirp.

When door has been opened, the device will play sirens sound to prompt.

IV Page settings

1. Browser configuration

When the device and your computer are successfully connected to the network, enter the IP address of the device on the browser as http://xxx.xxx.xxx.xxx/ and you can see the login interface of the web page management.

Enter the user name and password and click the [logon] button to enter the settings screen.

User: Password: Language: English Logon

2. Password Configuration

There are two levels of access: root level and general level. A user with root level access can browse and set all configuration parameters, while a user with general level can set all configuration parameters except server parameters for SIP.

• Default user with general level: The default is not set, are free to add.
  ● Default user with root level:

◆ User name: admin
◆ Password: admin

3. Configuration via WEB

(1) System

a) Information

	Information	Account	Configurations	Upgrade	Auto Provision	FDMS	Tools
System
Network	Model:		i31S
	Hardware:		2.1
Line	Software:		2.1.1.2898
	Uptime:		21 : 00 : 35
EGS Setting	Last uptime:		513:11:04
	MEMInfo:		ROM: 0.8/B(M) RAM: 2/16(M)
EGS Access	Network
EGS Logs	Network mode:		DHCP
	MAC:		00:a8:23:6a:6d:9e
	IP:		172.18.2.131
Function Key	Subnet mask:		255.255.0.0
	Default gateway:		172.18.1.1
Alert	SIP Accounts
	Line 1	N/A	Inactive
	Line 2	N/A	Inactive

Information
Field Name	Explanation
System Information	Display equipment model, hardware version, software version, uptime, Last uptime and MEMinfo.
Network	Shows the configuration information for WAN port, including connection mode of port (Static, DHCP, PPPoE), MAC address, IP address of WAN port.
SIP Accounts	Shows the phone numbers and registration status for the 2 SIP LINES.

b) Account

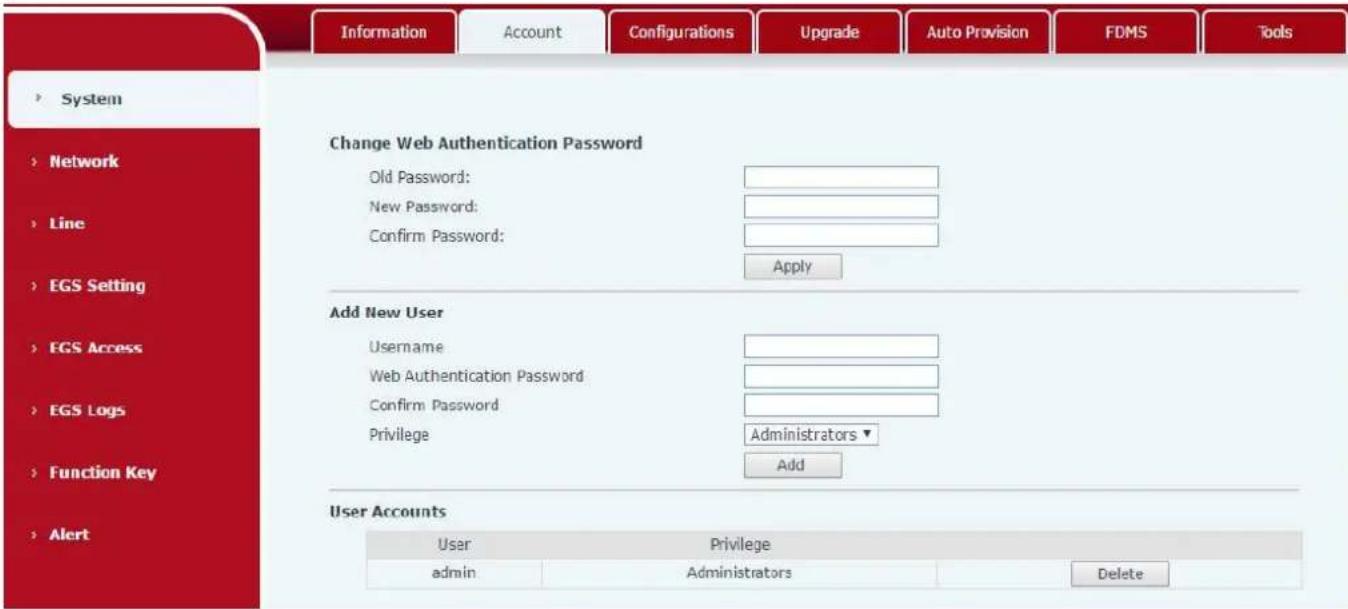

Through this page, user can add or remove users depends on their needs and can modify existing permission.

Information Account Configurations Upgrade Auto Provision FDMS Tools System Change Web Authentication Password Old Password: New Password: Confirm Password: Apply Add New User Username Web Authentication Password Confirm Password Privilege Administrators ▼ Add User Accounts User Privilege admin Administrators Delete

Account
Field Name	Explanation
Change Web Authentication Password
You Can modify the login password to the account
Add New User
You can add new user
User Accounts
Show the existing user information

c) Configurations

Information Account Configurations Upgrade Auto Provision FDMS Tools System Export Configurations Right click here to SAVE configurations in 'txt' format. Right click here to SAVE configurations in 'xml' format. Import Configurations Configuration file: Select Import Reset to factory defaults Click the [Reset] button to reset the phone to factory defaults. ALL USER'S DATA WILL BE LOST AFTER RESET! Reset

Configurations
Field Name	Explanation

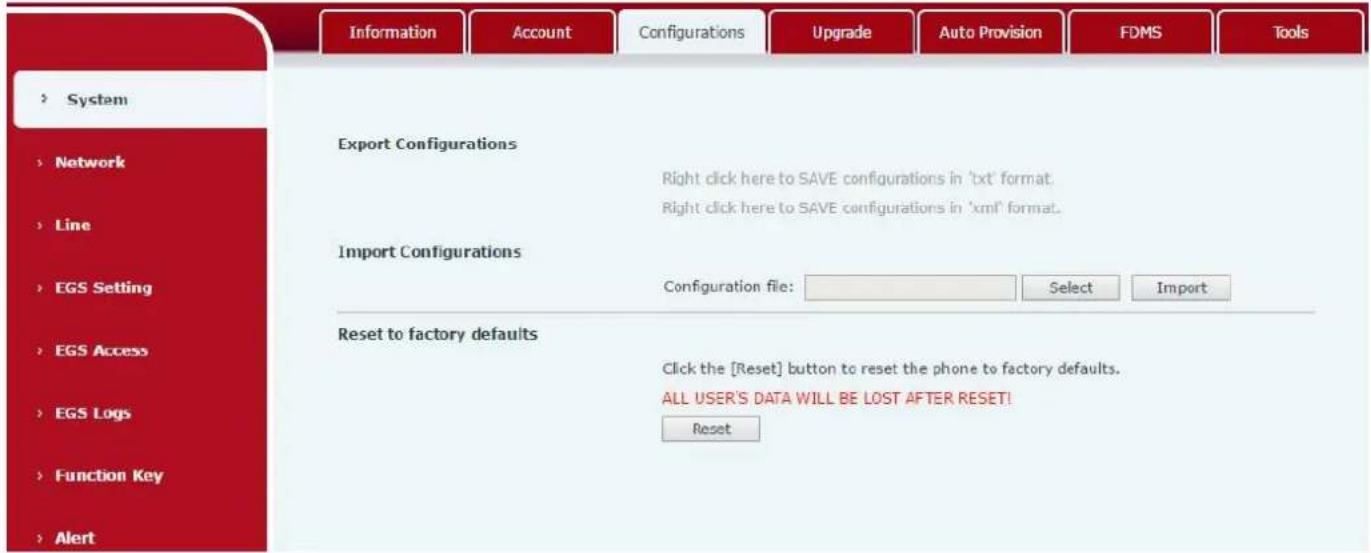

Export Configurations	Save the equipment configuration to a txt or xml file. Please note to Right the choice and then choose “Save Link As.”
Import Configurations	Browse to the config file, and press Update to load it to the equipment.
Reset to factory defaults	This will restore factory default and remove all configuration information.

d) Upgrade

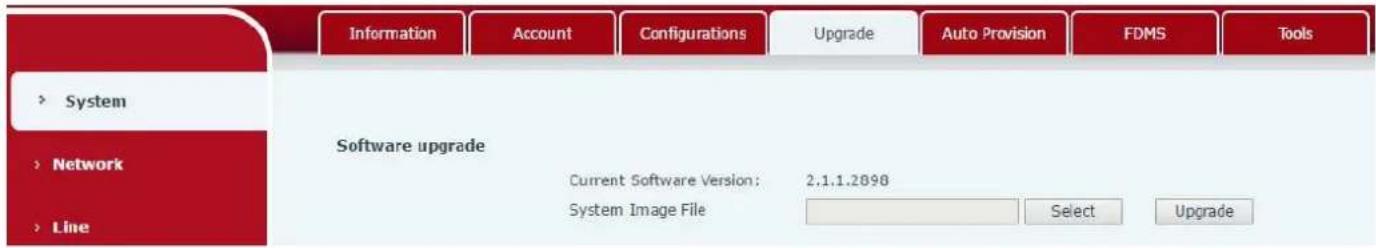

Information Account Configurations Upgrade Auto Provision FDMS Tools System Software upgrade Current Software Version: 2.1.1.2096 System Image File Select Upgrade

Upgrade
Field Name	Explanation
Software upgrade
Browse to the firmware, and press Update to load it to the equipment.

e) Auto Provision

Information Account Configurations Upgrade Auto Provision FDMS Tools > System Common Settings Current Configuration Version General Configuration Version CPE Serial Number 00100400FV020010000000a8236a6d9e Authentication Name Authentication Password Configuration File Encryption Key General Configuration File Encryption Key Save Auto Provision Information □ DHCP Option >> SIP Plug and Play (PnP) >> Static Provisioning Server >> TR069 >> Apply

Auto Provision
Field Name	Explanation
Common Settings
Current Configuration Version	Show the current config file's version. If the version of configuration downdo is higher than this, the configuration will be upgraded. If the endpoints con the configuration by the Digest method, the configuration will not be upgra unless it differs from the current configuration
General Configuration Version	Show the common config file's version. If the configuration downloaded and configuration is the same, the auto provision will stop. If the endpoints con the configuration by the Digest method, the configuration will not be upgra unless it differs from the current configuration.
CPE Serial Number	Serial number of the equipment
Authentication Name	Username for configuration server. Used for FTP/HTTP/HTTPS. If this is blank phone will use anonymous
Authentication Password	Password for configuration server. Used for FTP/HTTP/HTTPS.
Configuration File Encryption Key	Encryption key for the configuration file
General Configuration File Encryption Key	Encryption key for common configuration file
Save Auto Provision	Save the auto provision username and password in the phone until the serv
Information	changes
DHCP Option
Option Value	The equipment supports configuration from Option 43, Option 66, or a Cust DHCP option. It may also be disabled.
Custom Option Value	Custom option number. Must be from 128 to 254.
SIP Plug and Play (PnP)
Enable SIP PnP	If this is enabled, the equipment will send SIP SUBSCRIBE messages to a m address when it boots up. Any SIP server understanding that message will with a SIP NOTIFY message containing the Auto Provisioning Server URL where the phones can request their configuration.
Server Address	PnP Server Address
Server Port	PnP Server Port
Transportation Protocol	PnP Transfer protocol - UDP or TCP
Update Interval	Interval time for querying PnP server. Default is 1 hour.
Static Provisioning Server
Server Address	Set FTP/TFTP/HTTP server IP address for auto update. The address can be a address or Domain name with subdirectory.
Configuration File Name	Specify configuration file name. The equipment will use its MAC ID as the file name if this is blank.
Protocol Type	Specify the Protocol type FTP, TFTP or HTTP.
Update Interval	Specify the update interval time. Default is 1 hour.
Update Mode	1. Disable - no update2. Update after reboot - update only after reboot.3. Update at time interval - update at periodic update interval
TR069
Enable TR069	Enable/Disable TR069 configuration
ACS Server Type	Select Common or CTC ACS Server Type.
ACS Server URL	ACS Server URL.
ACS User	User name for ACS.
ACS Password	ACS Password.
TR069 Auto Login	Enable/Disable TR069 Auto Login.
INFORM Sending Period	Time between transmissions of “Inform” Unit is seconds.
Information Account Configurations Upgrade Auto Provision FDMS Tools
System Network Line EGS Setting EGS Access EGS Logs Function Key Alert	FDMS Settings Enable FDMS FDMS Interval 3600 Doorphone Info Settings Community Name Building Number Room Number Apply
FDMS Settings
Enable FDMS	Enable/Disable FDMS configuration
FDMS Interval	The time to send sip Subscribe information to the FDMS server on a regula Unit seconds
Doorphone Info Settings
Community Name	The name of the community where the device is installed
Building Number	The name of the building where the equipment is installed
Room Number	The name of the room where the equipment is installed

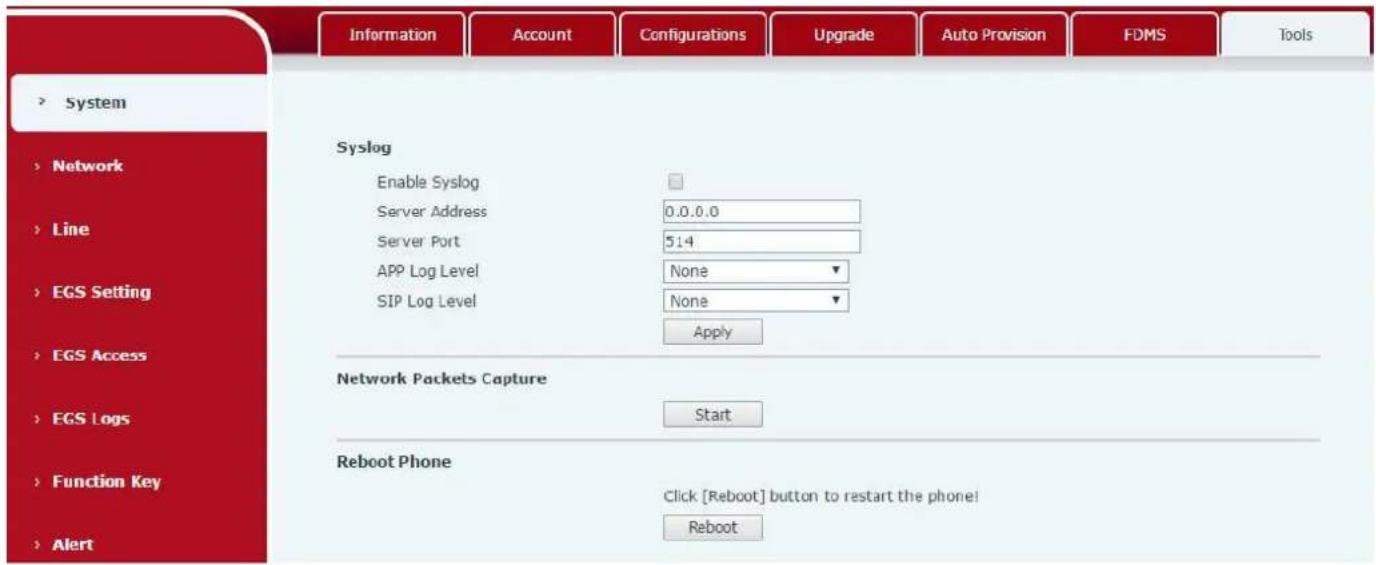

f) Tools

Information Account Configurations Upgrade Auto Provision FDMS Tools System Syslog Enable Syslog Server Address 0.0.0.0 Server Port 514 APP Log Level None SIP Log Level None Apply Network Packets Capture Start Reboot Phone Click [Reboot] button to restart the phone! Reboot

Syslog is a protocol used to record log messages using a client/server mechanism. The Syslog serve

receives the messages from clients, and classifies them based on priority and type. Then these messages will be written into a log by rules which the administrator has configured.

There are 8 levels of debug information.

Level 0: emergency; System is unusable. This is the highest debug info level.

Level 1: alert; Action must be taken immediately.

Level 2: critical; System is probably working incorrectly.

Level 3: error; System may not work correctly.

Level 4: warning; System may work correctly but needs attention.

Level 5: notice; It is the normal but significant condition.

Level 6: Informational; It is the normal daily messages.

Level 7: debug; Debug messages normally used by system designer. This level can only be displayed via telnet.

Tools
Field Name	Explanation
Syslog
Enable Syslog	Enable or disable system log.
Server Address	System log server IP address.
Server Port	System log server port.
APP Log Level	Set the level of APP log.
SIP Log Level	Set the level of SIP log.
Network Packets Capture
Capture a packet stream from the equipment. This is normally used to troubleshoot problems.
Reboot Phone
Some configuration modifications require a reboot to become effective. Clicking the Reboot butto lead to reboot immediately.Note: Be sure to save the configuration before rebooting.

(2) Network

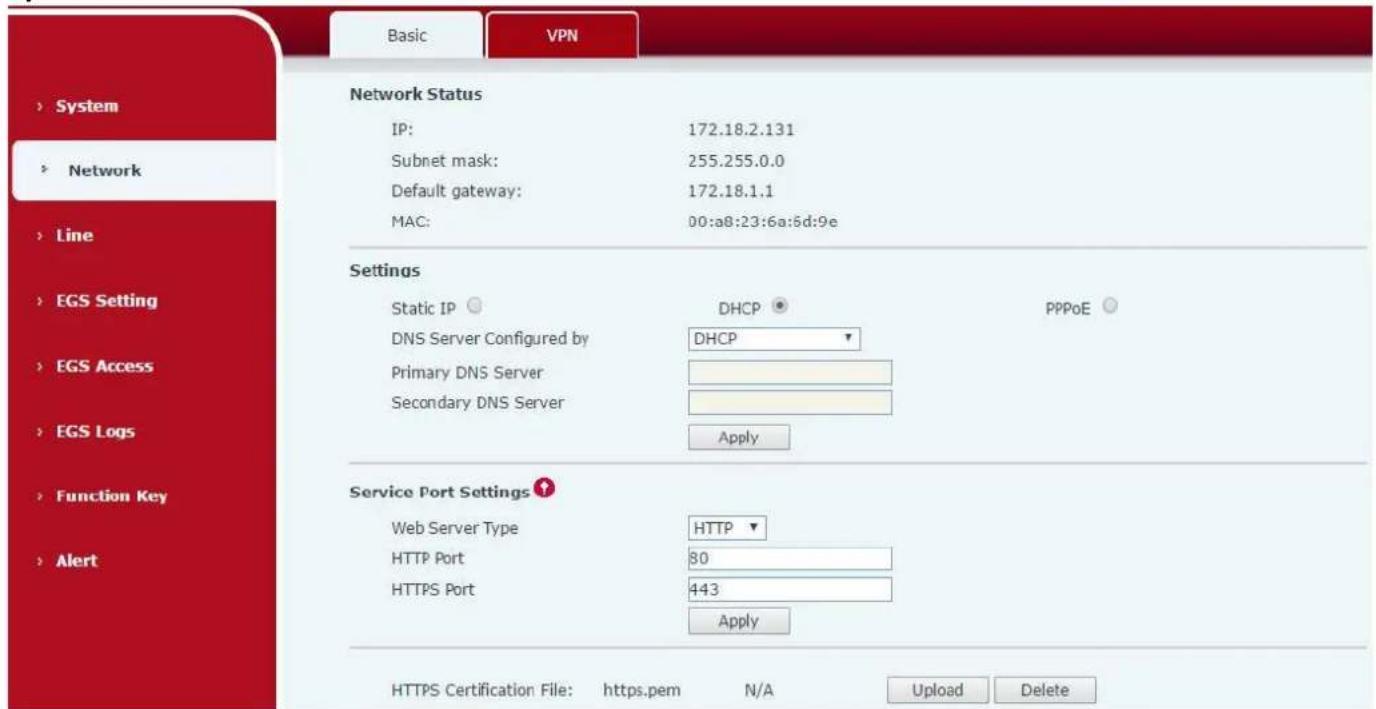

a) Basic

Basic VPN Network Status IP: 172.18.2.131 Subnet mask: 255.255.0.0 Default gateway: 172.18.1.1 MAC: 00:a0:23:6a:6d:9e Settings Static IP ○ DHCP ○ PPPoE ○ DNS Server Configured by DHCP Primary DNS Server Secondary DNS Server Apply Service Port Settings ? Web Server Type HTTP HTTP Port 80 HTTPS Port 443 Apply HTTPS Certification File: https.pem N/A Upload Delete System Network Line EGS Setting EGS Access EGS Logs Function Key Alert

Field Name	Explanation
Network Status
IP	The current IP address of the equipment
Subnet mask	The current Subnet Mask
Default gateway	The current Gateway IP address
MAC	The MAC address of the equipment
MAC Timestamp	Get the MAC address of time.
Settings
Select the appropriate network mode. The equipment supports three network modes:
Static IP	Network parameters must be entered manually and will not change. All parame are provided by the ISP.
DHCP	Network parameters are provided automatically by a DHCP server.
PPPoE	Account and Password must be input manually. These are provided by your ISP.
If Static IP is chosen, the screen below will appear. Enter values provided by the ISP.
DNS Server Configured by	Select the Configured mode of the DNS Server.
Primary DNS Server	Enter the server address of the Primary DNS.
Secondary DNS Server	Enter the server address of the Secondary DNS.
After entering the new settings, click the APPLY button. The equipment will save the new setting apply them. If a new IP address was entered for the equipment, it must be used to login to after clicking the APPLY button.
Service Port Settings
Web Server Type	Specify Web Server Type - HTTP or HTTPS
HTTP Port	Port for web browser access. Default value is 80. To enhance security, change from the default. Setting this port to 0 will disable HTTP access.Example: The IP address is 192.168.1.70 and the port value is 8090, the access address is http://192.168.1.70:8090.
HTTPS Port	Port for HTTPS access. Before using https, an https authentication certification r be downloaded into the equipment.Default value is 443. To enhance security, change this from the default.
Note:1) Any changes made on this page require a reboot to become active.2) It is suggested that changes to HTTP Port be values greater than 1024.Values less than 1024 reserved.3) If the HTTP port is set to 0, HTTP service will be disabled.

b) VPN

The device supports remote connection via VPN. It supports both Layer 2 Tunneling Protocol (L2TP) and OpenVPN protocol. This allows users at remote locations on the public network to make secure connections to local networks.


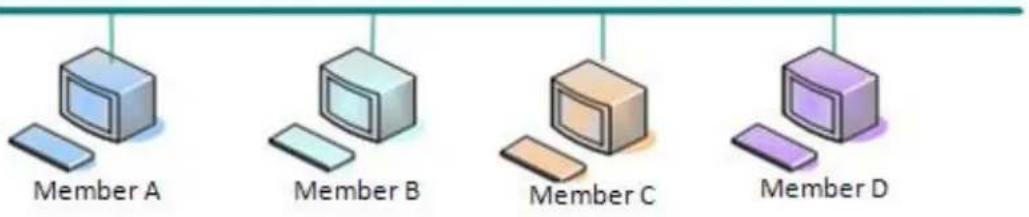

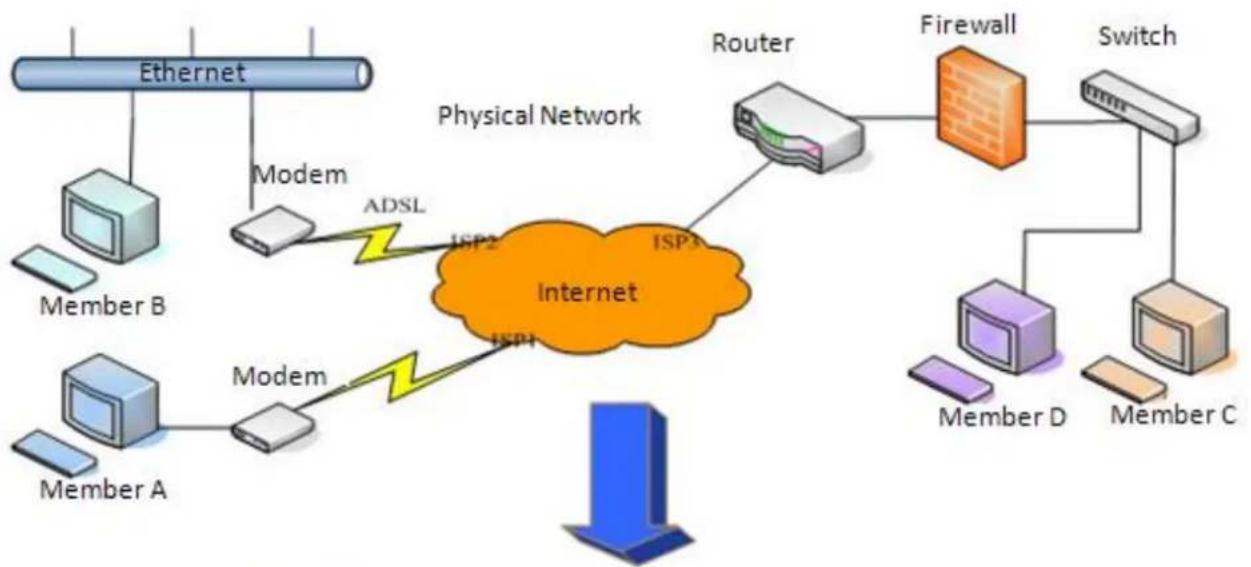

Through the VPN implementation logic line

Member A Member B Member C Member D

Basic VPN System Virtual Private Network (VPN) Status VPN IP Address: 0.0.0.0 Network VPN Mode Enable VPN L2TP OpenVPN Line Layer 2 Tunneling Protocol (L2TP) L2TP Server Address Authentication Name Authentication Password Apply EGS Setting EGS Access EGS Logs Function Key Alert OpenVPN Files OpenVPN Configuration file: client.ovpn N/A Upload Delete CA Root Certification: ca.crt N/A Upload Delete Client Certification: client.crt N/A Upload Delete Client Key: client.key N/A Upload Delete

Field Name	Explanation
VPN IP Address	Shows the current VPN IP address.
VPN Mode
Enable VPN	Enable/Disable VPN.
L2TP	Select Layer 2 Tunneling Protocol
OpenVPN	Select OpenVPN Protocol. (Only one protocol may be activated. After the select is made, the configuration should be saved and the phone be rebooted.)
Layer 2 Tunneling Protocol (L2TP)
L2TP Server Address	Set VPN L2TP Server IP address.
Authentication Name	Set User Name access to VPN L2TP Server.
Authentication Password	Set Password access to VPN L2TP Server.
Open VPN Files
Upload or delete Open VPN Certification Files

(3) Line

a) SIP

Configure a SIP server on this page.

SIP Basic Settings Dial Peer > System > Network > Line > EGS Setting > EGS Access > EGS Logs > Function Key > Alert Line SIP 1 ▼ Basic Settings >> Line Status Inactive SIP Proxy Server Address Phone number Backup Proxy Server Port 5060 Display name Backup Proxy Server Port Authentication Name Backup Proxy Server Port 5060 Authentication Password Outbound proxy address Activate Outbound proxy port Realm Codecs Settings >> Advanced Settings >> Apply

Codecs Settings >>

Disabled Codecs

Empty rectangular area with two directional arrows pointing to the right (no text or symbols)

Enabled Codecs

G.722 G.711U G.711A G.729AB

Advanced Settings >>

Subscribe For Voice Message

Voice Message Number

Voice Message Subscribe Period

3600 Second(s)

Enable DND

Blocking Anonymous Call

Use 182 Response for Call waiting

Anonymous Call Standard

Dial Without Registered

Click To Talk

User Agent

Response Single Codec

None

Ring Type

Conference Type

Server Conference Number

Transfer Timeout

Enable Long Contact

Enable Use Inactive Hold

Use Quote in Display Name

Default ▼

Local

0 Second(s)

Use Feature Code

Enable DND

Enable Blocking Anonymous Call

DND Disabled

Disable Blocking Anonymous Call

Specific Server Type

Registration Expiration

Use VPN

Use STUN

Convert URI

DTMF Type

DTMF SIP INFO Mode

Transportation Protocol

Local Port

SIP Version

Caller ID Header

Enable Strict Proxy

Enable user=phone

Enable SCA

Enable BLF List

COMMON ▼

60 Second(s)

AUTO

Send */# ▼

UDP

5060

RFC3261 ▼

PAI-RPID-1 ▼

Enable DNS SRV

Keep Alive Type

Keep Alive Interval

Sync Clock Time

Enable Session Timer

Session Timeout

Enable Rport

Enable PRACK

Auto Change Port

Keep Authentication

Auto TCP

Enable Feature Sync

Enable GRUU

BLF Server

BLF List Number

UDP

30 Second(s)

0 Second(s)

SIP Encryption

SIP Encryption Key

RTP Encryption

RTP Encryption Key

Apply

SIP
Field Name	Explanation
Basic Settings (Choose the SIP line to configured)
Line Status	Display the current line status at page loading. To get the up to date line user has to refresh the page manually.
Username	Enter the username of the service account.
Display name	Enter the display name to be sent in a call request.
Authentication Name	Enter the authentication name of the service account
Authentication Password	Enter the authentication password of the service account
Activate	Whether the service of the line should be activated
SIP Proxy Server Address	Enter the IP or FQDN address of the SIP proxy server
SIP Proxy Server Port	Enter the SIP proxy server port, default is 5060
Outbound proxy address	Enter the IP or FQDN address of outbound proxy server provided by the provider
Outbound proxy port	Enter the outbound proxy port, default is 5060
Realm	Enter the SIP domain if requested by the service provider
Codecs Settings
Set the priority and availability of the codecs by adding or remove them from the list.
Advanced Settings
Subscribe For Voice Message	Enable the device to subscribe a voice message waiting notification, if enable the device will receive notification from the server if there is voice message waiting on the server
Voice Message Number	Set the number for retrieving voice message
Voice Message Subscribe Period	Set the interval of voice message notification subscription
Enable DND	Enable Do-not-disturb, any incoming call to this line will be rejected automatically
Blocking Anonymous Call	Reject any incoming call without presenting caller ID
Use 182 Response for Call waiting	Set the device to use 182 response code at call waiting response
Anonymous Call Standard	Set the standard to be used for anonymous
Dial Without Registered	Set call out by proxy without registration
Click To Talk	Set Click To Talk
User Agent	Set the user agent, the default is Model with Software Version.
Response Single Codec	If setting enabled, the device will use single codec in response to an incor call request
Ring Type	Set the ring tone type for the line
Conference Type	Set the type of call conference, Local=set up call conference by the device maximum supports two remote parties, Server=set up call conference by di to a conference room on the server
Server Conference Number	Set the conference room number when conference type is set to be Serve
Transfer Timeout	Set the timeout of call transfer process
Enable Long Contact	Allow more parameters in contact field per RFC 3840
Use Quote in Display Name	Whether to add quote in display name
Use Feature Code	When this setting is enabled, the features in this section will not be hand the device itself but by the server instead. In order to control the enabling features, the device will send feature code to the server by dialing the nu specified in each feature code field.
Specific Server Type	Set the line to collaborate with specific server type
Registration Expiration	Set the SIP expiration interval
Use VPN	Set the line to use VPN restrict route
Use STUN	Set the line to use STUN for NAT traversal
Convert URI	Convert not digit and alphabet characters to %hh hex code
DTMF Type	Set the DTMF type to be used for the line
DTMF SIP INFO Mode	Set the SIP INFO mode to send ‘*’ and ‘#’ or ‘10’ and ‘11’
Transportation Protocol	Set the line to use TCP or UDP for SIP transmission
Local Port	Set the Local Port
SIP Version	Set the SIP version
Caller ID Header	Set the Caller ID Header
Enable Strict Proxy	Enables the use of strict routing. When the phone receives packets from t server, it will use the source IP address, not the address in via field.
Enable user=phone	Sets user=phone in SIP messages.
Enable SCA	Enable/Disable SCA (Shared Call Appearance)
Enable BLF List	Enable/Disable BLF List
Enable DNS SRV	Set the line to use DNS SRV which will resolve the FQDN in proxy server service list
Keep Alive Type	Set the line to use dummy UDP or SIP OPTION packet to keep NAT pinho opened
Keep Alive Interval	Set the keep alive packet transmitting interval
Enable Session Timer	Set the line to enable call ending by session timer refreshment. The call will be ended if there is not new session timer event update received after timeout period
Session Timeout	Set the session timer timeout period
Enable Rport	Set the line to add rport in SIP headers
Enable PRACK	Set the line to support PRACK SIP message
Enable DNS SRV	Set the line to use DNS SRV which will resolve the FQDN in proxy server service list
Auto Change Port	Enable/Disable Auto Change Port
Keep Authentication	Keep the authentication parameters from previous authentication
Auto TCP	Using TCP protocol to guarantee usability of transport for SIP messages ab 1500 bytes
Enable Feature Sync	Feature Sycn with server
Enable GRUU	Support Globally Routable User-Agent URI (GRUU)
BLF Server	The registered server will receive the subscription package from ordinary application of BLF phone.Please enter the BLF server, if the sever does not support subscription pad the registered server and subscription server will be separated.
BLF List Number	BLF List allows one BLF key to monitor the status of a group. Multiple BLI are supported.
SIP Encryption	Enable SIP encryption such that SIP transmission will be encrypted
SIP Encryption Key	Set the pass phrase for SIP encryption
RTP Encryption	Enable RTP encryption such that RTP transmission will be encrypted
RTP Encryption Key	Set the pass phrase for RTP encryption

b) Basic Settings

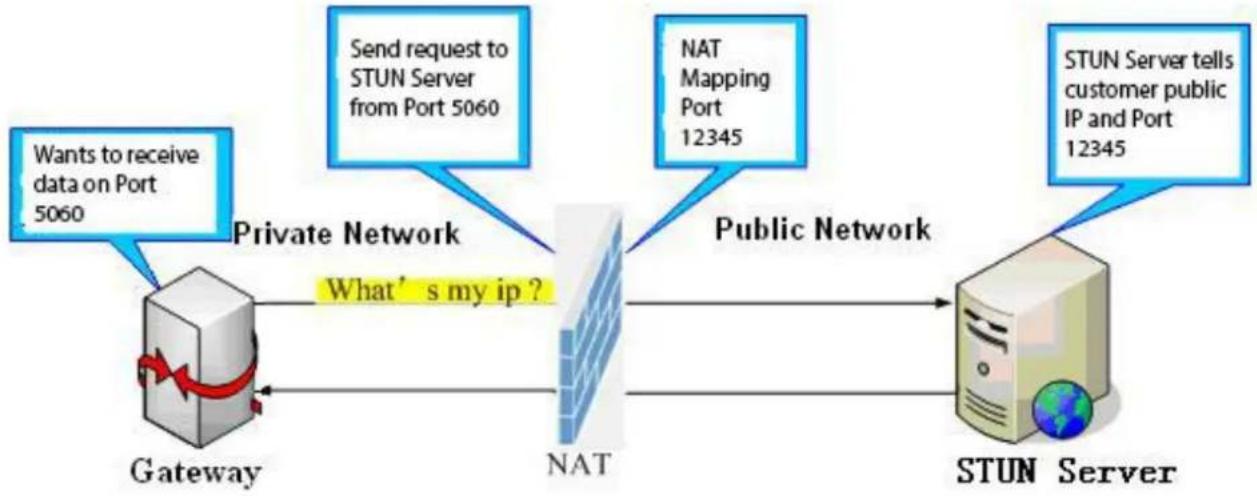

STUN -Simple Traversal of UDP through NAT -A STUN server allows a phone in a private network to know its public IP and port as well as the type of NAT being used. The equipment can then use this information to register itself to a SIP server so that it can make and receive calls while in a private network.

SIP Basic Settings Dial Peer SIP Settings Local SIP Port 5060 Registration Failure Retry Interval 32 Second(s) Enable Strict UA Match Enable DHCP Option 120 Apply STUN Settings STUN NAT Traversal FALSE Server Address Server Port 3478 Binding Period 50 Second(s) SIP Waiting Time 800 millisecond Apply TLS Certification File: slps.pem N/A Upload Delete System Network Line EGS Setting EGS Access EGS Logs Function Key Alert

Basic Settings
Field Name	Explanation
SIP Settings
Local SIP Port	Set the local SIP port used to send/receive SIP messages.
Registration FailureRetry Interval	Set the retry interval of SIP REGISTRATION when registration failed.
Enable Strict UAMatch	Enable or disable Strict UA Match
STUN Settings
Server Address	STUN Server IP address
Server Port	STUN Server Port – Default is 3478.
Binding Period	STUN blinding period – STUN packets are sent at this interval to keep the mapping active.
SIP Waiting Time	Waiting time for SIP. This will vary depending on the network.
TLS Certification File
Upload or delete the TLS certification file used for encrypted SIP transmission.
Note: the SIP STUN is used to achieve the SIP penetration of NAT, is the realization of a service equipment configuration of the STUN server IP and port (usually the default is 3478), and select Stun SIP server, the use of NAT equipment to achieve penetration.

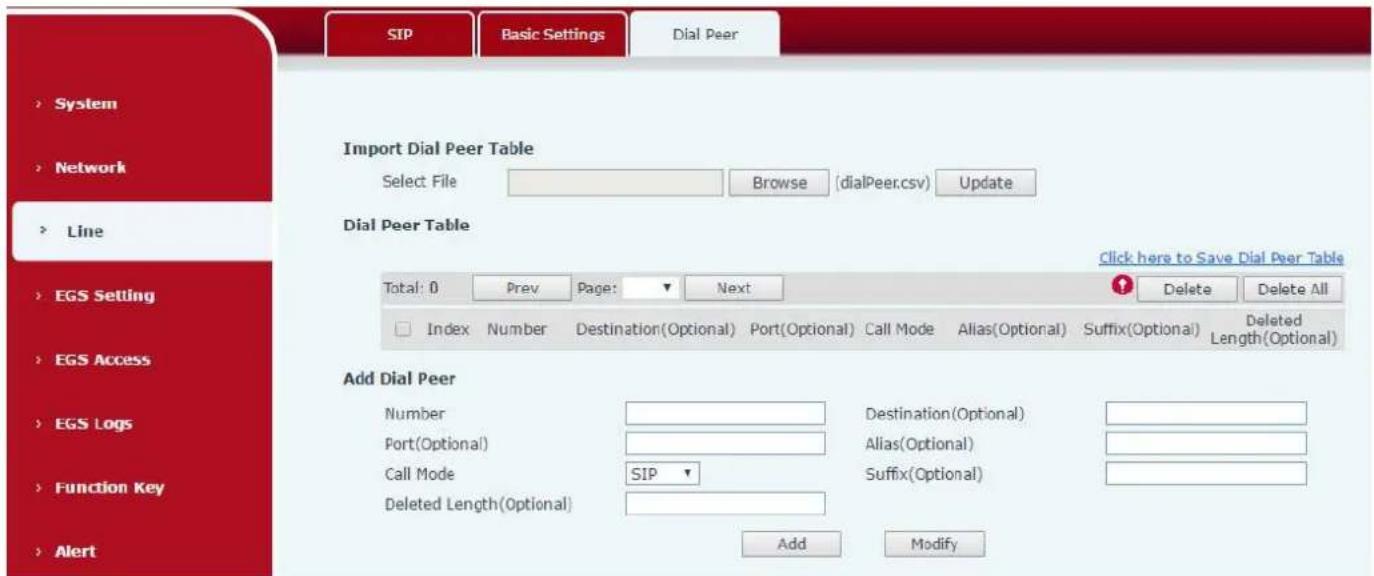

C) Dial Peer

Configure the Dial Peer to make the device call more flexible.

SIP Basic Settings Dial Peer System Network Line Import Dial Peer Table Select File Browse (dialPeer.csv) Update Dial Peer Table Click here to Save Dial Peer Table Total: 0 Prev Page: Next Delete Delete All Index Number Destination(Optional) Port(Optional) Call Mode Alias(Optional) Suffix(Optional) Deleted Length(Optional) EGS Setting EGS Access EGS Logs Function Key Alert Add Dial Peer Number Destination(Optional) Port(Optional) Alias(Optional) Call Mode SIP Suffix(Optional) Deleted Length(Optional) Add Modify

Import Dial peer Table
Field Name	Explanation
Select File	Select an existing dialing rule file. The file type must be a .CSV
Add Dial Peer
Number	In order to add an outgoing call number, the outgoing call number can be into two types: one is the exact match, and after the exact match, if the r exactly the same as the user dialing the called number, the device will use address of this number mapping or (This is the area code prefix function of PSTN). If the number matches the N-bit (prefix number length) of the called number, the device uses the IP address or configuration mapped to this nu Make a call. Configuration prefix matching needs to be followed by a prefix number to match the exact match number; the longest support of 30 bits; supports the use of x format and range of numbers.
Destination	Configure the destination address and, if configured as a point-to-point call, the peer IP address directly. Can also be set to domain name, by the device server to resolve the specific IP address. If it is not configured, the IP addr 0.0.0.0. This is an optional configuration item
Port	Configure the signaling port of the other party. This is an optional configura item. The default is 5060
Alias	Configure aliases, this is an optional item: the replacement number used wh the prefix is prefixed, and no alias when configured
Note: aliases are divided into four types and must be combined with the replacement length:1) add: xxx, add xxx before the number. This can help users save dialing length;2) all: xxx, all replaced by xxx; can achieve speed dial, such as user configuration dial-up 1, then configuring all: number to change the actual call out the number;3) del, delete the number before the n bit, n by the replacement length set;4) rep: xxx, the number n before the number is replaced by xxx, n is set by the replacement le example, if the user wants to dial the PSTN (010-62281493) through the floor service provided by VoIP operator, and the actual call should be 010-62281493, then we can configure the called nur then rep: 010, and then delete the length Set to 1. Then all users call the 9 at the beginning o will be replaced with 010 + number sent. To facilitate the user to call the habit of thinking mod
Call Mode	Configuration selection of different signaling protocols, SIP;
Suffix	Configure the suffix, this is optional configuration items: that is, after the di number to add this suffix, no configuration shows no suffix;
Deleted Length	Configure the replacement / delete length, the number entered by the user replaced / deleted by this length; this is an optional configuration item;

(4) EGS Setting

a) Features

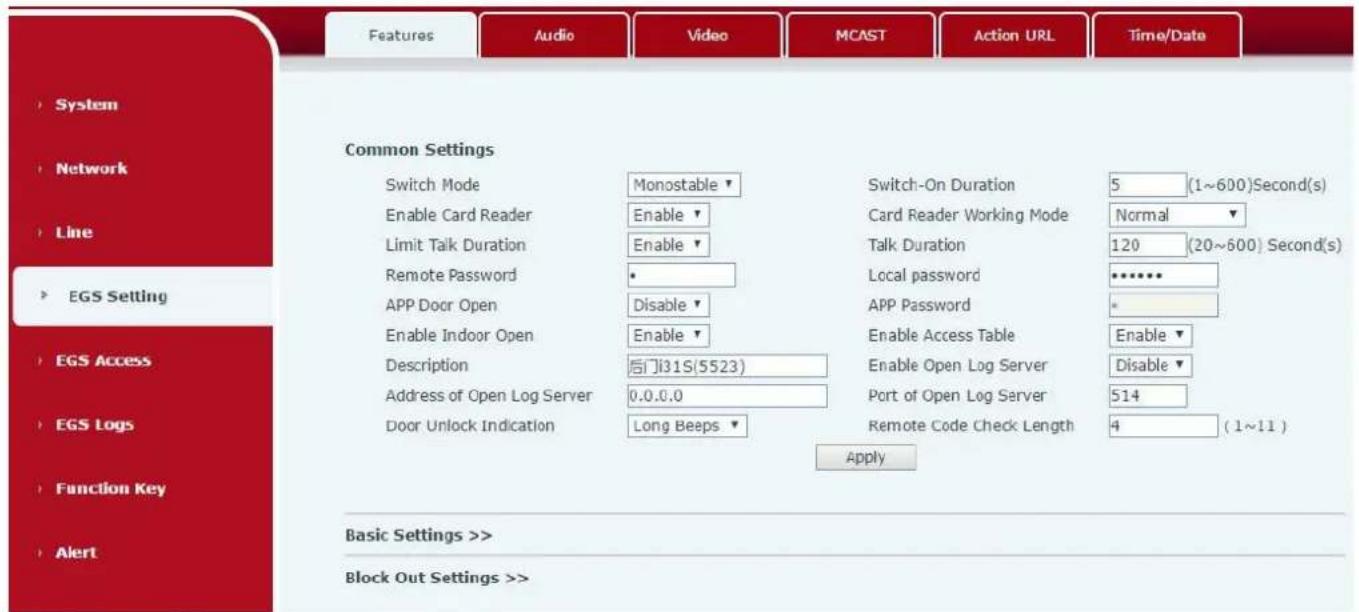

Features Audio Video MCAST Action URL Time/Date System Network Line EGS Setting Common Settings Switch Mode Monostable Enable Card Reader Enable Limit Talk Duration Enable Remote Password • APP Door Open Disable Enable Indoor Open Enable Description 后门31S(5523) Address of Open Log Server 0.0.0.0 Door Unlock Indication Long Beeps Switch-On Duration 5 (1~600)Second(s) Card Reader Working Mode Normal Talk Duration 120 (20~600) Second(s) Local password ***** APP Password * Enable Access Table Enable Enable Open Log Server Disable Port of Open Log Server 514 Remote Code Check Length 4 (1~11) Apply EGS Access EGS Logs Function Key Alert Basic Settings >> Block Out Settings >>

Basic Settings >>

Enable DND

Enable Intercom Mute

Enable Auto Dial Out

Enable Auto Answer

No Answer Auto Hangup

Dial Fixed Length to Send

Dial Number Voice Play

Enable Delay Start

Voice Read IP

Lines and IP Call ▼

Disable ▼

Enable ▼

Ban Outgoing

Enable Intercom Ringing

Auto Dial Out Time

Auto Answer Timeout

Auto Hangup Timeout

Send length

Voice Play Language

Delay Start Time

Press " * " to Send

(3\~30)Second(s)

(0\~60)Second(s)

(1\~60)Second(s)

(1\~180)Second(s)

Block Out Settings >>

Block Out List

Add

Delete

Features
Field Name	Explanation
Common Settings
Switch Mode	Monostable: there is only one fixed action status for door unlocking.Bistable: there are two actions and statuses, door unlocking and door locEach action might be triggered and changed to the other status. After changed, the status would be kept.Initial Value is Monostable
Switch-On Duration	Door unlocking time for Monostable mode only. If the time is up, the dowould be locked automatically. Initial Value is 5 seconds.
Enable Card Reader	Enable or disable card reader for RFID cards.

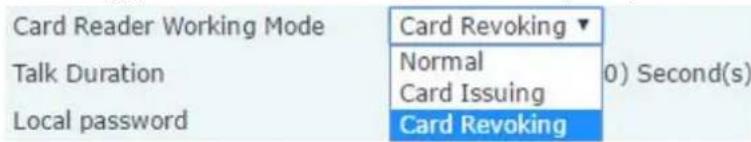

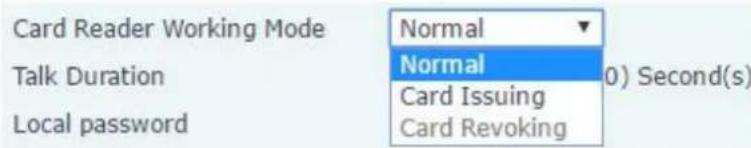

Card Reader Working Mode	Set ID card stats:Normal: This is the work mode, after the slot card can to open the doorCard Issuing: This is the issuing mode, after the slot card can to add IDCard Revoking: This is the revoking mode, after the slot card can to delete cards.
Limit Talk Duration	If enabled, calls would be forced ended after talking time is up.
Talk Duration	The call will be ended automatically when time up. Initial Value is 120 s
Remote Password	Remote door unlocking password. Initial Value is “*”.
Local password	Local door unlocking password via keypad, the default password length is Initial Value is “6789”.
APP Door Open	Enable or disable the APP Door Open
APP password	APP door unlocking password. Initial Value is “*”.
Enable Indoor Open	Enable or disable to use indoor switch to unlock the door.
Enable Access Table	Enable Access Table: enterfor opening door during calls.Disable Access Table: enterfor opening door during Default Enable.
Description	Device description displayed on IP scanning tool software. Initial Value is IP Door Phone”.
Enable Open Log Server	Enable or disable to connect with log server
Address of Open Log Server	Log server address(IP or domain name)
Port of Open Log Server	Log server port (0-65535), Initial Value is 514.
Door Unlock Indication	Indication tone for door unlocked. There are 3 type of tone: silent/short beeps/long beeps.
Remote Code Check Length	The remote access code length would be restricted with it. If the input code length is matched with it, system would check it immediately. Initial Value is 4.
Basic Settings
Enable DND	DND might be disabled phone for all SIP lines, or line for SIP individually the outgoing calls will not be affected
Ban Outgoing	If enabled, no outgoing calls can be made.
Enable Intercom Mute	If enabled, mutes incoming calls during an intercom call.
Enable Intercom Ringing	If enabled, plays intercom ring tone to alert to an intercom call.
Enable Auto Dial Out	Enable Auto Dial Out
Auto Dial Out Time	Set Auto Dial Out Time
Enable Auto Answer	Enable Auto Answer function
Auto Answer Timeout	Set Auto Answer Timeout
No Answer Auto Hangup	Enable automatically hang up when no answer
Auto Hangup Timeout	Configuration in a set time, automatically hang up when no answer
Dial Fixed Length to Send	Enable or disable dial fixed length to send.
Send length	The number will be sent to the server after the specified numbers of dig dialed.
Dial Number Voice Play	Configuration Open / Close Dial Number Voice Play
Voice Play Language	Set language of the voice prompt
Enable Delay Start	Enable or disable the start delay
Delay Start Time	Set start delay time
Voice Read IP	Enable or disable voice broadcast IP address
Press "*" to Send	Enable or disable the Press "*" to Send, Initial Value is enable
Block Out Settings
Add or delete blocked numbers – enter the prefix of numbers which should not be dialed by th For example, if 001 is entered, the phone would not dial any number beginning with 001. X and x are wildcards which match single digit. For example, if 4xxx or 4XXX is entered, the ph not dial any 4 digits numbers beginning with 4. It would dial numbers beginning with 4 which a or shorter than 4 digits.

b) Audio

This page configures audio parameters such as voice codec, speak volume, mic volume and ringer volume.

Features Audio Video MCAST Action URL Time/Date System Network Line EGS Setting EGS Access EGS Logs Function Key Alert Audio Settings First Codec G.722 Second Codec G.711A Third Codec G.711U Fourth Codec G.729AB Fifth Codec None Sixth Codec None DTMF Payload Type 101 (96~127) Default Ring Type Type 1 Pass Tone Default Fail Tone Default G.729AB Payload Length 20ms Tone Standard United Stz G.722 Timestamps 160/20ms G.723.1 Bit Rate 6.3kb/s Speakerphone Volume 5 (1~9) MIC Input Volume 5 (1~9) Broadcast Output Volume 5 (1~9) Signal Tone Volume 4 (0~9) Enable VAD Apply Sound Update Sound Update Select (*.wav) Upgrade Sound Delete Sound Delete Delete

Audio Setting
Field Name	Explanation
First Codec	The first codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB
Second Codec	The second codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB, Nor
Third Codec	The third codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB, None
Fourth Codec	The forth codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB, None
DTMF Payload Type	The RTP Payload type that indicates DTMF. Default is 101
Default Ring Type	Ring Sound – There are 9 standard types and 3 User types.
G.729AB Payload Length	G.729AB Payload Length – Adjusts from 10 – 60 mSec.
Tone Standard	Configure tone standard area.
G.722 Timestamps	Choices are 160/20ms or 320/20ms.
G.723.1 Bit Rate	Choices are 5.3kb/s or 6.3kb/s.
Speakerphone Volume	Set the speaker calls the volume level.
MIC Input Volume	Set the MIC calls the volume level.
Broadcast Output Volume	Set the broadcast the output volume level.
Signal Tone Volume	Set the audio signal the output volume level.
Enable VAD	Enable or disable Voice Activity Detection (VAD). If VAD is enabled, G729 Pa length cannot be set greater than 20 mSec.

c) Video

This page allows you to set the video capture and video encode.

Features Audio Video MCAST Action URL Time/Date System Network Line EGS Setting Video Capture IRCUT Mode Automatic Day/Night Mode Automatic White Balance Automatic Horizon Flip Enable Anti Flicker Disable Vertical Flip Enable IR Swap Disable DNC Threshold 29 (10~50) Backlight Compensation Disable AutoFill Sensitivity 5 (1~10) Fill Light Enable Default Apply EGS Access EGS Logs Function Key Alert Video Encode>> RTSP Information Main Stream Url : rtsp://172.18.2.131/user=admin&password=tlJwpbo6&channel=1&stream=0.sdp?real_stream Preview Sub Stream Url : rtsp://172.18.2.131/user=admin&password=tlJwpbo6&channel=1&stream=1.sdp?real_stream Preview

Video
Field Name	Explanation
Video Capture
IRCUT Mode	Auto: IRCUT switches according to the actual ambient light level of the camera Synchronization: The switching of the IRCUT is determined by the actual brightn the IR lamp.
Day/Night Mode	Automatic: automatically switches according to the DNC Threshold and the brigh of the actual environment where the camera is locatedDay Mode: The camera's video screen is always colored, if there is IR-cut will b synchronized to switch.Night Mode: the camera's video screen is always black and white, if there is IR be synchronized switch.
White Balance	Automatic: Automatically adjusts according to the actual environment in which t camera is located.Outdoor: installed in the outdoor preferred.Indoor: installed in the room preferred.
Horizon Flip	The video is flipped horizontally
Anti Flicker	Enable the option. In a fluorescent environment can eliminate the video horizon scroll
Vertical Flip	The video is flipped horizontally
IR Swap	IR-cut filter switch
DNC Threshold	In the Day / Night mode Auto option, the color switching black and white thre set
Backlight Compensation	In front of a very strong background light can see people or objects clearly
AutoFill Sensitivity	In the environment changes in light and shade, the higher the sensitivity the fa video changes
Fill Light	Enable or disable Fill Light
Video Encode
Encode Format	Only H.264 encoding format is supported
Resolution	Main stream: support 720PSub-stream: you can select CIF (352 * 288), D1 (720 * 576)
Frame Rate	The larger the value is, the more coherent the video would be got; not recom adjusted.
Bitrate Control	CBR: If the code rate (bandwidth) is insufficient, it is preferred.VBR: Image quality is preferred, not recommended.
Quality	Video quality adjustment, the better the quality needs to transfer faster
Bit rate	It is proportional to video file size, not recommend adjusted.
I Frame Interval	The greater the value is, the worse the video quality would be, otherwise the I video quality would be; not recommend adjusted.
Activate	When you selected it, the stream is enabled, otherwise disabled
RTSP Information
Main Stream Url	Access the main address of RTSP
Sub Stream Url	Access the child address of RTSP

d) MCAST

Features Audio Video MCAST Action URL Time/Date System Network Line MCAST Settings Priority 1 Enable Page Priority Index/Priority Name Host:port 1 2 3 4 5 6 7 8 9 10 Apply

It is easy and convenient to use multicast function to send notice to each member of the multicast via setting the multicast key on the device and sending multicast RTP stream to pre-configured multicast address. By configuring monitoring multicast address on the device, monitor and play the RTP stream which sent by the multicast address.

MCAST Settings

Equipment can be set up to monitor up to 10 different multicast addresses, used to receive the multicast RTP stream sent by the multicast address.

Here are the ways to change equipment receiving multicast RTP stream processing mode in the Web interface: set the ordinary priority and enable page priority.

- Priority:

In the drop-down box to choose priority of ordinary calls the priority, if the priority of the incoming flows of multicast RTP, lower precedence than the current common calls, device will automatically ignore the group RTP stream. If the priority of the incoming flow of multicast RTP is higher than the current common calls priority, device will automatically receive the group RTP stream, and keep the current common calls in state. You can also choose to disable in the receiving threshold drop-down box, the device will automatically ignore all local network multicast RTP stream.

● The options are as follows:

✿ 1-10: To definite the priority of the common calls, 1 is the top level while 10 is the lowest
✨ Disable: ignore all incoming multicast RTP stream
✨ Enable the page priority:

Page priority determines the device how to deal with the new receiving multicast RTP stream when it is in multicast session currently. When Page priority switch is enabled, the device will automatically ignore the low priority multicast RTP stream but receive top-level priority multicast RTP stream, and keep the current multicast session in state; If it is not enabled, the device will

automatically ignore all receiving multicast RTP stream.

- Web Settings:

MCAST Settings

Priority 1 Enable Page Priority Index/Priority Name Host:port 1 ss 239.1.1.1:1366 2 ee 239.1.1.1:1367

The multicast SS priority is higher than that of EE, which is the highest priority.

Note: when pressing the multicast key for multicast session, both multicast sender and receiver will beep.

Listener configuration

MCAST Settings

Priority 3 Enable Page Priority Index/Priority 1 group 1 2 group 2 3 group 3 4 5 6 7 8 9 10 Name Host:port 224.0.0.2:2366 224.0.0.2:1366 224.0.0.6:3366

- Blue part (name)

"Group 1", "Group 2" and "Group 3" are your setting monitoring multicast name. The group name will be displayed on the screen when you answer the multicast. If you have not set, the screen will display IP: port directly.

● Purple part (host: port)

It is a set of addresses and ports to listen, separated by a colon.

● Pink part (index / priority)

Multicast is a sign of listening, but also the monitoring multicast priority. The smaller number refers higher priority.

● Red part (priority)

It is the general call, non multicast call priority. The smaller number refers to high priority. The followings will explain how to use this option:

The purpose of setting monitoring multicast "Group 1" or "Group 2" or "Group 3" launched a multicast

call.

All equipment has one or more common non multicast communication.
When you set the Priority for the disable, multicast any level will not answer, multicast call is rejected.
when you set the Priority to a value, only higher than the priority of multicast can come in, if you set the Priority is 3, group 2 and group 3 for priority level equal to 3 and less than 3 were rejected, 1 priority is 2 higher than ordinary call priority device can answer the multicast message at the same time, keep the hold the other call.

● Green part (Enable Page priority)

Set whether to open more priority is the priority of multicast, multicast is pink part number. Explain how to use:

The purpose of setting monitoring multicast "group 1" or "3" set up listening "group of 1" or "3" multicast address multicast call.
All equipment has been a path or multi-path multicast phone, such as listening to "multicast information group 2".
If multicast is a new "group of 1", because "the priority group 1" is 2, higher than the current call "priority group 2" 3, so multicast call will can come in.
If multicast is a new "group of 3", because "the priority group 3" is 4, lower than the current call "priority group 2" 3, "1" will listen to the equipment and maintain the "group of 2".

Multicast service

• Send: when configured ok, our key press shell on the corresponding equipment, equipment directly into the Talking interface, the premise is to ensure no current multicast call and 3-way of the case, multicast can be established.
• Lmonitor: IP port and priority configuration monitoring device, when the call is initiated and incoming multicast, directly into the Talking interface equipment.

e) Action URL

	Features	Audio	Video	MCAST	Action URL	Time/Date
	Action URL Event Settings
> System	Active URI Limit IP
> Network	Setup Completed
> Line	Registration Succeeded
	Registration Disabled
	Registration Failed
> EGS Setting	Off Hooked
	On Hooked
> EGS Access	Incoming Call
	Outgoing calls
> EGS Logs	Call Established
	Call Terminated
> Function Key	DND Enabled
	DND Disabled
> Alert	Mute
	Unmute
	Missed calls
	IP Changed
	Idle To Busy
	Busy To Idle
	Apply

Action URL Event Settings

URL for various actions performed by the phone. These actions are recorded and sent as xml files server. Sample format is http://InternalServer /FileName.xml

f) Time/Date

Features Audio Video MCAST Action URL Time/Date Network Time Server Settings Time Synchronized via SNTP ✓ Time Synchronized via DHCP □ Primary Time Server time.nist.gov Secondary Time Server pool.ntp.org Time zone (UTC+8) China,Singapore,Australia ▼ Resync Period 60 (1~5000)Second(s) EGS Setting Date Format Date Format 1 JAN MON ▼ Apply

Daylight Saving Time Settings Location China(Beijing) DST Set Type Automatic Fixed Type Disabled Offset 0 Minute Start End Month January January Week 1 1 Weekday Sunday Sunday Hour 0 0 Apply Manual Time Settings 2017-06-28 17 30 Apply

Time/Date
Field Name	Explanation
Network Time Server Settings
Time Synchronized via SNTP	Enable time-sync through SNTP protocol
Time Synchronized via DHCP	Enable time-sync through DHCP protocol
Primary Time Server	Set primary time server address
Secondary Time Server	Set secondary time server address, when primary server is not reachable, the device to connect to secondary time server to get time synchronization.
Time zone	Select the time zone
Resync Period	Time of re-synchronization with time server
Date Format
Date Format	Select the time/date display format
Daylight Saving Time Settings
Location	Select the user's time zone specific area
DST Set Type	Select automatic DST according to the preset rules of DST, or the manually input rule
Offset	The DST offset time
Month Start	The DST start month
Week Start	The DST start week
Weekday Start	The DST start weekday
Hour Start	The DST start hour
Month End	The DST end month
Week End	The DST end week
Weekday End	The DST end weekday
Hour End	The DST end hour
Manual Time Settings
The time set by hand, need to disable SNTP service first.
Daylight Saving Time Settings

(5) EGS Access

Import Access Table Select File Browse (accessList.csv) Update Access Table >> Click here to Save Access Table Total: 0 Prev Page: Next Delete Delete All Index Name ID Department Position Location Number Fwd Number Access Code Double Auth Profile Type Issuing Date Card State Add Access Rule Name ID Card State Enable Department Position Type Guest Location Number Fwd Number Access Code Double Auth Disable ? Profile None Add Modify

Profile Setting

Profile	Profile1	Profile Name
Weekday	Statue	Start Time(00:00-23:59)	End Time(00:00-23:59)
Sunday	No ▼	00:00	00:00
Monday	No ▼	00:00	00:00
Tuesday	No ▼	00:00	00:00
Wednesday	No ▼	00:00	00:00
Thursday	No ▼	00:00	00:00
Friday	No ▼	00:00	00:00
Saturday	No ▼	00:00	00:00
		Apply

Administrator Table >>

Add Admin Card Issuer Add Total: 0 Prev Page: Next Delete Delete All Index ID Issuing Date Type

EGS Access
Field Name	Explanation
Import Access Table
Click the <Browse> to choose to import remote access list file (access List.csv) and then clicking <Update> can batch import remote access rule.
Access Table

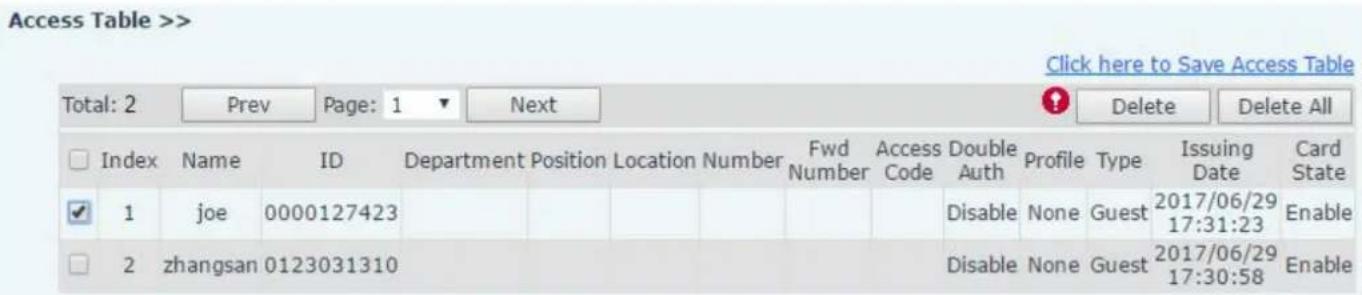

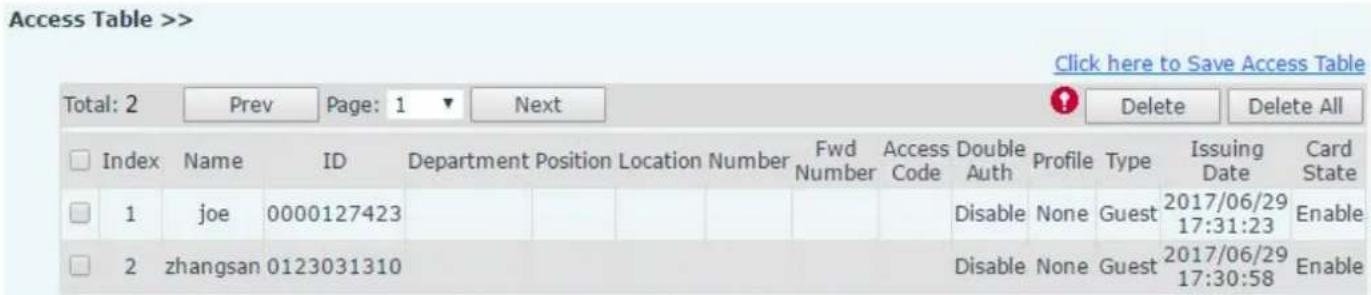

According to entrance guard access rules have been added, you can choose single or multiple ruthis list to delete operation.
Add Access Rule
Name(necessary)	User name
Location	Virtual extension number, used to make position call instead of real number.It might be taken with unit number, or room number.

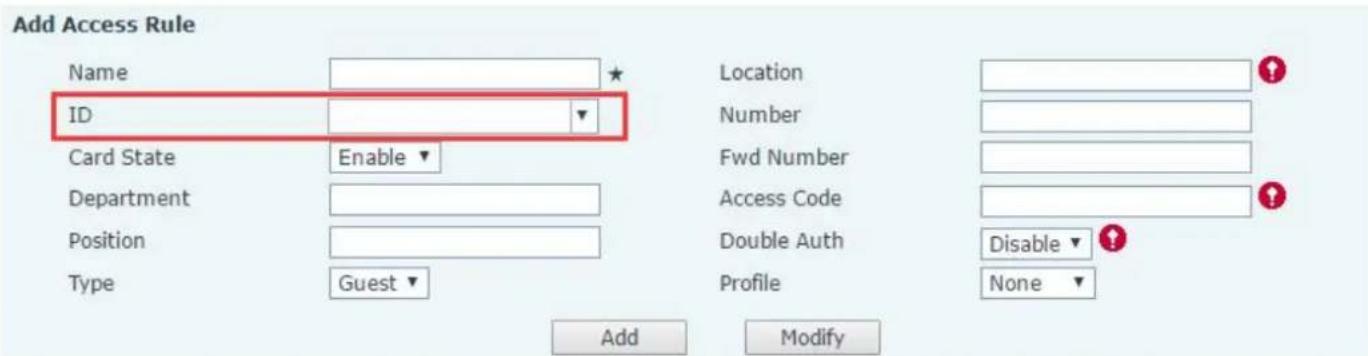

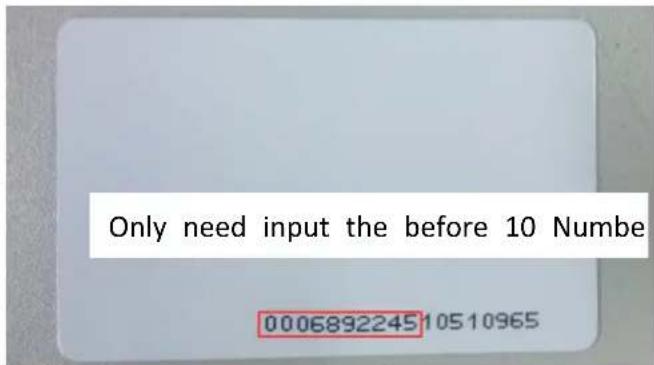

ID	RFID card number. You can manually fill in the first 10 digits of the card numlselect the existing card number
Number	User phone number
Card State	Enable or disable holder's RFID card
Fwd Number	Call forwarding number when above phone number is unavailable.
Department	Card holder's department
Access Code	1/ When the door phone answers the call from the corresponding <Phone Num user, then the <Phone Num> user can input the access code via keypad to unldoor remotely.2/ The user's private password should be input via keypad for local door unlockThe private password format is Location * Access Code.
Position	Card holder's position
Double Auth	When the feature is enabled, private password inputting and RFID reading must matched simultaneously for door unlocking.
Type	Host: the door phone would answer all call automatically.Guest: the door phone would ring for incoming call, if the auto answer is disa
Profile	It is valid for user access rules (including RFID, access code, etc) within corresp time section. If NONE is selected, the feature would be taken effect all day.
Profile Setting
Profile	There are 4 sections for time profile configuration
Profile Name	The name of profile to help administrator to remember the time definition
Status	If it is yes, the time profile would be taken effect. Other time sections not incthe profiles would not allow users to open door
Start Time	The start time of section
End Time	The end time of section
Administrator Table

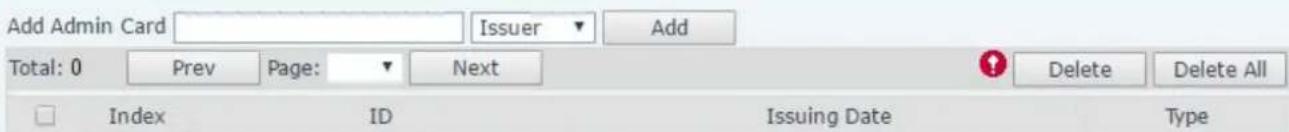

Add Admin Card	You should input the top 10 digits of RFID card numbers. for example, 000411selected the type of admin card , click.
Type: Issuer and revocationWhen entrance guard is in normal state, swipe card (issuing card) would make entrance guard in issuing state, and then you can swipe a new card, which the card would be added into the data when you swipe the issuing card again after cards added done, entrance guard would return to state. Delete card operation is the same with issuing card.The device can support up to 10 admin cards, 5000 copies of ordinary cards.Note: in the issuing state, swiping deleted card is invalid.
Shows the ID, Issuing Date and Type of admin card
Delete	Clickingwould delete the admin card list of the selected ID cards.
Delete All	Click, to delete all admin card lists.

(6) EGS Logs

According to open event log, can record up to 200,000 open event, after more than cover the old records. Right click on the links to select save target as the door log can export CSV format.

Door Open Log
Page: 1 ▼ Prev Next Delete All Click here to Save Logs
Door	Result	Time	Access Name	Access ID	Type
1	Fail	2017/06/28 14:58:46		0005340786	Illegal Card
1	Fail	2017/06/28 14:58:45		0005340791	Illegal Card
1	Fail	2017/06/28 14:58:44		0005340791	Illegal Card
1	Fail	2017/06/28 14:58:43		0005322743	Illegal Card
1	Fail	2017/06/28 14:58:41		0005322748	Illegal Card
1	Fail	2017/06/28 14:58:39		0005322753	Illegal Card
1	Fail	2017/06/28 14:58:38		0005323101	Illegal Card
1	Fail	2017/06/28 14:58:36		0005323101	Illegal Card
1	Fail	2017/06/28 14:58:34		0005323096	Illegal Card
1	Fail	2017/06/28 14:58:30		0005380528	Illegal Card
1	Fail	2017/06/28 14:58:27		0005380523	Illegal Card
1	Fail	2017/06/28 14:58:24		0005380518	Illegal Card

Field Name	Explanation
Door Open Log
Result	Show the results of the open the door ( Succeeded or Failed)
Time	The time of opening door.
Access Name	If the door was opened by swipe card or remote unlocking door, the device wo display remote access name.
Access ID	1. If the opening door method is swiping card, it wound display the card numb2. If the opening door way is remote access, it wound display the remote exter number.3. If the opening door way is local access, there is no display information.
Type	Open type: 1. Local, 2. Remote, 3. Brush card (Temporary Card, Valid Card and Card).Note: there are three kinds of brushing card feedback results.1. Temporary Card (only added) the card number, without adding other rules)2. Valid Card (added access rules)3. Illegal Card (Did not add information)

(7) Function Key

System Network Line EGS Setting EGS Access EGS Logs Function Key Alert Function Key Settings Key Type Number 1 Number 2 Line Subtype DSS Key 1 Hot Key 4003 8218 SIP1 Speed Dial Advanced Settings Use Function Key to Answer Enable Enable Speed Dial Hangup Enable Hot Key Dial Mode Select Main-Secondary Call Switched Time 16 (5~50)Second(s) Day Start Time 06:00 (00:00~23:59) Day End Time 18:00 (00:00~23:59) Apply

Key Event

You might set up the key type with the Key Event.

Key	Type	Number 1	Number 2	Line	Subtype
DSS Key 1	Key Event			SIP1	OK
					None
					Dial
					Release
					OK
					Handfree

Type	Subtype	Usage
Key Event	None	No responding
	Dial	Dialing function
	Release	Delete password input, cancel dialing input and end call
	OK	identification key

Hot Key

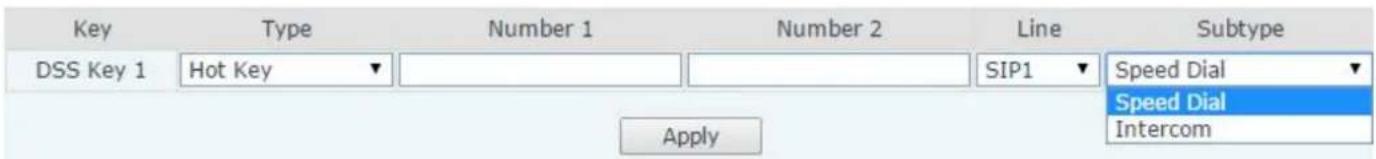

You might enter the phone number in the input box. When you press the shortcut key, equipment would dial preset telephone number. This button can also be used to set the IP address: you can press shortcut key to directly make a IP call.

Key Type Number 1 Number 2 Line Subtype DSS Key 1 Hot Key SIP1 Speed Dial Speed Dial Intercom Apply

Type	Number	Line	Subtype	Usage
Hot Key	Fill the called party's SIP account or IP address	The SIP account corresponding lines	Speed Dial	Using Speed Dial mode together with Enable Speed Dial Hangup Enable, can define whether this call is allowed to be hung up re-pressing the speed dial key.
			Intercom	In Intercom mode, if the caller's IP phone supports Intercom feature, the device can automatically answer the Intercom calls

Multicast

Multicast function is to deliver voice streams to configured multicast address; all equipment monitored the multicast address can receive and play it. Using multicast functionality would make deliver voice one to many which are in the multicast group simply and conveniently.

The DSS Key multicast web configuration for calling party is as follow:

Key DSS Key 1 Type Multicast Number 1 Apply Number 2 SIP1 Line Subtype G.722 G.711A G.711U G.722 G.723.1 G.726-32 G.729AB

Type	Number	Subtype	Usage
Multicast	Set the host IP address and port number; they must be separated by a colon	G.711A	Narrowband speech coding (4Khz)
		G.711U
		G.722	Wideband speech coding (7Khz)
		G.723.1	Narrowband speech coding (4Khz)
		G.726-32
		G.729AB

✨ operation mechanism

You can define the DSS Key configuration with multicast address, port and used codec. The device configures via WEB to monitor the multicast address and port. When the device make a multicast, all devices monitoring the address can receive the multicast data.

✨ calling configuration

If the device is in calls, or it is three-way conference, or initiated multicast communication, the device would not be able to launch a new multicast call.

(8) Alert

System Network Line EGS Setting EGS Access EGS Logs Function Key Alert Input Settings Input Detect Trigger Mode Low Level Trigger(Close Trigger) Alert message send to server Output Settings Output Response Output Level High Level(NO:closed) Output Duration 5 (1~600) s Alert Trigger Setting Alarm Ring Duration 5 (1~600) s Input Trigger Disable Ring DTMF Output Last By Duration Remote DTMF Trigger Enable Ring DTMF Trigger Code: 1234 Remote SMS Trigger Disable Ring Trigger Message Format ALERT=OUT1_SOS Call State Trigger Talking Apply

Tamper Alarm Settings □ Tamper Alarm Alarm command Tamper_Alarm Reset command Tamper_Reset Reset Alerting Status Reset Ring Type Default ▼ Apply Server Settings Server Address Send message to the server when the alarm is triggered Message:Alarm_Info:Description=后门i31S(5523);SIP User=5523;Mac=00:a8:23:6a:6d:9e;IP=172.18.2.131;port=Input1 Apply Field Name Explanation Input settings Input Detect Enable or disable Input Detect

Trigger Mode	When choosing the low level trigger (closed trigger), detect the input port 1 (low level) closed trigger.
	When choosing the high level trigger (disconnected trigger), detect the input port (high level) disconnected trigger.
Alert messagesend to server	Set the Alert message send to server
Output Settings
OutputResponse	Enable or disable Output Response
Output Level	When choosing the low level trigger (NO: normally open), when meet the trigger condition, trigger the NO port disconnected.
	When choosing the high level trigger (NO: normally close), when meet the trigger condition, trigger the NO port close.
OutputDuration	Changes in port, the duration of. The default is 5 seconds.
Alert Trigger Setting
Alarm RingDuration	Set the Alarm Ring Duration. The default is 5 seconds.
Trigger Mode: “Input trigger”, “Remote DTMF trigger”, “Remote SMS trigger”, “Call state trigger”. Call status triggering: there are four triggering modes of Talking / Talking and Ringing / Ringing.
Input trigger	When the input port meet to trigger condition, the output port will trigger(The level time change, By < Output Duration > control)
Remote DTMFtrigger	By duration	Received the terminal equipment to send the DTMF password, if correct, which triggers the corresponding output port (The Port level time change, By < Output Duration > control)
	By CallingState	During the call, receive the terminal equipment to send the DTMF password, if correct, which triggers the corresponding output port Port level time change, (By call state control, after the end of the port to return the default state)
Remote SMStrigger	In the remote device or server to send instructions to ALERT=[instructions], if cowhich triggers the corresponding output port
Call statetrigger	When the emergency call button to trigger the equipment shell, which triggers corresponding output port(after the end of the call, port to return the default s
Trigger MessageFormat	Send instructions on remote devices or servers, ALERT=[set instructions], if corre trigger the corresponding port output.

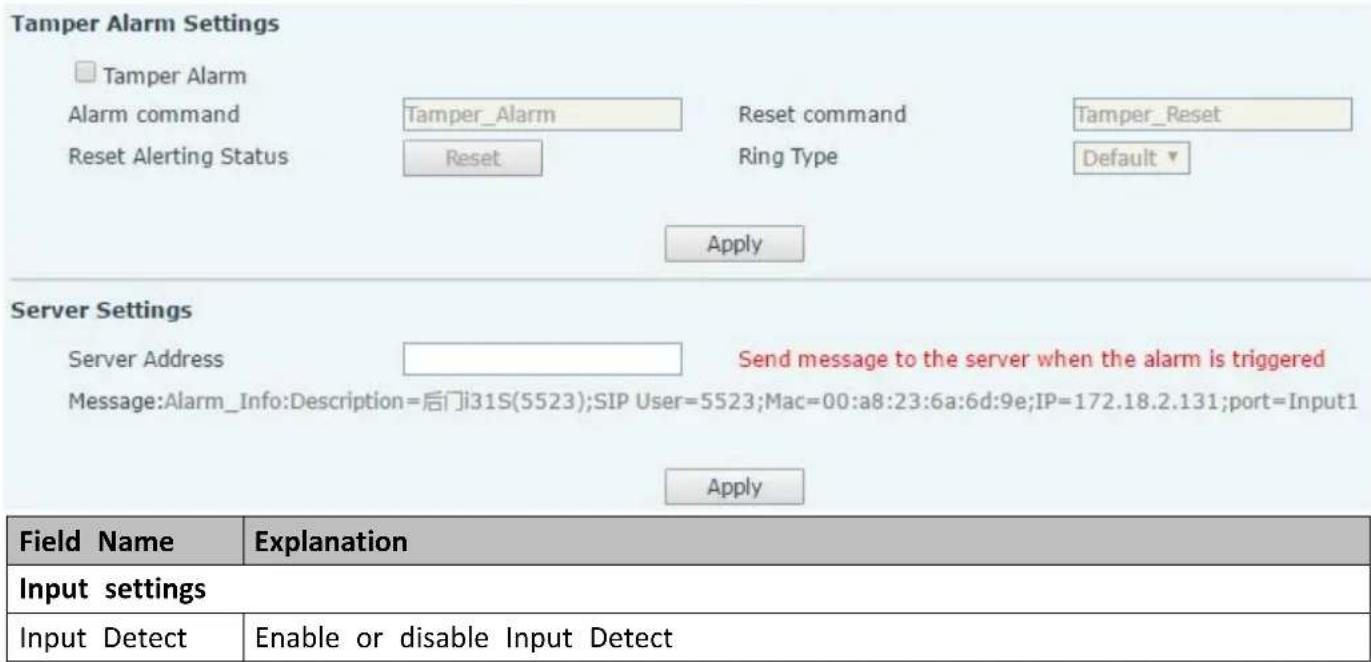

Tamper Alarm Settings
Tamper Alarm	When the selection is enabled, the tamper detection enabled
Alarm command	When detected someone tampering the equipment, will be sent alarm to the corresponding server
Reset command	When the equipment receives the command of reset from server, the equipmer stop alarm
Reset Alerting Status	Directly stop the alarm from equipment in the Webpage
Ring Type	Set the Ring Type

V Appendix

1. Technical parameters

Communication protocol		SIP 2.0(RFC-3261)
Main chipset		Broadcom
Keys	DSS Key	1 (Stainless steel)
	Numeric keyboard	Support
Audio	MIC	1
	Speaker	3W/4Ω
	Volume control	Adjustable
	Full duplex speakerphone	Support (AEC)
Speech flow	Protocols	RTP
	Decoding	G.729、G.723、G.711、G.722、G.726
Ports	Active Switched Output	12V/650mA DC
	WAN	10/100BASE-TX s Auto-MDIX, RJ-45
Camera		1/3 "color CMOS, 1 megapixel, wide angle
RFID/IC card reader		EM4100 (125Khz)MIFARE One(13.56Mhz)
Power supply mode		12V / 1A DC or PoE
PoE		PoE 802.3af (Class 3 - 6.49~12.95W)
Cables		CAT5 or better
Shell Material		Cast aluminium panel, Cast aluminium back shell
Working temperature		-40°C to 70°C
Working humidity		10% - 95%
Storage temperature		-40°C to 70°C
Installation way		Wall-mounting or Flush-mounting
Dimension		Wall-mounting: 223*130*74mmFlush-mounting: 270*150*61mm
Package size		310x175x115mm
Equipment weight		1500g
Gross weight		1800g

2. Basic functions

● 2 SIP lines
- PoE Enabled
● Full-duplex speakerphone (HF)
● Numeric keypad (Dial pad or Password input)
● Intelligent DSS Keys (Speed Dial/intercom etc)
● Wall-mounting / Flush-mounting
● Integrated RFID Card reader
● 1 indoor switch interface
● 1 electric lock relay
- Anti-tamper switch
● External power supply
● Door phone: call, password, RFID card, indoor switch
● Protection level: IP65, IK10, CE/FCC

3. Schematic diagram

Infrared light Camera Housing Speaker Numeric keypad (password and dialing) Lock status Call status Ring status Network and registration status RFID area DSS key with LED MICs

VI Other instructions

1. Open door modes

- Local

1) Local Password

Set (the default is "6789") via DOOR PHONE\DOOR PHONE as above.
Use the device's keypad to input password and "#" key, then the door will be unlocked.

2) Private access code

Set and enable local authentication.
Use the device's keypad to input access code and "#" key, then the door will be unlocked.

- Remote

1) Visitors call to owner

✿ Visitors call to owner via position speed dial or phone number. (When set the speed dial key, can press it to call direct.)

The owner answers the call, with pressing the "*" key to unlock the door for visitors.

2) Owner calls to visitors

✨ Owner calls to visitors via SIP phone.
✿ SIP door phone answers the call automatically.
Owner use keypad to input corresponding to unlock the door.

- Slot cards

Use pre assigned RFID cards to unlock the door, by touching RFID area of device.

- Indoor switch

✿ Press indoor switch, which is installed and connected with device, to unlock the door.

Day Start Time 06:00 (00:00-23:59) Day End Time 18:00 (00:00-23:59) Address of Log Server 0.0.0.0 Port of Log Server 514 Enable Log Server Disable Enable Indoor Open Enable Enable Card Reader Enable Limit Talk Duration Disable Door Unlock Indication Long beeps Remote Access Code Check Length 4 (1~6) Apply

2. Management of card

- Add Administrator

There are 2 types of Administrator cards: issuer used for adding cards, revocation used for deleting cards.

1) Add

Input a card's ID, selected in the types and Clicked , you can add Issuer admin card.

Add Administrator>>

ID

Type

0003476384

Issuer

Add

2) Add

Input a card's ID, selected in the types and Clicked , you can add Revocation admin card.

Add Administrator>>

ID

Type

0003408919

Revocation

Add

3) Administrator Table

Administrator Table>>

ID	Date	Type
0003476384	JAN 01 02:09:04	Issuer
0003408919	JAN 01 02:09:29	Revocation

- Delete Administrator

Select the admin card of need to delete, click .

Delete Administrator>>

0006892245

Delete

- Add user cards

Method 1: used to add cards for starters typically

1) In web page < EGS Setting\Card Reader Working Mode> option, select function.

Card Reader Working Mode

Talk Duration

Local password

Card Issuing

Normal

Card Issuing

Card Revoking

0) Second(s

2) Click , Card Reader would be entered the issuing status.
3) Use new card to touch card reader induction area, and then you might hear the confirmed indicative tone from the device. Repeat step 3 to add more cards.
4) In web page option, select function.

Card Reader Working Mode

Talk Duration

Local password

0) Second(s)

5) Click , Card Reader would be back to the Normal status.
6) The issuing records can be found from the Access table list.

Access Table >> Click here to Save Access Table Total: 2 Prev Page: 1 Next Delete Delete All Index Name ID Department Position Location Number Fwd Number Access Code Double Auth Profile Type Issuing Date Card State 1 joe 0000127423 Disable None Guest 2017/06/29 17:31:23 Enable 2 zhangsan 0123031310 Disable None Guest 2017/06/29 17:30:58 Enable

Method 2: used to add cards for professionals

1) Use to touch card reader induction area, and it would be entered issuing card status.
2) Use new card to touch card reader induction area, and you might hear the confirmed indication tor from the device. Repeat step 2 to add more cards.
3) Use to touch card reader induction area again, it would be back to normal working status.

Methods 3: use to add few cards

1) Input cards number in page, and then click .

Add Access Rule Name ID Card State Enable Department Position Type Guest Location Number Fwd Number Access Code Double Auth Profile Disable None Add Modify

Note: you can also use the USB card reader connected with PC to get cards ID automatically.

Only need input the before 10 Numbe 000689224510510965

- Delete user cards

Method 1: used to batch delete cards for starters.

1) In web page option, select .

Card Reader Working Mode Talk Duration Local password Card Revoking ▼ Normal Card Issuing Card Revoking 0) Second(s)

2) Click , Card Reader would be entered the revoking status.
3) Use card to touch card reader induction area, and you might hear the card reader confirmed indication tone. Repeat step 3 to delete more cards.
4) In web page option, select .

Card Reader Working Mode Talk Duration Local password Normal Normal Card Issuing Card Revoking 0) Second(s)

5) Click , Card Reader would be back to the Normal status.

Method 2: used to batch add cards for intermediates.

1) Use < Revocation admin card> to touch card reader induction area, and it would be entered revokir card status.
2) Use the cards you want to delete from system, to touch card reader induction area, and you might hear the card reader confirmed indication tone. Repeat step 2 to delete cards.
3) Use to touch card reader induction area, and it would be back to card re only status.

Method 3: use to batch delete cards or delete few cards.

1) In web pageselect the card ID and then click .

Note: If you click , system will delete all the ID cards.

Access Table >> Click here to Save Access Table Total: 2 Prev Page: 1 Next Delete Delete All Index Name ID Department Position Location Number Fwd Number Access Code Double Auth Profile Type Issuing Date Card State ✓ 1 joe 0000127423 Disable None Guest 2017/06/29 17:31:23 Enable □ 2 zhangsan 0123031310 Disable None Guest 2017/06/29 17:30:58 Enable
