USER MANUAL ULX2 SHURE

Product photo of a Shure ULX4 audio recording device with visible controls and external earphones (no text or symbols on main body)

Shure ULX Wireless

ULX sans fil de Shure

All systems include either a ULXS4 Standard Diversity Receiver or ULXP4 Professional Diversity Receiver.

Technical line drawing of a wireless device with two speakers and control panel (no text or symbols)

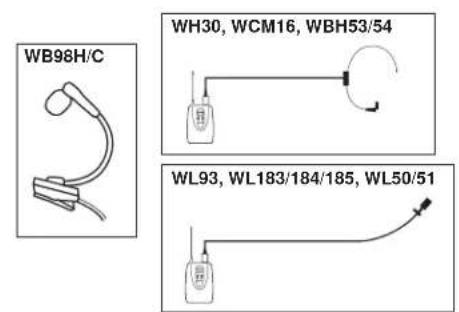

Bodypack systems include a choice of lavalier, headworn, or instrument microphones.

WB98H/C WH30, WCM16, WBH53/54 WL93, WL183/184/185, WL50/51

Handheld systems include a choice of interchangeable microphone heads.

SM58, SM86, SM87A, Beta 58, Beta 87C

Guitar systems include a 1/4" to mini 4-pin cable.

WA302

ULXP4 receivers include rack-mounting hardware.

Pure electrical circuit lines without any symbols

FULL RACK MOUNT HARDWARE

Technical line drawing of two mechanical components labeled UA506, showing angled ends and a flat end (no text or symbols beyond label)

1/2 RACK MOUNT HARDWARE

Antennas

Active Antennas

The antenna connectors on the ULX receiver provide 12 V DC for active circuit antennas.

Caution: Use only Shure antenna accessories to ensure the best operation. Do not use splitters, combiners, or antennas that provide a DC ground, as this can cause the receiver to function improperly.

Pure electrical circuit lines without any symbols

Antenna Combiners and Accessories

The supplied antennas can be connected directly to the BNC-type ANTENNA connectors. However, optional antenna mounting accessories from Shure can improve reception and reduce rack clutter. Use the following guidelines:

• Antennas and receivers must be from the same band.
• Mount antennas more than 40 cm (16 inches) apart.
• Use Shure UA825 or UA850 low-loss coaxial antenna cable (or any 50 ohm, low-loss cable such as RG-8U).

Visit www.shure.com for more information on wireless antenna accessories.

Coaxial Cables

Illustration of various cable connectors and fittings (no text or symbols)

Front Mount Antenna Kit

1/2-Wave Antenna included with ULXP4 systems

Inline Antenna Amplifier for long antenna cable run

Two identical cable connectors with terminal connectors, shown above a separate panel with circular and rectangular elements (no text or symbols visible)

Antenna Rack Mount Kit

Active Directional Antenna

for more focused reception

Distribution Amplifier
combines antennas and power supplies for multiple receivers

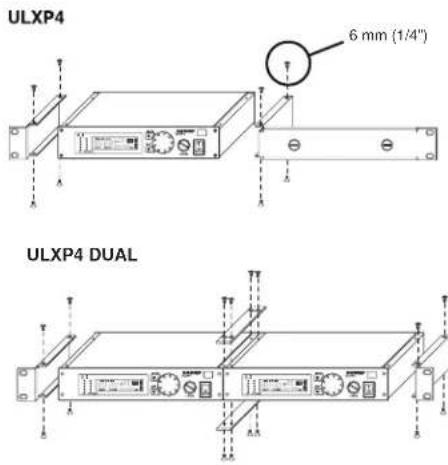

Rack Installation

ULXP4 6 mm (1/4") ULXP4 DUAL

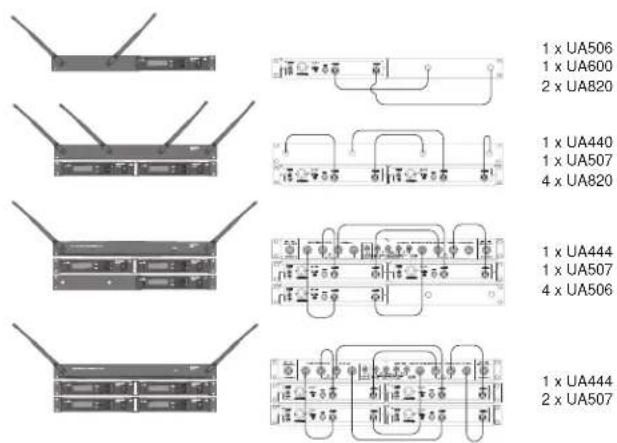

Rackmount Options

The following shows rackmounting options for one to four receivers and lists the required accessories.

1 x UA506 1 x UA600 2 x UA820 1 x UA440 1 x UA507 4 x UA820 1 x UA444 1 x UA507 4 x UA506 1 x UA444 2 x UA507

Power

Power switch Power Connector

DC INPUT 14 -18V

Connect using the supplied AC adapter or certified 14–18 Vdc (550 mA) replacement supply.

Batteries

Installation

ULX1, ULX2 A6

Battery Life

Use only 9V alkaline or lithium batteries. Typical life for common types of 9V batteries are listed below. For detailed information on battery performance, contact Shure Applications Engineering.

Recommended:

• Lithium (16 hours)

- Alkaline (8 hours)

Not recommended:

• Carbon-Zinc ( 12 hour)

• Rechargeable Ni-Cd (2 hours)

• Rechargeable Ni-MH (2½ hours)

Note:

- Battery life varies with type and manufacturer.

• Batteries stored for more than a year or stored in excessively hot environments may experience a higher failure rate.
• Do not use rechargeable batteries with a fully-charged rating of greater than 9 V (for example, 9.6 V).
• Transmitters require a minimum of 6 V to operate.

Power/Mute Switch

• Turn transmitter off to mute the microphone or conserve battery power.
• Use the lock feature to avoid accidental muting of the microphone during a performance.

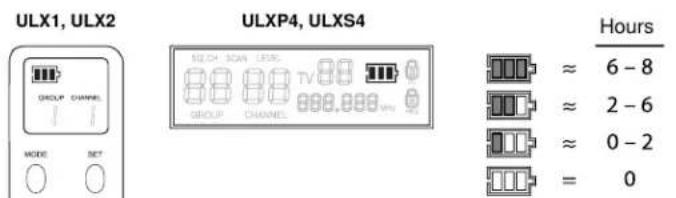

Battery Indicator

Both the transmitter and receiver LCD shows approximate operation time remaining for the transmitter.

Single System

If you encounter wireless interference, perform a channel scan on the receiver and use the selected channel. You usually do not need to change the group.

Multiple Systems

To maximize performance, set all wireless systems to different channels from the same group. These channels are selected to work well together.

Follow these steps when using group and channel scan with multiple systems.

1. Power off all system transmitters. Turn on all other wireless or digital devices as they would be during the performance or presentation.
2. On the first receiver: Perform a group scan. Note the selected group, then use channel scan to find the first open channel in that group.
3. Power on the first transmitter and set it to the selected group and channel.

4. IMPORTANT: Leave the first transmitter powered on while setting up the next system.

5. For each additional system: Set to the same group as the first. Perform a channel scan and set the receiver and transmitter to the selected channel.

6. Leave each transmitter on while setting up additional systems.

Note:

• Keep each transmitter at least two meters (6 feet) apart.
• If using systems from different bands, set up all systems from the same band together.

Tip: To reduce setup time, you can manually set up the group and channels before arriving at the venue. Visit www.shure.com for a list of groups and channels that are anticipated to be free of interference in a particular city or region.

Automatic Frequency Scan

Channel Scan

This feature scans for an open channel in the selected group.

①
ULXP4, ULXPS4

1 MODE SCAN CHANNEL 2 ULX5M ULX7M 3 SET

ULX1, ULX2

②

1 MODE 00:00:02 2 MODE SET 3 MODE GROUP CHANNEL GROUP CHANNEL GROUP CHANNEL GROUP CHANNEL

Group Scan (ULXP4 only)

The "group scan" feature on the ULXP helps maximize the number of systems you can install at a single venue. It scans for wireless interference and finds the group with the most open channels.

ULXP4

1 SET + MODE 2 SCAN GROUP 3 3.88x60000000000000000000000000000000000 GROUP OPEN CH... SET

Changing Group and Channel

If you encounter wireless interference, set the receiver and transmitter to a different channel or group.

Change Channel

ULXP4, ULXS4

ULX1, ULX2

1 MODE 00:00:02 2 MODE SET 3 MODE GROUP CHANNEL GROUP CHANNEL GROUP CHANNEL GROUP CHANNEL

Change Group

ULXP4, ULXS4

ULX1, ULX2

1 MODE 0:00:02 2 SET GROUP CHANNEL 3 3 MODE GROUP CHANNEL 4 4 MODE GROUP CHANNEL 3 4

* Note: You can reverse the scroll direction by holding SET and pressing MODE.

Wireless Indicators

RF Indicator

Indicates wireless activity over the selected channel.

Note: When the antenna and battery indicators are illuminated, the RF indicator shows signal strength from the transmitter. Otherwise, it is showing interference from another source. Select a different channel.

This indicator shows which antenna is receiving the strongest signal from the transmitter.

ULXP4

ULXS4

Frequency Display

ULXP4

TV

For models sold in the United States only. Displays the TV channel occupied by the selected frequency.

ULXP4, ULXPS4

Frequency Master List Mode

Master List mode offers more precise frequency selection for larger, multiple-system installations.

Enter Master List mode on the receiver or transmitter by holding down the SET button for 10 seconds. Set GROUP and CHANNEL as you would in normal mode.

Note: The unit must remain in Master List mode to operate at the selected frequency.

Exit Master List mode by holding the SET button for 10 seconds.

10 s

Squelch

The factory setting offers the optimum performance for most installations.

Increasing squelch filters out all but the highest quality signal, but this decreases operating range. Decreasing squelch extends the operating range, but can increase signal noise.

ULXP4
        E["+"]
        F["MODE"]
    end
    subgraph MODE
        G["MODE"]
    end
    subgraph SQLCH
        H["SOLCH"]
    end

Audio Output

Audio Output Connectors

Balanced XLR: Connect to a mixer or other professional audio input. Use the MIC/LINE switch to adjust for microphone or line-level inputs.

Unbalanced 6.35 mm (1/4"):

Connect to high impedance inputs, such as a guitar amplifier.

Note: The LINE/MIC switch does not affect the 6.35 mm (1/4") jack.

ULXP4, ULXS4

Receiver Output Level

Adjusts the level of the receiver's audio outputs.

ULXP4

LEVEL

PEAK Icon

This icon appears when the input signal overloads the transmitter. The icon is displayed for 2 seconds after input overload is detected.

ULX1, ULX2

PEAK

LOW Z

HIGH Z

Transmitter Gain

For best audio quality, adjust transmitter gain so only the green and yellow TXAUDIO LEDs flicker. (Occasional illumination of the red LED is okay.)

Green = nominal

Yellow = peak

Red = overload

ULX1

-20 dB 0

ULX2

ULX2 GAIN

TX RF AUDIO
Audio Input Meter

ULX1

1. Set the attenuator (pad) switch to 0 dB for microphones and -20 dB for guitars. (Some low output instruments may not need attenuation.)
2. Adjust gain control as necessary.

ULX2

• Fully clockwise for quiet to normal vocal performance.
  • Halfway counterclockwise for loud vocal performance.
• Fully counterclockwise for horn or percussive instruments.

Locking the Transmitter

Lock/Unlock Power (On)

Hold SET and MODE for four seconds or until the lock icon appears.

ULX1, ULX2

1 ULX1 OFF ON BAT ULX2 ON OFF 2 SET + MODE 00:00:04

power lock
power unlock

Locking the Receiver (ULXP4 Only)

This feature prevents accidental setting changes.

ULXP4

3 4 SET

lock volume
lock frequency

Unlocking

Hold the SET button while turning the control wheel left, right, left.

ULXP4

SET +

Note: If LEVEL flashes on the LCD, decrease the LEVEL control to continue. This feature safeguards against sudden level increases when the lock is removed.

Lock/Unlock Frequency

Hold the SET button while powering on the transmitter.

ULX1, ULX2

1 ULX1 OFF ON BAT 2 SET + ULX1 OFF ON BAT ULX2 ON OFF ULX2 ON OFF

frequency lock
frequency unlock

Troubleshooting

No power: Check battery and power supply connections and voltage. Check the power switch on the transmitter.

The LCD displays "E0 00" or similar code: Exit master list mode by holding the SET button for ten seconds.

Can't turn off or change settings on the transmitter or receiver: The interface is locked. See the section on locking the interface.

No audio: If the antenna and battery indicators do not appear on the receiver, then it is not receiving a signal from the transmitter. Make sure the transmitter and receiver are tuned to the same group and channel.

Faint or distorted audio: Adjust transmitter gain, bodypack attenuator switch, and receiver output level.

Noise: Noise usually results from wireless interference or a weak signal from the transmitter. See Tips for Improving System Performance.

Tips for Improving System Performance

If you encounter wireless interference or dropouts, try the following:

• Replace the transmitter battery with a fresh alkaline battery (avoid rechargeable batteries).
• Choose a different frequency channel.
• Reposition the antennas so there is nothing obstructing a line of sight to the transmitter (including the audience).
• Avoid placing transmitter and receiver where metal or other dense materials may be present.

• Move the receiver to the top of the equipment rack (or remote mount antennas outside the rack).

• Remove nearby sources of wireless interference, such as cell phones, two-way radios, computers, media players, and digital signal processors.

• Keep transmitters more then two meters (6 feet) apart.
• Keep the transmitter and receiver more than 5 meters (15 ft) apart.
• Point the receiver antenna tips away from each other at a 45^ angle, and keep them away from large metal objects.
• During sound check, mark "trouble spots" and ask presenters or performers to avoid those areas.

Parts and Accessories

Included Accessories

Microphone Stand Adapter (ULX2)	WA371
Grip/Switch Cover (ULX2)	WA555
Zipper Bag (ULX1)	95A2313
Zipper Bag (ULX2)	95B2313
Screwdriver (ULX2)	80A498

Optional Accessories

Passive Antenna Splitter/Combiner Kit	UA221
UHF Line Amplifier	UA830WB
UHF Powered Directional Antenna	UA874US
	UA874E
	UA874WB
	UA874X
UHF Antenna Power Distribution Amplifier (U.S.A.)	UA844SWB
UHF Antenna Power Distribution Amplifier (Europe)	UA844SWB-E
UHF Antenna Power Distribution Amplifier (UK)	UA844SWB-UK
33 m (100 ft.) BNC-BNC cable	UA8100
1.8 m (6 ft.) BNC-BNC cable	UA806
Antenna Rack Panel	UA440
Front Mount Antenna Kit (Includes 2 cables and 2 bulkhead adapters)	UA600
Remote Antenna Bracket with BNC Bulkhead Adapter	UA505
Rack Mount Kit for single Receiver	UA506
Rack Mount Kit for Two Receivers	UA507
Carrying Case	WA610
Microphone Adapter Cable (XLR)	WA310

Replacement Parts

AC Adapter (120 VAC, 60 Hz) PS41
AC Adapter (220 VAC, 50 Hz) PS41AR
AC Adapter (230 VAC, 50/60 Hz) PS41AZ
AC Adapter (230 VAC, 50/60 Hz, Europlug) PS41E
AC Adapter (230 VAC, 50/60 Hz) PS41UK
AC Adapter (100 VAC, 50/60 Hz) PS41J
SM58- Cartridge with Grille (ULX2/58) RPW112
BETA 58A- Cartridge with Grille (ULX2/ BETA 58) RPW118
SM86 Cartridge with Grille (ULX2/SM86) RPW114
SM87A Cartridge with Grille (ULX2/87) RPW116
BETA 87A Cartridge with Grille (ULX2/BETA 87A) RPW120
BETA 87C Cartridge with Grille (ULX2/BETA 87C ) RPW122
Matte Silver Grille for SM58 RK143G
Matte Silver Grille for SM86 RPM226
Matte Silver Grille for BETA 58A RK265G
Matte Silver Grille for BETA 87A RK312
Black Grille for SM87A RK214G
Black Grille for BETA 58A RPM323G
Black Grille for BETA 87A and BETA 87C RPM324G
Belt Clip 44A8013A
1/4-Wave Antenna (470 - 752 MHz)	UA400B
1/4-Wave Antenna (774 - 952 MHz)	UA400
1/2-Wave Antenna (774 - 865 MHz)	UA8-774-865
1/2-Wave Antenna (638 - 698 MHz)	UA8-638-698
1/2-Wave Antenna (554 - 590 MHz)	UA8-554-590
1/2-Wave Antenna (740 - 814 MHz)	UA8-740-814
1/2-Wave Antenna (470 - 530 MHz)	UA8-470-530
1/2-Wave Antenna (746 - 784 MHz)	UA8-746-784
1/2-Wave Antenna (572 - 596 MHz)	UA8-572-596
1/2-Wave Antenna (578 - 638 MHz)	UA8-578-638

Certifications

This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.

The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: [phone]

Fax: [phone]

Email: [e-mail]

ULX1, ULX2

Certified under FCC Part 74.

Certified by IC in Canada under RSS-123 and RSS-102.

Approved under the Declaration of Conformity (DoC) provision of FCC Part 15.

Certified in Canada by IC to RSS-123.

Important Product Information

LICENSING INFORMATION

Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user's responsibility, and licensability depends on the user's classification and application, and on the selected frequency. Shure strongly urges the user to contact the appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.

Information to the user

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Note: EMC conformance testing is based on the use of supplied and recommended cable types. The use of other cable types may degrade EMC performance.

Please follow your regional recycling scheme for batteries, packaging, and electronic waste.

WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Australia Warning for Wireless

This device operates under an ACMA class licence and must comply with all the conditions of that licence including operating frequencies. Before 31 December 2014, this device will comply if it is operated in the 520-820 MHz frequency band. WARNING: After 31 December 2014, in order to comply, this device must not be operated in the 694-820 MHz band.

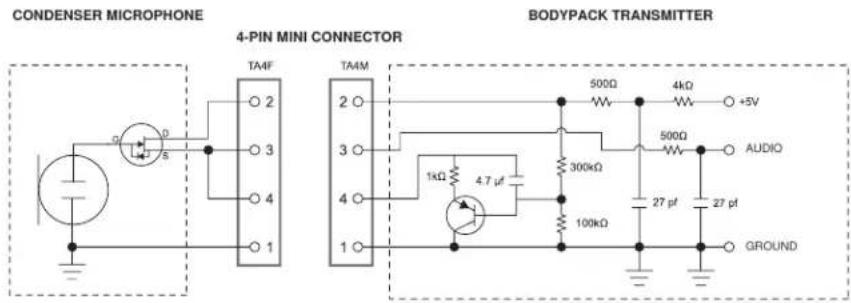

Wiring Diagram

CONDENSER MICROPHONE 4-PIN MINI CONNECTOR TA4F TA4M 500Ω 4kΩ +5V 300kΩ 500Ω AUDIO 1kΩ 4.7 μF 100kΩ 27 pt 27 pt GROUND

INSTRUMENT CABLE TIP SLEEVE AUDIO SHIELD TA4F 2 3 4 1

Specifications

RF Carrier Range

470,000-865,000 MHz

varies by region

Working Range

100 m (300 ft) typical

Note: Actual range depends on RF signal absorption, reflection and interference.

Audio Frequency Response

25 Hz - 15 kHz, ±2 dB

Note: Dependent on microphone type

Modulation

±38 kHz deviation compressor-expander system with pre- and de-emphasis

Dynamic Range

100 dB, A-weighted

Image Rejection

80 dB, typical

RF Sensitivity

1.26 μV for 12 dB SINAD, typical

Spurious Rejection

75 dB, typical

Ultimate Quieting

Ref. ±38 kHz deviation with 1 kHz tone

105 dB, A-Weighted

Total Harmonic Distortion

Ref. ±38 kHz deviation with 1 kHz tone

0.3%, typical

Operating Temperature Range

-20°C (-4°F) to 49°C (120°F)

Note: Battery characteristics may limit this range.

Polarity

Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

Battery Life

8 to 9 hours (9 V alkaline)

ULX1

Gain Adjustment Range

25 dB

Attenuation Switch

0, -20 dB

Dimensions

96.5 x 67 x 26.7 mm (3.86 x 2.68 x 1.10 in.), H x W x D

Weight

79 g (2.8 oz.) without batteries

Power Requirements

9 V alkaline

Input Impedance

1 MΩ

RF Output Power

30 mW maximum

varies by region

Transmitter Input

Connector

4-Pin male mini connector (TA4M)

Configuration

Unbalanced, active

Impedance

Microphone	75 kΩ
WA302	1 MΩ

Maximum Input Level

1 kHz at 1% THD

Microphone	-4 dBV (1.82 Vp-p)
WA302	PAD OFF (0dB)	5 dBV (5 Vp-p)
	PAD ON (-20dB)	25 dBV (50 Vp-p)

Pin Assignments

TA4M

1	ground (cable shield)
2	+5 V Bias
3	audio
4	Tied through active load to ground (On instrument adapter cable, pin 4 floats)

ULX2

Gain Adjustment Range

20 dB

Dimensions

SM58	229 x 51 mm (9 x 2 in.), L x Dia.
BETA 58	221 x 51 mm (8.7 x 2 in.), L x Dia.
SM86	213 x 49 mm mm (8.4 x 1.9 in.), L x Dia.
SM87/BETA 87	223 x 51 mm (8.8 x 2 in.), L x Dia.

Weight

SM58/BETA 58	289 g (10.2 oz.) without batteries
SM86	251 g (8.8 oz.) without batteries
SM87/BETA 87	258 g (9.1 oz.) without batteries

Power Requirements

9 V alkaline

RF Output Power

30 mW maximum

varies by region

Transmitter Input

Configuration

Unbalanced, active

Impedance

20 kΩ

Maximum Input Level

1 kHz at 1% THD

12 dBV (10 Vp-p)

ULXS4, ULXP4

Dimensions

ULXS4	43 x 214 x 163 mm (1.72 x 8.56 x 6.52 in.), H x W x D
ULXP4	43 x 214 x 172 mm (1.72 x 8.56 x 6.88 in.), H x W x D

Weight

ULXS4	1049 g (2 lbs, 5 oz.)
ULXP4	1105 g (2 lbs, 7 oz.)

Power Requirements

14-18 V DC (negative ground), 550 mA

Analog Audio Output

Configuration

XLR Output	Active Balanced
6.35 mm (1/4") output	Unbalanced

Impedance

XLR Output	MIC settling	1848 Ω
	LINE settling	75 Ω
6.35 mm (1/4") output	3 kΩ

Maximum Audio Output Level

Ref. ±38 kHz deviation with 1 kHz tone

XLR connector (into 600 Ω load)	MIC setting	-17 dBV
	LINE setting	+3.9 dBV
6.35 mm (1/4") connector (Into 3 kΩ load)	-2 dBV

Pin Assignments

XLR Output	1=ground, 2=hot, 3=cold
6.35 mm (1/4") connector	Tip=audio, Ring/Sleeve=ground

Receiver Antenna Input

Connector Type

BNC

Impedance

50 Ω

Nominal Input Level

-95 to -30 dBm

Maximum Input Level

-20 dBm

DC bias

12 V DC, 150 mA, maximum

ULX FREQUENCIES FOR EUROPEAN COUNTRIES

ULX-G3E 470 - 506 MHz, max. 30 mW
Country Code Frequency Range
Code de Pays Gamme de frequencies
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, B, BG, CH, CY, CZ, D, EST	470 - 506 MHz *
F, GB, GR, H, I, IS, L, LT	470 - 506 MHz *
NL, P, PL, S, SK, SLO	470 - 506 MHz *
DK, FIN, M, N	*
HR, E, IRL, LV, RO, TR	*
all other countries	*

ULX R4 784–820 MHz max. 30 mW
Country Code:	Frequency Range
Code de Pays:	Gamme de frequencies
Codice di paese:	Gamme di frequenza
Código de país:	Gama de frequencias
Länder-Kürzel:	Frequenzbereich
A, B, CH, D, E, F, GB 784–820 MHz *
GR, I, IRL, L, NL, P	784–820 MHz *
DK, N	800-820 MHz *
FIN	800.1–819.9 MHz *
S	800–814 MHz *
I, GB, All other Countries	*

ULX J2 554–590 MHz max. 30 mW
Country Code: Frequency Range
Code de Pays: Gamme de frequencies
Codice di paese: Gamme di frequenza
Código de país: Gama de frequencias
Länder-Kürzel: Frequenzbereich
A, B, CH, D, E, F, GB 554–590 MHz *
GR, I, IRL, L, NL, P 554–590 MHz *
DK, FIN, N, S	*
All other Countries	*

ULX S3 829–865 MHz max. 10 mW
Country Code:	Frequency Range
Code de Pays:	Gamme de frequencies
Codice di paese:	Gamme di frequenza
Código de país:	Gama de frequencias
Länder-Kürzel:	Frequenzbereich
A, B, CH, D, E	829–865 MHz *
GR, IRL, L, NL, P	838–862 MHz *
GB	830-865 MHz*
DK, F, FIN, I, N, S 863–865 MHz*
All other Countries	*

ULX-K2E 606 - 642 MHz, max. 10 mW
Country Code Frequency Range
Code de Pays Gamme de frequencies
Codice di paese Gamme di frequenza
Código de país Gama de frequencias
Länder-Kürzel Frequenzbereich
A, BG, CH, CY, CZ, D, EST 606 - 642 MHz *
F, GB, GR, H, I, IS, L, LT 606 - 642 MHz *
P, PL, S, SK, SLO 606 - 642 MHz *
B, DK, FIN, M, N, NL *
HR, E, IRL, LV, RO, TR *
all other countries *

ULX Q2 748–784 MHz max. 30 mW
Country Code:	Frequency Range
Code de Pays:	Gamme de frequencies
Codice di paese:	Gamme di frequenza
Código de país:	Gama de frequencias
Länder-Kürzel:	Frequenzbereich
A, B, CH, D, E, F, GB	748–784 MHz *
GR, I, IRL, L, NL, P	748–784 MHz *
DK, FIN, N, S	*
All other Countries	*

ULX M2 662-698 MHz max. 30 mW
Country Code: Frequency Range
Code de Pays: Gamme de frequencies
Codice di paese: Gamme di frequenza
Código de país: Gama de frequencias
Länder-Kürzel: Frequenzbereich
A, B, CH, D, E, F, GB 662-698 MHz *
GR, I, IRL, L, NL, P 662-698 MHz *
DK, FIN, N, S	*
All other Countries	*

ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND G3E (470–506 MHz)

Channel	Group 1 Group 2	Group 3 Group 4 Group	5 Group 6 Group 7
	Full Range max. # of compatible frequencies (option 1)	Full Range max. # of compatible frequencies (option 2)	Full Range max. # of compatible frequencies (option 3)	France preferred: User Group A (option 1)	France preferred: User Group A (option 2)	France preferred: User Group A (option 3)	France preferred: User Group B (option 1)
1	470.775 470.250	470.450 470.750 471.500	470.750 472.025
2	471.525 471.950	473.575 471.500 472.500	471.750 472.775
3	473.350 473.300	474.125 472.500 473.750	472.500 474.225
4	474.875 474.175	475.150 473.250 474.500	474.500 474.975
5	476.150 475.700	476.450 473.750 475.500	475.750 476.900
6	476.850 476.875	476.975 474.500 476.250	476.250 477.700
7	477.775 478.875	479.025 475.500 480.500	478.750 480.025
8	480.000 479.950	480.725 479.750 481.250	479.250 480.775
9	481.250 481.525	482.150 483.250 481.750	480.500 486.100
10	481.900 482.300	483.275 484.250 483.250	482.500 490.225
11	483.400 483.925	484.175 487.250 483.750	483.250 490.975
12	484.300 485.025	485.600 487.750 486.750	483.750 492.900
13	488.250 486.850	488.575 489.250 487.750	487.500 493.700
14	490.175 491.925	489.875 489.750 489.250	489.750 496.775
15	491.500 492.425	493.425 490.500 490.500	491.500 498.225
16	494.250 494.000	494.450 491.500 491.500	495.250 498.975
17	495.025 495.125	495.250 495.500 495.750	496.500 500.900
18	495.550 497.225	496.725 496.500 496.500	497.250 501.700
19	497.600 498.575	497.300 497.250 498.500	498.500 504.025
20	499.350 500.175	499.650 498.500 499.500	499.500 504.775
21	500.575 500.700	501.675 499.250 500.250	502.750
22	501.325 503.675	502.325 500.250 502.750	503.500
23	502.300 504.400	504.275 502.750 503.500	504.500
24	504.725 505.450	505.300 504.500 505.750	505.250

Channel	Group 8 Group 9 Group 10 Group 11 Group 12 Group 13 Group 14 Group 15					Group 16
	France preferred:User Group B (option 2)	France preferred:User Group B (option 3)	France preferred:User Group C (option 1)	France preferred:User Group C (option 2)	France preferred:User Group C (option 3)	European TV channel 21 optimized470 - 478 MHz	European TV channel 22 optimized478 - 486 MHz	European TV channel 23 optimized486 - 494 MHz	European TV channel 24 optimized494 - 502 MHz
1	470.500	472.025	470.300	470.300	470.300	470.300	478.300	486.300	494.300
2	472.025	473.500	471.000	471.000	471.000	471.025	479.025	487.025	495.025
3	472.775	477.300	472.225	474.025	472.225	471.525	479.525	487.525	495.525
4	474.225	478.100	474.775	474.775	474.775	472.275	480.275	488.275	496.275
5	477.300	480.025	476.000	476.000	476.000	473.275	481.275	489.275	497.275
6	478.500	480.775	476.700	476.700	476.700	473.875	481.875	489.875	497.875
7	480.025	482.225	478.300	478.300	478.300	474.775	482.775	490.775	498.775
8	480.775	482.975	479.000	479.000	479.000	475.250	483.250	491.250	499.250
9	482.225	484.900	480.225	480.225	480.225	475.975	483.975	491.975	499.975
10	485.300	485.700	482.775	484.700	484.000	476.950	484.950	492.950	500.950
11	492.900	490.225	484.000	490.775	484.700	477.675	485.675	493.675	501.675
12	493.700	492.900	492.700	492.000	490.775
13	496.775	493.700	494.300	494.300	494.300
14	498.225	496.025	495.000	495.000	495.000
15	498.975	496.775	496.225	496.225	496.225
16	500.900	501.300	498.775	498.775	498.775
17	502.500	502.100	500.000	500.000	500.000
18	504.775	504.025	500.700	500.700	500.700
18	505.500	505.500	502.300	502.300	502.300
20			503.000	503.000	503.000
21			504.225	504.225	504.225

ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND K2E (606-642 MHz)

Channel	Group 1 Group 2 Group 3 Group		4 Group 5 Group 6	Group 7 Group 8	Group 9
	Full Range max. # of compatible frequencies (option 1)	Full Range max. # of compatible frequencies (option 2)	Full Range max. # of compatible frequencies (option 3)	Full Range max. # of compatible frequencies, Ch. 38 excluded (option 1)	Full Range max. # of compatible frequencies, Ch. 38 excluded (option 2)	Full Range max. # of compatible frequencies, Ch. 38 excluded (option 3)	U.K. preferred: TV ch. 38 606-614 MHz with 500 kHz guard band (option 1)	U.K. preferred: TV ch. 38 606-614 MHz with 500 kHz guard band (option 2)	U.K. preferred: TV ch. 38 606-614 MHz with 500 kHz guard band (option 3)
1	606.450 606	800 606.150 614	200 614.125 614	225 606.775 606	650 606.500
2	607.250 608	300 607.350 614	950 615.200 615	175 607.300 607	625 607.150
3	608.725 608	925 607.825 615	450 615.925 615	875 608.325 608	375 608.025
4	609.900 610	375 608.775 616	950 617.125 616	350 609.100 608	850 608.525
5	611.325 611	525 612.875 617	575 618.050 617	275 609.600 609	725 609.300
6	611.825 612	175 613.350 619	925 619.875 618	950 610.500 610	350 610.325
7	613.075 613	450 615.300 620	675 620.425 620	100 611.125 611	325 610.975
8	615.150 614	400 616.150 621	175 621.375 621	1025 612.175 612	2075 611.875
9	615.725 615	000 616.700 623	375 623.500 622	475 612.925 612	2575 612.350
10	616.950 615	825 617.475 624	125 626.125 623	375 613.450 613	400 613.075
11	617.875 616	900 620.275 628	950 628.125 625	325
12	619.350 619	150 621.375 630	400 629.425 631	275
13	621.200 628	325 624.175 632	175 630.350 632	275
14	626.425 628	875 628.550 633	025 631.500 632	775
15	628.100 630	525 629.125 633	525 633.875 633	950
16	631.900 631	125 630.500 635	150 635.600 634	550
17	632.750 635	400 633.700 636	150 636.600 635	950
18	634.300 636	375 634.700 637	725 637.900 637	600
19	635.425 636	850 636.325 638	550 638.750 638	325
20	636.250 637	800 637.625 639	025 639.925 639	850
21	638.625 638	975 638.525 640	575 640.550 640	950
22	639.525 639	450 639.175 641	650 641.400 641	750
23	640.150 640	575 640.050
24	641.300 641	325 641.250

Channel	Group 10 Group 11 Group 12		Group 13 Group	14 Group 15 Group	16 Group 17	Group 18
	France preferred:User Group A (option 1)614 - 642 MHz	France preferred:User Group A (option 2)614 - 642 MHz	France preferred:User Group B (option 1)614 - 642 MHz	France preferred:User Group B (option 2)614 - 642 MHz	France preferred:User Group C (option 1)614 - 642 MHz	France preferred:User Group C (option 1)614 - 642 MHz	European TV channel 39 optimized614 - 622 MHz	European TV channel 40 optimized622 - 630 MHz	European TV channel 41 optimized630 - 638 MHz
1	614.750 614	750 614.500 616	025 614.300 640	975 614.200 622	200 630.200
2	615.500 615	250 616.025 616	775 615.000 640	225 614.700 622	700 630.700
3	616.500 616	500 616.775 618	225 616.225 637	900 615.750 623	750 631.750
4	617.250 617	250 618.225 620	900 618.775 637	100 616.500 624	500 632.500
5	617.750 618	500 620.900 621	700 620.000 636	000 617.025 625	025 633.025
6	618.500 619	500 621.700 624	025 621.900 632	975 617.900 625	900 633.900
7	619.500 620	250 624.025 624	775 623.000 632	225 618.550 626	550 634.550
8	622.750 622	750 624.775 628	900 626.775 630	300 619.575 627	575 635.575
9	623.750 623	500 629.300 630	500 629.100 629	100 620.375 628	375 636.375
10	625.750 626	500 630.500 634	225 630.300 626	775 620.875 628	875 636.875
11	627.500 627	250 634.225 634	975 632.225 623	000 621.850 629	850 637.850
12	631.500 627	750 636.500 636	500 632.975 621	900
13	632.500 631	500 637.300 637	300 636.000 620	000
14	633.250 632	500 638.500 638	500 637.100 618	775
15	634.500 633	250 640.775 640	775 637.900 616	225
16	635.250 633	750 641.500 641	500 640.225 615	000
17	636.250 635	500 640.975 614	300
18	638.750 636	250
19	639.750 640	500
20	640.500 641	250
21	641.750 641	750

ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND X3 (925-932 MHz)

Channel	Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8 Group 9
	Full range, Robust, 7 channels	Full range, Robust, 7 channels	Full range, Robust, 7 channels	Full range, Standard, 8 channels	Full range, Standard, 8 channels	Full range, Standard, 8 channels	Full range, Max frequencies, 9 channels	Full range, Max frequencies, 9 channels	Full range, Max frequencies, 9 channels
1	925.175 925	150 925.775 925	325 925.450 925	225 925.125 925	275 925.150
2	926.325 926	200 926.475 926	125 926.000 926	275 925.850 926	275 926.050
3	926.925 927	700 927.550 926	600 927.050 926	950 926.300 926	975 926.625
4	927.900 928	625 928.125 927	350 927.825 927	950 927.075 927	925 927.475
5	929.750 929	875 930.125 929	700 929.025 928	400 928.600 928	425 928.650
6	930.225 930	575 931.025 930	325 929.925 929	250 929.300 929	250 929.375
7	931.100 931	725 931.500 931	225 930.525 931	250 929.725 930	325 930.400
8				931.775 931	650 931.850 930	400 930.900 930	925
9							931.775 931	850 931.700

ULX SYSTEM COMPATIBILITY GUIDE FOR FREQUENCY BAND X7 (925 - 937.5 MHz)

CHANNEL	Group 1 Group 2 Group 3	Group 4 Group 5 Group 6 Group 7 Group 8 Group 9
	more freqs.	more freqs.	more freqs.	more freqs.	more freqs.	more freqs.	more freqs.	more freqs.
1	925.175 925	150 925.775	925.325 925.450	925.225 925.1	25 925.275 925.150
2	926.325 926	200 926.475	926.125 926.000	926.275 925.8	50 926.275 926.050
3	926.925 927	700 927.550	926.600 927.050	926.950 926.3	300 926.975 926.625
4	927.900 928	625 928.125	927.350 927.825	927.950 927.0	75 927.925 927.475
5	929.750 929	875 930.125	929.700 929.025	928.400 928.6	300 928.425 928.650
6	930.225 930	575 931.025	930.325 929.925	929.250 929.3	300 929.250 929.375
7	931.100 931	725 931.500	931.225 930.525	931.250 929.7	25 930.325 930.400
8 932.825	933.200 932	375		931.775 931	1.650 931.850	930.400 930.900	930.925
9 934.875	933.825 935	150 934.825	934.800 933.525				931.775 931	1.850 931.700
10 936.250	935.450 935	875 935.600	935.925 934.800	935.325 934.1	25 936.200
11 936.675	936.250 936	900 936.625	936.675 936.475	935.925 936.1	50 937.100
12 937.350	936.800 937	025 936.875	937.100

PERU DECLARATION OF CONFORMITY

Shure Incorporated

5800 W. Touhy Avenue

Niles, Illinois 60714-4608, U.S.A.

[phone]

Shure Incorporated declares that the following product

Model: ULX1-J2 (554-590MHz) ULX1-M2 (662-698MHz)

Description: UHF FM Wireless Microphone Transmitter

Has been tested and found to comply with the limits set in Peru wireless regulatory standard RM N°204-2009-MTC/03. It's effective radiated power (ERP) has been measured to be less than 10 mW, as measured in accordance with ETSI standard EN 300 422.

Signed

Date: August 24, 2009

Name, Title: Kevin Marrs, Manager, Global Compliance, Shure Incorporated

PERU DECLARATION OF CONFORMITY

Shure Incorporated

5800 W. Touhy Avenue

Niles, Illinois 60714-4608, U.S.A.

[phone]

Shure Incorporated declares that the following product

Model: ULX2-J2 (554-590MHz) ULX2-M2 (662-698MHz)

Description: UHF FM Wireless Microphone Transmitter

Has been tested and found to comply with the limits set in Peru wireless regulatory standard RM N°204-2009-MTC/03. It's effective radiated power (ERP) has been measured to be less than 10 mW, as measured in accordance with ETSI standard EN 300 422.

Signed

Date: August 24, 2009

Name, Title: Kevin Marrs, Manager, Global Compliance, Shure Incorporated

SHURE®

LEGENDARY

PERFORMANCE™

©2014 Shure Incorporated

United States, Canada,

Latin America, Caribbean:

Shure Incorporated

5800 West Touhy Avenue

Niles, IL 60714-4608 USA

Europe, Middle East, Africa:

Shure Europe GmbH

Jakob-Dieffenbacher-Str. 12,

75031 Eppingen, Germany

Phone: [phone]

Fax: [phone]

22/F, 625 King's Road

North Point, Island East

Hong Kong

Phone: [phone]

Fax: [phone]
