DRX837WI - Tumble dryer BEKO - Free user manual and instructions

Product type	Chest freezer
Brand	Beko
Model	DRX837WI
Power supply voltage	220-240 V / 50 Hz
Refrigerant	R600a (environmentally friendly, flammable under certain conditions)
Ambient temperature range	-15°C to +43°C
Adjustable thermostat	MIN to MAX positions
Green indicator light	Indicates power supply
Red indicator light	Indicates too high temperature
Orange indicator light	Indicates Superfrost mode (fast freezing)
Superfrost function	Automatic shut-off after 50 hours
Defrosting	Manual, recommended twice a year
Interior lighting	E14-15W bulb
Spare parts	Available up to 10 years after purchase
Interior cleaning	Warm water and neutral detergent; do not use soap, gasoline, acetone
Exterior cleaning	Damp sponge with soapy water, then dry cloth
Child safety	Do not let children play; lockable door (depending on model)
Recycling	Selective sorting according to directive 2002/96/EC
Warranty conditions	Warranty void if unauthorized repair or if transported horizontally without 4-hour rest

Frequently Asked Questions - DRX837WI BEKO

How do I adjust the temperature of my Beko DRX837WI freezer?

The temperature is adjusted using the thermostat knob. The 'MAX' position is the coldest. Generally, for an ambient temperature of 32°C, set it to the middle position.

What does the red indicator light mean?

The red indicator light indicates an excessively high interior temperature. It normally lights up 15 to 45 minutes after startup and then turns off. If it stays on during operation, a defect is present.

How do I use the Superfrost function?

Set the dial to the Superfrost position (the orange light turns on). Wait 24 hours before introducing fresh food. The function automatically stops after 50 hours. Do not activate Superfrost for already frozen food or less than 2 kg of fresh food per day.

How often should I defrost my freezer?

It is recommended to defrost at least twice a year, or when the ice layer becomes too thick. Unplug the appliance, remove the food, place the separator panel under the drain tube, and collect the melt water.

Can I use an electrical appliance to speed up defrosting?

No, never use an electric hair dryer or other heating appliance for defrosting. Follow the manufacturer's recommendations to avoid damaging the refrigeration circuit.

How do I clean the interior of my freezer?

Unplug the appliance. Clean with warm water mixed with a neutral detergent. Do not use soap, gasoline, acetone, or abrasive products. Dry thoroughly with a soft cloth.

What should I do if the interior light no longer works?

Unplug the appliance, remove the lamp cover, and check that the bulb is screwed in properly. If it is burnt out, replace it with an E14-15W bulb. Replace the cover and plug back in.

My freezer is making noise, is this normal?

Yes, clicking sounds (refrigerant circulation) and humming sounds (compressor) are normal. They decrease once the appliance reaches its operating temperature.

What should I do in case of a power outage?

Do not open the door. Frozen food remains safe for up to 67 hours if the door stays closed. If the outage is longer, check the condition of the food.

Where can I find spare parts for my freezer?

Original spare parts are available for 10 years from the date of purchase. Contact Beko after-sales service or an authorized agent.

USER MANUAL DRX837WI BEKO

HSA37540N

EN-RO-CZ-SK-HU-BG-LT-FR-D-IT-FI-NL-LV-ET

WARNING!

In order to ensure a normal operation of your refrigerating appliance, which uses a completely environmentally friendly refrigerant the R600a (flammable only under certain conditions) you must observe the following rules:

• Do not hinder the free circulation of the air around the appliance. Do not use mechanical devices in order to accelerate the defrosting, others than the ones recommended by the manufacturer.
• Do not destroy the refrigerating circuit. Do not use electric appliances inside the food keeping compartment, other than those that might have been recommended by the manufacturer.

AVERTIZARE!

Advice for recycling of the old appliance /1

Packing Recycling /2

Transport instructions /2

Warnings and special advice /2

Setting up /3

Electric connection /3

Switching off /4

Appliance description /4

Freezer operation /4

Advice for food conservation /4

Defrosting of the appliance /5

Cleaning of the appliance /5

Replacing the interior light bulb /6

Defects finding guide /6

RO

Cuprins

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then it is valid for other models.

2

3

4

5

1

2

3

4

Congratulations on your choice!

The chest freezer you have purchased is one of the BEKO products range and represents a harmonious combination of refrigeration technology and aesthetic design. It has a new and attractive design and is built according to European and national standards that guarantee its operation and safety features. At the same time, the refrigerant used, R600a, is environmentally friendly and does not affect the ozone layer.

To make the best use of your freezer, we advise you to read the information in these user instructions carefully.

Advice for recycling your old appliance

If your newly purchased appliance replaces an older one, you must consider a few aspects.

Old appliances are not valueless scrap. Their disposal, while preserving the environment, allows the recovery of important raw materials.

Make your old appliance useless:

• disconnect the appliance from the power supply;
• remove the power cord (cut it);
• remove any locks on the door to prevent children from being trapped inside while playing and endangering their lives. Refrigerating appliances contain insulating materials and refrigerants that require proper recycling.

Original spare parts will be provided for 10 years following the product purchase date.

This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Packing Recycling

WARNING!

Do not allow children to play with the packing or with parts of it. There is the risk of suffocation with parts of corrugated cardboard and with plastic film.

In order to get to you in good condition, the appliance was protected with a suitable packing. All the materials of the packing are compatible with the environment and recyclable. Please help us recycle the packing while protecting the environment!

IMPORTANT!

Before putting the appliance in operation, read carefully and entirely these instructions. They contain important information concerning the setting up, use and maintenance of the appliance.

The manufacturer is free of any responsibility if the information in this document are not observed. Keep the instructions in a safe place in order to reach them easily in case of need. They can also be useful subsequently by another user.

ATTENTION!

This appliance must be used only for its intended purpose, (household use), in suitable areas, far from rain, moisture or other weather conditions.

Transport instructions

The appliance must be transported, as much as possible, only in vertical position. The packing must be in perfect condition during transport.

If during transport the appliance was put in horizontal position (only according to the markings on the packing), it is advised that, before putting it into operation, the appliance is left to rest for 4 hours in order to allow the settling of the refrigerating circuit.

The failure to observe these instructions can cause the breakdown of the motorcompressor and the cancellation of its warranty.

Warnings and general advice

• Do not plug in the appliance if you noticed a failure.
• The repairs must be done only by qualified personnel.
• In the following situations please unplug the appliance from the mains:
• when you defrost completely the appliance;
• when you clean the appliance.

To unplug the appliance, pull by the plug, not by the cable!

• Ensure the minimum space between the appliance and the wall against which it is placed.
• Do not climb on the appliance.
• Do not allow the children to play or hide inside the appliance.
• Never use electric appliances inside the freezer, for defrosting.
• Do not use the appliance near heating appliances, cookers or other sources of heat and fire.
• Do not leave the freezer door open more than it is necessary to put in or take out the food.
• Do not leave the food in the appliance if it is not working.
• Do not keep inside products containing flammable or explosive gases.
• Do not keep inside fizzy drinks (juice, mineral water, champagne, etc.) in the freezer: the bottle can explode! Do not freeze drinks in plastic bottles.
• Do not eat ice cubes or icecream immediately after having taken them out of the freezer because they may cause "freezer burns".
• Never touch cold metal parts or frozen food with wet hands because your hands can quickly freeze on the very cold surfaces.
• For the protection of the appliance during warehousing and transport, it is provided with spacers between the door and the cabinet (in the front and rear side). These spacers will be removed before putting the appliance into operation.

- Excess deposit of ice on the frame and the baskets should be removed regularly with the plastic scraper provided. Do not use any metal parts to remove the ice.

The presence of this ice build-up makes it impossible to close the door correctly.

• If you do not use your appliance for a few days, it is not advisable to switch it off. If you do not use it for a longer period, please proceed as follows:
• unplug the appliance;
• empty the freezer;
• defrost it and clean it;
• leave the door open to avoid the formation of unpleasant smells.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If your appliance has a lock, keep it locked and store the key in a safe place, out of the reach of children. If you are discarding an appliance with a lock, make sure that it is made ineffective. This is very important so as to avoid children being trapped inside, which may cause their loss of life.

Setting up

Your product was designed to operate at an ambient temperature between -15°C and +43°C. If the ambient temperature is above +43°C, inside the appliance the temperature can increase.

Set up the appliance far from any source of heat and fire. Placing it in a warm room, the direct exposure to sunbeams or near a heat source (heaters, cookers, ovens), will increase the energy consumption and shorten the product life.

- Please observe the following minimum distances:

• 100 cm from the cookers working with coal or oil;
• 150 cm from the electric and gas cookers.

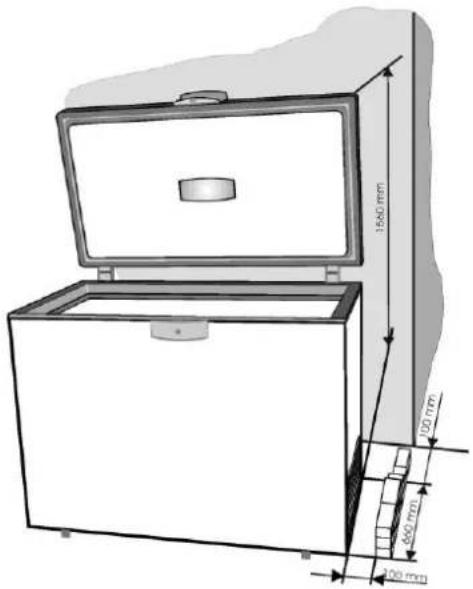

- Ensure the free circulation of the air around the appliance, by observing the distances shown in Item 2.

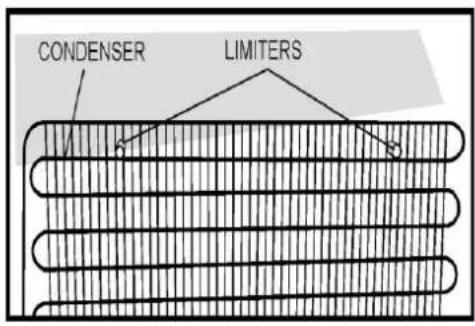

Assemble on the condenser (in the rear side) the supplied spacers. (Item 3).

- Place the appliance in a perfectly even, dry and well ventilated place.

Assemble the supplied accessories.

Electric connection

Your appliance is intended to operate at a single-phase voltage of 220-240V/50 Hz. Before plugging in the appliance, please make sure that the parameters of the mains in your house (voltage, current type, frequency) comply to the operation parameters of the appliance.

• The information concerning the supply voltage and the absorbed power is given on the marking label placed in the back side of the freezer.
• The electric installation must comply with the law requirements.
• The earthing of the appliance is compulsory. The manufacturer has no responsibility for any damage to persons, animals or goods which may arise from the failure to observe the specified conditions.
• The appliance is endowed with a supply cord and a plug (European type, marked 10/16A) with double earthing contact for safety. If the socket is not the same type with the plug, please ask a specialised electrician to change it.
• Do not use extension pieces or multiple adapters.

Switching off

The switching off must be possible by taking the plug out of the socket or by means of a mains two-poles switch placed before the socket.

Operation

Before putting into operation, clean the inside of the appliance (see chapter „Cleaning”).

After finishing this operation, please plug in the appliance, adjust the thermostat knob to an average position. The green and red LEDs in the signalling block must light. Leave the appliance to work for about 2 hours without putting food inside it.

The freezing of fresh food is possible after a minimum of 20 hours of operation.

Appliance description

(Item 1)

1. Door handle
2. Door
3. Lamp housing
4. Baskets
5. Tray
6. Lock housing
7. Thermostat box
8. Spacer for transport

Freezer operation

Temperature adjustment

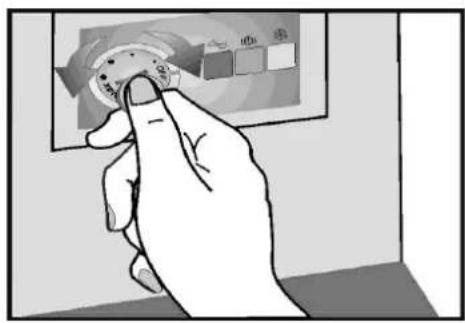

The temperature of the freezer is adjusted by means of the knob assembled on the thermostat (item 4), with position "MAX" being the lowest temperature.

The achieved temperatures can vary according to the conditions of use of the appliance, such as: place of the appliance, ambient temperature, frequency of door opening, extent of filling with food of the freezer. The position of the thermostat knob will change according to these factors. Normally, for an ambient temperature of approx. 32°C, the thermostat will be adjusted on an average position.

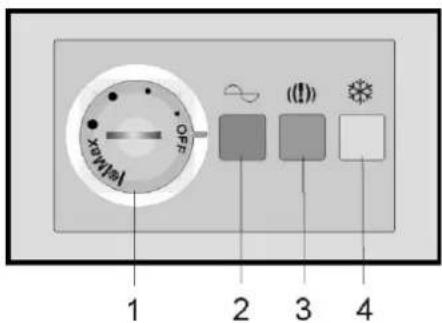

The signalling system is placed on the front side of the freezer (Item 5).

It includes:

1. Thermostat adjustment knob – the inside temperature is adjusted.
2. green LED – shows that the appliance is supplied with electric energy.
3. red LED – damage – lights if the temperature in the freezer is too high. The LED will operate 15-45 minutes after the putting into operation of the freezer, then it must go off. If the LED goes on during the operation, this means that defects have occurred.
4. LED Orange—fast freeze function activated — by setting the knob to Superfreeze position the orange led goes on, showing that the appliance entered into the "fast freeze" mode.

The exit of this mode is done automatically after 50 hours then the appliance runs in economic mode, and the orange led goes off. The three LEDs give information about the mode of operation of the freezer.

Advice for food conservation

The freezer is intended to keep the frozen food for a long time, as well as to freeze fresh food.

One of the main elements for a successful food freezing is the packing.

The main conditions that the packing must fulfill are the following: to be airtight, to be inert towards the packed food, to resist to low temperatures, to be proof to liquids, grease, water vapours, smells, to be able to be washed.

These conditions are fulfilled by the following types of packings: plastic or aluminium film, plastic and aluminium vessels, waxed cardboard glasses or plastic glasses.

IMPORTANT!

• For freezing the fresh food please use the supplied baskets of the appliance.
• Do not place too large a quantity of food in the freezer at one time. The quality of the food is best preserved if it is frozen as quickly as possible. Therefore, it is advisable not to exceed the freezing capacity of the appliance as specified in the "Product Fiche".
• Fresh food must not come into contact with food that is already frozen.
• Frozen food that you have purchased can be placed in the freezer without adjusting the thermostat.
• If the freezing date is not mentioned on the packaging, please consider a maximum period of 3 months as a general guide.
• Food that has been even partially defrosted cannot be frozen again; it must be consumed immediately or cooked and then refrozen.
• Carbonated drinks should not be kept in the freezer.
• In case of a power failure, do not open the door of the appliance. The frozen food will not be affected if the failure lasts less than 67 hours.

Freezing with Superfrost

• Turn the knob to the Superfrost position. The Superfrost indicator light comes on.
• Wait 24 hours.
• Place the fresh food in the freezer. To achieve fast freezing, the food should be in contact with the interior walls when placed in the freezer.
• The Superfrost function automatically switches off the fast freezing procedure after 50 hours.

Important

When you turn the knob to the Superfrost position, the compressor may not switch on for a few minutes. This is due to the integrated start-up delay switch, which is designed to increase the lifespan of the refrigeration unit.

You should not switch on the Superfrost function:

• when placing frozen food in the freezer;
• when freezing up to approx. 2 kg fresh food daily.

Defrosting of the appliance

• We advise you to defrost the freezer at least twice a year or when the ice layer has an excessive thickness.
• The ice build-up is a normal phenomenon.
• The quantity and the rapidity of ice build-up depends on the ambient conditions and on the frequency of the door opening.
• We advise you to defrost the appliance when the quantity of frozen food is the least.
• Before defrosting, adjust the thermostat knob to a higher position so that the food stores more cold.
• Unplug the appliance.
• Take out the frozen food, wrap it in several sheets of paper and put them in refrigerator or a cool place.

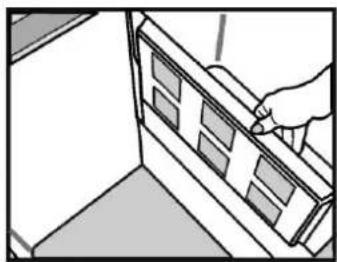

Take the separator panel and put it under the freezer in the direction of the dripping tube.

Take out the obstructing plug. The water which results will be collected in the special tray (separator panel). After the melting of the ice and the run-off of the water please wipe with a cloth or with a sponge, then dry well.

Put the obstruction plug back in its place. (Item. 6)

For a fast thaw please leave the door open.

Do not use sharp metal objects to remove the ice.

Do not use hairdryers or other electric heating appliances for defrosting.

Inside cleaning

Before starting the cleaning, unplug the appliance from the mains.

• It is advisable to clean the appliance when you defrost it.
• Wash the inside with lukewarm water where you add some neutral detergent. Do not use soap, detergent, gasoline or acetone which can leave a strong odour.
• Wipe with a wet sponge and dry with a soft cloth.

During this operation, avoid the excess of water, in order to prevent its entrance into the thermal insulation of the appliance, which would cause unpleasant odours.

Do not forget to clean also the door gasket especially the bellow ribs, by means of a clean cloth.

Outside cleaning

• Clean the outside of the freezer by means of a sponge soaked in soapy warm water, wipe with a soft cloth and dry.
• The cleaning of the outside part of the refrigerating circuit (motorcompressor, condenser, connection tubes) will be done with a soft brush or with the vacuum-cleaner. During this operation, please take care not to distort the tubes or detach the cables.

Do not use scouring or abrasive materials!

- After having finished the cleaning, replace the accessories at their places and plug in the appliance.

Replacing the interior light bulb

If the lamp burns out, disconnect the appliance from the mains. Take out the lamp trim. Make sure the lamp is screwed correctly. Plug in the appliance again. If the lamp still does not go on, replace it with another one model E14-15W. Mount back the lamp trim in its place.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way.

The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20 °C.

Defects finding guide

The appliance does not work.

• There is a power failure.
• The plug of the supply cord is not inserted well into the socket.
• The fuse is blown.
• The thermostat is in „OFF" position.
• The food prevents the door closing. ● The appliance was not placed correctly.
• The appliance is placed too close to a heat source.
• The thermostat knob is not in the correct position.

The temperatures are not low enough(red LED on).

Excessive ice build-up

- The door was not closed properly.

The inside lighting does not work

- The lamp is blown. Unplug the appliance from the mains, take out the lamp and replace it with a new one.

The following are not defects

- Possible noddings and cracks coming from the product: circulation of the refrigerant in the system.

Noises during operation

In order to keep the temperature at the value you have adjusted, the compressor of the appliance starts periodically.

The noises which can be heard in such situation are normal.

They are reduced as soon as the appliance reaches the operation temperature.

The humming noise is made by the compressor. It can become a little stronger when the compressor starts.

The bubbling and gurgling noises coming from the refrigerant circulating in the pipes of the appliance, are normal operating noises.

Warning!

Never try to repair yourself the appliance or its electric components. Any repair made by an unauthorized person is dangerous for the user and can result in the warranty cancellation.

The symbol ■ on the product or on packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Excessive ice formation
