USER MANUAL SV100 SHURE

SV100 SV200 -- Unidirectional Dynamic Microphone

General Description

This Shure microphone can be used for karaoke, sound reinforcement, and recording applications. Its wide frequency response, unidirectional pickup pattern, and high output make vocal performances sound clear and vibrant. It is also suitable for instrument pickup.

Features

• Unidirectional (cardioid) pickup pattern to minimize feedback (howling)
  • Durable metal construction
• Wide frequency response
• Neodymium magnet for high output
• On/Off switch

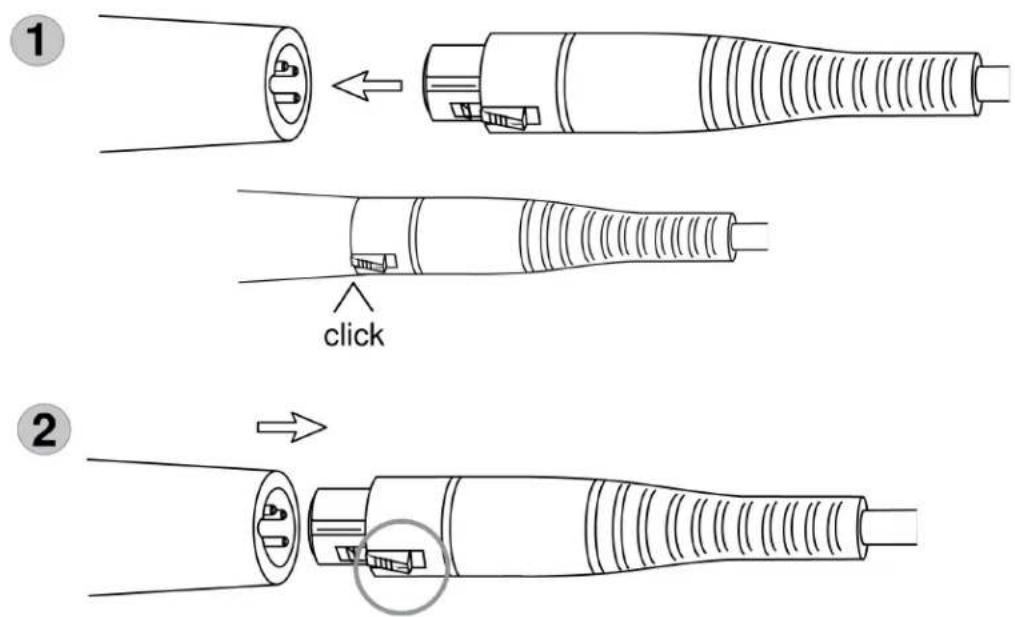

Connecting and Disconnecting the Microphone Cable

Diagram illustrating the process of inserting a plug into a socket, with labeled steps and a 'click' button indicating action.

Microphone Use

Turn on the microphone by sliding the switch to "ON". Turn off the microphone by sliding the switch to "OFF". Keep the switch in the "OFF" position while connecting or disconnecting the microphone from the karaoke machine, mixer, or other device.

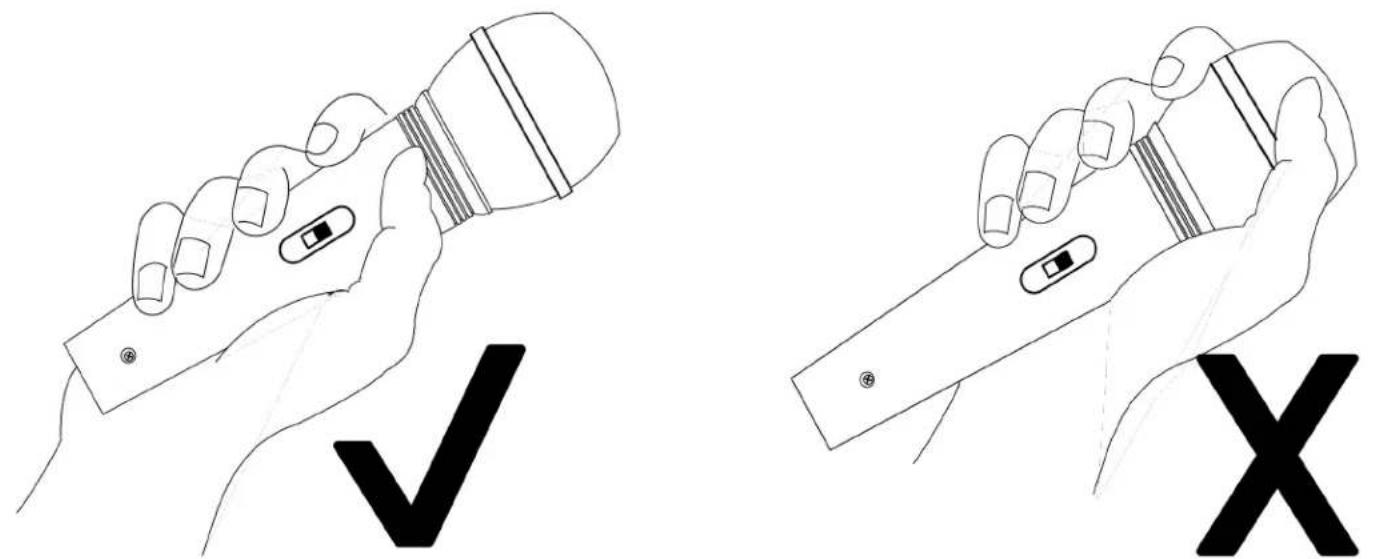

Diagram showing two hand positions with checkmark and X symbols, likely illustrating a medical or diagnostic procedure.

Do not cover grille with hand

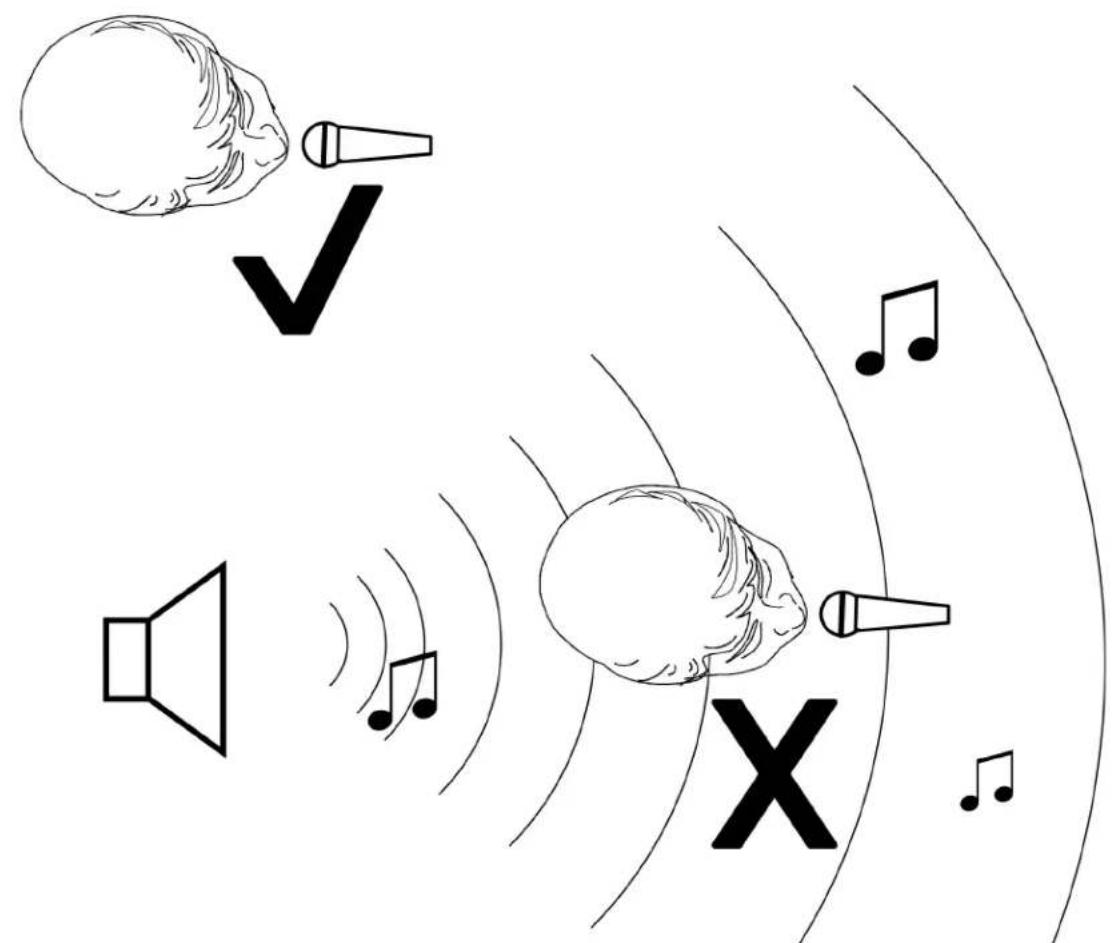

Diagram illustrating sound playback with speaker, microphone, and X-axis symbols

Avoiding Feedback (Howling)

Specifications

Type

Dynamic (moving coil)

Frequency Response

50 to 15,000 Hz

Polar Pattern

Cardioid

Output Impedance

600 Ω

Sensitivity

at 1 kHz, open circuit voltage

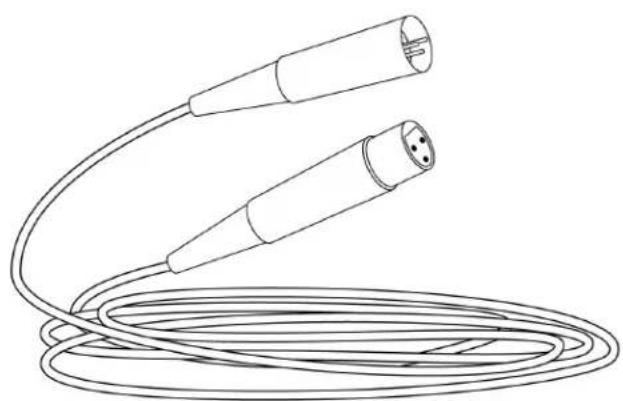

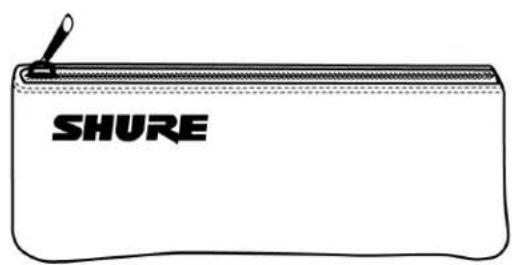

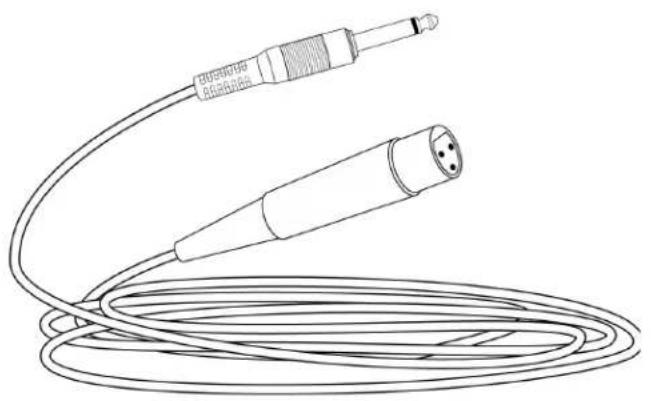

Optional Accessories

Line drawing of a medical or laboratory device with two cables, one labeled 'B020100' and the other showing a connector (no text beyond label)

C15AHZ

Line drawing of two connected audio/video cables (no text or symbols)

C25J

Technical line drawing of a SHURE tool component with a separate coil assembly (no text or symbols)

A25D

SHURE

S41E

Simple line drawing of a tripod-mounted device with three legs and a central hub (no text or symbols)

Certifications

Eligible to bear CE Marking. Conforms to European EMC Directive 2004/108/EC. Meets Harmonized Standards EN55103-1:1996 and EN55103-2:1996, for residential (E1) and light industrial (E2) environments.

The CE Declaration of Conformity can be obtained from: www.shure.com/europe/compliance

Authorized European representative:

Shure Europe GmbH

Headquarters Europe, Middle East & Africa

Department: EMEA Approval

Jakob-Dieffenbacher-Str. 12

75031 Eppingen, Germany

Phone: [phone]

Fax: [phone]

Note: Information in this guide is subject to change without notice. For additional information about this product, please visit www.shure.com.
