MX395 -- Low-Profile Boundary Microphone
General Description
Shure ^® MX395 low-profile microphones are for use in boardrooms and other sites where aesthetics are important. The MX395 is only 2.5 cm (1 in.) in diameter, and extends just 2 cm above the mounting surface when installed. Despite its small size, the MX395 delivers clear, high quality sound.
Features
• Low profile, aesthetic design
- Wide dynamic range and smooth frequency response
• RF filtering with CommShield® technology
• Available with logic-controlled bi-color status indicator
Model Variations
The MX395 is available in cardioid, omnidirectional, and bidirectional polar patterns, with or without an LED status indicator, with a black, white, or aluminum finish.
Polar Patterns
The polar pattern is indicated by the molded grille.
Cardioid
Bidirectional
Omnidirectional

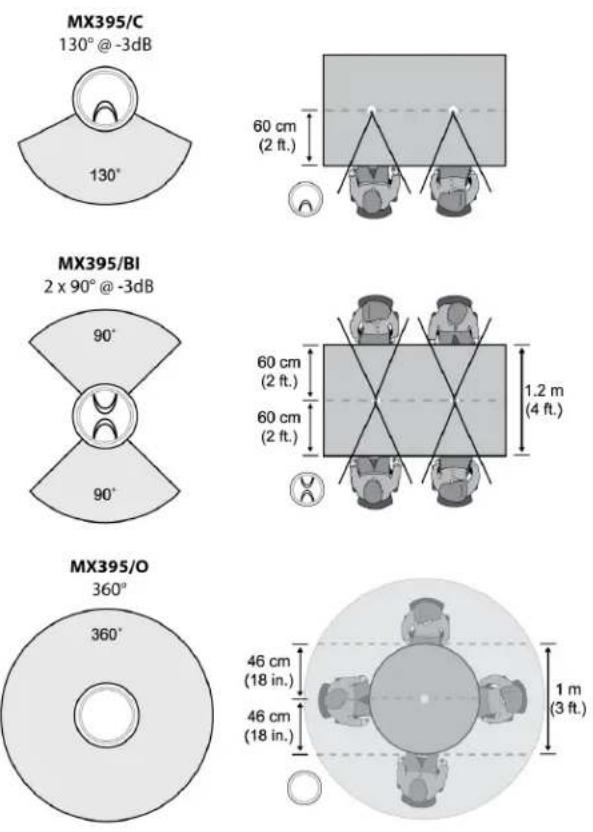

Microphone Placement
For best low-frequency response and rejection of background noise, place the microphone on a large, flat surface, such as a floor, table, or lectern.
To reduce reverberance, avoid reflective surfaces above or to the side of the microphone, such as beveled sides of pulpits or overhanging shelves.
DIP Switches
Set DIP Switch 1 up to engage the low cut filter, which attenuates frequencies by 6 dB per octave below 150 Hz.
| Switch Down (default) Up | ||
| 1 Full frequency response Low cut filter | ||
| 2 --- |
Installation
Install the microphone into a tabletop as shown.
Important:
- Align indentation toward talker
- Do not over tighten the wing nut, as this reduces shock isolation
For models equipped with an LED, use the included 5-pin XLR connector to wire the microphone to an automatic mixer or other logic device.
Note: Connect the LED IN to the gate output to illuminate the LED when the channel is gated on.
Do not use the relay ports on Crestron and AMX devices. Use the I/O logic ports instead.
The LED logic may not function when connecting to devices that do not have internal "pull-up resistor" logic circuits, such as ClearOne DSP products. External pull-up resistor circuits can be added for each microphone. Visit www.shure.com/FAQ for detailed instructions.
Connection to device with internal "pull-up resistor" logic circuit
Green
Logic LOW (0 V)
Red
Logic HIGH (+5 V)
LED Indicator Response to Logic Signal at Pin 5
Pin Assignments
Audio - Audio +
3-Pin XLR
5-Pin XLR
Accessories
Furnished Accessories


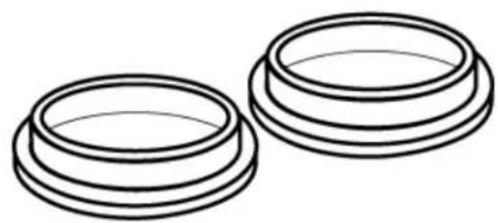

66A405
Specifications
All measurements taken with microphone mounted on a wooden surface (76 x 76 cm)
Cartridge Type
Electret Condenser

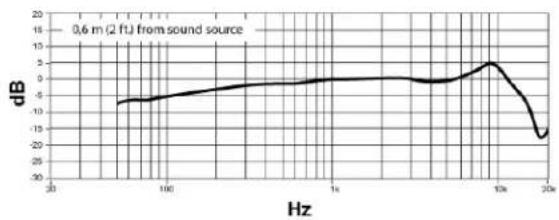

Frequency Response
50–17000 Hz
Polar Pattern
| MX395/O Omnidirectional | |
| MX395/C Cardioid | |
| MX395/BI Bidirectional |
Output Impedance
170 Ω
Output Configuration
Active Balanced
Sensitivity
@ 1 kHz, open circuit voltage
| Cardioid -35 dBV/Pa (18 mV) | |
| Omnidirectional -28 dBV/Pa (42 mV) | |
| Bidirectional -37 dBV/Pa (14 mV) |
1 Pa=94 dB SPL
Maximum SPL
1 kHz at 1% THD, 1 kΩ load
| Cardioid 121 dB | |
| Omnidirectional 114 dB | |
| Bidirectional 123 dB |
Equivalent Output Noise
A-weighted
| Cardioid 28 dB SPL | |
| Omnidirectional 21 dB SPL | |
| Bidirectional 29 dB SPL |
Signal-to-Noise Ratio
Ref. 94 dB SPL at 1 kHz
| Cardioid 66 dB | |
| Omnidirectional 73 dB | |
| Bidirectional 65 dB |
Dynamic Range
1 kΩ load, @ 1 kHz
| Cardioid 93 dB | |
| Omnidirectional 93 dB | |
| Bidirectional 94 dB |
Common Mode Rejection
10 to 100,000 kHz
45 dB, minimum
Preamplifier Output Clipping Level
at 1% THD
-8 dBV (0.4 V)
Logic Connections
| LED IN Active low (≤1.0V), TTL compatible. A | Absolute maximum voltage: -0.7V to 50V. |
Net Weight
136 g (0.30 lbs)
Environmental Conditions
| Operating Temperature -18–57°C (0–135°F) | |
| Storage Temperature -29–74°C (-20–165°F) | |
| Relative Humidity 0–95% |
Power Requirements
| MX395 11–52 V DC, 2.0 mA | |
| MX395-LED 48–52 V DC, 8.0 mA |

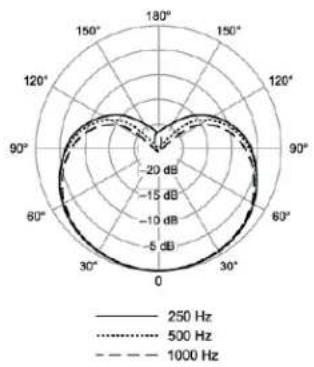

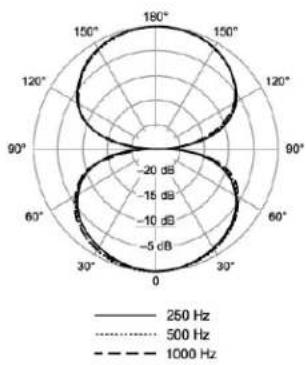

radar
| Angle | 250 Hz (dB) | 500 Hz (dB) | 1000 Hz (dB) | |-------|-------------|-------------|--------------| | 0° | -20 | -15 | -10 | | 30° | -15 | -10 | -5 | | 60° | -10 | -5 | 0 | | 90° | -5 | 0 | 5 | | 120° | 0 | 5 | 10 | | 150° | 5 | 10 | 15 | | 180° | 10 | 15 | 20 |

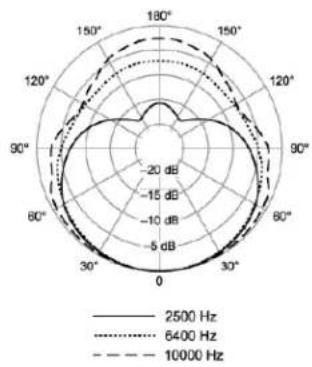

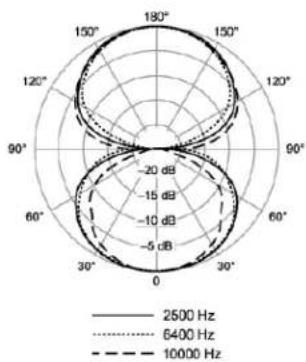

radar
| Angle | 2500 Hz (dB) | 6400 Hz (dB) | 10000 Hz (dB) | |---|---|---|---| | 0° | -18 | -17 | -16 | | 30° | -15 | -14 | -13 | | 60° | -10 | -9 | -8 | | 90° | -5 | -4 | -3 | | 120° | 0 | 2 | 2 | | 150° | 5 | 8 | 6 | | 180° | 10 | 14 | 12 | | 210° | 15 | 20 | 18 | | 240° | 20 | 26 | 24 | | 270° | 25 | 32 | 30 | | 300° | 30 | 38 | 36 | | 330° | 35 | 44 | 42 | | 360° | 40 | 50 | 48 |

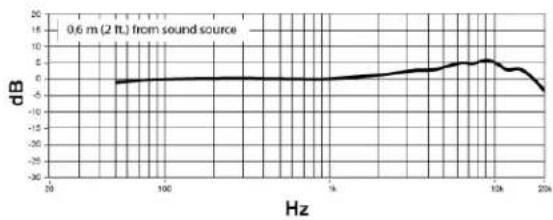

line
| Hz | dB | | ---- | --- | | 20 | -10 | | 100 | -5 | | 1K | 0 | | 10K | 5 | | 20K | -5 |MX395/C

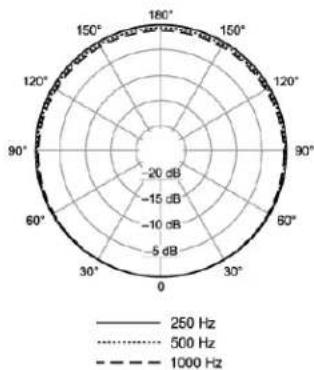

radar
| Angle | Frequency (Hz) | |---|---| | 0 | -20 | | 30° | -15 | | 60° | -10 | | 90° | -5 | | 120° | -10 | | 150° | -5 | | 180° | -10 | | 210° | -5 | | 240° | -10 | | 270° | -5 | | 300° | -10 | | 330° | -5 | | 360° | -10 |

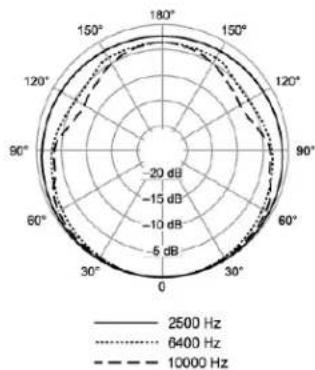

radar
| Angle | 2500 Hz (dB) | 6400 Hz (dB) | 10000 Hz (dB) | |-------|--------------|--------------|---------------| | 0 | -5 | -15 | -20 | | 30 | -5 | -15 | -20 | | 60 | -5 | -15 | -20 | | 90 | -5 | -15 | -20 | | 120 | -5 | -15 | -20 | | 150 | -5 | -15 | -20 | | 180 | -5 | -15 | -20 |

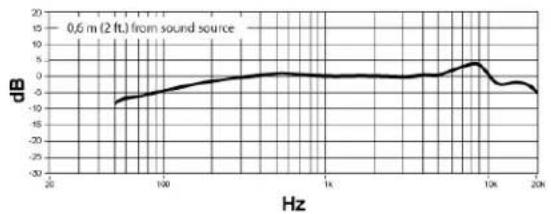

line
| Hz | dB | | ---- | --- | | 30 | -5 | | 100 | -2 | | 1k | 0 | | 10k | 5 | | 20k | -20 |MX395/BI
radar
| Angle (degrees) | Frequency (Hz) | |---|---| | 0 | -20 | | 30 | -15 | | 60 | -10 | | 90 | -5 | | 120 | -10 | | 150 | -5 | | 180 | -5 |
radar
| Angle | Frequency (Hz) | |---|---| | 0 | -10 | | 30 | -5 | | 60 | -10 | | 90 | -15 | | 120 | -20 | | 150 | -15 | | 180 | -10 | | 210 | -5 | | 240 | 0 | | 270 | 5 | | 300 | 10 | | 330 | 15 | | 360 | 20 | | 390 | 15 | | 420 | 10 | | 450 | 5 | | 480 | 0 | | 510 | -5 | | 540 | -10 | | 570 | -15 | | 600 | -20 | | 630 | -15 | | 660 | -10 | | 690 | -5 | | 720 | 0 | | 750 | 5 | | 780 | 10 | | 810 | 15 | | 840 | 20 | | 870 | 15 | | 900 | 10 | | 930 | 5 | | 960 | 0 | | 990 | -5 | | 1020 | -10 | | 1050 | -15 | | 1080 | -20 | | 1110 | -15 | | 1140 | -10 | | 1170 | -5 | | 1200 | 0 | | 1230 | 5 | | 1260 | 10 | | 1290 | 15 | | 1320 | 20 | | 1350 | 15 | | 1380 | 10 | | 1410 | 5 | | 1440 | 0 | | 1470 | -5 | | 1500 | -10 | | 1530 | -15 | | 1560 | -20 | | 1590 | -15 | | 1620 | -10 | | 1650 | -5 | | 1680 | 0 | | 1710 | 5 | | 1740 | 10 | | 1770 | 15 | | 1800 | 20 | | 1830 | 15 | | 1860 | 10 | | 1890 | 5 | | 1920 | 0 | | 1950 | -5 | | 1980 | -10 | | 2010 | -15 | | 2040 | -20 | | 2070 | -15 | | 2100 | -10 | | 2130 | -5 | | 2160 | 0 | | 2190 | 5 | | 2220 | 10 | | 2250 | 15 | | 2280 | 20 | | 2310 | 15 | | 2340 | 10 | | 2370 | 5 | | 2400 | 0 | | 2430 | -5 | | 2460 | -10 | | 2490 | -15 | | 2520 | -20 | | 2550 | -15 | | 2580 | -10 | | 2610 | -5 | | 2640 | 0 | | 2670 | 5 | | 2700 | 10 | | 2730 | 15 | | 2760 | 20 | | 2790 | 15 | | 2820 | 10 | | 2850 | 5 | | 2880 | 0 | | 2910 | -5 | | 2940 | -10 | | 2970 | -15 | | 3000 | -20 | | 3030 | -15 | | 3060 | -10 | | 3090 | -5 | | 3120 | 0 | | 3150 | 5 | | 3180 | 10 | | 3210 | 15 | | 3240 | 20 | | 3270 | 15 | | 3300 | 10 | | 3330 | 5 | | 3360 | 0 | | 3390 | -5 | | 3420 | -10 | | 3450 | -15 | | 3480 | -20 | | 3510 | -15 | | 3540 | -10 | | 3570 | -5 | | 3600 | 0 | | Note: The frequency values are estimated based on the provided code format. The data is presented in a single column format for the chart.
line
| Hz | dB | | ---- | --- | | 20 | -5 | | 100 | -5 | | 1k | -5 | | 10k | 5 | | 20k | -5 |MX395/O

