USER MANUAL Elate Carbon MW6 Morel

Elate Carbon Installation Guide Elate Carbon / Pro 52, 62, 53, 63, 93, 52A, 62A, 53A, 63A, 93A Components Alto tweeter, MT450, MW5, MW6, MW9, MM3, MXT280C, MXT380C

Elate Carbon Installation Guide

Elate Carbon / Pro

52, 62, 53, 63, 93, 52A, 62A, 53A, 63A, 93A

Components

Alto tweeter, MT450, MW5, MW6, MW9, MM3, MXT280C, MXT380C

Dear Customer,

Thank you for choosing Morel for your car audio speaker solution.

Morel prides itself on engineering and producing the best high-fidelity speaker systems.

We hope you enjoy your Elate Carbon speakers for years to come.

If you have any questions, please contact your Morel dealer or Morel support at:

www.morelhifi.com

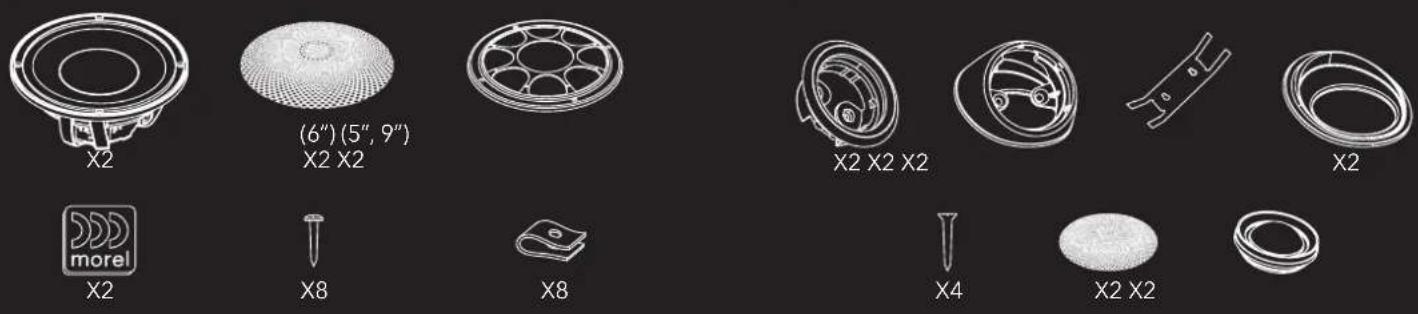

Elate Carbon Components

Elate Carbon MW5, MW6, and MW9 Woofer MT450 Tweeter

MXT380c/MXT280c Crossover

MM3 MidrangeAlto Tweeter (PRO lin

Technical line drawing of a mechanical component with symmetrical cutouts and labeled X2 (no text or symbols beyond label)

X6

X2X2 X2 X2

X6

X8X2 X8

Woofer, Midrange and Alto Tweeter mounting

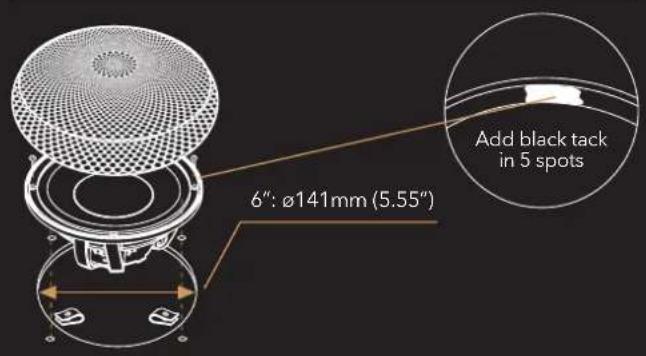

MW6 woofer

Add black tack in 5 spots 6": Ø141mm (5.55")

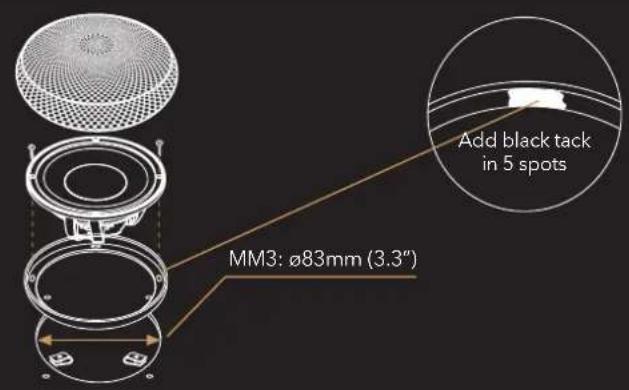

MM3

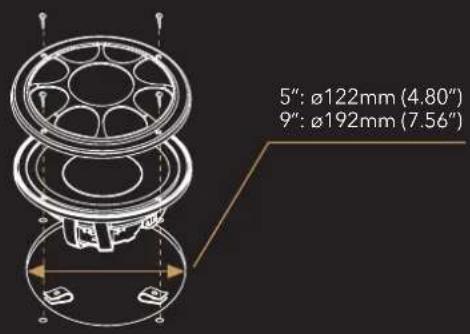

MW5 and MW9 woofer

5": Ø122mm (4.80") 9": Ø192mm (7.56")

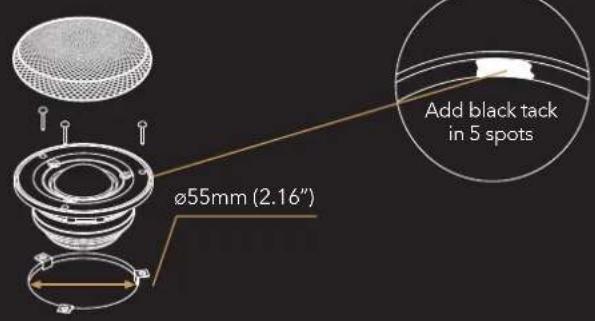

Alto Tweeter

Add black tack in 5 spots MM3: ø83mm (3.3")

Add black tack in 5 spots Ø55mm (2.16")

MT450 Tweeter and Crossover Mounting

MT450 Flush Mount MT450 Surface Mount

1

3

Illustration of a laboratory setup with a tool and a test tube, no text or symbols present

Diagram of a mechanical assembly with gears and a base, no visible text or symbols

2

3

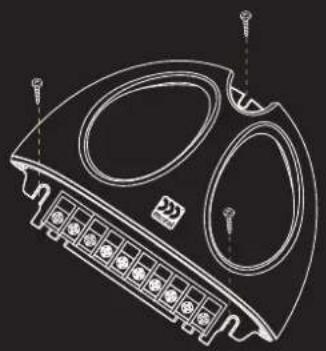

Crossover mounting

Technical line drawing of a mechanical component with multiple ports and mounting holes (no text or symbols)

Crossover Connections

2-WAY Systems Crossover 3-WAY Systems Crossover

Standard wire connection/ With bridged jumpers

Diagram of a car electrical panel with labeled components and wiring connections

Bi wire connection/ No bridged jumpers

Diagram of a car electrical panel with labeled components and wiring connections

Bi Amp connection/ No bridged jumpers

300 x2

Standard wire connection/ With bridged jumpers

Diagram showing electrical connections between car and bus, with labeled components and wiring paths

Bi wire connection/ No bridged jumpers

Diagram of a dual-chamber electrical system with labeled components and connections

Bi Amp connection/ No bridged jumpers

Technical diagram of a dual-chamber electrical or mechanical system with labeled components and connections

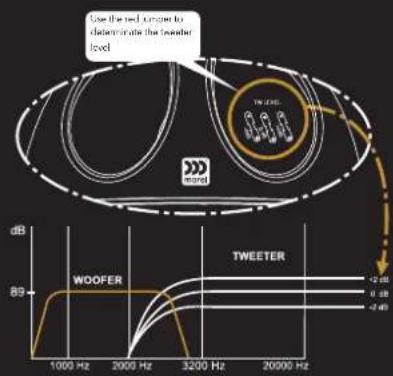

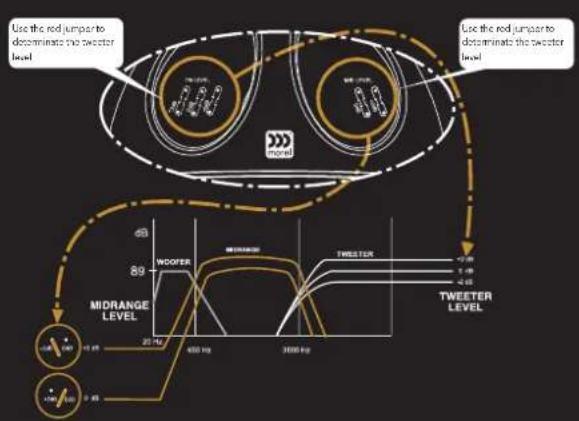

2-WAY Crossover Alignment System 3-WAY Crossover Alignment System

Use the red curve to determine the tweeter level WOOFER TWEETER dB 89 1000 Hz 2000 Hz 3200 Hz 20000 Hz

Specifications

WOOFERS	ELATE CARBON MM3	ELATE CARBON MW5	ELATE CARBON MW6	ELATE CARBON MW9
Nominal Impedance (ohm) 4	4		4	4
Power Handling Wms	120	160	180	200
Max. Trans. Pwr Handling Wms	400	1000	1000	1000
Sensitivity (2.83 V/1M) dB	87	85	87	89
Frequency response Hz	90-6000	40-5000	30-4000	25-3000
Resonant Freq. Fs Hz	88	64.4	45	44
Voice Coil Diameter mm (inch) 75 (3)	54 (2.125)		75 (3)	75 (3)
Voice Coil Height mm (inch) 14.50 (0.57)	10 (0.4)		14.50 (0.57)	14.50 (0.57)
Voice Coil Type/Former	Aluminium	Titanium	Titanium	Titanium
Voice Coil Wire	Hexatech" Aluminium	Hexatech" Aluminium	Hexatech" Aluminium	Hexatech" Aluminium
DC Resistance (ohm) 3.6	3		3.6	3.6
Voice Coil Induct. @1 kHz (mH) 0.615	0.175		0.615	0.615
Magnet System	Neodymium	Neodymium	Neodymium	Neodymium Double magnet rear vented
HE-Magnetic Gap Height mm (inch)	4	5 (0.20)	5 (0.20)	5 (0.20)
B-Flux Density (T) 0.66	0.94		0.75	0.74
BL Product/BXL 5.15	4.2		6.51	5.15
Max. Linear Ex/Xmax mm (inch) ±4.75mm±0.18(0.12)			±4.75mm (0.18)	±4.75mm (0.18)
Suspension Compliance CMS - mm/N 0.35	0.54		0.67	0.36
Electrical Q Factor QES 0.63	0.54		0.47	0.61
OTS 0.56	0.45		0.43	0.56
QMS 4.15	2.66		7.19	6
Mech. Resistance RMS- N·S/M 1.32	1.17		1	1.2
Moving Mass MMS - gr/ounce	5.3(0.21)	17(0.59)	18 (0.63)	30 (1.05)
Equiv. Can Air Load VAS - L (cu.ft)	1.15(0.05)	4.5 (0.6)	13.3 (0.47)	30.9 (1.1)
Effective Piston Area SD sq.cm (sq.inch)	38(1.5)	90 (13.95)	120 (18.6)	219 (33.95)
Cone Type	Triple Layer Cone (TLC)	Triple Layer Cone (TLC)	Triple Layer Cone (TLC)	Triple Layer Cone (TLC)
Cone Material	Carbon Fibre composite	Carbon Fibre composite	Carbon Fibre composite	Carbon Fibre composite
Unit Diameter mm(inch)	100 (3.90)	135 (5.25)	165 (6.50)	222 (8.75)
Mounting Depth mm (inch)	38 (1.50)	60 (2.36)	61 (2.40)	71 (2.80)
Mounting Cutout	83 (3.3)	120 (4.72)	141 (5.55)	192 (7.56)
Net Wight Kg (lb)	0.38 (0.84)	1.05 (2.31)	1.18 (2.60)	1.42 (3.13)

CROSSOVERS	MXT280C	MXT380C
Crossover Point	W: 2500Hz/12dB	W: 450Hz/12dB
	T: 2500Hz/12dB	M: 450Hz/12dB
		2700Hz/12dB
		T: 2700Hz/12dB
Crossover Controls	Tweeter +/- 2dB	Tweeter +/- 2dB
		Mid 0/- 2dB
Wiring Options	Bi wire / Bi amp	Bi wire / Bi amp

• Morel operates a policy of continuous products design improvement, consequently specifications are subject to alteration without prior notice

MIDS & TWEETERS	MT450	ALTO
Nominal Impedance (ohm)	6	6
Power Handling Wrms	130	220
Max. Trans. Pwr Handling Wrms (10ms)	350	1000
Sensitivity (2.83 V/1M) dB	91	91
Frequency Response Hz	1400-25000	1400-25000
FS Hz	1000	900
Voice Coil Diameter mm (inch)	28 (1.25)	28 (1.125)
Voice Coil Former	Aluminium	Aluminium
Voice Coil Wire	Hexatech" Aluminium	Hexatech" aluminium
OC Resistance ohm	5.2	5.2
Magnet System	Neodymium Rear Vented	Neodymium rear chamber underhung
Dome Type	Aouflex"hand coated soft dome Aouflex"hand coated soft dome
Dome Material	Silk	Silk
Unit Diameter mm (inch)	43.00 (1.69)	67.00 (2.6)
Mounting Depth mm (inch)	13.2 (0.52)	32.00 (1.25)
Mounting Cutout mm (inch)	47.00 (2)	55 (2.16)
Net Weight Kg (lb)	0.07 (0.15)	0.35 (0.77)

Active Configuration

Setting up the Elate Carbon system using an external electronic crossover network may very depending on the processor itself, the car cabin acoustic attributes, and the mounting location of the drive units. Choosing proper crossover points and slopes can greatly affect system performance.

The following guidelines should be used to assure each drive unit in the system performs to the highest level. The Optimal Crossover Point/Slope guide should be used for most vehicle applications. Advanced users may refer to the Recommended Crossover Range/Minimum Slope guide for fine system tuning.

Elate Carbon: 53A, 63A, 93A

Optimal Crossover Points/Spax Tweeter highpass: 3300Hz/12dB Midrange lowpass: 3300Hz/12dB Midrange highpass: 450Hz/12dB Woofer lowpass: 450Hz/12dB *Woofer highpass: 40Hz/12dB

Recommended Crossover Range/Minimum Stage Tweeter highpass: 18000Hz-4000Hz/12dB Midrange lowpass: 18000Hz-4000Hz/6dB Midrange highpass: 300Hz-750Hz/12dB Woofer lowpass: 350Hz-750Hz/6dB * Woofer highpass: 40Hz-80Hz/12dB

Elate Carbon: 52A, 62A, 92A

Optimal Crossover Point/Shape Tweeter high pass: 2000Hz/12dB Woofer lowpass: 1800Hz/12dB * Woofer high pass: 40Hz/12dB

Recommended Crossover Range/Minimum Shape Tweeter highpass: 15000Hz-3000Hz/12dB Woofer lowpass: 18000Hz-3000Hz/6dB * Woofer highpass: 40Hz-80Hz/12dB

* When used with an active subwoofer system.

Wishing you many years of sound enjoyment!
