Product Type	65-inch 4K UHD Commercial Display
Model	LH6542UHS
Brand	Iiyama
Screen Size	65 inches (164 cm)
Resolution	3840 x 2160 (4K UHD)
Refresh Rate	60 Hz
Panel Type	IPS (In-Plane Switching)
Brightness	500 cd/m² (typical)
Contrast Ratio	1200:1 (typical)
Response Time	8 ms (GTG)
Viewing Angles	178° horizontal / 178° vertical
Connectivity	HDMI 2.0 x2, DisplayPort 1.2 x1, USB-C x1 (with DP Alt Mode), RS-232C, USB 2.0 x2, 3.5mm audio out
Built-in Speakers	10W x2
VESA Mount	400 x 400 mm
Power Consumption	190 W (typical), <0.5 W (standby)
Weight (without stand)	Approx. 28 kg
Dimensions (W x H x D, without stand)	1463 x 843 x 88 mm
Special Features	HDR10 support, 24/7 operation, Anti-glare coating, Built-in media player
Operating Temperature	0°C to 40°C
Warranty	3 years (including backlight)
Certifications	CE, TÜV, VCCI, RoHS

Frequently Asked Questions - Prolite LH6542UHS IIYAMA

How do I connect my laptop to the Iiyama Prolite LH6542UHS?

Use an HDMI, DisplayPort, or USB-C cable that supports video output. Connect one end to your laptop and the other to the corresponding port on the monitor. Ensure the monitor is powered on and set to the correct input source.

Can the display be wall-mounted?

Yes, the monitor supports VESA mounting with a 400 x 400 mm pattern. Use a suitable wall mount bracket designed for 65-inch displays and weighing at least 28 kg.

Does the monitor support HDR?

Yes, it supports HDR10. To enjoy HDR content, ensure your source device outputs HDR, set the monitor's OSD to HDR mode, and use an HDMI 2.0 or DisplayPort 1.2 cable.

How do I clean the screen safely?

Turn off the monitor and unplug it. Gently wipe the screen with a soft, lint-free cloth slightly dampened with water. Do not use harsh chemicals, alcohol, or abrasive materials. Dry with a soft cloth.

What is the recommended resolution for optimal picture quality?

The native resolution is 3840 x 2160 (4K UHD) at 60 Hz. For best clarity, set your device to this resolution via display settings.

Can I use the monitor for 24/7 operation?

Yes, the Prolite LH6542UHS is designed for continuous operation. Ensure adequate ventilation and do not block cooling vents.

How do I adjust OSD settings?

Use the joystick or buttons on the back of the monitor to navigate the On-Screen Display (OSD). Options include brightness, contrast, input select, picture mode, and more. Refer to the full manual for detailed menu mapping.

What cables are included in the box?

Typically, the box includes a power cord, an HDMI cable, a DisplayPort cable, and a USB cable. Check the package contents sheet for exact items.

Does the monitor have built-in speakers?

Yes, it has two 10W speakers. You can adjust audio volume via the OSD or remote control. Alternatively, connect external speakers via the 3.5mm audio output.

Why is there no image on the screen?

Check that the power cable is connected and the monitor is turned on. Verify the video cable is securely attached to both the monitor and source. Ensure the correct input source is selected (press Input button). If using a laptop, try pressing the external display key (Fn+F4, etc.).

USER MANUAL Prolite LH6542UHS IIYAMA

Thank you very much for choosing the iiyama LCD monitor for signage.

We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor.

Please keep this manual in a safe place for your future reference.

Two geometric shapes: a blue dotted square and a white square, both outlined in blue (no text or symbols)

Dear user, we congratulate you on the purchase of your iiyama LCD.

For details on warranty and locally used pixel policies that apply directly after installation of your product please check the iiyama website.

To report a fault, please contact your local support centre found at www.iiyama.com/service

Things to check before you call the iiyama information line

| if the power cable is connected securely and turned on?
| if the display has been turned on?
| if the signal cable is connected securely and the correct input selected?
| if the computer has been restarted with the display connected?
| if the graphics card is correctly installed with the latest drivers possible?
| if the correct native resolution has been selected via 'Display Properties'?
| If the R/G/B signal configuration is correct?
| if the displays On Screen Menu is shown?
| if the correct brightness and contrast settings have been set?
| if given display tolerances and compatibility have been considered?
| if via the On Screen Menu you have performed a Factory Reset/Recall?

Before reporting the screen defect, please prepare the following information/evidence:

| model number *
| purchase receipt and serial number *
| name and address for collection
| telephone/fax number, for availability during the day
| convenient collection date (date, time)
| short description of the defect

Important Note:

If there is no fault found in the collected equipment after inspection, the transferring party shall incur charges for transport and administration.

If you have checked all of the above and there is still no picture, call our information line for assistance in your country.

CE MARKING DECLARATION OF CONFORMITY

This LCD monitor complies with the requirements of the EC/EU Directive 2014/30/EU “EMC Directive”, 2014/35/EU “Low Voltage Directive”, 2009/125/EC “ErP Directive” and 2011/65/EU “RoHS Directive”.

Warning

This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com

You can access the Web page of different countries from there.

■ We reserve the right to change specifications without notice.
■ All trademarks used in this user manual are the property of their respective owners.
■ Eprel registration number LH6542UHS-B3 : 429798, LH7542UHS-B3 : 432080, LH8642UHS-B3 : 435970

TABLE OF CONTENTS

FOR YOUR SAFETY....1

SAFETY PRECAUTIONS....1

SPECIAL NOTES ON LCD MONITORS....3

CUSTOMER SERVICE 5

CLEANING 5

ADJUSTMENT MENU CONTENTS....28

SCREEN ADJUSTMENTS....46

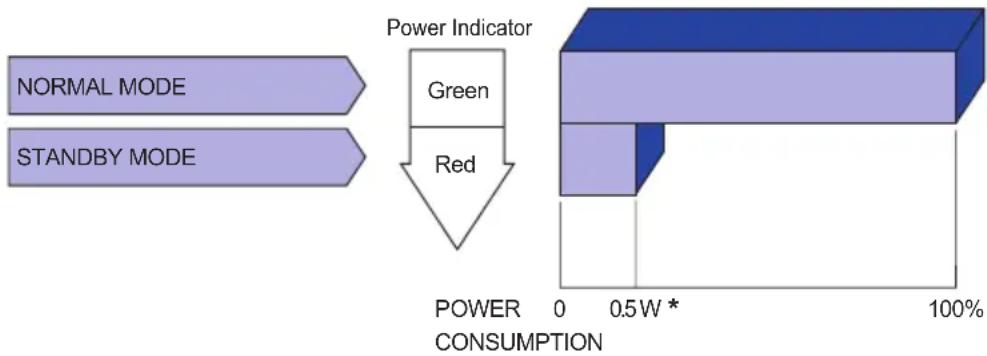

STANDBY FEATURE 49

TROUBLE SHOOTING ....50

RECYCLING INFORMATION....51

APPENDIX 52

SPECIFICATIONS : ProLite LH6542UHS-B3 ....52

SPECIFICATIONS: ProLite LH7542UHS-B3 53

SPECIFICATIONS: ProLite LH8642UHS-B3 54

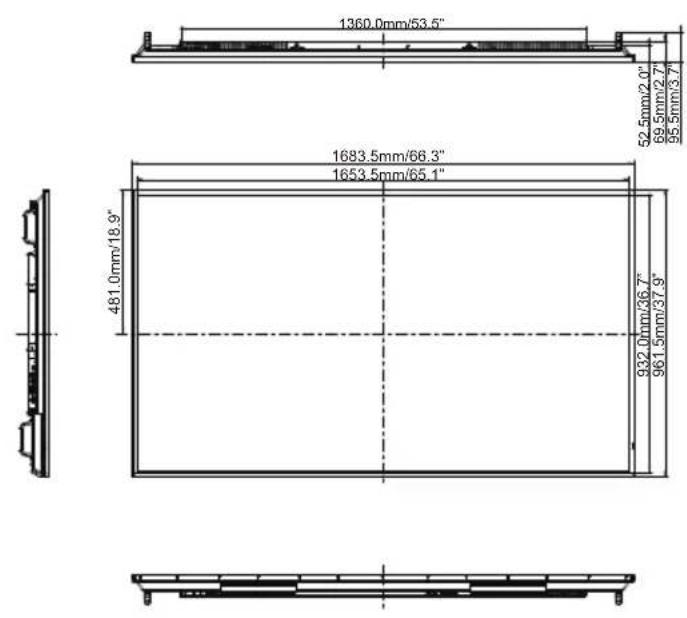

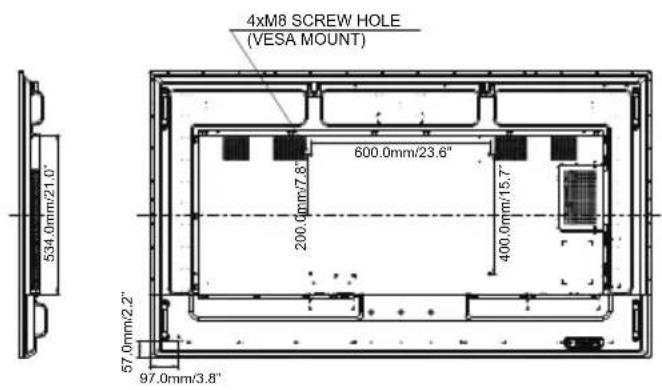

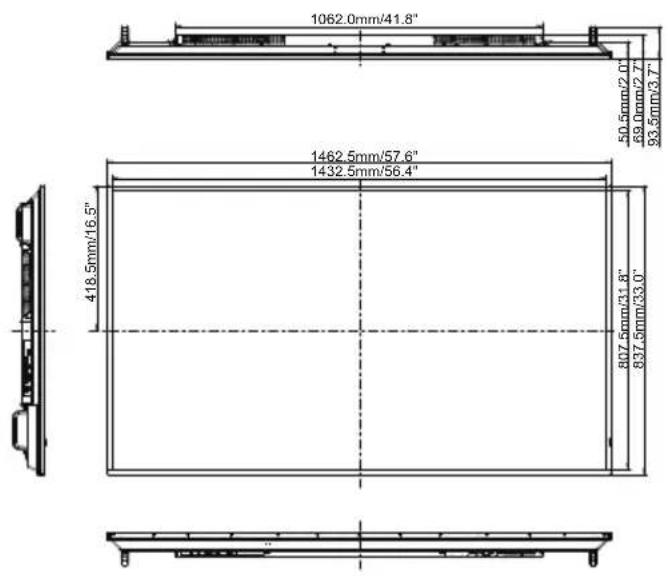

DIMENSIONS : ProLite LH6542UHS 55

DIMENSIONS : ProLite LH7542UHS ....55

DIMENSIONS : ProLite LH8642UHS....56

COMPLIANT TIMING....56

SAFETY PRECAUTIONS

WARNING

STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE

If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock.

NEVER REMOVE THE CABINET

High voltage circuits are inside the monitor. Removing the cabinet may expose you to the danger of fire or electric shock.

DO NOT PUT ANY OBJECT INTO THE MONITOR

Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage.

INSTALL THE MONITOR ON A FLAT, STABLE SURFACE

The monitor may cause an injury if it falls or is dropped.

DO NOT USE THE MONITOR NEAR WATER

Do not use where water may be splashed or spilt onto the monitor as it may cause fire or electric shock.

OPERATE UNDER THE SPECIFIED POWER SUPPLY

Be sure to operate the monitor only with the specified power supply. Use of an incorrect voltage will cause malfunction and may cause fire or electric shock.

PROTECT THE CABLES

Do not pull or bend the power cable and signal cable. Do not place the monitor or any other heavy objects on the cables. If damaged, the cables may cause fire or electric shock.

ADVERSE WEATHER CONDITIONS

It is advisable not to operate the monitor during a heavy thunder storm as the continual breaks in power may cause malfunction. It is also advised not to touch the plug in these circumstances as it may cause electric shock.

CAUTION

INSTALLATION LOCATION

Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor.

DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION

The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.

MAINTAIN GOOD VENTILATION

Ventilation slots are provided to keep the monitor from overheating. Covering the slots may cause fire. To allow adequate air circulation, place the monitor at least 10 cm (or 4 inches) from any walls. Operating the monitor on its back, side, upside down or on a carpet or any other soft material may also cause damage.

DISCONNECT THE CABLES WHEN YOU MOVE THE MONITOR

When you move the monitor, turn off the power switch, unplug the monitor and be sure cable is disconnected. If you do not disconnect them, it may cause fire or electric shock.

UNPLUG THE MONITOR

If the monitor is not in use for a long period of time it is recommended that it is left unplugged to avoid accidents.

HOLD THE PLUG WHEN DISCONNECTING

To disconnect the power cable or signal cable, always pull it by the plug. Never pull on the cable itself as this may cause fire or electric shock.

DO NOT TOUCH THE PLUG WITH WET HANDS

Pulling or inserting the plug with wet hands may cause electric shock.

WHEN YOU INSTALL THE MONITOR ON YOUR COMPUTER

Be sure the computer is strong enough to hold the weight of the monitor, otherwise, you may damage your computer.

REMARK FOR 24/7 USAGE

This product is not specifically designed for 24/7 usage.

OTHERS

ERGONOMIC RECOMMENDATIONS

To eliminate eye fatigue, do not operate the monitor against a bright background or in a dark room. For optimal viewing comfort, the monitor should be just below eye level and 40-60 cm (16-24 inches) away from your eyes. When using the monitor over a prolonged time, a ten minute break every hour is recommended as looking at the screen continuously can cause eye strain.

SPECIAL NOTES ON LCD MONITORS

■ The following symptoms are normal with LCD monitors and do not indicate a problem.

NOTE

• When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position.
• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
• Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.

■ This LCD cannot be used outdoors.
■ This LCD cannot be used with the screen facing upwards.
■ If you use a cable longer than the supplied one, the picture quality is not guaranteed.

USAGE CONFIRMATION

This product is designed for optimum usage at 18 hours per day.

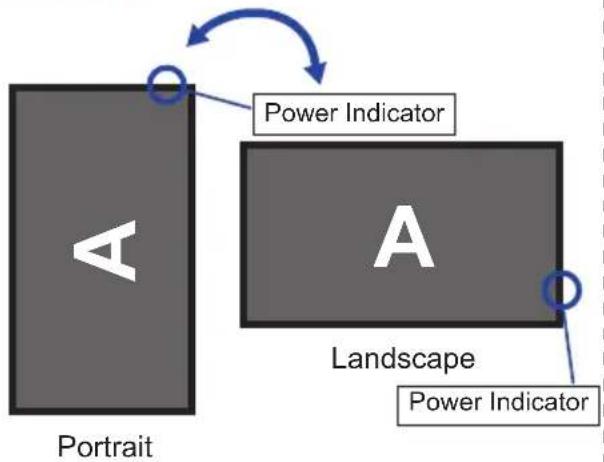

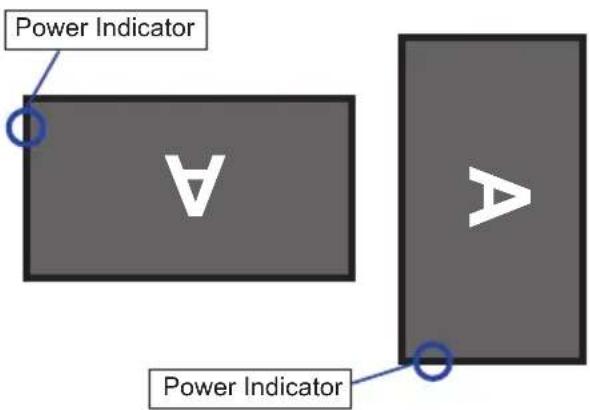

The monitor is compatible for usage in Landscape/Portrait applications.

IMAGE PERSISTENCE / IMAGE STICKING

Please be aware that all LCD screens can experience Image Persistence or Image Sticking. This occurs when a residual image remains visible on a screen when static images are displayed for long periods of time. LCD Image Persistence is not permanent but constant images being displayed for a long period of time should be avoided.

To counteract Image Persistence, turn off the monitor for as long as the previous image was displayed, so if an image was on the monitor for 1 hour and there is evidence of a residual or “ghost” image, you should turn off the monitor for 1 hour in order to clear the residual image.

For all LFD products, iiyama recommends displaying moving images and utilising a moving screen saver at regular intervals whenever the screen is idle. You could also turn off the monitor when not in use to assist the prevention.

Other ways to reduce the risk of Image Persistence will be to utilise the FAN-on function (if available), Low Backlight and Low Brightness settings.

FOR EXTENDED USE AS A PUBLIC MONITOR

■ Image Sticking on LCD Panel

When a static image is displayed for hours, an electric charge trace remains near the electrode inside the LCD producing a “ghost” image. (Image Persistence).

Image Persistence is not a permanent feature.

■ Recommendations

To prevent Image Sticking and promote longer life expectancy of monitor, we recommend the following:

1. Avoid static images displayed for long periods – change static images on continuous loop.
2. Turn off monitor when not in use, either by remote control or use Standby or Schedule functions.
3. Check the Monitor Menu Settings for "Pixel Shift" etc. and activate it when available. This will reduce the Image Sticking Effect.
4. When monitor is installed in high ambient temperature environment(s) or in an enclosed position, utilise the Cooling Fan, Screen Saver and Low Brightness functions.
5. Suitable ventilation for any monitor is an expectation of any installation – climate control systems may need to be employed.
6. We strongly recommend utilisation of active cooling with fans for long operation times or high ambient temperature environments.

CUSTOMER SERVICE

NOTE

If you have to return your unit for service and the original packaging has been discarded, please contact your dealer or iiyama service center for advice or replacement packaging.

CLEANING

WARNING

If you drop any materials or liquids such as water into the monitor when cleaning, unplug the power cable immediately and contact your dealer or iiyama service center.

CAUTION

■ For safety reasons, turn off the power switch and unplug the monitor before you clean it.

NOTE

■ To protect the LCD panel, do not scratch or rub the screen with a hard object.

■ Never use any of the following strong solvents. These will damage the cabinet and the LCD screen.

Thinner Benzine Abrasive cleaner

Spray-type cleaner Wax Acid or Alkaline solvent

■ Touching the cabinet with any product made from rubber or plastic for a long time may cause degeneration or loss of paint on the cabinet.

CABINET

Stains can be removed with a cloth lightly moistened with a mild detergent solvent. Then wipe the cabinet with a soft dry cloth.

LCD

Periodic cleaning with a soft dry cloth is recommended.

SCREEN

Don't use tissue paper etc. because these will damage the LCD screen.

The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office.

■ Power Cable*
■ HDMI Cable
■ RS-232C Cable

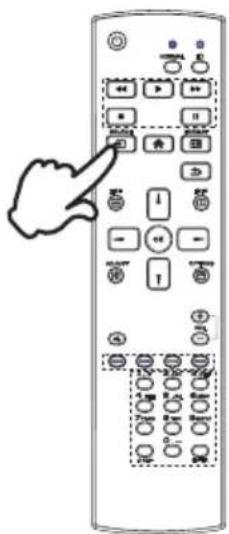

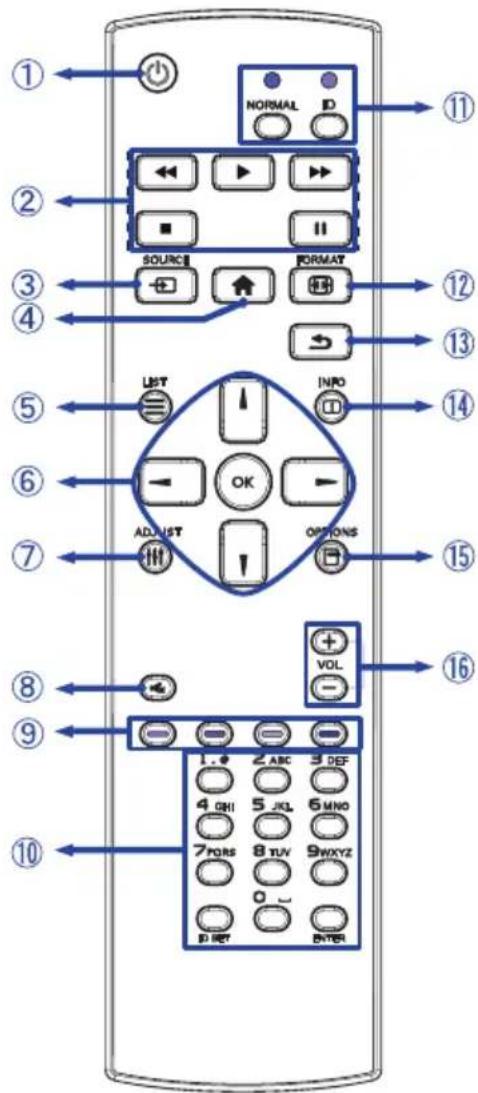

■ Remote Control

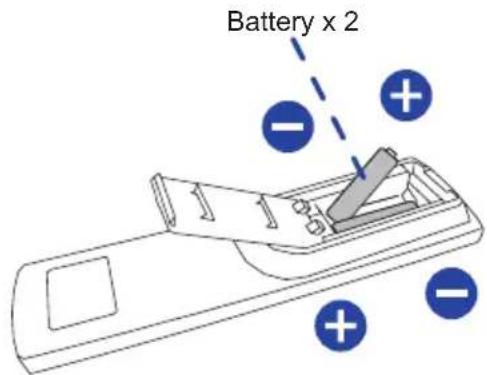

■ Battery (2pcs)
■ Stickers for screw holes
2 sheets (Stickers: 20pcs)
■ EU Energy Label
■ Safety Guide
■ Quick Start Guide

CAUTION

* The rating of the Power Cable enclosed in 120V area is 10A/125V. If you are using a power supply higher than this rating, then a power cable with a rating of 10A/250V must be used. However, all guarantees and warranties are void for any problems or damage caused by a power cable not supplied by iiyama.

An approved power cable greater or equal to H05VVF, 3G, 0.75mm ^2 must be used.

UNPACKING

CAUTION

Moving the monitor requires at least two people. If not, it may drop and could result in a serious injury.

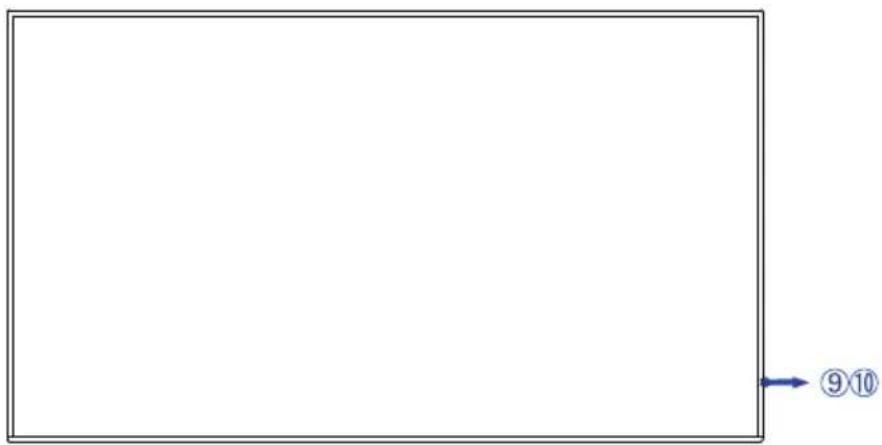

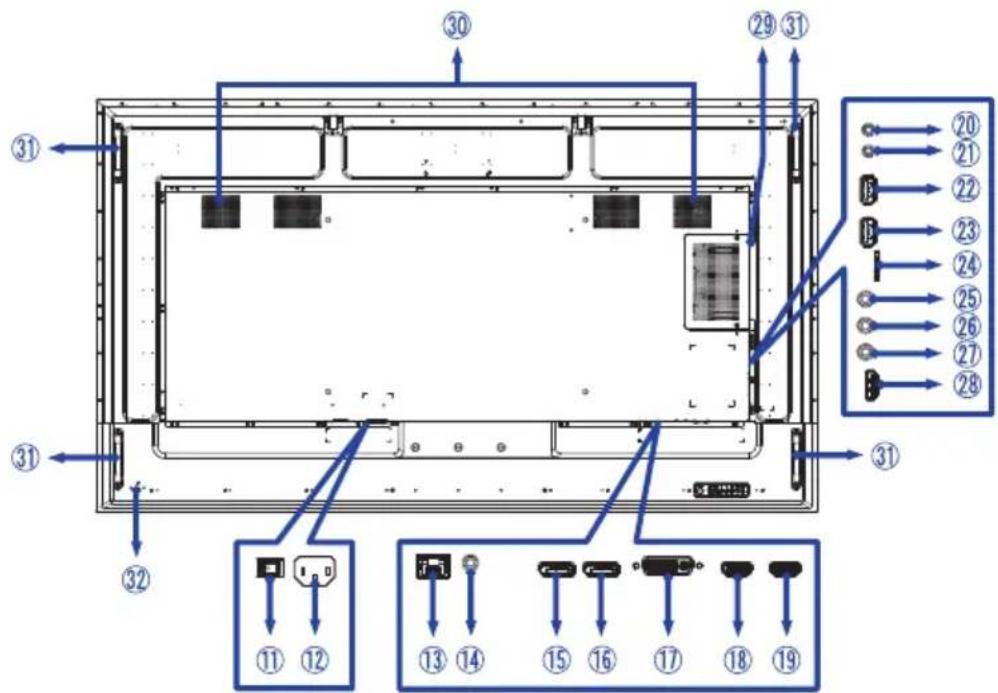

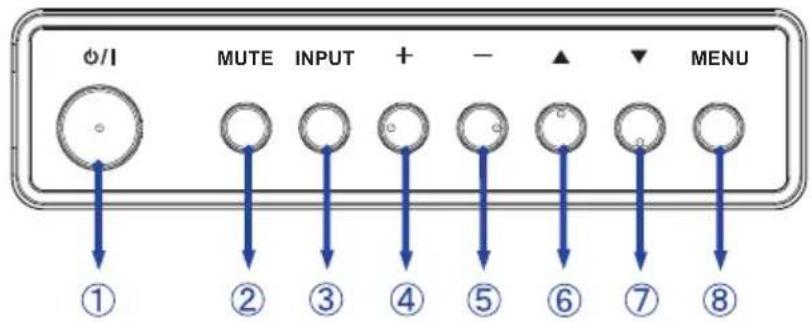

CONTROLS AND CONNECTORS : MONITOR

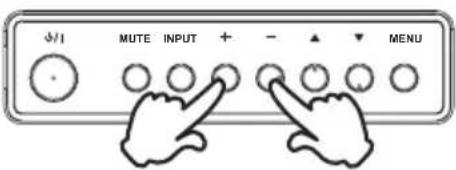

φ/I MUTE INPUT + - ▲ ▼ MENU ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

1	∅/I	Power Button
2	MUTE Mute Button
3	INPUT	Input Select Button
4	++ Button
5	-- Button
6	▲	Up Button
7	▼	Down Button
8	MENU Menu	Button

⑨⑩

9	Power Indicator	Green	Lighting : Normal OperationFlash : When SCHEDULE is enabled.
		Red	If turn off the Power Button on the Remote Control and the Back Controller. Standby mode
		Off Power Off
10	Remote Sensor R	Remote Sensor

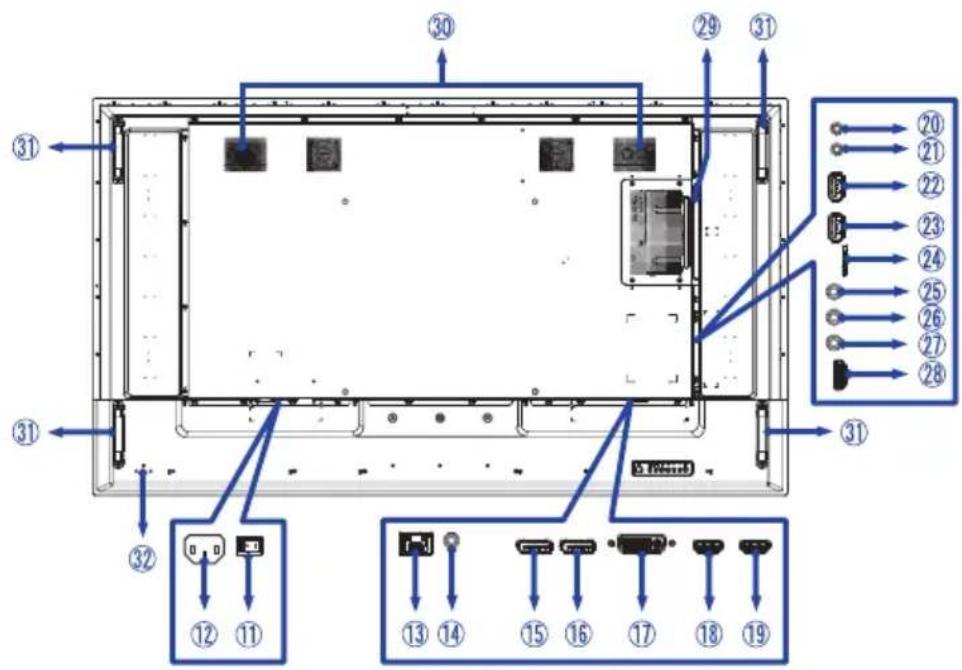

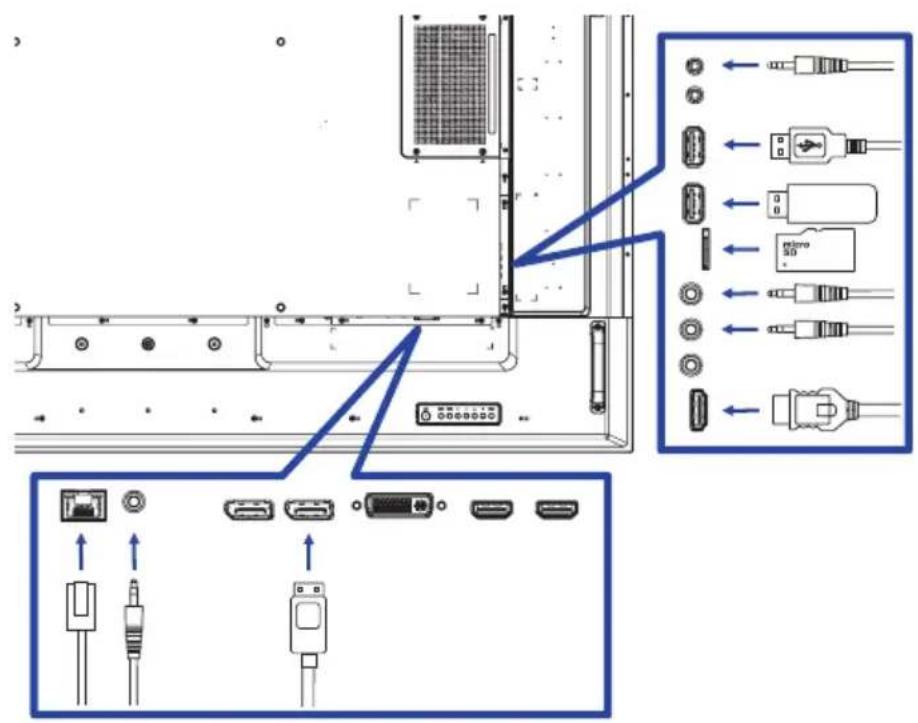

■ ProLite LH6542UHS

Technical diagram of a device rear panel with numbered ports and labeled connectors

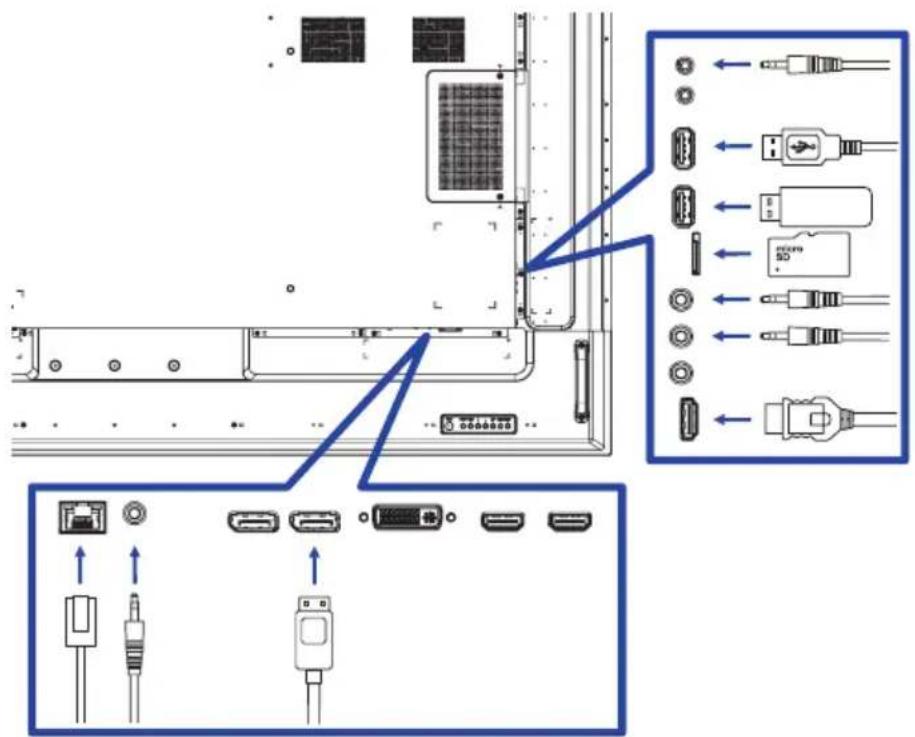

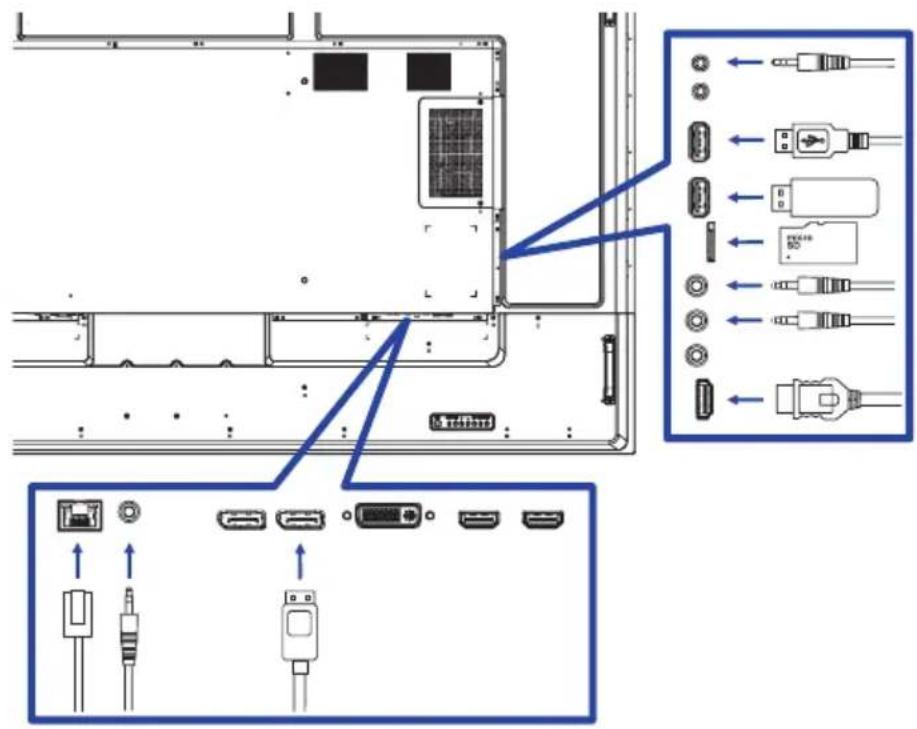

■ ProLite LH7542UHS

Technical diagram of a device rear panel with numbered components and labeled connectors

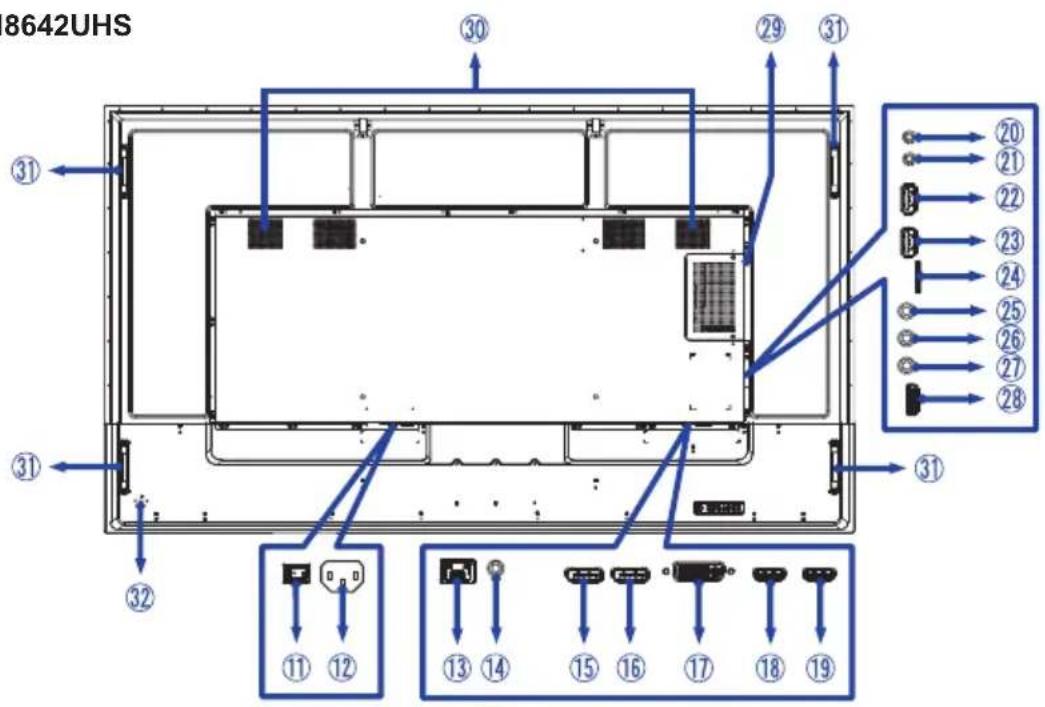

8642UHS ③0 ②9 ③1 ②0 ②1 ②2 ②3 ②4 ②5 ②6 ②7 ②8 ③1 ③2 ③1 ⑪ 0 0 ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳

11	AC SWITCH I(ON) / ○ (OFF)	MAIN POWER	Main Power Switch
12	AC IN AC-INLET AC Connector( :	Alternating current) ( ) (AC-IN)	~
13	LAN RJ45 RJ45 Connector
14	AUDIO OUT Mini Jack Headphone	Connector
15	DisplayPort IN DisplayPort DisplayPort Connector
16	DisplayPort OUT DisplayPort DisplayPort Connector
17	DVI IN DVI-I DVI-I Connector
18	HDMI1 IN HDMI HDMI Connector
19	HDMI2 IN HDMI HDMI Connector
20	RS232C OUT	Mini Jack RS232C Connector
21	RS232C IN	Mini Jack RS232C Connector
22	USB2	USB2.0(5V, 500mA)	USB Connector
23	USB1	USB2.0(5V, 500mA)	USB Connector
24	MICRO SD		Micro SD slot
25	IR OUT	IR IR Connector
26	IR IN	IR IR Connector
27	AUDIO IN Mini Jack Audio Connector
28	HDMI3 IN HDMI HDMI Connector
29	Option Slot(SDM-L)
30	Speakers
31	Handles
32	Keyhole for Security Lock

INSTALLATION

CAUTION

■ Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel.
■ Moving the monitor requires at least two people.
■ Before installing, please make sure the wall is strong enough to hold the necessary weight of the monitor and the mount.

[WALL MOUNTING]

Mounting Stage Screw L Chassis

CAUTION

When using the wall mounting, consideration of thickness of the mounting stage needs to be taken. Tighten the M8 Screws (4pcs) with washer which "L" length is 15mm to fasten the monitor. Using a screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor.

[ROTATING THE MONITOR]

This monitor is designed to be compatible in both landscape and portrait modes.

Available

Not Available

Power Indicator Power Indicator

[PLACING THE STICKERS]

If you feel the screw holes are too visible in portrait mode, please use the stickers to cover them.

■ ProLite LH6542UHS
Screw holes : 13
■ ProLite LH7542UHS
Screw holes : 13
■ ProLite LH8642UHS
Screw holes : 17

Pure technical line drawing of a vertical panel or connector with mounting holes and a central shaft (no text or symbols)

Pure mechanical diagram showing vertical structural components without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

CONTROLS AND CONNECTORS : REMOTE CONTROL

① NORMAL D ② SOURCE FORMAT ③ LIST INFO ④ OK ADJUST OPTIONS ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ 1.0 2.ABC 3.DEF 4.QHI 5.JXL 6.MNO 7.FORS 8.YUV 9.WXYZ 0._ P.SET ENTER

1	[IMAGE]	Turns the monitor ON and OFF.
2		Control playback of media files.► : Play■ : Stop■ : Pause◀◀ : Quick-Return▶◀ : Fast-Forward
3	SOURCE	Selects the source.Press ↓ or ↓ button to select from HDMI1, HDMI2, HDMI3, DVI-I, DisplayPort, VGA, SDM, Media Player, Browser, iiSignage, PDF Player or Custom. Press [OK]button to confirm and exit.
4	HOME	Opens the display's on-screen menu systems.
5	LIST Not available on this model.
6		Navigates through submenus and settings.+: Up Button+: Down Button←: Left Button→: Right Button
	OK	Confirms your selection or save changes.
7	ADJUST	Auto Adjust function only available when VGA input is selected.
8	MUTE	Turns on or off the mute function when the Menu is not displayed.
9	COLOR	Select tasks or options.Blue: Zoom in (PDF Player)Yellow: Zoom out (PDF Player)
10	NUMBER/ID SET/ENTER	Enter text for network setting.
11	ID Mode	ID: To enter ID ModeNORMAL: To leave ID Mode
12	FORMAT Change picture format.
13	BACK	Returns to a previous menu or closes the OSD Menu.
14	INFO	Provides source and resolution information.
15	OPTIONS Not available on this model.
16	VOLUME - / +	VOLUME-: Decreases the sound volume.VOLUME+: Increases the sound volume.

PREPARING THE REMOTE CONTROL

To use the remote control, insert the two dry batteries.

CAUTION

■ Do not use any other batteries other than those specified in this manual for the Remote Control.
■ Do not insert old and new batteries together in the Remote Control.
■ Make sure that the terminals match the "+" and "-" indications in the battery compartment.
■ Remove the dead batteries immediately to prevent them from liquid leaking into the battery compartment.
■ Burst batteries or the electrolyte from these batteries may cause stains, fire or injury.

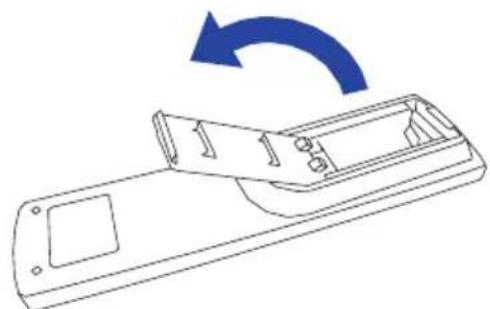

① Press and then slide the battery cover to open it.

Line drawing of a remote control casing with a blue curved arrow indicating rotation (no text or symbols)

② Align and insert two AAA batteries according to their plus and minus ports (as indicated remote control).

Battery x 2 - + + -

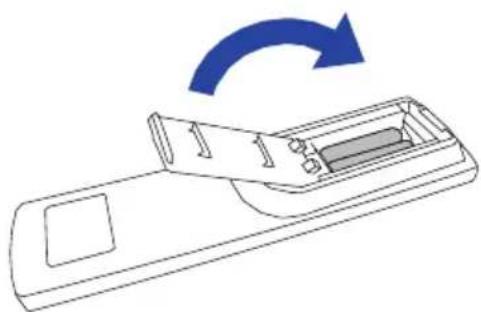

③ Replace the battery cover.

Line drawing of a remote control device with a blue arrow indicating clockwise rotation (no text or symbols)

NOTE

■ Refer to the above instructions when taking out the batteries.
■ Replace with new batteries when the Remote Control does not work close to the monitor. Use AAA dry batteries. Risk of explosion if battery is replaced by an incorrect type.
■ Operate the Remote Control by pointing it toward the Remote Sensor on the monitor.
■ Other manufacturers remote control will not work with this monitor. Use the provided Remote Control ONLY.
■ Used batteries needed to follow the city rule to be discarded. (suggestion: to dispose of used batteries please follow correct policy as per your council regulations)
■ Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
■ If you do not intend to use the remote control for a long period, remove the batteries.

ID REMOTE CONTROL

You can set the remote control ID when you want to use the remote control on specific monitors.

ID Mode (To enter ID Mode): Press and hold the ID button until the red LED blinks twice.

Normal Mode (To leave ID Mode): Press and hold the Normal button until the green LED blinks twice.

■ Programming ID Mode

To assign an ID to a remote control.

1. Enter ID Mode.

2. Press and hold the ID SET button until the red LED turned on.

3. Using the number button, input the desired ID. (01 - 255)

4. Press the ENTER button to confirm ID.

5. The red LED will blink twice when ID has been confirmed.

6. Press the ID SET button will exit the ID Mode. The green LED turned on.

NOTE

• Not pressing any button within 10 seconds will exit the ID Mode.
• If an error pressing of buttons other than the digits occurred, wait 1 second after the red LED lights off and then lights up again, then press the correct digits again.
• To cancel or stop programming an ID, press the ID SET button.
• It is necessary to set up the ID number for each monitor before selecting its ID number.

■ Use ID Mode

1. Enter ID Mode.
2. Input the ID of the monitor which would like to control by number button.
3. Press the ENTER button.

BASIC OPERATION

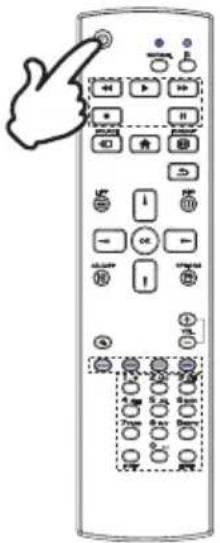

■ Turning the monitor ON

The monitor is turned On and the Power Indicator turns to Green when you press the POWER button on the monitor or the Remote Control. The monitor is turned Off and the Power Indicator turns to Red when you press the POWER button on the monitor or the Remote Control. Press again to turn On the monitor.

NOTE

Even when using the standby mode or turning OFF the Power Switch, the monitor will consume a small amount of electricity. Disconnect the Power Cable from the power supply whenever the monitor is not in use or during the night, to avoid unnecessary power consumption.

[Monitor]

MUTE INPUT + - ▲ ▼ MENU

[Remote Control]

Diagram of a remote control panel with labeled buttons and a hand pointing to the button.

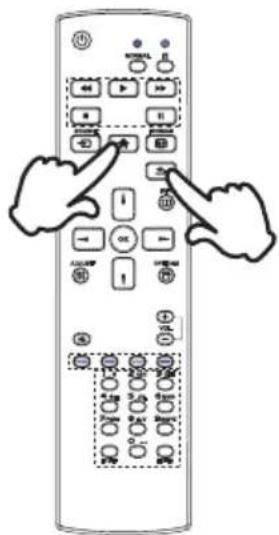

■ Display the adjustment menu page

The menu page appears on the screen when you press the MENU button on the monitor or the HOME button on the Remote Control.

The menu page disappears when you press the ➕ BACK button on the Remote Control again.

[Monitor]

MUTE INPUT + - ▲ MENU

[Remote Control]

Diagram of a remote control with labeled buttons and directional arrows indicating navigation or function

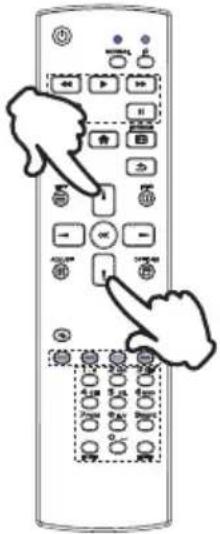

■ Move the cursor vertically

Select adjustment by pressing the ▲/▼button on the monitor or the ▲/▼button on the remote control while the menu page is displayed on the screen.

[Monitor]

MUTE INPUT + - ▲ MENU

[Remote Control]

Diagram of a remote control with labeled buttons and hand gestures pointing to function keys

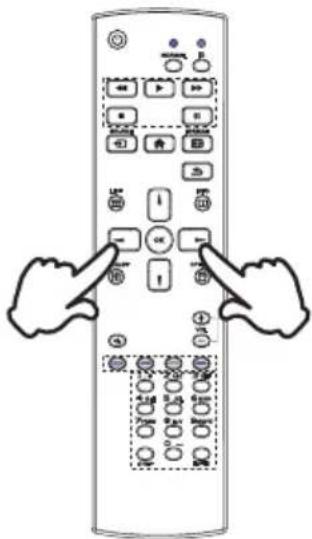

■ Move the cursor horizontally

Select menu or setting, or perform the adjustment by pressing the + / - button on the monitor or the — / — button on the remote control while the menu page is displayed on the screen.

[Monitor]

MUTE INPUT + - MENU

[Remote Control]

Diagram of a remote control with labeled buttons and directional arrows, showing hand gestures pointing to function keys.

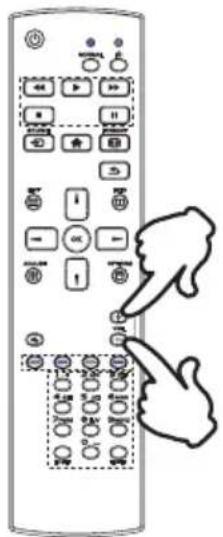

■ Adjust the volume of sound

Press the + / - button on the monitor or the remote control to adjust the volume of sound when the menu page is not displayed on the screen.

[Monitor]

MUTE INPUT + - ▲ ▼ MENU

[Remote Control]

Diagram of a remote control with labeled buttons and directional arrows pointing to the right button.

■ Switch the input signal

This is activated when you successively press the INPUT button on the monitor or the SOURCE button on the remote control.

[Monitor]

MUTE INPUT + - ▲ MENU

[Remote Control]

Diagram of a remote control with labeled buttons and a hand pointing to the button.

CONNECTING YOUR THE MONITOR : ProLite LH6542UHS

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the computer with the RS-232C Cable from the monitor.
④ Connect the Power Cable to the monitor first and then to the power source.
⑤ Turn on your monitor (Main Power Switch and Power Switch) and computer.

NOTE

■ Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ Make sure you tighten the finger screws at each end of the Signal Cable.
■ The Class I pluggable equipment Type A must be connected to protective earth.
■ The socket-outlet shall be installed near the equipment and shall be easily accessible.
■ Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.

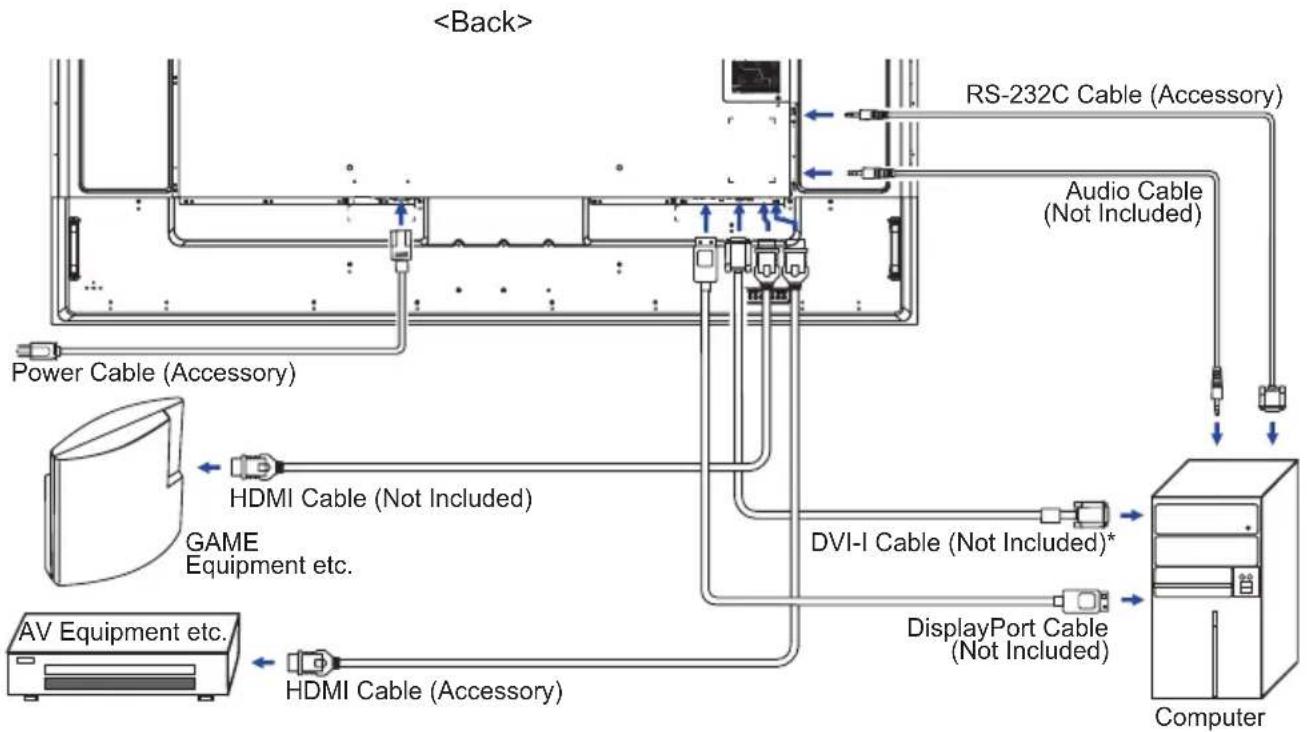

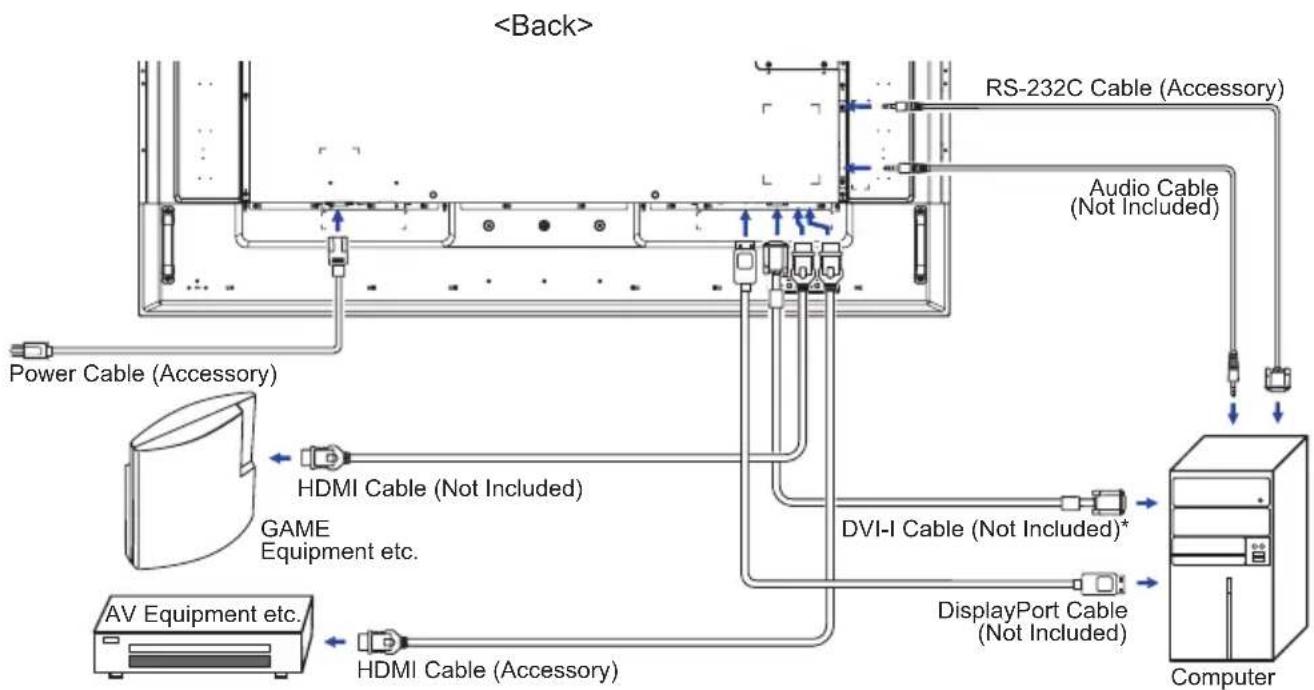

[Example of Connection]

* DVI-I cable is not supplied with the monitor. If you use low quality DVI-I cable, it may cause a result of electro-magnetic interference. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the DVI input.

CONNECTING YOUR THE MONITOR : ProLite LH7542UHS

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the computer with the RS-232C Cable from the monitor.
④ Connect the Power Cable to the monitor first and then to the power source.
⑤ Turn on your monitor (Main Power Switch and Power Switch) and computer.

NOTE

■ Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ Make sure you tighten the finger screws at each end of the Signal Cable.
■ The Class I pluggable equipment Type A must be connected to protective earth.
■ The socket-outlet shall be installed near the equipment and shall be easily accessible.
■ Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.

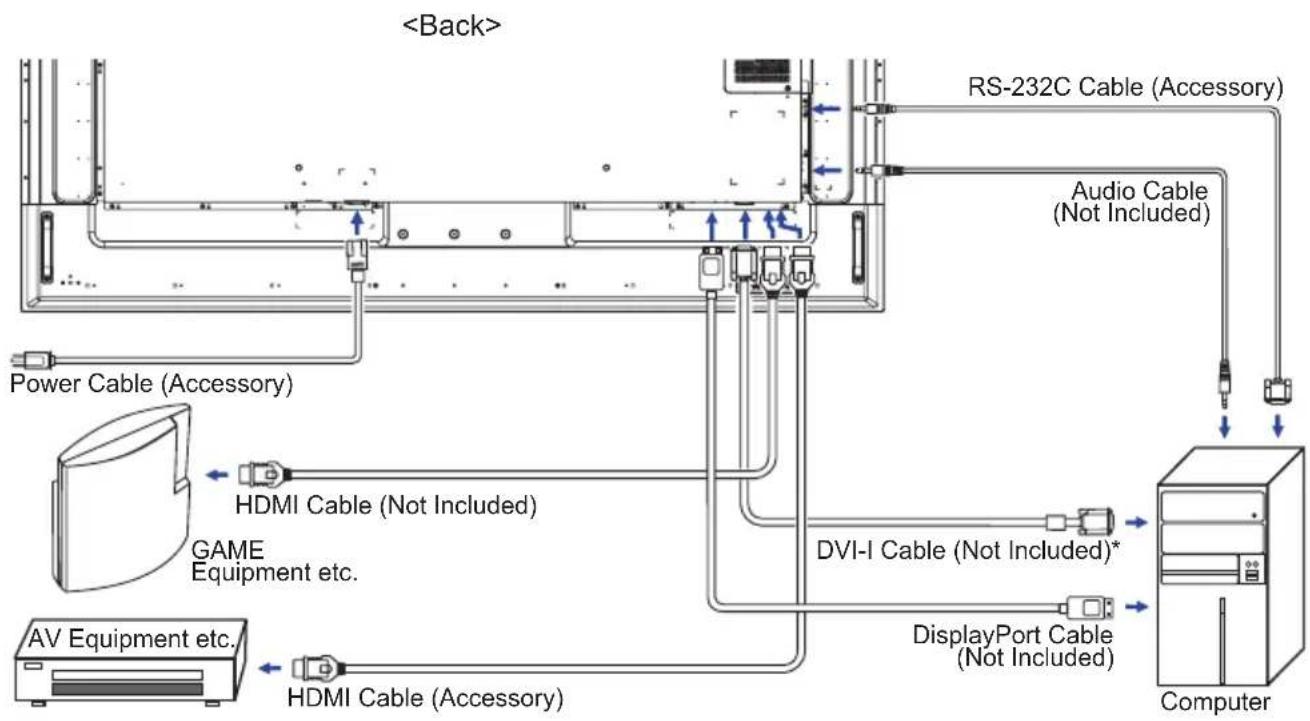

[Example of Connection]

* DVI-I cable is not supplied with the monitor. If you use low quality DVI-I cable, it may cause a result of electro-magnetic interference. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the DVI input.

CONNECTING YOUR THE MONITOR : ProLite LH8642UHS

① Ensure that both the computer and the monitor are switched off.
② Connect the computer to the monitor with the signal cable.
③ Connect the computer with the RS-232C Cable from the monitor.
④ Connect the Power Cable to the monitor first and then to the power source.
⑤ Turn on your monitor (Main Power Switch and Power Switch) and computer.

NOTE

■ Make sure that the building installation has a circuit breaker of 120/240V, 20A (maximum).
■ The signal cables used for connecting the computer and monitor may vary with the type of computer used. An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office.
■ Make sure you tighten the finger screws at each end of the Signal Cable.
■ The Class I pluggable equipment Type A must be connected to protective earth.
■ The socket-outlet shall be installed near the equipment and shall be easily accessible.
■ Excessive sound pressure from ear-/headphones can cause hearing damage/hearing loss.

[Example of Connection]

* DVI-I cable is not supplied with the monitor. If you use low quality DVI-I cable, it may cause a result of electro-magnetic interference. Please contact the iiyama Support Centre in your country if you wish to connect the monitor via the DVI input.

[ Connection example with the peripheral device ]

CAUTION

Turn off the power switch and unplug the monitor and peripherals before connection to avoid electric shock or damage.

NOTE

■ Refer to the user manual of peripherals at the same time.
■ Ensure you have the necessary cables as required.

■ ProLite LH6542UHS

Diagram showing internal components of a computer setup with labeled connectors and ports, including USB and network cables.

■ ProLite LH7542UHS

Diagram showing cable port connections with labeled connectors and ports, including USB and network cables.

■ ProLite LH8642UHS

Diagram of computer hardware panel showing connected ports and connectors with labeled connectors and arrows indicating connection points.

[ About the daisy chain ]

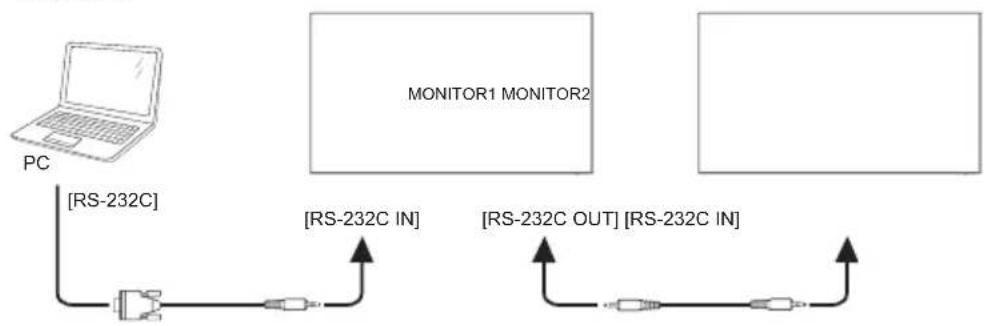

■ Monitor control connection
RS-232C

■ Digital video connection

DisplayPort


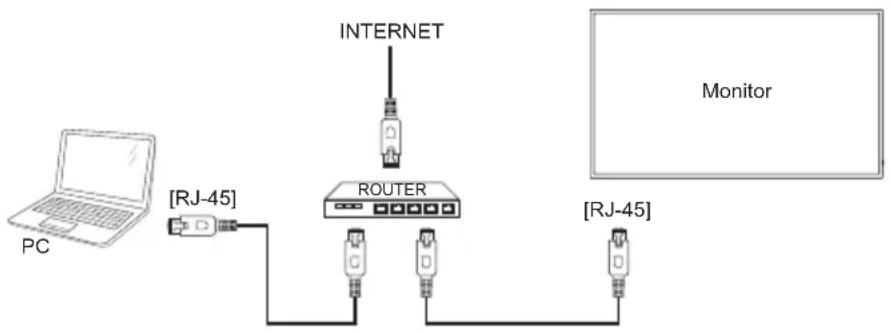

[ To setup the network ]

1. Switch on the router and switch on its DHCP setting.
2. Connect the router to this monitor with an Ethernet cable.
3. Press ⬆ HOME button on the remote control, then select Setup.
4. Select "Connect to network", then press OK button.
5. Follow the on-screen instructions to install the network.
6. Wait for this monitor to find the network connection.
7. If you are prompted, agree to the "End User Licence Agreement".

NOTE Connecting with a shielded CAT-5 Ethernet cable to comply with the EMC directive.

COMPUTER SETTING

■ Signal Timing

Change to the desired signal timing listed on page 56: COMPLIANT TIMING.

■ Windows XP/Vista/7/8/8.1/10 Plug & Play

The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8/8.1/10 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied.

For installation on Windows XP: The monitor Information File for iiyama monitors may be necessary for your computer and obtained via the Internet, using the address:

http://www.iiyama.com

NOTE

■ Monitor Drivers are not required in most cases for Macintosh or Unix operating systems. For further information, please contact your computer dealer first for advice.

■ Procedure for turning ON the Power Switch

Turn ON the monitor first, and then the computer.

To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 56. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 46 for SCREEN ADJUSTMENTS.

① Press the ⬆ HOME button on the remote control or the MENU button on the monitor to start the On Screen Display feature. There are additional Menu items which can be switched by using the ⬆ // buttons on the remote control or the ⬆ buttons on the monitor.

Picture	Brightness	90
Screen	Contrast	50
Audio	Sharpness	20
Configuration1	Black level	50
Configuration2	Tint	50
Advanced option	Color	55
	Noise reduction	Medium
	Gamma selection	Native
	Color temperature	Native
	Color control	Action
	Smart power	Off
	Overscan	Off

② Select the Menu item of the adjustment you want to make. Press the OK button on the remote control or the + button on the monitor and enter the menu page. Then, use the ▲/▼ buttons on the remote control or the ▲▼ buttons on the monitor to highlight the desired adjustment item.
③ Press the OK button on the remote control or the + button on the monitor again. Use the —/—buttons on the remote control or the + / - buttons on the monitor to make the appropriate adjustment or setting.
④ Press the ➕ BACK button on the remote control or the MENU button on the monitor to leave the menu, and the settings you just made would be automatically saved.

For example, to correct for vertical position, select Menu item of "Screen". Press the OK button on the remote control or the + button on the monitor. Then, select "V. Position" by using the ▲ / ▼ buttons on the remote control or the ▲ / ▼ buttons on the monitor.

Picture	H position
Screen	V position
Audio	Clock
Configuration1	Clock Phase
Configuration2	Zoom mode	Full
Advanced option	Custom zoom	Action
	Auto adjust	Action
	Screen reset	Action

Use the ▶ / ▶ buttons on the remote control or the + / - buttons on the monitor to change the vertical position settings. The vertical position of the overall monitor should be changing accordingly while you are doing this.

V position 50

Press the ➕ BACK button on the remote control or the MENU button on the monitor lastly, it ends, all changes are saved in the memory.

NOTE

■ The ➕ BACK button on the remote control or the + button on the monitor can be used to return previous menu item.
■ Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu.
■ Adjustments for H./V. Position, Clock and Phase are saved for each signal timing. Except for these adjustments, all other adjustments have only one setting which applies to all signal timings.

Direct

* Available for Remote Control only.

You can skip the Menu items and directly display an option setting screen by using the following button operations.

■ Auto Adjust:
Press the ADJUST Button when the Menu is not displayed.
■ Zoom mode:
Press the FORMAT Button when the Menu is not displayed.

ADJUSTMENT MENU CONTENTS

	PictureScreenAudioConfiguration1Configuration2Advanced option	BrightnessContrastSharpnessBlack levelTintColorNoise reductionGamma selectionColor temperatureColor controlActionSmart powerOverscan	905020505055MediumNativeNativeActionOffOff
Adjustment Item	Problem / Option Button to Press
Brightness^*1	Too darkToo bright
Contrast^*4	Too dullToo intense
Sharpness^*2,4	Too softToo sharp
Black level^*4	Black is too darkBlack is too bright
Tint^*4	PurplishGreenish
Color^*4	Too weekToo strong
Noise reduction^*4	Off	Noise Reduction is turned off.
	Low	Electronic image noise caused by different media players is reduced.
	Medium	Electronic image noise caused by different media players is reduced more than Low.
	High	Electronic image noise caused by different media players is reduced more than Medium.
	Auto	Electronic image noise caused by different media players is reduced by selecting the Auto-setting.
Gamma selection^*3,4	You can set the Gamma.Native / 2.2 / 2.4 / s gamma / D-image
Color temperature^*4	3000°K	9300°K
	4000°K	10000°K
	5000°K	Native	Original color temperature
	6500°K	User 1	User preset 1
	7500°K	User 2	User preset 2
	Picture	Contrast 50
	Screen	Sharpness 20
	Audio	Black level 50
	Configuration1	Tint 50
	Configuration2	Color 55
	Advanced option	Noise reduction Medium
		Gamma selection Native
		Color temperature Native
		Color control Action
		Smart power Off
		Overscan Off
		Picture reset Action
Adjustment Item Problem Button to Press
Color control	Set user color.
	User-R	Too weak Too strong
	User-G
	User-B
Smart power	Off Normal
	Medium	Brightness of back-light is reduced. (80%)
	High	Brightness of back-light is reduced more than Medium. (65%)
Overscan^*4	Off Over scan is turned off.
	On	Display area about 95%.
Picture reset	Cancel	Return to Menu.
	Reset	Picture setting will be restored to factory-preset data.

*1 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. Brightness adjustment is disabled when Brightness of Panel saving is on.
*2 Not available for VGA(Video) input.
*3 Press ▼to display the options.
*4 Not available for Media Player, Browser, iiSignage, PDF Player and Custom inputs.

Screen
	PictureScreenAudioConfiguration1Configuration2Advanced option	H positionV positionClockClock PhaseZoom mode FullCustom zoom ActionAuto adjust ActionScreen reset Action
Adjustment Item Problem Button to Press

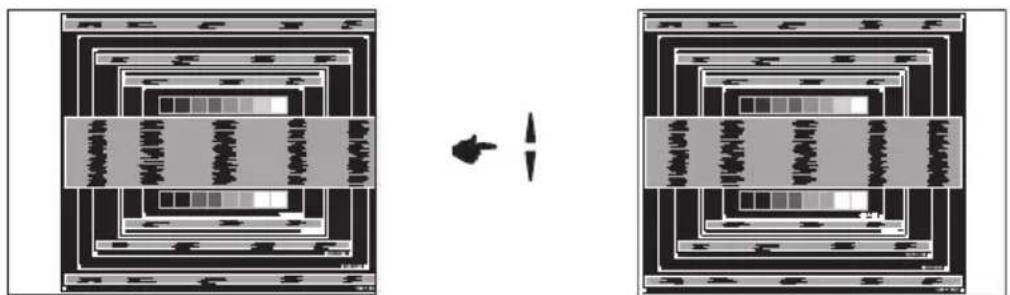

H Position*1	Too leftToo right
V Position*1	Too lowToo high

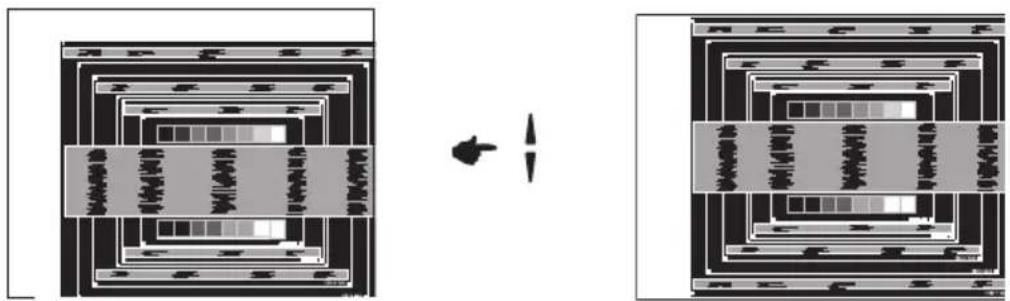

Clock*1,4	Too narrowToo wide

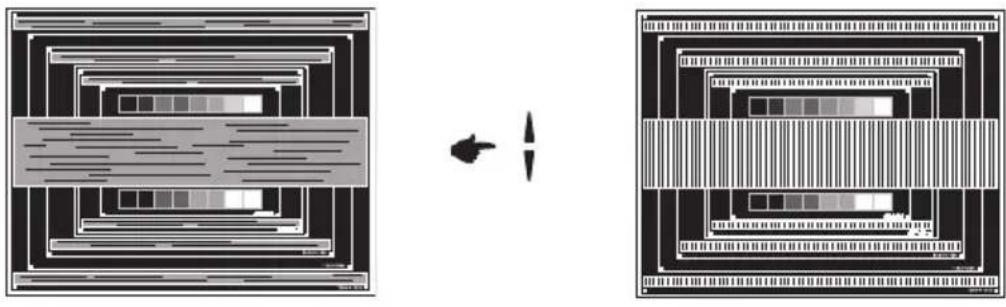

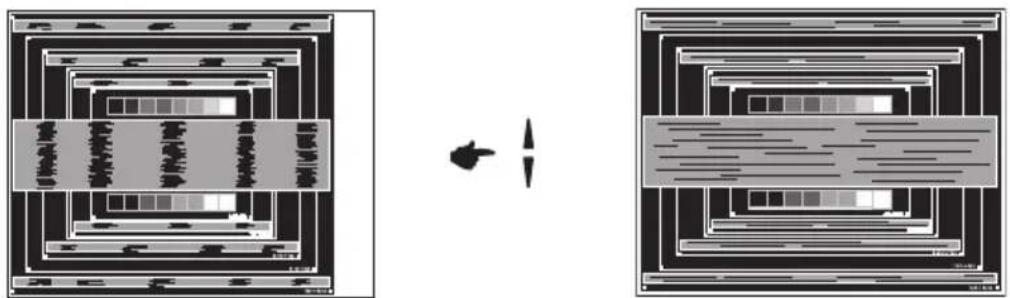

Clock Phase*1,4	To correct flickering text or lines
Zoom mode	Full*2,3	Enlarge the picture horizontally to fill the screen if the picture source is 4:3 (standard definition). When the picture source is 16:9 (high definition), it is not scaled.
	4:3*2,3	Display all pictures in 4:3 aspect ratio.
	Real*2,3	Display the picture dot by dot.
	16:9*2,3	Display all pictures in 16:9 aspect ratio.
	21:9*2,3	Display all pictures in 21:9 aspect ratio.
Custom zoom*2	Zoom	Zoom the horizontal and vertical size of the image simultaneously.
	H zoom	Zoom the horizontal size of the image.
	V zoom	Zoom the vertical size of the image.
Auto adjust*1,5	Adjust Position, Clock and Clock Phase automatically.
Screen reset	Cancel	Return to Menu.
	Reset	Screen setting will be restored to factory-preset data.

^1 Only VGA input.
^2 Only VGA and HDMI inputs.
*3 Only Mediaplayer input.
*4 See page 46 for SCREEN ADJUSTMENTS.
*5 For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 46 for SCREEN ADJUSTMENTS.

Audio
Picture Screen Audio Configuration1 Configuration2 Advanced option	Balance 50Treble 50Bass 50Volume 20Audio out (line out) 20Maximum volume 100Minimum volume 0Mute OffAudio source DigitalAudio reset ActionAudio Out Sync OffSpeaker Setting Off
Adjustment Item Problem / Option Button to Press
Balance	Left side speaker is louder.Right side speaker is louder.
Treble	Too weakToo strong
Bass	Too weakToo strong
Volume	Too softToo loud
Audio out (line out)	Adjust audio output volume.Too softToo loud
Maximum volume	Set the maximum volume.
Minimum volume	Set the minimum volume.
Mute	Off	Return the sound volume to the previous level.
	On	Turn off the sound temporarily.
Audio Source	Analog	Select the VGA input.
	Digital	Select the HDMI/DisplayPort input.
Audio reset	Cancel	Return to Menu.
	Reset	Audio setting will be restored to factory-preset data.
Audio out sync	Off	Disable audio out (line out) volume.
	On	Enable audio out (line out) volume.
Speaker Setting	Off	Disable the built-in speaker.
	On	Enable the built-in speaker.

Configuration1
	Picture	Switch on state	Force on
	Screen	Panel saving	Action
	Audio	RS232 routing	RS232
	Configuration1	Boot on source	Action
	Configuration2	WOL	Action
	Advanced option	Configuration1 reset	Action
		Factory reset	Action
Adjustment Item Problem / Option Button to Press
Switch on state	Power off	The monitor will remain off when the power cord is connected to a wall outlet.
	Forced on	The dmonitor will turn on when the power cord is connected to a wall outlet.
	Last status	The monitor will return to the previous power status (on/off/standby) when removing and replacing the power cord.
Panel saving	Brightness	Off	Brightness is turned off.
		On	The image brightness will be reduced to an appropriate level.
	Pixel shift*1	For the monitor to slightly expand the image size and shift the position of pixels in four directions (up, down, left or right).
		Off	Pixel shift is turned off.
		Auto	Move the position of the image automatically.
		10-900	Move the position of the image at set intervals.
RS232-routing	Select the network control port.RS232 / LAN→RS232
Boot on source*2,3	Last input	When the power is turned on, it starts with the same setting as when the power was last turned off.Disable / Enable
	Input	Select input source when boot up.HDMI1 / HDMI2 / HDMI3 / DVI-I / DisplayPort / VGA / SDM*4/ Media Player / Browser / iiSignage / PDF Player / Custom
	Playlist	Select playlist index for Mediaplayer, Browser and PDF player.
WOL	Off	Disable wake on LAN function.
	On	Enable wake on LAN function.
Configuration1 reset	Cancel	Return to Menu.
	Reset	Configuration1 setting will be restored to factory-preset data.
Factory reset	Cancel	Return to Menu.
	Reset	Factory-preset data is restored.

*1 Only VGA and HDMI input.

*2 No failover function, system will keep source even the source is no signal input.

*3 Press ▼to display the options.

*4 It can be used only when SDM-L is installed.

Configuration2
	PictureScreenAudioConfiguration1ConfigurationAdvanced option	OSD turn off 115OSD H position 50OSD V position 50System Rotation ActionInformation OSD 10Logo OnMonitor ID ActionHeat statusMonitor information ActionDP VersionHDMI VersionConfiguration2 reset Action
Adjustment Item Problem Button to Press
OSD turn off	You can set the OSD display duration time between 5 and 120 seconds.Off / 5 - 120 seconds
OSD H position	OSD is too leftOSD is too right
OSD V position	OSD is too lowOSD is too high
System Rotation	Landscape	Display the OSD in Landscape mode.
	Portrait	Display the OSD in Portrait mode.
Information OSD	Set the period of time the information OSD is displayed on the upper right corner of the screen.Off / 1 - 60 seconds
Logo	Off	iiyama Logo does not display when the monitor is turned on.
	On	iiyama Logo displayed when the monitor is turned on.
	User*1	Custom logo option in android is set, there will be only custom logo when the monitor is turned on.
Monitor ID	Set ID to the monitor.1 - 254
Heat status	This function allows you to check the thermal status of the display at any time.
Monitor information	Shows information about your monitor, including Model name, Serial No., Operation hours and SW version.
DP Version*2	Set the version of the DisplayPort.1.1 / 1.2
HDMI Version*3	Set the version of the HDMI.1.4 / 2.0
Configuration2 reset	Cancel	Return to Menu.
	Reset	Configuration2 setting will be restored to factory-preset data.

*1 When you would like to use a Custom Boot Logo, go to Settings - Signage Display General settings and set Boot Logo.

*2 Suitable for DisplayPort input only.

*3 Suitable for HDMI input only.

Advanced option
	Picture Screen Audio Configuration1 Configuration2 Advanced option	IR control Unlock Power LED Light On Keyboard control Unlock Tiling Action Off timer Off Schedule Action HDMI with One Wire Off HDMI with One Wire Power Off Off Auto signal detection Action Language English OSD transparency Off Power Save Mode1
Adjustment Item Problem Button to Press
IR control	Select the operation mode of the remote control when multiple monitors are connected via an RS232C connection.
	Unlock^*1	Unlock the remote control.
	Lock All	Lock all of the remote control.
	Lock all but Volume	Lock all except the volume of the remote control.
	Lock all but Power	Lock all except the power of the remote control.
	Lock all except PWR & VOL	Lock all except the volume and power of the remote control.
	Primary	Set the monitor as the primary monitor for remote control operation.
	Secondary	Set the monitor as the secondary monitor. This monitor can not be operated by the remote control, and will only receive the control signal from the primary monitor via the RS232C connection.
Power LED light	Off	The Power Indicator is turned Off.
	On	The Power Indicator is turned On.
Keyboard control	Lock the keyboard function. (Control buttons)
	Unlock^*2	Unlock the keyboard.
	Lock All	Lock all of the keyboard.
	Lock all but Volume	Lock all except the volume of the keyboard.
	Lock all but Power	Lock all except the power of the keyboard.
	Lock all except PWR & VOL	Lock all except the volume and power of the keyboard.

*1 To unlock, press and hold the INFO button on the remote control for 6 seconds.

*2 To unlock, hold the + button and ▲button on the monitor for more than 3 seconds, it will lock/unlock the control button function.

Advanced option
	Picture Screen Audio Configuration1 Configuration2 Advanced option	IR control	Unlock
		Power LED Light	On
		Keyboard control	Unlock
		Tiling	Action
		Off timer	Off
		Schedule	Action
		HDMI with One Wire	Off
		HDMI with One Wire Power Off	Off
		Auto signal detection	Action
		Language	English
		OSD transparency	Off
		Power Save	Mode1
Adjustment Item Problem Button to Press

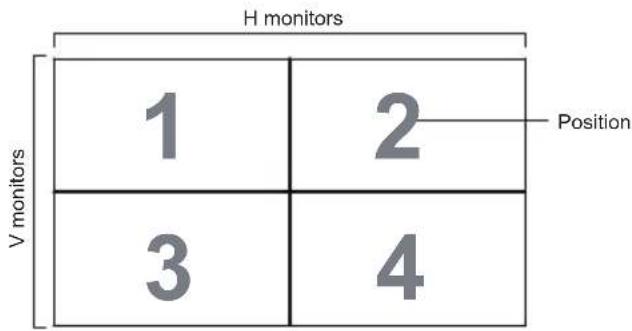

Tiling *3	H monitors	Sets the number of monitors used in the horizontal position.
	V monitors	Sets the number of monitors used in the vertical position.
	Position	Sets the position of the screen matrix.*4
	Frame comp.	Off	Frame comp. is turned off.
		On	The monitor will adjust the image to compensate for the width of the monitor bezels in order to accurately display the image.
	Enable	Off Enable is turned off.
		On	The monitor will apply the settings in "H monitors", "V monitors", "Position" and "Frame comp.".
	Switch on delay	Adjust the power-on delaying time (in seconds) allows a sequential powering-on for each monitor by their ID number when multiple monitors are connected. Off(0) / Auto(1 - 255) seconds

*3 With this function you can create a single large-screen matrix (video wall) that to 100 sets of this monitor (up to 10-sets on the vertical and 10-sets on 1). However, the image quality may be degraded, display speed may be slowed down, or noise may occur and pictures may not be displayed correctly. It is recommended that the screen matrix be set to a maximum of 5 × 5 screen configurations (25 monitors).

*4 Screen Matrix

Example: 2 x 2 screen matrix (4 monitors)

H monitors = 2 monitors

V monitors = 2 monitors

H monitors 1 2 Position V monitors 3 4

Example: 5 x 5 screen matrix (25 monitors)

H monitors = 5 monitors

V monitors = 5 monitors

Picture Screen Audio Configuration1 Configuration2 Advanced option IR control Unlock Power LED Light On Keyboard control Unlock Tiling Action Off Timer Off Schedule Action HDMI with One Wire Off HDMI with One Wire Power Off Off Auto signal detection Action Language English OSD transparency Off Power Save Mode1
Adjustment Item Problem Button to Press
Off Timer	Set when turn off the monitor. Off / 1 - 24 hours
Schedule	Schedule list		Up to 7 schedules can be set.
	Schedule 1/2/3/4/5/6/7	Enable	Enable / disable schedule. NOTE If set with other schedule list conflict, you can not enable schedule.
		Start time	Set start time.
		End time	Set end time.
		Input	Select default input source to use when the monitor is automatically turned on next time. HDMI1 / HDMI2 / HDMI3 / DVI-I / DisplayPort / VGA / SDM*5 / Media Player / Browser / iiSignage / PDF Player / Custom
		Playlist 1/2/3/4/5/6/7	Choose playlist (1 - 7) for the mediaplayer, PDF player and browser.
		Days of the week	Set the day of the week. Sun / Mon / Tue / Wed / Thu / Fri / Sat
		Every week	Set whether to repeat every week.
	Back	Does not change schedule data.
	Save	Save schedule data.
HDMI with One Wire	Off	HDMI with One Wire is turned off.
	On	Control all devices connected by HDMI cable with one remote control.
HDMI with One Wire Power Off	Off	HDMI with One Wire Power Off is turned off.
	On	Use the power button on the device connected with the HDMI cable to switch to standby mode.
Auto signal detection *6	Off	Disable the Auto signal detection.
	All *7	Detects all sources automatically if there is no signal on the default input and selects the available signal automatically.
	Failover	Detects sources automatically with user-defined order if there is no signal on the default input and selects the available signal automatically.

^*5 It can be used only when SDM-L is installed.

^*6 The display detects and select available signal source automatically.

*7 Order of detection: HDMI1 → HDMI2 → HDMI3 → DP → OPS → Media Player → Browser → iiSignage → PDF Player Custom

Picture	Tiling	Action
Screen	Off timer	Off
Audio	Schedule	Action
Configuration1	HDMI with One Wire	Off
Configuration2	HDMI with One Wire Power Off	Off
Advanced option	Auto signal detection	Action
	Language	English
	QSD transparency	Off
	Power Save	Mode1
	SDM settings	Auto
	Advanced option reset	Action

Adjustment Item Problem / Option Button to Press
Language		English	English		繁體中文	Traditional Chinese
		Deutsch	German		日本語	Japanese
		简体中文	Simplified Chinese			PortuguesePortuguês
		Français French			اللغة العربية	Arabic
			Italian Italiano			DanishDansk
			SpanishEspañol			SwedishSvenska
		Русский	Russian			FinnishSuomalainen
		Polski Polish				NorwegianNorsk
			Turkish Türkçe			Dutch Nederlands
OSD Transparency		The background of OSD is made transparent.Off / 1 - 100
Power Save			Power button off	No signal WOL Android
		Mode1	DC off	DC off		On
		Mode2	Not available on this model.
		Mode3	Backlight off	Backlight off		Off
		Mode4	Backlight off	Backlight on, show "no signal"		Off
SDM settings*8		Auto	When turning on the display power and switching input source to SDM, SDM power is automatically turned on.
		Always off	SDM is always turned Off.
		Always on	SDM is always turned On.
Advanced option reset		Cancel	Return to Menu.
		Reset	Advanced option setting will be restored except "Date and Time" in the Advanced option menu to factory-preset data.

*8 When "Power save" is set to Mode 3 or Mode 4, the backlight turns off but SDM keeps on state.

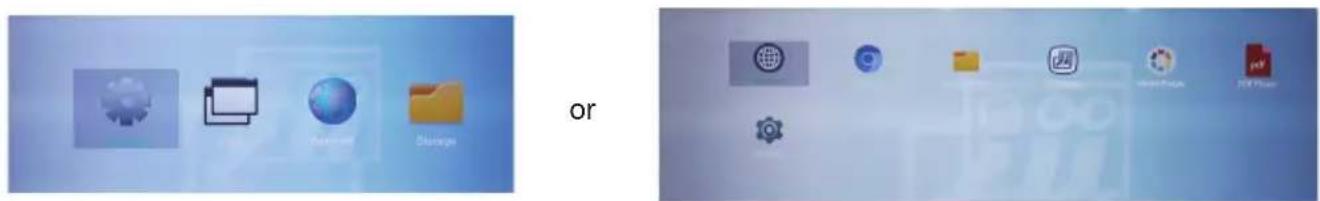

APPLICATION

Press the ⬆ HOME button and number 1668 on the remote control.

or

Adjustment Item Problem / Option
Network	Ethernet	Set the wired network. Disable / Enable (Connection Type: DHCP/Static IP/IP Address/Netmask/DNS Address/Gateway, MAC Address)
Signage Display	General settings	Signage Display name	Set the monitor name Ethernet Mac Address.
		Boot Logo*1	Select Boot Animation*2
		Screenshot	Disable / Enable(Interval, Start time, End time, Repeat, Save to, Purge Screenshots, Send screenshots via email)
	Server settings	Email Notification	Disable / Enable(SMTP, Manager Email, Test)
		FTP	Disable / Enable(Account, Password, Storage Path, Port)
	Source settings	Media Player	Edit Media Player playlist and effect settings.
		Browser	Edit Bookmark configuration.
		iiSignage*3	Set the iiSignage.
		PDF Player	Edit PDF Player playlist and effect settings.
		Custom app	Edit the Custom app.
	Network application	Proxy	Set the proxy server. Disable / Enable (Hostname: Proxy server IP Adress, Port: Proxy server port number, Type: Proxy server type)
		Platform Web API	Disable / Enable(Platform Web API)
		OTSP Network Port	Change the OTSP Network Port.

*1 The Boot Logo is only available when you select "User" of Logo function in the OSD menu "Configuration2".
*2 For details, refer to download the Custom Boot Animation manual on the IIYAMA web site.
*3 For details, refer to download the iiSignage manual on the IIYAMA web site.

Adjustment Item	Problem / Option
Signage Display	System Tools	Clear Storage	Clear all data in signage folders.All / Internal storage / USB storage / SD card
		Factory Reset	Cancel	Return to Menu.
			OK	Factory-preset data is restored.
		Export signageDisplay settings	Export to signage folder under USB/SD.USB storage / SD card
		Import signageDisplay settings	Import from signage folder under USB/SD.USB storage / SD card
		Clone Media File	Copy the media file from internal, USB or SD folder.
		External Storage	Disable	SD card / USB External Storage unlock.
			Enable	SD card / USB External Storage lock.
	System updates	Local update	Firmware update.
Apps	Display applications information.
Display	Set the font size.
Security	Display credential storage information.
System	Date & Time	Display Date & Time information.
	Developer options	When you change the system settings, a problem like system instability may occur. In that case, contact your dealer or iiyama service center for assistance.
	About	Main info in About: System updates / Android version / Kernel version / Build numberAutomatically search update .zip from USB or SD card.When you select the updated .zip file, the monitor will restart and the update will start.

Save: Save

Discard: Discard

Forget: Delete

Cancel: Close without saving

■ Quick Info

Press the Info button and number 77 on the remote control.

Display the Network and Monitor etc. information.

* Android upgrade is not available on this model.

• Settings : Go to settings app.
• Apps : Show all apps. (Browser/Chromium/iiSignage/File Manager/Media Player/PDF player/Settings)
  • Network : Set Ethernet.
• Storage : Display current Android storage information.
  ● Preparation for using Media Player and PDF Player

In order to use the Media Player you need to save the file in an specific file folder on your USB or SD card.

1. Create a folder called "signage" on your USB or SD card, create a subfolders (video / photo / music / pdf) in that folder.

-videos in /signage/video/
-photos in /signage/photo/
-music in /signage/music/
-pdfs in /signage/pdf/

1. Save the Video / Photo / Music / PDF files in the subfolders of your USB or SD card.
2. Insert your USB or SD card into an USB port or SD card slot of the monitor.
3. When using internal storage, save the necessary files of your USB or SD card to an appropriate signage folder and subfolders in the internal storage of the monitor.

-videos in /signage/video/
-photos in /signage/photo/
-music in /signage/music/
-pdfs in /signage/pdf/

NOTE

Make sure you select the right folder.

If you save the file in the wrong folder, you may not find it.

■ Slide bar

• Open: Open folder (USB/SD card)
• Delete: Delete files.
• Copy: Copy files.
• Move: Move files.
• Select: Select files.
• Select All: Select all files.

■ Supported file system:

FAT32

■ Supported file format:

• Music: MP3, WMA, WMA pro, M4A, AAC, LPCM
• Video: AVI, MP4, 3GPP, MKV, ASF, VRO VOB, PS, TS
• Photo: JPEG, BMP, PNG, GIF

[Media Player]

· Play: Select playlist to play
- Compose: Edit playlist
- Settings: Setting play properties

- Compose

1. Select "Compose" on the page. First you select one playlist to play between FILE1 and FILE7.
2. Select the file and select edit or delete.

3. Save the edited file.
   -videos in /signage/video/
   -photos in /signage/photo/
   -music in /signage/music/

4. When you create photo list you will be asked if you want to play back ground music during slideshow playback. Set as required.

■ Slide bar

• Source: Select storage (USB/SD card)
• Playlist: Show playlist (Internal)
- Select all: Select all storage files.
- Delete all: Delete playlist files.
- Add/Remove: Update playlist from the source.
- Sort: Sort playlist.
• Save/Abort: Save or abort playlist.
- Back: Return.

■ Remote control

• Option key: Display slidebar
• ▶ Play key: Play media file
- II Pause key: Pause
• i Info key: Show media info
• OK OK key: Select / deselect file

- Play

Select "Play" on the page. First you select one playlist to play between FILE1 and FILE7.

■ Media Hotkey

▶ Play: To play the media file.
- Pause: To pause the media file.
▶ Fast forward: To skip forward 20 seconds.
- Rewind: To skip backward 20 seconds.
- Stop: To stop the media file. If it is a gif file, it will pause.

- Settings

Select "Settings" on the page.

• Repeat mode: Play mode.
  Repeat once: All files are repeated once.
  Repeat all: All files in the same folder play repeatedly.

- Slideshow Effect: Photo slideshow effect.

Right to left: Change from right to left sliding.

Fold: Change by rotating horizontally in the center.

Corner: Change by enlarging from the upper left corner to the lower right corner.

None: Normal

• Effect Duration: Photo effect duration. 5s/10s/15s/20s

[Browser]

- Settings

Select "Settings" on the page.

• Set frequently used URL.
• Select 1 - 7.
• Enter URL and press OK.
• Press 'Option' to display the slide bar.

Import: Import URL list file

Export: Export URL list file

Delete all: Delete all URL record

Back: Slide bar will be closed

[PDF Player]

- Compose

1. Select "Compose" on the page. First you select one playlist to play between FILE1 and FILE7.

2. Select the file and select edit or delete.

3. Save the edited file.

-pdfs in /signage/pdf/

■ Slide bar

• Source: Select storage (USB/SD card)
• Playlist: Show playlist (Internal)
- Select all: Select all storage files.
- Delete all: Delete playlist files.
- Add/Remove: Update playlist from source.
- Sort: Sort playlist.
• Save/Abort: Save or abort playlist.
- Back: Return.

■ Remote control

• Option key: Display slidebar
  • ▶ Play key: Play media file
  • i Info key: Show media info
• OK OK key: Select / deselect file

- Play

Select "Play" on the page. First you select one playlist to play between FILE1 and FILE7.

■ Media Hotkey

▶ Play: To play the PDF file.
- Pause: To pause the PDF file.
▶ Fast forward: Go to the next page, if the page is end of the file, it will go to next file.
Rewind: Back to previous page, if the page is first of the file, it will back to previous file.
- Stop: Return to first page of file.

■ Color Hotkey

• Blue key: Zoom in (+10%)
• Yellow key: Zoom out (-10%)
- OK OK key: Restore zoom

■ Arrow key

•/!/* :Adjust page (When the page has zoomed in/out)
•: Previous page (When the page has not zoomed in/out)
• : Next page (When tha page has not zoomed in/out)

- Settings

Select "Settings" on the page.

• Repeat mode: Play mode.
  Repeat once: All files are repeated once.
  Repeat all: All files in the same folder play repeatedly.
  • Effect Duration: PDF effect duration. 5s/10s/15s/20s

[iiSignage]

Set the Server/Account/PIN code/Version(Ver.2/Ver.3)*/Content(Internal storage/USB storage/SD card).

* When Ver.2, Server/Account/PIN code will turn to gray to indicate it is not available on this model. When Ver.3, Server/Account/PIN code is available.

To be able to use the functionality, please download the iiSignage Software and User Manual from our Website https://iiyama.com/iisignage

iiSignage software is using the network Port: 9989, future information are available in the iiSignage User Manual

[Chromium]

Connect the network, and browse the web.

[File Manager]

Browse the files stored in the internal storage, USB and SD card.

[Settings]

See page 39,40 for Settings.

[Custom]

Set up the application for Customer Source.

NOTE

• Only display user installed app.
• Will not appear in the system pre-install app.

SCREEN ADJUSTMENTS

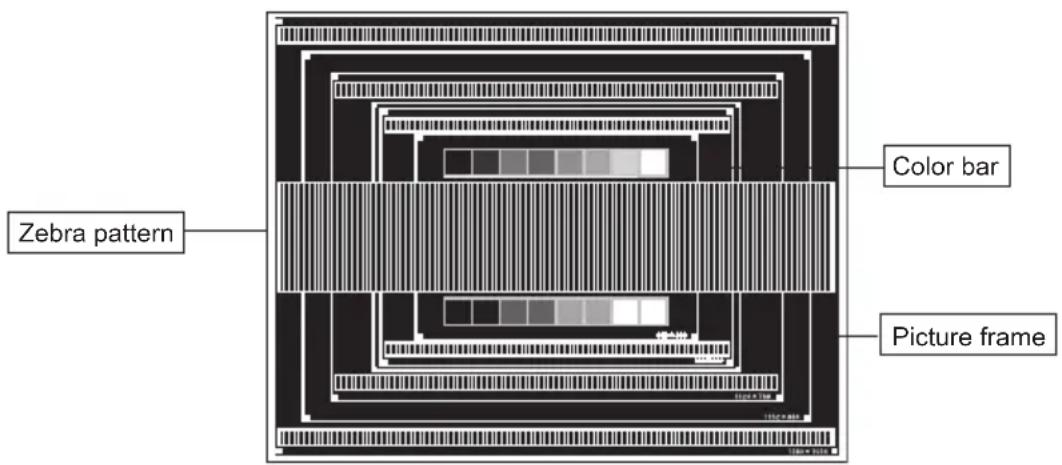

Adjust the image by following the procedure below to get the desired picture when selecting Analog input.

■ The screen adjustments described in this manual are designed to set image position and minimize flicker or blur for the particular computer in use.
■ The monitor is designed to provide the best performance at resolution of 3840 × 2160 , but can not provide the best at resolutions of less than 3840 × 2160 because the picture is automatically stretched to fit the full screen. It is recommended to operate at resolution of 3840 × 2160 in normal use.
■ Displayed text or lines will be blurred or irregular in thickness when the picture is stretched due to the screen enlargement process.
It is preferable to adjust the image position and frequency with the monitor controls, rather than the computer software or utilities.
■ Perform adjustments after a warm-up period of at least thirty minutes.
■ Additional adjustments may be required after the Auto Adjust depending on the resolution or signal timing.
■ The Auto Adjust may not work correctly when displaying the picture other than the screen adjustment pattern. In this case, manual adjustments are required.

There are two ways to adjust the screen. One way is automatic adjustment for Position, Clock and Phase. The other way is performing each adjustment manually.

Perform the Auto Adjust first when the monitor is connected to a new computer, or changed. If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com).

Adjust the image by following the procedure below to get the desired picture.

This manual explains adjustment under Windows ^® OS.

① Display the picture at the optimum resolution.
② Enter the Test.bmp (screen adjustment pattern) to wallpaper.

NOTE

■ Consult the appropriate documentation for doing this.
■ Set the display position to center in the wallpaper setting dialogue box.

[Adjustment pattern]

Zebra pattern Color bar Picture frame

③ Adjust the Auto Adjustment. (Auto Adjust)
④ Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust.
⑤ Adjust the V.Position so that the top and bottom of the picture frame will fit to the display area.

⑥ 1) Adjust the H.Position so that the left side of the picture frame will move to the left edge of the display area.

2) Stretch the right side of the picture frame to the right edge of the display area by adjusting the Clock.

    subgraph Left
        G["Arrow Left"]
        H["Arrow Right"]
    end

    subgraph Right
        I["Arrow Right"]
        J["Arrow Left"]
        K["Arrow Left"]
        L["Arrow Left"]
        M["Arrow Left"]
        N["Arrow Left"]
        O["Arrow Left"]
        P["Arrow Left"]
        Q["Arrow Left"]
        R["Arrow Left"]
        S["Arrow Left"]
        T["Arrow Left"]
        U["Arrow Left"]
        V["Arrow Left"]
        W["Arrow Left"]
        X["Arrow Left"]
        Y["Arrow Left"]
        Z["Arrow Left"]
        AA["Arrow Left"]
        AB["Arrow Left"]
        AC["Arrow Left"]
        AD["Arrow Left"]
        AE["Arrow Left"]
        AF["Arrow Left"]
        AG["Arrow Left"]
        AH["Arrow Left"]
        AI["Arrow Left"]
        AJ["Arrow Left"]
        AK["Arrow Left"]
        AL["Arrow Left"]
        AM["Arrow Left"]
        AN["Arrow Left"]
        AO["Arrow Left"]
        AP["Arrow Left"]
        AQ["Arrow Left"]
        AR["Arrow Left"]
        AS["Arrow Left"]
        AT["Arrow Left"]
        AU["Arrow Left"]
        AV["Arrow Left"]
        AW["Arrow Left"]
        AX["Arrow Left"]
        AY["Arrow Right"]

NOTE

■ When the left side of the picture frame moves apart from the left edge of the display area during the Clock adjustment, adjust steps 1) and 2).
■ Another way to make the Clock adjustment is to correct the vertical wavy lines in the zebra pattern.
■ The picture may flicker during the Clock, H.Position and V.Position adjustment.
In case the picture frame is bigger or smaller than the data display area after the Pixel Clock adjustment, repeat steps from ③.

⑦ Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern.

Diagram showing a transformation from a layered structure to a multi-layered structure with directional arrows (no text or symbols)

NOTE

In case the strong flicker or blurs remain on a part of the screen, repeat steps ⑥ and ⑦ because the Clock may not be adjusted correctly.
■ Adjust the H.Position after the Phase adjustment if the horizontal position moves during the adjustment.

⑧ Adjust the Brightness and Color to get the desired picture after you complete the Clock and Phase adjustments.

Put back your favorite wallpaper.

STANDBY FEATURE

The standby feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use.

To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured.

■ Standby Mode

When the video signal from the computer is off, the monitor enters into reduces the power consumption to less than 0.5W*. The screen becomes dark, and the power indicator turns to red. From Standby Mode, the image reappears in several seconds when either the keyboard or the mouse are touched again.

* USB peripherals and audio equipment are not connected.

NOTE

Even when using the standby mode, the monitor consumes electricity. Turn off the Power Switch whenever the monitor is not in use, during the night and weekends, to avoid unnecessary power consumption.

TROUBLE SHOOTING

If the monitor fails to operate correctly, please follow the steps below for a possible solution.

1. Perform the adjustments described in OPERATING THE MONITOR, depending on the problem you have. If the monitor does not get a picture, skip to 2.
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists.
3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance.

Problem Check

① The picture does not appear.

(Power indicator does not light up.)

☐ The Power Cable is firmly seated in the socket.
☐ The Power Switch is turned ON.
☐ The AC socket is live. Please check with another piece of equipment.

(Power indicator is green.)

☐ If the blank screen saver is in active mode, touch the keyboard or the mouse.

□ Increase the Contrast and/or Brightness.

□ The computer is ON.

☐ The Signal Cable is properly connected.

☐ The signal timing of the computer is within the specification of the monitor.

(Power indicator is red.)

☐ If the monitor is in standby mode, touch the keyboard or the mouse.

□ The computer is ON.

☐ The Signal Cable is properly connected.

☐ The signal timing of the computer is within the specification of the monitor.

② The screen is not synchronized.

☐ The Signal Cable is properly connected.
☐ The signal timing of the computer is within the specification of the monitor.

③ The screen position is not in the center.

☐ The signal timing of the computer is within the specification of the monitor.

④ The screen is too bright or too dark.

☐ The video output level of the computer is within the specification monitor.

⑤ The screen is shaking.

☐ The power voltage is within the specification of the monitor.
☐ The signal timing of the computer is within the specification of the monitor.

⑥ No sound.

☐ The audio equipment (computer etc.) is ON.

☐ The Audio Cable is properly connected.

□ The Volume is turned up.

□ The Mute is OFF.

☐ The audio output level of the audio equipment is within the specification of the monitor.

⑦ The sound is too loud or too quiet.

☐ The audio output level of the audio equipment is within the specification of the monitor.

⑧ A strange noise is heard.

□ The Audio Cable is properly connected.

RECYCLING INFORMATION

For better environment protection please don't dispose your monitor.

Please visit our web site: www.iiyama.com for monitor recycling.

APPENDIX

Design and specifications are subject to change without prior notice.

SPECIFICATIONS : ProLite LH6542UHS-B3

Size Category 65"
LCD Panel	Panel technology	IPS
	Size Diagonal: 64.5" (164cm)
	Pixel pitch 0.372mm H × 0.372mm V
	Brightness 500cd/m ^2 (Typical)
	Contrast ratio 1300 : 1 (Typical)
	Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
	Response time 9ms (Typical, Gray to Gray)
Display Colors Approx.1.07 Billion
Sync Frequency		DVI: Horizontal: 30.0-80.0kHz, Vertical: 50-75HzHDMI/DisplayPort: Horizontal: 30.0-135.0kHz, Vertical: 50-75Hz
Native Resolution 3840 × 2160, 8.3 MegaPixels
Support Max. Resolution		DVI: 1920 × 1080 60HzHDMI/DisplayPort: 3840 × 2160 60Hz
Input Connector DVI-I, HDMI × 3, DisplayPort
Input Audio Connector ø 3.5mm mini jack (Stereo)
LAN RJ45
Serial Port RS-232C In/Outø 2.5mm sub-mini jack
Plug & Play		VESA DDC2BTM
Input Video Signal		Digital: DVI (Digital Visual Interface Standard Rev.1.0) complianceDigital: HDMI, DisplayPort
Input Audio Signal		0.5Vrms maximum
IR Extender Connector		IR In/Out
USB Connector		USB2.0(DC5V, 500mA) (USB Media Player) × 2
Micro SD card slot		Micro SD
Output Connector		DisplayPort
Speakers		Internal: 10W×2 (Stereo speakers)
Maximum Screen Size		1428.48mm W × 803.52mm H / 56.2" W × 31.6" H
Power Source 100-240VAC, 50/60Hz, 4A
Power Consumption*		183W typical, Standby mode: 0.5W maximum
Dimensions / Net Weight		1462.5 × 837.5 × 93.5mm / 57.6 × 33.0 × 3.7" (W×H×D)27.8kg / 61.2lbs
Environmental Considerations		Operating: Temperature 0 to 40°C / 32 to 104°FHumidity 20 to 80% (No condensation)Storage: Temperature -20 to 60°C / 4 to 140°FHumidity 5 to 95% (No condensation)
Approvals		CE, UKCA, EAC, TÜV-Bauart

NOTE

* USB peripherals and audio equipment are not connected.

SPECIFICATIONS : ProLite LH7542UHS-B3

Size Category 75"
LCD Panel	Panel technology	IPS
	Size Diagonal: 74.5" (189cm)
	Pixel pitch 0.429mm H × 0.429mm V
	Brightness 500cd/m ^2 (Typical)
	Contrast ratio 1400 : 1 (Typical)
	Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
	Response time 8ms (Typical, Gray to Gray)
Display Colors Approx.1.07 Billion
Sync Frequency		DVI: Horizontal: 30.0-80.0kHz, Vertical: 50-75HzHDMI/DisplayPort: Horizontal: 30.0-135.0kHz, Vertical: 50-75Hz
Native Resolution 3840 × 2160, 8.3 MegaPixels
Support Max. Resolution		DVI: 1920 × 1080 60HzHDMI/DisplayPort: 3840 × 2160 60Hz
Input Connector DVI-I, HDMI × 3, DisplayPort
Input Audio Connector ø 3.5mm mini jack (Stereo)
LAN RJ45
Serial Port		RS-232C In/Out ø 2.5mm sub-mini jack
Plug & Play		VESA DDC2B ^TM
Input Video Signal		Digital: DVI (Digital Visual Interface Standard Rev.1.0) complianceDigital: HDMI, DisplayPort
Input Audio Signal		0.5Vrms maximum
IR Extender Connector		IR In/Out
USB Connector		USB2.0(DC5V, 500mA) (USB Media Player) × 2
Micro SD card slot		Micro SD
Output Connector		DisplayPort
Speakers		Internal: 10W×2 (Stereo speakers)
Maximum Screen Size		1649.6mm W × 927.9mm H / 64.9" W × 36.5" H
Power Source 100-240VAC, 50/60Hz, 4.1A
Power Consumption*		255W typical, Stnadby mode: 0.5W maximum
Dimensions / Net Weight		1683.5 × 961.5 × 95.5mm / 66.3 × 37.9 × 3.7" (W×H×D)36.8kg / 81.1lbs
Environmental Considerations		Operating: Temperature 0 to 40°C / 32 to 104°FHumidity 20 to 80% (No condensation)Storage: Temperature -20 to 60°C / 4 to 140°FHumidity 5 to 95% (No condensation)
Approvals		CE, UKCA, EAC, TÜV-Bauart

NOTE

* USB peripherals and audio equipment are not connected.

SPECIFICATIONS : ProLite LH8642UHS-B3

Size Category 86"
LCD Panel	Panel technology	IPS
	Size Diagonal: 85.6" (217cm)
	Pixel pitch 0.4935mm H × 0.4935mm V
	Brightness 500cd/m ^2 (Typical)
	Contrast ratio 1200 : 1 (Typical)
	Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical)
	Response time 8ms (Typical, Gray to Gray)
Display Colors Approx.1.07		Billion
Sync Frequency		DVI: Horizontal: 30.0-80.0kHz, Vertical: 50-75HzHDMI/DisplayPort: Horizontal: 30.0-135.0kHz, Vertical: 50-75Hz
Native Resolution 3840 × 2160, 8.3 MegaPixels
Support Max. Resolution		DVI: 1920 × 1080 60HzHDMI/DisplayPort: 3840 × 2160 60Hz
Input Connector DVI-I, HDMI × 3, DisplayPort
Input Audio Connector ø 3.5mm mini jack (Stereo)
LAN RJ45
Serial Port		RS-232C In/Out ø 2.5mm sub-mini jack
Plug & Play		VESA DDC2BTM
Input Video Signal		Digital: DVI (Digital Visual Interface Standard Rev.1.0) complianceDigital: HDMI, DisplayPort
Input Audio Signal		0.5Vrms maximum
IR Extender Connector		IR In/Out
USB Connector		USB2.0(DC5V, 500mA) (USB Media Player) × 2
Micro SD card slot		Micro SD
Output Connector		DisplayPort
Speakers		Internal: 10W×2 (Stereo speakers)
Maximum Screen Size		1895.0mm W × 1066.9mm H / 74.6" W × 42.0" H
Power Source 100-240VAC, 50/60Hz, 7A
Power Consumption*		444W typical, Standby mode: 0.5W maximum
Dimensions / Net Weight		1929.0 × 1100.0 × 95.5mm / 75.9 × 43.3 × 3.7" (W×H×D)49.5kg / 109.1lbs
Environmental Considerations		Operating: Temperature 0 to 40°C / 32 to 104°FHumidity 20 to 80% (No condensation)Storage: Temperature -20 to 60°C / 4 to 140°FHumidity 5 to 95% (No condensation)
Approvals		CE, UKCA, EAC, TÜV-Bauart

* USB peripherals and audio equipment are not connected.

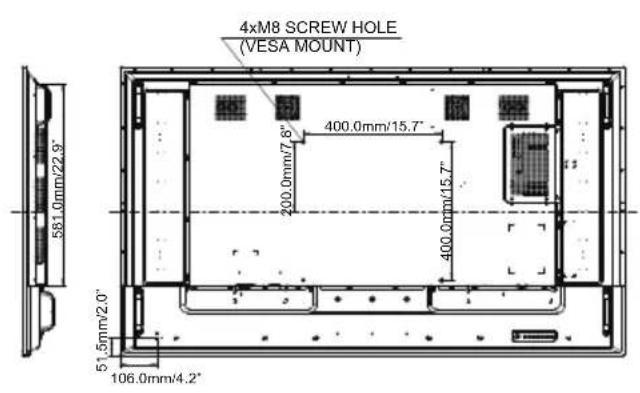

DIMENSIONS : ProLite LH6542UHS

1062.0mm/41.8" 50.5mm/2.0" 69.0mm/2.7" 93.5mm/3.7" 1462.5mm/57.6" 1432.5mm/56.4" 418.5mm/16.5" 807.5mm/31.8" 837.5mm/33.0"

4xM8 SCREW HOLE (VESA MOUNT) 581.0mm/22.9" 400.0mm/15.7" 200.0mm/7.6" 400.0mm/15.7" 5.5mm/2.0" 106.0mm/4.2"

ENGLISH

DIMENSIONS : ProLite LH7542UHS

1360.0mm/53.5" 52.5mm/2.0" 69.5mm/2.7" 95.5mm/3.7" 1683.5mm/66.3" 1653.5mm/65.1" 481.0mm/18.9" 932.0mm/36.7" 961.5mm/37.9"

4xM8 SCREW HOLE (VESA MOUNT) 534.0mm/21.0" 600.0mm/23.6" 200.0mm/7.8" 400.0mm/15.7" 57.0mm/2.2" 97.0mm/3.8"

ENGLISH

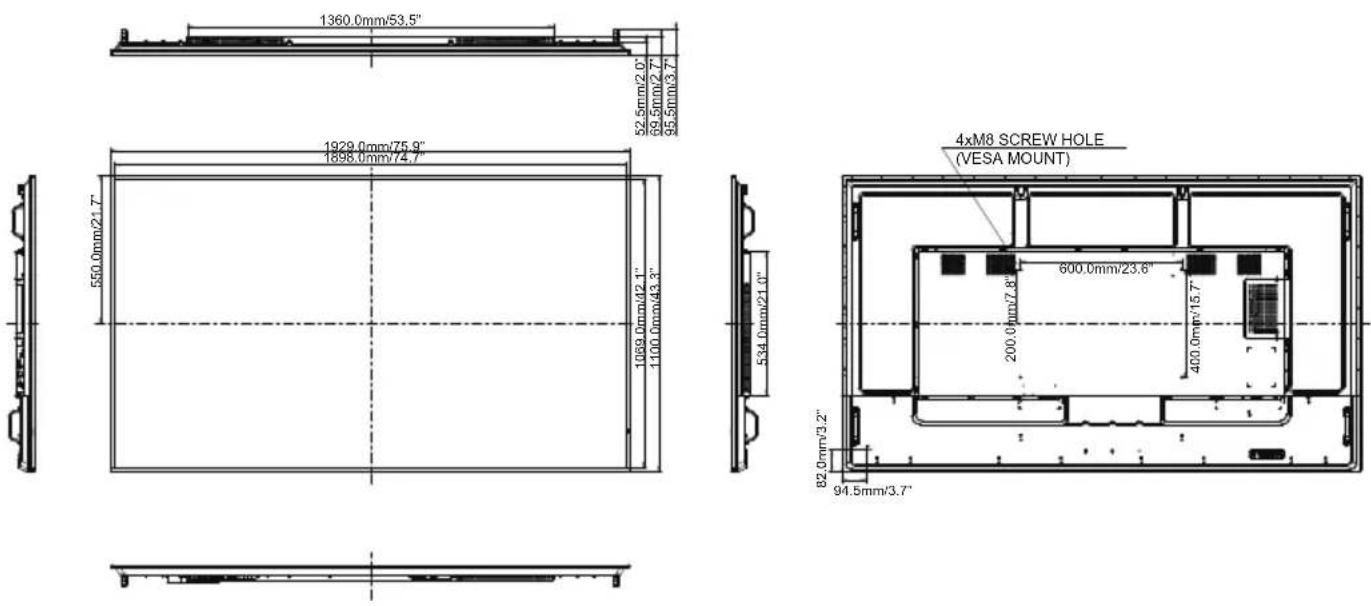

DIMENSIONS : ProLite LH8642UHS

COMPLIANT TIMING

* means supported the timing.
