Quickstick Free - Kitchen appliance Klarstein - Free user manual and instructions

Product type	Cordless immersion blender
Brand	Klarstein
Model	Quickstick Free
Power supply	Rechargeable Li-Ion battery 7.4V / 2000 mAh
Battery life	About 30 minutes
Charging time	About 4 hours
Motor power	150 W
Speeds	2 speeds + turbo
Foot material	Stainless steel
Dimensions (L x W x H)	6.5 x 6.5 x 38 cm
Weight	650 g
Main functions	Blend, emulsify, chop (accessory included)
Included accessories	Immersion foot, whisk, measuring cup, USB charger
Safety	Safety lock, automatic shut-off in case of overload
Care and cleaning	Foot and accessories dishwasher safe (except motor unit)
Spare parts and repairability	Replaceable battery, parts available from Klarstein after-sales service
General information	Cordless use, ideal for soups, sauces, smoothies

Frequently Asked Questions - Quickstick Free Klarstein

How do I charge the Quickstick Free?

Use the provided USB-C cable and plug it into a mains adapter (5V/1A). The LED indicator flashes during charging and turns off when fully charged.

Can the blender run continuously for several minutes?

It is recommended not to exceed 30 seconds of continuous use, then let it cool for 1 minute. This prevents motor overheating.

What containers can I use with the immersion blender?

Preferably use tall and narrow containers to avoid splashes. Avoid non-stick utensils as the foot may scratch them.

How do I clean the immersion foot and accessories?

Detach the foot and accessories from the motor unit. Wash them in warm soapy water or in the dishwasher (top rack). Wipe the motor unit with a damp cloth.

The motor suddenly stops during use, what should I do?

This may be due to overheating or overload. Turn off the appliance, unplug it, and let it cool for 15 minutes. Check that food is not blocking the blade.

Can I blend hot ingredients?

Yes, but do not exceed 80°C. Ensure the container is not too full to avoid splashes.

How do I replace the battery?

Unscrew the screws on the back of the motor unit, remove the old battery and replace it with a new one (Klarstein reference QBAT-001). Observe polarity.

Is the whisk accessory included?

Yes, the whisk is included and attaches by pushing the tip until it clicks. Use it to whip egg whites or cream.

What should I do if the LED indicator does not light up?

Check the battery charge. If the problem persists, contact Klarstein customer service. Do not disassemble the appliance yourself.

Where can I find spare parts?

Go to the official Klarstein website, spare parts section, or contact after-sales service. The references are indicated in the manual.

USER MANUAL Quickstick Free Klarstein

INHALTSVERZEICHNIS

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SICHERHEITSHINWEISE

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product

CONTENT

Safety instructions 12

Control Panel and Operation 13

Descaling 14

Troubleshooting 15

Hints on Disposal 16

TECHNICAL DATA

Item number 10033286
Power supply 220-240 V ~ 50/60 Hz

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

SAFETYINSTRUCTIONS

- This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

- Keep the appliance under constant supervision while in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.

- Incorrect use of this appliance may cause personal injury and damage the appliance.

- Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).

- For domestic use only. Not for outdoor or commercial use.

- Remove all packaging and transport materials from the inside and outside of the appliance.

- Check that the appliance has no visible damage and that no parts are missing.

- Do not use with any cords other than that supplied.

- Check that it is not possible to pull or trip over the cord or any extension cord.

- The appliance must not be used together with a timer switch or a separate remote control system.

- Turn off the appliance and remove the plug from the socket before cleaning, or when the appliance is not in use.

- Avoid pulling the cord when removing the plug from the socket. Instead, hold the plug.

- Keep the cord and appliance away from heat sources, hot objects and naked flames.

- Ensure that the cord is fully extended.

- The cord must not be twisted or wound around the appliance.

- Check regularly that neither the cord nor plug is damaged and do not use the appliance if there is any damage, or if it has been dropped on the floor, dropped in water or damaged in any other way.

- If the appliance, cord or plug has been damaged, have the appliance inspected and if necessary repaired by an authorised repairer.

- Connect to 230V, 50 Hz only. The warranty is not valid if the appliance is connected to incorrect voltage.

- Unauthorised repairs or modifications will invalidate the warranty.

- Only place vacuum-packed foods in the appliance. Do not try to cook unwrapped food.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention should be paid where children and vulnerable people are present.

(1) Fill the tank with water. The water level should be above the MIN mark on the display at the front of the tank.

Note: When the water heats up, it evaporates partially. The appliance is equipped with a control mechanism that detects the water level. If the water level is too low (below the MIN mark), the appliance will automatically switch off.

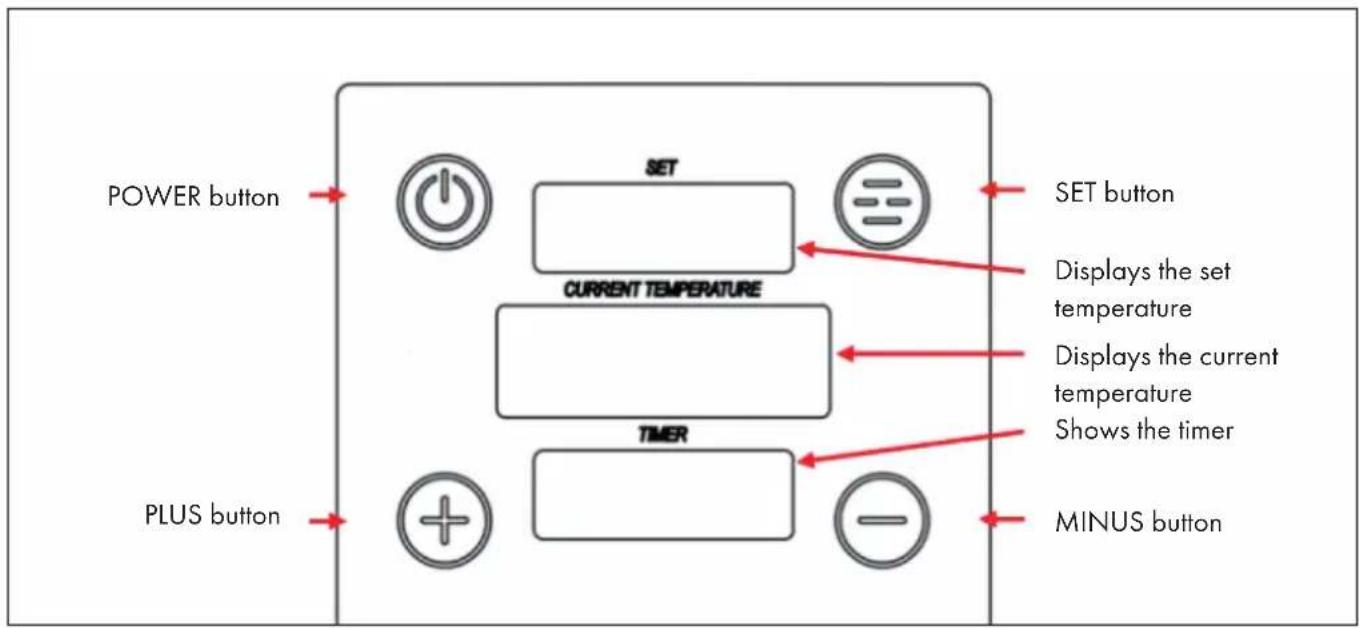

(2) Press and hold the POWER button on the control panel for at least 2 seconds. The upper display shows the set water temperature. The lower display shows the current water temperature. The temperature can be set between 0-95 °C (32-185 °F) to adjust the temperature.

(3) Press the SET button repeatedly to select SET TEMP and SET TIME. The display will flash. Then use the [+] or [-] button to set the desired temperature or time. Wait a moment until the set value is accepted and the display stops flashing.

(4) Press and hold the SET button to switch between ^ C and ^ F. A beep indicates that the setting has been accepted.

(5) Set timer: The timer counts up the set time. Briefly press the [+] or [-] button to set the timer between 0-60 minutes. Press and hold the buttons to set the timer faster.

Note: When the current water temperature has reached the set temperature, press MINUS twice to stop the alarm and start the timer. The display shows the current elapsed time.

• If you want to check the set time, click SET twice. Press SET again to display the current timer again.
• While the timer is running, press MINUS twice to reset or change the timer.
• When the timer has expired, double press MINUS to stop the alarm.
  (6) Prepare food: Press POWER once to start heating and circulating the water. Place the packaged food in the tank as soon as the set temperature is reached.
  (7) When the food is cooked, turn off the appliance by pressing POWER for 5 seconds.

DESCALING

With frequent use, descaling should be done every month or more often in regions with hard water.

1 Put the appliance in a pot and fill the pot with water to the „Max“ level indicated on appliance.
2 Set the appliance temperature to 70 °C.
3 Add 5 g of citric acid powder (Food grade) per liter of water used.
4 Allow the water to circulate for 20 minutes after 70 °C is reached.
5 Turn off and unplug the appliance.
6 When appliance is cool, rinse the bottom in the cold water and dry before storage.

TROUBLESHOOTING

Problem Possible Cause and Solution
The device does not turn on.	Check whether the plug is plugged into the socket.
	Check if the power cord is damaged.
	Check that the unit has been turned on and the display is on.
The display shows error code E01.	An alarm sounds and the appliance goes off as soon as the water level is below the MIN mark. Switch off the appliance, top up with water and restart the appliance.
The display shows error code E02.	There is too little water in the tank. An alarm sounds and the appliance goes off. Switch off the appliance, refill with water and restart the appliance.
The display shows error code E03.	The digital thermostat is broken. Contact a specialist company for inspection and repair.
The display shows error code E04.	The second digital thermostat is broken. Contact a specialist company for inspection and repair.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
