ZLCM90BS - Range hood Zephyr - Free user manual and instructions

Product type	Range hood
Brand	Zephyr
Model	ZLCM90BS
Width	90 cm
Depth	50 cm
Height	100 cm (variable depending on installation)
Net weight	20 kg
Power supply	220-240 V ~ 50 Hz
Motor power	300 W
Maximum noise level	65 dB(A)
Number of speeds	4
Lighting	LED 2 x 3 W
Control type	Touch with remote control
Grease filter	Aluminum dishwasher-safe
Charcoal filter	Optional, replace every 6 months
Maximum airflow	800 m³/h
Extraction mode	External extraction or recirculation
Duct diameter	150 mm
Automatic shut-off function	Yes, programmable
Repairability index	8/10
Warranty	2 years

Frequently Asked Questions - ZLCM90BS Zephyr

How to install the Zephyr ZLCM90BS range hood?

Installation requires a duct of 150 mm. Attach the hood to the wall using the provided anchors, maintaining a minimum distance of 65 cm above the cooking surface. Ensure the electrical circuit is protected by a residual current circuit breaker.

How to clean the grease filters?

The aluminum grease filters are dishwasher-safe at low temperature or can be hand-washed with soapy water. Clean them every month to maintain performance.

Why is my hood making noise?

Abnormal noise may come from dirty filters, unstable installation, or a foreign object in the fan. Clean the filters and check the mounting. Normal noise level is 45 to 65 dB(A) depending on speed.

How to replace the LED bulb?

Unplug the hood, locate the defective LED module (under the hood). Unclip it and replace with an identical 3W module. Plug back in and test.

The hood does not turn on, what to do?

First check the circuit breaker and the power outlet. If the remote does not respond, replace the batteries. If the problem persists, contact customer service.

How to use the remote control?

Ensure the remote has a direct line of sight to the receiver. Use the buttons to turn on/off, set the speed or activate the timer. If range decreases, replace the batteries (type CR2032).

Is an external exhaust duct required?

The hood can operate in extraction mode (recommended) or recirculation mode with a charcoal filter. In extraction mode, an external duct is required.

What is the warranty on this hood?

The Zephyr ZLCM90BS hood comes with a 2-year warranty against manufacturing defects. Wear parts (filters, bulbs) are excluded.

How to program the automatic shut-off?

Press the timer button (clock) to select a duration from 1 to 15 minutes. The hood will turn off automatically and a sound alert will sound.

Are charcoal filters included?

No, charcoal filters are optional and must be purchased separately for recirculation mode. They should be replaced every 6 months.

USER MANUAL ZLCM90BS Zephyr

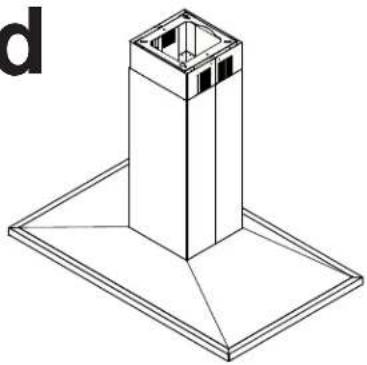

Isometric line drawing of a 3D architectural structure with a rectangular base and vertical window (no text or symbols)

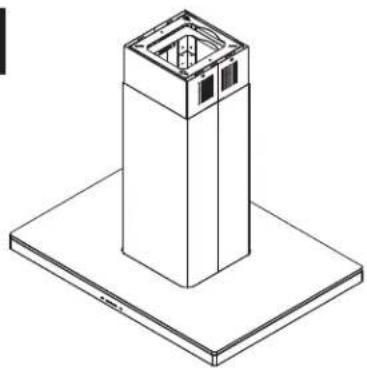

Luce Island

ZLC-M90BS

ZLC-E42BS

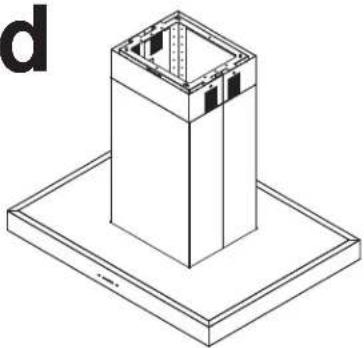

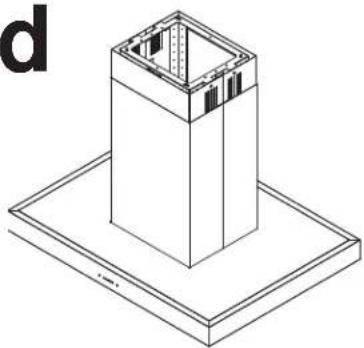

Isometric line drawing of a cylindrical mechanical component mounted on a base plate (no text or symbols)

Roma Island

ZRM-E36DS

ZRM-E42DS

Isometric line drawing of a rectangular structure with a hollow top and base, no text or symbols present

Model number: ____

Serial Number: ____

JAN17.0101 © Zephyr Ventilation LLC.

SAFETY NOTICE 2-3

LIST OF MATERIALS 4

INSTALLATION

Ducting Calculation Sheet 5

Mounting Height & Clearance 6

Ducting Options 7

Hood Specifications 8-10

Mounting the Hood....11-12

Ductless Recirculating 13

FEATURES & CONTROLS

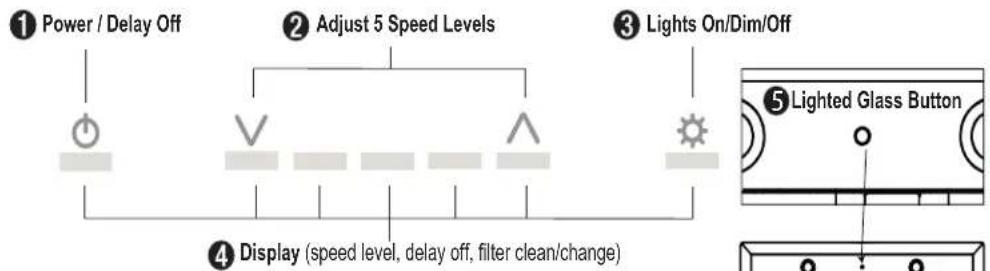

ICON Touch Controls 14-15

MAINTENANCE

Hood and Filter Cleaning 16

TROUBLESHOOTING 17

ACT CONVERSION.... 18

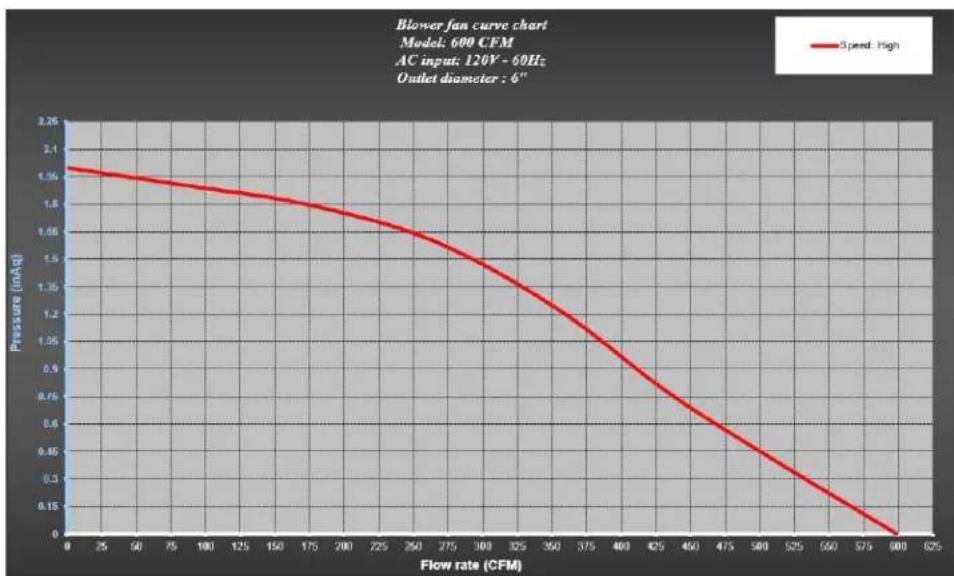

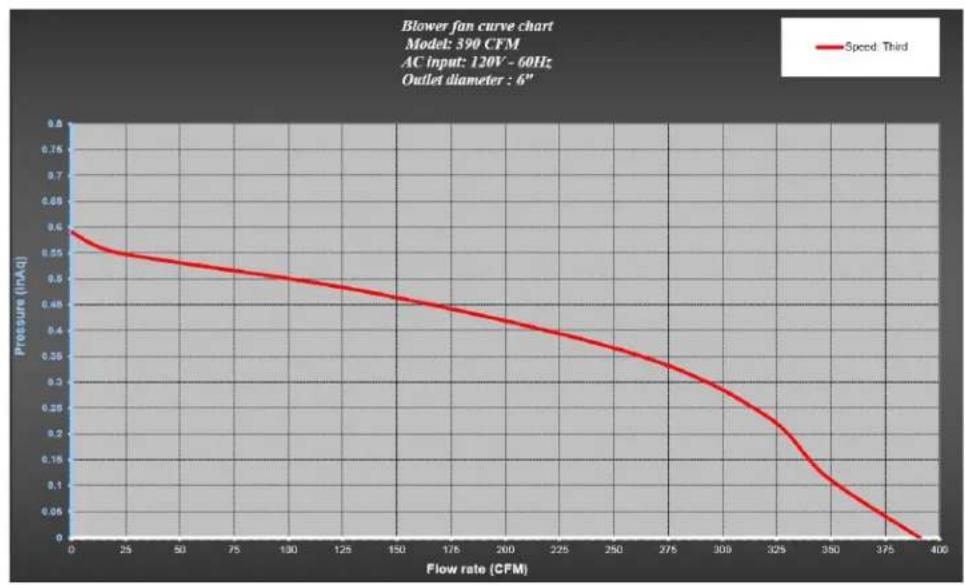

FAN CURVE DIAGRAMS 19-20

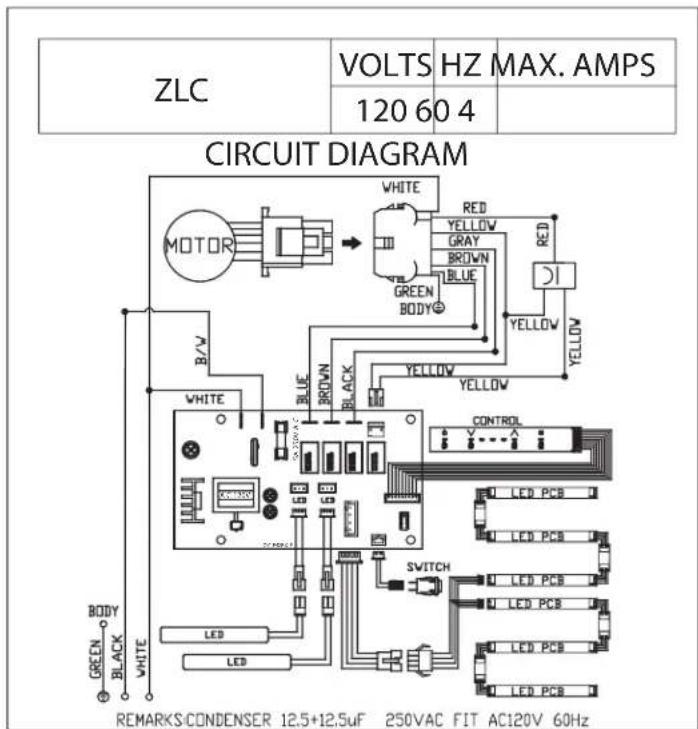

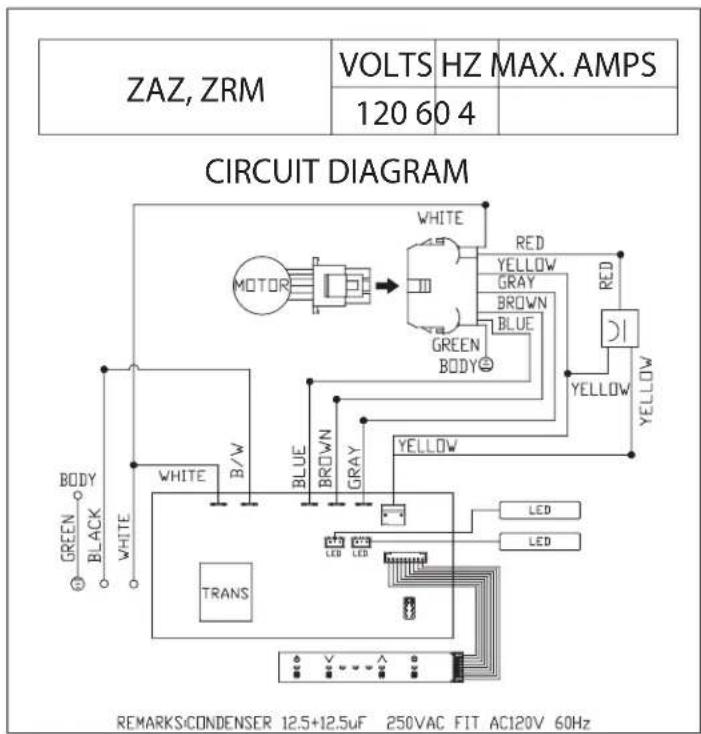

WIRING DIAGRAM 21

LIST OF PARTS AND ACCESSORIES 22

WARRANTY 23

PRODUCT REGISTRATION....24

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE CONTROL DEVICE.

WARNING

TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Use this unit only in the manner intended by the manufacturer, if you have questions, contact the manufacturer.
b. Before servicing or cleaning unit, switch power off at service panel and lock panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

CAUTION

For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. Take care when using cleaning agents or detergents. Suitable for use in household cooking area.

WARNING

TO REDUCE THE RISK OF RANGE TOP GREASE FIRE:

a. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b. Always turn hood ON when cooking at high heat or when flaming food
c. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
d. Use proper pan size. Always use cookware appropriate for the size of the surface element.
e. Keep fan, filters and grease laden surfaces clean.
f. Use high setting on hood only when necessary.
g. Don't leave hood unattended when cooking.
h. Always use cookware and utensils appropriate for the type of and amount of food being prepared.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP FIRE, OBSERVE THE FOLLOWING:

a. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN – You may be burned.
c. DO NOT USE WATER, including wet dishcloths or towels – a violent steam explosion will result.
d. Use an extinguisher ONLY if:

1. You know you have a Class ABC extinguisher, and you already know how to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

a. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. Including fire-rated construction.
b. Sufficient air is needed for power combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back-drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
c. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
d. Ducted fans must always vent to the outdoors.
e. NEVER place a switch where it can be reached from a tub or shower.
f. Make sure the power is off before installing, wiring or maintaining.

WARNING

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

CAUTION

To reduce risk of fire and to properly exhaust air outside - Do not vent exhaust air into spaces within walls, ceilings, attics, crawl spaces or garages.

Not for use over an outdoor grill.

OPERATION

Always leave safety grilles and filters in place. Without these components, operating blowers could catch onto hair, fingers and loose clothing.

The manufacturer declines all responsibility in the event of failure to observe the instructions given here for installation, maintenance and suitable use of the product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance.

*NOTE: Please check www.zephyronline.com for revisions before doing any custom work.

ELECTRICAL REQUIREMENTS

Important:

Observe all governing codes and ordinances.

It is the customer's responsibility:

• To contact a qualified electrical installer.
• To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 latest edition* or CSA standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No.0-M91 - latest edition** and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

Do not ground to a gas pipe.

Check with a qualified electrician if you are not sure the range hood is properly grounded.

Do not have a fuse in the neutral or ground circuit.

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

This appliance requires a 120V 60Hz electrical supply and connected to an individual properly grounded branch circuit protected by a 15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product.

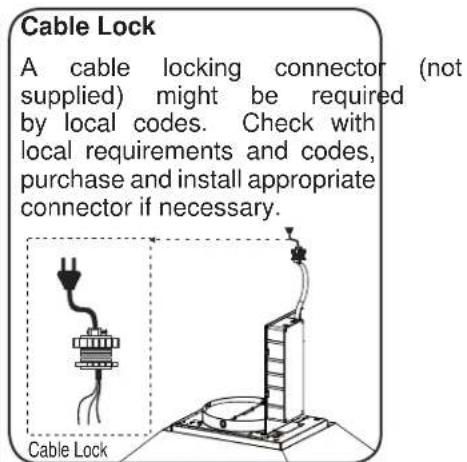

A cable locking connector (not supplied) might also be required by local codes. Check with local requirements, purchase and install appropriate connector if necessary.

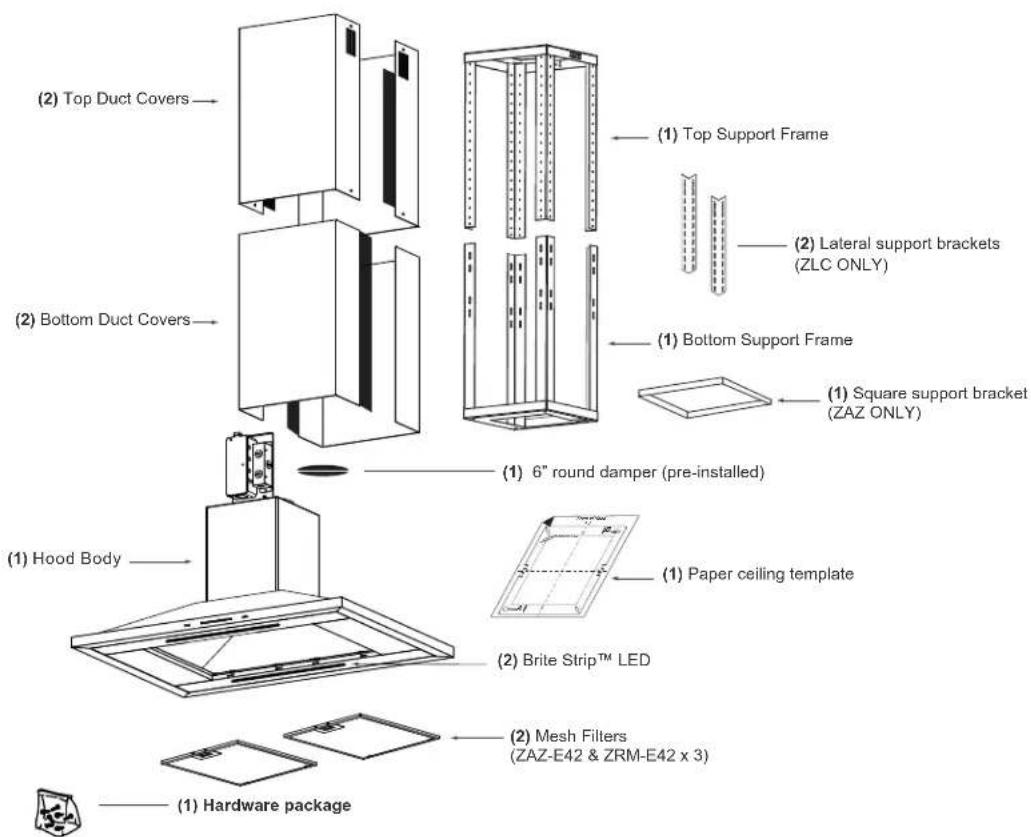

PARTS SUPPLIED

HARDWARE PACKAGE CONTENTS

(4) M4 x 1" wood screws

(4) 12 OD / 5 ID Washers

(20) M4 x 8 pan-head machine screws (ZLC x 8)

(4) 3/16 x 1/4" pan-head machine screws

(1) M4 x 12 safety screw

PARTS NOT SUPPLIED

• Ducting, conduit and all installation tools
• Cable connector (if required by local codes)
• Duct cover extension accessory
• Recirculating kit accessory

Duct pieces		Equivalent number length x used =	Total
	3- 1/ 4" x 10" Rect., straight	1 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, straight	1 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.90° elbow	15 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.45° elbow	9 Ft. x ( ) =	Ft.
	3- 1/ 4" x 10" Rect.90° flat elbow	24 Ft. x ( ) =	Ft.
	7" to 6" or 8" to 7" Round tapered reducer	25 Ft. x ( ) =	Ft.
	6", 7", 8" Round in-line damper	15 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, 90° elbow	15 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, 45° elbow	9 Ft. x ( ) =	Ft.
Subtotal column 1 =			Ft.

Duct pieces		Equivalent number length x used =	Total
	3- 1/4" x 10" Rect. to 6" round transition	5 Ft. x ( ) =	Ft.
	3- 1/4" x 10" Rect. to 6" round transition 90° elbow	20 Ft. x ( ) =	Ft.
	6" round to 3- 1/4" x 10" rect. transition	1 Ft. x ( ) =	Ft.
	6" round to 3- 1/4" x 10" rect. transition 90° elbow	16 Ft. x ( ) =	Ft.
	7" round to 3 1/4" x 10" rect. transition	8 Ft. x ( ) =	Ft.
	7" round to 3- 1/4" x 10" rect. transition 90° elbow	23 Ft. x ( ) =	Ft.
	3- 1/4" x 10" Rect. wall cap with damper	30 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round, wall cap with damper	30 Ft. x ( ) =	Ft.
	6", 7", 8", 10" Round roof cap	30 Ft. x ( ) =	Ft.
Subtotal column 2 = Subtotal column 1 = Total ductwork =			Ft.
			Ft.
			Ft.

Maximum Duct Length: For satisfactory air movement, the total duct length should not exceed 100 equivalent feet.

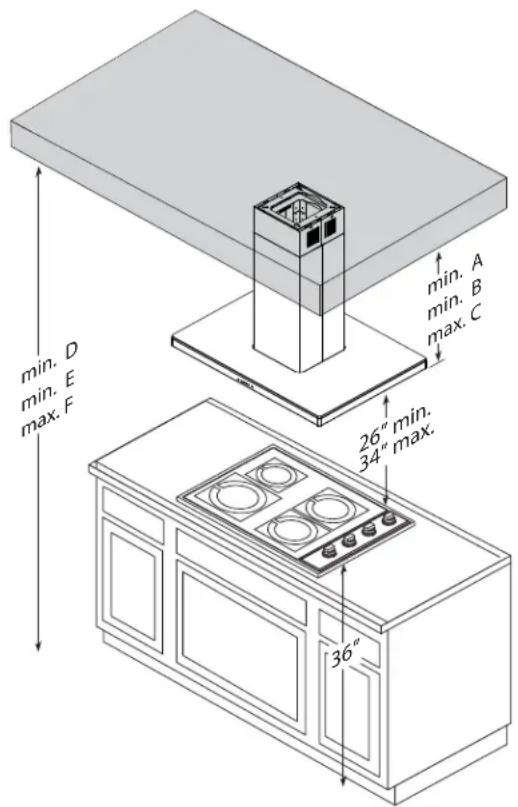

A: Minimum Ducted Hood Height
B: Minimum Recirculating Hood Height
C: Maximum Hood Height
D: Minimum Ducted Ceiling Height
E: Minimum Recirculating Ceiling Height
F: Maximum Ceiling Height

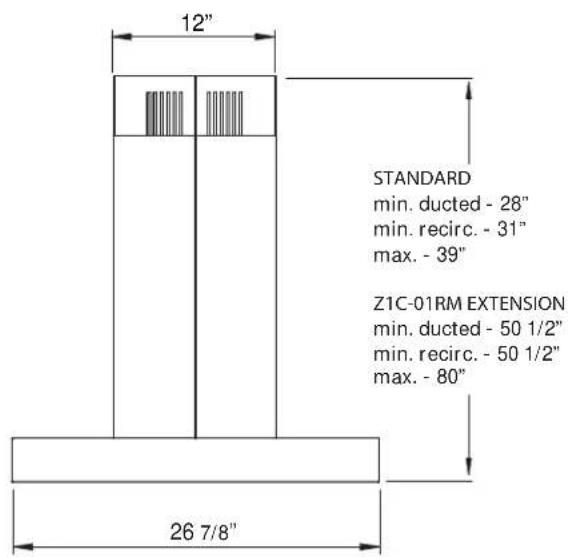

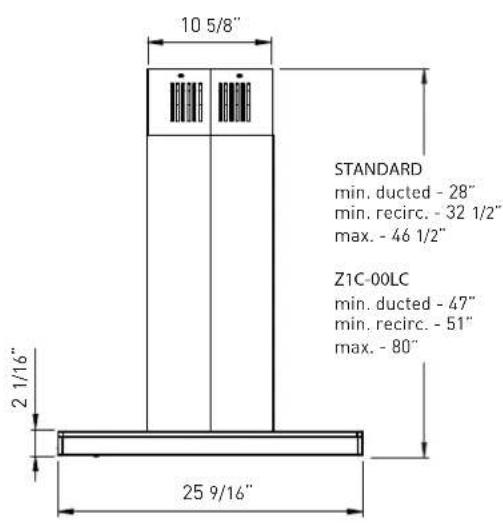

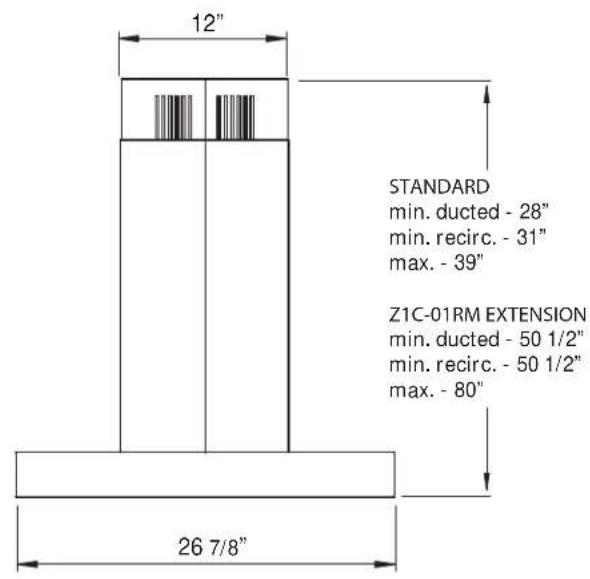

Standard Duct Cover

	ZAZ ZLC ZRM

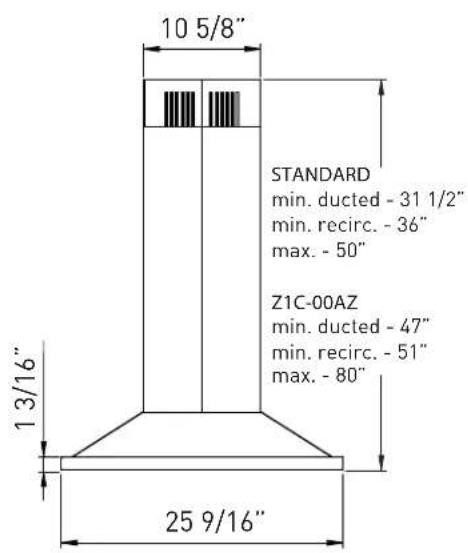

A	31-1/2"	28"	28"
B	36"	32-1/2"	31"
C	50"	46-1/2"	39"
D	93-1/2" (7' 9-1/2")	90" (7' 6")	90" (7' 6")
E	98" (8' 2")	94-1/2" (7' 10-1/2")	93" (7' 9")
F	120" (10')	116-1/2" (9' 8-1/2")	109" (9' 1")

Extension Duct Cover

	ZAZ ZLC ZRM
A	47"	47"	50-1/2"
B	51"	51"	50-1/2"
C	80"	80"	80"
D	109" (9' 1")	109" (9' 1")	112-1/2" (9'4-1/2")
E	113" (9' 5")	113" (9' 5")	112-1/2" (9'4-1/2")
F	150" (12' 6")	150" (12' 6")	150" (12' 6")

DUCTING

A minimum of 6" round duct is recommended to maintain maximum air flow efficiency.

Always use rigid type metal ducts only. Flexible ducts could restrict air flow by up to 50%.

Use calculation worksheet to compute total duct work (Page 5).

ALWAYS, when possible, reduce the number of transitions and turns. If a long duct run is required, increase duct size from 6" to 7" or 8".

If turns or transitions are required: Install as far away from duct opening and as far apart between the two transitions as possible.

Minimum mount height between range top to hood bottom should be no less than 26".

Maximum mount height should be no higher than 34".

It is important to install the hood at the proper mounting height. Hoods mounted too low could result in heat damage and fire hazard; while hoods mounted too high will be hard to reach and will loose performance and efficiency.

If available, also refer to range manufacturer's height clearance requirements and recommended hood mounting height above range. Always check your local codes for any differences.

Duct cover extension kit available for ceiling heights up to 12 feet. Turn to page 22 for part number and ordering information.

DAMAGE-SHIPMENT / INSTALLATION:

• Please fully inspect unit for damage before installation.
• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair of replacement must be made by arrangement between customer and installer.

WARNING FIRE HAZARD

NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside, unless using the recirculating option.

Use single wall rigid metal ductwork only.

Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct Tape.

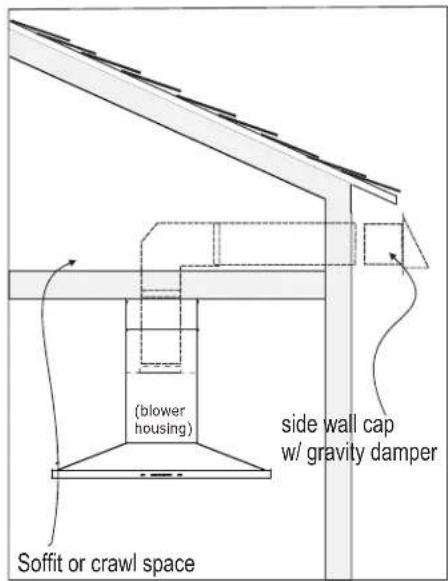

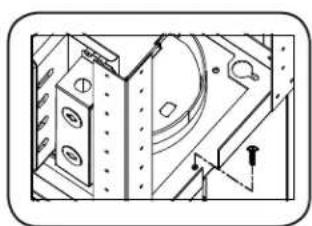

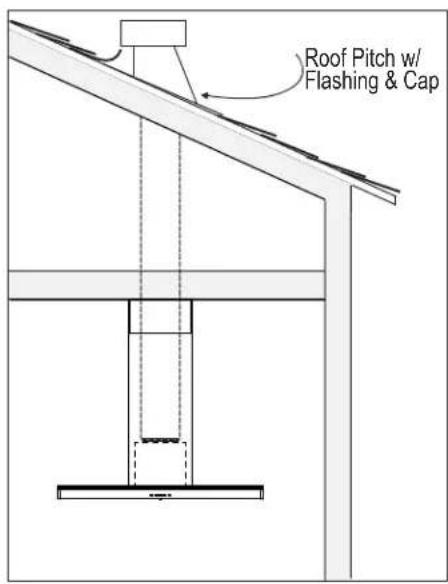

Some Ducting Options

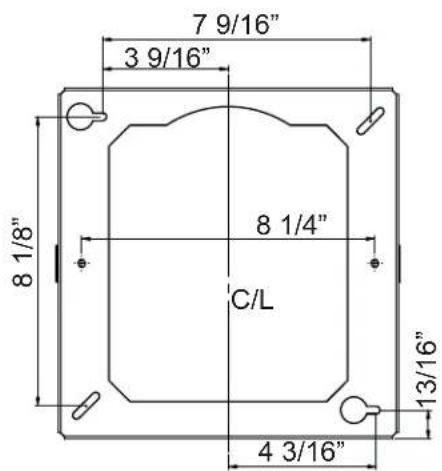

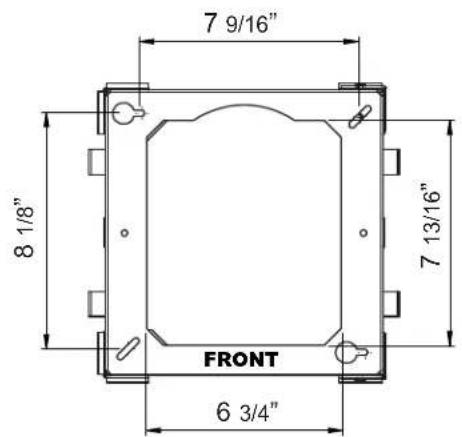

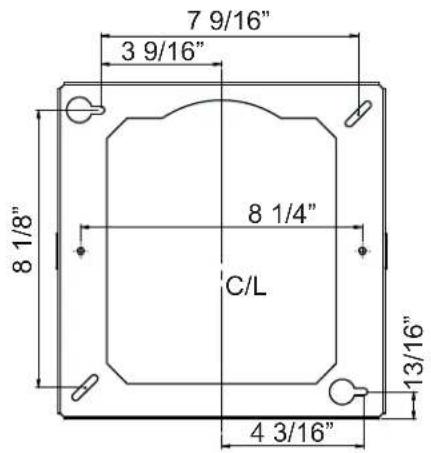

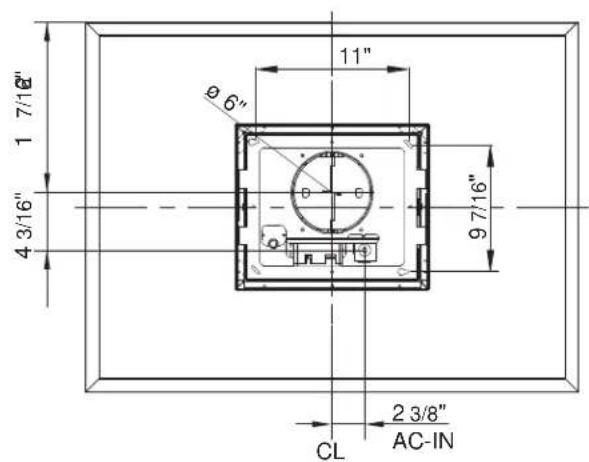

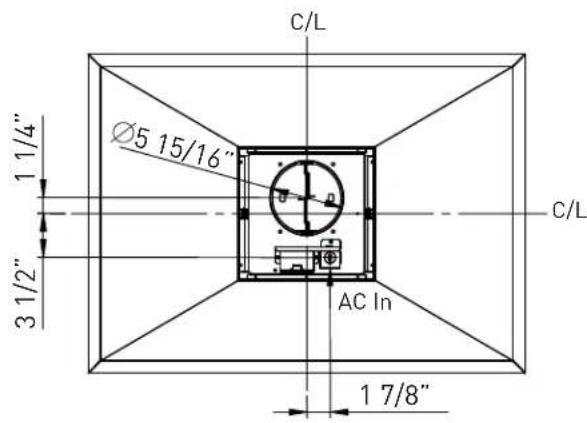

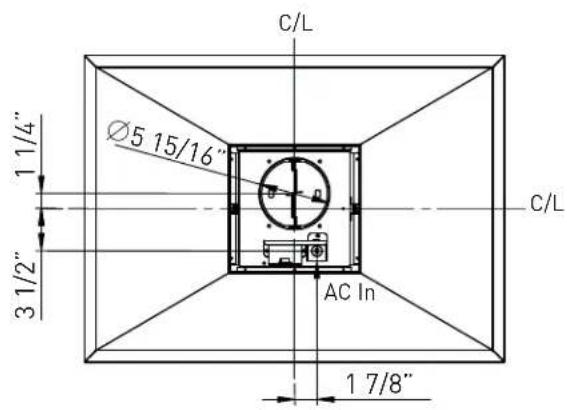

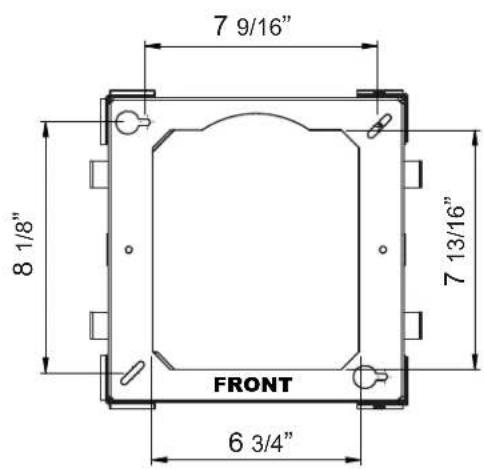

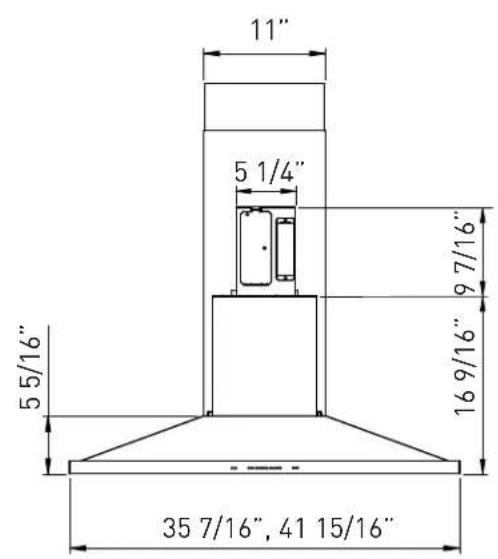

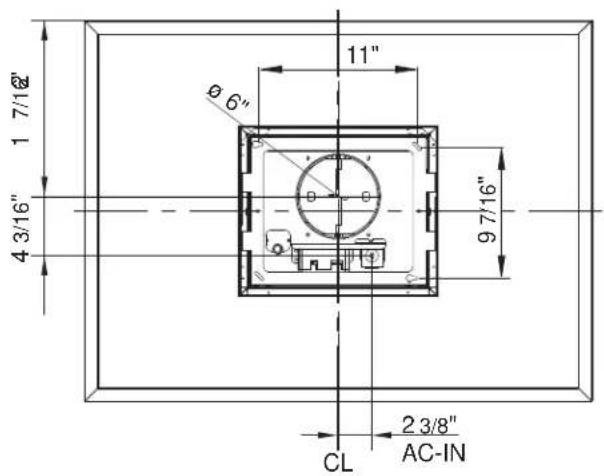

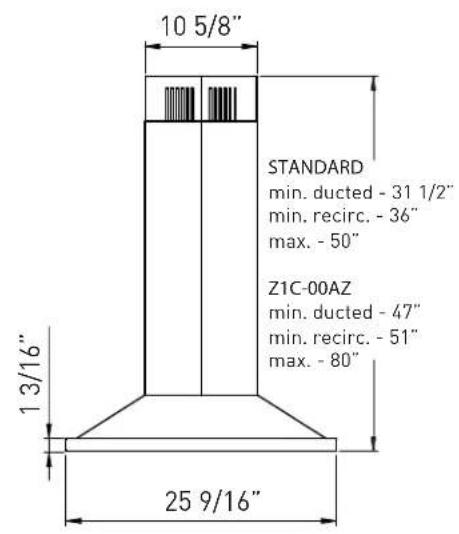

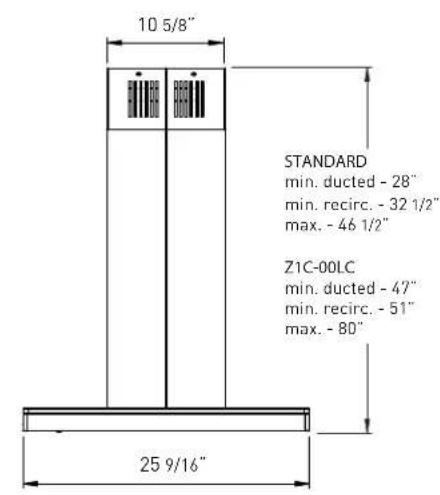

Installation – Hood Specification ZAZ

FRONT

SIDE

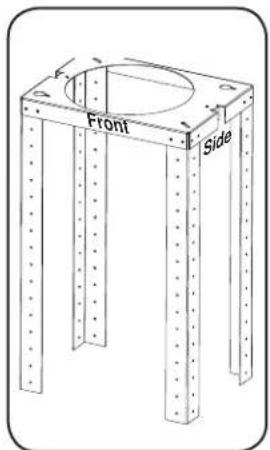

TOP of HOOD

TOP SUPPORT FRAME
(top view)

FRONT

SIDE

TOP of HOOD

TOP SUPPORT FRAME
(top view)

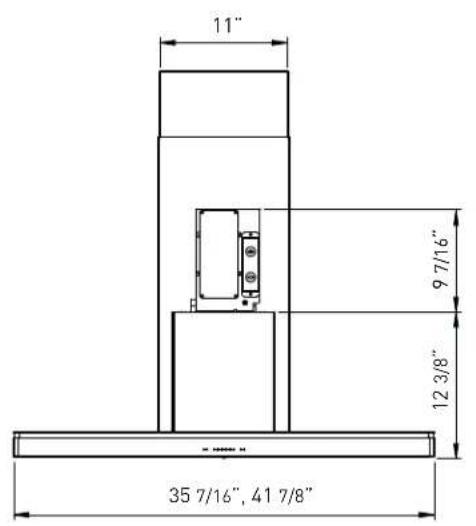

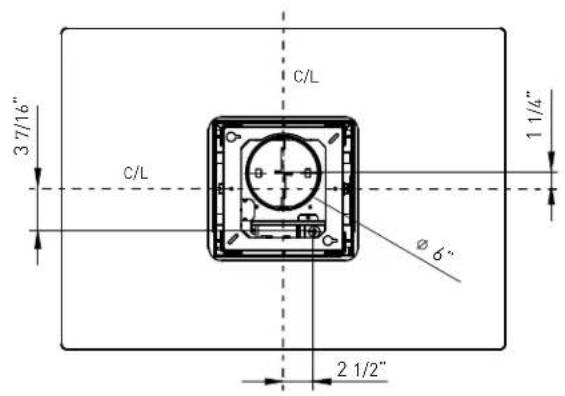

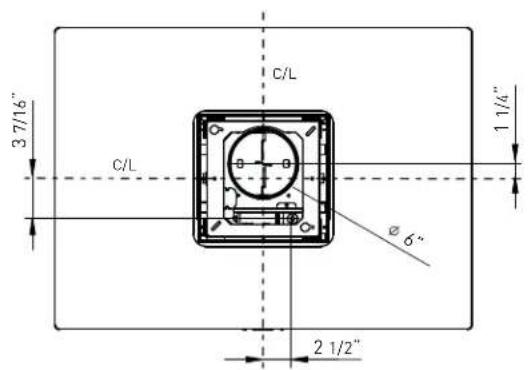

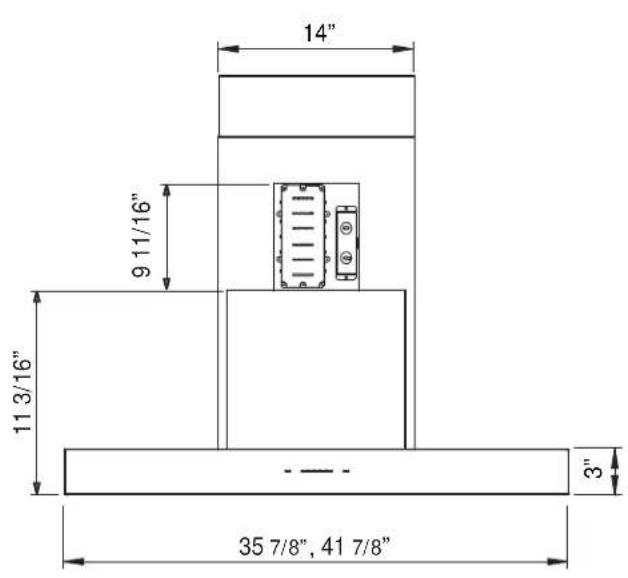

Installation – Hood Specification ZRM

CAUTION: At least two installers are required due to the weight and size of the hood.

FIG. A

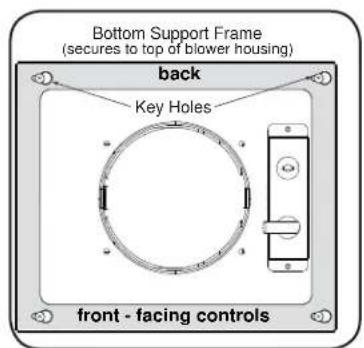

FIG. C

FIG. B

FIG. G

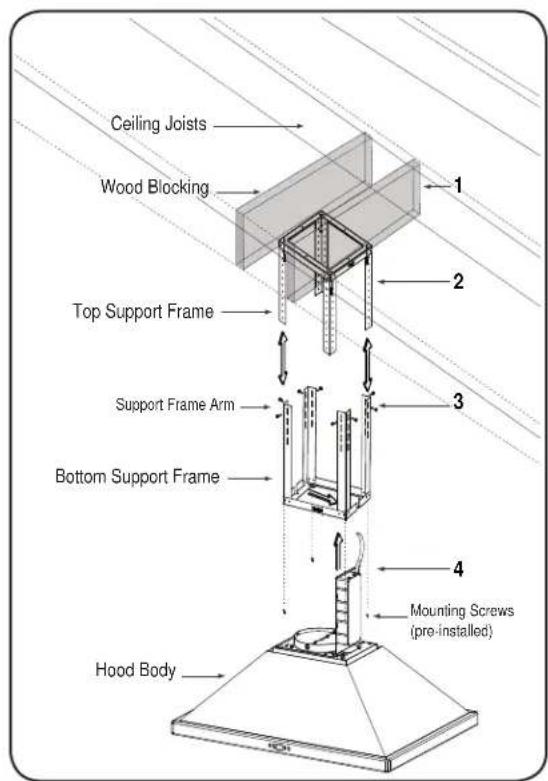

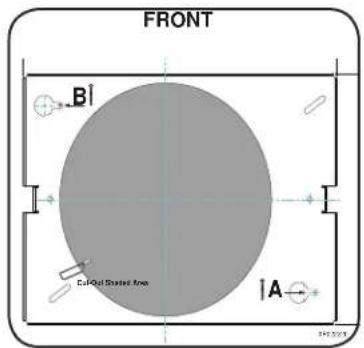

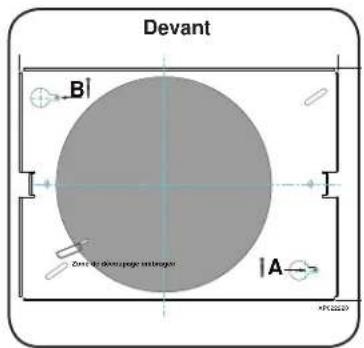

1. Determine mounting location on ceiling and temporarily tape paper template (included with the hood) to the ceiling. Cut out internal shaded area of template to allow the ducting and electrical to pass through. If necessary, add wood blocking (min. 2" x 4") to ceiling joists located behind the drywall to reinforce the mounting location*. (FIG. A1) Secure (2) M6 x 1" wood screws to points A and B of the paper template (FIG. G). Do not completely tighten screws, leave approx. 1/4" exposed.
2. Remove screws securing top and bottom support frames together. Adjust support frame to accommodate the desired hood height and re-assemble the frame using the previously removed screws (2 screws for each support frame arm). (FIG. A3)
3. Lift support frame assembly up to the ceiling making sure the word "front" on the top support frame faces the front of the hood where the controls will be located. (FIG. B) The key holes on the top support frame should cover the wood screws previously installed in the ceiling. Slide support frame towards narrow end of key holes to lock the frame in place. Install the last (2) M6 x 1" wood screws with washers into the two remaining corners of the top support frame to secure it to the ceiling. Tighten all screws.
4. Lift hood and align the (4) pre-installed mounting screws located on top of the unit body (FIG. A4) with the (4) key holes on the Bottom of Support Frame. (FIG. C) Slide hood towards the narrow end of key holes to lock into place. Hand tighten each of the (4) screws with a screwdriver to secure hood to Bottom Support Frame. Further secure bottom support frame to unit body by one M4 x 12 safety screw. (FIG. F, pg 10)

* Hood is intended to be mounted to a finished ceiling.

FIG. D

FIG. E

Technical line drawing of a mechanical assembly with no visible text or symbols

FIG. F

WARNING: Electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring.

1. Remove tape securing electronics mounting bracket to hood and reposition electronics mounting bracket. (FIG. E) Install electrical and duct work. A cable lock, not supplied, might be required by local codes. (FIG. E) Seal duct work with aluminum duct tape.
2. Power up hood, verify all functions and check for leaks around duct tape.

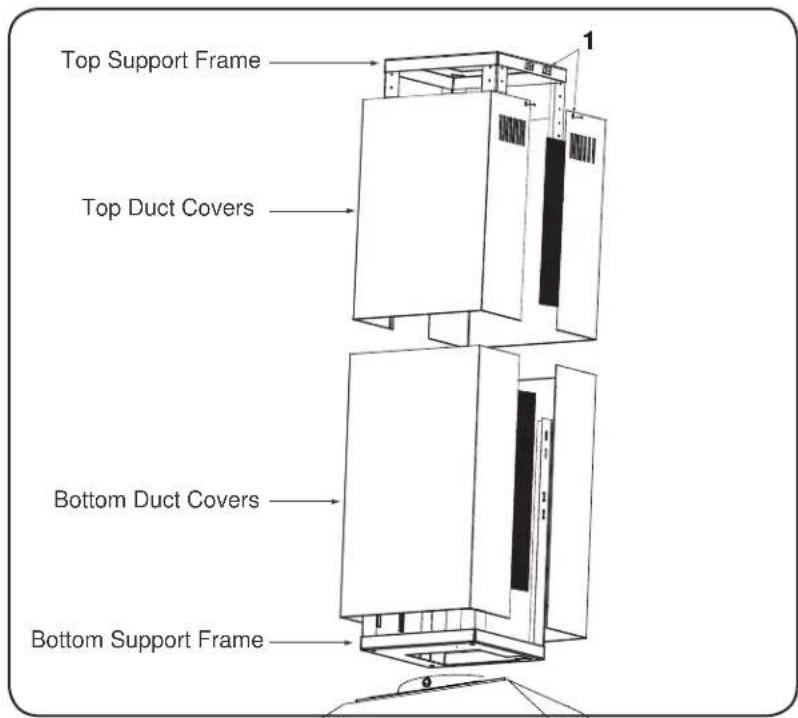

3. Assemble Top Duct Covers (with louver holes) together over Top Support Frame, secure Top Duct Covers together by magnetic strips. Note: If using hood in ductless recirculating mode you must install the air diverter plate to the Top Support Frame prior to assembling the duct covers. Turn to page 11 for more details.
4. Secure Top Duct Covers to Top Support Frame by using (4) 3/16 x 1/4 screws (2 screws for each Top Duct Cover). (FIG. D1).
5. Assemble Bottom Duct Covers together over Top Duct Covers and secure together by magnetic strips. Bottom Duct Covers should rest on top of the Hood Body.

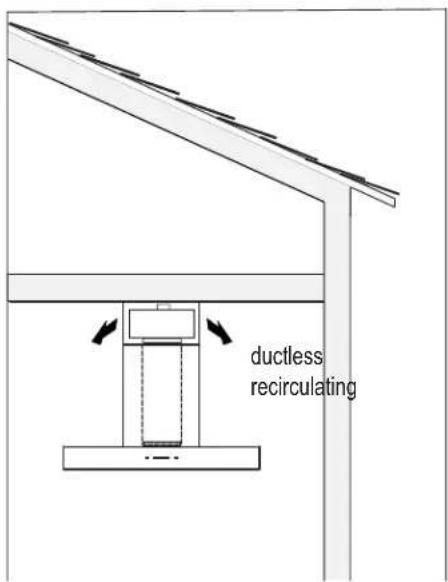

Ductless recirculation is intended for applications where an exhaust duct work is not possible to be installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is then purified and recirculated back within the home.

We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct work, if possible. The hood is most effective and efficient as an exhaust hood. Only when the exhaust option is not possible should you recourse to converting the hood into a recirculating hood.

When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard aluminum mesh filter set. Order according to its part number below. The standard aluminum mesh filters are intended to capture residue from cooking and the optional charcoal filters help to purify fumes exhausted from cooking for recirculation.

RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED)

Kit includes charcoal filter, filter attachment clip and air diverter plate.

Hood Models		Part No.	Filters in pkg.
ZAZ	ZRC-02AZ	2
ZLC	ZRC-00LC	1
ZRM-E36DS		ZRC-02RM	2
ZRM-E42DS		ZRC-01RM	3

1. Purchase recirculating kit per the part number above
2. Secure air diverter plate to top support frame. Open sides of air diverter plate should face left and right to direct air through the louver holes located on the top duct cover. Run 6" ducting from top of hood and secure to air diverter plate.
3. Remove mesh filters from hood. Install charcoal filters as referenced with the manual included with recirculation kit.
4. Re-Install mesh filters.
5. Turn on charcoal filter change indicator on control panel. (Refer to details on page 15.) The microprocessor in the controls will indicate the need to change the charcoal filter after 120 hours of continuous use. Order replacement charcoal filters per the list below.

Charcoal filters must be replaced after every 120 hours of use (or approximately every 3 to 4 months based on an average of 1 - 2 hrs. of daily cooking time).

NOTE: For more details refer to manual included with recirculation kit.

Charcoal Filter Replacements

Hood Model	Part No.	Qty to Order
ZAZ		Z0F-C091	2
ZLC	Z0F-C092 1
ZRM-E36DS		Z0F-C002	2
ZRM-E42DS	Z0F-C002	3

DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be changed more often depending on cooking habits.

1 POWER / DELAY OFF BUTTON

Power Button Function

• ⏻ Button will turn power on and off for entire hood (fan and lights).
• Hood will remember the last speed and light level it was turned off at.

(Example: Press Button to turn off hood when on fan speed 4 and high lights. Press again and the hood will turn back on at speed 4 and high lights level.)

Button

Delay Off Button Function

- With the fan on press and hold the ⏻ Button for two seconds. The fan will change to speed 1 and the 5 minute delay off timer will start.

LEDs will illuminate and slowly blink in accordance with the time

remaining until the fan and lights automatically turn off.

- Pressing ⏻ Button while Delay Off Function is enabled will turn the hood off and cancel the Delay Off Function.

ACT Verification

- Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.

- To verify the maximum fan CFM:

- With hood off, hold the Button for two seconds. If all five fan speed indicators illuminate = default maximum CFM. If four fan speed indicators illuminate = 390 maximum CFM. If 3 fan speed indicators illuminate = 290 maximum CFM.

2 SPEED SELECTION BUTTON

Fan Speed Decrease Button √

• Press this button to decrease fan speed. 5, 4, 3, 2, 1.
• If fan is On Speed 1 and this button is pressed, fan will power Off.

Fan Speed Increase Button ^

• Press this button to increase fan speed. Fan On, 1, 2, 3, 4, 5.
• If hood is Off and this button is pressed, fan will turn On Speed 1.

Act Enabled Speed Selections

- When ACT is enabled, the number of fan speeds will be reduced as follows:

• 390 CFM = Maximum 4 speeds
• 290 CFM = Maximum 3 speeds

3 LIGHTS BUTTON

- Lights are two levels, High and Low.

- From off, press one time for High. Press again for Low. Press again to power lights off.

4 DISPLAY INDICATORS

Mesh Filter Clean Reminder (always enabled)

• After 30 hours of fan usage, the √ button indicator will begin to slowly blink indicating it is time to clean the mesh filters.
• To reset: With hood off: hold the √ button for three seconds. All LED indicators will blink two times confirming the 30 hour timer has been reset.

Charcoal Filter Replace Indicator (disabled by default, must be enabled if recirculating hood)

- To enable Charcoal Filter Replacement Reminder:

- With hood off, hold ▲ button and ⚙ button simultaneously for two seconds. All LED indicators will illuminate for three seconds confirming the Charcoal Filter Replace Reminder is enabled.

- To disable Charcoal Filter Replacement Reminder:

- With hood off, hold button and button simultaneously for two seconds. All LED indicators will blink two times confirming the Charcoal Filter Replace Reminder is disabled.

- After 120 hours of fan usage the ▲ button will slowly blink indicating the charcoal filters need replacement.

- To reset: With hood off, hold the ▲ button for two seconds. All LED indicators will blink two times confirming the 120 hour timer has been reset.

5 LIGHTED GLASS BUTTON (MODEL ZLC ONLY)

• Press to cycle glass color from White, Blue, Amber and Off.
• Press and hold for 3 seconds to activate demo mode. While in demo mode each color will gradually change every 10 seconds.
• Pressing ⚙ to power off the LED lights will also power off the lighted glass.

SURFACE MAINTENANCE:

Clean the hood surface periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent or steel wool/scouring pads which will scratch and damage surface.

For heavier soil use liquid degreaser.

After cleaning it is recommended that you use non-abrasive stainless steel polish/cleaners, to polish and buff out the stainless luster and grain. Always scrub lightly, with clean cotton cloth, and with the grain.

Do not use any product containing chlorine bleach. Do not use "orange" cleaners.

Aluminum Mesh Filters

The aluminum mesh filters installed by the factory are intended to filter out residue and grease from cooking. They need not be replaced on a regular basis but are required to be kept clean.

Remove and clean by hand or in dishwasher on low heat. Spray degreasing detergent and leave to soak if heavily soiled.

Dry filters and re-install before using hood.

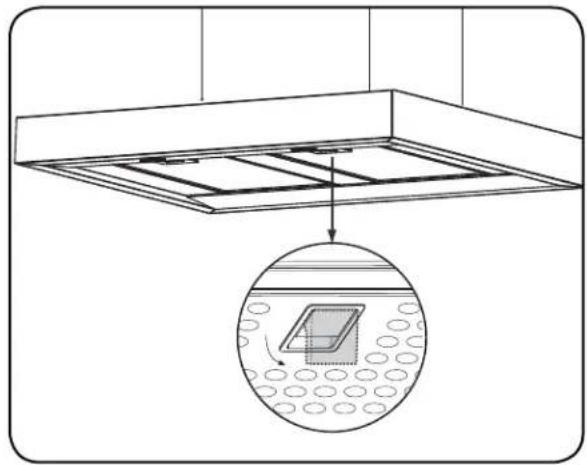

Removing Aluminum Mesh Filters

1. Pull down on filter latch to disengage filter spring
2. Pull down on filter hande to remove filter

Diagram of a roof structure with an inset showing a square component submerged in water, no text or symbols present.

TROUBLESHOOTING PROCEDURES

Issue Cause What to do
After installation, the unit doesn't work.	1. The power source is not turned ON. 1. Make sure	the circuit breaker and the unit's power is ON.
	2. The power line and the cable locking connector is not connecting properly.	2. Check the power connection with the unit is connected properly.
	3. The switch board or control board wirings are disconnected.	3. Make sure the wirings at the switch board and control board are connected properly.
	4. The switch board or control board is defective. 4.	Change the switch board or control board.
Light works, but blower is not turning.	1. The blower is defective, possibly seized. 1. Change the blower.
	2. The thermally protected system detects if the blower is too hot to operate and shuts the blower down.	2. The blower will function properly after the thermally protected system cool down.
	3. Damaged capacitor. 3. Change the capacitor.
	4. The switch board or control board is defective. 4.	Change defective part.
The speed levels of the blower sound the same.	1. Using the wrong size or type of ducting. 1. Change the duct size to at least 6" round or higher and change the duct type to rigid metal rather than flexible.
The unit is vibrating.	1. The blower is not secured in place. 1. Tighten the blower in place.
	2. Damaged blower wheel. 2. Replace the blower.
	3. The hood is not secured in place. 3. Check the installation of the hood.
The blower is working, but the lights are not.	1. Defective LED bulb. 1. Change the LED bulb.
	2. The LED wire connection to the control board is disconnected.	2. Check the LED wire connection at the control board.
	3. The LED bulb connector is disconnected. 3. Check the LED bulb connector.
The unit turns on by itself.	1. A spot light or kitchen lamp is shining directly onto the switch controls.	1. The switch controls are light sensitive. A direct light source onto the switch controls may disrupt switch functions.
The hood is not venting out properly.	1. The hood might be hanging to high from the cook top.	1. Adjust the distance between the cook top and the bottom of the hood within 26" and 34" range.
	2. The wind from the opened windows or opened doors in the surrounding area are affecting the ventilation of the hood.	2. Close all the windows and doors to eliminate the outside wind flow.
	3. Blockage in the duct opening or ductwork.	3. Remove all the blocking from the duct work or duct opening.
	4. The direction of duct opening is against the wind.	4. Adjust the duct opening direction.
	5. Using the wrong size of ducting.	5. Change the ducting to at least 6" or higher.
Mesh Filter is vibrating.	1. Mesh filter is loose.	1. Change the mesh filter.

Airflow Control Technology (ACT)

Some local codes limit the maximum amount of CFM a range hood can move. ACT allows you to control the maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits. ACT enables the installer to easily set the maximum blower speed to one of two most commonly specified CFM levels; 390 or 290 CFM. The usage of ACT may not be necessary for your installation. Please check your local codes for CFM restrictions.

By default the maximum blower CFM is set to 600.

CAUTION:

Hood must be disconnected from main power prior to performing the conversion instructions listed below. Failure to do so could result in personal injury or damage to the product.

To enable ACT

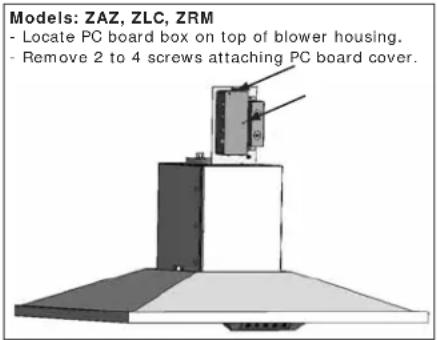

1. Before hood installation, gain access to PC board by following the steps shown in FIG. J.

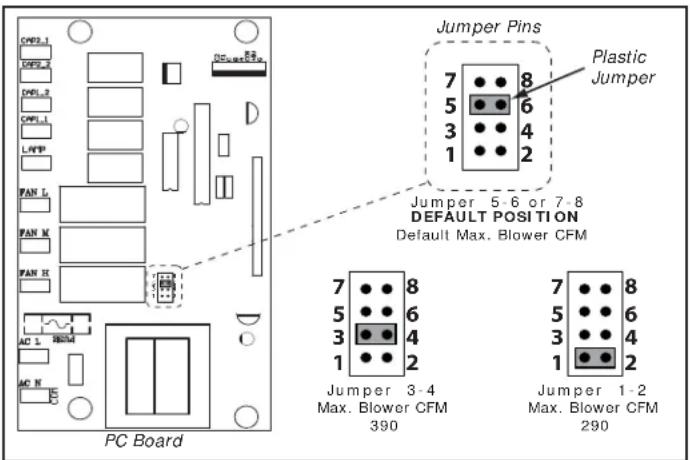

2. Change plastic jumper positioning as shown in FIG. K to set the desired maximum blower CFM.
3. Re-install PC board & continue with hood installation.
4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the hood body below the wiring diagram or in another clearly visible location.

NOTE: After re-positioning the jumper and powering on the hood, the CFM cannot be changed again.

To verify if your installer enabled ACT

With hood off, press and hold the power button for three seconds. If 5 LEDs illuminate = default max. CFM, if 4 LEDs illuminate = max. 390 CFM, and if 3 LEDs illuminate = max. 290 CFM.

When ACT is enabled, the number of blower speeds will be reduced. 390 CFM = max. 4 speeds and 290 CFM = max. 3 speeds.

There should also be a foil label located inside the hood body near the wiring diagram that indicates the blower CFM.

FIG. J

FIG. K

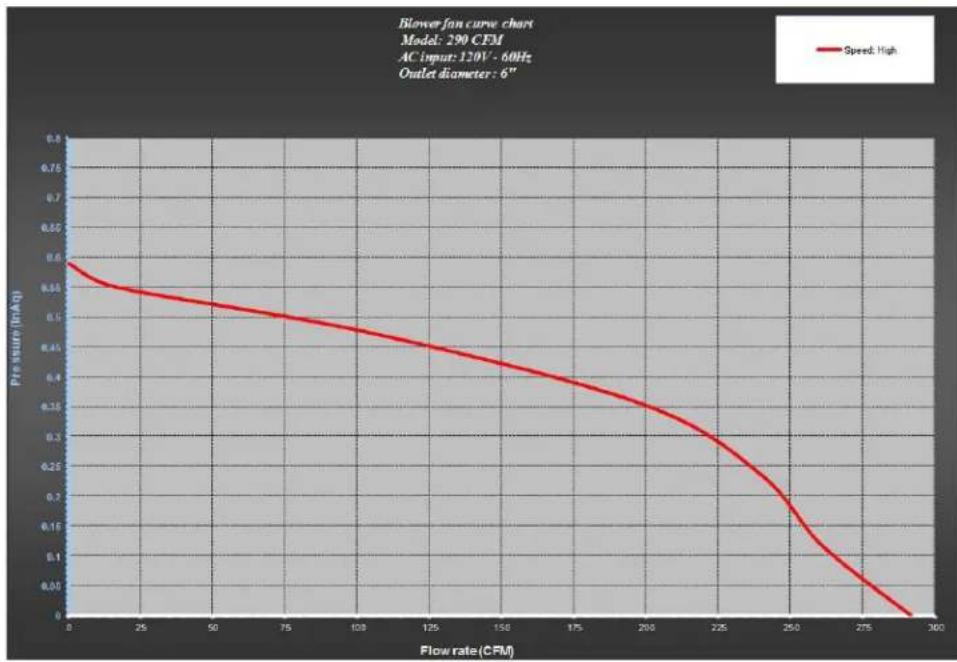

Fan Curve Diagrams

Fan Curve Diagrams

Power consumption shown for default 600 CFM blower configuration

ACT 390 CFM - Fan Max. @ 2.3A

ACT 290 CFM - Fan Max. @ 1.9A

Power consumption shown for default 600 CFM blower configuration

ACT 390 CFM - Fan Max. @ 2.3A

ACT 290 CFM - Fan Max. @ 1.9A

DESCRIPTION PART#

ZAZ Parts & Optional Accessories

Aluminum Mesh Filter (each) 50200059

Recirculating Kit ZRC-02AZ

Charcoal Filter Replacement (each) Z0F-C091

Extension

Duct

Cover

Z1C-00AZ

Hybrid Baffle Filter Kit (2 Filters)

ZOF-B002

ZLC Parts & Optional Accessories

Aluminum Mesh Filter (each) 50200053

Recirculating

Kit

ZRC-00LC

Charcoal Filter Replacement (each) ZOF-C092

Extension

Duct

Cover

Z1C-00LC

ZRM Parts & Optional Accessories

Aluminum Mesh Filter (each) 50200038

Recirculating

Kit,

ZRM-E36DS

ZRC-02RM

Recirculating

Kit,

ZRM-E42DS

ZRC-01RM

Charcoal Filter Replacement (each) Z0F-C002

Extension Duct Cover

Z1C-01RM

To order parts, visit us online at http://store.zephyronline.com or call us at 1.888.880.8368

ZEPHYR

Limited Warranty

STAPLE YOUR RECEIPT HERE Proof of the original purchase date is needed to obtain service under warranty

TO OBTAIN SERVICE UNDER WARRANTY OR FOR ANY SERVICE RELATED QUESTIONS, please call: 1-888-880-8368

Zephyr Ventilation, LLC (referred to herein as "we" or "us") warrants to the original consumer purchaser (referred to herein as "you" or "your") of Zephyr products (the "Products") that such Products will be free from defects in materials or workmanship as follows:

Three Year Limited Warranty for Parts: For three years from the date of your original purchase of the Products, we will provide, free of charge, Products or parts (including LED light bulbs, if applicable) to replace those that failed due to manufacturing defects. We may choose, in our sole discretion, to repair or replace parts before we elect to replace the Products.

One Year Limited Warranty for Labor: For one year from the date of your original purchase of the Products, we will provide, free of charge, the labor cost associated with repairing the Products or parts to replace those that failed due to manufacturing defects. After the first year from the date of your original purchase, you are responsible for all labor costs associated with this warranty.

Warranty Exclusions: This warranty covers only repair or replacement, at our option, of defective Products or parts and does not cover any other costs related to the Products including but not limited to: (a) normal maintenance and service required for the Products and consumable parts such as fluorescent, incandescent or halogen light bulbs, mesh and charcoal filters and fuses; (b) any Products or parts which have been subject to freight damage, misuse, negligence, accident, faulty installation or installation contrary to recommended installation instructions, improper maintenance or repair (other than by us); (c) commercial use of the Products or use otherwise inconsistent with its intended purpose; (d) natural wear of the finish of the Products or wear caused by improper maintenance, use of corrosive and abrasive cleaning products, pads, and oven cleaner products; (e) chips, dents or cracks caused by abuse or misuse of the Products; (f) service trips to your home to teach you how to use the Products; (g) damage to the Products caused by accident, fire, floods, acts of God; or (h) Custom installations or alterations that impact serviceability of the Products. If you are outside our service area, additional charges may apply for shipping costs for warranty repair at our designated service locations and for the travel cost to have a service technician come to your home to repair, remove or reinstall the Products. After the first year from the date of your original purchase, you are also responsible for all labor costs associated with this warranty.

Limitations of Warranty. OUR OBLIGATION TO REPAIR OR REPLACE, AT OUR OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. WE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCTS. THE EXPRESS WARRANTIES IN THE PRECEDING SECTION ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES. WE HEREBY DISCLAIM AND EXCLUDE ALL OTHER EXPRESS WARRANTIES FOR THE PRODUCTS, AND DISCLAIM AND EXCLUDE ALL WARRANTIES IMPLIED BY LAW, INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states or provinces do not allow limitations on the duration of an implied warranty or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the same two-year period described above. Any oral or written description of the Products is for the sole purpose of identifying the Products and shall not be construed as an express warranty. Prior to using, implementing or permitting use of the Products, you shall determine the suitability of the Products for the intended use, and you shall assume all risk and liability whatsoever in connection with such determination. We reserve the right to use functionally equivalent refurbished or reconditioned parts or Products as warranty replacements or as part of warranty service. This warranty is not transferable from the original purchaser and applies in the United States and Canada.

To Obtain Service Under Limited Warranty: To qualify for warranty service, you must: (a) notify us at the address or telephone number stated below within 60 days of the discovery of the defect; (b) give the model number and part identification number and serial number; and (c) describe the nature of any defect in the Product or part. At the time of the request for warranty service, you must present evidence of your proof of purchase and proof of the original purchase date. If we determine that the warranty exclusions listed above apply or if you fail to provide the necessary documentation to obtain service, you will be responsible for all shipping, travel, labor and other costs related to the services.

Please check our website for any revisions, www.zephyronline.com.

Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368

AUG14.0401

PRODUCT REGISTRATION

Congratulations on your Zephyr range hood purchase! Please take a moment to register your new range hood at

www.zephyronline.com/registration

IT'S IMPORTANT

Prompt registration helps in more ways than one.

• Ensures warranty coverage should you need service.
• Ownership verification for insurance purposes.
• Notification of product changes or recalls.

Zephyr Ventilation | 2277 Harbor Bay Pkwy. | Alameda, CA 94502 | 1.888.880.8368

Anzio Island

ZAZ-M90CS

ZAZ-E42CS

Isometric line drawing of a 3D geometric structure with a central cube and base platform (no text or symbols)

Luce Island

ZLC-M90BS

ZLC-E42BS

Isometric line drawing of a cylindrical mechanical component mounted on a base plate (no text or symbols)

Roma Island

ZRM-E36DS

ZRM-E42DS

Isometric line drawing of a rectangular structure with internal components, mounted on a base (no text or symbols)

JAN17.0101 © Zephyr Ventilation LLC.

MISE EN GARDE DE SÉCURITÉ 2-3

LISTE DU MATÉRIEL 4

INSTALLATION

*National Fire Protection Association Batterymarch Park, Quincy, Massachusetts 02269

** CSA International 8501 East Pleasant Valley Road, Cleveland, Ohio 44131-5575

(20) M4 x 8 (ZLC x 8)

	ZAZ ZLC ZRM
A	31-1/2"	28"	28"
B	36"	32-1/2"	31"
C	50"	46-1/2"	39"
D	93-1/2" (7' 9-1/2")	90" (7' 6")	90" (7' 6")
E	98" (8' 2")	94-1/2" (7' 10+1/2")	93" (7' 9")
F	120" (10')	116-1/2" (9' 8-1/2")	109" (9' 1")

	ZAZ ZLC ZRM
A	47"	47"	50-1/2"
B	51"	51"	50-1/2"
C	80"	80"	80"
D	109" (9' 1")	109" (9' 1")	112^1/2 × (9' 4^1/2)
E	113" (9' 5")	113" (9' 5")	112^1/2 × (9' 4^1/2)
F	150" (12' 6")	150" (12' 6")	150" (12' 6")

CONDUIT D'AÉRATION

DEVANT CÔTÉ

DEVANT CÔTÉ

DESSUS de la HOTTE

FIG. B

FIG. G

Technical line drawing of a mechanical assembly with no visible text or symbols

FIG. F

Zephyr Ventilation Service Department, 2277 Harbor Bay Parkway, Alameda, CA 94502 1-888-880-8368

AUG14.0401

ENREGI STRMENT DU PRODUIT
