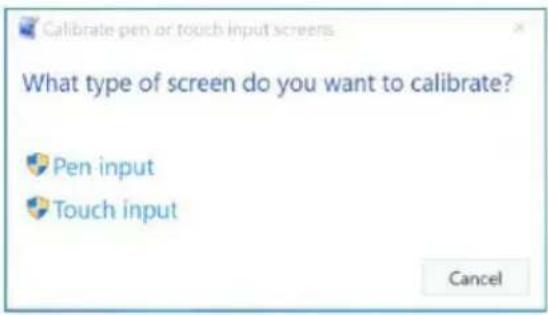

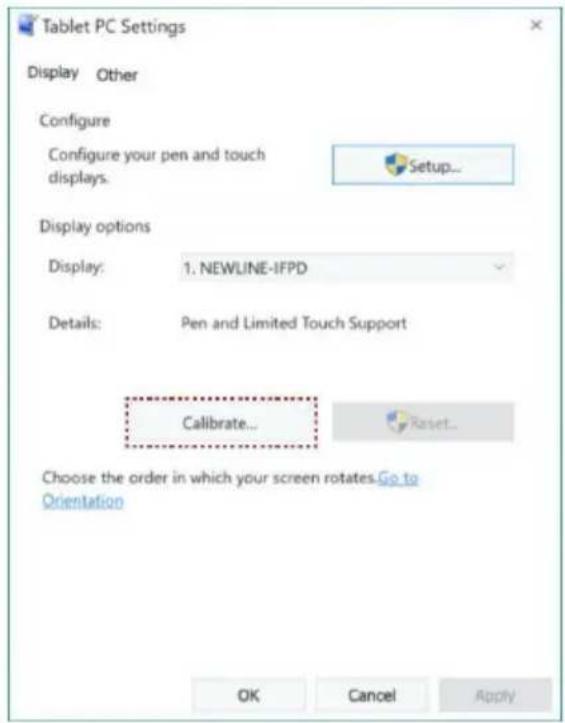

Calibration 19

D. Operating the Interactive Display 22

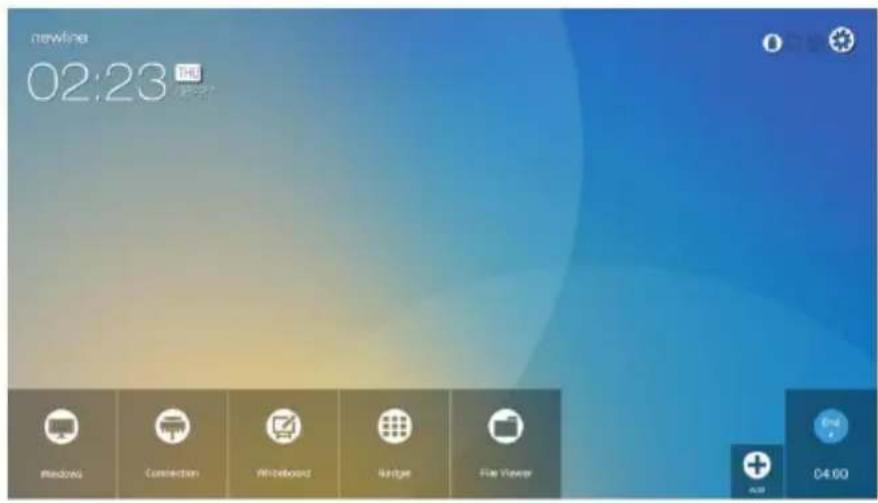

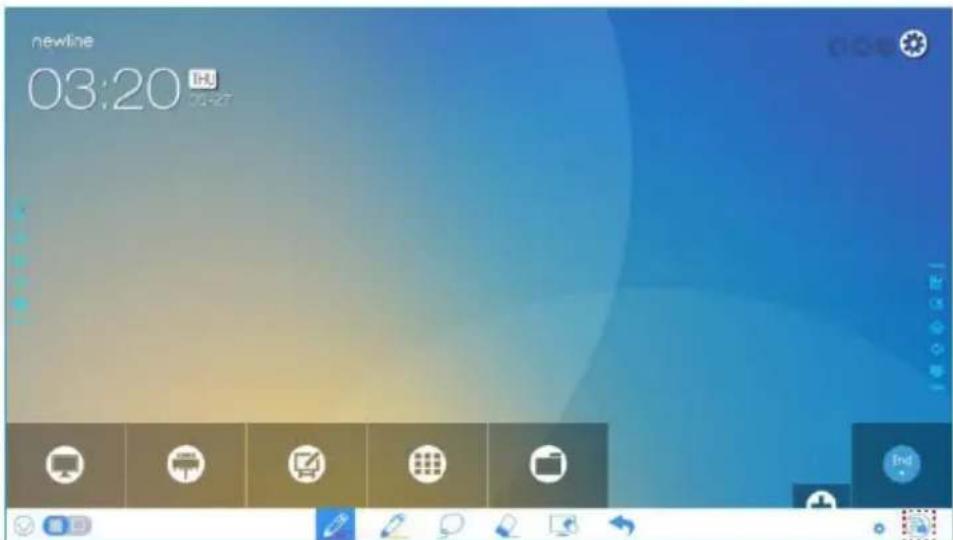

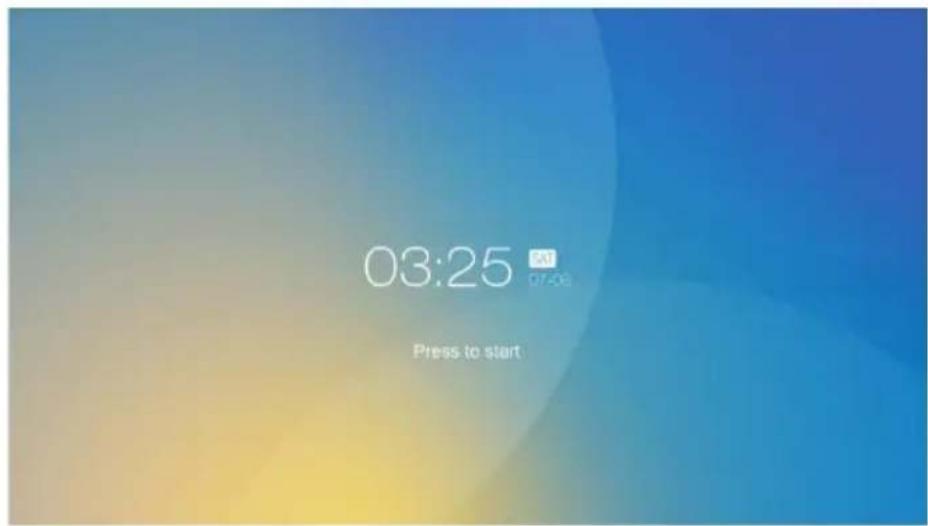

Start Screen 22

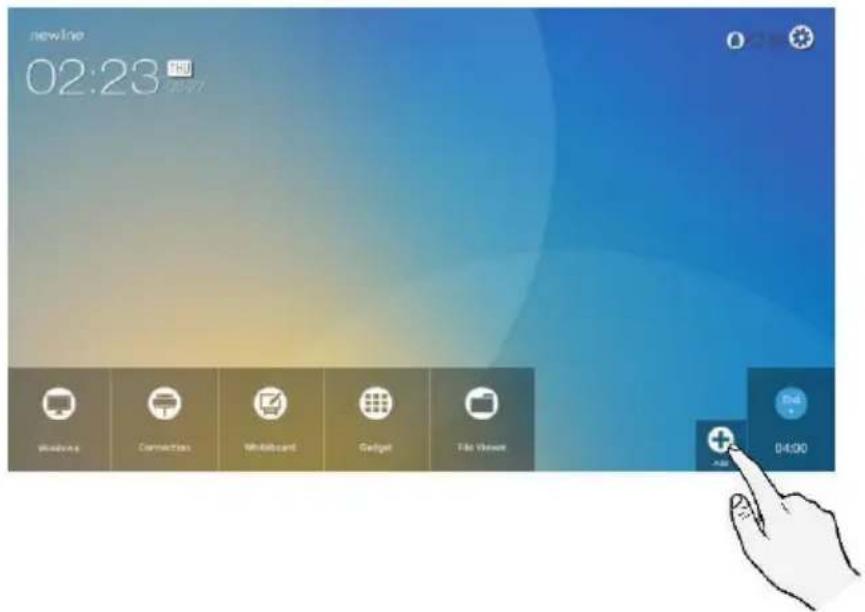

Home 22

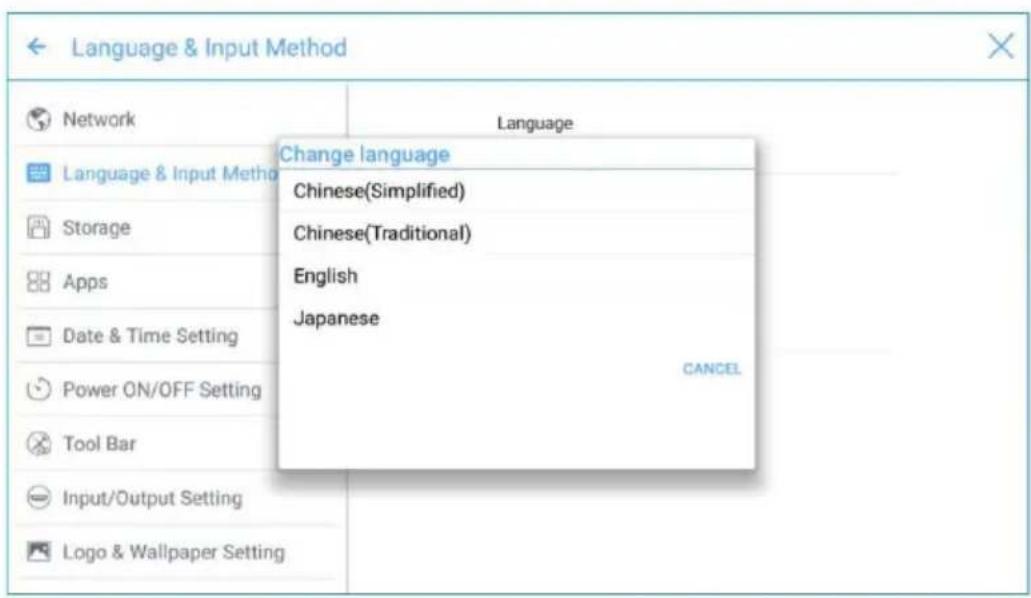

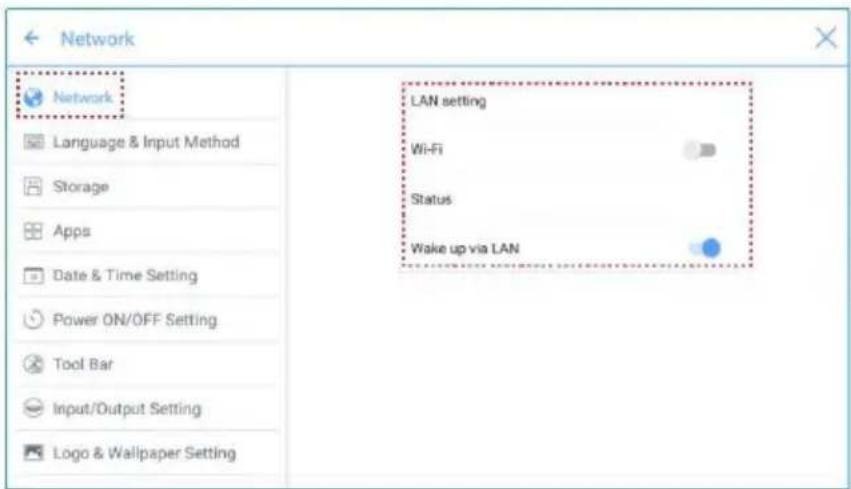

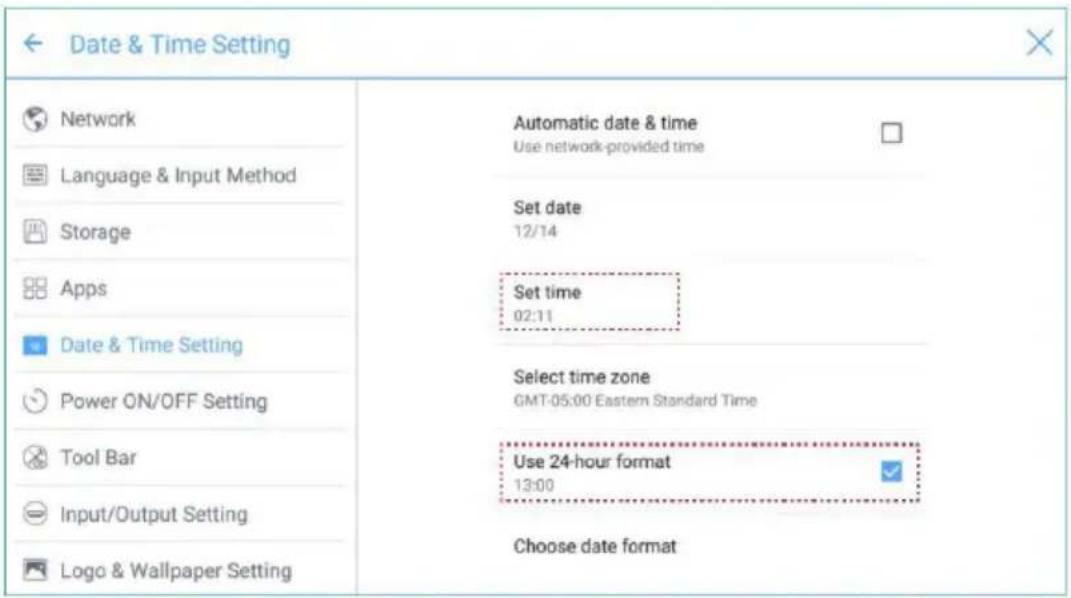

System Settings 27

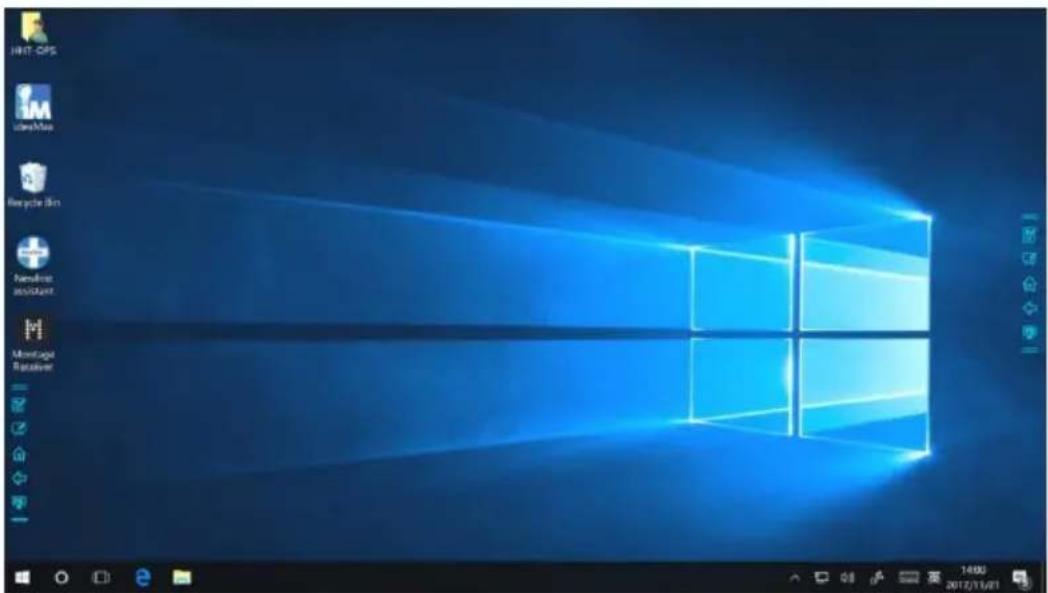

Windows 39

Connection 40

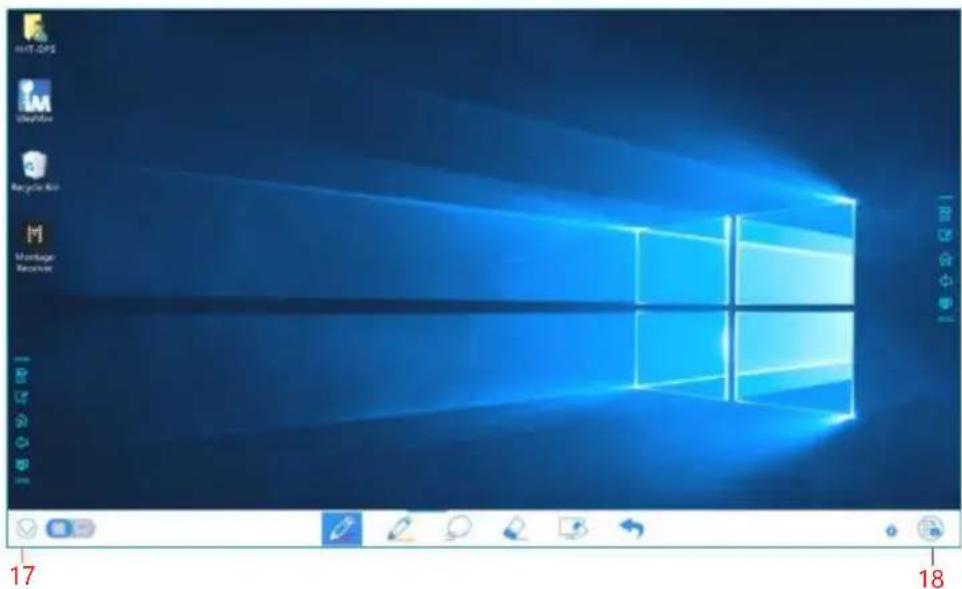

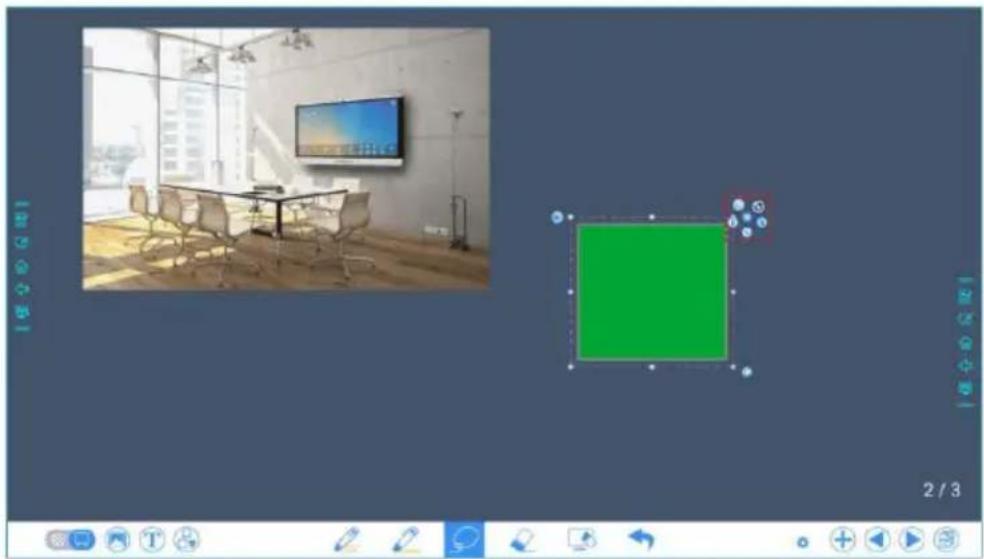

Whiteborad 40

Add Shortcut 53

Gadget 56

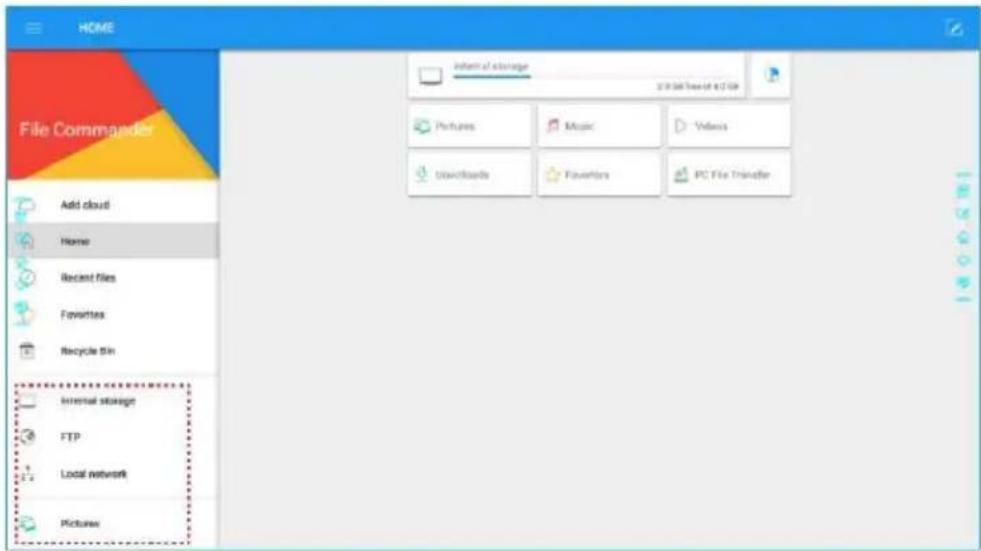

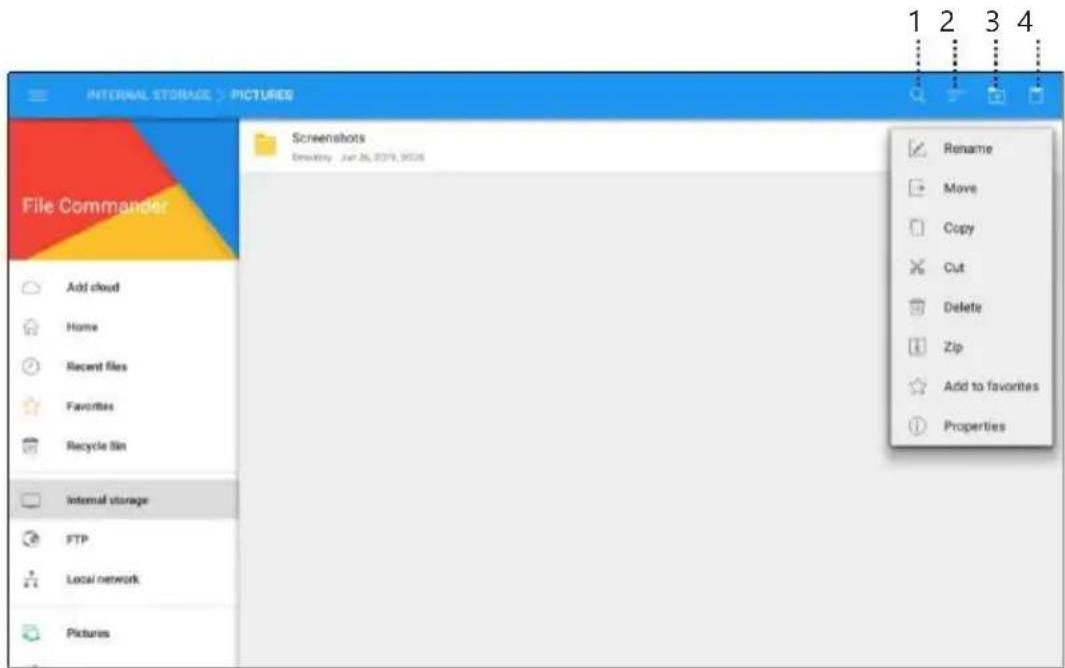

File Management 57

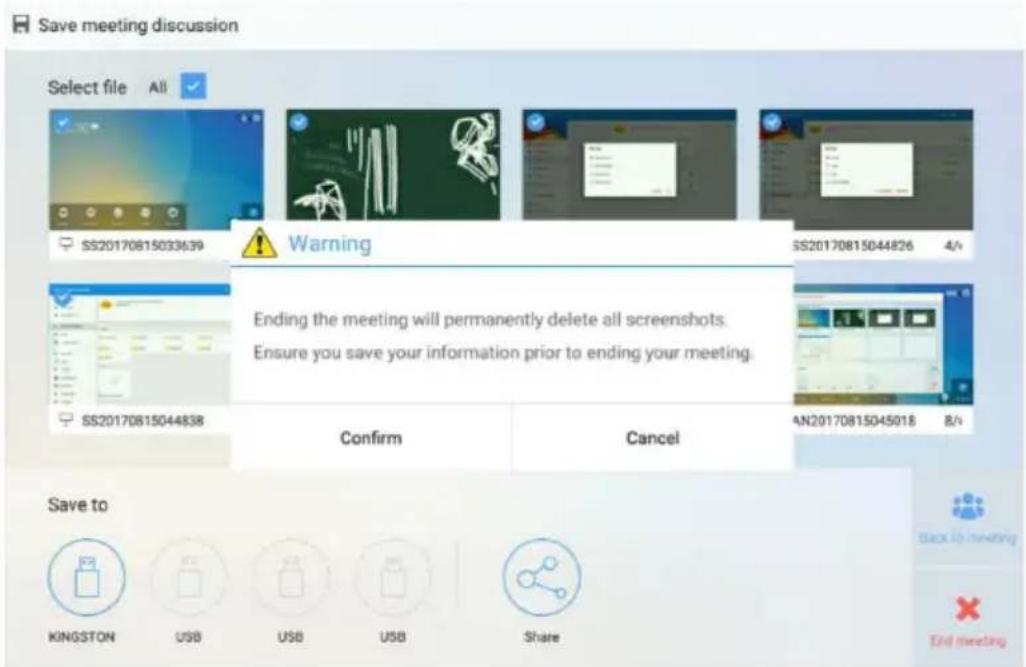

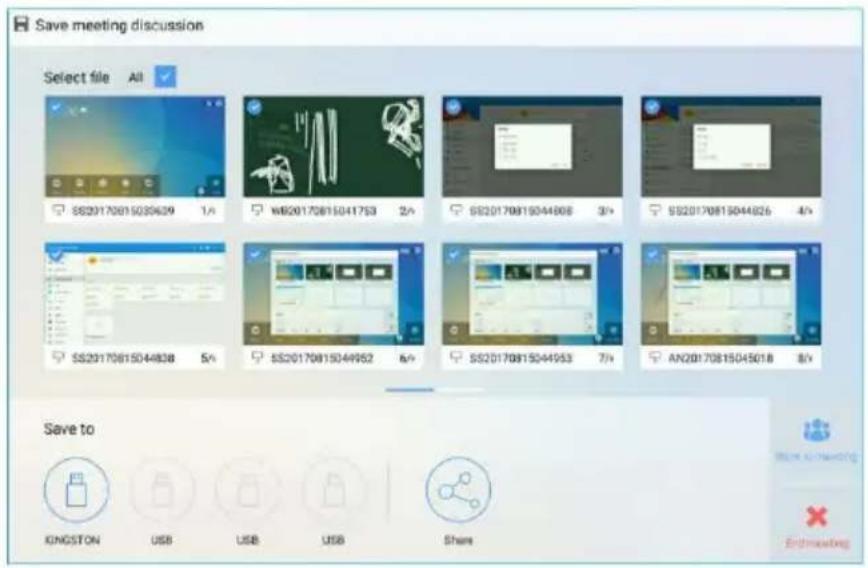

End Meeting 62

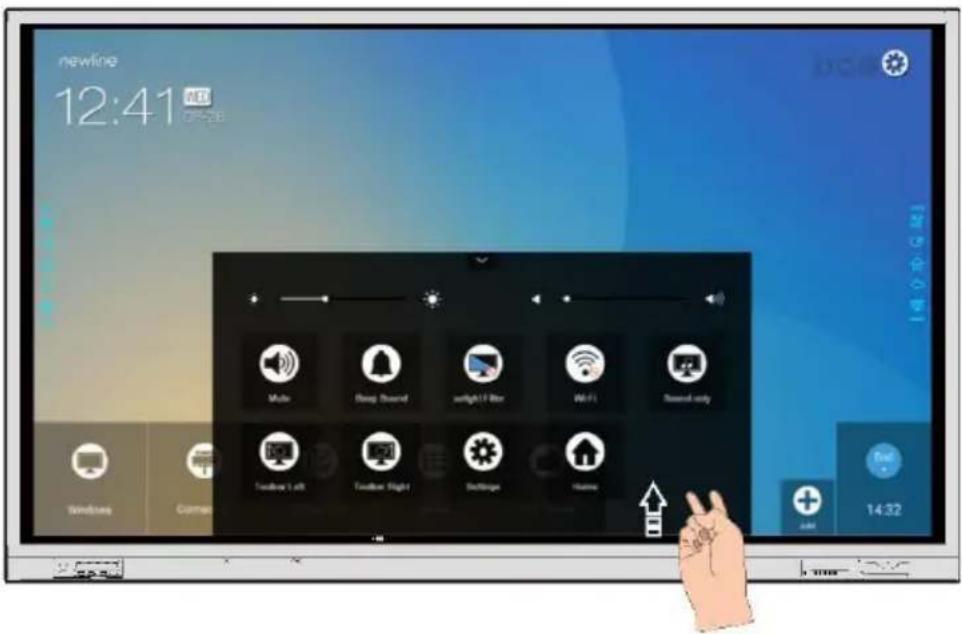

E. Quick Setting Menu 65

F. Serial Port Control 66

G. FAQs & Troubleshooting 71

H. Specifications 74

I. More Information 77

Welcome to the world of Newline.

Thank you for choosing the Newline VN Series interactive display. Please use this document to get the most out of your display.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The symbol of the crossed out wheeled bin indicates this product should not be placed in municipal waste. Instead, dispose of waste equipment by taking it to a designated collection point for electrical and electronic equipment recycling.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

About This Document

This document describes multiple functions, instructions, and notes about the product. Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows:

NOTE	Provides additional information to supplement operation in the main text.
TIP	Provides tips for operation.
CAUTION	Indicates a potentially hazardous situation that, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results.
[G7WS] WARNING	Indicates a hazard with risk that, if not avoided, could result in death or injury.

Safety Instruction

For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own.

WARNING
	Disconnect the product from power supply immediately if major failures occur.Major failures include the following:Smoke, peculiar smell or abnormal sound is discharged from the product.No image or sound is displayed, or the image error occurs.In the preceding scenarios, do not continue to use the product. Disconnect power supply immediately and contact professional staff for troubleshooting.
	Do not drop liquid, metal or anything combustible into the product.If any liquid or metal is dropped into the product, power off the product and disconnect power supply, then contact professional staff for solutions.Pay attention to children when they are close to the product.
[xxck] WARNING
	Put the product on a stable surface.An unstable surface includes and does not limited to an inclined plane, a shaky stand, desk or platform, which might cause turnover and damage.
	Do not open the cover or change the product on your own.High voltage components are installed in the product. When you open the cover, high voltage, electric shock, or other dangerous situations may occur.If inspection, adjustment, or maintenance is required, contact the local distributor for help.
	Use the specified power supply.To prevent the product from being damaged, do not use any cables other than the one provided with the product.Use a three-wire socket and ensure that it is properly grounded.Pull out the power plug from the socket if the product is not used for a long period.
	Clean the dust and metal on the power plug regularly.Fire or electric shock may be caused if the product is powered on, when you are cleaning.Pull out the power plug before cleaning it with a dried cloth.
	The voltage/current of the rear power output port is 5 V/2 A (maximum). Purchas the power code/AC adapter according to customer needs. The port can be used for Newline Android box X10D. Please do not connect any products with different power requirement. Otherwise, it may cause damage to products or fire.
	Do not put items on the top of the product.Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics or liquid medicine) on the top of the product.If any water or liquid is spilled on the product, a short circuit may occur and cause fire or electric shock.Do not walk on or hang any items on the product.
	Do not install the product in an improper place.Do not install the product in humid places, such as the bathroom, the shower room, near windows, or outdoor environments that experience rain, snow or other harsh weather. Avoid installation near hot spring vapor. The preceding environments may cause faults in the product or electric shock under extreme conditions.Do not put exposed fire source, such as an ignited candle, on the product.
	Pull out the power plug during thunderstorms.Do not touch the product during a lighting storm to avoid electric shock.Install or place components that supply high enough voltage to cause personal injury out of the reach of children.
WARNING
	Do not touch the power cable with wet hands.

CAUTION
	Do not install the product in high temperature environments.Do not install the product near a heat source, such as a radiator, a heat reservoir, a stove or other heating products.Do not expose the product to direct sunlight, which may cause high temperatures and subsequent faults in the product.
	For transport.Pack the product for transport or maintenance by using the cartons and cushioning material provided with the product.Vertically move the product during transport. The screen or other components are easily broken if the product is moved by an improper way.Before you move the product, disconnect all external connections and separate all toppling preventing products. Move the product carefully to prevent it from being hit or squeezed, especially the screen, which may cause injury if broken.

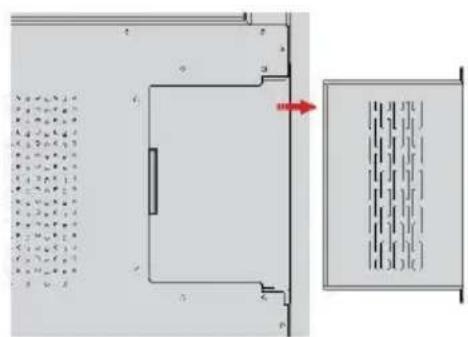

	Do not cover or block up any vents on the product.Any overheated components may cause fire, damage the product, and shorten the service life.Do not lay the product down where the venting surface will be covered.Do not install the product on a carpet or cloth.Do not use a cloth such as table cloth to cover the product.
	Use the battery correctly.Galvanic corrosion, electric leakage, and even fire may be caused by improper battery usage.It is recommended to use the designated type of battery and install the battery by correct electrodes (positive and negative).Do not install and use a new battery with a used one.Take out the batteries if the remote control is not used for a long period.Do not expose the batteries to overheated environments such as sunlight and firing.Dispose of the used batteries based on your local regulations.
	Do not damage the power cable.Do not damage, change, twist, bend, or forcibly drag the power cable.Do not put weights (such as the product itself) on the power cable.Do not forcibly drag the cable when you pull out the power plug. If the power cable is damaged, please contact the local distributor to repair or replace it.
	The power cable in the accessory box is for this product only. Do not use it on other products.
	Additional advice:Use the product in an environment with comfortable lighting. It is harmful to your eyes to watch in a too bright or too dark environment.Relax your eyes after a period of time for watching.Keep sufficient distance from the product to protect your eyes and prevent eyestrain.Adjust the volume to an appropriate level, especially at night.Use amplifier equipment as the audio input source with caution. If you must use amplifier equipment, the input power should not exceed the maximum of speaker power. Otherwise, the speaker can become overpowered and damaged.
	About USB port.Front USB 2.0 ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged.
	Screen glass is broken or falls off.In case of screen glass breakage, keep all personnel 3 meters away from the screen to ensure safety.Do not perform any installation or disassembly when the screen glass is broken or falls off.
	Keep away from the product when you use a radio.The product complies with the international EMI standard to pervent radio interference. However, interference may still exists and causes noise in the radio. If noise occurs in the radio, try the following solutions.Adjust the direction of the radio antenna to avoid the interference from the product.Keep the radio away from the product.

Introduction

The Interactive Touch display adopts the advanced touch technology and All in One design, and integrates video, audio, touch, writing, and multi-media presentation functions. This product does not require additional products, installation and wiring, and commissioning and maintenance to function.

Dedicated smart system is customized as a meeting assistant. It can meet requirements of various meeting modes, implementing convenient comments on local documents, viewing multi-media files, conducting multi-party remote video and audio meetings, managing local files, and improving the meeting experience and work efficiency.

- All-in-one design facilitates operation and saves complex hardware and software setting. - 4K HD LED screen uses full lamination technology and high gamut backlight, which completely avoids light refraction and ghosting problems and enables a clear, light and thin screen.

- Provide perfect writing experience, enable writing mode to be switched over in the Windows and smart systems, and automatically identify pen thickness and color. With a feel like writing on paper, meeting quality is significantly improved.

Parts

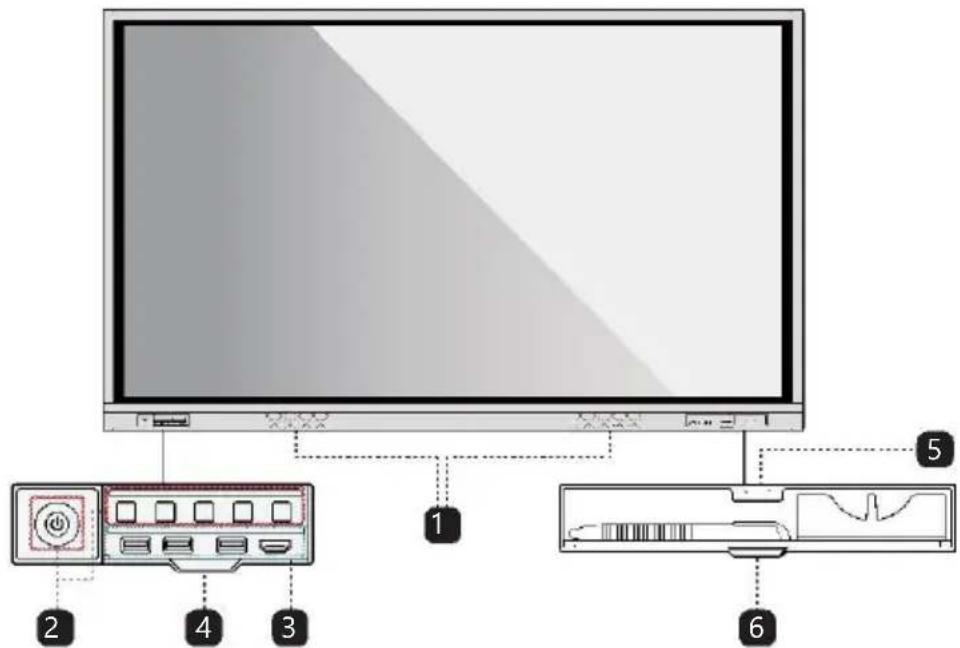

◆ Front View

Diagram of a computer monitor with labeled components including front panel, display screen, and ports

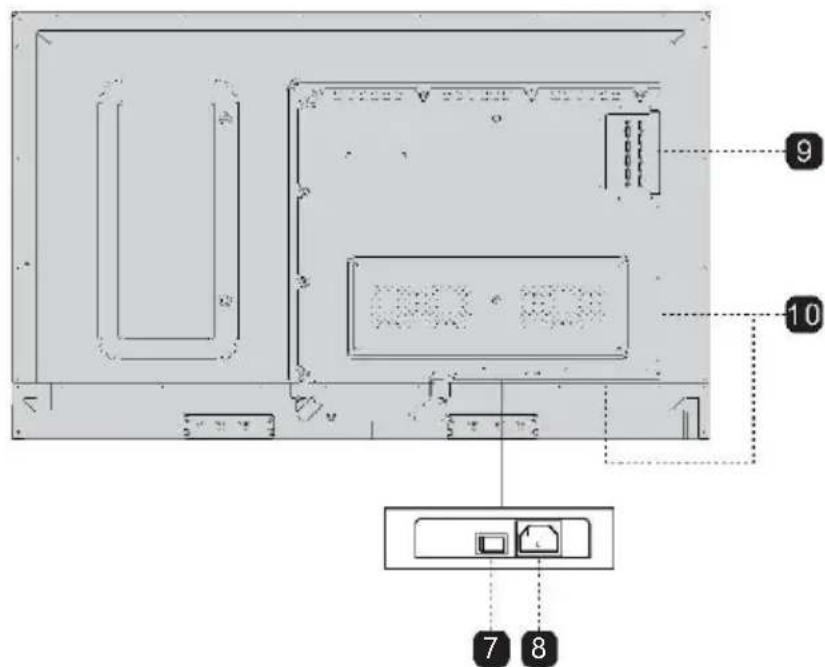

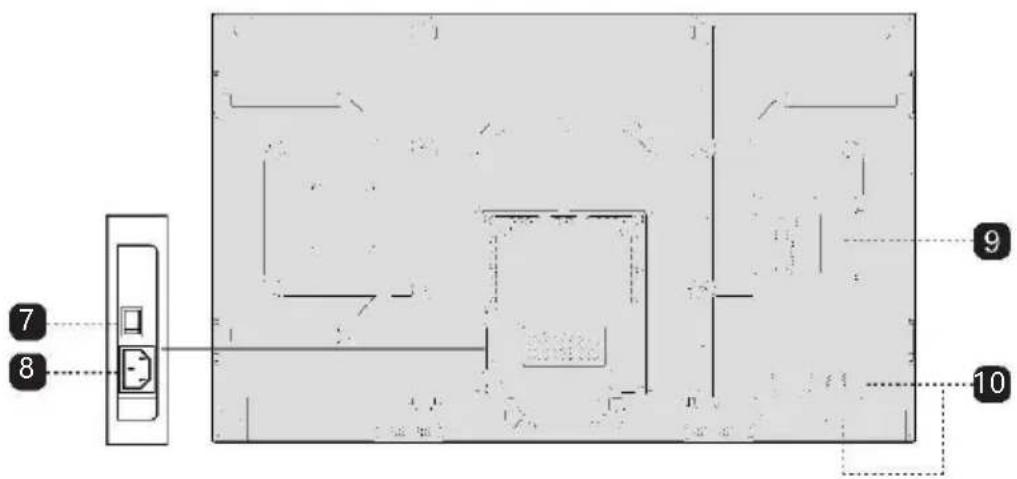

◆ Rear View

• TT-8618VN/TT-7518VN

7 8 9 10

• TT-6518VN

Technical diagram of a device front panel with numbered annotations pointing to internal components and ports.

1 Speakers
3 Front Ports
5 Pen/Eraser Tray
7 Power Switch
9 Internal PC Port (OPS)

2 Front Buttons
4 Button Cover
6 Pen/Eraser Tray Cover
8 Power Supply Plug
10 Rear Ports

Ports

CAUTION

Front USB 2.0 ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged.

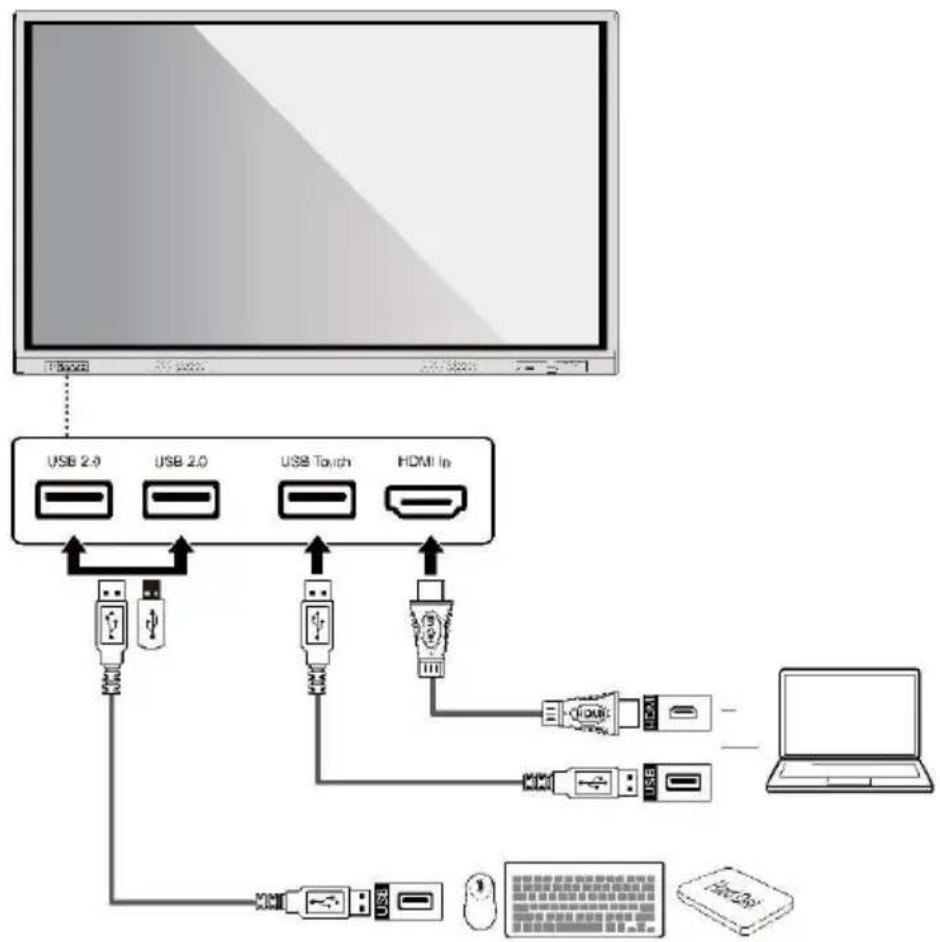

◆ Front Ports

◆ Rear Ports

WARNING

The voltage/current of the rear power output port is 5V/2A (maximum). Purchase the power code/AC adapter according to customer needs. The port can be used for Newline Android box X10D. Please do not connect any products with different power requirement. Otherwise it may cause the damage to products or fire.
        C1["TT-8618VN/TT-7518VN"]
        C2["TT-6518VN"]
    end

    subgraph Power_Layer
        C3["Power Output 10V/10Hz"] --> C4["Power Output 10V/10Hz"]
        C5["Power Output 10V/10Hz"] --> C6["Power Output 10V/10Hz"]
        C7["Power Output 10V/10Hz"] --> C8["Power Output 10V/10Hz"]
        C9["Power Output 10V/10Hz"] --> C10["Power Output 10V/10Hz"]
    end

    style Top_Trip fill:#f9f,stroke:#333
    style Bottom_Trip fill:#ccf,stroke:#333

Tip:

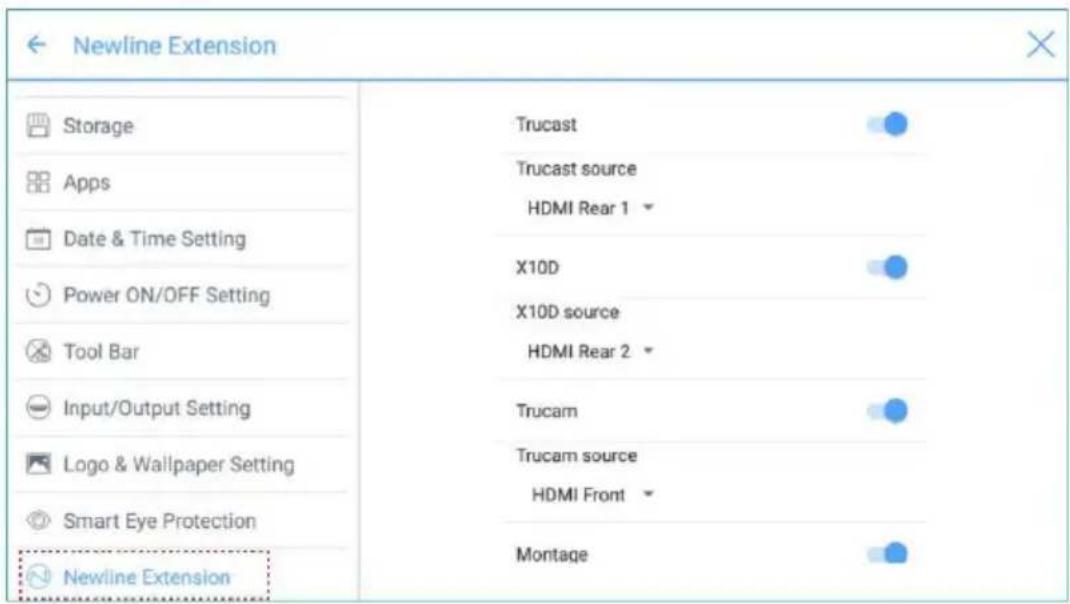

You are advised to connect X10D to HDMI rear 2.

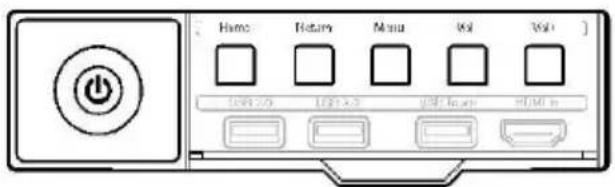

◆ Front Buttons

Home Rotary Menu 100 100/2.0 100/1.5 100/1.0 100/1.5 100/1.0

Buttons	Operations	Functions
Power	Short press	Power on/offIndicator LED status:Steady on red: shut down modeSteady on blue: working state
Home	Short press	Go to the home page
Return	Short press	Return to the last menu/Exit
Menu	Short press	Open the menu
Vol-	Short press	Decrease the sound volume
	Long press for more than 1 second	Decrease the sound volume continuously
Vol+	Short press	Increase the sound volume
	Long press for more than 1 second	Increase the sound volume continuously

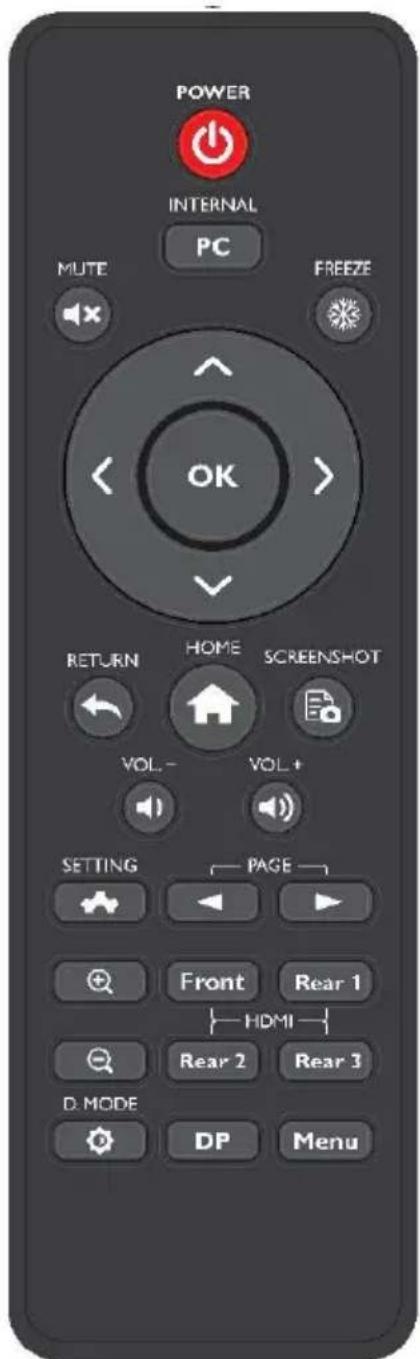

Remote Control

CAUTION

Carefully read the following instructions before using the remote control to avoid possible faults:

• Do not drop or damage the remote control.
• Do not spill water or other liquids on the remote control.
• Do not place the remote control on a wet object.
• Do not place the remote control directly under sunlight or near an overheating heat source.

Buttons	Functions
	Power On/Off.
PC	Switch Source to Internal PC.
	Mute Audio.
	Freeze the Current Screen, Click Again to Exit Freeze Function.
OK	Confirm/OK.
	Up/Down/Left/Right.
	Return to Previous/Exit.
	• Short Press: Go to the Home Page.• Long Press: View Currently Running Applications.
	Take a Screenshot.
	Decrease the Sound Volume.
	Increase the Sound Volume.
	Open the System Settings.
	Page Up.
	Page Down.
	Zoom In.
	Zoom Out.

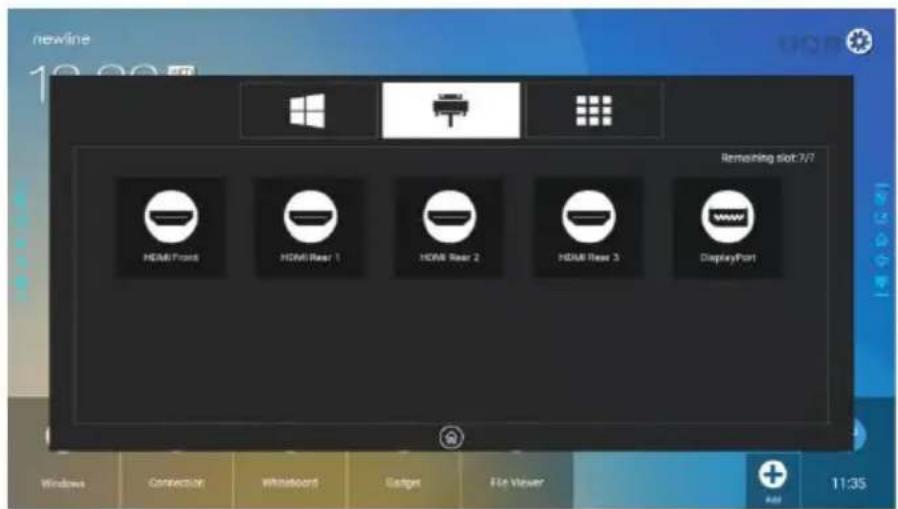

Front	Switch Source to HDMI Front.
Rear 1	Switch Source to HDMI Rear 1.
Rear 2	Switch Source to HDMI Rear 2.

Buttons	Functions
Rear 3	Switch Source to HDMI Rear 3.
	Toggle Display Backlight Mode (including Auto, Standard and EnergyStar mode).
DP	Switch Source to DisplayPort.
Menu	Open the Display Menu or External Source Menu.

POWER INTERNAL PC MUTE FREEZE OK RETURN HOME SCREENSHOT VOL- VOL+ SETTING PAGE Front Rear 1 HDMI Rear 2 Rear 3 D MODE DP Menu

Temperature Control

In certain special installation or operation environments, the ventilation condition of the screen is poor and the heat dissipation efficiency is low. As a result, the internal temperature can rise. When the internal temperature sensor detects that the temperature has reached the threshold, the system will go to shut down mode to avoid any permanent damages to the components caused by high temperature. Please check the device and environment, and turn the power on again.

Safety Precautions

◆ Installation Environment

Prohibition sign indicating no lightning bolt symbol with red prohibition circle

Avoid Electric Shock

(N L)

Avoid Strong Magnetic Field

120°F

Keep Temperature Below 120°F(≤50℃)

Prohibition sign with red circle and black droplet pattern, indicating no pollution or water release

Keep Relative Humidity Under 70%

Prohibition sign with a red circle and black explosion symbol, indicating no chemical hazard or toxicity.

Keep Away From Combustible Vapors (gas leaks, etc.)

Prohibition sign with pictogram of incorrect substances and a red circle, indicating no smoking or anti-smoking.

Avoid Any Corrosive Liquids

Prohibition sign with red prohibition symbol and house icon, indicating no fire or debris hazard

Do Not Use Outdoors

Prohibition sign indicating no traffic or road restriction, featuring a red circle with dashed arrows and a diagonal line.

Do Not Install Tilted

◆ Installation Direction

Simple illustration of a blank rectangular frame with a green checkmark icon (no text or symbols)

Hang the Product Horizontally

Pure diagram of a rectangular panel with a diagonal line and a red prohibition symbol (no text or labels)

No Vertical Installation

Do Not Install Tilted

Simple line drawing of a flat-screen monitor with a red prohibition symbol (no text or labels)

Do Not Lay Flat

Installation Precautions

◆ Weight Loading

Weight of the product: 86 lb/39 kg (TT-6518VN), 111.3 lb/50.5 kg (TT-7518VN), 137.8 lb/62.5 kg (TT-8618VN)

• When using a mobile stand, please ensure the weight of the product is less than the loading capacity of the mobile stand.
• When using the wall-mount bracket, please ensure the wall can support the weight of the product. We recommend that the wall surface be reinforced and have a loading capacity 4 times of the weight of the product. Please consult a professional installer for wall-mount installation.

Note

The company does not undertake relevant legal responsibility for any problems caused by improper operation, if the third party mobile stand, or wall-mount bracket is beyond the scope of the product.

- Do not install the product where it might be hit by a door.

◆ Vertical installation

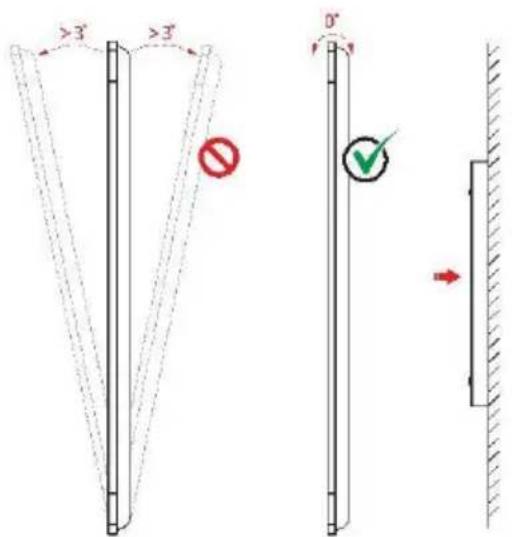

When installing, try to keep the product vertical. The vertical tilt range allowing for wall-mount installation is ±3 degrees. Excessive tilt angle may cause the screen glass to fall off or the product to collapse.

≥3' ≥3' 0' ✓ →

Note

For any problem, please contact our support desk. Our company is not responsible for any damage or losses incurred by users if the users fails to follow the instructions.

◆ Ventilation

Ensure adequate ventilation and/or air conditioning environment. We recommend keeping certain distances from the side of the product to the wall or panels. Ventilation requirement is shown in following figure.

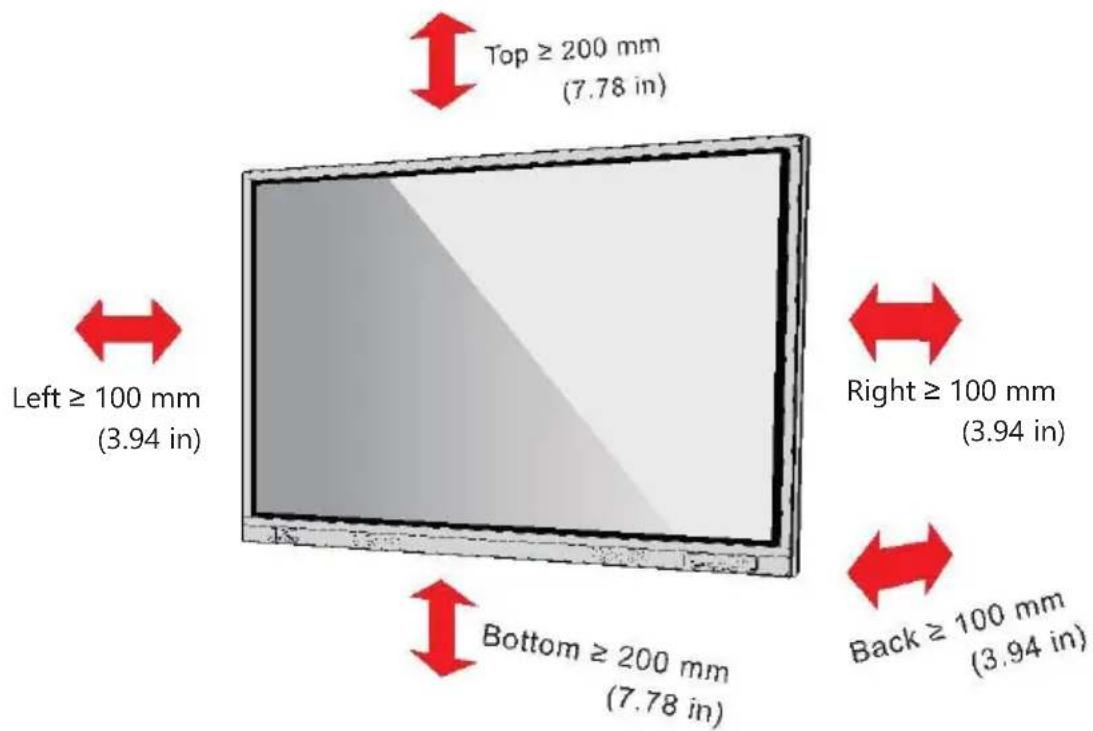

Top ≥ 200 mm (7.78 in) Left ≥ 100 mm (3.94 in) Right ≥ 100 mm (3.94 in) Bottom ≥ 200 mm (7.78 in) Back ≥ 100 mm (3.94 in)

Installation

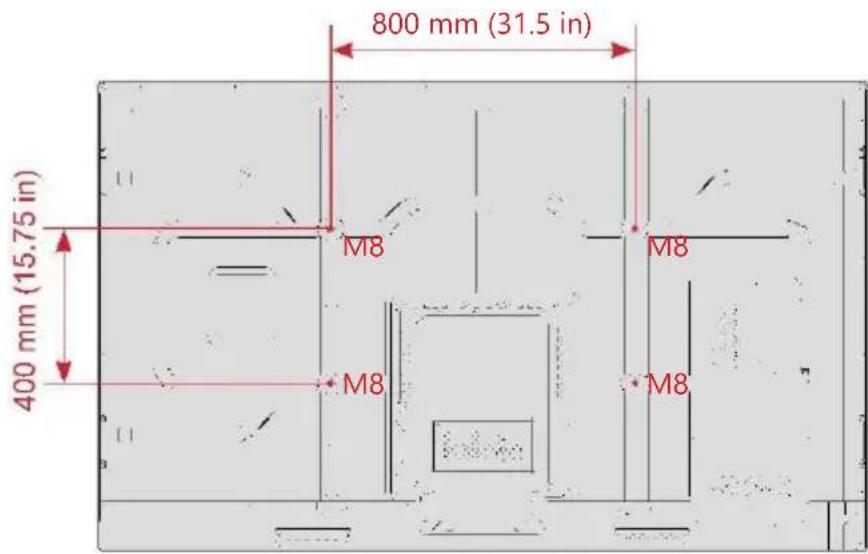

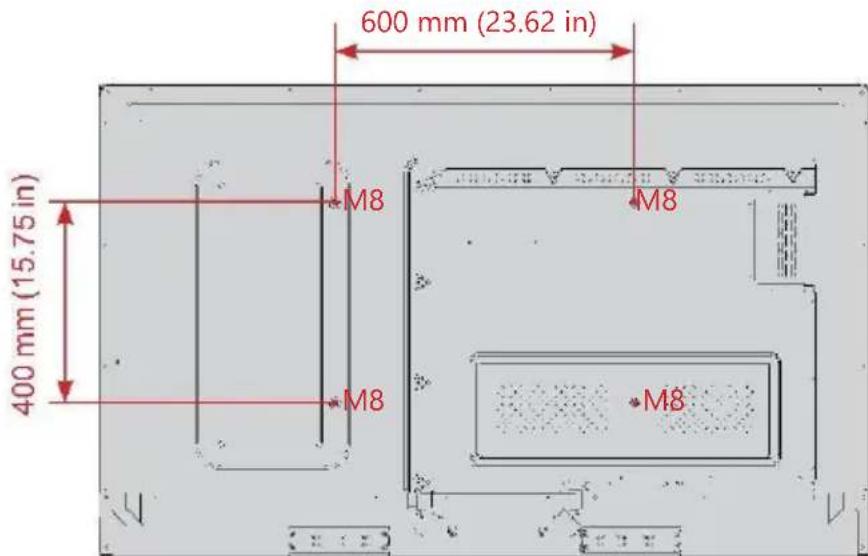

The dimensions of the 4 bracket mounting holes on the back panel are VESA MIS-Fcompliant (TT-8618VN or TT-7518VN: 800 x 400 mm/31.50 x 15.75 in; TT-6518VN: 600 x 400 mm/23.62 x 15.75 in). Please use metric M8 screws with length of 10 to 15 mm (0.40 to 0.59 in) to secure the touch display with the mounting system. Dimensions of the mounting holes on the back panel are shown in the following figure.

Note

Please consult a professional installer to install the display product.

• TT-8618VN/TT-7518VN

800 mm (31.5 in) 400 mm (15.75 in) M8 M8 M8 M8

• TT-6518VN

600 mm (23.62 in) 400 mm (15.75 in) M8 M8 M8 M8

Installing the Internal PC (Optional)

CAUTION

The internal PC does not support hot plugging. Therefore, you must insert or remove it when the display is powered off. Otherwise, the display or internal PC may be damaged.

The internal PC is not configured by default. You will need to purchase the internal PC separately. Perform the following steps to install the internal PC.

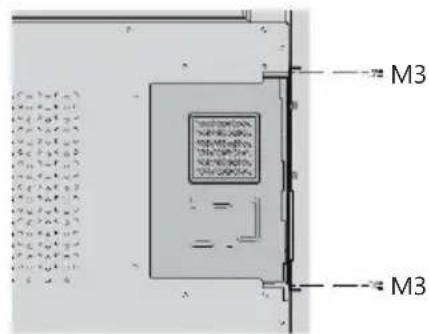

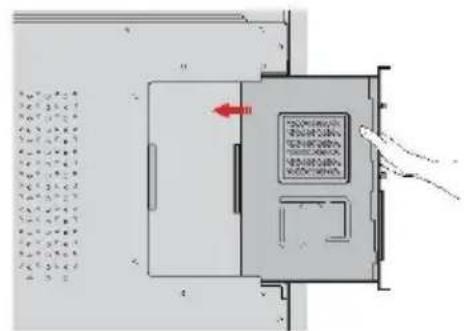

Step 1: Unscrew the M3 screws by hand to remove the internal PC shielding cover.

Diagram showing a door with internal structure and a directional arrow, possibly indicating movement or flow in a technical or architectural layout.

Step 2: Push the internal PC into the internal PC port at the rear of the display from right to left.

Diagram showing a device with labeled ports and directional arrow, possibly indicating movement or flow in a layout.

Step 3: Secure the internal PC to the display by using the M3 screws.

M3 M3

Step 4: Ensure the installation is correct before turning the power on again.

Technical diagram showing a microchip with labeled pins and internal circuit connections

Installing Newline Assistant

◆ Introduction

Newline Assistant is the tool used as a bridge between smart system and Internal PC (OPS). It helps to add windows software to smart system as well as to protect USB data/camera when switching between sources.

Therefore we strongly recommend users install NewlineAssistant after installing the internal PC.

◆ Installation

Step 1: Install Internal PC correctly.

Step 2: On the Home page, click Windows. It will switch the signal source to Internal Windows system.

Step 3: Log in to the website www.newline-interactive.com and choose Products > VN series

Download to download the NewlineAssistant installation package.

Step 4: Install NewlineAssistant as instructed.

Power On

Step 1: Plug the power supply into the power outlet fully and plug the power connector into the side of the product. Ensure the power is in the range of 100V to 240V with frequency at 50 Hz/60 Hz ± 5%. The power current must be grounded.

Note

The power outlet should be installed near the equipment and should be easily accessible.

Step 2: Flip on the power switch located on the side of the product to "On".

• TT-8618VN/TT-7518VN Power Switch Power Supply Plug • TT-6518VN Power Supply Plug Power Switch

Step 3: Press the power button ⏻ on the front control panel ⏻ on the remote control.

Power Off

Step 1: Power off the screen in the following situations:

- If there is no whiteboard data or screenshot(s), press the power button ⏻ on the front panel or the power button ⏻ on the remote control to power off the display. Go to Step 4.

- If there is whiteboard data or screenshot(s), store your meeting documentations before powering off the touch display. Otherwise, the product will delete your meeting documentations after the meeting is complete.

Press the power button ⏻ on the front panel or the power button ⏻ on the remote control. The Save meeting discussion page will be displayed as shown in the following figure.

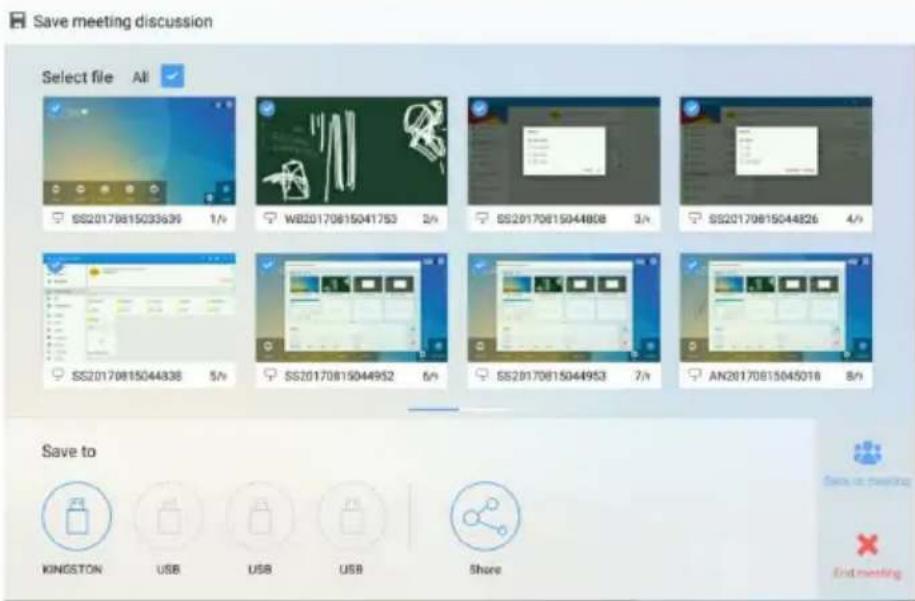

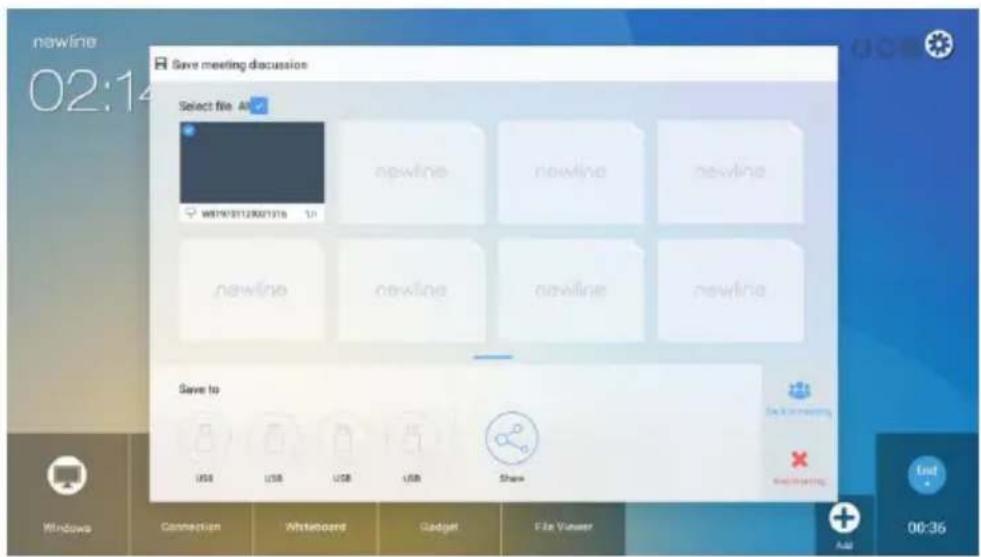

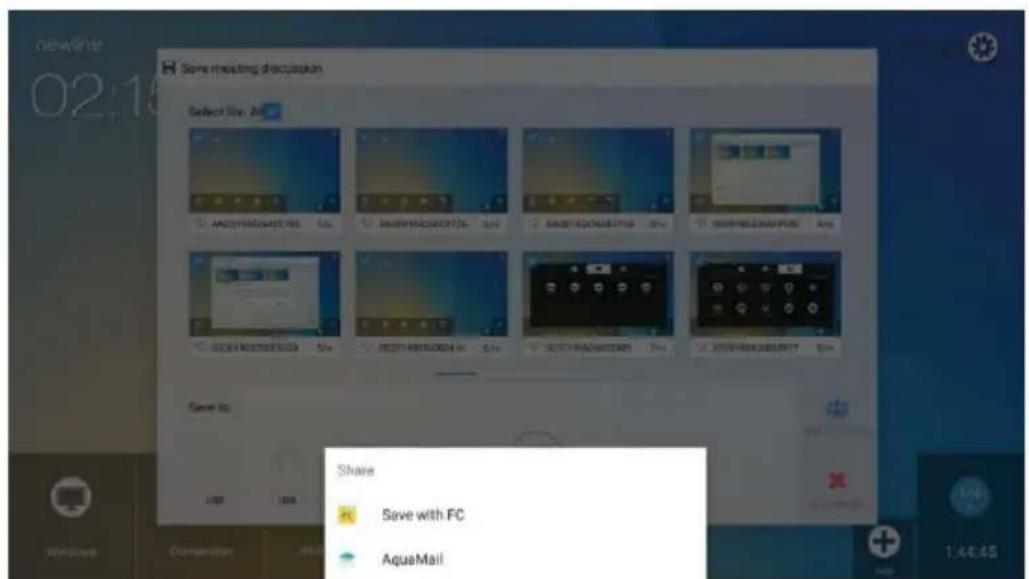

newline 02:14 Save meeting discussion Select file All newline newline newline newline newline newline newline newline newline Save to USB USB USB USB Share Windows Connection Whiteboard Gadget File Viewer End 00:36

Step 2: Press the power button ⏻ on the front panel or the power button ⏻ on the remote control again. The Warning dialog box will be displayed as shown in the following figure.

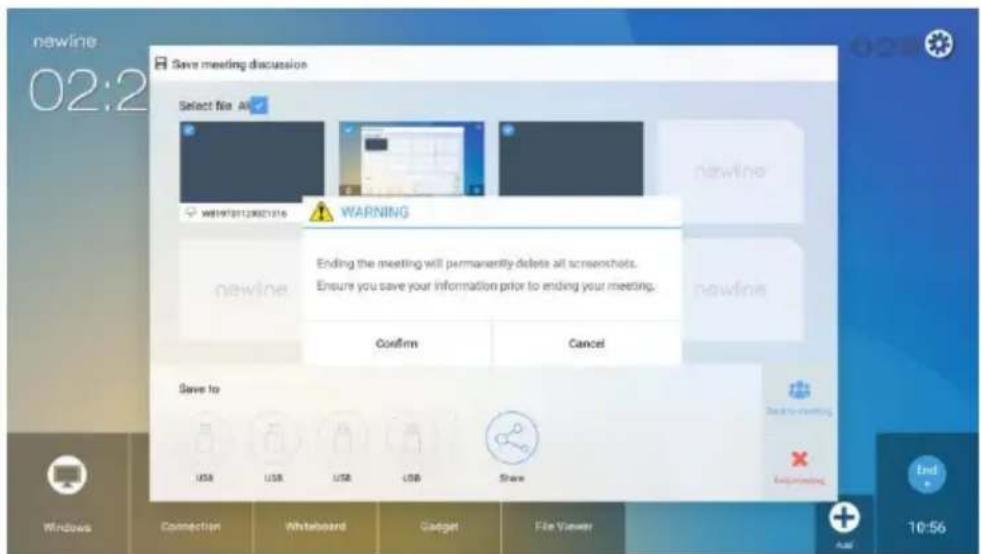

newline 02:2 Save meeting discussion Select file All WARNING Ending the meeting will permanently delete all screenshots. Ensure you save your information prior to ending your meeting. Confirm Cancel Save to USB USB USB USB Show Back to viewing End 10:56 Windows Connection Whiteboard Cadget Fly Viewer

Step 3: In the Warning dialog box, click Cancel. You can save files if desired. After files are saved, return to Step 2. Click Confirm, and the power indicator will turn to red.

Step 4: If you are not going to use the product for an extended period of time, we recommend you to switch the power switch to "Off".

Note

• If an internal PC is equipped, the internal PC and the display are powered off simultaneously when you power off the system.
• Do not forcibly disconnect the power supply of the display when the internal PC is on.

Calibration

If the cursor position has a big deviation from the actual touch point, calibration is used to eliminate the deviation. Positioning is required in the following scenarios:

• The internal PC is used.
• A computer is connected through the HDMI or DisplayPort interface.

Note

Interface operation on the Smart system does not need positioning. External products with Microsoft Windows 7 or later versions will require positioning.

If the positioning is not correct, perform the following operations to calibrate again. The following takes Windows 10 as an example:

Step 1: Ensure that the HDMI or DP interface and external products are connected properly.

Step 2: Select the corresponding Windows signal from the signal source menu. The Windows page will be displayed.

Step 3: Select Tablet PC Settings on the Control Panel page.

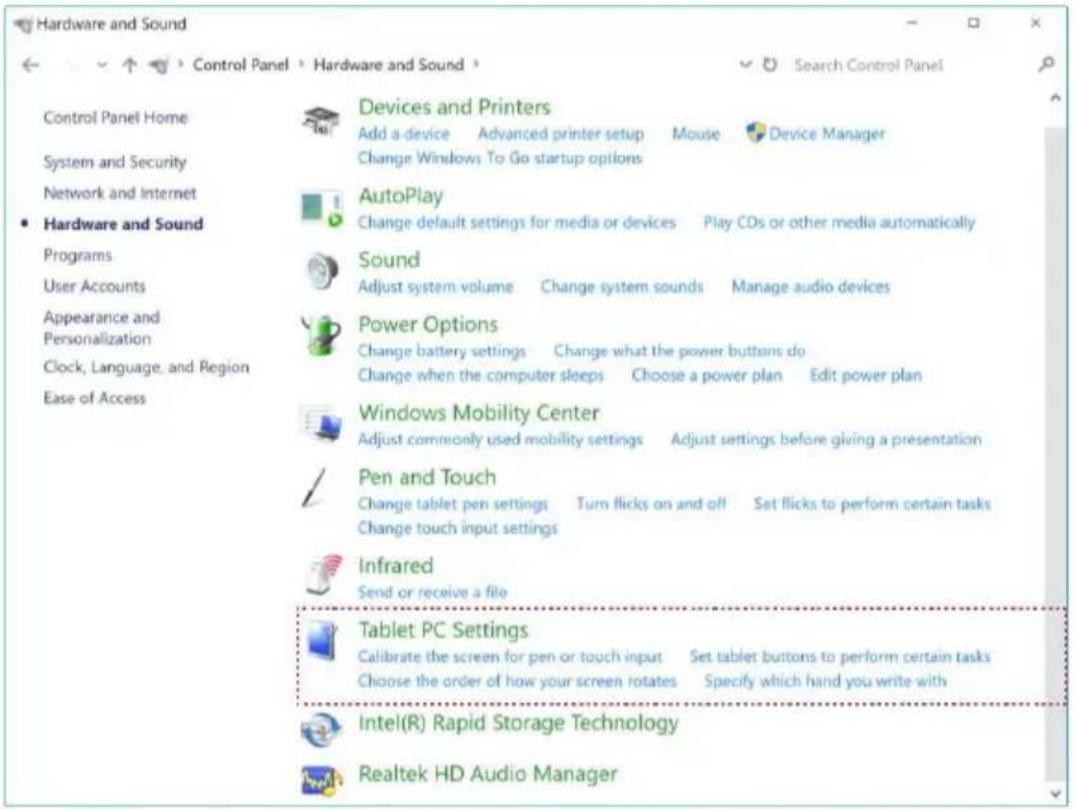

Hardware and Sound Control Panel > Hardware and Sound > Search Control Panel Control Panel Home System and Security Network and Internet • Hardware and Sound Programs User Accounts Appearance and Personalization Clock, Language, and Region Ease of Access Devices and Printers Add a device Advanced printer setup Mouse Device Manager Change Windows To Go startup options AutoPlay Change default settings for media or devices Play CDs or other media automatically Sound Adjust system volume Change system sounds Manage audio devices Power Options Change battery settings Change what the power buttons do Change when the computer sleeps Choose a power plan Edit power plan Windows Mobility Center Adjust commonly used mobility settings Adjust settings before giving a presentation Pen and Touch Change tablet pen settings Turn flicks on and off Set flicks to perform certain tasks Change touch input settings Infrared Send or receive a file Tablet PC Settings Calibrate the screen for pen or touch input Set tablet buttons to perform certain tasks Choose the order of how your screen rotates Specify which hand you write with Intel(R) Rapid Storage Technology Realtek HD Audio Manager

Step 4: Select Calibrate... in the Tablet PC Settings window.

Tablet PC Settings Display Other Configure Configure your pen and touch displays. Setup... Display options Display: 1. NEWLINE-IFPD Details: Pen and Limited Touch Support Calibrate... Reset... Choose the order in which your screen rotates Go to Orientation OK Cancel Apply

Step 5: Select Touch input from the option and start calibration.

Calibrate pen or touch input screens What type of screen do you want to calibrate? Pen input Touch input Cancel

Step 6: Use finger or pencil to click and hold the center of the flickering cross +. Do not release it until moves to the next positioning point. Complete the calibration process as instructed.

Blank white rectangle with thin border (no text or symbols)

Step 7: After the calibration is complete, the Digitizer Calibration Tool dialog box will be displayed. Click Yes to save calibration data.

Digitizer Calibration Tool Do you want to save the calibration data? Yes No

• To ensure writing accuracy, use the pencil or stylus included with the product for proper positioning.
• Positioning errors may cause failure of touch functions of the display. In that case, please perform positioning again.

Step 8: The Tablet PC Settings dialog box will be displayed again. Click OK. The positioning will be complete.

Start Screen

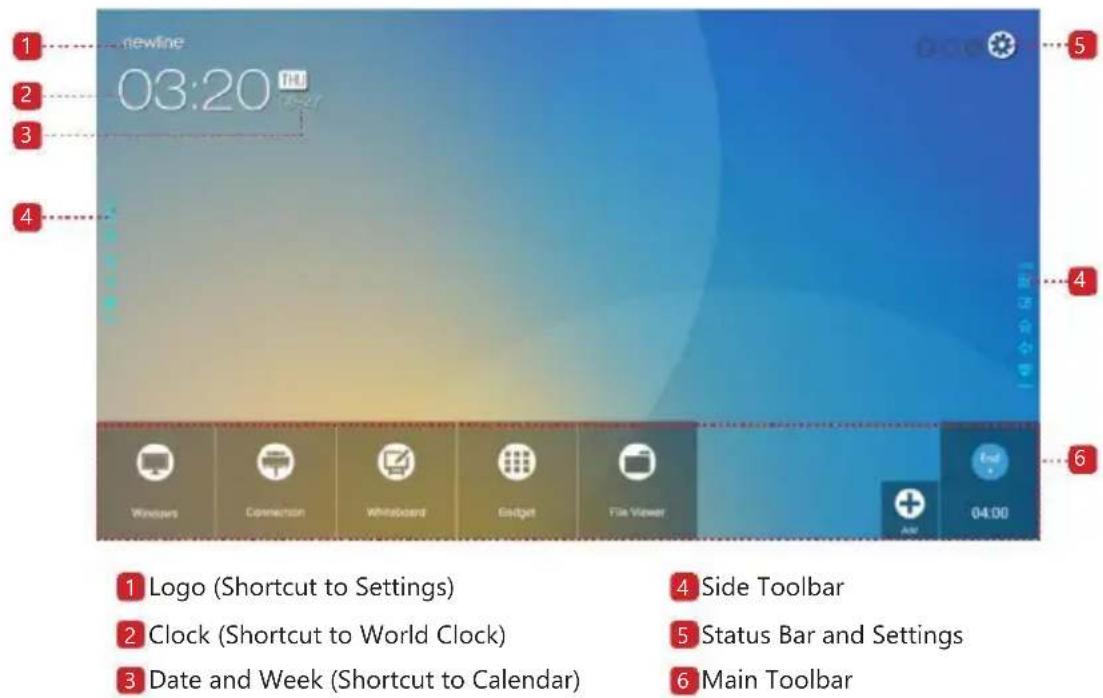

When the product is turned on, the product will show the start screen page. As shown in the following figure.

03:25 07:06 Press to start

Home

Touch the screen to start a meeting, and the product will go to the Home page. As shown in the following figure.

1 2 3 4 newline 03:20 TH 5 4 6 Windows Conversion Windboard Gadget File Viewer 04:00 1 Logo (Shortcut to Settings) 2 Clock (Shortcut to World Clock) 3 Date and Week (Shortcut to Calendar) 4 Side Toolbar 5 Status Bar and Settings 6 Main Toolbar

Shortcut for Settings

Click the newline icon on the Home page to enter the logo & Wallpaper Setting page to set the logo and wallpaper. The logo and wallpaper can be obtained locally or from a device connected via the USB port, as shown in the following figure.

Logo & Wallpaper Setting Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Camera Setting Input/Output Setting Logo & Wallpaper Setting Lock Screen Logo View Default Home Logo View Default Wallpaper View Default

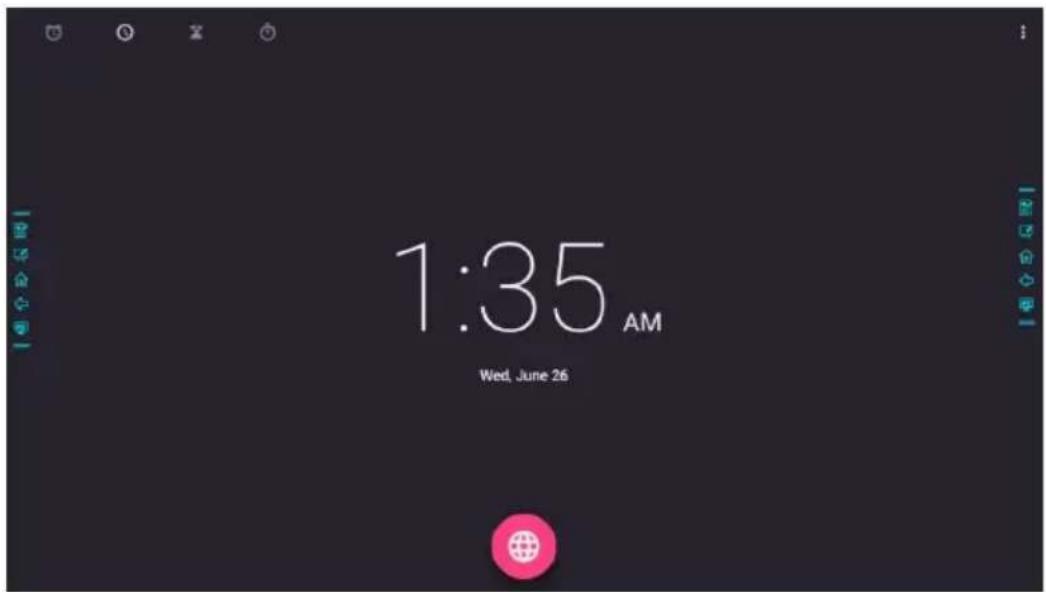

Shortcut for World Clock

Click the time icon on the Home page to enter the Time Converter page and convert the time and zone. Click 🙏 to add other time zones indicating other countries, as shown in the following figure.

1:35 AM Wed, June 26

◆ Side Toolbar

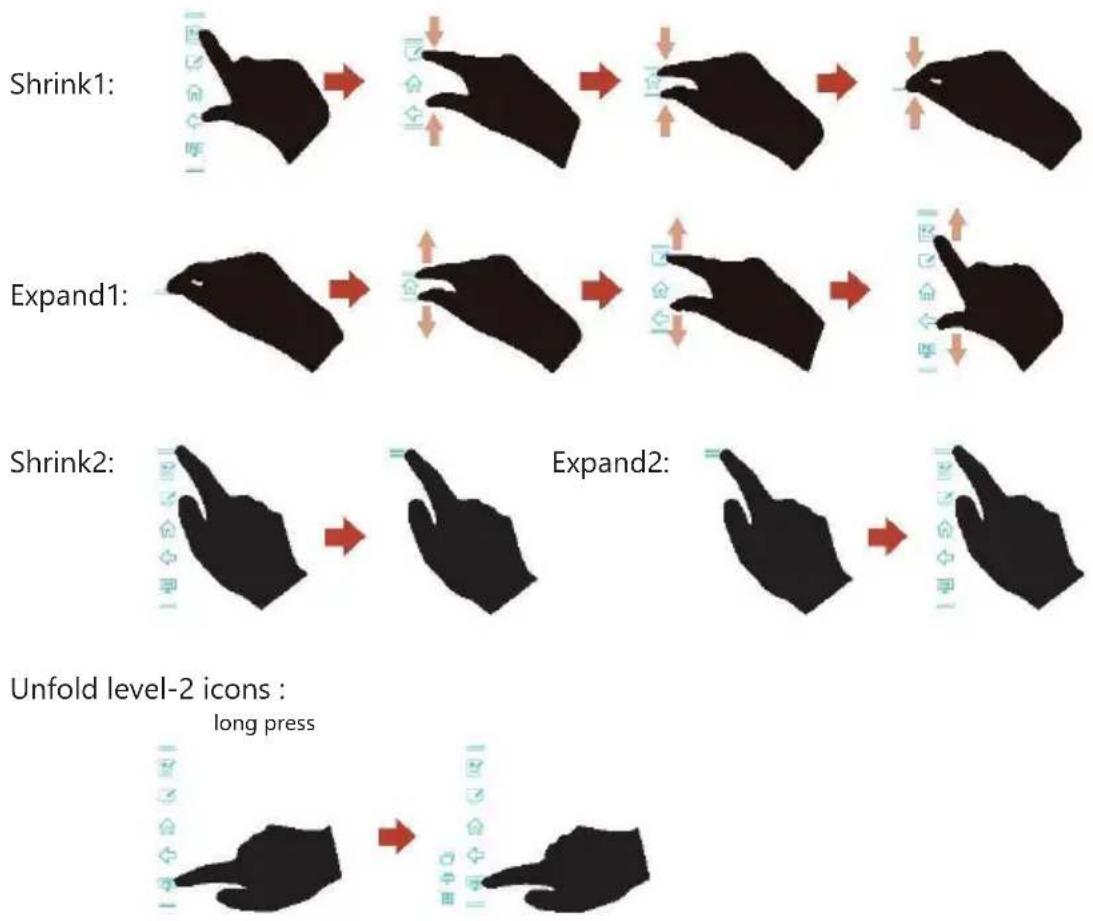

The Annotation Mode/Discussion Mode/Home/Return/Windows icons are displayed by default in the toolbar at two sides of the screen. The bottom side toolbar can be customized as your choice (The default icon is Windows). You may also hide the side tool bar at the setting or move it up and down, shrink or expand by gestures. You may double-click the to expand or shrink the toolbar. Long press the customized icon to unfold level-2 icons.

Unfold level-2 icons :

The functions of the side toolbar are as follows:

Icon	Functions
	Enter annotation mode, and click again to stop annotation and save screenshot.
	Enter discussion mode.
	Go to Home page.
	Return to the last menu/Exit.
	Enter the internal PC source.
	Manage currently running applications.Slide left/right the currently running application or click "x" at the upper right corner to close the application.
	Enter the favorite source.
	View all gadgets.

- Main Toolbar

	Click Connection to switch to the connected product, including cabled signal sources and wireless applications.Cabled signal sources include HDMI Front, HDMI Rear (1 to 3), and DisplayPort.Wireless applications include Montage and Trucast.
	Whiteboard provides discussion board function and screen annotation

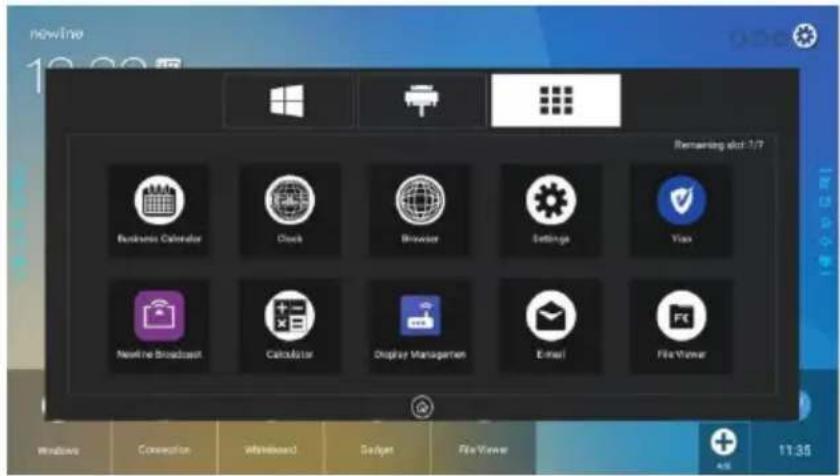

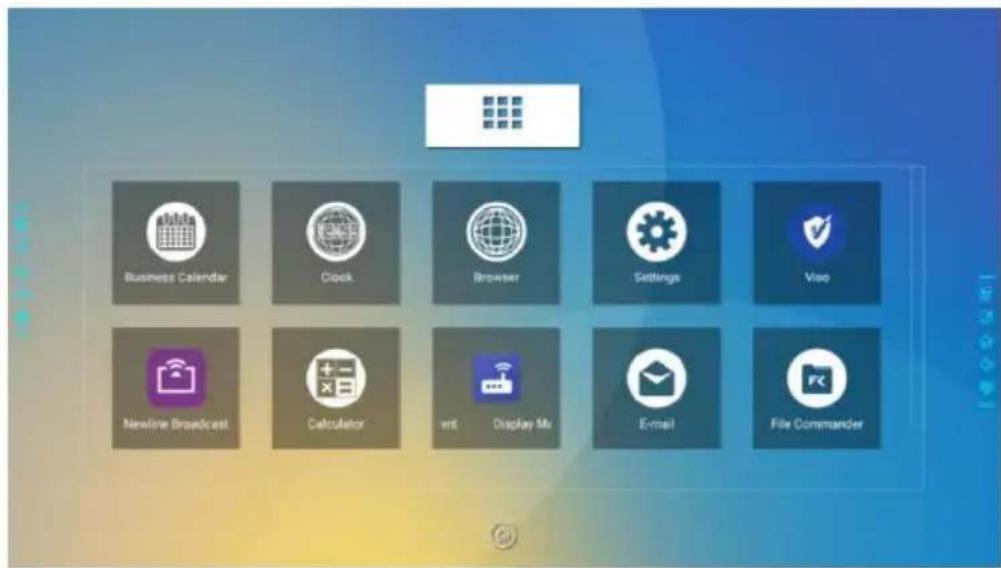

	Gadget displays all pre-installed applications, including Calendar, World Clock, Browser, Settings, Viso, Newline Cast, Newline Broadcast, Display Management, Calculator, Office Viewer, File Commander and Email. Click the icon of an application to run the application.

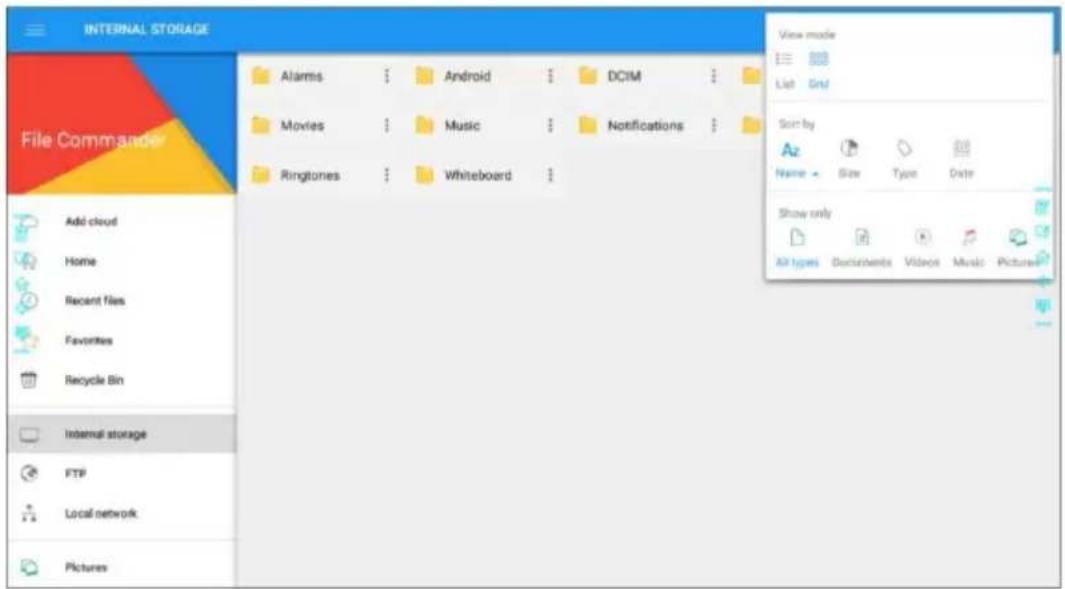

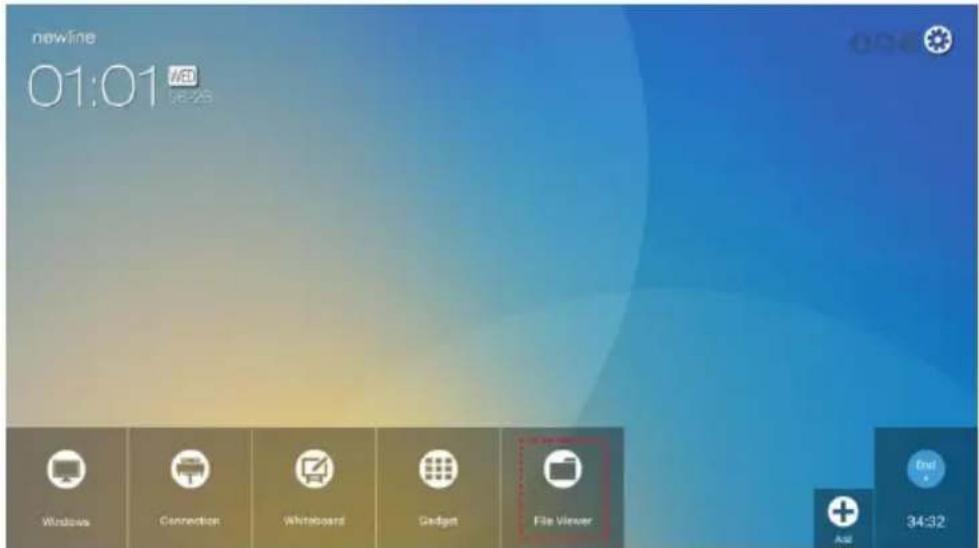

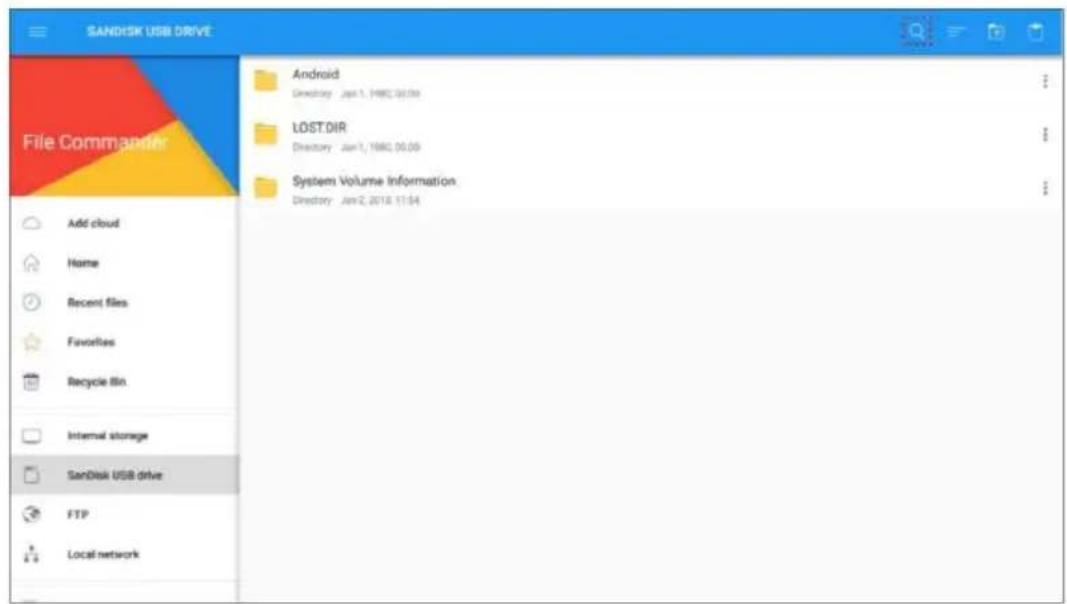

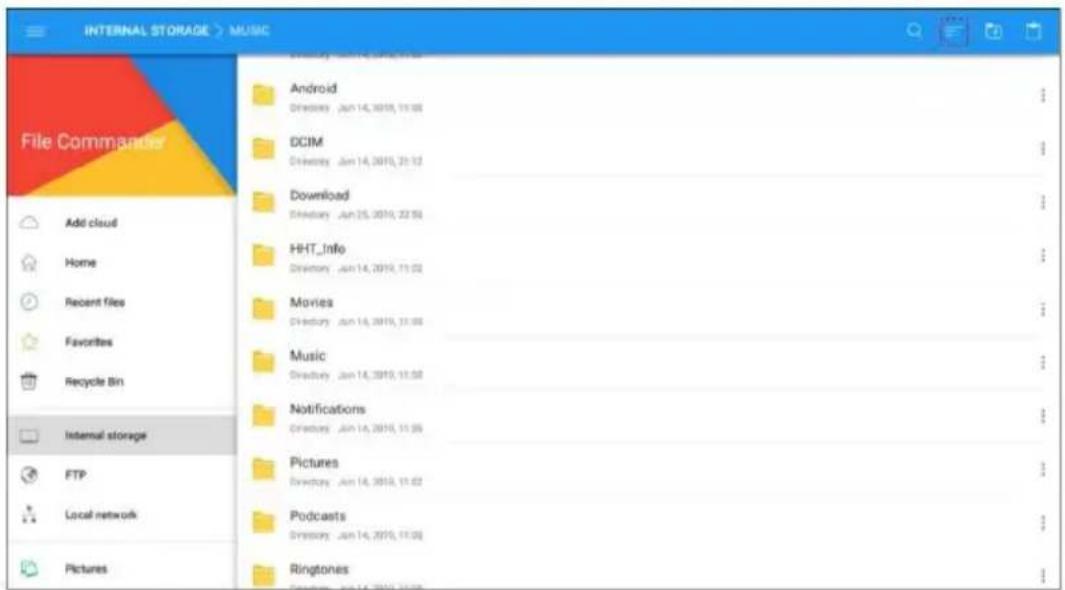

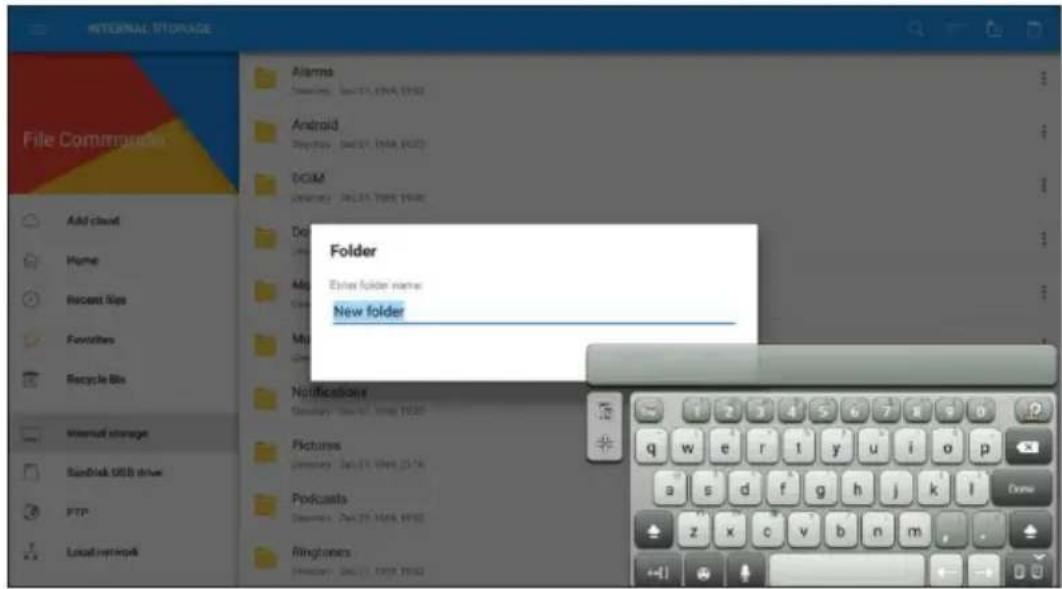

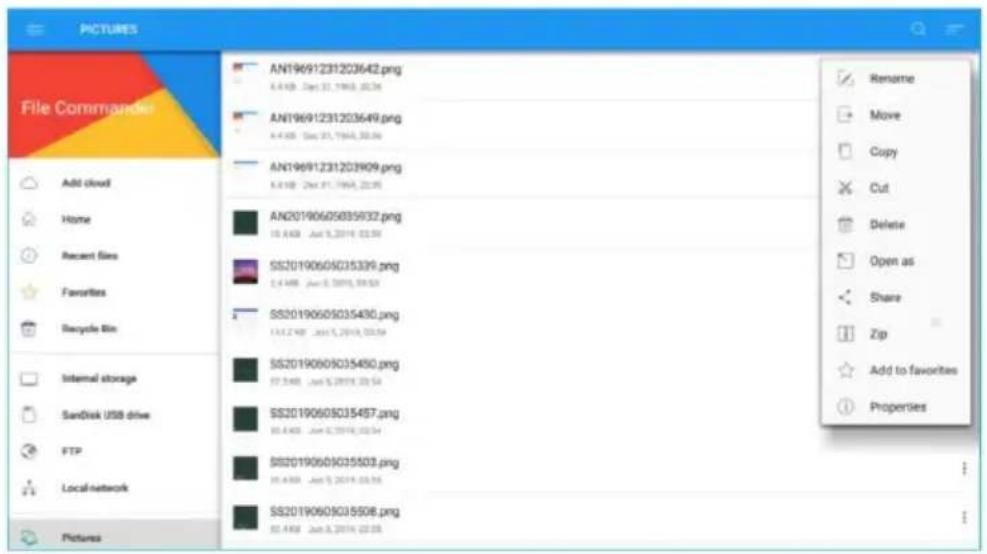

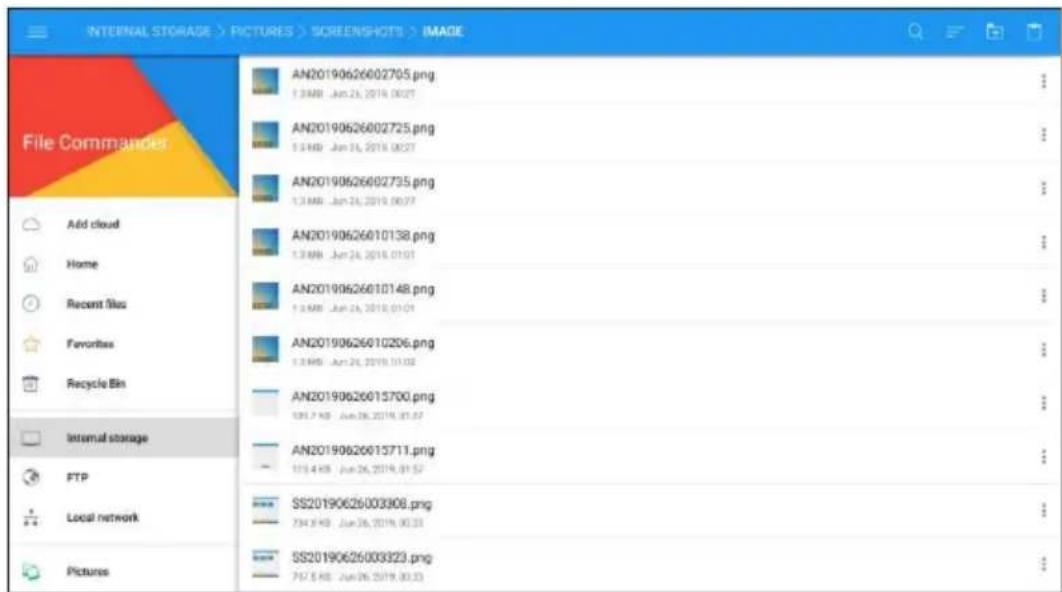

	Open the File Manager, and you can explore on internal and external files of

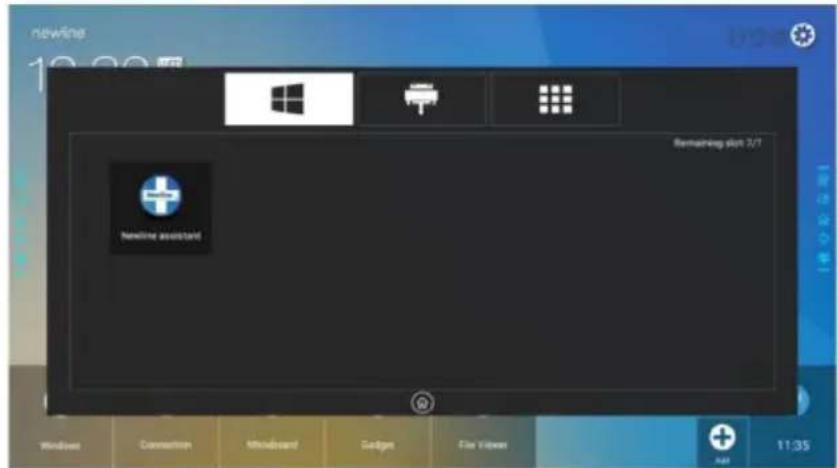

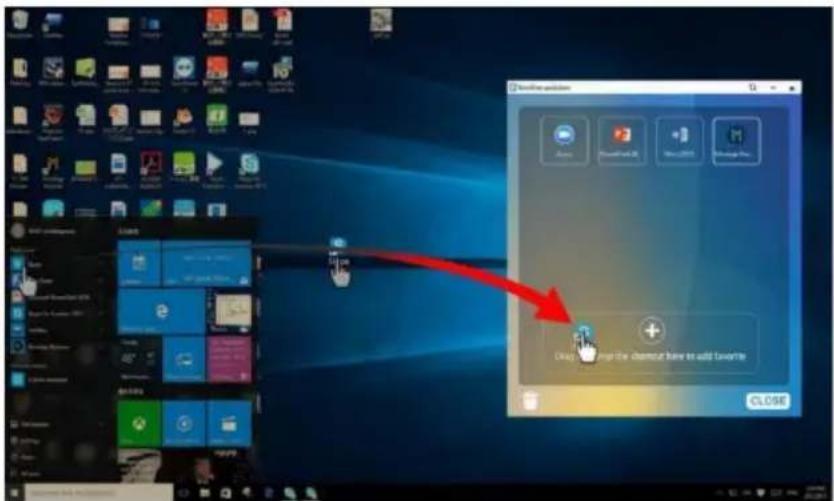

	Click Add to enter Add page, you can add up to 7 shortcuts to your favorite software, gadgets or connections to the Home page. (See more detail in "Add Shortcuts to Home Page")
	Click End to end a meeting. Users will have the choice of saving the discussion boards screen captures and ending the meeting. Once a meeting is ended, all screenshots and discussion data are cleared.

◆ Status Bar and Settings

The upper right corner of the home page displays three working status icons (including USB flash memory(s), Ethernet, and Wi-Fi), and system setting shortcut.

Icon	Functions
	If USB flash memory(s) is connected to the USB port, this icon will be turned on. For details on the wiring method of the USB port, see section "Ports".
	If the product is connected to Ethernet, the icon will be turned on. For details on the wiring method of the wired network, see section "Ports"
	If the product is connected to a wireless network, the icon will be turned on. or details on the wiring method of the wireless network, see section "Ports"
	Access the system setting page.

System Settings

Enter the system setting page using one of the following methods:

• In the Quick Setting Menu, click the

Network Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting LAN setting Wi-Fi Status Wake up via LAN

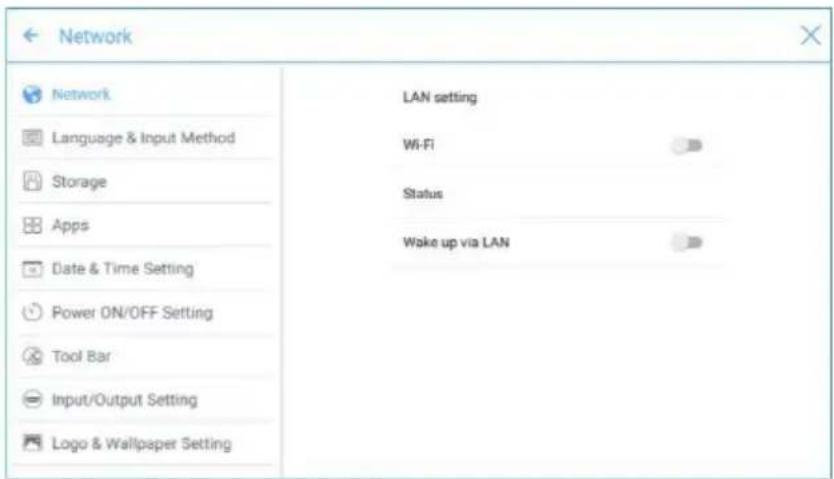

◆ Network Settings

Enter the Network submenu to set a LAN, enable Wi-Fi, view network information, and enable the Wake up via LAN function.

• LAN setting: Automatically obtain the LAN IP address or set static IP address according to requirements.
- Wi-Fi: Click corresponding button to enable the Wi-Fi function.
- Status: View IP address, MAC address and work time of the display.
- Wake up via LAN: Click corresponding button to enable the Wake up via LAN function. Connect the display and PC to a same LAN using cables, run the Wake up via LAN, and search for the IP address and MAC address that match the display.

Network Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting LAN setting Wi-Fi Status Wake up via LAN

◆ Language and Input Method Settings

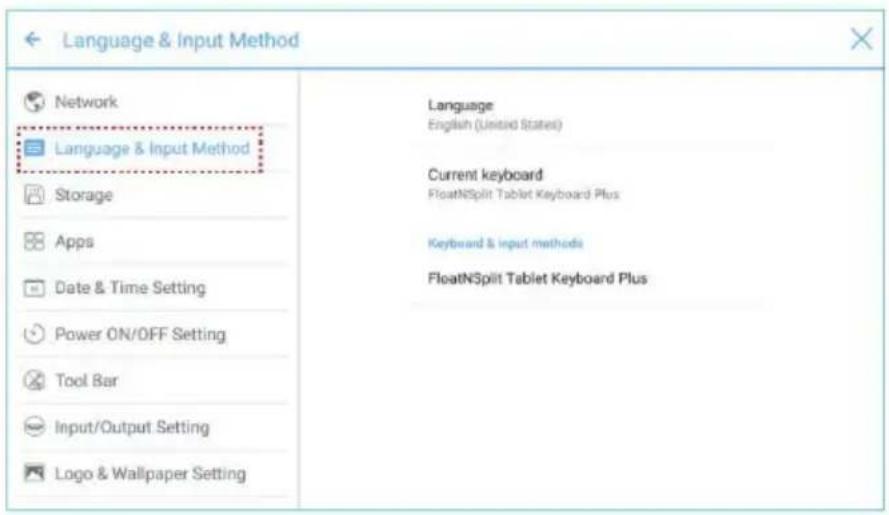

Enter the Language & Input Method submenu to set language and input method.

Language & Input Method Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Language English (United States) Current keyboard FloatNSplit Tablet Keyboard Plus Keyboard & input methods FloatNSplit Tablet Keyboard Plus

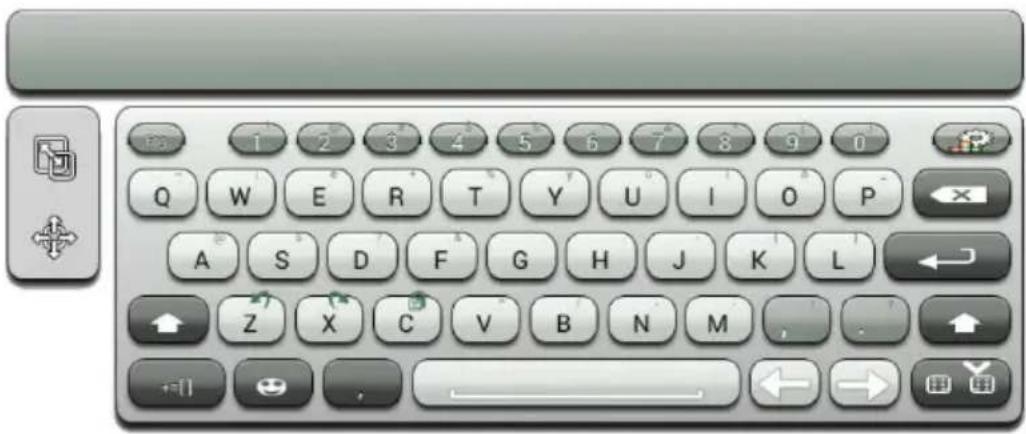

The default input method of the system is FloatNSplit Table Keyboard Plus, and Hardware keyboard must be enabled. If you want to switch to another language, switch the keyboard input method via Keyboard & input methods, in addition to switching the language.

Note

FloatNSplit Table Keyboard Plus does not support Chinese and Japanese.

Language & Input Method Network Language English (United States) Language & Input Method Change keyboard Hardware Show input method FloatNSplit Tablet Keyboard Plus CHOOSE KEYBOARDS Tool Bar Input/Output Setting Logo & Wallpaper Setting

: Drag this icon and change the size of the keyboard.

: Drag this icon to move the keyboard.

Screenshot of a classic Windows-style keyboard with numeric keypad and function buttons visible

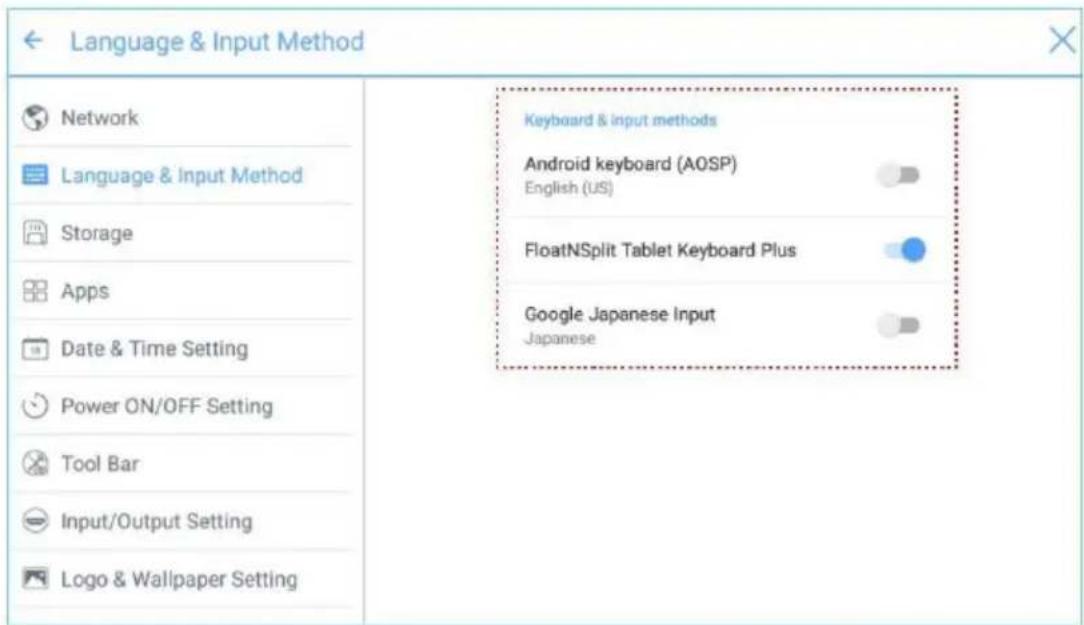

Setting a Language

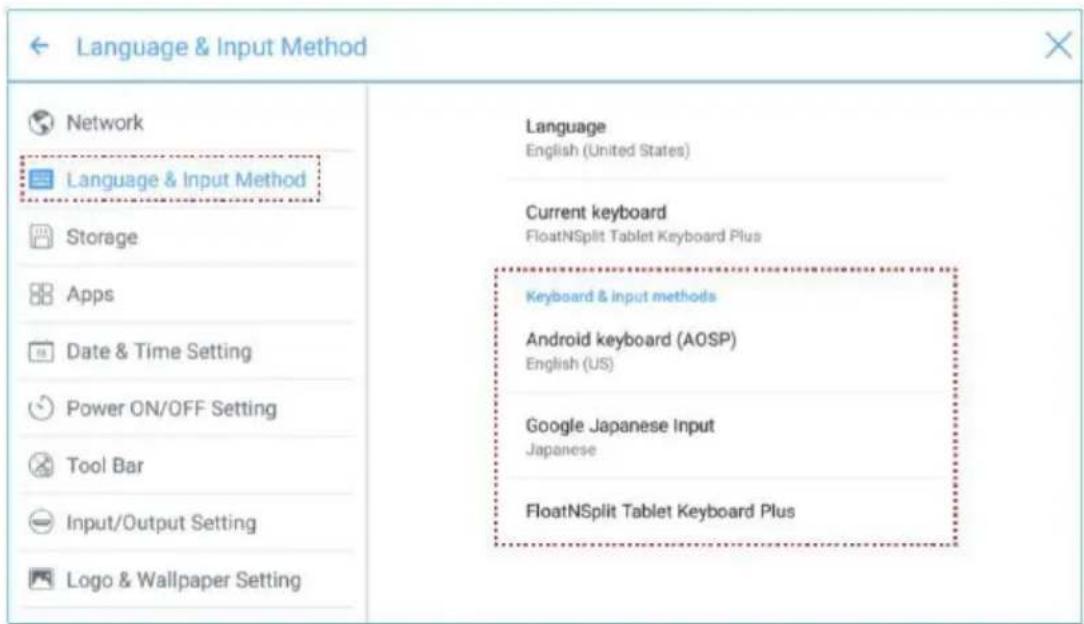

Click Language at the right side. In the Change language dialog box that is displayed,

Language & Input Method Network Language Change language Chinese(Simplified) Chinese(Traditional) English Japanese CANCEL Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting

Adding an Input Method

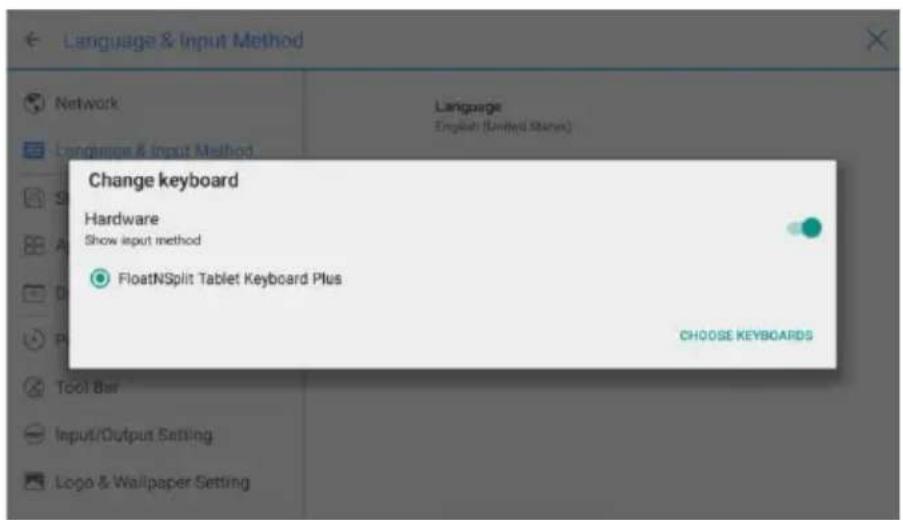

Click Current keyboard at the right side. In the Change keyboard page, click CHOOSE KEYBOARDS, unfold Keyboard & input methods, and click the button at the right side according to reference to add an input method (multiple choices can be selected).

Language & Input Method Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Keyboard & input methods Android keyboard (AOSP) English (US) FloatNSplit Tablet Keyboard Plus Google Japanese Input Japanese

Setting an Input Method

Select an input method at the right side to set the attributes of the input method.

Language & Input Method Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Language English (United States) Current keyboard FloatNSplit Tablet Keyboard Plus Keyboard & input methods Android keyboard (AOSP) English (US) Google Japanese Input Japanese FloatNSplit Tablet Keyboard Plus

◆ Storage

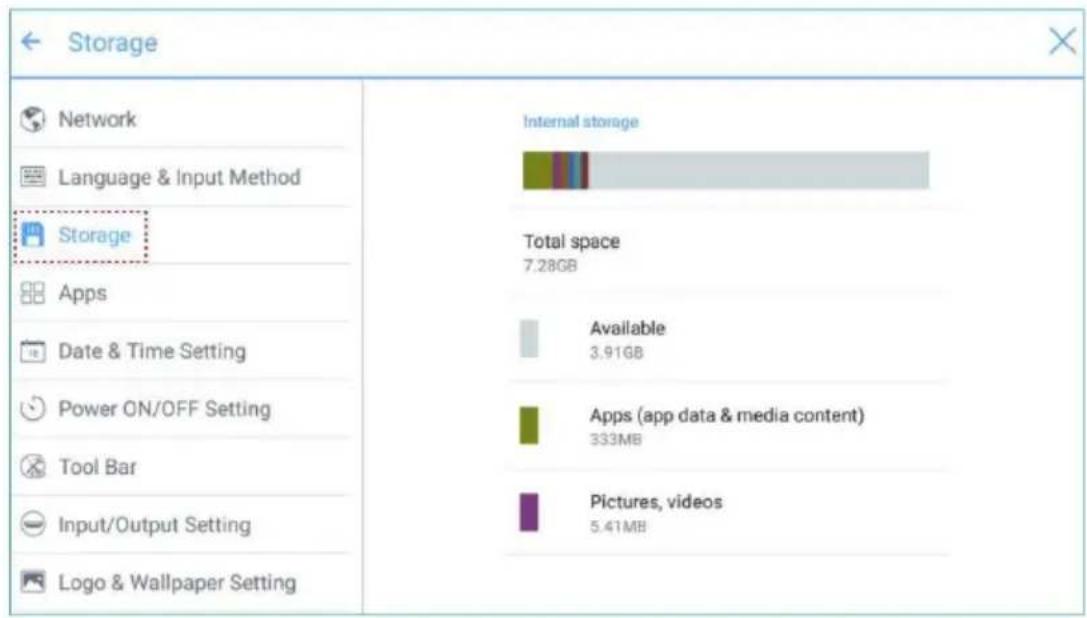

Enter the Storage submenu to view space distribution of the internal storage.

Storage Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Internal storage Total space 7.28GB Available 3.91GB Apps (app data & media content) 333MB Pictures, videos 5.41MB

◆ APPs

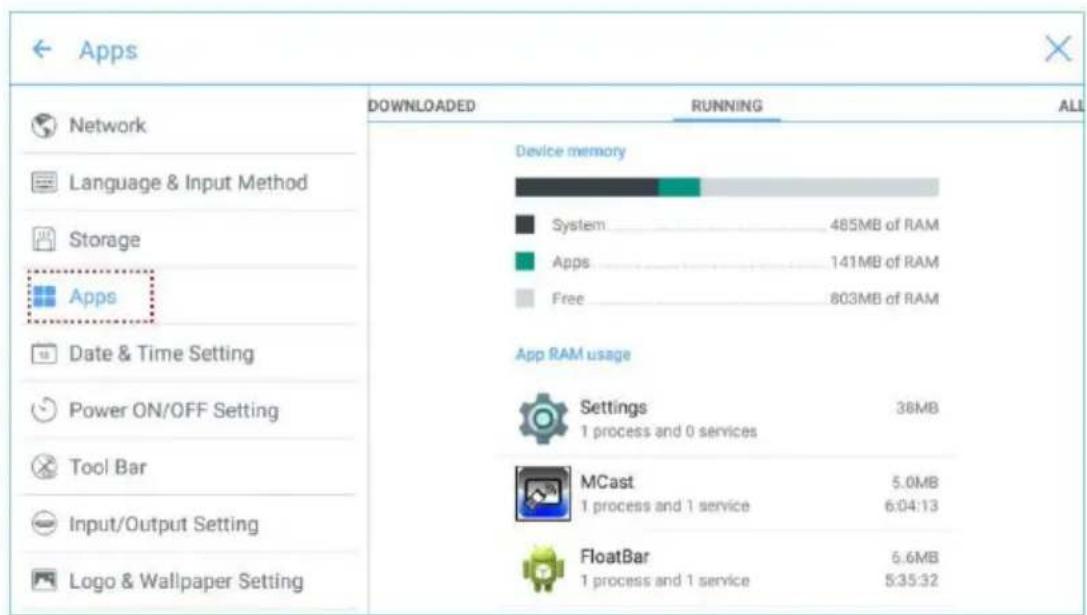

Enter the Apps submenu to view downloaded applications by type, running applications, and all applications.

Apps Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting DOWNLOADED RUNNING ALL Device memory System 485MB of RAM Apps 141MB of RAM Free 803MB of RAM App RAM usage Settings 38MB 1 process and 0 services MCast 5.0MB 1 process and 1 service 6:04:13 FloatBar 5.6MB 1 process and 1 service 5:35:32

◆ Date and Time Settings

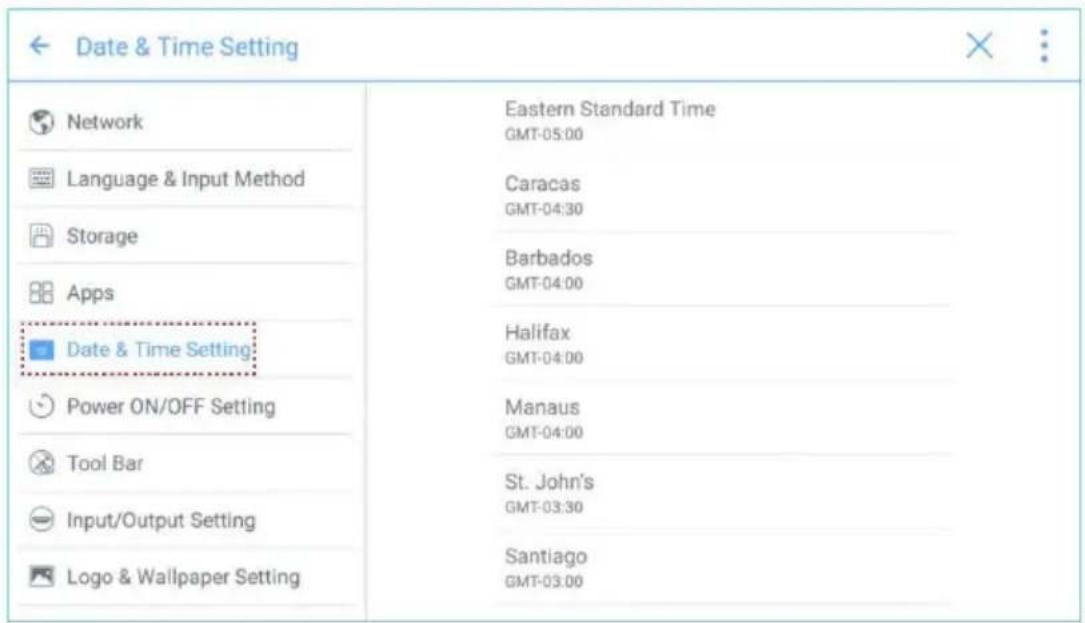

Enter the Date & Time Setting submenu to set the date and time. Before setting the date and time, users should click Select time zone to select local time zone.

Date & Time Setting Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Eastern Standard Time GMT-05:00 Caracas GMT-04:30 Barbados GMT-04:00 Halifax GMT-04:00 Manaus GMT-04:00 St. John's GMT-03:30 Santiago GMT-03:00

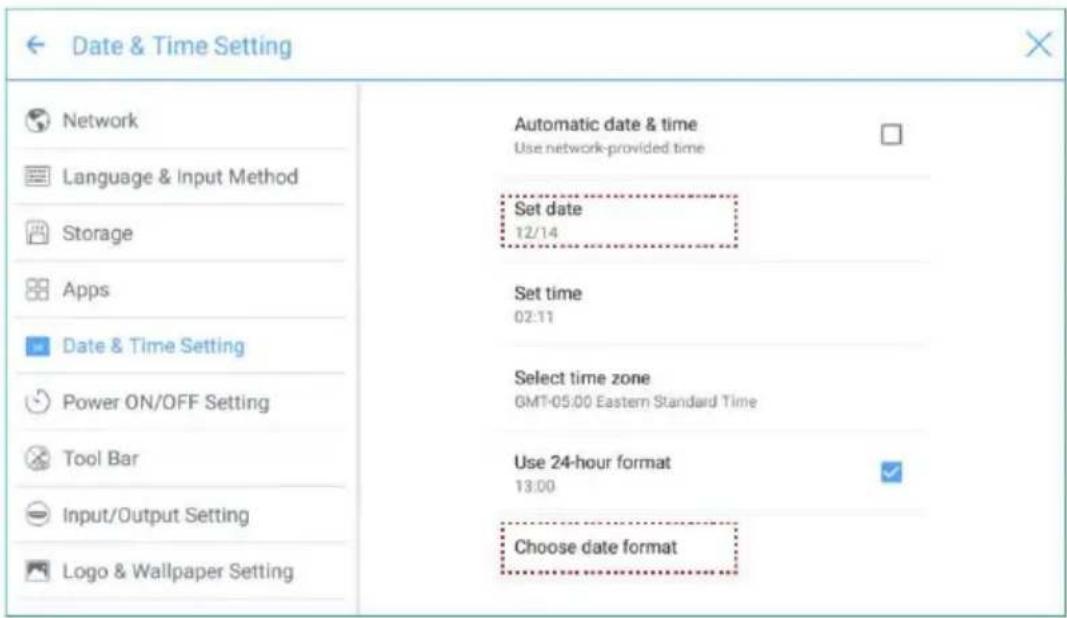

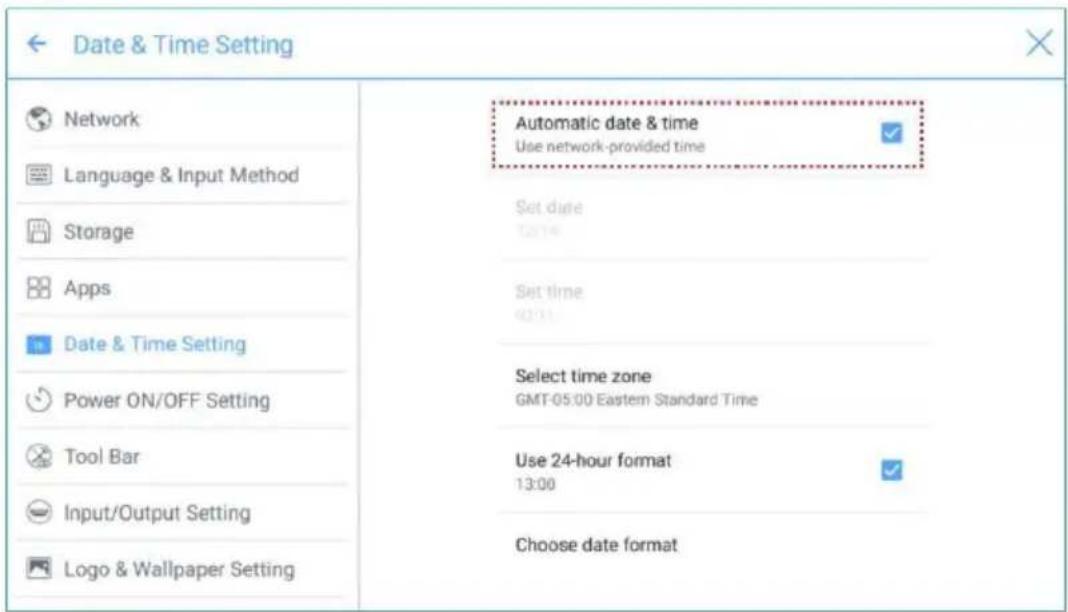

Setting a Date

You can automatically obtain the system date or customize a date.

• To automatically obtain a date, select Automatic date & time.

Date & Time Setting Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Automatic date & time Use network-provided time Set date 12/19 Set time 03:11 Select time zone GMT-05:00 Eastern Standard Time Use 24-hour format 13:00 Choose date format

- To customize a date and date format, set them in Set date and Choose date format.

Date & Time Setting Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Automatic date & time Use network-provided time Set date 12/14 Set time 02:11 Select time zone GMT-05:00 Eastern Standard Time Use 24-hour format 13:00 Choose date format

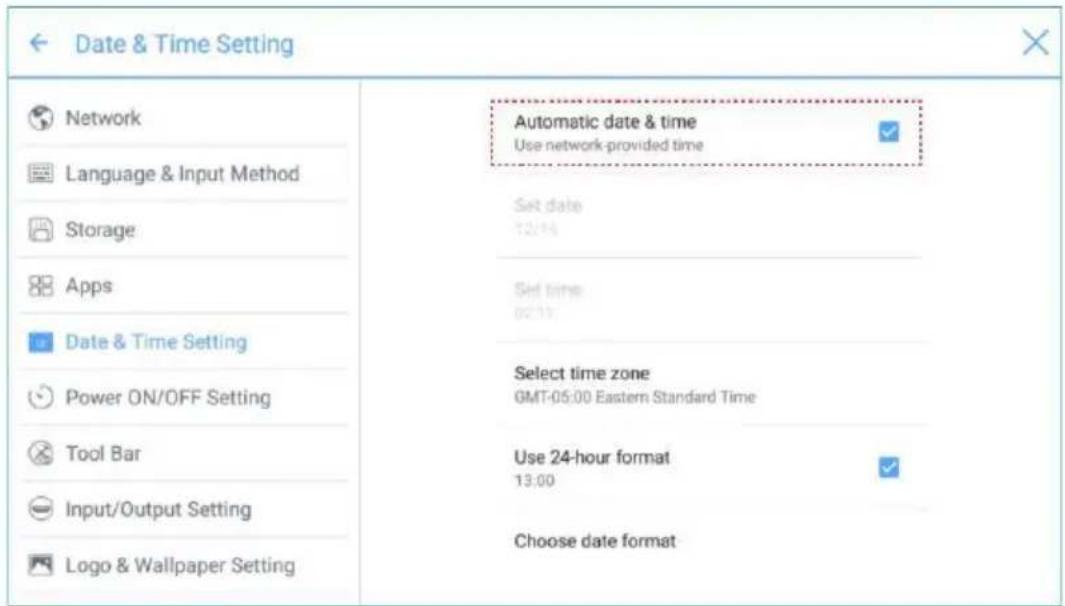

Setting Time

You can automatically obtain the system time or customize time.

- To automatically obtain time, select Automatic date & time.

Date & Time Setting Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Automatic date & time Use network-provided time Set date 12:16 Set time 02:19 Select time zone GMT-05:00 Eastern Standard Time Use 24-hour format 13:00 Choose date format

- To customize time and time format, set them in Set time and Use 24-hour format.

Date & Time Setting Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Automatic date & time Use network-provided time Set date 12/14 Set time 02:11 Select time zone GMT-05:00 Eastern Standard Time Use 24-hour format 13:00 Choose date format

◆ Power ON/OFF Setting

Enter the Power ON/OFF Setting submenu to set automatic power on/off time and the time for the system to enter the shut down mode.

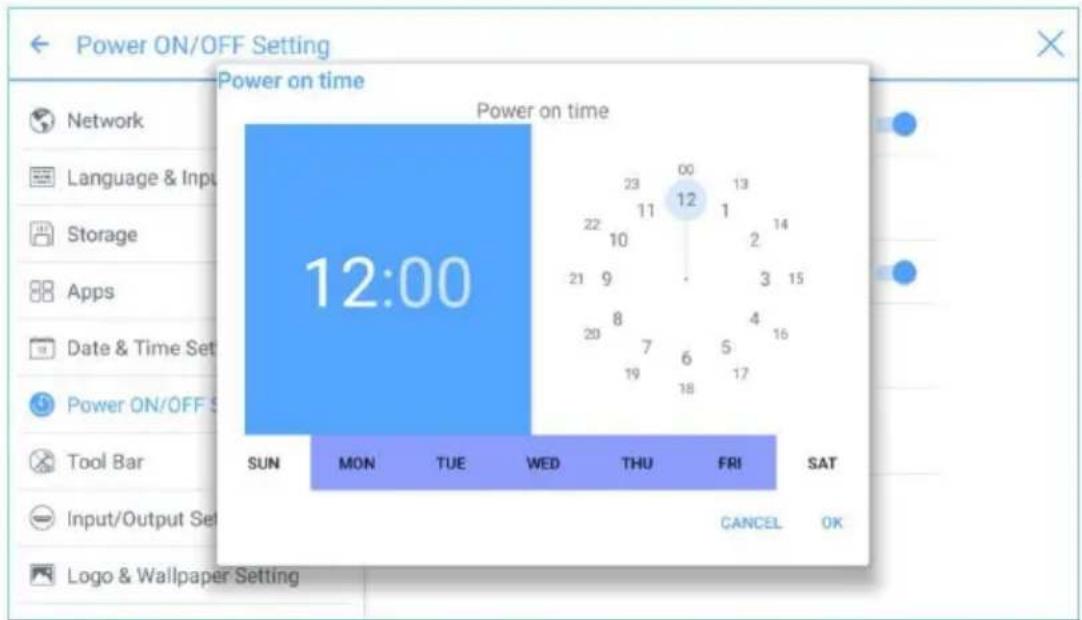

- To set the automatic power on time, select Auto power on, and set the power on time in Power on time, as shown in the following figure.

Power ON/OFF Setting Power on time Network Language & Input Storage Apps Date & Time Set Power ON/OFF S Tool Bar Input/Output Set Logo & Wallpaper Setting SUN MON TUE WED THU FRI SAT 12:00 CANCEL OK

- To set the automatic power off time, select Auto power off, and set the power off time in Power off time, as shown in the following figure.

Power ON/OFF Setting Power off time Network Language & Input Storage Apps Date & Time Set Power ON/OFF S Tool Bar Input/Output Set Logo & Wallpaper Setting 00:00 SUN MON TUE WED THU FRI SAT CANCEL OK

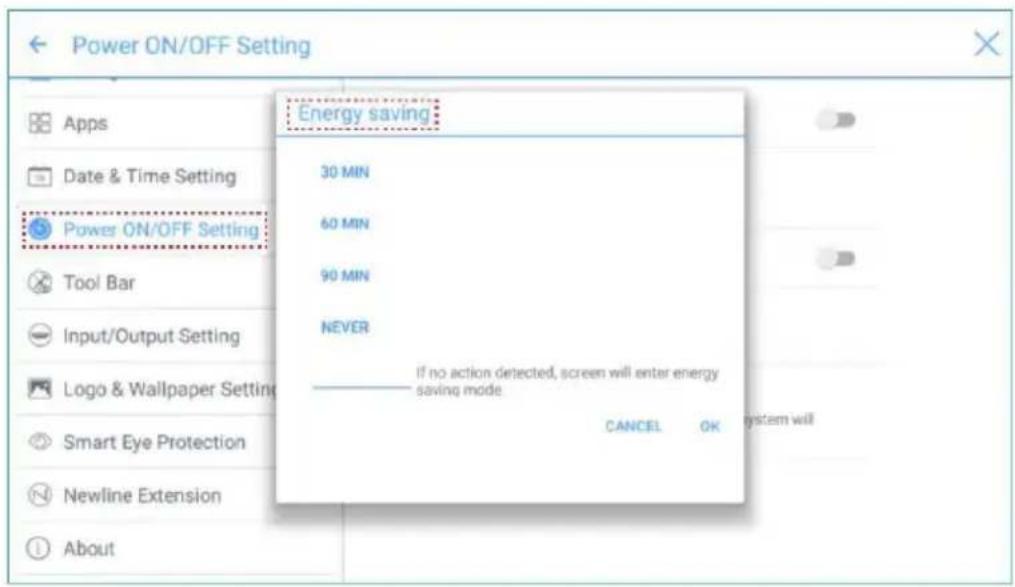

- To set the energy saving time, click Energy saving. In the dialog box that is displayed, set a duration after which the display enters the lock mode if the display is left un-operated. After the display is locked, if the user does not operate the display within 120s, the display enters the shut down mode. The duration can be set to 30 MIN, 60 MIN, 90 MIN, or NEVER. You can also customize this duration and the range is 3 minutes to 480 minutes.

Note

NEVER indicates that the automatic shut down mode function is not enabled.

Power ON/OFF Setting Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Smart Eye Protection Newline Extension About Energy saving 30 MIN 60 MIN 90 MIN NEVER If no action detected, screen will enter energy saving mode CANCEL OK

◆ Tool Bar Setting

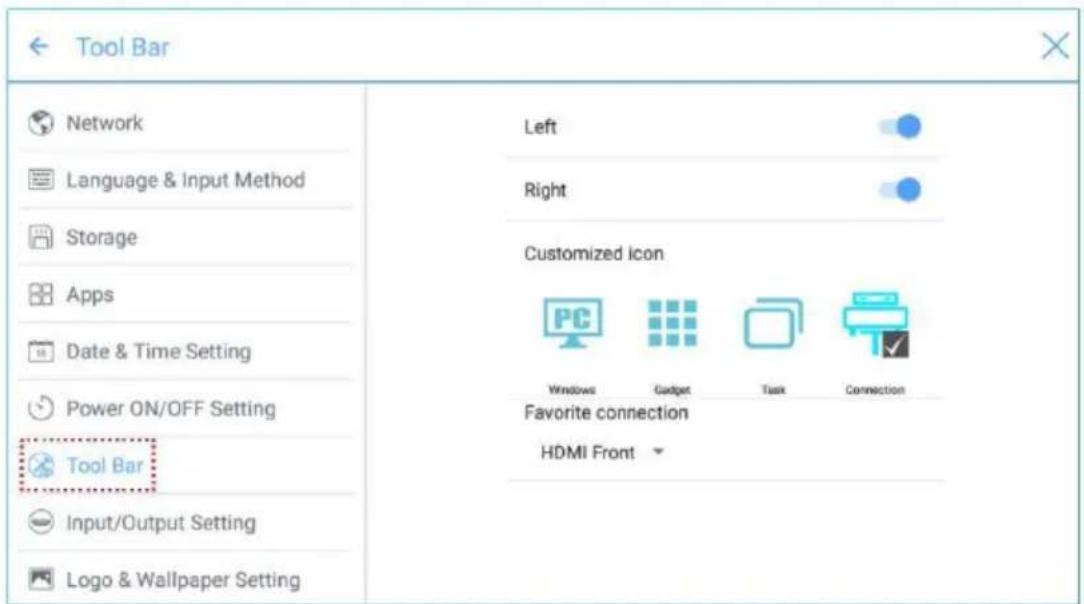

Enter the Tool Bar submenu to set whether to display the side tool bar and icons.

• Left: Click to turn on/off the left tool bar.
• Right: Click to turn on/off the right tool bar.
- Customized icon: Click the icon under Customized icon to display the last shortcut key at both sides of the tool bars. If you define the shortcut key as Connection, you can set a signal source to enter after this shortcut key is clicked in Favorite Connection.

Tool Bar Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Left Right Customized Icon PC Windows Cadget Task Connection Favorite connection HDMI Front

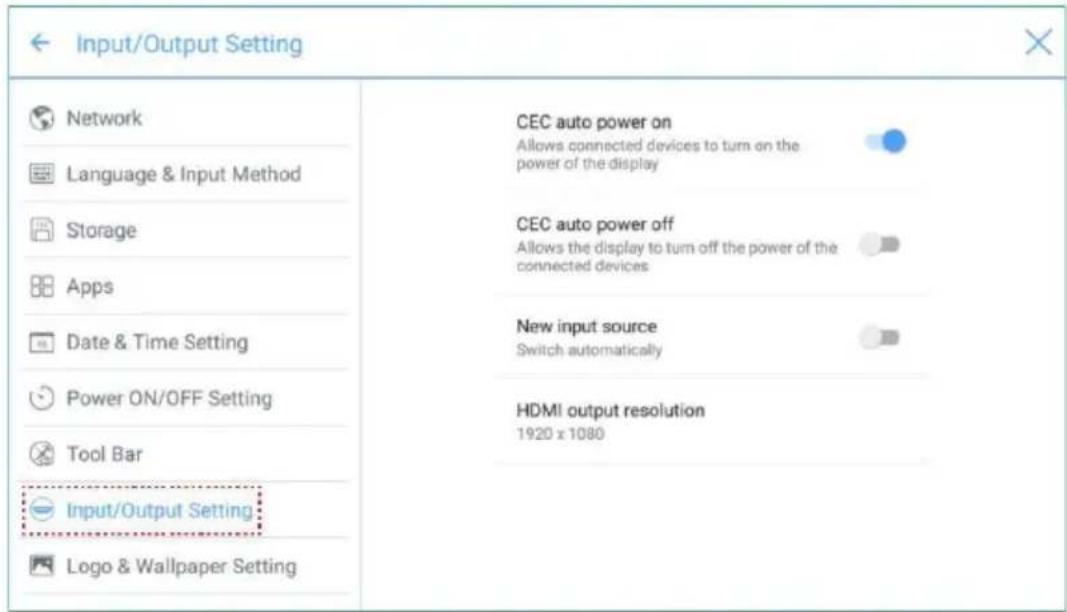

◆ Input/Output Setting

Enter the Input/Output Setting submenu to set the automatic power on/off function of the consumer electronics control (CEC) device, new signal source, and resolution of image output through the HDMI port.

• After the CEC auto power on function is enabled and the display is connected with the CEC device via the HDMI port, the display automatically starts if the CEC device starts and the display receives a CEC startup command.
• After the CEC auto power off function is enabled and the display is connected with the CEC device via the HDMI port, the CEC device automatically stops if the display stops and the CEC device receives a CEC shutdown command.
• After the New input source function is enabled, the system can automatically switch to the screen of the newly connected signal source.

Input/Output Setting Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting CEC auto power on Allows connected devices to turn on the power of the display CEC auto power off Allows the display to turn off the power of the connected devices New input source Switch automatically HDMI output resolution 1920 x 1080

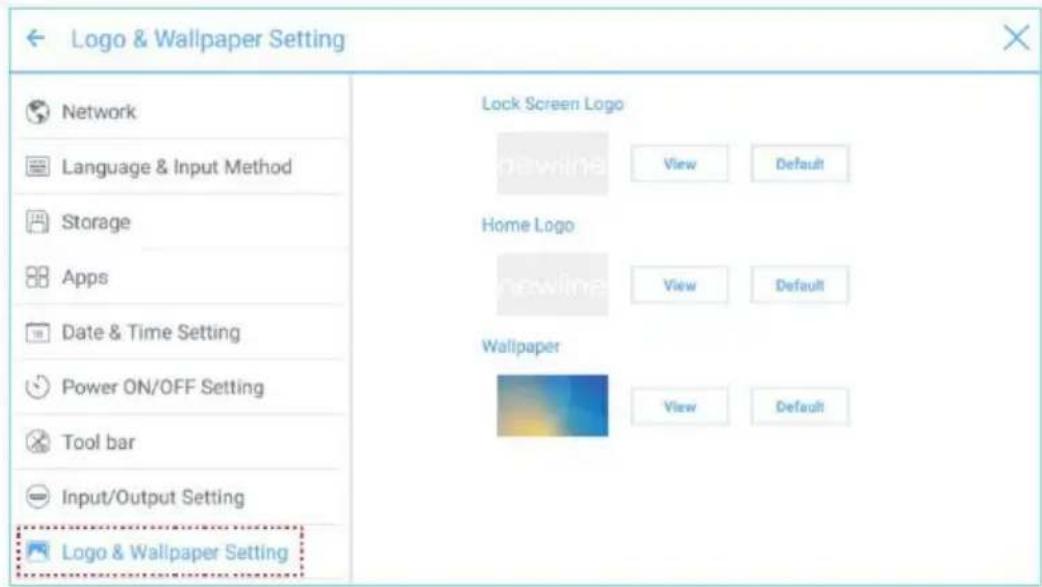

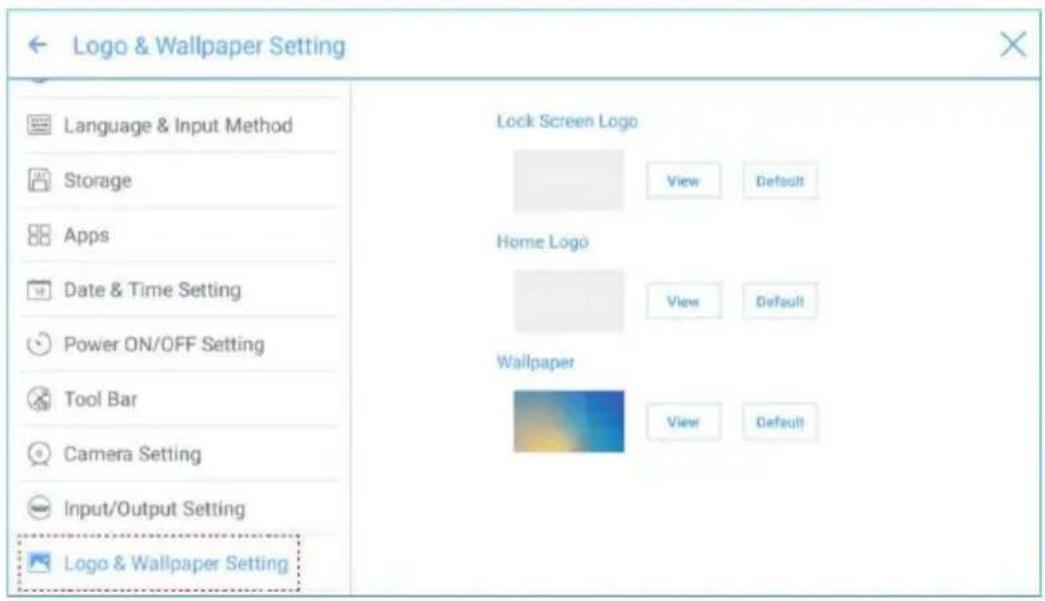

Logo and Wallpaper Setting

Enter the Logo & Wallpaper Setting submenu to set background, lock page, or Home page log.

On this page, click View to select a picture and automatically upload it to replace current picture. Click Default. The logo and wallpaper are reset to Newline pictures.

Logo & Wallpaper Setting Network Language & Input Method Storage Apps Date & Time Setting Power ON/OFF Setting Tool bar Input/Output Setting Logo & Wallpaper Setting Lock Screen Logo newline View Default Home Logo newline View Default Wallpaper View Default

◆ Smart Eye Protection

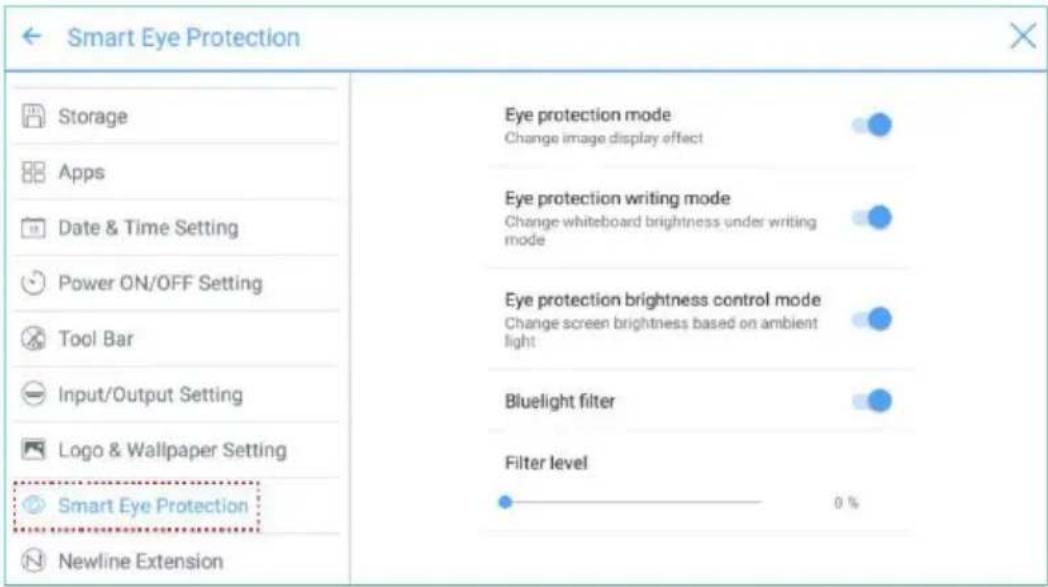

Enter the Smart Eye Protection submenu, according to the need to open the eye. The eye protection feature includes the image display effect, the display brightness of the white board at the time of writing, automatically changing the display brightness of the screen and filtering the blue light function according to the ambient brightness. The filter level can only be set if the Bluelight filter is enabled.

Smart Eye Protection Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Smart Eye Protection Newline Extension Eye protection mode Change image display effect Eye protection writing mode Change whiteboard brightness under writing mode Eye protection brightness control mode Change screen brightness based on ambient light Bluelight filter Filter level 0 %

Newline Extension

Enter the Newline Extension submenu to set external devices (Trucast, X10D, and Trucam) to be displayed in the Cable Connection column of Connection and the wireless application Montage to be displayed in the Wireless Connection column. Furthermore, you can set the HDMI Rear channel to be displayed on the Trucast, X10D, or Trucam screen. If an auxiliary device of our company X10D is connected, the system identifies it through the CEC signal and automatically enables and switches to corresponding channel.

Newline Extension Storage Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Smart Eye Protection Newline Extension Trucast Trucast source HDMI Rear 1 X10D X10D source HDMI Rear 2 Trucam Trucam source HDMI Front Montage

◆ About

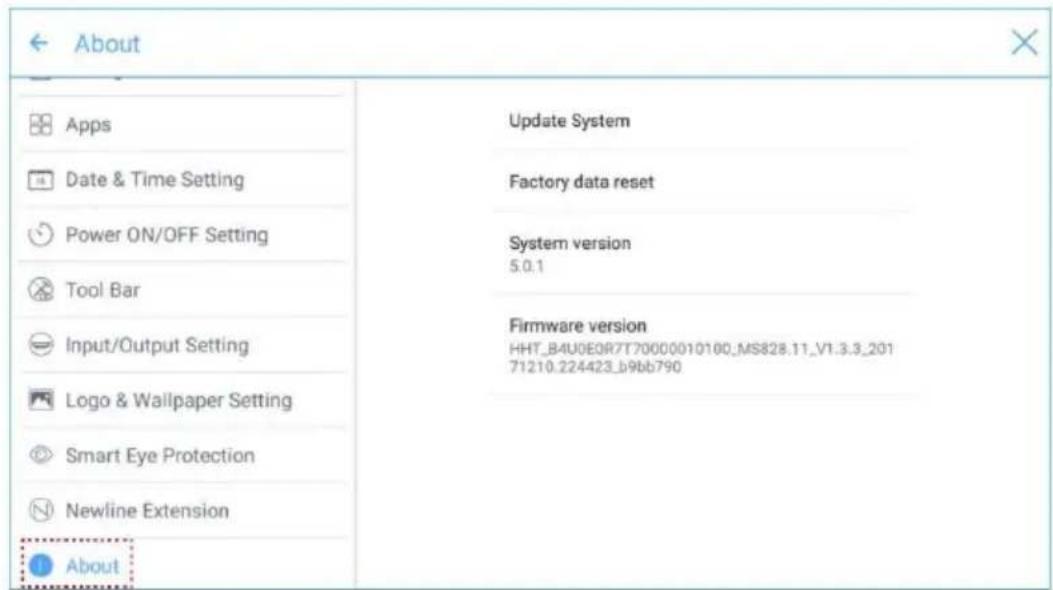

Enter the About submenu to view firmware or system version information, system upgrade, and factory setting.

About Apps Date & Time Setting Power ON/OFF Setting Tool Bar Input/Output Setting Logo & Wallpaper Setting Smart Eye Protection Newline Extension About Update System Factory data reset System version 5.0.1 Firmware version HHT_B4U0E0R7T70000010100_MS828.11_V1.3.3_201 71210.224423_b9bb790

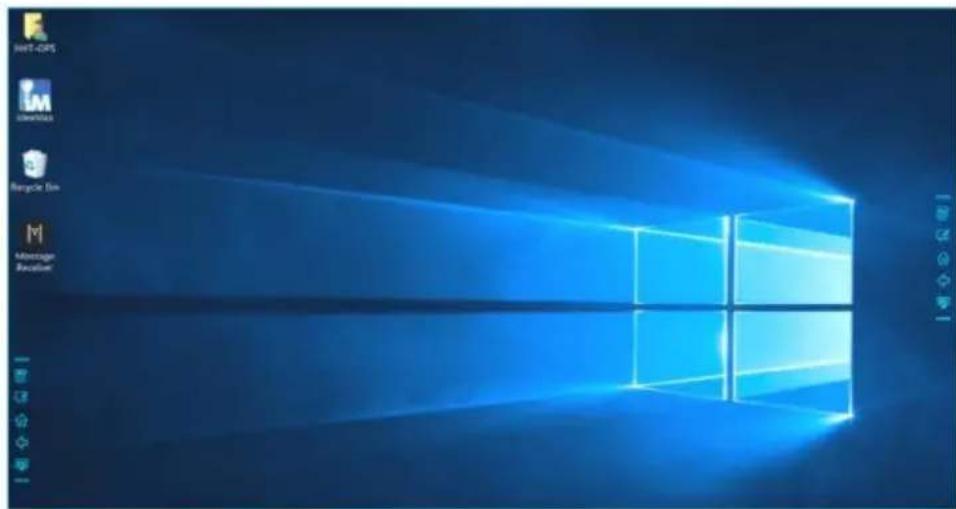

Windows

On the Home page, click Windows to enter the Internal PC source page, as shown in the following figure. If the screen is not equipped with an internal PC, "No Signal" is displayed.

HKEY-OPS OpenBus SaveBus Recycle Bin NewIcon assistant Mortgage Browser 14:00 2012/11/01

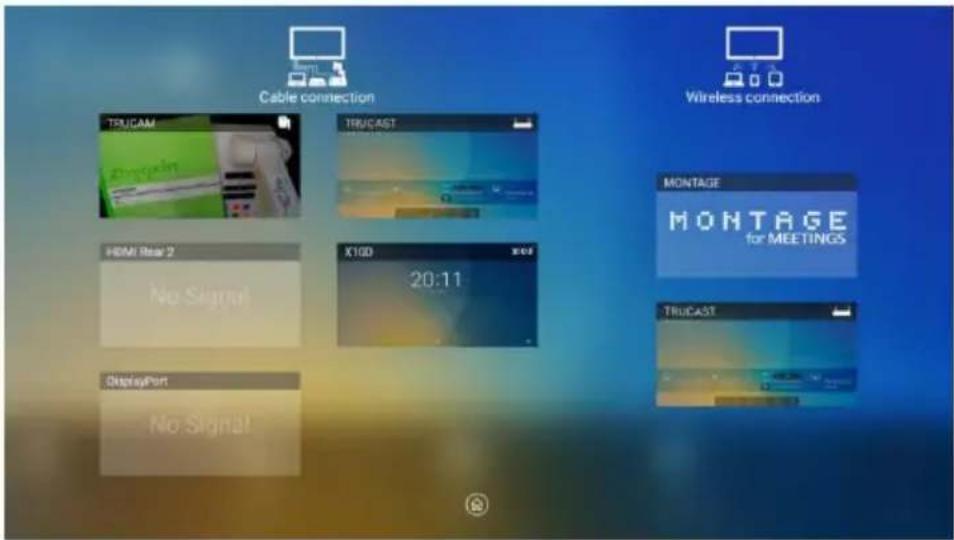

Connection

On the Home page, click Connection to enter the connected product, including cabled signal sources and wireless applications.

- Cabled signal sources include HDMI Front, HDMI Rear (1 to 3), and DisplayPort. You can preview the image of the corresponding signal channel. If the channel has no signal input, No Signal will appear. You can click the selected signal source to switch to the corresponding channel in full screen. You can also long press the signal source page and enter remark information in the Modify remarks dialog box that is displayed. If Trucast, Trucam, or X10D options have been enabled in Newline Extension, corresponding channel cannot be remarked.

- Wireless applications include Montage and Trucast.

Note

Montage should be installed manually to the internal PC first. If the Montage software is not added to the Newline assistant, the system prompts users to install Montage and add it into the Newline assistant. For details on the addition method, see section "Add Shortcuts to Home Page".

Cable connection Wireless connection TRUICAM TRUCAST HDMI Real 2 X10D 20:11 DisplayPort No Signal! MONTAGE MONTAGE for MEETINGS TRUCAST

The first time you turn the display on, only the cable connections appear in Connection. Wireless connection can be added in the Newline Extension setting. In this case, the name and icon of the HDMI on the left cabled channel change as the Trucast application is enabled or an external product is connected. For details on the configuration, see section "Newline Extension". After the setting is successful, connect the Trucast, X10D and Trucam to corresponding HDMI ports of the display.

Whiteborad

The whiteboard has the following functions:

• Discussion and screen annotation

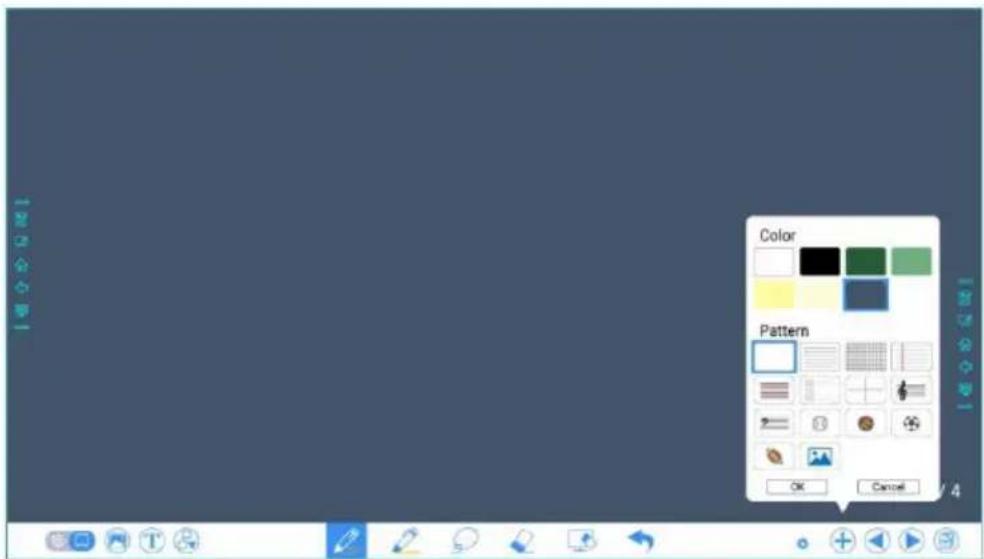

On the whiteboard page, you can select pen type, width, and color to write or annotate

on the screen. You can also erase selected content or clear all contents.

- Page navigation

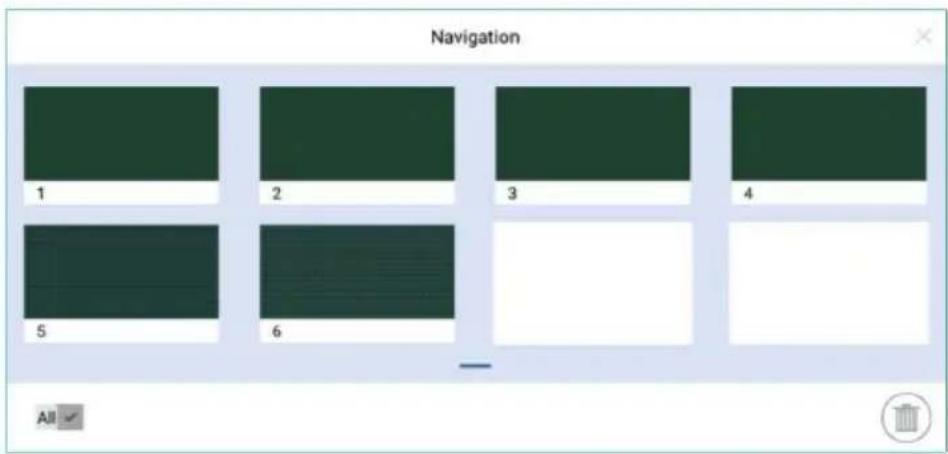

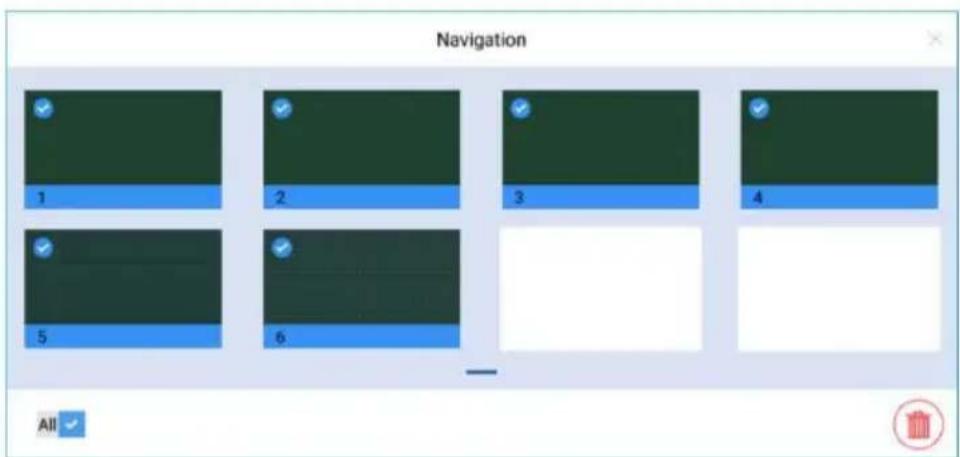

Preview, delete, copy, share pages.

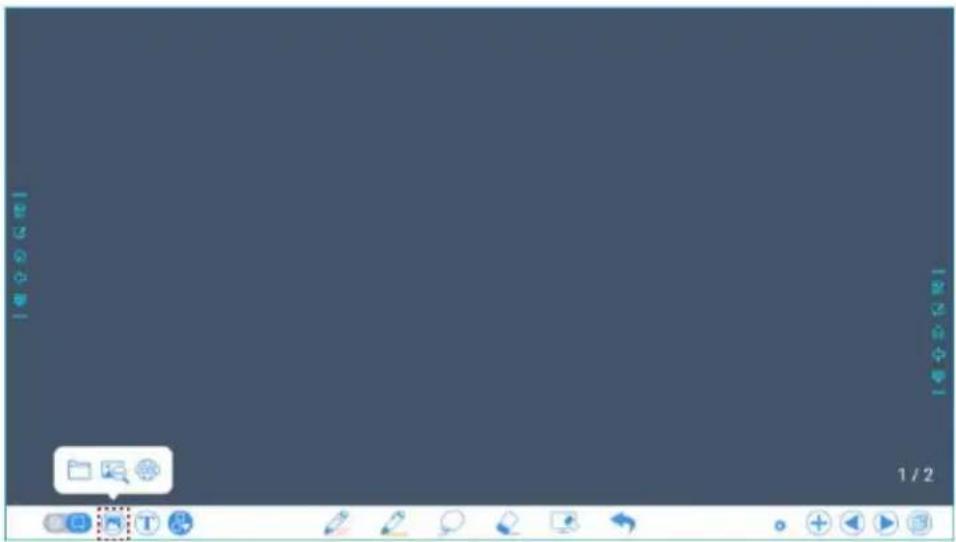

◆ Whiteboard Mode

- Click Discussion in the main toolbar or click ✅ in the side toolbar to enter the discussion mode, as shown in the following figure.

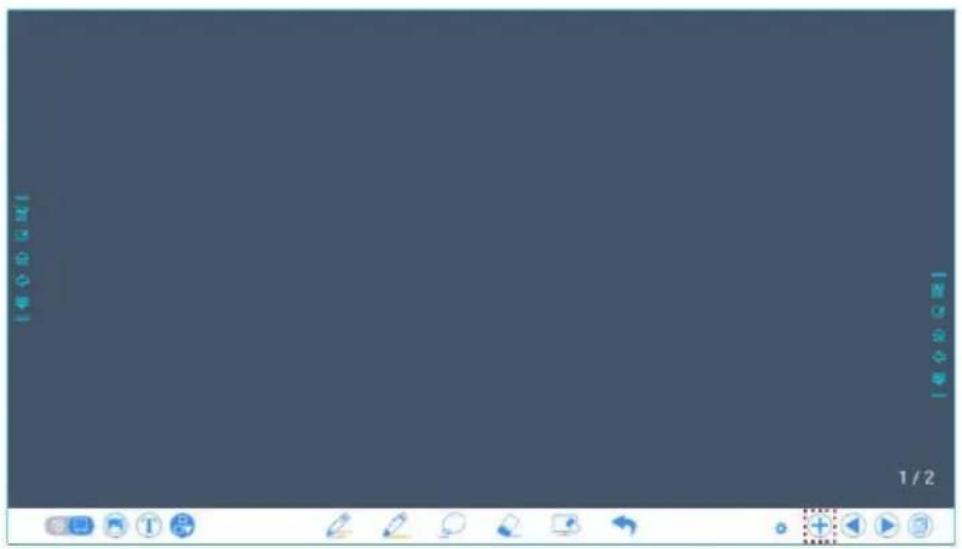

1/2 1 2 3 4

- Click 📋 in the side toolbar or click 🔗 in the discussion mode to enter the annotation. In annotation mode it would generate a transparent layer above the screen, and user could add the annotation on it until they exit the annotation mode.

HKEY-DPS iM CloudView My Google Web M Montage Microsoft

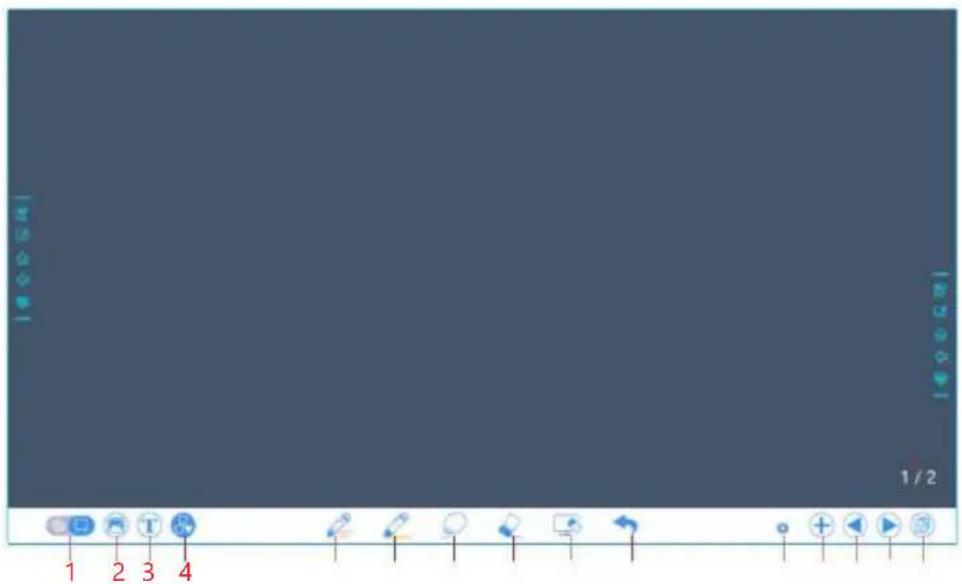

SN	Icon Name	Icon Function
1	Mode Switch	Click the icon to switch between annotation mode and the discussion mode. (See more detail in whiteboard mode section)

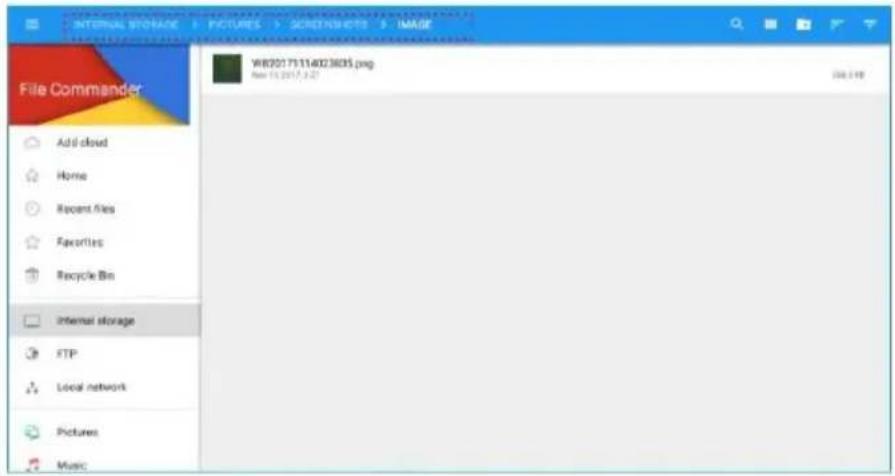

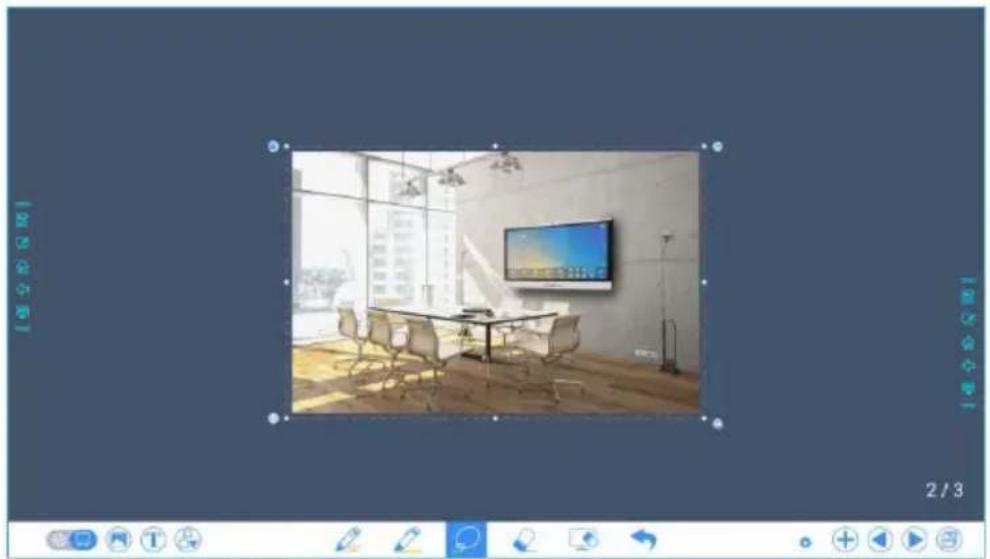

2	Import	Click to import data from file management, user could import the pictures/whiteboard data (PNG)/ screenshots (PNG) from system files or USB.

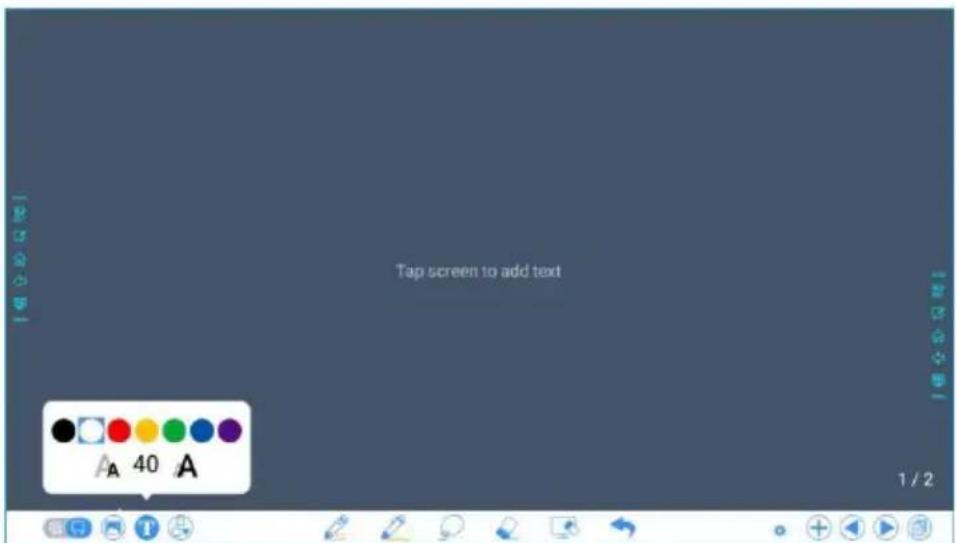

3	Text	Click to insert text, and show the keyboard. (Default is Roboto , 40pt) Click and hold the icon for two seconds to set the default text setting.

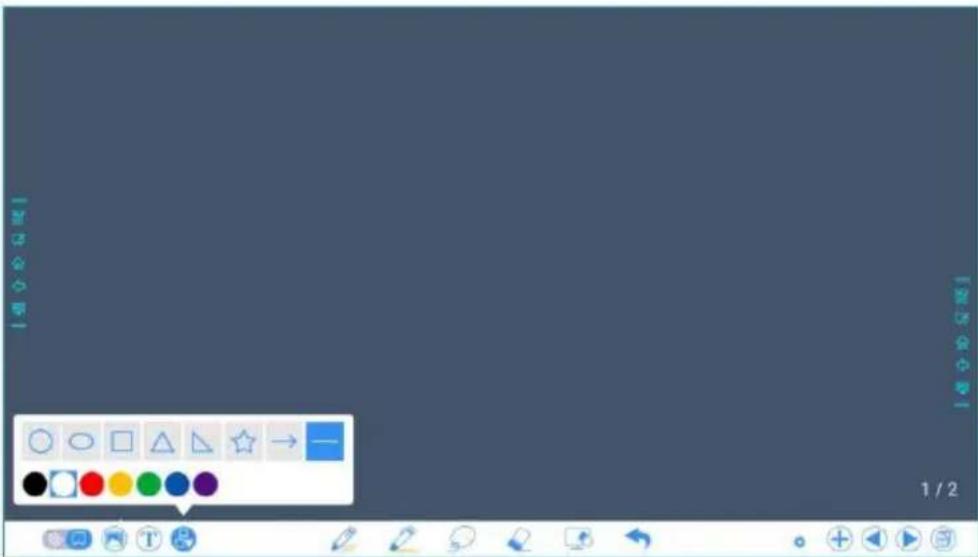

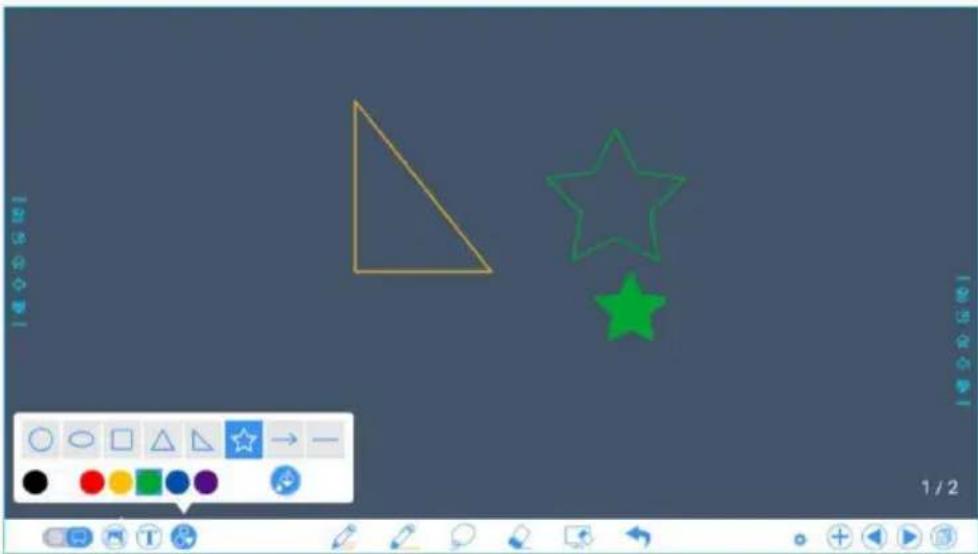

4	Auto shape	Click to insert the auto shape. Click and hold the icon for two seconds to set the shapes and color.

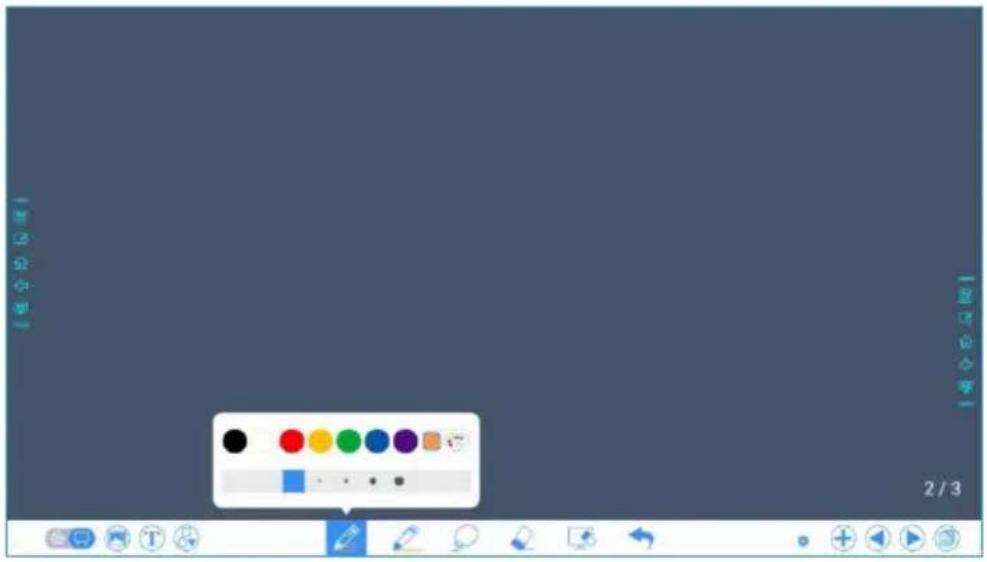

5	Pen	Click to use the pen function, and the icon turns into blue. Click and hold the icon for two seconds to set the size or color.
6	Highlighter	Click to use the highlighter function, and the icon turns into blue. Click and hold the icon for two seconds to set the size or color.
7	Select	Click it and user could choose the data on the page to move/ zoom in/zoom out/ rotate by two fingers, and the icon turns into white.

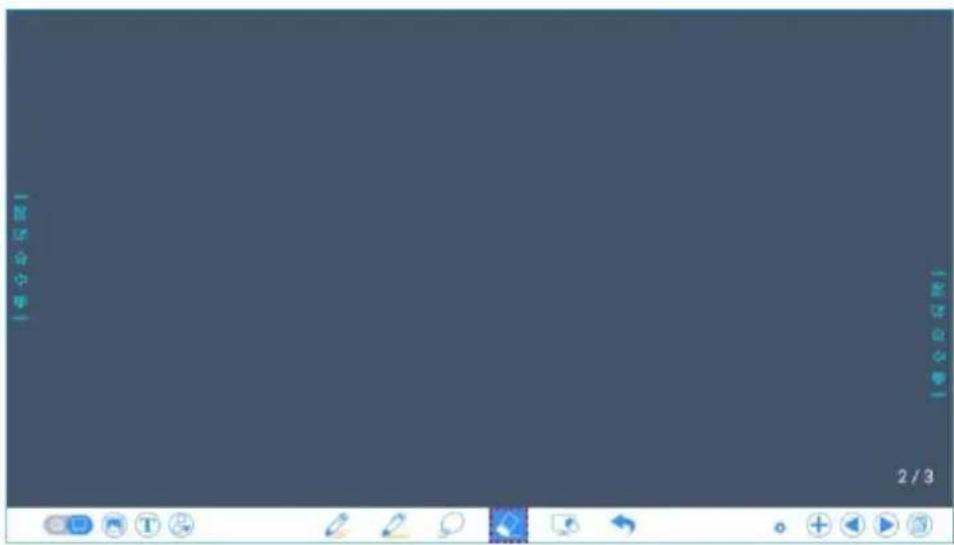

8	Eraser	Click to select the eraser function, when it is selected, the icon turns into blue. Click and hold the icon for two seconds to set the size of eraser.

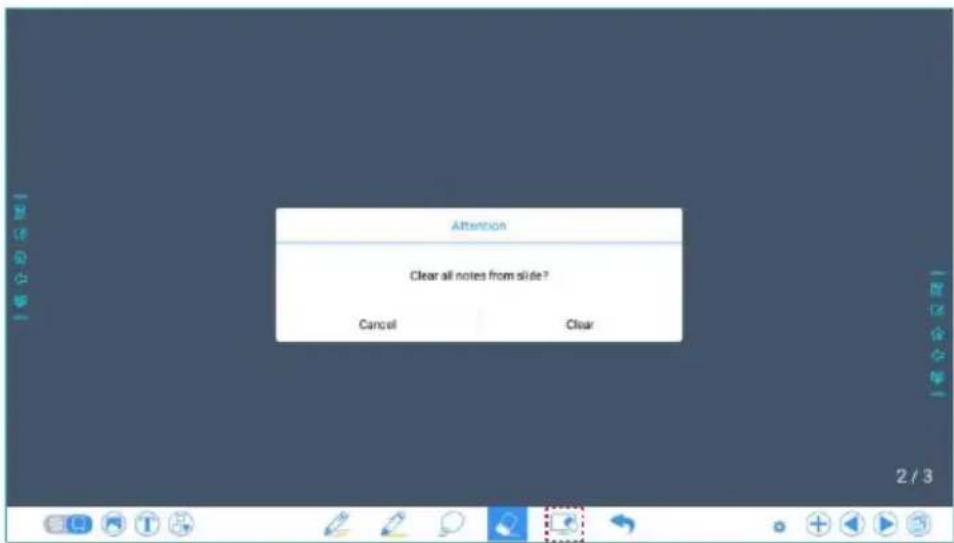

9	Clear	Clear all data in this page.
10	Undo	Back to the previous step.
11	Object recognition switch	Slide the turn on or off the object recognition function.
12	New Page	Click to add a new page. Click and hold for two seconds to set the color and the pattern of the new page.
13	Previous Page Click	to back to the previous page.
14	Next Page	Click to go to the next page.
15	Navigation
16	Page Number
17	Hide Smart Bar Click	to hide or show the smart bar.
		Click to take the screenshot, and save the data in file management. Click and hold the icon for two seconds to show the pop-up windows to make users to choose if they want to save the screenshot automatically when they leave the annotation mode.

Switch Whiteboard Mode

in the lower left corner of the discussion mode to switch between

- : Annotation mode

The background is transparent and the real-time image of the current signal source will be displayed. You can comment on presentation content such as Office documents and pictures as showing in the following figure.

Net-CPS OpenFlow Regpote Dot M Microsoft Revallier

• : Discussion mode

The background is in mono color, as shown in the following figure. You can write content on the page as required.

[命令台处理] 2 / 3

◆ Whiteboard Functions

New Page and Settings

- Create a new page

In discussion mode, click + to create a new page. Up to 20 pages can be created. See the following figure.

Computer desktop interface screenshot showing taskbar, status bar, and navigation icons with a numeric display at the bottom.

- Page settings

Click and hold + for two seconds to set the color and the pattern of the new page, as shown in the figure below.

Color Pattern OK Cancel

Import

On the Whiteboard, Click 📋 to import data from file management, you can import the pictures/ whiteboard data (PNG)/ screenshots (PNG) from system files, USB, network.

Screenshot of a desktop application interface with Chinese menu items and status bar at bottom

Insert text

On the Whiteboard, Click Ⓣ to insert text (Default is Roboto, 40pt), and show the keyboard. Click and hold the icon for two seconds to set the default text setting.

Color: Black/White/Red/Yellow/Green/Blue/Purple (default is White)

Size: 30-180 (click A+ A- to change the font size)

Tap screen to add text A 40 A 1 / 2

Insert auto shape

On the Whiteboard, Click 📋 to insert the anto shape. Click and hold the icon for two seconds to set the shapes and color.

Shapes: Circle, Oval, Square, Equilateral triangle, Right triangle, Star, Arrow, Line.

Color: Black/White/Red/Yellow/Green/Blue/Purple (default is White)

Screenshot of a legacy computer interface with tool icons and status bar, showing a toolbar with icons for zoom, zoom, square, triangle, star, and minus.

The icon 🙏 support two status: unselected; selected. The edge of shapes are colored when the icon is not selected; the shape will be filled with colors when the icon is selected.

Game interface screenshot showing a golden right triangle and two green stars on a dark background, with tool icons at bottom (no text or symbols on main elements)

On the Whiteboard, two types of pens are supported: Pen and highlighter.

- Highlighter : used to highlight. Characters covered by comments are visible.

for two seconds to set the size and color.

You can select the line size and color for writing, as shown in the following figure.

Screenshot of a desktop interface with color palette and toolbar icons, showing a color bar at the bottom.

On the Whiteboard, Click 🔒 and user could choose the data on the page to move/zoom in/ zoom out/ rotate by two fingers, and the icon turns into white.

Interior view of a modern office with a large window, a table, and a central monitor (no visible text or symbols)

Click 📋 to expand the toolbar, users can copy or delete or cut the data or change the data color, such as the following figure:

Interior view of a modern office with a large screen and a green square design, displayed in a photo editing interface (no readable text or symbols on the main scene)

Icon	function
	Click this icon to Crop the image.
	Long press this icon to Rotate the selected items.
	Click this icon to Post the selected items.
	Click this icon to Change color for the selected items.
	Paste (long press the screen around two seconds and the icon will appear only after one item copied or cut)
	Click this icon to Push to bottom layer.
	Click this icon to Delete the items.
	Click this icon to cut the items.
	Click this icon to copy the items.

Two methods are available to erase written errors or content as follows:

• Five-finger gesture: touch the screen with five fingers at the same time. A circle shows and indicates the area for eraser. Move the circle with fingers to erase written contents.
• Fist/hand back erasing: corresponding erase shape is a round with diameter 100pt.
• Spot erasing: Click 🔒 to clear wrong or unnecessary content. It would be shown by the icon, as shown in the following figure.

[安全提醒] 2 / 3

Clear All

On the Whiteboard page, click 📋 to show the pop-up windows to make users to choose if they want to clear contents on current page, as shown in the following figure.

Attention Clear all notes from slide? Cancel Clear 2 / 3

Object recognition switch

Press the setting ⚙ icon, it will pop up a switch and let user to change the object recognition setting, slide to left to open the object recognition function, slide to right to turn it off.

In annotation mode, click to save the current image as a picture. Up to 50 screenshots can be created. Click and hold the icon for two seconds to show the pop-up windows to make users to choose if they want to save the screenshot automatically when they leave the annotation mode, as shown in following figure.

newline 03:20 H: 03:27 End

Pictures saved through screenshots can be viewed and obtained using the following methods:

- After a meeting is complete, screenshots are saved on the Save meeting Discussion page, as shown in the following figure.

Save meeting discussion Select file All SS20170815039409 1/√ W4S20170815041753 2/√ SS20170815044808 3/√ SS20170815044826 4/√ SS20170815044838 5/√ SS20170815044952 6/√ SS20170815044953 7/√ AN20170815045018 8/√ Save to KINGSTON USB USB USB Share Move to Meeting Endhouseing

on the home page and choose Internal storage > Pictures > Screenshots > image to view or obtain screenshots.

INTERNAL STORAGE > PICTURES > SCREENSHORTS > IMAGE File Commander Add cloud Home Recent files Favorites Recycle Bin Internal storage FTP Local network Pictures Music WB20171114023835.png New 13.2017.3.27 100.0000

◆ Page Operations

You can preview, select, and delete a created writing page.

Page Preview

Click at the lower right corner in the discussion mode. All pages will be displayed. Click one page to switch to that page for more operations, as shown in the following figure.

Note

Navigation 1 2 3 4 5 6 All √

On the Navigation page, you can select or delete writing pages according to

to delete selected pages.

Navigation 1 2 3 4 5 6 All

Step 1: On Home page, click the icon in the lower right corner. The interface for adding shortcuts will be displayed.

newline 02:23 Windows Connellion WiniboBoard Nordex File Viewer 04:00

Step 2: Click the icons on top to switch the list between Windows programs, external signal sources, and pre-installed gadgets.

to view the Windows programs that the Newline Assistant uploads to the Smart system. For details, see "Add Quick Start Windows Programs in Smart System".

to view signal sources in Connection. You can set the Newline accessories to signal sources at Newline Extensions setting.

newline 12:00 PM Remaining slot 7/7 HDMI Front HDMI Rear 1 HDMI Rear 2 HDMI Rear 3 DisplayPort Windows Connection Windows 5 Budget File Viewer 11:35

to view Gadget applications.

newline Remaining shot 1/7 Business Calculator Check Browse Settings View Newline Broadcast Calculator Display Managers Email File Viewer

Step 3: Add or delete applications on the tab.

- In the list, click the icon to add it to the shortcut on the Home page. The check icon will appear at the bottom of the shortcut icons. Up to 7 shortcuts can be added.

- Tap the icon with the check mark again, the check icon will disappear and the shortcut will be deleted from the Home page.

Step 4: At the Home page, click the shortcut icon and you can start the program/application or change to the external signal source.

◆ Add Quick Start Windows Programs in Smart System

Step 1: In Windows, run the Newline Assistant program and drag the software icons or folder shortcut icons that you want to add from desktop or menu to the Newline Assistant window. The applications added or deleted through the Windows system will be automatically updated to the smart system until the upload progress reaches 100% . If there is an application not updated, click in the upper right corner to manually update all icons in the Newline assistant window to the smart system.

Tip:

Only .exe file and folder are supported.

Close Close to the chasmout have to add favorite

Step 2: Click 🔍 to return to the Home page. Click the + icon and go to shortcut setting. The page for adding application program will be displayed.

newline 02:23 Windows Connects Whitboard Gadget File Views 04:00

Step 3: At the shortcut setting page, click icon to view all the Windows programs added by Newline Assistant in Step 1.

newline 10.00 Windows Connection Windows+3 Design File Views 11:35 Remaining split 3/7 Newline assistant

Note

By default, the Newline Assistant application is added on the

Step 4: Tap the icon and add the shortcut at the Home page. Tap again and remove it.

Step 5: Return to Home page. Click the icon of an added Windows application to start the software.

Gadget

On the Home page, click Gadget. On the page that is displayed, all applications can be viewed, Using fingers to swipe up/down to change the page. The following figure shows applications that the system is delivered with.

Business Calendar Clock Browser Settings Viso Newline Broadcast Calculator print Display Mr. E-mail File Commander

Icon Functions
	Click this icon to enter the email application and send files. Before sending files, you need to create an email account.
	Click this icon to open the File Manager, and you can explore on internal and external files of the screen.
	Click this icon to enter Newline Cast application.
	Click this icon to enter the Office viewer application. In this application, you can view office files, including excel, word, power point, and PDF files.

File Management

The product supports connection to USB flash memory. Enter the File Viewer application, you can preview all files in the internal storage and storage devices connected via USB ports and select, copy, paste, delete and search for files.

◆ File Viewer Page

On the Home page, click File Viewer, as shown in the following figure.

newline 01:01 9:25 Windows Connection Whiteboard Gadget File Viewer Add 34:32

◆ File Preview

Enter the File Viewer application, you can click the submenu at the left side according to requirements, preview internal storage, external storage devices connected via the USB ports, cloud stored files, FTP uploaded files, and local network files, as shown in the following figure.

HOME File Commander Add cloud Home Recent files Favorites Recycle Bin Internal storage FTP Local network Pictures Infiniti of storage 2.0 GB Text of 8.0 GB Pictures Music Videos Downloads Favorites PC File Transfer

Note

Users can click the icon at the top right corner to add categories.

◆ File Operation

Enter the File Viewer application. You can create folders according to requirements, select files, paste files and set wallpaper copy/paste/delete.

INTERNAL STORAGE > PICTURES File Commander Add cloud Home Recent files Favorites Recycle Bin Internal storage FTP Local network Pictures Screenshots Directory: Jun 26, 2019, 2026 Rename Move Copy Cut Delete Zip Add to favorites Properties

1. Search 2. Filtering 3. New Folder 4. Paste ( Icon appears only after one item copied )

For details on other operations, click in the upper right corner for more operations.

PICTURES File Commander Add cloud Home Recent files Favorites Recycle Bin Internal storage SandDisk USB drive FTP Local network Pictures AN19691231203642.png 6.4 KB - Date 31, 1968, 20.0% AN19691231203649.png 6.4 KB - Date 31, 1968, 20.0% AN19691231203909.png 6.4 KB - Date 31, 1968, 20.0% AN20190605035932.png 10.4 KB - Jun 5, 2019, 20.5% SS20190605035339.png 2.4 KB - Jun 5, 2019, 20.5% SS20190605035430.png 13.2 KB - Jun 5, 2019, 20.5% SS20190605035450.png 27.4 KB - Jun 5, 2019, 20.5% SS20190605035457.png 30.4 KB - Jun 5, 2019, 20.5% SS20190605035503.png 35.4 KB - Jun 5, 2019, 20.5% SS20190605035508.png 32.4 KB - Jun 5, 2019, 20.5% Rename Move Copy Cut Delete Open as Share Zip Add to favorites Properties

. In the dialog box that is displayed,

enter keywords in the search box according to requirements. The system will display a list of files that match the keywords.

SANDISK USB DRIVE File Commander Add cloud Home Recent files Favorites Recycle Bin Internal storage SanDisk USB drive FTP Local network Android Directory: Jan1, 1980.06.06 LOST.DIR Directory: Jan1, 1980.06.06 System Volume Information Directory: Jan2, 2018.11.04

◆ File Filtering

at the left side to display files by type, for example, document, picture, music, video, archive and the downloaded.

INTERNAL STORAGE > MUSIC File Commander Add cloud Home Recent files Favorites Recycle Bin Internal storage FTP Local network Pictures Android Directory - Jun 14, 2016, 11:08 DCIM Directory - Jun 14, 2016, 31:02 Download Directory - Jun 25, 2016, 22:58 HHT_Info Directory - Jun 14, 2016, 11:08 Movies Directory - Jun 14, 2016, 31:08 Music Directory - Jun 14, 2016, 11:08 Notifications Directory - Jun 14, 2016, 11:08 Pictures Directory - Jun 14, 2016, 11:02 Podcasts Directory - Jun 14, 2016, 11:08 Ringtones

- The system supports two view modes: list and thumbnail. You can click

- Click the icon to display files based on name, type, size, and modification. You can also change the display to filter files by whether they are pictures, music or video files, as shown in the following figure.

INTERNAL STORAGE File Commander Alarms Android DCIM Movies Music Notifications Ringtones Whiteboard Add cloud Home Recent files Favorites Recycle Bin Internal storage FTP Local network Pictures View mode List Grid Sort by Name Slow Type Date Show only All types Documents Videos Music Pictures

◆ New Folder

Enter the File Viewer application, and click 📋 to create folder. As shown in the following figure.

INTERNAL STORAGE File Command Add cloud Home Recent files Favorites Recycle Bin Internal storage SundBank USB drive FTP Local network Alarms Windows: 12.07.1994 (1993) Android Shooting: 12.07.1994 (1993) DCIM January: 12.07.1994 (1993) Folder Enter folder name: New folder Notifications January: 12.07.1994 (1993) Pictures January: 12.07.1994 (1993) Podcasts January: 12.07.1994 (1993) Ringtones January: 12.07.1994 (1993)

◆ File Name

Under the "Internal storage > Pictures > Screenshots > image" folder in the File Manager, all pictures of this meeting are saved. Screenshots include annotation page screenshots, remote control screenshots and pages in the discussion mode. Depending on the screenshots mode, picture naming is different. Picture files are named in the following of prefix + creation file.

Prefix name rule: WB (discussion mode page), AN (annotation page screenshot), and SS (remote control screenshot).

INTERNAL STORAGE > PICTURES > SCREENSHOTS > IMAGE File Commanders Add cloud Home Recent files Favorites Recycle Bin Internal storage FTP Local network Pictures AN20190626002705.png 1.3 MB - Jun 24, 2019, 00:27 AN20190626002725.png 1.3 MB - Jun 31, 2019, 00:27 AN20190626002735.png 1.3 MB - Jun 24, 2019, 00:27 AN20190626010138.png 1.3 MB - Jun 24, 2019, 01:01 AN20190626010148.png 1.3 MB - Jun 24, 2019, 01:01 AN20190626010206.png 1.3 MB - Jun 24, 2019, 01:02 AN20190626015700.png 591.7 KB - Jun 28, 2019, 01:57 AN20190626015711.png 101.4 KB - Jun 26, 2019, 01:57 SS20190626003308.png 734.3 KB - Jun 36, 2019, 00:33 SS20190626003323.png 747.5 KB - Jun 26, 2019, 00:33

◆ Manually End Meeting

. The Save meeting discussion page will be displayed.

The meeting will end and timer will stop.

File Name

The Save meeting discussion page displays pages, annotation page screenshots, and remote control screenshots in the discussion mode in this meeting, as shown in the following figure.

Picture files are named in the following of prefix + creation file. Slide left/right using a finger to switch pictures.

Prefix name rule: WB (discussion mode page), AN (annotation page screenshot), and SS (remote control screenshot).

Save meeting discussion Select file All SS20170815033639 1/n W820170815041753 2/n SS20170815044808 3/n SS20170815044826 4/n SS20170815044338 5/n SS20170815044952 6/n SS20170815044953 7/n AN20170815045016 8/n Save to KINGSTON USB USB USB Shore Save to meeting End meeting

Save Meeting Data

When no external USB flash memories are connected, icons in the Save to area will be gray. When an external USB flash memory is connected, icons in the Save to area will turn into blue. Click the USB icon in blue. The "uc" folder will be created under the root folder, and the selected files will be saved in it.

• Back to meeting: The meeting will be continued; files are not cleared and timer continued.
• End meeting: The Warning dialog box will be displayed.
• Click Confirm. All writing pages and screenshots will be deleted, and go back to start screen page. The current meeting will be ended and the timer will reset.

- Click Cancel. The meeting continues and the system stays on the Save meeting discussion page.

Note

• Do not eject USB flash memory before completing the saving process.
• If the USB flash memory is bigger than 16GB or the file format is not FAT32, the data will not be saved properly.

Save meeting discussion Select file All SS20170815033639 Warning Ending the meeting will permanently delete all screenshots. Ensure you save your information prior to ending your meeting. SS20170815044838 Confirm Cancel AN20170815045018 B/N Save to KINGSTON USB USB USB Share Back to meeting End meeting

button on the Save meeting discussion page, and click AquaMail to share current meeting files by email. Before sending, confirm that an email account is successfully set.

Save meeting discussion Select file: Aa Save with FC AquaMail

◆ Automatically End Meeting

If the display is left un-operated for a specified duration, it will be locked to guarantee your privacy. Choose Settings > Power ON/OFF Setting to set the duration. For details on the setting method, see "Power ON/OFF Setting".

After the display is locked, if it is operated again within 120 seconds, the display is unlocked. Otherwise, the display enters the shut down mode and automatically deletes all meeting content. After the display is unlocked, the countdown dialog box will not appear in current meeting. The dialog box can be restored if you create a new meeting after current meeting is complete.

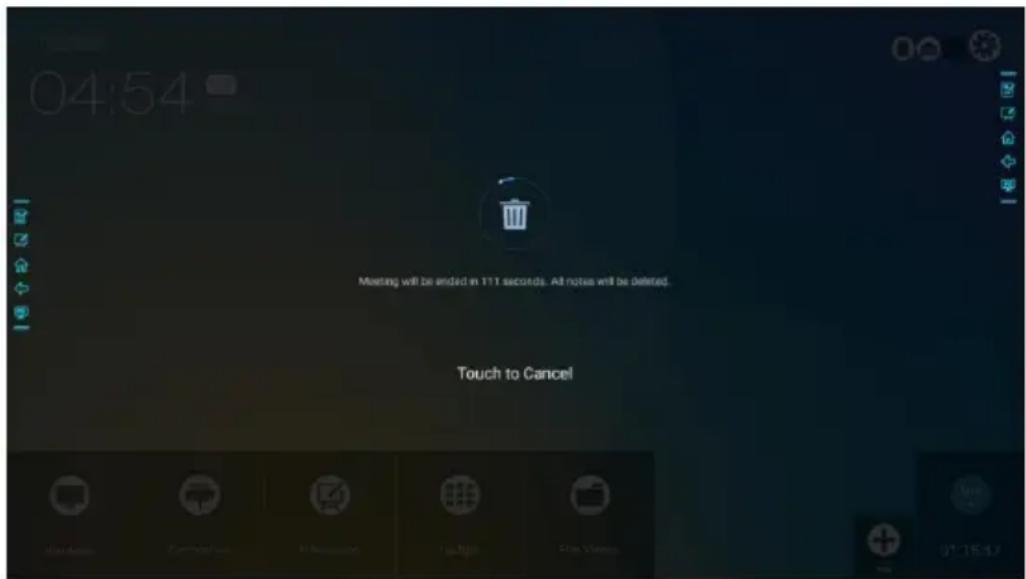

04:54 Meeting will be ended in 111 seconds. All notices will be deleted. Touch to Cancel

Quick Setting Menu

Using two fingers to swipe up from the bottom of the screen, the quick setting menu will then show up, as shown in the following figure.

newline 12:41 AM Windows Camera Multi Deep Sound light Filter WiFi Serial only Fanbox Left Fanbox Right Settings Home 14:32

	Click the icon to mute/unmute.
	Click the icon to turn on/off the beep sound.
	Click the icon to turn on/off the blue light filter.
	Click the icon to turn on/off the Smart system Wi-Fi.
	Click the icon to turn on/off the audio only function.
	Click the icon to turn on/off the left toolbar.
	Click the icon to turn on/off the right toolbar.
	Click the icon to enter the settings page.
	Click the icon to return to Home page.

Connect RS-232 port to the PC or controlling product. Enable RS-232 serial port connection and complete the following configuration.

Port: COM1 (Set according to PC or controlling product's port number)
Baud rate	19200	Odd/even check	None
Data bits	8	Stop bit	1

The following tables list controlling codes, querying codes and return.

Function	Controlling codes	Return codes
Power on	7F 08 99 A2 B3 C4 02 FF 01 00 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 00
Power off	7F 08 99 A2 B3 C4 02 FF 01 01 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 01
Mute/Unmute toggle	7F 08 99 A2 B3 C4 02 FF 01 02 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 02
Mute On	7F 09 99 A2 B3 C4 02 FF 0F 00 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 0F 00
Mute Off	7F 09 99 A2 B3 C4 02 FF 0F 01 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 0F 01
Signal source	7F 08 99 A2 B3 C4 02 FF 01 06 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 06
Enable whiteboard	7F 08 99 A2 B3 C4 02 FF 01 07 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 07
Display status	7F 08 99 A2 B3 C4 02 FF 01 09 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 09
HDMI front	7F 08 99 A2 B3 C4 02 FF 01 0A CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 0A
HDMI rear 1	7F 08 99 A2 B3 C4 02 FF 01 52 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 52
HDMI rear 2	7F 08 99 A2 B3 C4 02 FF 01 53 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 53
HDMI rear 3	7F 08 99 A2 B3 C4 02 FF 01 54 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 54
Internal PC	7F 08 99 A2 B3 C4 02 FF 01 38 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 38
DP	7F 08 99 A2 B3 C4 02 FF 01 56 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 56
Page up	7F 08 99 A2 B3 C4 02 FF 01 13 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 13
Page down	7F 08 99 A2 B3 C4 02 FF 01 14 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 14
VOL -	7F 08 99 A2 B3 C4 02 FF 01 17 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 17
VOL +	7F 08 99 A2 B3 C4 02 FF 01 18 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 18
Menu	7F 08 99 A2 B3 C4 02 FF 01 1B CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 1B
Home page	7F 08 99 A2 B3 C4 02 FF 01 1C CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 1C
Return (exit)	7F 08 99 A2 B3 C4 02 FF 01 1D CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 1D
OK	7F 08 99 A2 B3 C4 02 FF 01 2B CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 2B
←	7F 08 99 A2 B3 C4 02 FF 01 2C CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 2C
→	7F 08 99 A2 B3 C4 02 FF 01 2D CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 2D
↑	7F 08 99 A2 B3 C4 02 FF 01 2E CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 2E
↓	7F 08 99 A2 B3 C4 02 FF 01 2F CF	7F 09 99 A2 B3 C4 02 FF 01 2F 01 CF
Set volume	7F 08 99 A2 B3 C4 02 FF 05 XX CFNOTE:XX indicates the volume value (0 to 100), corresponding to hexadecimal hexadecimals 00 to 64.	7F 09 99 A2 B3 C4 02 FF 05 XX 01 CF
Query the firmware version number	7F 08 99 A2 B3 C4 02 FF 01 3D CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 3D
Set display mode N	7F 08 99 A2 B3 C4 02 FF 06XX CFOTE:XX indicates the mode. 00=Standard, 01=Eco, 02=Auto.	7F 09 99 A2 B3 C4 02 FF 06 XX 01 CF
Enable the annotation mode	7F 08 99 A2 B3 C4 02 FF 01 7F 40 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 01 40
Increase backlight brightness	7F 08 99 A2 B3 C4 02 FF 01 7F 47 CF	09 99 A2 B3 C4 02 FF 01 4701 CF
Decrease backlight brightness	7F 08 99 A2 B3 C4 02 FF 01 7F 48 CF	7F 09 99 A2 B3 C4 02 FF 01 4801 CF
Set the value of backlight brightness	7F 08 99 A2 B3 C4 02 FF 09XX CFNOTE:XX indicates the value of backlight brightness (0 - 100), corresponding to the hexadecimal number system (00 - 64).	7F 09 99 A2 B3 C4 02 FF 09 XX 01 CF
Switch backlight	7F 08 99 A2 B3 C4 02 FF 01 N NOTE:XX = 01 indicates the backlight is on.XX = 00 indicates the backlight is off.	7F 09 99 A2 B3 C4 02 FF 01 15XX CFNOTE:XX = 01 indicates the backlight is on.XX = 00 indicates the backlight is off.
Switch Backlight 7F On 01 CF 01 CF	09 99 A2 B3 C4 02 FF 0E 7F 09 15 CF	99 A2 B3 C4 02 FF 0E 01
Switch Backlight 7F Off 00 CF 01 CF	09 99 A2 B3 C4 02 FF 0E 7F 09	99 A2 B3 C4 02 FF 0E 00
Switch to Screen 7F Lock Toggle 57 CF	08 99 A2 B3 C4 02 FF 01 7F 09 01 CF	99 A2 B3 C4 02 FF 01 57
Switch Screen Lock On 01 CF 01 CF	09 99 A2 B3 C4 02 FF 0D 7F	09 99 A2 B3 C4 02 FF 0D 01
Switch Screen Lock Off	09 99 A2 B3 C4 02 FF 0D 7F 00 CF	09 99 A2 B3 C4 02 FF 0D 0001 CF
Screenshot	08 99 A2 B3 C4 02 FF 01 7F 1F CF	09 99 A2 B3 C4 02 FF 01 1F01 CF
Settings	08 99 A2 B3 C4 02 FF 01 7F 20 CF 01 CF	09 99 A2 B3 C4 02 FF 01 20
Freeze ON/OFF 7F toggle	08 99 A2 B3 C4 02 FF 01 7F 09 3B CF	99 A2 B3 C4 02 FF 01 3B 01 CF
Freeze On	7F 09 99 A2 B3 C4 02 FF 0B 7F 09 99 A2 B3 C4 02 FF 0B 00 00 CF 01 CF	7F 09 99 A2 B3 C4 02 FF 0B 00 00 CF 01 CF
Freeze Off	7F 09 99 A2 B3 C4 02 FF 0B 7F 09 99 A2 B3 C4 02 FF 0B 01 01 CF	7F 09 99 A2 B3 C4 02 FF 0B 01 01 CF

Function	Querying codes	Return codes
Power supply	7F 08 99 A2 B3 C4 02 FF 01 37 CF	7F 09 99 A2 B3 C4 02 FF 01 37 XX CFNOTE:XX indicates the power on/off state.XX = 01: power on stateXX = 00: power off state
Speaker	7F 08 99 A2 B3 C4 02 FF 01 82 CF	7F 08 99 A2 B3 C4 02 FF 01 82 XX CFNOTE:XX indicates the speaker mute/unmute status.XX=01: MuteXX=00: Un-mute
Current signal source	7F 08 99 A2 B3 C4 02 FF 01 50 CF	7F 09 99 A2 B3 C4 02 FF 01 50 XX CFNOTE:XX indicates the current signal source status.Smart system = 30PC = 17DP = 20HDMI rear 1 = 1FHDMI Rear 2 = 1EHDMI Rear 3 = 18HDMI Front = 19
Speaker volume	7F 08 99 A2 B3 C4 02 FF 01 33 CF	7F 09 99 A2 B3 C4 02 FF 01 33 XX CFNOTE:XX indicates current volume value (XX is a hexadecimal value, range: 00~64).For example, XX = 20 indicates current volume value is 32 (decimal value), XX = 00 indicates mute state.
D.Mode	7F 08 99 A2 B3 C4 02 FF 01 35 CF	7F 09 99 A2 B3 C4 02 FF 01 35 XX CFNOTE:XX indicates the mode.XX=00: StandardXX=01: EcoXX=02: Auto
Backlight brightness	7F 08 99 A2 B3 C4 02 FF 01 49 CF	7F 09 99 A2 B3 C4 02 FF 01 49 XX CFNOTE:XX in di cate s t he val ue of backl ig ht brightness (0 - 100), corresponding to the hexadecimal number system (00 - 64).
Backlight status	7F 08 99 A2 B3 C4 02 FF 01 81 CF	7F 08 99 A2 B3 C4 02 FF 01 81 XX CFNOTE:XX indicates the backlight status.XX=00 : The backlight is on.XX=01 : The backlight is off.
Screen lock status	7F 08 99 A2 B3 C4 02 FF 01 84 CF	7F 08 99 A2 B3 C4 02 FF 01 84 XX CFNOTE:XX indicates the screen lock status.XX=01: Screen lock is on.XX=00 : Screen lock is off.
Whiteboard status	7F 08 99 A2 B3 C4 02 FF 01 83 CF	7F 08 99 A2 B3 C4 02 FF 01 83 XX CFNOTE:XX indicates the whiteboard status.XX=01: The whiteboard is activatedXX=00 : The whiteboard is not activated.
Return to system state of the previous 9 options	7F 08 99 A2 B3 C4 02 FF 0A 00 CF	7F 08 99 A2 B3 C4 02 FF 0A 00 AB CD EF GH IJ OP QR ST UV CFNOTE:AB: Power supplyCD: SpeakerEF: Current signal sourceGH: Speaker volumeIJ: D.ModeOP: backlight brightnessQR: backlight statusST: Whiteboard statusUV: Switch to Screen lock

Symptom	Troubleshooting Methods
The screen cannot be powered on or the indicator is off.	Check whether the power supply is connected.
	Check whether the power supply plug is properly connected.
	Check whether the power supply line is properly connected.
	Check whether the rocker switch is enabled.
	Press the reset switch and start the system again.
The remote control is not causing a response.	Replace the batteries.
	Check whether the polarity direction of the batteries is correct.
	Use the remote control aligning with the IR receive window. For details, see section "Remote Control".
The image is normal but there is no sound.	Increase volume on both the display and the Windows system.
	Check whether the display and the Windows system are muted.
	If an external computer is connected, check whether the connection cables are normal.
During the video conference, the In remote party cannot hear the sound of the local party.	Control Panel > Sound, set the product parameters to the default values in the Recording tab page.
The system is automatically powered on/off when no operation is performed.	Disable the automatic power-on/off function. For details, see section "Power ON/OFF Setting".
	Check whether the display entered shut down mode due to no operation for an extended period of time.
	Check whether the input power supply is stable.
The colors of images are abnormal.	Check whether the HDMI cable is properly connected or has any quality issue.
The touch function is abnormal or the positioning is inaccurate.	Restart the display.
	In the Windows system, perform positioning again. For details, see section "Positioning".
The touch function is unavailable when the external signal source channel is being used.	Switch between different external signal sources.
	Ensure that the USB touch cable is connected to the proper port. For details, see section "Ports".
	Remove and insert the USB touch cable again.
There is no sound when the HDMI in channel is used.	Remove and insert the HDMI cable again.
No image is displayed when the HDMI out channel is used.	Generally, this issue is caused by the compatibility of the external display product. Replace the external display product and test again.
	The HDMI cable is too long or has a poor quality. Replace the HDMI cable delivered with the product.
The touch function on the front panel is ineffective.	Touch the button using the fingertip completely.
	Check whether the finger is wet or has other liquids on it.
	Restart the display.
The USB flash memory cannot be identified.	Check whether the USB flash drive is inserted into the correct USB port. For details, see section "Ports".
The conference records cannot be saved on the USB flash drive, and the system prompts "The target storage product has no write permissions."	Format the USB flash drive to the FAT32 format.
The internal PC has no signal.	Check whether the internal PC is properly inserted in the slot.
	Check whether the internal PC enters the shut down state.
	Press the power button on the internal PC (for details, see the instructions of the internal PC), and manually start up the internal PC.
In the Smart system or Windows system, no wireless network can be found or the wireless network signal is weak.	Check whether the Wi-Fi antenna is properly installed on the Smart system. For details, see section "Ports".
	Check whether the Wi-Fi antenna is properly installed for the internal PC.
The keyboard is not correctly displayed.	Confirm that the hardware keyboard is enabled.

Model	TT-6518VN	TT-7518VN	TT-8618VN
Display
Backlight	LED
Display Area	1431.50 mm x 806.50 mm	1653.24 mm x 931.26 mm	895.04 mm x 1065.96 mm
Active Screen Size	65 inch	75 inch	86 inch
Display Ratio	16:9
Resolution	3840 horiz. by 2160 vert. Pixels, RGB stripe arrangement
Display Colors	8 bit	8 bit	10 bit
Brightness	370nit
Contrast	1200:1/4000:1(varied by cell source)
Response Time 8 ms
Life Time	≥30000 h (Min.)
Speaker
Speaker Position	Forward
Max. Power Output	2 x 15 W
Electrical
Power Consumption	Maximum ≤ 250 W Standby Mode ≤ 0.5 W	Maximum ≤ 400 W Standby Mode ≤ 0.5 W	Maximum ≤ 450 W Standby Mode ≤ 0.5 W
Working Voltage	AC 100 V – 240 V, 50 Hz/ 60 Hz
Touch
Touch Surface	Optical Bonding Anti-Glare & Anti-Fingerprint Glass
Transparency	88%
Surface Hardness	7 H
HID support	HID
Touch Points	20 Points in Windows/ 10 Points in Android
Writing Tools	Eraser, Stylus or Finger
Scan Speed	130 Hz	120 Hz	100 Hz
Positioning Accuracy	Center area 1.0 – 1.5 mm/ Edge area 1.2 – 2.0 mm
Communication Interface	USB-A
Transportation/Storage
Storage Temperature/Humidity	-15°C – 55°C/20°C/RH – 90°C/RH (Non coagulation)
Working Temperature/Humidity	0 °C – 40 °C/20% RH – 80% RH(Non coagulation)
Mounting (optional)	Wall-mounted/ Floor Stand
Outline Dimension	1546 mm x 944 mm x 89 mm	1771 mm x 1071 mm 20 x 104 mm	18 mm x 1211 mm x 104 mm
Packing Dimension	1725 mm x 1085 mm x 280 mm	1918 mm x 1195 mm x 280 mm	2180 mm x 1330 mm x 340 mm
Net Weight	39kg	50.5kg	62.5 kg
Gross Weight	US 52 ± 2 kgEU 53 ± 2 kg	68 ± 2 kg	81.5 ± 2 kg
Ports
Front Interface Inputs	HDMI In x 1, USB (Touch) x 1, USB (Public) x 2
Rear Interface 2A Inputs	HDMI In x 3, DP x 1, USB (Touch) x 4, HDMI Out x 1, DC Out (5V, A), SPDIF out x 1, Earphone out x 1, USB 2.0 (Public) x 1, USB 2.0 (Embedded) x 1, RS-232 x 1, RJ45 x 2, USB 3.0 (Public) x 1, OPS Slots (4K@60Hz), Line Out x 1
Other functions
Intelligent thermos protector	Yes
Build-in WIFI	2.4 G/ 5 G (Optional)
Smart System
Chips	ARM A53 x 41.4 GHz
RAM	2 GB
Flash	8 GB
Multimedia File Formats	Supports all major types of multi-media files
Android Software
On Screen Annotation	Yes
Discussion Board	Yes

For more information

Please visit our website (www.newline-interactive.com) for detailed instruction manual.

Contact Us for Support

Please email us at [e-mail].
