Product Type	2-way Coaxial Speaker
Brand	Focal
Model	IC RNS 165
Diameter	165 mm (6.5 inches)
Rated Power (RMS)	60 W
Rated Power (Peak)	120 W
Impedance	4 ohms
Sensitivity	91 dB (2.83 V/1 m)
Frequency Response	60 Hz - 20 kHz
Cone Material	Polyglass
Tweeter	20 mm inverted aluminum/magnesium dome
Weight (per speaker)	0.75 kg
Cutout Diameter	142 mm
Mounting Depth	70 mm
Power Supply	Passive (no external power required)
Main Features	High-fidelity sound reproduction for car installation
Maintenance and Cleaning	Clean with a soft, dry cloth
Safety	Do not exceed rated power to avoid damage
Spare Parts and Repairability	Contact a Focal authorized center for any repairs

Frequently Asked Questions - IC RNS 165 FOCAL

How to install this speaker in my car?

Installation requires removing the original speaker, connecting the cables with correct polarity (+/-), then fastening the speaker in the designated location using the provided screws. Ensure the cutout diameter is 142 mm.

What is the RMS and peak power of the IC RNS 165?

The RMS power is 60 W and peak power is 120 W. It is recommended not to exceed these values to avoid damage.

What is the required cutout diameter?

The required cutout diameter is 142 mm. Check that your mounting location matches this dimension before installation.

Can I use these speakers with an amp?

Yes, these speakers can be used with an external amplifier. It is recommended to choose an amplifier with an RMS power per channel between 30 and 90 W for optimal performance.

What is the impedance of the speaker?

The impedance is 4 ohms. This value is standard for car audio systems.

How to connect the cables?

Connect the positive wire (+) to the speaker's positive terminal and the negative wire (-) to the negative terminal. Use suitable connectors or solder the wires for a reliable connection.

Is there a built-in filter?

Yes, the coaxial speaker has a built-in passive crossover that separates frequencies between the woofer and tweeter for balanced sound reproduction.

Can they be used as replacements for original speakers?

Yes, these speakers are designed to replace original 6.5-inch (165 mm) speakers in most vehicles, provided the cutout diameter and mounting depth are compatible.

What is the sensitivity of the speaker?

The sensitivity is 91 dB (2.83 V/1 m). This means that with 1 W of power, the speaker produces a sound level of 91 dB at 1 meter.

How to clean the speakers?

Clean the grille and cone with a soft, dry cloth. Do not use chemicals or water, as they may damage the materials.

USER MANUAL IC RNS 165 FOCAL

Check Online Updated Compatibility list and installation manual

www.focal-inside.com

IC RNS 165

Woofer	165mm
Voice coil diameter	25mm
Cone	DSF glass fibre
Magnet	85mm
Nominal impedance	4Ω
Tweeter	Aluminum/magnesium inverted dome tweeter
Crossover	6dB/oct
Max. power	120W
Nom. power	60W
Sensitivity (2.83V/1m)	91dB
Frequency response	60Hz - 20kHz
Accessories	Supplied with mounting accessories, screws, brackets.

IC RNS 165®

5 - Orientation du tweeter

Please validate your Focal-JMlab warranty, it is now possible to register your product online: www.focal.com/warranty

Thank you for purchasing a Focal product. Welcome to our High-Fidelity world. Innovation, tradition, excellence and pleasure are our values; our one and only aim is to bring you a sound that is rich, pure and true. To get the most out of your product, we recommend that you read the instructions in this booklet, then store it in a safe place to refer to in the future.

Conditions of guarantee

All Focal loudspeakers are covered by warranty drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of warranty. Warranty cover extends at least to that granted by the legal warranty in force in the country where the original purchase invoice was issued.

Warning

Continuous listening at high sound level (above 110dB) can durably damage your hearing. Listening above 130dB can damage your hearing permanently.

Important recommendations

Before attempting any installation, check first how much space is available to fit the speakers into the vehicle (cf plans on the packaging), then proceed with the cutting. In the case of assembly in original location, check that there is enough space between the speaker and the protections grille.

• Ensure the speaker is clean from debris and metallic particles that may be attached (especially after drilling).
• Clean before mounting the speakers.

Running period

IC RNS 165 drive units use the very latest components. To ensure such complex mechanical elements work in harmony with each other, they must be allowed to function correctly in this environment. Changes in temperature and humidity are regarded as very hostile. In order to get the best of your IC RNS 165 speakers, a running-in period must be respected to ensure they are ready for this. We recommend that, once the system is ready for listening, the drive units should be run-in with medium volume setting, with music that has the full bandwidth of frequencies (sub-bass through treble). This running-in period should last for a few weeks, to gain the full potential. After which the excellent performance of your IC RNS 165 kit can be fully appreciated.

IC RNS 165 installation

1 - Place the Speakers terminal in front of the OEM connector

2 - Fix the speaker using the included rivets

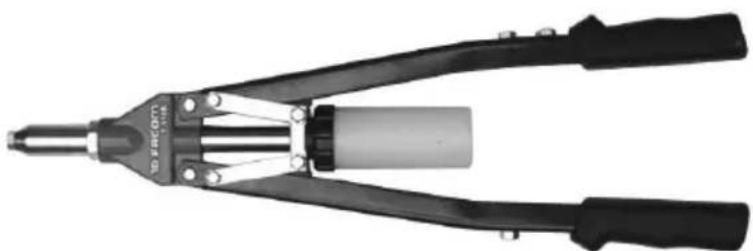

3 - Use a rivet fixing tool:

4 - Connection

mZ

5 - Tweeter orientation

The tweeter includes a rotary and adjustable tilt mechanism that gives the user a huge advantage in deciding the position the tweeter points, ultimately changing the strength of the high frequencies produced.

Carefully turn the tweeter into position and make sure that it is directly in line with the listener's ears. (See drawing)

Different attempts will have to be made in order to:

• obtain the perfect setting that suits you
- optimize the sound stage

Correct elimination of this product.

This marking indicates that within the EU this product should not be disposed of with other household wastes. To prevent any risk to the environment or human health, please recycle them responsibly to encourage the reuse of material resources. To return your used device, please use the return and collection systems available, or contact the retailer where you purchased the product. They can recycle this product safely.
