USER MANUAL AT-HDVS-CAM-HDBT Atlona

PTZ Camera with HDBaseT Output

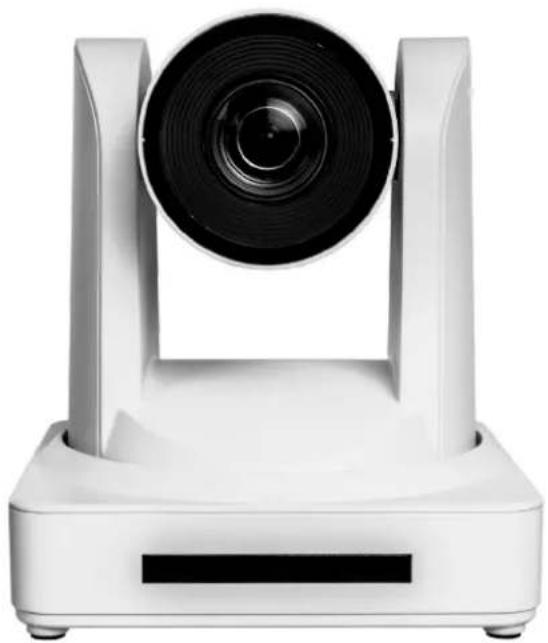

White video camera with a circular lens mounted on a rectangular base (no text or symbols visible)

Black wireless router device with front-mounted ports and antenna, no visible text or symbols on the device body

AT-HDVS-CAM-HDBT

Atlona Manuals

Accessories

Version Information

Version Release Date Notes

5 Jan 2024 Updated warranty information

Sales, Marketing, and Customer Support

Main Office

Atlona Incorporated

70 Daggett Drive

San Jose, CA 95134

United States

Office: +1.408.962.0515

Sales and Customer Service Hours

Monday - Friday: 6:00 a.m. - 4:30 p.m. (PST)

https://atlona.com/

International Headquarters

Atlona International AG

Tödistrasse 18

8002 Zürich

Switzerland

Office: +41.43.508.4321

Sales and Customer Service Hours

Monday - Friday: 09:00 - 17:00 (UTC +1)

Operating Notes

IMPORTANT: Visit http://www.atlona.com/product/AT-HDVS-CAM-HDBT for the latest firmware updates and User Manual.

Warranty

To view the product warranty, use the following link or QR code:

https://atlona.com/warranty/.

Important Safety Information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCT THE RISK OF

ELECTRIC SHOCK

DO NOT OPEN ENCLOSURE OR EXPOSE

TO RAIN OR MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the product.

The information bubble is intended to alert the user to helpful or optional operational instructions in the literature accompanying the product.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install or place this product near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of a polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
11. Only use attachments/accessories specified by Atlona.
12. To reduce the risk of electric shock and/or damage to this product, never handle or touch this unit or power cord if your hands are wet or damp. Do not expose this product to rain or moisture.
13. Unplug this product during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC Compliance

FCC Compliance and Advisory Statement: This hardware device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulations.

Copyright, Trademark, and Registration

© 2024 Atlona Inc. All rights reserved. "Atlona" and the Atlona logo are registered trademarks of Atlona Inc. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.

All other trademark(s), copyright(s), and registered technologies mentioned in this document are the properties of their respective owner(s).

Table of Contents

Introduction 7

Features 7

Package Contents 7

Panel Description 8

Installation

9

Connection Instructions 9

Mounting Instructions 9

Wall Mount Installation 9

Ceiling Mount Installation 10

Connection Diagram 11

Device Operation 12

Initialization Procedure 12

Home Position 13

Field of View 14

Sample Calculations Table 14

Calculating Specific Values 15

Controlling the Camera

Tilt 16

Pan (Rotation) 16

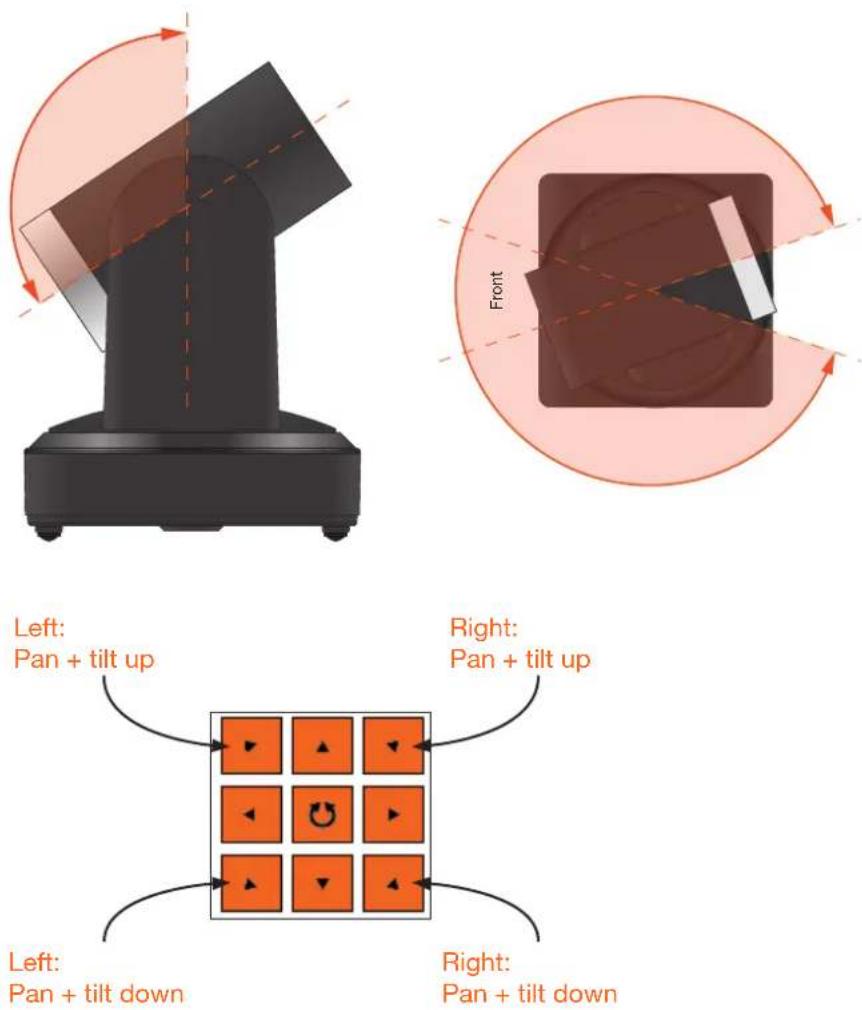

Tilt and Pan Combinations 17

Zoom 18

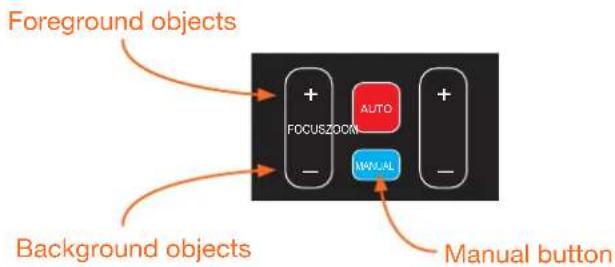

Focus 18

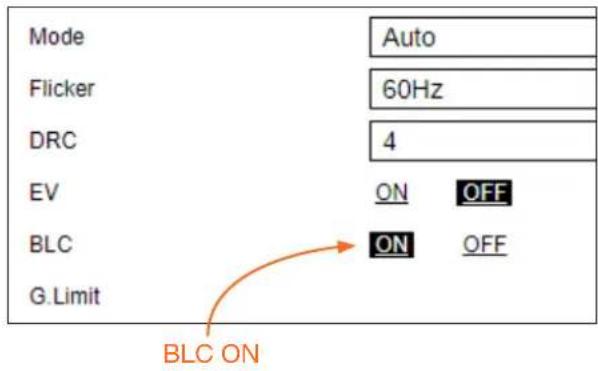

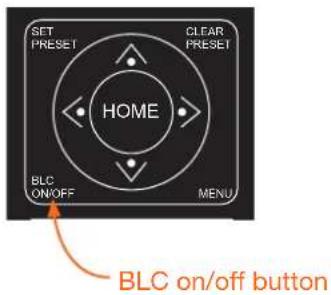

Backlight Compensation (BLC) 19

Standby Mode 19

Managing Presets

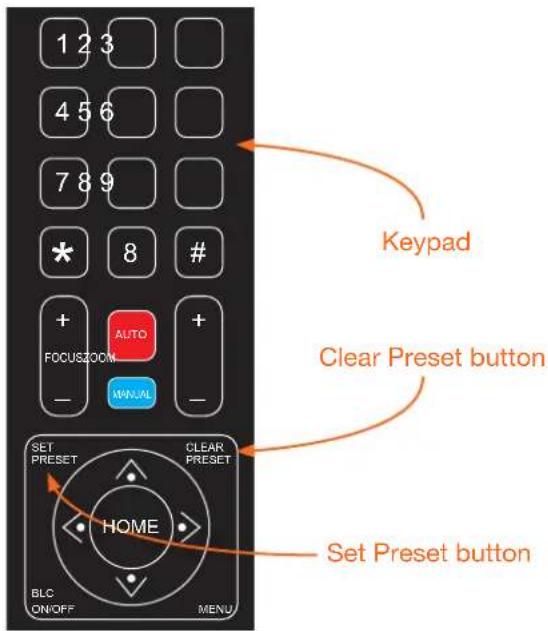

Saving Presets 20

Clearing a Preset 20

Recalling Presets 20

Multiple Camera Control

Assigning / Changing the Camera Address ID 21

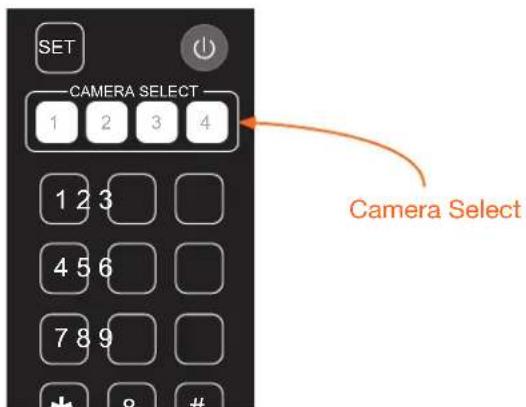

Selecting a Camera for Control 21

Network Streaming

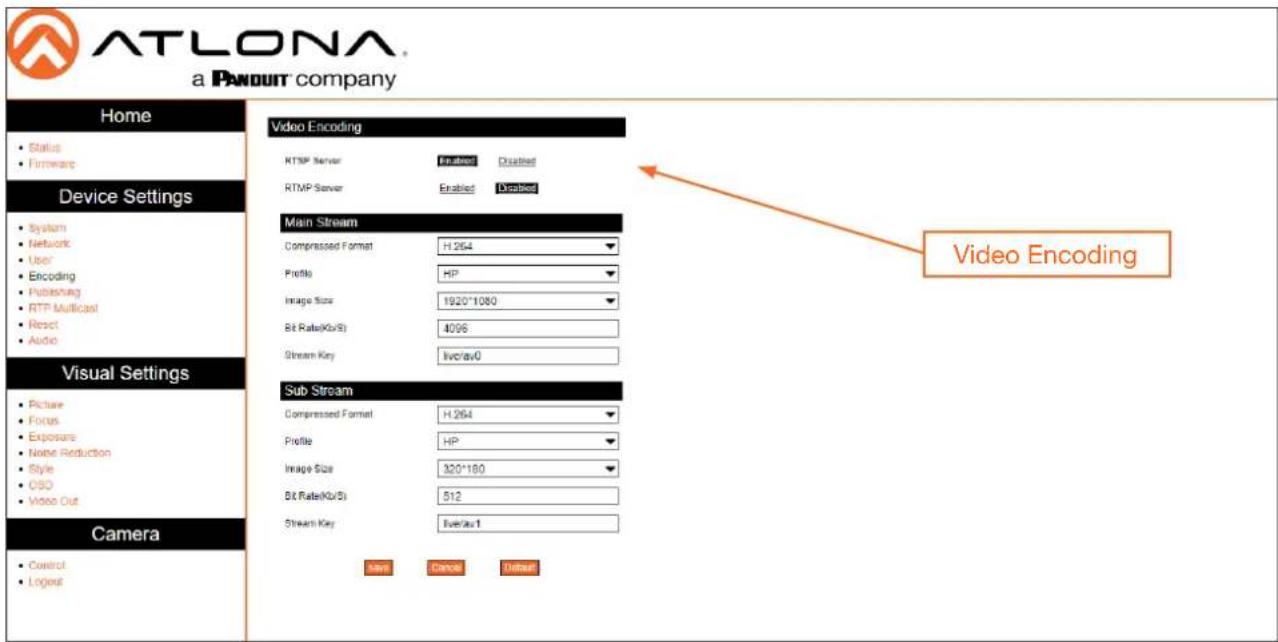

Video Stream Configuration 22

Audio Stream Configuration 25

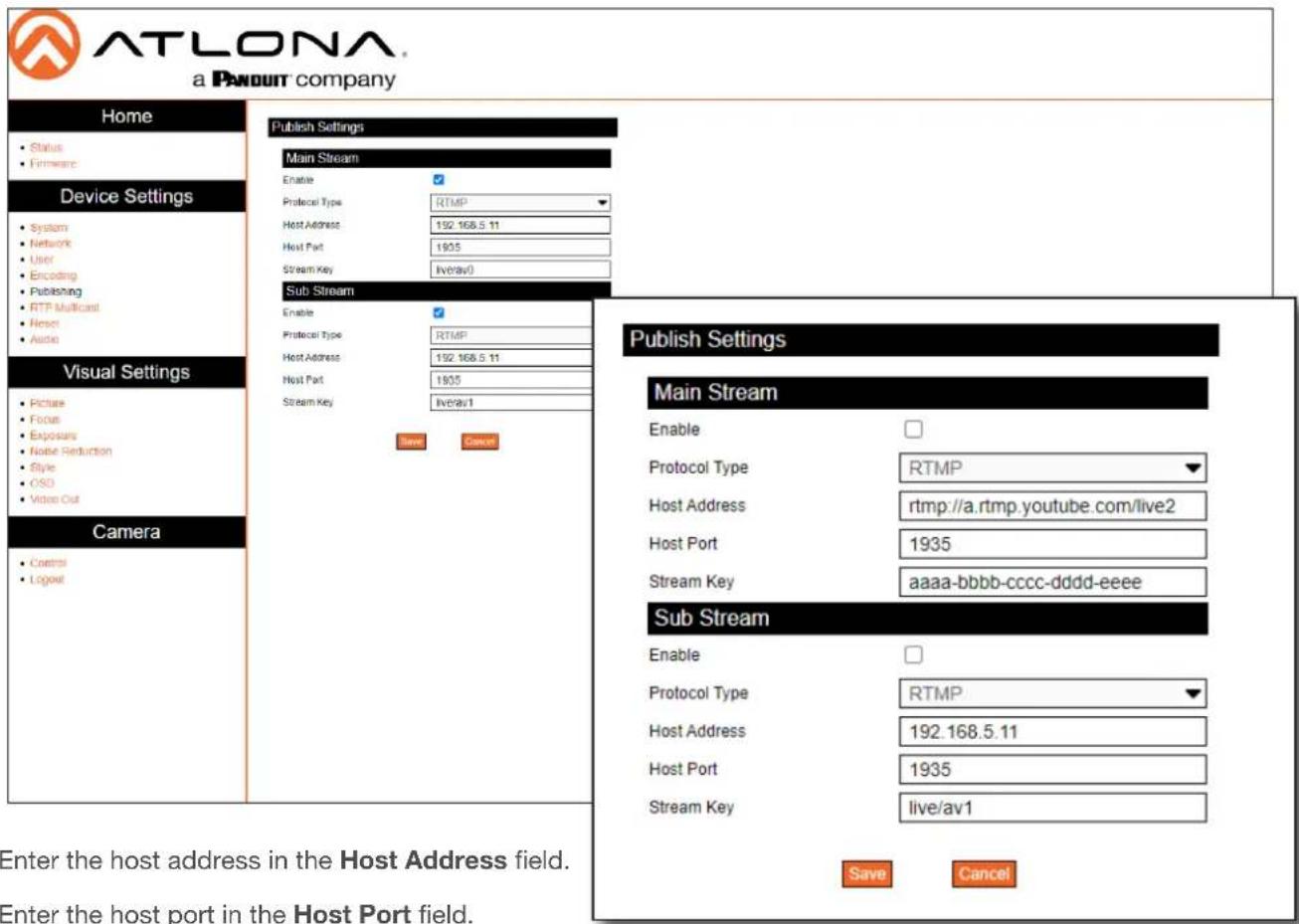

RTMP Publishing 27

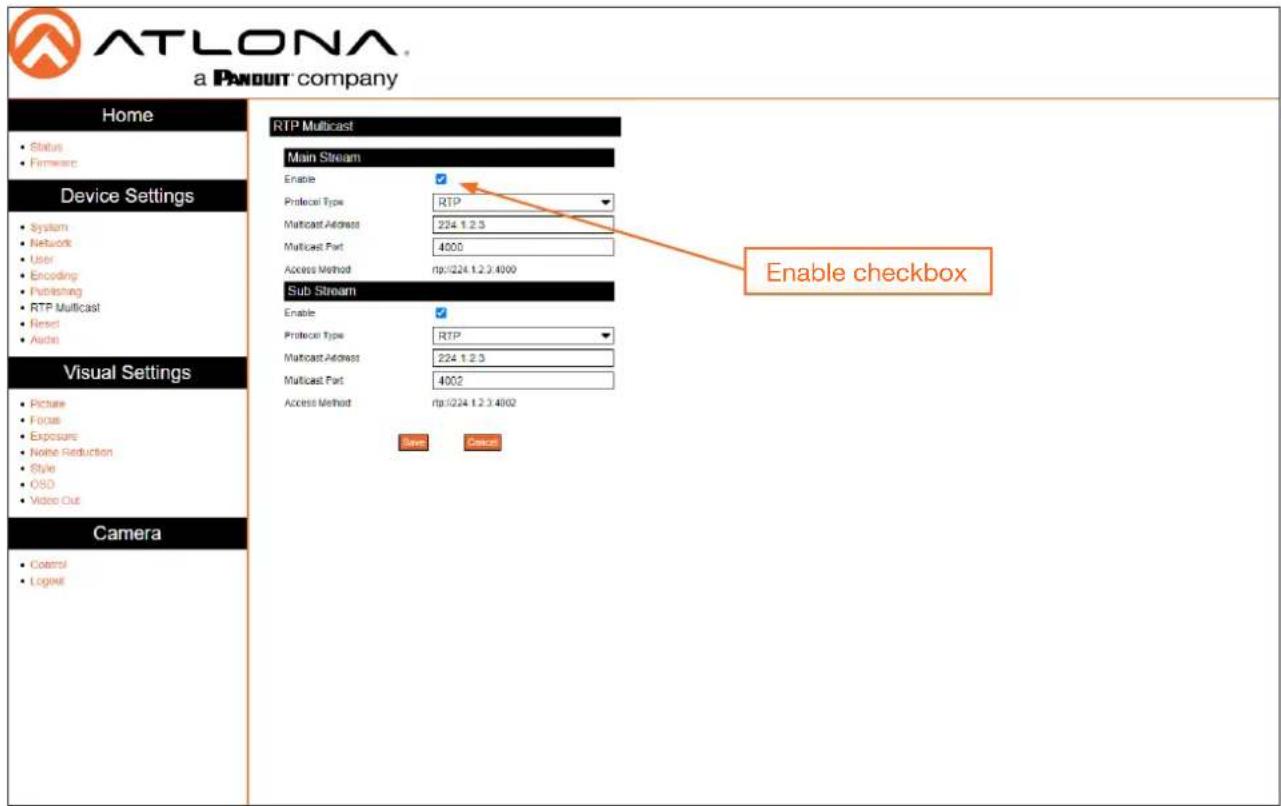

RTP Multicast 28

Configuration and Management Interfaces

Web Server

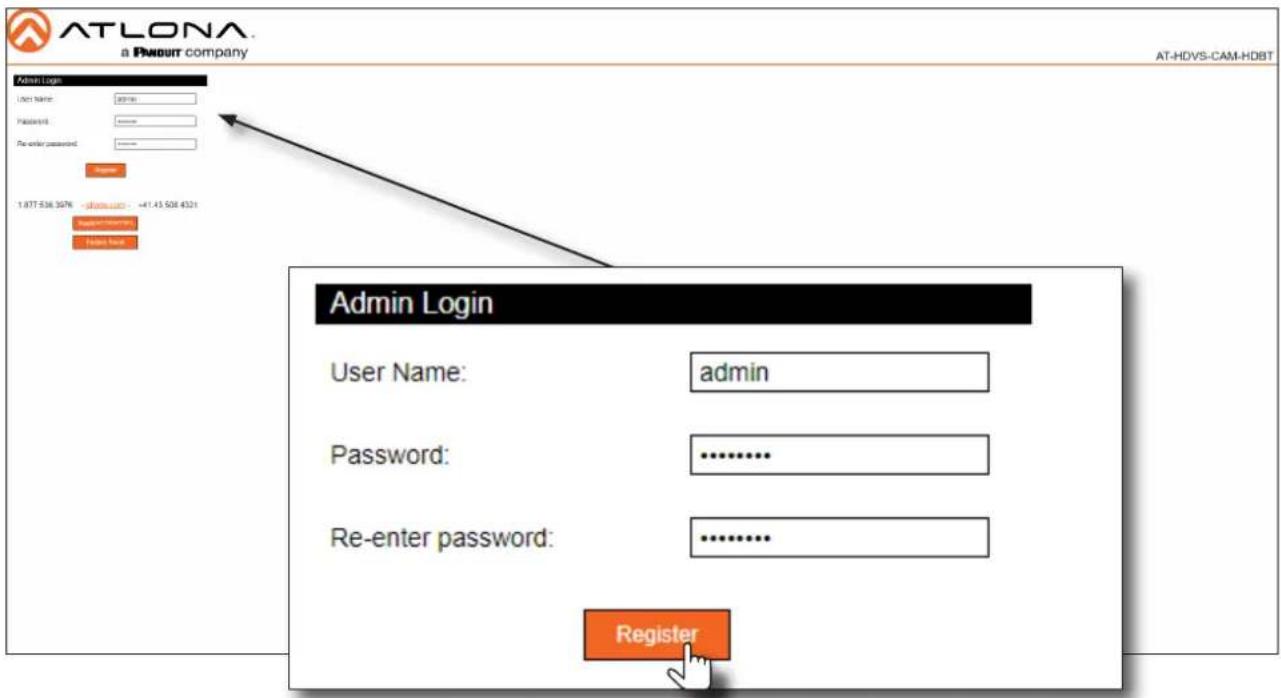

Registration 29

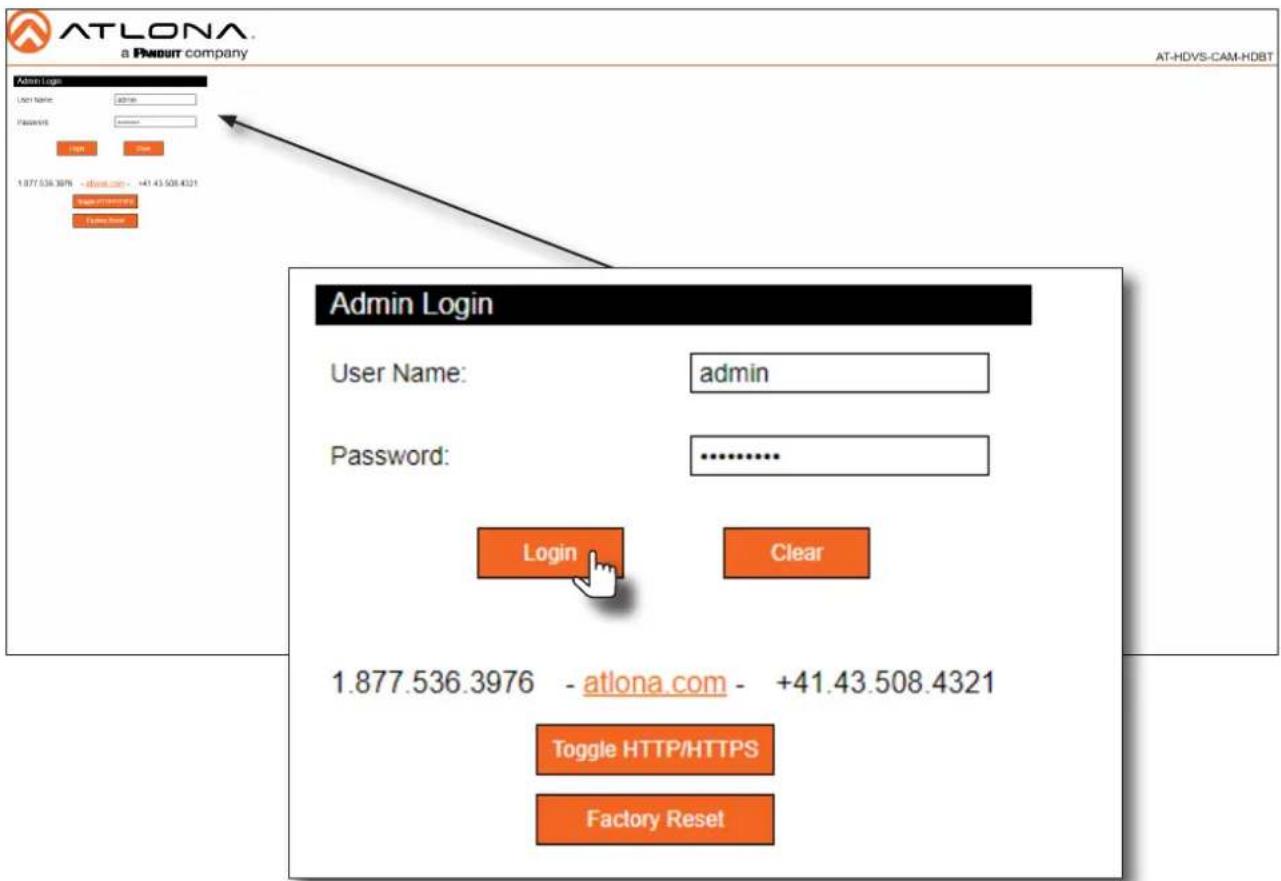

Logging In 30

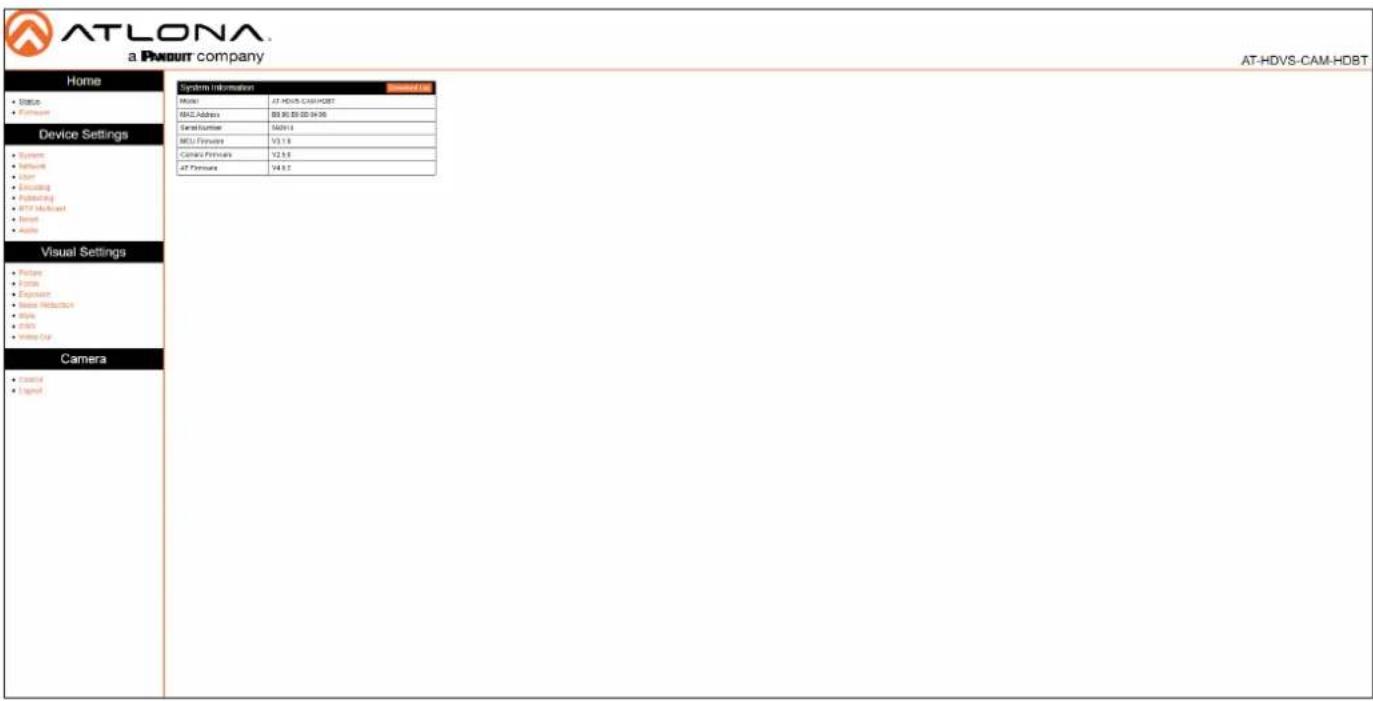

Status Page 31

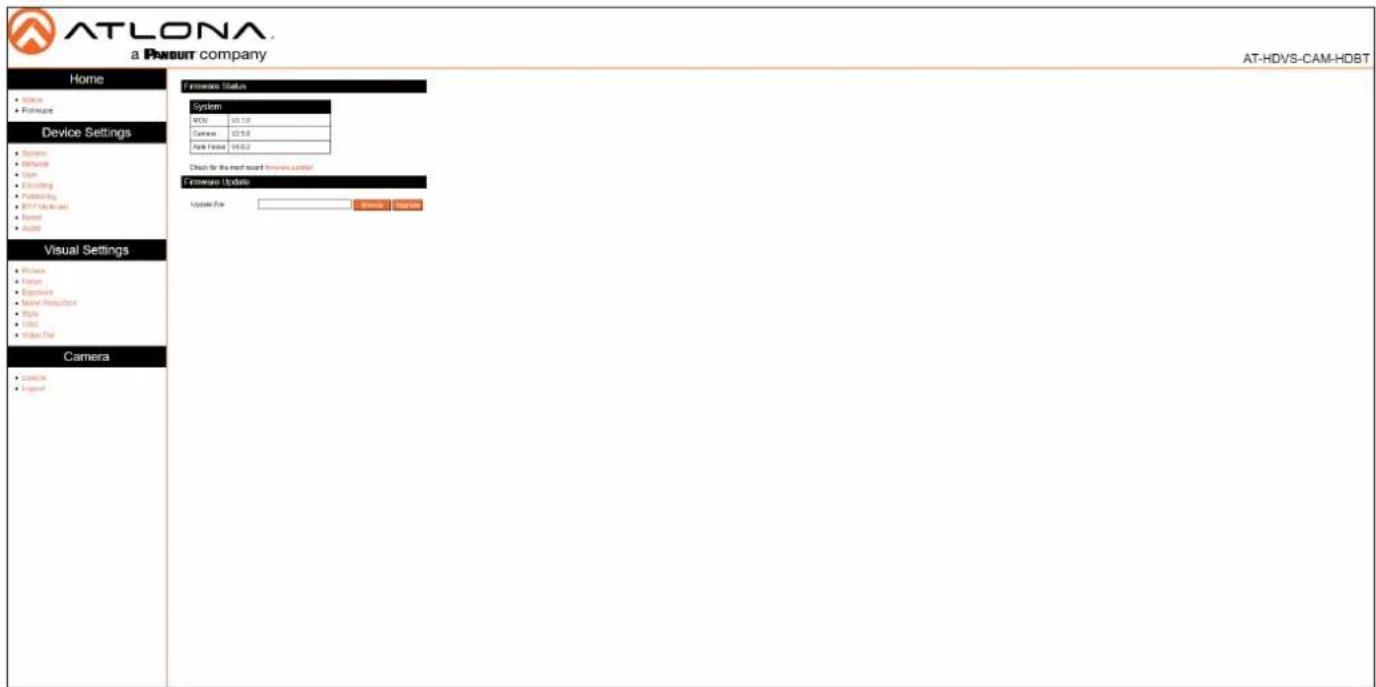

Firmware Page 32

System Page 33

Network Page 35

User Page 37

Encoding Page 38

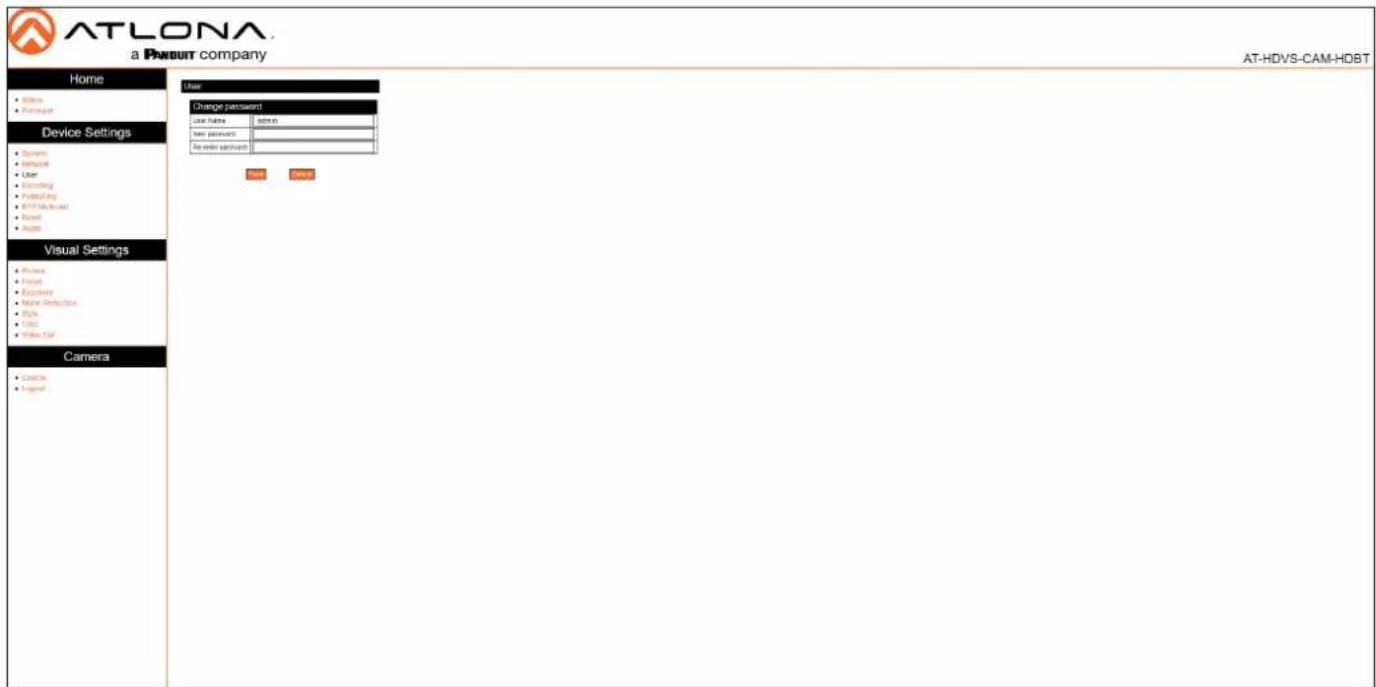

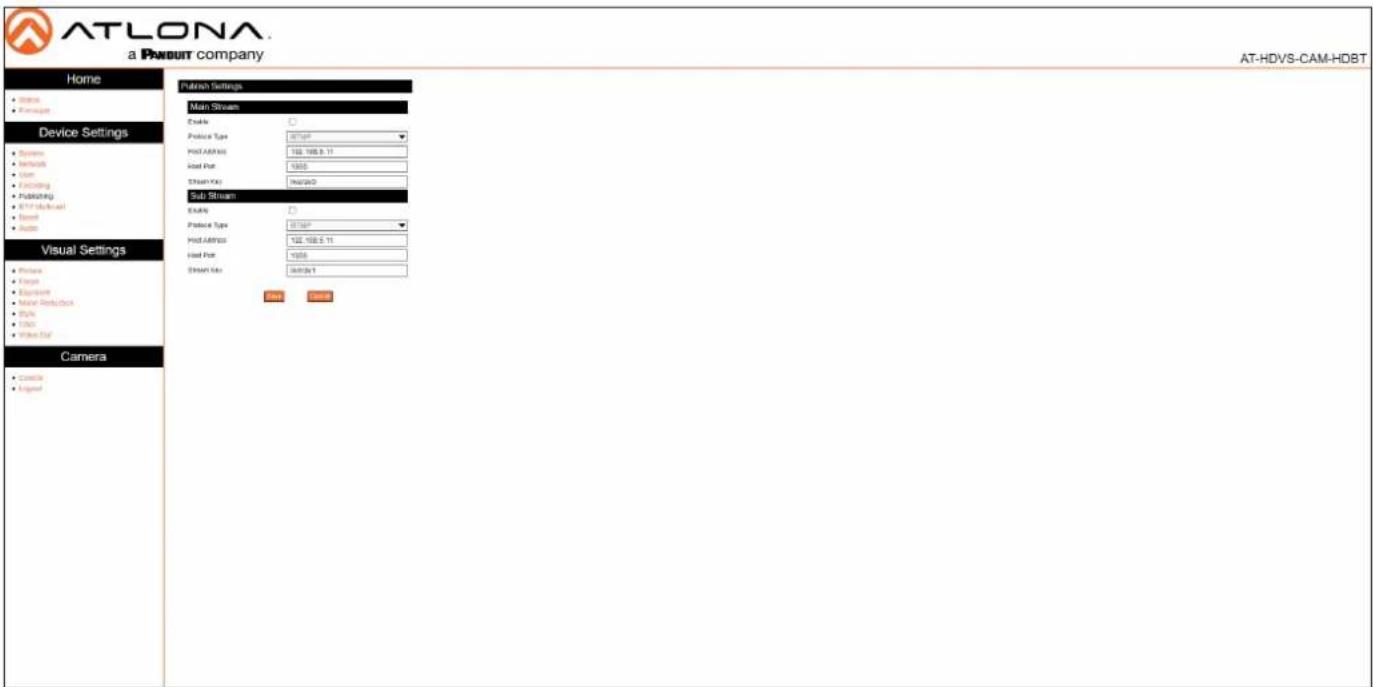

Publishing Page 40

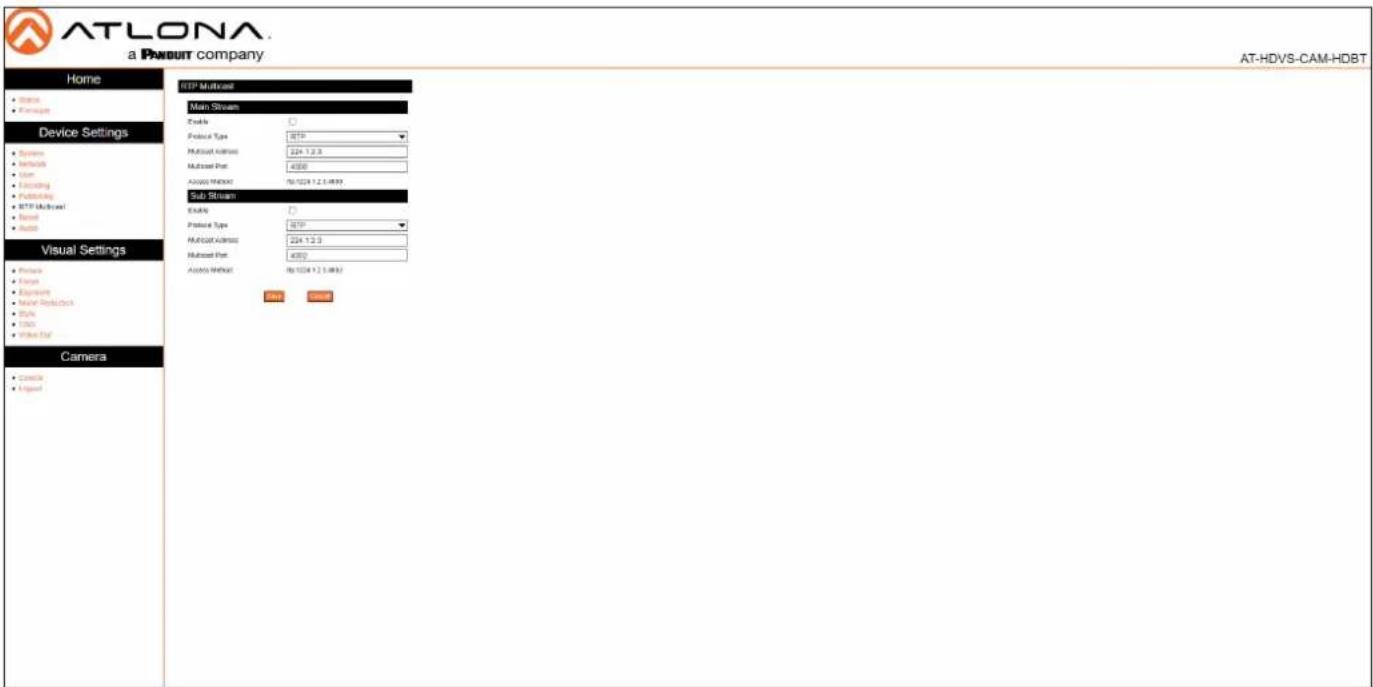

RTP Multicast Page 41

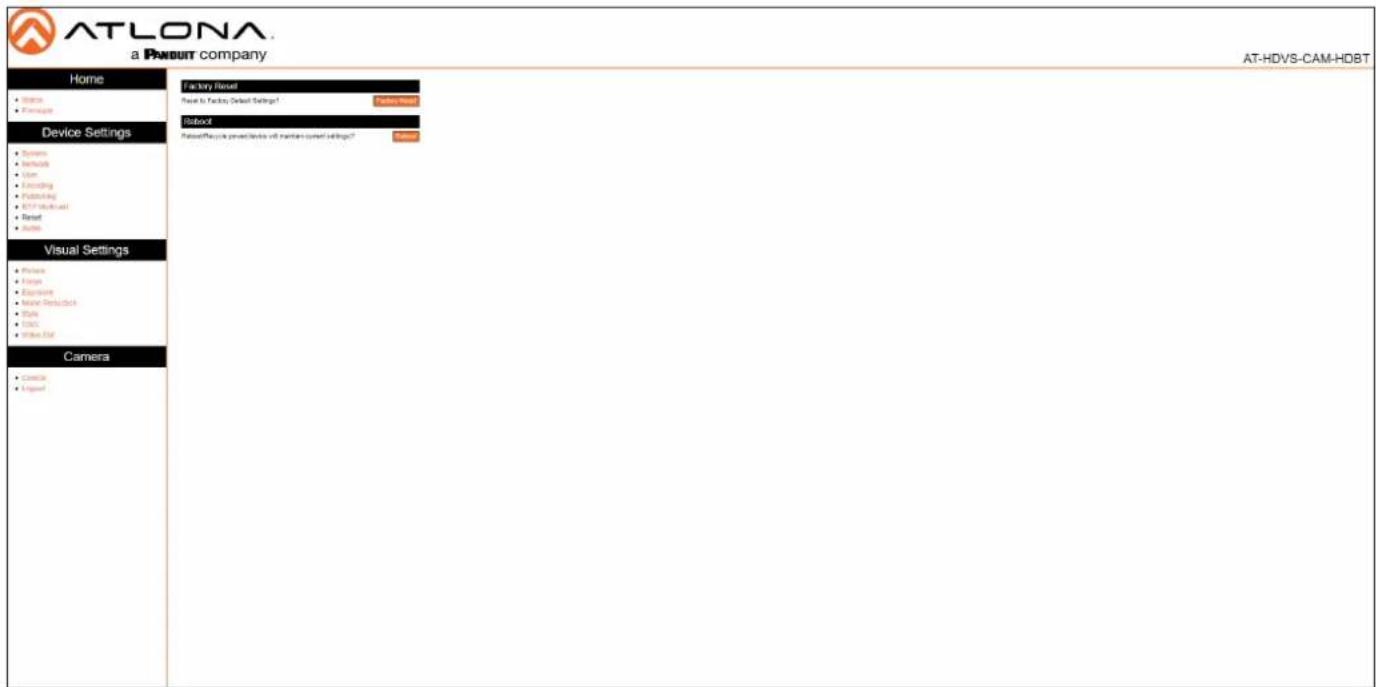

Reset Page 42

Audio Page 43

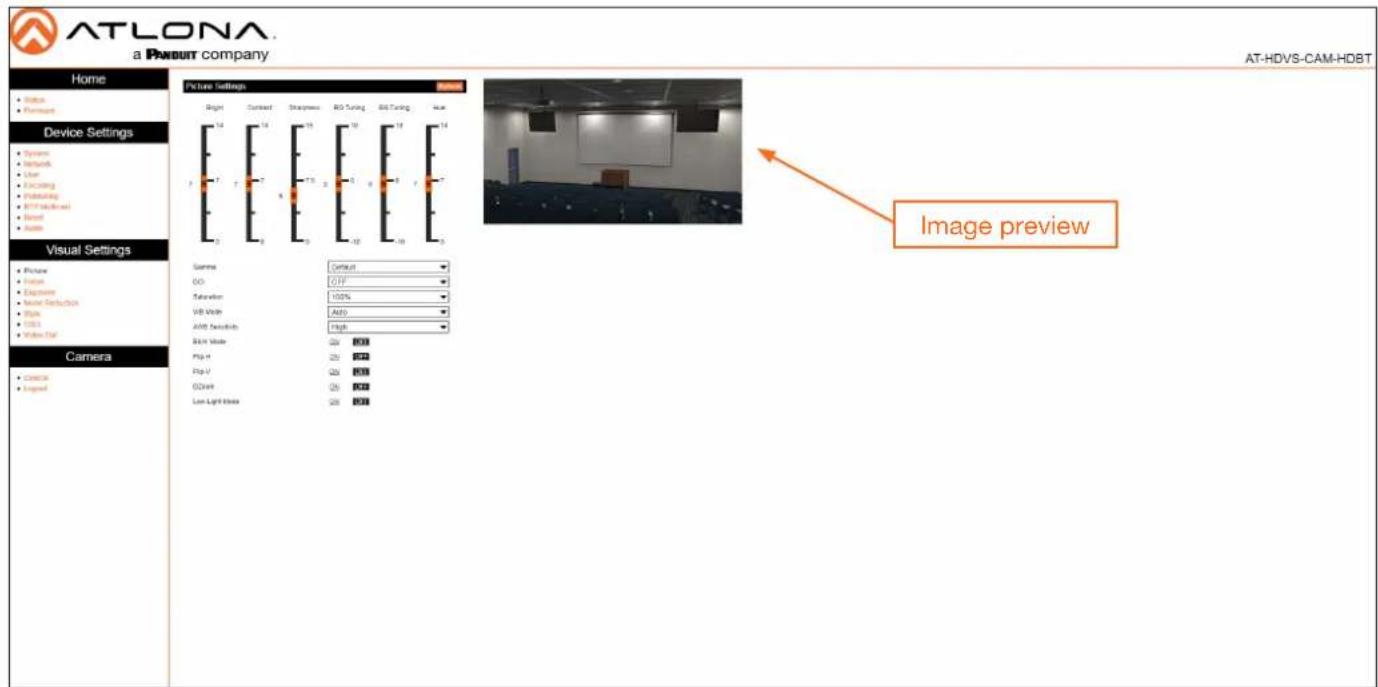

Picture Page 45

Focus Page 47

Exposure Page 48

Noise Reduction Page 50

Table of Contents

Style Page 51

OSD Page 52

Video Out Page 53

Control Page 54

IR Remote and OSD 55

IR Remote Control 55

OSD

Remote Functions 57

55

Appendix 58

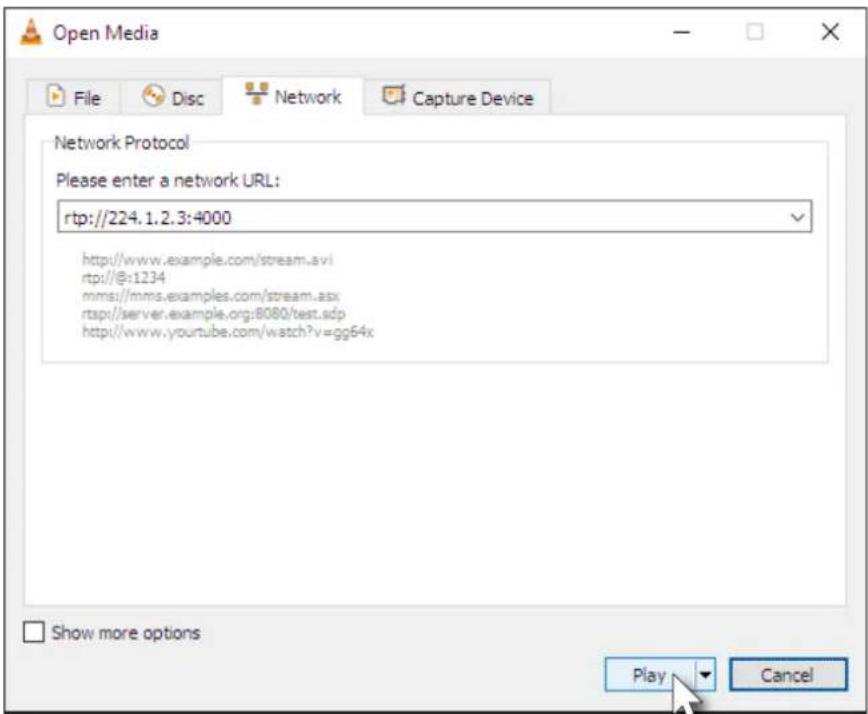

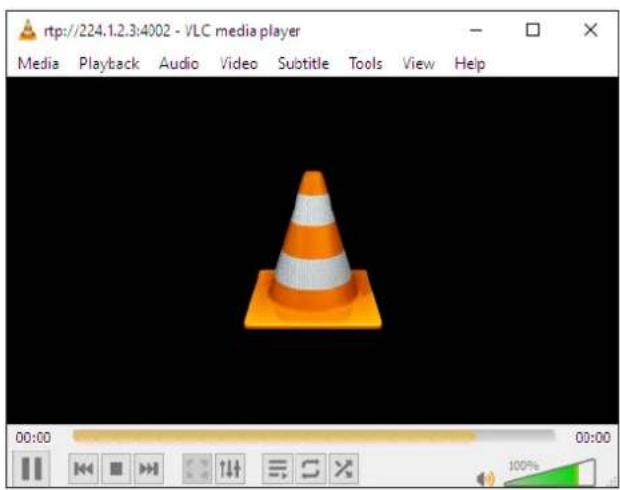

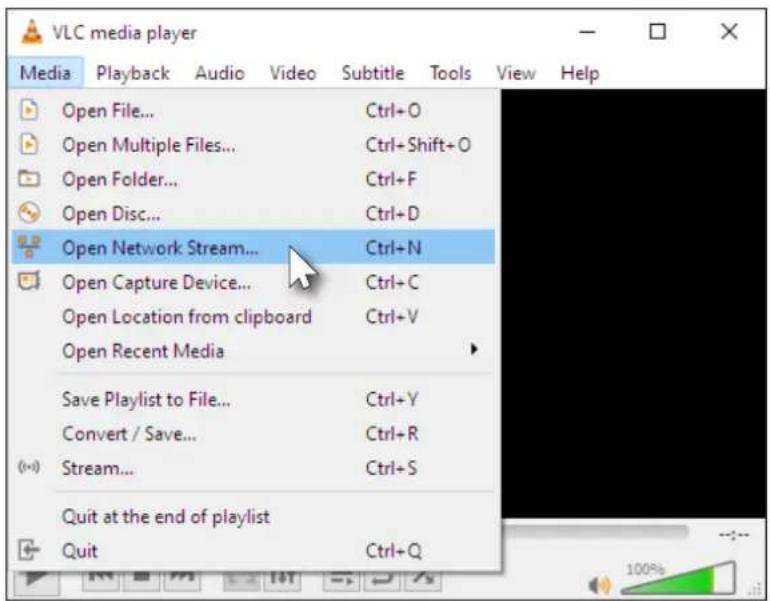

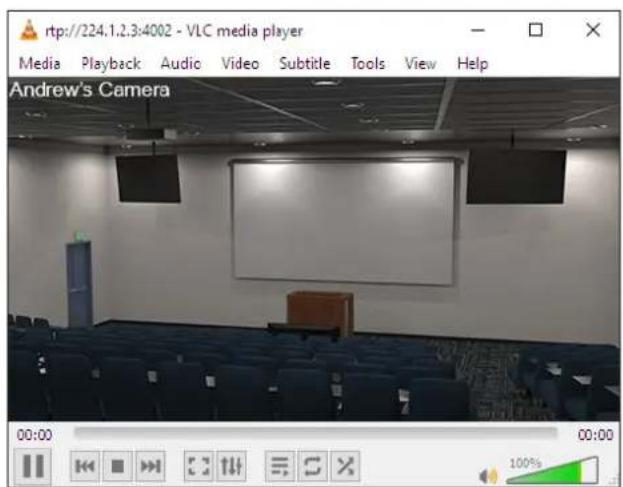

Using VLC Player 58

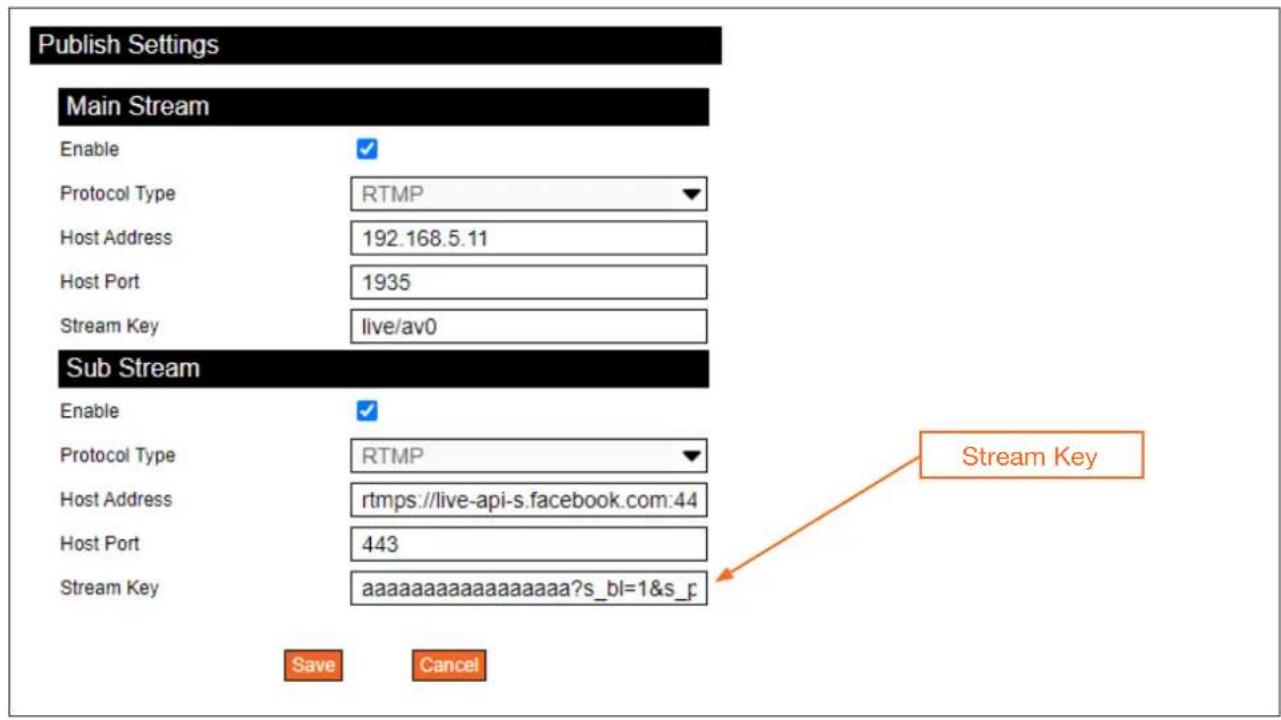

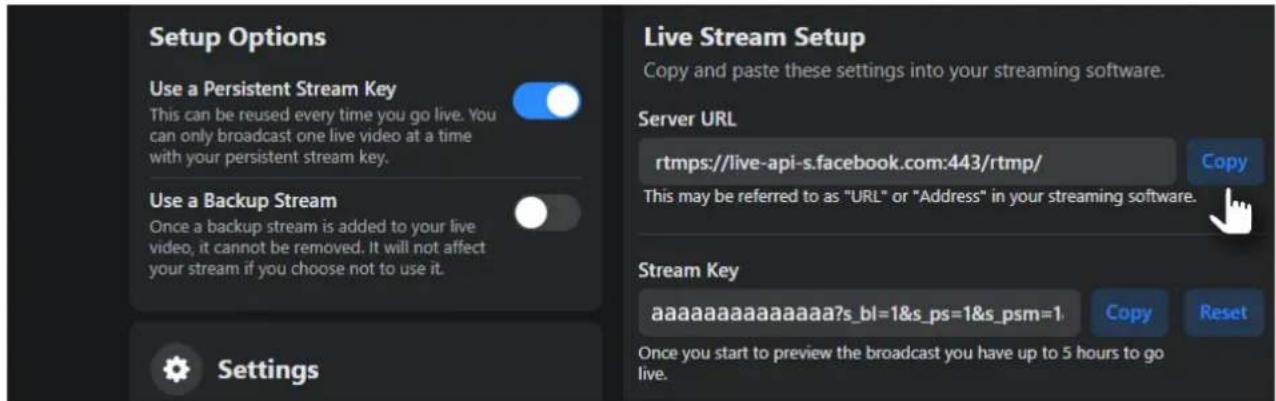

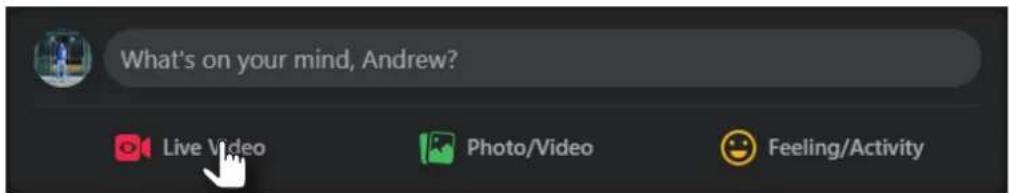

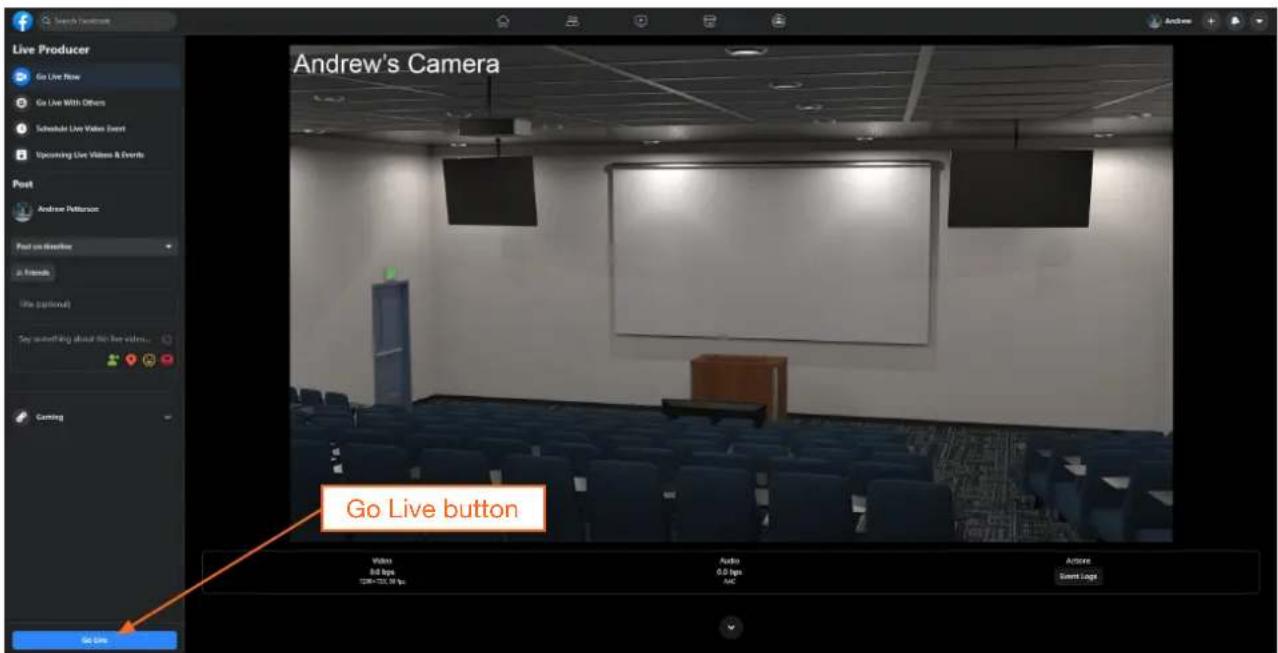

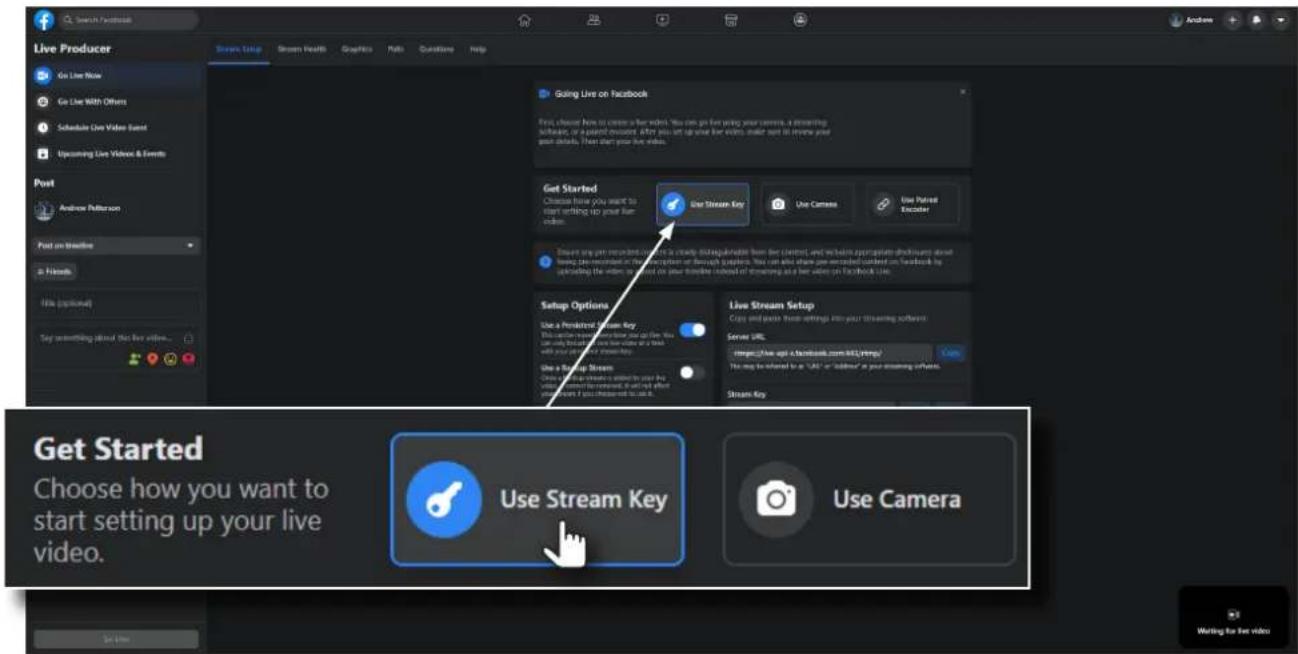

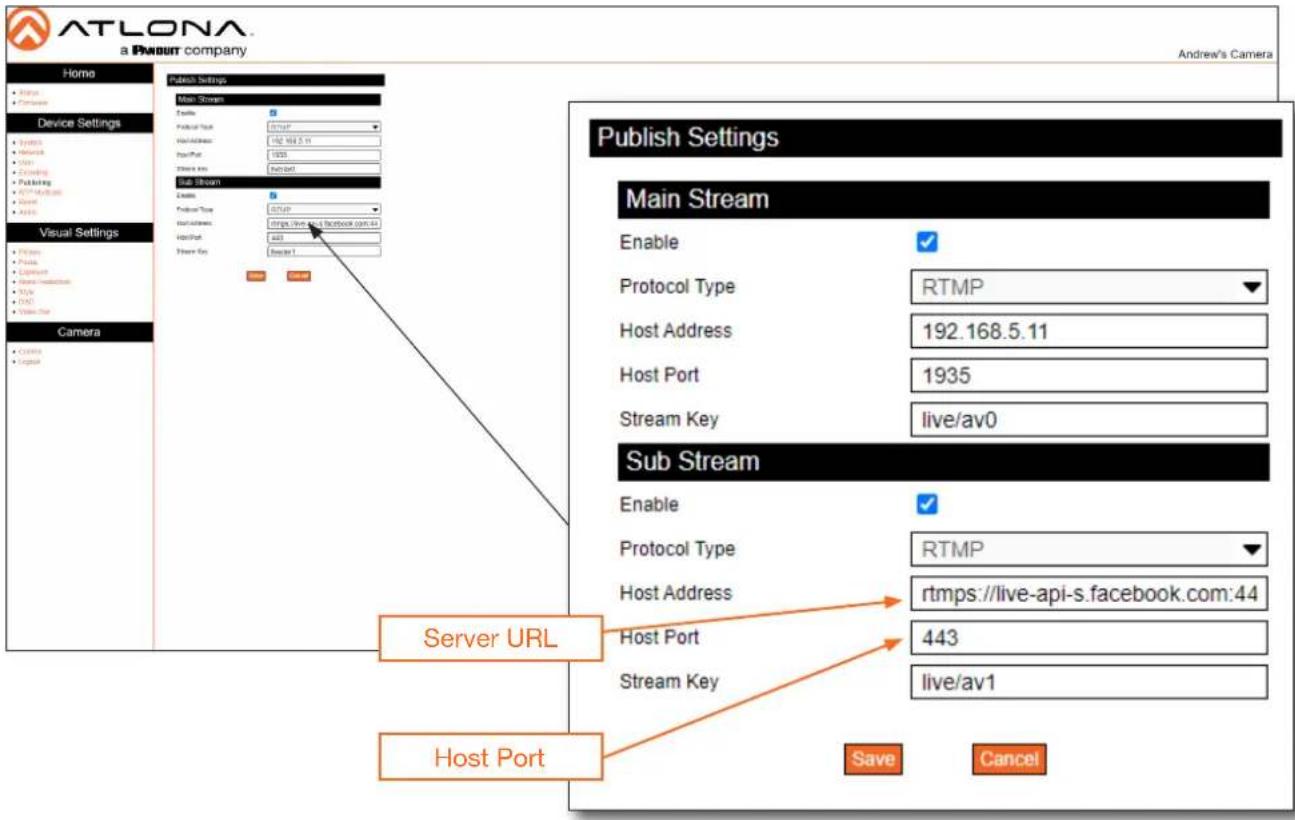

Using Facebook Live 60

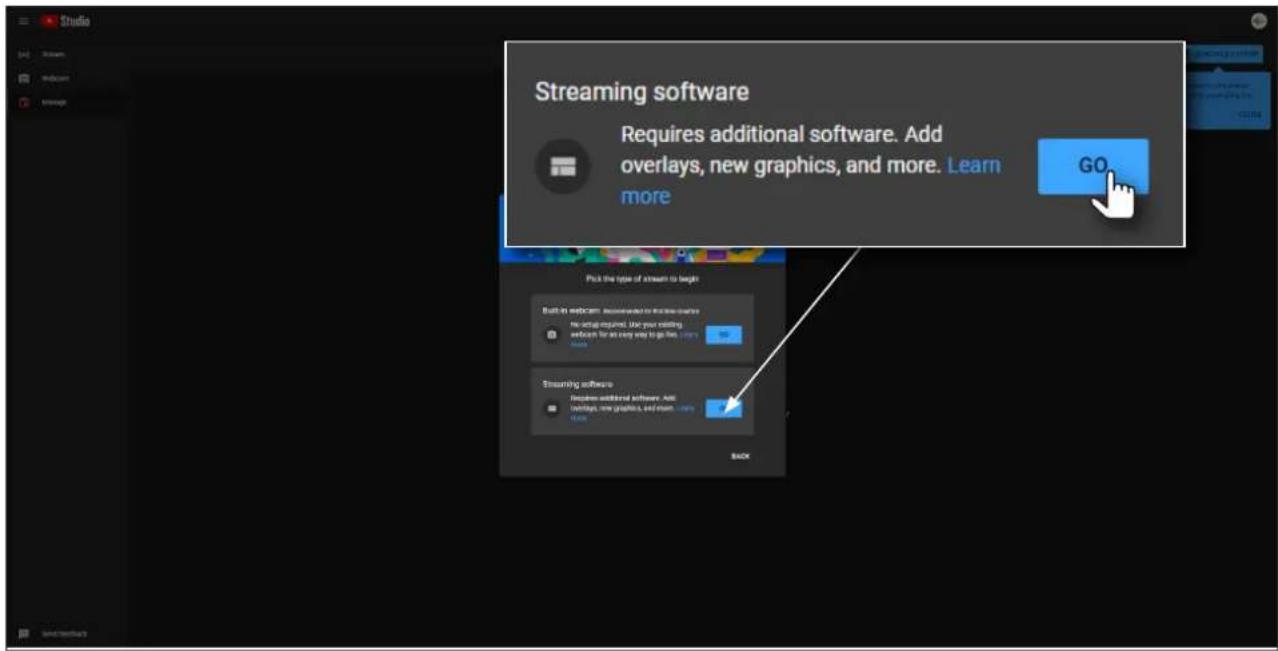

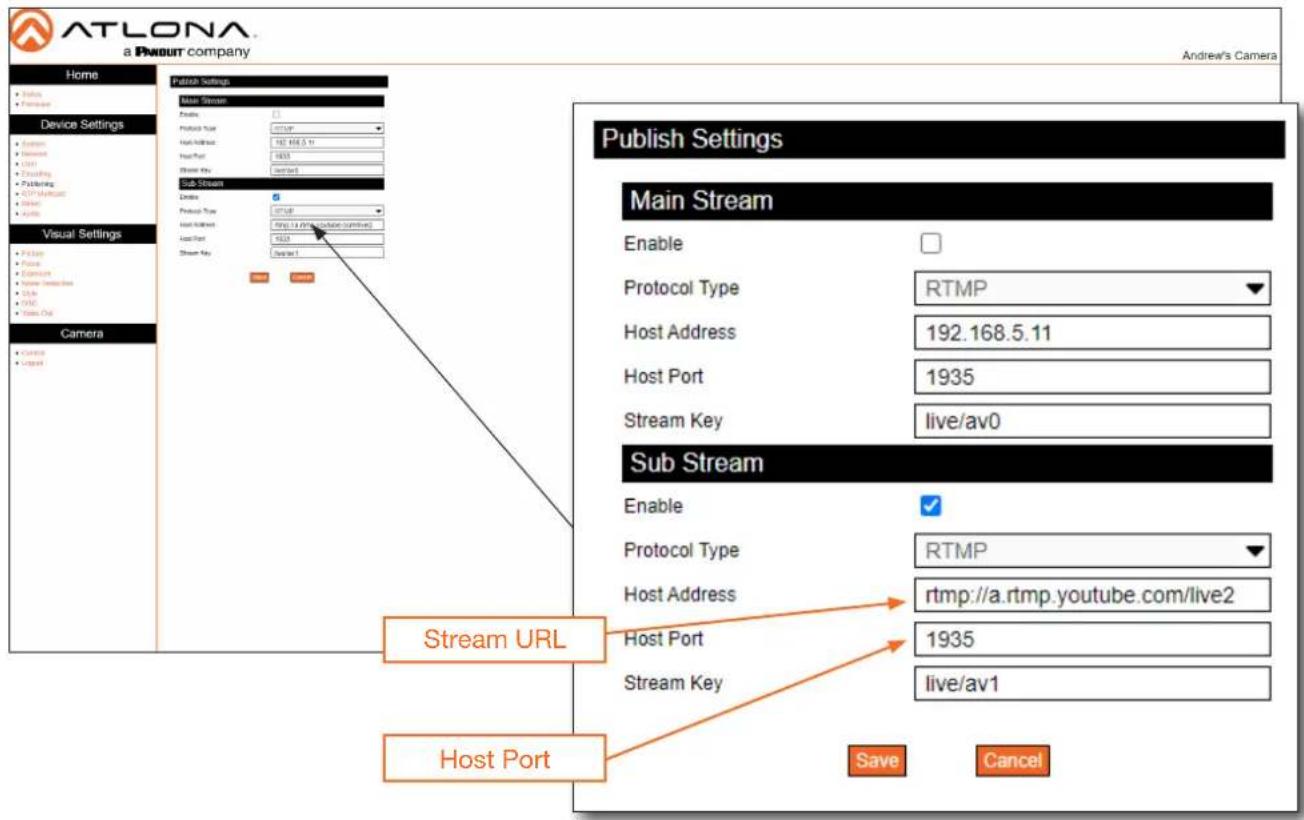

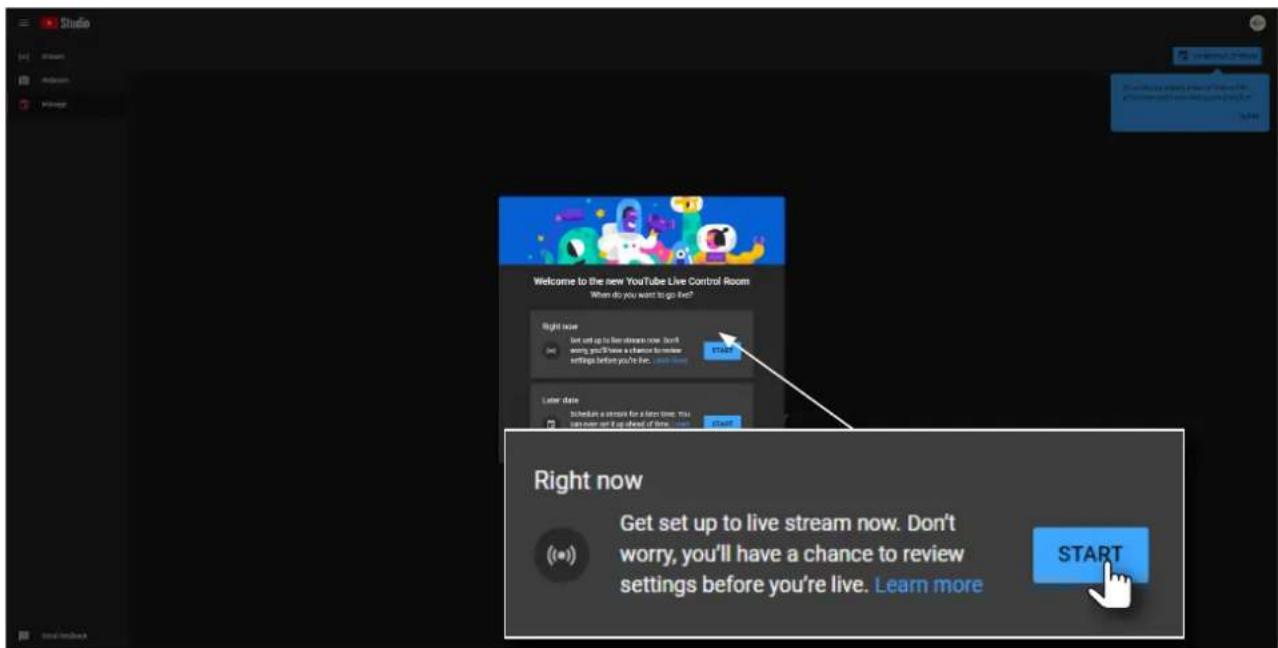

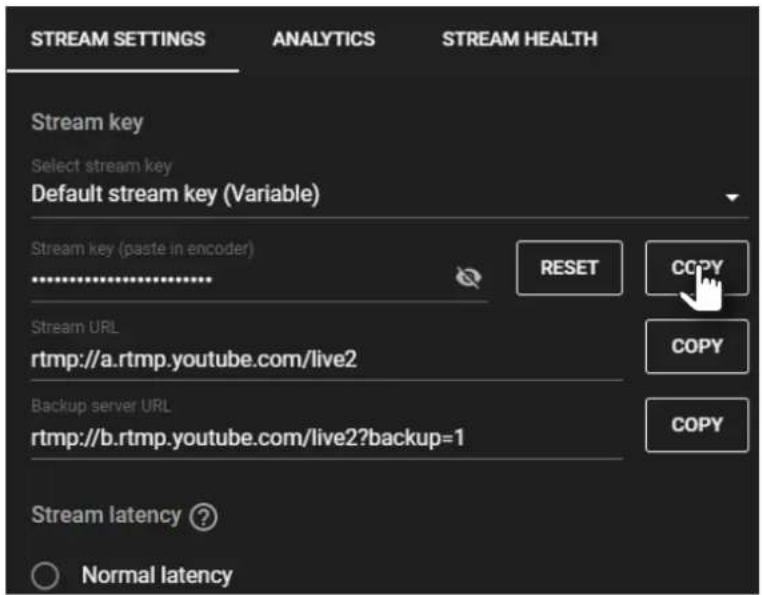

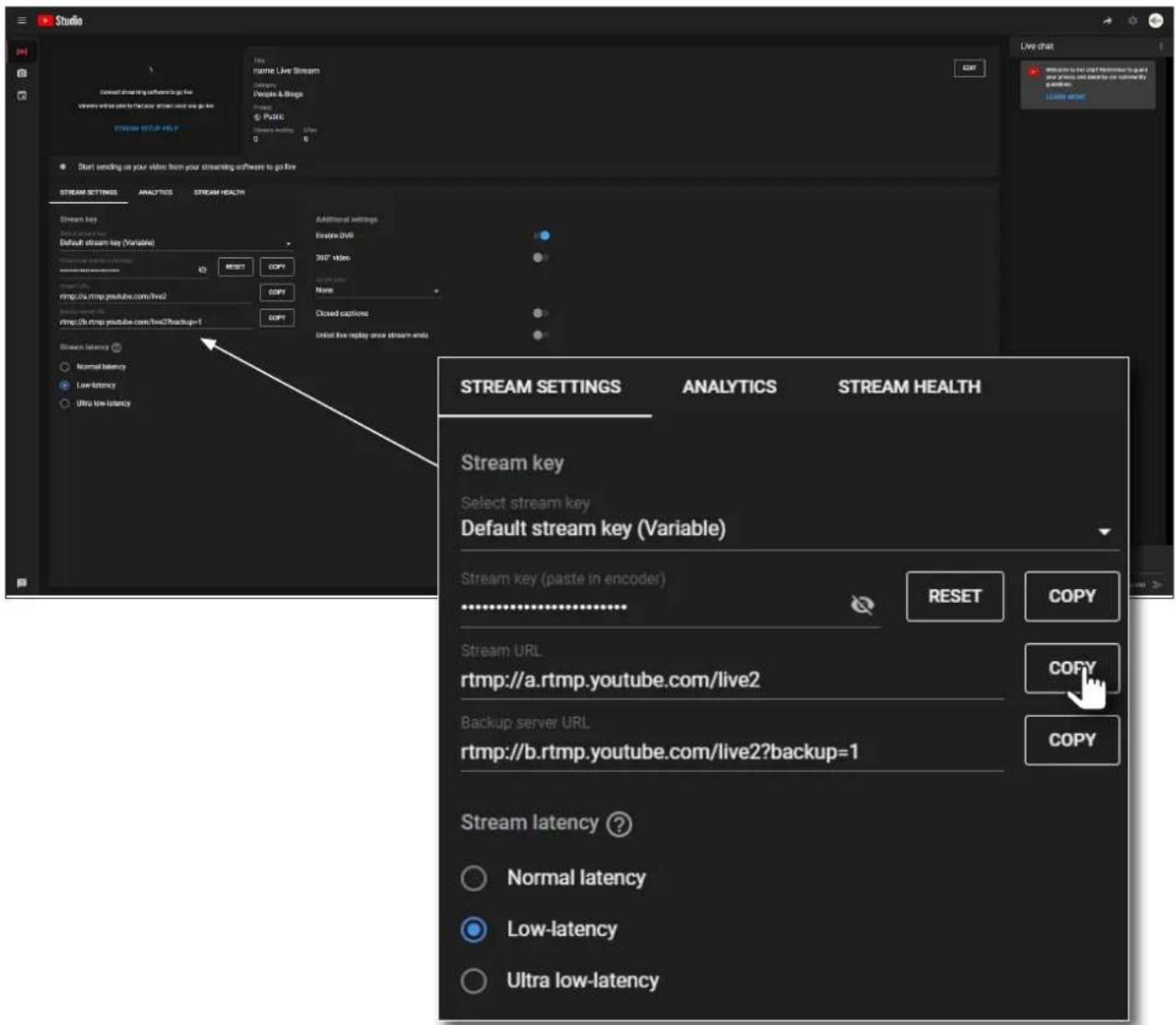

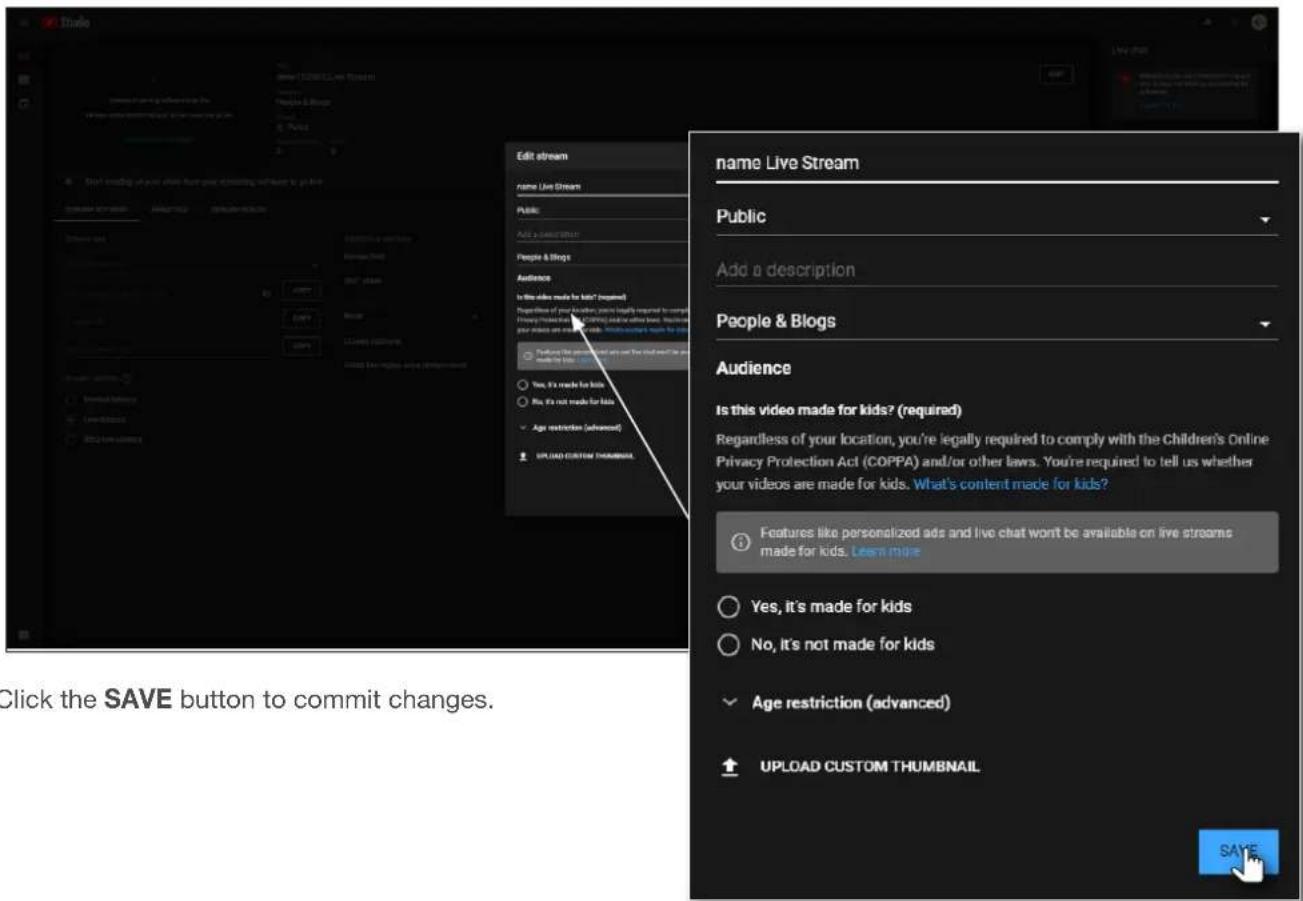

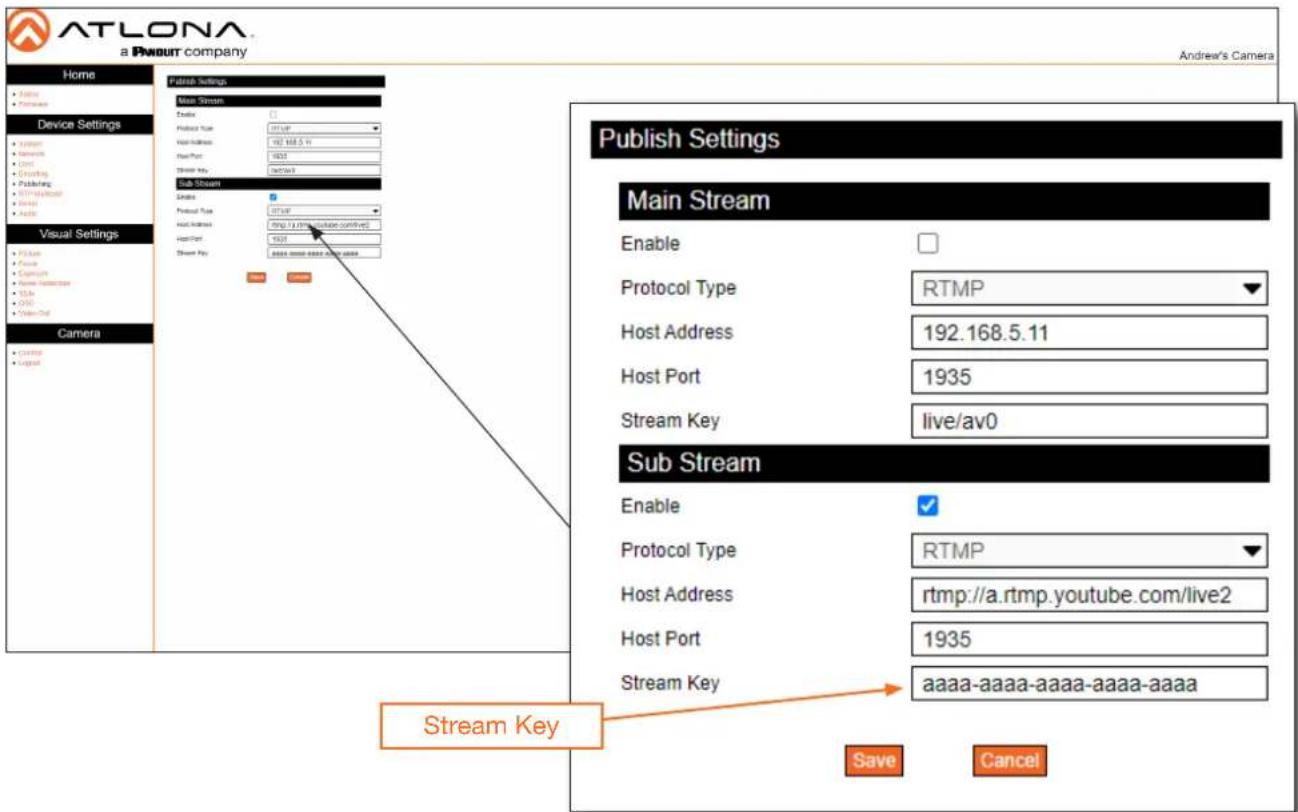

Using YouTube Live 63

Specifications 68

Introduction

The Atlona AT-HDVS-CAM-HDBT is an enterprise-grade PTZ camera designed for use in video conferencing and other applications such as lecture capture and distance learning. It features an HDBaseT output for extending video, audio, power, and camera control over distances up to 330 feet (100 meters). The HDVS-CAM-HDBT is ideal for remotely interfacing into HDBaseT equipped switchers and extenders, for use with a video conferencing codec, lecture capture appliance, or PC equipped for video capture. Camera control over HDBaseT or TCP/IP facilitates remote integration into AV control systems. The HDVS-CAM-HDBT delivers high performance, professional-quality imaging with video resolutions up to 1080p @ 60 Hz, as well as fast and accurate auto-focusing, and a fast yet quiet pan and tilt mechanism. Also available is H.264 or H.265 streaming over IP with support for RTMP and RTSP protocols. This PTZ camera is ideal for large meeting spaces, classrooms, training rooms, and many other environments. The HDVS-CAM-HDBT is available in black or white.

Features

• Designed for video conferencing and other applications such as lecture capture and distance education.
• HDBaseT output for extending video, audio, power, and camera RS-232 control up to 330 feet (100 meters) @ 1080p with CAT5e/6 cable.
• Remote powering over HDBaseT – local powering available with included power supply.
• High performance imaging, fine detail, and color rendering with 1/2.8" low-noise, HD CMOS sensor.
• Delivers HD video resolutions including 1080p @ 60 Hz.
• Up to 255 camera presets available, 10 accessible from IR remote.
• Fast and accurate auto focus, plus auto white balance and auto exposure modes.
• Fast and quiet pan and tilt mechanism.
• Multi-element zoom lens with 10x optical zoom and a 60.9^ horizontal field of view.
  • Picture controls available for brightness, color, saturation, contrast, sharpness, and gamma.
• TCP/IP, RS-232, and IR control – convenient handheld IR remote control included.
  • Supports VISCA, Pelco-D, and Pelco-P camera control protocols.
  • H.264 and H.265 video over IP network streaming available, with support for RTMP and RTSP protocols.
• Stereo 3.5 mm audio input for sending audio over the HDBaseT connection, and can be used for AAC or MP3 streaming over IP.
• Easy, GUI-based configuration using integrated web server.
• Camera can be mounted on a wall, or inverted for ceiling installation with the optional AT-HDVS-CAM-CMNT ceiling mount kit.
• Includes installation guide, wall mounting bracket, IR remote control, VISCA to RS-232 DB-9 adapter, lens cap, and external universal power supply.
  • Available in black or white.

Package Contents

1 x AT-HDVS-CAM-HDBT-BK or AT-HDVS-CAM-HDBT-WH
1 x Wall mounting plate
1 x 1/4 20OUNC screws
1 x IR Remote Control
1 x VISCA to RS-232 DB-9 adapter
2 x AAA battery
1 x 12 V DC power supply
1 x Installation Guide

Panel Description

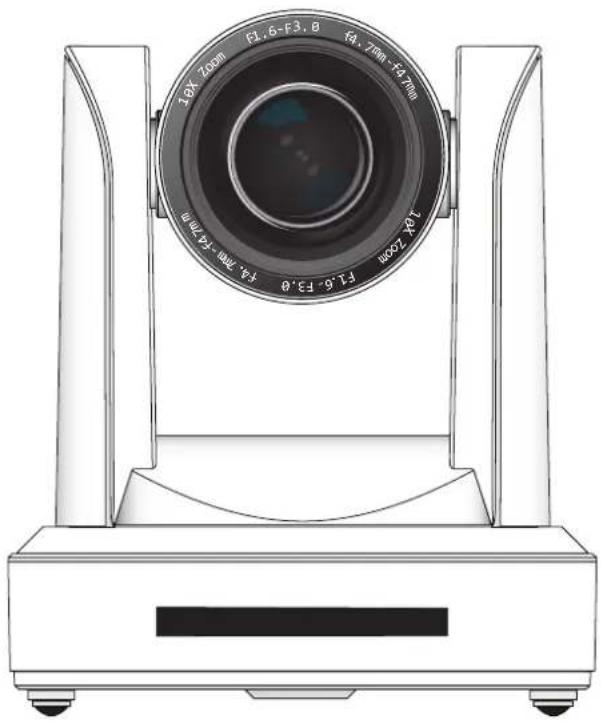

Front (AT-HDVS-CAM-HDBT-WH shown)

Technical line drawing of a camera lens mounted on a support base (no text or symbols)

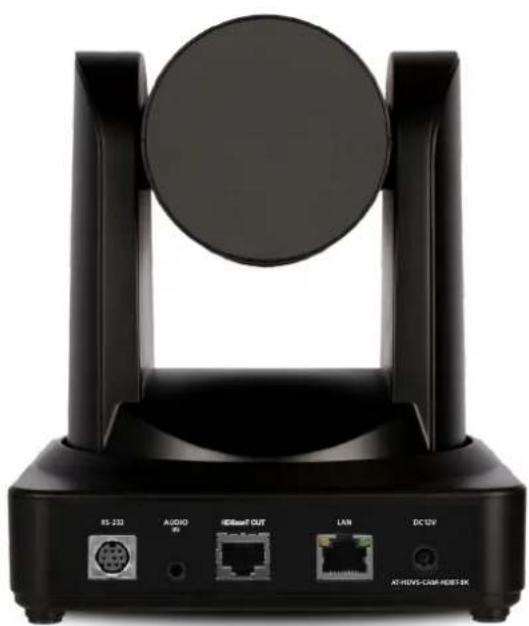

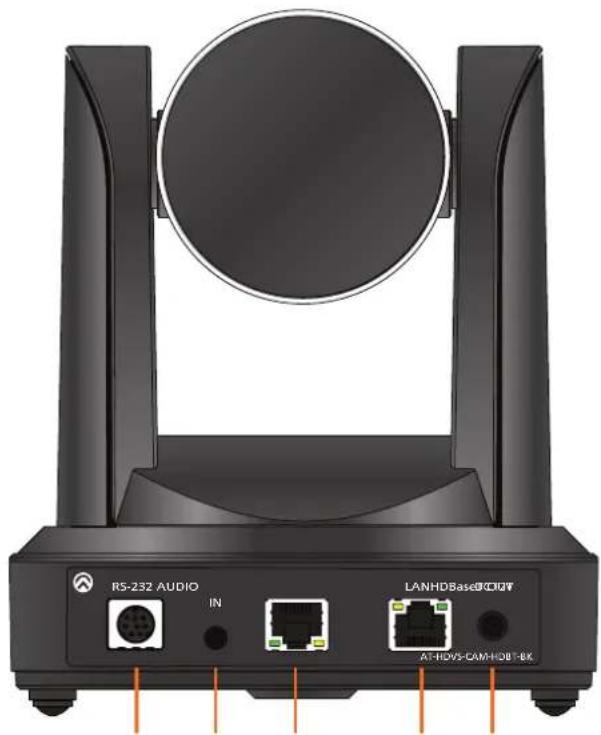

Back (AT-HDVS-CAM-HDBT-BK shown)

Front view of a black wireless router device with ports and antenna (no visible text or symbols on the device body)

1 32 4 5

1. RS-232

Connect included VISCA to RS-232 adapter here to control the camera with a third party software or hardware controller.

2. AUDIO IN

Connect a 3.5 mm audio cable from an audio source, to this port, to embed audio with video on HDBaseT or when network streaming.

3. HDBaseT OUT

Connect to a compatible PoE switcher or receiver, such as: AT-OME-RX11, AT-OME-PS62, etc.

4. LAN

Connect to a network switch to control the unit via TCP/IP or web server.

5. DC 12V

Connect the included 12V power supply to this port.

Installation

Connection Instructions

1. Connect the Ethernet cable to the LAN port on the back of the AT-HDVS-CAM-HDBT.
2. Connect to a category cable (CAT-5e or better) from the HDBaseT port to a compatible PoE A/V switcher or receiver, such as the AT-OME-RX11.

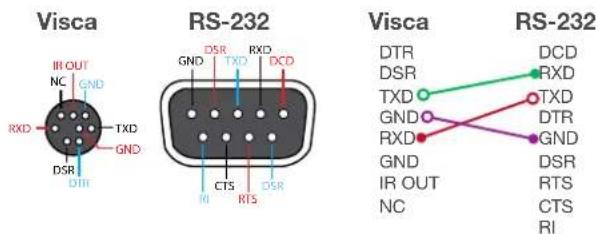

3. *Optional* Connect the Visca to RS-232 cable to the Visca port for RS-232 control. Note that RS-232 can also be connected to an AT-OME-RX11 or other receiver that supports RS-232 for remote control.

1. *Optional* Connect the DC 12V power cable to the unit. This is only required if the camera is not being powered using PoE.

Mounting Instructions

The AT-HDVS-CAM-HDBT has two installation options, wall mount (included) and ceiling mount (purchased separately).

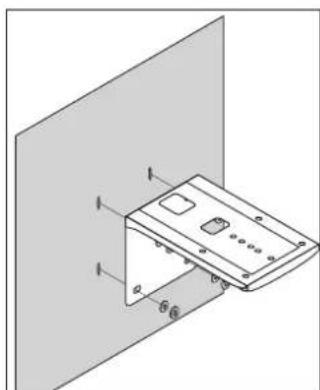

Wall Mount Installation

Install the AT-HDVS-CAM-HDBT, 4 M6 swelling bolts, 1 1/4 20 UNC bolt, 4 M6 nuts and shims, the included wall mount bracket, and the AT-HDVS-CAM-HDBT are needed.

1. Install the M6 swelling bolts in a rectangular pattern on the wall, 100 mm wide and 50 mm high.
2. Attached the wall mount bracket onto the wall, by placing them on the M6 swelling bolts and securing it with the M6 nuts and shims.
3. Once the wall mount bracket is secure on the wall, place the camera on the top of the wall mount bracket and secure it with the 1/4 20UNC bolt.

Pure diagram of three vertical bars with dots, no text or symbols present

Isometric diagram of a device with labeled components, no text or symbols present

Technical illustration of a mechanical assembly with a camera mounted on a platform (no text or symbols visible)

Technical illustration of a mechanical assembly mounted on a wall-mounted base (no text or symbols visible)

Installation

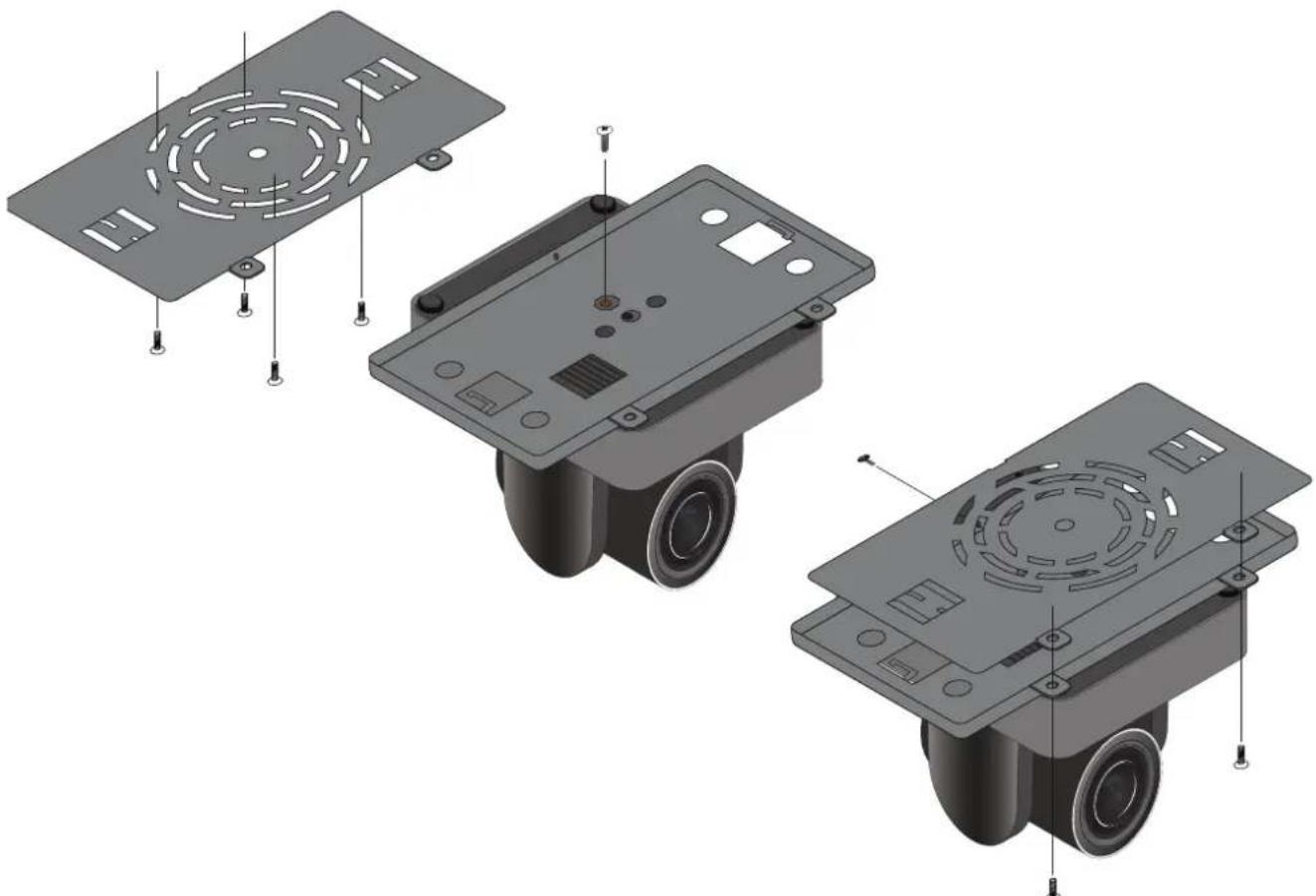

Ceiling Mount Installation

To install the AT-HDVS-CAM-HDBT, 4 PA3X30 self-tapping screws, 4 PM3X6 screws, 4 screw stoppers, 1 1/4 20 UNC screw, the optional ceiling upper and lower covering plates, and the AT-HDVS-CAM-HDBT are needed.

1. Install the 4 screw stoppers in the ceiling.
2. Connect the upper ceiling covering plate to the screw stoppers using the PA3X30 self-tapping screws.
3. Connect the lower ceiling covering plate to the bottom of the AT-HDVS-CAM-HDBT using the 1/4 20 UNC screw.
4. Mount the lower ceiling covering plate to the upper ceiling plate using 3 PM3X6 bolts.

Exploded view diagram of a device's internal components, showing exploded and assembled views with no text or symbols.

NOTE: The camera picture will need to be inverted for video to be viewed correctly. View the AT-HDVS-CAM-HDBT manual for instructions on how to invert video.

Installation

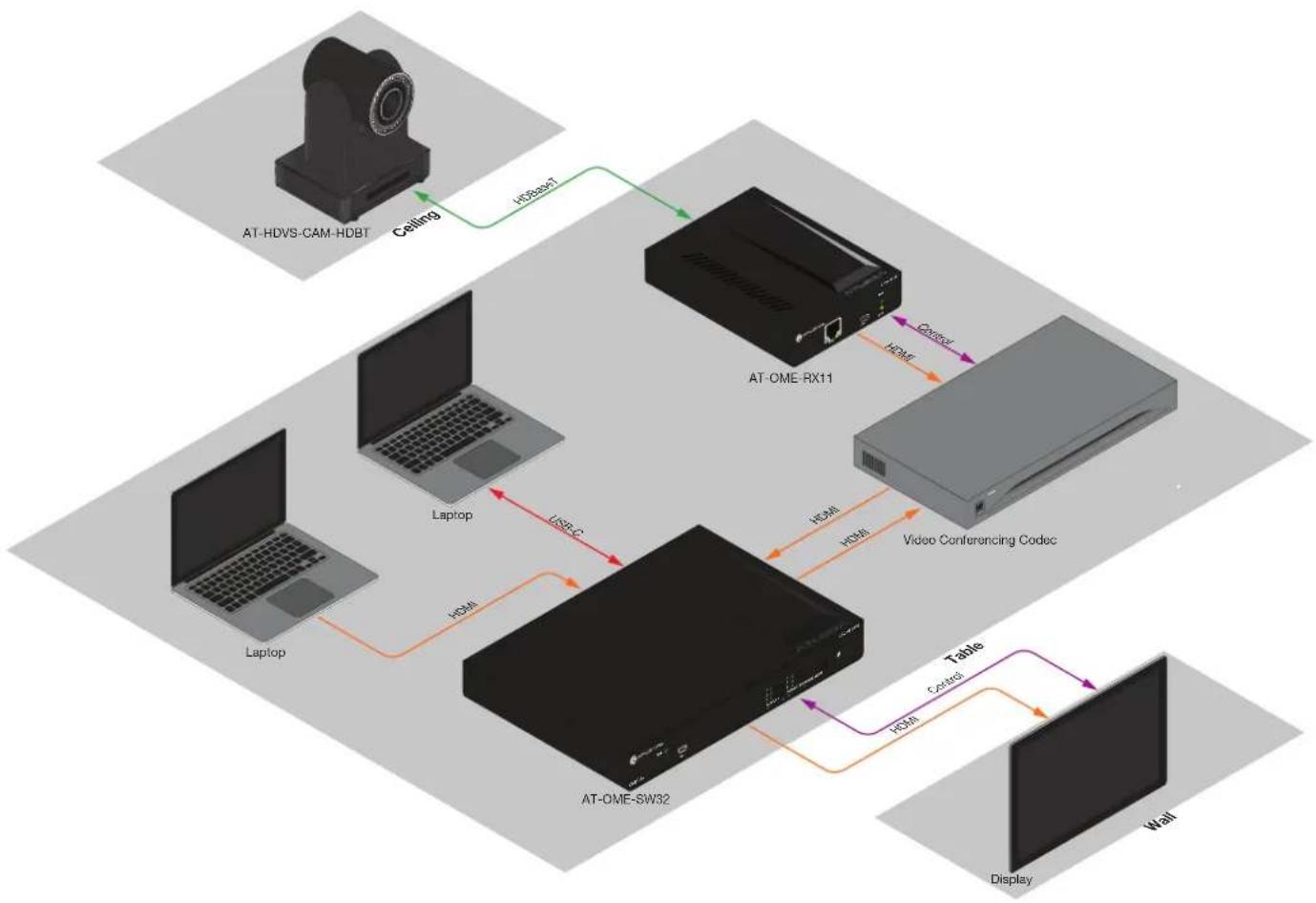

Connection Diagram

Device Operation

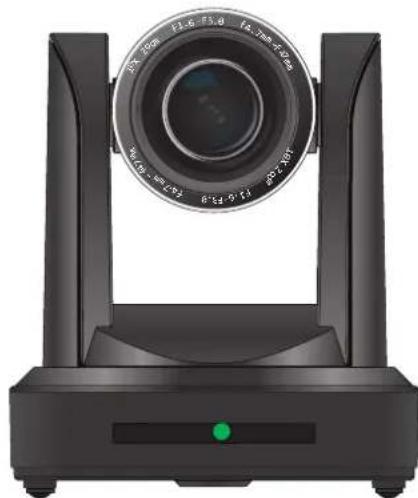

Initialization Procedure

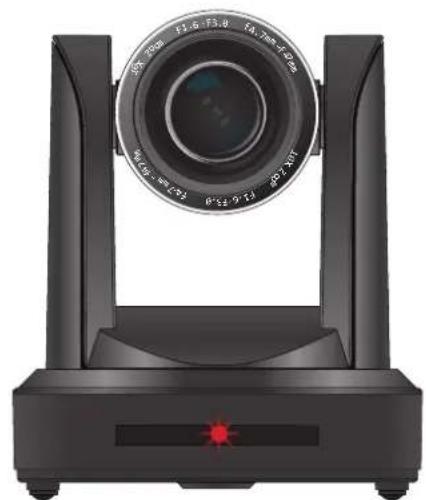

Once the camera is powered, it will go through an initialization procedure. During this process, a flashing red LED indicator will be displayed. When the AT-HDVS-CAM-HDBT is ready for use, the LED indicator on the front panel will be solid green. The AT-HDVS-CAM-HDBT will repeat this process each time it is powered on.

Black camera lens mounted on a support base, no visible text or symbols

Flashing red LED during initialization

Black camera lens mounted on a support structure, no visible text or symbols

Camera "ready" state

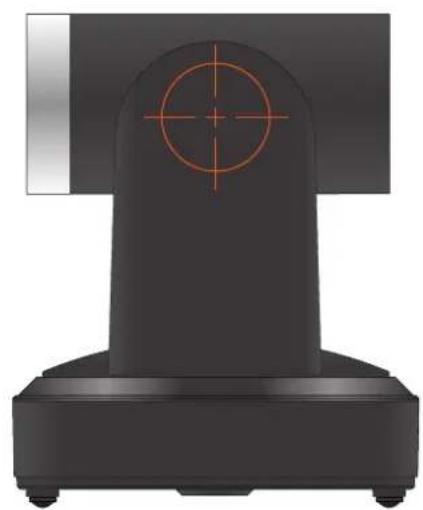

Home Position

"Home" position is a term that is used throughout this manual. When the AT-HDVS-CAM-HDBT is in home position, the camera is facing forward and has no tilt angle, as shown in the illustration below:

Black camera lens mounted on a tripod stand, no visible text or symbols

Front Left Side

3D rendered mechanical component with red crosshair and circular target (no text or symbols)

Field of View

When positioning the camera in a huddle room or similar area, it will be helpful to know the viewing area of the camera, based on a fixed target. The viewable area of the camera is called the linear field of view or sometimes referred to as the image plane.

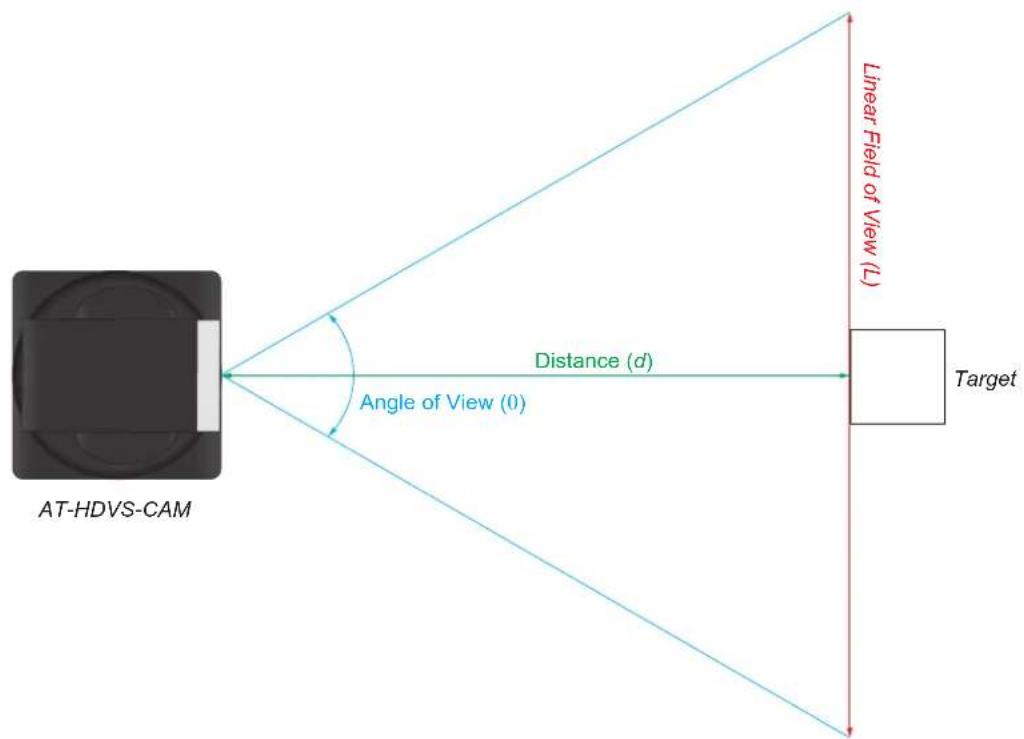

The illustration below shows the AT-HDVS-CAM-HDBT pointed at a fixed target.

AT-HDVS-CAM Distance (d) Angle of View (0) Linear Field of View (L) Target

Sample Calculations Table

The following table provides a list of predefined distances, which the camera must be placed from the target, in order to capture the required Linear Field of View (L). The Angle of View, for the camera, has been set to 60.9° (wide-angle).

To calculate custom values, refer to Calculating Specific Values (page 15).

Angle of View (θ), in degrees	Distance (d), in feet	Linear Field of View (L), in feet
60.9° 5 5.875076864
	10 11.75015373
	15 17.62523059
	20 23.50030746
	25 29.37538432

Calculating Specific Values

In order to calculate custom values, this section introduces some trigonometric formulas which can be used to find the Linear Field of View (L), Distance (d), or the Angle of View ( ). The derivation of each formula is beyond the scope of this manual. As long as any two values are known, the third value can be calculated as follows:

Linear Field of View (FOV) Angle of View Distance to target

$$ L = 2 \cdot d \cdot \tan (\frac {\theta}{2}) $$

$$ \theta = 2 \cdot \arctan (\frac {L}{2 \cdot d}) $$

$$ d = \frac {L}{2 \cdot \tan (\frac {\theta}{2})} $$

NOTE: When calculating the Angle of View, using a calculator that is set to radians, multiply the result by 180 to convert the answer to degrees. The value of can be approximated as 3.1415.

Example

In the following diagram, the camera angle of view is set to 54.7^ . The viewing area to be captured is measured to be 9 feet. How far from the target must the camera be placed in order to capture this area?

AT-HDVS-CAM-HDBT Distance = ? Angle of View = 54.7° Linear FOV = 9.0 feet Target

1. Use the following formula: d = 2 · tan(2)

2. Substitute the known values for each variable in the equation. In this case, we know both the linear FOV and the angle of view. Therefore:

$$ \begin{array}{l} L = 9 \ \theta = 5 4. 7 \ \end{array} $$

1. The equation becomes: d = 92 · tan(54.72)

2. (54.72)=0.5172

3. Multiplying this result by 2 gives: 1.0344

4. Dividing 9 by 1.0344, yields: 8.700. Therefore, the camera must be placed 8.7 feet from the target.

Controlling the Camera

The AT-HDVS-CAM-HDBT can be controlled using the included IR remote control, RS-232, TCP/IP, or through the web server. Refer to the Web Server (page 29) for more information about accessing the web server.

Tilt

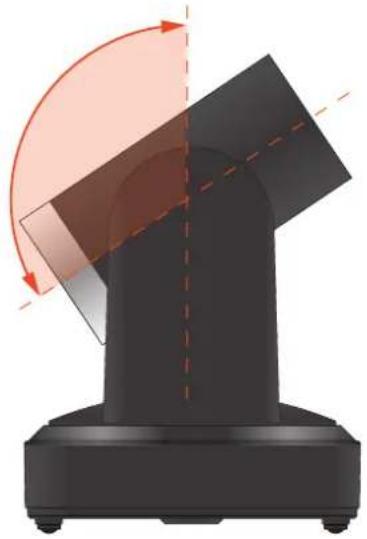

The camera tilt range is approximately -45 degrees to +90 degrees. Use one of the following methods to adjust the camera tilt.

3D diagram of a mechanical component with red curved arrows indicating rotation or force direction (no text or symbols)

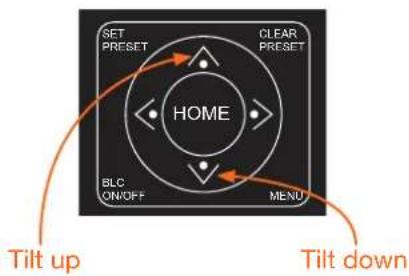

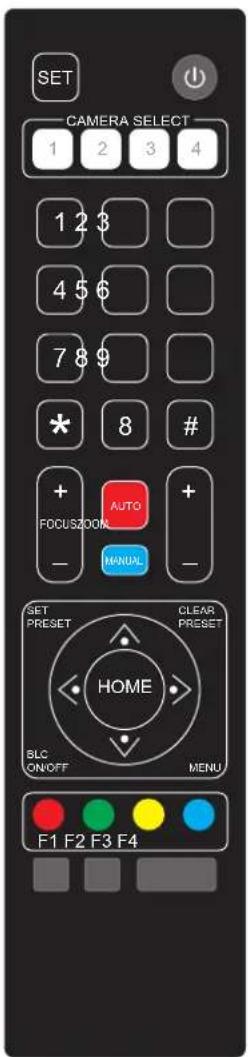

IR Remote Control

• Press and release the up or down arrow button to adjust the tilt of the camera in small increments.
• Press and hold the up or down arrow button to adjust the camera tilt at a faster rate.
• Press the HOME button to return the camera to the "home" position.

SET PRESET CLEAR PRESET HOME BLC ON/OFF MENU Tilt up Tilt down

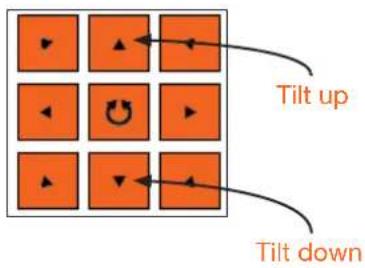

web server

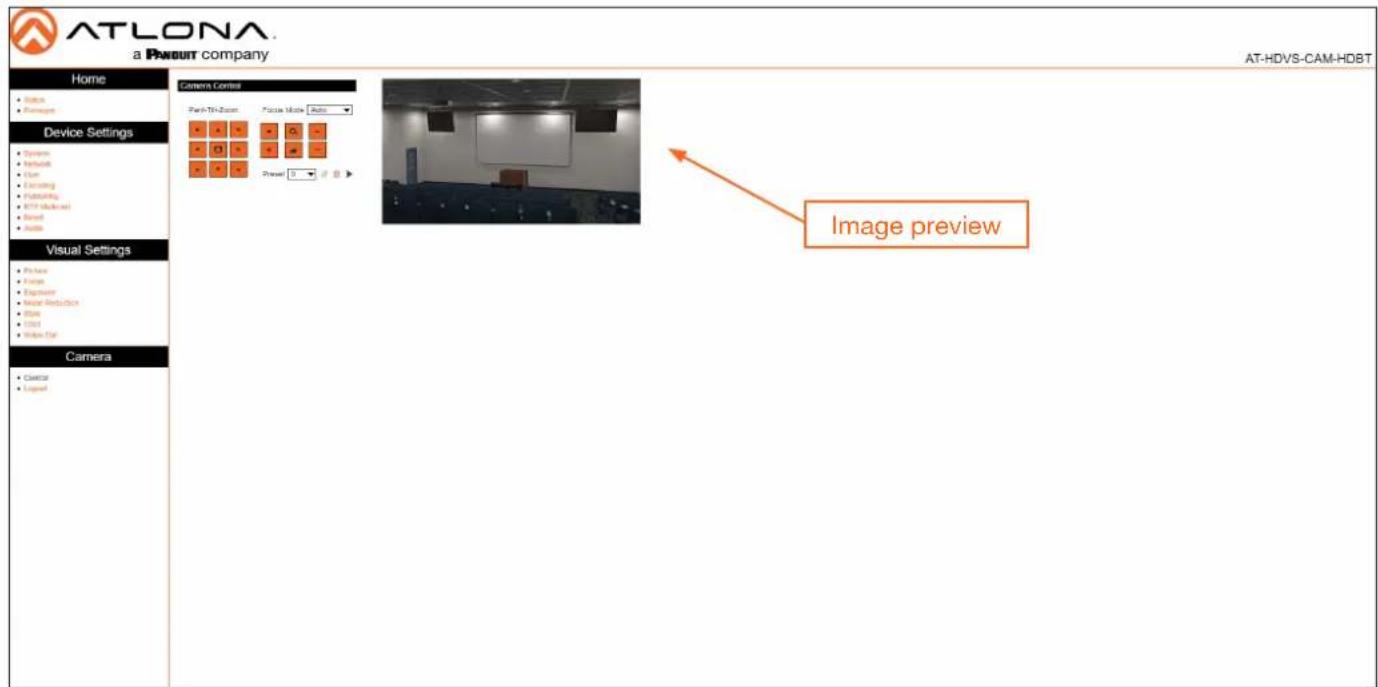

1. Click Control in the side menu bar.
2. Click the up-arrow or down-arrow button to tilt the camera up or down, respectively.
3. Click the 📁icon in the center to return the camera to the "home" position.

Tilt up Tilt down

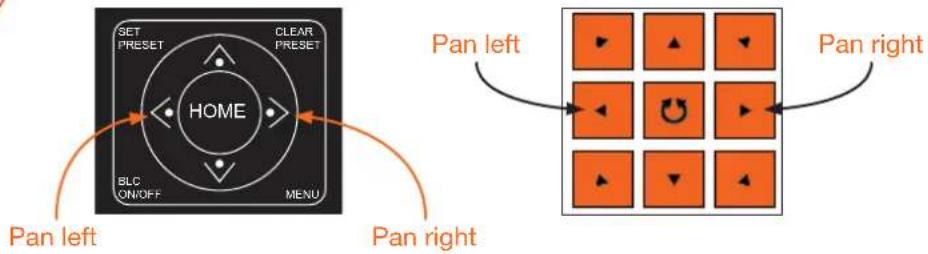

Pan (Rotation)

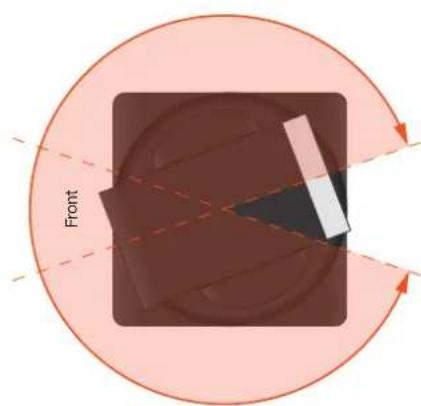

The camera pan range is approximately 360 degrees. Use one of the following methods to adjust the camera pan.

Front

IR Remote Control

• Press and release the left or right arrow button to adjust the camera tilt in small increments.
• Press and hold the left-arrow or right-arrow button to adjust the camera tilt at a faster rate.
• Press the HOME button to return the camera to the "home" position.

web server

1. Click Control in the side menu bar.
2. Click the left arrow or right arrow button to tilt the camera up or down, respectively.
3. Click the 📁con in the center to return the camera to the "home" position.

SET PRESET CLEAR PRESET HOME BLC ON/OFF MENU Pan left Pan right Pan left Pan right

Tilt and Pan Combinations

The web server provides a method for combining both tilt and pan motion. Note that this function is not available on the included IR Remote Control.

web server (only)

1. Click Control in the side menu bar.
2. Click the diagonal arrow buttons to simultaneously tilt and pan the camera in the desired direction:

• Upper Diagonal-left arrow

Pans and rotates camera up and to the left.

• Lower Diagonal-left arrow

Pans and rotates camera down and to the left.

• Upper Diagonal-right arrow

Pans and rotates camera up and to the right.

• Lower Diagonal-right arrow

Pans and rotates camera down and to the right.

1. Click the 📁con in the center to return the camera to the "home" position.

Zoom

The camera is provides a zoom factor up to 10x. Use one of the following methods to adjust the camera zoom.

IR Remote Control

• Locate the ZOOM rocker switch on the IR Remote Control.
• Press and release + to zoom-in or press - to zoom-out.
• Press and hold the these buttons to zoom-in or zoom-out at a faster rate.

FOCUSZOOM AUTO WALUAL Zoom in Zoom out

web server

1. Click Control in the side menu bar.
2. Click + to zoom-in or click - to zoom out.

Focus

When positioning the camera on an object, it may be necessary to adjust the focus for a clear image. The AT-HDVS-CAM-HDBT can be set to auto focus or manual focus. By default, the AT-HDVS-CAM-HDBT is set to auto-focus mode.

NOTE: In order to manually control the focus, the AT-HDVS-CAM-HDBT must be in manual focus mode. Press the MANUAL button to enter manual focus mode.

IR Remote Control

• Press and release the MANUAL button.
• Locate the FOCUS rocker switch on the IR Remote Control.
• Press and release + to increase focus on objects in the foreground. Press and release the - to focus on objects in the background.
• Press and hold the these buttons to adjust the focus at a faster rate.

Foreground objects + FOCUSZOOM AUTO - MANUAL + - Background objects Manual button

web server

1. Click Control in the side menu bar.
2. Set the AT-HDVS-CAM-HDBT to manual focus mode by selecting Manual from the Focus Mode drop-down list.
3. Click + to focus on foreground objects or click - to focus on background objects.

Focus Mode Manual + + - + + + - - Background objectsForegro

Device Operation

Backlight Compensation (BLC)

BLC is a feature which automatically adjusts the exposure control of the camera. When enabled, BLC will attempt to increase the ambient foreground light and “darken” any background light. For example, a subject standing in front of a window in the daytime, will produce a silhouetted effect. Enabling BLC will compensate for the difference in lighting.

IR Remote Control

1. Point the IR Remote Control at the front of the AT-HDVS-CAM-HDBT.
2. Press and release the BLC ON/OFF button to toggle BLC on or off.

SET PRESET CLEAR PRESET HOME BLC ON/OFF MENU BLC on/off button

web server

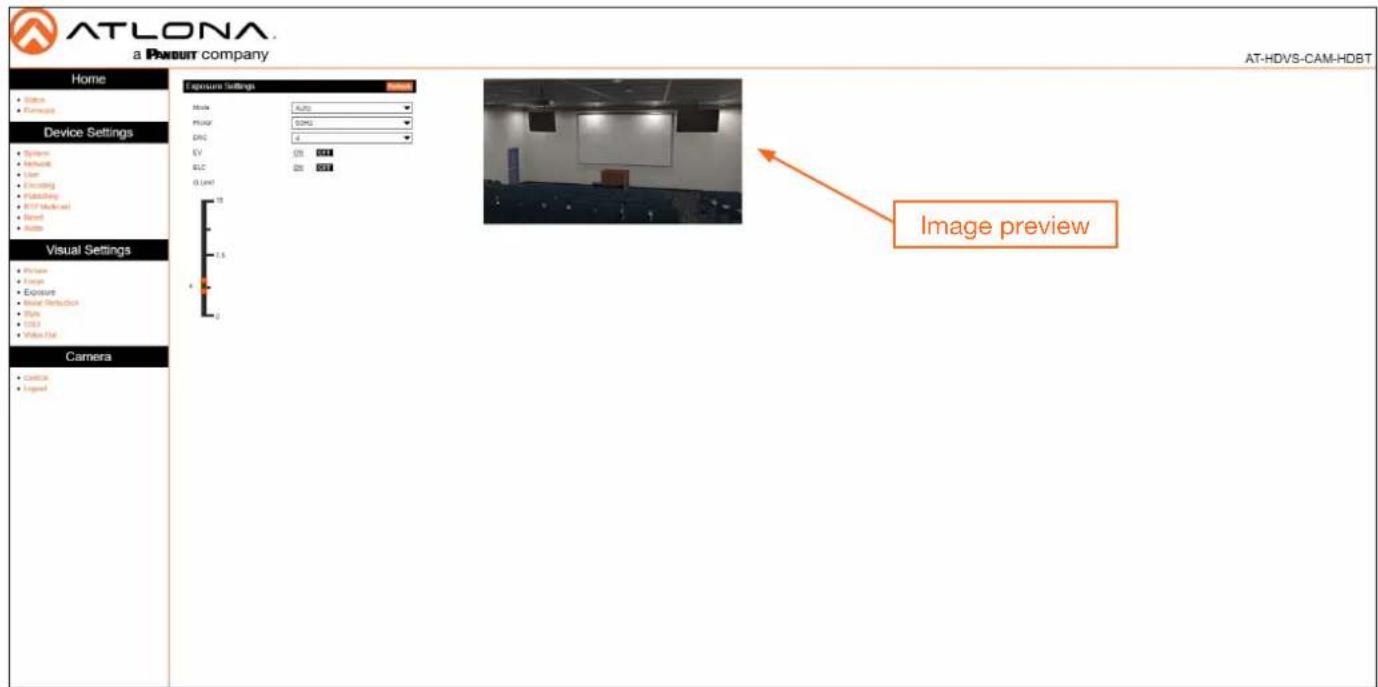

1. Click Exposure in the side menu bar.
2. Click ON to enable BLC. Click OFF to disable BLC.

Mode Auto Flicker 60Hz DRC 4 EV ON OFF BLC ON OFF G.Limit BLC ON

Standby Mode

Placing the AT-HDVS-CAM-HDBT in standby mode will power-down the camera. Placing the camera in standby mode is managed using the IR Remote Control.

1. Point the IR Remote Control at the front of the AT-HDVS-CAM-HDBT.

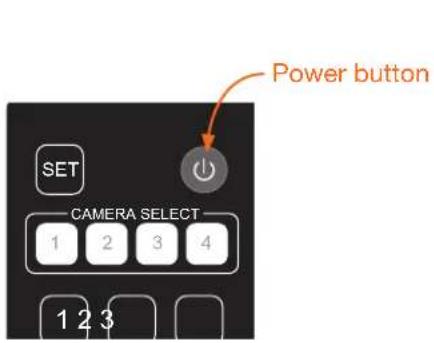

2. Press and hold the ⏻ button for three seconds.
3. The camera will rotate 90 degrees and the camera lens assembly will tilt approximately 45 degrees. The camera is now in standby mode.
4. Press and hold the ⏻ button for three seconds to wake the camera. After the camera is awake, it will return to the home position.

Power button SET CAMERA SELECT 1 2 3 4 1 2 3

Front

NOTE: The camera will always be set to the home position after this sequence is performed. To return the camera to the last position, either position it manually or recall the saved preset.

Managing Presets

Camera positions can be stored to local memory and recalled at a later time. Presets are stored and recalled using the included IR Remote Control. Up to 10 presets can be saved.

Saving Presets

1. Set the camera in the desired position.

2. Point the IR Remote Control at the front of the AT-HDVS-CAM-HDBT.

3. Press the SET PRESET button.

4. Press the desired number on the IR Remote Control keypad to assign the position of the camera to the preset.

1 2 3 4 5 6 7 8 9 * 8 # + AUTO + FOCUSZOOM MANUAL SET PRESET CLEAR PRESET HOME BLC ON/OFF MENU Keypad Clear Preset button Set Preset button

Clearing a Preset

Presets can be erased. It is not necessary to clear a preset, before saving a new camera position in the same preset. If a preset is saved to an existing preset, it will be overwritten.

1. Press the CLEAR PRESET button.

2. Press the desired number on the IR Remote Control keypad to clear the preset.

NOTE: To clear all presets, press and release the [#] key on the keypad, three times.

Recalling Presets

1. Point the IR Remote Control at the front of the AT-HDVS-CAM-HDBT.
2. Press the number of the desired preset from the IR Remote Control keypad.
3. The camera will be set to the position defined by the preset.

Multiple Camera Control

There may be environments where more than one camera is being used. The included IR remote control unit provides a way to select and control up to four separate cameras.

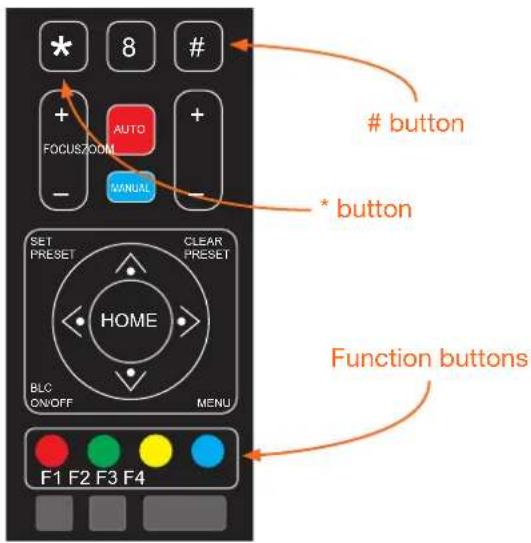

Assigning / Changing the Camera Address ID

Before the IR remote control unit can be used to control different camera, each camera must be assigned an address ID. It is possible to assign multiple cameras with the same ID. However, if all cameras are within close vicinity, IR remote control commands will be distributed to all cameras. This may not always be desirable.

1. Point the IR remote control at the front of the AT-HDVS-CAM-HDBT.
2. Assign the camera an ID by sequentially pressing the following series of buttons listed in the table below.

Camera Address ID Keystrokes
1 [*] + [#] + [F1]
2 [*] + [#] + [F2]
3 [*] + [#] + [F3]
4 [*] + [#] + [F4]

1. Follow the above steps for each camera. Each camera can have a distinct ID. For cameras that have been assigned unique ID addresses, it may be helpful to place a label on each camera for future reference.

# 8 # + AUTO FOCUSZOOM - MANUAL SET PRESET CLEAR PRESET HOME BLC ON/OFF MENU F1 F2 F3 F4

button

* button Function buttons

Selecting a Camera for Control

1. Point the IR remote control at the front of the desired AT-HDVS-CAM-HDBT.
2. Press the button of the camera ID, which is being controlled, within the CAMERA SELECT button group on the IR remote control.
3. Press the buttons on the IR remote control for the desired operation of the camera.

SET CAMERA SELECT 1 2 3 4 1 2 3 4 5 6 7 8 9 Camera Select

Network Streaming

This section covers video and audio stream configuration, as well as RTMP publishing and RTP multicast. Refer to the Appendix (page 58) on how to configure streaming using VLC, Facebook Live, and YouTube Live.

Video Stream Configuration

1. Login to the web server.

2. Click Encoding in the side menu bar.

3. Under the Video Encoding section, select the encoding protocol by clicking Enabled, next to RTSP (Real Time Streaming Protocol) and RTMP (Real Time Messaging Protocol). Either or both protocols can be set to Enabled. When enabled, the checkbox will contain a check mark.

ATLONA a PANOUIT company Home • Status • Firmware Device Settings • System • Network • User • Encoding • Publishing • RTP Multicast • Reset • Audio Visual Settings • Picture • Focus • Exposure • Noise Reduction • Style • OSD • Video Out Camera • Control • Logout Video Encoding RTMP Server Enabled Disabled RTMP Server Enabled Disabled Main Stream Compressed Format H264 Profile HP Image Size 1920*1080 Bit Rate(Ku/S) 4096 Stream Key Ivc/av0 Sub Stream Compressed Format H264 Profile HP Image Size 320*180 Bit Rate(Ku/S) 512 Stream Key Ivc/av1 Video Encoding Next Cancel Default

1. Under the Main Stream and Sub Stream sections, click each of the drop-down lists to assign the desired settings. Both Main Stream and Sub Stream are used to view the camera's footage.

Main Stream is the primary video feed and provides the highest quality video. Main Stream provides the highest video quality, and is the stream used by a digital recorder when saving footage to hard disk. Adjusting these settings will affect the recording size and available recording time on the hard disk.

Sub Stream is the secondary video feed and provides a lower quality video stream. This stream is used to stream video to computers and mobile devices. Adjusting these settings will affect the bandwidth of the stream.

Compressed Format

The desired encoding format

Format Description
H.264 (AVC)	Advanced Video Codec - Industry-standard codec that provides good-quality compressed video output.
H.265 (HVEC) High-Efficiency Video	Coding - Provides a higher compression ratio than H.264, thus reducing the bandwidth necessary for high-resolution (2K/4K) video capture.

Device Operation

Profile

These options are only available when H.264 is selected. Profiles are a set of encoding processes for H.264.

Profile Description
BP Baseline Profile - Supports a lim	ited set of processes and is designed to meet the needs of mobile devices.
MP Main Profile - Supports a good	number of processes and is typically used for devices such as set-top boxes.
HP High Profile - Supports all proce	sses of H.264 and targets FullHD(1080p) applications such as Blu-ray and satellite streams.

Image Size

These resolutions are available for all codecs and profiles.

Resolution
1920x1080 1280x720 640x480

Bit Rate (kb/s)

Enter the desired bit rate in this field.

Encoding Protocol Bit Rate Range
H.264 64 ... 20480 kb/s
H.265 64 ... 40960 kb/s

Stream Key

Enter the stream key in this field. This key (code) is used to identify the stream, allowing the stream to be displayed on a web site.

Main Stream - Recommended Settings for H.264

Resolution Bit Rate
1920x1080 4096 kb/s
1280x720 2048 kb/s

Sub Stream - Recommended Settings for H.264

Resolution Bit Rate
640x480 1024 kb/s
640x360 1024 kb/s
320x240 512 kb/s
320x180 512 kb/s

Device Operation

1. Click the Save button to commit changes.

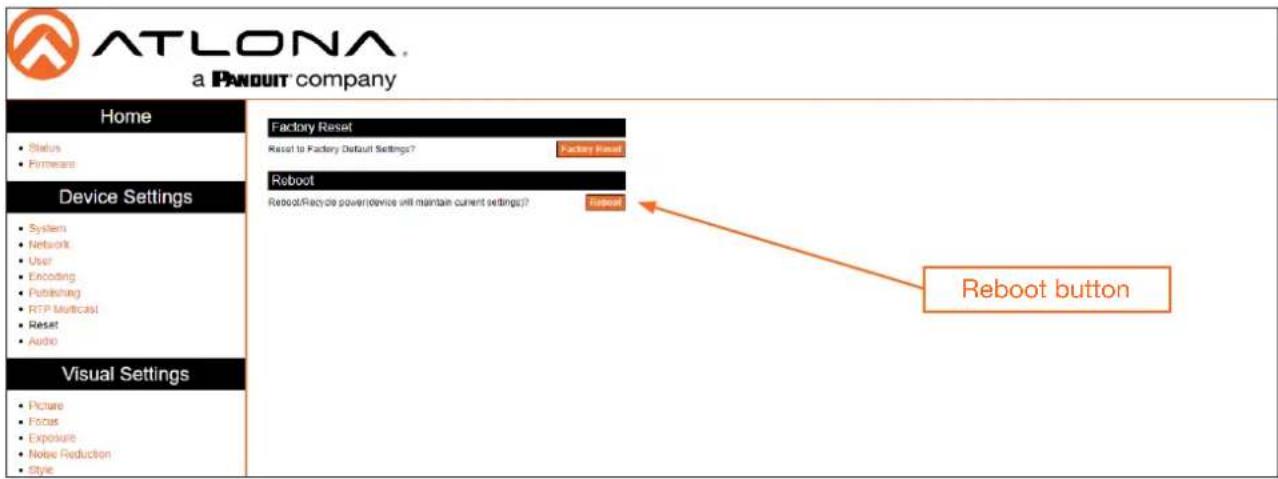

2. Click Reset in the side menu bar and click the Reboot button.

ATLONA a PANDUIT company Home • Status • Firmware Device Settings • System • Network • User • Encoding • Publishing • RTP Multicast • Reset • Audio Visual Settings • Picture • Focus • Exposure • Noise Reduction • Style Factory Reset Reset to Factory Default Settings? Factory Reset Reboot Reboot/Recycle power/device will maintain current settings? Reboot Reboot button

IMPORTANT: After settings have been updated, streams should be re-pulled and restarted to ensure best video quality. If the camera has been power-cycled, then it will be necessary to re-pull both RTMP and RTSP streams.

Audio Stream Configuration

NOTE: Audio is embedded over the HDBaseT link.

1. Login to the web server.
2. Click Audio in the side menu bar.

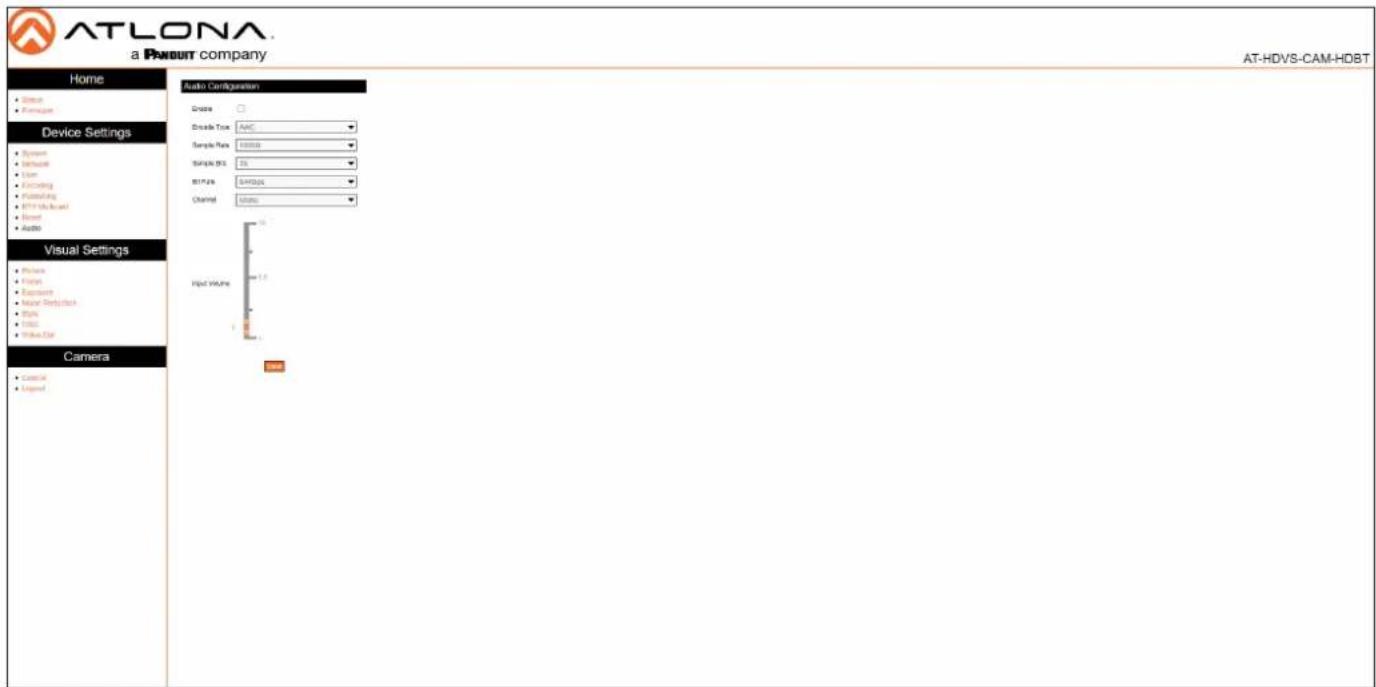

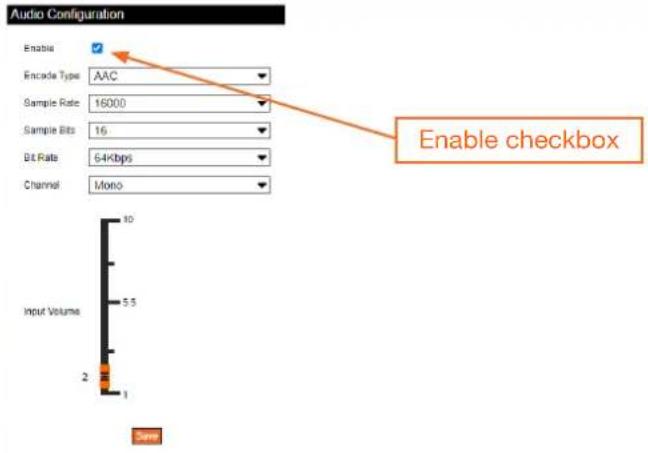

3. Under the Audio Configuration section, click the Enable checkbox. When enabled, the checkbox will contain a check mark.

IMPORTANT: After enabling or disabling the Enable checkbox, the AT-HDVS-CAM-HDBT must be rebooted in order for changes to take effect.

ATLONA

a PANUIT company

Home • Status • Firmware Device Settings • System • Network • User • Encoding • Publishing • RTP Multicast • Reset • Audio

Audio Configuration Enable Encode Type AAC Sample Rate 16000 Sample Bits 16 Bit Rate 64Kbps Channel Mono Enable checkbox Input Volume 5.5 2 1 Score

1. Click each of the drop-down lists to assign the desired settings.

Encode Type

Specifies the audio encoding type.

Encoding Bit Rate Range
AAC Advanced Audio Encoding - Industry-standard lossy compression for digital audio. Exhibits a higher sound quality than MP3.
MP3 MPEG-1/MPEG-2 Audio Layer III - Uses lossy data-compression, dis-carding some data, resulting in lower-bandwidth, high-quality audio.

Sample Rate

Selects the sample rate in Hertz. Available options are 16000 (16 kHz), 32000 (32 kHz), 44100, (44.1 kHz) and 48000 (48 kHz).

Sample Bits

This option is set to 16 and cannot be changed.

Bit Rate

Selects the bit rate. Available options are 32 kbps, 48 kbps, 64 kbps, 96 kbps, and 128 kbps.

Device Operation

Channel

Selects the number of channels that are heard on the output.

Encoding Bit Rate Range
Mono Single-channel audio stream.
Stereo Two-channel (L/R) audio stream.

Input Volume

Click and drag this slider to adjust the input volume.

1. Click the Save button.
2. Click Reset in the side menu bar and click the Reboot button.

ATLONA a PANOUT company Home • Status • Permanate Device Settings • System • Network • User • Encoding • Publishing • RTP Multicast • Reset • Audio Visual Settings • Picture • Focus • Exposure • Noise Reduction • Style Factory Reset Reset to Factory Default Settings? Factory Reset Reboot Reboot/Recycle power/device will maintain current settings? Reboot Reboot button

RTMP Publishing

In order to for the stream to be pushed to live-streaming platforms, such as YouTube ^™ , Twitch ^® , and others, follow the procedure below.

1. Login to the web server.
2. Click Publishing in the side menu bar. RTMP Server, under the Encoding menu, should already be enabled. If not, refer to Video Stream Configuration (page 22) for more information.
3. Click the Enable checkbox to enable the Main Stream and/or Sub Stream.

ATLONA a PANOUIT company Home Status Firmware Device Settings System Network User Encoding Publishing RTP Multicard Reset Audio Visual Settings Picture Focus Exposure Noise Reduction Style OSD Video Out Camera Controls Logout Publish Settings Main Stream Enable Protocol Type RTMP Host Address 192.168.5.11 Host Port 1905 Stream Key live/av0 Sub Stream Enable Protocol Type RTMP Host Address 192.168.5.11 Host Port 1935 Stream Key live/av1 Save Cancel Publish Settings Main Stream Enable □ Protocol Type RTMP Host Address rtmp://a.rtmp.youtube.com/live2 Host Port 1935 Stream Key aaaa-bbbb-ccccc-dddd-eeee Sub Stream Enable □ Protocol Type RTMP Host Address 192.168.5.11 Host Port 1935 Stream Key live/av1 Save Cancel Enter the host address in the Host Address field. Enter the host port in the Host Port field.

1. Enter the host address in the Host Address field.

2. Enter the host port in the Host Port field.

3. Enter the stream key in the Stream Key field. See inset image, above, for an example.

4. Click the Save button to commit changes.

Refer to the next page for more examples.

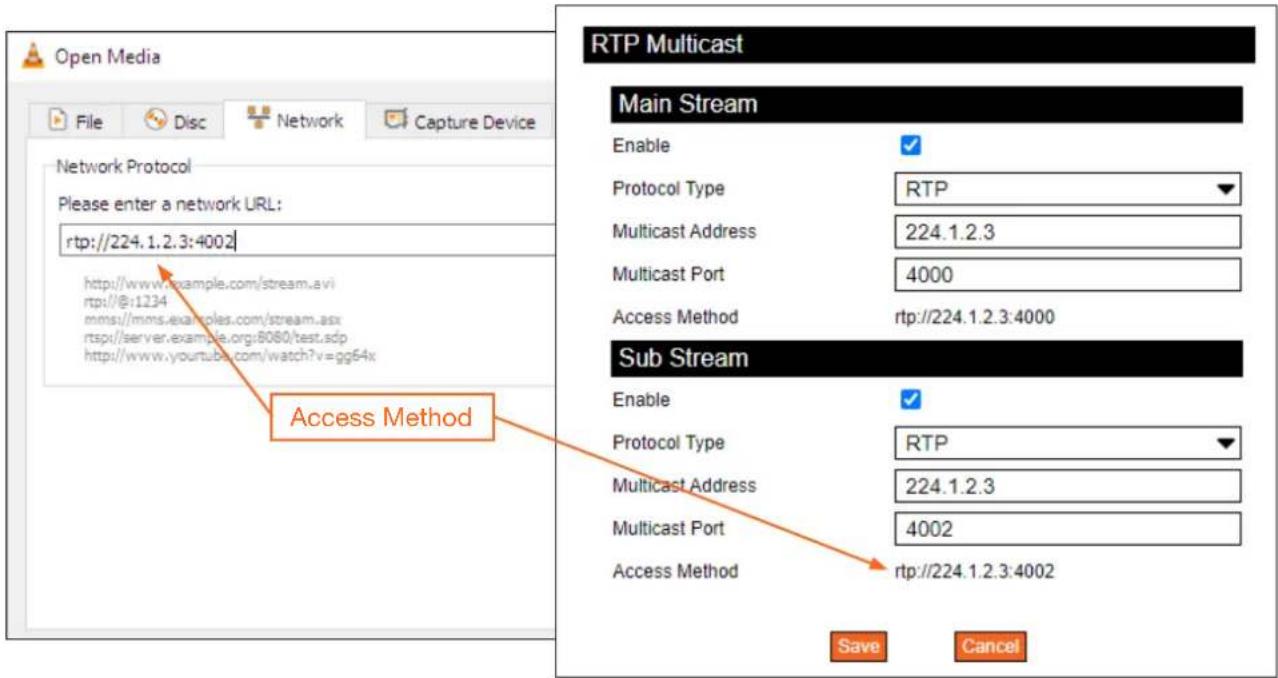

RTP Multicast

In order to for the stream to be published to a multicast address, follow the procedure below.

1. Login to the web server.

2. Click RTP Multicast in the side menu bar.

3. Click the Enable checkbox to enable the Main Stream and/or Sub Stream. When enabled, the checkbox will contain a check mark.

ATLONA a PANDUIT company Home • Status • Firmware Device Settings • System • Network • User • Encoding • Publishing • RTP Multicast • Reset • Audit Visual Settings • Picture • Focus • Exposure • Noise Reduction • Style • OSD • Video Out Camera • Control • Logit# RTP Multicast Main Stream Enable Protocol Type RTP Multicast Address 224.1.2.3 Multicast Part 4000 Access Method rtp/224.1.2.3.4000 Sub Stream Enable Protocol Type RTP Multicast Address 224.1.2.3 Multicast Part 4002 Access Method rtp/224.1.2.3.4002 Save Cancel Enable checkbox

1. Click the Protocol Type drop-down list to select the protocol type. Enter the host port in the Host Port field.

Protocol Description
RTP Real Time Protocol
TS Transport Stream (MPEG-TS)

1. Enter the multicast address in the Multicast Address field.
2. Enter the multicast port in the Multicast Port field.
3. Click the Save button to commit changes.

Refer to the next page for configuration examples.

Configuration and Management Interfaces

Web Server

Main operation of the AT-HDVS-CAM-HDBT is handled through the built-in web server. In order to access the web server, the IP address of the unit must be known.

Registration

1. Launch a desired web browser and enter the IP address of the AT-HDVS-CAM-HDBT in the address bar.
2. Enter the desired username in the User Name field. In the example below, the username admin is used.
3. Enter the desired password in the Password field. All passwords will be masked, when entered.

IMPORTANT: The password must contain a minimum of 8 characters, including: 1 uppercase character, 1 lowercase character, and 1 number.

1. Verify the password by entering it in the Re-enter password field.
2. Click the Register button.

ATLONA a PAnout company Admin Login User Name: admin Password: ******** Re-enter password: ******** Register 1.877-536.3076 -41.43.508.4521 Sagazine.com Tobacco.com Admin Login User Name: admin Password: ******** Re-enter password: ******** Register

1. The Login page will be displayed.
2. Registration is complete.

Configuration and Management Interfaces

Logging In

Before logging in to the web server, make sure the registration process has been completed. Refer to Registration (page 29) for more information.

1. Launch the desired web browser and enter the IP address of the AT-HDVS-CAM-HDBT in the address bar.
2. Enter the correct username and password in the respective fields. To clear the User Name and Password fields, click the Clear button.

NOTE: If using a secure connection, click the Toggle HTTP/HTTPS button.

ATLONA a PAMOUNT company Admin Login User Name: admin Password: ******** Login Clear 1.877.536.3976 - atlona.com - +41.43.508.4321 Toggle HTTP/HTTPS Factory Reset AT-HDVS-CAM-HDBT

1. Click the Login button.
2. The Info page will be displayed and the login process is complete.

Configuration and Management Interfaces

Status Page

The Status page provides basic information about the AT-HDVS-CAM-HDBT, including the software version.

ATLONA a PANDUIT company AT-HDVS-CAM-HDBT Home • Status • Formware Device Settings • System • Network • User • Existing • Postboarding • After Modbus • Event • Audio Visual Settings • Picture • Camera • Camera • Camera • Video Camera System Information Mode: AT HDVS-CAM-HDBT MAC Address: 80.30 80.00 04:06 Serial Number: 560911 MSCI Features: V3.1.8 Camera Features: V2.5.8 AT Features: V4.5.7

Model

The model of the unit.

MAC Address

The hardware MAC address of the unit.

Serial Number

The serial number of the unit.

MCU Version

The version of MCU firmware.

Camera Firmware

The version of camera firmware.

AF Firmware

The version of firmware which controls Auto-Focus.

Download Log

Click this button to download the information in the System Information group, to an Excel file.

Configuration and Management Interfaces

Firmware Page

ATLONA a PANDUIT company Home • Status • Platform Device Settings • Systems • Software • User • Recording • Filtering • 3D / 100 (Inset) • Name • Audio Visual Settings • Picture • Focus • Exposure • Visual Protection • Style • Text • Video/Text Camera • Control • Image Frequency Status System MOD: 0.5.1.0 Camera: 0.5.1.0 Face Fixed: 0.5.1.0 Device for the most recent software version Frequency Update: Update File: Search Engine AT-HDVS-CAM-HDBT

Firmware Status - System

MCU

The version of MCU firmware.

Camera

The version of camera firmware.

Auto Focus

The version of firmware which controls Auto-Focus.

Firmware Update

Update File

Displays the file currently selected for the update process.

Browse

Click this button to select the desired firmware file for the update process.

Upgrade

Click this button to begin the firmware update process.

Configuration and Management Interfaces

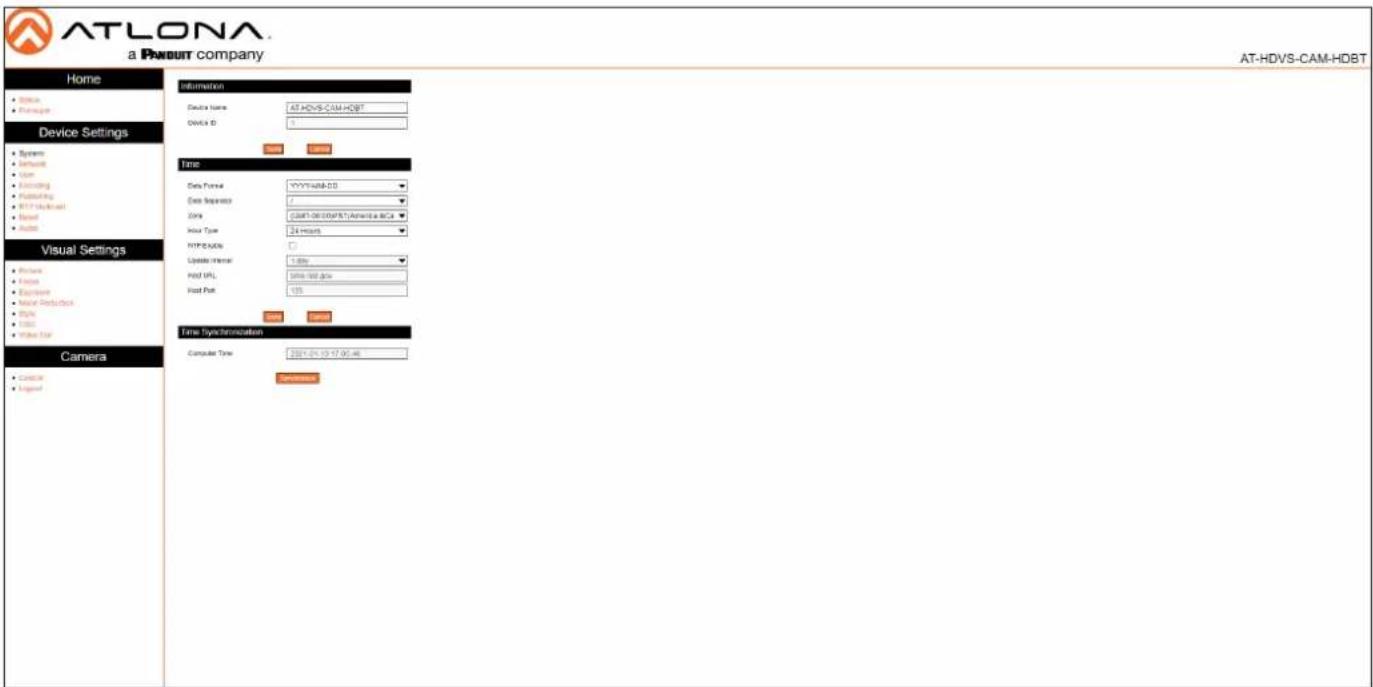

System Page

ATLONA a PANDUIT company Home • Device • Furniture Device Settings • System • Network • User • Encircling • Filtering • BTP/Blackwell • Based • Audio Visual Settings • Picture • Image • Explore • Visual/Detector • Style • Style • Video Type Camera • Camera • Image Information Device Name: AT-HDVS-CAM-HDBT Device ID: 1 Time Data Format: YYYY-MM-DD Data Sequence: / 0Hz: (DATA-DWORD/Times & Bits) Host Type: 24 Hours HTTP Status: Update Interval: 1.8ms Host URL: 000-000-JDS Host Port: 105 Time Type/Description Computer Time: 2011/01/19 17:00:46 Compression AT-HDVS-CAM-HDBT

Information

Device Name

Displays the model of the unit.

Device ID

The device ID.

Save

Click this button to commit changes under this section.

Cancel

Click this button to abort changes under this section.

Time

Date Format

Displays the file currently selected for the update process.

Data Separator

Click this drop-down list to specify the separator between month, day, and year.

Zone

Click this drop-down list to select the desired time zone.

Hour Type

Click this drop-down list to switch the time format between 12-hour and 24-hour clocks.

NTP

Click this check box to enable the use of an external NTP server.

Configuration and Management Interfaces

Update Interval

Click this drop-down list to select the time interval (in days), which the camera will poll the NTP server. This field is only active if the NTP check box is marked with a checkmark.

Host URL

Specify the NTP server address in this field. This field is only active if the NTP check box is marked with a checkmark.

Host Port

Specify the NTP port in this field. This field is only active if the NTP check box is marked with a checkmark.

Save

Click this button to commit changes under this section.

Cancel

Click this button to abort changes under this section.

Time Synchronization

Computer Time

Displays the current time on the computer.

Synchronize

Click this button to synchronize the computer time.

Configuration and Management Interfaces

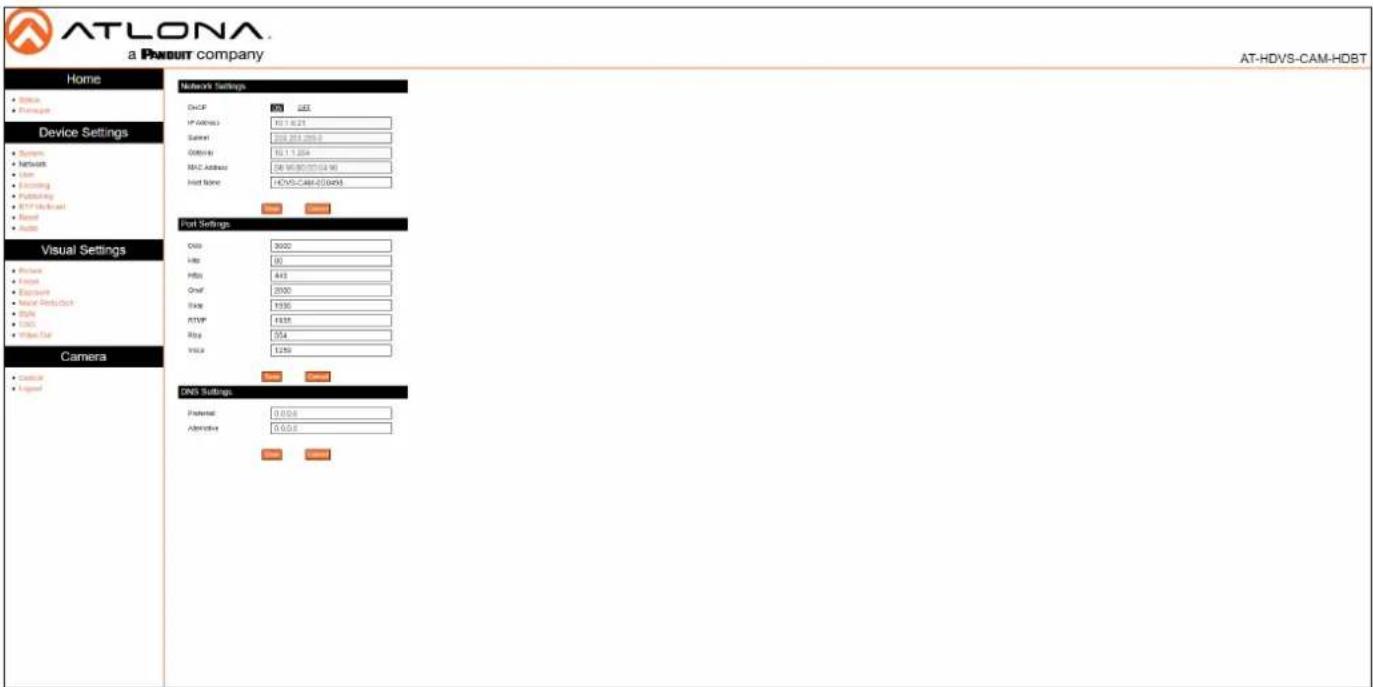

Network Page

ATLONA a PANDUIT company Home • Device • Furniture Device Settings • System • Network • User • Recording • Publishing • RTF/16/2004 • Real • Audio Visual Settings • Picture • Image • Exposure • Visual Sets/Clock • Style • TVG • Video/Tool Camera • Control • Imaged Network Settings DHCP VCC EEP HP (Windows) RST 8.021 Server: 238.253.255.0 Ethernet: RST 1.1.254 MAC Address: DB: 987-BC:277-54-96 Host Name: HDVS-CAB-05/04/05 Port Settings DVO: 3000 Link: 00 HPS: 443 Ctrl: 2000 Size: $100 RTVP: $128 RIP: $74 Voice: $250 DVD Settings Potential: 0.004 Alternative: 0.002 AT-HDVS-CAM-HDBT

Network Settings

DHCP

Switch between DHCP (ON) and static (OFF).

IP Address

Specify the IP address of the AT-HDVS-CAM-HDBT in this field. This field is only active if DHCP is set to OFF.

Subnet

Specify the IP subnet mask in this field. This field is only active if DHCP is set to OFF.

Gateway

Specify the default gateway (router) address in this field. This field is only active if DHCP is set to OFF.

MAC Address

Displays the MAC address of the AT-HDVS-CAM-HDBT.

Host Name

Specify the host name of the AT-HDVS-CAM-HDBT in this field. The default host name will be HDVS-CAM-[last six digits of MAC address].

Save

Click this button to commit changes under this section.

Cancel

Click this button to abort changes under this section.

Configuration and Management Interfaces

Port Settings

Enter the required port number in each of these fields. Each field contains the default port settings. Available values are from 0 to 65535.

Save

Click this button to commit changes under this section.

Cancel

Click this button to abort changes under this section.

DNS Settings

Preferred

Enter the primary DNS server address in this field.

Alternative

Enter the failover DNS server address in this field.

Configuration and Management Interfaces

User Page

ATLONA a PANDUIT company Home • Device • Furniture Device Settings • Design • Network • User • Recording • Broadcasting • HTTP/Hi/Resell • Audio • Audio Visual Settings • Picture • Image • Exercise • Noise Reduction • Style • Text • Video/Time Camera • Camera • Iconet User: Change password Local Name: admin Item password: Re-enter password: Enter Cancel AT-HDVS-CAM-HDBT

User

User Name

Enter the desired user name in this field.

New password

Enter the new password in this field.

Re-enter password

Confirm the new password by entering it in this field.

Save

Click this button to commit changes under this section.

Cancel

Click this button to abort changes under this section.

Configuration and Management Interfaces

Encoding Page

ATLONA

a PANDUIT company

AT-HDVS-CAM-HDBT

Home • Media • Puzzle Device Settings • Systems • Software • Web • Exceeding • Publishing • DVD/Video • Audio Visual Settings • Video • Image • Ecosystem • Audio/Digital • Audio • Audio Star Camera

Video Streaming NTAP Server Download 1000000 NTAP Server Download 1000000 Main Stream Connected Pattern: in 264 Audio: x9 Image Size: 1000*1380 Signal Mode: 2000 Stream Mode: Normal Sub Stream Connected Pattern: in 264 Audio: x9 Image Size: 520*163 Signal Mode: Normal Stream Mode: Normal OK Cancel Cancel

Video Encoding

RTSP Server

Enable / disable the RTSP protocol.

RTMP Server

Enable / disable the RTMP protocol.

Main Stream / Sub Stream

These settings affect the main stream, which is the primary video feed and provides the highest quality video. This stream is used by a digital recorder when saving footage to hard disk. Adjusting these settings will affect the recording size and available recording time on the hard disk.

Sub Stream is the secondary video feed and provides a lower quality video stream. This stream is used to stream video to computers and mobile devices. Adjusting these settings will affect the bandwidth of the stream.

Compressed Format

Click this drop-down list to select the desired video codec.

Format Description
H.264 (AVC)	Advanced Video Codec - Industry-standard codec that provides good-quality compressed video output.
H.265 (HVEC) High-Efficiency Video	Coding - Provides a higher compression ratio than H.264, thus reducing the bandwidth necessary for high-resolution (2K/4K) video capture.

Configuration and Management Interfaces

Compressed Format

Click this drop-down list to select the desired profile.

Profile Description
BP Baseline Profile - Supports a lim	ited set of processes and is designed to meet the needs of mobile devices.
MP Main Profile - Supports a good	number of processes and is typically used for devices such as set-top boxes.
HP High Profile - Supports all proces	sses of H.264 and targets FullHD (1080p) ap- plications such as Blu-ray and satellite streams.

Image Size

Click this drop-down list to select the desired resolution. These resolutions are available for all codecs and profiles.

Resolution
1920x1080 1280x720 640x480

Bit Rate (kb/s)

Enter the desired bit rate in this field.

Encoding Protocol Bit Rate Range
H.264 64 ... 20480 kb/s
H.265 64 ... 40960 kb/s

Stream Key

Enter the stream key in this field. This key (code) is used to identify the stream, allowing the stream to be displayed on a web site.

Save

Click this button to commit changes.

Cancel

Click this button to abort changes.

Default

Click this button to restore default settings.

Configuration and Management Interfaces

Publishing Page

ATLONA a PANUIT company Home • Back • Forearm Device Settings • System • Network • User • Encoding • Publishing • 87" Digital • Based • Audio Visual Settings • Picture • Export • Express • Audio Distribution • Style • Style • Wire Dot Camera • Camera • Imaged Sub Stream Main Stream Enable: □ Product Type: STOP# Mid-ABR/0: 132.136.5.11 Load Port: 1326 Stream Rate: 999900 EXAM: □ Product Type: STOP# Mid-ABR/0: 132.136.5.11 Load Port: 1326 Stream Rate: 999901 OK Cancel AT-HDVS-CAM-HDBT

Main Stream / Sub Stream

These settings affect the main stream, which is the primary video feed and provides the highest quality video.

Sub Stream is the secondary video feed and provides a lower quality video stream. This stream is used to stream video to computers and mobile devices.

Enable

Click this check box to enable the main stream / sub stream. When a stream is enabled, the check box will be checked.

Protocol Type

This drop-down list is set to RTMP and cannot be changed.

Host Address

Specify the IP address or stream URL in this field.

Host Port

Specify the port in this field.

Stream Key

Specify the stream key in this field.

Save

Click this button to commit changes.

Cancel

Click this button to abort changes.

Configuration and Management Interfaces

RTP Multicast Page

ATLONA a PANDUIT company Home • Back • Forearm Device Settings • System • Network • User • Recording • Functioning • BTP Local • Name • Audio Visual Settings • Picture • Image • Equipment • Audio/Video/Dock • Style • Style • Video/Bit Camera • Camera • Signal BTP Multistral Main Stream Tools: Protocol Type: BTP Multi-Cell Address: 224.1.2.3 Multi-Cell Port: 4000 Above Medium: No 1024 1.2.5 MB Sub Stream ENIX: Protocol Type: BTP Multi-Cell Address: 224.1.2.3 Multi-Cell Port: 4000 Above Medium: No 1024 1.2.5 MB AT-HDVS-CAM-HDBT

Main Stream / Sub Stream

These settings affect the main stream, which is the primary video feed and provides the highest quality video.

Sub Stream is the secondary video feed and provides a lower quality video stream. This stream is used to stream video to computers and mobile devices.

Enable

Click this check box to enable the main stream / sub stream. When a stream is enabled, the check box will be checked.

Protocol Type

Click this drop-down list to set the protocol.

Protocol Description
RTP Real Time Protocol
TS Transport Stream (MPEG-TS)

Multicast Address

Specify the multicast IP address of the stream in this field.

Multicast Port

Specify the port in this field.

Access Method

Displays the fully-qualified URL of the stream, based on the above settings.

Save

Click this button to commit changes.

Cancel

Click this button to abort changes.

Configuration and Management Interfaces

Reset Page

ATLONA a PANDUIT company AT-HDVS-CAM-HDBT Home • Status • Platform Device Settings • Systems • Network • User • Encoding • Functioning • RTF/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/DC/NC • Visual Settings • Pictures • Express • Exposure • Audio/Data/Data • Style • UDS • Video Grid Camera • Control • Image1 Factory Reset How to Facility Select Settings? Subcell Poisofflective power devices will remain current settings? Subcell AT-LONA.CAM-HDBT

Factory Reset

Factory Reset

Click this button to factory-reset the AT-HDVS-CAM-HDBT.

Reboot

Reboot

Click this button to reboot/power-cycle the AT-HDVS-CAM-HDBT.

Configuration and Management Interfaces

Audio Page

ATLONA a PANDUIT company Home • Device • Camera Device Settings • System • Environment • User • Encoding • Filtering • DVD/Video • Audio Audio Configuration Drone Double Type: ABC Sample Type: 100000 Sample ID: 35 B1749: SAMSOL Channel: None Visual Settings • Picture • Image • Exposure • Noise Selection • WINS • Video • Video Data Camera • Control • Image AT-HDVS-CAM-HDBT

Audio Configuration

Enable

Click this check box to enable audio configuration. When enabled, this check box will be checked.

Encoding Type

Click this drop-down list to select the audio codec.

Encoding Bit Rate Range
AAC Advanced Audio Encoding - In	dustry-standard lossy compression for digital audio. Exhibits a higher sound quality than MP3.
MP3 MPEG-1/MPEG-2 Audio Layer	III - Uses lossy data-compression, discarding some data, resulting in lower-bandwidth, high-quality audio.

Sample Rate

Selects the sample rate in Hertz. Available options are 16000 (16 kHz), 32000 (32 kHz), 44100, (44.1 kHz) and 48000 (48 kHz).

Sample Bits

This option is set to 16 and cannot be changed.

Bit Rate

Selects the bit rate. Available options are 32 kbps, 48 kbps, 64 kbps, 96 kbps, and 128 kbps.

Channel

Selects the number of channels that are heard on the output.

Encoding Bit Rate Range
Mono Single-channel audio stream.
Stereo Two-channel (L/R) audio stream.

Configuration and Management Interfaces

Input Volume

Click and drag this slider to adjust the input volume.

Save

Click this button to commit changes.

Cancel

Click this button to abort changes.

Configuration and Management Interfaces

Picture Page

ATLONA a PNDOUT company Home Device Settings Visual Settings Camera Picture Settings Right Current Sharpness RGB Tuning Bit Tuning Run 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Image preview

Picture Settings

Bright

Click and drag this slider to adjust the picture brightness between a value of 0 and 14. Larger values produce a brighter image. The default setting is 6.

Contrast

Click and drag this slider to adjust the picture contrast between a value of 0 and 14. Larger values produce a higher contrast image. The default setting is 7.

Sharpness

Click and drag this slider to adjust the picture sharpness between a value of 0 and 14. Larger values will produce a sharper image. The default setting is 7.5.

RG Tuning

Click and drag this slider to adjust the red-gain tuning between a value of -10 and 10. Use this feature to reduce unwanted red colors. Larger values will introduce a red tint to the image. The default setting is 0.

BG Tuning

Click and drag this slider to adjust the blue-gain tuning between a value of -10 and 10. Use this feature to reduce unwanted blue colors. Larger values will introduce a blue tint to the image. The default setting is 0.

Hue

Click and drag this slider to adjust the picture hue between a value of 0 and 14. Larger values will introduce more red into the image, while smaller values will introduce more blue into the image. The default setting is 7.

Gamma

Click this drop-down list to select the desired gamma setting. Larger values will display a darker image. The default setting is Default.

DCI

Click and drag this slider to adjust the dynamic contrast of the image. Larger values produce a higher contrast image. The default setting is OFF.

Configuration and Management Interfaces

Saturation

Click this drop-down list to select the desired saturation value. Available values are between 60% and 200% in increments of 10. Larger values will produce and image with a higher color contrast. The default setting is 100%.

WB Mode

Click this drop-down list to select the desired white balance setting.

WB Mode Description
Auto Automatically adjusts white balance based on the captured image. This is the default setting.
Manual	Permits manual white balance setting using the RG (Red Gain), BG (Blue Gain), and Hue slider settings.
OnePush	When selected, this option will display an Adjust button. Click the Adjust button to allow the camera to make automatic white balance adjustment of the captured image. This setting is different than Auto, in that the Auto setting will constantly adjust the image, based on the lighting. The OnePush option, allows the white balance to be set, based on the current lighting, much like setting the white balance on a DSLR camera.
VAR	When selected, a Color Temp drop-down list will be displayed below the WB Mode drop-down list. Color temperature (in Kelvin) can be selected from the Color Temp drop-down list. The Color Temp drop-down list provides values from 2400K to 7100K, in increments of 100K. The Hue slider can also be used to provide granular tuning of the color temperature.

AWB Sensitivity

Click this drop-down list to select the auto-white balance sensitivity. AWB automatically color-corrects the captured image, by analyzing the light reaching the camera sensor, and attempts to correct for any color shifts that may otherwise take place.

B&W Mode

Setting this value to ON will remove color information from the image.

Flip-H

When set to ON, the image will be horizontally flipped.

Flip-V

When set to ON, the image will be vertically flipped.

DZoom

When set to ON, dynamic zoom will be enabled.

Low-Light Mode

When set to ON, low-light mode is enabled. This provides better image quality in low-light environments.

Configuration and Management Interfaces

Focus Page

ATLONA a PANDUIT company Home • Settle • Furniture Device Settings • System • Network • User • Encoding • Filtering • HTTP (Backward) • Band • Audio Visual Settings • Picture • Image • Exposure • Video Production • Style • Text • Video Map Camera • Control • Legend Focus Settings Focus Name Auto Auto Fixed Date Acc Auto Focus Settings Info Image preview AT-HDVS-CAM-HDBT

Focus Settings

Focus Mode

Click this drop-down list to select the desired focus mode.

Focus Mode Description
Auto Automatically adjusts focus based on the captured image.
Manual Permits manual focus control.
OnePush	When selected, this option will adjust the focus based on the currently captured image.The same focus setting will be applied to all other camera movement.

Auto Focus Zone

Click this drop-down list to select the zone where auto focus will be applied. Available options are Top, Center, Bottom, and All. The default setting is All.

Auto Focus Sensitivity

Click this drop-down list to select the auto focus sensitivity. Available options are Low, Med, and High. The default setting is Low.

Configuration and Management Interfaces

Exposure Page

ATLONA a PAVOUR company Home Device Settings Visual Settings Camera Exposure Settings Mode Auto PHIAP SPAG DEC E EV 0.000 15 7.5 4 2 Image preview AT-HDVS-CAM-HDBT

Exposure Settings

Mode

Click this drop-down list to select the desired mode.

Mode Description
Auto Automatically adjusts the exposure, based on available light.
Manual	Permits manual exposure control. When selected, the following options will be available: Iris, Shutter, and Gain. These options are similar to aperture, shutter speed, and ISO speed in a DLSR camera.Iris: Click this drop-down list to select the f-stop value. The larger the value, the smaller the diameter of the iris (aperture). Larger values permit less light into the camera sensor, making the image darker.Shutter: Click this drop-down list to select the shutter speed. This is the time interval required to open and close the shutter during each frame of video. Larger values (fast shutter speeds) will allow less light to enter the camera sensor, producing darker images, but will produce crisp video. Low values (slow shutter speeds) will allow more light to enter the camera sensor, allowing for brighter images, but will make moving objects appear blurry.Gain: Click and drag this slider to adjust the gain. Gain is similar to adjusting the ISO (image noise) values on a DSLR. Larger values will increase the brightness of the image in low-light environments, but will introduce noise (grain) into the image. Smaller values decrease the image brightness in bright/outside environments and introduce less noise into the image.
SAE Shutter Automatic	Exposure (SAE). When selected, this option will measure the incoming light and automatically adjust the iris (aperture) based on the selected shutter speed.

Configuration and Management Interfaces

Mode Description
AAE Aperture Automatic	Exposure (AAE). When selected, this option will measure the incoming light and automatically adjust the shutter speed based on the selected iris (aperture) setting.
Bright	When selected, aBrightslider will be displayed. The larger the value, the brighter the image.

Flicker

Click this drop-down list to set the flicker setting. Available values are 50 Hz, 60 Hz, and OFF. The default setting is OFF. Note that this option is not available when Mode is set to Manual.

DRC

Dynamic Range Control. DRC is the measurement between maximum and minimum values in an image. Larger values attempt to discern between different color values in the image.

EV

Exposure Value. This option essentially combines both shutter speed and iris (aperture) into a single value. However, unlike independently adjusting shutter speed and iris settings, this value restricts the effect to the image exposure. When this option is set to ON, then an EV Level slider bar will be displayed.

BLC

Back Light Compensation. BLC is a feature which automatically adjusts the exposure control of the camera. When enabled, BLC will attempt to increase the ambient foreground light and “darken” any background light. For example, a subject standing in front of a window in the daytime, will produce a silhouetted effect. Enabling BLC will compensate for the difference in lighting by enhancing the foreground lighting on the subject.

Configuration and Management Interfaces

Noise Reduction Page

ATLONA a PANDUIT company Home • Value • Furniture Device Settings • System • Network • User • Encoding • Inducting • BTF/Backhaul • Head • Audio Visual Settings • Picture • Image • Expressor • Noise Reduction • Stroke • Tidal • Video Plot Camera • Camera • Image Image Preview AT-HDVS-CAM-HDBT

Noise Reduction Settings

Image noise is defined as pixels which do not represent any color. Image noise is usually present when shooting in low-light environments.

NR-2D

Click this drop-down list to select the desired 2D noise reduction setting. Apply 2D noise to environments where there is a lot of motion, such as live events. Available values are OFF, 1 ... 7, and Auto.

NR-3D

Click this drop-down list to select the desired 3D noise reduction setting. Apply 3D noise reduction to environments where there is no movement. Available values are OFF, 1 ... 7, and Auto.

Dynamic Hot Pixel

Hot pixels are sometimes referred to as "stuck" pixels, and appear bright "specks" in the image. Hot pixels tend to appear when using slower shutter speeds and/or high gain settings. This feature will eliminate these pixels. Click the drop-down list to select the desired setting. Larger values will be more aggressive at removing hot pixels. Available values are: OFF and 1 ... 5.

Configuration and Management Interfaces

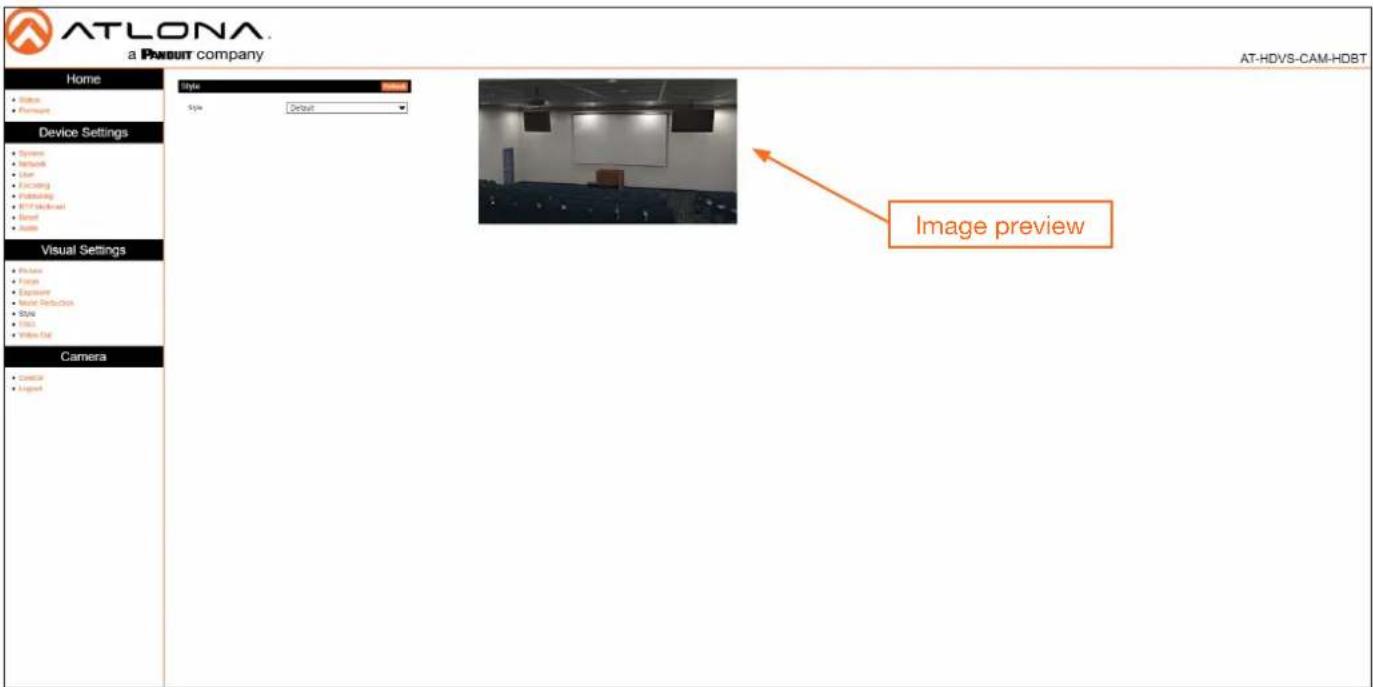

Style Page

ATLONA a PANDUIT company Home • Value • Furniture Device Settings • System • Network • User • Encoding • Filtering • BTF Display • Reset • Audio Visual Settings • Picture • Camera • Exposure • Video Selection • Stu • Text • Video Dot Camera • Camera • Imaged Type Size Default Image preview AT-HDVS-CAM-HDBT

Style

Style

Click this drop-down list to select the desired image style. Style is an image preset, which produces a desired look. Available options are: Default, Normal, Clarify, Bright, and Soft.

Configuration and Management Interfaces

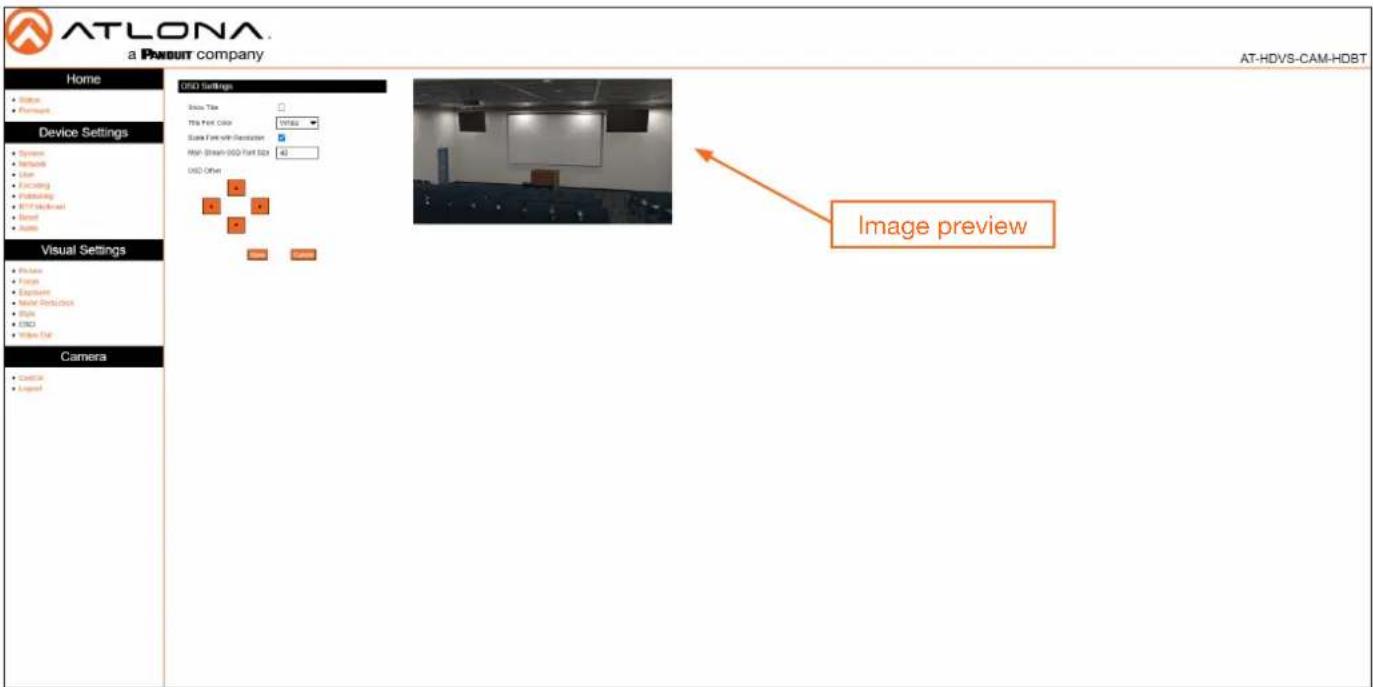

OSD Page

ATLONA a PANUIT company Home Device Settings Visual Settings Camera COLD Settings Show Title Title: Font Color Scale: Font with Resolution High: Stream: USD: Font Size USD: Offset Image preview AT-HDVS-CAM-HDBT

OSD Settings

Show Title

Click this check box to display the device name in the upper-left corner (default position) of the screen. When enabled, the check box will display a check mark. To change the device name, refer to the System > Information > Device Name on the System Page (page 33). Click the Save button to have changes take effect.

Title Font Color

Click this drop-down list to set the font color of the title. Available options are White, Black, Yellow, Red, and Blue.

Scale Font with Resolution

Click this check box to scale the font title when the resolution changes. When enabled, the check box will display a check mark.

Main Stream OSD Font Size

Specify the title font size in this field. When enabled, the check box will display a check mark. Click the Save button to have changes take effect.

OSD Offset

Click these arrows to position the title font on the screen. Click the Save button to have changes take effect.

Save

Click this button to commit changes.

Cancel

Click this button to abort changes.

Configuration and Management Interfaces

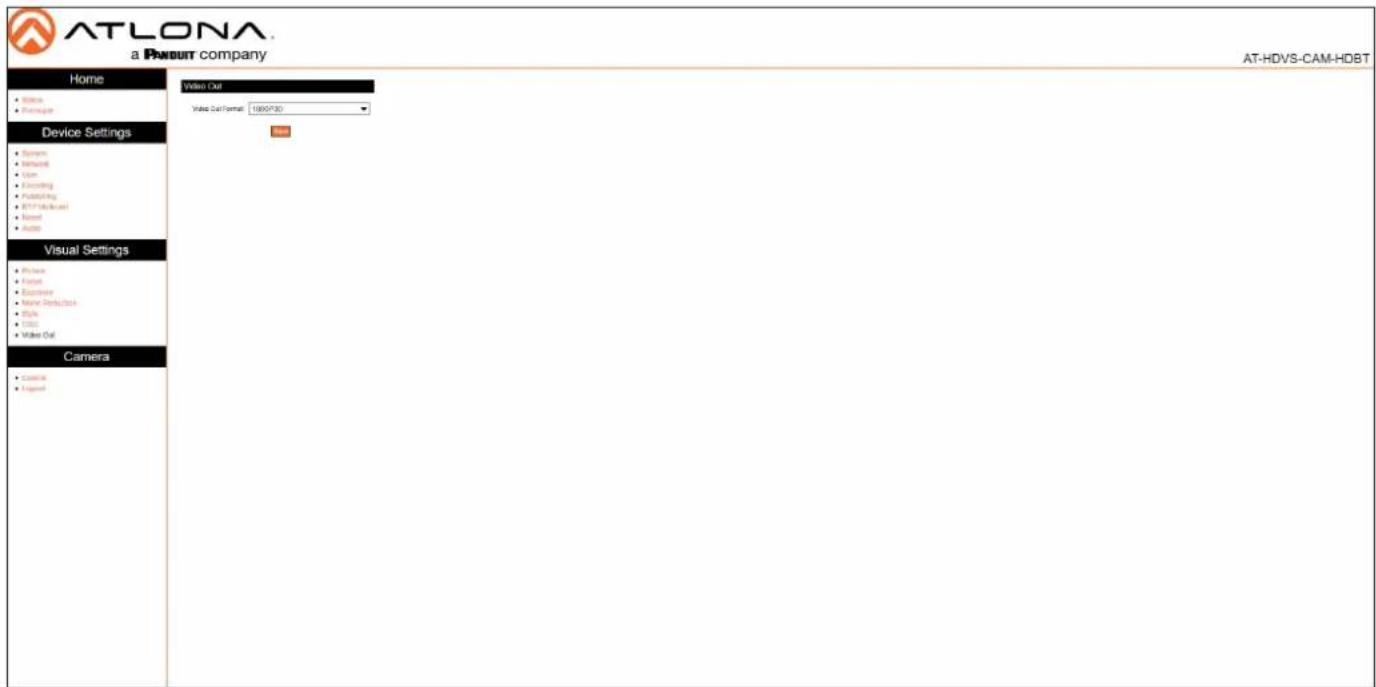

Video Out Page

ATLONA a PANDUIT company Home • Site • Platform Device Settings • System • Network • User • Encoding • Filtering • HTTP (Backset) • Name • Audio Visual Settings • Picture • Image • Exercise • Audio Modulator • Style • Icon • Video Out Camera • Control • Legend Video Out Format: 1000730 AT-HDVS-CAM-HDBT

Video Out

Video Out Format

Click this drop-down list to select the desired output resolution. Available resolutions are listed in the table below.

Format
1080P60 720P60
1080P50 720P50
1080P30 1080P59.94
1080P25 1080I59.94
1080I60 1080P29.97
1080I50 720P59.94

Save

Click this button to commit changes.

Configuration and Management Interfaces

Control Page

ATLONA a PAVOUR company Home Device Settings Visual Settings Camera Camera Corner Panel-TH-Zoom Focus Mode Auto Image preview AT-HDVS-CAM-HDBT Photo Preview Image Central Layout

Camera Control

Refer to Controlling the Camera (page 16) for more information.

Pan-Tilt-Zoom

Click these arrows to adjust the pan, tilt, and zoom of the camera.

Focus Mode

Click this drop-down list to select the desired focus mode.

IR Remote and OSD

IR Remote Control

The AT-HDVS-CAM-HDBT comes with an IR remote control for full control of the camera and use of the OSD menu.

SET CAMERA SELECT 1 2 3 4 1 2 3 4 5 6 7 8 9 * 8 # + AUTO + FOCUSZOOM MANUAL SET PRESET CLEAR PRESET HOME BLC ON/OFF MENU F1 F2 F3 F4

Power

Toggle the camera on and off with the power button. Press and hold for 3 seconds to place the camera into standby mode.

Number buttons

Used in the selection or creation of camera presets.

Focus

Adjust the focus of the camera using the + and - buttons.

Auto

Switch the camera focus mode to auto.

Manual

Switch the camera focus mode to manual.

Zoom

Zoom in (+) or out (-) using these buttons.

Set Preset

Set the camera into position then press the Set Preset button followed by a number key (0-9) to set that position to a preset.

Clear Preset

Press clear preset followed by a number key to erase the preset set to that number.

Arrow buttons

Use the arrow buttons to adjust the camera position or navigate within the OSD menu.

Home buttons

Returns the camera to the middle position.

BLC ON/OFF

Toggles backlight compensation on or off.

Menu

Use to pull up the OSD menu.

OSD

The OSD will display after pressing the MENU button.

OSD
Language English Setup Protocol A	Chinese Auto Visca PELCO-D PELCO-P (Options)
	Visca Address 1 1
	Visca Address Off Off
	PELCO-P Address 1		1
	PELCO-D Address	1		1
	Baudrate	9600	9600	9600	9600,

OSD Cont.
Camera Exposure Mode Auto Bright AAE SAE Manual
							ON, OFF
							-7 to 7
							ON, OFF
							OFF, 50Hz, 60Hz
							0 to 15
							Close, 1 to 8
							5500K, 5000K, 4500K, 4000K, 3500K, 3000K
							-10 to 10
							-10 to 10
							60, 100, 110, 120, 200
							0 to 14
							High, Middle, Low
							High, Middle, Low
							High, Middle, Low
							High, Middle, Low
							High, Middle, Low
							High, Middle, Low
							High, Middle, Low
							High, Middle, Low
High, Middle, Low

OSD Cont.
P/T/Z Speed By Zoom ON ON	ON, OFF
	Zoom Speed 8 1 to 8
	Acc Curve Slow Slow, Fast
Version	MCU Version	X.X.X	20YY-MM-DD
	Camera Version	X.X.X	20YY-MM-DD
	AF Version	X.X.X	20YY-MM-DD
Ethernet	IP Address	XXX.XXX.XXX.XXX	e.g. 10.20.20.233
	Subnet Mask	XXX.XXX.XXX.XXX	e.g. 255.255.255.0
	Gateway	XXX.XXX.XXX.XXX	e.g. 10.20.20.1
Restore Default	Restore Default?	NO, YES - Restore Default Now...

Remote Functions

The included IR Remote Control provides a set of functions which can be used to change the behavior of the AT-HDVS-CAM. Each function is invoked by sequentially pressing the following series of keys on the keypad.

Function Keystrokes
Clear all presets [#] + [#] + [#]
Flip video horizontally and vertically [*] + [#] + [9]
Reset username, password, and IP address [*] + [#] + [MANUAL]
Switch video format to 1080p60 [#] + [#] + [0]
Switch video format to 1080p50 [#] + [#] + [1]
Switch video format to 1080i60 [#] + [#] + [2]
Switch video format to 1080i50 [#] + [#] + [3]
Switch video format to 720p60 [#] + [#] + [4]
Switch video format to 720p50 [#] + [#] + [5]
Switch video format to 1080p30 [#] + [#] + [6]
Switch video format to 1080p25 [#] + [#] + [7]
Switch video format to 720p30 [#] + [#] + [8]
Switch video format to 720p25 [#] + [#] + [9]

Appendix

Using VLC Player

This section provides step-by-step instructions on how to display a stream using the VideoLAN VLC media player. Before proceeding, make sure that both the Main Stream and Sub Stream are properly configured. Refer to the User Manual for more information.

1. Launch VLC media player.
2. Click the Media > Open Network Stream...

VLC media player Media Playback Audio Video Subtitle Tools View Help Open File... Ctrl+O Open Multiple Files... Ctrl+Shift+O Open Folder... Ctrl+F Open Disc... Ctrl+D Open Network Stream... Ctrl+N Open Capture Device... Ctrl+C Open Location from clipboard Ctrl+V Open Recent Media Save Playlist to File... Ctrl+Y Convert / Save... Ctrl+R Stream... Ctrl+S Quit at the end of playlist Quit Ctrl+Q

1. Click the Network tab.
2. Refer to the RTP Multicast page in the AT-HDVS-CAM-HDBT web server, and locate the Access Method field. Copy this information into the provided field within the VLC Network tab. Note that the Access Method fields for the Main Stream and Sub Stream will differ. Make sure you specify the correct stream to broadcast.

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: rtp://224.1.2.3:4002 http://www.example.com/stream.avi rtp://@1234 mms//mms.examples.com/stream.asx rtsp//server.example.org:8080/test.sdp http://www.yourtub.com/watch?v=gg64x Access Method RTP Multicast Main Stream Enable ✓ Protocol Type RTP Multicast Address 224.1.2.3 Multicast Port 4000 Access Method rtp://224.1.2.3:4000 Sub Stream Enable ✓ Protocol Type RTP Multicast Address 224.1.2.3 Multicast Port 4002 Access Method rtp://224.1.2.3:4002 Save Cancel

Appendix

5. Click the Play button to begin streaming.

Open Media File Disc Network Capture Device Network Protocol Please enter a network URL: rtp://224.1.2.3:4000 http://www.example.com/stream.avi rtp://@:1234 mms//mms.examples.com/stream.asx rtsp//server.example.org:8080/test.sdp http://www.yourtube.com/watch?v=gg64x Show more options Play Cancel

VLC will begin buffering the stream. Note that it may take a few moments for the network stream to be displayed.

rtp://224.1.2.3:4002 - VLC media player Media Playback Audio Video Subtitle Tools View Help 00:00 00:00

rtp://224.1.2.3:4002 - VLC media player Media Playback Audic Video Subtitle Tools View Help Andrew's Camera 00:00 00:00

Appendix

Using Facebook Live

This section provides step-by-step instructions on how to display a stream using Facebook Live. Before proceeding, make sure that both the Main Stream and Sub Stream are properly configured. Refer to the User Manual for more information.

1. Launch a web browser and login to your Facebook account.
2. Click Live Video on the news feed page.

What's on your mind, Andrew? Live Video Photo/Video Feeling/Activity

1. Under the Stream Setup tab, click Use Stream Key.

Live Producer Go Live Now Go Live With Others Schedule Live Video Event Upcoming Live Video & Events Post Andrew Posterson Post on Training 2 Friends File (optional) Say something about the live video... Going Live on Facebook First choose how to create a live video. This can go live using your screens, a streaming schedule, or a instant resource when you set up your live video, make sure to review your details. That start your live video. Get Started Choose from you want to start writing up your live video. Our Stream Key Use Camera Use Period Encoder Stream key per recorded code is clearly distinguished from the control, and we help appropriate downloads about keeping the video in order to your timeline required of streaming as a live video on Facebook file. Setup Options Use a Stream Key This can be used to select you for them. You can only check the live video or add with your stream key. Use a Stream Key Use a Stream Setup Copy and pass from settings into your streaming software. Server URL: https://[e-mail]/IEE/trpgs/ The map is related to an "LAD" or "addiner" in your streaming platforms. Stream Key Get Started Choose how you want to start setting up your live video. Use Stream Key Use Camera Set Use Writing for the video.

1. Under Live Stream Setup, click the Copy button, next to Server URL.

Setup Options Use a Persistent Stream Key This can be reused every time you go live. You can only broadcast one live video at a time with your persistent stream key. Use a Backup Stream Once a backup stream is added to your live video, it cannot be removed. It will not affect your stream if you choose not to use it. Settings Live Stream Setup Copy and paste these settings into your streaming software. Server URL rtmps://live-api-s.facebook.com:443/rtmp/ This may be referred to as "URL" or "Address" in your streaming software. Stream Key aaaaaaaaaaaaaaa?s_bl=1&s_ps=1&s_psm=1 Copy Reset Once you start to preview the broadcast you have up to 5 hours to go live.

Appendix

1. Go to the Publishing page of the AT-HDVS-CAM-HDBT web server.
2. Paste the contents from the Server URL field, on Facebook, to the Host Address field in the camera web interface. Note that the contents of the Facebook Server URL field can be placed under the Main Stream or Sub Stream. Make sure that the contents are pasted into the correct field.

ATLONA a Payout company Home • License • Provider Device Settings • System • Network • USB • Download • Publishing • API/MyTrip • Server • ADMI Sub Stream Enable Default Type: Default Host Address: http://live-api-s.facebook.com:44 Host Port: 443 Stream Key: Stream1 Visual Settings • Pictures • PDFs • Expressors • Style • DATE • Watch Port Camera • Controls • Logbook Publish Settings Main Stream Enable Protocol Type RTMP Host Address 192.168.5.11 Host Port 1935 Stream Key live/av0 Sub Stream Enable Protocol Type RTMP Host Address rtmps://live-api-s.facebook.com:44 Host Port 443 Stream Key live/av1 Server URL Host Port Save Cancel

1. Enter 443 in the Host Port field, as shown. This step is required in order for the stream to work properly.
2. Return to the Facebook Stream Setup tab.
3. Click the Copy button, next to the Stream Key field.

Setup Options Use a Persistent Stream Key This can be reused every time you go live. You can only broadcast one live video at a time with your persistent stream key. Use a Backup Stream Once a backup stream is added to your live video, it cannot be removed. It will not affect your stream if you choose not to use it. Settings Stream Viewing Live Stream Setup Copy and paste these settings into your streaming software. Server URL rtmps://live-api-s.facebook.com:443/rtmp/ This may be referred to as "URL" or "Address" in your streaming software. Stream Key aaaaaaaaaaaaaaa?s_bl=1&s_ps=1&s_psm=1. Copy Reset Once you start to preview the broadcast you have up to 5 hours before live. Event Logs

Appendix

1. Paste the contents from the Stream Key field, on Facebook, to the Stream Key field in the camera web interface. Make sure that the contents are pasted into the correct field. Refer to the User Manual for the AT-HDVS-CAM-HDBT for information on Main Stream and Sub Stream configuration.

Publish Settings Main Stream Enable ✓ Protocol Type RTMP Host Address 192.168.5.11 Host Port 1935 Stream Key live/av0 Sub Stream Enable ✓ Protocol Type RTMP Host Address rtmps://live-api-s.facebook.com:44 Host Port 443 Stream Key aaaaaaaaaaaaaaaa?s_bl=1&s_p Save Cancel Stream Key

1. Click the Save button to commit changes.
2. Return to the Facebook Stream Setup tab and scroll up to preview the video stream. Note that it may take a few moments for the video stream to buffer and be displayed.
3. To begin broadcasting the video, click the Go Live button, located in the bottom-left corner of the screen.

Live Producer Go Live Now Go Live With Others Schedule Live Video Event Upcoming Live Videos & Events Post Andrew Patterson Post on Facebook at Friends Use (applicable) Say anything about this live video... Gaming Go Live button Video 84 fps 0.0 fps Audio 0.0 fps Audio Sears Cage

Appendix

Using YouTube Live

This section provides step-by-step instructions on how to display a stream using YouTube Live. Before proceeding, make sure that both the Main Stream and Sub Stream are properly configured. Refer to the User Manual for more information.

1. Launch a web browser and login to your YouTube account.

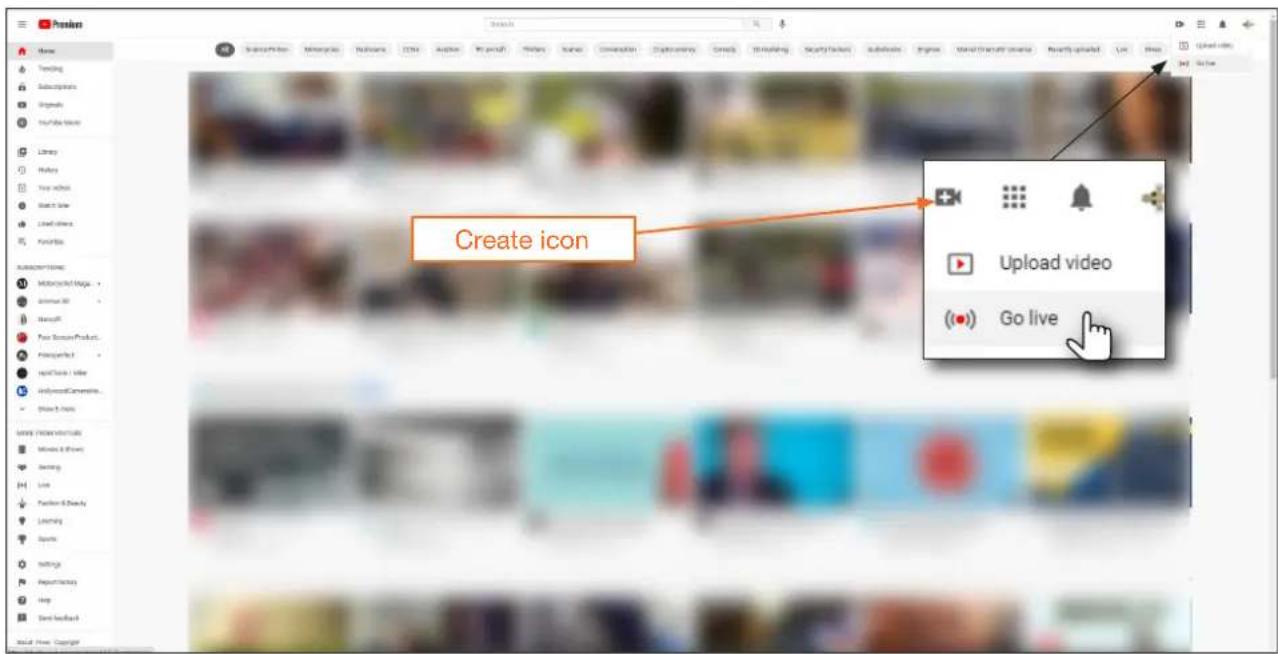

2. In the upper-right corner of the screen, click the Create icon (camera), then click Go Live.

Create icon Upload video Go live

1. Under the YouTube Studio page, click the START button next to either Right now or Later date. In this example, the Right now option will be selected.

Welcome to the new YouTube Live Control Room When do you want to go right? Right now Get set up to live stream now. Don't worry, you'll have a chance to review settings before you're live. Learn more start Later date schedule a stream for a farm time. You can start if up ahead of time. Learn start Right now Get set up to live stream now. Don't worry, you'll have a chance to review settings before you're live. Learn more START

Appendix

1. The next screen will provide the option of selecting a Built-in webcam or Streaming software. Click the Go button next to Streaming software.

Streaming software Requires additional software. Add overlays, new graphics, and more. Learn more GO Pick the type of stream to begin Built-in stream, accompanied by the new software no actual required, like your existing stream for an easy way to file. Learn Back Streaming software Requires additional software. Add reiballs, new graphics, and more. Learn BACK

1. Set the desired settings in the Edit stream dialog box.

Name Live Stream Public Add a description People & Blogs Audience Is this video made for kids? (required) Regardless of your location, you're legally required to comply with the Children's Online Privacy Protection Act (COPPA) and/or other laws. You're required to tell us whether your videos are made for kids. What's content made for kids? Features like personalized ads and live chat wont be available on live streams made for kids. Learn more Yes, it's made for kids No, it's not made for kids Age restriction (advanced) UPLOAD CUSTOM THUMBNAIL Click the SAVE button to commit changes.

1. Click the SAVE button to commit changes.

Appendix

1. Click the COPY button, next to the Stream URL field.

Studio Stream settings ANALYTICS STREAM HEALTH Stream key Select stream key Default stream key (Variable) Stream key (paste in encoder) RESET COPY Stream URL rtmp://a.rtmp.youtube.com/live2 Backup server URL rtmp://b.rtmp.youtube.com/live2?backup=1 Stream latency ? Normal latency Low-latency Ultra low-latency Start sending us your video from your streaming software to go live Stream setup help Live chat http://www.10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.18/10.36/ Other settings Enative DVI 340° video None Closed captions Until live replay once stream ends Stream latency ? Normal latency Low-latency Ultra low-latency STREAM SETTINGS ANALYTICS STREAM HEALTH Stream key Select stream key Default stream key (Variable) Stream key (paste in encoder) RESET COPY Stream URL rtmp://a.rtmp.youtube.com/live2 Backup server URL rtmp://b.rtmp.youtube.com/live2?backup=1 Stream latency ? Normal latency Low-latency Ultra low-latency

1. Go to the Publishing page of the AT-HDVS-CAM-HDBT web server.

Appendix

1. Paste the contents from the Stream URL field, on YouTube Live, to the Host Address field in the camera web interface. Note that the contents of the YouTube Live Stream URL field can be placed under the Main Stream or Sub Stream. Make sure that the contents are pasted into the correct field. Refer to the User Manual for the AT-HDVS-CAM-HDBT for information on Main Stream and Sub Stream configuration.

ATLONA a Payout company Home Device Settings Visual Settings Camera Publish Settings Main Stream Pools Product Type: NTMP Host Address: 192.168.5.11 Host Port: 1933 Stream Key: Untitled Sub Stream Pools Product Type: NTMP Host Address: http://a.rtmp.youtube.com/live2 Host Port: 1933 Stream Key: Untitled Publish Settings Main Stream Enable Protocol Type RTMP Host Address 192.168.5.11 Host Port 1935 Stream Key live/av0 Sub Stream Enable Protocol Type RTMP Host Address rtmp://a.rtmp.youtube.com/live2 Host Port 1935 Stream Key live/av1 Stream URL Host Port Save Cancel

1. Leave the Host Port field set to 1935.
2. Return to the YouTube Live Stream Settings tab and click the COPY button, next to the Stream key field.

STREAM SETTINGS ANALYTICS STREAM HEALTH Stream key Select stream key Default stream key (Variable) Stream key (paste in encoder) ..................................... Stream URL rtmp://a.rtmp.youtube.com/live2 Backup server URL rtmp://b.rtmp.youtube.com/live2?backup=1 Stream latency ? Normal latency RESET COPY COPY COPY

Appendix

1. Paste the contents from the Stream key field, on YouTube Live, to the Stream Key field in the camera web interface. Make sure that the contents are pasted into the correct field. Refer to the User Manual for the AT-HDVS-CAM-HDBT for information on Main Stream and Sub Stream configuration.

ATLONA a PINDOUT company Home • Site • Platform Device Settings • Server • Network • Unit • Operating • Pushing • 8TH Haulpool • Server • Active Sub Stream Enable Protocol Type: RTMP Host Address: 192.168.5.11 Host Port: 1935 Stream Key: live/av0 Sub Stream Enable Protocol Type: RTMP Host Address: rtmp://a.rtmp.youtube.com/live2 Host Port: 1935 Stream Key: aaaa-aaaa-aaaa-aaaa-aaaa Stream Key Save Cancel Publish Settings Main Stream Enable Protocol Type RTMP Host Address 192.168.5.11 Host Port 1935 Stream Key live/av0 Stream Key

1. Click the Save button to commit changes.
2. Return to YouTube Live. The live stream preview will be displayed in the upper-left corner of the screen.
3. To stop the live stream, click the END STREAM button in the upper-right corner of the screen.

Studio Name Live Stream Categories People & Blogs Public Sponsored Features 0 0 EARN END STREAM Live stream Welcome to the Call Recorders for last time among your users by community gumbers. Look up more Excellent connection STREAM SETTINGS ANALYSIS STREAM HEALTH Current tracks Full time Place in Storage windows 0 0 0 - Concurrent streams 12:30 AM 11:00 AM 14:00 AM 17:00 AM 19:00 AM 21:00 AM 23:00 AM 25:00 AM 27:00 AM 30:00 AM 33:00 AM 36:00 AM 39:00 AM 42:00 AM 45:00 AM 48:00 AM 51:00 AM 54:00 AM 57:00 AM 60:00 AM 63:00 AM 66:00 AM 69:00 AM 72:00 AM 75:00 AM 78:00 AM 81:00 AM 84:00 AM 87:00 AM 90:00 AM 93:00 AM 96:00 AM 99:00 AM 102:00 AM 105:00 AM 110:00 AM 113:00 AM 116:00 AM 119:00 AM 122:00 AM 125:00 AM 128:00 AM 131:00 AM 134:00 AM 137:00 AM 140:00 AM 143:00 AM 146:00 AM 149:00 AM 152:00 AM 155:00 AM 158:00 AM 161:00 AM 164:00 AM 167:00 AM 170:00 AM 173:00 AM 176:00 AM 179:00 AM 182:00 AM 185:00 AM 188:00 AM 191:00 AM 194:00 AM 197:00 AM 199:00 AM OK OK

Specifications

Video
Signal	HDBaseT
HD	1920x1080p@60/59.97/50/30/29.97/25 Hz1920x1080i@60/59.94/50 Hz1280x720p@60/59.94/50 Hz
Color Space	YUV, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0

Audio
Audio Compression AAC, MP3
Sample Rate 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
Sample Bits 16
Bit Rate 32 kbps - 128 kbps
Channels Mono, Stereo

Streaming
Video Compression	H.264 / H.265
Protocol	TCP, UDP, RTMP, RTSP
Bitrate	46 kbps - 40960 kbps
Compression Profiles BP, MP, HP
Bitrate Control	VBR
Multi-Stream	Main Stream / Sub Stream (simultaneous stream output) ^1)
Latency	175 ms

Camera
Sensor 1/2.8" HD CMOS
Effective Pixels 16:9, 2.07 MP
Optical Zoom f = 4.7 ~ 47 mm
View Angle 6.43° (telephoto), 60.9° (wide-angle)
Av f/1.6 - f/3.0
Digital Zoom 10X
Minimum Illumination 0.5 lm (f/1.8 with AGC On)
DNR 2D / 3D
White Balance Auto / Manual / Focus	One Push / 3000 K / 4000 K / 5000 K / 6500 K
	Auto / Manual
Aperture	Auto / Manual
Electronic Shutter	Auto / Manual
BLC	ON / OFF
WDR	Off / Dynamic Level Adjustment

Camera
Video Adjustment	Brightness, Color, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve
SNR	>55 dB

Appendix

PTZ
Pan Rotation ± 170°
Tilt Rotation -30° ~ +90°
Pan Control Speed 0.1 - 180° / sec
Tilt Control Speed 0.1 - 80° / sec
Preset Speed Pan: 60° / sec, Tilt: 30° / sec
Preset Number 255 (10 presets using the included IR remote control)

Connectors
HDBaseT OUT	1 x RJ45
LAN	1 x RJ45, 100Base-T
AUDIO IN	1 x 3.5 mm, stereo
RS-232	1 x 9-pin DIN
12VDC	1 x HEC3800

Temperature Fahrenheit Celsius
Operating 14 to 122 -10 to 50
Storage -14 to 140 -10 to 60
Operating Humidity (RH) 20% to 80%, non-condensing
Storage Humidity (RH) 20% to 95%, non-condensing

Power
Consumption 12 W
Supply	Input: 110 - 220 V AC, 50/60 HzOutput: 12 V DC, 1 A

Dimensions (H x W x D)	Inches	Millimeters
Unit	6.59 x 5.90 x 5.90	167.5 x 150 x 150
Power Supply (AT-PS-122-NL)	1.26 x 1.97 x 3.7	32.05 x 50 x 94

Weight	Pounds	Kilograms
Device	3.08	1.4

Certification
Device	CE, FCC

Warranty
Device	To view the product warranty, use the following link:https://atlona.com/warranty

Accessories

SKU	Title
AT-HDVS-CAM-CMNT	Ceiling Mount Kit for AT-HDVS-CAM

Footnotes

(1) Tested using VLC media player connected to the camera.
