ShiatsuMax CBS-1800-EU - Massage device HOMEDICS - Free user manual and instructions

Product type	Shiatsu massage device
Brand	Homedics
Model	ShiatsuMax CBS-1800-EU
Dimensions (L x W x H)	Approximately 40 x 30 x 15 cm
Weight	Approximately 2 kg
Power supply	Mains 220-240 V, 50/60 Hz
Power consumption	20 W
Main functions	Shiatsu massage with rotating nodes, heating function, intensity adjustment (3 levels)
Massage zones	Back, neck, shoulders, lower back
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use abrasive products or water.
Safety	Automatic shut-off after 15 minutes. Do not use on injured skin or in case of medical conditions without medical advice.
Spare parts and repairability	No spare parts available. Repair only by an authorized Homedics center.
Included accessories	Power adapter, user manual
Warranty	2 years

Frequently Asked Questions - ShiatsuMax CBS-1800-EU HOMEDICS

How to use the shiatsu massage on the back?

Place the device against the backrest of your chair or sofa, then position yourself so that the massage nodes are aligned with your back. Plug in the device and select the desired mode using the remote control.

Can I use the device on other parts of the body?

The device is mainly designed for the back, neck, and shoulders. It can also be used on the lower back. Avoid using it on bony or sensitive areas without protection.

How to activate the heating function?

Press the dedicated button for the heating function on the remote control. An indicator light shows that the heating is active. The heat is gentle and pleasant for relaxing muscles.

The device turns off by itself, is this normal?

Yes, the device has an automatic shut-off after 15 minutes of operation for safety reasons. You can restart it by pressing the power button.

How to clean the device?

Unplug the device and use a soft, dry cloth to wipe the surface. Do not use water, solvents, or abrasive products that could damage the coating.

Is the device noisy?

The noise level is moderate, comparable to that of a low-power hair dryer. The noise comes from the massage node motors and is perfectly normal.

Can I use the device if I have a pacemaker?

It is not recommended to use this device without medical advice if you have a pacemaker or other electronic implants. Consult your doctor before use.

What to do if the device stops working?

First check the connection and that the power outlet works. If the problem persists, contact Homedics customer service or an authorized center for repair.

Does the device have a warranty?

Yes, the device is warranted for 2 years against manufacturing defects. Keep your receipt as proof of purchase.

Can I use the device on a recliner?

Yes, the device is designed to be placed on the backrest of a chair or sofa. Make sure it is stable and that the fixing straps, if any, are properly attached.

USER MANUAL ShiatsuMax CBS-1800-EU HOMEDICS

SWEATLIMAX +80%

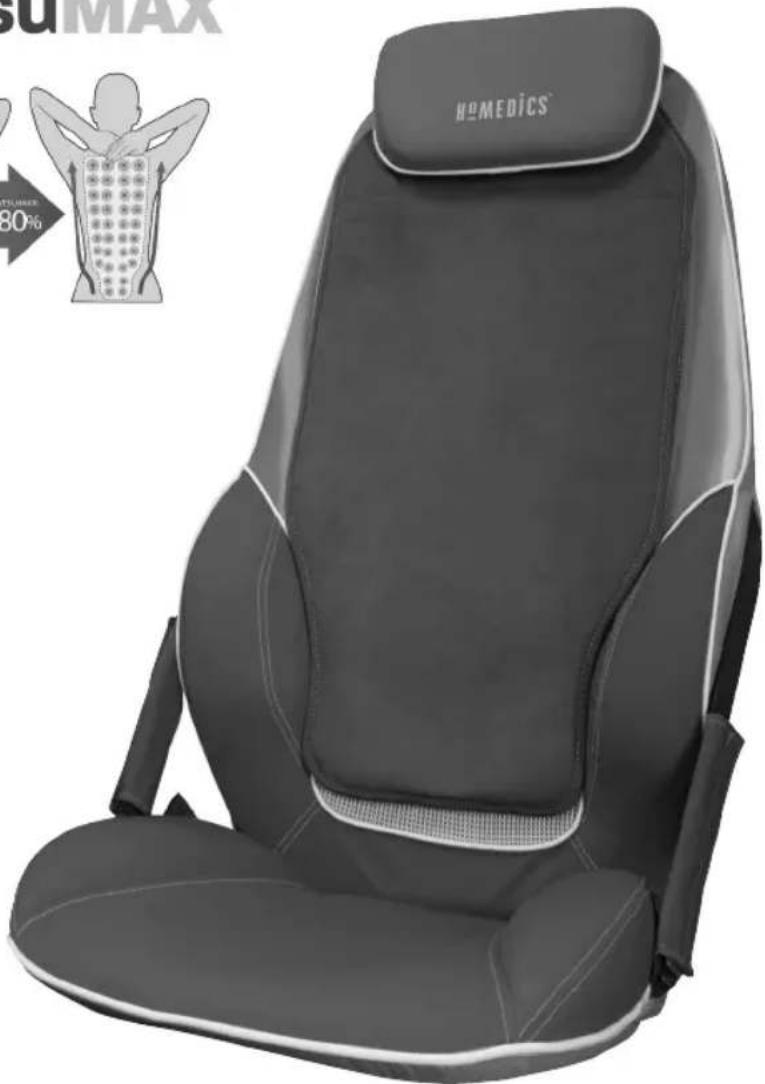

Black and white photo of a hemis office chair with 'HAMEDICS' branding, no visible text or symbols on the main body.

Instruction Manual

CBS-1800-EU

2year guarantee

Downloaded from www.vandenborre.be

READ ALL INSTRUCTIONS BEFORE USE.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

IMPORTANT SAFEGUARDS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

• ALWAYS unplug the appliance from the electrical outlet immediately after using and before cleaning. To disconnect, turn all controls to the 'OFF' position, then remove plug from outlet.
• NEVER leave an appliance unattended when plugged in. Unplug from the mains outlet when not in use and before putting on or taking off parts or attachments.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• DO NOT reach for an appliance that has fallen in water or other liquids. Switch off at the mains and unplug it immediately. Keep dry – DO NOT operate in wet or moist conditions.
• NEVER insert pins or other metallic fasteners into the appliance.
• Use this appliance for the intended use as described in this booklet. DO NOT use attachments not recommended by HoMedics.
• NEVER operate the appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to the HoMedics Service Centre for examination and repair.
• Keep cord away from heated surfaces.
• Excessive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
• DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution or injury to persons.
• DO NOT carry this appliance by the cord or use cord as a handle.
  • DO NOT use outdoors.
• DO NOT crush. Avoid sharp folds.
  • This product requires a 220-240 V AC power.
• DO NOT attempt to repair the appliance. There are no user serviceable parts. For service, send to a HoMedics Service Centre. All servicing of this appliance must be performed by authorised HoMedics service personnel only.
• DO NOT sit or stand on the massage (back) part of the appliance. The unit should only be used when attached to a chair with the back in the vertical position.
• Never block the air openings of the appliance or place it on a soft surface, such as a bed or couch. Keep air openings free of lint, hair etc.
• Do not place or store appliance where it can fall or be pulled into a bath or sink. Do not place in or drop into water or other liquid.
• Failure to follow the above may result in the risk of fire or injury.
• Burns can result from improper use.
• When the unit is working, do not touch the moving massage mechanism with any body part except your back.

SAFETY CAUTIONS :

PLEASE READ THIS SECTION CAREFULLY BEFORE USING THE APPLIANCE.

• If you have any concerns regarding your health, consult a doctor before using this appliance.
• Individuals with pacemakers and pregnant women should consult a doctor before using this appliance. Not recommended for use by Diabetics
• DO NOT use on an infant, invalid or on a sleeping or unconscious person. DO NOT use on insensitive skin or on a person with poor blood circulation.
• This appliance should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls or who has sensory deficiencies in the lower half of their body.
• NEVER use directly on swollen or inflamed areas or skin eruptions.
• If you feel any discomfort whilst using this appliance, discontinue use and consult your doctor.
• This is a non-professional appliance, designed for personal use and intended to provide a soothing massage to worn muscles. DO NOT use as a substitute for medical attention.
• DO NOT use before going to bed. The massage has a stimulating effect and can delay sleep.
• Do not use for longer than the recommended time.
• Not recommended for use on wooden surfaces as the zipper may damage the wood. Caution is also recommended when using on upholstered furniture.
• Care should be taken when using heated surfaces. If the product feels excessively hot, switch off at mains and contact the HoMedics Service Centre.
• Only gentle force should be exerted against the seat in order to eliminate risk of injury.
• You may soften massage force by placing a towel between yourself and the unit.
• The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance.
• Not recommended for use on leather furniture.
• Please ensure that all hair, clothing and jewellery are kept clear of the massage mechanism or any other moving parts of the product at all times.

MAINTENANCE:

Cleaning

Unplug the appliance and allow to cool before cleaning. Clean only with a soft, slightly damp sponge.

• Never allow water or any other liquids to come into contact with the appliance.
• Do not immerse in any liquid to clean.
• Never use abrasive cleaners, brushes, glass / furniture polish, paint thinner etc to clean.

Storage

Place the appliance in its box or in a safe, dry, cool place. Avoid contact with sharp edges or pointed objects which might cut or puncture the fabric surface. To avoid breakage, DO NOT wrap the power cord around the appliance. DO NOT hang the unit by the cord.

WEEE explanation

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

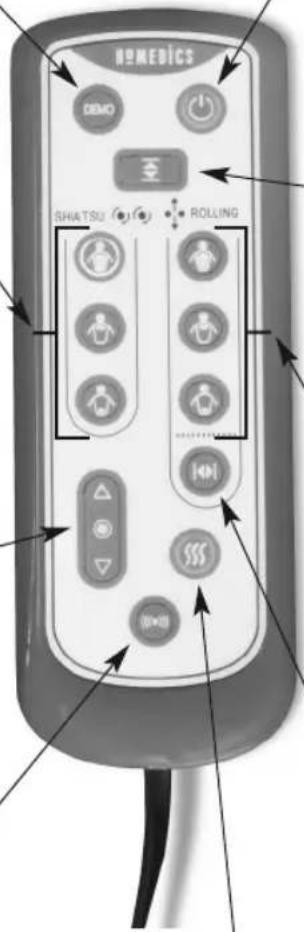

PRODUCT FEATURES:

Demo Button - For a brief demonstration of the features of the Massager, press the Demo button. The unit will briefly go through each function. Once complete, the unit automatically turns off. The L.E.D. light will blink to indicate the active functions.

Shiatsu Massage - Shiatsu is a deep kneading circular massage.

Shiatsu Programs Choose

from 3 preset programs where the Shiatsu massage travels up and down in a specific area of the back. To select a program, simply press the button and the LED will illuminate. To deselect, press the button again or press another button.

= Full Back

= Upper Back

= Lower Back

Spot Shiatsu While the unit is in Shiatsu massage, press either button to stop and focus the Shiatsu action in one place. Once the unit is operating in Spot Shiatsu, you may adjust the mechanism position by holding down either button until the desired position is reached.

Vibration Massage (A) Adds

invigorating vibration massage to upper legs/thighs.

HOMEDICS DEMO SHATSU ROLLING

Power Button ☑ To turn on the unit, first press the POWER button. The LED indicator will illuminate and confirm your selection. To turn off the unit, simply press the button again. The LED indicator will blink while the back massage mechanism returns to its lowest point and then it will turn off.

Perfect Fit To customize the massage to your height, press the "Perfect Fit" button at the highest desired position. The massage heads will not travel higher than that position for the duration of the massage. To deselect the Perfect Fit feature, press the "Perfect Fit" button a second time. The massage will return to its full travel.

Rolling Massage

Rolling is like two hands or thumbs working up and down your back. Choose from 3 preset programs where the Rolling massage travels up and down in a specific area of the back. To select a program, simply press the button and the LED will illuminate. To deselect, press the button again or press another button.

Width Adjustment While the unit is in Rolling massage for the back, press this button to adjust the distance or width between the massage heads. With each press, the massage heads will move to the next available position.

Heat SFor soothing heat when massage is on, simply press the heat button and the corresponding red L.E.D. light will illuminate. To deselect, press the button again and the corresponding L.E.D. light will turn off. For your safety, heat cannot be turned on if massage is not selected.

INSTRUCTIONS FOR USE:

IMPORTANT - Preparing the appliance for use

The Shiatsu Massager comes with a screw located on the back of the unit to protect the massage mechanism during shipment, which must be removed before the first use to allow the Shiatsu feature to function. Use the provided Allen key. Then, properly dispose of the screw.

WARNING – Failure to remove screw may cause permanent damage to the appliance.

Strapping System

This massage cushion incorporates a unique strapping system which allows you to fasten it to almost any chair. Just slip the straps over the seat or chair and adjust fastening straps to secure. Your massager won't slip or slide away.

Using on soft arm chairs and sofas:

As well as the strapping system to secure the cushion to the back of most chairs; the massager also has an adjustable seat which enables use on most soft arm chairs and sofas. Simply adjust the strap length using the buckle under the seat to achieve the desired angle to fit your chair/sofa and the cushion can be used effectively at virtually any angle – no matter how soft your seat. (NOTE: do not use lying down)

Headrest and back flap

This massage cushion incorporates a removable headrest to add comfort to the massage experience as well as removable washable back flap in suede finish fabric – this is used to soften the massage if too intense. The flap is easily removed as secured by hook and eye fastening. To clean back flap only simply follow the wash instructions:

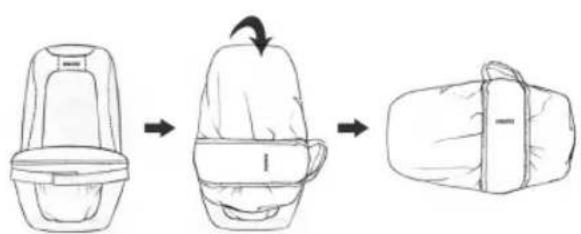

Carry Bag Instructions

• Make sure the cushion is unplugged and the cord is properly secured in the pocket between the cushion and seat.
• With cushion sitting upright in the chair, remove the bag from the compartment on the cushion (see Fig. A).
• Loosen the seat adjustments straps and fold the seat backwards until flush against the back of the cushion.
• Unzip the bag and slide it over the cushion from the top down (see Fig. B).
• Zip the bag and carry the cushion by the handles on the side of the bag (see Fig. C).

Line drawings of a seat and bag assembly process (no text or symbols)

Fig. A Fig. B
Fig. C

Note: Do not use this product for more than 15 mins at a time.

Close-up of a garment hanging on a metal rack against a plain background (no text or symbols visible)

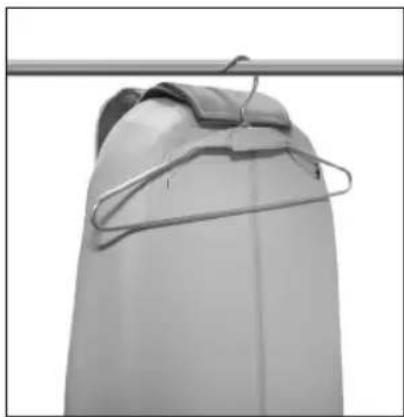

Easy storage

LIRE TOUTES LES INSTRUCTIONS AVANT UTILISATION. LES CONSERVER POUR POUVOIR LES CONSULTER ULTÉRIEUREMENT.

Line drawing of a seatbelt device showing three sequential steps: opening, lifting, and packing (no text or symbols)

Fig. A Fig. B
Fig. C

Close-up of a garment hanging on a metal rack against a plain background (no text or symbols visible)

Rangement aisé

Three-step diagram showing a seat, back panel, and bag with a handle, illustrating the process of lifting or adjusting (no text or symbols)

Fig. A Fig. B
Fig. C

Close-up of a garment hanging on a metal rack against a plain background (no text or symbols visible)
