USER MANUAL EGZ 3402-2 SW BAUKNECHT

PRECAUTIONSANDGENERALUGGESTIONSPage13

ENERGYSAVINGTIPSPage14

CLEANINGANDMAINTENANCEPage14

TROUBLE-SHOOTINGGUIDEPage15

AFTER-SALESSERVICEPage15

INSTALLATIONPage16

NATIONALSAFETYREGULATIONSPage20

BEFOREUSINGTHECOOKINGHOB

●Togetfullsatisfactionofyour cookinghob,pleasereadthese instructionscarefullyandkeepthem forfutureconsultation.

• Keep the packaging material (plastic bags, polystyrene parts, etc.) out of thereach of children, asthey are potentially dangerous.
• Checkwhetherthecookinghobhasbeen damagedduringtransport.
  ●Makesurethattheinstallationandgas/electricalconnectionsarecarriedoutby aqualifiedtechnician,accordingtothe manufacturer sinstructionsandin compliancewithcurrentlocalsafety regulations.

SUGGESTIONSFOREENVIRONMENTPROTECTION

1. Packaging

Thepackagingmaterialisentirelyrecyclable, and dismarked with the recycling symbols which identifies it as atype of material that must besent to local waste-disposal centres.

2.Product

The cooking hobismade out of fre-usable material. Whenscrapping it, follow the local environment protection disposal regulations. Before disposing of fit, cut its power cable off inordertorenderitin operative.

Simple black-and-white sketch of a four-leaf clover with a stem, no text or symbols present.

PRECAUTIONSANDGENERALUGGESTIONS

●Beforeanycleaningormaintenance operation, disconnect the cooking hob from mains powersupply.
●Theuseofagasapplianceproduces heatandhumidityintheroom.Make surethattheroomiswellventilated,or installanextractorhoodwithexhaust duct.
●Incaseofprolongeduse,additional ventilationmaybeneeded(opena windoworincreasetheextractionforce ofthehood).
- Keepchildrenawayfromthecooking hobwhenitisinuse.
●Afteruse, makesure that the knobs are in position (off), and closet h emain gas delivery valve orthegascylinder valve.

Declarationofconformity C€

●This cooking hobissuitable for contact with foodstuffs, and complies with EECDirective 89/109.
●Thiscookinghob(Class3orCL2/SC2if connectedtoanoven)hasbeendesignedto beusedonlyforcooking.Anyotheruse (such as heating a room) is im prop dangerous.
●Thiscookinghobhasbeendesigned, constructedandmarketedincompliance with:

-safetyrequirementsofEECDirective"Gas" 90/396;
-safetyrequirementsofEECDirective"Low voltage"73/23;
-protectionrequirementsofEECDirective "EMC"89/336;
-requirementsofEECDirective93/68.

ENERGYSAVINGTIPS

• Thecookinghobisequippedwithburnersand/orahotplatehavingdifferentdiameters.Use potsandpanswhosebottomdiameterisequal tothatoftheburnersandhotplate,orslightly larger.
• Onlyuseflat-bottomedpotsandpans.

BurnerDiameterofcontainer
Large(9,1cm)24to26cmMedium (6,4cm) Small (4,5cm) 8 Double crown (1 Fishkettle (23cmx4,5cm)16x35cm	16 to 22 cm to 14 cm 2 cm) 24 to 26 cm

• Ifpossible,keepthepotcoveredwhencooking.
  ● Cookvegetables, potatoes, etc. with little water inordertocutdowncookingtime.

- Apressurecookerallowsyoutosaveeven moreenergyandtime.

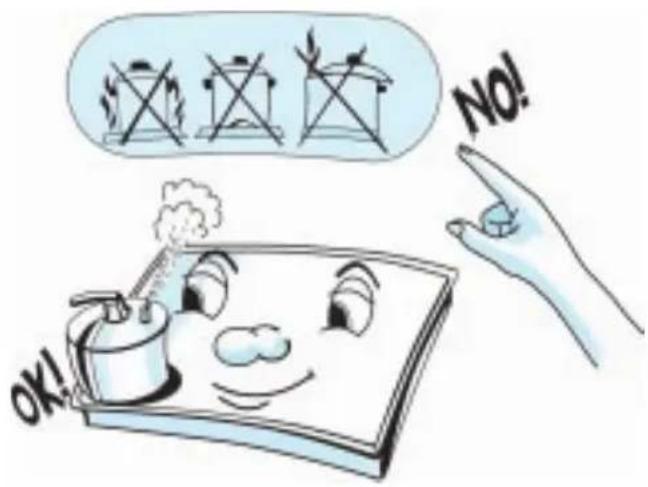

NO! OK!

CLEANINGANDMAINTENANCE

Cleaningthecookinghobsurface andpanstandgrids

• Beforecleaningthecookinghob, disconnectitfrommainspowersupply and waituntilithascooleddown.
  ● Wipewithaclothmoistenedwithhotwater and soapordiluted liquiddetergent.
• Donotuseabrasiveorcorrosiveproducts, chlorineproductsorsteelwool.
• Donotleaveacidoralkalinesubstances, such asvinegar, saltorlemonjuice, etc., onthe cookinghob.

Stainlesssteelsurface

- Cleanwithaspecificcommercialproduct.

Note: if the cooking hobis used continuously, the hight temperatures produced by the flames may alter the colour of the surfacenear the burners.

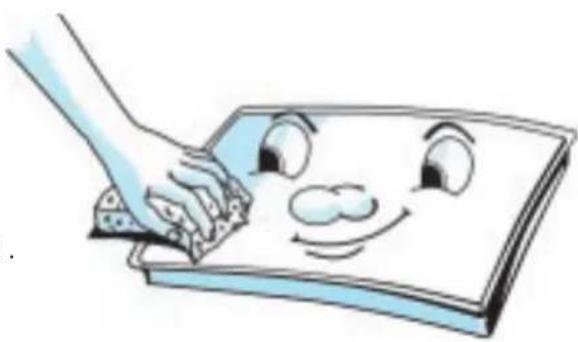

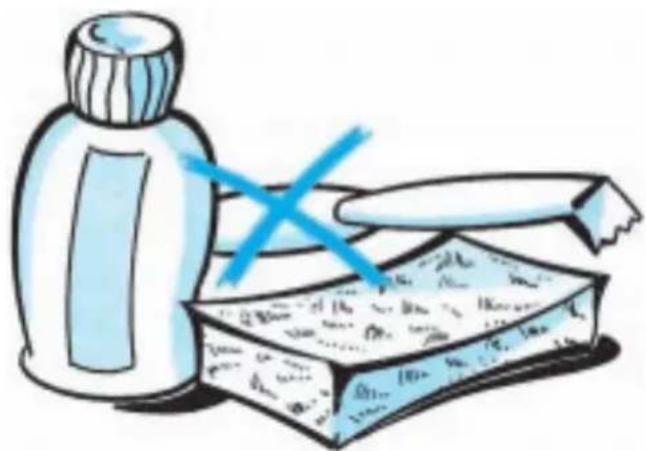

Cleaningtheburners

1. Raisethecapandremoveit.
2. Extracttheburnerfromitshousingbypullingit up.
3. Soaktheburnerandthecapinhotwaterand liquiddetergent.(Donotwashintoa dishwasher).
4. Rinseoutanddrycarefully.
5. Ensure that none of its openings is clogged.
6. Repositiontheburnerandcap.

Note:toavoiddamagingtheelectricignition device, donotuseitwhentheburnersare notintheirseat.

Illustration of a hand cleaning a smiling document with a brush (no text or symbols)

Illustration showing a bottle and an open book with handwritten notes, featuring a blue X mark indicating a threshold or error.

Cleaningtheelectrichotplate

Theelectrichotplatemustbecleanedwhen lukewarm.

Wipewithaclothmoistenedwithwaterandsalt, andpolishwithaclothmoistenedwithoil.

1. The burner fail to ignite:

■Isthemaingasdeliveryvalveopen?
■Hasthedeliveryofthetowngas(methane) beensuspended?
■Isthegascylinder(liquidgas)empty?
■Aretheburneropeningsclogged?
■Havethecapandburnerbeenpositioned correctlyaftercleaning?(Seeparagraph "CleaningandMaintenance".)

2. The burner fail to store main lit:

■Repeattheignitionoperation,turningthe knobtothepositionwiththesmallflame symbol.
3. The electric ignition device does not work:
■Isthereapowerfailure?

AFTER-SALESSERVICE

BeforeyoucalltheAfter-SalesService:

1. Carefullycheckthe"Troubleshootingguide" abovetoseeifyoucanfixtheproblem yourself.
2. Re-start the cooking hob, to check whether correct operation has been restored.
3. If themalfunction persists, call the After-sales Service.

Givethefollowinginformation:

●typeofmalfunction;
●modelofcookinghob;
●servicenumber(i.e., thenumberthat followsthewordSERVICEontherating plateunderthecookinghobandonthe guaranteepaper);
- yourcompleteaddress;
- yourtelephonenumberandareacode.

Ifanyrepairsarerequired,pleasecontactan authorisedAfter-SalesService,asindicated inthewarranty.

Intheunlikelyeventthatanoperationorrepair iscarriedoutbyanunauthorisedtechnician, alwaysrequestacertificationofthejobcarried outandinsistontheuseoforiginalspare parts.

Failuretocomplywiththeseinstructions maycompromisethesafetyandqualityof theproduct.

Cartoon character illustration with blue hair and a backpack (no text or symbols)

SERVICE 0000 000 00000

INSTALLATION

Technicalinformationfortheinstaller

Thiscookinghobcanbeembeddedina worktop20to50mmthick.Ifanother applianceisnotfittedunderthecookinghob, insertaseparatorpanel,atadistanceofat least20mmfromthecookinghobbottom.

Note: before installation, makesure that the local gas delivery conditions (type and pressure of gas) are compatible with these settings of the cooking hob, as indicated on the rating plate.

• Ifaverticalpieceoffurnitureisinstalled, theremustbeagapofatleast100mm betweenitandtheedgeofthecooking hob.
• Beforeinstallingthecookinghob,removethe plasticfilmthatprotectsit,ifpresent. Theoutersurfacesofthefurnitureorappliances adjoiningthecookinghobmustbeheatresistant (heatprotection"Y", according to local standards).

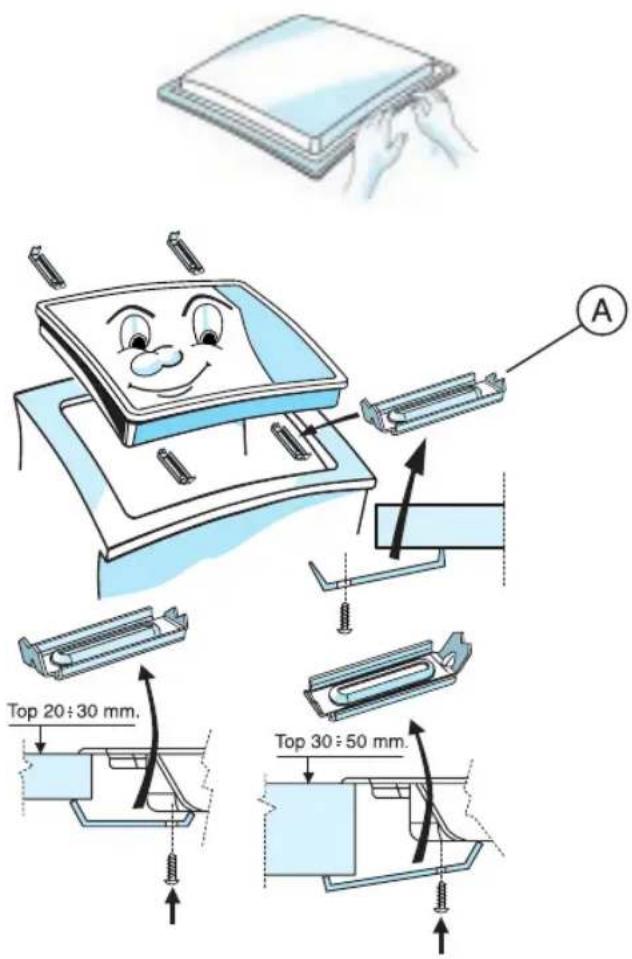

Assembly

- Applythesuppliedgaskettothecooking hob(unlessithasalreadybeenfitted),after havingcleaneditssurface,asshownin figure.

Tofixthecookinghob,usebrackets withit.

Ⓐ supplied

1. Positionthebracketsontherelevantboresand fixthembymeansoftheirscrews.
2. Make an opening in the worktop, respecting the dimensions indicated in the enclosed product description sheet.
3. Install the cooking hobin the worktop.

Important: the powersupplycable and plug must be suitable for the power absorption of the cooking hob, and the cable must belong enough to permit the upward extraction of the cooking hob.

● Installation must comply with current local regulations.
- Intheroomwherethecookinghobisinstalled, theremustbeenoughairtoallowthegasto burncorrectly(seerelevanttable).
- Thenaturalflowofairmusttakeplacethrough anadequateopening,thatmustbe: -permanent,madeononeoftheoutsidewalls oftheroom,andcommunicatingwiththeexterior inanareaawayfromsourcesofpollution; -builtsoastoensurethatitsopenings,bothon theinsideandontheoutside,cannotbe obstructed,intentionallyoraccidentally; -protectedbyametalgridormeshthatdoes notreduceitsworkingsection; -situatednearthefloorlevelandpositionedso asnottointerferewiththeoperationofthefume exhaustdevices.

Top 20÷30 mm. Top 30÷50 mm.

INSTALLATION

OnlyforGERMANY,SWITZERLANDAND AUSTRIA

A -Iftheworktopismadeoutofwood,use thespringsprovided.

1.Fitthefoursprings underthebox. Ⓑ intotherelativeseat

1. Make an opening in the worktop, according to the dimensions indicated in the enclosed product description sheet.

2. Install the cooking hobin the worktop.

B -Iftheworktopismadeoutofmarbleor othermaterials(plastics,ceramicsorstone),the cookinghobmustbefixedbymeansof brackets Ⓐ ,tbbeorderedfromtheAfter-SalesService(code481931018528).

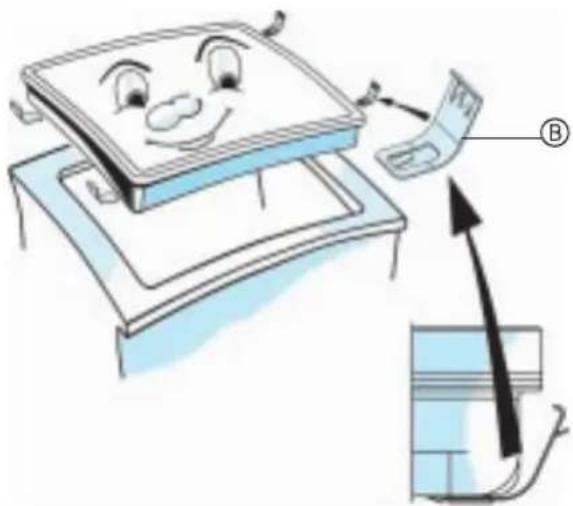

Electricalandmechanical connection

• Theelectrical connections must comply with local regulations.
  ● Thedatarelevanttothevoltageandpower absorptionareindicatedontheratingplate.
• Theearthingofthisapplianceis compulsorybylaw. Themanufacturercannotbeheld responsibleforanyinjurytopersonsor animalsordamagetopropertyarising fromfailuretocomplywiththese requirements.
• Whenthecookinghobisinstalled, provideasingle-polecircuitbreakerwith acontactbreakingdistanceofatleast 3mm.

Illustration of a smiling notebook being placed on a stand with an arrow pointing to a water bottle (no text or symbols)

INSTALLATION

Connectiontogassupply

Thegassupplysystemmustcomplywith currentlocalregulations(seechapter"National SafetyRegulations").

The connection of the cooking hobtothegaspipe network orgascylinder must be made arigid copperorsteelpipewith fittings complying with local standards, or by means of a continuous-surface stainless steel hose complying with local standards. Interpose gasket Ⓑ intheelbow connection. The maximum length of the hose is 2 m.

Important:ifastainlesssteelhoseisused,it mustbeinstalledsoasnottotouchany movablepartofthefurniture.Itmustpass throughanareawherethere areno obstructionsandwhereitispossibletoinspect itonallitslength.

Connectionandinstallation

Ovenandcookinghobwithuniversaljoints

After having installed and fixed the cooking hob, installtheoven.

1. Connecttongues Ⓐ toend Ⓑ, ass shown in the figure.

2. If the cooking hobise equipped with an electric hot plate, connect 3 - plug assembly ® to the first 3 bores of the 5 - pole terminal boardon block A, as shown in the figure.

3. Positiontheovenandfixitwiththescrews supplied.

4. Fittheknobs, pressing them into their seat on the control panel.

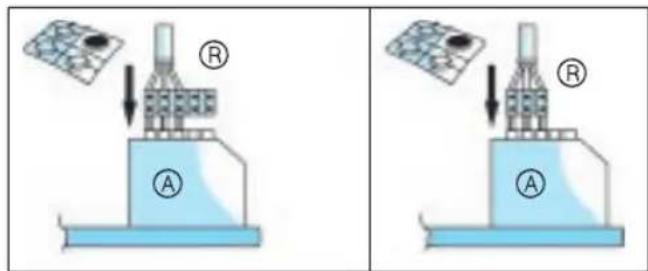

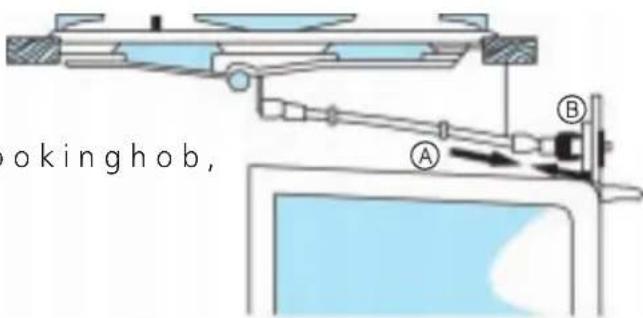

Note

If the cooking hob must be connected to the Box instead of the oven, read the instructions supplied with the Box.

b y means of A B

okinghob,

Diagram showing two experimental setups with labeled components and directional arrows, likely illustrating a mechanical or scientific setup.

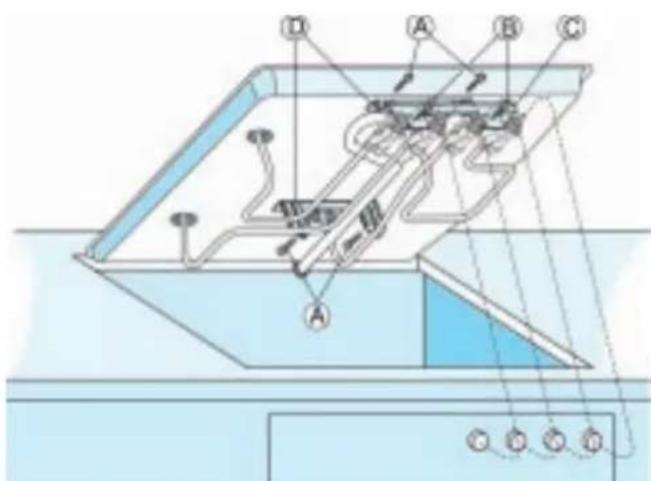

OVEN/COOKTOPDIRECTGASCONNECTION

1. Slackenoffthescrews Ⓐ andpositionthe cooktopinsuchawaythatthetapsarealigned withtheovenknobs.

2. Adjusttheheightofthetapsbracket accordingtotheposition(2,3,4,5)indicatedon thebrackets D.Onceadjustedtothecorrect height,tightenthescrews A.

3. Use the screws provided ⑧ to secure them cook toptapsbracket ⑨ to the oven panel. Fittheknobs.

Technical diagram of a mechanical or fluidic device with labeled components A, B, C, D and internal structure marked 'M', including a pressure gauge.

INSTALLATION

Adjustmenttodifferenttypesof gas

Ifadifferenttypeofgasfromtheoneindicated intheplateisused,thecookinghobmustbe adaptedtoit.

1. Thegasnozzlesmustbechangedby CustomerServiceoraqualifiedtechnician. Nozzlesnotsuppliedwiththeappliancemust beorderedfromCustomerService.
2. Connect the cooking hob to the gasshut-off valve by means of a pipes suitable for the type of gas used, incompliance with current local regulations.
3. Adjust the minimum setting of the taps.

Note:whenliquidpetroleumgasG30/G31is used,theminimumgassettingscrewsmustbe tightenedasfarastheywillgo.

Replacingtheinjectors(seetablein enclosedproductdescriptionsheet)

1. Removegrids Ⓐ.
   2.Extractburners Ⓑ.
2. Using asocketspanner of the appropriatesize © unscrew the injectortobereplaced.
3. Replaceitwiththeinjectorsuitableforthe newtypeofgas.
   5.Re-assembletheinjectorin D.

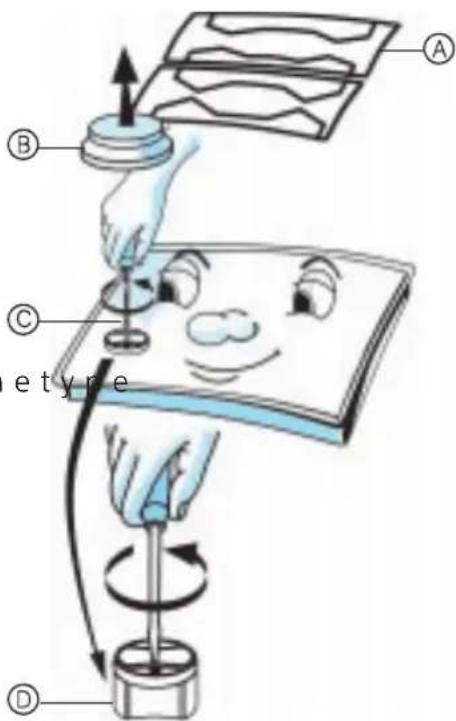

Adjustingminimumgassetting oftaps

Toensure that the minimum setting is correctly adjusted, remove knob and proceeds as follows:

●tighten(-)toreducetheheightoftheflame;
- loosen(+)toincreasetheheightoftheflame.

The adjustment must be performed with the tap in minimum gassetting position (small flame).

A B C etype D

Pure mechanical diagram showing a shaft and lever assembly without any text, numbers, or symbols

4

ITALY

Ventilationofroom

When the appliance is not equipped with safety devices on the burners (thermocouples), the air vents must be increased by 100%, and must be at least 200 cm ^2 , in compliance with the departmental decree of 21 April 1993.

Gassupplysystem

Beforeconnectingtheappliance,makesurethat thegassupplysystemcomplieswithstandards UNI7129andUNI7131.

Connectiontogassupply

The connection to the gas pipenetworkorgas cylinder must be made with a rigid copper or steel pipewith fittings complying with standards UNI 7129, or with a continuous-surface stainless steel hose complying with standards UNI 9891. The maximum length of the hose is 2 m.

FRANCE

The installation and maintenance of the appliancemustbecarriedoutbyaqualified skilled worker in accordance with the regulations and traderulesinforce, and in particular:

-Orderof2August1977

Technical and Safety Rules applicable to fuel gas and liquefied hydrocarbon installations located within residential buildings and their outbuildings.

StandardDTUP45-204-Gasinstallation (formerlyDTUno.61-1-Gasinstallations-April1982+supplementno.1 of July 1984)

-DepartmentalHealthRegulations

Forappliancesconnectedtotheelectricity network:

-StandardNF15-100-Low-voltageelectrical installations-Rules.

U.K.

Provisionforventilation

Theroomcontainingthisapplianceshouldhave anairsupplyinaccordancewiththecurrent B.S.5440:Part2.

Allroomsrequireapermanentventinaddition totheopenablewindow.Ifthereareotherfuel burningappliancesinthesameroom,B.S.5440:

Part2 should be consulted to determine the requisite air vent requirements.

If the appliance is installed in acellar or basement, it is advisable to provide an air vent of effective area 65 cm, irrespective of the room volume.

GasSafetyRegulations

Itislawthatallgasappliancesareinstalled by competentpersonsinaccordance with the currentgassafety regulations. Failuretoinstall appliances correctly could lead to prosecution. It isinyourowninterest, and that of safety, to ensure that the law is complied with. The hob should be installed in accordance with the Gas Safety (Installation and Use) Regulations, the Building Regulations issued by the Department of the Environment and the Building Standards (Scotland) (Consolidation) Regulations issued by the Scottish Development Department. In the U.K. CORGI registered installers work to safest standards of practice.

BELGIUM

The appliance is supplied with a 1/2" cone threaded end to be connected to the gas supply (according to ISO regulations 7/1 RP 1/2). The connection must be effected in accordance with Standard NBND51-003 with rigid piping or in accordance with specification sheet A.R.G.B./03 with flexible tubing. The appliance must be installed with an AGB-approved stop valve.
