Yueli Portable Hair Massage Ionic Comb - Peigne massant Xiaomi - Free user manual and instructions

Product Type	Hair Massage Ionic Comb
Brand	Xiaomi (Yueli)
Model	HIC-206PM / HIC-2006PS / HIC-206RM / HIC-206RS
Category	Hair Care / Massage Comb
Power Source	2 x AAA alkaline batteries (1.5V each)
Rated Voltage	3V DC
Rated Current	120 mA
Negative Ion Output	600,000 ions/cm³
Vibration Function	Yes, built-in vibromassage
Auto Shut-off	After 4 minutes of inactivity
Battery Indicator	LED solid when sufficient, blinking when low
Removable Tooth Module	Yes, for easy cleaning
Tooth Tip Design	Rounded, seamless, ball-shaped tips
Ergonomic Design	Yes, rounded surface for comfortable grip
3D Aeration	Yes, comb teeth designed for optimal distribution
Cleaning Instructions	Wipe with damp cloth; remove tooth module and rinse under cold water
Safety Features	Do not immerse in water; keep away from children under 8; avoid direct sunlight
Included Accessories	Comb, user manual, 2 x AAA batteries, storage bag
Warranty	2 years for device, 3 months for tooth module
Operating Temperature	15°C to 35°C
Compatibility	Suitable for ages 8+; not for artificial hair

Frequently Asked Questions - Yueli Portable Hair Massage Ionic Comb Xiaomi

How do I turn on the ionic comb?

Slide the power button to the 'ion' position to activate only negative ions. Slide it further to the 'ion/vib' position to activate both ions and vibration. Move to '0' to turn off.

How do I clean the comb?

First, remove the tooth module by pressing the button on the back. Wipe the comb body with a damp cloth. Rinse the tooth module under cold water and ensure it is completely dry before reattaching.

What type of batteries does the comb use?

It uses two AAA alkaline batteries (1.5V). Rechargeable AAA batteries can also be used but must be removed before charging.

Why is the battery indicator blinking?

The LED blinks when the batteries are low. Replace them with new AAA batteries to ensure proper operation.

Does the comb have an automatic shut-off feature?

Yes, the comb automatically turns off after 4 minutes of inactivity to save battery life.

Can I use the comb on wet hair?

It is recommended for slightly moisturized hair. If using after washing, dry your hair almost completely. Do not use on dripping wet hair as it may damage the device.

What is the warranty period for this comb?

The device is covered by a 2-year warranty, while the tooth module is covered for 3 months. Contact Yueli customer service for support.

Is the comb safe for children?

Yes, for children aged 8 and above under adult supervision. It is not a toy and should not be used by younger children unattended.

How does the negative ion function work?

The built-in generator produces negatively charged ions that neutralize static electricity, reduce frizz, and make hair smoother and shinier.

Why does the comb make a hissing or buzzing sound?

A hissing sound is normal and comes from the negative ion generator. A low buzzing sound is normal from the vibration motor. Both indicate proper operation.

USER MANUAL Yueli Portable Hair Massage Ionic Comb Xiaomi

Beauty, Always in your palms Let's start over at first.

yueli月立

Comb with Vibromasser and generator of negatively charged ions

Thank you for purchasing product of our company! Before using this product, carefully read the user's manual and keep it properly so that the use of the device brings you only joy and pleasure.

Product Features

Technology of negatively charged ions for hair care

The comb has a built-in negative ion generator that neutralizes static electricity, reduces disobedience to the hair, and makes them smoother and shiny.

Vibro-massage

The comb has a built-in vibration massager, that during the combing of the hair stimulates the blood circulation of the scalp, so you get more pleasure from combing, and your hair becomes more healthy.

Rounded tips of comb teeth

All tips of comb teeth are made round and smooth, using seamless technology, which helps to avoid damage to the skin during combing, as well as pulling out the hair. Special tips in the form of a ball have a large contact surface, gently take care of the fragile scalp.

Comb tooth module with 3D aeration

The teeth of the comb were optimally designed for better distribution of effort, moving along the contour of the head, more comfortable and pleasant to use.

Ergonomically designed comb

The ergonomic, rounded surface of the comb fits more closely to the arm, which guarantees better control of movements.

Removable tooth module

The tooth module can be easily removed and rinsed with water, which helps keep it clean.

Eco-mode

This product contains the automatic shutdown function after 4 minutes, if you forgot to turn off the device after combing, the IC controller will automatically turn off the device.

Reminder of replacement of the batteries

This product contains an integrated battery charge indicator, if their charge is sufficient, the indicator constantly glows, if insufficient - flashes, alerting you that you need to replace the batteries.

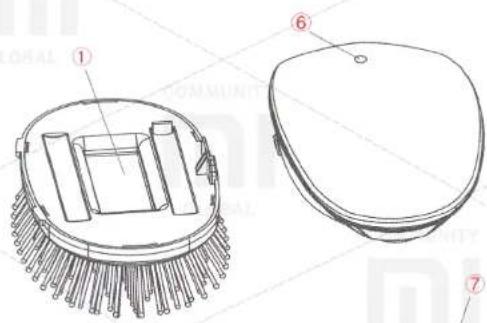

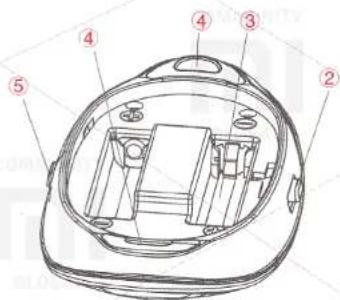

Components of the device

1. Tooth module
2. Button for removing the module
3. Battery compartment
4. Holes for the exit of negatively
   charged ions
5. Power button
6. Indicator of the generator of negatively charged ions
7. Batteries type AAA (№7)

Equipment

Comb with vibromassazhrom and generator of negatively charged ions	1 pcs.	User guide	1 pcs.
Battery AAA 1.5V	2 pcs.	Storage bag	1 pcs.

Using

Installing and removing the tooth module

1. To remove the prong module (1), simply press the button (2).
2. To install the prong module (1), position it so that the side with the two latches snaps into the holes in the comb body, then easily press the prong module, the ringing click means the module is in place.

Inserting and removing the batteries

Scallops use 2 AAA alkaline batteries (No. 7) 1.5V.

1. Remove the tooth module (1).
2. Insert the batteries into the battery compartment (3), or remove them from the battery compartment.
3. Replace the tooth module (1).

Note!

1. Make sure the poles «+» and «-» of the batteries are inserted correctly.
2. Install the battery with dry hands.
3. To avoid damaging the device, the battery may run out of batteries, if you have not used it for more than 1 month, remove the batteries from it.
4. Do not leave low-charge batteries in the device.
5. When the battery indicator light is blinking, replace it.

Hair combing

1. Move the power button (5) to the «lon» position to activate the generation of negatively charged ions.
   O The LED of the generator of negatively charged ions lights up, if the charge of the batteries is insufficient the charge indicator starts blinking, then the vibromassage function will be automatically turned off.
   O When the device is turned on, there will be a constant release of negatively charged ions, so that the hair becomes smoother and shiny.
   O It is possible to hiss when operating the device, it is the sound of the generator of negatively charged ions, which is normal.

Using

1. Move the power button (5) to the « 10/1on » position to activate the generation of negative ions and vibromassage.
   o The indicator of the generator of negatively charged ions (6) continues to glow.
   o With simultaneous vibromassage functions and the generation of negatively charged ions, combing the hair stimulates the scalp circulation, so you get more pleasure from combing, and your hair becomes more healthy.
   A low-pitched buzzing is possible, it is the sound of the vibro-massager, which is normal.
2. Comb the hair from the roots to the tips. Repeat this movement several times, your hair will become smoother and fresh.
3. Stop the comb teeth in one place, easily press it against the skin of the head, so you will feel the vibration-vibrator work more fully.
4. Move the power button to the «0» position to turn off the unit.

After use

1. You can clean the comb with a damp cloth.
2. Clean the tooth module.
   o Using a brush, clean the comb's work surface from dust and hair.
   o Remove the tooth module of the comb and rinse it under cold water.

Note!

1. Before installing the tooth module in the comb, make sure that it is completely dry.
2. Do not use aggressive liquids to clean the tooth module, this may damage the unit.
3. Store the device in a safe dry place.

Sign up for a Yueli public account in WeChat and find out more

Version: C0515

Certificate of conformity

Checked: 01

Zhejiang Yueli Electronics Co., LTD.

Address: Zhejiang Province, Cixi City, Zhouxiang Town, Kaifa East Road 999

Phone: [phone] www.yuelicn.com

Hotline of the consulting service: 400-770-2500

Warranty card
yueli月立
Contact the cloud service center 400-770-2500

Product Model	Date of purchase
Surname and name of the client	Contact number
Check number
Place of purchase
Address and postal code
Information about the repair (to be completed by the employee of the service center)		Employee's signature	Date

Conditions for providing warranty services

1. During the warranty period, the user who sends the product to the service center must present a valid sales receipt and a warranty card from the manufacturer. The warranty period starts from the date specified in the sales receipt. The user must properly store the warranty card and the sales receipt from the seller. In the event of the loss of a sales receipt, the warranty period starts from the date of manufacture of the product.
2. According to state regulations, the following circumstances are not included in the guarantee, they are paid for repair:
3. improper transportation, installation, use, repair and maintenance of the product;
4. Disassembly of the device itself or not in the officially designated points;
5. Malfunctions are caused by force majeure circumstances;
6. Expiration of the warranty period;
7. Use for commercial purposes;
8. Malfunctions caused by conditions of use of the device, for example, power, water, temperature, humidity, climate or other factors that the manufacturer can not influence.
9. According to the decision of the People's Republic of China «On the repair, exchange and return of goods», this device belongs to the category of home appliances, within a period of up to 7 days from the date of purchase of a possible return, 15 days - the exchange of the device, the warranty period is 2 years.

Адрес: Zhejiang Province, Cixi City, Zhouxiang Town, Kaifa East Road 999

Warranty Information

Dear user:

Thank you for your choice.

We are obliged:

To ensure the high quality of this product, you receive free service support from our company. In the period from the date of purchase within 2 years, in case of a malfunction caused by the production technology or the used elements of the device, we will provide you with free repair services. Fill out the warranty card and get a sales receipt or other valid document confirming the purchase in the seller's organization, then you can get high-quality repair services at the Yueli service center or other established point.

If you have any questions, please contact us.

The prong of the comb is guaranteed for 3 months, if you need to replace the tooth comb module, contact the Yueli customer service center.

Troubleshooting

Question	Cause	Decision
Device is not working	Insufficient charge of batteries	Replace the batteries
	Incorrect installation of batteries	Check that the batteries are inserted correctly according to the poles "+" and "-"

Tips and methods of use

1. Using a comb with vibromassage and a generator of negatively charged ions gives a better combing effect on slightly moisturized hair.
2. If you intend to use the comb after washing your hair, dry your hair almost completely. Do not overdry the hair, this affects the effectiveness of using the comb.
3. Repeat combing the hair several times from the root until it becomes smooth. The time of combing depends on the type of hair and the length of the hair.
4. The effect of use is barely noticeable under the following circumstances

o Short hair, or hair naturally curling
o Over-dried or damaged hair
o If the hair is leveled in the period of 3 to 4 months before use
o New short hair
o It is recommended to use the hair conditioner after combing, without the need for flushing. This will help achieve the best effect.

The product's name	Comb with vibromassazhrom and generator of negatively charged ions Yueli
Product Model	HIC-206PM/HIC-2006PS/HIC-206RM/HIC-206RS
Rated voltage	3V =
Rated current	120mA
The number of negatively charged ions	600 thsd./cm ^3
Manufactured according to	GB4706.1-2005 GB4706.15-2008

Note!

• Before using this product, read this user guide and keep it as it should.
• Warning: do not use this product near water.
• Do not immerse the comb under water, or rinse it under the tap.
• Turn off the device after use.
• This product is suitable for use by children from the age of 8, persons with limb disorders, people with sensory and mental disorders, and individuals do not have relevant experience unless other people need to look after them and give instructions for the training of these individuals before using this product Safe use of this device.
• This product is not a toy, do not let children use this product unattended.
  • To repair this product it is necessary to deliver it to a service center, repair by unqualified workers can lead to a danger to the user during further use.
• Do not use accessories or components manufactured by other manufacturers, have not been recommended by Yueli, if you use these components or accessories, you lose the warranty on the device.
• Do not block openings for the release of negatively charged ions.
• To avoid dangerous situations, do not insert fingers or metal objects into the holes for discharging negatively charged ions.
• Do not leave this product in direct sunlight for long periods of time, ultraviolet radiation can lead to fading and cracking of the body of the comb.
• Do not use the comb for purposes not listed in this manual.
• Do not use the product for artificial hair.

6

7

Note!

• We recommend that you use this unit at temperatures between 15 °C and 35 °C.
• The device operates on two 1.5V AAA alkaline batteries (No. 7).
• To install or remove the batteries, remove the tooth module of the comb.
- When using rechargeable batteries, they must be removed from the device before charging.
- When installing batteries, store the polarity to avoid damage to the product and dangerous situations.
- When the batteries have finished charging, they must be removed from the
device and disposed of properly.
- If you do not use the device for a long time, you need to remove the batteries from it.
- Do not short the poles minus and plus devices.

Electromagnetic field (EMF)

This device complies with the requirements of the electromagnetic field. Now scientifically proven, the correct use of the device by the user according to the manual is safe.

Protection of the environment

When disposing of this product, it must not be disposed of together with other household waste, it must be transferred to the processing center established by the government of the country. This will help protect the environment from pollution.

To meet the relevant requirements of the law and other requirements of the PRC to limit the content of hazardous substances in electronics and electronic devices, the manufacturer declares the content of hazardous substances in this product according to its structural elements:

Name and content of hazardous substances in the product

Name of component	Harmful and toxic materials or elements
	Pb	Hg	Cd	CR(VI)	PBB	PBDE
Copper ground plate	X	O	O	O	O	O
Generator of negative ions	X	O	O	O	O	O
PCB board	X	O	O	O	O	O
Motor	X	O	O	O	O	O

This table is created in accordance with the provisions of SJ / T 11364.

O: The content of this harmful material in all homogeneous materials of this component is within the requirements of GB / T26572.

X: the content of this harmful material in at least one of the homogeneous materials of this component exceeds the requirements of GB / T26572.

(Note: the elements of the marked «×» use a copper alloy, the lead contained in this alloy at the moment for technological and economic reasons can not be replaced or reduced)

Electronics and electrical goods sold in mainland China are marked «Safe life». The number on the label indicates the standard life of the device.

XIAOMI-MI.COM
