Product Type 2-in-1 Battery-Powered Vacuum Cleaner (Handheld & Stick)
Brand Klarstein
Model 10032354
Power Adapter Input 100-240 V ~ 50 Hz
Power Adapter Output 18 V = 0.5 A
Battery Type Lithium-ion (fixed, non-removable)
Charging Time 8 hours (first charge)
Operating Time Approximately 15 minutes
Filter Type Washable
Dust Container Removable dust barrel
Motorized Brush Yes, rotating brush
Charging Base Included
Handheld Mode Yes, detachable
Stick Mode Yes, for floor and carpet
Included Accessories Adapter, charging base, handle, motor brush, filter, set screw
Compliance CE, RoHS, EMC, LVD
Disposal WEEE (2012/19/EU), Battery Directive (2006/66/EC)

Frequently Asked Questions - 10032354 Klarstein

How to assemble the vacuum cleaner?
Connect the handle to the body and secure with the set screw. Then attach the motor brush until it clicks into place. For the charging base, insert the back into the base or press the knob to remove.
How to charge the battery?
Turn off the vacuum cleaner. Place the body into the charging base, then connect the adapter to a power outlet. The initial charging time is 8 hours.
How long does the battery last on a full charge?
The battery provides approximately 15 minutes of continuous use. When suction weakens, recharge promptly.
Can I vacuum liquids with this vacuum cleaner?
No. Do not vacuum water, liquids, lighted stubs, hot ashes, sharp objects, or fine powders like cement or gesso.
How to clean the filter?
Press the hand-held lock to remove the hand-held unit. Remove the dust barrel and take out the filter. Clean the filter with water and let it dry completely before reinstalling.
How to clean the rotating brush?
Unscrew the brush bottom to unlock, open the fixed device, remove the brush, clean away tangled hair or debris, then reassemble and lock the brush bottom.
What is the charging time?
The first charge requires 8 hours. Subsequent charges may vary; ensure the battery is fully charged before use.
Can I use the vacuum cleaner without the handle?
Yes. Press the hand-held lock to detach the handheld unit for use on beds, sofas, and curtains.
How to dispose of the vacuum cleaner?
Do not dispose of it with household waste. Follow local regulations for WEEE (electrical equipment). Remove the battery before scrapping and dispose of it safely according to the Battery Directive 2006/66/EC.
What safety precautions should I take?
Keep away from heat sources. Never use spirits or solvents. Do not leave unattended when on. Keep out of reach of children. Use only the provided adapter. Disconnect when not charging.

User questions about 10032354 Klarstein

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual 10032354 - Klarstein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 10032354 by Klarstein.

USER MANUAL 10032354 Klarstein

2 in 1 battery-powered vacuum cleaner

Klarstein 10032354 - 1

bar | Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) = [sum of two separate bars] * [sum of the bars] * [values from the 'bar' in the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table]. The values are estimated based on the provided data.

WARTUNG

natural_image Three technical line drawings of a robotic arm and a vacuum cleaner device, showing mechanical components and assembly (no text or symbols)

123

natural_image Technical line drawing of a mechanical device with no visible text or symbols
natural_image Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages.

Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

CONTENTS

Technical Data 12

Safety Instructions 13

Device Description 14

Assembly 15

Operation 16

Maintenance 17

Disposal Considerations 18

TECHNICAL DATA

Item number 10032354 10032355
Power supplyPower AdapterInput: 100-240 V~50 HzOutput: 18 V=0.5 A

SAFETY INSTRUCTIONS

  • Read this instruction booklet carefully.
  • This appliance is for domestic use only. Use as described in this instruction booklet.
  • Before using this appliance, check that the mains power voltage corresponds to the voltage shown on the rating plate.
  • Do not use the appliance to vacuum all the latter things::
    -water and other liquids
    -lighted stub, hot ashes and other combustible things
    -sharp matter
    -wood pieces, gesso, cement, calcimine and other tiny granules.

- Keep the vacuum cleaner away from stoves and heat-emitting appliance. Heat can deform and discolour the plastic parts of unit.

- Always remove the plug from the power socket when the appliance is not in charging.

- Never use spirits or other solvents to clean the appliance.

- Never leave the appliance unattended when it is switched on. Keep the appliance out of the reach of children or the infirm.

- Do not switch the appliance on if it appears to be faulty in any way.

- The battery must be removed from the appliance before it is scrapped.

• The battery is to be disposed of safely.

- The appliance must be disconnected from the supply when removing the battery.

- Only the adapter provided by the manufacturer can be used.

- This appliance can be used by children aged from 8 years and above the persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Lithium-ion battery

  • This appliance has a firmly fitted lithium-ion battery. Do not attempt to open the case in order to remove the battery. Do not open the battery under any circumstances.
  • Use not other charger than the one provided.
  • When you do not use the appliance, do not leave the charger connected permanently.
    • Mind the disposal considerations in the manual.

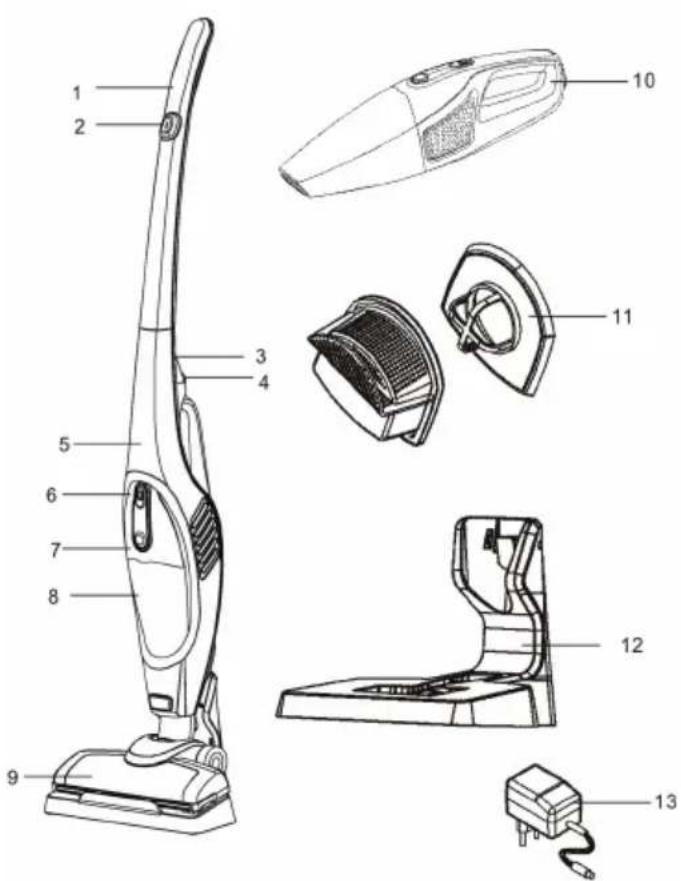

DEVICE DESCRIPTION

Exploded diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

1 Handle
2 Handle switch
3 Set screw
4 Handle-held switch
5 Body
6 Hand-held power switc
7 Dust barrel switch
8 Dust barrel
9 Motor brush
10 Hand-held
11 Filter
12 Charge base
13 Adapter

ASSEMBLY

Assembling the vacuum cleaner

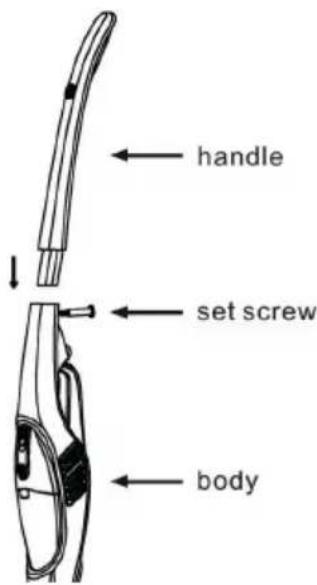

Main unit assembling

Connect the handle and the body. Screwed with the set screw.

handle set screw body

Motor brush assembling

Fit the motor brush with the body until it clicks into the position.

Remove the motor brush

Press the knob and remove the brush from the body.

knob → ↓

Charge base assembling

Fit the back into the charge base.

Remove the back from the charge base.

Remove the back from the charge base Press the knob at the bottom of the base, and pull out the back.

knob

OPERATION

Before use

When using the machine, please install filter.

Press the hand-held lock; remove the hand-held; press the dust barrel lock; remove the dust barrel; check the filter if the inside; re-install the dust bucket; installation on the hand-held.

Use

  1. When the battery is fully charged, the machine can be used. First use to ensure that the machine has been charging 8 hours.
  2. Host use: toggle the vacuum cleaner handle switch Application: floor, ground dust or carpet
  3. Handle-held use: toggle the vacuum cleaner mobile switch. Application: bed, sofa, curtains and other parts of the dust.
  4. About 15 minutes or suction significantly weakened, be sure to shut down for a timely charge.

Charging the battery

Turn off the switch, and then put the body into the charger base, and then the adapter into a power outlet.

Diagram showing a hairdryer being connected to a power outlet via cable, with Chinese labels indicating the process.

MAINTENANCE

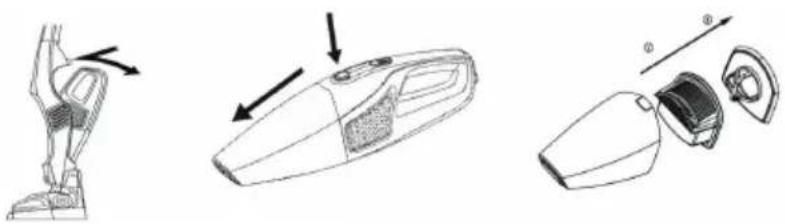

Filter replacement and cleaning

  1. Press the hand-held lock, remove the hand-held.
  2. Press the dust barrel lock, remove the dust barrel.
  3. Come up with the filter, empty the dirt inside.
  4. Cleaning the filter in water, wait for it to dry completely.
  5. Put the filter back into the dust barrel carefully.
  6. Put the dust barrel back into the hand-held.

Klarstein 10032354 - Filter replacement and cleaning - 1

natural_image Three technical line drawings of a robotic arm and a handheld device, showing mechanical components and assembly (no text or symbols)

123

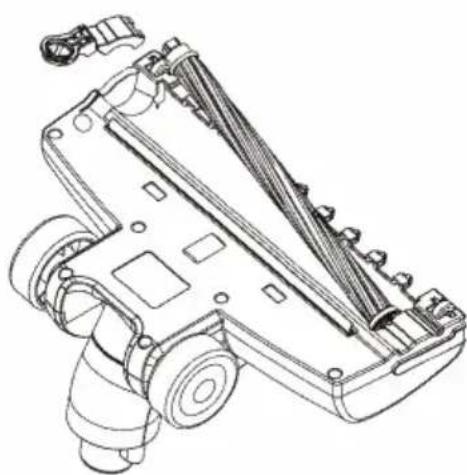

Rotating brush cleaning

  1. Turn the brush bottom screw to unlock position (pictured)
  2. Open the brush bottom fixed device.
  3. Show brush, clean the rotating brush on the twisting thing.
  4. Put the rotating brush back.
  5. Turn the brush bottom screw to lock position.

Klarstein 10032354 - Rotating brush cleaning - 1

natural_image Technical line drawing of a wheeled vehicle chassis with visible wheels and suspension components (no text or symbols)

DISPOSAL CONSIDERATIONS

Klarstein 10032354 - DISPOSAL CONSIDERATIONS - 1

natural_image Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

Declaration of Conformity

Klarstein 10032354 - Declaration of Conformity - 1

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin. Germany

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/30/EU (EMC)

2014/35/EU (LVD)

Klarstein 10032354 - Declaration of Conformity - 2
