Product Type	Coffee Maker
Brand	Klarstein
Model	10010430
Dimensions (approx.)	25 x 20 x 30 cm
Weight	1.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1000 W
Water Tank Capacity	1.5 L
Max. Number of Cups	12 cups
Filter Type	Paper filter (size #4) or permanent filter
Brewing Temperature	90-96 °C
Keep Warm Function	Automatic keep warm for 40 minutes
Auto Shut-off	Yes, after 40 minutes
Anti-Drip System	Yes
Water Level Indicator	Yes
Material	Plastic housing, glass carafe
Carafe Capacity	1.5 L (glass)
Cord Length	0.8 m
Cleaning	Regular descaling with vinegar or descaler; hand wash carafe and filter basket
Safety Features	Auto shut-off, boil-dry protection
Spare Parts Available	Carafe, filter basket, water tank (contact Klarstein support)

Frequently Asked Questions - 10010430 Klarstein

How do I descale the Klarstein 10010430 coffee maker?

Mix equal parts of water and white vinegar or use a commercial descaler. Fill the water tank, run a brew cycle without coffee grounds, then run two cycles with fresh water to rinse. Repeat every 2-3 months.

What type of filter does this coffee maker use?

It uses a size #4 paper filter or a permanent mesh filter (included with some models).

How many cups of coffee can I brew at once?

The water tank holds 1.5 liters, which allows you to brew up to 12 cups (125 ml each).

How do I clean the carafe and filter basket?

Wash the glass carafe and filter basket with warm soapy water. Do not use abrasive cleaners. Rinse thoroughly.

Does the coffee maker have an auto shut-off feature?

Yes, it automatically shuts off after 40 minutes of inactivity to save energy and ensure safety.

Can I use ground coffee directly without a filter?

No, you must use a paper or permanent filter to prevent grounds from entering the carafe.

What is the recommended brewing temperature?

The brewing temperature is between 90-96 °C for optimal extraction.

How long does it take to brew a full pot?

Brewing a full 1.5-liter pot takes approximately 10-15 minutes, depending on water temperature and grind size.

Can I replace the carafe if it breaks?

Yes, replacement carafes are available. Contact Klarstein customer service or check online retailers.

Why does my coffee maker stop brewing before the tank is empty?

This may indicate a need for descaling. Limescale buildup can restrict water flow. Follow the descaling instructions above.

USER MANUAL 10010430 Klarstein

Row of white icons representing kitchen appliances and home appliances (no text or symbols)

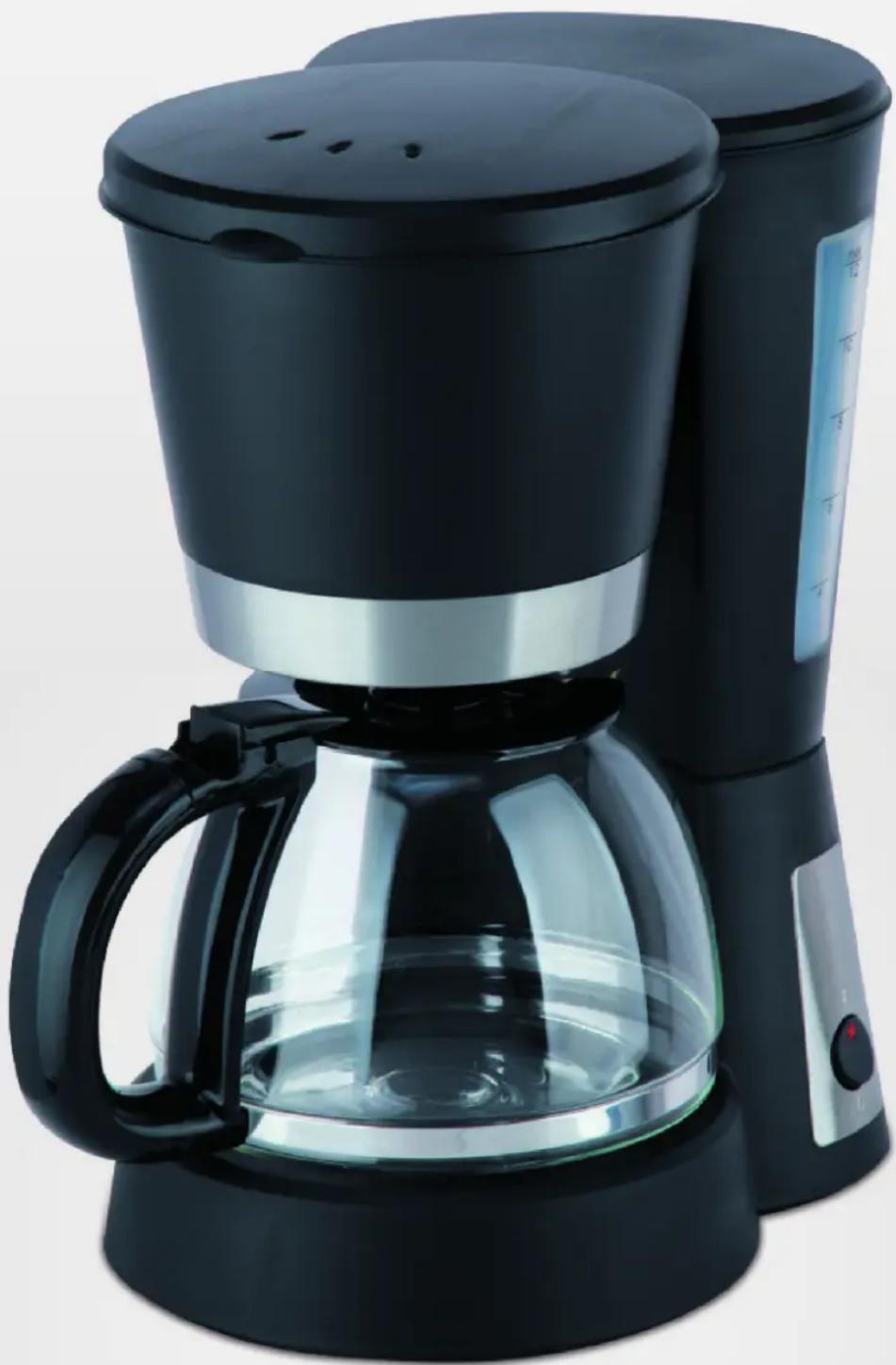

Black and white photo of a modern coffee maker with clear glass and black lid, no visible text or symbols on the device itself.

Kaff eemaschine

10010430 10010431 10008166

10008167 10008168

KLARSTEIN

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Read this booklet thoroughly before using and save it for future reference. Before using the electrical appliance, the following basic precautions should always be followed including the following.

Important Safeguards

• Do not immerse appliance or power cord into water or any other liquids.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Before using it, check that the voltage of wall outlet corresponds to coffee maker rating plate.
  • The appliance must be earthed.
• Close supervision is necessary when your appliance is being used near children.
• Do not place the coffee maker on hot surface or beside fire, avoid to be damaged.
• Remove plug from wall outlet before cleaning and when not in use. Allow appliance to cool down completely before taking off, attaching components or before cleaning.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or electrical or mechanical adjustment.
• The use of accessory which is not recommended by manufacturer may cause injury to persons or damage to appliance.
• Place appliance on flat surface or table, do not hang power cord over the edge of the counter.
• Ensure that the power cord does not touch hot surface of appliance.
• Some parts of appliance are hot when operated, so do not touch with hand directly.
• Do not immerse appliance or power cord into water or any other liquids.
• Never leave the empty carafe on the keeping warm plate otherwise the carafe is liable to crack.
• Do not use outdoors.
• Save these instructions booklet for future reference.
  • HOUSEHOLD USE ONLY

Before first Use

To ensure the first cup of coffee tastes excellent, you should rinse the coffee maker with warm water as follows:

1. Pour 1200ml water into water tank.
2. Set nylon filter in funnel (add no coffee ground), then replace water tank cover.
3. Place drip carafe on keeping warm plate and cup on removable shelf.

Make Drip Coffee

1. Open the water tank cover and pour proper drinking water into water tank according to the mark in the tank.
2. Add ground coffee to nylon filter with measuring spoon, a spoon ground coffee power can make a cup of top-grade coffee, but you can adjust according to the taste yourself.

3. Set nylon mesh into funnel.

4. Push drip carafe on keeping warm plate, pay attention to let center line of carafe aligns with that of funnel.

5. Press ON /OFF switch, the red indicator will be illuminated and coffee will drop out automatically after a while. Note: at any time, you can take out carafe to serve but the time cannot exceed 30 seconds, otherwise the coffee may overflow from the edge of funnel.
6. The coffee maker will turn to keeping warm mode if brewing coffee is finished. At the time you can cut off power.
7. Press the ON/OFF switch, the red indicator is illuminated, and timing starts at this moment. Then the machine will turned off automatically after 7 minutes 30 seconds.

WARNING: Do not leave the coffee maker unattended during making the coffee, as you need operate manually sometimes!

Cleaning And Maintenance

1. Cut off power source and let the coffee maker cool down completely before cleaning.
2. Clean housing of coffee maker with moisture-proof sponge often and clean water tank, drip tray and removable shelf regularly then dry them. Note: Do not clean with alcohol or solvent cleanser. Never immerse the housing in water for cleaning.
3. Detach the metal funnel through turn it clockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water.
4. Clean all the attachments in the water and dry thoroughly.

Cleaning Mineral Deposits

To keep your coffee maker operating efficiently, you should clean away the mineral deposits left by the water every three months or according to the water quality in your area and the frequency use the appliance, the detail is as follows: fill the carafe with one part of white vinegar and three parts of cold water, pour the water and vinegar mixture into the tank, do not place into coffee ground, brewing the water-vinegar solution per "Before the first use", repeat it until no yellow liquid comes out if necessary, then pour out the mixture, brewing with tap water until no vinegar odor is left.

Troubleshooting

symptom cause corrections
Carafe leakage water or water leaks out from lid of jug	The jug is not located properly	Let center line of jug aligns with the leakage opening of funnel well.
The coffee drops too slowly or over-flows from the edge of removable funnel	Coffee powder is too fine or contain too fat	Use coarser coffee powder.
	Nylon filter too dirty	Clean nylon filter with clear water.
Coffee residue in jug	Filter is blocked	Clean filter
	Coffee powder is too fine.	Choose coarser coffee powder.
Water leaks from the bottom of coffee maker.	Leak water in the unit	Do not use the coffee maker again, contact with certified serving center.
The coffee maker cannot work anymore.	The coffee maker heat in abnormal state, which causes its automatic safety protective system, is activated.	The coffee maker should be able to rework after keeping still for 30 seconds, otherwise contact with certified serving center.
	Lack water	Fill enough water

Hints on Disposal

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

CE

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
