Brand	Candy
Model	EVOC 770NBT-84
Product Type	Condenser Tumble Dryer
Energy Efficiency Class	B
Maximum Load Capacity	8 kg (Cotton), 4 kg (Synthetics)
Drum Capacity	115 litres
Dimensions (Height x Width x Depth)	85 cm x 60 cm x 60 cm
Electrical Supply	220-240 V, 50 Hz, 10 A
Programs	Perfect Home (Store Dry, Hang Dry, Iron Dry), No Crease, Wool Finish, Mix & Dry, Shirts, Rapid 40', Time (30-180 min), Memo, Refresh (cool air)
Delay Start	1 to 24 hours
Filter Care Indicator	Yes, lights when filter needs cleaning
Empty Water Indicator	Yes, lights when water container is full
Water Container Capacity	Approx. 4 kg when full
Condenser	Removable, washable with water
Anti-Crease Function	Yes, selectable post-drying cycle
Drain Hose Kit	Optional, for direct water discharge
Noise Level	Not specified in manual
Safety Features	Overheat protection, child safety (door lock not specified but caution advised)
Installation Requirements	Level feet, ventilation gap at least 12 mm, ambient temperature +2°C to +35°C
Warranty	Refer to GIAS service; guarantee card provided

Frequently Asked Questions - EVOC 770NBT-84 CANDY

Why does the drying time seem too long or clothes are not dry enough?

Check if you selected the correct programme or time. Ensure clothes were spin-dried thoroughly. Clean the fluff filter and do not overload the dryer. If the 'Low Heat' option was selected from a previous cycle, it may affect drying time.

What should I do if the dryer does not start?

First, verify the power supply: check the plug, fuse, and circuit breaker. Ensure the door is fully closed. Make sure the programme and time are selected and press the Start/Pause button. If the door was opened during a cycle, press Start/Pause again to resume.

Why is the filter care indicator on?

The indicator lights up when the fluff filter needs cleaning. Clean the filter after every drying cycle to maintain efficiency. Pull out the filter, open it, remove lint with a soft brush or fingers, snap shut and reinsert. Never use water to clean the filter.

How do I empty the water container and what does the indicator mean?

The water container collects condensed water. When the 'Empty Water' indicator lights, pull out the tray (supports about 4 kg), tilt to empty through the rear hole, slide back firmly into place, and press Start/Pause to continue. Empty after each cycle even if indicator is not on.

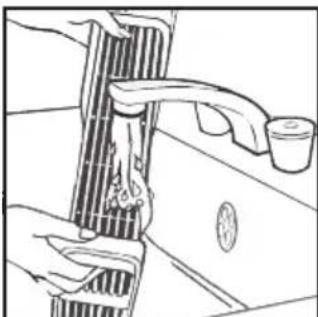

How do I clean the condenser?

Switch off and unplug the dryer. Remove the kickplate, turn the two locking levers anti-clockwise, pull out the condenser. Remove dust with a cloth, then wash under running water, turning to let water flow between plates. Refit correctly (arrow indication), lock levers clockwise, and replace kickplate.

Can I use the delay start function?

Yes, press the Delay Start button to delay the cycle start by 1 to 24 hours. Each press increases delay by 1 hour. After selecting delay, press Start/Pause. The indicator flashes during delay. The cycle will end at the set time.

What should I do if the dryer is noisy?

Switch off the dryer and disconnect from power. Contact GIAS Service for advice. Do not attempt to repair yourself.

Can I dry all types of fabrics?

No, do not dry woollens, silk, delicate fabrics, nylon stockings, items with foam rubber, glass fibre curtains, or articles treated with dry cleaning fluids. Always check care labels. Use appropriate programmes: cotton high heat, synthetics/acrylics low heat. The 'Acrylic Synthetic' button reduces heat.

What does the 'Memo' programme do?

The Memo programme allows you to re-run a previously saved programme combination. To save, press Anti-Crease and Acrylic Synthetic buttons simultaneously for 3 seconds after 2 minutes of a chosen programme. Then select Memo to repeat that same programme.

How do I install the optional drain hose kit?

The kit allows permanent water drainage. Follow the manual: remove the worktop trim, disconnect the grey hose from the bridge, attach the kit hose, break off the tab on the water container cover, feed hose through the hole, secure with tie, replace worktop. Connect hose to waste water pipe. Ensure no kinks.

USER MANUAL EVOC 770NBT-84 CANDY

Unpacking the Product 3

Safety Reminders 3

Use 3

Installation 4

The Laundry 4

Environmental Issues 4

Gias Service 4

Installation 5

Electrical Requirements 5

Adjusting the Feet 5

Ventilation 5

Drain Hose Kit: Fitting Instructions 6

Preparing the Load 7

Clothes Preparation 7

Do Not Tumble Dry 7

Energy Saving 7

Sorting the Load 7

Drying Guide 7

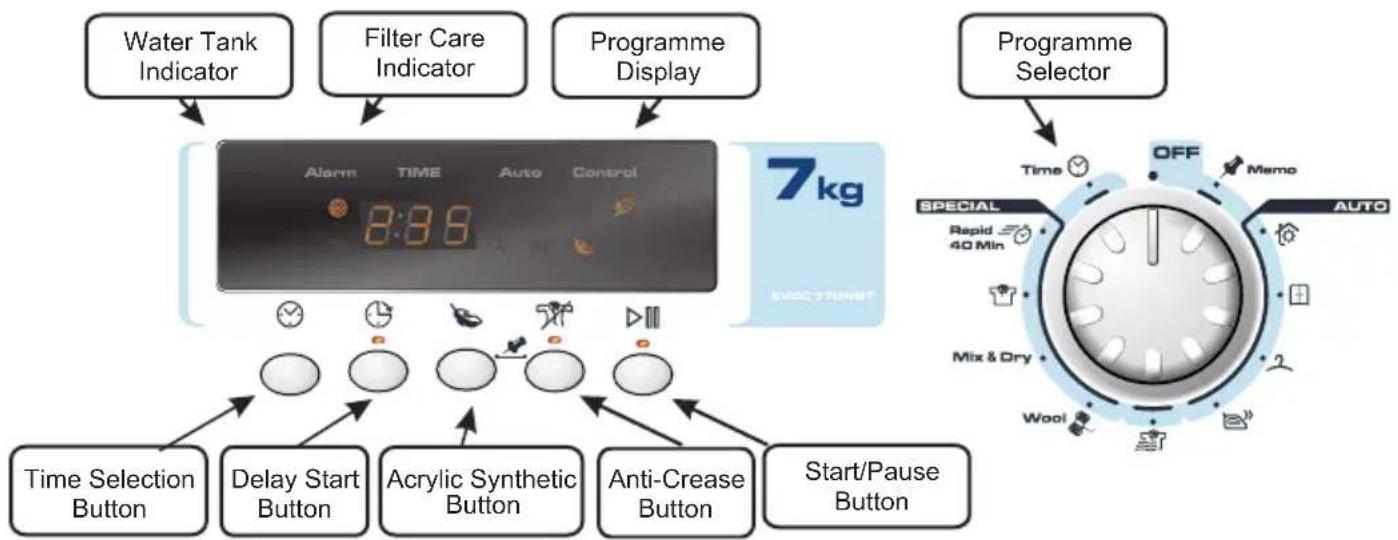

Controls and Indicators 8

Selecting the Programme 9

Door and Filter 10

Opening the Door 10

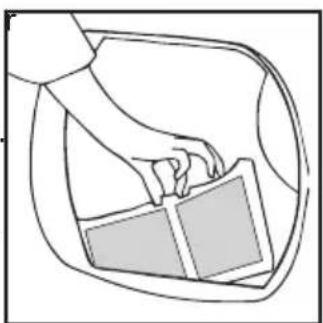

Filter 10

Filter Care Indicator 10

Water Container 10

To Remove the Container 10

Condenser 11

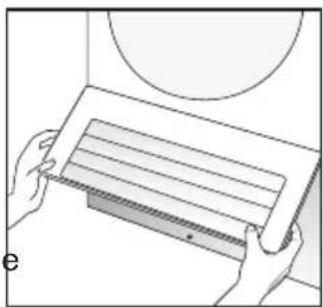

To Remove the Condenser 11

Operation 11

Delay Start Function 12

Cancelling and Resetting the Programme 12

Cleaning and Routine Maintenance 12

Cleaning the Dryer 12

Technical Specifications 12

Troubleshooting 13

Customer Service 13

Spares 13

Gias Service 13

INTRODUCTION

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery Information

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS.

⚠️ Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

UNPACKING THE PRODUCT

Line drawing of a hand holding a door handle, showing structural details (no text or symbols)

Remove the machine from its packaging close to the final location of the machine.

1- Cut carefully around the base of the packaging and up one corner.
2- Remove the polythene sleeve and lift the dryer off the polystyrene base.

⚠ Dispose of the packaging safely. Make sure it is out of the reach of children, it is a potential source of danger.

SAFETY REMINDERS

Use

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING Misuse of a tumble dryer may create a fire hazard.
• This machine is solely for domestic use, i.e. to dry household textiles and garments.
• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not allow children to play with the machine or its controls.
• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
• WARNING Where the hot surface symbol is located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

Installation

• Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service.
• Do not use adapters, multiple connectors and/or extensions.
• Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.
• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

The Laundry

• Do not dry unwashed items in the tumble dryer.
• WARNING Do not tumble dry fabrics treated with dry cleaning fluids.

• WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

• Always refer to the laundry care labels for directions on suitability for drying.

• Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

- Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Environmental Issues

• All packaging materials used are environmentally-friendly and recyclable.
  Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.
• To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

GIAS Service

- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

⚠️ If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 10A

Electricity can be extremely dangerous.

This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a item with your machine is caused by direct installation.

If the mains cord on this appliance is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.

Do not plug the machine in and switch it on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Illustration of a person using a tool to lift a head, showing motion arrows (no text or symbols)

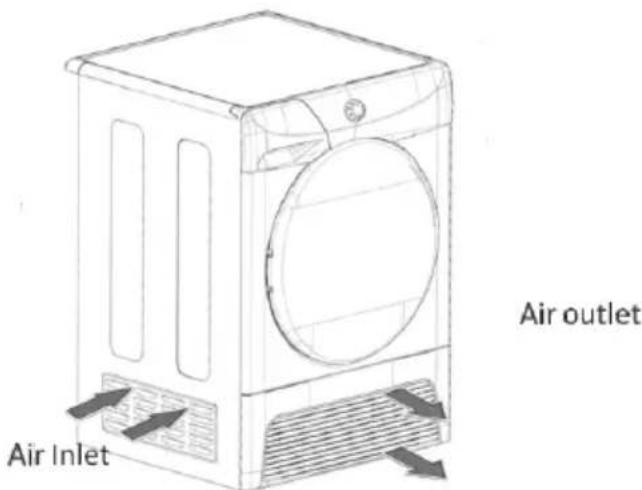

VENTILATION

Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

- Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

- Check regularly that the air flowing through the dryer is not restricted.

- Check the fluff filter after use, and clean, if necessary.

- The inlet and outlets should be kept free from obstructions. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed. There should be a gap of at least 12mm between the machine and any obstructions.

- Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.

- NEVER install the dryer up against curtains.

Do not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between +2°C and +35°C. Please note that operating in cold condition (between +2 and +15°C) might imply some water condensation and water drops on floor.

DRAIN HOSE KIT: FITTING INSTRUCTIONS

To avoid having to empty the water container after each drying cycle, the water normally collected during the drying cycle can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe system should be located adjacent to the tumble dryer.

•The kit is composed: 1 hose, 1 straight hose connector, 1 pipe clip and 1 plastic tie.

WARNING! Switch off and remove the

tumble dryer plug from the electricity supply before carrying out any work.

Fit the Kit as Follows:

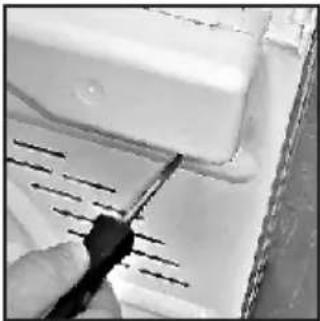

1. Unscrew and remove the 3 screws, at the rear of the machine, retaining the worktop trim.

2. Remove the rear worktop trim and the worktop surface by carefully sliding it towards the rear of the machine.

3. The waste water container is situated at the right-hand side of the machine (viewed from the rear). A grey hose connects to the bridge above the water container. Using pliers, remove the pip retaining clip from the bridge.

4. Pull the hose off the bridge connection.

5. Attach the hose from the kit, using the connector and pipe clips supplied, to the hose removed from the bridge connection.

Close-up of a hand using a tool to clean or store air quality (no visible text or symbols)

Close-up of a hand holding a white electronic device with a small attached component (no visible text or symbols)

Hand holding a white rectangular object with a yellow sticker, no visible text or symbols

Close-up of hands using pliers to handle a coiled cable or wire (no visible text or symbols)

1. Take off the water container cover from the rear of the machine by removing the two screws and unclipping the cover.

2. Break off the tab on the side of the cover and replace the cover on the machine, refit the screws. You should now have revealed a hole in the back of the cabinet next to the Cover.

3. Feed the drain hose through the hole in the cabinet.

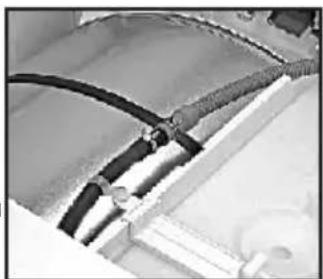

4. Locate the grey pipe in the cutout of the tray and secure the pipe assembly to the bridge with the plastic tie.

5. Carefully slide the worktop back into position ensuring that the hose is not trapped and replace the worktop rear trim with the 3 screws.

6. Connect the new drain hose to the waste water pipe. Make sure that the new hose does not kink when pushing the tumble dryer into position. Ensure that the guidelines, as shown, are followed when routing the new external hose.

7. Connect to the mains electricit supply.

8. After emptying the waste water container switch the machine ON (and press the 'START' button on electronic models) to commence with the drying program.

Close-up of a hand holding a coiled cable or wire inserted into a white plastic housing (no visible text or symbols)

Close-up of a hand using a tool to cut or mark a white surface with diagonal lines (no text or symbols visible)

Close-up of a hand holding a small white plastic object with a pointed tip, against a plain background (no text or symbols visible)

Close-up of hands connecting a black cable to a white plastic component (no visible text or symbols)

Close-up of electrical wiring with black insulation and metal fittings (no visible text or symbols)

PREPARING THE LOAD

Before using the tumble dryer for the first time:

- Please read this instruction book thoroughly.

- Remove all items packed inside drum.

- Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or other clothes (danger of fire or explosion).

During the last 15 minutes the load is always tumbled in cool air.

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Try to dry the maximum weight of laundry, this will save time and electricity.
• Check that the filter is clean before every drying cycle.

NEVER

• Exceed the maximum weight, this will waste time and electricity.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

Maximum Drying Weight

• Cottons Max. 8 kg
• Synthetics Max. 4 kg

Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets).

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the Delicates button to select low drying temperature.

Drying Guide

The table shows approximate drying times, depending on the type of fabric and dampness of the clothes.

FABRIC	HEAT SETTING	HEAVY LOAD	MEDIUM LOAD	LIGHT LOAD
COTTON	HIGH	140-165min	70-80min	50-65min
SYNTHETICS	LOW	---	70-80min	40-55min
ACRYLIC	LOW	---	50-65min	30-40min

CONTROLS AND INDICATORS

Control Panel and Indicator Lights

Programme Selector – Select the required programme.

Time Selection Button ⏻ – Allows the user to change duration of the programme selected by Programme Selector. It can be used only with the selection of: Mix&Dry, Shirts and Time Programmes.

Delay Start Button ⏻ – Allows the user to delay the start of the drying cycle (see details of Operation).

Acrylic and Synthetic Button -Press to select the type of fabrics to dry Acrylic and synthetics, when pressed Acrylic Synthetics option is activated and the indicator lights up.

Anti-Crease Button 📋 – Allows the user to select a post drying anti-crease cycle.

Start/Pause Button ▷ III – Press to commence/ to pause the selected drying programme.

Memo Button – Allows user to record the programme by pressing simultaneously the Anti-Crease and the Acrylic Synthetic buttons for 3 seconds, after 2 minutes duration of the chosen programme/option.

Filter Care indicator● – Lights when the filter needs cleaning.

Empty Water indicator 📋 – Lights when the water container is full.

Program Display – Related indicator lights when a auto programme has been selected.

Refresh 🌿 – The indicator lights up when the programme starts the cool down stage.

SELECTING THE PROGRAMME

The Candy Sensor Dry machine gives many options for drying the laundry to suit all circumstances. The table on the next page lists the programmes and the function of each programme.

Note:

The sensor may not detect a small load of small articles. For small loads and separate items or pre-dried fabrics with low moisture content, use the timed programmes.

If the sensor does not detect the item the dryer will only operate for 10 minutes before going into cooldown.

If the load is too large or too wet to tumble dry the dryer will automatically go into cooldown after approximately 3 hours.

In these cases we advise to use a time cycles between 30 and 75 minutes depending on the load size and dryness required, and select high or low heat depending upon the fabric type.

SELECTING THE PROGRAMME

PROGRAMME	DESCRIPTION
Perfect Home	Select the degree of dryness that you require. This range from for bath towels and bathrobes, through 2 for items that will be put away without ironing, to the programme that leaves the laundry suitable for ironing.
Store Dry
Hang Dry
Iron Dry
No Crease	The programme provides a conditioning and anticrease function. The dryer will heat the load for 9 minutes followed by a 3 minute cool down period and is especially good for garments which may have been left for some time prior to ironing, in a linen basket for example. Garments may also become stiffened when dried outside on a washing line or inside on radiators. This programme relaxes the creases in the fabric making ironing quicker and easier.
Wool Finish	A gentle programme specially created to get woollens softer after air-drying. This delicate warm air cycle, lasting 12 minutes, can also be used to get woollens 'refreshed' after being stored in the wardrobe.
Mix & Dry	This is a special timed program for a maximum load of 4kg (117 min). The default duration is 99 minutes and allows to dry up to 3kg. With this program you can dry together cotton and synthetic fabrics.
Shirts	This is a special timed program for shirts of max load of 3kg (78 minutes). For synthetic shirts you have to press the Acrylic Synthetic button. The default duration is 60 minutes and allows to dry up to 2kg.
Rapid 40'	The Rapid 40' programme allows a drying cycle to be completed quickly. This is an ideal programme for having dry, refreshed and ready-to-wear clothes in less than 40'. This special programme constantly monitors the temperature in the drum. The maximum load is 2 kg and the programme is suitable for all types of fabrics where tumble drying is appropriate.
Time	Time selection includes all the manual time programs: from 30 minutes to 180 minutes. The 20 minutes selection time in only cool air ventilation (Refresh)
Memo	Memo Program allows to re-perform a program that the user has saved before, without selecting the correct sequence of program selector positions and option buttons for that particular program.

Opening the Door

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Pull on handle to open the door.

To restart the dryer, close the door and press.

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

1. Pull the filte upwards.

2. Open filter as shown.

3. Gently remove lint using a soft brush or your fingertips.

4. Snap the filter together and push back into place.

Line drawing of a hand inserting a card into a car door (no text or symbols)

Filter Care Indicator

Lights when the filter needs cleaning.

If the laundry is not drying check that the filter is not clogged.

Illustration of two hands holding a folded or folded object, no text or symbols present

DO NOT USE WATER TO CLEAN THE FILTER.

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the 📋 indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle.

NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull out the tray until it is completely removed. Support the tray with both hands. When it is full the water container will weigh about 4kg.

2. Tilt the wate container to empty the water out through the rear hole.

When emptyslide the water container back into position. PUSH FIRMLY INTO PLACE.

1. Press ▷III to restart the cycle.

NOTE: If you have the option of drainage near the dryer it is possible to use the discharge kit to provide a permanent drain for the water collected by the dryer This will remove the need to empty the water tray. All the information for assembly of the kit is contained in the kit envelope.

Hand holding a sponge over a surface, no text or symbols visible

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a small object near the lower part of a curved surface (no text or symbols)

Important: Always switch off and remove the plug from the electricity supply before cleaning the condenser.

To maintain the efficiency of the dryer regularly check that the condenser is clean.

To Remove the Condenser

1. Remove the kickplate.

2. Turn the two locking levers anti-clockwise and pull out th condenser.

3. Pull out the condenser unit.

4. Gently remove any dust or fluff with a cloth, then wash the unit by holding it under a running tap turning it so that water flows between the plates, to remove any dust or fluff.

5. Refit the condenser ensuring it is in the correct way (a indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.

6. Refit the kickplate.

Illustration of hands holding a rectangular object with horizontal lines, next to a circular element (no text or symbols)

Simple line drawing of a door handle with a central knob and handle (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a person using a handheld device to clean or wash the interior (no text or symbols)

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly until you hear the door 'click' shut.

3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).

4. If drying synthetics, acrylics or delicate items, press the 🎨 button to reduce the heat level. The light next to the push button will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the 🎨 button, after this time reset the machine to change the setting.

5. Press the ▷■ button. The dryer will start automatically and the DRY indicator will be continuously lit.

6. If the door is opened during the programme to check the laundry, it is necessary to press ▷III to recommence drying after the door has been closed.

7. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

8. When the programme is complete the END indicator will light.

9. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Delay Start Function

The Delay Start Function ⏻ allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of the button will increase the delay with 1 hour steps.

To commence the programme press ▷III and the appliance will complete the drying cycle at the end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the ▷■ button for 3 seconds. In the TIME CONTROL display 0:00 Light will flash to indicate that it has been reset.

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
  • Regularly clean the condenser.
• After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The drum, door and load may very hot.

Technical Specifications

Drum capacity	115 litres
Maximum load	8 kg
Height	85 cm
Width	60 cm
Depth	60 cm
Energy Label Band	B

Information for Test Laboratory

EN 61121 Programme Programme To Use

-DRY COTTON	-HANG DRY
-IRON DRY COTTON	-IRON DRY
-EASY-CARE TEXTILE	-HANG DRY+ SYNTHETIC

IMPORTANT Always switch off and move the plug from the electricity supply are cleaning this appliance.

For electrical data refer to the rating label the front of the dryer cabinet (with the door n).

TROUBLESHOOTING

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
• Is the dryer overloaded?
• Has the option been selected from a previous cycle?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
• Is the plug properly connected to the mains supply?
  • Is there a power failure?
• Has the fuse blown?
• Is the door fully closed?
• Is the dryer switched on, both at the mains supply and at the machine?
• Has the drying time or the programme been selected?
• Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

- Does the filter need cleaning?

The 📋 Indicator is on...

- Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.

- Has not been installed in accordance with the installation instructions.

- Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS Service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Introduzione 15

Line drawing of a hand holding a door handle, showing structural details (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating motion or force (no text or symbols)

VENTILAZIONE

Close-up of a hand using a screwdriver to press down a white appliance (no visible text or symbols)

Close-up of a hand holding a white plastic object with a small label, no visible text or symbols

Hand placing a white plastic tray with a yellow sticker on top (no visible text or symbols)

Close-up of hands using pliers to handle a coiled cable or wire (no text or symbols visible)

Close-up of a hand holding a coiled cable or wire inserted into a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut or mark a white panel edge (no text or symbols visible)

Close-up of a hand holding a white plastic bottle with a small protrusion (no visible text or symbols)

Close-up of hands connecting a black cable to a white plastic housing (no text or symbols visible)

Close-up of electrical wiring and components (no visible text or symbols)

Line drawing of a hand holding a circular object with a handle, no text or symbols present

Illustration of two hands assembling or folding a folded paper or book (no text or symbols visible)

NON USARE ACQUA PER PULIRE IL FILTRO

VASCHETTA DELL'ACQUA

Hand holding a sheet of paper or paper, partially covered by a curved line (no text or symbols visible)

Line drawing of two hands gripping a tool or blade (no text or symbols)

Line drawing of a hand pressing down on a surface with circular and ring elements (no text or symbols)

CONDENSATORE

Illustration of hands holding a rectangular object with horizontal lines, next to a circular object (no text or symbols)

Simple line drawing of a rectangular device with a central knob and two small components, no text or symbols present.

Line drawing of a hand inserting a card into a device (no text or symbols)

Line drawing of a kitchen sink with a water bottle and a cup, no text or symbols present

FUNZIONAMENTO

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
• Is the dryer overloaded?
• Has the option been selected from a previous cycle?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
• Is the plug properly connected to the mains supply?
• Is there a power failure?
• Has the fuse blown?
• Is the door fully closed?
• Is the dryer switched on, both at the mains supply and at the machine?
• Has the drying time or the programme been selected?
• Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The Indicator is on...

- Does the filter need cleaning?

The 📋 Indicator is on...

- Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.

- Has not been installed in accordance with the installation instructions.

- Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS Service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Uvod 27

Podatki o Dobavi 27

Odstranjevanje Embalaže 27

Line drawing of a hand holding a bracket with diagonal line indicating angle (no text or symbols)

European Directive 2002/96/EC

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

PRETOK ZRAKA

Close-up of a hand using a screwdriver to clean or store air quality (no visible text or symbols)

Close-up of a hand holding a white plastic container with a small label (no visible text or symbols)

Hand placing a white plastic tray with a yellow sticker, no visible text or symbols

Close-up of hands using pliers to handle a cable or wire (no visible text or symbols)

Close-up of hands holding a white plastic component with a black tool inserted (no visible text or symbols)

Close-up of a hand using a screwdriver to cut or mark a white surface with visible cracks (no text or symbols)

Close-up of a hand holding a small white object, possibly a container or tool, with no visible text or symbols.

Close-up of hands connecting black and white cables with a coiled cable (no visible text or symbols)

Close-up of electrical wiring with black and gray cables (no visible text or symbols)

PRIPRAVA NA POLNJENJE STROJA

Line drawing of a hand holding a circular mechanical component (no text or symbols)

Simple line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Signalna Lučka za Stanje Filtra

se prižge, ko je treba filter očistiti.

Če se perilo ne suši pravilno, preverite, da ni filter Zamašen.

Illustration of two hands holding a folded or layered object, no text or symbols present

POSODA ZA VODO

Voda, ki izhlapeva iz perila med sušenjem, se zbira v zbiralni posodi, ki jo najdete na dnu sušilnega stroja.

Hand holding a sheet of paper or paper, partially covered by a curved surface (no text or symbols visible)

1. Zbiralnik vod nagnite in tako skozi zadnjo odprtino izlijte vodo. Ko je prazen, zbiralnik potisnite nazaj na njegovo mesto. NAZAJ NA MESTO GA PRITISNITE ČVRSTO.
2. Program ponovno zaženete s pritiskom na tipko ▷ III.

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a circular object above another hand, with no text or symbols present.

Line drawing of a person inserting a grid into a device (no text or symbols)

Simple line drawing of a mechanical component with no text or symbols

Line drawing of a hand inserting a component into a device (no text or symbols)

Line drawing of a person using a showerhead to clean water, with another hand pouring liquid into the background (no text or symbols)

UPORABA SUŠILNEGA STROJA

1. Odprite vrata in potisnite perilo v boben. Prepričajte se, da ne ovira zapiranje vrat.
