USER MANUAL Axon mini ZTE

Smartphone B2016 Upgrade Guide (Through an SD Card)

1. Cautions

The software version and pictures in this document are just for reference only. Please use ZTE handset support website provided version to download software.

1) Download the upgrade package.

- Open http://www.ztedevice.com.cn/support and download the upgrade package (update.zip) that matches your phone model. If the downloaded package is not update.zip, unzip the package to obtain update.zip.

- Ensure that your micro SD card is at least 1.2GB. Note: Please refer to our current version download size

2) Remove the SIM card before the upgrade. Back up the data and APPs in your phone by using the built-in Backup function. To enable the built-in Backup function of your phone (an SD card must be inserted), select Backup & Restore from the main menu. see Figure 1-1:

Backup & Re...

Figure 1-1

3) Perform data backup. Note: You should not remove the SD card during the backup process. To avoid data lost, it is not recommended to cancel the backup process.
4) Verify that the update.zip file in the root directory of the SD card matches the model of the phone. Do not modify the file name and extension name of the files in the upgrade package.
5) Verify that your phone has enough (at least 40%) power. Charge the phone if required. To avoid data lost or upgrade failure, it is not recommended to upgrade your phone through an SD card when the phone is being charged.
6) You should not perform any other operation on the phone during the upgrade process. To avoid upgrade failure, do not forcibly remove the battery.
7) A normal upgrade should be completed in 2-3 minutes. If the phone does not reboot or show any response in three minutes, you should perform the

upgrade process again. If the phone cannot be started, perform a forced upgrade. If the forced upgrade does not work, you should contact an after-sale service agent for support.

2. Upgrade Description

There are two upgrade methods: normal upgrade and forced upgrade. If the phone cannot be started properly, for example, the phone cannot be started, or the phone does not enter standby state, perform a forced upgrade. If the phone can be started properly and the Settings menu can be selected, perform a normal upgrade.

3. Upgrade Steps

Normal upgrade (the primary upgrade method)

1) Download the upgrade package that matches the phone model from ZTE official website (http://www.ztedevice.com.cn/support/), extract update.zip from the package, and copy update.zip to the root directory of the SD card (the file name must be update.zip)

2) Select File Manager from the main menu, and verify that the update.zip file in the root directory of the SD card is proper, see Figure 3-1:

update.zip 1.20G, 2015-07-30 17:29

Figure 3-1

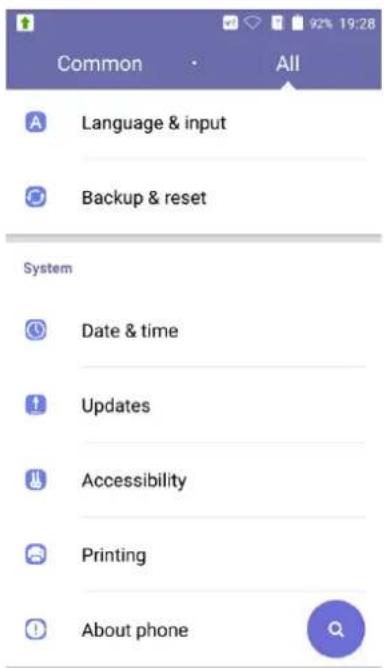

3) Tap the main screen is displayed. Tap and select SETTINGS > ALL> Updates>System updates, see Figure 3-2:

Google home2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page2 page1

Common Language & input Backup & reset System Date & time Updates Accessibility Printing About phone

Updates System updates Check and update phone system MiFavor ZTE B2016 Current Version: ZTE B2016V1.0.0B02 Online update SD card update

Figure 3-2

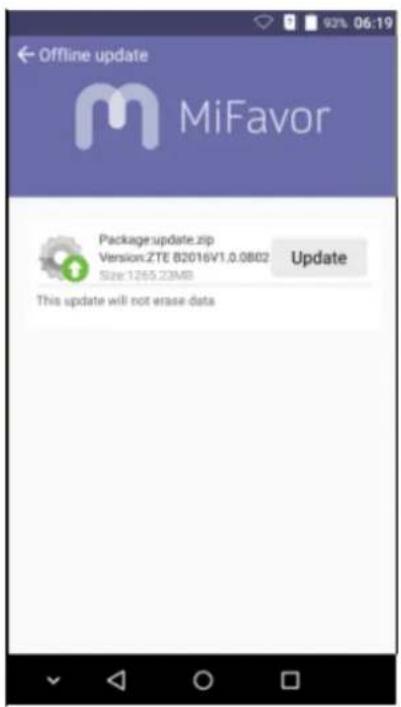

4) Touch SD card update. If there is no SD card inserted in the phone or no upgrade package saved in the root directory of the SD card, a message is displayed on the screen: No offline update packages, please confirm that update package has been copied to root directory on storage card. see Figure 3-3:

Offline update MiFavor Package:update.zip Version:2TE B2016V1.0.0802 Size:1265.23MB Update This update will not erase data

3-3

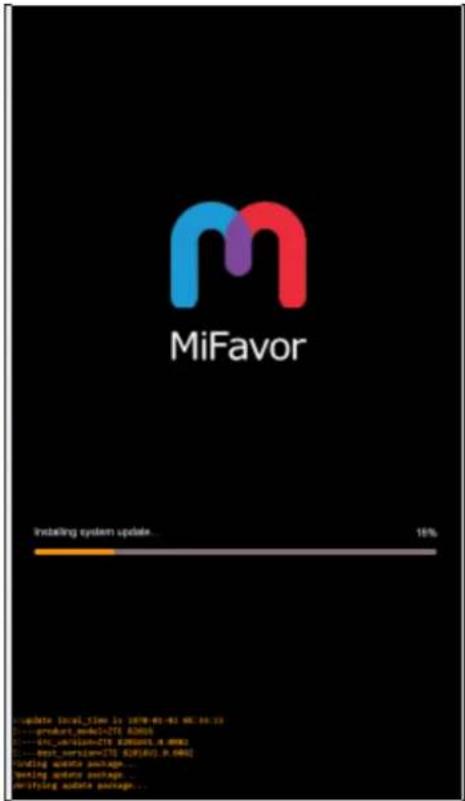

5) The phone automatically powers off and reboots. the Sdcard upgrade screen is displayed, see Figure 3-4:

MiFavor Installing system update... 16% Update Excel time is 2018-01-01 00:30:23 ---product_model=CTS 0.0005 ---GIC_version=CTS 0.0005,4.0005 ---best_version=CTS 0.0005,4.0005 Loading updates package ... Setting updates package ... Verifying updates package...

Figure 3-4

6) After the phone is upgraded, it is rebooted again. After the phone starts properly, it is recommended to manually restore the phone to its original factory default settings. The phone is upgraded properly and can be used.

4. (Optional) Restoring the Data

If you have backed up data before upgrading your phone, restore the data.

1) select Backup &Restore from the main menu. see Figure 3-6:

Backup & Re...

Figure3-5

2) Do not remove the SD card during the restoration process. To avoid data lost, it is not recommended to cancel the restoration process.

5. Forced upgrade (for the phones that cannot be started or the phones that cannot enter standby state)

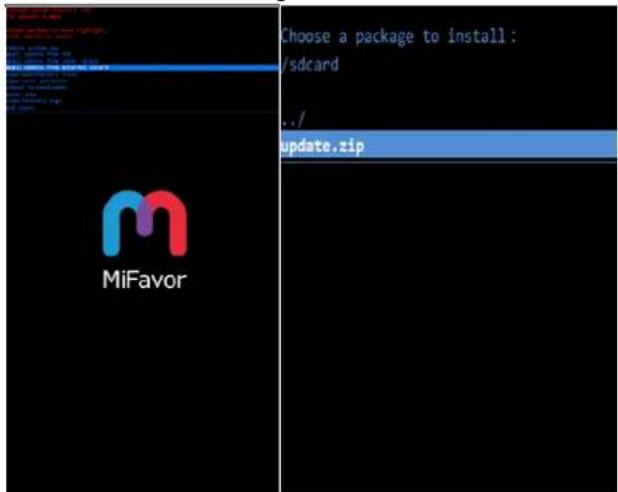

For a powered-off phone, press and hold both the volume key + and power key until the phone shakes once. Then the phone will enter into "Android system recovery". ress the volume key - to select apply update form sdcard, and press the power key to confirm it. see Figure 3-6

MiFavor

Figure 3-6

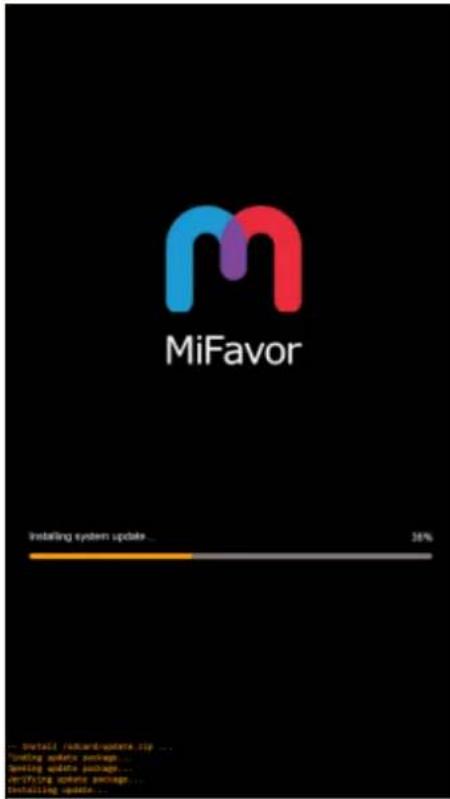

Choose update.zip to start update. The phone completes the upgrade process in about three minutes. see Figure 3-7

Choose a package to install: /sdcard .// update.zip MiFavor

3-7

MiFavor Installing system update... 36% ...detail /reward/water.zip ... Testing order package ... Testing order package ... Verifying order package ... Installing update ...

Figure 3-8

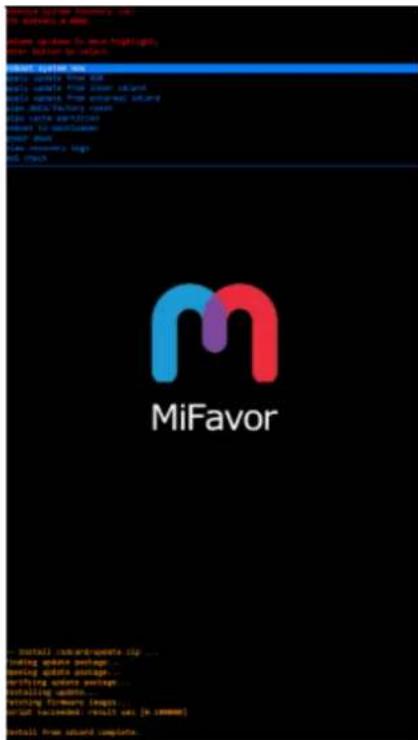

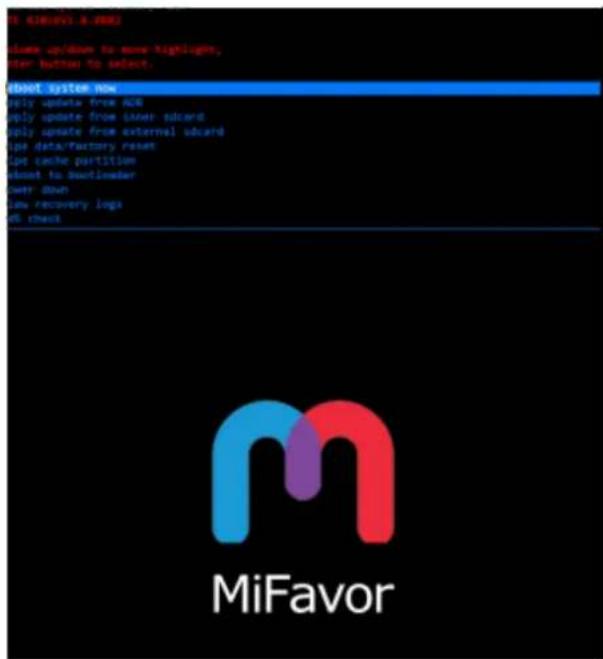

On the Upgrade Complete screen, select reboot system now and press the power key to confirm it. see Figure 3-9.

MIFORVI 0.0000 Apache up/down to more highlights, Enter button to select. About system now Only update from ADB Only update from inner subcard Only update from external subcard Ips data/factory reset Ips cache partition About to doublebar User down low recovery logs All check MiFavor

Figure 3-9

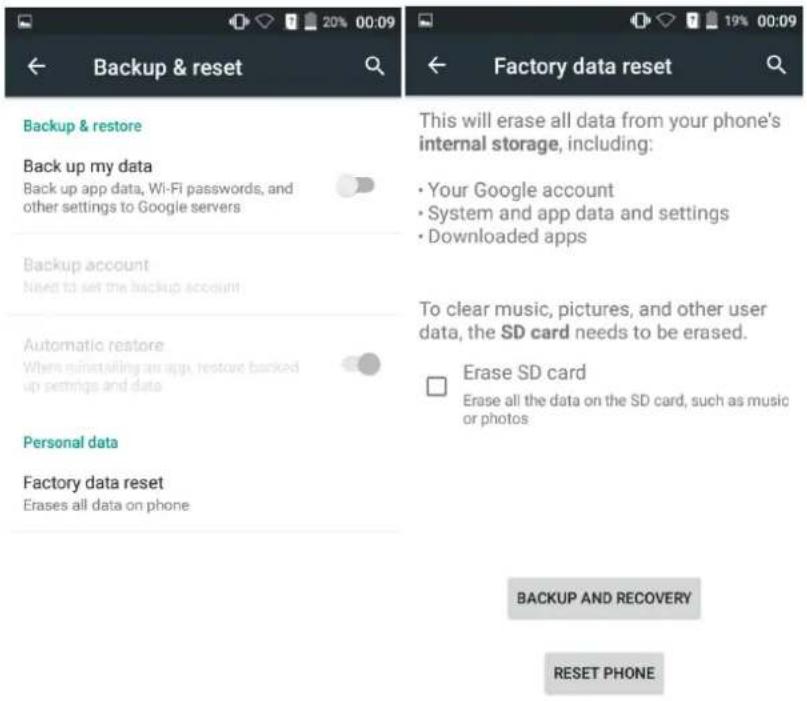

The phone is automatically rebooted. After the phone starts properly, it is recommended to manually restore the phone to its original factory default settings by selecting SETTINGS > Backup & reset > Factory data reset

to enhance the system stability. see Figure 3-10. The phone is upgraded properly and can be used.

Backup & reset Backup & restore Back up my data Back up app data, Wi-Fi passwords, and other settings to Google servers Backup account Need to set the backup account Automatic restore Where mini-stalling an app, restore backed up settings and data Personal data Factory data reset Erases all data on phone Factory data reset This will erase all data from your phone's internal storage, including: • Your Google account • System and app data and settings • Downloaded apps To clear music, pictures, and other user data, the SD card needs to be erased. □ Erase SD card □ Erase all the data on the SD card, such as music or photos BACKUP AND RECOVERY RESET PHONE

Figure 3-10
