USER MANUAL Blade A6 Lite ZTE

Quick Start Guide....2

ZTE BLADE A6 LITE

Kurzanleitung....15

ZTE BLADE A6 LITE

QR code image containing encoded data, no visible human-readable text

ZTE BLADE A6 LITE Quick Start Guide

LEGAL INFORMATION

Copyright © 2017 ZTE CORPORATION.

All rights reserved.

No part of this publication may be quoted, reproduced, translated or used in any form or by any means, electronic or mechanical, including photocopying and microfilm, without the prior written permission of ZTE Corporation.

Notice

ZTE Corporation reserves the right to make modifications on print errors or update specifications in this guide without prior notice. We offer self-service for our smart terminal device users. Please visit the ZTE official website (at www.ztedevice.com) for more information on self-service and supported product models. Information on the website takes precedence.

Visit http://www.ztedevice.com to download the user manual. Just click Support from the home page and then select your location, product type, and name to search for related support information.

Disclaimer

ZTE Corporation expressly disclaims any liability for faults and damages caused by unauthorized modifications of the software. Images and screenshots used in this guide may differ from the actual product. Content in

this guide may differ from the actual product or software.

Trademarks

ZTE and the ZTE logos are trademarks of ZTE Corporation.

Google and Android are trademarks of Google, Inc.

The Bluetooth ^® trademark and logos are owned by the Bluetooth SIG, Inc. and any use of such trademarks by ZTE Corporation is under license.

microSDXC Logo is a trademark of

SD-3C, LLC.

Qualcomm snapdragon

Qualcomm ^® Snapdragon ^TM processors are products of Qualcomm Technologies, Inc.

Qualcomm and Snapdragon are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Used with permission.

Other trademarks and trade names are the property of their respective owners.

Version No.: R1.0

Edition Time: July 14, 2017

Manual No.: 079584509429

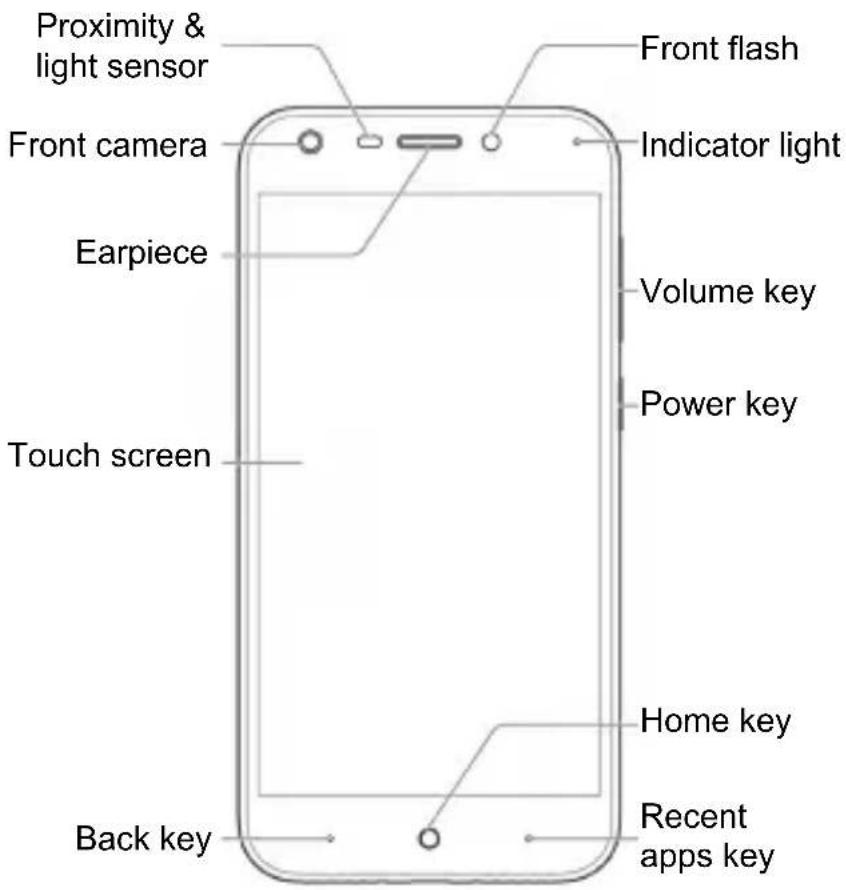

Getting to Know Your Phone

Proximity & light sensor Front camera Earpiece Touch screen Back key Front flash Indicator light Volume key Power key Home key Recent apps key

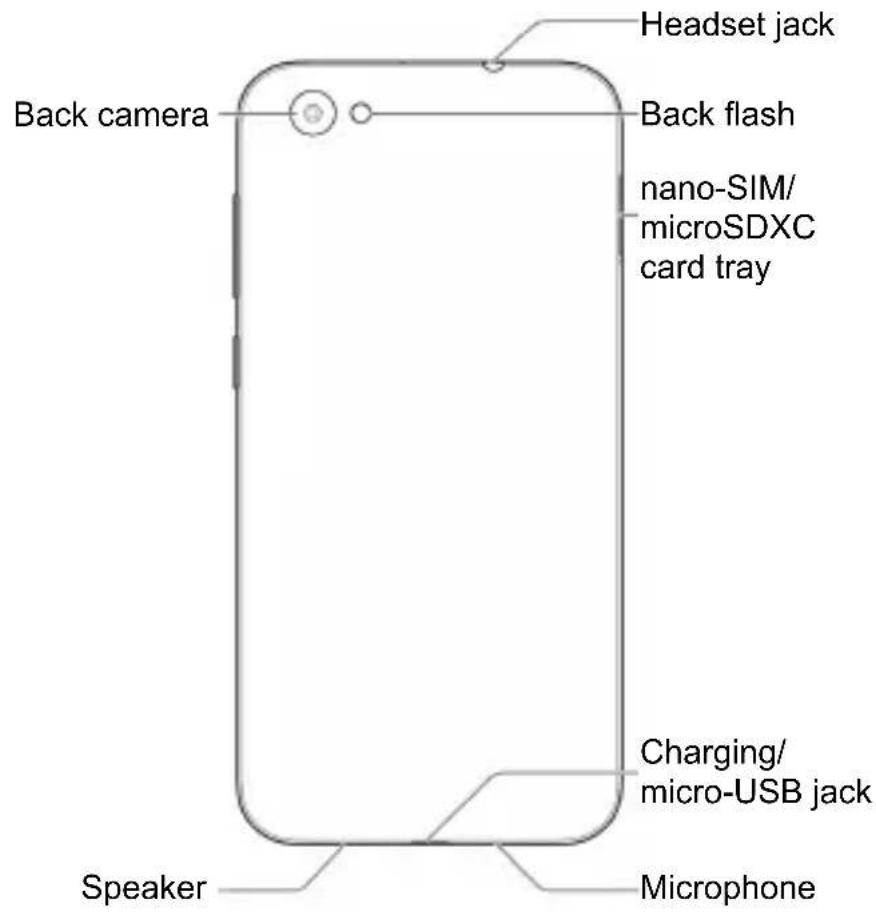

Back camera Headset jack Back flash nano-SIM/ microSDXC card tray Charging/ micro-USB jack Speaker Microphone

Installing the nano-SIM Cards and the microSDXC™ Card (Optional)

Power off your phone before installing or removing the nano-SIM cards and the microSDXC card.

WARNING!

To avoid damage to the phone, do not use any other kind of SIM cards, or any non-standard nano-SIM card cut from a SIM card. You can get a standard nano-SIM card from your service provider.

1. Insert the tip of the tray eject tool into the hole next to the card tray.

Line drawing of a smartphone with a magnified inset showing a screwdriver inserted into the screen (no text or symbols)

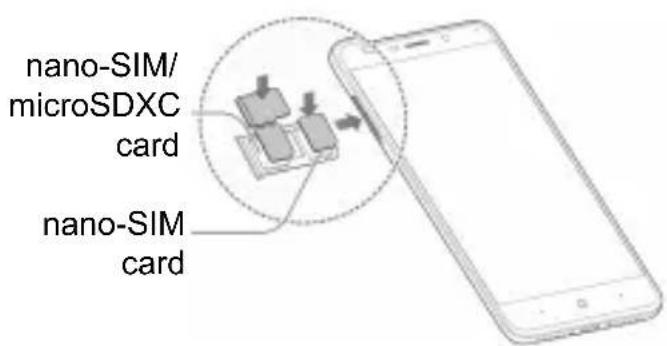

1. Pull out the card tray and place the nano-SIM card and the microSDXC card on the tray, as shown. Carefully slide the tray back into place.

nano-SIM/ microSDXC card nano-SIM card

Charging the Phone

Your phone's battery should have enough power for the phone to turn on, find a signal, and make a few calls. You should fully charge the battery as soon as possible.

WARNING!

Use only ZTE-approved chargers and USB cables. The use of unapproved accessories could damage your phone or cause the battery to explode.

WARNING!

Do not remove the back cover. The battery is not removable. Removal may cause fire or explosion.

Line drawing of a smartphone with a cable inserted into its port (no text or symbols)

NOTE:

If the battery is extremely low, you may be unable to power on the phone even when it is being charged. In this case, try again after charging the phone for at least 20 minutes. Contact the customer service if you still cannot power on the phone after prolonged charging.

NOTE:

If the screen freezes or takes too long to respond, try pressing and holding the Power key for about 10 seconds to restart the phone.

Product Safety Information

	Don't make or receive phone calls while driving. Never text while driving.
	Keep your phone at least 5 mm away from your body while making calls.
	Small parts may cause choking.
	Your phone can produce a loud sound.
	To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your phone near your ear while the loudspeaker is in use.
	Avoid contact with anything magnetic.
	Keep away from pacemakers and other electronic medical devices.
	Turn off when asked to in hospitals and medical facilities.
	Turn off when told to on aircraft and at airport.
	Turn off when near explosive materials or liquids.
	Don't use at gas stations.
	Your phone may produce a bright or flashing light.
	Don't dispose of your phone in fire.
	Avoid extreme temperatures.
	Avoid contact with liquids. Keep your phone dry.
	Do not attempt to disassemble your phone.
	Only use approved accessories.
	Don't rely on your phone as a primary device for emergency communications.

Specific Absorption Rate (SAR)

Your mobile device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the independent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health. The guidelines use a unit of measurement known as Specific Absorption Rate, or SAR.

The SAR limit for mobile devices is 2 W/kg and the highest SAR value for this device when tested at the head was 0.410 W/kg*, and when tested at the body was 1.602 W/kg* with 5 mm distance. As mobile devices offer a range of functions, they can be used in other positions, such as on the body as described in the user manual**.

As SAR is measured utilizing the device's highest transmitting power, the actual SAR of this device while operating is typically below that indicated above. This is due to automatic changes to the power level of the device to ensure it only uses the minimum power required to communicate with the network.

* The tests are carried out in accordance with EN 50360, EN 50566, EN 62479, EN 62209-1 and EN 62209-2.

** Please see body worn operation in the user manual.

Specification

EUT supports radios application	GSM850/900/1800/1900WCDMA Band 1,5,8FDD LTE Band1,3,5,7,8,20TDD LTE Band38802.11b/g/nBluetooth V4.1+LEGPS
	WCDMA Version Rel.9LTE Version Rel.10
Maximum RF output power	GSM850/900: 32.50 dBmGSM1800/1900: 29.50 dBmWCDMA Band 1: 22.50 dBmWCDMA Band 5: 22.50 dBmWCDMA Band 8: 22.50 dBmFDD LTE Band1: 23.0 dBmFDD LTE Band3: 23.0 dBmFDD LTE Band5: 23.0 dBmFDD LTE Band7: 23.0 dBmFDD LTE Band8: 23.0 dBmFDD LTE Band20: 23.0 dBmTDD LTE Band38: 23.0 dBm802.11b/g/n:16.50/13.50/12.50 dBmBluetooth EDR: 1.5 dBmBluetooth LE: -0.5 dBmGPS(RX Only)

CE Caution

Battery Caution

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

USB Port

This product shall only be connected to a USB interface of version USB 2.0.

Proper Use

As described in this guide, your device can be used only in right location. If possible, please do not touch the antenna area on your device.

Do not expose your device to extreme temperatures lower than - 10 °C and higher than + 55 °C.

Declaration of RoHS Compliance

To minimize the environmental impacts and take more responsibilities to the earth we live on, this document shall serve as a formal declaration that ZTE BLADE A0622 manufactured by ZTE CORPORATION is in compliance with the Directive 2011/65/EU of the European Parliament - RoHS (Restriction of Hazardous Substances) with respect to the following substances:

1. Lead (Pb)
2. Mercury (Hg)
3. Cadmium (Cd)
4. Hexavalent Chromium (Cr (VI))
5. Polybrominated biphenyls (PBBs)
6. Polybrominated diphenyl ethers (PBDEs)
   ZTE BLADE A0622 manufactured by ZTE CORPORATION meets the requirements of Directive 2011/65/EU.

Disposal of Your Old Appliance

1. When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2012/19/EU.2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.

For this product's recycling information based on WEEE directive, please send an e-mail to [e-mail]

EU DECLARATION OF CONFORMITY

Hereby, ZTE Corporation declares that the radio equipment type ZTE BLADE A0622 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following Internet address: http://certification.ztedevice.com

Copyright © 2017 ZTE CORPORATION.
