USER MANUAL AVXWPH036EA SAMSUNG

System Air Conditioner

(Cooling and Heating)

Pure electrical circuit lines without any symbols

Contents

◆ PREPARING YOUR AIR CONDITIONER

■ Safety Precautions 3
■ View of the Indoor unit 8
■ Remote Control-Buttons and Display 9
■ Getting Start 10
■ Inserting the Remote Control Batteries 11

♦ OPERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode 12
■ Cooling Your Room 13
■ Heating Your Room 14
■ Changing the Room Temperature Quickly 15

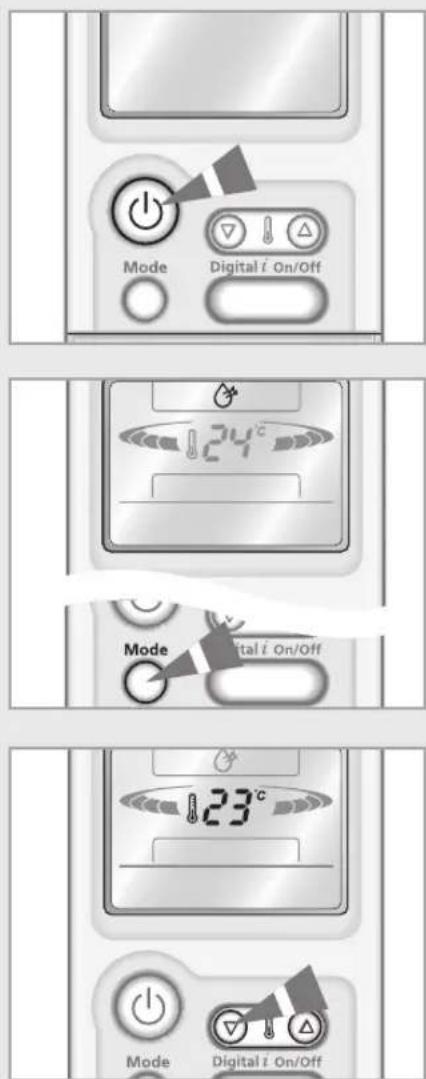

■ Removing Excess Humidity 16
■ Airing Your Room 17

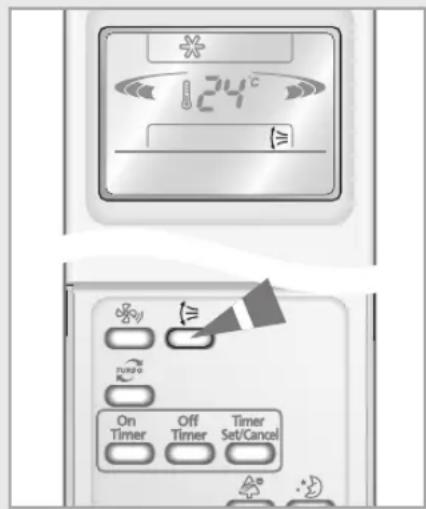

■ Adjusting the Air Flow Direction Vertically 18
■ Adjusting the Air Flow Direction Horizontally 19

◆ PROGRAMMING YOUR AIR CONDITIONER

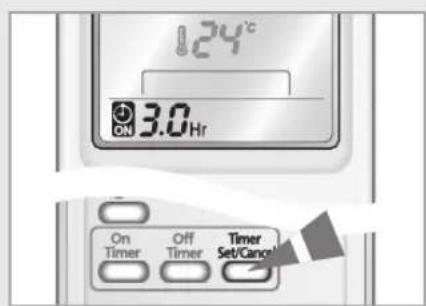

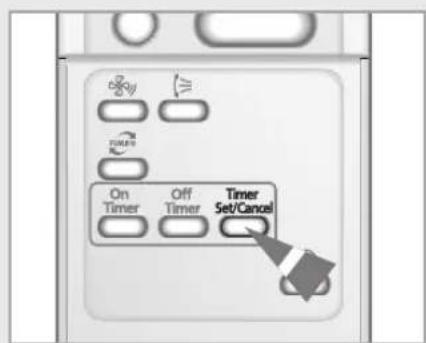

■ Setting the On Timer 20

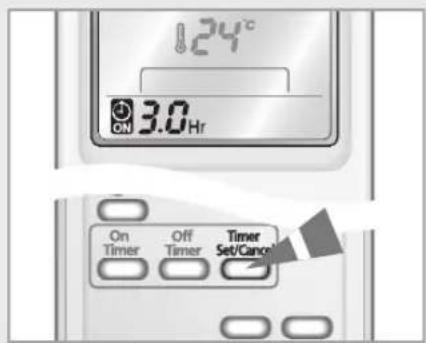

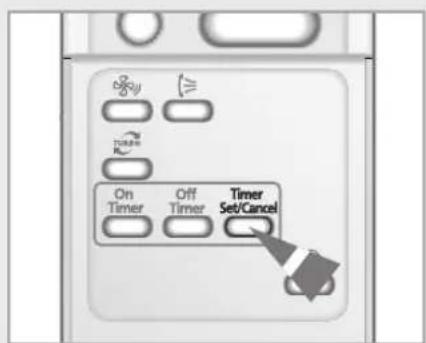

■ Setting the OffTimer 21
■ Setting the Sleep Timer 22

◆ RECOMMENDATIONS FOR USE

■ Operating Recommendations 23
■ Temperature and Humidity Ranges 24

■ Operating Your Air Conditioner Without the Remote Control ..... 24

■ Cleaning Your Air Conditioner 25

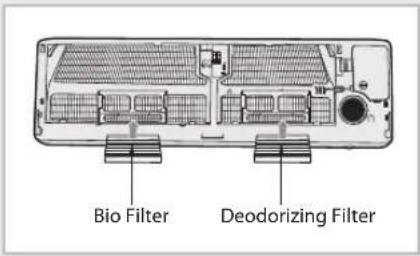

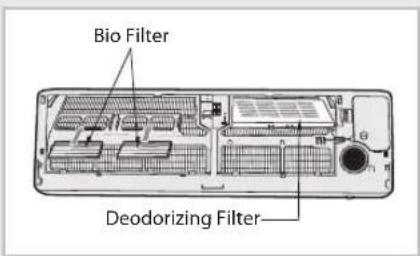

■ Cleaning Deodorizing and Bio Filters (Option) 26

■ Solving Common Problems 27

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Safety Precautions

You should take the following safety precautions when using your air conditioner.

WARNING

• Risk of electric shock can cause injury or death. • Disconnect all remote electric power supplies before servicing, installing or cleaning.
• Installation must be done by the manufacturer or service agent or a similar qualified person in order to avoid a hazard.

WHEN INSTALLING

Cartoon illustration of a hand reaching toward a distressed, distressed airbag (no text or symbols)

Do not install the air conditioner where there's combustible gas.

Do not install the outdoor unit where there's the risk of dropping such as on high outer wall or outside of the terrace.

Illustration showing a person in bed with a hand and a warning sign, next to an air conditioner unit.

▶ Earth the ground conductor and do not connect it to the gas pipe, water pipe or telephone wire.

▶ Contact the service center if the air conditioner is under water.

REGARDING POWER SOURCE

Do not pull the electric wire or touch the power plug with the wet hands.

▶ Install the switch and circuit breaker only for air conditioner.

Illustration of a person using a wall-mounted air conditioner (no text or symbols visible)

▶ Use the rated current fuse.

Do not bend the electric wire by force or weigh down the air conditioner not to be out of order.

▶ Use the power source with separate wiring only for air conditioner.

If the power plug is damaged, replace it by the manufacturer or qualified personal to avoid the risk.

WARNING

DURING OPERATION

Illustration of a person sitting on the floor next to a wall-mounted appliance and a wall-mounted device (no text or symbols visible)

▶ Users of this product are cautioned not to attempt repair of this product at their own discretion. Instead, they are requested to directly contact a designated service center or the outlet at which the product was purchased.

Do not place any obstacles in front of the unit. Make sure that the unit is correctly ventilated at all times: Do not place clothing or other materials over it.

Do not place any materials so that children cannot step on it.

Illustration of a child running while holding a bag, next to an air conditioner (no text or symbols present)

▶ Never spill any kind of liquid into the unit. Should this happen, unplug or main switch off the unit and contact an authorized service center.

If the wireless remote control is not used for a long time, remove the batteries. (If applicable)

Illustration of a car air conditioner unit connected to a printer (no text or symbols visible)

Do not connect the electric heater to the air conditioner or repair it with your discretion.

Do not insert anything between the air outlet blades because the inner fan may be damaged and could cause injury. Keep children away from the unit.

Illustration of a person using a handheld air conditioner (no text or symbols visible)

When using a wireless remote control, the distance should not be more than 7 meters from the air conditioner. (If applicable)

WARNING

DISPOSING THE UNIT

Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely for recycling reasons.

When you need to dispose of the unit, consult your dealer. If pipes are removed incorrectly, refrigerant may blow out and come into contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environments.

Illustration of three people interacting with a box under a sun and hills (no text or symbols)

▶ Please recycle or dispose of the packaging material for this product in an environmentally responsible manner.

CAUTION

WHEN INSTALLING

Illustration of a hand holding a wall-mounted air conditioner next to a cooling fan emitting steam (no text or symbols)

▶ Install the air conditioner avoiding direct sunlight or heater, especially water.

Illustration of a desk with a TV and a sad emoji on a front panel (no text or symbols)

▶ Install the outdoor unit so as to let the discharged air out properly. Avoid a place that may disturb your neighbor by noise.

Illustration of a washing machine with a cup and cord, connected to a wall-mounted air conditioner unit (no text or symbols)

▶ Install the drain hose to let the water run safely and correctly.

Illustration of a person emitting exhaust from a fan-shaped air conditioner (no text or symbols)

▶ Install the outdoor unit not to reach heat to the passage or higher than 2m from the ground when installing it on the road.

CAUTION

REGARDING POWER SOURCE

▶ Disconnect the circuit breaker when you don't use the air conditioner for a long time to save energy.

▶ Contact the service center or manufacturer if you want to repair the air conditioner.

▶ Contact the service center after turning off the air conditioner if strange noise is heard, burning smell or smoke blow.

DURING OPERATION

Child holding a large air conditioner with visible airflow lines (no text or symbols)

▶ Do not open the front grille during operation.

Illustration of a person sitting with a dog under a cloud cover, next to an air conditioner (no text or symbols)

Do not use the air conditioner for a long time in a closed room or in a place where there's a baby or an old person.

Illustration of a potted plant and a cartoon cat under a roof, no text or symbols present

Avoid cold and hot air reaching to person, pet or a plant directly for a long time.

Do not step on the air conditioner or put heavy object on it.

Illustration of a child reacting to a wall-mounted device, no text or symbols present

- Avoid the water from getting into the air conditioner.

Illustration of a person using a hand washing a wall-mounted air conditioner (no text or symbols present)

▶ Do not drink the water from the air conditioner.

CAUTION

DURING OPERATION

Illustration of a person using a hairdryer to spray air from a wall-mounted air conditioner (no text or symbols)

Do not touch the pipes connected to the air conditioner.

Illustration of a person using a handheld air conditioner to clean the air conditioner (no text or symbols visible)

▶ Do not use the air conditioner to maintain the machine, food, pet, plant or cosmetics.

▶ Do not give excessive shock to the air conditioner.

OTHERS

Illustration of a sun with a sad face and a grid, next to a small cartoon character (no text or symbols)

Be sure that the air filter not to be exposed to direct sunlight.

Illustration of a person holding a smiling air conditioner with a hand gesture (no text or symbols present)

The appliance is not intended for use by young children or infirm persons without supervision: Young children should be supervised to ensure that they do not play with the appliance.

Max current is measured according to IEC standard for safety and current is measured according to ISO standard for energy efficiency.

Illustration of a woman cleaning a wall-mounted air conditioner (no text or symbols)

▶ Turn off the air conditioner and if the fan stops to operate, clean the air conditioner.

Illustration of a person holding a washing machine (no text or symbols visible)

▶ Do not clean the air conditioner by spraying water directly or with benzene, thinner or alcohol.

Illustration of a person cleaning a large industrial machine with a cloth (no text or symbols visible)

The surface of the heat exchanger is sharp, so be careful of it when cleaning.

▶ Clean the air filter every 2 weeks.

Illustration of a person using a fan or air conditioner (no text or symbols visible)

▶ Be sure to insert the air filter.

View of the Indoor Unit

Auto grille Air Inlet Room temperature sensor On/Off switch Air filter (under the grille) Air flow blades (outlet) Remote Control Sensor Operation indicator Timer indicator Set temperature & room temperature Sleep Timer indicator Fan speed setting

Note

If you want to turn On/Off the Display during operation, press the button on the remote control.
The room temperature sensor senses air temperature around the sensor, and shows the temperature on the display. So, its value may differ from actual room temperature.

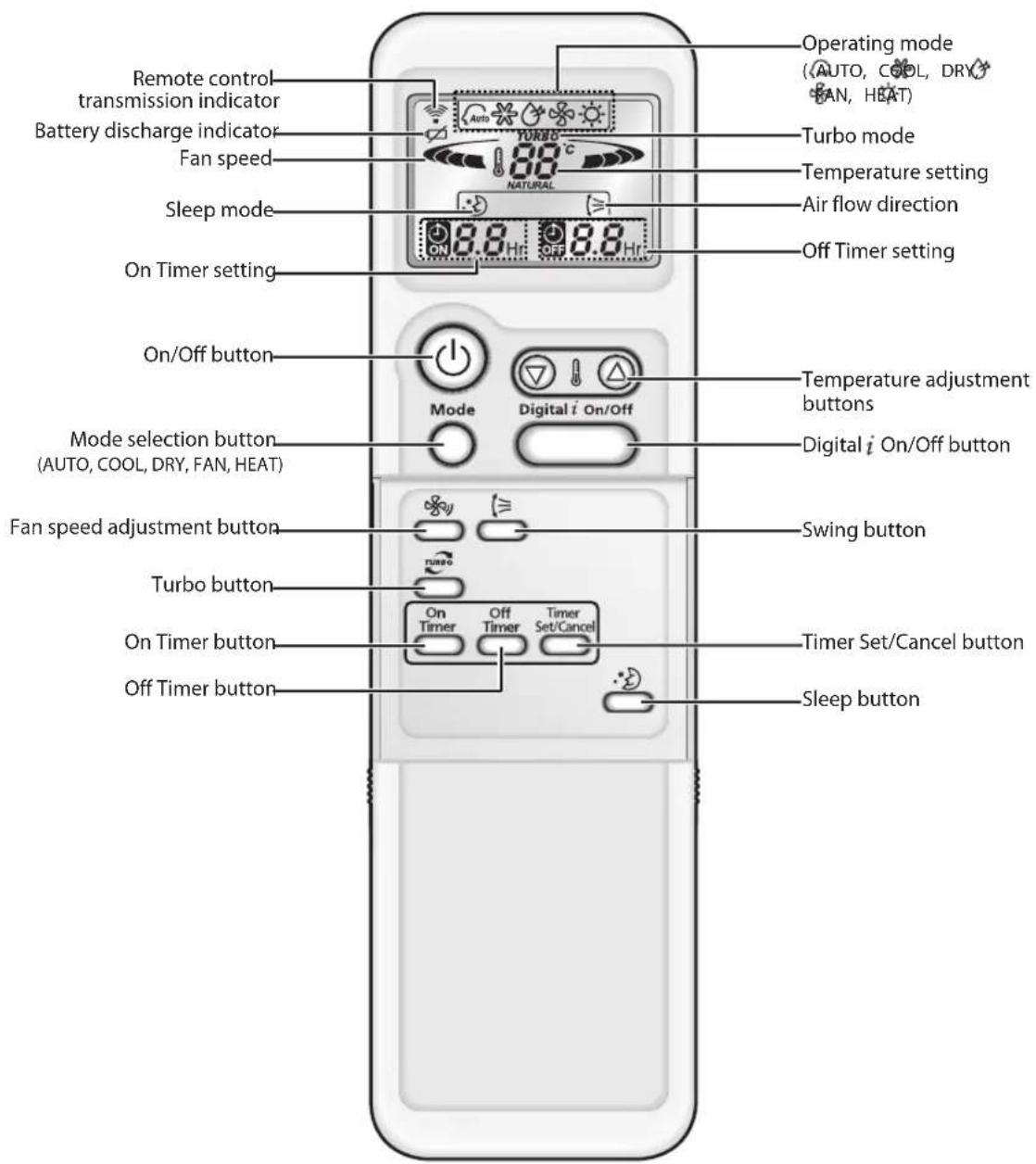

Remote Control-Buttons and Display

Remote control transmission indicator Battery discharge indicator Fan speed Sleep mode On Timer setting On/Off button Mode selection button (AUTO, COOL, DRY, FAN, HEAT) Fan speed adjustment button Turbo button On Timer button Off Timer button Operating mode (AUTO, COOL, DRY, FAN, HEAT) Turbo mode Temperature setting Air flow direction Off Timer setting Temperature adjustment buttons Digital i On/Off button Swing button Timer Set/Cancel button Sleep button

Getting Start

You have just purchased a System air conditioner and it has been installed by your installation specialist.

Your Owner's Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit's features.

The booklet is organized as follows.

◆ The following figures are shown on pages from 8 to 9 :
- Indoor unit
- Remote control(buttons and display)
They will help you find the buttons and understand the symbols displayed.
In the manual, you will find a series of step-by-step procedures for each function available.

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

Inserting the Remote Control Batteries

You must insert or replace the remote control batteries when:

◆ You purchase the air conditioner
◆ The remote control does not work correctly

Note

◆ Use two AAA, LR03 1.5V batteries.
◆ Do not use old batteries or different kinds of batteries together.
◆ Batteries may be completely discharged after 12 months, even if they have not actually been used.

1 Push the battery cover on the rear of the remote control with your thumb in the direction of the arrow and remove it.

2 Insert the two batteries, taking care to respect the polarities: ◆ + on the battery with + on the remote control. ◆ - on the battery with - on the remote control.

3 Close the cover by sliding it back until it clicks into place.

Close-up of a mechanical component with a directional arrow indicating movement (no text or symbols)

Illustration of a remote control panel with a triangular pointer indicating the component (no text or symbols present)

Selecting the Automatic Operating Mode

Mode Digital i On/Off

NATURAL Mode Total i On/Off

You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the optimum temperature and the fan speed is selected automatically.

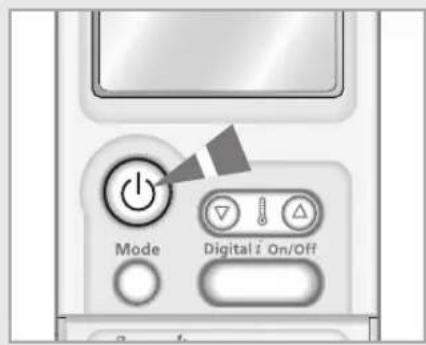

1 If necessary, press the (On/Off) button.

Result ◆ The operation indicator on the indoor unit lights up.

◆ The air conditioner starts up in the mode selected when the unit was last used.

◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in

◆ Stopped

It will start up normally after three minutes.

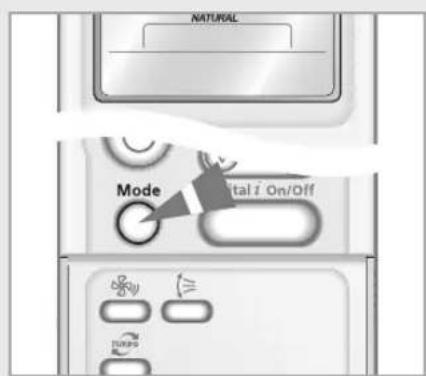

2 If the 📄 is not displayed at the top of the remote control, press the ⏻ button on the remote control one or more times until it appears.

Result ◆ The indoor unit beeps each time you press the ○ button. ◆ The air conditioner runs in AUTO mode.

Note You can change modes at any time.

Cooling Your Room

You must select the Cool mode if you wish to adjust the:

◆ Cooling temperature
◆ Fan speed when cooling

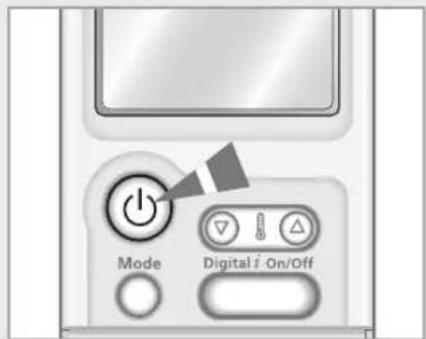

1 If necessary, press the (On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up.

◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

PORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
◆ Stopped
It will start up normally after three minutes.

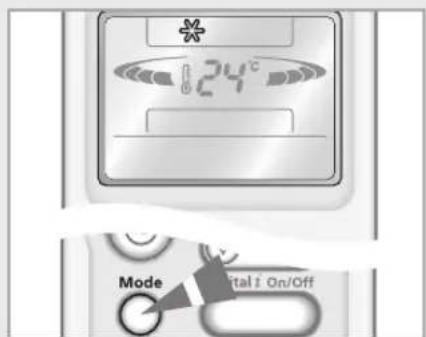

2 If the ✿ not displayed at the top of the remote control, press the 🔔 button on the remote control one or more times until it appears.

Result: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in COOL mode.

Note You can change modes at any time.

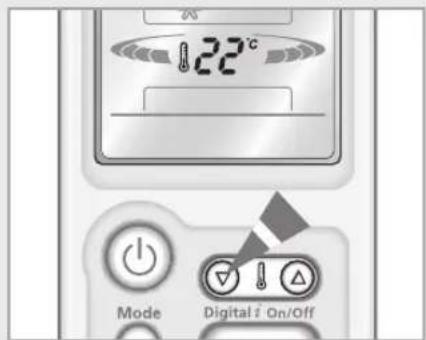

3 To adjust the temperature, press the 🔊 1 🔒 button one or more times until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result: ◆ Each time you press the button:

The temperature is adjusted by 1°C

- The indoor unit beeps

◆ The air conditioner starts cooling, provided that the room temperature is higher than the selected temperature.
◆ If the room temperature reaches the set temperature, the air conditioner stops cooling, but the fan is still operating.

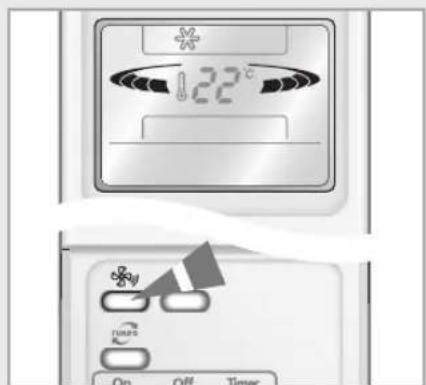

4 Select the fan speed by pressing the button one or more times until the required setting is displayed:

Automatic (rotated : → → →)

Result: Each time you press the 🔊 button, the indoor unit beeps.

5 To control the direction of the air flow, refer to pages 18 and 19.

Mode Digital f On/Off

24°C Mode Digital / On/Off

22°C Mode Digital i On/Off

22°C On Off Timer

Heating Your Room

Mode Digital i On/Off

24°C Mode Capital 1 On/Off

28°C Mode Digital+/-

28°C FUSU

You must select the Heat mode if you wish to adjust the:

◆ Heating temperature
◆ Fan speed when heating

1 If necessary, press the ⏻ (On/Off) button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
◆ Stopped
It will start up normally after three minutes.

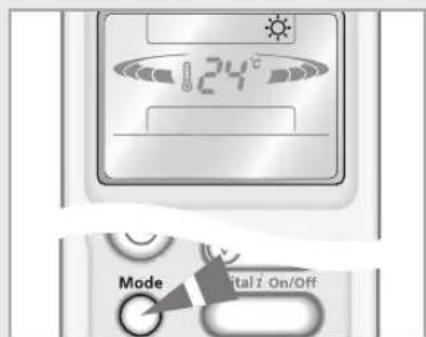

2 If the ⚙ is not displayed at the top of the remote control, press the ⚗ button on the remote control one or more times until it appears

Result:

◆ The indoor unit beeps each time you press the ⏰ button.
◆ The air conditioner runs in HEAT mode.

Note

You can change modes at any time.

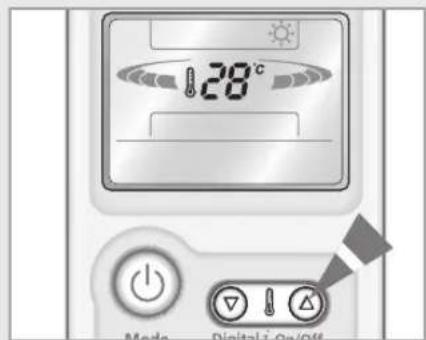

3 To adjust the temperature, press the 📋1 🔊 button one or more times until the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result:

◆ Each time you press the 🔊️ ▲ button:

- The temperature is adjusted by 1°C - The indoor unit beeps

◆ The air conditioner starts heating, provided that the room temperature is higher than the selected temperature (selected temperature+3°C).
If the room temperature reaches the set temperature, the air conditioner stops heating, but the fan is still operating.

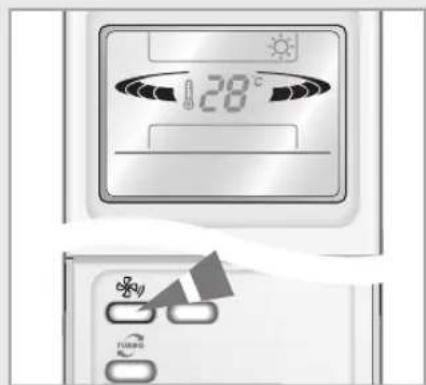

4 Select the fan speed by pressing the 📋 button one or more times until the required setting is displayed:

Automatic (rotated : → → → →)

Result:

◆ Each time you press the 🎩 button, the indoor unit beeps.
For the first 3 to 5 minutes, the fan operates very slowly until the air has been sufficiently warmed. Once the correct temperature has been reached, the fan is automatically set to the required speed.

5 To control the direction of the air flow, refer to pages 18 and 19.

Changing the Room Temperature Quickly

The Turbo cooling/heating function is used to cool or heat your room as quickly as possible.

For example: You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible.

The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected.

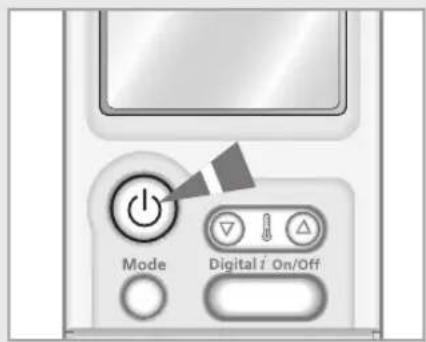

1 If necessary, press the (On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up.

◆ The air conditioner starts up in the mode selected when the unit was last used.

◆ The indoor unit beeps.

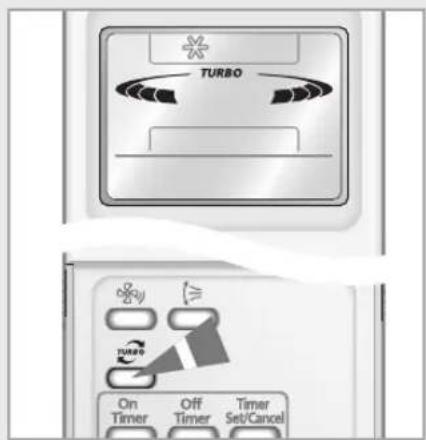

2 Press the button.

Result: ◆ The temperature and fan settings are adjusted automatically.

◆ The air conditioner cools or heats the room as quickly as possible.

After 30 minutes, the air conditioner is reset automatically to the previous mode, temperature and fan settings. But, if you press the button in DRY or FAN mode, it will change to AUTO mode automatically.

3 If you wish to stop the Turbo function before the end of the 30-minute period, press the button again.

Result: The air conditioner is reset automatically to the previous mode, temperature and fan settings.

4 To control the direction of the air flow, refer to pages 18 and 19.

Mode Digital i On/Off

TURBO On Timer Off Timer Timer Set/Cancel

Removing Excess Humidity

If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much.

1 If necessary, press the (On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up.

◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
◆ Stopped It will start up normally after three minutes.

2 If the ⚡ not displayed at the top of the remote control, press the ⏻ button on the remote control one or more times until it appears.

Result: ◆ The indoor unit beeps each time you press the button. The air conditioner runs in DRY mode.

Note You can change modes at any time.

3 To adjust the temperature, press the 📋! button one or more times until the required temperature is displayed. Possible temperatures are between 18°C and 30°C inclusive.

Result: ◆ Each time you press the Ⓤ1A button: - The temperature is adjusted by 1°C - The indoor unit beeps

◆ The air conditioner starts removing the excess humidity; the quantity of air is adjusted automatically.

4 To control the direction of the air flow, refer to pages 18 and 19.

Airing Your Room

If the atmosphere in your room is stale, you can air the room using the Fan feature.

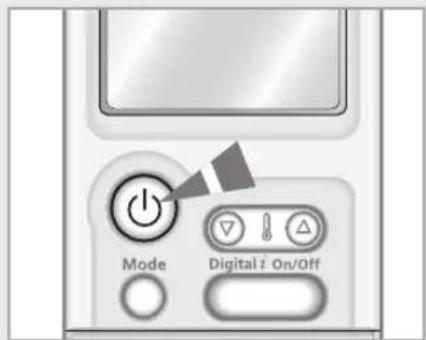

1 If necessary, press the (On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up.

◆ The air conditioner starts up in the mode selected when the unit was last used.

◆ The indoor unit beeps.

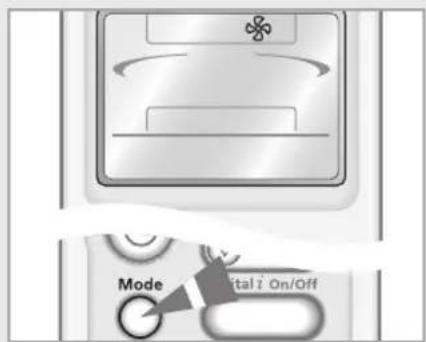

2 If the ☑ not displayed at the top of the remote control, press the 🔧 button on the remote control one or more times until it appears.

Result: ◆ The indoor unit beeps each time you press the button.

◆ The air conditioner runs in FAN mode. ◆ The temperature is set automatically.

Note You can change modes at any time.

3 Select the fan speed by pressing the 📋 button one or more times until the required setting is displayed:

Result: Each time you press the 📋 button, the indoor unit beeps.

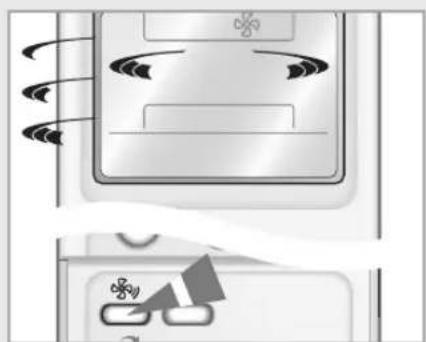

4 To control the direction of the air flow, refer to pages 18 and 19.

Mode Digital i On/Off

Mode Capital i On/Off

Diagram of a refrigerator with airflow indicators and window controls (no text or symbols)

Adjusting the Air Flow Direction Vertically

24°C On Timer Off Timer Set/Cancel

Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, thus increasing the efficiency of the air conditioner.

1 Press the 🔊 button one or more times as required.

Result: The outer blade is adjusted vertically.

RECOMMENDATION

When... Adjust the blade to face...

Cooling Upwards.

Heating Downwards.

2 If you want the blade to move up and down automatically when the air conditioner is operating, press the 🔔 button.

Result: The blade moves up and down, around the base position set.

3 To stop the blade moving up and down, press the button again.

Note

If you switch the air conditioner... Then the blade is...

Off Closed completely.

On again Set to the initial position

powered.

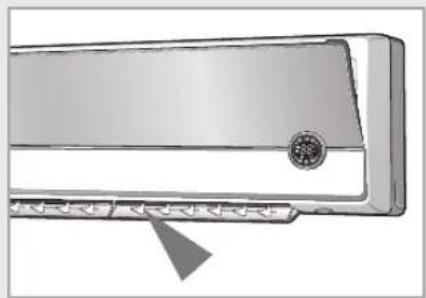

Adjusting the Air Flow Direction Horizontally

There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally.

1 Adjust each set of inner blades to the required position, by pushing or pulling them sideways.

Illustration of a silver air conditioner panel with a circular button and a triangular clip (no text or symbols)

Setting the On Timer

124° ON 3.0 Hr On Timer Timer Reset/Cancel

124°C ON 3.0 Hr On Timer Off Timer Timer Timer Set/Cancel

24°C 3.0 Hr Mode Total On/Off

On Timer Off Timer Timer Set/Cancel

The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours.

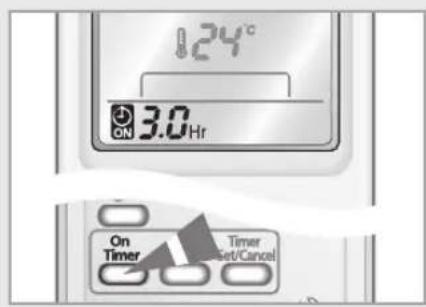

1 To set the operating time, press the button one or more times until the required time is displayed. Possible time is between 0.5 hour and 24 hours inclusive.

2 Press the (Set/Cancel) button to complete the setting.

Result:

◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The selected mode and the temperature on the display disappear after 10 seconds.
◆ The air conditioner will switch on automatically when the counter displayed on the remote control reaches the set time and disappears the On timer setting.

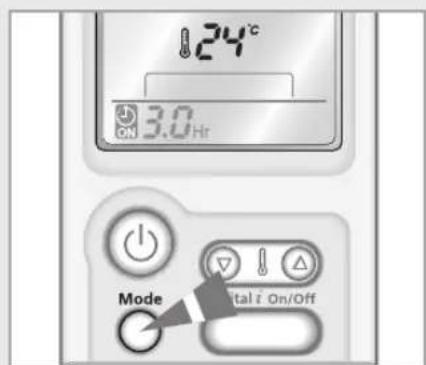

3 To select an operating mode in advance, press the button until the desired mode is displayed at the top of the remote control.

Result

◆ The air conditioner will run in the selected mode when it is turned on.

To Cancel the On Timer

1 Press the (Set/Cancel) button.

Note

◆ If you press the 📋 button when the On Timer is set, the On Timer is also cancelled.

Setting the Off Timer

The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours.

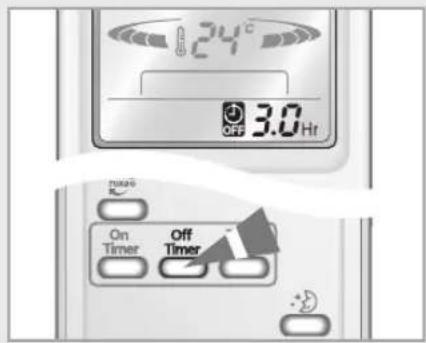

1 To set the operating time, press the 📋 button one or more times until the required time is displayed. Possible time is between 0.5 hour and 24 hours inclusive.

2 Press the 📄 (Set/Cancel) button to complete the setting.

Result:

◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The air conditioner will switch on automatically when the counter displayed on the remote control reaches the set time and disappears the Off timer setting.

Example If you would like to turn the air conditioner on after 2 hours and to operate it for 2 hours:

1. Press the 📄 button until '2.0 Hr' is displayed.
2. Press the Set/Cancel (Set/Cancel) button.
3. Press the button until '4.0 Hr' is displayed.
4. Press the ☐ (Set/Cancel) button.

Note You can see or change the setting mode and/or the temperature by pressing the ⏻ button or the ⓑ 1 Ⓐ button after setting the Off timer.

34°C 3.0 Hr On Timer Off Timer

124°C ON 3.0 Hr On Timer Off Timer Set/Cancel

To Cancel the Off Timer

1 Press the 📄 (Set/Cancel) button.

Note ◆ If you press the 📁 button when the Off Timer is set, the Off Timer is also cancelled.

On Timer Off Timer Timer Set/Cancel

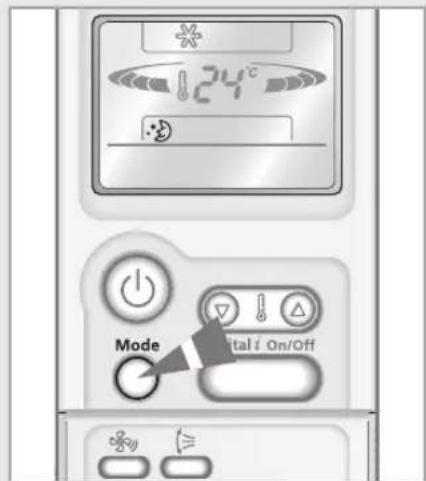

Setting the Sleep Timer

24°C Mode tal i On/Off

The Sleep Timer can be used when you are cooling or heating your room to switch the air conditioner off automatically after a period of 6 hours.

Note: If you wish to switch the unit off at a specific time, refer to page 22.

1 Make sure that you have selected either COOL or HEAT mode.

2 Press the button.

Result: ◆ The indoor unit beeps.

◆ The air conditioner will be controlled as indicated in the illustrations below.

Cooling

The desired temperature is increased by 1°C every hour. When it has been increased by 2°C (after 2 hours), the temperature is maintained for 4 hours.

Heating

The desired temperature is decreased by 1°C every hour. When it has been decreased by 2°C (after 2 hours), the temperature is maintained for 4 hours.

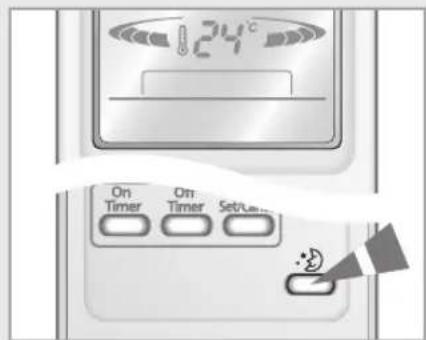

To Cancel the Sleep Timer

If you no longer wish to use the Sleep Timer that you have set, you can cancel it at any time.

24°C On Timer On Timer Set/Large

1 Press the button.

Result ◆ The indoor unit beeps.

◆ The :* is no longer displayed.

◆ The air conditioner operates normally.

Operating Recommendations

Here are a few recommendations that you should follow when using your air conditioner.

Topic Recommendation
Heating capacity	The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. If you find that the room is not warm enough, use an additional heating appliance.
Warm air circulation	The air conditioner circulates warm air to heat your room; as a result, some time will be required after starting the air conditioner to warm the entire room. If necessary, set the air conditioner on before you wish to use the room.
Frost & Defrost When outside temperatures are low and humidity is high, frost may form in the outdoor unit when heating is selected.If this happens:◆ The heating operation is stopped.◆ The Defrost mode is triggered automatically for about 10 minutes.◆ The steam produced on the outdoor unit in the defrost mode is safe.No intervention is required from you; after about 10 minutes, the air conditioner starts operating again normally.
High indoor and outdoor	If both the indoor and outdoor temperatures are high and you select the Heat mode, the outdoor unit's fan and compressor may stop at times. This is normal; simply wait until the air conditioner switches on again.
Power failure	If a power failure occurs when the air conditioner is operating, the unit is switched off. When the power returns, the air conditioner starts up again automatically.

Temperature and Humidity Ranges

The following table indicates the temperature and humidity ranges within which the air conditioner can be used.

If the air conditioner is used at... Then...

High temperatures	The automatic protection feature may be triggered and the air conditioner stopped.
Low temperatures	A water leak or some other malfunction may occur if the heat exchanger freezes.
High humidity levels	Water may condense on and drip from the surface of the indoor unit if it is used for long periods.

Mode Outdoor Temperature Indoor Temperature Indoor Humidity

Heating -20°C to 24°C approx. 27°C or less

Cooling -5°C to 43°C approx. 21°C to 32°C approx. 80% or less

Drying -5°C to 43°C approx. 18°C to 32°C approx.

The standardized temperature for heating is 7^ C. If the outdoor temperature drops to 0^ C or below, the heating capacity can be reduced depending on the temperature condition. If the cooling operation is used at over 32^ C(indoor temperature) then, it does not cool at its full capacity.

Operating Your Air Conditioner Without the Remote Control

Illustration of a device rear panel with a circular component and a handle (no text or symbols)

Diagram of a kitchen sink with a circular dial and handle, showing no text or symbols

Your air conditioner can be operated directly from the indoor unit if the remote control is lost or broken.

1 Slide the lower front grille down.

2 To turn the air conditioner on, press the On/Off button in the front grille of the indoor unit.

Result:

◆ The Operation indicator on the indoor unit lights up.
◆ The indoor unit beeps.
◆ The air conditioner starts up in the appropriate mode for the room temperature. The air conditioner changes the Cool or Heat mode automatically depending on the current temperature during operation.

Room Temperature

Lower than 21°C

Higher than 21°C

Operating Mode

Heating

Cooling

3 To turn the air conditioner off, press the On/Off button again.

Note

Even if you turned the air conditioner on with the On/Off button, you can control it with the remote control.

Cleaning Your Air Conditioner

For the best use of your air conditioner, you must clean it every 2 weeks regularly to remove the dust that accumulates on the air filter.

PORTANT

Before cleaning your air conditioner, ensure that you have switched off the breaker used for the unit.

1 Slide the lower front grille down.
2 Slide the upper front grille up slightly, then open the grille by pulling right and left sides of the grille.
3 Disassemble the upper front grille by opening the grille completely.
4 Lift out the bottom edge of the air filters and pull down to release them.
5 Remove all dust on the air filters with a vacuum cleaner or brush.
6 When you have finished, insert the top part of the filters into their slot and push down on the bottom edge until they click into place.
7 Clean the front grille with a damp cloth and mild detergent (do NOT use benzene, solvents or other chemicals).

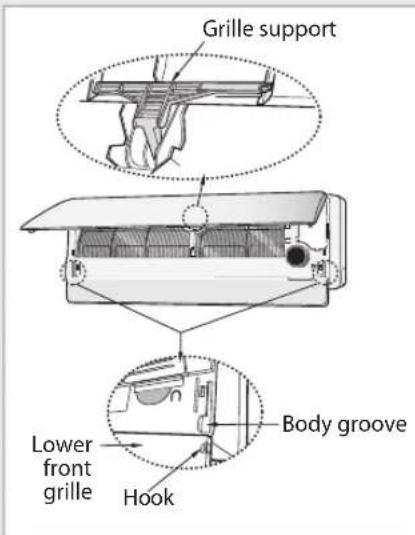

8 Fix the left side of grille support, then insert the right side of grille support.

Note

If you have not used the air conditioner for a long period of time, set the fan going for 3 to 4 hours to dry the inside of the air conditioner thoroughly.
◆ To close the upper front grille completely after cleaning filters, turn on and turn off the air conditioner.

Illustration of a wall-mounted air conditioner unit with a circular vent and handle (no text or symbols)

Grille support Lower front grille Hook Body groove

Cleaning Deodorizing and Bio Filters (Option)

**020/022/026/028/035/036**

Bio Filter Deodorizing Filter

***056/071***

Bio Filter Deodorizing Filter

To remove minute dust particles and odors, deodorizing and Bio filters are installed in the air conditioner.

You should clean the filters every 3 months.

1 Open the upper front grille by pulling right and left sides of the grille.

2 Pull out the deodorizing and Bio filters.

3 Wash the filters with clean water, then dry them in the shade.

4 Insert the filters into the original position. Note You can change the position of filters with each other.

5 Close the front grille.

Before contacting the after-sales service, perform the following simple checks.

They may save you the time and expense of an unnecessary call.

Problem Explanation/Solution
The air conditioner does not operate at all.	◆ Check if power is on and operate the air conditioner again.◆ Check if the circuit breaker is switched off.◆ Check if Off Timer is set.
The temperature is not adjusted.	◆ Check if you selected the Fan mode.
The air conditioner does not operate in the HEAT mode.	◆ Check if the air conditioner is cooling only model.◆ Check if the remote control is for cooling only model.
The cool(warm) air does not come out from the air conditioner.	◆ Check if set temperature higher(lower) than current temperature.◆ Check if you selected the Fan mode. Select the Cool, Heat, Auto or Dry mode.◆ Check if the air filter is blocked by dirt. Clean the air filter regularly.◆ Check if the there is cover on the outdoor unit or any obstacle.Remove the cover or obstacle.◆ Check if you installed the air conditioner under direct sunlight.◆ The window or door may be opened.◆ Check if you turn on the air conditioner just now.It takes about 3 minutes to cool or heat the room.◆ Check if the drain pipe is too long.
The fan speed is not adjusted.	◆ In Auto or Dry mode, the fan speed is selected automatically.
The remote control does not operate.	◆ Check if the battery is discharged. Replace the battery.◆ Check if the remote control sensor is blocked.◆ Check if the air conditioner is placed near strong light.
The wired remote control does not operate.	◆ Check if displayed on the wired remote control. Turn off the air conditioner and switch off the circuit breaker. Contact the service center.
The Timer is not set.	◆ Check if you pressed the button after selecting time.
The air conditioner does not turn on or off with the wired remote control.	◆ Check if you set the wired remote control for group control.
Odor is permeated in the room during operation	◆ Check if you use the air conditioner in smoky area or there is a smell.Ventilate the room or select the Fan mode for 1~2 hours.
The indoor unit indicator flashes.	◆ Press the button to turn on the air conditioner again.Switch the circuit breaker off and switch on it again.
Strange sound is heard from the air conditioner.	◆ The sound is heard when the refrigerant gas flow is changed depending on the use of the air conditioner.◆ When you press the button, noise may be heard from the drain pump inside of the air conditioner.◆ When you press the button, noise may be heard that the air conditioner sense the airflow blade.
Water drops from the outdoor unit connection part.	◆ Water may form due to the difference of the temperature.

SAMSUNG

ELECTRONICS

Contact SAMSUNG WORLD WIDE

If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center.

Country Customer Care Center Web Site
BELGIUM 02 201 2418 www.samsung.com/be
CZECH REPUBLIC 844 000 844 www.samsung.com/cz
DENMARK 38 322 887 www.samsung.com/dk
FINLAND 09 693 79 554 www.samsung.com/fi
FRANCE 08 25 08 65 65 (0,15	€/min) www.samsung.com/fr
GERMANY 01805 - 121213 (	€0,12/min) www.samsung.de
HUNGARY 06 40 985 985 www.samsung.com/hu
ITALIA 199 153 153 www.samsung.com/it
LUXEMBURG	02 261 03 710 www.samsung.lu
NETHERLANDS	0900 20 200 88 (€0.10/min)	www.samsung.com/nl
NORWAY	231 627 22 www.samsung.com/no
POLAND	0 801 801 881 www.samsung.com/pl
PORTUGAL	80 8 200 128	www.samsung.com/pt
SLOVAKIA	0850 123 989	www.samsung.com/sk
SPAIN	902 10 11 30	www.samsung.com/es
SWEDEN	08 585 367 87 www.samsung.com/se
U.K	0870 242 0303	www.samsung.com/uk
