USER MANUAL TKL 60 N Tecnik

Instructions for use

TKL 60

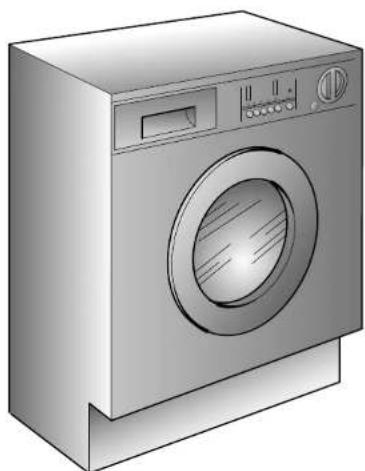

Illustration of a silver front-loading washing machine with control panel and door (no text or symbols)

Introduction

Please read these instructions for use carefully and all other information enclosed with the washing machine.

Keep all documentation in a safe place for future reference or for any future owners.

Note: this machine is solely for domestic use.

Notes on disposal

All packaging material used is environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means.

Your supplier or local council will be able to give you details of current means of disposal.

Valuable materials can be salvaged from an old appliance via scrap reprocessing.

Note: pull out the mains plug from any old appliance. Cut the power cable and dispose of it, together with the plug.

When disposing of an old washing machine, please ensure that the door lock is rendered inoperable to prevent children shutting themselves in the appliance.

Contents Page

Introduction 2

General delivery notes 4

Safety notes 4

Quick start 5

Description of controls 6

Programme Table 12

Programme selector 14

Detergent drawer 16

Detergents, washing aids and amounts to use 17

Useful advice for the user 19

The main wash 20

Cleaning and routine maintenance 22

Investigating malfunctions 23

Technical data 25

Setting up + installation 26

BEFORE SWITCHING ON THE APPLIANCE MAKE SURE IT IS CORRECTLY INSTALLED AND THAT THE TRANSIT SCREWS AND POLYSTYRENE PACKING IS REMOVED AND THE INSTALLATION IS ON A FIXED BOARD AS SHOWN ON PAGE 26-27.

General delivery notes

Please check that the following items are delivered with the appliance:

- Instruction manual

- Certificate of guarantee and warranty cards.

- Inlet hose

Check that no damage has occurred during transit, and if so, call your nearest Authorised Technical Support Service agent.

Safety notes.

Note: for cleaning or maintenance of the washing machine.

A) Pull out the plug

B) Turn off the tap

C) Tecnik equips all its appliances with earthing. Ensure that the mains supply is earthed, and if it is not, seek assistance from a qualified person.

D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance with bare feet.

E) The use of adapters, multiple connectors and/or extensions is not recommended.

Note: water temperature can reach 90^ during the wash cycle.

F) Check there is no water left in the drum before opening the door.

G) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.
H) Do not pull the power cable or the appliance itself to remove the plug from the socket.
I) The appliance must not be exposed to weather conditions (rain, direct sun, etc...)
J) When moving the appliance never lift it by the controls or by the detergent drawer. When in transit never rest the door against the trolley or transport the appliance without the polystyrene base.

K) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do not tamper with the appliance.

Consult only the Authorised Technical Support Service for possible repair and ask them to use original spare parts.

Failure to comply with the above can compromise the safety of the appliance.

L) If the appliance's power cable should ever need replacing, consult the Authorised Technical Support Service

Quick start

Washing

• Open the door by using the handle "A" (Fig. 1, page 6)
• Select laundry and put it in the machine
• Close the door
• Put detergent in the compartments as indicated in the programme guide in this instruction manual
• Select programme
• Wait for the "STOP" indicator light to flash

Press additional function buttons (if required)

• Press the "Start/Pause" button (page 7)
• After few seconds the appliance starts working.

After washing

• The indicator light "STOP" will go on.
• Wait for the door lock to be released (about 2 minutes after the programme has finished). The "Door Security" indicator light will go out.
• Switch off the washing machine by turning the selector to "OFF" position.
• Open the door and remove the laundry.

Ensure that the machine is correctly installed in line with the instructions found on page 26.

Description of controls

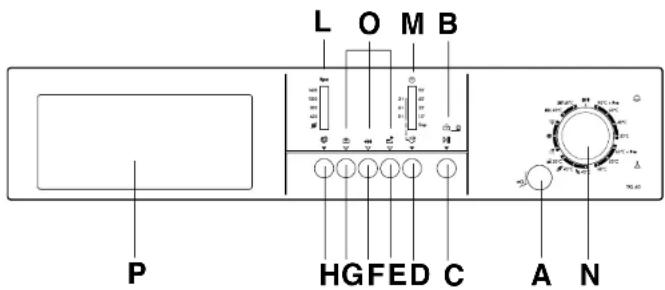

Fig. 1

L O M B P HGFED C A N

Door open button A

"Door Security" indicator light B

"Start/Pause" button C

"Delay Start" button D

"Easy Iron" button E

"Allergy care" button F

"Cold wash" button G

"Spin Speed" button H

Spin speed indicator light L

"Time To End" and "Delay Start" indicator light M

Programme selector with "OFF" position N

Buttons indicator light O

Detergent drawer P

Door open button

A

Important:

a special safety device prevents the door from opening at the end of the wash/spin cycle. at the end of the spin phase wait up to 2 minutes before opening the door.

DOOR SECURITY indicator light

B

The "Door Security" indicator light is illuminated when the door is fully closed and the machine is ON. When "Start/Pause" is pressed on the machine with the door closed the indicator will flash momentarily and then illuminate.

If the door is not closed the indicator will continue to flash.

A special safety device prevents the door from being opened immediately after the end of the cycle. Wait for 2 minutes after the wash cycle has finished and the "Door Security" light has gone out before opening the door. At the end of the cycle turn the programme selector to "OFF".

START/PAUSE button

C

When a programme is selecting, wait for the "STOP" indicator light to flash before pressing the "Start/Pause" button.

Press to start the selected cycle (according to the selected cycle one indicator lights will go on).

NOTE: When the "Start/Pause" button has been pressed, the appliance can take few seconds before it starts working.

Changing the settings after the programmes have started (PAUSE)

The programme may be paused at any time during the wash cycle by holding down the "Start/Pause" button for about two seconds. When the machine is in the paused mode, the indicator light "Time To End" and option buttons will flash.

To restart the programme, press the "Start/Pause" button once again.

If you wish to add or remove items during washing, wait 2 minutes until the safety device unlocks the door. Ensure no water is present in the drum.

When you have carried out the manoeuvre, close the door, press "Start/Pause" button and the appliance will continue working where it left off.

CANCELLING THE PROGRAMME

To cancel the programme, set the selector to the OFF position.

Select a different programme

Re-set the programme selector to the OFF position.

The option buttons should be selected before pressing the "Start/Pause" button.

DELAY START button

D

Appliance start time can be set with this button, delaying the start by 3, 6 or 9 hours.

Proceed as follows to set a delayed start:

Select a programme ("STOP" indicator light blinks)

Press "Delay Start" button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding light will blink).

Press "Start/Pause" to commence the Delay Start operation (the indicator light associated with the selected Delay Start time stops blinking and remains ON).

At the end of the required time delay the programme will start.

To cancel the Delay Start function :

press the "Delay Start" button until the indicator lights are off (The "STOP" light blinks) and the programme can be started manually using the "Start/Pause" button or switch off the appliance by turning the programme selector to "OFF" position.

Warning: If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

"EASY IRON" button

E

The Fast Iron function (Not available on COTTON programmes) minimizes creases as much as possible with a uniquely designed anti-crease system that is tailored to specific fabrics.

MIXED FABRICS - the water is gradually cooled throughout the final two rinses with no spinning and then a delicate spin assures the maximum relaxation of the fabrics.

DELICATE FABRICS – after the final two rinses with no spinning the machine stops in the final rinse stage and the option indicators blink. The load is held in the water in the drum, thus reducing creasing and enabling easier ironing.

WOLLENS/HAND WASH – after the final rinse the load is held in the water in the drum, thus reducing creasing and enabling easier ironing and the option indicators blink.

To complete the cycle press the Easy Iron button and the machine will pump out the water and complete the cycle.

If you do not want to spin the clothes and activate drain only:

• Turn the programme selector to the "OFF" position;
• Select programme drain only ☑;
• Switch on the appliance again by pressing the "Start/Pause" button.

ALLERGY CARE button +

F

By pressing this button you can activate a special new wash cycle in the Cotton and Mixed Fabrics programs, thanks to the new Sensor System. This option treats with care the fibres of garments and the delicate skin of those who wear them.

The load is washed in a much larger quantity of water and this, together with the new combined action of the drum rotation cycles, where water is filled and emptied, will give you garments which have been cleaned and rinsed to perfection. The amount of water in the wash is increased so that the detergent dissolves perfectly, ensuring an efficient cleaning action. The amount of water is also increased during the rinse procedure so as to remove all traces of detergent from the fibres. This function has been specifically designed for people with delicate and sensitive skin, for whom even a very small amount of detergent can cause irritation or allergy.

You are advised to also use this function for children's clothing and for delicate fabrics in general, or when washing garments made of towelling, where the fibres tend to absorb a greater quantity of detergent. To ensure the best performance for your wash, this function is always activated on the Delicates and Woollens/Hand wash programs.

COLD WASH button

G

By pressing this button it is possible to transform every programme into a cold washing one, without modifying other characteristics (water level, times, rythmes, etc...).

Curtains, small carpets, man made delicate fabrics, non coulor fast garments can be safely washed thanks to this new device.

SPIN SPEED button

H

The spin cycle is very important to remove as much water as possible from the laundry without damaging the fabrics. You can adjust the spin speed of the machine to suit your needs.

By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle can be cancelled.

To reactivate the spin cycle press the button until you reach the spin speed you would like to set. To prevent damage to the fabrics, it is not possible to increase the speed over that which is automatically suitable during the selection of the program.

It is possible to modify the spin speed without to pausing the machine.

Note:

The machine is fitted with a special electronic device, which prevents the spin cycle should the load be unbalanced.

This reduces the noise and vibration in the machine and so prolongs the life of your machine.

Spin speed indicator light

L

When you set a program, the maximum possible spin speed will be automatically shown by the relevant indicator light.

Choosing a smaller spin speed by the appropriate button, the relevant indicator light will go on.

TIME TO END indicator light

M

In order to manage your time better, this washing machine features an indicator light system that keeps you constantly informed on the remaining cycle time.

Indicator light 90:

Remaining time above 60 minutes.

Indicator light 60:

Remaining time less than 60 minutes.

Indicator light 30:

Remaining time less than 30 minutes.

Indicator light 15:

Remaining time less than 15 minutes.

Indicator light STOP

End of the programme.

PROGRAMME selector with "OFF" position

N

Rotates in both directions.

The machine is turned on by selecting a programme via the programme selector. This status will be indicated by the "STOP" indicator light flashing, this light will continue to flash until the machine has started or the machine is returned to the "OFF" position.

Hand pressing a button on a device (no text or symbols visible)

Press the "Start/Pause" button to start the selected cycle.

Once a programme is selected the programme selector remains stationary on the selected programme till cycle ends.

Switch off the washing machine by turning the selector to "OFF".

Note:

The programme selector must be returned to the "OFF" position at the end of each cycle or when starting a subsequent wash cycle prior to the next programme being selected and started.

Buttons indicator light

0

The indicator light around the option buttons will light when specific options are selected. If you select an option button that is not compatible with the programme required the button light will not illuminate.

TABLE OF PROGRAMMES

PROGRAM FOR:		PROGRAMME SELECTOR ON:	WEIGHT MAX kg	TEMP. °C	CHARGE DETERGENT
					III
Resistant fabrics Cotton, linen	Whites with prewash	90°C + Pre	7	90°	●	●	●
Cotton, mixed	Fast coloureds	60°C **	7	60°	●	●
	Fast coloureds	40°C **	7	40°	●	●
	Non fast coloureds	30°C	7	30°	●	●
Mixed fabrics and synthetics Mixed, resistant	Fast coloureds with Prewash	60°C + Pre	3.5	60°	●	●	●
Synthetics (nylon, perlon), mixed cotton	Fast coloureds	50°C	3.5	50°	●	●
	Non fast coloureds	40°C	3.5	40°	●	●
Very delicate fabrics	Delicates	40°C	2.5	40°	●	●
	"MACHINE WASHABLE" woollens	40°C	2	40°	●	●
	Hand wash	30°C	1.5	30°	●	●
Specials	Rinse		-	-		●
	Fast spin		-	-
	Drain only		-	-
	"ALL 40°C" system programme	ALL 40°C	7	40°	●	●
	Rapid 30 minute	30'40°C	2.5	40°	●	●

Illustration of a bagging machine with three bottles and a flower, no text or symbols present

Please read these notes

When washing heavily soiled laundry it is recommended the load is reduced to 4 kg maximum.

** STANDARD COTTON PROGRAMMES ACCORDING TO (EU) No 1015/2010 and No 1061/2010

COTTON PROGRAMME with a temperature of 60°C

COTTON PROGRAMME with a temperature of 40°C

These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumptions for washing cotton laundry.

These programmes have been developed to be compliant with the temperature on the wash label on the garments and the actual water temperature may slightly differ from the declared temperature of the cycle.

The spin speed may also be reduced, to match any guidelines suggested on the fabric label, or for very delicate fabrics cancel the spin completely this option is available with a spin speed button.

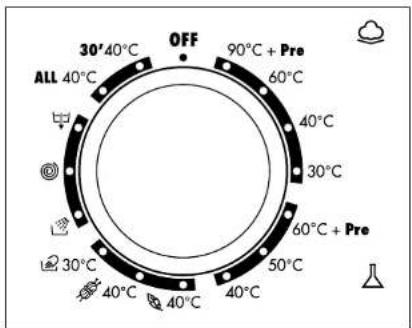

30°40°C OFF ALL 40°C 90°C + Pre 60°C 40°C 30°C 60°C + Pre 50°C 40°C 30°C 40°C 40°C 40°C

Programme selector

For the various types of fabrics and various degrees of dirt the washing machine has different programme bands according to: wash cycle, temperature and length of cycle (see table of washing cycle programmes).

RESISTANTS FABRICS

The Cotton programmes are designed for maximum washing and rinsing efficiency. With spin cycles in between, the programme guarantees the laundry is rinsed perfectly. The final spin cycle ensures laundry is spun dry as much as possible up to the maximum speed.

The Cotton programme includes a Prewash cycle. This option is particularly useful for really dirty loads. Additional detergent for the Prewash part of the programme should be added to the first compartment of the soap drawer labelled "II" (please refer to the section of this manual entitled "Detergent"). We recommend you use only 20% of the quantity used for the main wash programme.

MIXED AND SYNTHETIC FABRICS

The main wash and rinse gives the best results thanks to the rotation rhythms of the drum and to the water levels.

A gentle spin will mean that the fabrics become less creased.

SPECIAL DELICATE FIBRES

This is a new wash cycle which alternates washing and soaking and is particularly recommended for very delicate fabrics such as Pure Machine Washable Wool. The wash cycle and rinses are carried out with high water levels to ensure best results.

WOOL PROGRAMME

The special cycle enables to thoroughly wash garments without damaging them. The cycle comprises of alternate periods of activity and pauses.

SPECIAL "HAND WASH"

This washing machine also has a gentle Hand Wash programme cycle. This programme allows a complete washing cycle for garments specified as "Hand Wash only" on the fabric care label. The programme has a temperature of 30^ and concludes with 3 rinses and a slow spin.

SPECIALS

SPECIAL "RINSE" PROGRAMME

This programme carries out three rinses with a intermediate spin (which can be reduced or excluded by using the correct button). It can be used for rinsing any type of fabric, eg. use after hand-washing.

SPECIAL "FAST SPIN" PROGRAMME

Programme "FAST SPIN" carries out a maximum spin (which can be reduced by using the correct button).

DRAIN ONLY

This programme drains out the water.

"ALL 40°C" PROGRAMME

This is an exclusive system and involves 2 great advantages for the consumer:

- to be able to wash together different type of fabrics (e.g. cotton + synthetic etc...) FAST COLOUREDS;

• to wash with a considerable energy saving.

The "ALL 40°C" programme has a temperature of 40°C and alternate dynamic phases (the drum that turns) to static phases (fabrics in soak in phase of rest).

The energy consumption for the complete cycle is only 850 W/h.

Important:

- the first washing of new coloureds fabrics must be done separately; - in every case, never mix NON-FAST COLOUREDS fabrics.

30 MINUTE RAPID PROGRAMME 40°C

The 30 minute rapid programme allows a complete washing cycle to be carried out in approximately 30 minutes, with up to a maximum load of 2.5 kg and a temperature of 40°C.

When selecting the "30 minute rapid" programme, please note that we recommend you use only 20% of the recommended quantities shown on the detergent pack.

Automatic Variable Capacity

The washing machine is fitted with an automatic reduction in consumption system (known as Automatic Variable Capacity).

This system enables the machine to use the amount of water needed to wash and rinse the laundry in relation to the particular load.

This results in a reduction in the amount of water used and electricity needed to heat it to the minimum required, without in any way compromising the washing and rinsing performance. In fact the amount of water and electricity used will always be appropriate for the amount of washing.

The washing machine therefore ensures you achieve excellent washing results whilst respecting the environment and saving you money.

Detergent drawer

P

The detergent drawer is split into 3 compartments:

• the compartment labelled "I" is for prewash detergent;
• the compartment labelled "is for special additives, fabric softeners, fragrances, starch, brighteners etc;
• the compartment labelled "II" is for main wash detergent.

NOTE:

Some brands of washing detergent (including tablets) are difficult to breakdown when placed in the detergent draw. These should be placed into the drum with the recommended dosing ball/bag as recommended by the detergent manufacturer.

Diagram showing a laboratory setup with labeled parts I and II, likely illustrating a chemical or biological process.

Simple line drawing of a spherical object with a circular top and leaf-like opening (no text or symbols)

Note: only put liquid products in the compartment labelled “ ✉”. The machine is programmed to automatically take up additives during the final rinse stage for all wash cycles.

Detergents, washing aids and amounts to use

Choice of detergent

General purpose detergents

• Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for use in hot wash programmes (60°C and over), for heavily soiled and stained laundry.
• Liquid detergents, particularly suitable for grease stains, such as greasy skin marks, cosmetics and oil. These detergents are not suitable for washing stained laundry, as they do not contain bleach.
• Biological detergents, not all the products available give a really thorough wash.

Additional laundry aids

• Water softener, means less detergent can be used where water hardness is classed as hard to very hard.
• Prewash substances, for the programmed treatment of stains prior to the main wash. Using them means the subsequent wash can be at a low temperature or with bleach-free detergents.
• Fabric softener, prevents static build-up in synthetic fabrics and softens fabrics. If you own a tumble dryer, clothes are softened even without the use of a fabric softener.

Do not put solvents in the washing machine!

Keep detergents and other laundry products out of children's reach.

Before pouring in the detergent check that there are no foreign bodies in the detergent drawer.

Dosage details are usually shown on the detergent packaging. Follow those instructions.

Dosages

Only use detergents which are suitable for use in a washing machine.

You will obtain the best results from your wash with the minimum use of chemical products and the best care for your laundry if you take into consideration the degree of soiling as well as the type of detergent to choose.

The amount of detergent to use depends on:

• water hardness: depending on the hardness of the water and the type of detergent used, it is possible to reduce the amount of detergent.
• the degree of soiling: it is possible to reduce the amount of detergent used depending on the degree of soiling.
• amount of laundry: it is possible to reduce the amount of detergent when washing only a small amount of laundry.

Dosage for powder detergent

For normal and low concentration detergents: for normally soiled laundry choose a programme without prewash.

Put the detergent in compartment "II" of the drawer.

For heavily soiled laundry, choose a programme with prewash.

Put 1/4 of the detergent in compartment "I", 3/4 in compartment "II" of the drawer.

When using water softeners, first put in the detergent, then add the softener to compartment "II".

For highly concentrated detergents not in single dose format, follow what is shown on pack exactly as regards type and amount of dosage.

To avoid the difficulty of checking if the detergent has been taken up, use the dosage aids provided in the detergent packaging.

Liquid detergent dosage

Liquid detergents may be used in accordance with the instructions on the relevant packaging, for all programmes without prewash, by using the special container which is placed in the drum or, for those models that have it, in the special insert for liquid detergents.

Useful advice for users

Tips on using your domestic appliance in the most environmentally-friendly and economical way

Do a full load in your washing machine

To prevent any possible waste of energy, water or detergent we recommend that you put a full load in your washing machine, please do not exceed the recommended maximum load size.

Up to 50% energy saving can be made with one full load compared to two half load washes

When is prewashing really needed?

Only with particularly dirty loads!

Energy savings of 5 to 15% are made by not selecting the prewash option for normal soiled laundry.

Which wash temperature should you choose?

Using stain removers before machine washing reduces the need to wash at temperatures over 60°C.

Energy savings of up to 50% can be made by using a 60°C wash temperature rather than 90°C

Main wash

Sorting the laundry

• It is recommended you wash only items which are machine washable with water and detergent and not dry-clean items.
• If you need to wash, bedspreads or other heavy items, it is best not to spin them.
• Sort the laundry according to fabric type, degree of soiling and wash temperature: Always follow the wash care advice on the garment label for the most suitable care and treatment of the laundry

Laundry for hot wash 95°

Coloured, easy-care materials 60° 50° 40°

Delicates and wool 40° 30°

Wash by hand

Items labelled with the following symbol are not suitable for machine washing:

Dry clean

For very delicate items, such as net curtains, underwear, tights etc., you are advised to use a laundry net or wash bag.

• Woollen items must be labelled with the "Pure New Wool" symbol to be washed in the machine, and must also be labelled "non-matting" or "machine washable".
• Colour often leaks from new coloured items.

This can then colour other lighter items being washed.

We therefore recommend that coloured items should be washed for the first time separately.

For future washes, colourfast items can only be washed with whites up to 40°C.

Note: when sorting laundry

- check there are no metal objects in the laundry (such as paper clips, safety pins, pins, coins etc...);

• button up pillowcases, fasten zips, hook & eye fasteners, belts and long dressing gown cords;
• remove curtain hooks;
• pay close attention to the labels on items
• if you notice stubborn stains whilst sorting the laundry, remove them using a special detergent or a special stain remover.

- We recommend that you do not do a full load of towelling items only as these become too heavy since they absorb a lot of water.

The correct way to wash

Preparing the laundry

A) Select the laundry.

Loading the laundry

B) Open the porthole.

C) Put the laundry in the washing machine. Close the porthole again, ensuring that no items of laundry are obstructing the lock.

Putting detergent in machine

D) Open the drawer, choose the detergent and put in the correct amount, according to the manufacturer's instructions and the advice on page 17. Add any other laundry aids (see page 17). Close the drawer again.

Illustration of a washing machine next to a basket and recycling bin (no text or symbols)

Diagram showing a mechanical or laboratory setup with labeled parts I and II, likely illustrating a procedure or assembly.

Selecting the wash programme

Refer to the programme guide or the programme descriptions on the machine to select the most suitable programme.

Turning the selector knob, the required programme is activated.

Wait for the "STOP" indicator light to flash.

Press additional function buttons (if required).

Check that the tap is turned on and that the discharge hose is positioned correctly.

Press the "Start/Pause" button.

When the "Start/Pause" button is pressed the machine sets the working sequence in motion.

The programme carries out with the programme selector stationary on the selected programme till cycle ends.

Warning: If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off.

When the programme is finished

At the end of the programme the indicator light "STOP" will go on.

Wait for the door lock to be released (about 2 minutes after the programme has finished).

The "Door Security" indicator light will go out.

Switch off the machine by turning the programme selector on the "OFF" position. Open the door and remove the laundry. Turn off the tap.

Cleaning and routine maintenance

Do not use alcohol-based scourers and / or thinners on the outside of your washing machine, just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance:

• Cleaning the drawer compartments.
• Cleaning the door glass.

Cleaning the drawer compartments

Tecnik recommend that you periodically clean the compartments for bleaching detergent and additives.

A) To do this you just need to pull them out firmly, but without forcing them.
B) Clean everything in the compartment under running water.
C) Put everything back in its proper place.

Cleaning the door glass

Regularly clean the door glass with a damp cloth. A build up of soiling and residues from the water may result in water leaking from the door.

Do not use abrasive cleaners as they can scratch the surface.

We recommend that a maintenance wash is carried out approximately every 3-4 months at 90^ C in conjunction with a descaler such as Calgon in order to remove residues of detergent and mildew build up.

Transporting the appliance or long periods when appliance is not in use

If the appliance is being transported or is out of use for long periods in unheated places, all remaining water must be completely removed from the hoses.

Ensure mains power is off, then unclip the hose and point it downwards into a basin until all the water has emptied out.

When finished, repeat the operation in the reverse order.

Illustration of a hand using a pipette to lift or remove material from a plastic bag (no text or symbols visible)

Illustration of a hand using a power switch to adjust the socket, with no text or symbols present.

Investigating malfunctions

What might be the cause of... Defects you can remedy yourself

MALFUNCTION	CAUSE REMEDY
1. Does not work on any programme	Plug not in socket.Not switched on.Power failure.Fuse blown.Door open.	Plug it in.Switch on.Check.Check.Close door.
2. Does not fill with water	See cause 1.Tap turned off.Programme selector not correctly positioned.Fill hoses are kinked	Check.Turn on tap.Position programme selector correctly.Straighten fill hoses
3. Water does not drain away	Kink in discharge hose.House drain is blocked	Straighten discharge hose.Clean drain
4. Water on floor around the washing machine	Leaking gasket between tap and water inlet hose.House drain is blockedSoap drawer blocked with soap residues	Replace gasket and tighten hose and tap well.Clean drainClean soap drawer
5. Does not spin	Water has not yet drained away."No spin" selected (certain models only).	Wait a few minutes for machine to empty.Reset button or turn "no spin" knob.
6. Machine vibrates a lot during spin	Washing machine not completely level.Transit brackets not removed yet.Load not distributed evenly.	Adjust the special adjustable feet.Remove transit brackets.Rearrange the laundry evenly.
7. Door will not open	Two minutes have not elapsed since the programme finished.	Wait two minutes.

The machine makes a different noise when spinning! This is because it has a brush motor for better performance.

Only a small level of water can be seen in the drum! This is because new machines do not use much water, yet achieve the same standard of washing and rinsing.

Note:

The use of environmentally-friendly, phosphate-free detergents can have the following effects:
- waste water from rinsing may be cloudier because of the presence of zeolites held in suspension, without the rinse performance being adversely affected;
- presence of white powder (zeolites) on laundry after washing, which is not absorbed by the fabric and does not alter the colour of the fabric.
- The presence of foam in the final rinsing water is not necessarily an indication of poor rinsing.
- Anionic surfactants used in washing detergent formulae often prove to be difficult to remove from the laundry itself and, even in small quantities, can still cause considerable foam production.
- Carrying out more rinse cycles does not serve any purpose in such cases.

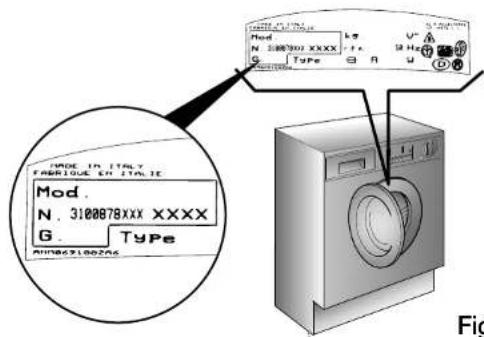

Mod. N. 3100878XXX XXXX G. Type MOD. IN ITALY FABRIQUE EN ITALY 240000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Fig. 2

Technical data
■ Max. load of dry laundry■ Water pressure	7 kg0,05 ÷ 0,8 MPa
Measurements
■ Width	60 cm
■ Depth	54 cm
■ Height	82 cm

NB: For specifications regarding electrical data, see the data panel on the front of the washing machine (porthole area) - as shown in diagram above.

Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by 2006/95/EC and 2004/108/EC, and subsequent amendments.

SETTING UP + INSTALLATION

Remove the polystyrene base and place the machine near its permanent position (diagram 1).

Carefully cut through the hose retaining clip at the rear of the appliance (diagram 2).

Remove the 4 fixing screws marked (A) and remove the 4 spacers marked (B) (diagram 3).

Cover the 4 holes using the caps provided in the instruction booklet pack (diagram 4).

WARNING: DO NOT LEAVE THE PACKAGING WITHIN REACH OF CHILDREN AS IT IS A POTENTIAL SOURCE OF DANGER.

Apply the insulation sheet of corrugated material to the base as shown.

Use the 4 feet to level the machine with the floor: a) Turn the nut clockwise to release the screw adjuster on the foot. b) Rotate the foot to raise or lower it until it stands firmly on the ground. c) Lock the foot in position by turning the nut anti-clockwise until it comes up against the bottom of the machine.

We recommend that the machine is installed on a fixed board as per the following diagram.

Warning: If the machine is not perfectly levelled, it will be unstable, noisy and may lead to malfunctions and broken parts. Do not place the machine on mats or carpets.

Note: we recommend you keep the transit bracket, braces and screws to immobilise the machine for future transit. The Manufacturers will not be responsible for any possible damage to the machine caused by not following the rules relating to releasing the mechanism. The user is responsible for all costs of installation.

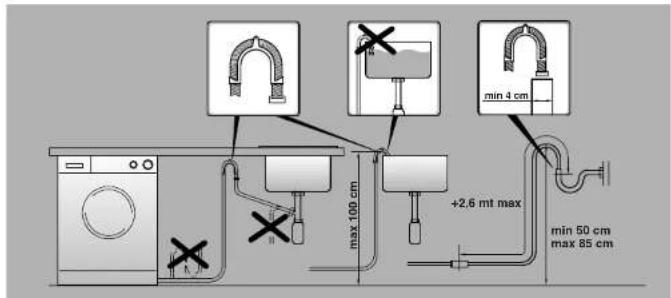

Water connection

The appliance must be connected to the water mains using new hose-sets.

The old hose-sets should not be re-used. The machine has an inlet hose with 3/4" B.S.P threaded end connection to attach between the threaded connector on the appliance and the cold water supply.

This machine only uses cold water, therefore only one hose is needed to connect to the cold water supply. Do not connect to the hot supply. Cold fill is an energy efficient system. Only the water required for the washing is heated. There is no loss of heat in the pipeline from a hot water tank or boiler to the machine.

Diagram illustrating a hairpin application technique with labeled parts and a magnified view of the tool's tip.

max 100 cm +2,6 mt max min 4 cm min 50 cm max 85 cm

Note: it is advisable to turn off the tap after each wash to isolate the washing machine from the water supply.

For the washing machine to function properly the terminal end of the discharge hose (mouth) must be at a minimum of 50 cm and a maximum of 85 cm from the ground.

ELECTRICAL CONNECTIONS

After installation, the appliance must be positioned so that the plug is accessible. To fit a replacement plug, proceed as follows:

Connect to the terminal in the plug

green and yellow wire marked with the letter E,

OR marked

with the symbol,

OR coloured green,

OR coloured green and yellow.

blue wire marked N

OR coloured black.

brown wire marked L

OR coloured red.

WARNING

This appliance must be earthed

Fuses and plugs

This appliance should be used only on a socket with a minimum rating of 13 Amp.

Our ready-fitted plug is already equipped with a 13 amp fuse which is BS 1362 ASTA approved. Any replacement should be exactly the same.

If the fuse cover is lost, do not use the plug until it is replaced. A correct replacement fuse cover (obtainable from your local retailer) must be the same colour as shown or named on the insert on the base of the plug.

AFTER CARE SERVICE

How you can help us

Every appliance carries a rating plate, which is a full record of the machine's technical specification. All the information needed by us to fulfil your service requests, supply your spare parts and solve your technical queries as precisely as possible, are located on this special label.

If you require a service call, please call our authorised service agent GIAS. Do NOT attempt to repair the appliance, in particular the electrical components!

Service Requests

Nationwide telephone number: 0844 576 1201

Spares & Accessories

Nationwide telephone number: 0844 576 1201

e-mail: [e-mail]

Your Tecnik Guarantee

(READ CAREFULLY)

This Tecnik appliance is guaranteed for 2-years from the date of purchase. The guarantee is applicable in the UK and Northern Ireland and is subject to the following provisions relating to the appliance:

1. That it is used for domestic purpose in domestic premises only.
2. That it has been installed and used solely in accordance with the instruction booklet.
3. That it has been properly connected to electricity, gas and water supplies as appropriate.
4. That it has not been subject to misuse or accident, nor been repaired or modified by either that our own repair service.

The warranty does not protect service calls to:

1. Correct the installation of the appliance
2. Instruct the owner in the correct use of the appliance
3. Replace house fuses or correct house wiring, or plumbing, drainage or gas supply
4. Replace light bulbs

Service under this warranty is provided by Tecnik's approved service organisation. Such service shall be provided during normal business hours.

This warranty applies only to products purchased within the United Kingdom and Northern Ireland

The foregoing does not affect your statutory rights.

Before you call for service:

PLEASE READ THE INFORMATION GIVEN IN YOUR USER MANUAL

In the event a technician is called out for any of the reasons stated above or for consultation purposes charges will be made to the customer either at the time of visit or at a later time in administration.

OVENS ONLY

Heating appliances will rise in temperature within use and retail their heat for a long period after use. Children should be supervised at all times and should not be allowed to touch the surfaces or be in the vicinity of the appliance when in use up until the time the appliance has cooled after use.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Tecnik

2 Brindley Road,

Old Trafford,

Manchester,

M16 9HQ

Telephone Number: 0161 786 4692

www.tecnik.net

EN

11.05 - 41035674 - www.quefaestampault - Printed in Italy - Imporime en talie
