USER MANUAL MH19AP2-07/XFO SAMSUNG

OWNER'S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D'UTILISATION ISTRUZIONI PER L'USO\_ MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG ΟΔΗΓΙΕΣ ΧΡΗΣΤΗ

Indoor unit Outdoor unit

MH18AP1(P2)-09	MH18AP1(P2)X
MH19AP1(P2)-07	MH19AP1(P2)X
MH19AP1(P2)-12
MH24AP1(P2)-12	MH24AP1(P2)X
MH26AP1(P2)-07	MH26AP1(P2)X
MH26AP1(P2)-12
AD18P1(P2)E09	UD18P1(P2)E2
AD19P1(P2)E07	UD19P1(P2)E2
AD19P1(P2)E12
AD24P1(P2)E12	UD24P1(P2)E2
AD26P1(P2)E07	UD26P1(P2)E3
AD26P1(P2)E12

MULTI-SPLIT TYPE ROOM AIR CONDITIONER ( Cool and Heat ) ACONDICIONADOR DE AIRE DOMÉSTICO SISTEMA MULTI SPLIT ( Refrigeración y Calefacción ) CLIMATISEUR DE TYPE MULTIPLE ( Refroidissement et Chauffage ) CONDIZIONATORE D'ARIA PER PIÙ AMBIENTI AD UNITÀ SEPARATE ( Raffreddamento e Riscaldamento ) AR CONDICIONADO MULTI SPLIT ( Refrigeração e Aquecimento ) RAUMKLIMAGERÄT IN MEHRFACH GETEILTER AUSFÜHRUNG ( Kühlen und Wärmen ) ΔΙΑΙΡΟΥΜΕΝΟ ΚΛΙΜΑΤΙΣΤΙΚΟ ΔΩΜΑΤΙΟΥ ( Ψύξης και Θέρμανσης )

Pure electrical circuit lines without any symbols

Safety Precautions

The following safety precautions must be taken when using your air conditioner.

WARNING

Risk of electric shock. • Can cause injury or death. • Disconnect all remote electric power supplies before servicing, installing or cleaning. • This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

DURING OPERATION

• Users of this product are cautioned not to attempt repair of this product at their own discretion. Instead, they are requested to directly contact a designated service center or the outlet at which the product was purchased.
• Never spill any kind of liquid into the unit. Should this happen, unplug or main switch off the unit and contact an authorized service center.
  Do not insert anything between the air outlet blades because the inner fan may be damaged and could cause injury. Keep children away from the unit.
  ◆ Do not place any obstacles in front of the unit.
  Do not spray liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your air conditioner and contact your installation specialist.
  ◆ Make sure that the unit is correctly ventilated at all times: Do not place clothing or other materials over it.
• If the wireless remote control will not be used for a long time, remove the batteries. (If applicable)
  When using a wireless remote control, the distance should not be more than 7 meters from the air conditioner. (If applicable)
  Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely for recycling reasons.
  When you need to dispose of the unit, consult your dealer. If pipes are removed incorrectly, refrigerant may blow out and come into contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environments.
  ◆ Please recycle or dispose of the packaging material for this product in an environmentally responsible manner.
• Never store or ship the air conditioner upside down or sideways to avoid damage to the compressor.
• The appliance is not intended for use by young children or infirm persons without supervision: Young children should be supervised to ensure that they do not play with the appliance.
  Max current is measured according to IEC standard for safety and current is measured according to ISO standard for energy efficiency.

DISPOSING OF THE UNIT

OTHERS

Contents

♦ PREPARING YOUR AIR CONDITIONER

■ Safety Precautions 2
■ View of the Unit 4
■ Remote Control-Buttons and Display 6
- Getting Started 7
- Inserting the Remote Control Batteries 8

♦ OPERATING YOUR AIR CONDITIONER

■ Selecting the Automatic Operating Mode ..... 9
■ Cooling Your Room 10
■ Heating Your Room 11
■ Changing the Room Temperature Quickly 12
■ Removing Excess Humidity 13
■ Airing Your Room 14

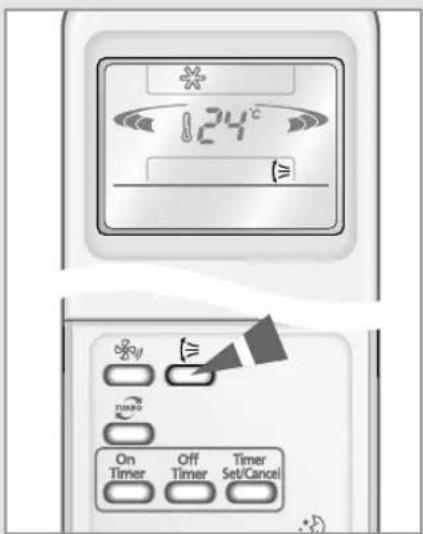

■ Adjusting the Air Flow Direction Vertically 15

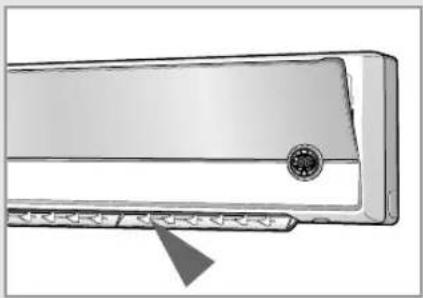

■ Adjusting the Air Flow Direction Horizontally 15

♦ PROGRAMMING YOUR AIR CONDITIONER

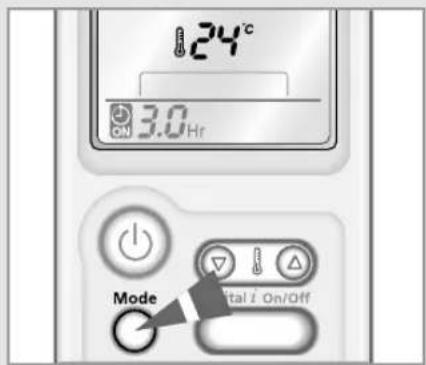

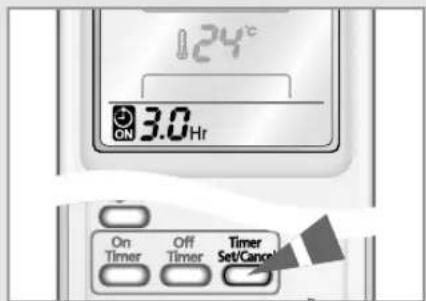

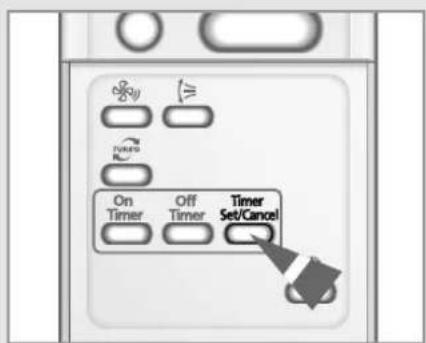

■ Setting the On Timer 16

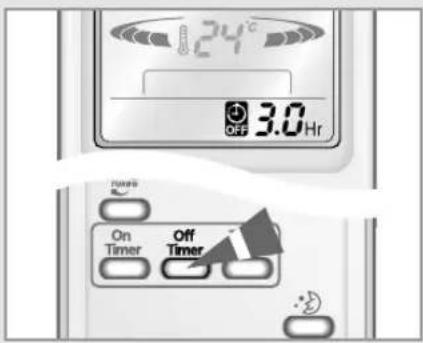

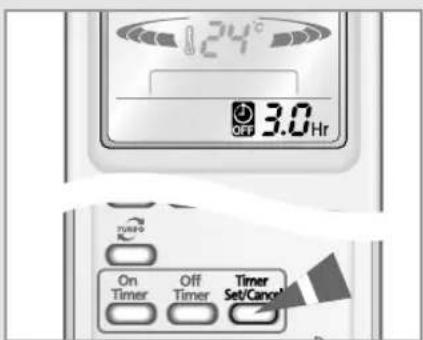

■ Setting the Off Timer 17
■ Setting the Sleep Timer 18

♦ RECOMMENDATIONS FOR USE

■ Operating Recommendations 19
■ Temperature and Humidity Ranges 20

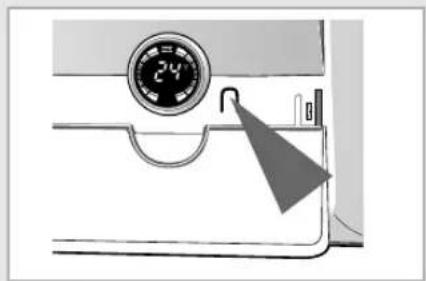

■ Operating Your Air Conditioner Without the Remote Control ..... 20
■ Solving Common Problems ...... 21
■ Cleaning Your Air Conditioner 22

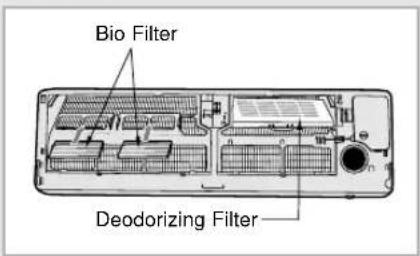

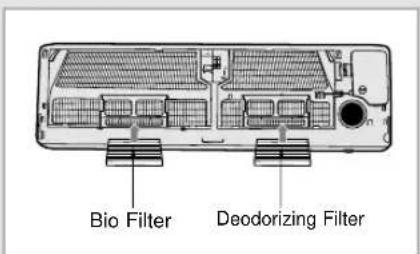

■ Cleaning Deodorizing and Bio Filters (option) ..... 23

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

View of the Unit

The design and shape are subject to change according to the model.

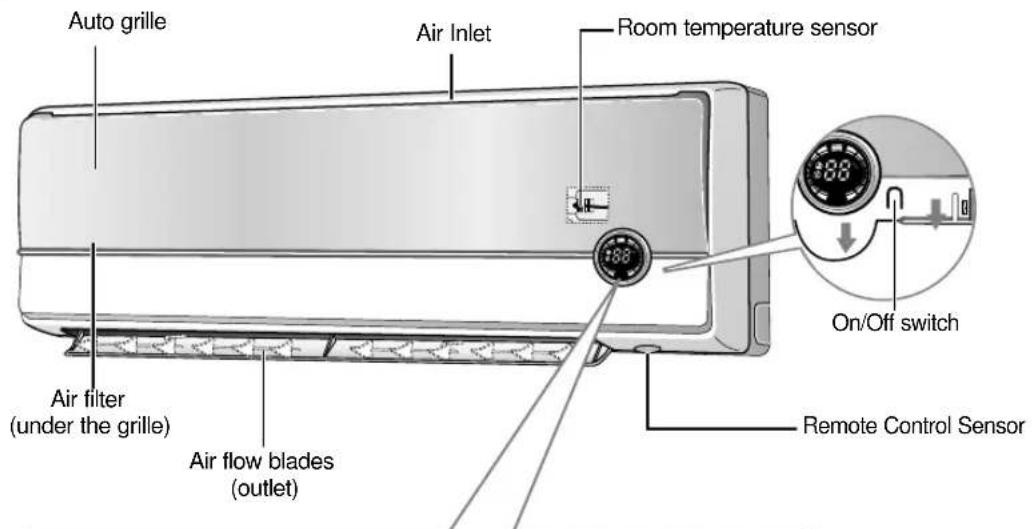

Indoor Unit

Auto grille Air Inlet Room temperature sensor Air filter (under the grille) Air flow blades (outlet) On/Off switch Remote Control Sensor

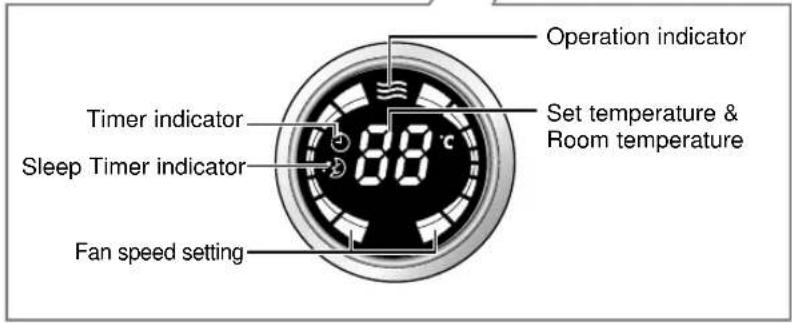

Operation indicator Timer indicator Set temperature & Room temperature Sleep Timer indicator Fan speed setting

图②

If you want to turn on/off the display during operation, press the 📄 button on the remote control.
The room temperature sensor senses air temperature around the sensor, and shows the temperature on the display. The **18/19/24***models display the room temperature as soon as the indoor unit is operated.
The **26***model displays the room temperature as soon as the remote control is operated. For the first 3 minutes, the set temperature is displayed and the room temperature is displayed.

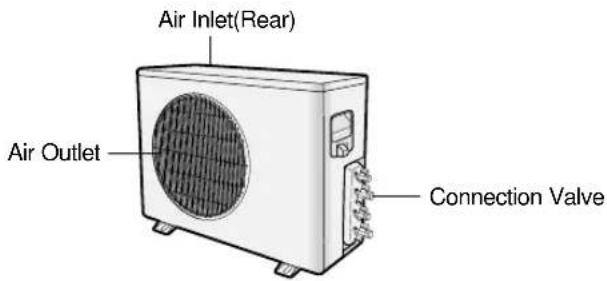

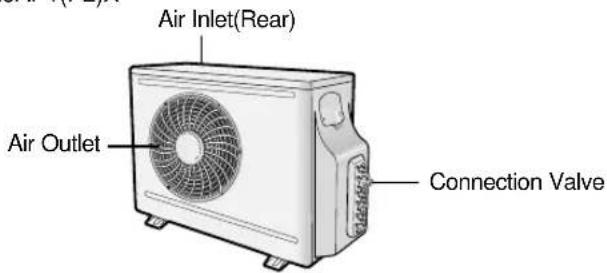

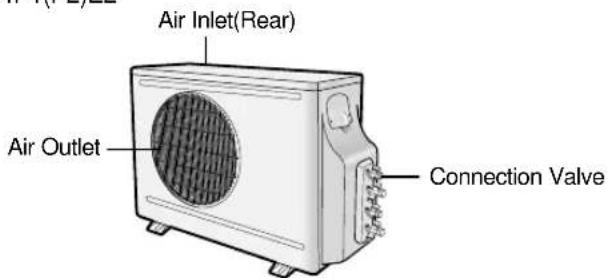

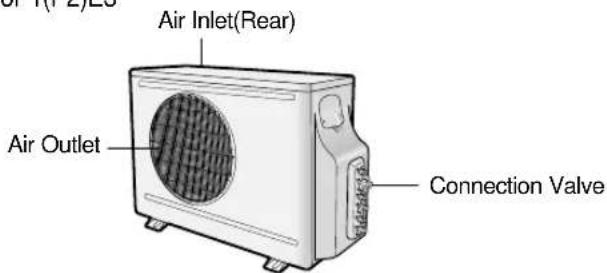

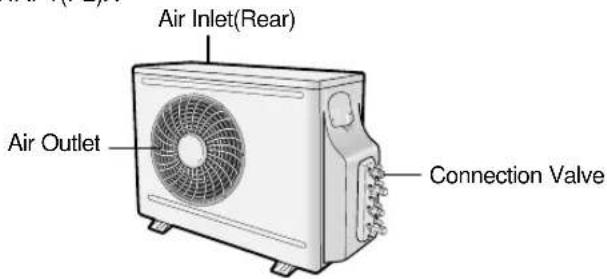

Outdoor Unit

MH18AP1(P2)X

MH19AP1(P2)X

UD18P1(P2)E2 UD19P1(P2)E2

Air Inlet(Rear) Air Outlet Connection Valve

Outdoor Unit

MH24AP1(P2)X

Air Inlet(Rear) Air Outlet Connection Valve

Outdoor Unit

UD24P1(P2)E2

Air Inlet(Rear) Air Outlet Connection Valve

Outdoor Unit

MH26AP1(P2)X

Air Inlet(Rear) Air Outlet Connection Valve

Outdoor Unit

UD26P1(P2)E3

Air Inlet(Rear) Air Outlet Connection Valve

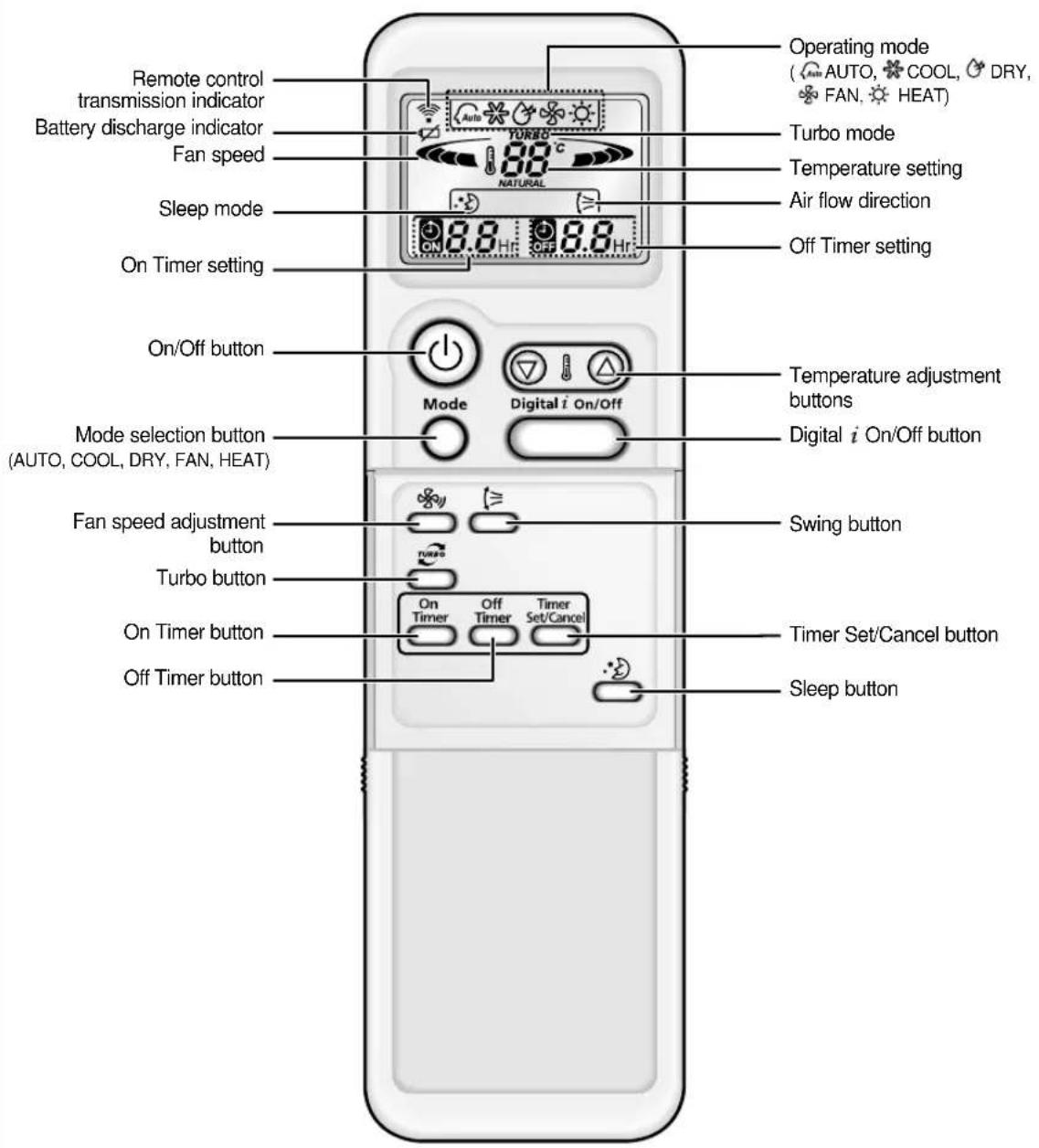

Remote Control - Buttons and Display

Remote control transmission indicator Battery discharge indicator Fan speed Sleep mode On Timer setting On/Off button Mode selection button (AUTO, COOL, DRY, FAN, HEAT) Fan speed adjustment button Turbo button On Timer button Off Timer button Operating mode (AUTO, COOL, DRY, FAN, HEAT) Turbo mode Temperature setting Air flow direction Off Timer setting Temperature adjustment buttons Digital i On/Off button Swing button Timer Set/Cancel button Sleep button

Getting Started

You have just purchased a multi split type air conditioner and it has been installed by your installation specialist.

Your Owner's Instructions contains valuable information on using your air conditioner. Please take the time to read it as it will help you take full advantage of the unit's features.

The booklet is organized as follows.

◆ The following figures are shown on pages from 4 to 6 :
- Indoor and outdoor units
- Remote control(buttons and display)
They will help you find the buttons and understand the symbols displayed.
In the manual, you will find a series of step-by-step procedures for each function available.

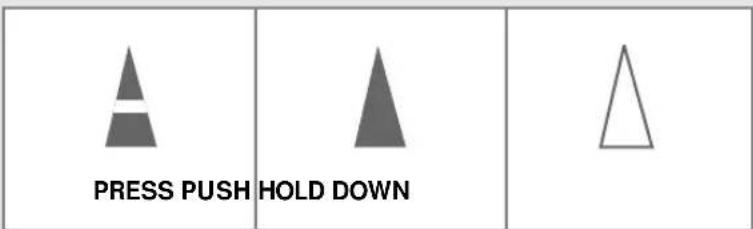

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

Inserting the Remote Control Batteries

Diagram of a mechanical component with internal structure and directional arrow (no text or symbols)

Illustration of a remote control panel with a black arrow pointing to the interior (no text or symbols)

You must insert or replace the remote control batteries when :

• You purchase the air conditioner
  ◆ The remote control does not work correctly

Note

◆ Use two AAA, LR03 1.5V batteries.
◆ Do not use old batteries or different kinds of batteries together.
◆ Batteries may be completely discharged after 12 months, even if they have not actually been used.

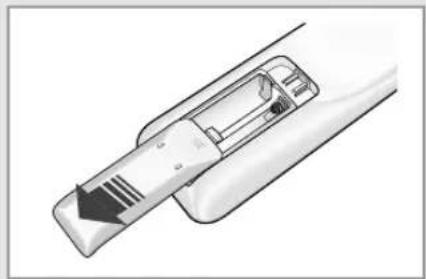

1 Push the battery cover on the rear of the remote control with your thumb in the direction of the arrow and remove it.

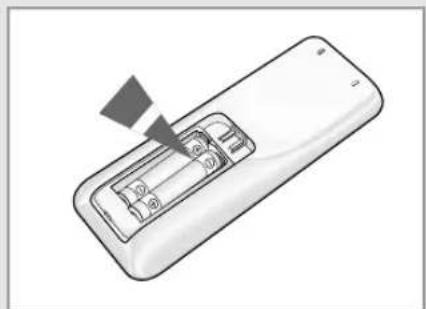

2 Insert the two batteries, taking care to respect the polarities :

◆ + on the battery with + on the remote control.
◆ - on the battery with - on the remote control.

3 Close the cover by sliding it back until it clicks into place.

Selecting the Automatic Operating Mode

You can start the air conditioner in Automatic mode from your remote control. In the Automatic mode, the optimum temperature and the fan speed is selected automatically.

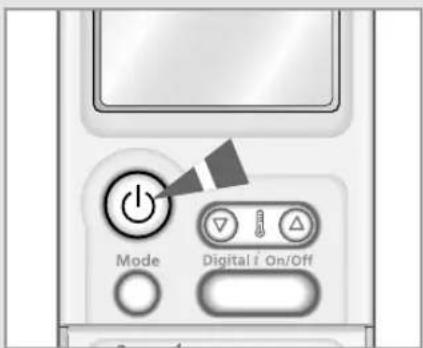

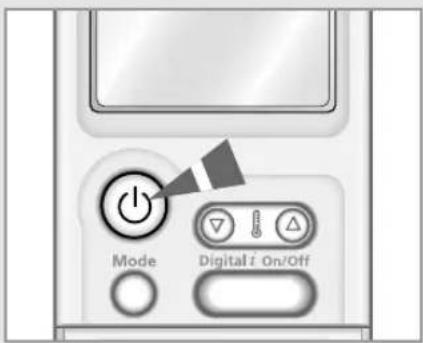

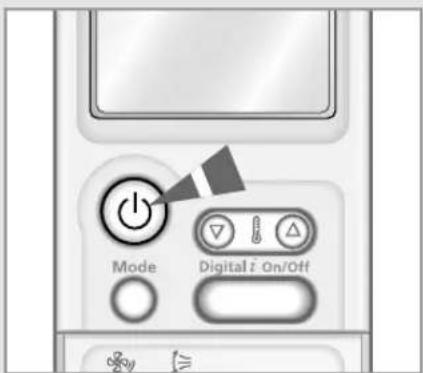

1 If necessary, press the ⏻ (On/Off) button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
♦ Stopped

It will start up normally after three minutes.

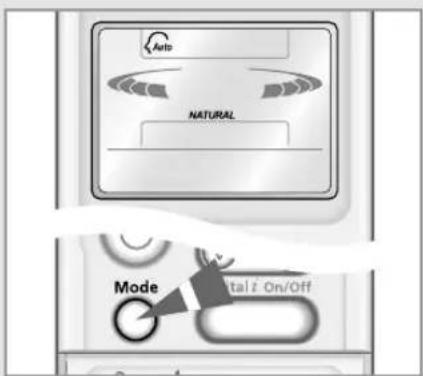

2 If the Auto is not displayed at the top of the remote control, press the Mode button on the remote control one or more times until it appears.

Result:

◆ The indoor unit beeps each time you press the ○ button.
◆ The air conditioner runs in AUTO mode.

You can change modes at any time.

Mode Digital t On/Off

Auto NATURAL Mode tai / On/Off

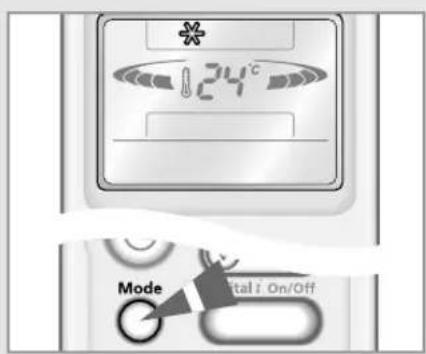

Cooling Your Room

Mode Digital / On/Off

24°C Mode Total i On/Off

22°C Mode Digital On/Off

22°C TURBO

You must select the Cool mode if you wish to adjust the:

♦ Cooling temperature
◆ Fan speed when cooling

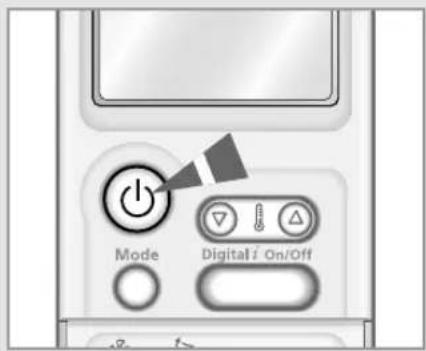

1 If necessary, press the ⏻ (On/Off) button.

Result: ♦ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

PORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
- Stopped

It will start up normally after three minutes.

2 If the ✗ is not displayed at the top of the remote control, press the button on the remote control one or more times until it appears.

Result: ◆ The indoor unit beeps each time you press the button. ◆ The air conditioner runs in the COOL mode.

Note: You can change modes at any time.

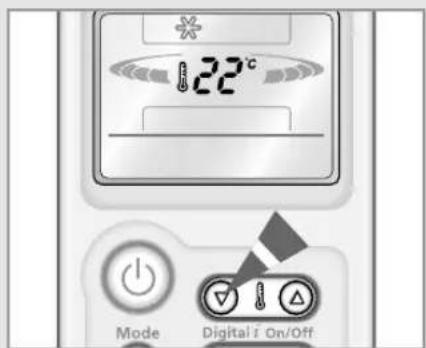

3 To adjust the temperature, press the button one or more times until the required temperature is displayed. Possible temperatures are between 18^ C and 30^ C inclusive.

Result: ♦ Each time you press the button:

- The temperature is adjusted by 1°C - The indoor unit beeps

◆ The air conditioner starts cooling, provided that the room temperature is higher than the selected temperature.
If the room temperature reaches the set temperature, the air conditioner stops cooling, but the fan is still operating.

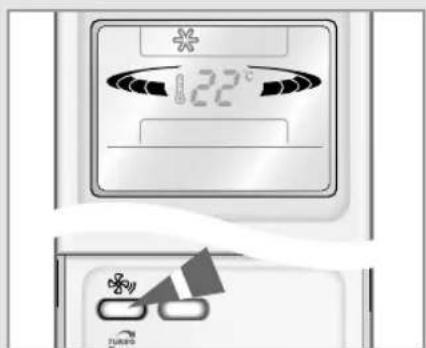

4 Select the fan speed by pressing the button one or more times until the required setting is displayed:

Automatic (rotated : → → → →) Low Medium High

Result: Each time you press the button, the indoor unit beeps.

5 To control the direction of the air flow, refer to page 15.

Heating Your Room

You must select the Heat mode if you wish to adjust the:

♦ Heating temperature
◆ Fan speed when heating

1 If necessary, press the ⏻(On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up.

◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

IMPORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
♦ Stopped

It will start up normally after three minutes.

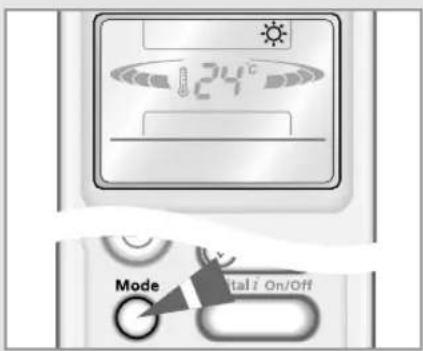

2 If the ⚙ is not displayed at the top of the remote control, press the Mode button on the remote control one or more times until it appears.

Result: ♦ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the HEAT mode.

Note: You can change modes at any time.

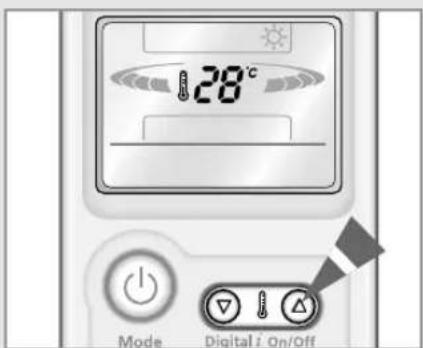

3 To adjust the temperature, press the button one or more times until the required temperature is displayed.

Possible temperatures are between 16°C and 30°C inclusive.

Result: ♦ Each time you press the button: △

- The temperature is adjusted by 1°C

- The indoor unit beeps

The air conditioner starts heating, provided that the room temperature is lower than the desired temperature (selected temperature+3°C).
If the room temperature reaches the set temperature, the air conditioner stops heating, but the fan is still operating.

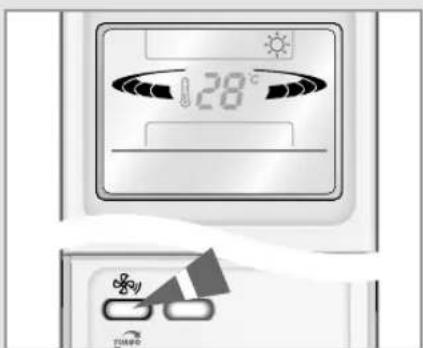

4 Select the fan speed by pressing the button one or more times until the required setting is displayed:

Result: ◆ Each time you press the □ button, the indoor unit beeps.

For the first three to five minutes, the fan operates very slowly until the air has been sufficiently warmed. Once the correct temperature has been reached, the fan is automatically set to the required speed.

5 To control the direction of the air flow, refer to page 15.

Mode Digital / On/Off

24°C Mode Initial On/Off

28°C Mode Digital i On/Off

28°C cay TURBO

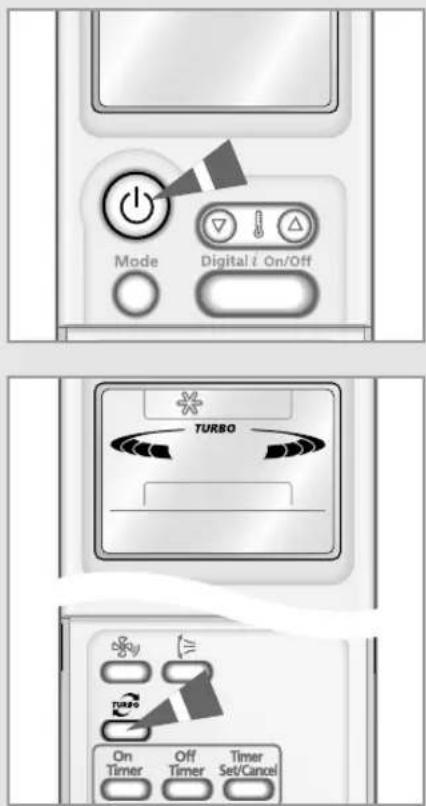

Changing the Room Temperature Quickly

Mode Digital / On/Off TURBO On Timer Off Timer Timer Set/Cancel

The Turbo cooling/heating function is used to cool or heat your room as quickly as possible.

You have just come home and find that the room is very hot. You wish to cool it down as quickly as possible.

The Turbo function operates for 30 minutes with the maximum settings before returning automatically to the mode and temperature previously selected.

1 If necessary, press the ⏻ (On/Off) button.

Result: ♦ The operation indicator on the indoor unit lights up.

• The air conditioner starts up in the mode selected when the unit was last used.
  ◆ The indoor unit beeps.

2 Press the button.

Result: ♦ The temperature and fan settings are adjusted automatically.

◆ The air conditioner cools or heats the room as quickly as possible.
- After 30 minutes, the air conditioner is reset automatically to the previous mode, temperature and fan settings.

But, if you press the 📋 button in DRY or FAN mode, it will change to AUTO mode automatically.

3 If you wish to stop the Turbo function before the end of the 30-minute period, press the button again.

Result: The air conditioner is reset automatically to the previous mode, temperature and fan settings.

4 To control the direction of the air flow, refer to page 15.

Removing Excess Humidity

If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much.

1 If necessary, press the ⏻(On/Off) button.

Result: ♦ The operation indicator on the indoor unit lights up.

◆ The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

PORTANT

The air conditioner is fitted with a protection mechanism to prevent the unit from being damaged when it is started immediately after being:

◆ Plugged in
♦ Stopped

It will start up normally after three minutes.

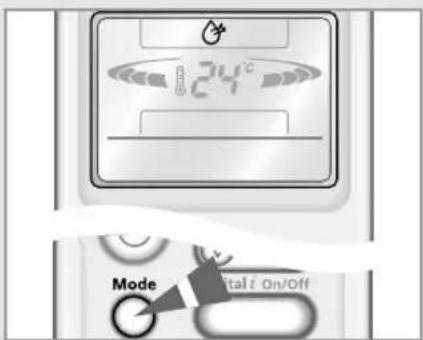

2 If the ⚙ is not displayed at the top of the remote control, press the

button on the remote control one or more times until it appears.

Result: ♦ The indoor unit beeps each time you press the button.

◆ The air conditioner runs in DRY mode.

Note: You can change modes at any time.

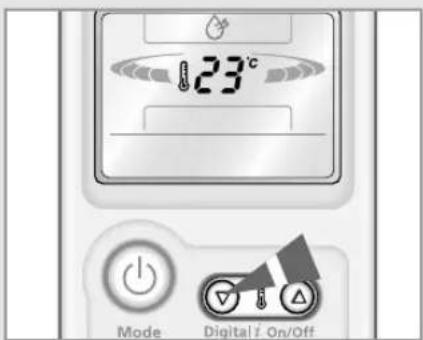

3 To adjust the temperature, press the button one or more times

until the required temperature is displayed.

Possible temperatures are between 18°C and 30°C inclusive.

Result: ◆ Each time you press the button

• The temperature is adjusted by 1°C
• The indoor unit beeps
• The air conditioner starts removing the excess humidity; the quantity of air is adjusted automatically.

4 To control the direction of the air flow, refer to page 15.

Mode Digital 1 On/Off

24°C Mode Total I On/Off

23°C Mode Digital / On/Off

Airing Your Room

Mode Digital / On/Off

Mode Metal E On/Off

Diagram of a computer monitor with scroll arrows and ventilation control icons (no text or labels)

If the atmosphere in your room is stale, you can air the room using the Fan feature.

1 If necessary, press the

On/Off) button.

Result: ♦ The operation indicator on the indoor unit lights up.
- The air conditioner starts up in the mode selected when the unit was last used.
◆ The indoor unit beeps.

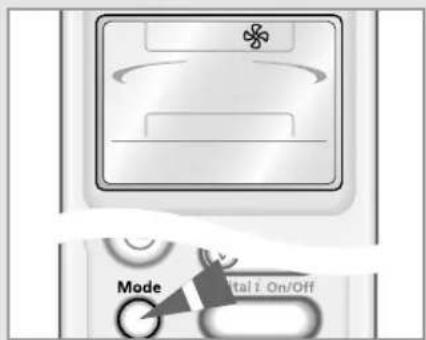

2 If the ⚙ is not displayed at the top of the remote control, press the button on the remote control one or more times until it appears.

Result: ♦ The indoor unit beeps each time you press the button.

◆ The air conditioner runs in FAN mode.

◆ The temperature is set automatically.

- The air conditioner runs in FAN mode. - The temperature is set automatically.

Note: You can change modes at any time.

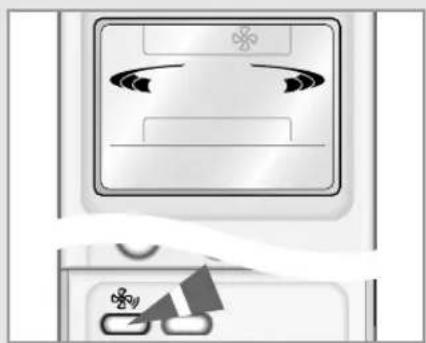

3 Select the fan speed by pressing the button one or more times until the required setting is displayed:

Result: Each time you press the button, the indoor unit beeps.

4 To control the direction of the air flow, refer to page 15.

Adjusting the Air Flow Direction Vertically

Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, thus increasing the efficiency of the air conditioner.

1 Press the 🔊 button one or more times as required.

Result: The outer blade is adjusted vertically.

RECOMMENDATION When... Adjust the blade to face...

Cooling Upwards. Heating Downwards.

2 If you want the blade to move up and down automatically when the air conditioner is operating, press the ≡ button.

Result: The blade move up and down, around the base position set.

3 To stop the blade moving up and down, press the button again.

Note: If you switch the air conditioner... Then the blade is...

Off Closed completely.

On again

Set to the initial position powered.

824°C On Timer Off Timer Set/Cancel

Adjusting the Air Flow Direction Horizontally

There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally.

1 Adjust each set of inner blades to the required position, by pushing or pulling them sideways.

Illustration of a wall-mounted air conditioner unit with a circular button and a triangular clip (no text or symbols)

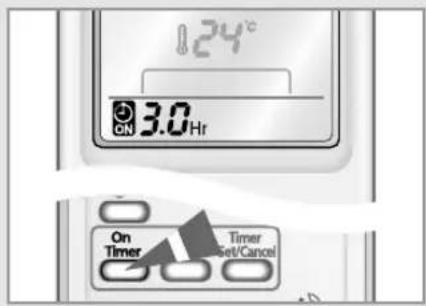

Setting the On Timer

124°C ON 3.0 Hr On Timer Timer Set/Cancel

124°C ON 3.0 Hr On Timer Off Timer Timer Set/Cancel

24°C 3.0 Hr Mode tal 1 On/Off

On Timer Off Timer Set/Cancel

The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours.

1 To set the operating time, press the button one or more times until the required time is displayed. Possible time is between 0.5 hour and 24 hours inclusive.

2 Press the Set/Cancel (Set/Cancel) button to complete the setting.

Result: ◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
◆ The selected mode and the temperature on the display disappear after 10 seconds.
- The air conditioner will switch on automatically when the counter displayed on the remote control reaches the set time and disappears the On Timer setting.

3 To select an operating mode in advance, press the Mode button until the desired mode is displayed at the top of the remote control.

Result: ◆ The air conditioner will run in the selected mode when it is turned on.

To Cancel the On Timer

Press the Timer Set/Cancel (Set/Cancel) button.

Note

(Set/Cancel) button.

button when the Off Timer is set, ncellled.

Setting the Off Timer

The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 30 minutes to 24 hours.

1 To set the operating time, press the button one or more times until the required time is displayed. Possible time is between 0.5 hour and 24 hours inclusive.

2 Press the Set/Cancel (Set/Cancel) button to complete the setting.

Result:

(Set/Cancel) button to complete the setting.

◆ The remaining time is displayed.
◆ Blinking of the timer indicator stops.
The air conditioner will switch off automatically when the counter displayed on the remote control reaches the set time and disappears the Off Timer setting.

If you would like to turn the air conditioner on after 2 hours and to operate it for 2 hours:

1. Press the button until '2.0 Hr' is displayed.
2. Press the ☐ (Set/Cancel) button.
3. Press the button until '4.0 Hr' is displayed.
4. Press the ☐ (Set/Cancel) button.

Note: You can see or change the setting mode and/or the temperature by pressing the Mode button or the ▼ ▲ button after setting the Off Timer.

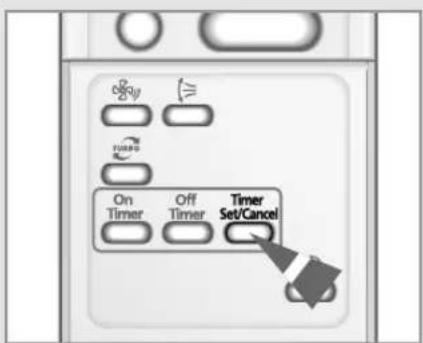

To Cancel the Off Timer

Press the

(Set/Cancel) button.

[Unreadable]

If you press the Set/Cancel button when the On Timer is set, the On Timer is also cancelled.

24°C OFF 3.0 Hr On Timer Off Timer

3.24°C 3.0 Hr On Timer Off Timer Set/Cancel

On Timer Off Timer Timer Set/Cancel

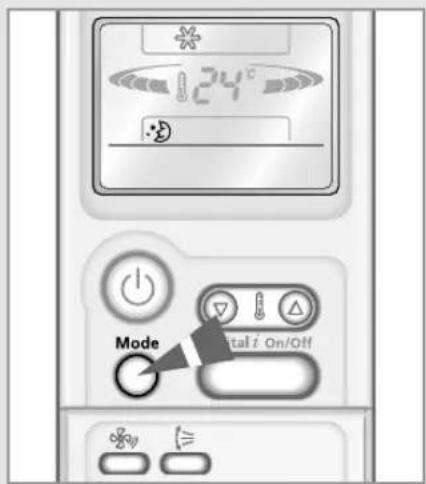

Setting the Sleep Timer

24°C Mode Total 1 On/Off

24°C On Timer On Timer Set/Low...

The Sleep Timer can be used when you are cooling or heating your room to switch the air conditioner off automatically after a period of six hours.

If you wish to switch the unit off at a specific time, refer to page 17.

1 Make sure that you have selected either COOL or HEAT mode.

2 Press the

button.

Result: ♦ The indoor unit beeps.

◆ The air conditioner will be controlled as indicated in the illustrations below.

Cooling The desired temperature is increased by 1^ C every hour. When it has been increased by 2^ C (after two hours), the temperature is maintained for four hours.

Heating The desired temperature is decreased by 1^ C every hour. When it has been decreased by 2^ C (after two hours), the temperature is maintained for four hours.

Start time Set TEMP. -1hr 2hr -2°C Stop time 6hr

Cancel the Sleep Timer

If you no longer wish to use the Sleep Timer that you have set, you can cancel it at any time.

Press the

button.

Result: ♦ The indoor unit beeps.

◆ The .is no longer displayed.
◆ The air conditioner operates normally.

Here are a few recommendations that you should follow when using your air conditioner.

Topic Recommendation

Heating performances The heat pump inside the air conditioner absorbs heat from outside air and brings it indoors. If the temperature of the outside air drops, the air conditioner will heat less. If you find that the room is not warm enough, use an additional heating appliance.

Warm air circulation The air conditioner circulates warm air to heat your room; as a result, some time will be required after starting the air conditioner to warm the entire room. If necessary, set the air conditioner on before you wish to use the room.

Frost When outside temperatures are low and humidity is high, frost may form in the outdoor unit when heating is selected. If this happens:◆ The heating operation is stopped.◆ The Deice mode is triggered automatically for about seven minutes.No intervention is required from you; after about seven minutes, the air conditioner starts operating again normally.

High indoor and outdoor If both the indoor and outdoor temperatures temperatures are high and you select the Heat mode, the outdoor unit's fan and compressor may stop at times. This is normal; simply wait until the air conditioner switches on again.

Power failure If a power failure occurs when the air conditioner is operating, the unit is switched off.When the power returns, the air conditioner starts up again automatically.

Temperature and Humidity Ranges

The following table indicates the temperature and humidity ranges within which the air conditioner can be used.

If the air conditioner is used at... Then...

High temperatures	The automatic protection feature may be triggered and the air conditioner stops.
Low temperatures	A water leak or some other malfunction may occur if the heat exchanger freezes.
High humidity levels	Water may condense on and drip from the surface of the indoor unit if it is used for long periods.

Mode Outdoor Temperature Indoor Temperature Indoor Humidity

Heating 0°C to 24°C approx. 27°C or less -

Cooling 21°C to 43°C approx. 18°C to 32°C approx. 80% or less

Drying 18°C to 43°C approx. 18°C to 32°C approx. -

If the outdoor temperature is as low as 0°C, the heating capacity drops up to 70\~80% depending on the operating condition.

If the cooling operation is used at over 33°C(indoor temperature), it does not cool at its full capacity.

Operating Your Air Conditioner Without the Remote Control

Diagram of a wall-mounted air conditioner unit with a central vent and side arm (no text or symbols)

Simple line drawing of a kitchen sink with a digital thermometer and a hanging handle (no text or symbols)

Your air conditioner can be operated directly from the indoor unit if the remote control is lost or broken.

1 Slide the lower front grille down.

2 To switch the air conditioner on, press the On/Off switch on the right side of the indoor unit.

Result: ◆ The operation indicator on the indoor unit comes on.

◆ The indoor unit beeps.
◆ The air conditioner starts up in the most suitable mode for the room temperature:

Room Temperature

Less than 21°C

21°C or above

Operating Mode

Heat

Cool

3 To switch the air conditioner off, press the On/Off switch again.

Note

Even if the air conditioner has been switched on via the On/Off switch, operations can still be controlled using the remote control as usual.

Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call.

Problem	Explanation/Solution
The air conditioner does not operate at all.	◆ Check that the breaker used for the air conditioner is switched on.◆ Check that the operation indicator on the indoor unit is on; if necessary press the ⏻ (On/Off) button on the remote control.◆ Check whether the Timer indicator on the indoor unit is switched on. If so:- Wait until the switch-on time is reached and the air conditioner starts up automatically- Cancel the timer (see pages 16 and 17 for further details)
The air conditioner does not operate with the remote control.	◆ Check that there are no obstacles between you and the indoor unit.◆ Check the remote control batteries.◆ Check that you are close enough to the indoor unit (seven meters/yards or less).
No beep is heard when you press the ⏻ (On/Off) on the remote control.	◆ Check that you are pointing the remote control at the remote control sensor in the right of the indoor unit.◆ Replace the remote control batteries if necessary.
The air conditioner does not cool or heat.	◆ Check that the correct operating mode has been selected (AUTO, COOL, HEAT).◆ The room temperature may be too low or too high.◆ Dust may be blocking the air filter guard; refer to page 22 for cleaning instructions.◆ Check that there is no obstacle in front of the outdoor unit.
When heating, the required room temperature is never reached and the air conditioner frequently stops.	◆ Check that the required temperature has been set correctly.◆ Increase the fan speed.◆ If the air flow is directed upwards, use the remote control to direct it downwards.
The fan speed does not change when you press the 🎨 button.	◆ Check that the operating mode is set to COOL, HEAT or FAN ; in the AUTO mode, the fan speed changes automatically and in the DRY mode, it is set to AUTO.
The air flow direction does not change when you press the 🎨 button.	◆ Check that the air conditioner has been switched on; if necessary, press the ⏻ (On/Off) button on the remote control.
The timer is not correctly triggered.	◆ Check that the timer has been programmed correctly; see pages 16 and 17.
Odour is permeated in the room during air conditioning.	◆ Air the room.

Cleaning Your Air Conditioner

Illustration of a wall-mounted air conditioner unit with a handle and mounting bracket (no text or symbols)

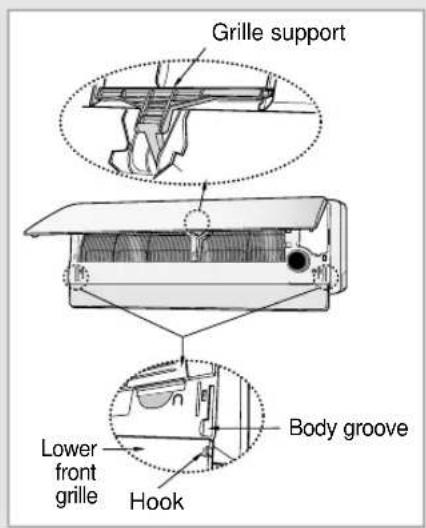

Grille support Lower front grille Hook Body groove

For the best use of your air conditioner, you must clean it every two weeks regularly to remove the dust that accumulates on the air filter.

PORTANT

Before cleaning your air conditioner, ensure that you have switched off the breaker used for the unit.

1 Slide the lower front grille down.
2 Slide the upper front grille up slightly, then open the grille by pulling right and left sides of the grille.
3 Disassemble the upper front grille by opening the grille completely.
4 Lift out the bottom edge of the air filters and pull down to release them.
5 Remove all dust on the air filters with a vacuum cleaner or brush.
6 When you have finished, insert the top part of the filters into their slot and push down on the bottom edge until they click into place.
7 Clean the front grille with a damp cloth and mild detergent (do NOT use benzene, solvents or other chemicals).
8 Fix the left side of grille support, then insert the right side of grille support.

If you have not used the air conditioner for a long period of time, set the fan going for three to four hours to dry the inside of the air conditioner thoroughly.
To close the upper front grille completely after cleaning filters, turn on and turn off the air conditioner.

Cleaning Deodorizing and Bio Filters (Option)

To remove minute dust particles and odors, deodorizing and Bio filters are installed in the air conditioner. You should clean the filters every 3 months.

1 Open the upper front grille by pulling right and left sides of the grille.
2 Pull out the deodorizing and Bio filters.
3 Wash the filters with clean water, then dry them in the shade.
4 Insert the filters into the original position.

You can change the position of filters with each other.

5 Close the front grille.

**07/09**

Bio Filter Deodorizing Filter

**12**

Bio Filter Deodorizing Filter

THIS AIR CONDITIONER IS MANUFACTURED BY:
