Thank you for purchasing this Samsung product.

Safety Precautions

• Before using the DMS2, BACnet Gateway, LonWorks Gateway, read carefully these instructions.
  • After reading the instructions, keep this user's manual in a handy and safe place. If a user is changed, you must hand over the manuals.
• Never attempt to install the air conditioning system or to move the product by yourself.

WARNING

• Do not attempt to install or repair the product by yourself.
  ◆ The product contains no user-serviceable parts. Always consult authorized service personnel for repairs.
• When moving, consult authorized service personnel for disconnection and installation of the product.
  ◆ Ensure that the wall is strong enough to support the weight of the product.
  ◆ Must install the product with rated power supply.
  ◆ In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical breaker, and consult authorized service personnel.

CAUTION

◆ Do not use inflammable gases near theproduct.
◆ Do not spill water into theproduct.
◆ Do not operate theproduct with wet hands.
Do not install the product in a location where it will come into contact with the combustible gases, machine oil, sulphide gas, etc.
◆ Do not press buttons with a pointed thing.
◆ Do not pull or bend theproduct cable excessively.
◆ Do not use thisproduct for other purpose.
- Do not spray an insecticide or other combustible things on the product.
- Do not clean the product with benzene, solvents or other chemicals.
- Do not give a shock to the product or disassemble it by yourself.

Contents

♦ GENERAL DESCRIPTION .... 4
♦ VIEWING THE PARTS 6
◆ BEFORE USE 8
♦ MAIN FUNCTION 10
♦ STARTING DMS2 14
◆ CONTROL AND MONITORING 18
◆ ZONE MANAGEMENT 63
◆ SCHEDULE 68
◆ EHP POWER CONSUMPTION INSPECTION 82
◆ CONTROL LOGIC MANAGEMENT 94
◆ SYSTEM SETTINGS 106
◆ CHECK BEFORE USING PANEL 153
♦ SETTING NETWORK INFORMATION 154
♦ CHECKING INDOOR/OUTDOOR UNIT INFORMATION ..... 156
♦ CHECKING DMS2 VERSION 157
◆ DATA BACKUP SETTING 160
♦ CHECKING ERROR INFORMATION 162
◆ RESET PASSWORD 163
◆ BUTTON LOCK 164
◆ SAFETY HALT 165
◆ TROUBLESHOOTING 166
◆ SPECIFICATIONS 168
◆ LICENSE 169

Note

◆ The contents and pictures used in this user manual may be changed without advance notice for the functional reinforcement and improvement of a product.

This System is strictly restricted to authorized user. Any illegal access shall be punished with a related-law.

Introduction of DMS2 (Data Management Server2)

The DMS2 is an Ethernet based device for central management of Samsung system air-conditioners. It operates 24 hours without a separate management (PC).

Advantages of DMS2 System

The DMS2 provides the following advantages:

◆ Everyday Device—The DMS2 is operational all year long 24 hours.
- Independent Operation–The DMS2 can operate schedule control and power distribution without a PC.
Note In order to run power distribution, relevant controllers need to be installed.

◆RemoteControl

√ Web – The DMS2 has a built-in web server function and can be accessed from a remote location to operate status monitoring, control, trouble history, and schedule setting of the system air-conditioners.
√ Using an Upper Level Controller-When a separate upper level controller (S-NET series) is used, a number of DMS2 can be controlled with one central management system.

◆ Data Storage–The DMS2 has its own database built-in, therefore, trouble history, indoor unit installation information, and power distribution data can be saved and retrieved.

◆ Large Scale Management—At most 256 indoor units can be connected to one DMS2 and therefore, only one DMS2 can manage small and medium size buildings.

◆ Automatic "e-mail" sending–When an error is occurred, inform the error details to an e-mail saved on DMS2.

Note

◆ Please be advised that once you are permitted access to the system, you will be deemed to have consented to having software relating this system automatically updated or modified on a periodic basis. You will be deemed to have consented to having software relating this system automatically updated or modified on a periodic basis.

Terms

◆ DMS2: The abbreviation of Data Management Server2.
◆ Upper Controller: It means S-NET Series, a local controller of the DVM system. S-NET 3, S-NET mini and RMS are linked to a DMS2.
◆ Centralized Controller: A device that controls 16 groups of the DVM air conditioner. A central control device of a DVM system which is located between a DMS2 and an outdoor unit interface module.
◆ Interface module: A data interface module of a DVM system which is located between a central controller and an outdoor unit.
◆ AHU(Air Handling Unit): Excutes heat exchange between air and cooling unit using central air conditioning duct method.
◆ ERV(Energy Recovery Ventilator): Ventilating system using heat recovery function.

Viewing the Parts

Front View

① ② Mens V A Sat Power CPU/MBay Ethernet COMF COMB COMD COMA COMB USB USB USB Check SAMSUNG

No.	Name Description
1	LCD Display Display current time/ Check menu
2	Menu button Access to main menu
	▼/▲ button	Select the function you want and set detailed functions in main menu
	Set button	Check the function you want from main menu and select it
3	Bottom cover	Unfasten 2 screws on the bottom and separate the bottom cover from DMS2. Then check cable connection part.

Indicator

Power CPU-Alive Ethernet COM1 COM2 COM3 COM4 COM5 Check Linked Active TX RX TX RX TX RX TX RX TX RX

Name Description
Power Turns blue when the power is supplied.
CPU Alive	Blinks in orange with 1 second intervals during normal operation.
Ethernet-Linked Turns green during normal connection.
Ethernet-Active Blinks in orange during normal transmission/reception.
COM1~5 – TX Blinks in green during normal transmission.
COM1~5 – RX Blinks in green during normal reception.
Check Turns green when notice occurs.

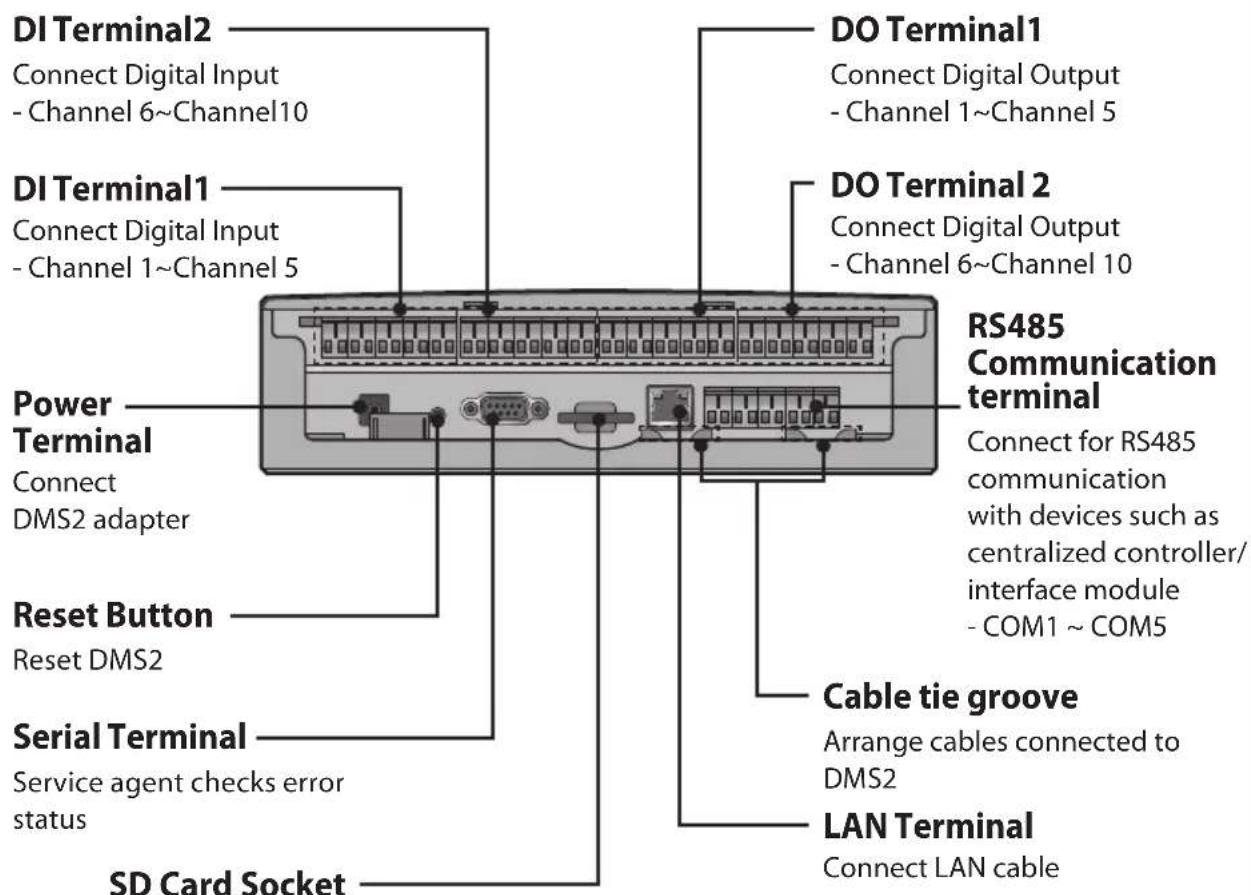

Bottom View

◆ Separate bottom cover by unfastening 2 screws on the bottom.

DI Terminal2 Connect Digital Input - Channel 6~Channel10 DI Terminal1 Connect Digital Input - Channel 1~Channel 5 Power Terminal Connect DMS2 adapter Reset Button Reset DMS2 Serial Terminal Service agent checks error status SD Card Socket DO Terminal1 Connect Digital Output - Channel 1~Channel 5 DO Terminal 2 Connect Digital Output - Channel 6~Channel 10 RS485 Communication terminal Connect for RS485 communication with devices such as centralized controller/ interface module - COM1 ~ COM5 Cable tie groove Arrange cables connected to DMS2 LAN Terminal Connect LAN cable

Socket for sub memory (SD or MMC)

( Sub memory is for DMS2 program update and set information saving)

※ Purchase SD card separately.

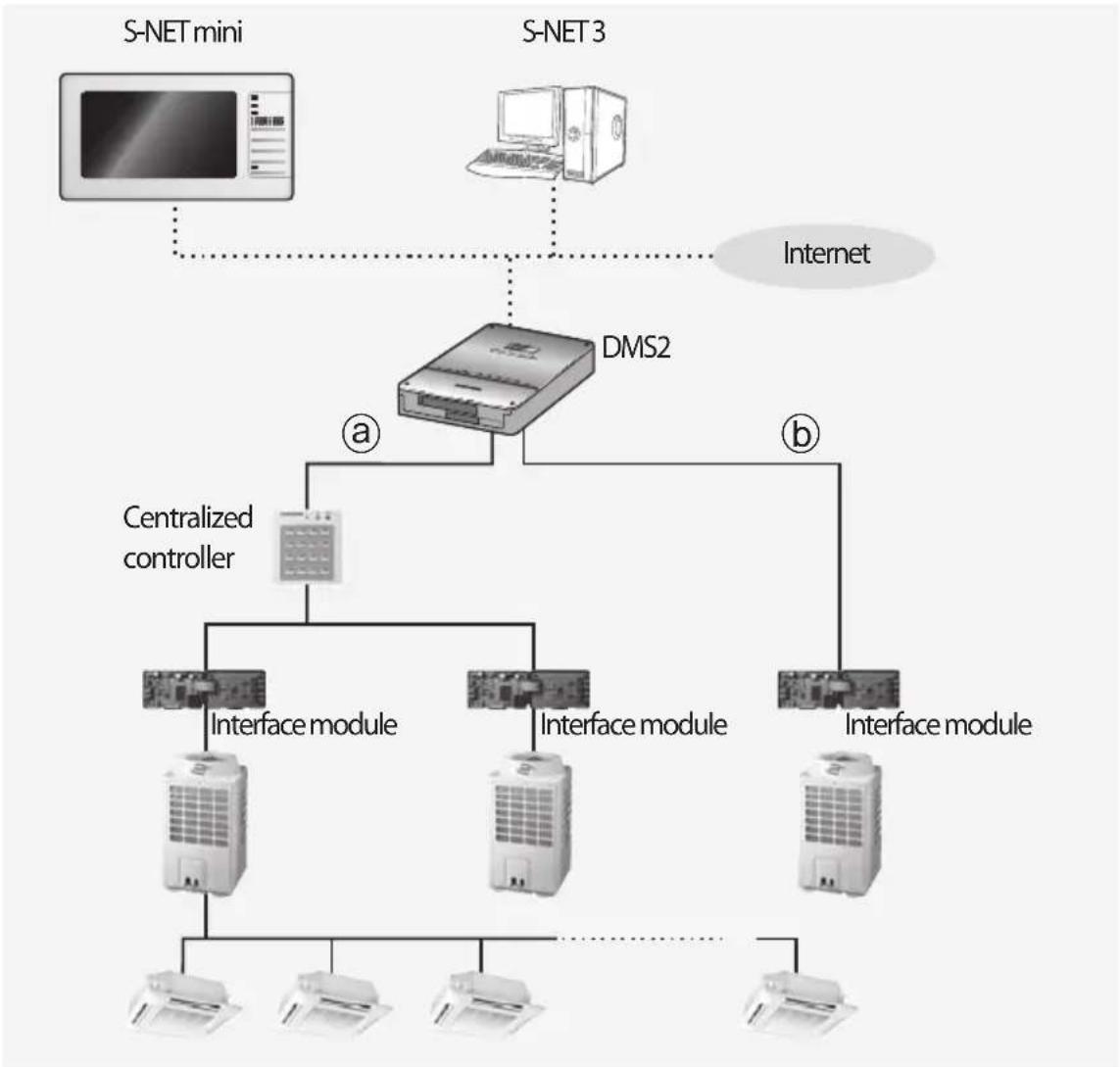

System Configuration

◆ Connecting centralized controller and DMS2 (a type)

You can control up to 16 centralized controllers and 256 indoor units using DMS2.

◆ Connecting interface module and DMS2 (b type)

- You can control up to 80 interface modules and 256 indoor units using DMS2.

※ 16 interface modules can be connected to RS485 communication channel of DMS2.

- The more interface modules are connected, the longer time takes for tracking.

When connecting centralized controller and interface module to the DMS2 of same communication channel, only one of them will communicate according to the communication channel mode setting of [System Settings]→[Tracking]. Therefore, do not connect the centralized controller and interface module to the same communication channel.
If you set the communication channel mode as interface module, virtual centralized controller address will be assigned. Therefore if you connect centralized controller at the same time and set the address as virtual centralized controller address, it may cause trouble for bringing device information.
Channel 0: Virtual centralized controller 11,
Channel 1: Virtual centralized controller 12,
Channel 2: Virtual centralized controller 13,
Channel 3: Virtual centralized controller 14,
Channel 4: Virtual centralized controller 15

Web Browser Specification

◆ Windows 7 or later version
◆ Install Internet Explorer 7.0 or later version ※ You can use Internet Explorer 6.0 but it is not recommended.
◆ Install Silverlight 2.0 or later version

Note

Visit internet homepage (http://www.microsoft.com/silverlight/) to download Silverlight. Or you can download it through the download link which is noticed automatically when the PC is connected to the Internet and you access to DMS2 for the first time.
◆ Silverlight operates normally with Windows XP SP2 or later version. It may not operate normally with former version of Windows.

Computer Settings for DMS2 Connection

All settings of DMS2 will be arranged in web page which built in DMS2.

You should access to DMS2 IP to use DMS2 web page.

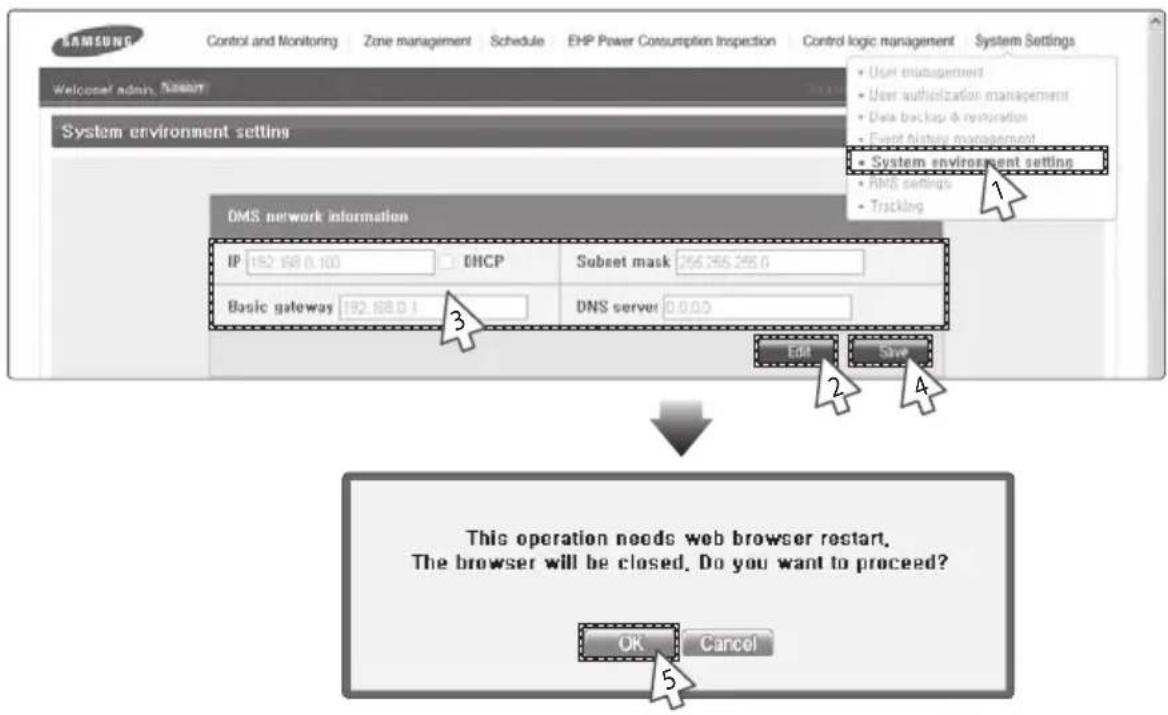

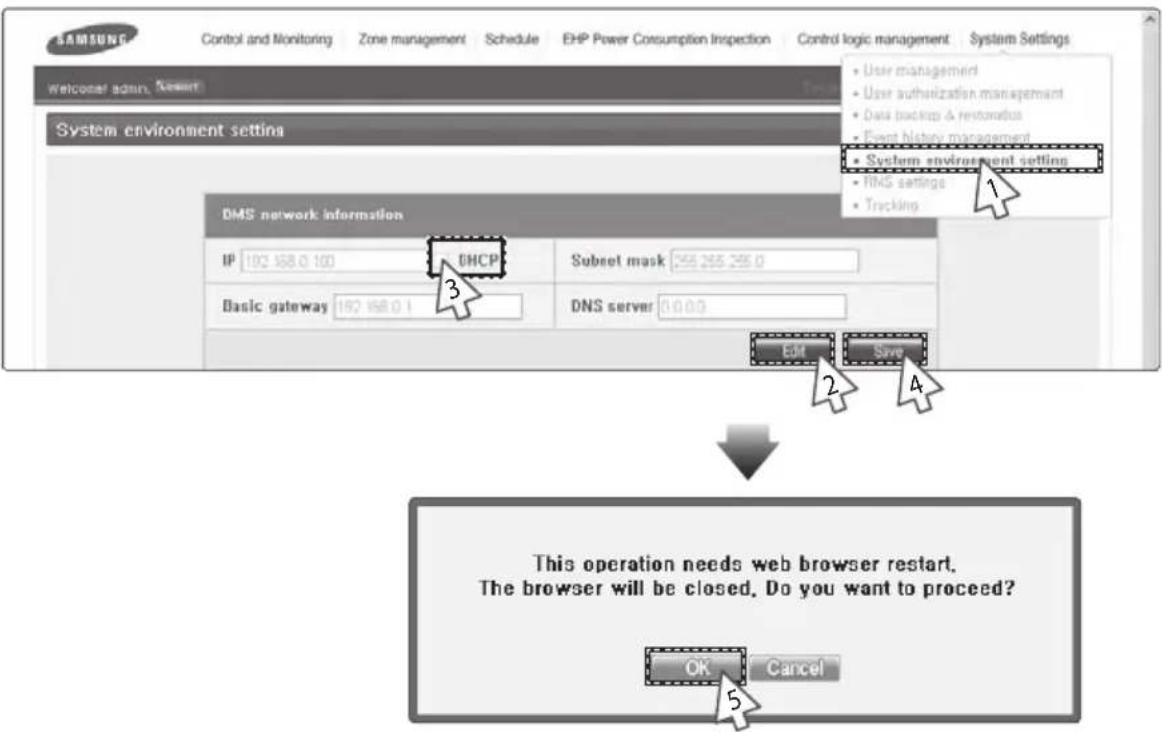

There are 2 ways to access DMS2 IP. (For about settings, refer to installation manual.)

◆ Static IP setting
◆ Dynamic IP(DHCP) setting
◆ Basically, only Private IP can be set to IP address. To use Public IP, you must set Enable public IP as 'Enable' from the menu [System Settings] → [System environment setting].

- Private IP range: 10.0.0.0 \~ 10.255.255.255, 172.16.0.0 \~ 172.31.255.255, 192.168.0.0 \~ 192.168.255.255

Use this product only in a separate dedicated network. Samsung electronics is not liable for any problems caused by connecting it to the Internet or an intranet.

Interface with Upper Level Controller

The DMS2 receives/manages setting and control data from the upper level controller and sends the received data to the lower level system.

◆ The upper level controllers of the DMS2 are the S-NET series and the connectible S-NET series are S-NET 3, S-NET mini and RMS.
◆ S-NET 3: System air conditioner controlling and monitoring program that is used by installing on a PC.
◆ S-NET mini: System air conditioner controlling and monitoring device with touchscreen
◆ RMS: A device which supervises operation status and break down status by connecting to DMS2 for system air conditioner remote service. If break down is detected, it notifies service agent and makes fast service possible.

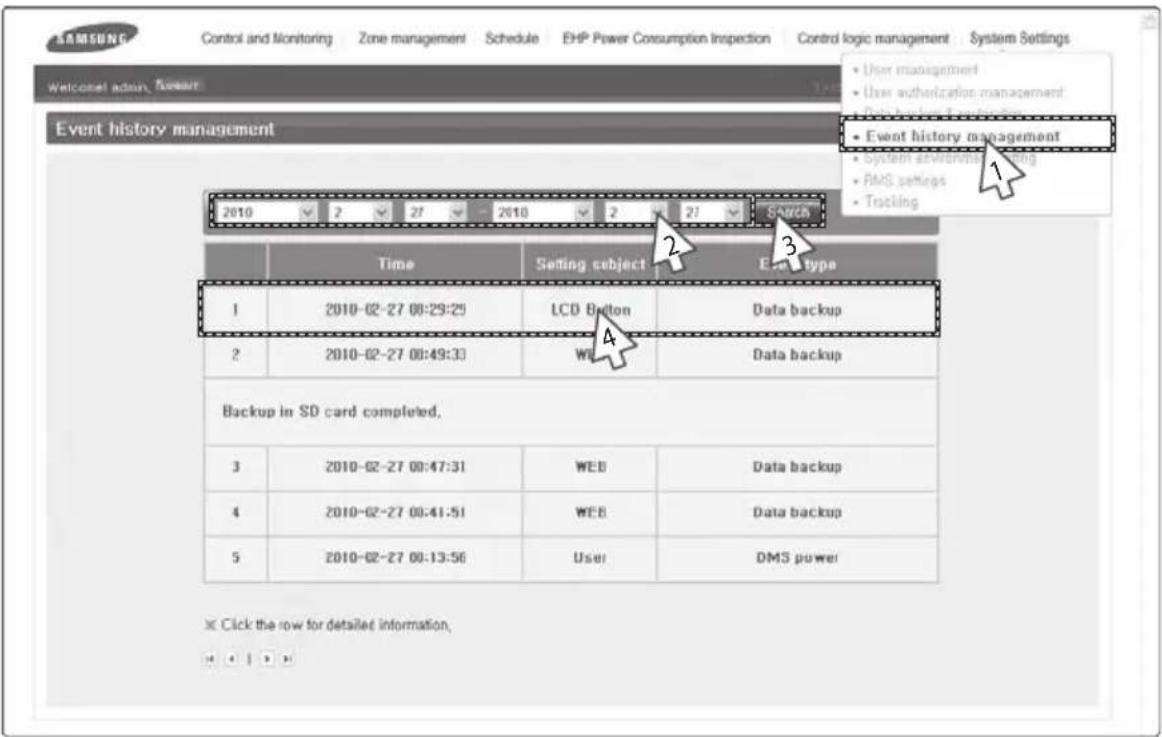

Save Trouble History

The DMS2 saves at most 1024 cases of trouble history. If the number of errors exceeds 1024, only the latest 1024 cases are stored by deleting the oldest trouble history.

◆ Device name, address, error occurrence time, error solvation time, trouble history will be saved. You can check it in web page or upper controller.
When an error occurs, it sends trouble history to e-mail saved in DMS2.

Device Type
Indoor Unit	Indoor unit communication errorIndoor unit sensor related errorOther errors
Outdoor Unit	Outdoor unit communication errorPipe inspection errorOutdoor unit sensor related errorOutdoor unit related other errors
Communication error such as centralized controller	Option device related communication error

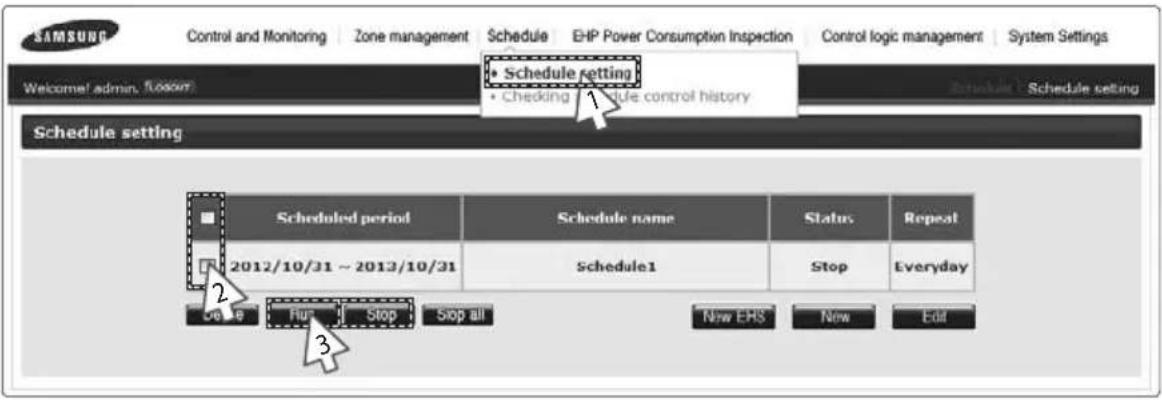

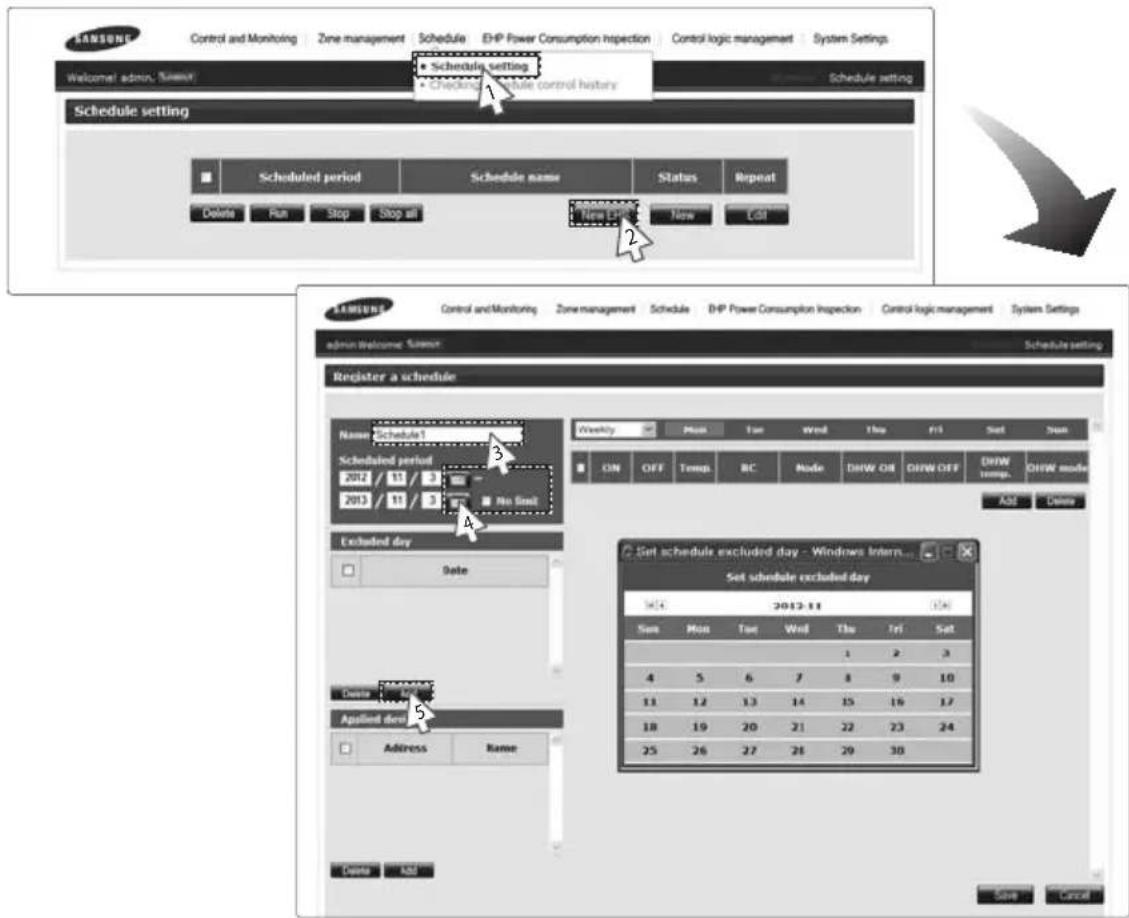

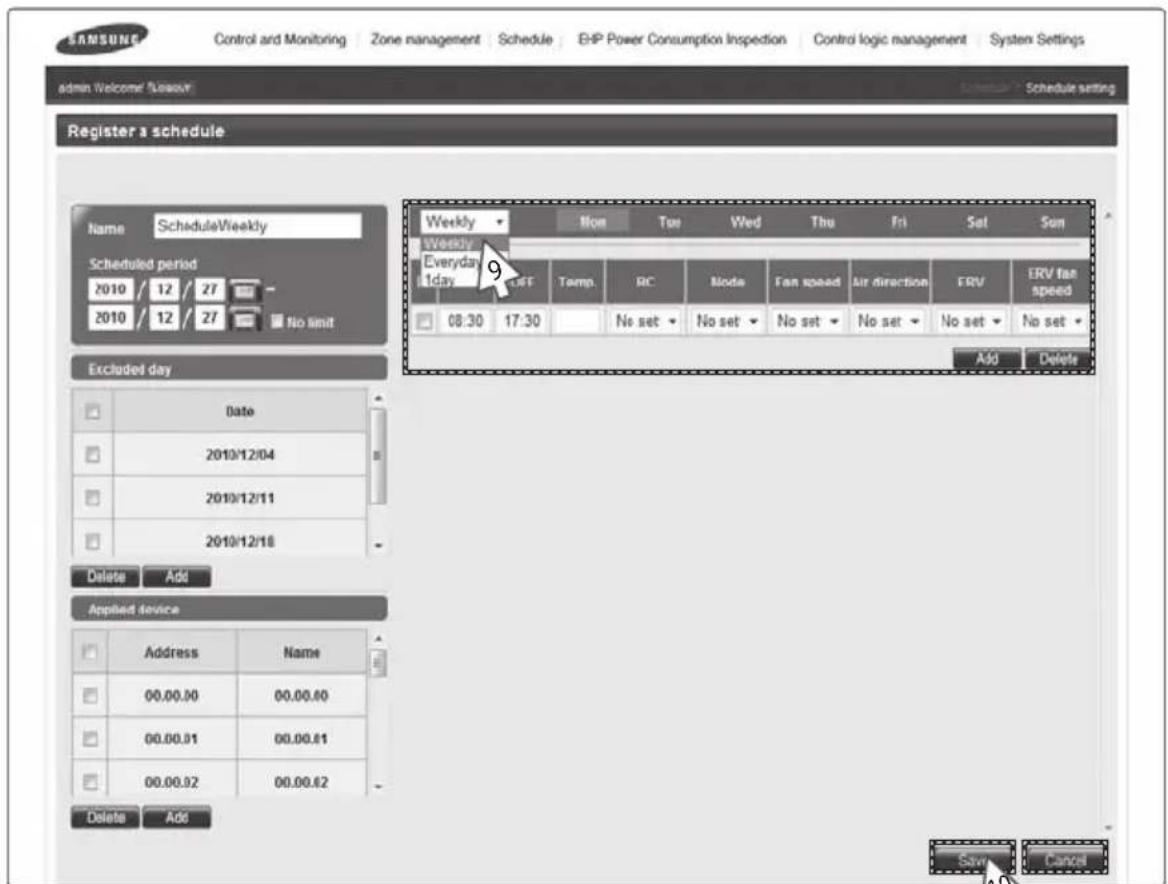

Set and Run Schedule

The schedule function of the DMS2 can be set through the Web or using the upper level controller. 1day/Everyday/Every week schedules can be set.

◆ Each schedule can be used selectively by using the run schedule/stop schedule order.
◆ At most 256 schedules can be set.
- Indoor unit control is possible at least 1 minute of interval by set schedule.

Item Content Remark
Schedule Period Starting and ending date of a schedule
Exception Day Setup	Set an exception day within a schedule period to ignore the schedule control
Devices to be applied	Select devices to receive schedule control
Event	Set indoor unit operation modes- Device On time- Device Off time- Desired temperature- Operation mode: Auto/Cool/Dry/Fan/Heat/Off- Remote control usage Enable RC/ Disable RC/Cond.RC- Fan speed: Auto/Low/Mid/High- Air flow: None/Vertical/Horizontal/All- ERV operation mode: Auto/HeatEx/ByPass/Sleep- ERV Fan speed: Low/High/Turbo	Weekly Repeat:Maximum 10 events per dayDaily Repeat:Maximum 70 events

Main Function (Continued)

Save Integrated Power Distribution Data

The DMS2 calculates and distributes the power consumed by each indoor unit by receiving the total power usage from the watt-hour meter interface modules (SIM/PIM) and taking into account the operation status of the indoor units.

The DMS2 saves at most 1 year of data. After a year, the oldest data is deleted and the latest data is saved. This data can be checked through the built-in Web page of the DMS2 or by S-NET 3.

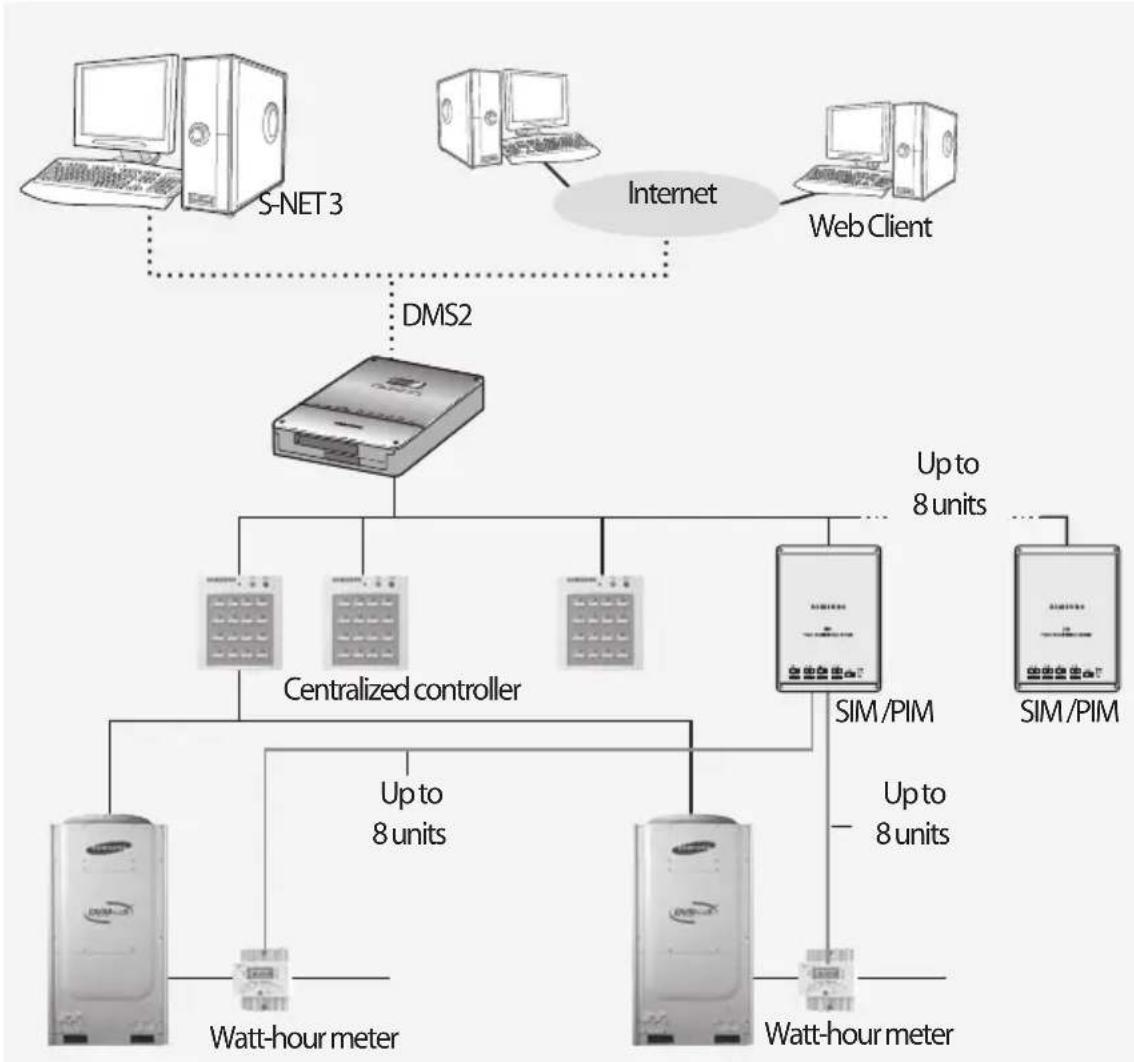

System Architecture

Time Segmentation

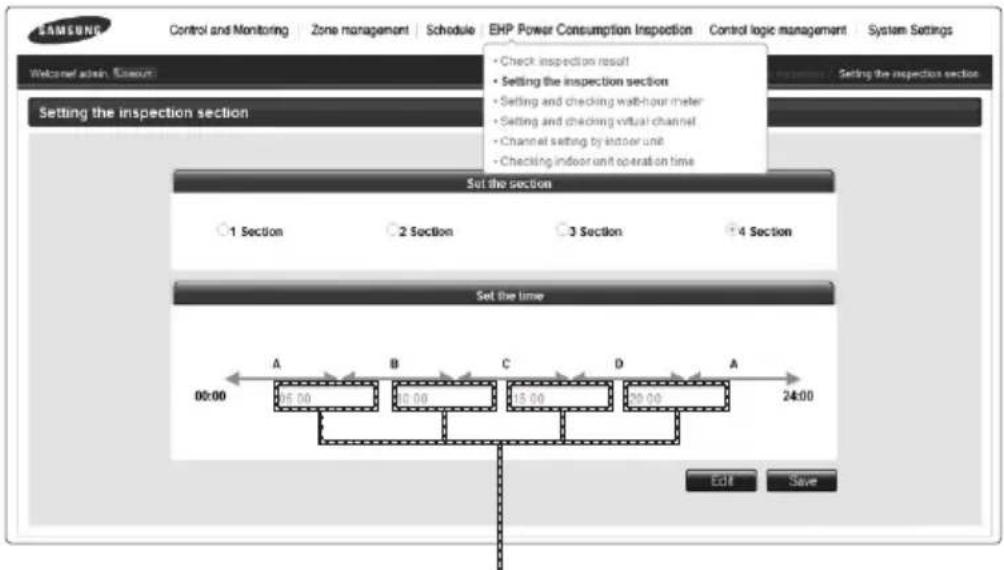

◆ Time segmentation is used to divide 24 hours into different sections and to distribute power according to each section.
This function is used when the power consumption fee is different according to different time slots or when a building is charged differently depending on the consumption time.

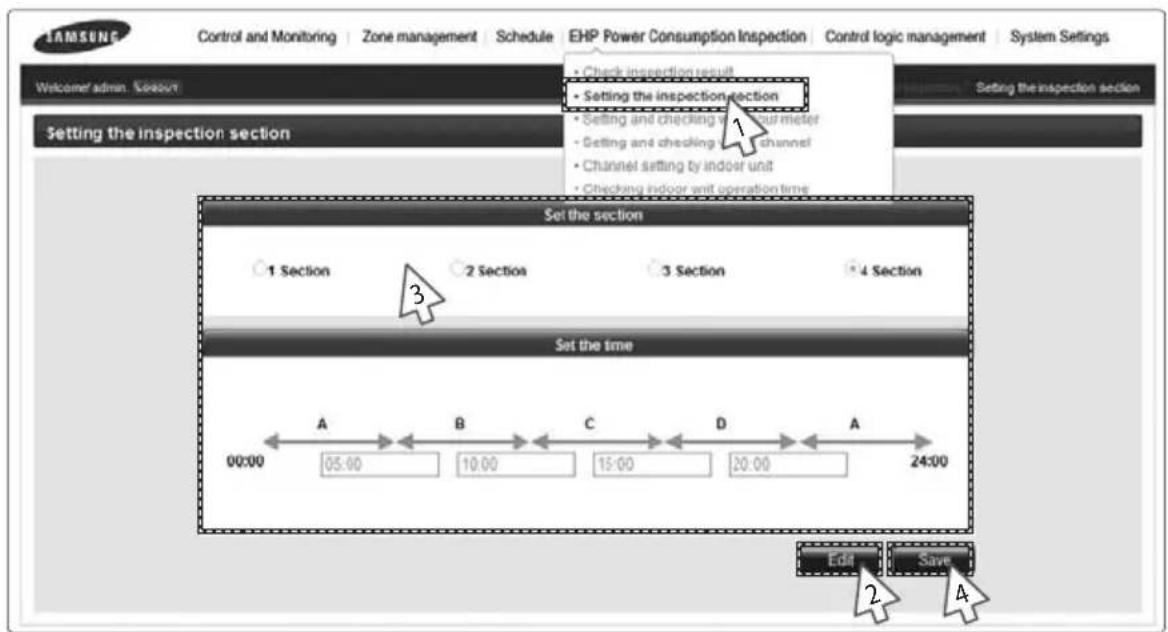

◆ 1 section (A) is set as 24hours, and the factory default setting is set as 1 section. The time, 24hours, can also be divided into 2 sections (A,B,A), 3 sections (A,B,C,A) or 4 sections (A,B,C,D,A)
◆ DMS2 shows the result of the power distribution for each section you set.

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Discount Setting the inspection section 1 Section 2 Section 3 Section 4 Section Set the section • Check inspection result • Setting the inspection section • Setting and checking wait-hour meter • Setting and checking virtual channel • Channel setting by indoor unit • Checking indoor unit operation time Set the time 00:00 A B C D A 05.00 10.00 15.00 20.00 24:00 Edit Save

Input manually (When setting 2 sections, 3 sections, and 4 sections)

If communication error occurs between DMS and the lower level controllers, actual power consumption and the result of power distribution value may not be same. Make sure to solve communication error status.

- Communication error example: Between DMS2 and SIM/PIM

Between SIM/PIM and Watt-hour meter

Between DMS2 and Centralized controller

Between Centralized controller and interface module

Between Interface module and indoor/outdoor units Between DMS2 and interface module

Starting DMS2

Current time setting

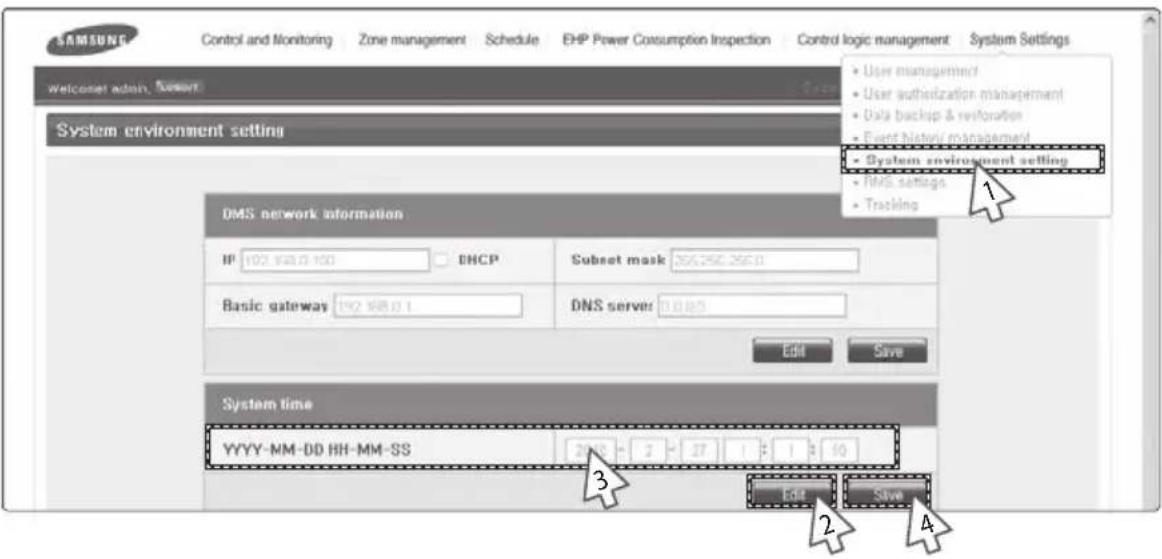

Set the current time of DMS2 system.

◆ "2009/01/01 01:01:01" is factory setting. Set the current time as DMS2 system time. You can set DMS2 time in [System Settings] → [System environment setting]

If DMS2 time does not set as the current time, DMS2 may cause malfunction when using Schedule or control logic management.

Connecting centralized controller & interface module

(1) Make sure that centralized controller communication cables(C1, C2) or interface module communication cables(R1, R2) are connected.

For communication between DMS2 and centralized controller/interface module, centralized controller communication cable(C1, C2) or interface module communication cable(R1, R2) should be connected.

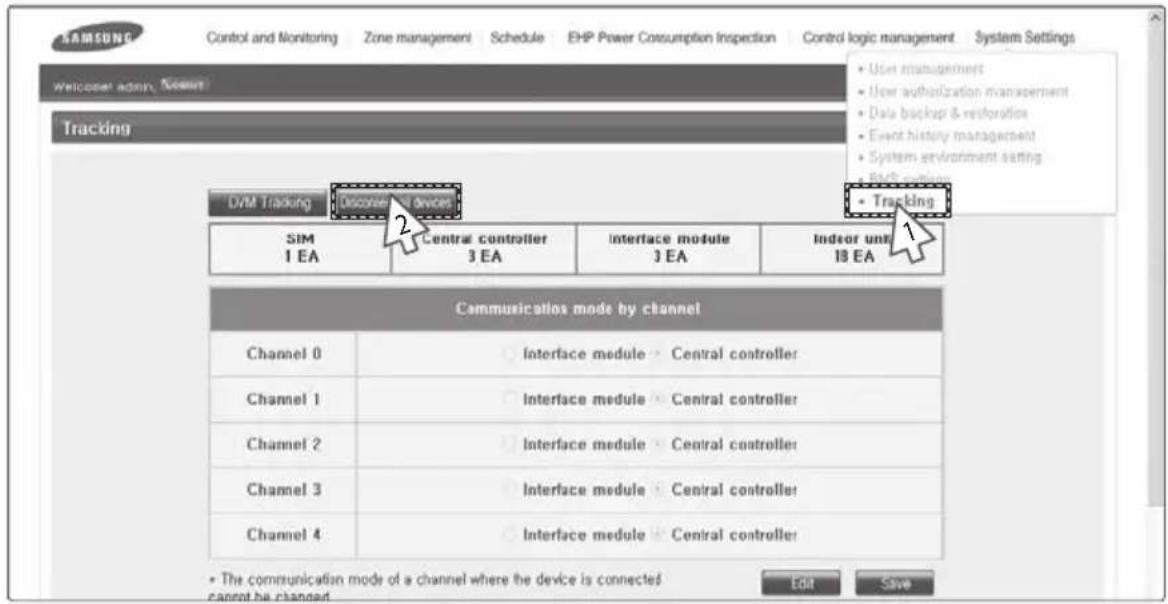

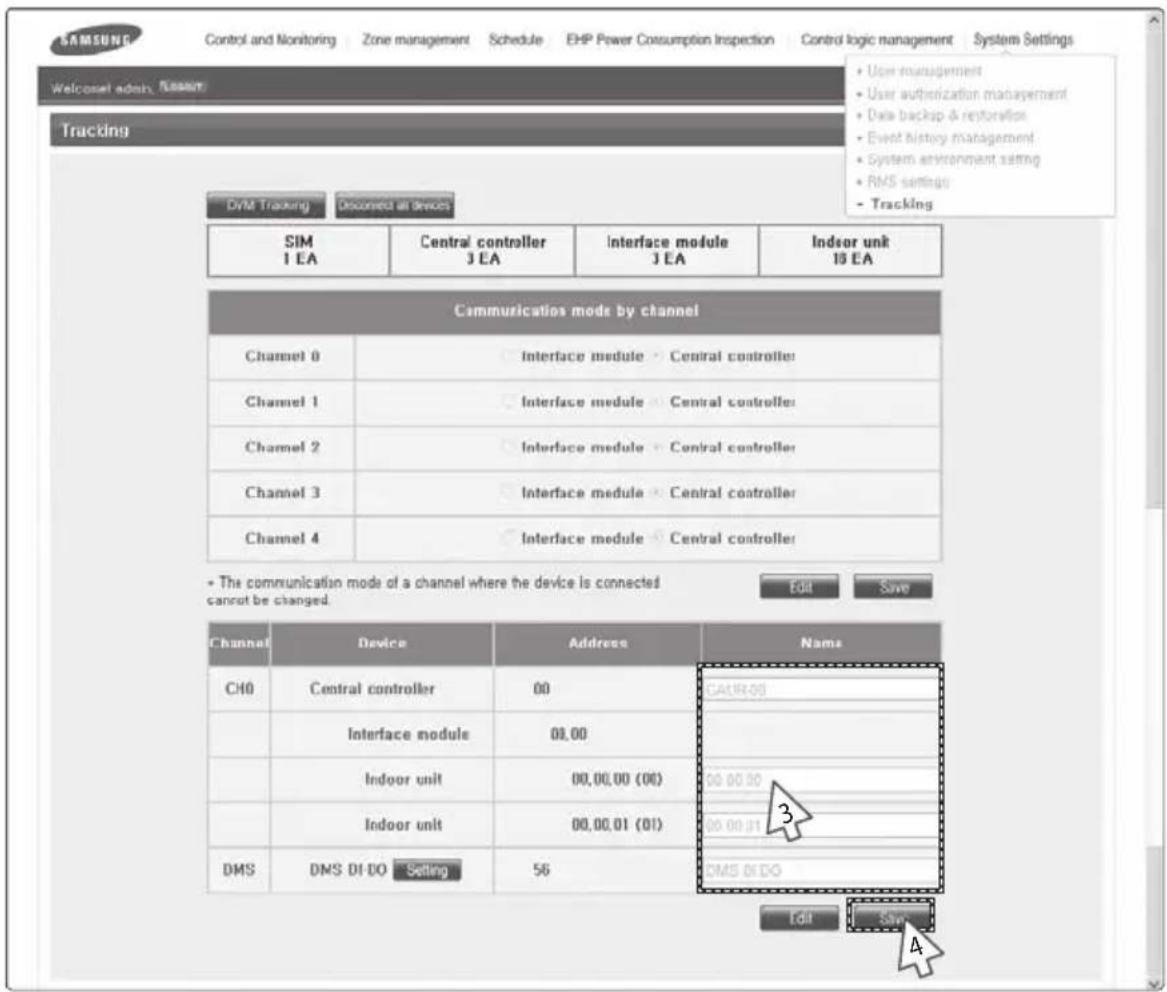

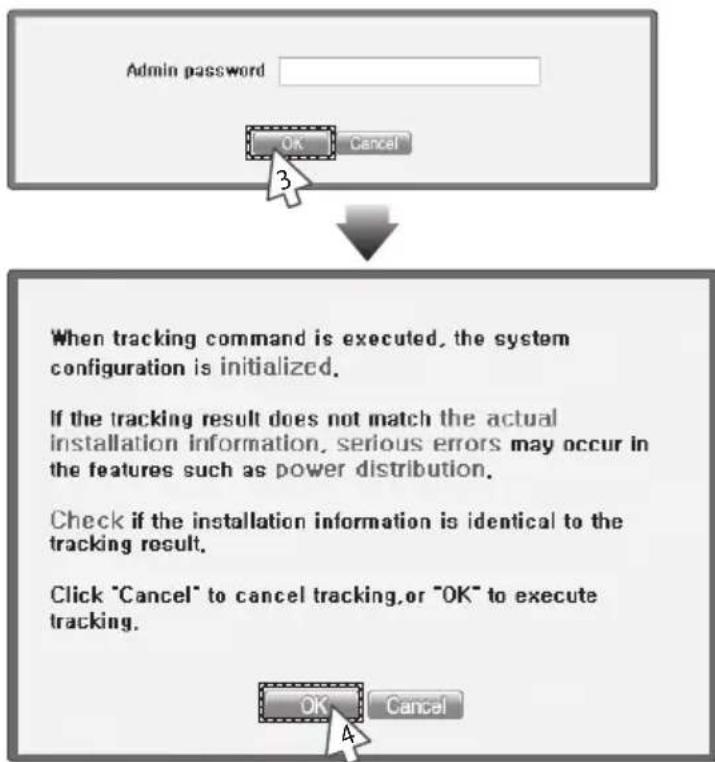

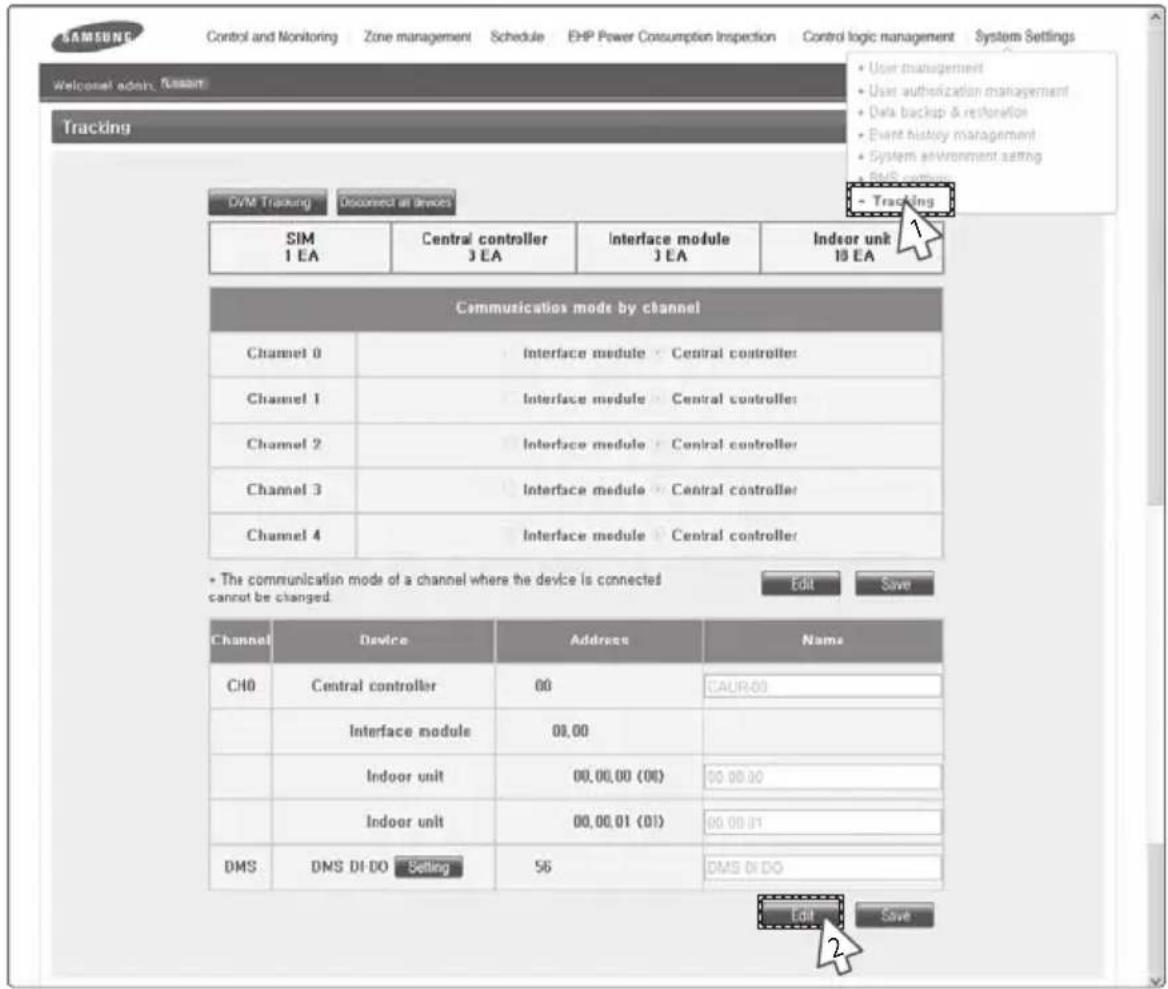

(2) Execute tracking.

◆ DMS2 communicates with centralized controller and interface module and brings information about installed indoor unit and outdoor unit.

◆ After tracking, you can use indoor unit control and other menu.

◆ For tracking, refer to [System Settings] → [Tracking] (Refer to page 142\~150)

Access to DMS2 & Login

Samsung Data Management Server (SMS Test: 7.1.0) - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites Go Address bar Install Microsoft"Silverlight" X: This web site is optimized for E: 7.0. File Download - Security Warning Do you want to run or save this file? Name: Silverlight.exe Type: Application, 4.60 MB From: 192.168.0.100 Run Save Cancel While files from the Internet or useful, this file type can potentially harm your computer. If you do not trust the source, do not run or save this software. What's the sick?

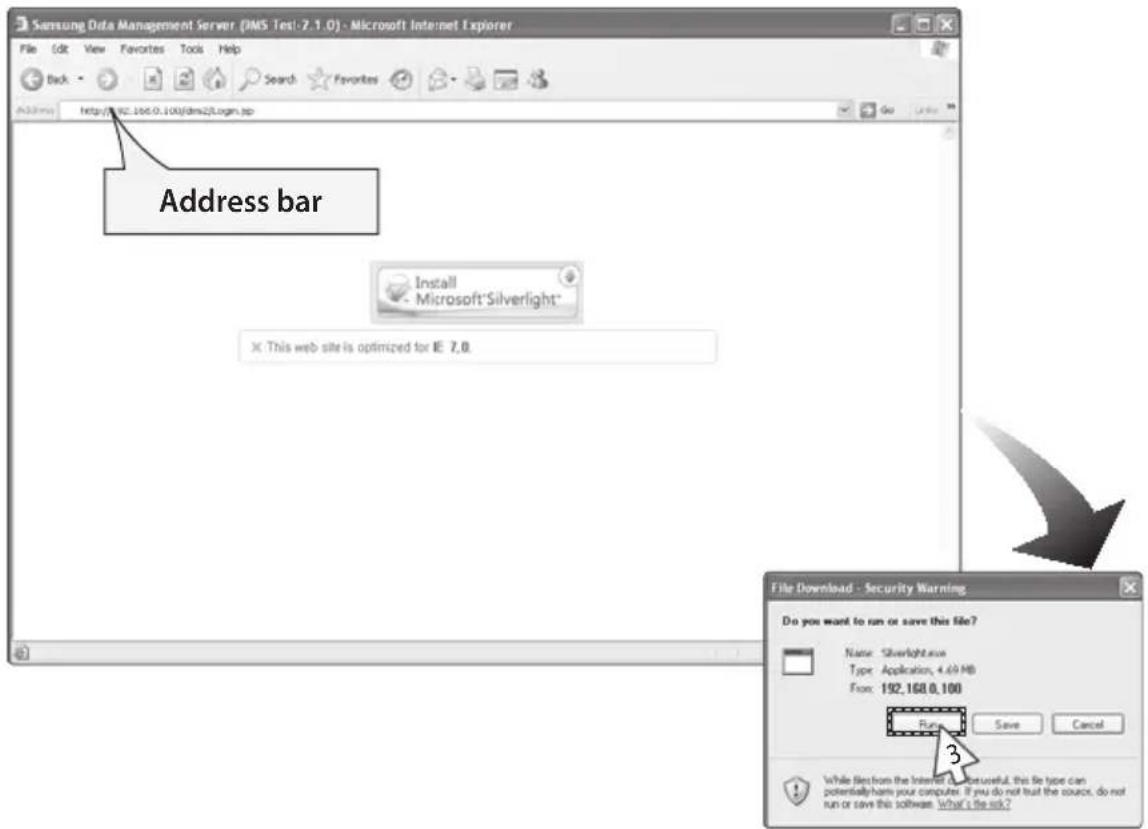

1 Run internet explorer on your computer.

2 Enter IP address (http://192.168.0.100) on the address bar, and then press [ENTER].

◆ If it is the first access to DMS2, "Install Microsoft Silverlight" message will be displayed.
- The message will not appear if Microsoft Silverlight have already installed.
If the message window and login screen does not appear, check PC setting status.

3 Click [Run] and continue installation.

◆ Access to DMS2 again after installation.

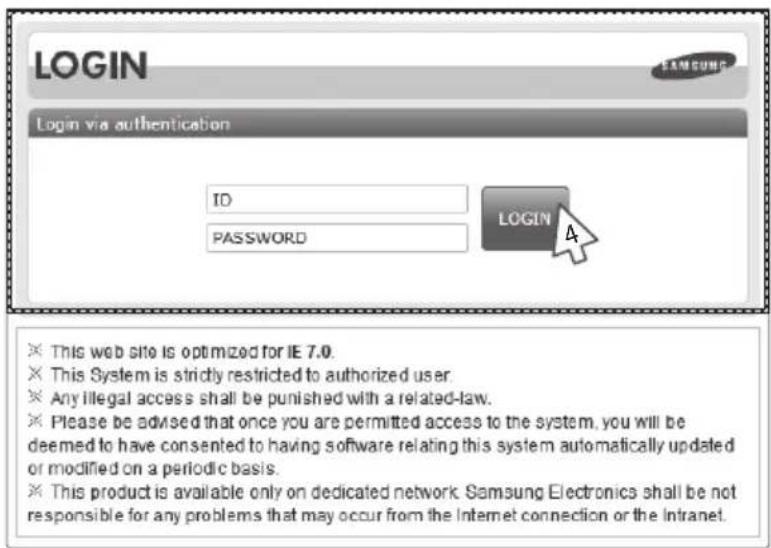

LOGIN Login via authentication ID PASSWORD LOGIN 4 ※ This web site is optimized for IE 7.0. ※ This System is strictly restricted to authorized user. ※ Any illegal access shall be punished with a related-law. ※ Please be advised that once you are permitted access to the system, you will be deemed to have consented to having software relating this system automatically updated or modified on a periodic basis. ※ This product is available only on dedicated network Samsung Electronics shall be not responsible for any problems that may occur from the Internet connection or the Intranet.

4 Enter ID and password when DMS2 main web page appears. Then click [LOGIN].

◆ The default DMS2 user ID is 'admin' and password is 'ac0530'.
◆ Depending on authorization settings which set by the administrator, access to some functions may be restricted.

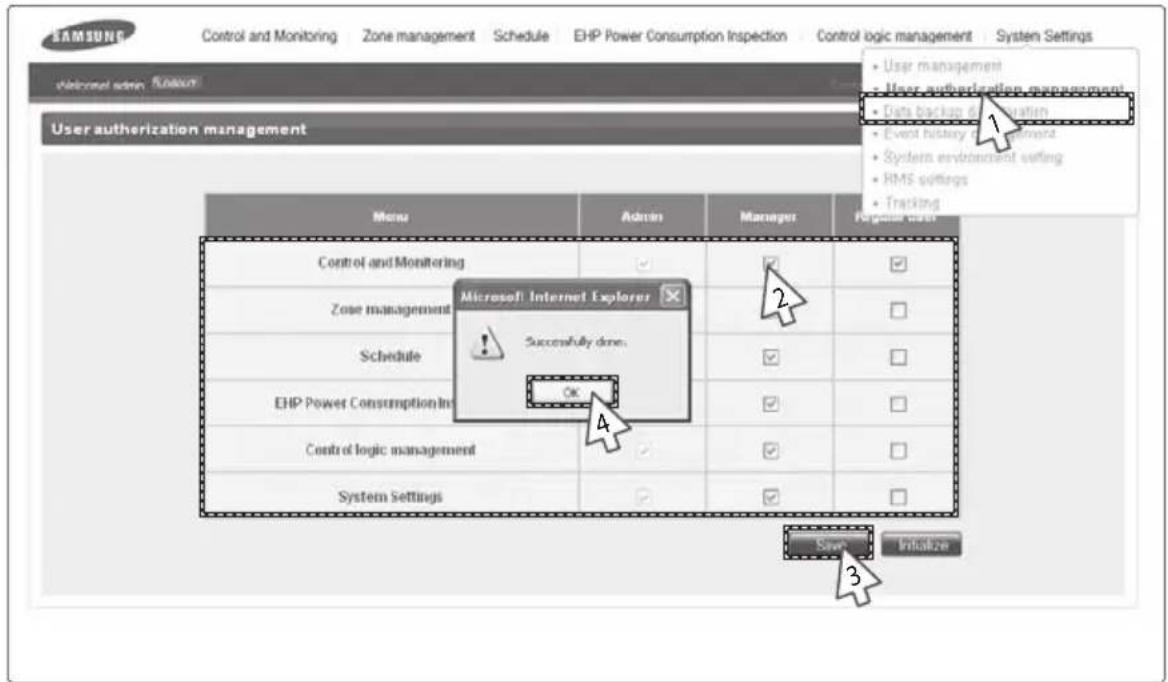

◆ To edit user authorization, refer to [System Settings] → [User authorization management]. (Refer to page 109)

Note ◆ Only authorized users can access to web page.

◆ Fewer than 5 concurrent users are recommended because connection speed may slow down.
◆ DMS2 manager should change ID and password for security and management. (Refer to page 107)
◆ Logout: To log out, click [LOGOUT] on the top of the menu.

Silverlight will run normally with Windows XP SP2 or later version. With former version of Windows, DMS2 may not operate normally.

Logged-in User with No Authorization

1 When the screen above appears, ask for manager.

◆ Depending on control authorization setting, there can be a user who does not have control authorization.
◆ Above screen will appear when the logged-in user does not have control authorization.

Devices controlled and monitored by DMS2

Type Display		Remote controller (Controlling range)	Type Display		Remote controller (Controlling range)
Indoor unit display icon			MINI AHU display icon
ERV display icon			Fresh duct display icon
AHU display icon			DI (Digital Input) display icon
ERV PLUS display icon			DO (Digital Output) display icon
DVM Hydro unit display icon

DMS2 can control and monitor the devices in the above table.

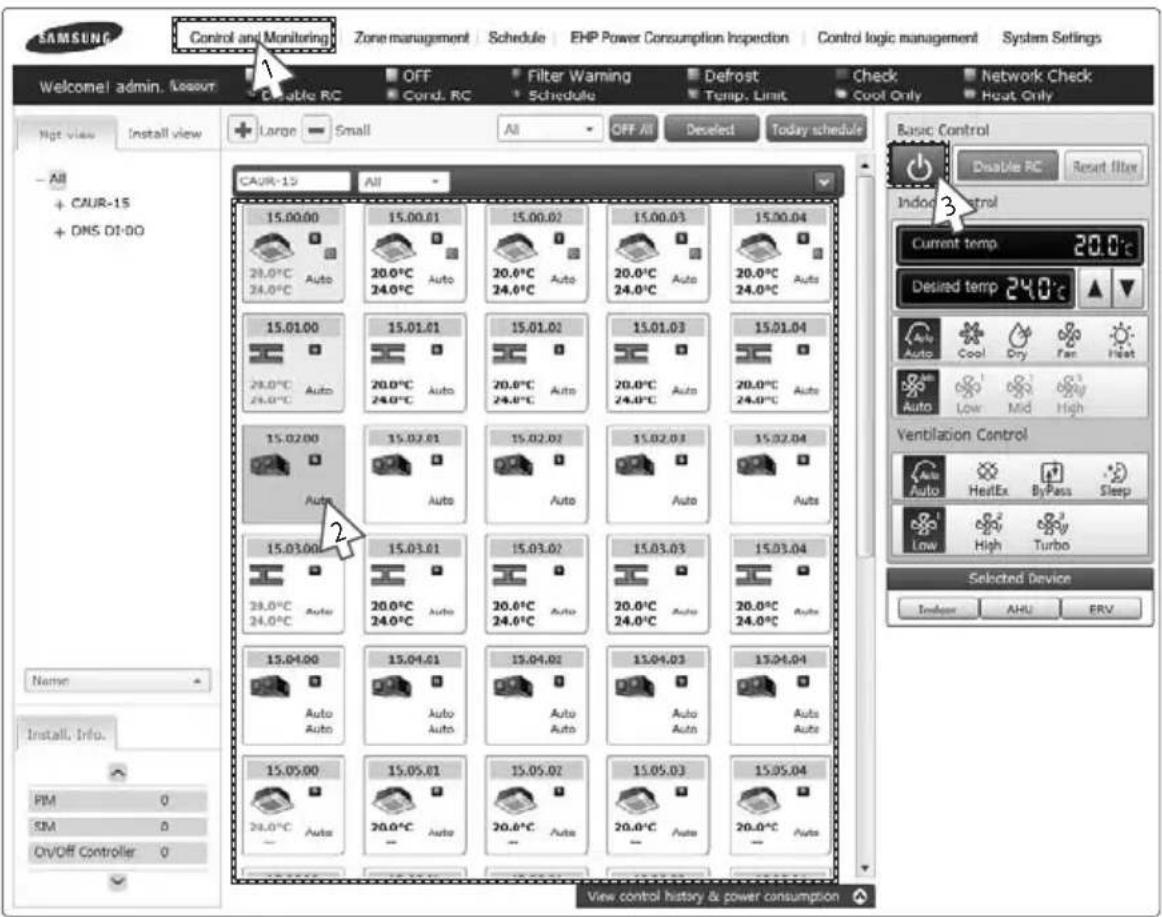

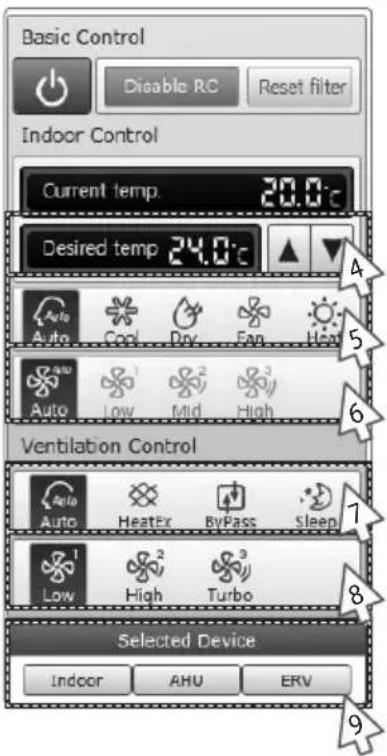

When users select multiple devices, 'Basic Control' will be displayed on the screen. (This is when different types of multiple devices are selected.)

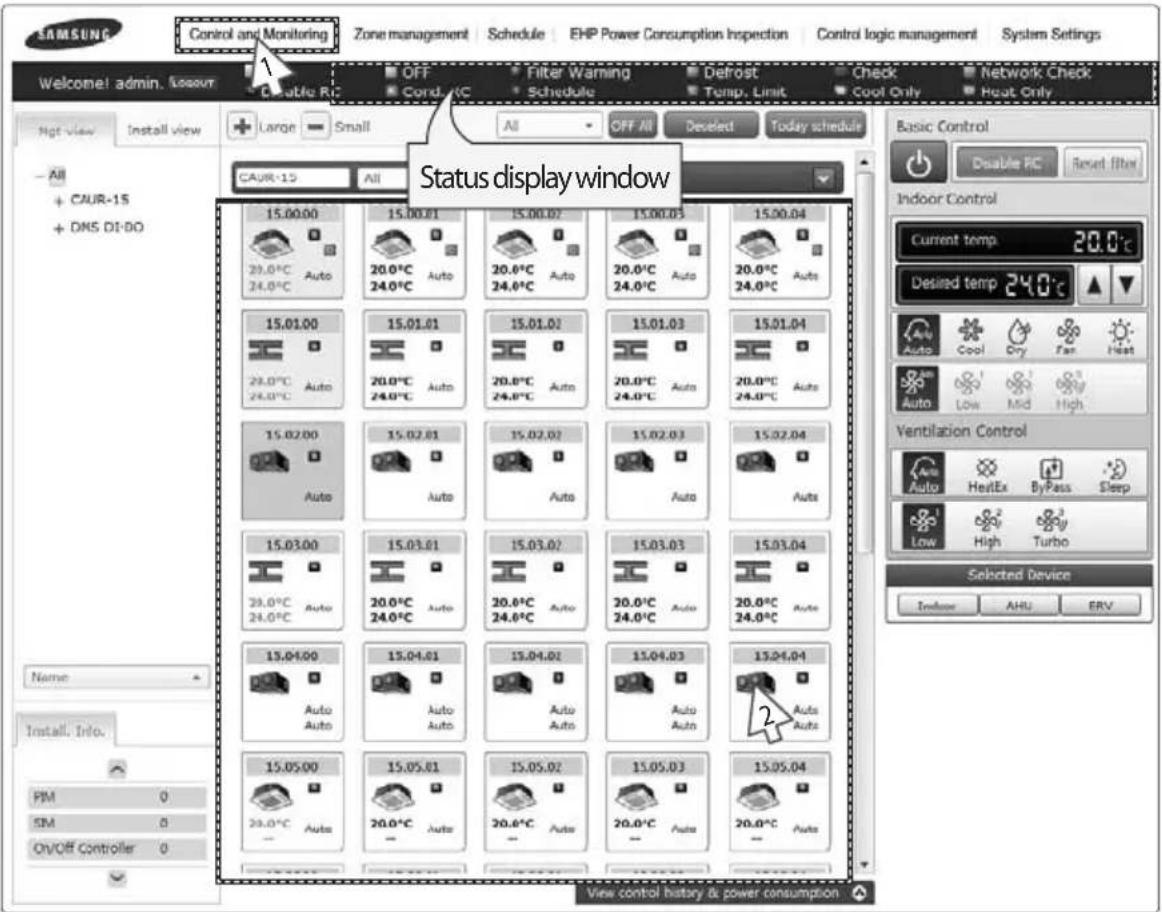

Monitoring Indoor Unit Operation Status

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. flesser ON OFF Filter Warning Defrost Check Network Check On/Down PC Cord. RC Schedule Temp. Limit Cool Only Heat Only Not View Install view Large Small AI Off AI Deseed today schedule CAUR-15 All 15.00.00 20.0°C Auto 24.0°C 15.00.01 20.0°C Auto 24.0°C 15.00.02 20.0°C Auto 24.0°C 15.00.03 20.0°C Auto 24.0°C 15.00.04 20.0°C Auto 24.0°C 15.01.00 20.0°C Auto 24.0°C 15.01.01 20.0°C Auto 24.0°C 15.01.02 20.0°C Auto 24.0°C 15.01.03 20.0°C Auto 24.0°C 15.01.04 20.0°C Auto 24.0°C 15.02.00 20.0°C Auto 24.0°C 15.02.01 20.0°C Auto 24.0°C 15.02.02 20.0°C Auto 24.0°C 15.02.03 20.0°C Auto 24.0°C 15.02.04 20.0°C Auto 24.0°C 15.03.00 20.0°C Auto 24.0°C 15.03.01 20.0°C Auto 24.0°C 15.03.02 20.0°C Auto 24.0°C 15.03.03 20.0°C Auto 24.0°C 15.03.04 20.0°C Auto 24.0°C 15.04.00 20.0°C Auto 24.0°C 15.04.01 20.0°C Auto 24.0°C 15.04.02 20.0°C Auto 24.0°C 15.04.03 20.0°C Auto 24.0°C 15.04.04 20.0°C Auto 24.0°C 15.05.00 20.0°C Auto 24.0°C 15.05.01 20.0°C Auto 24.0°C 15.05.02 20.0°C Auto 24.0°C 15.05.03 20.0°C Auto 24.0°C 15.05.04 20.0°C

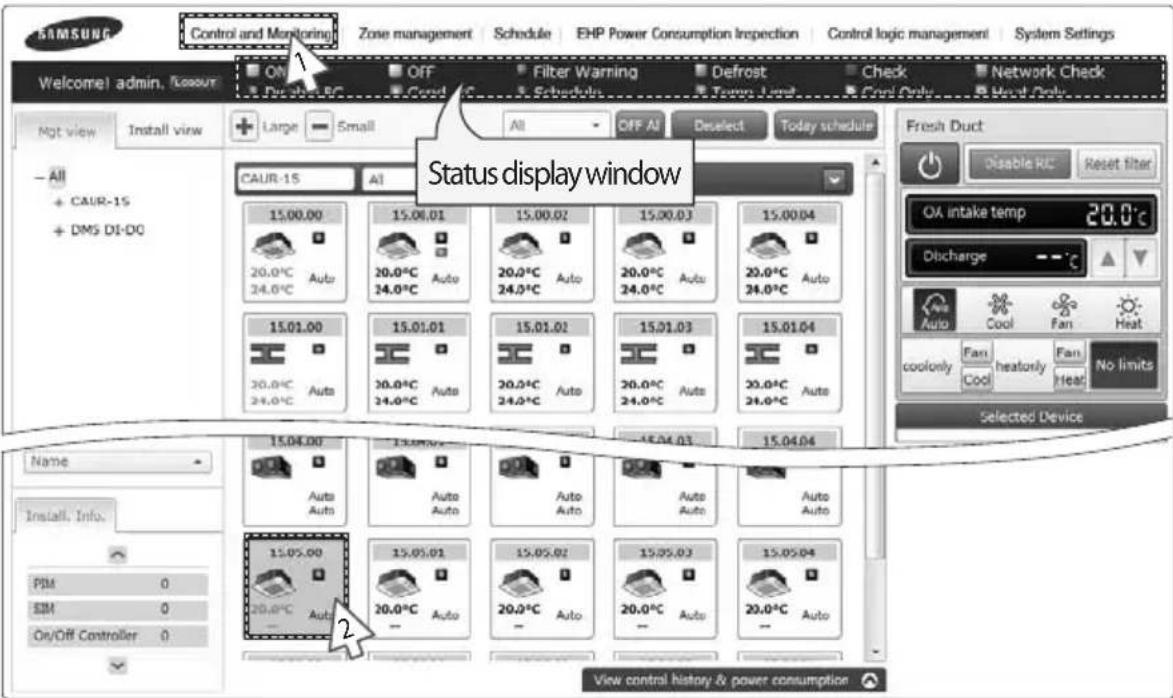

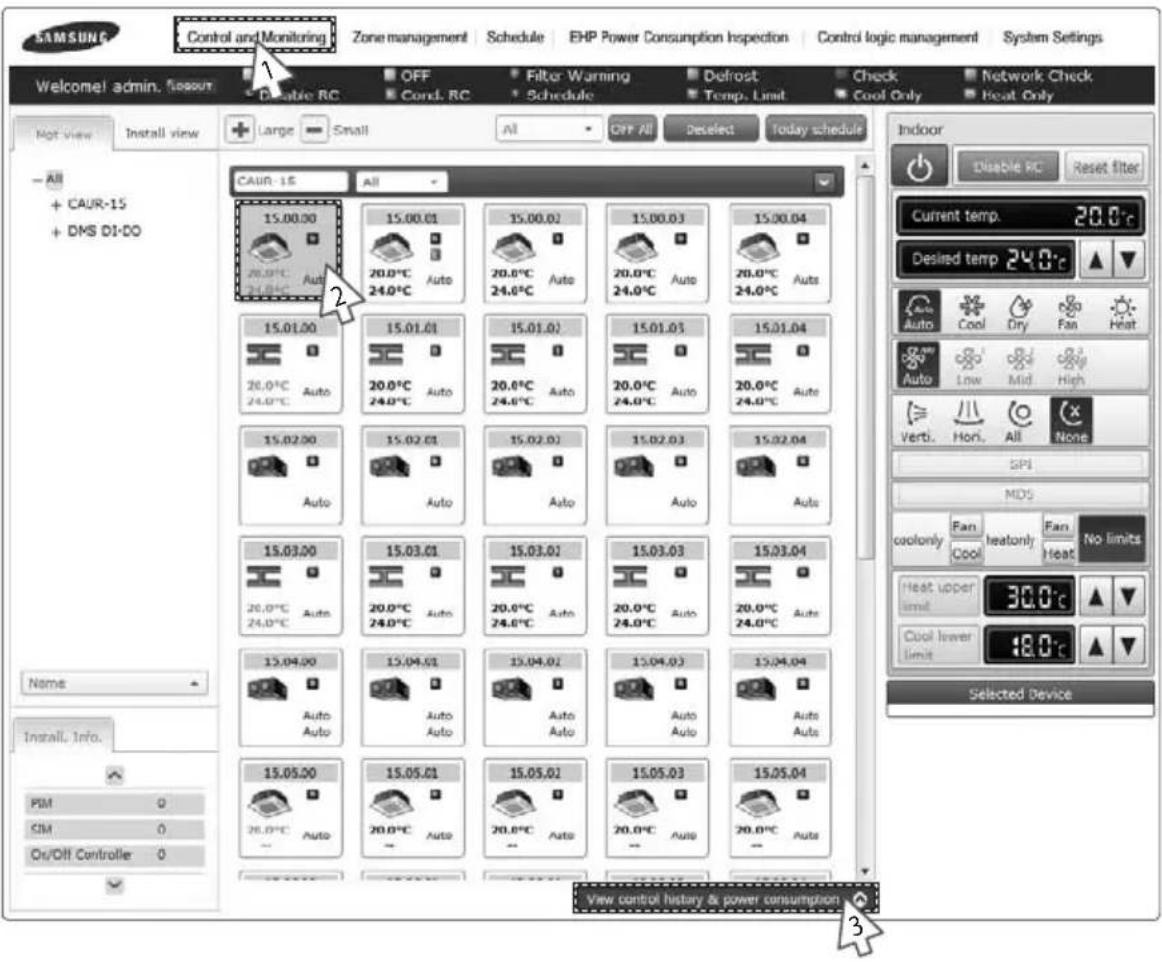

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.
◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Check the current status of all devices.

◆ You can check the current controlling status of all installed indoor units, ERV, AHU, ERV PLUS, Fresh duct, MINI AHU, DVM Hydro unit and other devices.

Note

When the advanced functions (such as Sleep mode, Energy saving function) are selected through wired/wireless remote controllers or indoor unit panel, set operation mode on the remote controllers and DMS2 may be displayed differently. Also, when controlling by DMS2, additional functions will be canceled.
◆ Depending on the model of indoor unit, Horizontal/All air flow direction control may not be possible. In this case, vertical or fixed flow will be displayed depending on indoor unit's basic operation specification.

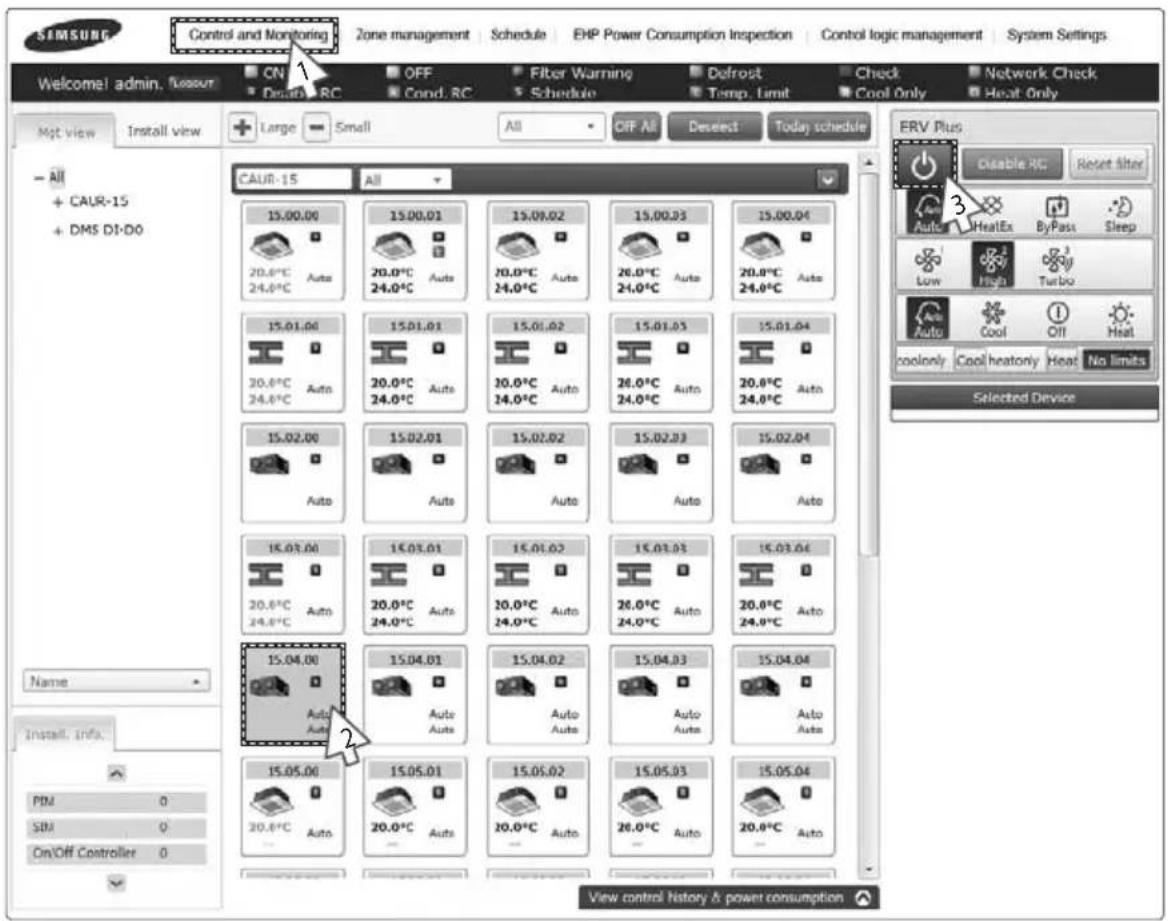

◆ AHU, ERV, ERV PLUS, Fresh duct, MINI AHU, DVM Hydro Unit and other devices will be displayed only when the corresponding devices are installed.

Some functions available on DMS2 web page may not be functional at BACnet Gateway and LonWorks Gateway. For detailed function, refer to the installation manual or contact Samsung Electronics.

Control and Monitoring (Continued)

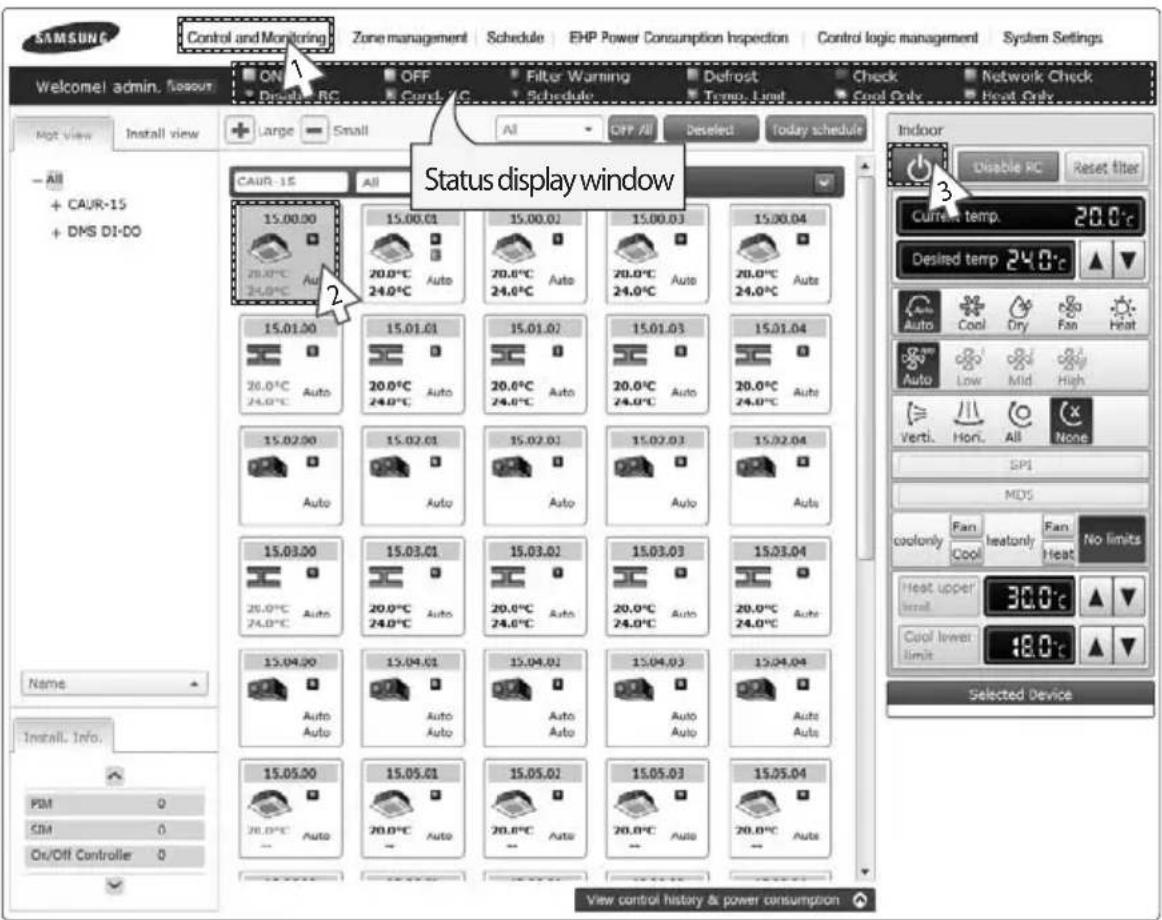

Controlling an Indoor Unit

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. fesour ON OFF Filter Warning Diefrost Check Network Check Display PC Cond. PC Schedule Temp. Load Cool Only Heat Only Not view Install view Large Small All OFF All Deselect today schedule - All + CAUR-15 + DMS DI-DO CAUR-15 All Status display window 15.00.00 20.0°C Auto 24.0°C 15.00.01 20.0°C Auto 24.0°C 15.00.02 20.0°C Auto 24.0°C 15.00.03 20.0°C Auto 24.0°C 15.00.04 20.0°C Auto 24.0°C 15.01.00 20.0°C Auto 24.0°C 15.01.01 20.0°C Auto 24.0°C 15.01.02 20.0°C Auto 24.0°C 15.01.03 20.0°C Auto 24.0°C 15.01.04 20.0°C Auto 24.0°C 15.02.00 Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Modeled PC Reset filter Current temp. 20.0°C Desired temp. 24.0°C ▲▼ Auto Cool Dry Fan Heat Auto Low Mid High Verti Hori All None SP1 MDS coolonly Fan heatonly Fan No limits Cool Cool upper heat upper 30.0°C ▲▼ Cool lower limit 18.0°C ▲▼ Selected Device Name: Install, Info. PIM 0 SIM 0 Or/Off Controller 0 15.05.00 20.0°C Auto 24.0°C Auto 24.0°C Auto 15.05.01 20.0°C Auto 24.0°C Auto 24.0°C Auto 15.05.02 20.0°C Auto 24.0°C Auto 24.0°C Auto 15.05.03 20.0°C Auto 24.0°C Auto

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

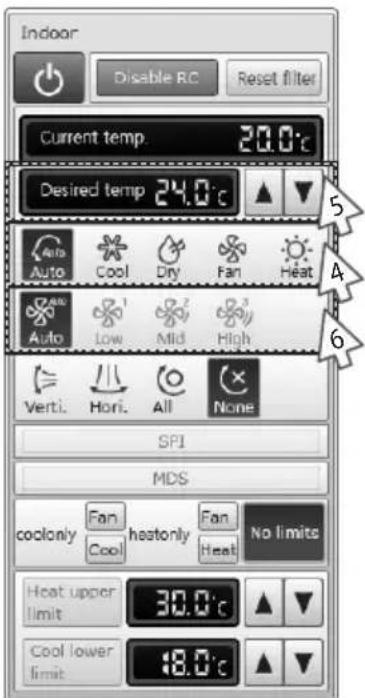

2 Select an indoor unit to control.

◆ Check the indoor unit status through status display window.
- When the selected indoor unit is switched on, the remote controller panel will be automatically activated.

3 Turn the indoor unit on by clicking [+]

◆ Remote controller panel will be activated.

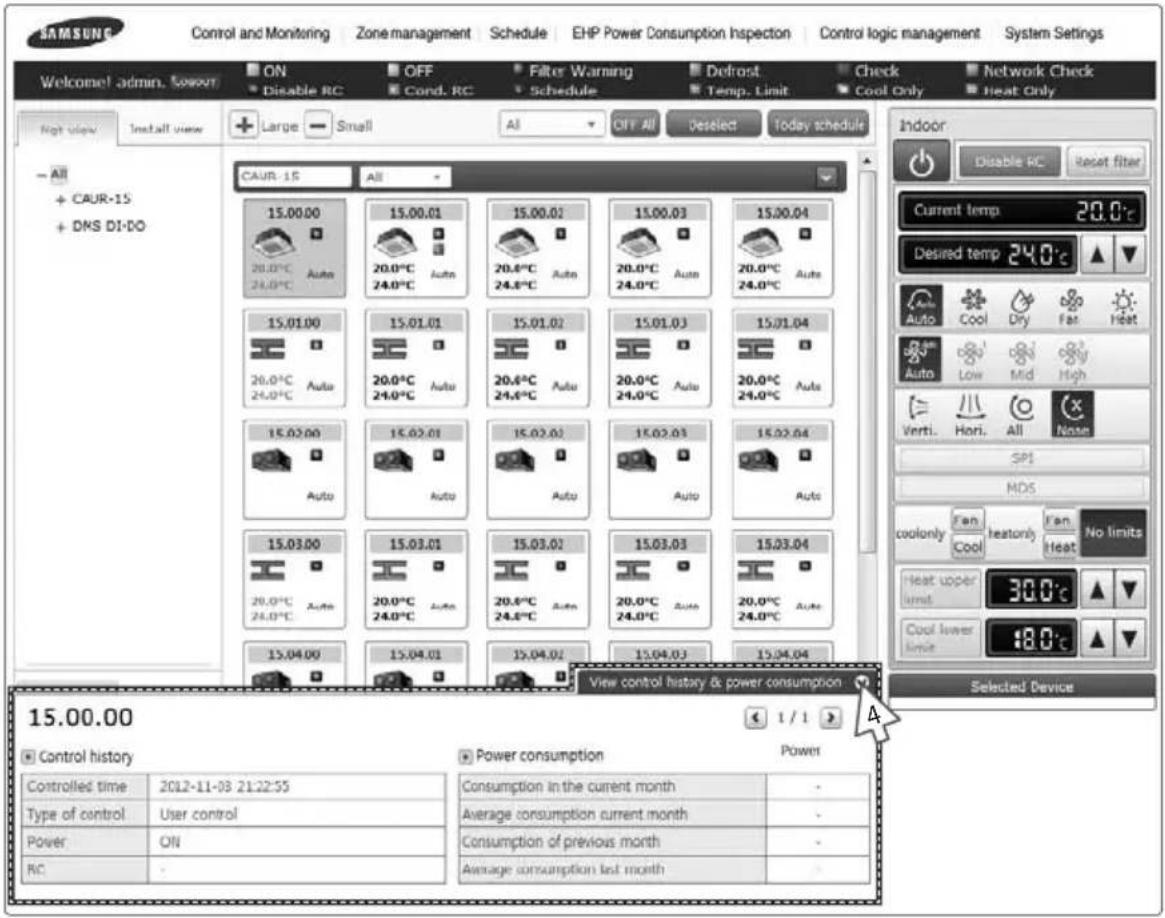

Indoor Disable RC Reset filter Current temp. 20.0°C Desired temp 24.0°C Auto Cool Dry Fan Heat Auto Low Mid High Verti Hori All None SPI MDS coolonly Fan hastonly Fan No limits Cool Heat Heat upper limit 30.0°C ▲ ▼ Cool lower limit 18.0°C ▲ ▼

4 Select the operation mode.

◆ You can select Auto, Cool, Dry, Fan and Heat operation mode.

5 Click [▲][▼] to set the desired temperature.

◆ Each time you click the buttons, the temperature will be adjusted by 1 or 0.5 or 0.1°C (or by 1°F).
◆ If Auto/Cool/Dry mode is in operation, you can adjust the desired temperature in the range of 18^(65^) 30^(86^) .
If Heat mode is in operation, you can adjust the desired temperature in the range of 16^(61^) 30^(86^) .
◆ You cannot adjust the desired temperature in Fan mode.
When the operation mode of an indoor unit is Cool or Dry mode, you cannot set the desired temperature lower than lower limit temperature if lower limit is enabled.
When the operation mode of indoor unit is Heat mode, you cannot set the desired temperature higher than upper limit temperature if upper limit is enabled.

Note

Even if an indoor unit supports Decimal point controlling (Adjusting temperature in 0.5 or 0.1 °C), it can be used with the November 2012 version (or higher) of Centralized controller (MCM-A202D) and interface module (MIM-B13D).

◆

Decimal point controlling is not available in fahrenheit.

6 Select the fan speed.

◆ You can select Auto, Low, Mid and High.
◆ If Auto/Dry mode is in operation, fan speed will be set as Auto fan speed.
◆ If Fan mode is in operation, you cannot select Auto fan speed.

Control and Monitoring (Continued)

Indoor Disable RC Reset filter Current temp. 20.0°C Desired temp 24.0°C Auto Cool Dry Fan Heat Auto Low Mid High Verti. Hori. All None SPI MDS coclony Fan heatonly Fan No limit Cool Cool Heat Heat upper limit 30.0°C ▲ ▼ Cool lower limit 18.0°C ▲ ▼

7 Select the air flow.

◆ You can select Vertical, Horizontal, All and None air flow direction.

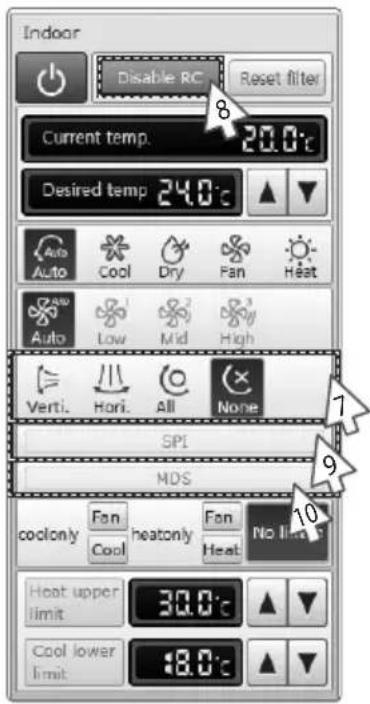

8 Set remote controller settings.

◆ You can select Enable RC, Disable RC, and Cond. RC.
- When selecting [Disable RC], indoor unit control by wired/wireless remote controller and indoor unit panel is not possible. Indoor unit control is only available in DMS2 web page.
◆ Click ⏻] when you want to use wired remote controller in each room.

9 Select SPI setting.

◆ You can set SPI through button activation / non activation.

10 Select MDS setting.

◆ You can set MDS(Motion Detection Sensor) through button activation / non activation.

Note When filter warning sign is displayed on indoor unit status window

Select the indoor unit and click [Reset filter].

Filter warning will be released.

◆ Make sure that each indoor unit must be turned on to control.
◆ Selecting remote controller, reset filter, operation mode limits, setting lower/upper temperature limit are possible even if the power of indoor unit is off.
◆ Some air flow direction option may be restricted depending on the indoor unit model.
◆ SPI and MDS will work only when the corresponding options are installed and their normal operation is guaranteed when the centralized controller is above MCM-A202D and Interface module is MIM-B13D.

Control and Monitoring (Continued)

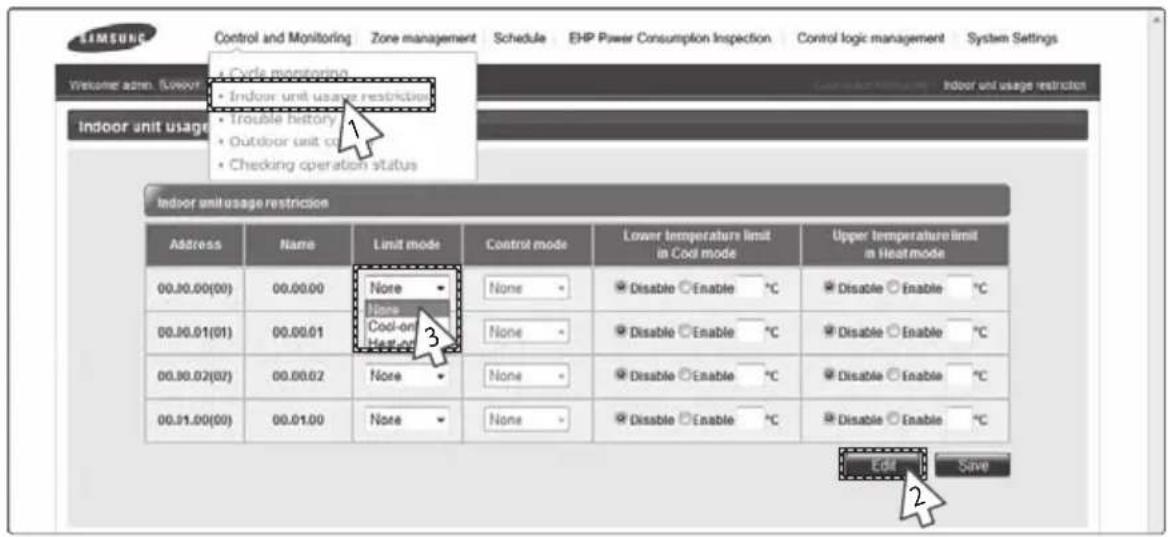

Indoor Unit Operation Mode Limit

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Season ON OFF Filter Warning Defrost Check Network Check Display PC Cond. PC Schedule Temp. Limit Cool Only Heat Only Not view Install view Large Small All Off All Deselect Today schedule - All + CAUR-15 + DMS DI-DO CAUR 15 All Status display window 15.00.00 20.0°C Auto 24.0°C 15.00.01 20.0°C Auto 24.0°C 15.00.02 20.0°C Auto 24.0°C 15.00.03 20.0°C Auto 24.0°C 15.00.04 20.0°C Auto 24.0°C 15.01.00 20.0°C Auto 24.0°C 15.01.01 20.0°C Auto 24.0°C 15.01.02 20.0°C Auto 24.0°C 15.01.03 20.0°C Auto 24.0°C 15.01.04 20.0°C Auto 24.0°C 15.02.00 Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Modeled Device

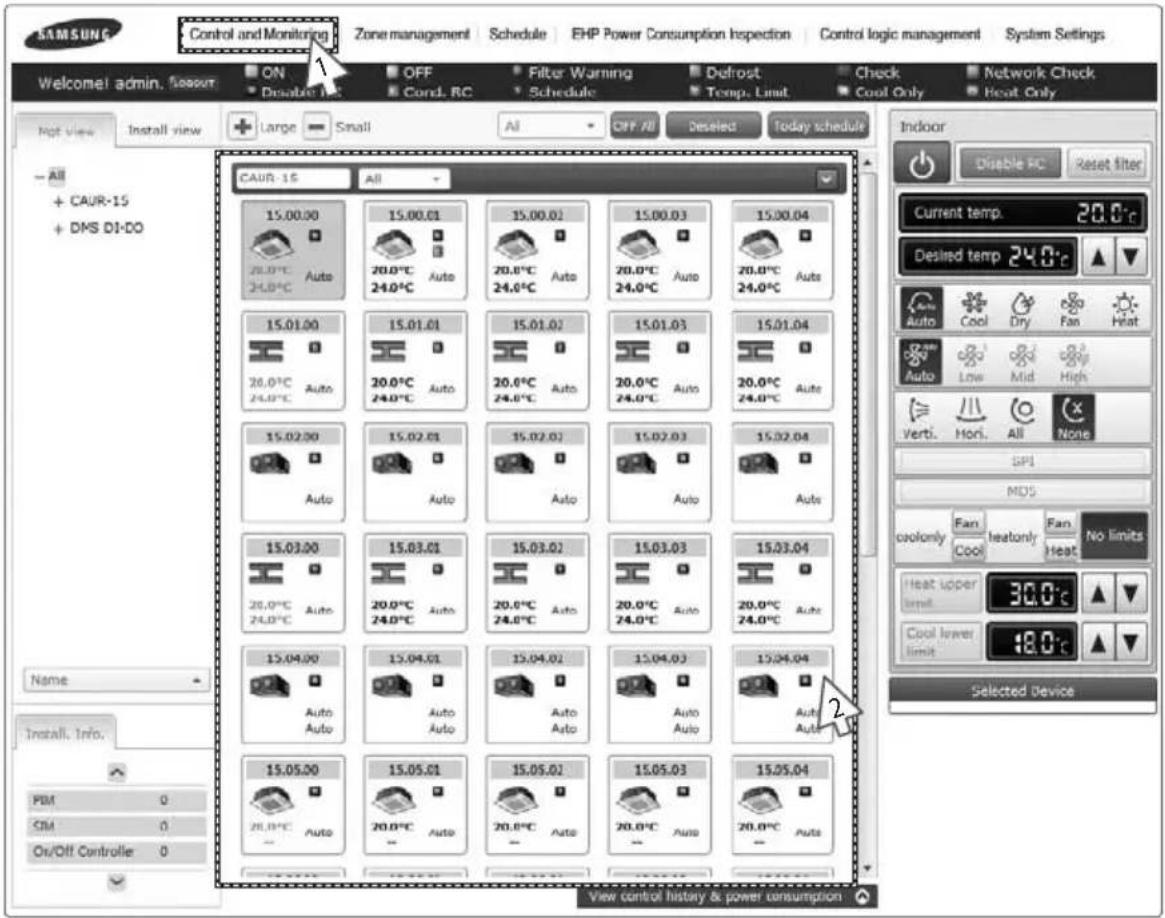

You can monitor the operation status of all indoor units or have individual or whole control of the indoor units.

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Select an indoor unit to control.

◆ Check the indoor unit status through status display window.
- When the selected indoor unit is switched on, the remote controller panel will be automatically activated.

Indoor Disable RC Reset filter Current temp. 20.0°C Desired temp 24.0°C ▲▼ Auto Cool Dry Fan Heat Auto Low Mid High Verti Hori All None SPI MDS coclonly Fan hastonly Fan No limits Cool Cool Heat Heat upper limit 30.0°C ▲▼ Cool lower limit 18.0°C ▲▼

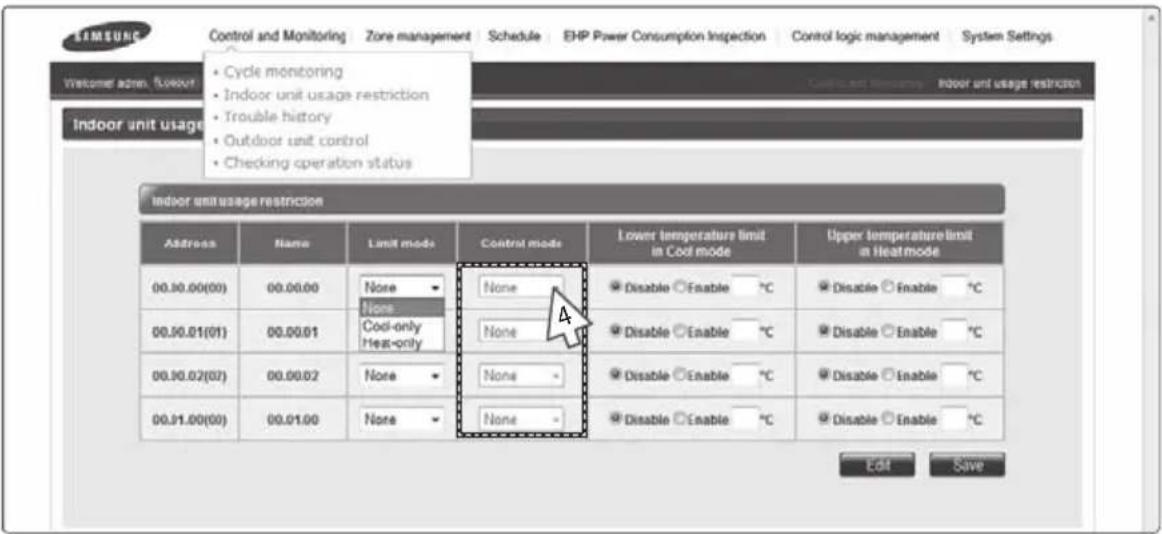

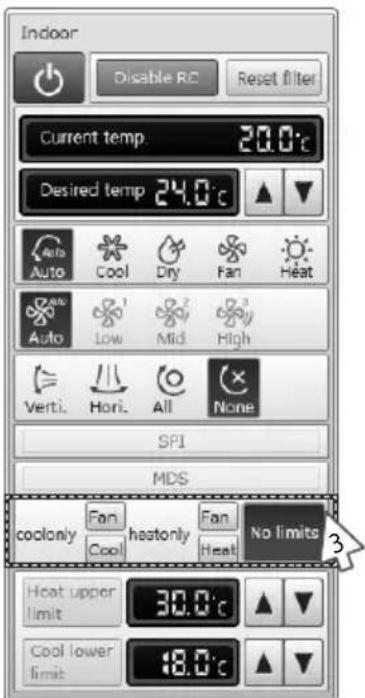

3 Set operation mode limit.

◆ You can select 'Cool only(Fan, Cool)', 'Heat only(Fan, Heat)' and 'No limits'.

- Cool only (Fan, Cool): If cool only indoor unit operates in Heat mode, reset the indoor unit as set operation mode.

- Heat only (Fan, Heat) : If heat only indoor unit operates in cool mode, reset the indoor unit as set operation mode.

- No limits: You can use cool only and heat only with no limits.

- e.g: If the 'cool only fan' indoor unit operates in heating mode, DMS2 will detect it and reset the indoor unit in Fan mode.

Note ◆ Operation mode limits setting is not available in ERV.

◆ ERV PLUS doesn't operate Fan mode, it only operates cool mode in 'cool only'.

◆ ERV PLUS doesn't operate Fan mode, it only operates heat mode in 'heat only'.

◆ Mixed operation can occur regardless of operation mode limits setting.

If indoor unit with operation mode limit is in mixed operation, DMS2 solves mixed operation status automatically by controlling the indoor unit in set operation mode.

① In the following circumstances, all indoor units under the same outdoor unit should be set to the same operation mode limits. Mixed operation can occur continuously when you set some of indoor unit to cool only and the other to heat only.
- If the centralized controller is MCM-A202 and is in group mode
- If the centralized controller is in group mode and the interface module is MIM-B13 or MIM-B04A
② Except above ① circumstances, DMS2 changes the operation mode limit of all indoor units under the same outdoor unit to same operation mode limit.
- If the centralized controller is in group mode and is above MCM-A202A and all the interface modules under the centralized controller are above MIM-B13A
- If the centralized controller is in individual mode
③ If you set the cooling only indoor unit's operation mode limit to heating only, DMS2 may display Heating ↔ Cooling alternately.

Setting Lower/Upper Temperature Limit of an Indoor Unit

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Store ON OFF Filter Warning Defrost Check Network Check Dresser RC Cond. PC Schedule Temp. Limit Cool Only Heat Only Large Small All OFF All Deselect Today schedule Not view Install view - All + CAUR-15 + DMS DI-DO CAUR-15 All Status display window 15.00.00 20.0°C Auto 24.0°C 15.01.00 20.0°C Auto 24.0°C 15.02.00 Auto 15.02.01 Auto 15.02.01 Auto 15.02.01 Auto 15.02.03 Auto 15.02.03 Auto 15.02.04 Auto 15.03.00 20.0°C Auto 24.0°C 15.04.00 Auto 15.04.01 Auto 15.04.01 Auto 15.04.01 Auto 15.04.03 Auto 15.04.04 Auto 15.05.00 20.0°C Auto 24.0°C 15.05.01 Auto 15.05.01 Auto 15.05.01 Auto 15.05.03 Auto 15.05.04 Auto 15.05.04 Indoor Disable PC Reset filter Current temp. 20.0°C Desired temp. 24.0°C Auto -Cool Dry Fan Heat Auto Low Mid High Verti . Hori . All None SP1 MDS coolonly Fan heatonly Fan Heat No limits Cool upper limit 30.0°C Cool lower limit 18.0°C Selected Device Name Install. Info. PBM 0 SM 0 Or/Off Controller 0 View control history & power consumption

You can monitor the operation status of all indoor units, and control the indoor units as a whole, or as individual units.

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆[Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Select an indoor unit to control.

◆ Check the indoor unit status through status display window.
When the selected indoor unit is switched on, the remote controller panel will be automatically activated.

Control and Monitoring (Continued)

Indoor Disable RC Reset filter Current temp. 20.0°C Desired temp 24.0°C Auto Cool Dry Fan Heat Auto Low Mid High Verti. Hori. All None SPI MDS coolonly Fan heatonly Fan No limits cool heatly heat Heat upper limit 30.0°C Cool lower limit 18.0°C

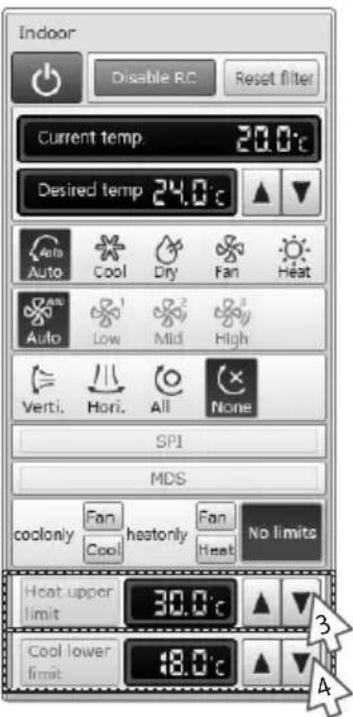

3 Set upper temperature limit by pressing [▲] and [▼].

◆ Click 'Heat upper limit' to apply the upper temperature limit setting.
When indoor unit is operating in heat mode, DMS2 controls indoor unit as upper temperature limit if the desired temperature is higher than upper temperature limit.
◆ Upper temperature limit can be set in the range of 16^ C( 61^ F)\~ 30^ C( 86^ F).
When an indoor unit is operating in Heat mode and the upper temperature limit is applied, you cannot set the desired temperature higher than the upper temperature limit.

4 Set lower temperature limit by pressing [▲] and [▼].

◆ You can set lower temperature limit by clicking 'Cool lower limit'.
When indoor unit is operating in cool mode, DMS2 controls indoor unit as lower temperature limit if the desired temperature is lower than lower temperature limit.
◆ Lower temperature limit can be set in the range of 18^ C( 65^ F)\~ 30^ C( 86^ F).
When indoor unit is operating in Cool or Dry mode and the low temperature limit is applied, you cannot set the desired temperature lower than the lower temperature limit.

Note

◆ You cannot set the lower and upper temperature limit of ERV, ERV PLUS, and Fresh duct.

Monitoring AHU Operation Status

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Tuseur OFF Filter Warning Defrost Check Network Check + Cable PC Cond PC Scheckin Temp Limit Cool Only Heat Only Hct view Install view Large Small All OFF All Deselect Today schedule - All + CAUR-15 + DMS 01-00 Status display window CAUR-15 ALL 15.00.00 15.00.01 15.00.02 15.00.03 15.00.04 20.0°C Auto 24.0°C 24.0°C 24.0°C 24.0°C 24.0°C 24.0°C 15.01.00 15.01.01 15.01.02 15.01.03 15.01.04 20.0°C Auto 24.0°C 24.0°C 24.0°C 24.0°C 24.0°C 24.0°C 15.02.00 15.02.01 15.02.02 15.02.03 15.02.04 Auto Auto Auto Auto Auto Auto 15.03.00 15.03.01 15.03.02 15.03.03 15.03.04 20.0°C Auto 24.0°C 24.0°C 24.0°C 24.0°C 24.0°C 24.0°C 15.04.00 15.04.01 15.04.02 15.04.03 15.04.04 Auto Auto Auto Auto Auto Auto Auto 15.05.00 15.05.01 15.05.02 15.05.03 15.05.04 20.0°C Auto 24.0°C 24.0°C 24.0°C 24.0°C 24.0°C View control history & power consumption AHU Disable KC Reset filter Current temp: 20.0°C Desired temp: 24.0°C ▲▼ Auto Cool Dry Fan Heat coolonly Fan Heatonly Fan Heat No limits Heat upper limit: 36.0°C ▲▼ Cool lower limit: 18.0°C ▲▼ Selected Device Name Install, Info. PIM 0 GIM 0 On/OFF Controller 0

You can monitor the operation status of AHU, and control AHU as a whole, or as individual units.

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

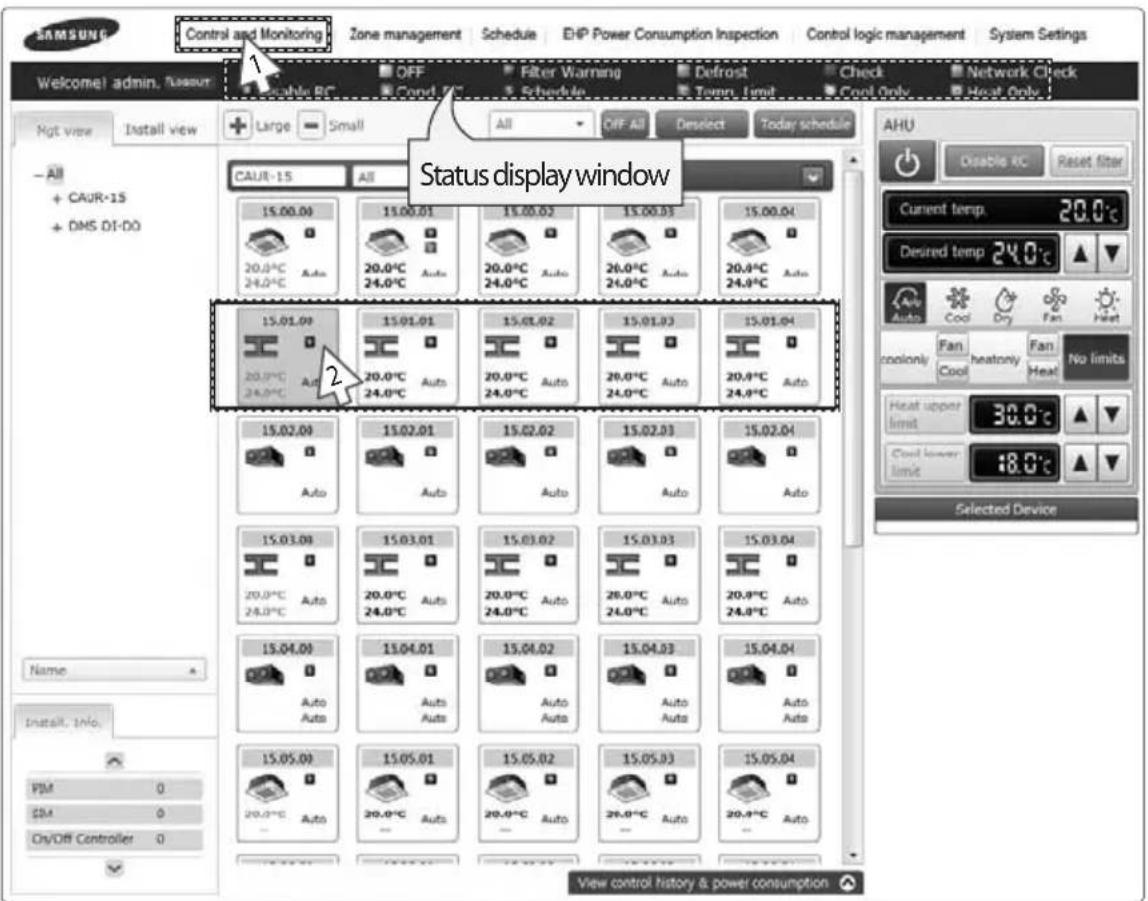

2 Check current status of AHU.

◆ Check AHU status through status display window.
- When the selected AHU is switched on, the remote controller panel will be automatically activated.

Note

◆ To control AHU, refer to the 'Controlling an indoor unit' steps. (Refer to page 20\~23)

◆ AHU's fan speed is fixed as high.
◆ You cannot set air flow direction of AHU.

◆ To set the operation mode limit of AHU, refer to the 'Indoor unit operation mode limit' steps. (Refer to page 24\~26)
◆ To set the lower/upper temperature limit of AHU, refer to the 'Setting lower/upper temperature limit of indoor unit' steps. (Refer to page 27\~28)

Control and Monitoring (Continued)

Monitoring Fresh duct operation status

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. / koser ON OFF Filter Warning Defrost Check Network Check Mgt view Install view Large Small All Off AI Deselect Today schedule Status display window CAUR-15 All 15.00.00 20.0°C Auto 24.0°C 15.06.01 20.0°C Auto 24.0°C 15.00.02 20.0°C Auto 24.0°C 15.00.03 20.0°C Auto 24.0°C 15.00.04 20.0°C Auto 24.0°C 15.01.00 20.0°C Auto 24.0°C 15.01.01 20.0°C Auto 24.0°C 15.01.02 20.0°C Auto 24.0°C 15.01.03 20.0°C Auto 24.0°C 15.01.04 20.0°C Auto 24.0°C 15.04.03 20.0°C Auto 24.0°C 15.04.04 Name Install. Info. PIM 0 SIM 0 On/Off Controller 0 15.04.00 Auto Auto 15.05.00 20.0°C Auto 15.05.01 20.0°C Auto 15.05.02 20.0°C Auto 15.05.03 20.0°C Auto 15.05.04 View control history & power consumption

You can monitor the operation status of Fresh duct, and control the Fresh duct as a whole, or as individual units.

1 Click [Control and Monitoring] when DMS2 web page menu screen appear.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Check the current status of a Fresh duct.

◆ Check the status of a Fresh duct through the status display window.

- When the selected Fresh duct is switched on, the remote controller panel will be automatically activated.

Controlling a Fresh duct

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Store ON Disable RC OFF Cond. RC Filter Warning Schedule Defrost Temp. Limit Check Cool Only Network Check Heat Only Mgt view Install view Large Small All OFF AI Deselect Today schedule CAUR-15 AI 15.00.00 20.0°C Auto 24.0°C 15.01.00 30.0°C Auto 24.0°C 15.01.01 30.0°C Auto 24.0°C 15.01.02 30.0°C Auto 24.0°C 15.01.03 30.0°C Auto 24.0°C 15.01.04 30.0°C Auto 24.0°C 15.04.00 Auto Auto 15.04.01 Auto Auto 15.05.00 20.0°C Auto 20.0°C Auto 15.05.01 20.0°C Auto 20.0°C Auto 15.05.02 20.0°C Auto 20.0°C Auto 15.05.03 20.0°C Auto 15.05.04 20.0°C Auto Fresh Duct Disable RC Reset filter ON: 28.67 temp 20.0°C Discharge --°C Auto Cool Fan Heat coolonly Fan Heatorly Fan Heat No limits Selected Device Name Install Info. PIM 0 SIM 0 On/Off Controller 0 View control history & power consumption

1 Click [Control and Monitoring] when DMS2 web page menu screen appear.

◆ [Control and Monitoring] screen will appear when you log-in to DMS web page.

2 Check the current status of a Fresh duct.

◆ Check the status of a Fresh duct through the status display window.
- When the selected Fresh duct is switched on, the remote controller panel will be automatically activated.

3 Turn the Fresh duct on by clicking [↓]

◆ Remote controller panel will be activated.

4 Set cooling/heating discharge temperature by clicking [▲]and[▼]

When the Fresh duct is in Cool mode, the Fresh duct can be set as cooling discharge temperature and when the Fresh duct is in Heat mode, the Fresh duct can be set as heating discharge temperature.
When the Fresh duct is in Auto or Fan mode, the discharge temperature cannot be adjusted.

Note

◆ The normal Fresh duct operation is guaranteed when the centralized controller is above MCM-A202D and the interface module is MIM-B13D.
◆ Controlling or monitoring cooling/heating discharge temperature setting is available only when the DMS2 is directly connected to the Interface module MIM-B13D or when the DMS2 is connected to the centralized controller MCM-A202D of the November 2012 version (or higher).
◆ Refer to the 'Controlling an indoor unit' for Fresh duct control. (Refer to page 20\~23)
◆ The fan speed of a Fresh duct is fixed as 'High'.
Setting air flow direction of a Fresh duct is not available.
◆ Refer to the 'Indoor unit operation mode limit' for Fresh duct operation mode limit. (Refer to page 24\~26)

Control and Monitoring (Continued)

Monitoring MINI AHU

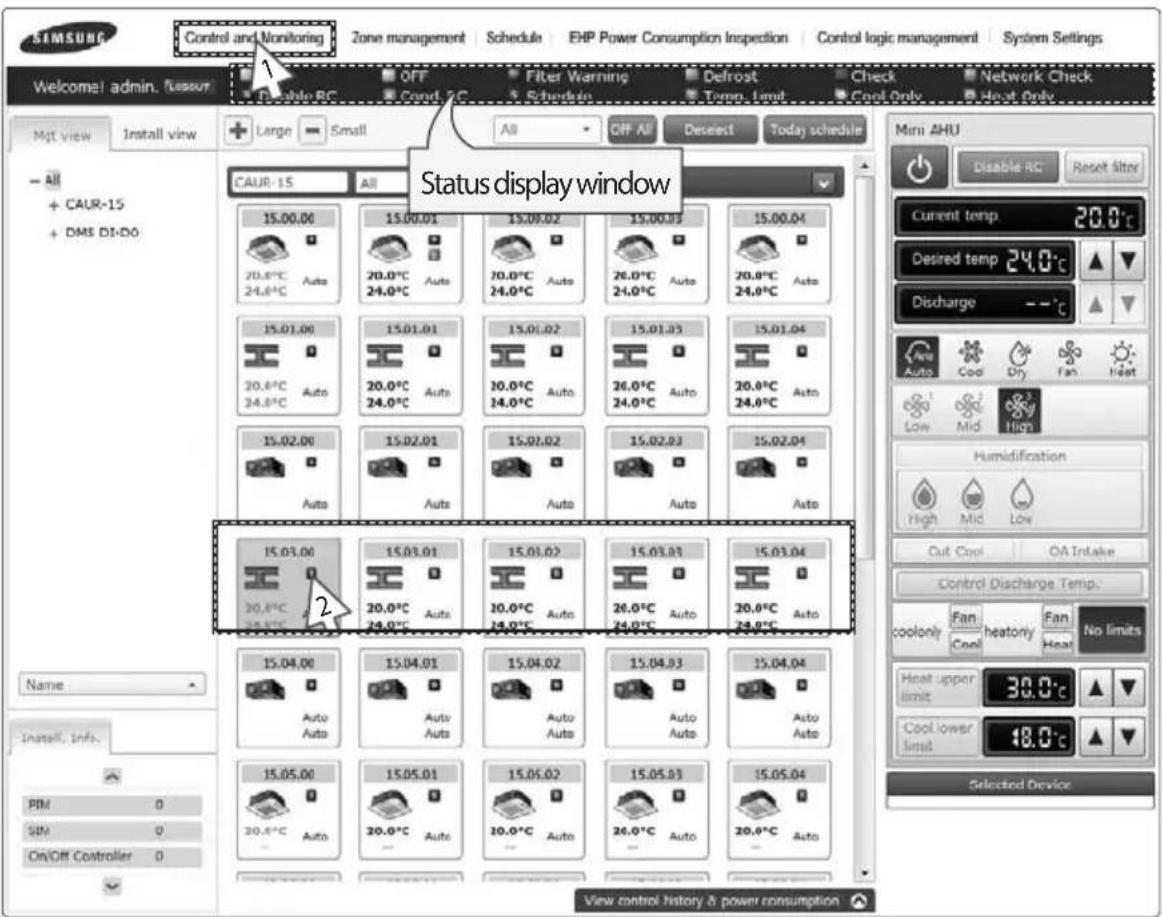

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. fesseur Double RC Cond. 2°C Filter Warning Scheduling Delrost Temp. Limit Check Cool Only Network Check Heat Only Mgt view Install view Large Small All OFF All Desmost Today schedule - All + CAUR-15 + DMS D1-DO CAUR-15 All Status display window 15.00.00 20.0°C Auto 24.0°C 15.00.01 20.0°C Auto 24.0°C 15.00.02 20.0°C Auto 24.0°C 15.00.03 20.0°C Auto 24.0°C 15.00.04 20.0°C Auto 24.0°C 15.01.00 20.0°C Auto 24.0°C 15.01.01 20.0°C Auto 24.0°C 15.01.02 20.0°C Auto 24.0°C 15.01.03 20.0°C Auto 24.0°C 15.01.04 20.0°C Auto 24.0°C 15.02.00 Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Mode AHU Disable RC Reset filter Current temp 20.0°C Desired temp 24.0°C ▲▼ Discharge --°C ▲▼ Air Auto Cool Dry Fan Heat Low Mid High Humidification High Mid Low Cut Cool OA Intake Control Discharge Temp. coolonly Fan Cool heatonly Fan Heat No limits Heat upper limit 30.0°C ▲▼ Cool lower limit 18.0°C ▲▼ Selected Device View control history & power consumption

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Check the status of the indoor unit.

◆ Check the status of the MINI AHU through status display window.
When the selectedMINI AHU is switched on, the remote controller panel will be automatically activated.

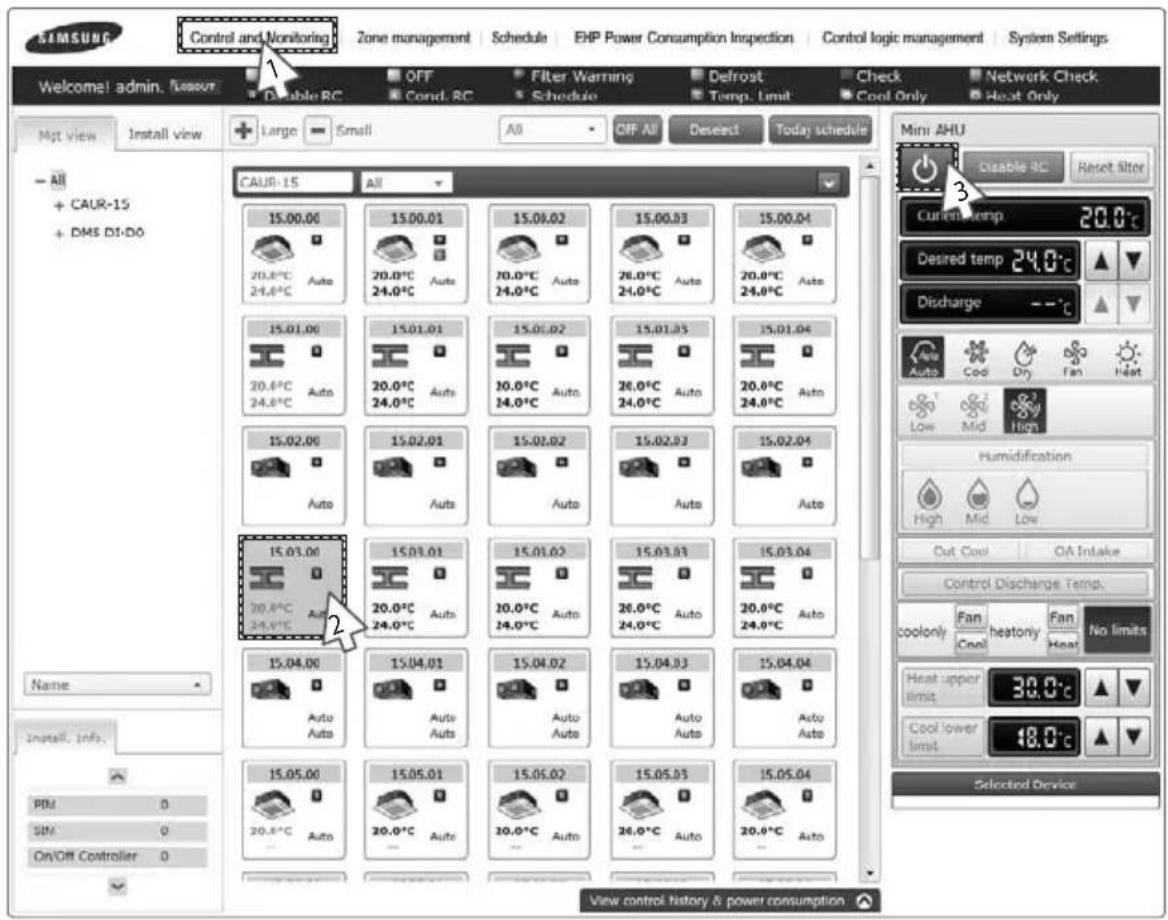

Controlling MINI AHU

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. fessor Double RC OFF Filter Warning Defrost Check Network Check Cond. RC Schedule Temp. Limit Cool Only Heat Only Mgt view Install view Large Small A8 OFF All Deserst Today schedule All CAUR-15 All 15.00.00 15.00.01 15.09.02 15.00.03 15.00.04 20.0°C Auto 20.0°C Auto 20.0°C Auto 20.0°C Auto 15.01.00 15.01.01 15.01.02 15.01.03 15.01.04 20.0°C Auto 20.0°C Auto 20.0°C Auto 20.0°C Auto 15.02.00 15.02.01 15.02.02 15.02.03 15.02.04 Auto Auto Auto Auto Auto Auto 15.03.00 15.03.01 15.03.02 15.03.03 15.03.04 20.0°C Auto 20.0°C Auto 20.0°C Auto 20.0°C Auto 20.0°C Auto 15.04.00 15.04.01 15.04.02 15.04.03 15.04.04 Auto Auto Auto Auto Auto Auto Auto 15.05.00 15.05.01 15.05.02 15.05.03 15.05.04 20.0°C Auto 20.0°C Auto 20.0°C Auto 26.0°C Auto 26.0°C Auto Mini AHU Disable RC Reset filter Current temp 29.0°C Desired temp 24.9°C Discharge --°C Auto Cool Dry Fan Heat Low Mid High Humidification High Mid Low Cut Cool OA Intake Control Discharge Temp. coolonly Fan heatonly Fan No limits Cool lower limit 39.9°C Heat upper limit 18.9°C Cool lower limit Selected Device Name Install, Info. PMI 0 SIM 0 On/OFF Controller 0 View control history & power consumption

1 Click [Control and Monitoring] when DMS2 web page menu screen appear.

◆ [Control and Monitoring] screen will appear when you log-in to DMS web page.

2 Check the current status of the indoor unit.

◆ Check the status of the MINI AHU through the status display window.
When the selected MINI AHU is switched on, the remote controller panel will be automatically activated.

3 Turn the Fresh duct on by clicking [1]

◆ Remote controller panel will be activated.

Control and Monitoring (Continued)

Mini AHU Disable RC Reset filter Current temp. 20.0°C Desired temp 24.0°C Discharge --°C Auto Cool Dry Fan Heat Low Mid High Humidification High Mid Low Out Cool OA Intake Control Discharge Temp coolonly Fan heatonly Fan No limits Cool Cool Heat Heat upper limit 30.0°C ▲▼ Cool lower limit 18.0°C ▲▼

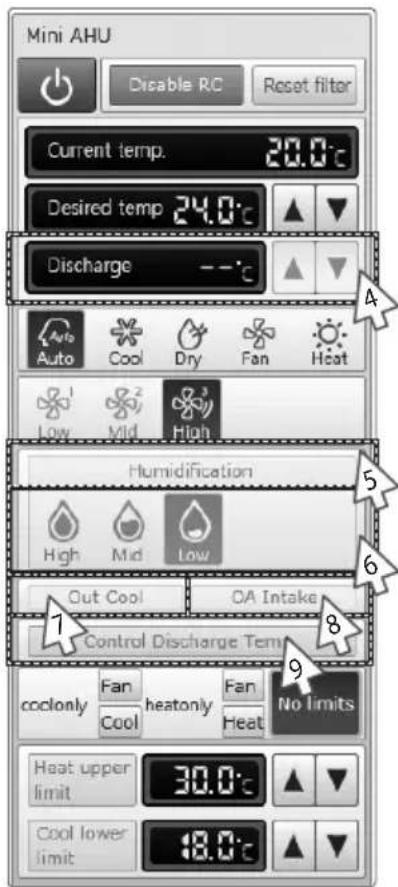

4 Set cooling/heating discharge temperature by clicking [▲] and [▼].

When the MINI AHU is in Cool mode, you can adjust cooling discharge temperature and when the MINI AHU is in Heat mode, you can adjust the heating discharge temperature.
When the MINI AHU is in Auto, Dry or Fan mode, you cannot adjust the discharged temperature.
◆ Cooling discharged temperature can be set in the range of 8^(47^)18^(65^) .
◆ Heating discharged temperature can be set in the range of 30^(86^) \~ 43^(110^) .

5 Select Humidification setting.

◆ You can enable/disable button to decide whether to use 'Humidification' function.
◆ Humidification function is only available in Heat mode.

6 Select desired humidity level.

◆ You can select the humidity level from Low/Med/High.
◆ Humidity level can be adjusted only in Heat mode.

7 Select Out Cool setting.

• You can enable/disable button to decide whether to use 'Out Cool' function.
  When 'Out Cool' function is set, MINI AHU will operate in fan mode at high fan speed.

8 Select OA Intake setting.

- You can enable/disable button to decide whether to use 'OA Intake' function.

9 Select Control Discharge Temp.

◆ You can enable/disable button to decide whether to use discharge temperature adjustment.

Note ◆ Humidification, Humidification level, Out Cool and OA Intake are optional functions so normal controlling and monitoring will be available when corresponding option is set on the selected MINI AHU and when it is using centralized controller that is higher version than ACM-A202D and AIM-B13D interface module. Controlling or monitoring cooling/heating discharge temperature setting is available only when the DMS2 is directly connected to the Interface module MIM-B13D or when the DMS2 is connected to the centralized controller MCM-A202D of the November 2012 version (or higher).
◆ Refer to 'Controlling an indoor unit' for MINI AHU control. (Refer to page 20\~23)
◆ You cannot set the Auto speed for MINI AHU.
◆ MINI AHU sets fan speed to High in Auto mode and Low in Dry mode.
◆ Refer to the 'Indoor unit operation mode limit' for MINI AHU operation mode limit. (Refer to page 24\~26).
◆ Refer to 'Setting Lower/Upper Temperature Limit of an Indoor Unit' to adjust Heat upper limit/Cool lower limit temperature. (Refer to page 27\~28)

Control and Monitoring (Continued)

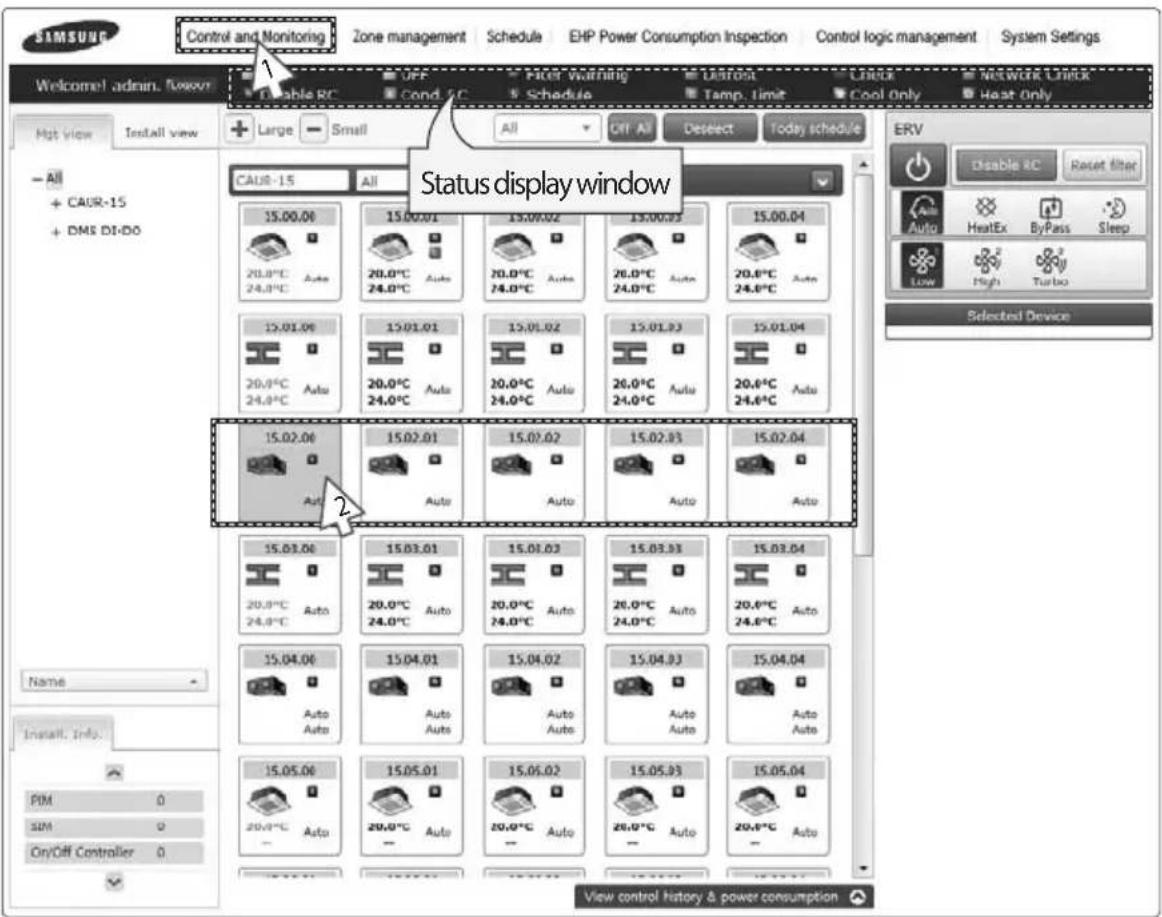

Monitoring ERV Operation Status

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Reserve Double RC Cond. FC Schedule Lastrost Check Network Lock Hot view Install view Large Small All Off All Deselect Today schedule - All + CAUR-15 + DMS DI-DO CAUR-15 All Status display window 15.00.00 20.0°C Auto 15.00.01 20.0°C Auto 15.00.02 20.0°C Auto 15.00.03 20.0°C Auto 15.00.04 20.0°C Auto 15.01.00 20.0°C Auto 15.01.01 20.0°C Auto 15.01.02 20.0°C Auto 15.01.03 20.0°C Auto 15.01.04 20.0°C Auto 15.02.00 Auto 15.02.01 Auto 15.02.02 Auto 15.02.03 Auto 15.02.04 Auto 15.03.00 20.0°C Auto 15.03.01 20.0°C Auto 15.03.02 20.0°C Auto 15.03.03 20.0°C Auto 15.03.04 Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Selected Device Name Install, Info. PIM 0 SIM 0 On/Off Controller 0 View control history & power consumption

You can monitor the operation status of ERV, and control the ERV as a whole, or as individual units.

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Check current status of ERV.

◆ Check the status of ERV through the status display window.
When the selected ERV is switched on, the remote controller panel will be automatically activated.

Controlling ERV

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Reserve: OFF Filter Warning Defrost Check Network Check Enable RC Cond. RC Schedule Temp. Limit Cool Only Heat Only Mgt view Install view Large Small All OFF All Deselect Today schedule CAUR-15 All 15.00.06 15.00.01 15.00.02 15.00.03 15.00.04 20.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 15.01.06 15.01.01 15.01.02 15.01.03 15.01.04 20.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 15.02.06 15.02.01 15.02.02 15.02.03 15.02.04 Auto Auto Auto Auto Auto Auto 15.03.06 15.03.01 15.03.02 15.03.03 15.03.04 20.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 15.04.06 15.04.01 15.04.02 15.04.03 15.04.04 Auto Auto Auto Auto Auto Auto Auto Auto Auto 15.05.06 15.05.01 15.05.02 15.05.03 15.05.04 20.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto View control history & power consumption ERV Disable RC Reset filter Auto HeatEx ByPass Sleep Low High Turbo Selected Device Name Install, Info. PIM 0 SIM 0 On/Off Controller 0

You can monitor the operation status of ERV, and control the ERV as a whole, or as individual units.

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Select an ERV to control.

- When the selected ERV is switched on, the remote controller panel will be automatically activated.

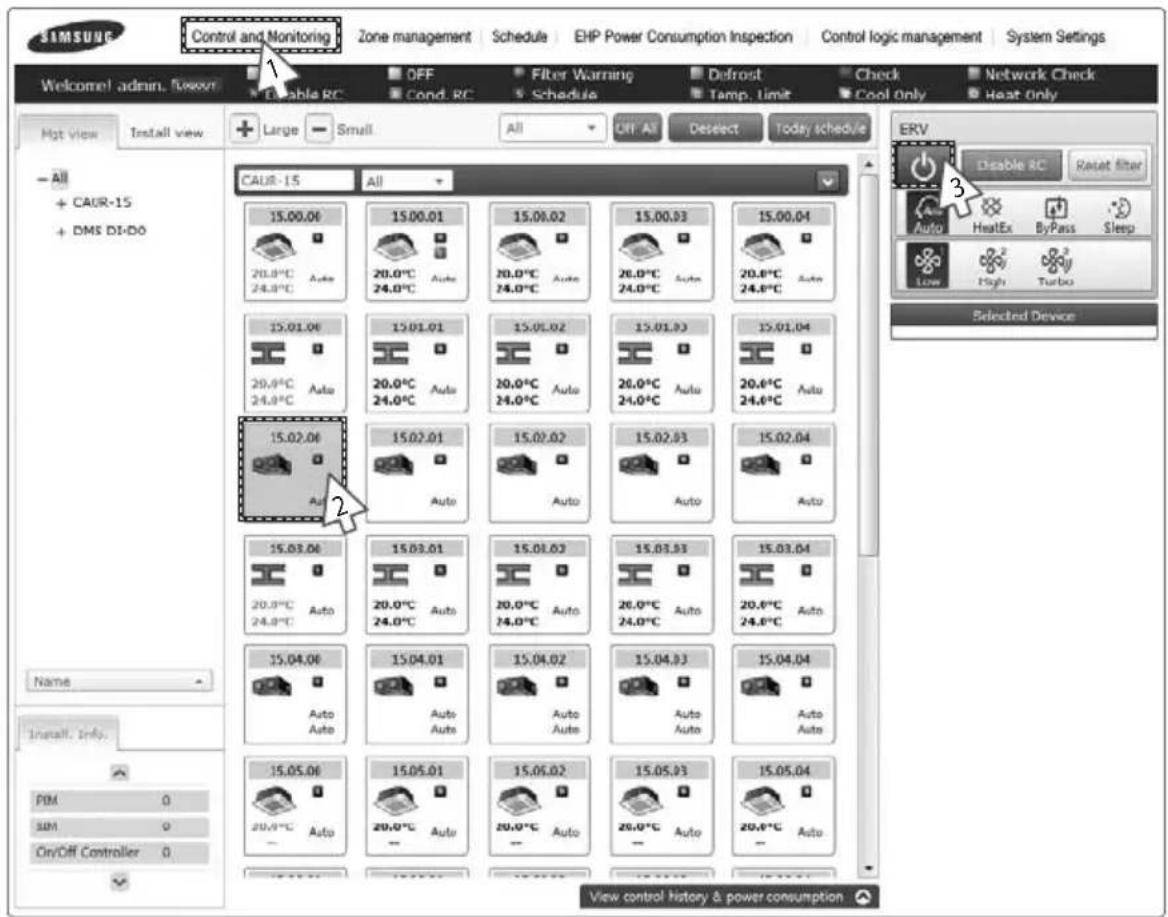

3 Turn ERV on by pressing [1]

◆ The remote controller panel will be activated.

Control and Monitoring (Continued)

ERV Disable RC Reset filter 6 Auto Heat Ex By Pass Sleep 4 Low High Turbo 5

4 Select the operation mode.

◆ You can select Auto, HeatEx, By pass and Sleep.

5 Select the fan speed.

◆ You can select Low, High and Turbo.
◆ Fan speed is set to Low in Sleep mode.

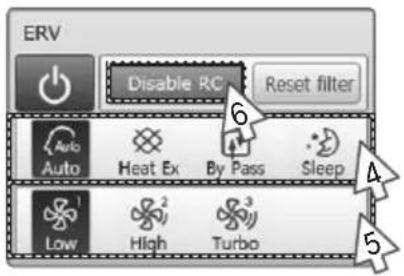

6 Set remote controller settings.

◆ You can select Enable RC, Disable RC, and Cond. RC.
When selecting [Enable RC], indoor unit control by wired/wireless remote controller is not possible. Indoor unit control is only available in DMS2 web page.
◆Click[ ⏻] when you want to use wired remote controller in each room.

Note ◆ When filter warning sign is displayed on ERV status window

Select the ERV and click [Reset filter]. Filter warning will be released.

◆ Make sure that ERV must be turned on to control.

◆ Selecting remote controller and filter reset are possible even if the power of indoor unit is off.

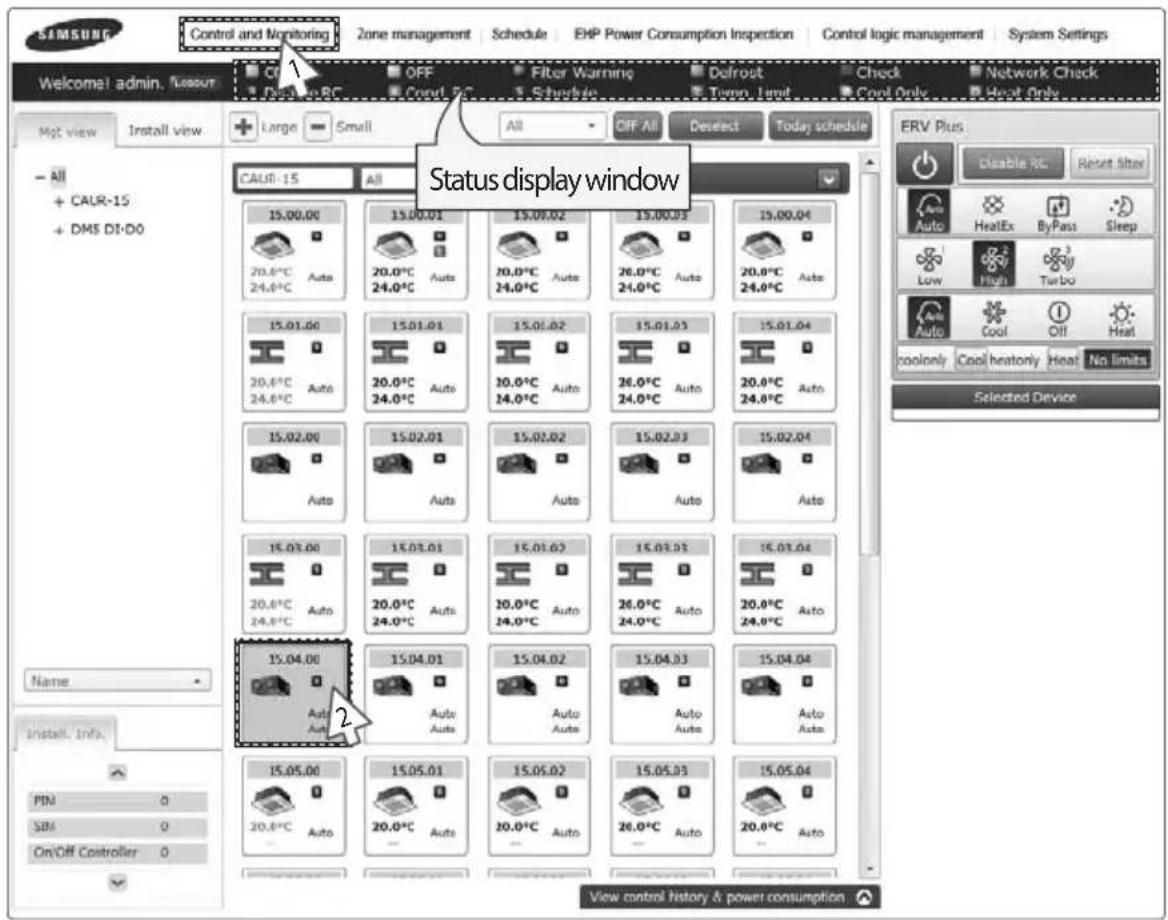

Monitoring ERV PLUS operation status

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Tissur OFF Filter Warning Defrost Check Network Check Mgt view Install view Large Small All Off All Deselect Today schedule CAUR-15 Status display window 15.00.00 15.00.01 15.00.02 15.00.03 15.00.04 20.0°C Auto 20.0°C Auto 20.0°C Auto 26.0°C Auto 20.0°C Auto 24.0°C 15.01.00 15.01.01 15.01.02 15.01.03 15.01.04 20.0°C Auto 24.0°C 15.02.00 15.02.01 15.02.02 15.02.03 15.02.04 Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto CAUR-15 Status display window

You can monitor the operation status of ERV PLUS, and control the ERV PLUS as a whole, or as individual units.

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Check the current status of ERV PLUS.

◆ Check the status of ERV PLUS through the status display window.
- When the selected ERV PLUS is switched on, the remote controller panel will be automatically activated.

Control and Monitoring (Continued)

Controlling ERV PLUS

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. kassnr CN OFF Filter Warning Defrost Check Network Check Design RC Cond. RC Schedule Temp. Limit Cool Only Heat Only Mgt view Install view Large Small All Off All Desirect Today schedule CAUR-15 All 15.00.00 20.0°C Auto 24.0°C 15.00.01 20.0°C Auto 24.0°C 15.09.02 20.0°C Auto 24.0°C 15.00.03 20.0°C Auto 24.0°C 15.00.04 20.0°C Auto 24.0°C 15.01.00 20.0°C Auto 24.0°C 15.01.01 20.0°C Auto 24.0°C 15.01.02 20.0°C Auto 24.0°C 15.01.03 20.0°C Auto 24.0°C 15.01.04 20.0°C Auto 24.0°C 15.02.00 Auto 15.02.01 Auto 15.02.02 Auto 15.02.03 Auto 15.02.04 Auto 15.03.00 20.0°C Auto 24.0°C 15.03.01 20.0°C Auto 24.0°C 15.01.02 20.0°C Auto 24.0°C 15.03.03 26.0°C Auto 24.0°C 15.03.04 20.0°C Auto 24.0°C 15.04.00 Auto 15.04.01 Auto Auto 15.04.02 Auto Auto 15.04.03 Auto Auto 15.04.04 Auto Auto 15.05.00 20.0°C Auto 24.0°C 15.05.01 Auto 20.0°C Auto 24.0°C 15.05.02 Auto 28.0°C Auto 24.0°C 15.05.03 Auto 28.0°C Auto 24.0°C 15.05.04 Auto 28.0°C Auto

1 Click [Control and Monitoring] when DMS2 web page menu screen appear.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Select an ERV PLUS to control.

◆ Check the status of ERV PLUS through the status display window.
- When the selected ERV PLUS is switched on, the remote controller panel will be automatically activated.

3 Turn the ERV PLUS on by clicking [☐]

◆ Remote controller panel will be activated.

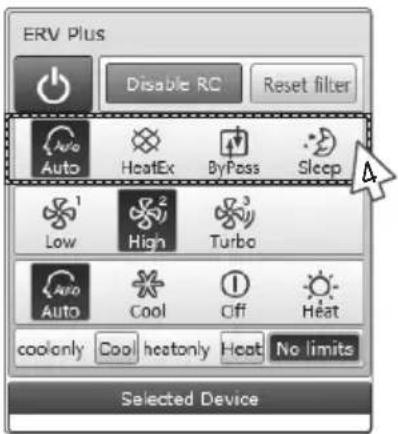

ERV Plus Disable RC Reset filter Auto HeatEx ByPass Sleep Low High Turbo Auto Cool Off Heat coolonly Cool heatonly Heat No limits Selected Device

4 Select the operation mode

◆ You can select Auto, Cool, Off and Heat mode.

Note

◆ The normal ERV PLUS control or monitoring is guaranteed when the centralized controller is above MCM-A202D and the interface module is MIM-B13D.
◆ Refer to the 'Controlling ERV' for ERV PLUS control. (Refer to page 37\~38)
◆ Refer to the 'Indoor unit operation mode limit' for ERV PLUS operation mode limit. (Refer to page 24\~26)
◆ ERV PLUS doesn't operate Fan mode, so it only operates cool mode in 'cool only'.
◆ ERV PLUS doesn't operate Fan mode, so it only operates heat mode in 'heat only'.

Controlling DVM Hydro unit

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Newer Double RC OFF Filter Warring Defrost Check Network Check Cond. RC Schedule Temp. Limit Cool Only Heat Only Mgt view Install view + Large - Small All OFF All Deselect Today schedule Auto Auto Auto Auto Auto 15.05.00 15.05.01 15.05.02 15.05.03 15.05.04 20.0°C Auto 20.0°C Auto 20.0°C Auto 20.0°C Auto 20.0°C Auto 15.06.00 15.06.01 15.06.02 15.06.03 15.06.04 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 30.0°C Eco 3 DMS DI-D.. All 56.00.03 56.00.04 56.00.05 56.90.06 56.00.07 DI DI DI DI DI OFF OFF OFF OFF 56.00.08 56.00.09 56.00.1E 56.91.03 56.01.04 DI DI DI DI DI OFF OFF OFF OFF 56.01.05 56.01.06 56.01.07 56.91.08 DO DO DO OFF OFF OFF OFF View control history & power consumption DVM Hydro Unit Heating and Cooling control Double AC Temp Control :Room Current temp. 20.0°C Desired temp 24.0°C ▲▼ Auto Cool Heat Heat upper limit: 30.0°C ▲▼ Cool lower limit: 18.0°C ▲▼ coolonly heatonly No limits DHW Current temp. 45.0°C Desired temp 45.0°C ▲▼ Eco Stan Power Force DHW Upper time limit: 50.0°C ▲▼ Selected Device Name Install, Info. PIN 0 SDN 0 On/Off Controller 0

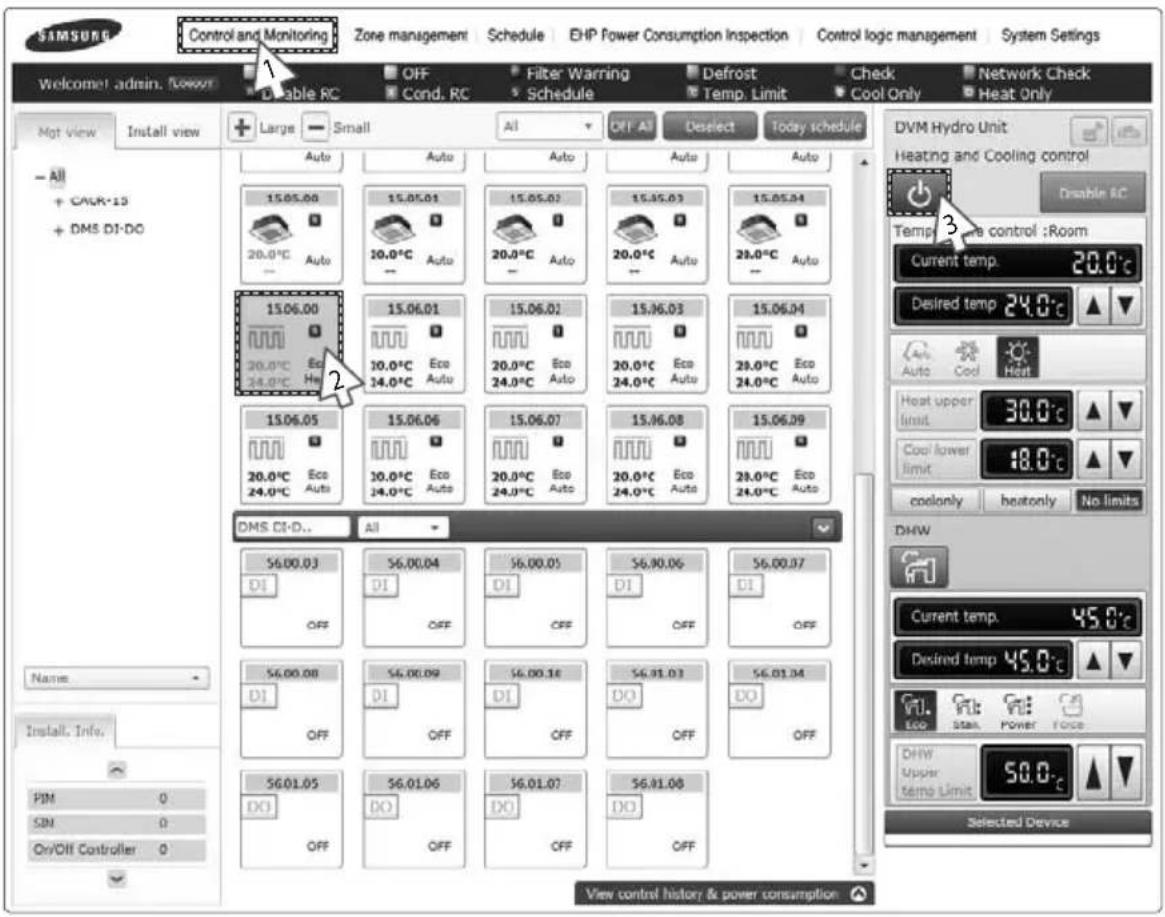

1 Click [Control and Monitoring] when DMS2 web page menu screen appear.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Select a DVM Hydro unit to control.

When the selected DVM Hydro unit is switched on, the remote controller panel will be automatically activated.

◆ DVM Hydro unit does not support multiple selection with other devices and you can only control and monitor the DVM Hydro unit individually. When you select DVM Hydro unit while multiple devices are already selected, previously selection (of multiple devices) will be canceled.

3 Turn the DVM Hydro unit on by clicking [1]

◆ Remote controller panel will be activated.

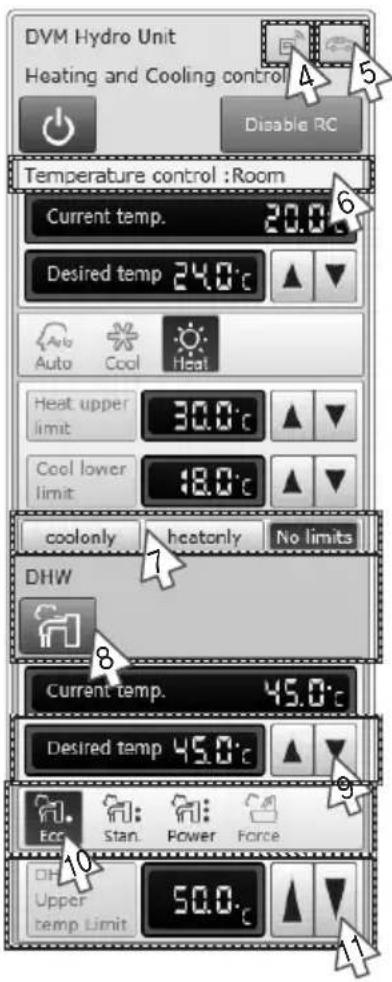

DVM Hydro Unit Heating and Cooling control Disable RC Temperature control : Room Current temp. 20.0 °C Desired temp 24.0 °C Auto Cool Heat Heat upper limit 30.0 °C ▲ ▼ Cool lower limit 18.0 °C ▲ ▼ coolonly heatonly No limits DHW Current temp. 45.0 °C Desired temp 45.0 °C ▲ ▼ Eco: Stan. Power Force DH Upper temp Limit 50.0 °C ▲ ▼

4 Icon will be activated when either Thermostat 1 or Thermostat 2 is on.
5 Icon will be activated when the Outing mode is on.
6 Type of temperature control will be displayed. Control and monitoring status of current temperature, desired temperature, operation mode, Heat upper limit and Cool lower limit will be changed depending on the type of temperature control.

Control and Monitoring (Continued)

7 Select [coolonly] or [heatonly] button.

◆ DVM Hydro unit does not support Fan mode, therefore only 'coolonly' and 'heatonly' buttons are on the control panel.

◆ coolonly: DMS2 will change the operation mode of the device to Heat mode when Cool mode is selected.

◆ heatonly: DMS2 will change the operation mode of the device to Cool mode when Heat mode is selected.

8 Click the button to turn on/off the power for direct heat water.

- You can turn on the power for direct hot water only when the operation mode is on Auto or Heat mode.

9 Select desired temperature for hot water by clicking [▲] [▼].

10 Select desired operation mode for hot water.

◆ Select the operation mode from Eco/Standard/Power/Force.

11 Select DHW upper temperature limit by clicking [▲] [▼].

◆ DMS2 will restrict desired temperature that is higher than the above range and adjust the temperature to selected temperature for DHW upper temperature limit.

Note ◆ DVM Hydro unit can be controlled and monitored properly with the November 2012 version (or higher) of Centralized controller (MCM-A202D) and interface module (MIM-B13D).

◆ Since the DVM Hydro unit does not have any filters, filter monitoring and filter reset is not available.

◆ DVM Hydro unit does not support temperature in Fahrenheit.

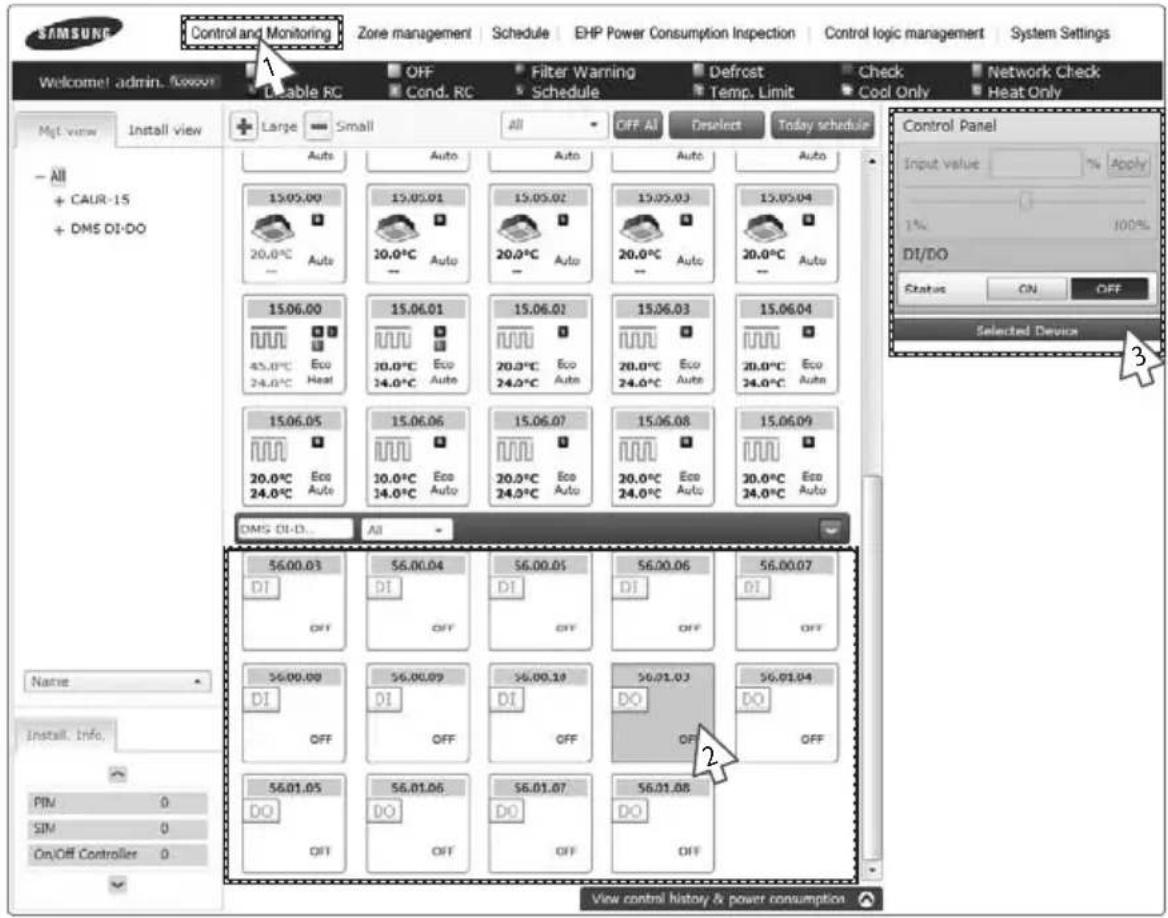

Monitoring DMS DI/DO Operation Status

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. foway Double RC Cond. RC Schedule Temp. Limit Check Network Check Mgt view Install view + Large Small All OFF All Deselect Today schedule Auto Auto Auto Auto Auto 13:05.00 13:05.01 13:05.02 13:05.03 13:05.04 20.0°C Auto 20.0°C Auto 20.0°C Auto 20.0°C Auto 15:06.00 15:06.01 15:06.02 15:06.03 15:06.04 45.0°C Eco 20.0°C Eco 20.0°C Eco 20.0°C Eco 20.0°C Eco 24.0°C Heat 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 15:06.05 15:06.06 15:06.07 15:06.08 15:06.09 20.0°C Eco 20.0°C Eco 20.0°C Eco 20.0°C Eco 20.0°C Eco 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto DMS DI-D... All - Name Install. Info. PIN 0 SIM 0 On/Off Controller 0 . 56.00.03 56.00.04 56.00.05 56.00.06 56.00.07 DI DI DI DI DI DI DI OFF OFF OFF OFF OFF 56.00.09 56.00.09 56.00.10 56.01.03 56.01.04 DI DI DI DI DI DI OFF OFF OFF OFF OFF 56.01.05 56.01.06 56.01.07 56.01.08 DO DO DO OFF OFF OFF OFF View control history & power consumption

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Check the current status of DI and DO device.

3 Monitor the device through the control panel.

Note ◆ Entering ON/OFF becomes impossible for DI device.

◆ Entering ON/OFF becomes possible for DO device.

◆ Entering control value becomes impossible for DI/DO device.

- You can control and monitor DI/DO which built-in DMS2. However, DI 1, 2 and DO 1, 2, 9, 10 are excluded from controlling and monitoring because they are used for the internal function of DMS.

Control and Monitoring (Continued)

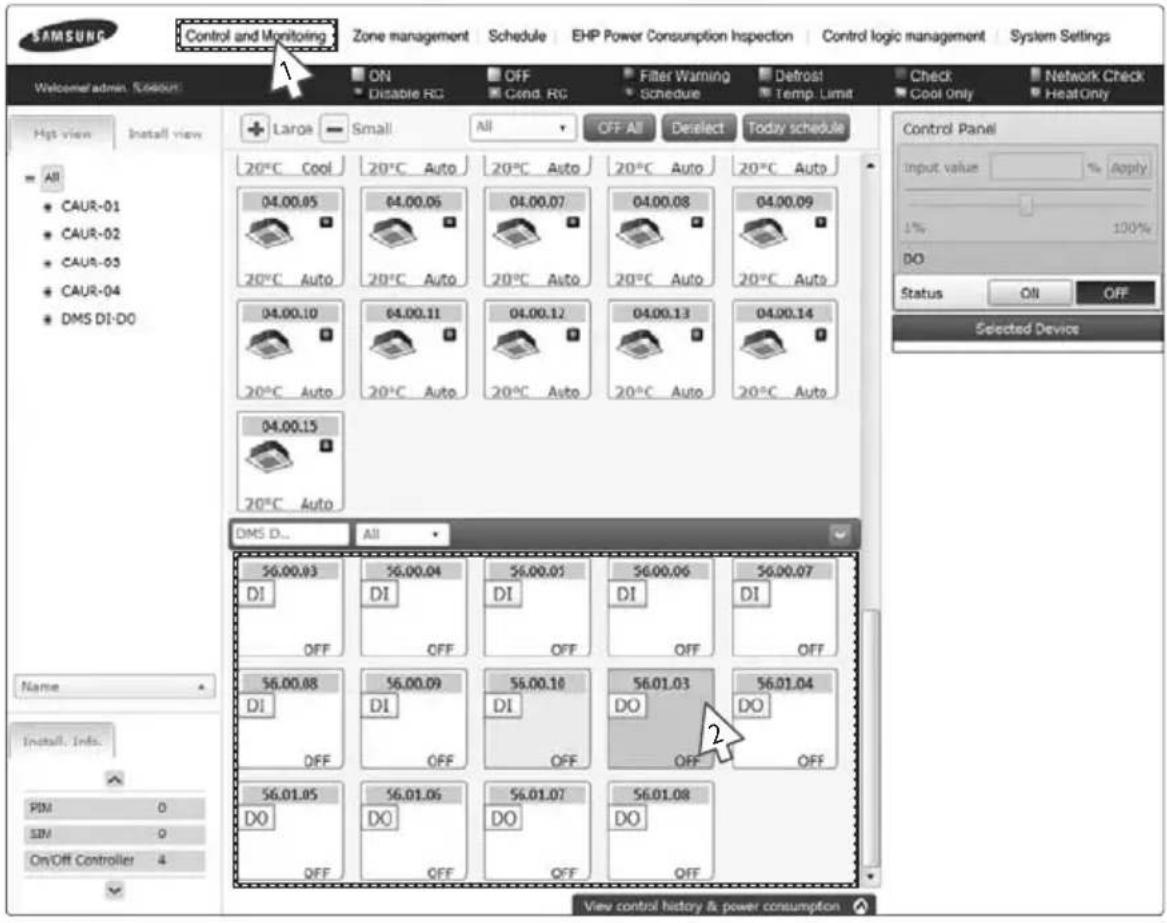

Controlling DMS DO

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. (RABOUR) ON OFF Filter Warning Defrost Check Network Check Disable RG Cond RG Schedule Temp Limit Large Small OFF All Deselect Today schedule 20°C Cool 20°C Auto 20°C Auto 20°C Auto 20°C Auto 04.00.05 64.00.06 04.00.07 04.00.08 04.00.09 20°C Auto 20°C Auto 20°C Auto 20°C Auto 20°C Auto 04.00.10 64.00.11 04.00.12 04.00.13 04.00.14 20°C Auto 20°C Auto 20°C Auto 20°C Auto 20°C Auto 04.00.15 20°C Auto DMS D... All 56.00.03 56.00.04 56.00.05 56.00.06 56.00.07 DI DI DI DI DI OFF OFF OFF OFF OFF 56.00.08 56.00.09 56.00.10 56.01.03 56.01.04 DI DI DI DO DO OFF OFF OFF OFF 56.01.05 56.01.06 56.01.07 56.01.08 DO DO DO OFF OFF OFF PIM 0 SIM 0 On/Off Controller 4 View control history & power consumption

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Select DO device to control when control and monitoring screen appears.

◆ Check the status of DI or DO device.

Control Panel Input value % Apply 1% 100% DI/DO Status ON OFF 3

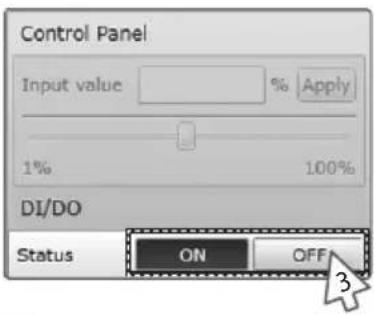

3 Turn DO device on by clicking [ON]/[OFF] button on the control panel.

Note Remote controller setting is not possible for DI/DO device.

Monitoring the selected multiple devices operation status

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome! admin. kssesr Double RC Off Cond. KC Filter Warning Schedule Defrost Temp. Limit Check Cool Only Network Check Heat Only Ngt view Install view Large Small All OFF All Deselect Today schedule CAUR-15 All Status display window Basic Control Disable KC Reset filter Indoor Control Current temp 20.0°C Desired temp 24.0°C Auto Cool Dry Fan Heat Auto Low Mid High Ventilation Control Auto HeATEx ByPass Sleep Low High Turbo Selected Device Inductor AHU ERV Name Install. Info. PM 0 SM 0 On/Off Controller 0 View control history & power consumption

You can monitor the operation status of other type devices, and control other type devices as a whole, or as individual units.

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.
◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.
2 Check the status of the selected multiple devices.
◆ Check the status of an indoor unit through status display window.
- When the selected devices are switched on, the remote controller panel will be automatically activated.

Note

When users select multiple devices, 'Basic Control' will be displayed on the screen. (This is when different types of multiple devices are set
◆ The current status of last selected indoor unit type devices (Indoor unit, AHU, Fresh duct, MINI AHU) will be displayed on the 'Indoor control'.
◆ The status of last selected ERV type devices (ERV, ERV PLUS) will be displayed on the 'Ventilation Control'.
◆ The list of the selected multiple devices will be displayed on the 'Selected Device'.
◆ DVM Hydro unit does not support multiple selection with other devices and you can only control and monitor the DVM Hydro unit individually. When you select DVM Hydro unit while multiple devices are already selected, previously selection (of multiple devices) will be canceled.

Controlling the selected multiple devices

SAMSUNG Control and Monitoring Zone management | Schedule | EHP Power Consumption Inspection | Control logic management | System Settings Welcome admin. flesur CAUR-13 All OFF Filter Warning Defrost Check Network Check Enable RC Cond. RC Schedule Temp. Limit Cool Only Heat Only Npt view Install view Large Small All OFF All Develed Today schedule Basic Control Disable RC Reset filter Indoor Control Current temp 20.0°C Desired temp 24.0°C Auto Cool Dry Fan Heat Auto Low Mid High Ventilation Control Auto HeaEx ByPass Sleep Low High Turbo Selected Device Insizer AHU ERV CAUR-13 All 15.00.00 20.0°C Auto 15.00.01 20.0°C Auto 15.00.02 20.0°C Auto 15.00.03 20.0°C Auto 15.00.04 24.0°C Auto 15.01.00 20.0°C Auto 15.01.01 20.0°C Auto 15.01.02 20.0°C Auto 15.01.03 20.0°C Auto 15.01.04 24.0°C Auto 15.02.00 Auto 15.03.00 20.0°C Auto 15.03.01 20.0°C Auto 15.03.02 20.0°C Auto 15.03.03 20.0°C Auto 15.03.04 24.0°C Auto 15.04.00 Auto Auto 15.04.01 Auto Auto 15.04.02 Auto Auto 15.04.03 Auto Auto 15.04.04 Auto Auto 15.05.00 20.0°C Auto 15.05.01 20.0°C Auto 15.05.02 20.0°C Auto 15.05.03 20.0°C Auto 15.05.04 Auto Auto

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Check the status of the selected devices.

◆ Check the status of an indoor unit through status display window.

When the selected devices are switched on, the remote controller panel will be automatically activated.

3 Turn the selected devices on by clicking [1]

◆ Remote controller panel will be activated.

Basic Control Disable RC Reset filter Indoor Control Current temp. 20.0°C Desired temp 24.0°C Auto Cool Dry Fan High Auto Low Mid High Ventilation Control Auto HeatEx ByPass Sleep Low High Turbo Selected Device Indoor AHU ERV

4 Select the desired temperature by clicking [▲][▼].

◆ Each time you click the button, the temperature will be adjusted by 1°C(1°F).
If Auto/Cool/Dry mode is in operation, you can adjust the desired temperature in the range of 18^(65^) 30^(86^) .
If Heat mode is in operation, you can adjust the desired temperature in the range of 16^(61^) 30^(86^) .
◆ You cannot adjust the desired temperature in Fan mode.
When the operation mode of an indoor unit is in Cool or Dry mode, you cannot set the desired temperature lower than lower limit temperature if lower limit is enabled.
When the operation mode of an indoor unit is in Heat mode, you cannot set the desired temperature higher than upper limit temperature if upper limit is enabled.

5 Select the operation mode.

◆ You can select Auto, Cool, Dry, Fan and Heat mode.

6 Select the fan speed.

◆ You can select Auto, Low, Mid and High.
◆ If Auto/Dry mode is in operation, fan speed will be set as Auto fan speed.
◆ If Fan mode is in operation, you cannot select Auto fan speed.

Control and Monitoring (Continued)

7 Select the ERV operation mode.

◆ You can select Auto, Heat Ex, By pass and Sleep mode.

8 Select the fan speed.

◆ You can select Low, high and Turbo.
◆ If Sleep mode is in operation, the fan speed will be set as Low fan speed.

9 When controlling certain types of devices in detail, select the device you want to control on the list of the 'Selected Device'.

Note

If the ERV type devices are not on the list of the 'Selected Device', ventilation control will not be activated.
◆ If the indoor unit type devices are not on the list of the 'Selected Device', Indoor control will not be activated.
When controlling an indoor unit, ERV devices (ERV, ERV PLUS) cannot be controlled.
When controlling ERV devices, Indoor unit (Indoor unit, AHU, Fresh duct, MINI AHU) cannot be controlled.
You can select power on/off, Disable RC, Reset filter, Indoor Control (Desired temp, operation mode, fan speed) and ERV Control in the 'Basic control'.j
◆ Power on/off, Disable RC and Reset filter are controlled to all the devices.
When selecting multiple devices, the list of the selected devices will be displayed at the bottom of the remote controller. When selecting the device you want to control, the remote control panel of the selected device will be activated and you can control the selected device in detail. However, the rest of the devices cannot be controlled other than the selected device.

Checking the Installation Information

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. fesour Double RC OFF Filter Warning Defrost Check Network Check Cond. RC Schedule Temp. Limit Cool Only Heat Only Not view Install view Large Small OFF All Deselect Today schedule CAUR-15 All 15.00.00 15.00.01 15.00.02 15.00.03 15.00.04 20.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 15.01.00 15.01.01 15.01.02 15.01.03 15.01.04 20.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 15.02.00 15.02.01 15.02.02 15.02.03 15.02.04 Auto Auto Auto Auto Auto Auto 15.03.00 15.03.01 15.03.02 15.03.03 15.03.04 20.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 24.0°C Auto 15.04.00 15.04.01 15.04.02 15.04.03 15.04.04 Auto Auto Auto Auto Auto Auto Auto 15.05.00 15.05.01 15.05.02 15.05.03 15.05.04 28.0°C Auto 28.0°C Auto 28.0°C Auto 28.0°C Auto 28.0°C Auto Name Install, Info PIM 0 SIM 0 Or/Off Controller 0 View control history & power consumption Indoor Disable RC Reset filter Current temp. Desired temp. Auto Cool Dry Fan Heat Auto Low Mid High Verti Honi All None SP1 MDS coolonly Fan heatonly Fan Heat No limits Cool upper limit 3:0:°C ▲▼ Cool lower limit 18:°C ▲▼ Selected Device

You can check the installation status of currently connected device.

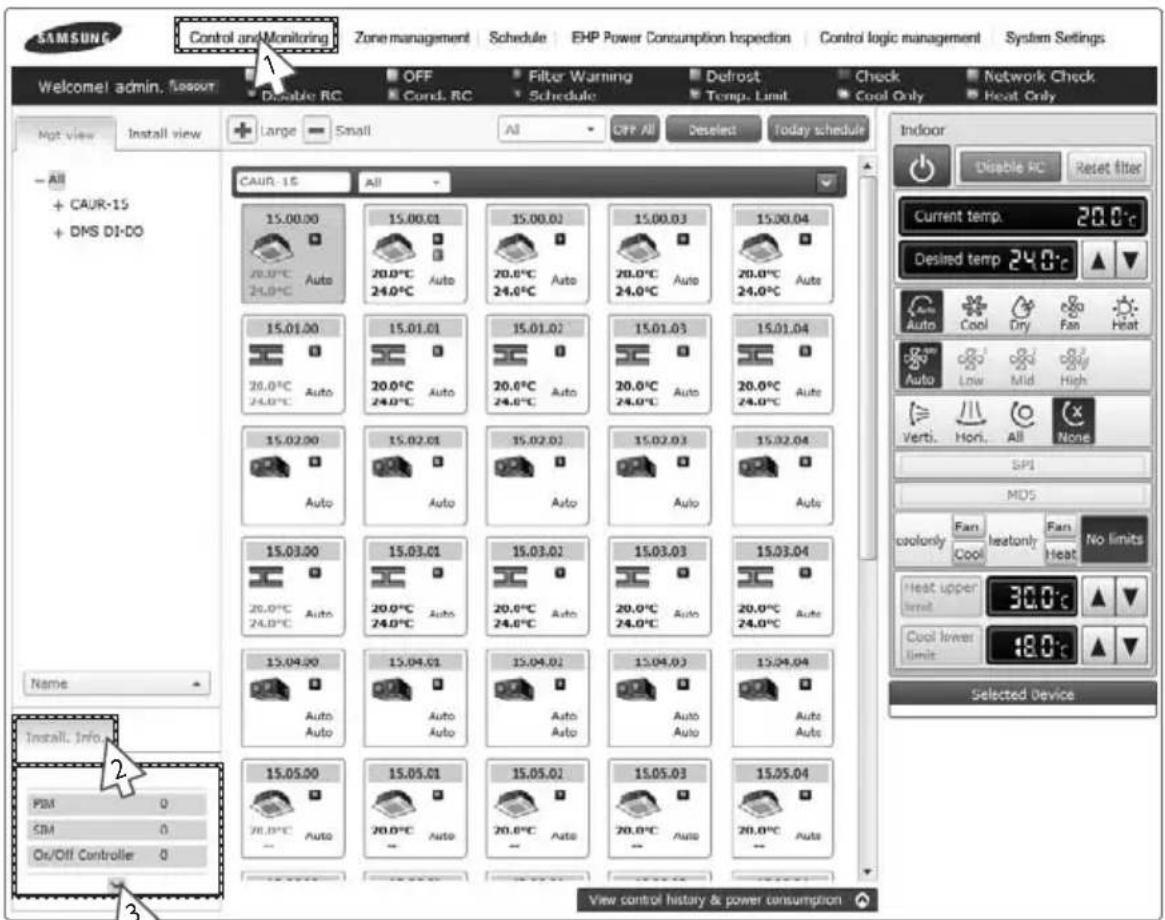

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Click 'Install.Info'. tab at the bottom left of the screen.

3 Check installation status of currently connected device in the installation information tab.

- You can check installation information by pressing [∧] and [∨] buttons.

Control and Monitoring (Continued)

View the Control History & Power Consumption

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. fissout Double RC OFF Filter Warning Defrost Check Network Check Cond. RC Schedule Temp. Limit Cool Only Heat Only Not view Install view Large Small All Off All Deselect today schedule CAUR-15 All 15.00.00 20.0°C Auto 15.00.01 20.0°C Auto 15.00.02 20.0°C Auto 15.00.03 20.0°C Auto 15.00.04 20.0°C Auto 15.01.00 20.0°C Auto 15.01.01 20.0°C Auto 15.01.02 20.0°C Auto 15.01.03 20.0°C Auto 15.01.04 20.0°C Auto 15.02.00 Auto 15.02.01 Auto 15.02.02 Auto 15.02.03 Auto 15.02.04 Auto 15.03.00 20.0°C Auto 15.03.01 20.0°C Auto 15.03.02 20.0°C Auto 15.03.03 20.0°C Auto 15.03.04 20.0°C Auto 15.04.00 Auto Auto 15.04.01 Auto Auto 15.04.02 Auto Auto 15.04.03 Auto Auto 15.04.04 Auto Auto 15.05.00 26.0°C Auto 15.05.01 26.0°C Auto 15.05.02 26.0°C Auto 15.05.03 26.0°C Auto 15.05.04 View control history & power consumption

You can select a device and view control history and power consumption information.

1 Click [Control and Monitoring] when DMS2 web page menu screen appears.

◆ [Control and Monitoring] screen will appear when you log-in to DMS2 web page.

2 Select a device you want to view control history and power consumption.

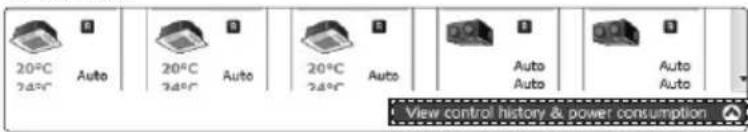

3 Click [View control history & power consumption]tab and wait for a while.

◆ Control history and power consumption information are received from DMS2.
◆ 'Data receiving' message will appear on the bottom right of the tab.

20°C 24°C Auto 20°C 34°C Auto 20°C 24°C Auto Auto Auto Auto Auto View control history & power consumption

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Sower ON Disable RC OFF Cond. RC Filter Warning Schedule Defrost Temp. Limit Check Cool Only Network Check Heat Only High view Install view Large Small All Off All Deselect Today schedule CAUR-15 All 15.00.00 20.0°C Auto 24.0°C 15.00.01 20.0°C Auto 24.0°C 15.00.02 20.0°C Auto 24.0°C 15.00.03 20.0°C Auto 24.0°C 15.00.04 20.0°C Auto 24.0°C 15.01.00 26.0°C Auto 24.0°C 15.01.01 20.0°C Auto 24.0°C 15.01.02 20.0°C Auto 24.0°C 15.01.03 20.0°C Auto 24.0°C 15.01.04 20.0°C Auto 24.0°C 15.02.00 Auto Auto Auto Auto Auto Auto 15.02.01 Auto Auto Auto Auto 15.02.02 Auto Auto Auto 15.02.03 Auto Auto Auto 15.02.04 SP1 MDS Current temp 20.0°C Desired temp 24.0°C Auto Cool Dry Fat Heat Auto Low Mid High Verti Hori All Nose SPI coolonly Fan fan No limits Cool heatonly Heat limit 30.0°C Heat upper limit 18.0°C Cool lower limit 18.0°C Selected Device View control history & power consumption 1/1 A 15.00.00 Control history Power consumption Power Controlled time 2012-11-08 21:22:55 Type of control User control Power ON RC - Consumption in the current month - Average consumption current month - Consumption of previous month - Average consumption last month

4 When data reception is completed from DMS2, check control history and power consumption of selected device.

Note ◆ In 'Control history', you can check power control and remote controller usage status.

◆ Operation mode, desired temperature, air flow and fan speed control shows you the controlled time and type of control only.
◆ If SIM is not installed, power consumption information may not be correct.

◆ Power consumption information is displayed only when SIM is installed.
◆ If SIM is removed, value measured with SIM will be displayed.

Control and Monitoring (Continued)

Cycle Monitoring

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, /loss Cycle monitoring Indoor usage restriction Trouble story Outdoor unit control Checking operation status Cycle monitoring Cycle monitorin 0.00 Oil recovering -- Operation Mode None Total capacity of Indoor 0.5kW Defrost status -- Number of outdoor units 1 Oil balancing -- Master [ Address : 00 ] Outdoor temperature 25°C Model DVM Inverter/ Comp 2 Condenser outlet temp. 33°C Oil / OLP temperature -- Comp 2 On Comp 3 -- Hot Gas Valve On Outdoor capacity 10HP 4Way Valve On Liquid Bypass Valve -- EVI Bypass Valve On Running currents(Comp.1) 10.0A Running currents(Comp.2) 10.0A Running currents(Comp.3) -- High pressure data 17.0 kgf/cm2 Low pressure data 3.0 kgf/cm2 Double tube temperature 30°C Main expansion valve step 300 STEP ESC EEV/EVI(Liquid) EEV 300 STEP HR EEV/Gas Liquid EEV -- Discharge-1 temperature 22°C Discharge-2 temperature 22°C Discharge-3 temperature -- Outdoor Fan Step 30 STEP Loading Time -- Accumulator CCH On CCH1 On CCH2 On CCH3 -- HotGasValue #2 Top Temp Sensor #1 20°C Top Temp Sensor #2 20°C

You can select an indoor unit and check cycle information.

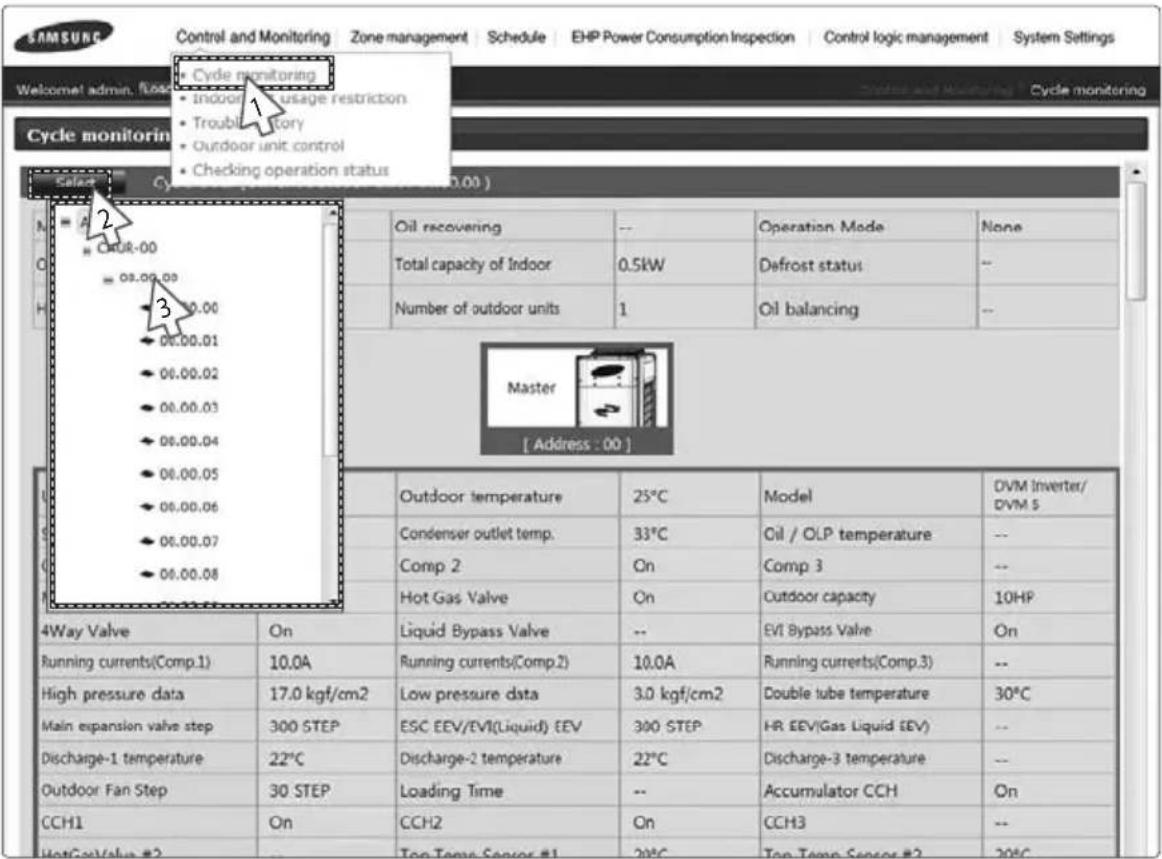

1 Click [Control and Monitoring] → [Cycle Monitoring] when DMS2 web page menu screen appears.
2 Click [Select].

◆ DMS2 installation information will be displayed.

3 Select a device to check cycle information.

◆ If you select centralized controller, its subordinate outdoor unit which has the earliest address will be selected.
◆ If you select interface module, its subordinate outdoor unit will be selected.
◆ If you select indoor unit, upper outdoor unit will be selected.

4 Cycle information of selected outdoor unit and subordinate indoor units.

◆ If the status of outdoor unit and indoor unit is changed, status value turns into blue.

Note

You can check all the cycle information on DVM Plus 2 or DVM Plus 3 with the centralized controller MCM-A202B and interface module MIM-B13B (or higher version of those devices) only. However, some cycle information may not be displayed on any other models of outdoor unit.

Indoor Unit Usage Restriction\_Operation Limit

LIMEUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome arm. Seevier • Cycle monitoring • Indoor unit usage restrictions • Trouble history • Outdoor unit co • Checking operation status Indoor unit usage restrictions Indoor unit usage restriction Address Name Limit mode Control mode Lower temperature limit in Cod mode Upper temperature limit in Heat mode 00.00.00(00) 00.00.00 None None None Disable Enable °C Disable Enable °C 00.00.01(01) 00.00.01 Cod-on Heat mode None Disable Enable °C Disable Enable °C 00.00.02(02) 00.00.02 None None Disable Enable °C Disable Enable °C 00.01.00(00) 00.01.00 None None Disable Enable °C Disable Enable °C Edit Save

You can set the operation of indoor unit as cooling only and heating only.

1 Click [Control and Monitoring] → [Indoor unit usage restriction] when DMS2 web page menu screen appears.
2 Press [Edit] button.
3 Set the limit mode.

◆ You can select 'Cool-only', 'Heat-only' or 'None'.

• For cooling only indoor unit, you can select cool, dry and fan modes only.
• For heating only indoor unit, you can select heat and fan modes only.

Control and Monitoring (Continued)

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome alarm, Flavour • Cycle monitoring • Indoor unit usage restriction • Trouble history • Outdoor unit control • Checking operation status Indoor unit usage restriction Indoor unit usage restriction Address Name Limit mode Control mode Lower temperature limit in Cool mode Upper temperature limit in Heatmode 00.00.00(00) 00.00.00 None None • Disable ○ Enable °C • Disable ○ Enable °C 00.00.01(01) 00.00.01 Cool-only Heat-only • Disable ○ Enable °C • Disable ○ Enable °C 00.00.02(02) 00.00.02 None • Disable ○ Enable °C • Disable ○ Enable °C 00.01.00(03) 00.01.00 None • Disable ○ Enable °C • Disable ○ Enable °C Edit Save

4 Set the control mode.

If you set the control mode, indoor unit operating in limited operation mode will be automatically set to operate in pre-set control mode. You can set the different control mode to each of the indoor units.
- Cooling only indoor unit: You can select fan or cool mode.
- Heating only indoor unit: You can select fan or heat mode.

(Ex: When the indoor unit with fan mode is changed to heat mode, DMS2 will perceive it and control the indoor unit in fan mode.)

◆ ERV PLUS and DVM Hydro unit doesn't operate Fan mode, so it operates only Cool or Heat mode in the 'cool only' or 'heat only' limit mode.

Note ◆ Mixed operation can occur even if you set limit mode.

◆ If the indoor unit with operation mode limit is in mixed operation, DMS2 will solve the problem automatically by controlling it in control mode.

① In the following circumstances, all indoor units under the same outdoor unit should be set to the same limit mode. Mixed operation can occur continuously when you set some of indoor unit to cool only and the other to heat only.
- If the centralized controller is MCM-A202 and is in group mode
- If the centralized controller is in group mode and the interface module is MIM-B13 or MIM-B04A
② Except above ① circumstances, DMS2 changes the limit mode of all indoor units under the same outdoor unit to same limit mode.
- If the centralized controller is in group mode and is above MCM-A202A and all the interface modules under the centralized controller are above MIM-B13A
- If the centralized controller is in individual mode
③ If you set the cooling only indoor unit's limit mode to heating only, DMS2 may display Heating Cooling alternately.

Indoor Unit Usage Restriction\_Temperature Limit in Cool/Heat mode

SIMONE Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome agent: Outlook • Cycle monitoring • Indoor unit usage restriction • Trouble restoration • Outdoor unit • Checking operation status Indoor unit usage restriction Indoor unit usage restrictions Address Name Limit mode Control mode Lower temperature limit in Cod mode Upper temperature limit in Heatmode 00.00.00(00) 00.00.00 None None Disable Enable °C Disable Enable °C 00.00.01(01) 00.00.01 Cool-only None Enable °C Disable Enable °C 00.00.02(02) 00.00.02 None None Disable Enable °C Disable Enable °C 00.01.00(03) 00.01.00 None None Disable Enable °C Disable Enable °C

You can set temperature lower/upper temperature limit in cool/heat mode.

1 Click [Control and Monitoring] → [Indoor unit usage restriction] when DMS2 web page menu screen appears.
2 Press [Edit] button.
3 Set the lower/upper temperature limit.

◆ You can set lower/upper temperature limit by selecting 'Enable'/'Disable'.
◆ If desired temperature is lower than lower limit temperature when the indoor unit is operating in cool mode, DMS2 controls indoor unit to lower temperature limit.
◆ If desired temperature is higher than upper limit temperature when the indoor unit is operating in heat mode, DMS2 controls indoor unit to upper temperature limit.
◆ Lower temperature limit range: 18°C(65°F)\~30°C(86°F) Upper temperature limit range: 16°C(61°F)\~30°C(86°F)
If the indoor unit is in Auto(Cool)/Auto(Heat) mode, lower/upper temperature limit will be applied when the indoor unit is operating in Auto mode. However, if the upper temperature limit is set to 16°C(61°F)\~17°C(64°F), the upper temperature limit in Auto(Heat) mode is 18°C(65°F).
◆ ERV PLUS and Fresh duct cannot set the lower temperature limit in Cool mode or upper temperature limit in Heat mode.
For DVM Hydro Unit, it sets the lower/upper temperature limit for indoor temperature if the type of temperature control is indoor temperature and sets the lower/upper temperature limit for water out temperature if the type of temperature control is water out temperature.

4 Click [Save].

◆ Indoor unit usage restriction setting will be saved.

Checking the Trouble History

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. For Cycle monitoring Trouble history 1 Trouble history Outdoor uncontrol Checking operation status 2010 3 17 2010 3 17 All Communication trouble Search Check Address Device type Occurrence time Resolution time Code No. Status 08 casr 2010-03-17 00:26 2010-03-17 00:33 611 Resolved (2) DMS:DMS -> CAGR Commune & Error 09 casr 2010-03-17 00:26 2010-03-17 00:33 611 Resolved (2) 32 peak 2010-03-17 00:26 2010-03-17 00:33 612 Resolved (2) 16 SIM 2010-03-17 00:26 2010-03-17 00:33 613 Resolved (2) Click the row for detailed information. 1 Delete

1 Click [Control and Monitoring] → [Trouble history] when DMS2 web page menu screen appears.
2 Check all the trouble history.

◆ You can check address, device type, occurrence time, resolution time, code number and status.

3 You can check detailed information on trouble history by selecting the item in the list.

Note

◆ DMS2 saves maximum 1024 trouble histories. If the number of history exceeds 1024, DMS2 will delete the oldest history first.

If the same code trouble is detected repeatedly in the same device on the same day, trouble history will be shown as 1 case. If it occurs more than 2 times, 'Resolution time' may change every time you check. And the number of repetition will be displayed in 'Status' field.

Checking the Trouble History by Date

SANSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin fix Cycle monitoring Trouble history restriction Trouble history Outdoor unit control Checking operation status 2010 3 17 2010 3 17 All Communication trouble Search Check Address Device type Occur at the time Resolution time Code No. Status 01 caur 2010-03-17 00:26 2010-03-17 00:33 611 Resolved (2) DMS:DMS <-> CAUR Communication for 00 caur 2010-03-17 00:26 2010-03-17 00:33 611 Resolved (2) 32 peak 2010-03-17 00:26 2010-03-17 00:33 612 Resolved (2) 15 SIM 2010-03-17 00:26 2010-03-17 00:33 613 Resolved (2) Click the row for detailed information. Delete

DMS2 saves maximum 1024 trouble histories. If the number of history exceeds 1024, DMS2 will delete the oldest history first.

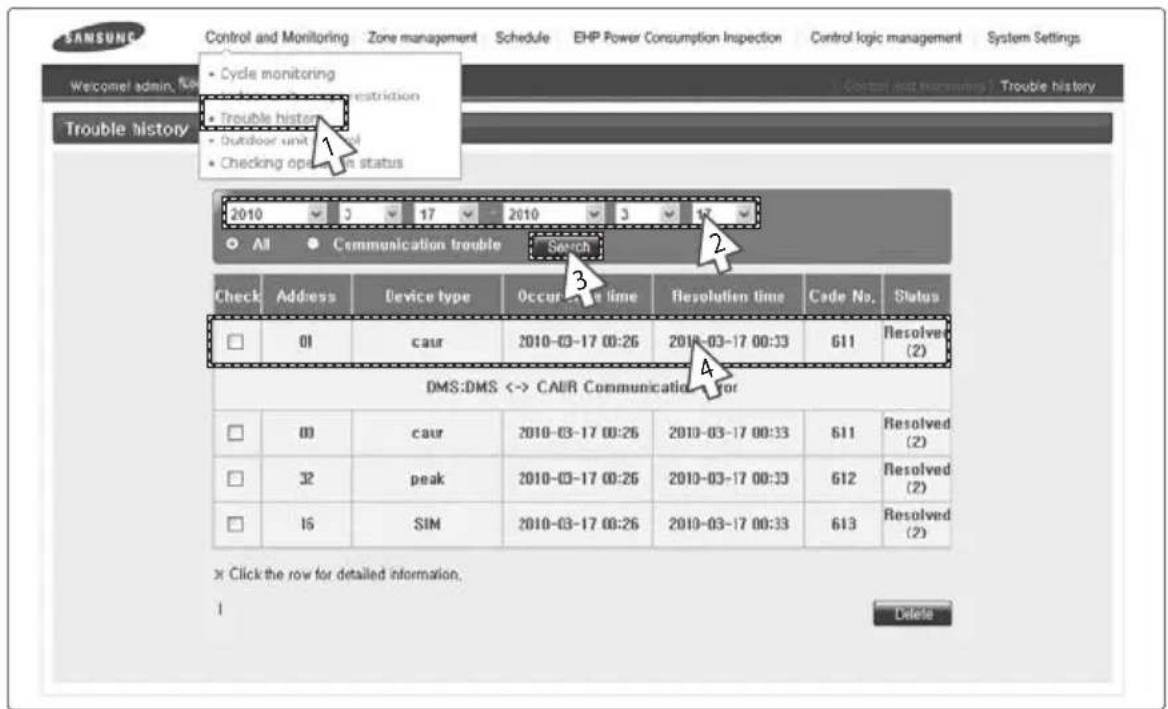

1 Click [Control and Monitoring] → [Trouble history] when DMS2 web page menu screen appears.
2 Enter the time period you want to check.

◆ Enter year/month/day in order.

3 Click [Search].

- You can check address, device type, occurrence time, resolution time, code number and status in the entered period.

4 You can check detailed information on trouble history by selecting the item in the list.

Deleting the Trouble History

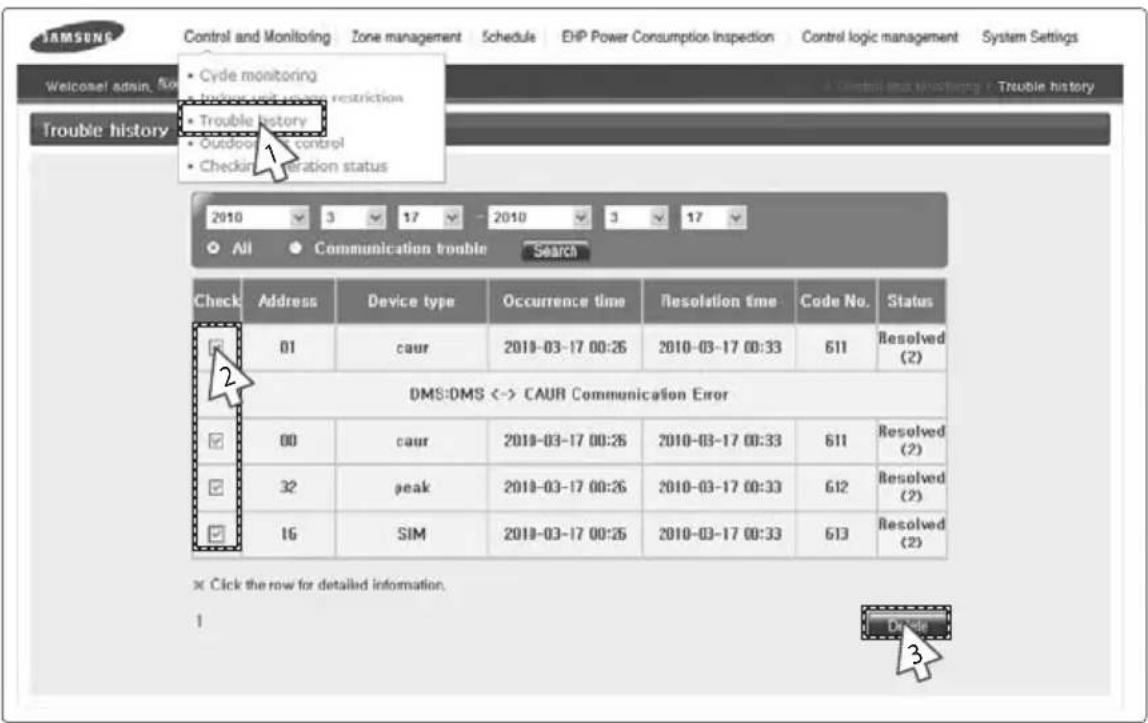

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, No • Cyde monitoring • Index unit usage restriction • Trouble history • Outdoor control • Checking iteration status Trouble history 2010 3 17 2010 3 17 All Communication trouble Search Check Address Device type Occurrence time Resolution time Code No. Status 01 caur 2010-03-17 00:26 2010-03-17 00:33 611 Resolved (2) DMS:DMS <-> CAUR Communication Error 00 caur 2010-03-17 00:26 2010-03-17 00:33 611 Resolved (2) 32 peak 2010-03-17 00:26 2010-03-17 00:33 612 Resolved (2) 16 SIM 2010-03-17 00:26 2010-03-17 00:33 613 Resolved (2) × Click the row for detailed information. 1 Delete

1 Click [Control and Monitoring] → [Trouble history] when DMS2 web page menu screen appears.
2 Select trouble history you want to delete.
3 Click [Delete].

◆ Click [OK] from the confirm window. Selected trouble history will be deleted.

Outdoor unit control

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Store • Cycle monitoring • Indoor unit usage restriction • Travel history • Outdoor unit control • Checking operation status Outdoor unit control Outdoor unit address Outdoor unit name Electric current control option Heating capacity calibration Cooling capacity calibration 00.00.00 00.00.00 current value : --% • Outdoor unit self-control Manual 50% current value : --kg/cm² • Outdoor unit self-control Manual 25kg/cm² current value : --°C • Outdoor unit self-control Manual 6-7°C Edit Save 2 3

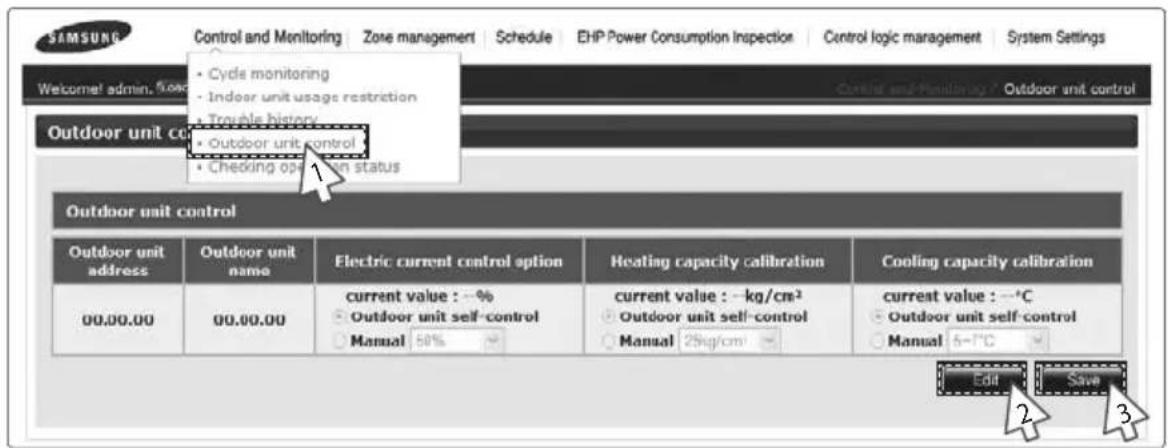

1 Click [Control and Monitoring] → [Outdoor unit control] when DMS2 web page menu screen appears.
2 Click [Edit] and select the desired setting for Electric current control option, Heating capacity calibration and Cooling capacity calibration.

◆ Outdoor unit self-control: Outdoor unit controls the value itself.
◆ Manual: Outdoor will be controlled at value set by the user.

3 Click [Save] and the outdoor unit will be controlled at set value.

◆ If the value was set manually on DMS2, outdoor unit will always operate at set value.

Note

◆ Outdoor unit control is supported on certain models only, and the 'Outdoor unit control page' only appears on those supported models.

Control and Monitoring (Continued)

Checking the Operation Status

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Now • Cycle monitoring • Indoor unit usage restriction • Trouble history • Checking control • Checking operation status Checking operation status 2010 2 37 all Search Device type Occurrence time Control Unit Control type Controlled device DVM 2010.02.21 07:59:53 DMS Web Upper controller control 02.00.05, 02.00.04, (02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 02.00, 03(00.00.03), 00.00.02(00.00.02), 00.00.01(00.00.01), 00.00.00(00.00.01) Control device(DVM) (02.00.05(02.00.05), 02.00.04(02.00.04), 02.00.03(02.00.03), 02.00.02(02.00.02), (02.00.01(02.00.01), 02.00.08(02.00.08), 08.11.15(16.15).15), 16.15.15(16.15).15), (16.15.15(16.15).15), 16.15.15(16.15).15) Control device type : DVM Power : Off DVM 2010.02.21 07:59:53 DMS Web Upper controller control 01.11.11(11.11).11, 11.11, 11.11, 11.11, 11.11, 11.11, 11.11, 11.11, 11. DVM 2010.02.21 07:59:53 DMS Web Upper controller control 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13, 13

You can check operation status of indoor unit which is controlled by DMS2.

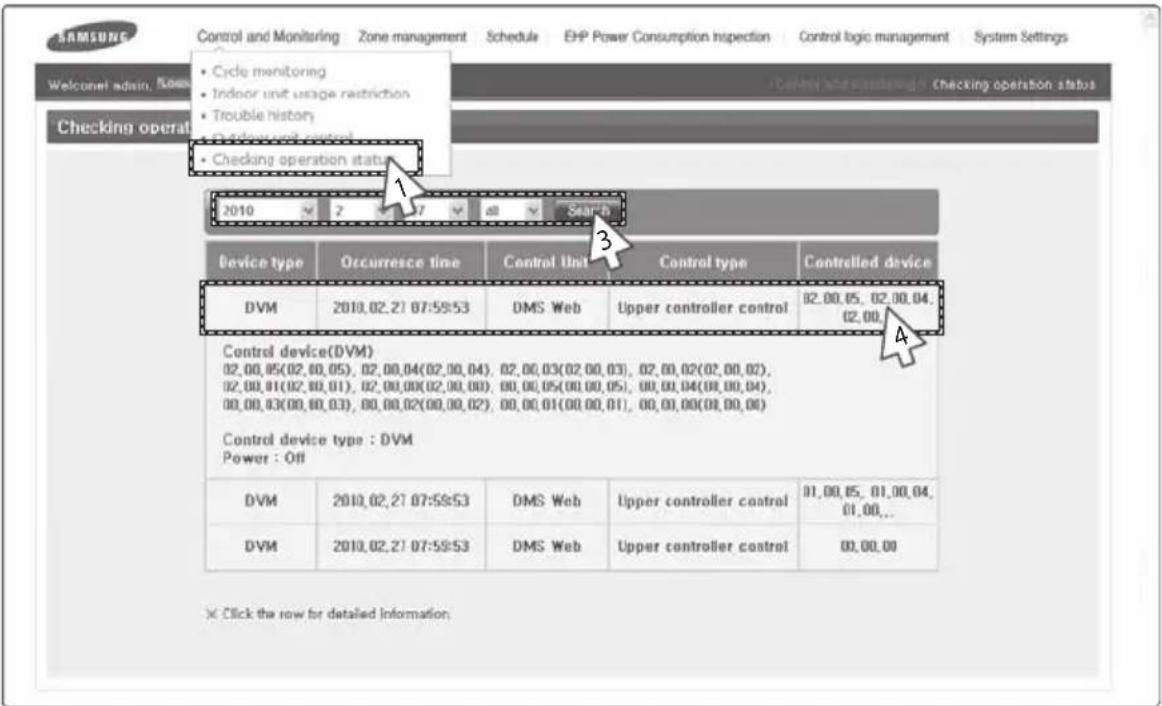

1 Click [Control and Monitoring]→ [Checking operation status] when DMS2 web page menu screen appears.
2 Check the operation history.

- You can check the device type, occurrence time, control unit, control type, and controlled device address of indoor unit which is controlled by DMS2 and subordinate controller.

3 You can check operation status by entering date.

◆ Enter year/month/day then click [Search]. You can check control history that occurred on the entered date.

4 You can check detailed control history which is controlled by the command by pressing control history in the list.

Note DMS2 saves the information of operation history for 180 days. However, it varies depending on saving space of DMS2.

Zone Setting & Edit – Individual/Group Initialization

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome again, Newart Zone Setting & Edit Zone Setting & All CAUR-00 CAUR-01 CAUR-02 DMS D1:D0 All ID Name Registration date Description Authorization guest guest 2009.1.1 Guest Regular user The setting of user view permission can be saved only for the users in the selected zone. Save Initiated code : Indemal

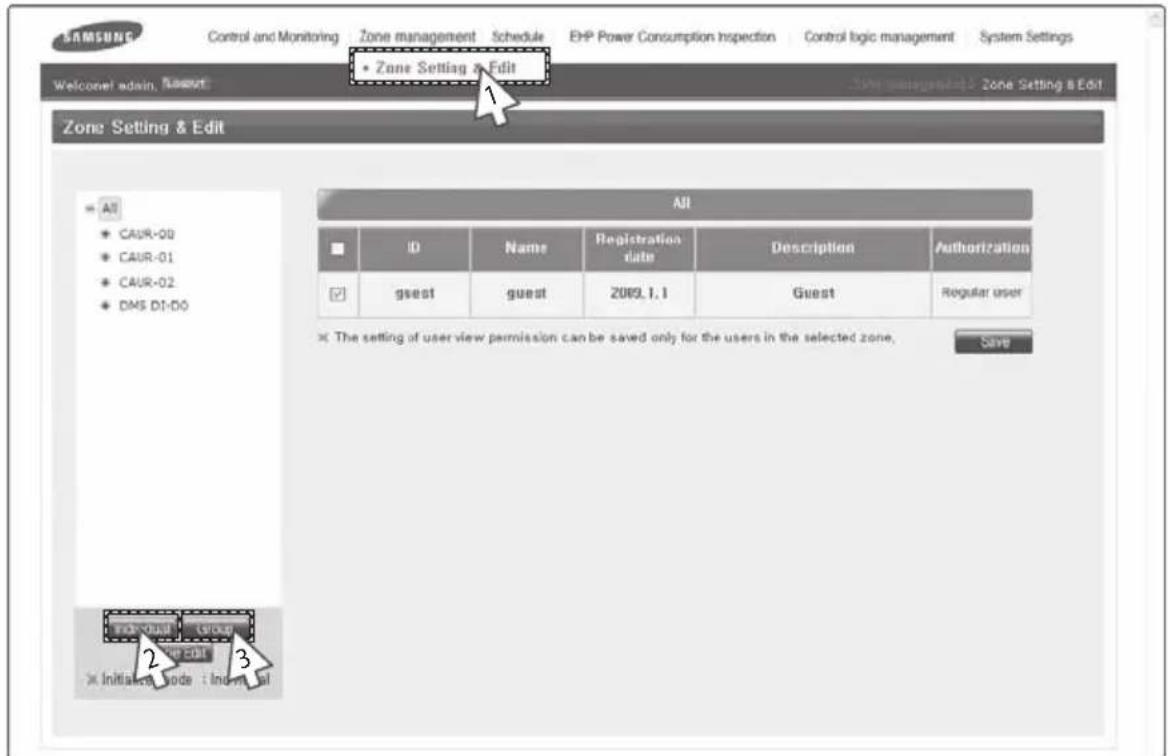

1 Click [Zone management] → [Zone Setting & Edit] when DMS2 web page menu screen appears.

◆ Same screen will be displayed even if you click [Zone management] only.

2 Initialize the indoor unit organization as individual by clicking [Individual].

◆ Individual initialization reorganizes connected indoor unit based on installation address.

3 Initialize the indoor unit organization as group by clicking [Group].

◆ Group initialization reorganizes connected indoor unit based on RMC address.

◆ After group initialization, indoor units are displayed as one device when upper zone is selected in the [Control and Monitoring] screen.

When editing zone after group initialization, moving in group is only allowed.

◆ After group initialization, subordinate devices cannot be moved individually to the other zone.

Note

◆ Only the user who has authorization to edit all zones can use zone initialization.

- To the user who has no authorization to use zone initialization and manage structure, button will not be displayed.

◆ If the user does not have authorization to edit zone, [Inidividual], [Group] and [Zone edit] will not be displayed.

Zone Setting & Edit – Setting the User Authorization

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin: SAMSUNG Zone Setting & Edit Zone Setting & All CAUR-00 CAUR-01 CAUR-02 DMS D1-D0 ID Name Registration date Description Authorization guest guest 2009.1.1 Guest Regular user Setting of user view permission can be saved only for the users in the selected zone. Individual Group Zone EDIT Initialize mode : Individual

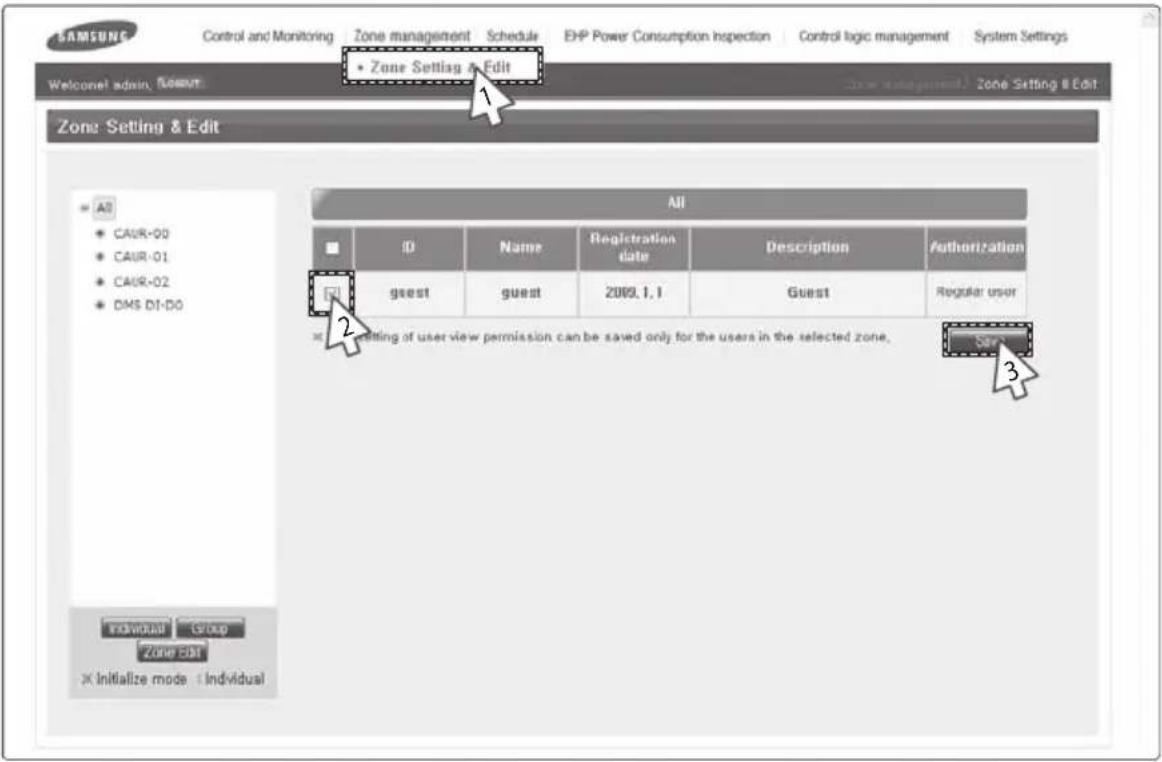

1 Click [Zone management] → [Zone Setting & Edit] when DMS2 web page menu screen appears.

◆ Same screen will be displayed even if you press [Zone management] only.

2 Set user authorization for each zone.

◆ If the user has no authorization for the zone, controlling and monitoring of the zone is restricted.
◆ The user who is allowed to control and monitor zone has ☑ sign.

3 Click [Save] to save.

◆ The user of currently selected zone is selected in the screen.

CAUTION

• You should set the authorization for controlling and monitoring the zone when the user is added.
  ◆ If you do not set the authorization for zone after adding a user, the zone will not be displayed even if the user logged in.
  Setting the user authorization is valid only for the zone displayed on the screen. If you select the other zone setting without clicking save button after changing the setting, user authorization for previously selected zone will be gone.
  When initializing zone, all rights are given to all users.

Zone Setting & Edit – Zone Edit

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Noaut Zone Setting & Edit Zone Setting & Edit All CAUR-00 CAUR-01 CAUR-02 DMS D1-D0 All ID Name Registration date Description Authorization guest guest 2009.1.1 Guest Regular user The setting of user view permission can be saved only for the users in the selected zone, Initialize mode individual Save

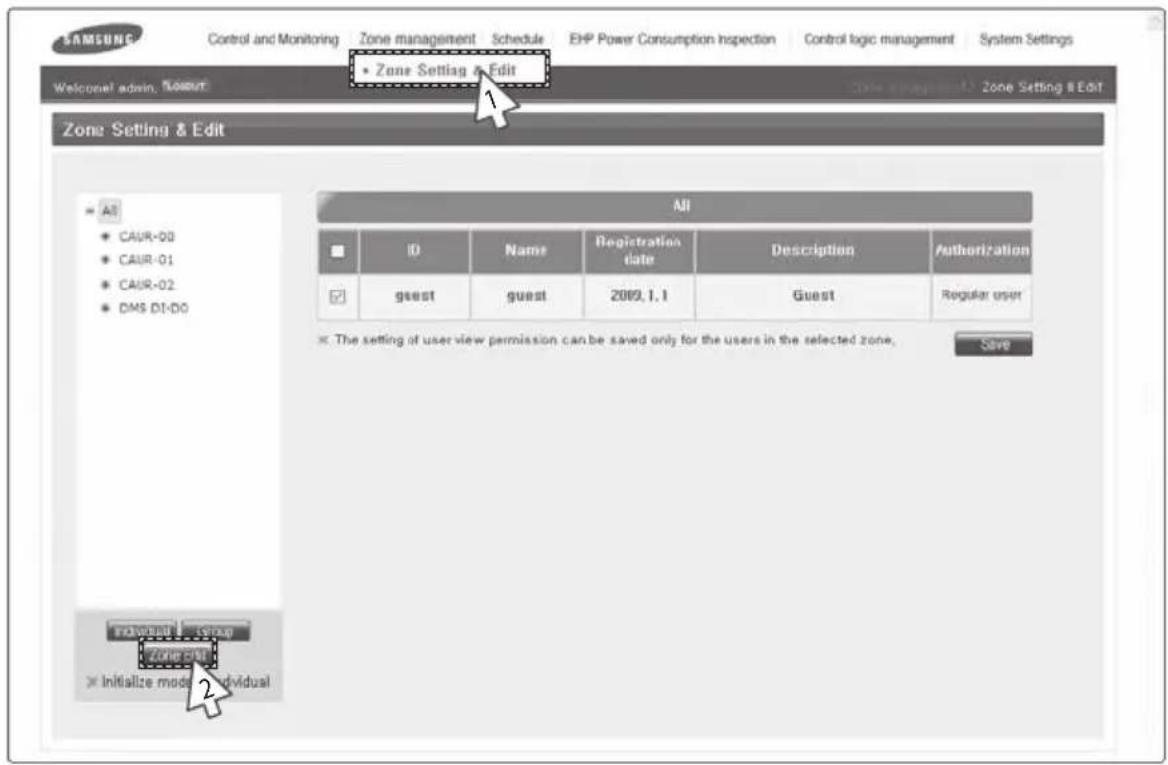

1 Click [Zone management] → [Zone Setting & Edit] when DMS2 web page menu screen appears.

◆ Same screen will be displayed even if you press [Zone management] only.

2 Click [Zone Edit].

◆ Zone edit screen will be displayed.

Zone Management (Continued)

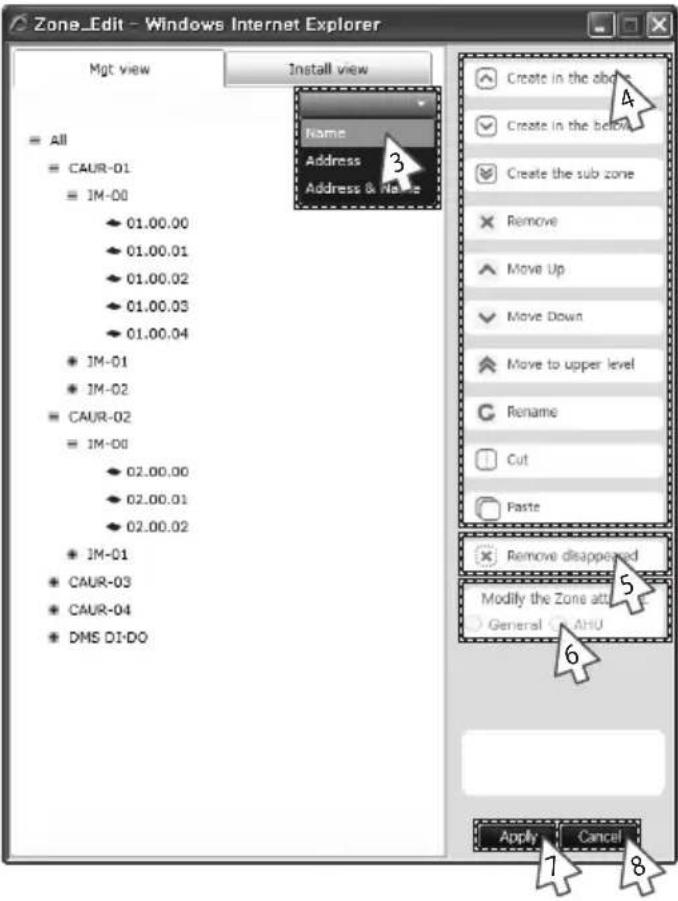

Zone_Edit - Windows Internet Explorer Mgt view Install view Name Address Address & Name All CAUR-01 IM-00 01.00.00 01.00.01 01.00.02 01.00.03 01.00.04 IM-01 IM-02 CAUR-02 IM-00 02.00.00 02.00.01 02.00.02 IM-01 CAUR-03 CAUR-04 DMS DI-DO Create in the obo Create in the bblor Create the sub zone Remove Move Up Move Down Move to upper level Rename Cut Paste Remove disappeared Modify the Zone attu General AHU Apply Cancel

3 Click [▼] to set viewing option of zone edit list.

◆ You can select from viewing by 'Name', 'Address' and 'Address & Name'.

4 Edit item you want.

Create in the above	Create a new zone on top of the selected zone.
Create in the below	Create a new zone under the selected zone.
Create the sub zone	Create a zone one step lower than the user selected.You cannot create a zone under 5 steps in zone edit.
Remove	Remove selected zone. If the selected zone includes device, the device will move to the top step.
Move up Move up the selected zone or indoor unit.
Move down Move down the selected zone or indoor unit.
Move to upper level	Move the selected zone or indoor unit to the upper level.
Rename	Rename the selected zone or indoor unit.You can use maximum 16 letters.
Cut Cut to move the selected zone or indoor unit,
Paste Move the cut zone or indoor unit to the selected zone.

5 Click [Remove disappeared] to remove all disappeared devices which were found after tracking.

6 Change zone properties.

◆ You can select "General", "AHU", and "Group".

Mode Property name Description Remarks
Individual initialization mode	General	■ Virtual group which is managed by installation address, not by RMC address■ The user can create and delete zone.	-
	Group	Not applicable.(Only supported in group initialization mode.)	Not applicable.(Only supported in group initialization mode.)
	AHU	■ Virtual group which manages AHU kit in general zone.■ The user can create and delete.	■ It will be displayed as single device in the control and monitoring screen, and it can be controlled as single device.■ You cannot move subordinate device to the other zone.
Group initialization mode	General	■ Virtual group which is set and managed by the user.■ The user can create and delete.	-
	Group	■ Virtual group which is managed by installation address, not by RMC address.■ The user cannot create and delete. DMS2 creates it automatically.	■ It is displayed like as one device in the control and monitoring screen and can be controlled.■ You cannot move subordinate device to the other zone.
	AHU	■ Virtual group which manages AHU kit in general zone.■ The user can create and delete.	■ It is displayed like as one device in the control and monitoring screen and can be controlled.■ You cannot move subordinate device to the other zone.

7 Click [Apply].

◆ Edited zone structure will be applied.

8 To cancel the setting, click [Cancel].

Creating New schedule

SANSONE Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Server: Schedule setting Schedule setting Scheduled period Schedule name Status Repeat Delete Run Stop Stop all New EHS New Edit SAMSONE Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings admin whether season: Register a schedule Schedule setting Name Schedule/Weekly Scheduled period 2010 12 / 27 2010 12 / 27 Excluded day Date Set schedule excluded day - Windows Internet Explorer Options H: 4 2010-12 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 Send Cancel

You can set, edit, delete and use the schedules for air conditioner control.

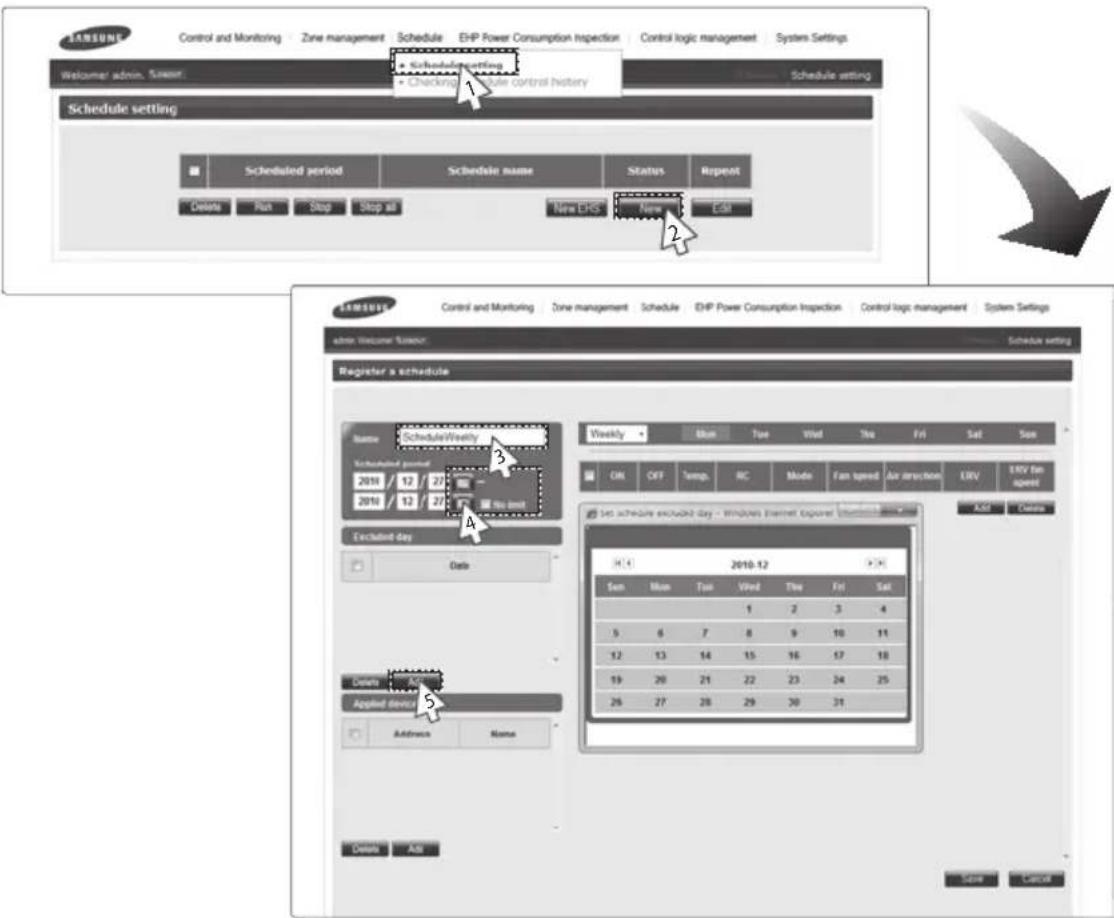

1 Click [Schedule] → [Schedule setting] when DMS2 web page menu screen appears.
2 Click [New] in the schedule setting screen.

Note It is not available to provide the schedule information to BMS system.

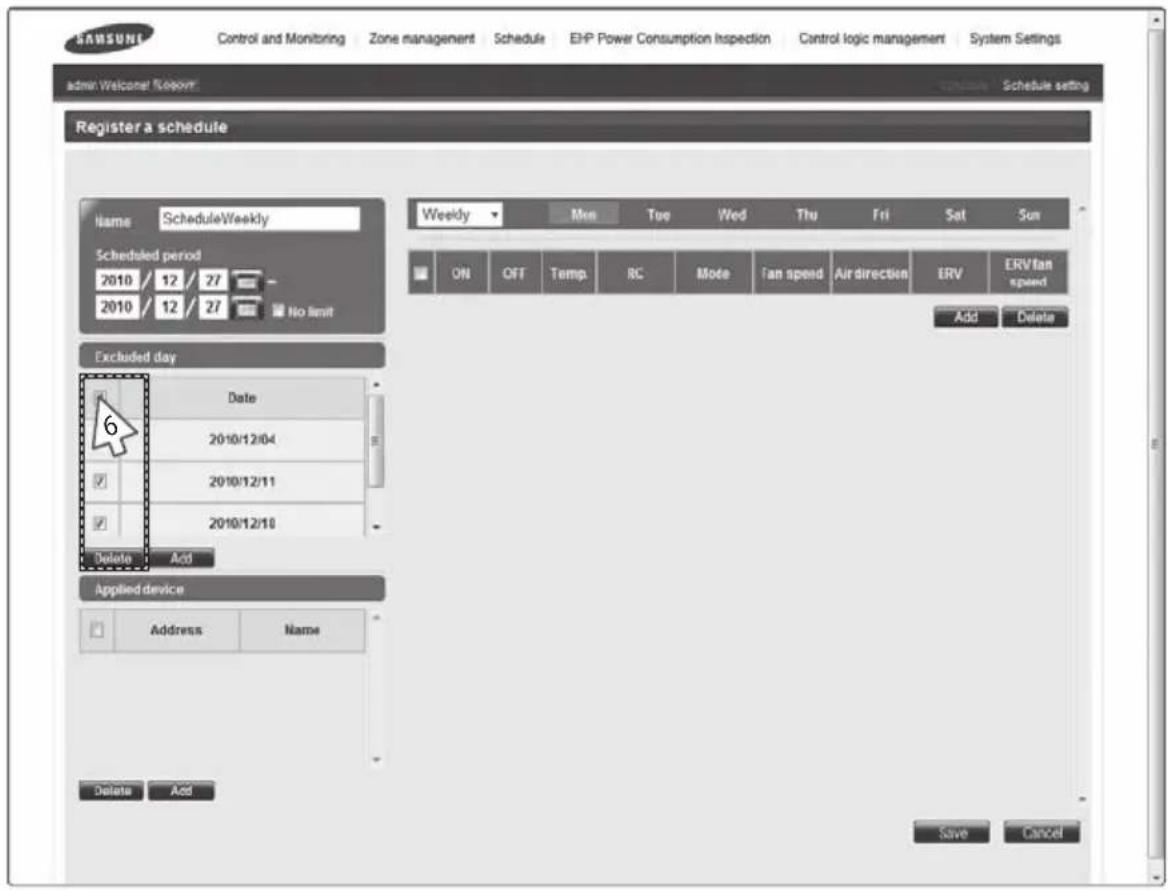

3 Enter the schedule name when the schedule setting screen appears.
4 Select schedule period you want by clicking calendar.

◆ If you select 'No limit' when setting end date, it means there is no period and it displays Dec 31st, 9999. To set the end date, remove the check of 'No limit' or select calendar icon which is on the right side of date.

5 To set an exception date in the schedule period, click [Add] and select date(month/day) you want.

◆ Select an exception date on the calendar window.

SAMSUNI Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings admin: Welcome Report: Schedule setting Register a schedule Name Schedule/Weekly Scheduled period 2010 12 27 2010 12 27 No limit Excluded day Date 2010/12/04 2010/12/11 2010/12/18 Delete Add Applied device Address Name Delete Add Weekly Mon Tue Wed Thu Fri Sat Sun ON OFF Temp. RC Mote Fan speed Air direction ERV ERV fan speed Add Delete Save Cancel

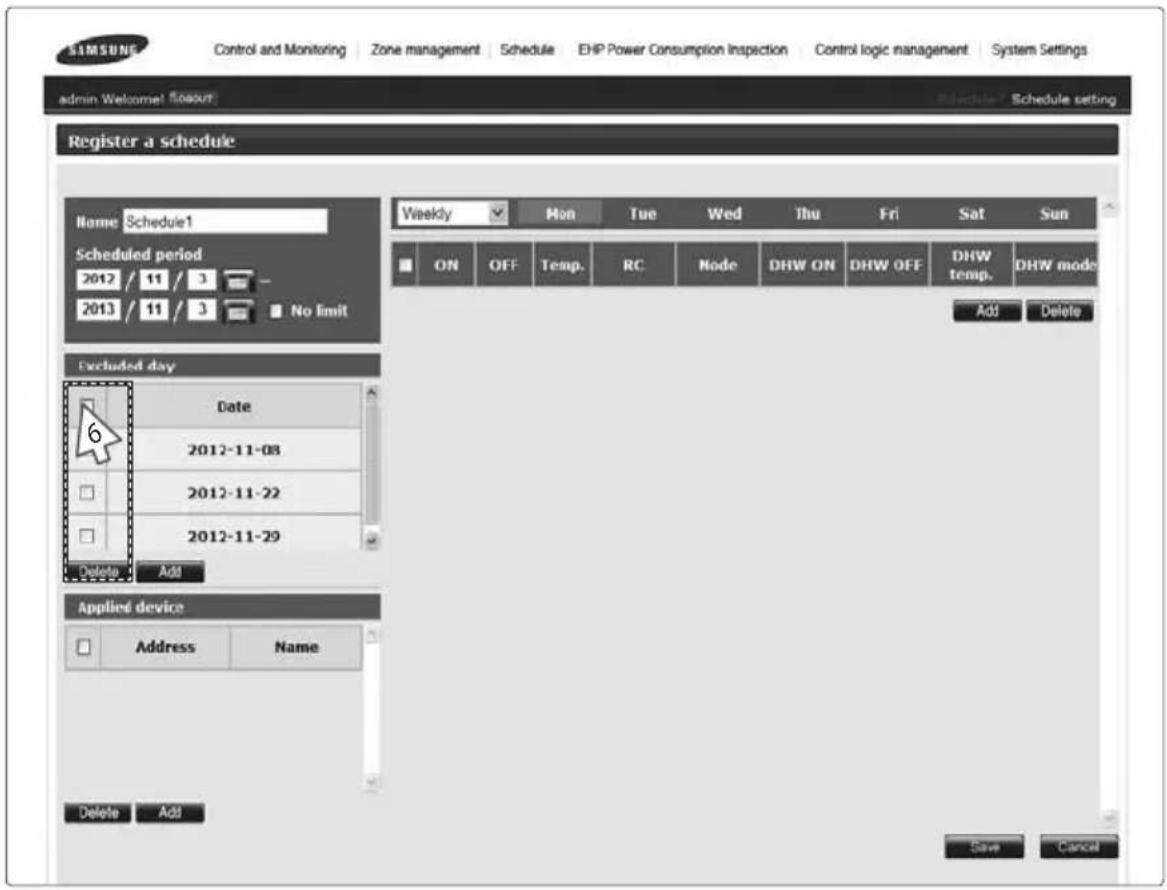

6 To cancel the added exception date, select the exception date (☑) and click [Delete].

◆ Maximum 365 exception dates can be saved.

Schedule (Continued)

SAMSUNG Control and Monitoring Zone management Schedule BHP Power Consumption Inspection Control logic management System Settings admin Wokcmer Schedule Register a schedule Name Schedule/Weekly Scheduled period 2018/12/27 2018/12/27 No limit Excluded day Date 2010/12/04 2010/12/11 2010/12/18 Delete Add Applied device Address Name Delete Add Register a schedule Name Schedule/Weekly Scheduled period 2010/12/27 2010/12/27 No limit Excluded day Date 2010/12/04 2010/12/11 2010/12/18 Delete Add Applied device Address Manager 00.00.00 00.00.00 00.00.01 00.00.01 00.00.02 00.00.02 Delete Add Save Cancel

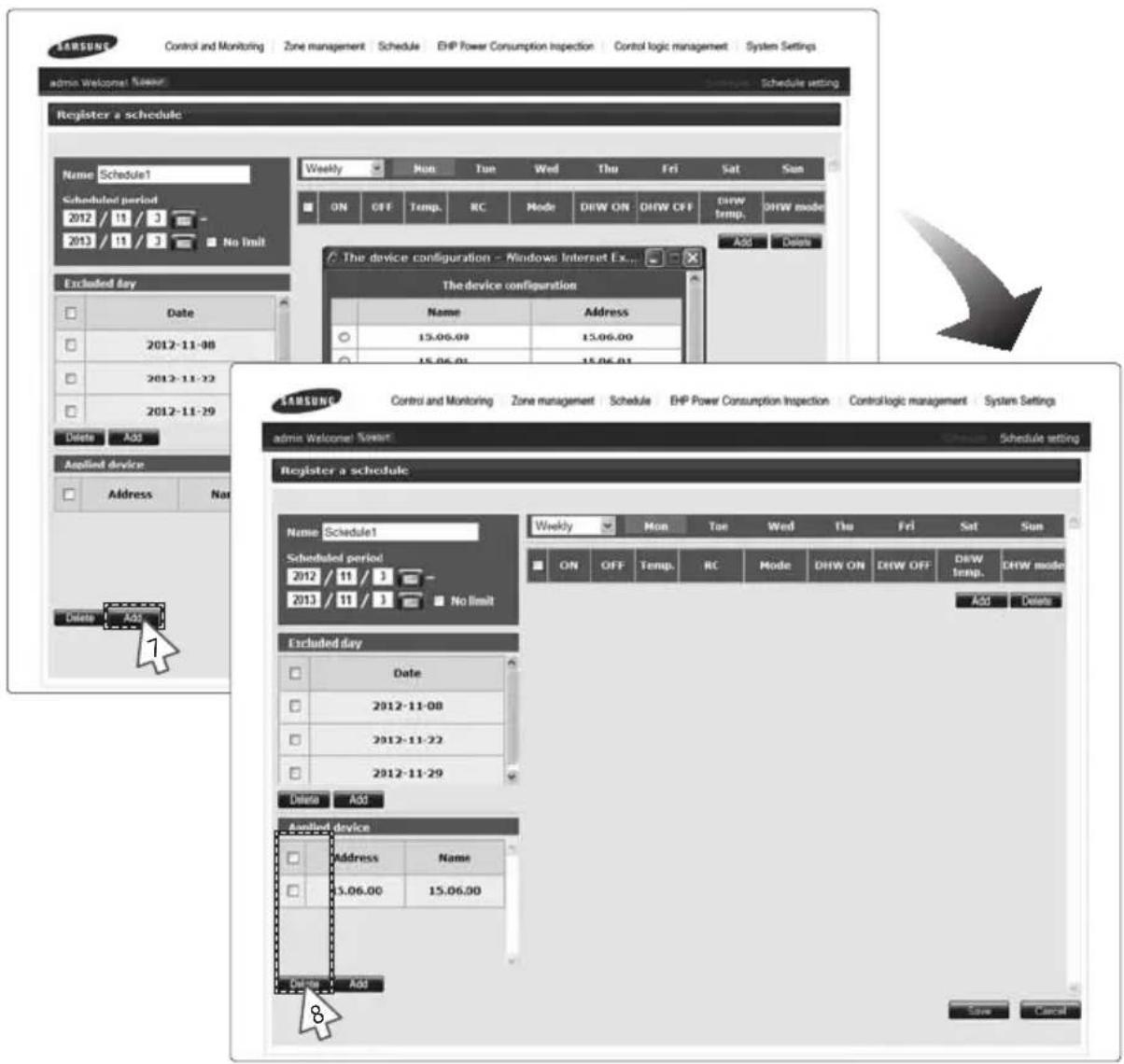

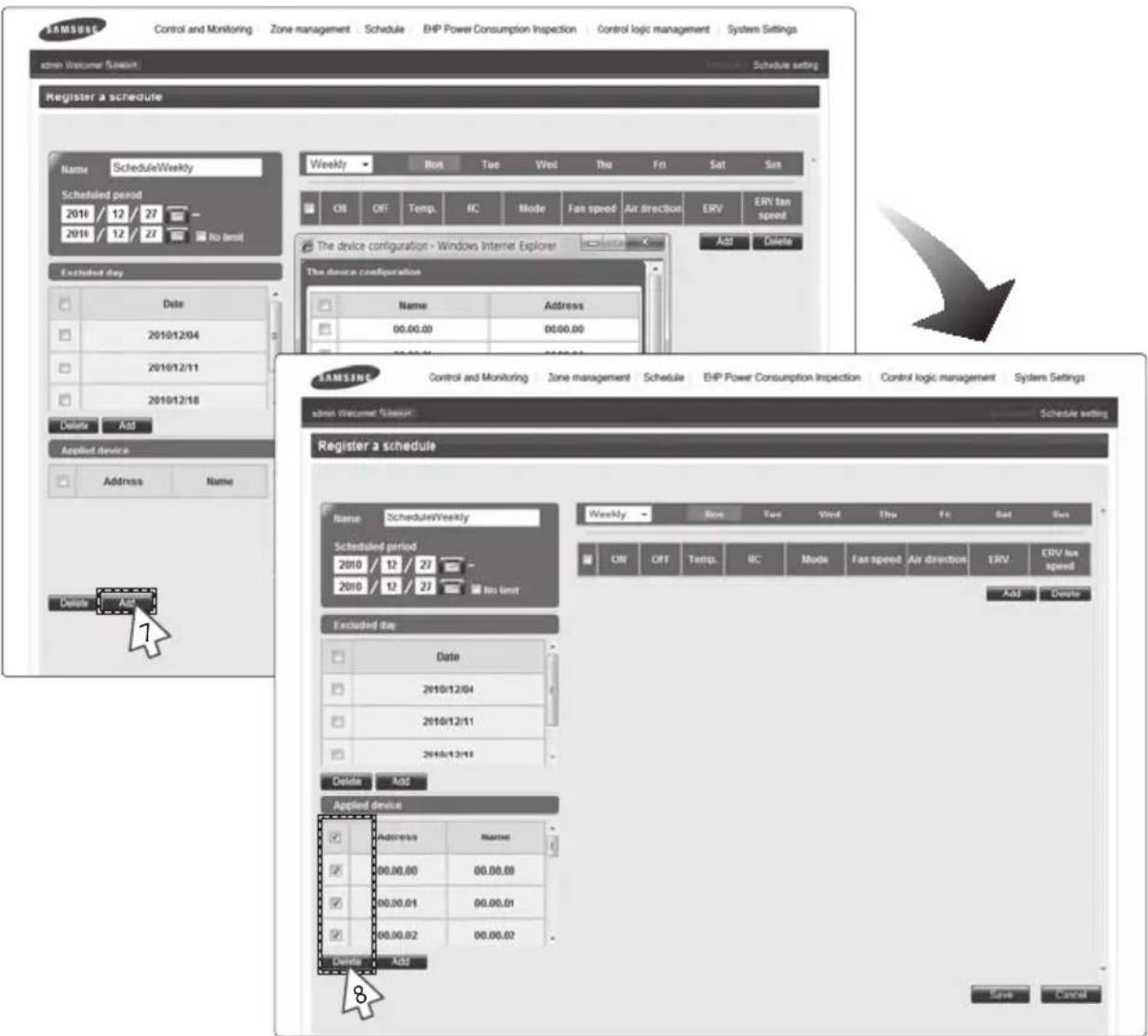

7 Click [Add] to select a device to apply.

◆ The list of all the connected devices will be displayed.
◆ You can register a schedule for DMS DO as well.

8 To cancel the selected device, select (☑) the device again and click [Delete].

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings admin Welcome: Suissour Schedule setting Register a schedule Name Schedule/Weekly Scheduled period 2010 / 12 / 27 2010 / 12 / 27 No limit Excluded day Date 2010/12/04 2010/12/11 2010/12/18 Delete Add Applied device Address Name 00.00.00 00.00.00 00.00.01 00.00.01 00.00.02 00.00.02 Delete Add Weekly Mon Tue Wed Thu Fri Set Sun Everyday Tamp RC Mode Fan speed Air direction FRV ERV fast speed 08:30 17:30 No set No set No set No set No set Add Delete 9

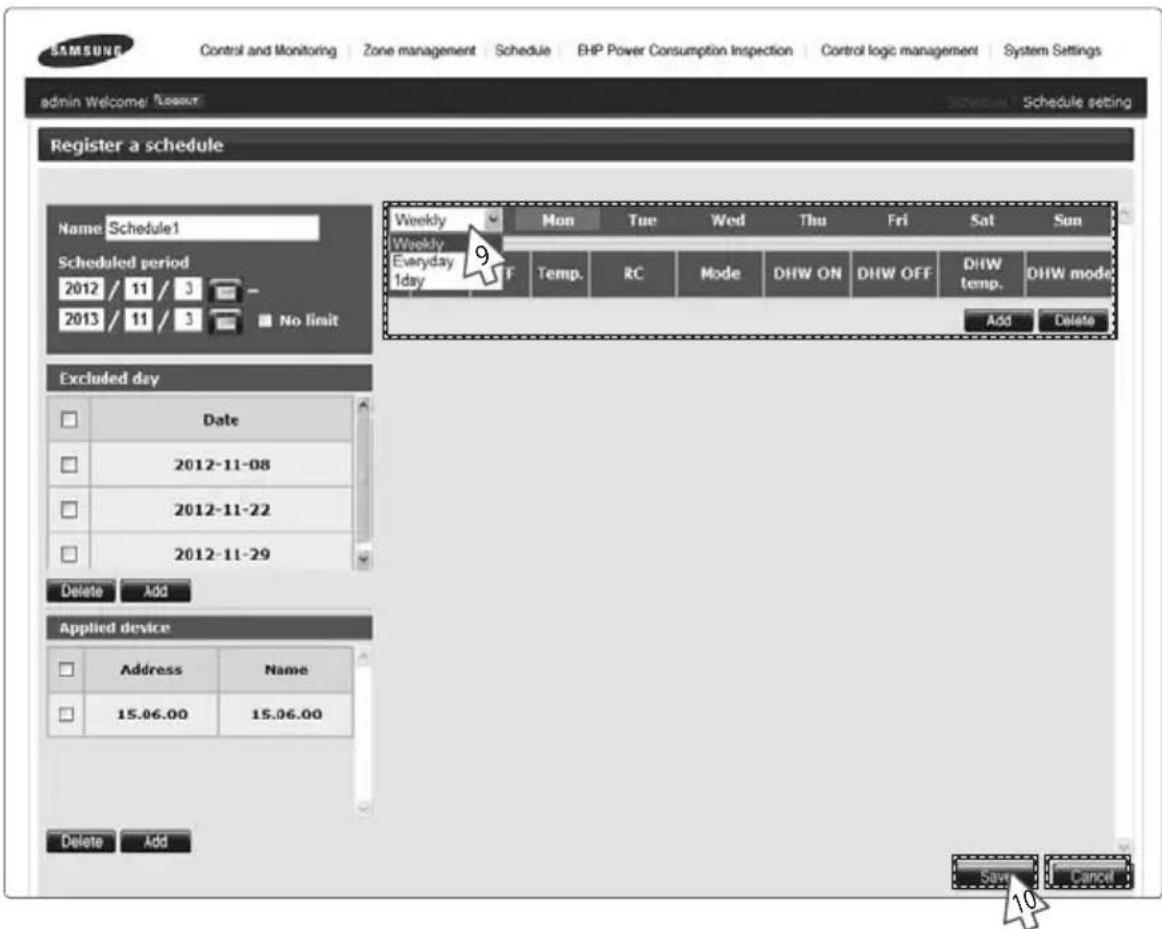

9 Click [v] to select repeat schedule you want and set an event.

◆ You can select 'Weekly', 'Everyday' and '1day'.
However, the starting and end date should be same when you select '1day'.
◆ Enter 4 digits for ON/OFF time setting.
Ex) 8:00 → 0800, 9:30 → 0930
◆ Remote controller setting is as follows.

- Enable RC: Controlling indoor unit using wired/wireless remote controller or indoor unit panel in each room is possible.

- Disable RC: Controlling indoor unit using wired/wireless remote controller or indoor unit panel in each room is not possible.

- Cond. RC

- ON by centralized controller, DMS2: Controlling indoor unit using wired/wireless remote controller or indoor unit panel in each room is possible.

- OFF by centralized controller, DMS2: Controlling indoor unit using wired/wireless remote controller or indoor unit panel in each room is not possible.

◆ Click [Add] to add event.
◆ To delete event, select an event(☑) and click [Delete].
◆ Maximum 70 events can be set per 1 schedule. In case of week schedule, 10 events per 1 day can be set.
◆ If starting and end time of schedule event are repeated, only the schedule event which is made earlier will be executed.

Schedule (Continued)

10 Click [Save].

◆ Set schedule information is saved in DMS2.
◆ Click [Cancel] to cancel schedule setting.

Note ◆ If you select dry mode among basic modes, auto fan speed is only available.

When the operation mode is 'Auto', fan speed is always set to 'Auto'.
When the operation mode is 'Fan', you cannot control fan speed as 'Auto'.
When the operation mode is 'Dry', fan speed is always set to 'Auto'.
When you select sleep mode among ERV modes, 'Mid' fan speed is only available.
◆ The desired temperature range is as below.

• Celsius: 16°C\~30°C in heating mode, 18°C\~30°C in cooling mode
• Fahrenheit: 61°F\~86°F in heating mode, 65°F\~86°F in cooling mode

◆ If the tracking is not completed, schedule setting is not possible. To use proper schedule function, make sure to complete tracking with installation engineer.

◆ 'Off' operation works only with ERV PLUS.

Creating new schedule for EHS

SANSUN Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin: SANSUN Schedule setting Schedule setting Schedule period Schedule name Status Repeat Delete Run Stop Stop all New LPI New Edit SANSUN Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings admin welcome: SANSUN Register a schedule Name Schedule1 Scheduled period 2012/11/3 2013/11/3 No Set Excluded day Date Set schedule excluded day - Windows Intern. Set schedule excluded day 2012-11 Sum Mon Tue Wed Thu Fri Sat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 Save Cancel

1 Click [Schedule] → [Schedule setting] when DMS2 web page menu screen appears.
2 Click [New EHS] in the schedule setting screen.
3 Enter the schedule name when the schedule setting screen appears.
4 Select schedule period you want by clicking calendar.

If you select 'No limit' when setting end date, it means there is no period and it displays Dec 31st, 9999. To set the end date, remove the check of 'No limit' or select calendar icon which is on the right side of date.

5 To set an exception date in the schedule period, click [Add] and select date(month/day) you want.

◆ Select an exception date on the calendar window.

Schedule (Continued)

SAMSUNG Control and Monitoring | Zone management | Schedule | EHP Power Consumption Inspection | Control logic management | System Settings admin Welcome! Options Schedule1 Schedule setting Register a schedule Name Schedule1 Scheduled period 2012 / 11 / 3 2013 / 11 / 3 No Emit Weekly Mon Tue Wed Thu Fri Sat Sun ON OFF Temp. RC Node DHW ON DHW OFF DHW temp. DHW mode Add Delete Excluded day Date 2012-11-08 2012-11-22 2012-11-29 Delete Add Applied device Address Name Delete Add Save Cancel

6 To cancel the added exception date, select the exception date (☑) and click [Delete].

◆ Maximum 365 exception dates can be saved.

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings admin Welcome: Sissem Schedule setting Register a schedule Name Schedule1 Scheduled period 2012 / 11 / 3 2013 / 11 / 3 No limit Excluded day Date 2012-11-08 2012-11-22 2012-11-29 Delete Add Applied device Address No limit Delete Add Register a schedule Name Schedule1 Scheduled period 2012 / 11 / 3 2013 / 11 / 3 No limit Excluded day Date 2012-11-08 2012-11-22 2012-11-29 Delete Add Applied device Address Name 3.06.00 15.06.00 Delete Add Save Cancel

7 Click [Add] to select a device to apply.

◆ The list of all the connected devices will be displayed. Select a device and click [OK].
◆ You can only select one device.

8 To cancel the selected device, select (☑) the device again and click [Delete].

Schedule (Continued)

SAMSUNF Control and Monitoring | Zone management | Schedule | EHP Power Consumption Inspection | Control logic management | System Settings admin Welcome / Store Schedule setting Register a schedule Name: Schedule1 Scheduled period 2012 / 11 / 3 2013 / 11 / 3 No limit Excluded day Date 2012-11-08 2012-11-22 2012-11-29 Delete Add Applied device Address Name 15.06.00 15.06.00 Delete Add Weekly Mon Tue Wed Thu Fri Sat Sun Weekly Everyday 1day Temp. RC Mode DHW ON DHW OFF DHW temp. Add Delete Add Delete

9 Click [v] to select repeat schedule you want and set an event.

◆ You can select 'Weekly', 'Everyday' and '1day'. However, the starting and end date should be same when you select '1day'.
◆ Enter 4 digits to set the time for turning ON/OFF the EHS and the Hot water. Ex) 8:00 → 0800, 9:30 → 0930
◆ Remote controller setting is as follows.

• Enable RC: Controlling indoor unit using wired/wireless remote controller or indoor unit panel in each room is possible.
• Disable RC: Controlling indoor unit using wired/wireless remote controller or indoor unit panel in each room is not possible.

- Cond. RC

• ON by centralized controller, DMS2: Controlling indoor unit using wired/wireless remote controller or indoor unit panel in each room is possible.
• OFF by centralized controller, DMS2: Controlling indoor unit using wired/wireless remote controller or indoor unit panel in each room is not possible.

◆ Click [Add] to add event.
◆ To delete event, select an event(☑) and click [Delete].
◆ Maximum 70 events can be set per 1 schedule. In case of week schedule and 10 events per 1 day can be set.
◆ If starting and end time of schedule event are repeated, only the schedule event which is made earlier will be executed.

10 Click [Save].

◆ Created schedule information will be saved in DMS2.
◆ Click [Cancel] to cancel schedule setting.

Note ◆ Input desired temperature according to the type of temperature control for DVM Hydro unit.

When the desired temperature is input in 'None' mode, it may not be controlled by the desired temperature entered into the schedule depending on the status of the type of temperature control or the operation mode of DVM Hydro Unit at the time the schedule is run.
Do not input the desired temperature when the operation mode is set to 'Auto'.
Do not turn on the power for direct hot water when the operation mode is set to 'Cool'.
◆ Schedule setting is not available when the tracking is not completed. To use the schedule function normally, complete the tracking with the installation expert.

Editing Schedule

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. fusion Schedule setting Schedule setting Schedule setting Scheduled period Schedule name Status Repeat 2012/10/31 ~ 2013/10/31 Schedule1 Stop Everyday Begin Run Stop Stop all New EHS New Edit

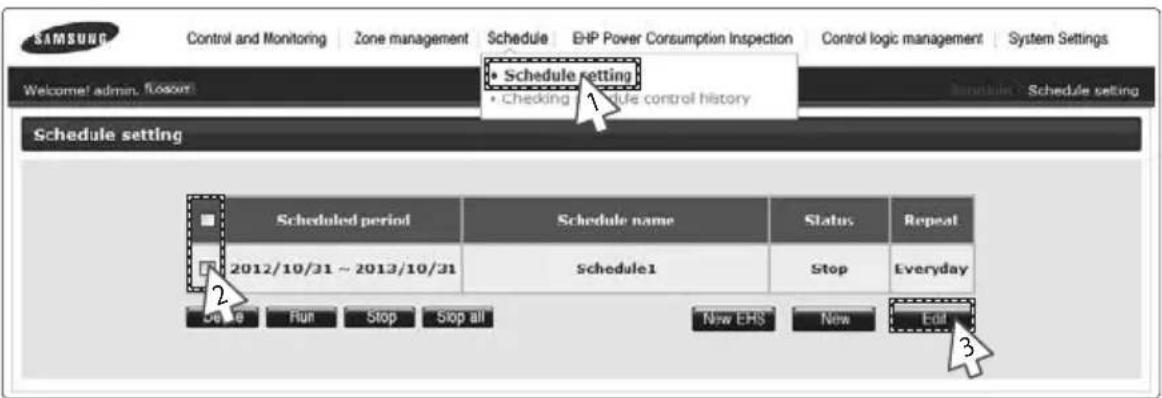

1 Click [Schedule] → [Schedule setting] when DMS2 web page menu screen appears.
2 Select the schedule to edit.

◆ For the currently operating schedule, you can only check it.

3 Click [Edit].

◆ Edit schedule when the schedule edit screen appears.
◆ Editing schedule method is same as "Creating New Schedule". (Refer to page 68\~72)

Deleting Schedule

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. fusion Schedule setting Schedule setting Schedule setting Schedule period Schedule name Status Repeat 2012/10/31 ~ 2013/10/31 Schedule1 Stop Everyday Delete Run Stop Stop all New EHS New Edit

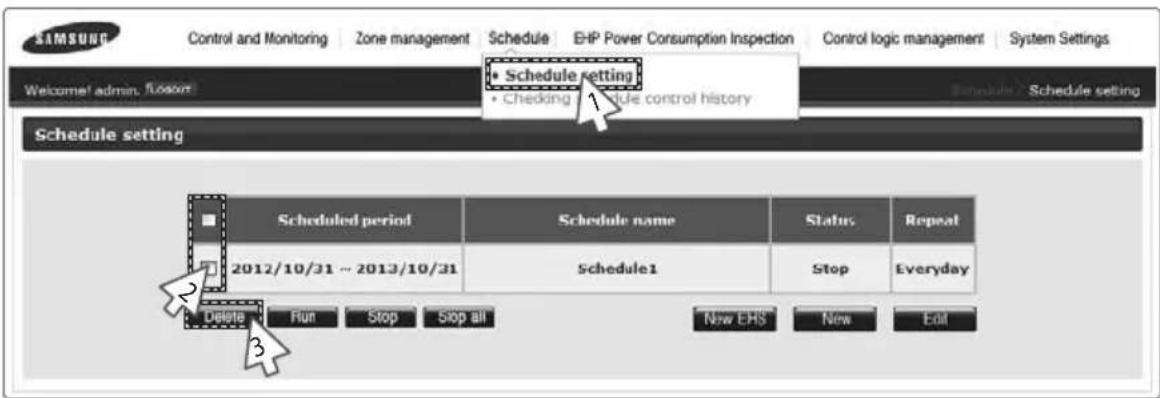

1 Click [Schedule] → [Schedule setting] when DMS2 web page menu screen appears.
2 Select the schedule to delete.
3 Click [Delete].

◆ Click [OK] in confirm window and selected schedule will be deleted.
◆ Deleting schedule is possible only when the schedule is in stop status.

If you want to delete schedule which is currently applied, stop applying the schedule first.

Applying schedule

SAMSUNG Control and Monitoring | Zone management | Schedule | EHP Power Consumption Inspection | Control logic management | System Settings Welcome admin. fusion Schedule setting Schedule setting + Schedule setting + Checking schedule control history Schedule: Schedule setting Schedule setting Scheduled period | Schedule name | Status | Repeat 2012/10/31 ~ 2013/10/31 | Schedule1 | Stop | Everyday Stop New EHS | New | Edit

1 Click [Schedule] → [Schedule setting] when DMS2 web page menu screen appears.
2 Select the schedule you want to use.
3 Use schedule functions by clicking [Run] and [Stop].

◆ To apply the selected schedule, click [Run].
◆ To stop the selected schedule, click [Stop].

Note To stop all schedules, click [Stop all].

- Currently applied schedule will be stopped.

Checking Schedule Control History

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings + Schedule settings + Checking schedule control history Welconet admin, Newer Checking schedule control history 2010 2 27 Search Schedule name Occurred name Controlling subject Control type ScheduleEveryday 2010.02.27 08:00:09 DMS internal features Schedule control Control device : DVM) 02.00.05(02.00.05), 02.00.04(02.00.04), 02.00.03(02.00.03), 02.00.02(02.00.02), 02.00.01(02.00.01), 02.00.00(02.00.00), 00.00.05(00.00.05), 00.00.04(09.00.04), 00.00.03(00.00.03), 00.00.02(00.00.02), 00.00.01(09.00.01), 00.00.00(99.00.06) Control device type : DVM Power : On, Set temperature : 22 ScheduleEveryday 2010.02.27 08:00:09 DMS internal features Schedule control • Click the row for detailed information.

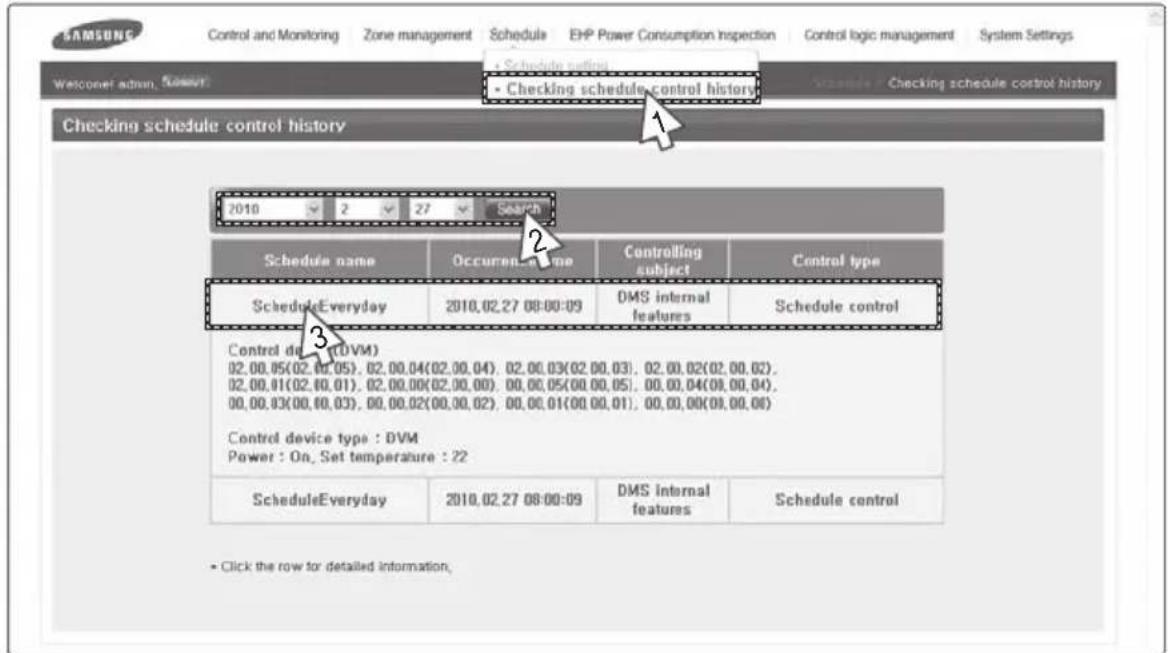

1 Click [Schedule] → [Checking schedule control history] when DMS2 web page menu screen appears.
2 Select a date to check and then click [Search].

◆ Only executed schedules can be searched.

3 You can check detailed setting by clicking the schedule name.

Note DMS2 saves the information or schedule control history for 180 days. However, it varies depending on saving space of DMS2.

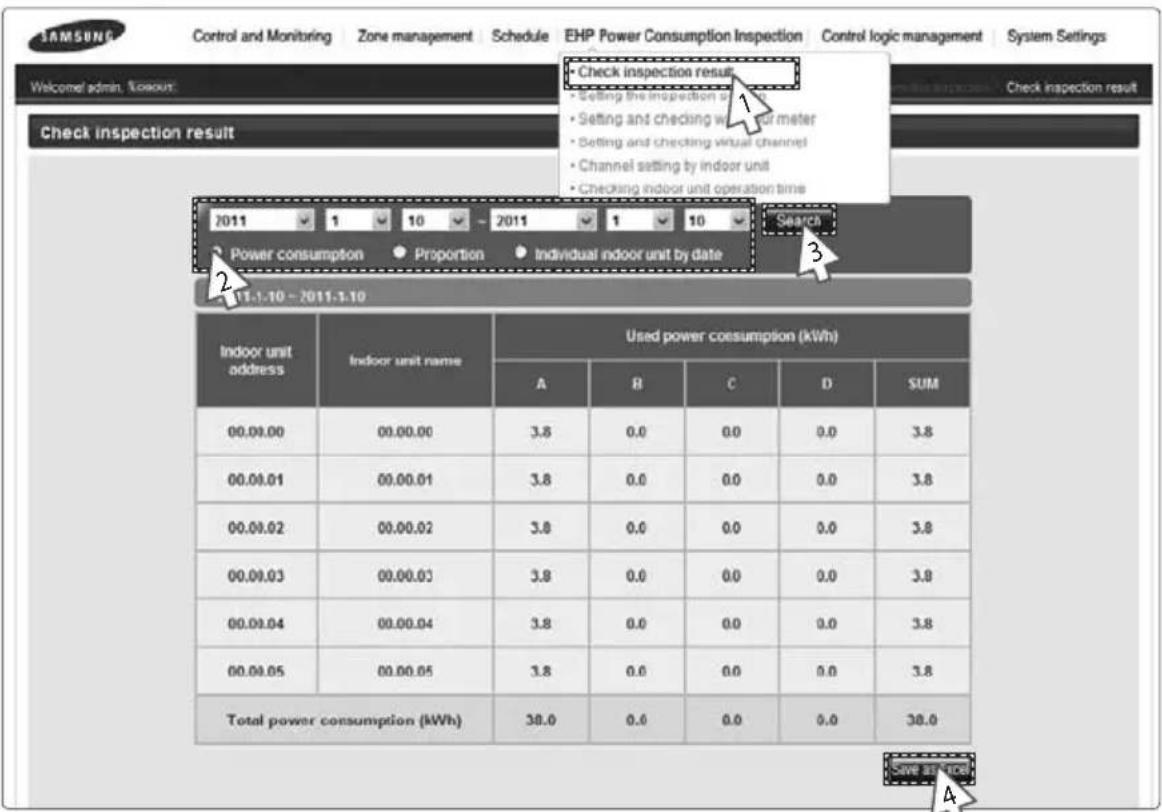

Checking Inspection Result (with SIM/PIM)

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Storeout: Check inspection result Check inspection result 2011 1 10 2011 1 10 Search Power consumption Proportion Individual indoor unit by date 11-1-10 - 2011-1-10 Indoor unit address Indoor unit name Used power consumption (kWh) A B C D SUM 00.00.00 00.00.00 3.8 0.0 0.0 0.0 3.8 00.00.01 00.00.01 3.8 0.0 0.0 0.0 3.8 00.00.02 00.00.02 3.8 0.0 0.0 0.0 3.8 00.00.03 00.00.03 3.8 0.0 0.0 0.0 3.8 00.00.04 00.00.04 3.8 0.0 0.0 0.0 3.8 00.00.05 00.00.05 3.8 0.0 0.0 0.0 3.8 Total power consumption (kWh) 38.0 0.0 0.0 0.0 38.0 Save at time

You can check the operation history and power consumption saved in DMS for each indoor unit.

1 Click [EHP Power Consumption Inspection] → [Check inspection result] when DMS2 web page menu screen appears.

2 Set date and search condition (power consumption/proportion/individual indoor unit by date) when inspection result screen appears.

◆ Select year/month/day in order.
◆ Based on DMS2 time, you can check up to 365 days of watt-hour meter value.

3 Click [Search].

◆ Inspection result will be displayed depending on set period and searching condition.
- You can check power consumption only when watt-hour meter is connected. If watt-hour meter is not connected, you can check operating proportion by indoor unit only.

4 Click [Save as Excel].

◆ Searched inspection result will be saved as MS Excel file.

Note

◆ For data management, it is recommended to save indoor unit inspection result periodically.
◆ Power consumption inspection result is for reference only and should not be used for official financial transactions.

Checking Inspection Result (without SIM/PIM)

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Neway: Check inspection result Check inspection result 2018 2 26 2019 2 24 Virtual channel Used power consumption (xWh) 24.1 50 24.2 50 24.3 100 24.4 100 3 4

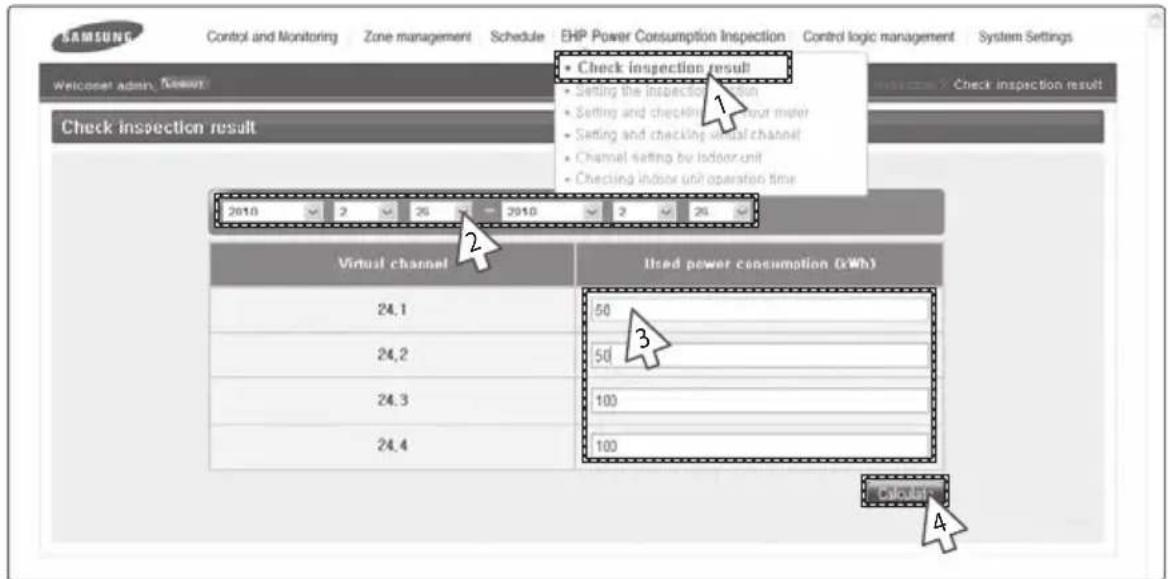

1 Click [EHP Power Consumption Inspection] → [Check inspection result] when DMS2 web page menu screen appears.
◆ Channel setting by indoor unit must be done in advance.

2 Set date when inspection result screen appears.

◆ Select year/month/day in order.
◆ Based on DMS2 time, You can check up to 365 days of inspection results.

3 Enter power consumption value during the period.

◆ Virtual channel is value which is set in channel setting by indoor unit.

4 Click [Calculate].

◆ Power consumption by indoor unit during the period will be displayed.

EHP Power Consumption Inspection (Continued)

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Passive Check inspection result Check inspection result Power consumption Proportion Calculate 2011.1.10-2011.1.10 Indoor unit address Indoor unit name Used power consumption (kWh) A R C D SUM 00.00.00 00.00.00 30.0 0.0 0.0 0.0 30.0 00.00.01 00.00.01 30.0 0.0 0.0 0.0 30.0 00.00.02 00.00.02 30.0 0.0 0.0 0.0 30.0 00.00.03 00.00.03 30.0 0.0 0.0 0.0 30.0 00.00.04 00.00.04 30.0 0.0 0.0 0.0 30.0 00.00.05 06.00.05 30.0 0.0 0.0 0.0 30.0 Total power consumption (kWh) 300.0 0.0 0.0 0.0 300.0 Save as Excel

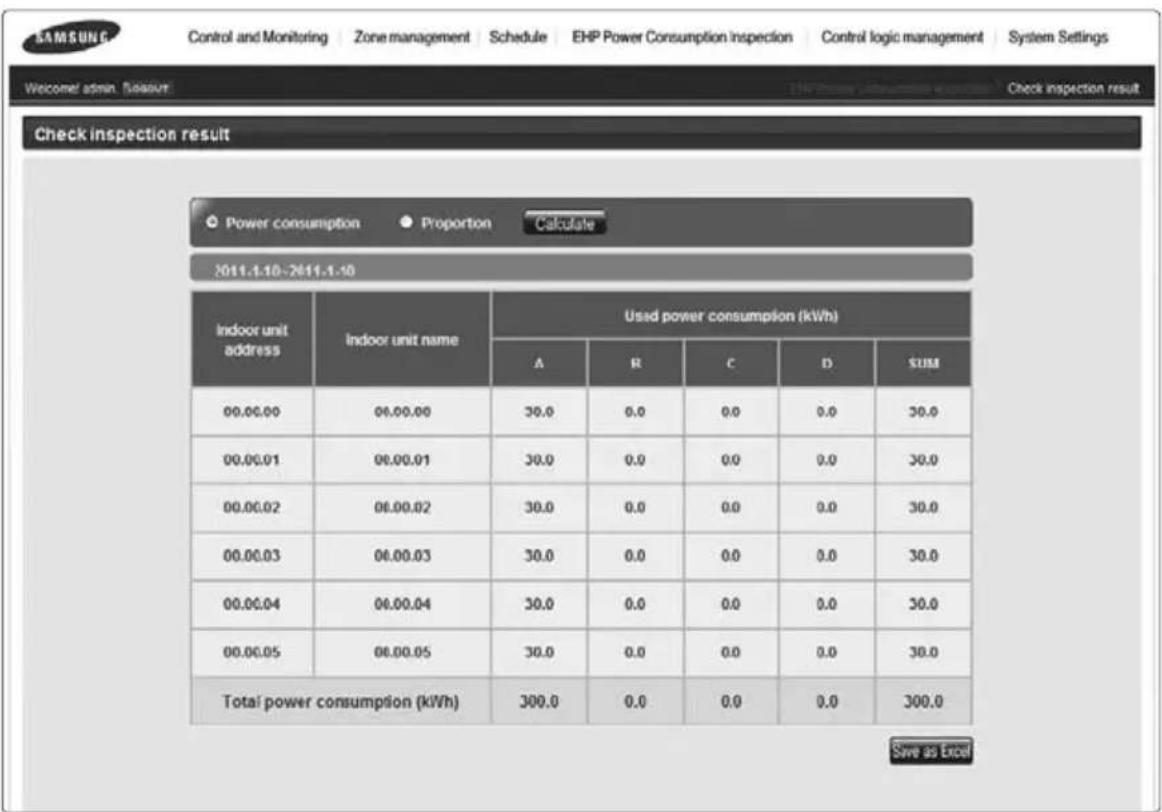

5 Check the power consumption result of the selected period.

Due to rounding the actual values, actual input value and result value may different to each other.
◆ If you want to save the consumption result for selected period as MS Excel file, click [Save as Excel].
◆ Click [Calculate] to go back to inspection result screen.

Note

◆ For data management, it is recommended to save indoor unit inspection result periodically.
◆ Power consumption inspection result is for reference only and should not be used for official financial transactions.

Setting the Inspection Section

SAMSUNG Control and Monitoring | Zone management | Schedule | EHP Power Consumption Inspection | Control logic management | System Settings Welcome admin : Showout Setting the inspection section 1 2 3 4 Set the section 1 Section 2 Section 3 Section 4 Section Set the time 00:00 A B C D A 05:00 10:00 15:00 20:00 24:00 Edit Save 2 4

1 Click [EHP Power Consumption Inspection] → [Setting the inspection section] when DMS2 web page menu screen appears.

2 Click [Edit] when inspection result screen appears.

◆ 1 section is set as default.

3 Select a section and enter time by section.

You should enter time of section B when selecting 2 sections and enter time of section B and section C when selecting 3 sections and enter time of section B, section C, and section D when selecting 4 sections.
◆ Correct format of time is HH:MM. Ex) 4:30 in the afternoon → 16:30

4 Click [Save].

◆ Set power section will be saved in DMS2.
◆ If you do not click [Save], changed setting will not be saved.

Note

◆ Ex) When selecting 2 sections(A, B, C) If the border time between A and B is 08:00, section A is 00:00 \~ 08:00, section B is 08:01 \~ 18:00, and section A again is 18:01 \~ 24:00.

Setting and Checking Watt-Hour Meter

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Power • Check inspection result Setting and checking wall-hour meter Setting and checking wall-hour meter Setting and checking wall-hour meter Setting and checking wall-hour meter Kilowathour history SIM Channel Name CT proportion Wait-hour meter value (kWh) 16.1 16.2 16.3 16.4 16.5 16.6 16.7 16.8 1 1 6.0 6.0 6.0 6.0 6.0 6.0 6.0 Edit Save 2 4

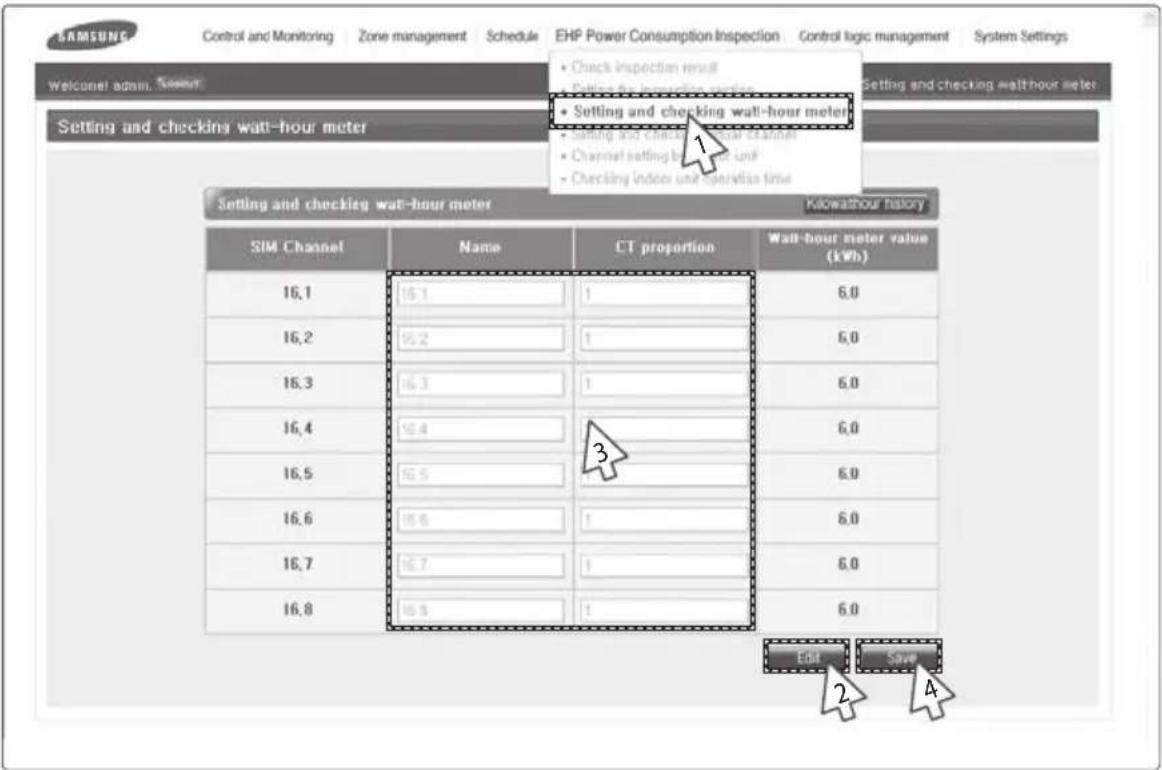

1 Click [EHP Power Consumption Inspection] → [Setting and checking watt-hour meter] when DMS2 web page menu screen appears.

Setting watt-hour meter is possible only when SIM/PIM is installed.

2 Click [Edit] when the setting and checking watt-hour meter screen appears.

◆ CT proportion '1' is set as default.

3 Set name and CT proportion of watt-hour meter.

◆ You can use maximum 16 letters.
◆ The range of CT proportion value is positive number from 1 to 5000.

4 Click [Save].

◆ Set watt-hour meter information will be saved in DMS2.
◆ If you do not click [Save], changed setting will not be saved.
◆ Watt-hour meter value shows actual value of currently connected watt-hour meter. Watt-hour meter value will be updated automatically.

CAUTION

When using CT watt-hour meter, be careful that there can be difference with actual power consumption as much as CT ratio error.

Checking Kilowatthour History

Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings welcome icon, Secret Setting and checking wall-hour meter Setting and checking wall-hour meter Setting and checking wall-hour meter 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

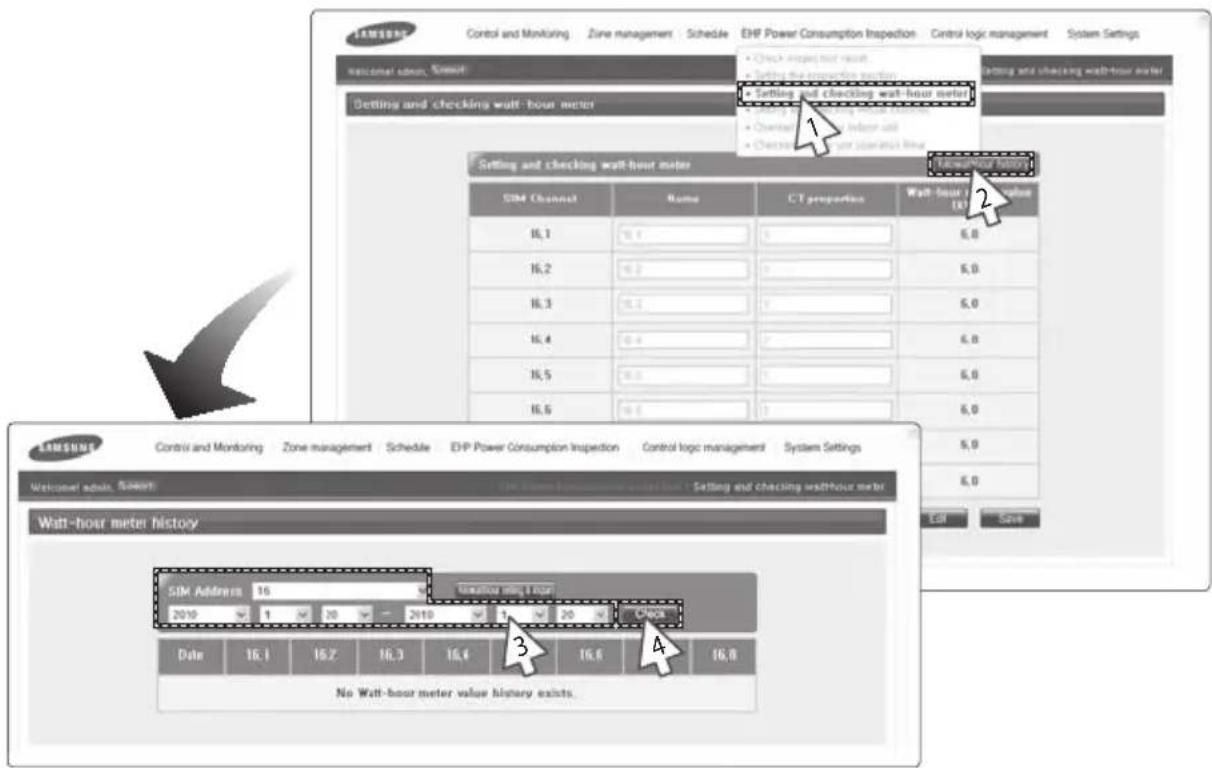

1 Click [EHP Power Consumption Inspection] → [Setting and Checking watt-hour meter] when DMS2 web page menu screen appears.

2 Click [Kilowatthour history] when the setting and checking watt-hour meter screen appears.

3 Select SIM/PIM address and date you want when the kilowatthour history screen appears.

◆ Enter year/month/day in order.
◆ Based on DMS2 time, you can check up to 365 days of kilowatthour history.

4 Click [Check].

◆ Kilowatthour history of set period will be displayed.

Setting and Checking Virtual Channel

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcomel admin, REROT + Check inspection result + Setting the inspection section + Setting and checking software ports Setting and checking virtual channel Setting and checking virtual channel + Setting and checking virtual channel + Channel setting & power unit + Checking Indope & operation time Virtual Channel Name 24.1 24.2 24.3 24.4 24.5 24.6 24.7 24.8 24.9 24.10 24.11 24.12 24.13 3 Edit Set 2 4

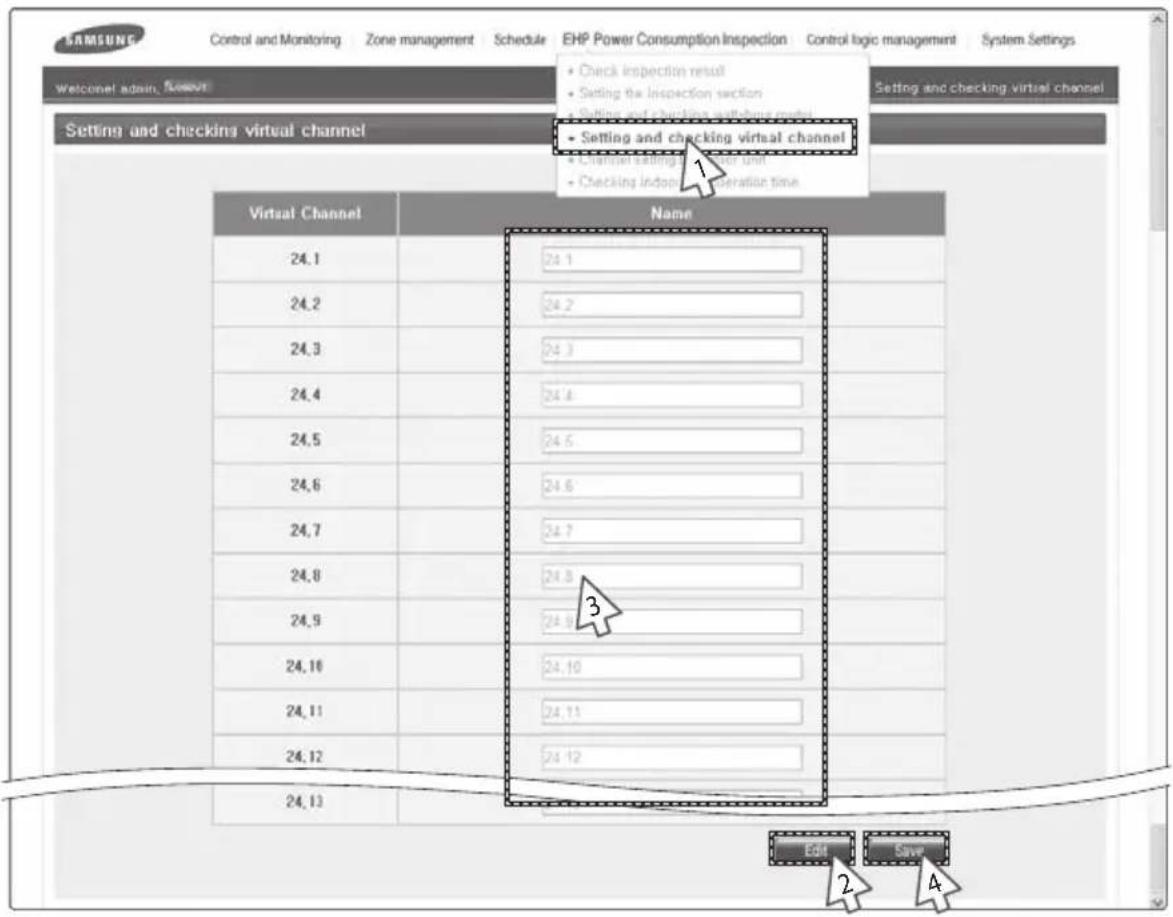

1 Click [EHP Power Consumption Inspection] → [Setting and checking virtual channel] when DMS2 web page menu screen appears.

◆ Maximum 128 virtual channels can be set. Virtual channel is written in (24 \~ 31).(1 \~ 16) format address. Ex) 24.1, 25.2, 31.8

2 Click [Edit] when the setting and checking virtual channel screen appears.

3 Set the name of virtual channel.

◆ You can use maximum 16 letters.

4 Click [Save].

- Set virtual channel name will be saved in DMS2. - If you do not click [Save], changed setting will not be saved.

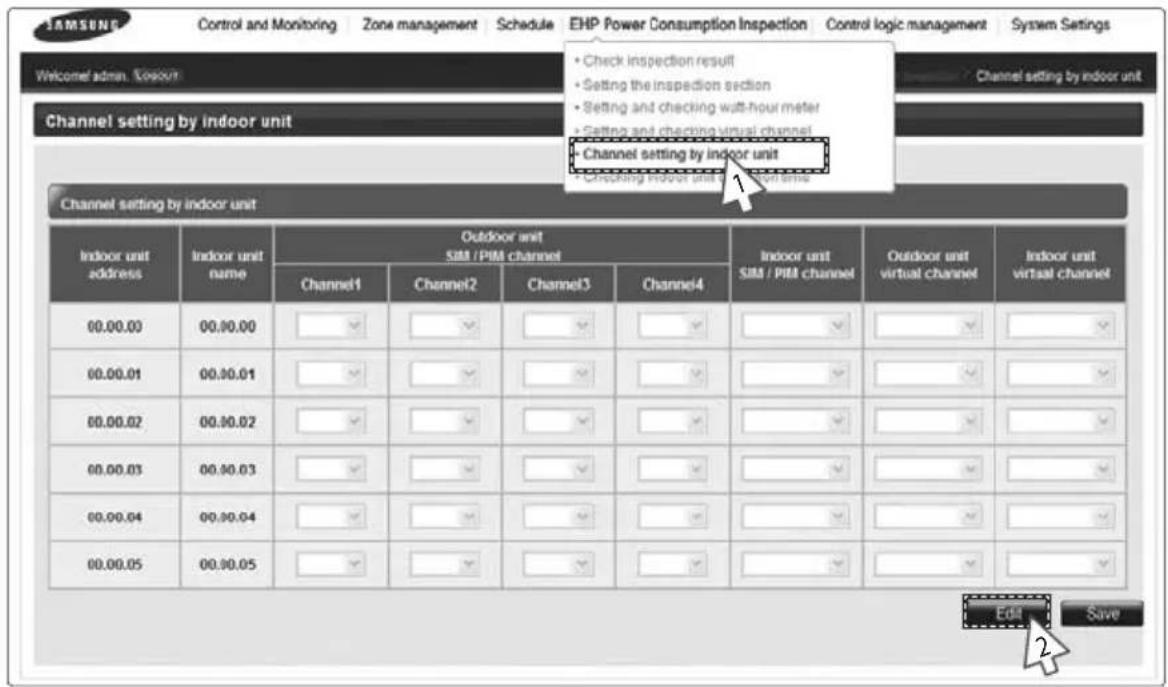

Channel Setting by Indoor Unit

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Kosovo Channel setting by indoor unit Channel setting by indoor unit Channel setting by indoor unit Indoor unit address Indoor unit name Outdoor unit SIM / PIM channel Indoor unit SIM / PIM channel Outdoor unit virtual channel Indoor unit virtual channel 00.00.00 00.00.00 00.00.01 00.00.01 00.00.02 00.00.02 00.00.03 00.00.03 00.00.04 00.00.04 00.00.05 00.00.05 Edit Save

1 Click [EHP Power Consumption Inspection] → [Channel setting by indoor unit] when DMS2 web page menu screen appears.
2 Click [Edit] when the setting channel by indoor unit screen appears.

CAUTION

Some functions available on DMS2 web page may not be functional at BACnet Gateway and LonWorks Gateway. For detailed function, refer to the installation manual or contact Samsung Electronics.

EHP Power Consumption Inspection (Continued)

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Kosovo Channel setting by indoor unit Channel setting by indoor unit Indoor unit address Indoor unit name Outdoor unit SIM / PIM channel Indoor unit SIM / PIM channel Outdoor unit virtual channel Indoor unit virtual channel 00.00.00 00.00.00 00.00.01 00.00.01 00.00.02 00.00.02 00.00.03 00.00.03 00.00.04 00.00.04 00.00.05 7 Edit 8

3 Check the address and channel information of SIM/PIM which is connected to watt-hour meter.

◆ If 0\~7 SIM/PIM units execute tracking, it will be displayed as 16\~23 in DMS2.

Below table shows the channel information of the terminal which SIM and watt-hour meter is connected.

(Terminal block 1 is on the very left side in SIM.)

Location\Terminal block	Terminal block 1	Terminal block 2	Terminal block 3	Terminal block 4
Top part 1 2 3 4
Bottom part 5 6 7 8

◆ PIM: Channel 1 is on the most left side and 8 channels are arranged in a line.

4 Check the information of indoor/outdoor unit which is connected to watt-hour meter.

5 Check the SIM/PIM channel(watt-hour meter) information of indoor/outdoor unit.

◆ You can set the channel when SIM/PIM is installed in DMS2.
When bringing indoor unit's power from outdoor unit, set the 'Outdoor unit SIM channel' information only. ('Outdoor unit SIM channel' is referring to watt-hour meter which is connected to outdoor unit.)
When bringing indoor unit's power from the other device, not from outdoor unit, set the 'Outdoor unit SIM channel' and 'Indoor unit SIM channel' information. ('Indoor unit SIM channel' is referring to watt-hour meter which is connected to indoor unit.)
◆ Power distribution will be executed automatically. The user does not need to check the value of watt-hour meter.
◆ The maximum number of SIM channels for an outdoor unit is 4.

6 Check the virtual channel information of indoor/outdoor unit.

• To execute power distribution without SIM/PIM, you should set virtual channel.
• When bringing indoor unit's power from outdoor unit, set the 'Outdoor unit virtual channel' information only.
  ('Outdoor unit virtual channel' is referring to watt-hour meter which is connected to outdoor unit.)
  When bringing indoor unit's power from the other device, not from outdoor unit, set the 'Outdoor unit virtual channel' and 'Indoor unit virtual channel' information. ('Indoor unit virtual channel' is referring to watt-hour meter which is connected to indoor unit.)
  ◆ The number of virtual channel varies depending on the number of interface module.
  ◆ To execute power distribution, you need to check watt-hour meter value manually.
  ◆ Power distribution using SIM/PIM is more accurate than using indoor/outdoor unit virtual channel. Therefore, it is recommended to execute power distribution using SIM/PIM.

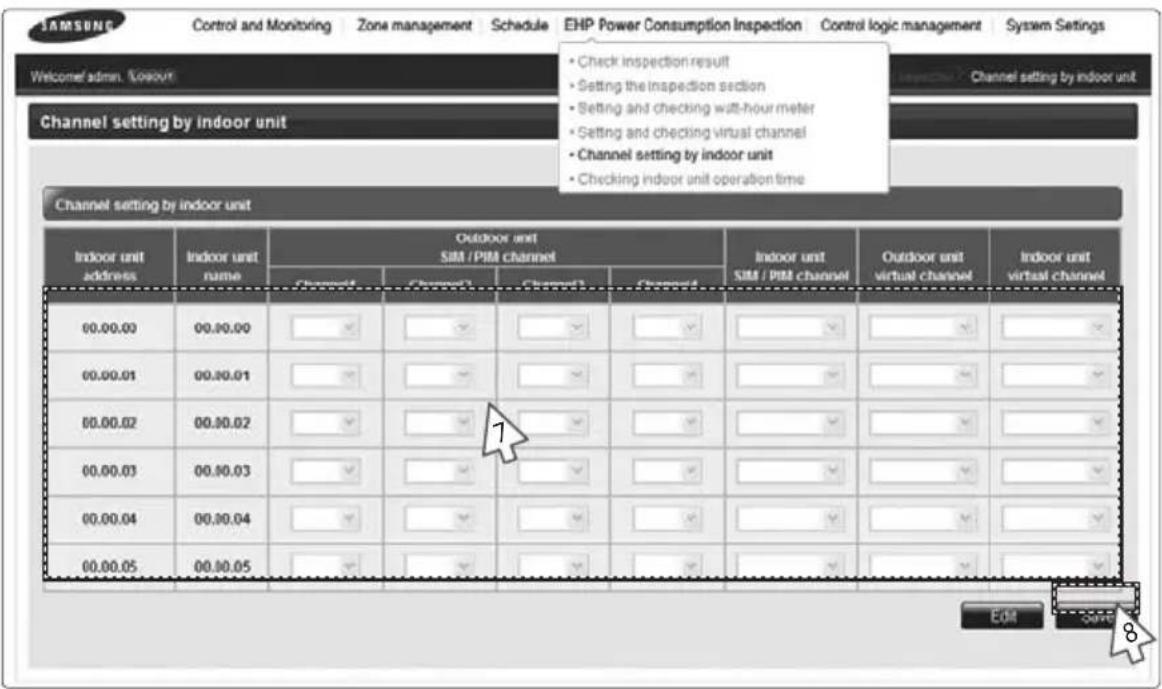

7 Set indoor unit to execute power distribution.

If you do not set the watt-hour meter information, the power distribution result of the indoor unit will be displayed as '0'.

8 Click [Save].

◆ Set channel information will be saved in DMS2.
◆ If you do not click [Save], changed setting will not be saved.

CAUTION

◆ Information of watt-hour meter connected to indoor/outdoor unit should be accurate. If the watt-hour meter information is not accurate when you set channel information of indoor unit, error may occur in the power distribution result.
- You should set SIM/PIM channel information in the indoor unit if you want to execute power distribution using SIM/PIM. If not, it means that you do not execute power distribution. In this case, the power distribution result of the indoor unit will be '0'.
If the information of watt-hour meter connected to indoor/outdoor unit is changed, consult with installation engineer.
◆ DMS2 executes power distribution based on set information.
◆ Virtual channel is not available when you use BACnet or LonWorks Gateway function.

Checking Indoor Unit Operation Time

SAMSUNG Control and Monitoring | Zone management | Schedule | EHP power usage meter reading | Control logic management | System configuration Welcomer admin. Toubout Indoor unit operation time inquiry • Meter reading result inquiry • Meter reading section settings • Watt-hour meter setting & inquiry • Virtual channel settings & inquiry • Channel setting by indoor unit • Indoor unit operation time inquiry 2010 1 21 - 2010 1 21 Search All indoor units by period Each indoor unit by date 1-1-21 - 2010-1-21 Indoor unit address Indoor unit name Operation time (mix) Thermo on time (min) 00,00,00 00,00,00 39 39 00,00,01 00,00,01 14 14 00,00,02 00,00,02 14 14 00,00,03 00,00,03 14 14 00,00,04 00,00,04 14 14 00,00,05 00,00,05 14 14 02,00,00(AHU) 02,00,00 14 14 02,00,01(AHU) 02,00,01 14 14 Save as Excel

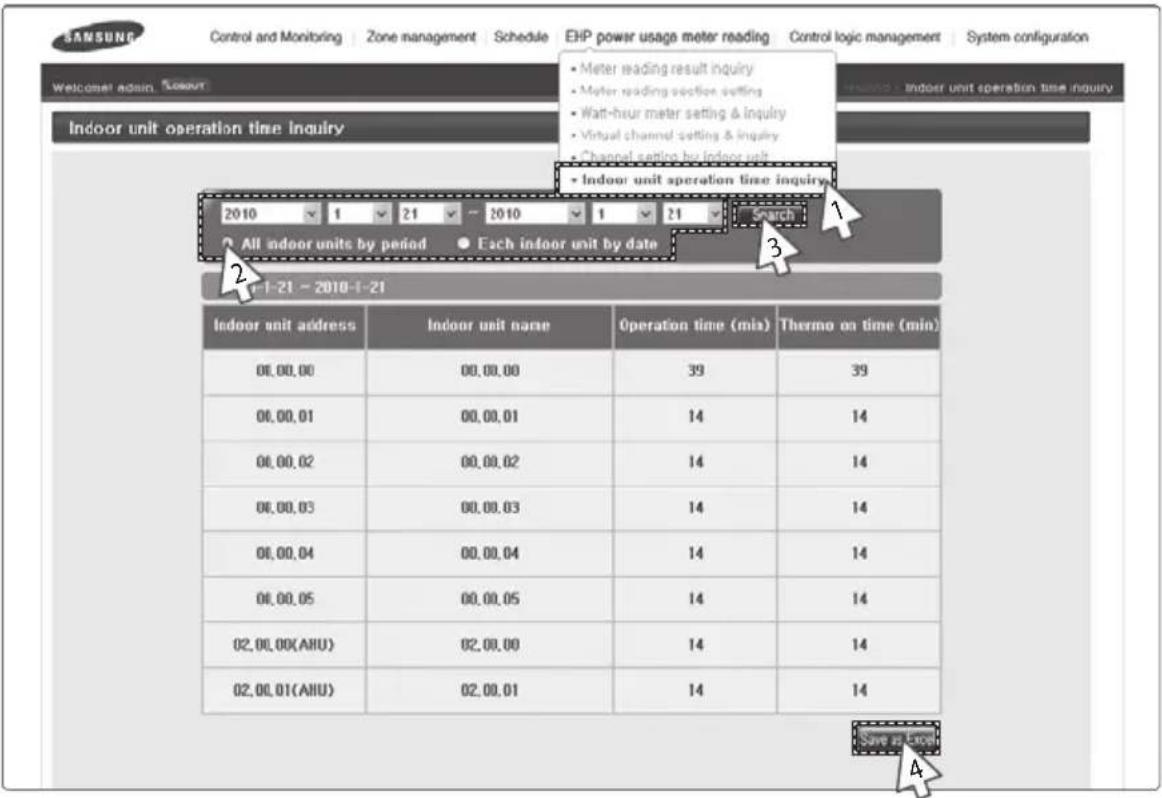

1 Click [EHP Power Consumption Inspection] → [Checking indoor unit operation time] when DMS2 web page menu screen appears.

2 Select search condition (All indoor units by period/Individual indoor unit by date) when Checking indoor unit operating time screen appears.

◆ Select year/month/day in order.
◆ Based on DMS2 time, you can check up to 365 days of operation time.

3 Click [Search].

◆ Operation time will be displayed depending on set period and condition.

4 Click [Save as Excel].

◆ Searched operation time result will be saved as MS Excel file.

Note For data management, it is recommended to save indoor unit operation time result periodically.

Setting Control Logic

■ Control logic is used in the following situations.

Ex) The current temperature of the lab is higher than 29^ C and you want cooling operation, The current temperature of the office is lower than 10^ C and you want heating operation

■ Period, day and time are included in specific conditions.

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome! admin. 508OUT: Setting control logic Setting control logic Checking control history control logic Setting control logic No. Name Period Days Time Apply Run Delete Copy Apply Not apply New Edit 2

You can set, edit, delete and use control logic for controlling device which is connected to DMS2.

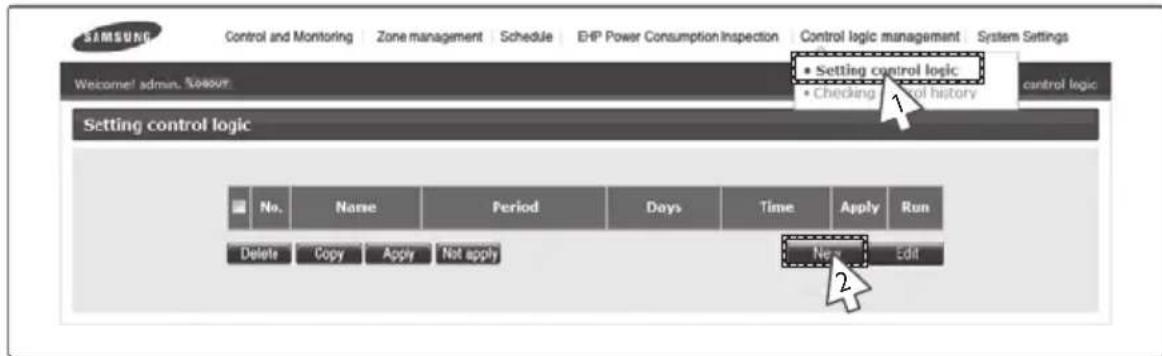

1 Click [Control logic management] → [Setting control logic] when DMS2 web page menu screen appears.

◆ Apply: Indicates control logic usage status.
◆ Run: Indicates If the control logic is applied and whether the operation conditions are met.

Ex) If there is logic which says 'If the current temperature of indoor unit is higher than 29°C, control indoor unit as cool mode.', 'Yes' will be displayed when the indoor unit's current temperature is higher than 29°C. 'No' will be displayed when the indoor unit's current temperature is lower than 29°C.

2 Click [New] when setting control logic screen appears.

◆ Setting screen is composed of 4 categories.

• Name & time: Set the name and time(period, days, time) to apply of control logic.
• Factor edit: You can edit factor selection which is components of input/output.
• Input: Set the condition which makes control logic perform.
• Output: Set items to be controlled when the conditions of input are met.

Note

If different value is set for same control item of same address' device, the indoor unit follows the first control logic set among running control logics.
It is not available to provide the control logic management information to BMS system.

Control Logic Management

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin flocour Setting control logic Setting control logic Name ControlLogic Period 2016 9 7 - 2017 9 7 □ No limit Day Sun Non Tue Wed Thu Fri Sat □ Daily Time 0 - 0 - 24 0 Input Compound factor Factor Comparison operator Standard value Duration (minute) Select a factor = None Select a factor Cancel Apply 1 AND Select a factor = None Select a factor Cancel Apply 1 AND Select a factor = None Select a factor Cancel Apply 1 Output Factor Command Select a factor None Select a factor Select a factor None Select a factor Select a factor None Select a factor * Setting Guide: in the initial setting, click 'Select a factor' and a factor editing window appears. Then click 'Select' button to set the device. After setting the device, the information in the 'Select a factor' is updated to the setting. Select the information to modify t. Add Delete Save

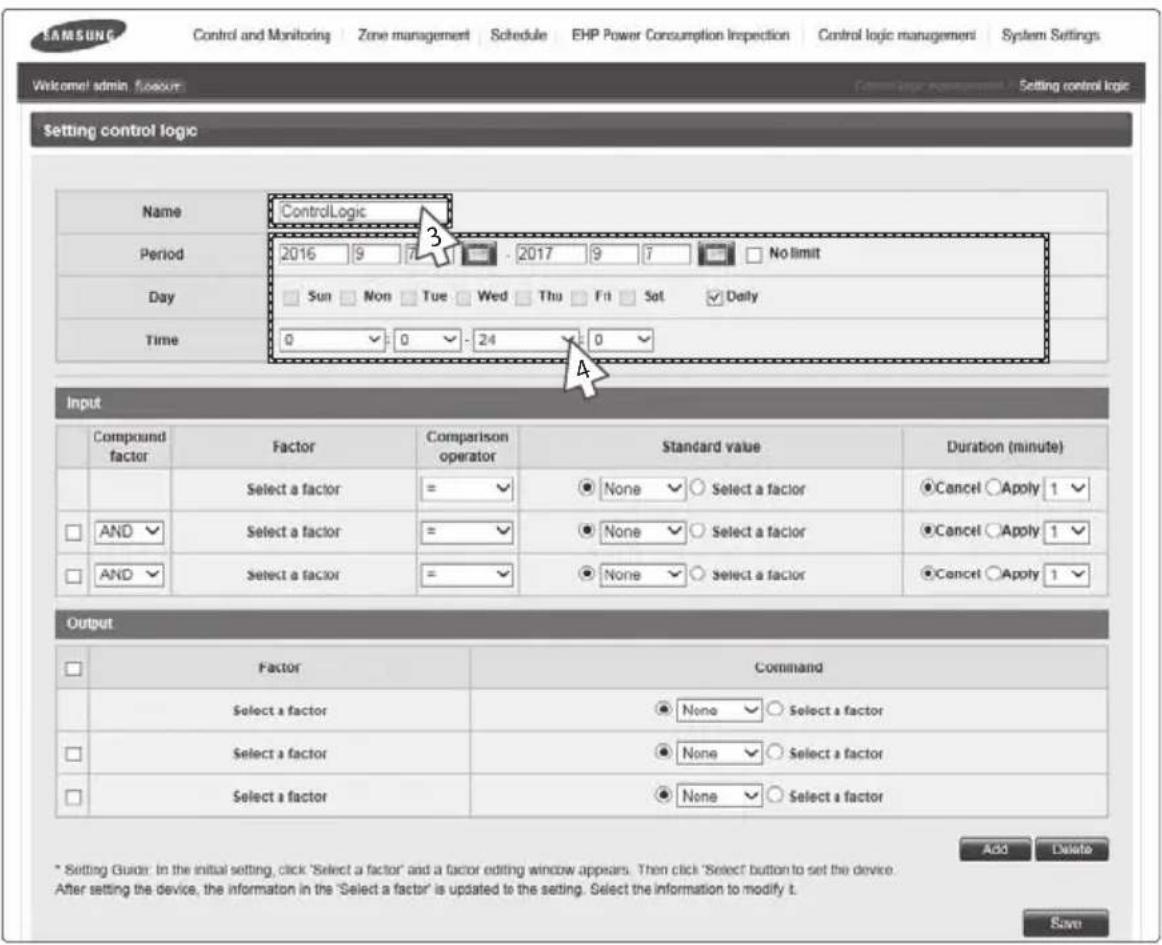

3 Enter control logic name in the name field when the new control logic setting screen appears.

◆ You can use maximum 16 letters.

4 Set period, day and time in control logic screen.

◆ Select year/month/day in order.
◆ Select a day to run during the control period.
◆ Control logic will be applied only when period, day and time are united.
◆ If you select 'Daily' in day selection, control logic will run regardless of day.

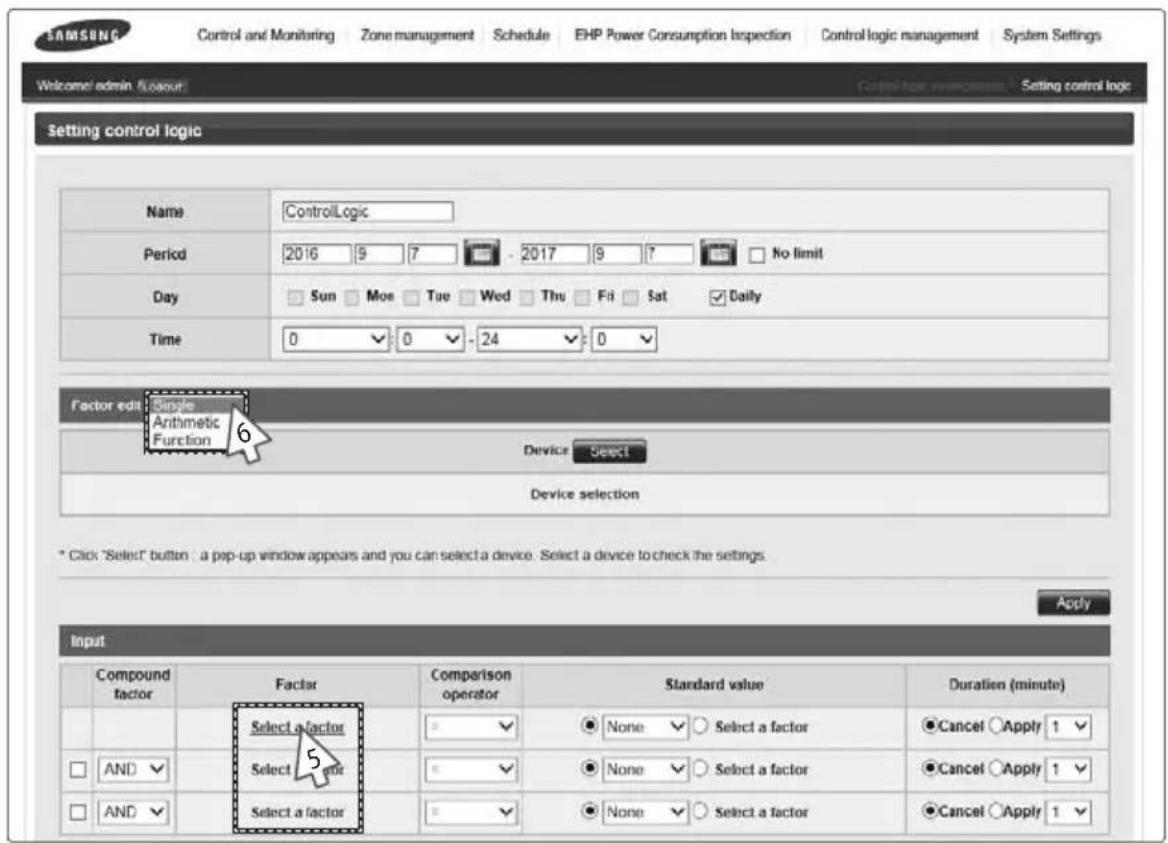

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin / kisour Setting control logic Setting control logic Name ControlLogic Period 2016 9 7 - 2017 9 ? No limit Day Sun Moe Tue Wed Thu Fri Sat Daily Time 0 0 - 24 0 Factor edit: Single Arithmetic Function Device Select Device selection * Click "Select" button : a pop-up window appears and you can select a device. Select a device to check the settings. Apply Input Compound factor Factor Comparison operator Standard value Duration (minute) Select a factor None Select a factor Cancel Apply 1 Select a factor None Select a factor Cancel Apply 1 AND Select a factor None Select a factor Cancel Apply 1

5 Select a factor in the input list.

◆ Factor means the target to be controlled or standard item of logic decision.

6 Select the type of factor.

◆ Single: It means 1 device.

Ex) Desired temperature of indoor unit

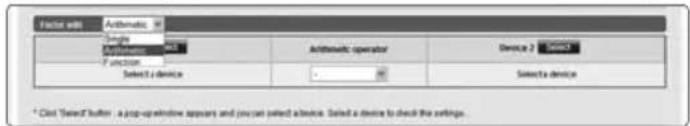

◆ Arithmetic: It means 2 devices are connected by arithmetic operator.

Ex) Desired temperature of indoor unit 1 – Desired temperature of indoor unit 2

Factor with Automatic Single Default Function Select device Automatic operator Device 2 Select device * Click "Select button" - a pop-up or write appearance and you can select advice. Select a device to check the settings.

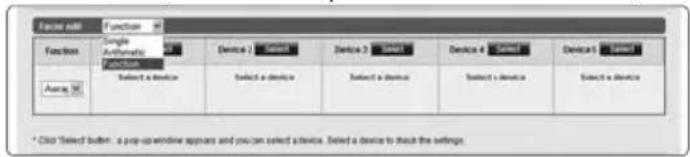

◆ Function: It means several devices are using as value of function.

Ex) Average(Current temperature of Indoor unit 1, Current temperature of Indoor unit 2, Current temperature of Indoor unit 3)

Functional mini Function 1 Function Device 2 Select Device 3 Select Device 4 Select Device 5 Select Aurac M Select a device Select a device Select a device Select a device Select a device * Click 'Select button: a pop-up window appears and you can select a device. Select a device to check the settings.

Control Logic Management (Continued)

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin: Losour Setting control logic Name ControlLogic Period 2016 9 7 - 2017 9 7 Day Sun Mon Tue Wed The Fri S Time 0 0 24 0 Factor edit Single Device select Device selection 1 * Click 'Select' button: a pop-up window appears and you can select a device. Select a device to Apply http://10:250.8439/ - Device selection - Internet Explorer Device selection Address Name 12.00 12.00.00 12.00.00 12.00.01 12.00.02 12.00.03 12.00.04 12.00.05 12.00.05 56.00.03 56.00.04 56.00.05 56.00.06 12.00.00 12.00.01 12.00.02 12.00.03 12.00.04 12.00.05 12.00.05 56.00.03 56.00.04 56.00.05 56.00.06

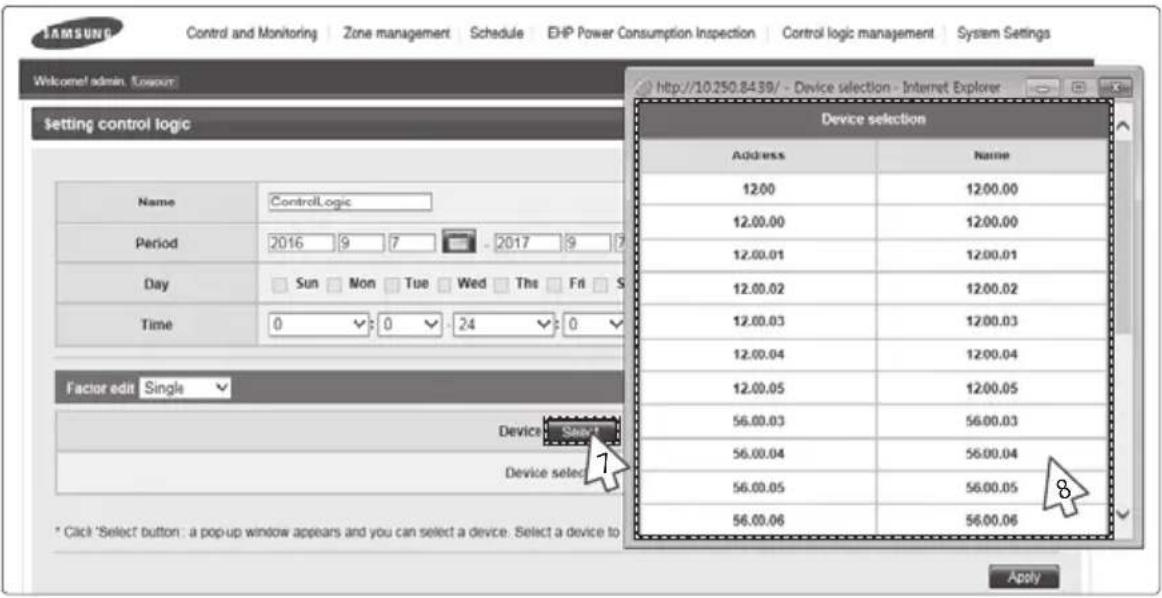

7 Click 'Select'.

◆ List of device which you can select will be displayed.

8 Select the device to use as factor.

◆ Control and monitoring items will be displayed depending on selected device.
◆ Control and monitoring items are as follows.

Type Item Value Remarks Type Item Value Remarks
Indoor unit	Power On, Off -			AHU	Current temp. Number	Number	Control impossible
	Current temp. Number		Control impossible		Desired temp. Number -
	Desired temp. Number - Outdoor temp. Number						Control impossible
	Outdoor temp. Number		Control impossible		Operation mode Auto, Cool, Dry, Fan, Heat -
	Operation mode Auto, Cool, Dry, Fan, Heat -				RC usage Enable RC, Disable RC, Cond. RC	-
	Fan speed	Auto, Low, Mid, High	-		Power	On, Off	-
	Air direction	Vertical, Horizontal, All, None	-	MINI AHU	Current temp. Number	Number	Control impossible
	RC usage Enable RC, Disable RC, Cond. RC		-		Desired temp. Number -
ERV	Power On, Off -	Outdoor temp. Number					Control impossible
	Operation mode	Auto, HeatEx, Bypass, Sleep	-		Operation mode	Auto, Cool, Dry, Fan, Heat	-
	Fan speed	Low, High, Turbo	-		Fan speed	Low, Mid, High	-
	RC usage Enable RC, Disable RC, Cond. RC		-		RC usage Enable RC, Disable RC, Cond. RC	-
ERV PLUS	Power	On, Off	-	DI	Status	On, Off	Control impossible
	Outdoor temp. Number		Control impossible	DO	Status On, Off -
	ERV mode Auto, HeatEX, Bypass, Sleep		-	DVM Hydro unit	Power On, Off -
	ERV fan speed	Low, High, Turbo	-		Current temp.	Number	Control impossible
	Operation mode	Auto, Cool, Heat, Off	-		Desired temp.	Number	-
	RC usage Enable RC, Disable RC, Cond. RC		-		Current water out temp	Number	Control impossible
Fresh duct	Power	On,Off	-		Desired water out temp	Number	-
	Operation mode	Auto, Cool, Fan, Heat	-		Outdoor temp.	Number	Control impossible
	OA intake temp.	Number	Control impossible		Operation mode	Auto, Cool, Heat	-
	Outdoor temperature	Number	Control impossible		DHW power	On, Off -
	Cool discharge temp.	Number	-		Current DHW temp.	Number	Control impossible
	Heat discharge temp	Number	-		Desired water out temp	Number	-
	RC usage Enable RC, Disable RC, Cond. RC		-		DHW mode	Eco, Standard, Power	-
	Power On, Off -	RC usage				Enable RC, Disable RC, Cond. RC	-

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Power Setting control logic Setting control logic Name ControlLogic Period 2016 9 7 - 2017 9 7 No limit Day Sun Moe Tue Wed Thu Fri Sat Daily Time 0 0 - 24 0 Factor edit Single Device Select 12.00.00 Power Current toature Desired to Outdoor temp. Mode Fan speed Air direction RC usage * Click 'Select' button : a pop-up window appears and you can select a device Input Compound factor Factor Comparison operator Standard value Duration (minute) Select a factor None Select a factor Cancel Apply 1 AND Select a factor None Select a factor Cancel Apply 1 AND Select a factor None Select a factor Cancel Apply 1

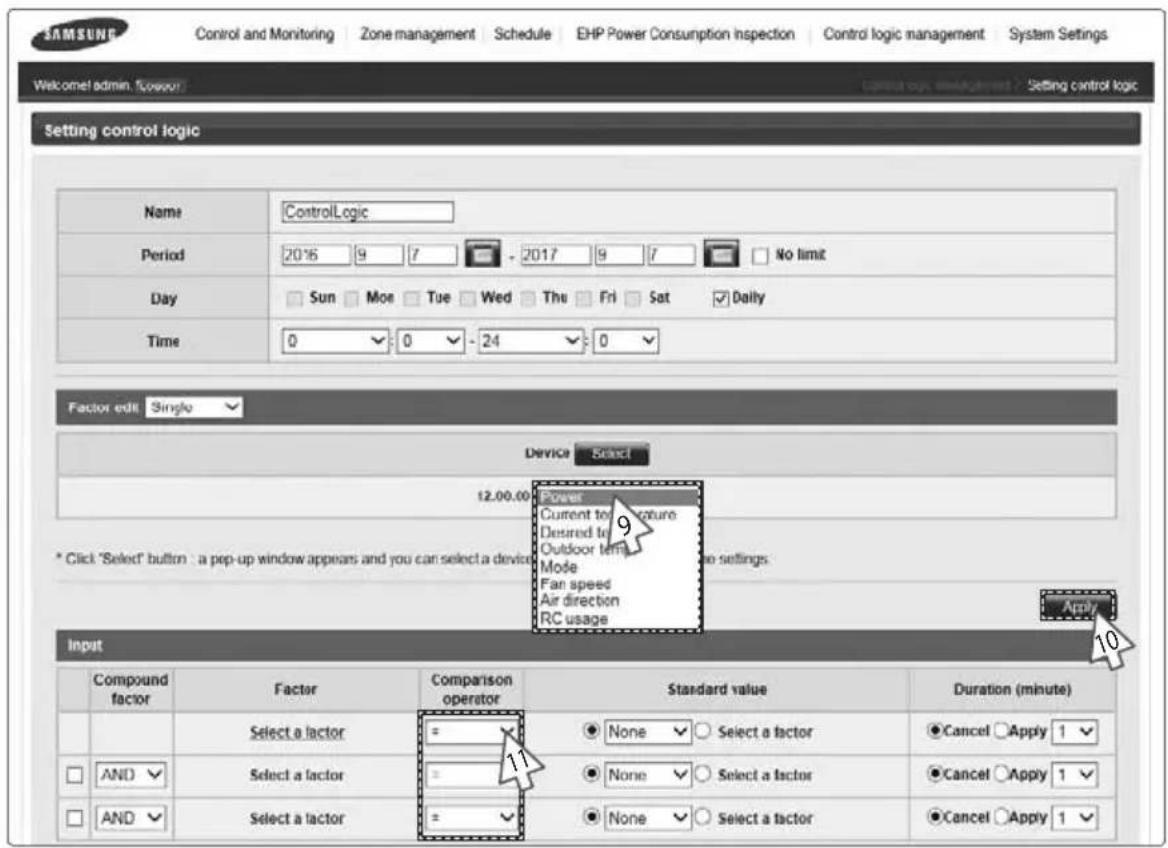

9 Select detailed item of factor.

◆ Detailed item may be different depending on the type of selected device.

10 Click [Apply].

◆ If you do not click [Apply], changed setting will not be saved.

11 Select comparison operator.

◆Types of comparison operators: =, =<, =>, <, >, ≠
◆ Comparison operator compares factor to standard factor.

Control Logic Management (Continued)

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin: f###our Setting control logic Name Control. logic Period 2016 9 7 2017 9 7 No limit Day Sun Non Tue Wed Thu Fri Sat Daily Time 0 0 24 0 Input Compound factor Factor Comparison operator Standard value Duration (minute) 12.00.00.Power = On Select a factor None Select a factor AND Select a factor = None Select a factor AND Select a factor = Cancel Apply 1 Cancel Apply 1 Cancel Apply 1 Output Factor Command Select a factor None Select a factor Select a factor None Select a factor Select a factor None Select a factor * Setting Guide: In the initial setting, click "Select a factor" and a factor editing window appears. Then click "Select" button to set the device. After setting the device, the information in the "Select a factor" is updated to the setting - Select the information to modify it. Add Delete Save

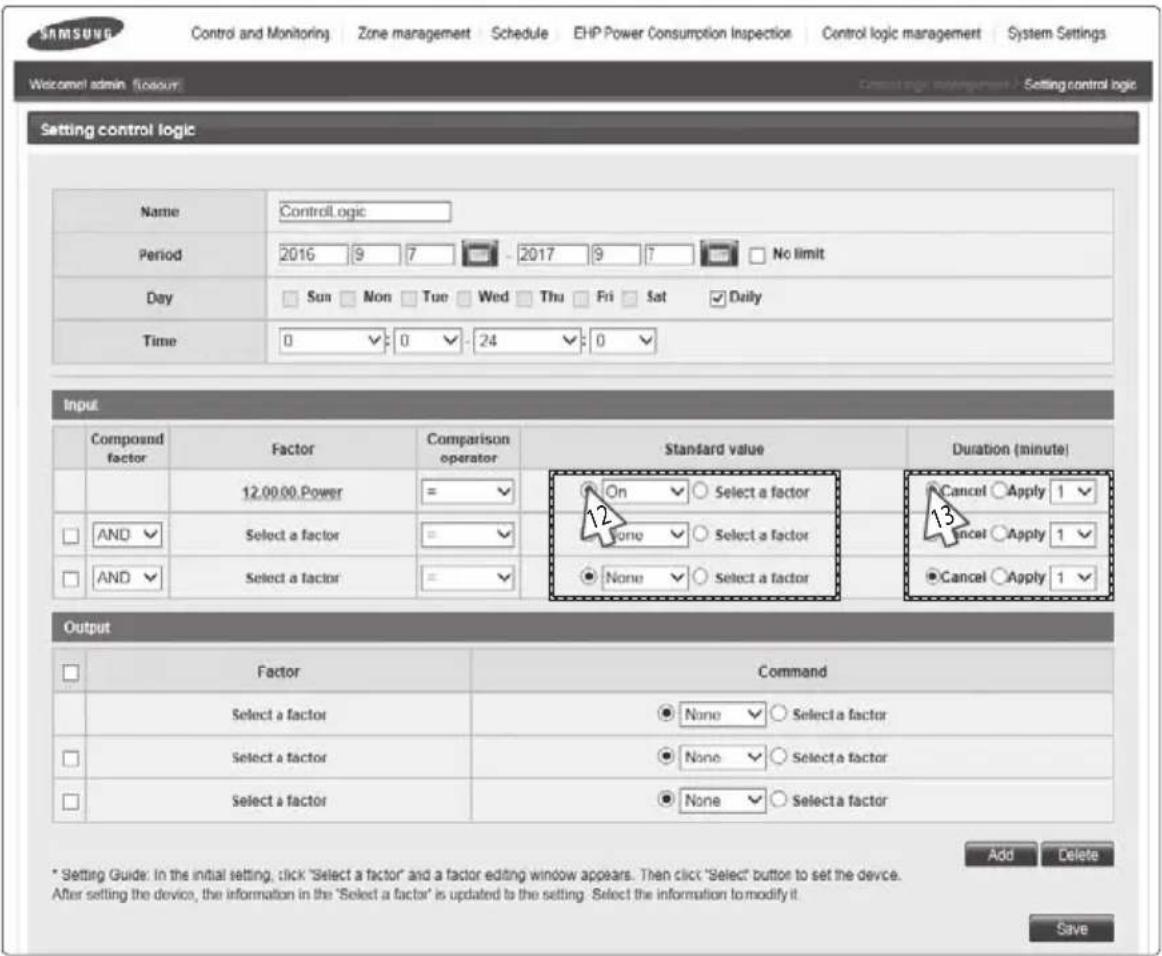

12 Select standard value.

◆ Select detailed item value of selected factor or factor.
◆ The item varies depending on the left factor when selecting detailed item value from standard value.

Ex1 ) Factor: Current temperature of indoor unit 1, Value of standard value: Enter 29

Ex2) Factor: Remote controller usage of indoor unit 1, Value of standard value: Select one among Enable RC, Disable RC and Cond. RC.

When selecting factor from standard value, it must be same with control item of left factor.

Ex1 ) Factor : Power of indoor unit 1, Factor of standard value : Power of indoor unit 2

Ex2) Factor : Current temperature of indoor unit 1, Factor of standard value : Average current temperature of indoor unit 1 and 2

13 Select duration time usage.

◆ Duration time means the time which the comparing conditions satisfy 'True'.
◆ The duration time can be set from 1 to 60.
◆ If you select duration time apply, the comparing condition will be 'True'. To execute, maintain 'True' for duration time.

Note ◆ Only 1 duration time can be set per control logic.

◆ The tolerance range of duration time is maximum 1 minute. If you set the duration time as 2 minutes, operation will be started between 2 and 3 minutes.

Factor edit Single Device Select Device selection * Click 'Select' button : a pop-up window appears and you can select a device. Select a device to check the settings. Apply Input Compound factor Factor Comparison operator Standard value Duration (minute) 12.00.60.Power = # On Select a factor Cancel Apply 1 AND Select a factor = # None Select a factor Cancel Apply 1 AND Select a factor = # None Select a factor Cancel Apply 1 Output Factor Command Select a factor None Select a factor Select a factor None Select a factor Select a factor None Select a factor Add Delete * Setting Guide In the initial setting, click 'Select a factor' and a factor editing window appears. Then click 'Select' button to set the device. After setting the device, the information in the 'Select a factor' is updated to the setting. Select the information to modify it. Save

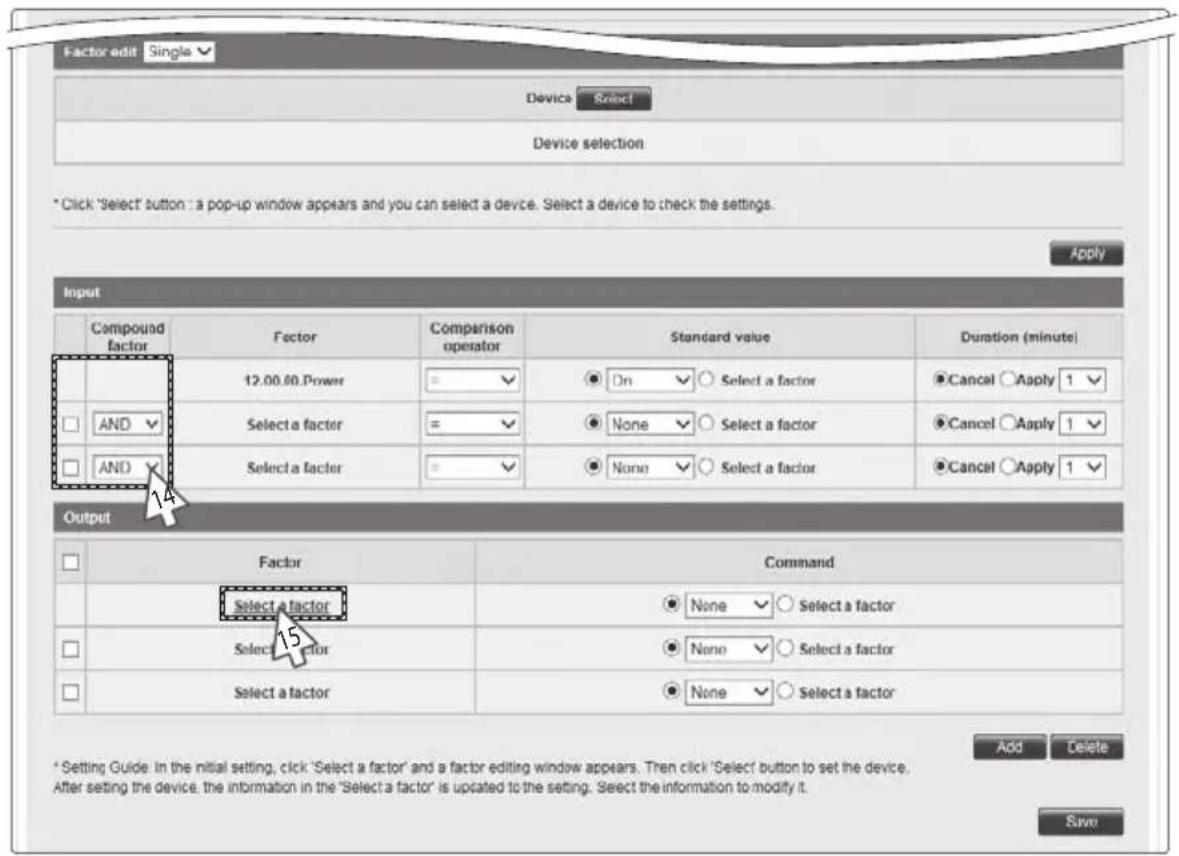

14 Select compound factor setting usage.

◆ You can use compound factor setting when you give conditions to 2 and 3 input items.
◆ You can select 1 compound factor from 'AND' and 'OR'.
◆ Select 'AND' if all the input items each should be 'True'.
◆ Select 'OR' if just 1 input item needs to be 'True'.
◆ Compound factor has priorities in order.

For example, if you set 'OR', 'AND' in order, it means '(input item 1 OR input item 2) AND input item 3'.

15 Select 'Select a factor' in the Output list.

Control Logic Management (Continued)

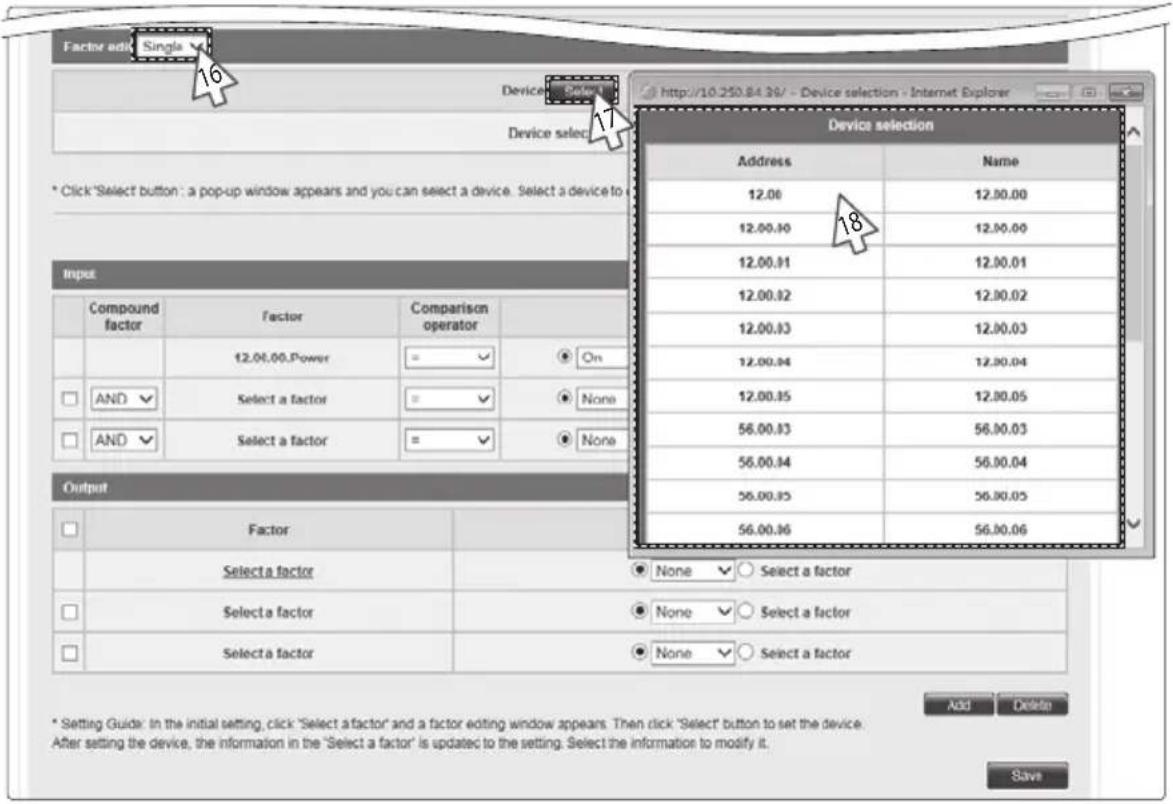

Factor add: Single Device selection 16 Device select * Click 'Select button: a pop-up window appears and you can select a device. Select a device to Device selection Address Name 12.06 12.00.00 12.00.10 12.00.00 12.00.11 12.00.01 12.00.12 12.00.02 12.00.13 12.00.03 12.00.14 12.00.04 12.00.15 12.00.05 56.00.13 56.00.03 56.00.14 56.00.04 56.00.15 56.00.05 56.00.16 56.00.06 AND Select a factor None Select a factor AND Select a factor None Select a factor Output Factor Select a factor None Select a factor Select a factor None Select a factor Add Delete * Setting Guida: In the initial setting, click 'Select a factor' and a factor editing window appears. Then click 'Select' button to set the device. After setting the device, the information in the 'Select a factor' is updated to the setting. Select the information to modify it. Save

16 Select type of factor.

◆ Single factor can be set for the left factor of output.

- Single factor: It means 1 device.

Ex) Desired temperature of indoor unit

17 Click 'Select'.

◆ List of device which can be selected will be displayed.

18 Select the device to use as factor.

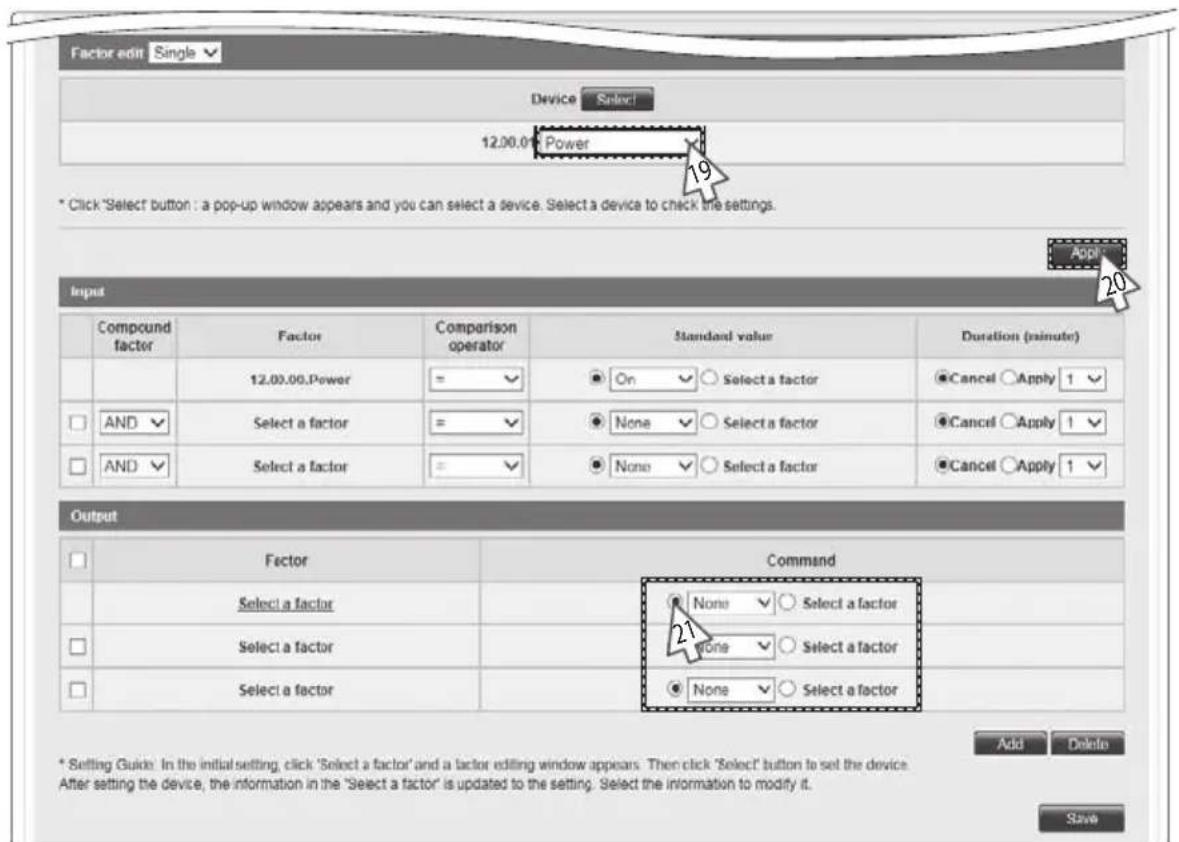

Factor edit: Single Device Select 12.00.00 Power 19 * Click 'Select' button : a pop-up window appears and you can select a device. Select a device to check the settings. Input Compound factor Factor Comparison operator Standard value Duration (minute) 12.00.00.Power = On Select a factor Cancel Apply 1 AND Select a factor None Select a factor Cancel Apply 1 AND Select a factor None Select a factor Cancel Apply 1 Output Factor Command Select a factor None Select a factor Select a factor None Select a factor Select a factor None Select a factor * Setting Guide: In the initial setting, click 'Select a factor' and a factor editing window appears. Then click 'Select' button to set the device. After setting the device, the information in the 'Select a factor' is updated to the setting. Select the information to modify it. Add Delete Save

19 Select detailed item of factor.

◆ Detailed item may be different depending on the type of selected device.

20 Click [Apply].

◆ If you do not click [Apply], changed setting will not be saved.

21 Select command value.

◆ The value may vary depending on the detailed item of selected factor.
◆ You can select value of selected item or new factor.
◆ You can set single factor, arithmetic factor and function factor.

Control Logic Management (Continued)

SAMSOUR Control and Monitoring Zone management Schedule Control logic Setting control logic Welcome admin. flossor Setting control logic Name ControlLogic Period 2016 9 7 - 2017 9 7 □ No limit Day Sun Mon Tue Wed Thu Fri Sat ▼Daily Time 0 0 24 0 Input Compound factor Factor Comparison operator Standard value Duration (minute) 12.00.00.Power ▼ On ▼ Select a factor Cancel Apply 1 AND ▼ Select a factor ▼ None ▼ Select a factor Cancel Apply 1 AND ▼ Select a factor ▼ None ▼ Select a factor Cancel Apply 1 Output Factor Command 12.00.01.Power ▼ On ▼ Select a factor Select a factor ▼ None ▼ Select a factor Select a factor ▼ None ▼ Select a factor * Setting Guide. In the initial setting, click 'Select a factor' and a factor editing window appears. Then click 'Select button to set the device. After setting the device, the information in the 'Select a factor' is updated to the setting. Select the information to modify it. Add Delete Save

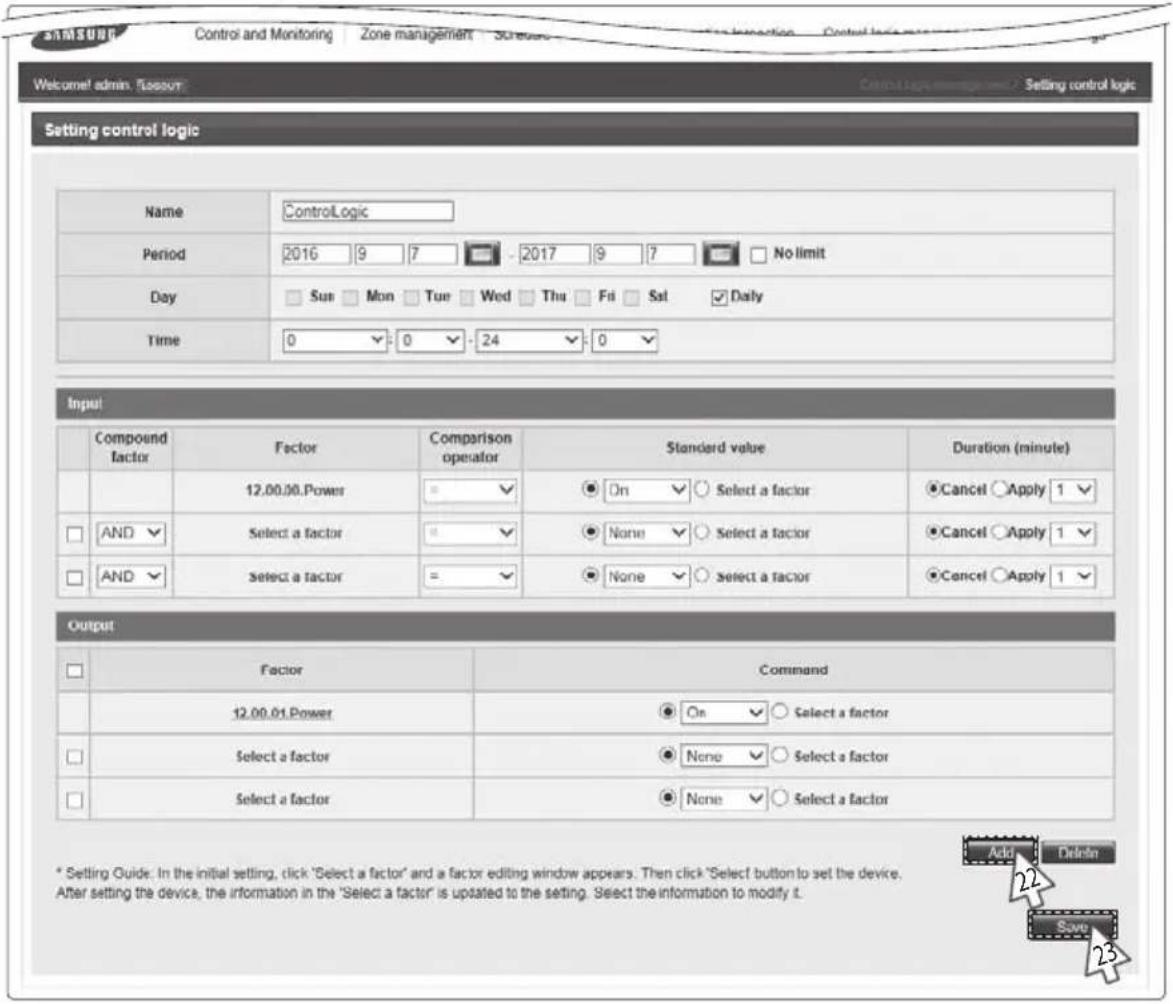

22 To add output, click [Add].

If you want to delete output which you don't use anymore, select it and then click [Delete].

23 Click [Save].

◆ Set control logic will be saved in DMS2.
◆ If you do not click [Save], changed setting will not be saved.

Note

◆ Control logic input items consist of factor, comparison operator, standard value and duration time.
- You can enter up to 3 input items of control logic, and the items can be connected with compound factor.
◆ Output item of control logic consists of factor and command value.

◆ You can enter up to 20 output items of control logic.
◆ You can create up to 256 control logics.

Editing/Deleting/Copying Control Logic

SAMSUNG Control and Monitoring | Zone management | Schedule | EHP Power Consumption Inspection | Control logic management | System Settings Welcome admin. fesour Setting control logic No. Name Period Days Time Apply Run 1 ControllLogic 2010-02-26 ~ 2011-02-26 Daily 00:00 ~ 24:00 No No Delete Copy Apply Not apply New Edit 3

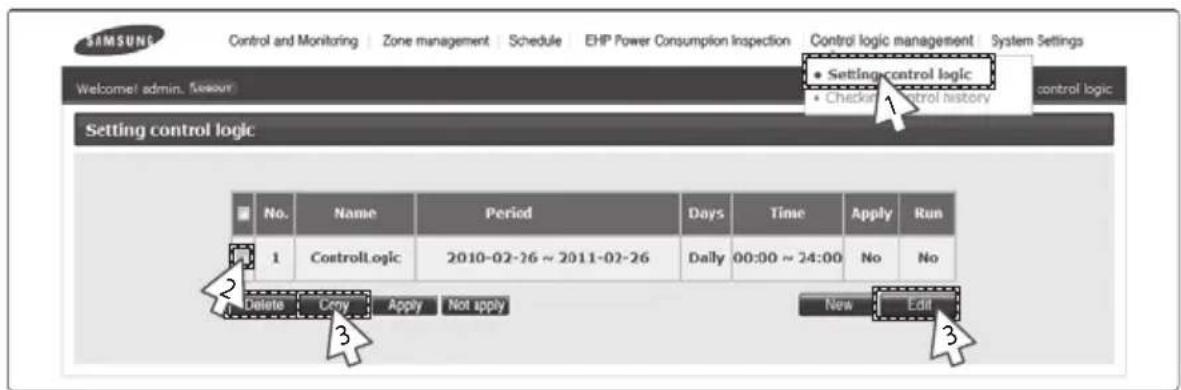

1 Click [Control logic management] → [Setting control logic] when DMS2 web page menu screen appears.
2 Select control logic when control logic screen appears.
3 Click [Edit]/[Delete]/[Copy].

◆ To edit control logic, refer to 'Setting control logic' steps. (Refer to page 93\~102)
◆ Click [Delete] to delete the selected control logic.
◆ Click [Copy] to copy the selected control logic.

Control Logic Management (Continued)

Enable/Disable Control Logic

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Season Setting control logic No. Name Period Days Time Apply Run 1 CocontrolLogic 2010-02-26 ~ 2011-02-26 Daily 00:00 ~ 24:00 No No Delete Copy Apply Not apply New Edit

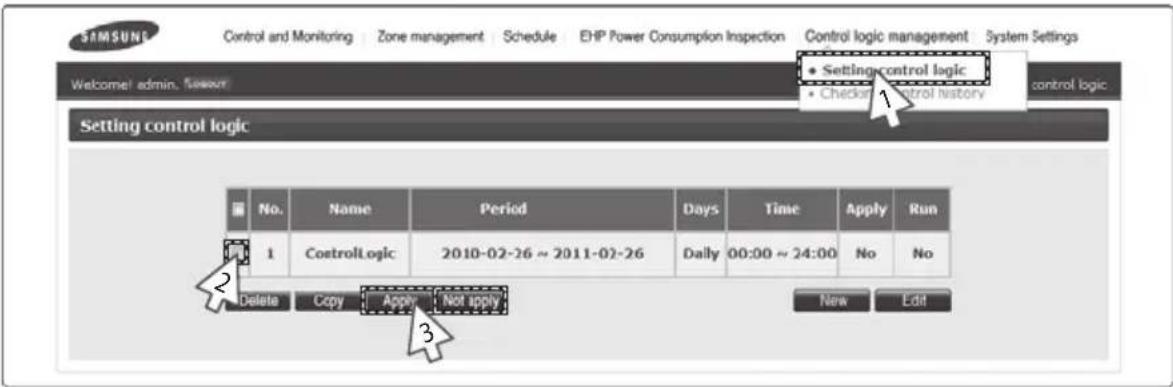

1 Click [Control logic management] → [Setting control logic] when DMS2 web page menu screen appears.
2 Select control logic when control logic screen appears.
3 Click [Apply]/[Not apply].

◆ The selected control logic will be applied by clicking [Apply].
◆ The selected control logic will not be applied by clicking [Not apply].

Checking Control History

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings + Sorting control logic + Checking control history Welcomer aguri, Newart + Checking control history Checking control history 2010 2 21 Search Logic name Average time Controlling subject Control type ControlLogic 2010.02.27 08:00:39 DMS internal features Control Logic control Control item - Power : On Control device 08.00.01(00.00.01) • Click the row for detailed information.

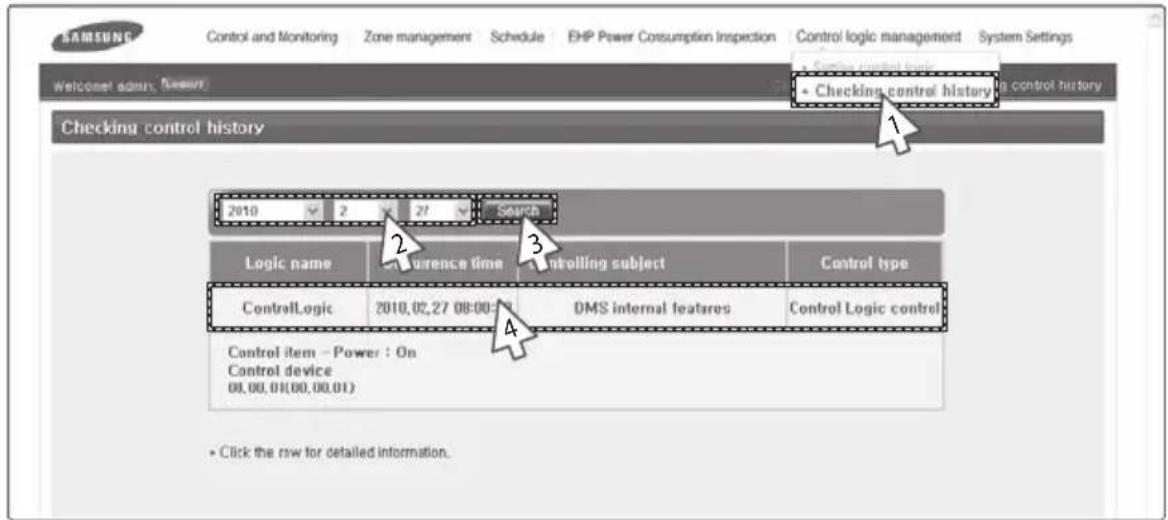

1 Click [Control logic management] → [Checking control history] when DMS2 web page menu screen appears.
2 Select the date you want when the control logic screen appears.

◆ Select Year/Month/Day in order.
- Based on DMS2 time, you can check of maximum 180 days of previous control history.

3 Click [Search].

◆ You can check only in daily unit.

4 Select each items to check detailed contents of control history.

Note DMS2 saves the information of control logic management control history for 180 days. However, it varies depending on saving space of DMS2.

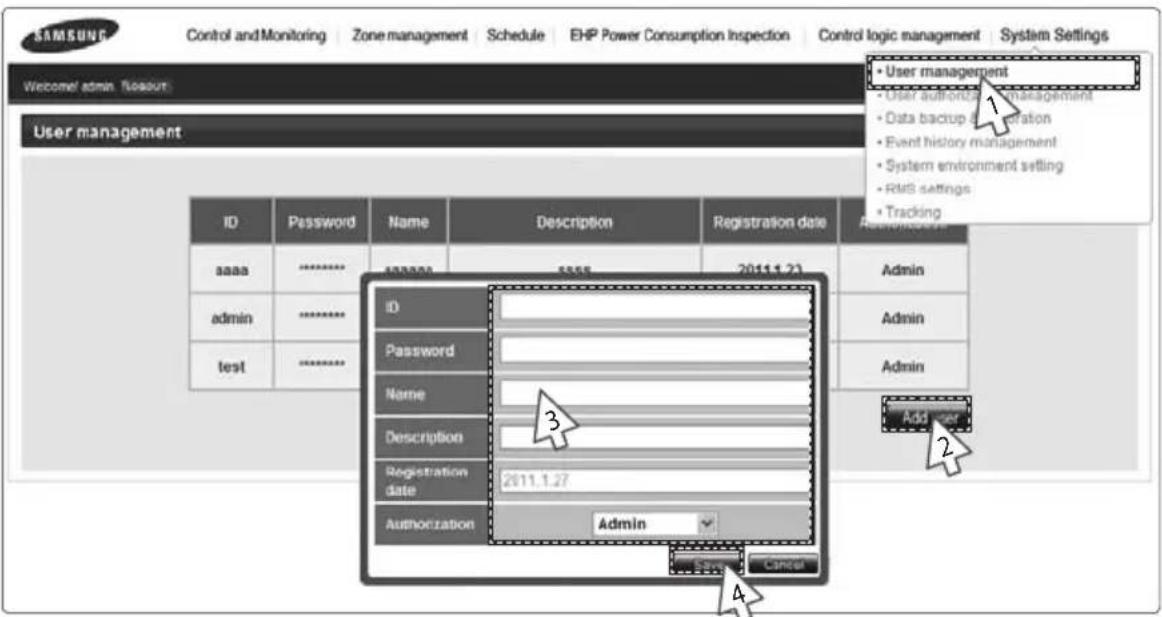

Adding a User

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Rosourt: User management ID Password Name Description Registration date 2011.1.27 Authorization Admin Add user Cancel Add user 1 2 3 4

You can add, edit and delete the user of DMS2.

1 Click [System Settings] → [User management] when DMS2 web page menu screen appears.
2 Click [Add user] when user management screen appears.

◆ User information input window will be appeared when pressing [Add user].

3 Enter ID, password, name and description for new user and then select authority.

◆ The user ID should be between 4\~12 letters and English lower case letters and numbers only can be used. (English capital letter and special symbols including space cannot be used for user ID.)
◆ The password should be between 8\~12 letters and English capital/lower case letters, and numbers only can be used, without any spaces. In addition, the password should contain both English letters and numbers.
◆ Name should be within 20 letters, and description should be in 50 letters.
◆ Registration date will be input automatically as system date.
◆ Select authorization for the user from 'Admin', 'Manager' and 'Regular user'. Admin has all authorization and 'Manager'/'Regular user' has limited authorization.

4 Click [Save].

◆ Maximum of 256 users can be registered.
◆ User information will be saved in DMS2.

Note

For security and maintenance, you should change the password of the admin account that is issued by the factory for shipping purposes.
◆ Administrator(Admin) can change all setting of indoor/outdoor unit.
◆ Administrator(Admin) can check all indoor/outdoor units connected to DMS2.
◆ Administrator(Admin) can edit zone information and assign the zone information to manager.
◆ A manager can check and control indoor/outdoor units which belong to assigned zones only.

Editing a User

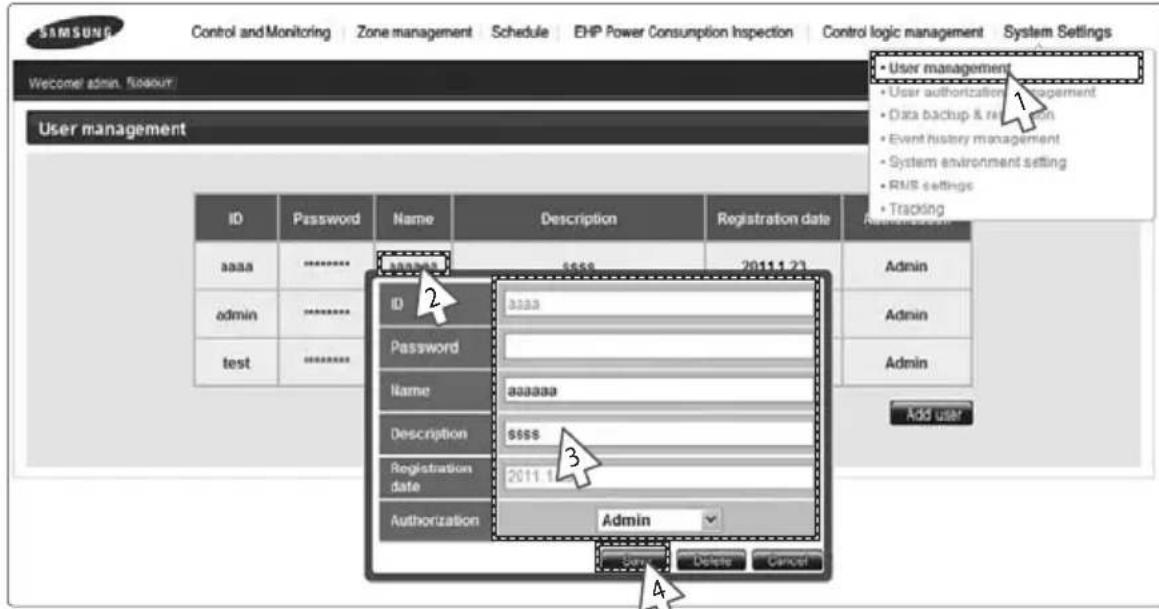

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. fikour User management ID Password Name Description Registration date Authorization Admin admin admin admin Add user User management User authorization management Data backup & ref Event history management System environment setting RMS settings Tracking 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 1 2 3 4

1 Click [System Settings] → [User management] when DMS2 web page menu screen appears.

2 Click the user name to edit when user management screen appears.

◆ User information window will be displayed.

3 Edit user information when the user information window appears.

◆ You cannot change user ID.
◆ The password should be between 8\~12 letters and English capital/lower case letters, and numbers only can be used, without any spaces. In addition, the password should contain both English letters and numbers.
◆ Name should be within 20 letters, and description should be in 50 letters.
◆ Registration date is input automatically as system date. Therefore you cannot edit registration date.
◆ Select authorization for the user from 'Admin', 'Manager' and 'Regular user'. Admin has all rights and 'Manager'/'Regular user' has some rights.

4 Click [Save].

◆ Modified user information will be saved in DMS2.

Note ◆ User information can be changed only with the admin account.

◆ Authorization of admin account cannot be modified.

◆ Administrator(Admin) can change all setting of indoor/outdoor unit.
◆ Administrator(Admin) can check all indoor/outdoor units connected to DMS2.
◆ Administrator(Admin) can edit zone information and assign the zone information to manager.
◆ A manager can check and control indoor/outdoor units which belong to assigned zones only.

System Settings (Continued)

Deleting a User

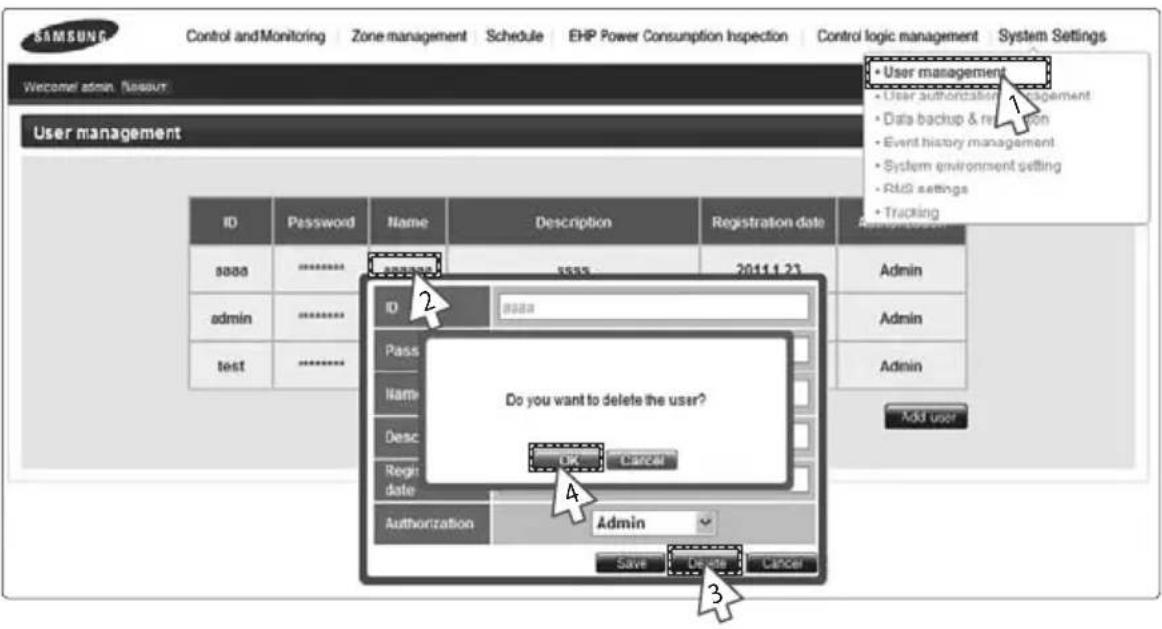

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Nassaur User management ID Password Name Description Registration date admin 2011.1.23 admin admin admin admin Do you want to delete the user? OK Cancel Authorization Admin Save Delete Cancer • User management • User authorization management • Data backup & replication • Event history management • System environment setting • R&D settings • Tracking Add user

1 Click [System Settings] → [User management] when DMS2 web page menu screen appears.
2 Click the user name to delete when user management screen appears.

◆ User information window will be displayed.

3 Click [Delete] when the user delete window appears.

◆ Confirm window will pop up saying, "Do you want to delete the user?"

4 Click [OK].

◆ Selected user information will be deleted in DMS2.

Note Admin account cannot be deleted.

Editing User Authorization

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings User authorization management Microsoft Internet Explorer Successfully done User management User authorization management Data backup d'oration Event history d'oration System environmental setting RMS settings Tracking Menu Admin Manager Regular user Control and Monitoring Zone management Schedule EHP Power Consumption In Control logic management System Settings Start Initialize

1 Click [System Settings] → [User authorization management] when DMS2 web page menu screen appears.
2 Select/Deselect accessible menu by authorization when the user authorization management screen appears.
3 Click [Save] after setting is completed.
4 Click [OK] when "Successfully done." message appears.

◆ Changed user authorization information will be saved in DMS2 by clicking [OK].

Note ◆ Administrator(Admin authorization) is allowed to access to all menus.

You cannot edit authorization (menu access) of administrator(Admin).

System Settings (Continued)

Initializing a User Authorization

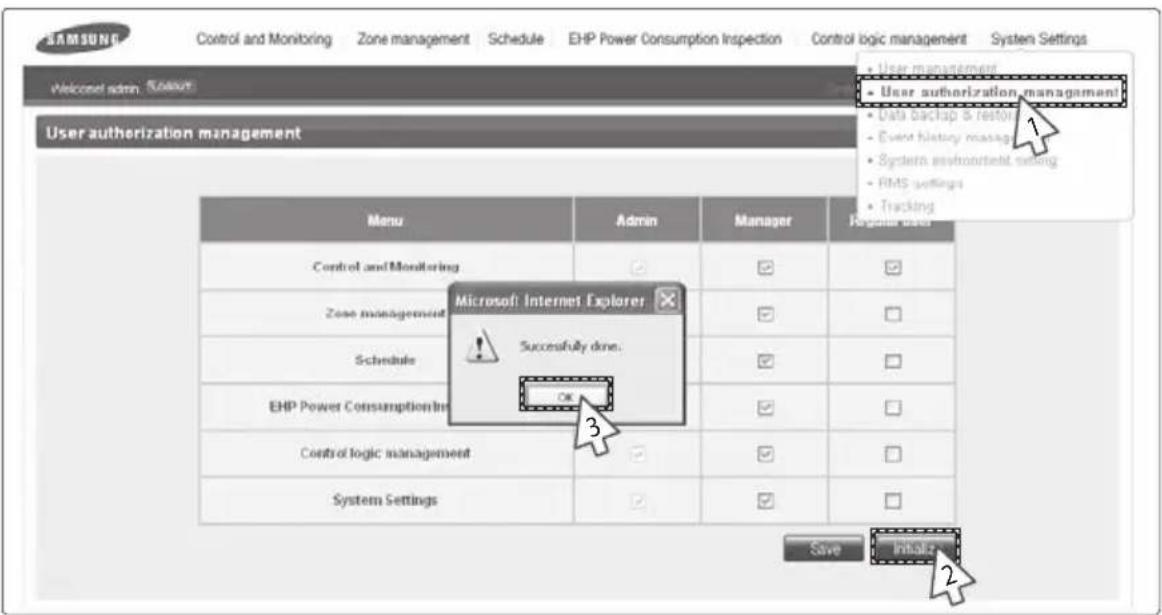

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin: SANSUR User authorization management User management User authorization management Data backup & restore Event history management System asihontieit setting RMS settings Tracking Menu Admin Manager Regener user Control and Monitoring Microsoft Internet Explorer Zone management Successfully done. Schedule EHP Power Consumption In OK 3 Control logic management System Settings Save Inhale 2

1 Click [System Settings] → [User authorization management] when DMS2 web page menu screen appears.
2 Click [Initialize] when user management screen appears.
3 Click [OK] when "Successfully done." message appears.

◆ User authorization information saved in DMS2 will be initialized by clicking [OK].

Note

You can restore user authorization information as factory setting by using initialization function.

DMS2 Data Backup – PC Backup

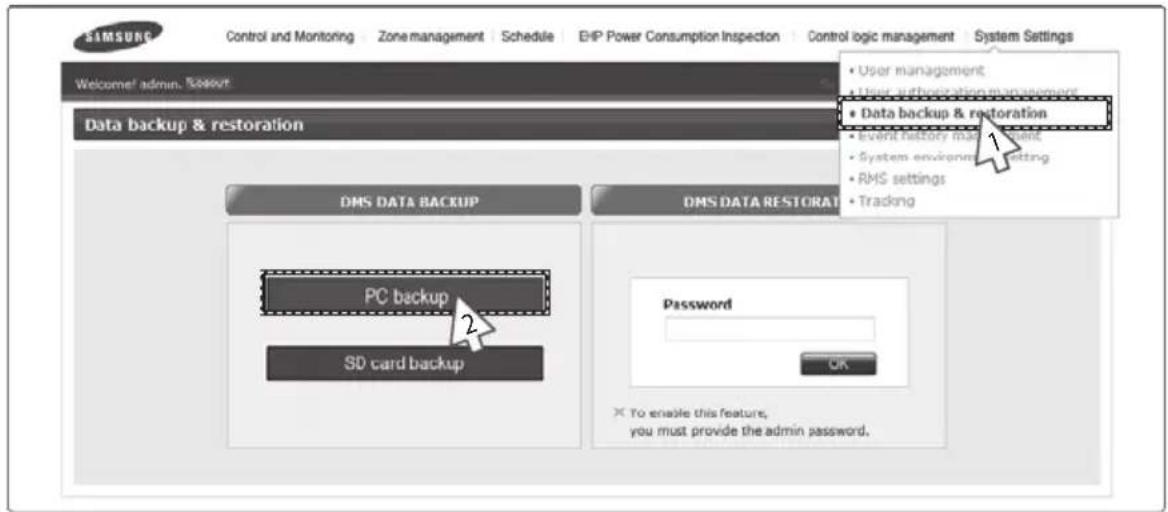

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Storeout Data backup & restoration • User management • User configuration management • Data backup & restoration • Event history management • System environment setting • RMS settings • Tracking DMS DATA BACKUP DMS DATA RESTORAT PC backup SD card backup Password OK × To enable this feature, you must provide the admin password.

You can back up DMS2 data to PC or SD card.

1 Click [System Settings] → [Data backup & restoration] when DMS2 web page menu screen appears.
2 Click [PC backup] when DMS2 data backup & restoration screen appears.

◆ "Reading data from DMS2. Please wait." message will appear.
◆ Depending on the size of the data, backup time may vary. It will usually take few seconds.

System Settings (Continued)

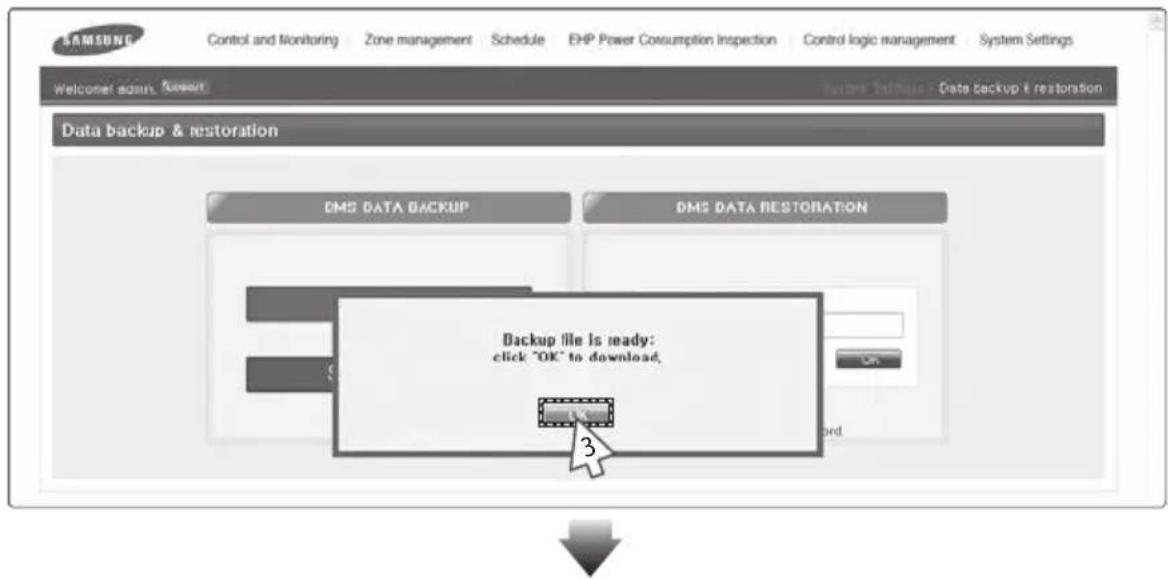

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcomer admin. fossur Data backup & restoration DMS DATA BACKUP DMS DATA RESTORATION Backup file is ready: click "OK" to download. 3

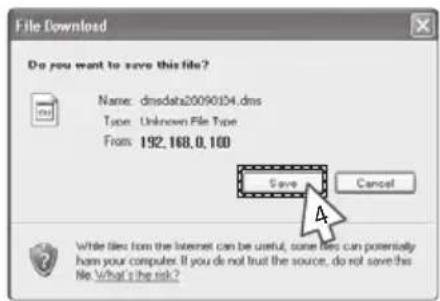

File Download Do you want to save this file? Name: dmdata20090104.dms Type: Unknown File Type From: 192.168.0.100 Save Cancel While files from the Internet can be useful, some files can potentially have your computer. If you do not trust the source, do not save this file? What's the risk?

3 Click [OK] when "Backup file is ready. Click "OK" to download." message appears.
4 Click [Save] when "File download" window appears.

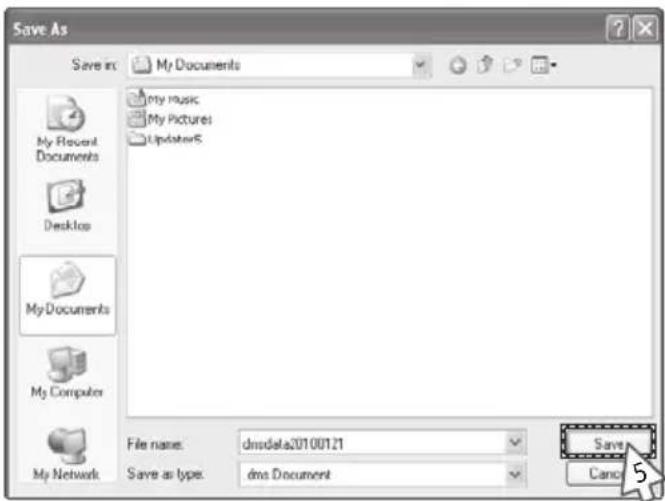

Save As Save as: My Documents My Music My Pictures Updater5 My Recent Documents Desktop My Documents My Computer My Network File name: dmdata20100121 Save as type: dma Document Save Cancel

5 When "Save as" window appears, select saving location and file name and then click [Save].

◆ Backup file will be saved as the name you made in the location you select by clicking [Save].
Basic backup file name is "DMS2dataYYYYMMDD.dms". (YYYY: year, MM : month, DD : day)
◆ The extension of the backup data files is ".dms".
◆ If you want to edit the file name, use English alphabets or numbers only.
◆ File name should be less than 32 letters. If the file name exceeds 32 letters, proper restoration may not be possible.

6 Click [Close] after completing the download.

Note

Backup data includes DB data, setting data, data related indoor/outdoor unit control and various kinds of history data. They will be backed up in single unified file.

DMS2 Data Backup – SD card backup

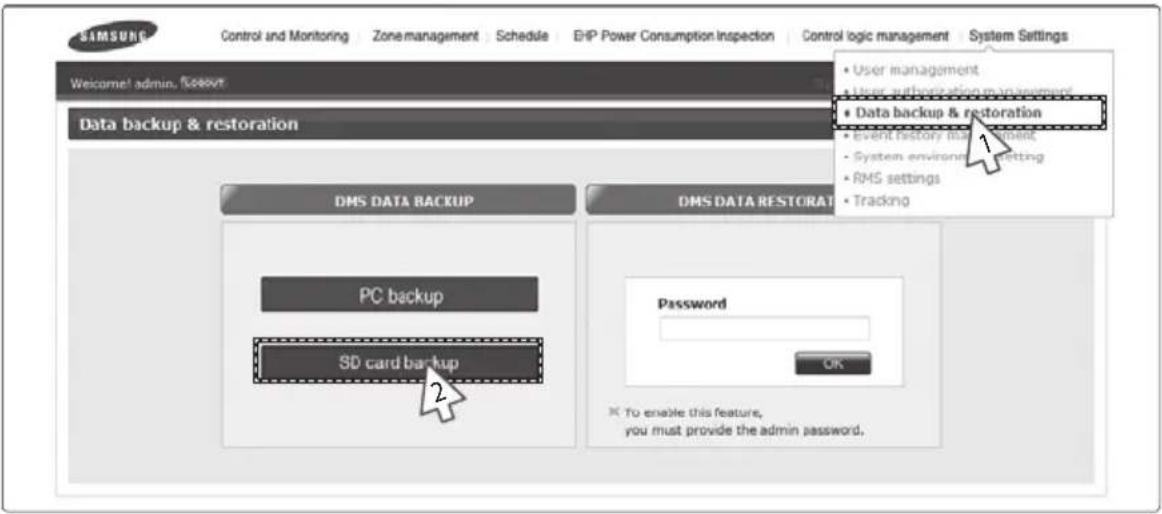

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome! admin, Select Data backup & restoration User management Data backup & restoration Event history management System environment setting RMS settings Tracking DMS DATA BACKUP DMS DATA RESTORAT PC backup SD card backup Password OK To enable this feature, you must provide the admin password.

You can back up DMS2 data to PC or SD card.

1 Click [System Settings] → [Data backup & restoration] when DMS2 web page menu screen appears.
2 Click [SD card backup] when DMS2 data backup & restoration screen appears.

◆ "Reading data from DMS2. Please wait." message will be displayed.
◆ Depending on the size of the data, backup time may vary. It will usually take few seconds.

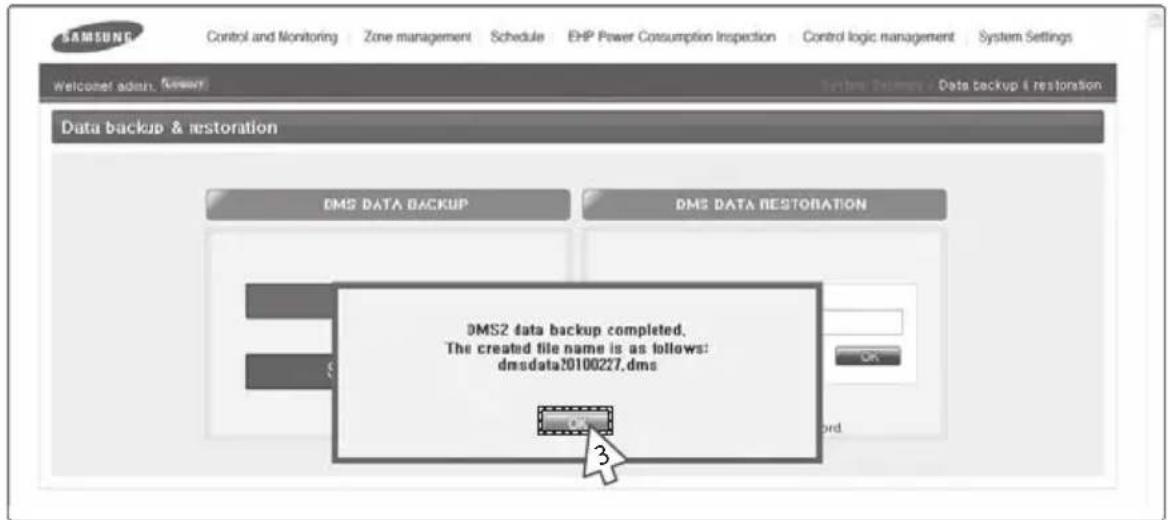

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Data backup & restoration DMS DATA BACKUP DMS DATA RESTORATION DMS2 data backup completed. The created file name is as follows: dmsdata20100227.dms 3

3 Click [OK] when "DMS2 data backup completed.

The created file name is as follows:

DMS2dataYYYYMMDD.dms" message appears.

◆ The file name of backup file is "DMS2dataYYYYMMDD.dms" and it does not exceed maximum 15 letters. (YYYY: year, MM: month, DD: day)
◆ Backup files recorded on the same date are numbered in order of 001, 002.
◆ The extension of the backup data files is ".dms".
If "Backup failed." message appears, click [OK]. Then check if the SD card is inserted or forbidden for writing.

Note

Backup data includes DB data, setting data, data related indoor/outdoor unit control and various kinds of history data. They will be backed up in single unified file.

CAUTION

◆ To use SD backup and restoration function properly, SD card which is formatted in VFAT file system is required.
- If SD card is already inserted, automatic backup function will be operated and everyday data will be backed up in SD card.
If available space of SD card is smaller than 100Mbytes, deleting oldest DMS2 backup file process will be operated first and then auto backup function will be operated.

DMS2 Data Restoration - PC Restore

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome! admin, Select Data backup & restoration User management Data backup & restoration Event history management System environment setting RMS settings Tracking DMS DATA BACKUP DMS DATA RESTORATOR PC backup SD card backup Password OR X: To enable this feature, you must provide the admin password.

1 Click [System Settings] → [Data backup & restoration] when DMS2 web page menu screen appears.
2 Enter the password of Admin account when DMS2 data backup and restoration screen appears.

◆ Data restoration function deals with the important data of the system.

To activate the function, you should enter administrator's password.

3 Click [OK].
4 Click [OK] when caution window appears.

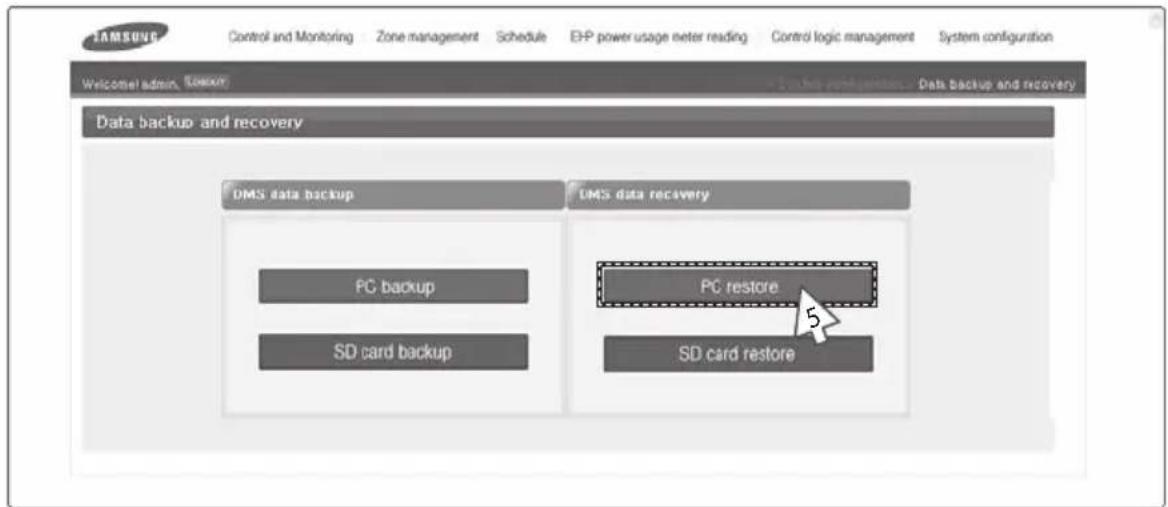

SAMSUNG Control and Monitoring Zone management Schedule EHP power usage meter reading Control logic management System configuration Welcome admin, Server Data backup and recovery Data backup and recovery DMS data backup DMS data recovery PC backup PC restore SD card backup SD card restore

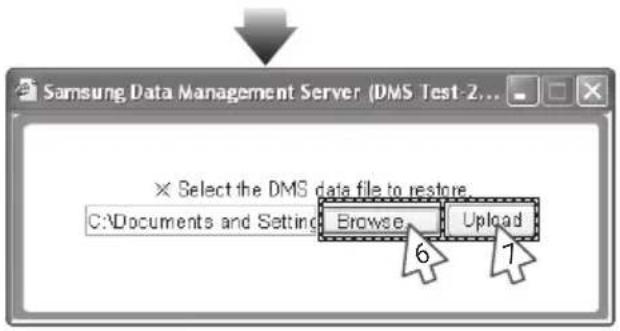

Samsung Data Management Server (DMS Test-2... Select the DMS data file to restore C:\Documents and Settings Browse Upload 6 7

5 Click [PC restore].

6 Click [Browse].

- Select DMS2 data file to restore and then click [Open(O)] when "File selection" window appears.

7 Check if the file route and file name are correctly entered in the text box, and then click [Upload].

System Settings (Continued)

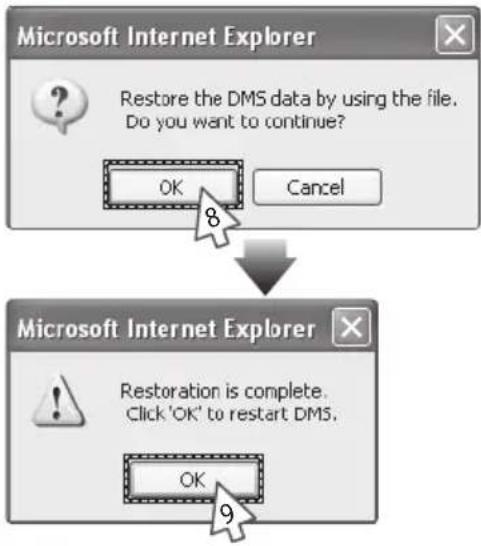

Microsoft Internet Explorer Restore the DMS data by using the file. Do you want to continue? OK Cancel 8 Microsoft Internet Explorer Restoration is complete. Click 'OK' to restart DMS. OK 9

8 Click [OK] when "Restore the DMS by using the file. Do you want to continue?" message appears.

◆ "Reading data from DMS2. Please wait." message window will appear.
◆ Depending on the size of the data, backup time may vary. It will usually take few seconds.

9 Click [OK] when "Restoration is complete. Click 'OK' to restart DMS." confirm window appears.

◆ DMS2 will restart and restored data will be reflected.

Note ◆ Backup and restoration of set event history is not available.

◆ Backup and restoration of network setting is not available.

Keep in mind followings when operating restoration using backup file saved in PC.

1. You cannot use files bigger than 100Mbytes for restoration file.
2. Restoration should be carefully executed because existing data will be deleted during restoration and the data you select will be restored. Before operating restoration, backup current data of DMS2 to PC or SD card.
3. The name of file for restoration should be within 32 letters in English alphabet or numbers. If not, rename the file and upload it again.

DMS2 Data Restoration - SD Card Restoration

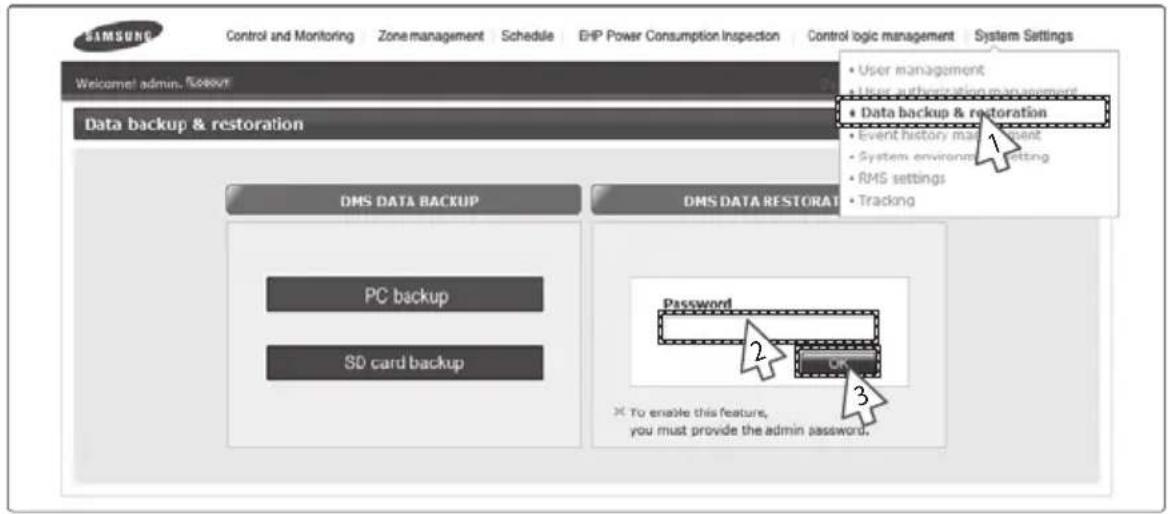

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Store Data backup & restoration User management Data backup & restoration Event history management System environment setting RMS settings Tracking DMS DATA BACKUP DMS DATA RESTORATOR PC backup SD card backup Password OK To enable this feature, you must provide the admin password.

1 Click [System Settings] → [Data backup & restoration] when DMS2 web page menu screen appears.
2 Enter the password of Admin account when DMS2 data backup and restoration screen appears.

◆ Data restoration function deals with the important data of the system. To activate the function, you should enter administrator's password.

3 Click [OK].
4 Click [OK] when caution window appears.

System Settings (Continued)

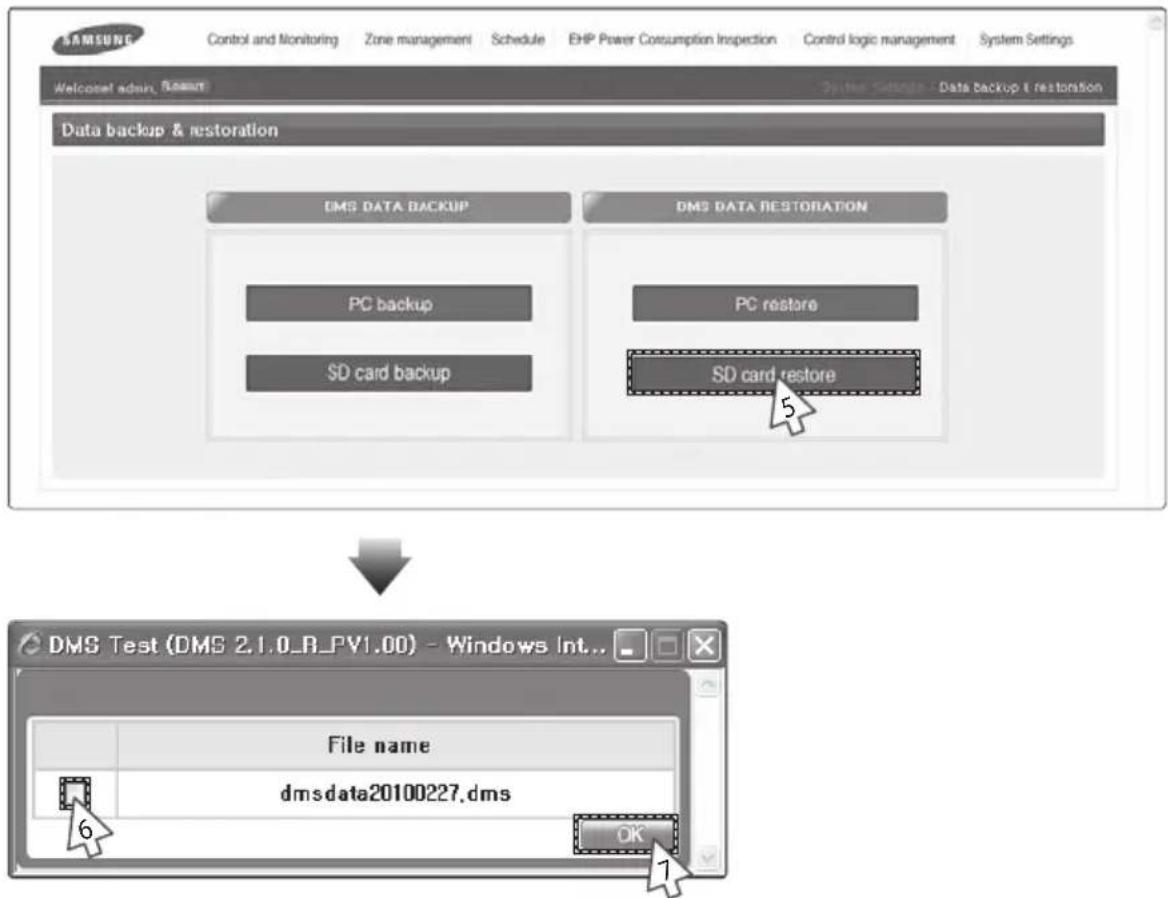

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome at admin, Status Data backup & restoration DMS DATA BACKUP PC backup SD card backup DMS DATA RESTORATION PC restore SD card restore 5 DMS Test (DMS 2.1.0_R_PY1.00) - Windows Int.. File name dmsdata20100227.dms OK

5 Click [SD card restore].
6 Select the check box of file to restore.
7 Click [OK].

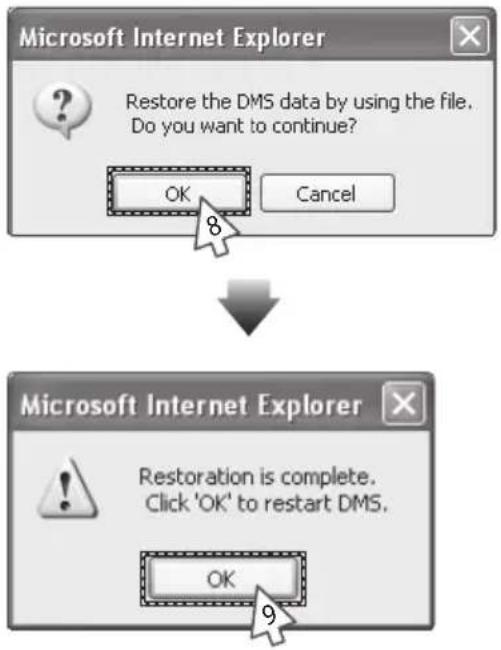

Microsoft Internet Explorer Restore the DMS data by using the file. Do you want to continue? OK Cancel 8 Microsoft Internet Explorer Restoration is complete. Click 'OK' to restart DMS. OK 9

8 Click [OK] when "Restore DMS data by using the file. Do you want to continue?" message appears.

◆ "Reading data from DMS2. Please wait." message window appears.
◆ Depending on the size of the data, backup time may vary. It will usually takes few seconds.

9 Click [OK] when "Restoration is complete. Click 'OK' to restart DMS." message window appears.

◆ DMS2 will restart and restored data will be reflected.

Note

For proper restoration, unlock the forbidden writing function of SD card.

Event History Management "Search(Check)"

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Master Event history management 2010 2 21 2010 2 27 SATCH 1 User management User authorization management Data backup & configuration Event history management System architecture testing EMS settings Tracking Time Setting subject Event type 1 2010-02-27 08:29:29 LCD Button Data backup 2 2010-02-27 08:49:33 W# Data backup Backup in SD card completed. 3 2010-02-27 08:47:31 WEB Data backup 4 2010-02-27 08:41:51 WEB Data backup 5 2010-02-27 08:13:56 User DMS power Click the row for detailed information,

You can search(check) all kinds of set information of event log in DMS2.

1 Click [System Settings] → [Event history management] when DMS2 web page menu screen appears.
2 Select the period of event history you want to search.
3 Click [Search].
4 List of events which occurred in the period will be displayed.

- You can check detailed information about the event by selecting the item you want to check.

Note You can check following event logs using event history management.

1. DMS2 power related event
2. Schedule setting related event
3. RMS service setting related event
4. Tracking related event
5. User information modification related event
6. System settings related event
7. Operation using external interface related event

DMS2 Network Information Setting – "Manual Setting"

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Server System environment setting User management User authorization management Data backup & restoration Event listes management System environment settings HIPS settings Tracking DMS network information IP 192.168.0.100 DHCP Subset mask 256.256.256.0 Basic gateway 192.168.0.1 DNS server 0.0.03 Edit Save This operation needs web browser restart. The browser will be closed. Do you want to proceed? OK Cancel

You can set and check information about DMS2 installation operation.

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.
2 Click [Edit] from DMS2 network information window.
3 When text boxes of IP address, subnet mask address, default gateway and DNS server are enabled, enter values for each item.

◆ 15 letters can be entered for each item.
◆ Each item should match with the network address form.
◆ Basically, only Private IP can be set to IP address. To use Public IP, you must set Enable public IP as 'Enable' from the menu [System Settings] → [System environment setting].

- Private IP range: 10.0.0.0 \~ 10.255.255.255, 172.16.0.0 \~ 172.31.255.255,

192.168.0.0 \~ 192.168.255.255

- Public IP range: IP except for Private IP range and 127.0.0.1(localhost)

4 Click [Save] in DMS2 network information window.

5 Click [OK] when "This operation needs web browser restart. The browser will be closed. Do you want to proceed?" message appears.

◆ Click [OK] and current web browser will be closed. Run the web browser again and you can access to DMS2 using IP which is manually set.

DMS2 Network Information Setting – using "DHCP"

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Newer System environment setting DMS network information IP 192.168.0.100 DHCP Basic gateway 192.168.0.1 Subset mask 255.255.255.0 DNS server 0.0.00 Edit Save This operation needs web browser restart. The browser will be closed. Do you want to proceed? OK Cancel

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.
2 Click [Edit] from DMS2 network information window.
3 Check 'DHCP'.

◆ The text boxes of IP address, subnet mask address, default gateway and DNS server will be disabled.
◆ If you want manual setting, uncheck 'DHCP' and then refer to "DMS2 Network information setting-manual setting" steps. (Refer to page 123)
If Public IP must be assigned from DHCP, you must set Enable public IP as 'Enable' from the menu [System Settings] → [System environment setting].

4 Click [Save] in DMS2 network information window.

5 Click [OK] when "This operation needs web browser restart.

The browser will be closed. Do you want to proceed?" message appears.

◆ Click [OK] and current web browser will be closed. Run the web browser again and you can access to DMS2 after checking auto setting IP in the external LCD.

Some functions available on DMS2 web page may not be functional at BACnet Gateway and LonWorks Gateway. For detailed function, refer to the installation manual or contact Samsung Electronics.

Note ◆ Factory setting is as follows.

1. IP address: 192.168.0.100

2. Subnet mask address: 255.255.255.0

3. Default gateway: 192.168.0.1
4. DNS server: 0.0.0.0

◆ DMS2 sets service engineer IP(192.168.0.254) internally. Therefore, it should be available all the time regardless of current IP setting.
◆ DMS2 gets DHCP IP address when you activate DHCP function.

When connecting DMS2 to S-NET series, you can connect them using the IP. However the DHCP IP address can be changed by events such as network environment of restart.

In this case, it may cause communication failure between S-NET series and DMS2.

Therefore it is not recommended to connect DMS2 using DHCP address using S-NET series.

◆ You can check network information on external LCD of DMS2 when activating DHCP. (Refer to page 154)
When DHCP is set, address from DHCP server will be set as DMS2 IP address.
◆ DHCP function is not available when you use BACnet Gateway function.

CAUTION

This product must be used in a dedicated network because it cannot respond to network attacks such as hacking and viruses. When it is connected to the Internet or an intranet (ex: an office LAN), it could be a risk of illegal approach. Also, this may change it to a harmful connection for other network devices. This is not the responsibility of Samsung Electronics and not included in compensation for the damage.

System Settings (Continued)

System Time Setting

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin - S####t System environment setting User management User authentication management Data backup & reforestation Event historic management System environment setting MNS settings Tracking 1 DMS network information IP 102.948.0.100 DHCP Subset mask 356.256.256.0 Basic gateway 192.168.0.1 DNS server 0.085 Edit Save System time YYYY-MM-DD HH-MM-SS 2022 - 2 - 27 1 : 1 : 10 Edit Save 2 4

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.
2 Click [Edit] from system time setting.
3 Enter system time(year/month/day/hour/minute/second).

◆ You can enter only numbers.
◆ Year: You can enter from 1980 to 2035.
◆ Month: You can enter from 1 to 12.
◆ Day: You can enter from 1 to 31.
◆ Hour: You can enter from 0 to 23.
◆ Minute: You can enter from 0 to 59.
◆ Second: You can enter from 0 to 59.

4 Click [Save] after setting is completed.

This information will be modified. Do you want to proceed?

5 Click [OK] when "This information will be modified. Do you want to proceed?" message window appears.

6 "Reading data from DMS2. Please wait." message appears and saving is completed. Then, system environment setting screen appears again with all items are disabled.

Note Time on the screen shows DMS2 setting time.

Selecting the Language

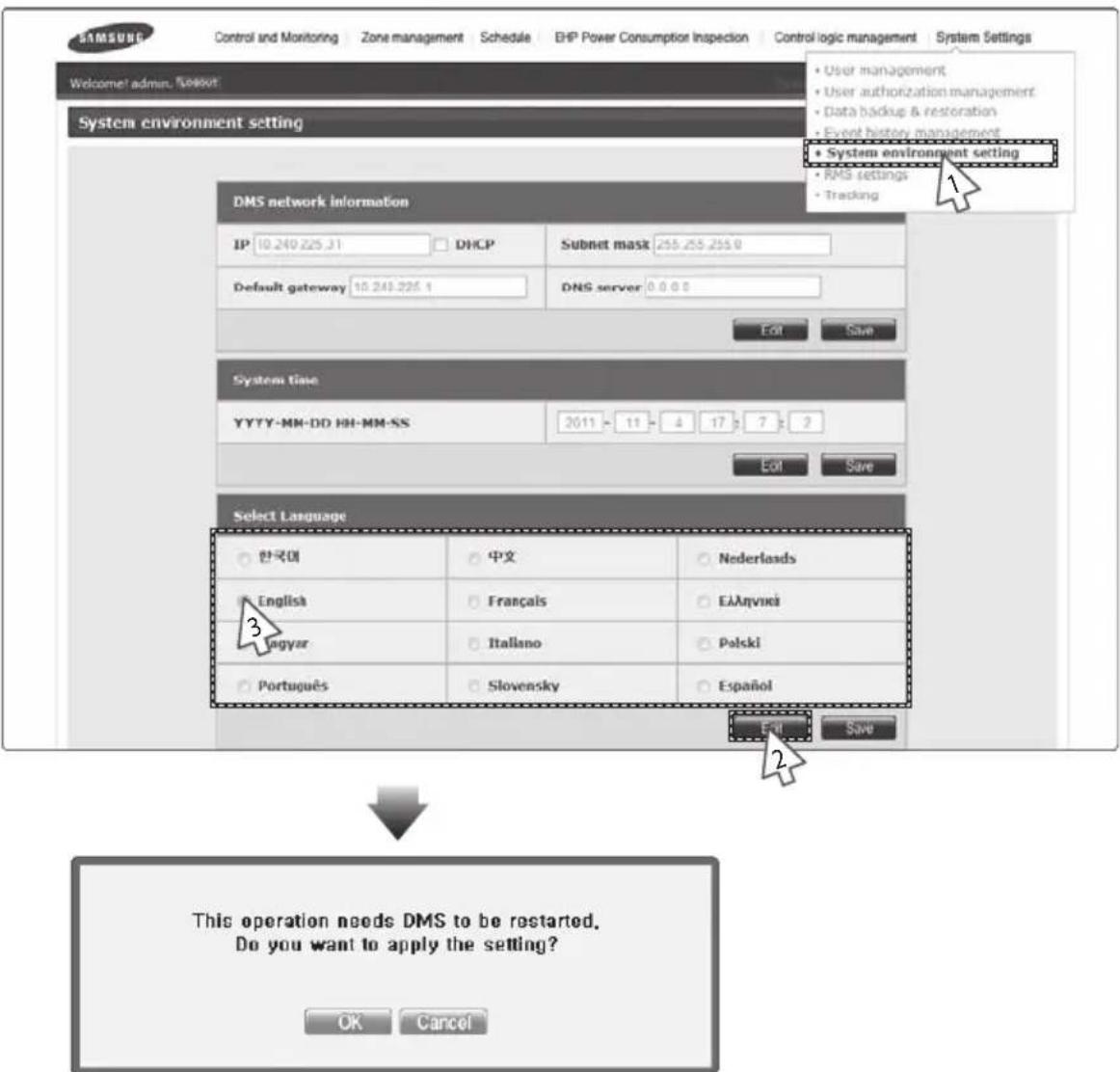

SAMSUNG Control and Monitoring Zone management Schedule BHP Power Consumption Inspection Control logic management System Settings Welcome admin. Select System environment setting User management User authorization management Data backup & restoration Event history management System environment setting RMS settings Tracking DMS network information IP 10.240.225.31 DHCP Subnet mask 255.255.255.9 Default gateway 10.240.225.1 DNS server: 0.0.0.0 Edit Save System Time YYYY-MM-DD HH-MM-SS 2011 - 11 - 4 17 7 2 Edit Save Select Language 한국대 中文 Nederlands English Français Еллгvikи Легyar Italiano Polski Português Slovensky Español OK Cancel This operation needs DMS to be restarted. Do you want to apply the setting? OK Cancel

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.

2 Click [Edit] from language selection.

3 Select a language you want then click [Save].

4 Click [OK] when "This operation needs DMS to be restarted. Do you want to apply the setting?" message appears.

◆ Click [OK] and current web browser will be closed. DMS2 will restart and it may take approximately 1 minute.

DMS2 Name Setting

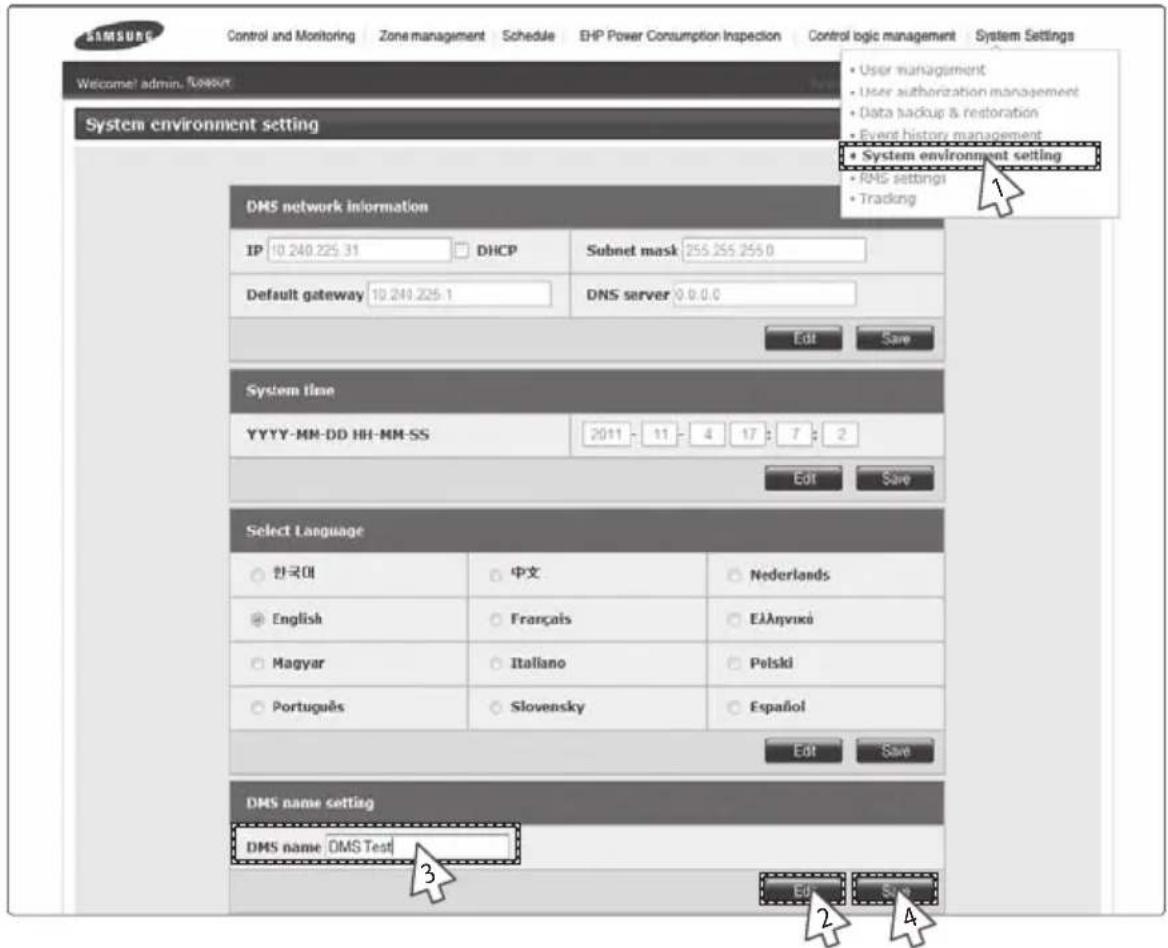

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Forward System environment setting User management User authorization management Data backup & restoration Event history management System environment setting DNS settings Tracking IP 10 240.225.31 DHCP Subnet mask 255.255.255.0 Default gateway 10 240.225.1 DNS server 0.0.0.0 Edit Save System time YYYY-MM-DD HH-MM-SS 2011 - 11 - 4 17 : 7 : 2 Edit Save Select Language 한국대 中文 Nederlands English Français Ελληνικό Magyar Italiano Polski Português Slovensky Español Edit Save DNS name setting DNS name DMS Test 3 Edit Save 2 4

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.
2 Click [Edit] from DMS2 name setting.
3 Enter name of DMS2 when DMS2 name field enabled.

You can use maximum 30 letters including English alphabets and special symbols.
When DMS2 name is set, the name will be displayed on the top title bar of web browser.

4 Click [Save] after setting is completed.

System Settings (Continued)

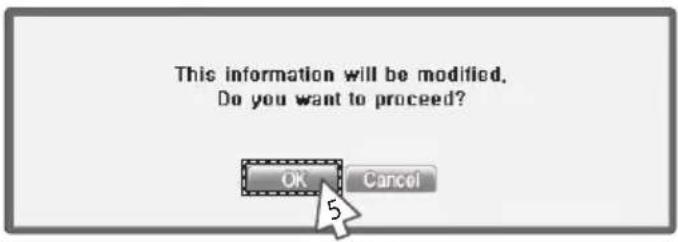

This information will be modified. Do you want to proceed? OK Cancel

5 Click [OK] when "This information will be modified. Do you want to proceed?" message appears.

6 "Reading data from DMS2. Please wait." message appears and saving is completed. Then, system environment setting screen appears again with all items are disabled.

◆ You can check new DMS2 name on the title bar of web browser.

Note Name of the DMS2 is set to blank as factory default.

Error Mail Forwarding Setting

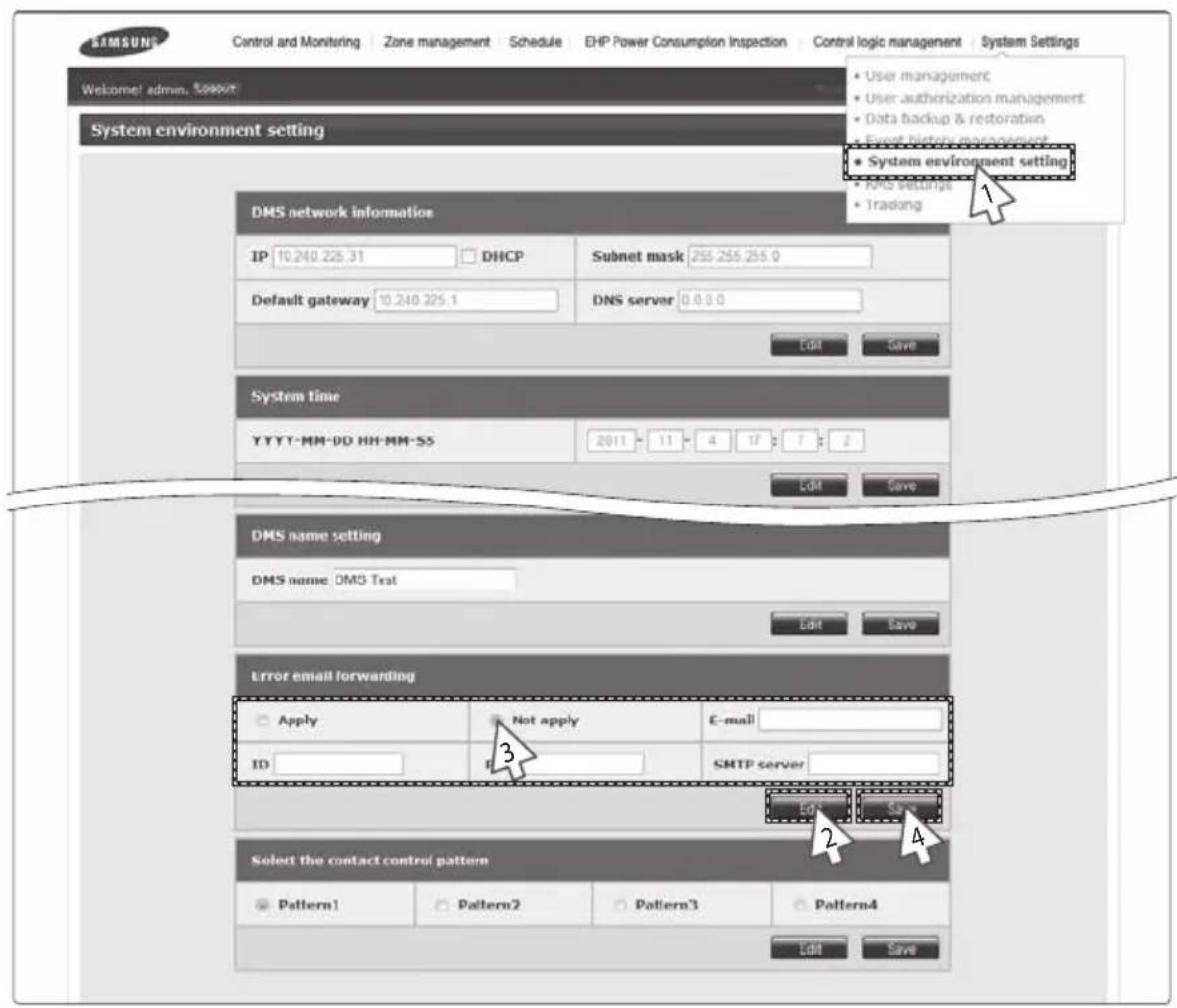

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. SAMSUNG System environment setting User management User authorization management Data backup & restoration Event history management System environment setting DNS settings Trading DMS network information IP 10.240.226.31 DHCP Subnet mask 255.255.255.0 Default gateway 10.240.225.1 DNS server 0.0.0.0 Edit Save System time YYYY-MM-DD HH-MM-SS 2011 11 4 17 7 2 Edit Save DMS name setting DMS name: DMS Test Edit Save Error email forwarding Apply Not apply E-mail ID SMTP server Edit Save Select the contact control pattern Pattern1 Pattern2 Pattern3 Pattern4 Edit Save

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.
2 Click [Edit] from error mail forwarding setting.
3 Set all the items as the value you want when all items fields are enabled.

◆ If you select 'Apply', you should input e-mail address, SMTP server ID, password, and SMTP server address.
◆ If you select 'Not apply', E-mail, ID, PW and SMTP server items will not affect on the setting.

4 Click [Save] after setting is completed.

System Settings (Continued)

This information will be modified, Do you want to proceed? OK Cancel

5 Click [OK] when "This information will be modified. Do you want to proceed?" message appears.
6 "Reading data from DMS2. Please wait." message appears and saving is completed. Then, system environment setting screen appears again with all items are disabled.

Note ◆ In factory setting, 'Not apply' is checked and item fields(E-mail, ID, PW, SMTP) are blank.

◆ E-mail forwarding function cannot deal with the server using encryption algorithm such as SSH, SSL, S/MIME. Use the function to the mail server which uses e-mail address and password based on text transmission method.

Contact Control Pattern Selection

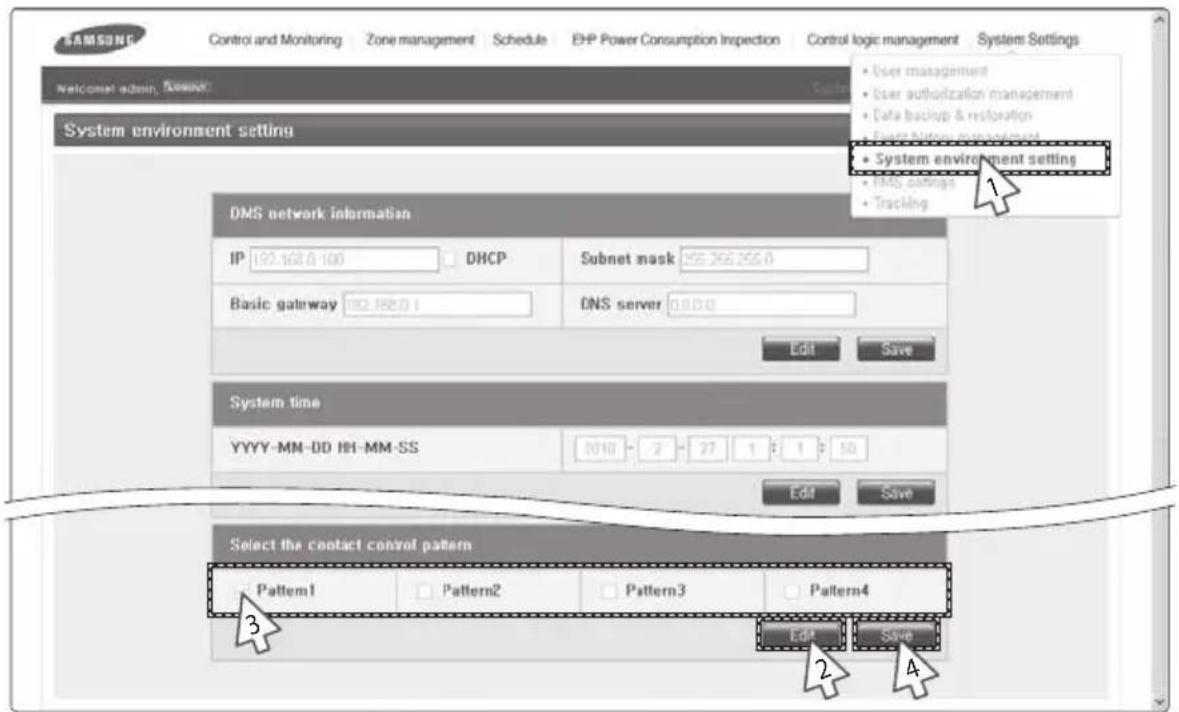

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Newer System environment setting User management User authorization management Data backup & restoration System Environment setting System environment setting DMS network information IP 192.168.0.100 DHCP Subnet mask 355.355.355.0 Basic gateway 192.168.0.1 DNS server 0.0.0.0 Edit Save System time YYYY-MM-DD HH-MM-SS 2010 - 2 - 27 1 : 1 : 50 Edit Save Select the contact control pattern Pattern1 Pattern2 Pattern3 Pattern4 Edit Save 3 2 4

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.
2 Click [Edit] from contact point pattern selection window.
3 Select the pattern you want to check.

◆ Pattern 1[No external input]: No operation will be made when inputting contact control signal.
◆ Pattern 2[Level(Emergency stop)]: Commands that stop all operation of indoor unit and disable remote control when inputting contact control signal. In level emergency stop status, it will not be controlled even if the command is from upper controller.
◆ Pattern 3[Level(Operation/Stop)]: Level signal input timing. It changes operation/stop status of all indoor units.
◆ Pattern 4[pulse (Operation/Stop, Disable/Enable)]: Pulse signal. It changes operation/stop status of all indoor units.

4 Click [Save] after setting is completed.

System Settings (Continued)

This information will be modified. Do you want to proceed? OK Cancel

5 Click [OK] when "This information will be modified. Do you want to proceed?" message appears.
6 "Reading data from DMS2. Please wait." message appears and saving is completed. Afterwards, system environment setting screen appears again with all items are disabled.

If at least one of indoor unit is turned on, contact point output port 1 generates contact point signal.

◆ If there is breakdown, contact point output port 2 generates contact point signal.

Note ◆ Pattern 1 is set as factory setting of contact control pattern.

◆ Contact output

• When indoor unit is in operation, DMS2 which executed tracking successfully outputs signal through DO Ch1.
• If there is unsolven breakdown in DMS2, signal will be output through DO Ch2. You can check it through check indicator on DMS2.

For extension, DMS2 has 10 DI/DO ports. Contact control and output function are assigned to Ch1 and Ch2. Ch3\~Ch10 will be assigned to additional functions.

For proper contact control, connect using Ch1 and Ch2.

Setting Control and Monitoring

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.

2 Click [Edit] when Control and Monitoring screen appears.

3 Check the 'Decimal point control' if you want to use the function.

If the box is not checked, temperature will be adjusted by 1 °C(1 °F) in all indoor units even if they support decimal point control.

4 Click [Save] when the setting is completed.

Setting Enable public IP

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.

2 Click [Edit] on Enable public IP section.

3 Select whether to use Public IP or not.

When you select 'Enable', you must register the Public IP of PCs or network devices to access DMS2 from the PCs or network devices.

4 Click [Save].

Setting Public IP of upper controller

1 Click [System Settings] → [System environment setting] when DMS2 web page menu screen appears.

2 Click [Edit] on Public IP of upper controller section.

3 Register the Public IP of PCs or network devices to access DMS2 from the PCs or network devices.

◆ Select 'Apply' after entering the Public IP to access DMS2.

4 Click [Save].

System Settings (Continued)

Downloading user manual

1 Click [System Settings] → [User manual] when DMS2 web page menu screen appears.

- You can download the user manual.

RMS Service Usage Setting

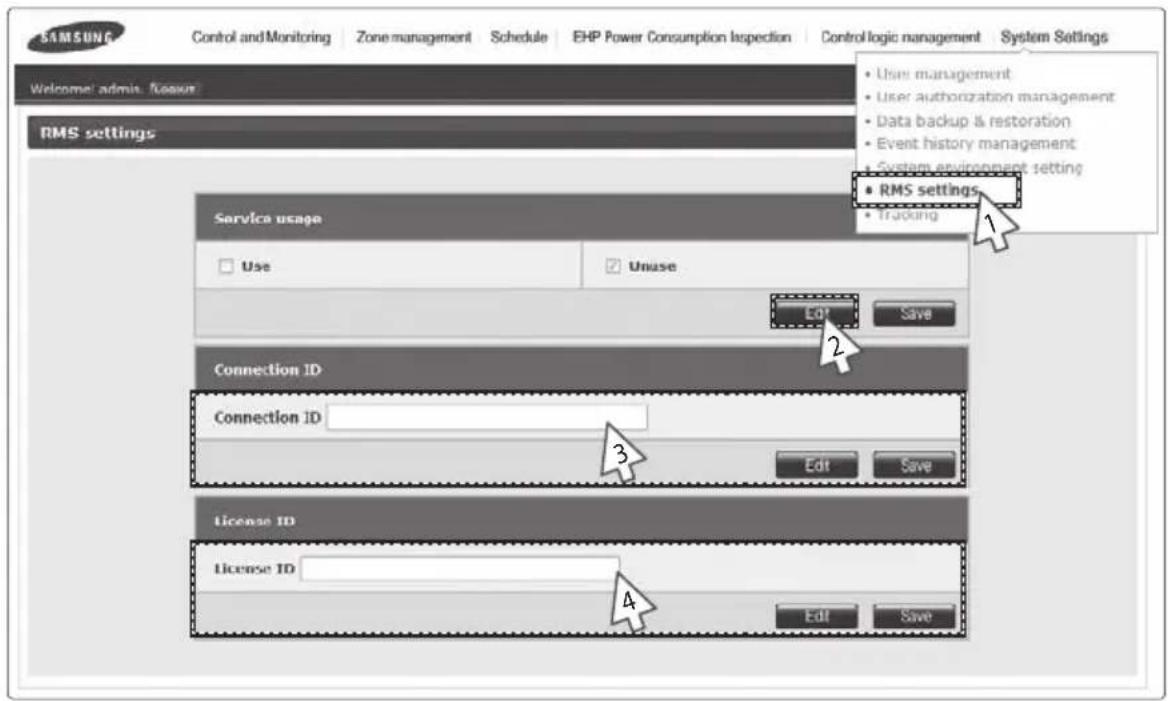

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. flossur RMS settings • User management • User authorization management • Data backup & restoration • Event history management • System environment setting • RMS settings • Tracing Service usage Use Unuse Edit Save Connection ID Connection ID Edit Save License ID License ID Edit Save

1 Click [System Settings] → [RMS settings] when DMS2 web page menu screen appears.
※ RMS is a Remote Management Service of a system air conditioner
2 Click [Edit] on Service usage section to select whether or not to use the RMS. - Select either 'Use' or 'Unuse'

When 'Use' is selected, enter the Connection ID and the License ID as instructed in step 3 and 4.
When 'Use' is selected, DNS server address must be set on the DMS network information section of the [System Settings] → [System Environment setting] menu.
When 'Unuse' is selected, Connection ID and the License ID setting is not necessary. (Skip to step 5)

3 Enter the Connection ID.

* Connection ID is required to classify the DMS in the RMS server.

◆ Click [Edit] and enter the Connection ID.
◆ If the connection ID was not assigned, add the DMS of the corresponding site on the RMS web page and get a connection ID.

4 Enter the License ID.

* To use the RMS service, license ID must be entered.

◆ Click [Edit] and enter the License ID.

System Settings (Continued)

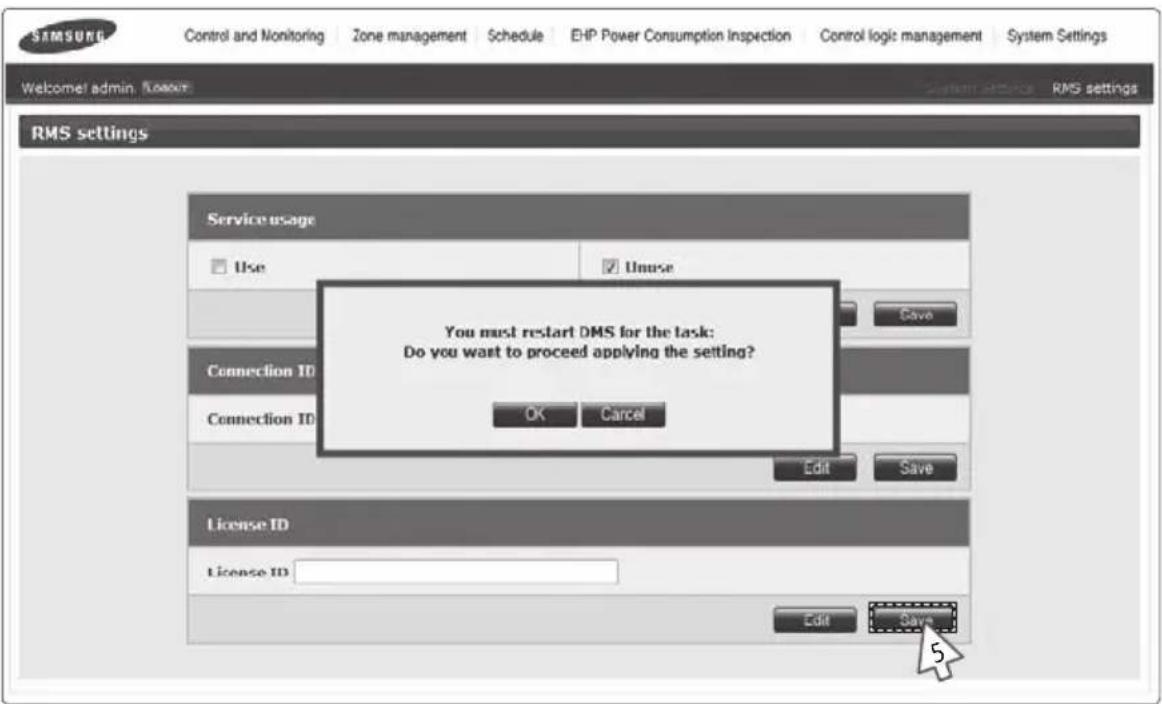

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. Storeer RMS settings Service usage Use Unuse Save Connection ID Connection ID OK Cancel Edit Save License ID License ID Edit Save 5

5 Click [Save] when setting is complete.

◆ "You must restart DMS for the task: Do you want to proceed applying the setting?" message will appear. Click [OK], then DMS2 will restart and the changed settings will be applied.

System Setting Initialization

192.168.0.100

06:12:13(AM)

1. Press [Menu], [▲], [▼] or [Set] on LCD if IP and current time are displayed on LCD screen.

◆ Main menu screen appears.
◆ Initialization is not possible in the screen which time information is displayed.

MAIN MENU

1.IP Config

1. Press [Menu] → [▼] → [▲] → [▼] → [Menu] buttons in order in main menu screen.

◆ Caution will be displayed on LCD Display.

Are you sure?

YES:Set, NO:Menu

1. Initialize DMS2 by clicking [Set] when caution phrase appears.

◆ If you press [Menu] button, it will turn back to main menu without initialization.

CAUTION

When initializing system setting, all saved data in DMS2 will be deleted.

After initialization, saved data and IP address will be same as factory setting.

System Settings (Continued)

Tracking

◆ What is tracking?

Tracking is an operation that finds devices which are connected to DMS2.

Through tracking operation, devices which are connected to DMS2 can recognize if they are connecting to DMS2.

To supervise and control system air conditioner using DMS2, tracking should be done first.

◆ Things you can do through tracking

Checking the number of devices installed, setting communication mode by channel, DVM tracking, Renaming is possible through tracking.

◆ Execute tracking

(1) Connect DVM device

- Connect the device to COM1\~COM5.

(2) Set communication mode by channel.

- Set proper communication mode which fits to the devices connected in step (1).

- Be careful that if communication mode is not properly set, the device will not be found through tracking.

(3) Execute tracking - Execute DVM tracking.

- DVM tracking is an operation that finds system air conditioner devices such as indoor/outdoor unit, watt-hour meter.

(4) Name setting for each device.

- Name setting for each device is a function that sets the name of connected devices. Set the name which shows installation location of the device.

◆ Communication mode setting by channel

Roles

• It records what devices are connected to COM1\~ COM5 of DMS2.
• Through tracking, DMS2 searches proper devices which fits to user's setting.
• Select proper communication mode which fits to connected device.

What is communication mode?

• Interface module, centralized controller, SIM/PIM can be connected to DMS2.
• DMS2 can use only set form of device for each COM port.
• Communicational devices by communication mode is as follows.

- Interface module mode : Interface module, SIM/PIM

- Centralized controller mode: Centralized controller, SIM/PIM

Communication Mode Setting by Channel

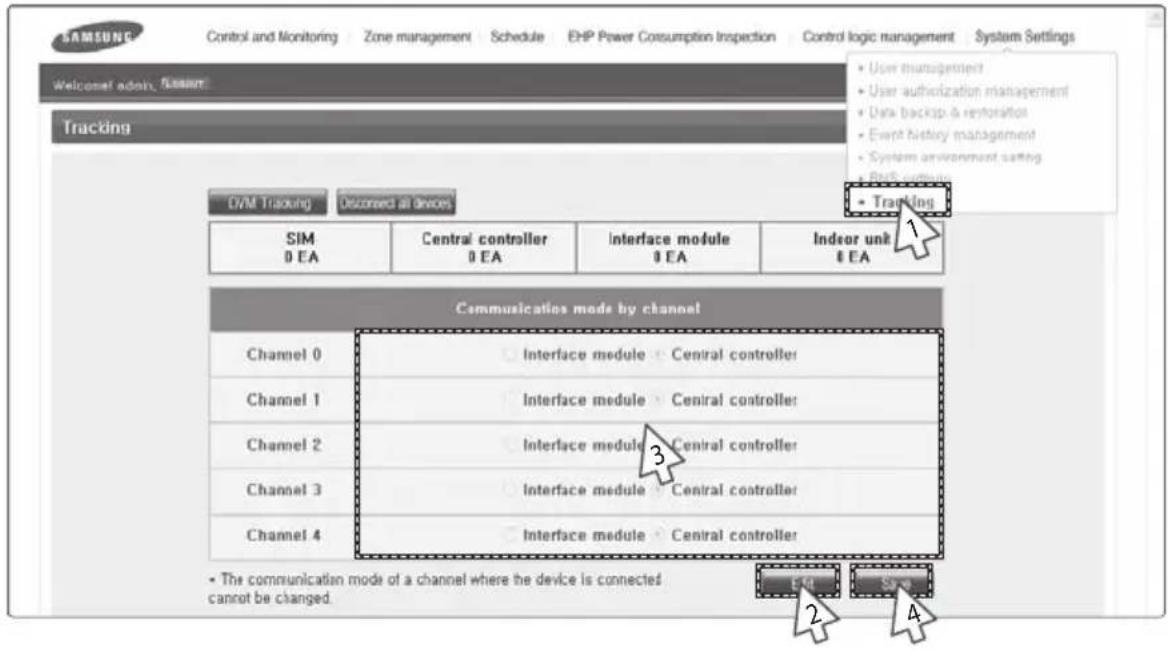

SAMSUNG Control and Monitoring Zone management Schedule PHP Power Consumption Inspection Control logic management System Settings Welcome admin. Service Tracking • User management • User authorization management • Data backup & restoration • Event history management • System environment setting • PaaS system • Tracking DVM Tracking Disconnected all devices SIM 0 EA Central controller 0 EA Interface module 0 EA Indoor unit 0 EA 1 Communications mode by channel Channel 0 Interface module Central controller Channel 1 Interface module Central controller Channel 2 Interface module Central controller Channel 3 Interface module Central controller Channel 4 Interface module Central controller • The communication mode of a channel where the device is connected cannot be changed. 50 60 70 80 90 100 110 120 130 140

1 Click [System Settings] → [Tracking] when DMS2 web page menu screen appears.
2 Click [Edit] from communication mode by channel setting.

◆ [Edit] will change to [Cancel].
Selection buttons are enabled. However, the channels which have searched device maintains its selection button disabled.

3 When each channel is enabled, check the communication mode you want to set by channel.

• You cannot change the communication mode of channel which has currently connected device.
  When setting communication mode of interface module, tracking, monitoring and controlling for SIM/PIM will be set to be possible.
  When setting communication mode of centralized controller, tracking, monitoring and controlling for centralized controller and SIM/PIM will be set to be possible.

4 Click [Save] after setting is completed.

◆ "Reading data from DMS2. Please wait." message appears and saving is completed. Then, tracking page with disabled items will be displayed again.
◆ If you click [Cancel], check boxes will be disabled and [Cancel] will change to [Edit].

System Settings (Continued)

DVM Tracking

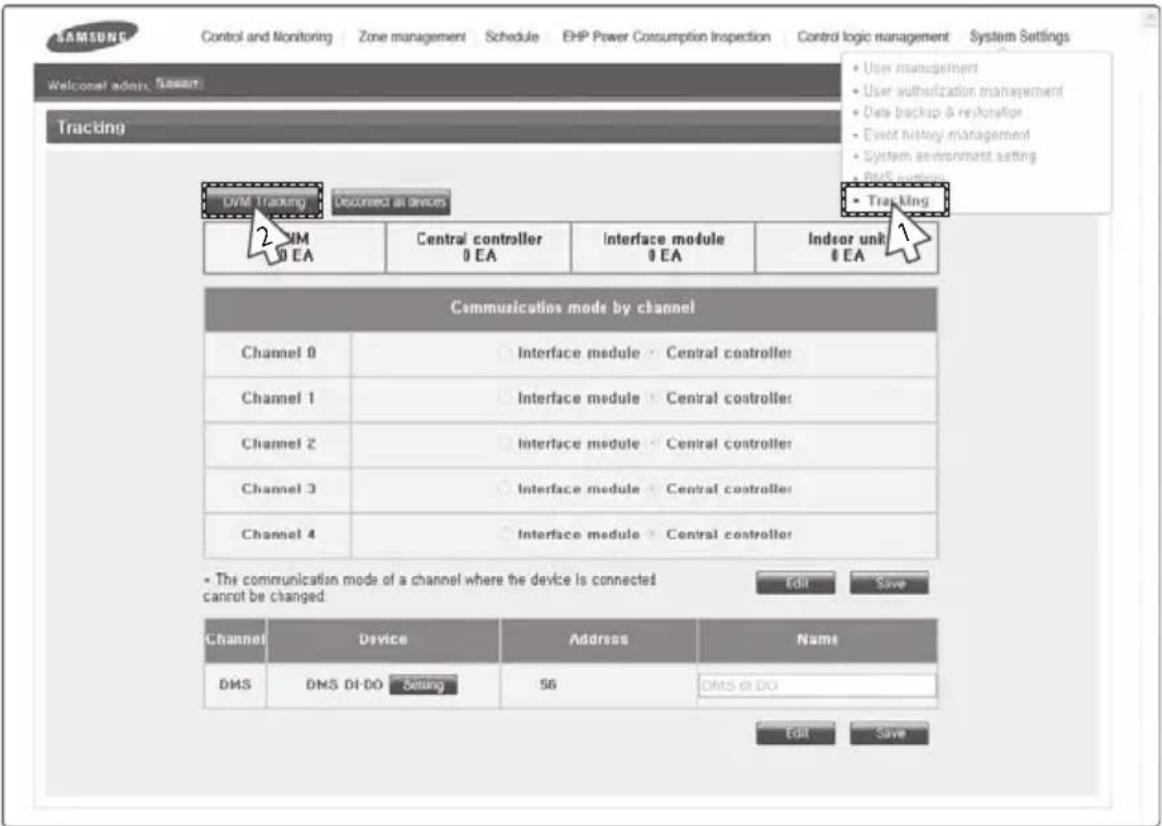

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin: Status Tracking DVM Tracking Detected at devices User management User authorization management Data backup & restoration Event history management System environment setting BMS settings Tracking 2 DIM 0 EA Central controller 0 EA interface module 0 EA Indoor unit 0 EA 1 Communications mode by channel Channel 0 Interface module > Central controller Channel 1 Interface module > Central controller Channel 2 Interface module > Central controller Channel 3 Interface module > Central controller Channel 4 Interface module > Central controller The communication mode of a channel where the device is connected cannot be changed. Edit Save Channel Device Address Name DMS DNS DI DO Setting 56 DMS DI DO Edit Save

1 Click [System Settings] → [Tracking] when DMS2 web page menu screen appears.
2 Click [DVM Tracking].

Some functions available on DMS2 web page may not be functional at BACnet Gateway and LonWorks Gateway. For detailed function, refer to the installation manual or contact Samsung Electronics.

Admin password OK Cancel 3 When tracking command is executed, the system configuration is initialized. If the tracking result does not match the actual installation information, serious errors may occur in the features such as power distribution. Check if the installation information is identical to the tracking result. Click "Cancel" to cancel tracking,or "OK" to execute tracking. OK Cancel

3 Enter administrator's password and then click [OK].

4 Tracking information window pops up. Check and click [OK] to continue.

◆ Execute tracking depending on the communication mode set by communication mode setting by channel.

(1) For the channel which is set to interface module communication mode, DMS2 executes tracking of interface module and SIM/PIM.
(2) For the channel which is set to centralized controller communication mode, DMS2 executes tracking of centralized controller and SIM/PIM.

5 "Tracking is in progress. Please wait." message appears.

◆ Tracking takes from tens of seconds to 3 minutes. However, it may vary depending on the number of installed controllers.

System Settings (Continued)

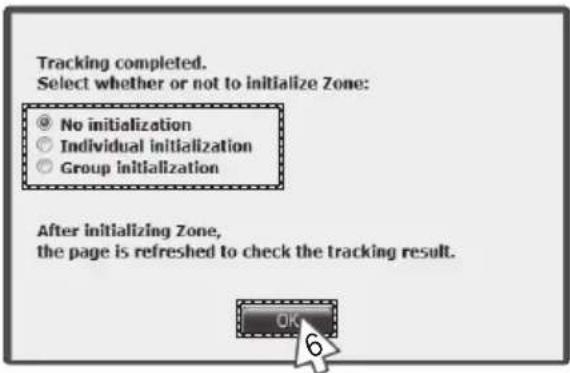

Tracking completed. Select whether or not to initialize Zone: No initialization Individual initialization Group Initialization After initializing Zone, the page is refreshed to check the tracking result.

6 Tracking completed message will appear.

Select Zone initialization mode you want and click [OK].

◆ Not initialize: No zone information initialization will be made.
◆ Initialize individually: Initialize zone information as individual mode.
◆ Initialize by group: Initialize zone information as group mode.

Note

If tracking is executed successfully when interface module is set for communication mode setting by channel, virtual centralized controller will be assigned to each channel.
For about centralized controller's address, address 11\~15 will be assigned to channel 0\~4 for each.
If there is interface module communication channel, tracking for centralized controller will be restricted for the centralized controller which are in the range of 0\~10.
◆ If there is no searched interface module, centralized controller, and SIM/PIM, it is regarded as DVM tracking failure.
◆ If there are devices which have same address, first searched device will be registered only.
◆ The number of centralized controller doesn't contain the number of virtual centralized controller which is used in interface module communication.

◆ Group initialization will not be applied to DVM Hydro unit.

◆ Total number of indoor units includes general indoor units, ERV, AHU, MINI AHU, ERV PLUS, Fresh ducts and DVM Hydro units.

◆ If you execute tracking, system setting will be initialized.
If tracking result does not match with actual installation information, there can be critical error in additional functions such as power distribution.
◆ Make sure that tracking information matches to actual installation information after tracking.

Disconnect All Devices

◆ Function

Initialize searched device status in DMS2. Using this function, monitoring and controlling of all the connected devices to DMS2 will be stopped.

When is it needed?

• Con nect searched device to the other channel and execute tracking. If the other device is searched in the channel you want to use, use 'Disconnect all devices' function.
• If you use this function, DMS2 device connection status will be initialized.

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin, Ncnnn Tracking DVM Tracking Disperse device SIM 1 EA Central controller 3 EA Interface module 3 EA Indoor unit 18 EA Tracking 2 1 Communications mode by channel Channel 0 Interface module - Central controller Channel 1 Interface module - Central controller Channel 2 Interface module - Central controller Channel 3 Interface module - Central controller Channel 4 Interface module - Central controller The communication mode of a channel where the device is connected cannot be changed. Edit Save

1 Click [System Settings] → [Tracking] when DMS2 web page menu screen appears.
2 Click [Disconnect all devices].

System Settings (Continued)

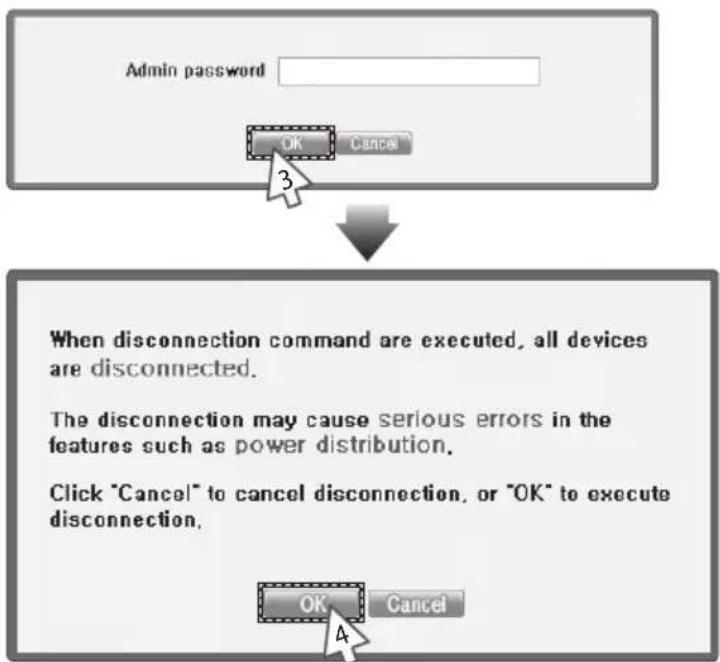

3 Enter administrator's password and then click [OK].
4 Disconnect all devices information window pops up. Check it and click [OK] to continue.
5 "Reading data from DMS2. Please wait." message appears. After completing disconnect all devices operation, page will be refreshed.

Note ◆ After executing disconnect all devices function, device search status of DMS2 will be initialized.

You should execute tracking again after using disconnect all devices function.

Renaming the Device

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin: SAMSUNG Tracking DVM Tracking Discount all devices SIM 1 EA Central controller 3 EA Interface module 3 EA Indoor unit 10 EA Communication mode by channel Channel 0 Interface module Central controller Channel 1 Interface module Central controller Channel 2 Interface module Central controller Channel 3 Interface module Central controller Channel 4 Interface module Central controller The communication mode of a channel where the device is connected cannot be changed. Channel Device Address Name CH0 Central controller 00 CAUR-00 Interface module 00,00 Indoor unit 00,00,00 (00) 00 00 00 Indoor unit 00,00,01 (01) 00 00 01 DMS DNS DI DO Setting 56 DMS DI DO Edit Save

1 Click [System Settings] → [Tracking] when DMS2 web page menu screen appears.

2 Click [Edit] on the bottom of tracking device list.

◆ [Edit] will change to [Cancel].

System Settings (Continued)

SAMSUNG Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings Welcome admin. R#m# Trucking • User management • User authorization management • Data backup & restoration • Event history management • System environment setting • RMS settings - Tracking DVM Tracking Discomed all devices SIM 1 EA Central controller 3 EA Interface module 3 EA Indoor unit 18 EA Communications mode by channel Channel 0 Interface module Central controller Channel 1 Interface module Central controller Channel 2 Interface module Central controller Channel 3 Interface module Central controller Channel 4 Interface module Central controller • The communication mode of a channel where the device is connected cannot be changed. Edit Save Channel Device Address Name CH0 Central controller 00 CATR-00 Interface module 00,00 Indoor unit 00,00,00 (00) 00,00,00 Indoor unit 00,00,01 (01) 00,00,01 DMS DNS DI DO Setting 56 DMS DI DO Edit Save

3 Enter name in the name field.

◆ You cannot use special symbols as device name.

4 Click [Save] after setting is completed.

◆ "Reading data from DMS. Please wait." message appears and saving is completed. Then, tracking page with disabled items will be displayed again.

◆ If you click [Cancel], input fields are disabled and [Cancel] will change to [Edit].

DMS DI·DO Port Setting

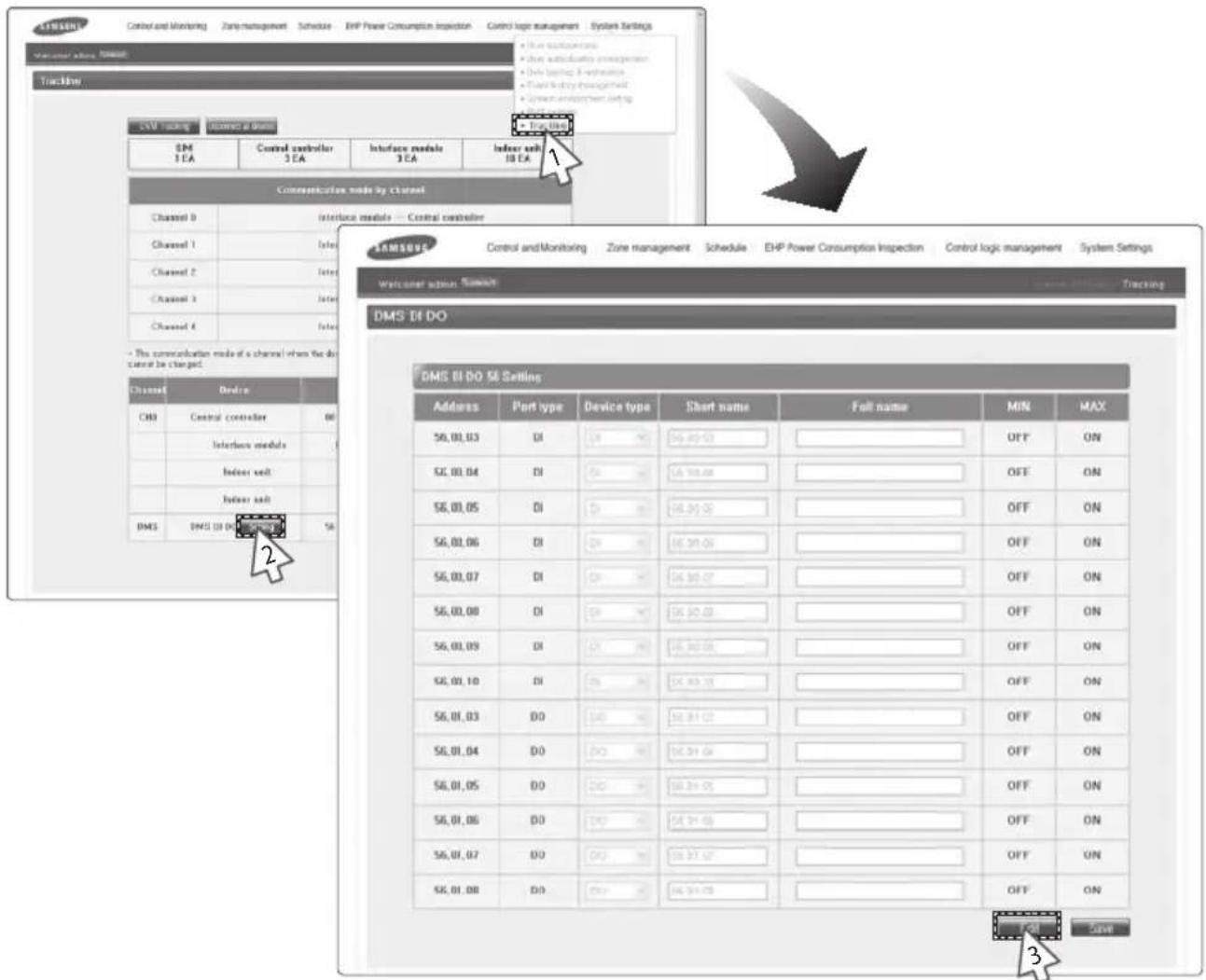

DMS EIF DO DMS EIF DO 56 Setting Address Port type Device type Short name Full name MIN MAX 56.00.03 DI OFF ON 56.00.04 DI OFF ON 56.00.05 DI OFF ON 56.00.06 DI OFF ON 56.00.07 DI OFF ON 56.00.08 DI OFF ON 56.00.09 DI OFF ON 56.00.10 DI OFF ON 56.01.03 DO OFF ON 56.01.04 DO OFF ON 56.01.05 DO OFF ON 56.01.06 DO OFF ON 56.01.07 DO OFF ON 56.01.08 DO OFF ON 2 3

1 Select [System Settings] and then click [Tracking].

2 Click [Setting] which is next to DMS DI•DO of device list.

3 Click [Edit] which is on the bottom of DMS DI•DO setting page.

◆ [Edit] will change to [Cancel].

System Settings (Continued)

JAMSUNG

Control and Monitoring Zone management Schedule EHP Power Consumption Inspection Control logic management System Settings

Welcome admin.

Tracing

DMS DIDO

OMS DI00 56 Setting

Address	Part type	Device type	Short name	Full name	MIN	MAX
56.00.03	DI	DI	56.00.03		OFF	ON
56.00.04	DI	DI	56.00.04		OFF	ON
56.00.05	DI	DI	56.00.05		OFF	ON
56.00.06	DI	DI	56.00.06		OFF	ON
56.00.07	DI	DI	56.00.07		OFF	ON
56.00.08	DI	DI	56.00.08		OFF	ON
56.00.09	DI	DI	56.00.09		OFF	ON
56.00.10	DI	DI	56.00.10		OFF	ON
56.01.03	DO	DO	56.01.03		OFF	ON
56.01.04	DO	DO	56.01.04		OFF	ON
56.01.05	DO	DO	56.01.05		OFF	ON
56.01.06	DO	DO	56.01.06		OFF	ON
56.01.07	DO	DO	56.01.07		OFF	ON
56.01.08	DO	DO	56.01.08		OFF	ON

4 Edit each item when DMS DI•DO selection and input fields are enabled.

◆ Device type : DI or DO
◆ Short name : Input short name of the device.
◆ Full name : Input full name of the device.
◆ Minimum value / Maximum value : MIN value is fixed as OFF and MAX value is fixed as ON.

5 Click [Save].

◆ After the saving is complete, DMS DI•DO setting page with all deactivated items will appear.
If you press [Cancel], web page will refresh and it goes back to the state before the modification.

PIM Setting

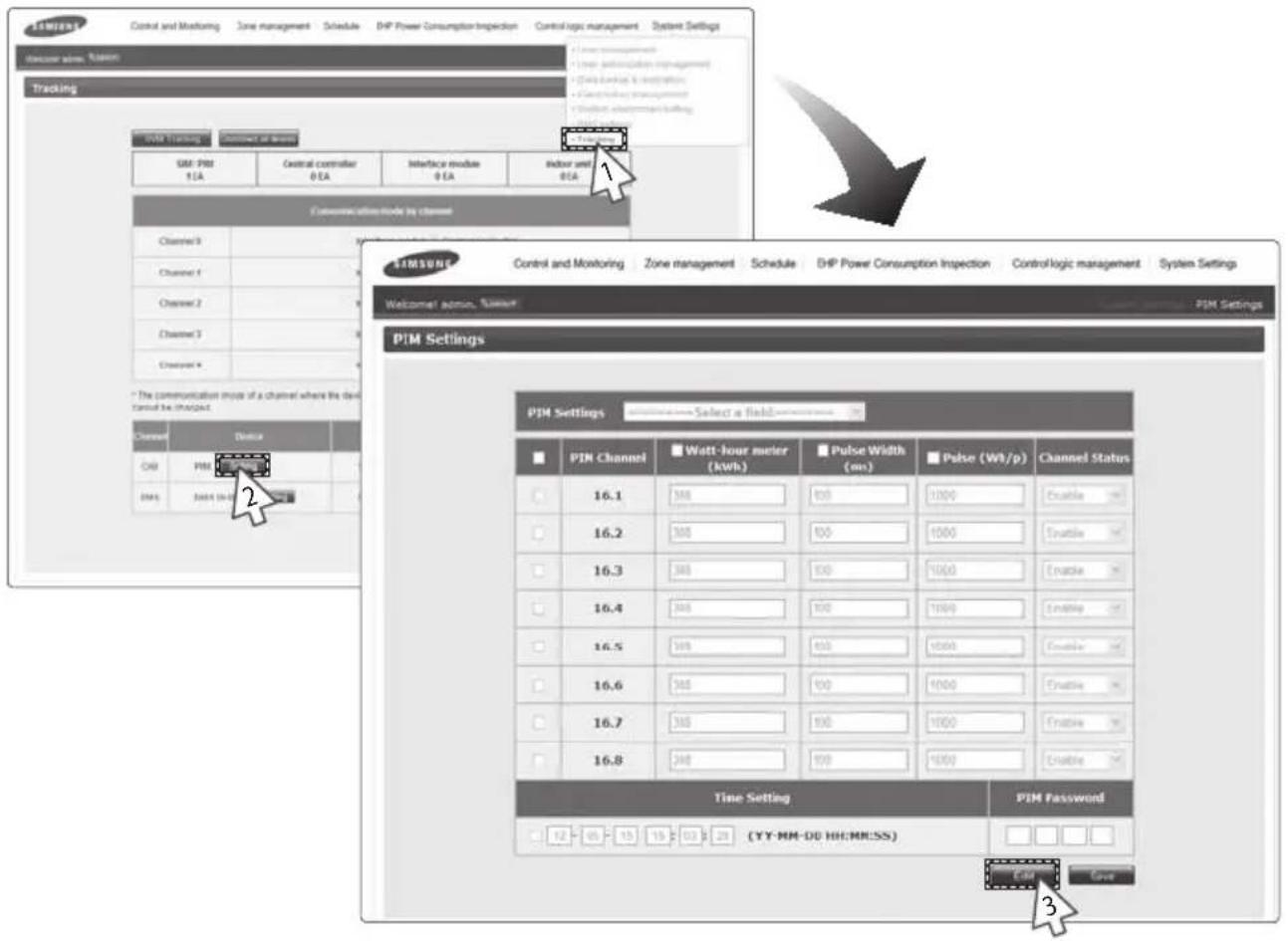

SAMSUNG Control and Monitoring Zone management Schedule DHP Power Consumption Inspection Control logic management System Settings Monitor wire, System Tracking Control and Monitoring Zone management Schedule DHP Power Consumption Inspection Control logic management System Settings GM: PMI 1 EA Central controller 0 EA Interface module 0 EA Indoor unit 0EA Excommunication mode by channel Channel 9 Channel 1 Channel 2 Channel 3 Channel 4 The communication mode of a channel where the device is checked. Channel Device CAB PMI EMS NAME NAME PIM Settings PJM Settings Select a flash- PJM Channel Watt-hour meter (kWh) Pulse Width (mm) Pulse (Wt/p) Channel Status 16.1 348 100 1000 Enable 16.2 348 100 1000 Enable 16.3 348 100 1000 Enable 16.4 348 100 1000 Enable 16.5 348 100 1000 Enable 16.6 348 100 1000 Enable 16.7 348 100 1000 Enable 16.8 348 100 1000 Enable Time Setting PJM Password 12 45 15 16 17 28 (YY-MM-DD HH:MM:SS) Save

1 Click [System Settings] → [Tracking] when DMS2 web page menu screen appears.
2 Click [Setting] which is next to PIM of device list.
◆ Enter administrator's password and then click [OK].
3 Click [Edit] which is on the bottom of PIM setting page. ◆ [Edit] will change to [Cancel].

System Settings (Continued)

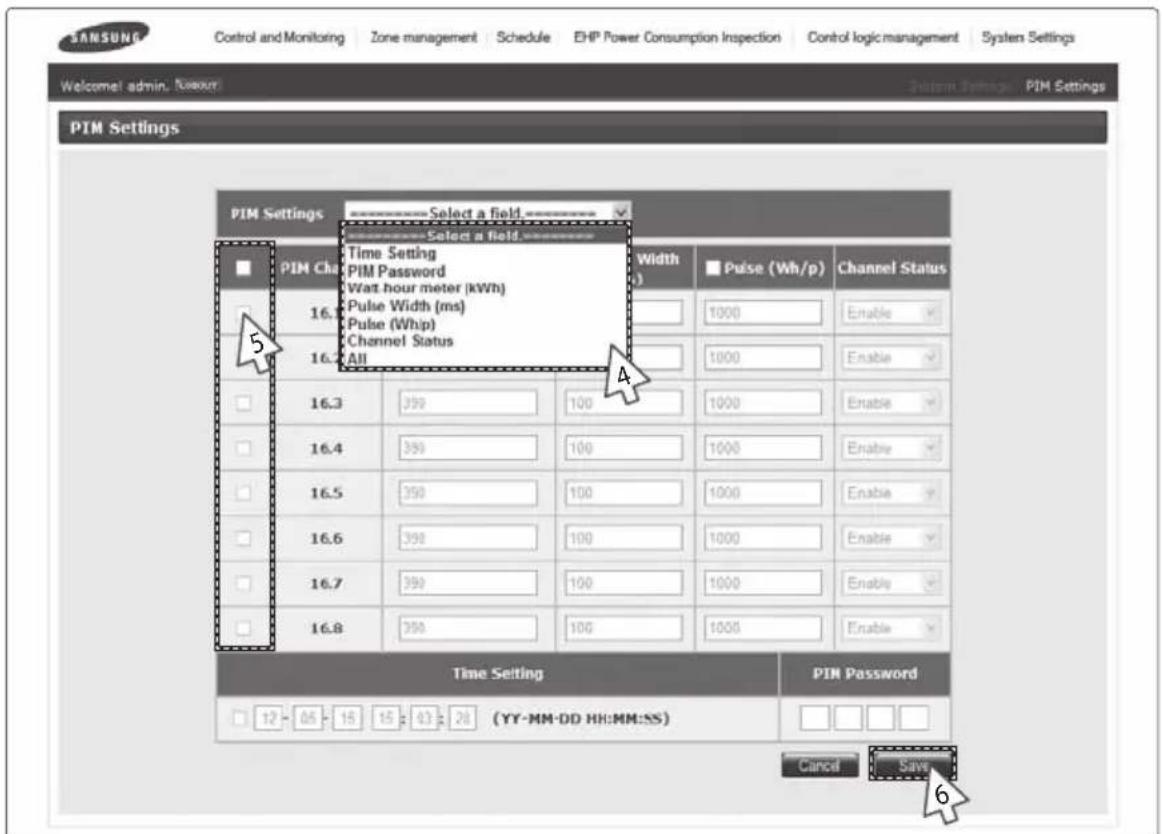

PIM Settings Time Setting PIM Password Wait hour meter (kWh) Pulse Width (ms) Pulse (Whip) Channel Status All 16.3 16.4 16.5 16.6 16.7 16.8 Select a field Width 0 Pulse (Wh/p) Enable Enable Enable Enable Enable Enable Enable Enable Enable Time Setting PIM Password 12 - 05 - 15 15 : 03 : 28 (YY-MM-DD HH:MM:SS) Cancel Save 5 4

4 Select a field and edit each item when input fields are enabled.

Note Each field range

◆ Watt-hour meter: 0\~99999.9(kWh)
◆ Pulse width: 20\~400(ms)
◆ Pulse: 1\~10000(Wh/Pulse)

5 Click the check boxes to select the channel applying for the setting.

6 Click [Save].

◆ If you press [Cancel], web page will refresh and it goes back to the state before the modification.

Check Before using Panel

Using LCD and LCD Button

LCD is mounted on DMS2 for installation and convenience of the user.

◆ You can search menu and change setting using [▲] and [▼] buttons.
◆ If you press and hold [▲] or [▼] button in some menu such as IP setting, the value changes faster.
◆ To go to upper menu or cancel, select [MENU] button.
◆ To go to sub menu, select or save, press [SET] button.
◆ Operates some menus with care because they are related to the proper operation of DMS2 system.
◆ If you do not use DMS2 buttons for long periods of time, set button lock to avoid malfunction.
◆ Manufacturer is not responsible for the damage caused by wrong operation.

Checking Main Menu

192.168.0.100

06:12:13(AM)

1. If IP and current time are displayed on LCD display, press [Menu], [▲], [▼] or [Set] button.

◆ Main menu screen will be displayed.

1. Check menu options by pressing [▲], [▼] buttons.

1 IP Config Network information setting
2 In/Outdoor Checking	Indoor/Outdoor unit information
3 DMS2 Version Checking	DMS2 version
4 DMS2 Time Setting DMS2 time
5 Data Backup Setting data backup
6 Peak Level Checking peak level
7 Error Status Checking error information
8 Password Reset Password reset
9 Button Lock Button lock function
10 Safety Halt Safe end function

Network Information Setting(IP Config)

192.168.0.100 06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU 1.IP Config

1. Select 1.IP Config by pressing [▲] and [▼] buttons, and press [Set] button.

◆ Network setting screen will be displayed.

IP ADDRESS 192.168.0.100

1. Select the item you want by pressing [▲] and [▼] buttons.

◆ You can select from IP address, subnet mask address, gateway address, and DNS server.

SET YOUR IP 192.168.0.79

1. Edit selected network information by pressing [Set] button.

◆ Number to edit will blink.
◆ You can change value by pressing [▲] and [▼] buttons. To move to next number, press [Set] button.
◆ If you press and hold [▲] or [▼] button, the value changes faster.
◆ After setting all the 4-digit number, press [Set] button to save the new settings.
◆ To cancel the setting, press [Menu] button.

Auto Address Setting (DHCP CONFIG)

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU 1.IP Config

1. Select 1.IP Config by pressing [▲] and [▼] buttons, and press [Set] button.

◆Network setting screen will be displayed.

DHCP CONFIG Current disabled

1. Select auto address setting function(DHCP CONFIG) by pressing [▼] button.

◆ Auto address setting function status will be displayed.

Current disabled: Auto address setting function disabled

Current enabled: Auto address setting function enabled

Enable DHCP? YES:Set, NO:Menu

1. Enable/Disable auto address setting function by pressing [Set] button.

◆ If auto address setting function enabled
- You can change it to disabled status by pressing [Set] button.
◆ If auto address setting function disabled
- You can change it to enabled status by pressing [Set] button.
◆ To maintain current status, press [Menu] button.
◆ DHCP function is not available when you use BACnet Gateway function.

Checking Indoor/Outdoor Unit Information

Checking Indoor/Outdoor Unit Information

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

1. In/ Outdoor

2. Select 2.In/Outdoor by pressing [▲] and [▼] buttons.

IN/ OUTDOOR INFO

Indoor:64

1. Press [Set] button.

◆ The number of indoor units connected to DMS2 will be displayed.

IN/ OUTDOOR INFO

Outdoor:6

1. Check outdoor unit information by pressing [▼] button.

◆ The number of outdoor units connected to DMS2 will be displayed.
◆ To check indoor unit information again, press [▲] button.
◆ You can go back to main menu by pressing [Menu] or [Set] button.

Checking DMS2 Version

Checking DMS2 Version

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

1. DMS Version

2. Select 3. DMS2 Version by pressing [▲] and [▼] buttons.

DMS version

2.0

1. Press [Set] button.

◆ Current version of DMS2(DMS2 Version) will be displayed.
◆ You can go back to main menu by pressing [Menu] or [Set] button.

DMS2 Time Setting – Checking and Setting Date

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

1. DMS time

2. Select 4. DMS2 Time by pressing [▲] and [▼] buttons.

◆ Current set date of DMS2 will be displayed.

CURRENT DATE

1983:04:16

1. When 'CURRENT DATE' appears, set current data by pressing [Set] button.

◆ Number to edit blinks.
◆ You can change value by pressing [▲] and [▼] buttons. To move to the next number, press [Set] button.
◆ Press and hold [▲], [▼] buttons to change the number continuously.
◆ Set year, month and day in order, and then press [Set] button to save.
◆ To cancel the setting, press [Menu] button.

DMS2 Time Setting – Checking and Setting Time

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

1. DMS time

2. Select 4. DMS2 Time by pressing [▲] and [▼] buttons.

◆Current set time of DMS2 will be displayed.

CURRENT TIME

16:46:37(PM)

1. Select 'CURRENT TIME' by pressing [▼] button. Then set time by pressing [Set] button.

◆ Current set time of DMS2 will be displayed.
◆ Number to edit blinks.
◆ You can change value by pressing [▲] and [▼] buttons. To move to the next number, press [Set] button.
◆ Press and hold [▲], [▼] buttons to change the number continuously.
◆ Set hour, minute and second in order, then press [Set] button to save.
◆ To cancel the setting, press [Menu] button.

Data Backup Setting

Data Backup

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

5. Data Backup

1. Select 5.Data Backup by pressing [▲] and [▼] buttons.

◆ DMS BACKUP MENU will appear.

DMS BACKUP MENU data backup

1. Check if data backup is selected. Then press [Set] button.

◆ You can start backup by pressing [Set] button again.
◆ If data backup is completed successfully, screen below will be displayed.

Backup Completed

◆ To cancel backup, press [Menu] button.

Are you sure?

YES:Set, NO:Menu

CAUTION

◆ Before executing data backup, check if SD card is inserted.
◆ Unlock forbidding writing tab of SD card.

Data Restore

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

5. Data Backup

1. Select 5.Data Backup by pressing [▲] and [▼] buttons, and then press [Set] button.

◆ DMS BACKUP MENU will appear.

DMS BACKUP MENU data restore

1. Check if data restore is selected by pressing [▲] button. Then select a file you want to restore by pressing [▲] and [▼] buttons.

◆ Before executing data restore, check if SD card is inserted.

Filename:

20090725.dms

1. Start data restore by pressing [Set] button.

◆ To cancel restoration, press [Menu] button.

When controlling DMS2 using panel, data restore is only possible in SD card. You can execute PC restoration through web browser.

◆ Unlock forbidding writing tab of SD card.

Checking Error Information

Checking Error Information

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

1. Error Status

2. Select 7. Error Status by pressing [▲] and [▼] buttons, and then press [Set] button.

◆ Unsolved error info will be displayed.

ERROR INFO > CAU-01 611

1. You can check the other error information by pressing [▲] and [▼] buttons.

◆ You can check the next error information by pressing [▼]. To check the previous error, press [▲] button.

Reset Password

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

1. Password Reset

2. Select 8.Password Reset by pressing [▲] and [▼] buttons, and then press [Set] button.

RESET PASSWORD

WAITING......

1. When "RESET PASSWORD WAITING......" message appears, press [Menu] and [Set] buttons at the same time.

◆ Button lock function will be released and confirm message for password initialization will appear.
◆ If there is no button input for around 3 seconds, password reset will be failed and it will return to main menu.

Are you sure?

YES:Set, NO:Menu

1. Reset password by pressing [Set] button.

◆ Password will be reset as factory setting. (ac0530)
◆ To cancel reset password, press [Menu] button.

Button Lock

Button Lock

192.168.0.100 06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU 9. Button Lock

1. Select 9. Button Lock by pressing [▲] and [▼] buttons.

Are you sure? YES:Set, NO:Menu

1. Press [Set] button.

◆ Confirm message will appear.

BUTTON LOCKED 07:30:21(AM)

1. Press [Set] button.

◆ LCD operating button will be locked.
◆ To cancel button lock, press [Menu] button.

1. To release button lock function, press [Menu] and [Set] button at the same time for 5 seconds.

Safety Halt

192.168.0.100

06:12:13(AM)

1. Check main menus by pressing [Menu], [▲], [▼] or [Set] button.

MAIN MENU

1. Safety Halt

2. Select 10. Safety Halt by pressing [▲] and [▼] buttons.

Are you sure?

YES:Set, NO:Menu

1. Press [Set] button.

◆ Confirm message will appear.

Now sleeping..

See you again

1. Press [Set] button.

◆ All functions of DMS2 will stop and 'Now Sleeping...' phrase will appear.

Note

◆ Safety halt function is an operation that saves data of DMS2 and then stops service safely. Use this function when relocation and system restart are needed.
This function will not transfer DMS2 power to OFF status. Therefore, when the screen above appears, press [RESET] button on the bottom of DMS2 or remove power cable. If you do not press [RESET] button or remove power after 10 minutes passed, DMS2 will restart automatically.

Troubleshooting

Problem Check	Solution	____
DMS2 is not working. Is there an electricity failure? Check if the power is connected to the other interface module besides centralized controller.Then try again.
Are the adapter and power cable connected?		Check the connection of adapter and power cable. Then try again.
Access to web page is not available.	Is Microsoft Silverlight installed?	Check the installation status.Refer to Start → Control Panel → Add/Remove Programs.
	Is Microsoft Silverlight installed properly?	Microsoft Silverlight 2.0 or later version should be installed to access web page.
Access to web page from outside is not available.	Are the network settings set?	Contact network manager first.
	Isn't the fire wall set?
Monitoring of installed centralized controller is not working.	Are the communication cables of DMS2(C1, C2) properly connected?	Connect DMS2 communication cables (C1, C2) properly.Be careful to deal with the RS485 communication cable because it has polarity.
Power distribution is not executed properly.	Isn't the power of DMS2 disconnected?	To use power distribution function properly,the power of DMS2 should be connected all the time.
I forgot DMS2 IP. Press	[Menu] button from the main menu and "1. IP Config" will appear.Then press [Set] button.	The factory setting of DMS2 IP address is 192.168.0.100
Indoor unit turned on or off automatically.	Isn't the schedule control in operation?	Depending on the schedule control, indoor unit can be turned on or off automatically.It is normal operation.
	Is DMS2 system time different from current time?	Set the DMS2 system time according to current time.
DI(Digital Input) external contact point function is not working.	Is the external circuit constituted?	Check if the external circuit is constituted.
	If the contact control pattern of DMS2 set to 1?	Set the pattern which fits to the control pattern you want.
Tracking is not working.	Does it show 'Tracking Fail' and is there no indoor unit?	It means tracking failure.Execute tracking again.

Specifications

Items Description
Exterior
Size 240 X 255 X 64.8 mm (Width X Length X Height)
Weight 1.48 Kg
Power	Source DC ADAPTOR
	INPUT Voltage 100-240V 50/60Hz 1.0A
	OUTPUT Voltage 12V 3A
Interface	RS-485 5 Channels
	Ethernet 10/100Mbps 1 Port
	SD CARD Option (Purchase SD card separately)
	DI 12V Digital Input 10 Channels
	DO 12V Digital Output 10 Channels
	Etc. Serial Port, Reset Button
Display 16-Character X 2-Line Character LCD
Input method Menu/Up/Down/Set 4-Tact Button

License

Open Source Announcement

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/DMS2/seq/0 leads to the download page of the source code made available and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

QR code image containing encoded data, no visible human-readable text

Memo

SAMSUNG
