Safety Precautions

The following safety precautions must be taken when using your air conditioner.

WARNING

Risk of electric shock. • Can cause injury or death. • Disconnect all remote electric power supplies before servicing, installing or cleaning. • This must be done by the manufacturer or its service agent or a similar qualified person in order to avoid a hazard.

DURING OPERATION

◆ Users of this product are cautioned not to attempt repair of this product at their own discretion. Instead, they are requested to directly contact a designated service center or the outlet at which the product was purchased.
◆ Never spill any kind of liquid into the unit. Should this happen, unplug or main switch off the unit and contact an authorized service center.
◆ Do not insert anything between the air outlet blades because the inner fan may be damaged and could cause injury. Keep children away from the unit.
◆ Do not place any obstacles in front of the unit.
◆ Do not spray liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your air conditioner and contact your installation specialist.
◆ Make sure that the unit is correctly ventilated at all times: Do not place clothing or other materials over it.
◆ If the wireless remote control will not be used for a long time, remove the batteries. (If applicable)
◆ When using a wireless remote control, the distance should not be more than 7 meters from the air conditioner. (If applicable)

DISPOSING OF THE UNIT

◆ Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely for recycling reasons.
When you need to dispose of the unit, consult your dealer. If pipes are removed incorrectly, refrigerant may blow out and come into contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environments.
◆ Please recycle or dispose of the packaging material for this product in an environmentally responsible manner.

OTHERS

◆ Never store or ship the air conditioner upside down or sideways to avoid damage to the compressor.

◆ The appliance is not intended for use by young children or infirm persons without supervision: Young children should be supervised to ensure that they do not play with the appliance.

◆ Max current is measured according to IEC standard for safety and current is measured according to ISO standard for energy efficiency.

Contents

◆ PREPARING YOUR AIR CONDITIONER

■ Safety Precautions 2
■ View of the Unit 4
■ Wireless Remote Controller-Buttons and Display ..... 6
■ Wired Remote Controller-Buttons and Display 7
■ Centralized Controller 8
■ Function Controller 9

◆ RECOMMENDATIONS FOR USE

■ Operating Recommendations ..... 10
■ Temperature and Humidity Ranges ..... 10
■ Cleaning Your Air Conditioner 11
■ Bio-Pure Filter Installation (optional) 13
■ Solving Common Problems .... 14

◆ TECHNICAL SPECIFICATIONS

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

View of the Unit

The figures are shown in this instruction may differ from yours depending on the model.

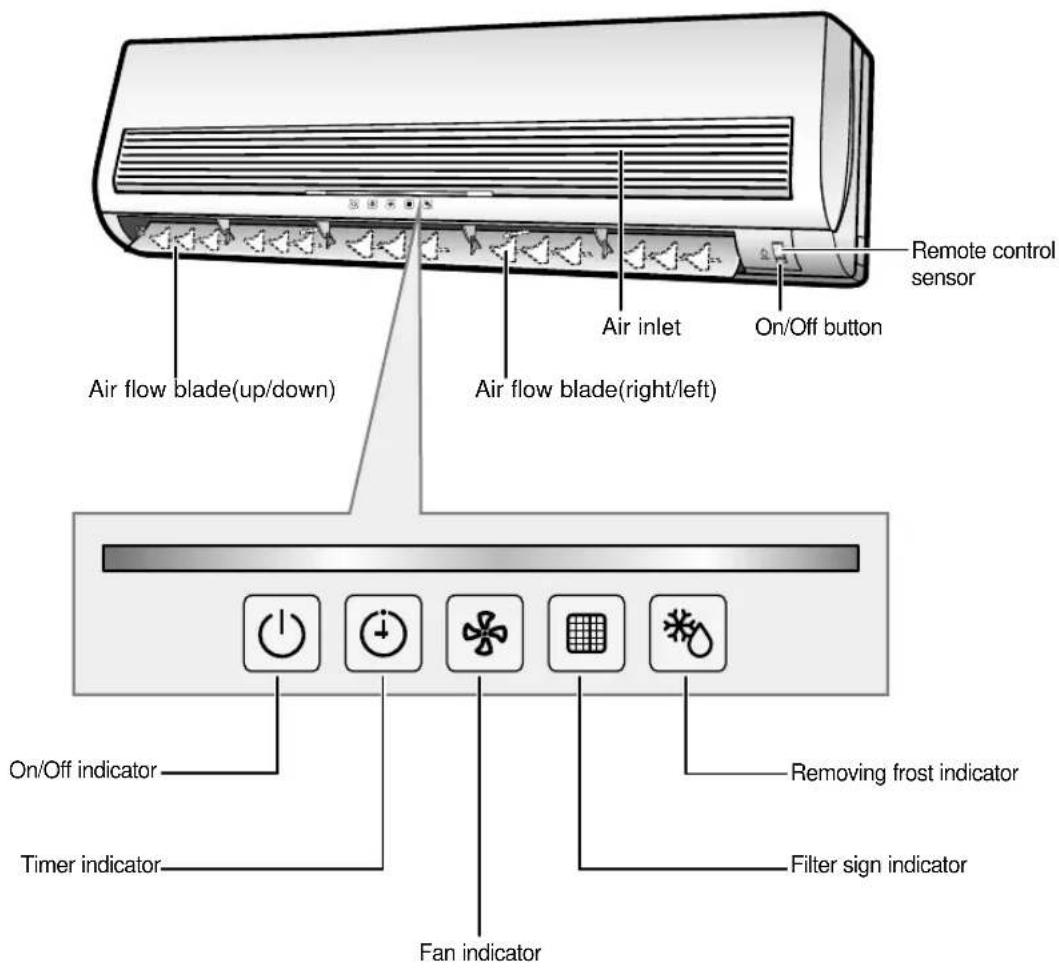

Indoor Unit

Remote control sensor Air inlet On/Off button Air flow blade(up/down) Air flow blade(right/left) On/Off indicator Timer indicator Fan indicator Removing frost indicator Filter sign indicator

Outdoor Unit

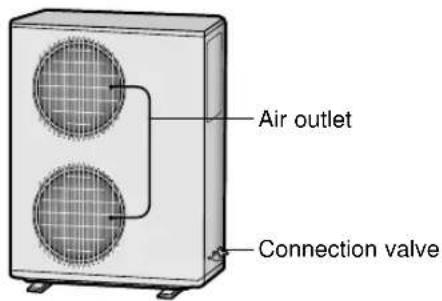

TYPE A

Air outlet Connection valve

TYPE B

Air outlet Connection valve

Outdoor Unit

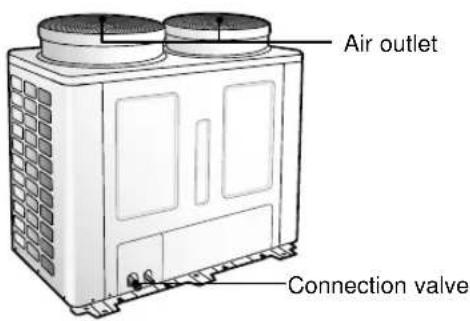

TYPE C

Air outlet Connection valve

TYPE D

Air outlet Connection valve

Outdoor Unit

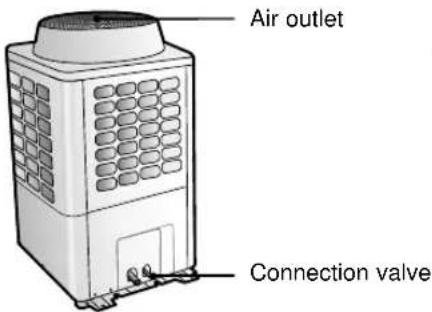

TYPE E

Air outlet Connection valve

TYPE F

Air outlet Connection valve

Note

If the heat exchanger in the outdoor unit gets dusty, cooling efficiency may fall. So clean the heat exchanger with water when it becomes dirty. However, be careful when you wash the surface of the heat exchanger because it is very sharp.

Wireless Remote Controller-Buttons and Display

The wireless remote controller is an optional accessory.

To use the wireless remote controller, refer to an appropriate manual.

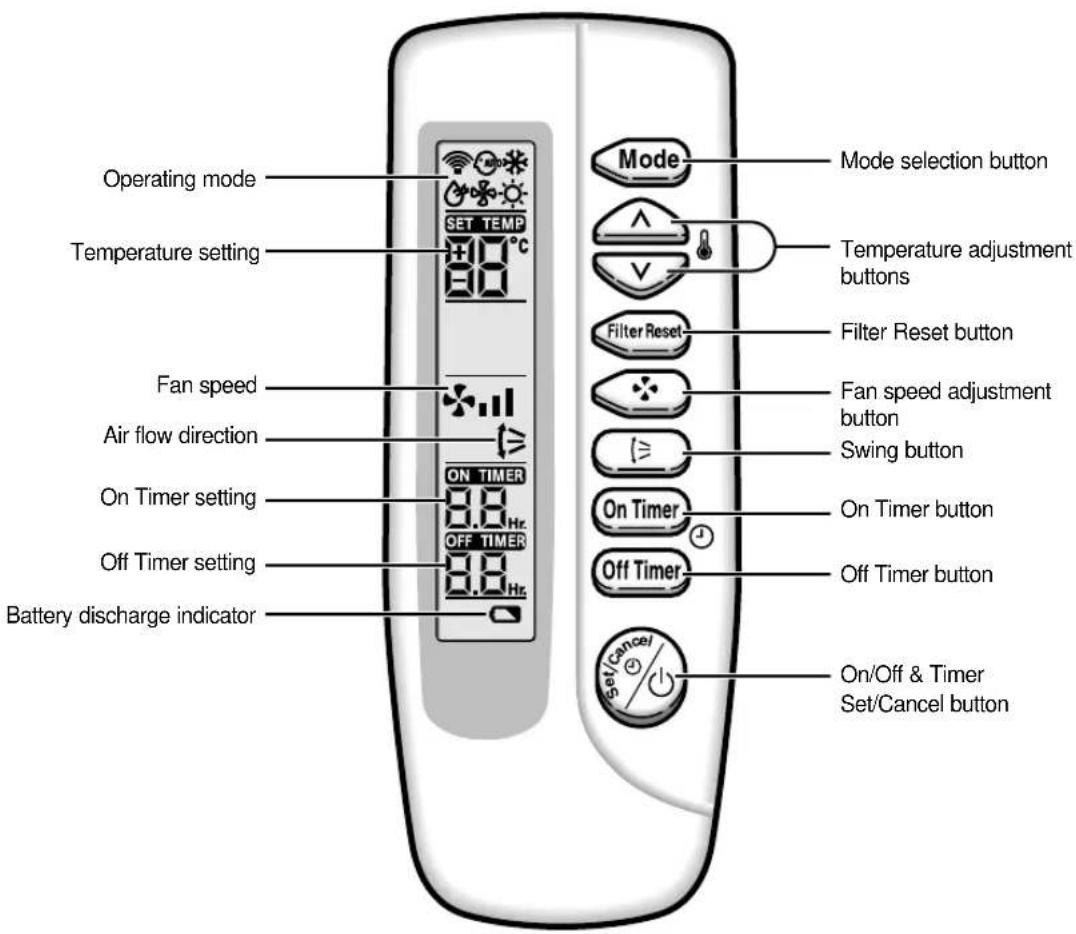

Operating mode Temperature setting Fan speed Air flow direction On Timer setting Off Timer setting Battery discharge indicator SET TEMP 3.0°C ON TIMER OFF TIMER 8.8 Hr. 8.8 Hs Mode selection button Temperature adjustment buttons Filter Reset button Fan speed adjustment button Swing button On Timer button Off Timer button On/Off & Timer Set/Cancel button

◆ After cleaning the air filter, press the filter reset button.
◆ The heating mode( ⚙) is not selected in cooling only models.

Wired Remote Controller-Buttons and Display

The wired remote controller is an optional accessory and it is installed on the wall. To use the wired remote controller, refer to an appropriate manual.

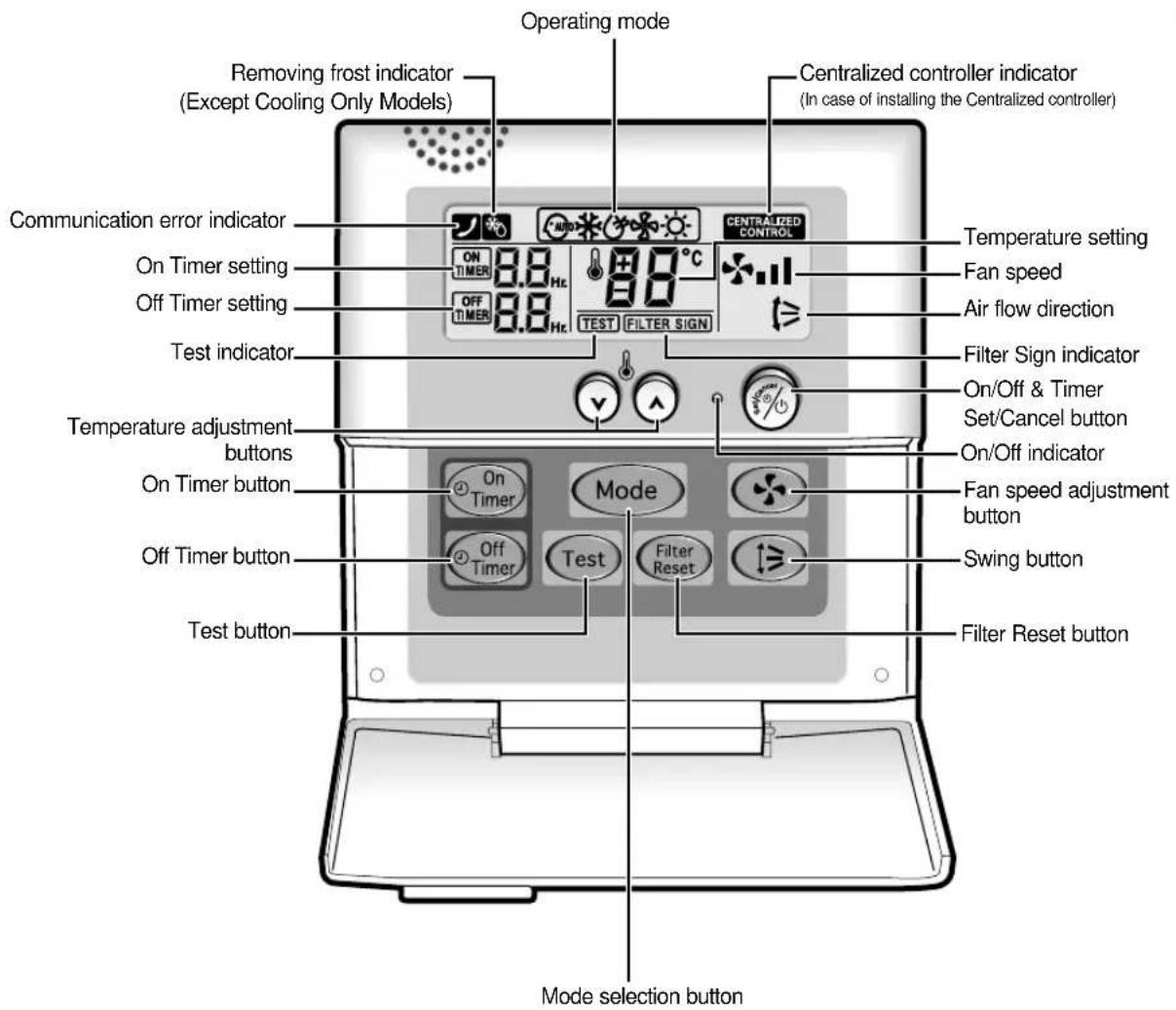

Operating mode Removing frost indicator (Except Cooling Only Models) Centralized controller indicator (In case of installing the Centralized controller) Communication error indicator On Timer setting Off Timer setting Test indicator Temperature setting Fan speed Air flow direction Test indicator Filter Sign indicator On/Off & Timer Set/Cancel button Temperature adjustment buttons On Timer button On/Off indicator Fan speed adjustment button Off Timer button Test button Switch button Filter Reset button Mode selection button

图2-2

◆ Test button is for your installation specialist. You must NOT press it.
◆ After cleaning the air filter, press the filter reset button. Then the wired remote controller will display the FILTER SIGN indicator when the time to clean the air filter; refer to page 11 or 12.
◆ The heating mode( ⚙ ) is not selected in cooling only models.

Centralized Controller

The centralized controller is an optional accessory and it is installed on the wall. To use the centralized controller, refer to an appropriate manual.

Front View

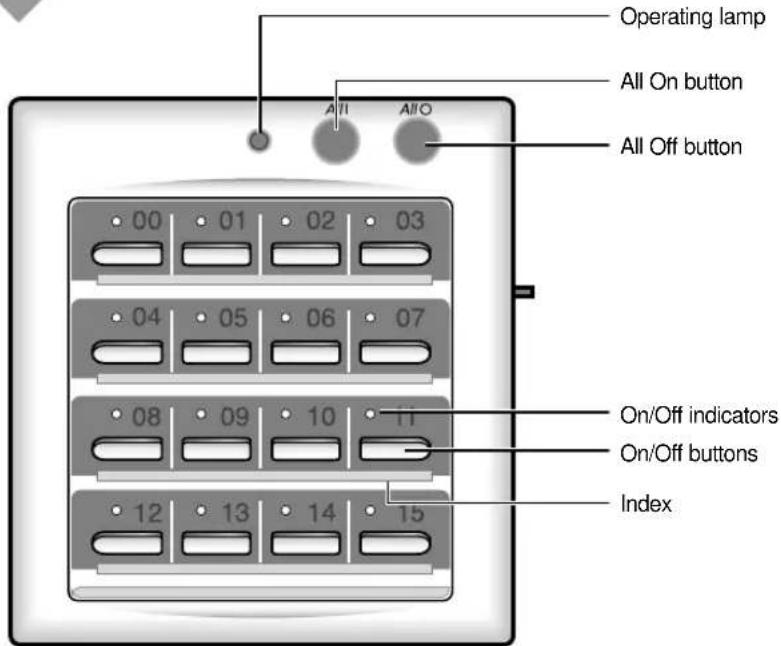

Operating lamp All On button All Off button 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 On/Off indicators On/Off buttons Index

Note
◆ The operating lamp comes on even when only one air conditioner connected to the centralized controller is operating.

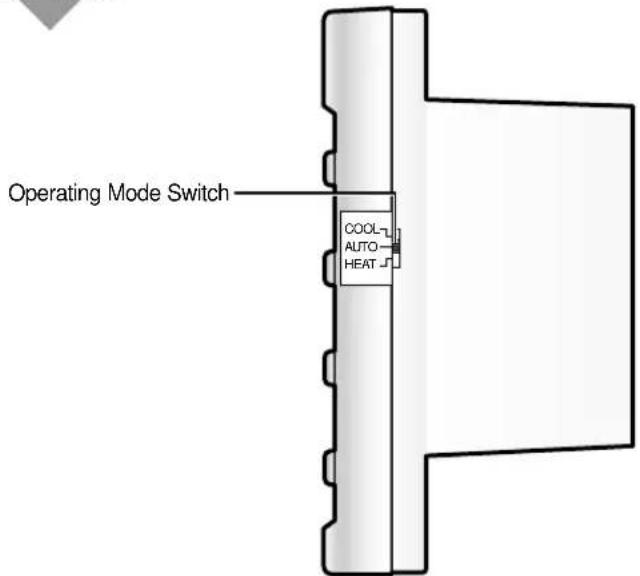

Side View

Operating Mode Switch COOL AUTO HEAT

Note
◆ Choose the appropriate operating mode with the Operating Mode Switch that enables the user to choose between the Cool/Auto/Heat mode.
◆ The heating mode( ⚙) is not selected in cooling only models.

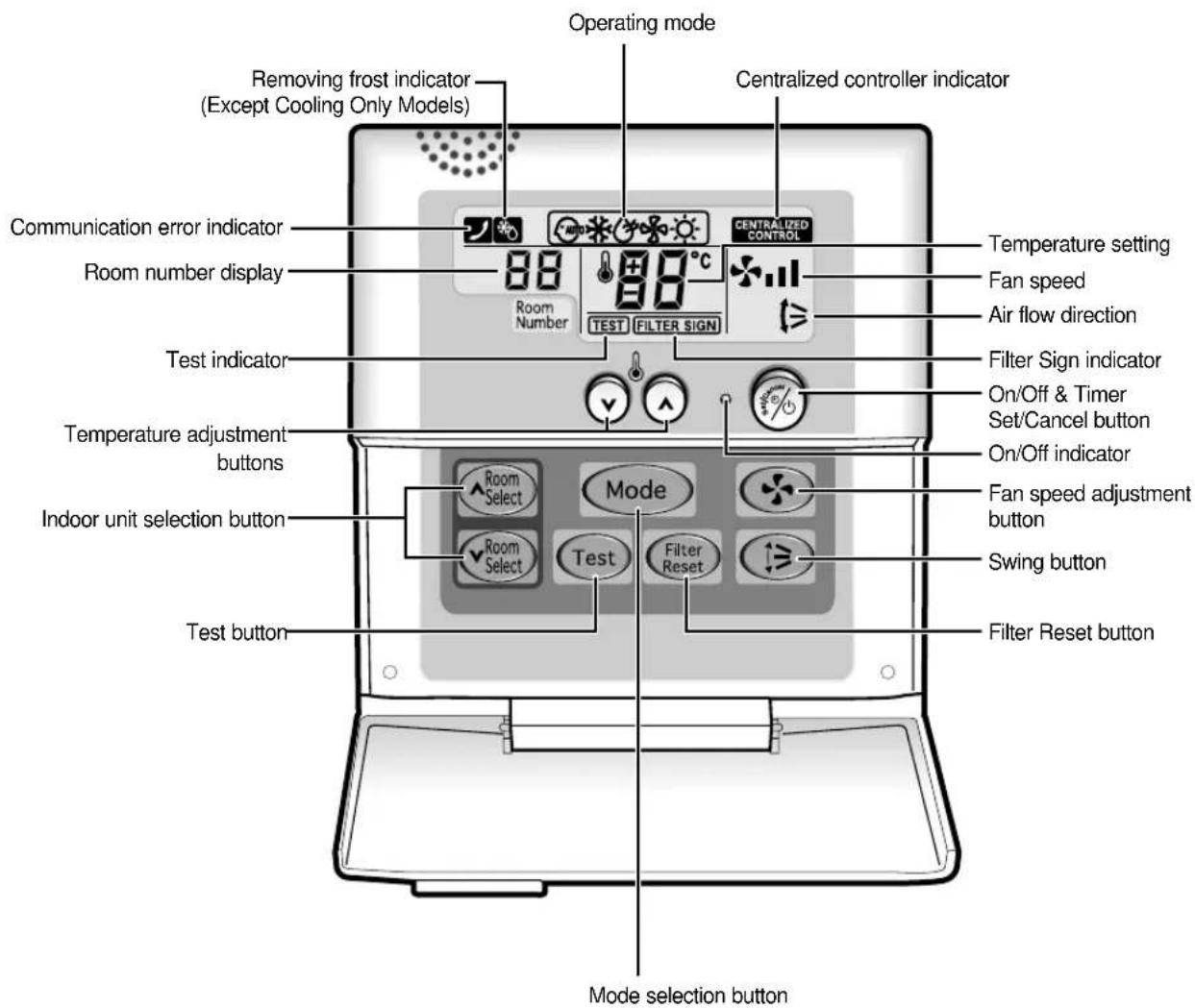

Function Controller

The function controller is an optional accessory and it is installed on the wall. The function controller is an additional controller which is used with the centralized controller. To use the function controller, refer to an appropriate manual.

Operating mode Removing frost indicator (Except Cooling Only Models) Centralized controller indicator Communication error indicator Room number display 88 80°C Room Number TEST FILTER SIGN Test indicator Temperature adjustment buttons Indoor unit selection button Test button Mode selection button Temperature setting Fan speed Air flow direction Filter Sign indicator On/Off & Timer Set/Cancel button On/Off indicator Fan speed adjustment button Swing button Filter Reset button

Note

◆ Test button is for your installation specialist. You must NOT press it.
◆ After cleaning the air filter, press the filter reset button. Then the wired remote controller will display the FILTER SIGN indicator when the time to clean the air filter.
◆ The heating mode( ⚙) is not selected in cooling only models.

Operating Recommendations

Here are a few recommendations that you should follow when operating your air conditioner.

Topic	Recommendation
Heating performances	The heat pump function of the air conditioner absorbs heat from outside air and brings it indoors. As the temperature of the outside air drops, the heating performance of air conditioner will decrease. If you find that the room is not warm enough, using an additional heating appliance is recommended.
Frost	When outside temperature is low but humidity is high, frost may form on the outdoor unit at HEAT mode.If this happens:◆ The heating operation stops.◆ The defrost mode will be triggered automatically for about 10 minutes.No intervention is required ; after about 10 minutes, the air conditioner operates again normally.
High indoor and outdoor temperatures	If both indoor and outdoor temperatures are high and the air conditioner is running at HEAT mode, the outdoor unit's fan and compressor may stop at times.This is normal ; simply wait until the air conditioner switches on again.
Power failure	If a power failure occurs while the air conditioner is operating, the unit will be switched off. When the power returns, the air conditioner starts up again automatically.

Temperature and Humidity Ranges

The following table indicates the temperature and humidity ranges, within which the air conditioner can be used.

If the air conditioner is used at...	Then...
High temperature	The automatic protection feature may be triggered and the air conditioner stopped.
Low temperature	A water leakage or some other malfunction may happen if the heat exchanger freezes.
High humidity levels	Water may condense on and drip from the surface of the indoor unit if it is used for a long periods.

Mode	Outdoor Temperature Indoor Temperature		Indoor Humidity
Heating	-15°C to 24°C approx.	27°C or less	-
Cooling	-5°C to 43°C approx.	21°C to 32°C approx.	80% or less
Drying	-5°C to 43°C approx.	21°C to 32°C approx.	-

* The standardized temperature for heating is 7°C. If the outdoor temperature drops to 0°C or below, the heating capacity can be reduced depending on the temperature condition.
If the cooling operation is used at over 32^ C(indoor temperature), it does not cool at its full capacity.

Cleaning Your Air Conditioner

**020/026/032/035/040**

To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter.

PORTANT

Before cleaning your air conditioner, ensure that you have switched off the breaker used for the unit.

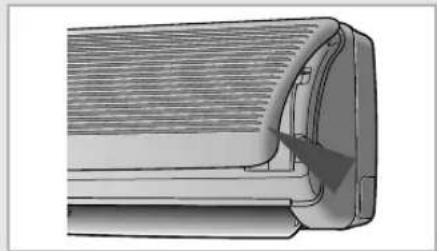

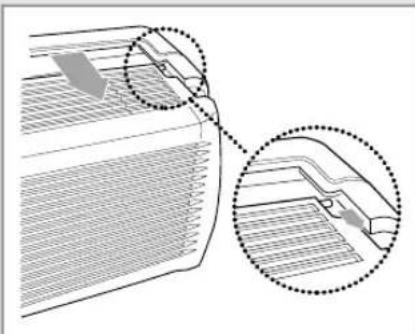

1 Open the front grille by lifting the tabs on the lower right and left sides of the indoor unit.
2 Disassemble the front grille by pulling it forwards.

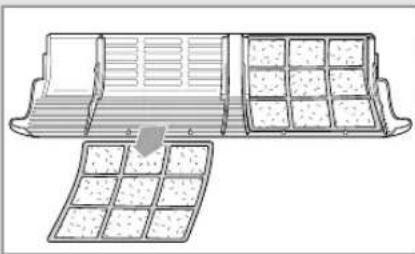

3 Hold the edge of the air filter under the front grille and pull to release them.
4 Remove all dust on the air filters with a vacuum cleaner or brush.
5 Clean the front panel with a damp cloth and mild detergent (do NOT use benzene, solvents or other chemicals).
6 Reassemble the air filters and the front grille.

Notes

If you have not used the air conditioner for a long period of time, set the fan going for three to four hours to dry the inside of the air conditioner thoroughly.
◆ After cleaning the air conditioner, press the Filter Reset button.

Diagram showing a hand pressing down on a textured surface with two circular annotations highlighting the process (no text or symbols present)

Diagram of a vehicle air filter array with grid compartments and ventilation ducts (no text or symbols)

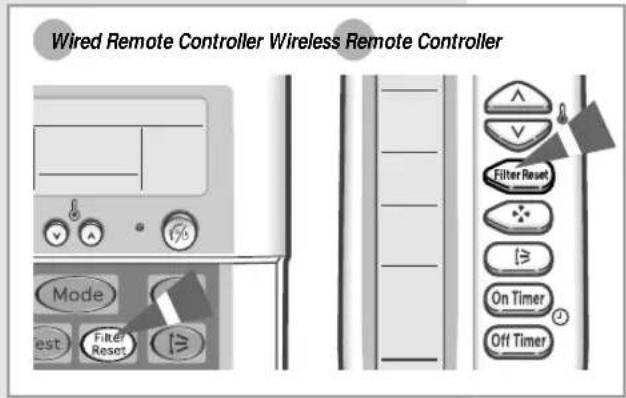

Wired Remote Controller Wireless Remote Controller

Mode Exit Filter Reset |≥|

Filter Reset On Timer Off Timer

Cleaning Your Air Conditioner (continued)

* *052/070/072**

Technical illustration of a mechanical component with layered structure and a triangular cutout (no text or symbols)

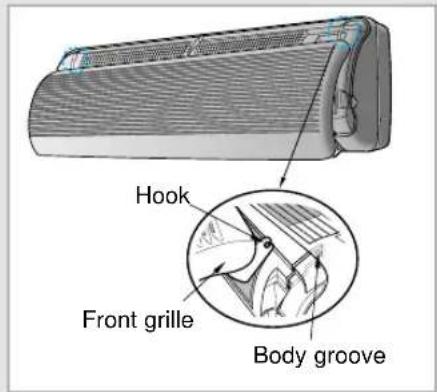

Hook Front grille Body groove

To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter.

IMPORTANT

Before cleaning your air conditioner, ensure that you have switched off the breaker used for the unit.

1 Open the front grille by pulling on the tabs on the lower right and left sides of the indoor unit.

2 Lift out the bottom edge of the air filters and pull down to release them.

3 Remove all dust on the air filters with a vacuum cleaner or brush.

4 When you have finished, insert the top part of the filters into their slot and push down on the bottom edge until they click into place.

5 Clean the front panel with a damp cloth and mild detergent (do NOT use benzene, solvents or other chemicals).

附表②

If you have not used the air conditioner for a long period of time, set the fan going for three to four hours to dry the inside of the air conditioner thoroughly.

◆ After cleaning the air conditioner, press the Filter Reset button.

Wired Remote Controller Wireless Remote Controller Mode Filter Reset Filter Reset On Timer Off Timer

Bio-Pure Filter Installation (optional)

The air conditioner can be fitted with a Bio-Pure or deodorizing filter to remove minute dust particles or odours. The service life of the filter is approximately three months depending on the time during which the air conditioner is used.

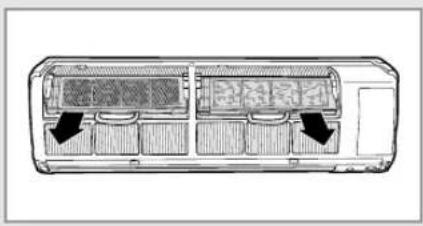

1 Remove the vinyl packing from the filter.

Note

Do not remove the packing from a bio-pure filter until you wish to use the filter, as it will lose its properties.

2 Insert the filter in the filter holder and press the three tabs until you hear a click.

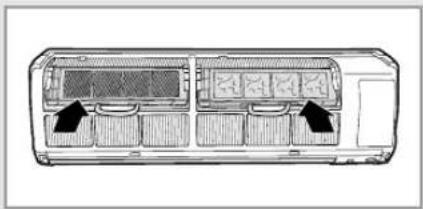

3 Open the front grille by pulling on the tabs on the lower right and left side of the indoor unit.

4 Take out the existing filter and replace it with the new one.

Top-down schematic of a car air conditioner unit showing vented seating and airflow direction arrows (no text or labels)

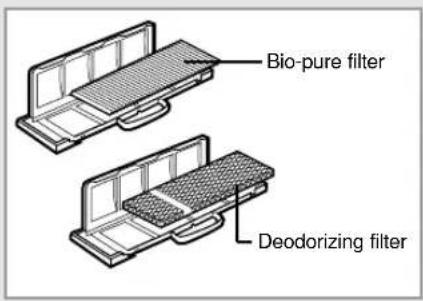

Bio-pure filter Deodorizing filter

Diagram of a car air conditioner unit showing vent, grille, and door (no text or labels)

Solving Common Problems

Before contacting the after-sales service, perform the following simple checks. They may save your time and expense of an unnecessary call.

Problem	Explanation/Solution
The air conditioner does not operate at all	◆ Check that the breaker used for the air conditioner is switched on.
Wired Remote Controller
The air conditioner does not operate with the remote controller	◆ is displayed on the wired remote controller. In this case, turn the air conditioner off and contact your dealer.
Wired Remote Controller
When turning on/off the air conditioner, it is not turned on/off immediately.	◆ In case of using the wired remote controller for a group, the air conditioners connected to the remote controller are turned on/off in order. Thus, it takes some time(up to 32 seconds).
Wireless Remote Controller
The air conditioner does not operate with the remote controller	◆ Check that there are no obstacles between you and the remote control sensor.◆ Check the wireless remote controller batteries◆ Check that you are close enough to the remote control sensor. (7 metres/yards or less).
Wireless Remote Controller
No beep is heard when you press (ON/OFF) on the remote controller	◆ Check that you are pointing the remote controller at the remote control sensor on the indoor unit.◆ Replace the remote controller batteries if necessary.◆ If there is a strong light around the air conditioner, a three-wavelength light, a neon sign, etc., for example, the air conditioner may not be operated with a remote controller. If this happens, use the remote controller close by the remote control sensor.
The air conditioner does not cool or heat	◆ Check that the correct operating mode has been selected.◆ The room temperature may be too low or too high.◆ Dust may be blocking the air filter guard; refer to page 11 or 12 for cleaning instructions.◆ Check that there is no obstacle in front of the outdoor unit.
When heating, the required room temperature is never reached and the air conditioner frequently stops	◆ Check that the required temperature has been set correctly.◆ Increase the fan speed.

Model	Power Supply
AVMWH020CA0(1,4)
AVMWH032CA0(1,4)
AVMWH040CA0(1,4)
AVMWH052CA0(1,4)
AVMWH072CA0(1,4)	1∅, 208-230V~, 60Hz
AVMWC020CA0(1,4)
AVMWC032CA0(1,4)
AVMWC040CA0(1,4)
AVMWC052CA0(1,4)
AVMWC072CA0(1,4)
AVMWH020EA(B)0(1,4)
AVMWH026EA(B)0(1,4)
AVMWH035EA(B)0(1,4)
AVMWH052EA(B)0(1,4)
AVMWH070EA(B)0(1,4)	1∅, 220-240V~, 50Hz
AVMWC020EA(B)0(1,4)
AVMWC026EA(B)0(1,4)
AVMWC035EA(B)0(1,4)
AVMWC052EA(B)0(1,4)
AVMWC070EA(B)0(1,4)

THIS AIR CONDITIONER IS MANUFACTURED BY:
