USER MANUAL AVXWHH028EA SAMSUNG

System Air Conditioner

(Cooling and Heating)

Illustration of a white rectangular device with a black screen and a small rectangular panel on the side (no text or symbols)

Contents

◆ PREPARING YOUR AIR CONDITIONER

■ Safety Precautions 3
■ View of the Indoor unit 8
■ Remote Control-Buttons and Display 9
■ Getting Start 10
■ Inserting the Remote Control Batteries 11

♦ OPERATING YOUR AIR CONDITIONER

■ Selecting the Auto Mode 12
■ Selecting the Cool Mode 13
■ Selecting the Heat Mode 14

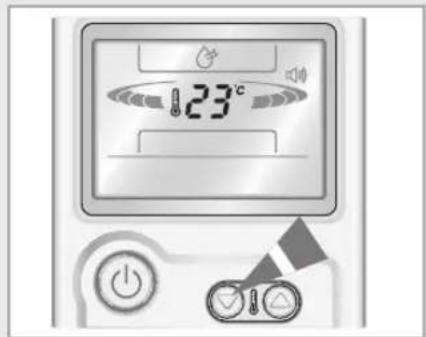

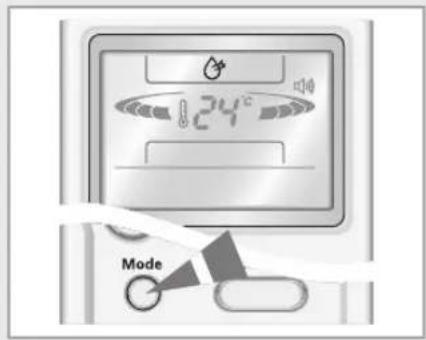

■ Selecting the Dry Mode 15

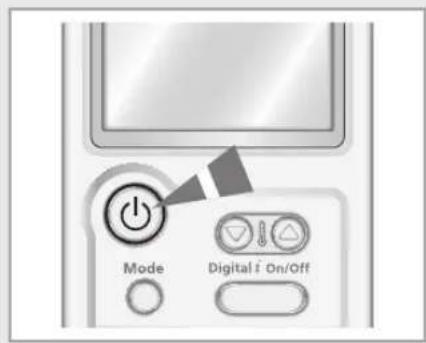

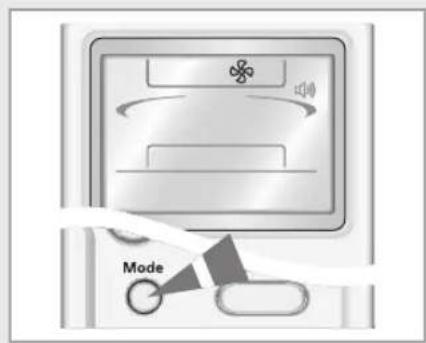

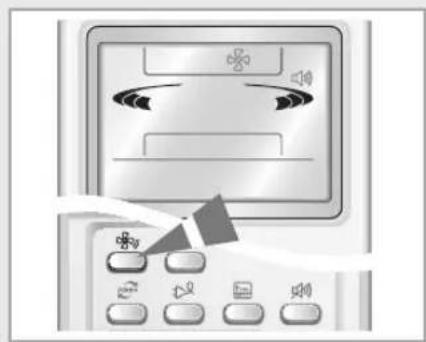

■ Selecting the Fan Mode 16

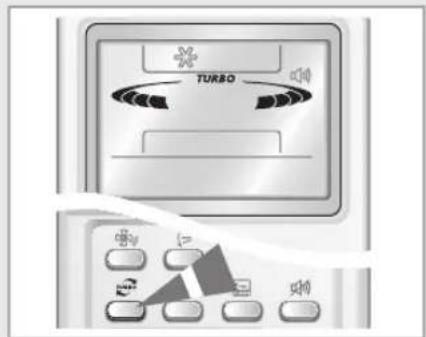

■ Selecting the Turbo Function 17

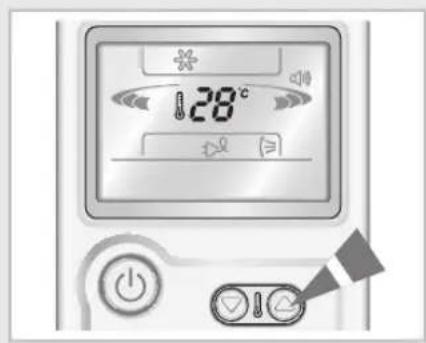

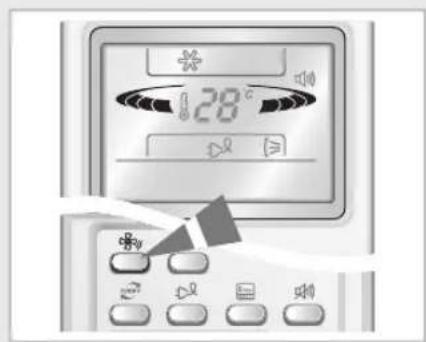

■ Selecting the Energy Saving Function 18

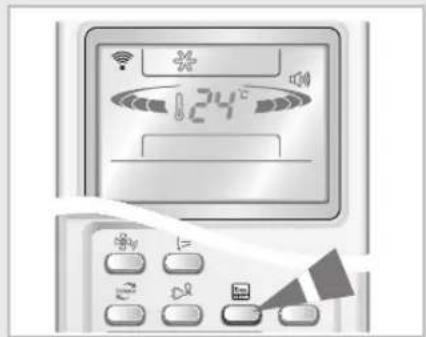

■ Selecting the Auto Cleaning Function 19

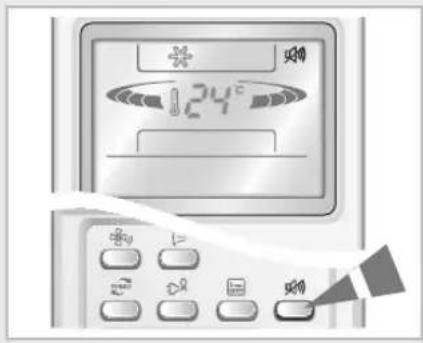

■ Selecting the Sound On/Off Function 20

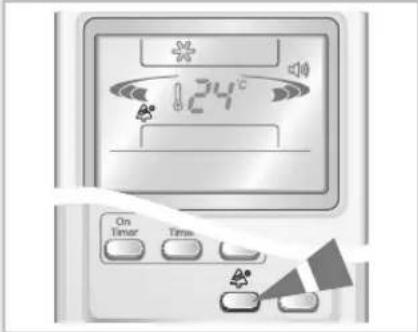

■ Selecting the Anions Function 21

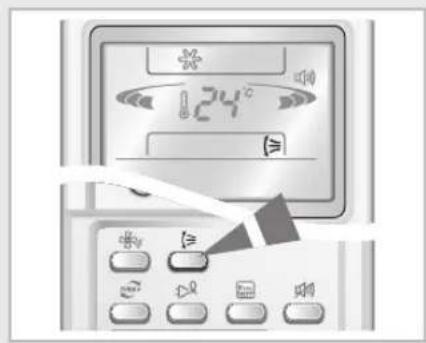

■ Adjusting the Airflow Direction Vertically 22
■ Adjusting the Airflow Direction Horizontally 23

◆ PROGRAMMING YOUR AIR CONDITIONER

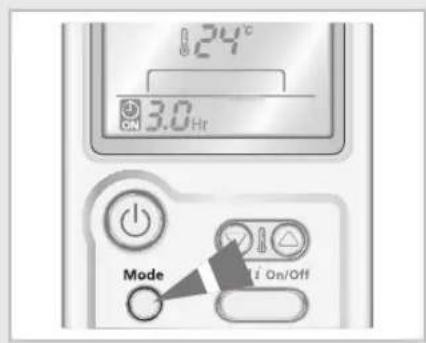

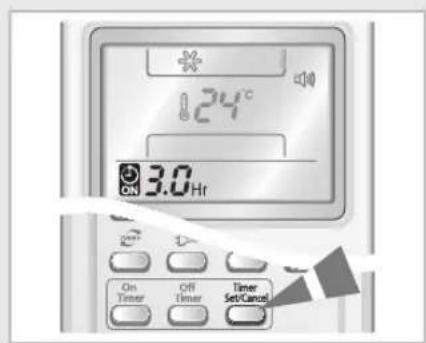

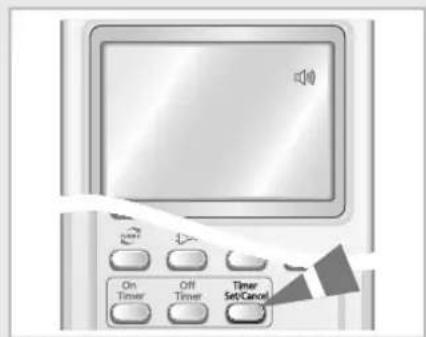

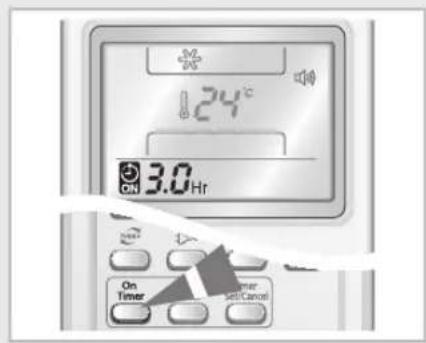

■ Setting the On Timer 24

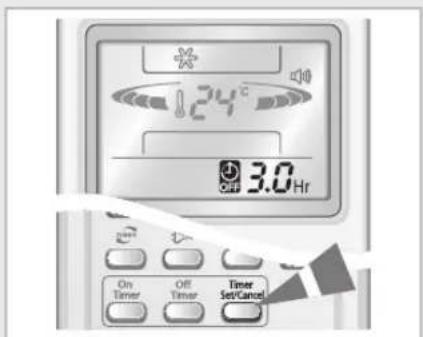

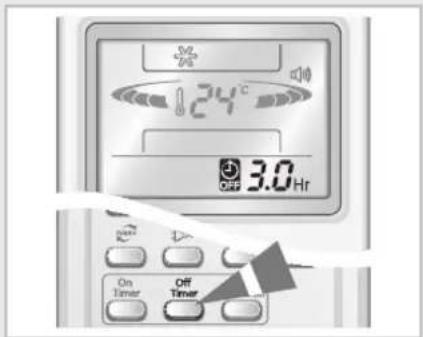

■ Setting the OffTimer 25

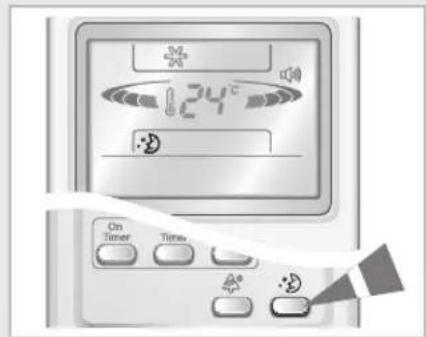

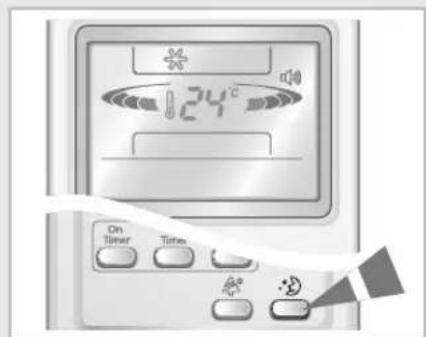

■ Setting the Sleep Timer 26

◆ RECOMMENDATIONS FOR USE

■ Operating Recommendations 27
■ Temperature and Humidity Ranges 28
■ Operating Your Air Conditioner Without the Remote Control ..... 28

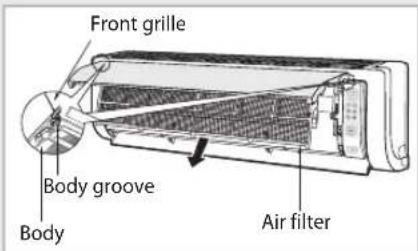

■ Cleaning Your Air Conditioner 29

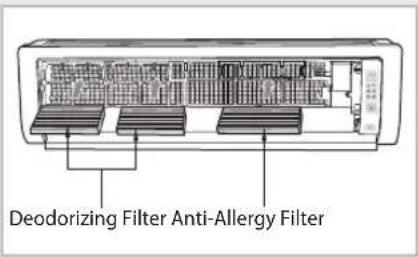

■ Cleaning Anti-Allergy and Deodorizing Filter (Option) 30
■ Solving Common Problems 31

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Safety Precautions

You should take the following safety precautions when using your air conditioner.

WARNING

• Risk of electric shock can cause injury or death. • Disconnect all remote electric power supplies before servicing, installing or cleaning.
• Installation must be done by the manufacturer or service agent or a similar qualified person in order to avoid a hazard.

WHEN INSTALLING

Cartoon illustration of a sad can character falling from a cylindrical object (no text or symbols)

Do not install the air conditioner where there's combustible gas.

Do not install the outdoor unit where there's the risk of dropping such as on high outer wall or outside of the terrace.

Illustration showing a hand waving next to a warning sign with a crossed-out 'No' symbol and a sad face inside a device.

Earth the ground conductor and do not connect it to the gas pipe, water pipe or telephone wire.

- Contact the service center if the air conditioner is under water.

REGARDING POWER SOURCE

Do not pull the electric wire or touch the power plug with the wet hands.

▶ Install the switch and circuit breaker only for air conditioner.

Illustration of a person using a self吸球 (no text or symbols present)

▶ Use the rated current fuse.

Do not bend the electric wire by force or weigh down the air conditioner not to be out of order.

▶ Use the power source with separate wiring only for air conditioner.

If the power plug is damaged, replace it by the manufacturer or qualified personal to avoid the risk.

WARNING

DURING OPERATION

Illustration of a person sitting on the floor next to a wall-mounted air conditioner unit (no text or symbols visible)

▶ Users of this product are cautioned not to attempt repair of this product at their own discretion. Instead, they are requested to directly contact a designated service center or the outlet at which the product was purchased.

Do not place any obstacles in front of the unit. Make sure that the unit is correctly ventilated at all times: Do not place clothing or other materials over it.

Do not place any materials so that children cannot step on it.

Cartoon illustration of a child reacting to a wall-mounted device with a sad face (no text or symbols)

▶ Never spill any kind of liquid into the unit. Should this happen, unplug or main switch off the unit and contact an authorized service center.

If the wireless remote control is not used for a long time, remove the batteries. (If applicable)

Illustration of a car air conditioner unit and a printer with a stack of books (no text or symbols)

Do not connect the electric heater to the air conditioner or repair it at your discretion.

Do not insert anything between the air outlet blades because the inner fan may be damaged and could cause injury. Keep children away from the unit.

Illustration of a person using a handheld air conditioner (no text or symbols visible)

When using a wireless remote control, the distance should not be more than 7 meters from the air conditioner. (If applicable)

WARNING

DISPOSING THE UNIT

Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely for recycling reasons.

When you need to dispose of the unit, consult your dealer. If pipes are removed incorrectly, refrigerant may blow out and come into contact with your skin, causing injury. Releasing refrigerant into the atmosphere also damages the environments.

Illustration of three people in a meeting under a sun, with hills and sky in the background (no text or symbols)

▶ Please recycle or dispose of the packaging material for this product in an environmentally responsible manner.

CAUTION

WHEN INSTALLING

Illustration of a hand holding a wall-mounted air conditioner next to a fan with a sad face, and a small electronic device emitting exhaust (no text or symbols)

▶ Install the air conditioner avoiding direct sunlight or heater, especially water.

Illustration of a washing machine with a sad face inside, next to a wall-mounted cabinet (no text or symbols)

▶ Install the outdoor unit so as to let the discharged air out properly. Avoid a place that may disturb your neighbor by noise.

Diagram of a wall-mounted air conditioner connected to a plug, showing electrical connections (no text or symbols)

▶ Install the drain hose to let the water run safely and correctly.

Illustration of a person sneezing with a fan emitting smoke (no text or symbols)

▶ Install the outdoor unit not to reach heat to the passage or higher than 2m from the ground when installing it on the road.

CAUTION

REGARDING POWER SOURCE

▶ Disconnect the circuit breaker when you don't use the air conditioner for a long time to save energy.

SAMSUNG

Contact the service center or manufacturer if you want to repair the air conditioner.

▶ Contact the service center after turning off the air conditioner if strange noise is heard, burning smell or smoke blow.

DURING OPERATION

Illustration of a child installing or adjusting an air conditioner cover (no text or symbols visible)

▶ Do not open the front grille during operation.

Illustration of a person with a cat observing a wall-mounted air conditioner (no text or symbols)

Do not use the air conditioner for a long time in a closed room or in a place where there's a baby or an old person.

Illustration of a cat and a potted plant with airflow arrows, no text or symbols present

- Avoid cold and hot air reaching to person, pet or a plant directly for a long time.

Do not step on the air conditioner or put heavy object on it.

Illustration of a child running with a bottle near an air conditioner unit (no text or symbols)

▶ Avoid the water from getting into the air conditioner.

Illustration of a person using a bucket to clean air by a wall-mounted air conditioner (no text or symbols)

▶ Do not drink the water from the air conditioner.

CAUTION

DURING OPERATION

Illustration of a person using a tool to spray or spray near a wall-mounted device (no text or symbols present)

Do not touch the pipes connected to the air conditioner.

Illustration of a person holding a device above a large air conditioner (no text or symbols visible)

▶ Do not use the air conditioner to maintain the machine, food, pet, plant or cosmetics.

Illustration of a rolled-up document or paper with a blank cover and scattered boxes (no text or symbols visible)

▶ Do not give excessive shock to the air conditioner.

OTHERS

Illustration of a sun with a sad face and a grid of cards, no text or symbols present

Be sure that the air filter not to be exposed to direct sunlight.

Illustration of a person holding a smiling air conditioner unit (no text or symbols present)

The appliance is not intended for use by young children or infirm persons without supervision: Young children should be supervised to ensure that they do not play with the appliance.

Max current is measured according to IEC standard for safety and current is measured according to ISO standard for energy efficiency.

Illustration of a person cleaning a wall-mounted air conditioner (no text or symbols)

▶ Turn off the air conditioner and if the fan stops to operate, clean the air conditioner.

Illustration of a person holding a long object, possibly a device or tool, with no visible text or symbols.

▶ Do not clean the air conditioner by spraying water directly or with benzene, thinner or alcohol.

Illustration of a person cleaning a washing machine with a cloth (no text or symbols)

The surface of the heat exchanger is sharp, so be careful of it when cleaning.

▶ Clean the air filter every 2 weeks.

Illustration of a person using an air conditioner (no text or symbols visible)

▶ Be sure to insert the air filter.

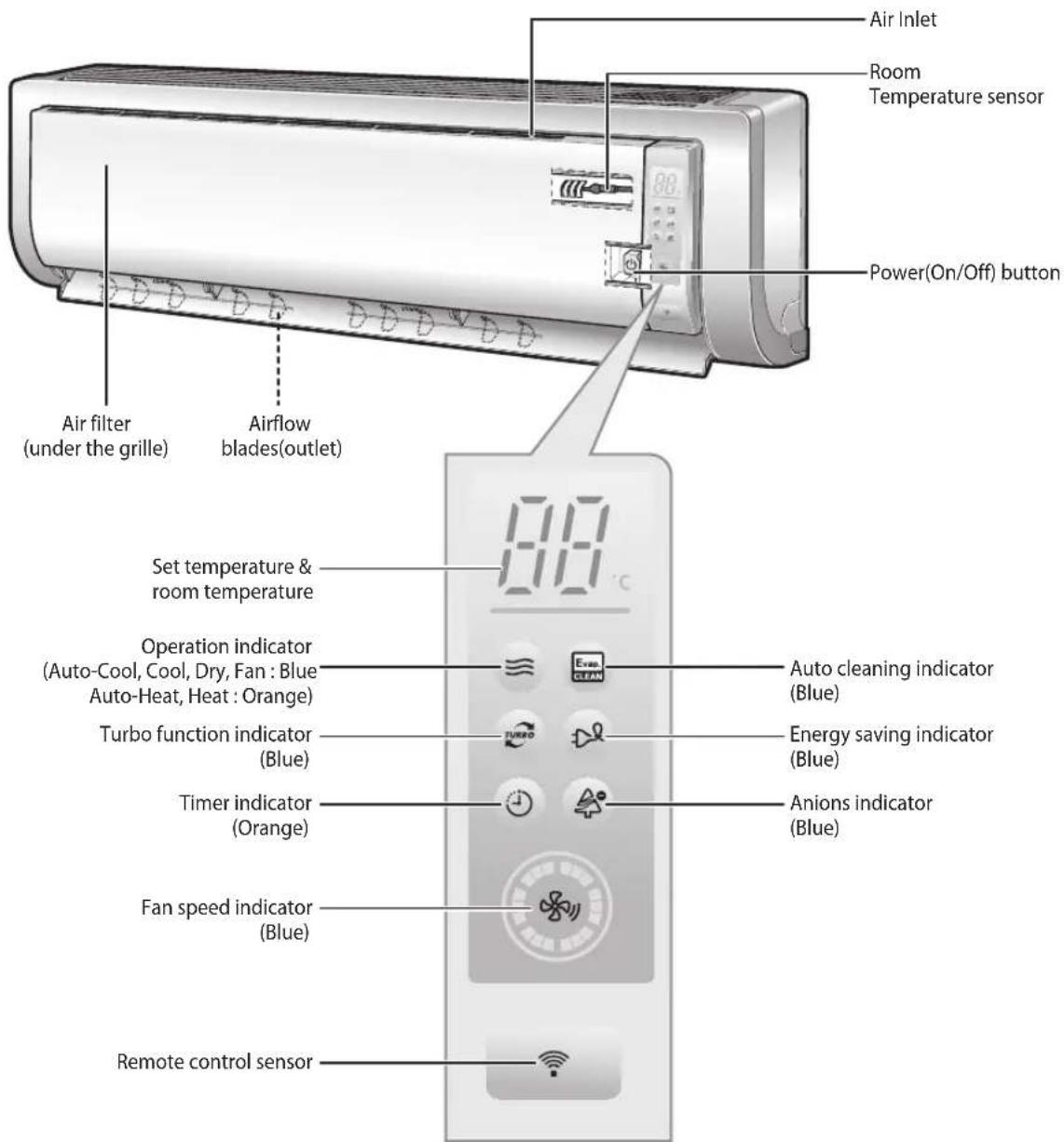

View of the Indoor Unit

The design and shape are subject to change according to the model.

Air Inlet Room Temperature sensor Power(On/Off) button Air filter (under the grille) Airflow blades(outlet) Set temperature & room temperature Operation indicator (Auto-Cool, Cool, Dry, Fan : Blue Auto-Heat, Heat : Orange) Turbo function indicator (Blue) Timer indicator (Orange) Fan speed indicator (Blue) Remote control sensor Auto cleaning indicator (Blue) Energy saving indicator (Blue) Anions indicator (Blue)

Note

◆ In the Auto mode, 2 fan indicators increase and decrease continuously and turn round.
In the modes except the Auto mode, the fan speed indicator increases and decreases continuously and turn round each time you press the button. If you set the Turbo function, the fan speed indicator turns round with the maximum setting and speed.
If you want to turn on/off the Display during operation, press the 📄 button on the remote control.
The room temperature sensor senses air temperature around the sensor, and shows the temperature on the display.

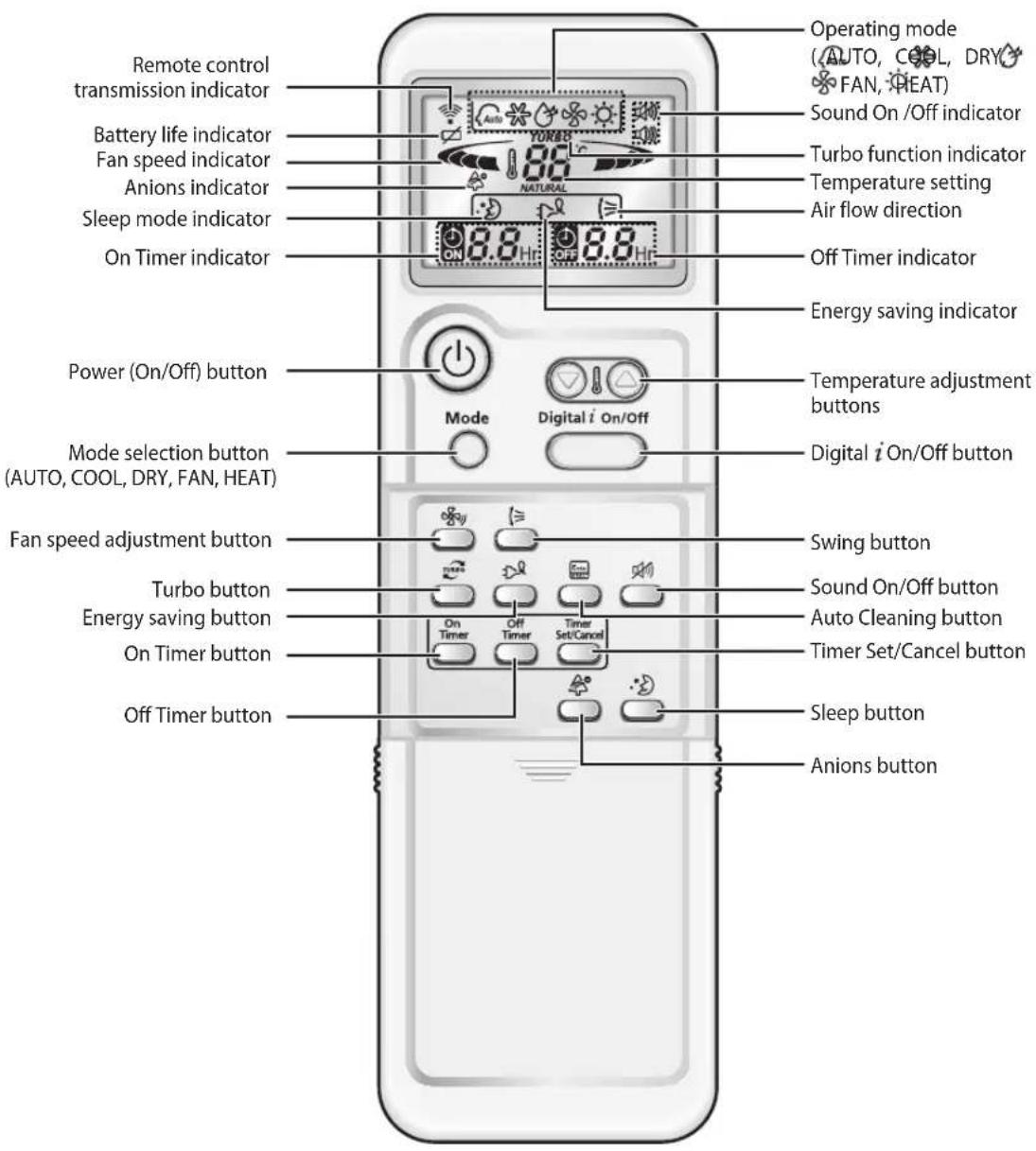

Remote Control-Buttons and Display

Remote control transmission indicator Battery life indicator Fan speed indicator Anions indicator Sleep mode indicator On Timer indicator Operating mode (AUTO, COOL, DRY) (FAN, HEAT) Sound On /Off indicator Turbo function indicator Temperature setting Air flow direction Off Timer indicator Energy saving indicator Power (On/Off) button Mode selection button (AUTO, COOL, DRY, FAN, HEAT) Digital i On/Off button Temperature adjustment buttons Digital i On/Off button Fan speed adjustment button Swing button Turbo button Energy saving button Auto Cleaning button Timer Set/Cancel button On Timer button Sleep button On Timer Off Timer Off Timer button Anions button

Getting Start

The User's Manual provides you with valuable information about your air conditioner. Please read this manual carefully before using the air conditioner. It will help you take full advantage of the unit's features.

You have already seen the basic description of the unit on pages from 8 to 9. Starting with the next page, you will find a series of step-by-step procedures for each function available.

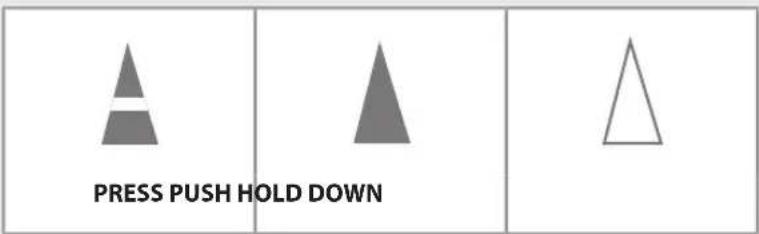

The illustrations in the step-by-step procedures use three different symbols:

PRESS PUSH HOLD DOWN

Inserting the Remote Control Batteries

You must insert or replace the remote control batteries when:

◆ You purchase the air conditioner
◆ The remote control does not work correctly

Note

◆ Use two AAA, LR03 1.5V batteries.
◆ Do not use old batteries or different kinds of batteries together.
◆ Batteries may be completely discharged after 12 months, even if they have not actually been used.

1 Remove the battery cover in the rear of the remote control by pushing it with your thumb.

2 Insert two batteries, respecting the polarities as indicated by the + and - symbols.

3 Close the cover by sliding it back in its place.

Close-up of a mechanical component with internal structure and directional arrow (no text or symbols)

Illustration of a remote control device with a black triangular pointer indicating the internal component (no text or symbols present)

Selecting the Auto Mode

Mode Digital i On/Off

You can select the Auto mode if you want to cool or heat your room automatically. You can adjust the temperature in this mode.

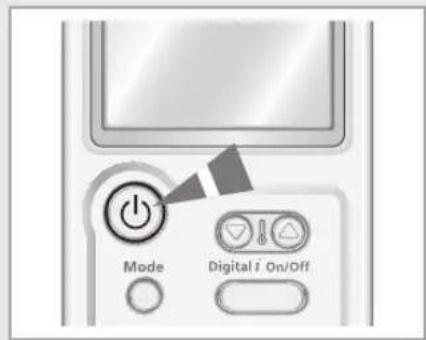

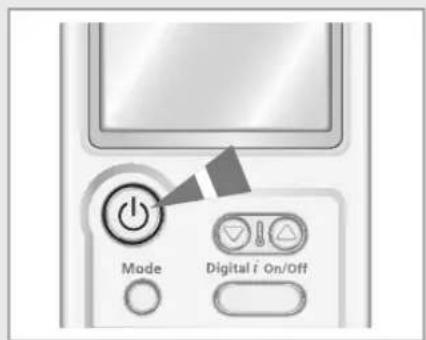

1 If necessary, press the On/Off button.

Result: ◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode you selected last.
◆ The indoor unit beeps.

24°C NATURAL Mode

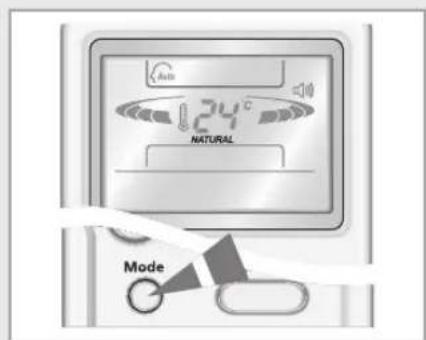

2 Press the button on the remote control until is displayed.

Result: ◆ The indoor unit beeps each time you press the button.

◆ The air conditioner runs in the Auto mode.
◆ The Auto mode cools or heats the room depending on the set temperature.
◆ The air conditioner changes the Cool or Heat mode automatically depending on the current temperature during operation.

Note You can change modes at any time.

Auto !22°C NATURAL

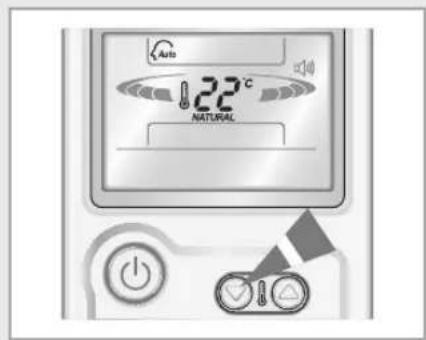

3 Press the button to adjust the temperature until the required temperature is displayed.

You can set the temperature between 16^ C and 30^ C.

Result: ◆ Each time you press the button: - The temperature is adjusted by 1°C - The indoor unit beeps

◆ The fan speed is adjusted automatically.
◆ 2 fan speed indicators increase and decrease continuously and turn round.

Circular diagram with radial segments and a central symbol resembling a fan or gear (no text or labels)

Selecting the Cool Mode

You can select the Cool mode if you want to cool your room. You can adjust the temperature and the fan speed when cooling.

1 If necessary, press the Ⓞ(On/Off) button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode you selected last.
◆ The indoor unit beeps.

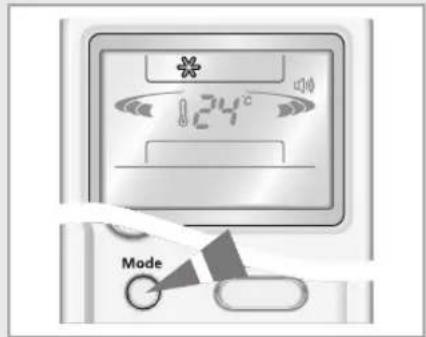

2 Press the 📂 button on the remote control until ✕ displayed.

Result:

◆ The indoor unit beeps each time you press the button.

◆ The air conditioner runs in the Cool mode.

Note You can change modes at any time.

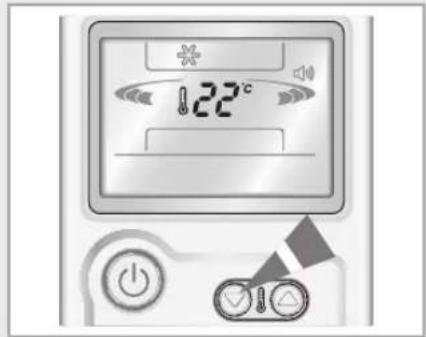

3 Press the button to adjust the temperature until the required temperature is displayed.

You can set the temperature between 16^ C and 30^ C.

Result:

◆ Each time you press the button:

- The temperature is adjusted by 1°C

- The indoor unit beeps

◆ If the room temperature is higher than the selected temperature, the air conditioner starts cooling.
◆ If the room temperature reaches the set temperature, the air conditioner stops cooling, but the fan operates consistently.

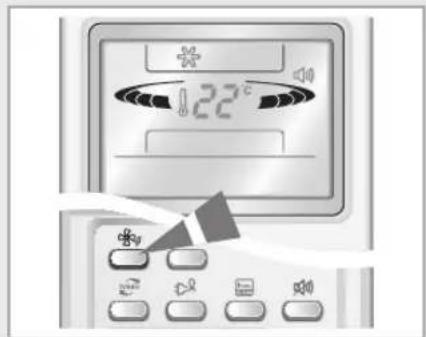

4 Press the "button to select the fan speed until the required setting is displayed.

Result ◆ Each time you press the button, the indoor unit beeps.

◆ The fan speed indicator increases and decreases continuously and turns round each time you press the 🎨 button.

Note The fan speed indicator of the indoor unit varies according to the temperature in the Automatic fan speed.

5 To control the airflow direction, refer to pages 22 and 23.

Mode Digital / On/Off

124° Mode

22°C

22°C

Control Panel

Circular diagram with radial segments and a central abstract symbol (no text or labels)

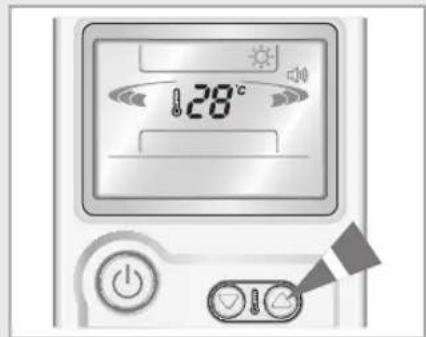

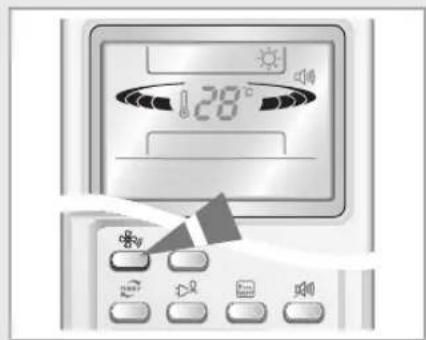

Selecting the Heat Mode

Mode Digital / On/Off

824° Mode

28°C

28°C

Control Panel

You can select the Heat mode if you want to heat your room. You can adjust the temperature and the fan speed when heating.

1 If necessary, press the (On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up. ◆ The air conditioner starts up in the mode you selected last. ◆ The indoor unit beeps.

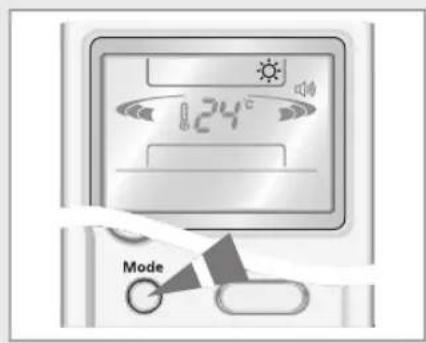

2 Press the button on the remote control until is displayed.

Result: ◆ The indoor unit beeps each time you press the button. ◆ The air conditioner runs in the Heat mode.

Note You can change modes at any time.

3 Press the button to adjust the temperature until the required temperature is displayed.

You can set the temperature between 16^ C and 30^ C.

Result: ◆ Each time you press the button: - The temperature is adjusted by 1°C - The indoor unit beeps

- If the room temperature reaches 5°C higher than the set temperature, the air conditioner stops heating, but the fan operates consistently. - If the room temperature reaches 3°C lower than the set temperature, the air conditioner starts heating again.

4 Press the button to select the fan speed until the required setting is displayed.

Automatic (rotated : Low Medium High

Result: ◆ Each time you press the button, the indoor unit beeps. ◆ The fan speed indicator increases and decreases continuously and turns round each time you press the button.

For the first 3\~5 minutes, the fan may not operate to prevent cool air from flowing out of the indoor unit. It helps to warm the air in your room sufficiently.

Note The fan speed indicator of the indoor unit varies according to the temperature in the Automatic fan speed.

5 To control the airflow direction, refer to pages 22 and 23.

Selecting the Dry Mode

You can select the Dry mode if you want to dehumidify your room. You can adjust the temperature in this mode.

1 If necessary, press the (On/Off) button.

Result:

◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode you selected last.
◆ The indoor unit beeps.

2 Press the button on the remote control until is displayed.

Result:

◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Dry mode.

Note You can change modes at any time.

3 Press the button to adjust the temperature until the required temperature is displayed.

You can set the temperature between 18°C and 30°C.

Result:

◆ Each time you press the button:

• The temperature is adjusted by 1°C
• The indoor unit beeps
  ◆ The air conditioner starts dehumidifying and the fanspeed is adjusted automatically.

4 To control the airflow direction, refer to pages 22 and 23.

Mode Digital / On/Off

24°C Mode

23°C

Selecting the Fan Mode

Mode Digital / On/Off

Mode

Illustration of a computer monitor with sound waves and control buttons (no text or symbols)

Control Panel

You can select the Fan mode if you want to ventilate your room. It helps to refresh the air in your room. You can adjust the fan speed in this mode.

1 If necessary, press the Ⓞ(On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up. ◆ The air conditioner starts up in the mode you selected last.
◆ The indoor unit beeps.

2 Press the Mode button on the remote control until is displayed.

Result: ◆ The indoor unit beeps each time you press the button.
◆ The air conditioner runs in the Fan mode.
◆ The temperature is set automatically.

Note You can change modes at any time.

3 Press the button to adjust the temperature until the required required setting is displayed.

Result: ◆ Each time you press the button, the indoor unit beeps.

◆ The fan speed indicator increases and decreases continuously and turns round each time you press the 🎨 button.

4 To control the airflow direction, refer to pages 22 and 23.

Selecting the Turbo Function

You can select the Turbo Function if you want to cool or heat your room in the fastest way. After the 30 - minute operation with the maximum setting, it returns to the previous setting.

1 If necessary, press the Ⓞ(On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode you selected last.
◆ The indoor unit beeps.

2 Press the Button.

Result: ◆ The temperature and fan settings are adjusted automatically.

◆ The fan speed indicator turns round with the maximum setting and speed.
◆ The air conditioner cools or heats the room as quickly as possible.
◆ After 30 minutes, the air conditioner is reset automatically to the previous setting.
You can select the Turbo function in the Auto, Cool and Heat mode. If you select this function in the Dry or Fan mode, the mode changes to the Auto mode.

3 Press the button again to stop the Turbo Function before the end of the 30-minute period.

Result: The air conditioner is reset automatically to the previous setting.

4 To control the airflow direction, refer to pages 22 and 23.

Mode Digital On/Off

TURBO

Control Panel

Circular diagram with radial segments and a central symbol resembling a fan or gear (no text or labels)

Selecting the Energy Saving Function

Mode Digital i On/Off

26° ℃

28°C

28°C

You can select the Energy Saving Function to save energy when cooling. The temperature range decreases in order to perform this function.

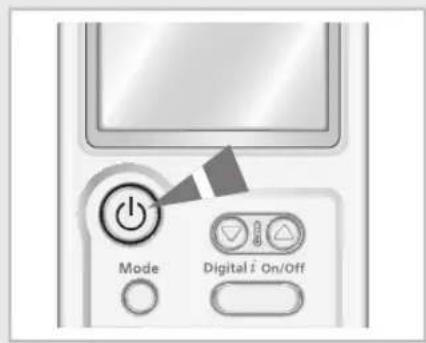

1 If necessary, press the ⏻(On/Off) button.

Result: The operation indicator on the indoor unit lights up. ◆ The air conditioner starts up in the mode you selected last. ◆ The indoor unit beeps.

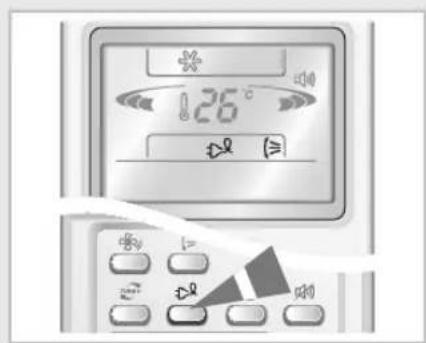

2 Press the button.

Result: ◆ The indoor unit beeps. ◆ The air conditioner runs in the Energy saving function. ◆ The outer airflow blade moves up and down. ◆ To stop the Energy saving function, press the again.

Note You can select the Energy saving function only in the Cool mode.

3 Press the 🔒 button to adjust the temperature until the required temperature is displayed. You can set the temperature between 26°C and 30°C.

Note If you want to adjust temperature under 26°C, cancel the Energy saving function before adjusting the temperature.

4 Press the 🎨 to select the fan speed until the required setting is displayed.

Note The fan speed indicator increases and decreases continuously and turns round each time you press the button.

5 To control the airflow direction, refer to pages 22 and 23.

Selecting the Auto Cleaning Function

You can select the Auto Cleaning Function if you want to sterilize the air conditioner or remove mold. Even when the air conditioner is turned off, you can set this function.

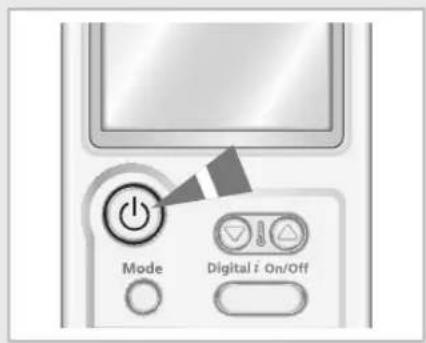

1 If necessary, press the ⏻(On/Off) button.

Result: ◆ The operation indicator on the indoor unit lights up.
◆ The air conditioner starts up in the mode you selected last.
◆ The indoor unit beeps.

2 Press the button.

Result: ◆ The indicator on the indoor unit lights up and the Auto Cleaning function is set.
When you turn the air conditioner off, it operates the Auto Cleaning function for 30 minutes. After 30 minutes, the air conditioner turns off.
If you press the button when the air conditioner is turned off, the air conditioner operates the Auto Cleaning Function for 30 minutes.

When the air conditioner is turned Mode Operating time

On	Auto, Cool, Dry 30 minutes
	Heat, Fan 15 minutes
Off 30 minutes

Note The Auto Cleaning indicator is displayed only on the indoor unit.

3 Press the button again to stop the Auto cleaning function before the end of the 30-minute period.

Mode Digital & On/Off

Remote Control

Diagram of a smart air conditioner control panel with temperature reading and control buttons

Control Panel

Evea CLEAN

Selecting the Sound On/Off Function

24℃

You can turn on or off the sound of the air conditioner with the remote control.

1 Press the button to turn off the sound.

Note Each time you press the button, Sound On/Off function is selected repeatedly. On Off

Selecting the Anions Function

The air conditioner can generate anions with an ionizer in the indoor unit. Since it is an additional function, you can select it in any mode, even when the air conditioner is turned off.

1 Press the button.

Result: ◆ The air conditioner generates anions.

◆ The indoor unit beeps.

Note If you press the button when the air conditioner is off, the air conditioner turns on automatically and generates anions in the Fan mode with Low fan speed.

2 Press the button a gain to stop the Anions function.

Result: ◆ The air conditioner is reset automatically to the previous mode, temperature and fan settings.

3 To control the airflow direction, refer to pages 22 and 23.

124°C On Timer Time

Adjusting the Airflow Direction Vertically

24°C

You can adjust the airflow direction vertically. The outer airflow blade moves up and down to increase the efficiency of the cooling or heating operation.

1 Press the button until the required direction is set. Result: ◆ The outer blade is adjusted vertically.

2 Press the button again to move the blade up and down automatically during operation.

3 Press the button again to stop the blade moving up and down.

NoteIf you turn the air conditioner... Then the blade...

On is closed completely. Off set to the default position.

Adjusting the Airflow Direction Horizontally

You can adjust the airflow direction horizontally manually. The inner blades with small fins moves the air in the required direction.

1 Adjust the inner blades by moving them to left or right.

Close-up of a curved metal strip with evenly spaced circular indentations, no text or symbols visible

Setting the On Timer

24°C 3.0 Hr On Timer Timer Self-Cancel

24° 3.0 Hr On Timer Off Timer Timer Set/Cancel

24°C 3.0 Hr Mode On/Off

On Timer Off Timer Timer Set/Cancel

You can set the On Timer to turn on the air conditioner automatically at the appointed time. You can set the time from 30 minutes to 24 hours.

1 Press the button until the required time is displayed to set the On Timer. You can set the time between 0.5 hour and 24 hours.

2 Press the button to complete the setting.

Result: ◆ The remaining time is displayed.
◆ The timer indicator stops blinking.
◆ The selected mode and the temperature on the display disappear after 10 seconds.
◆ The air conditioner turns on automatically at the appointed time and the On Timer setting disappears.

3 Press the Mode button until the desired mode is displayed at the top of the remote control to select the mode in advance.

Result: The air conditioner operates in the selected mode when it is turned on.

To Cancel the On Timer

1 Press the button to cancel the On Timer.

Note If you press the button, both the On Timer and the Off Timer are canceled.

Setting the Off Timer

You can set the Off Timer to turn off the air conditioner automatically at the appointed time. You can set the time from 30 minutes to 24 hours.

1 Press the button until the required time is displayed to set the Off Timer. You can set the time between 0.5 hour and 24 hours.

2 Press the button to complete the setting.

Result:

◆ The remaining time is displayed.
◆ The timer indicator stops blinking.
◆ The air conditioner turns off automatically at the appointed time and the Off Timer setting disappears.

Example If you would like to turn the air conditioner on after 2 hours and to operate it for 2 hours:

1. Press the button until '2.0 Hr' is displayed.
2. Press the button.
3. Press the button until '4.0 Hr' is displayed.
4. Press the button.

Note You can check or change the mode and/or the temperature by pressing the button or the button after setting the Off Timer.

To Cancel the Off Timer

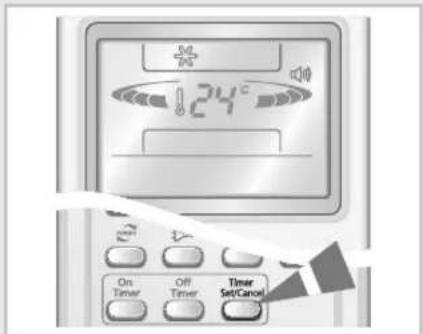

1 Press the Button to cancel the Off Timer.

Note If you press the button, both the On Timer and the Off Timer are canceled.

24°C 3.0 Hr On Timer Off Timer

24°C 3.0 Hr On Timer Off Timer Set/Cancel

50 24°C On Timer Off Timer Set/Cancel

Setting the Sleep Timer

24°C On Timer Time

You can set the Sleep Timer to turn off the air conditioner automaticallywhile you are sleeping. The air conditioner stops operating 6 hours afteryou set the Sleep Timer.

1 Press the button.

Result: ◆ The indoor unit beeps.

◆ The air conditioner will be controlled as indicated in the illustrations below.

Note You can set Sleep Timer only in the Cool or Heat mode.

Cooling The set temperature is

increased by 1°C every hour. After the increase of 2°C, the temperature is maintained for 4 hours.

Heating The set temperature is

decreased by 1°C every hour. After the decrease of 2°C, the temperature is maintained for 4 hours.

Start time Set TEMP. -1hr 2hr -2°C Stop time 6hr

To Cancel the Sleep Timer

24°C On Timer Time

1 Press the button to cancel the Sleep Timer.

Result: ◆ The indoor unit beeps.
◆ The indicator is no longer displayed.
◆ The air conditioner operates normally.

Operating Recommendations

When you use your air conditioner, it is recommended to read the following:

Topic Recommendation

Heating capacity The heat pump inside the air conditioner absorbs heat from outside air and brings itindoors.If the temperature of the outside air drops, the air conditioner heats less. If the room is not warm enough, use an additional heating appliance.

Warm air circulation The air conditioner circulates warm air to heat your room. It will take some time to warm the air in your room entirely after the air conditioner turns on. Therefore, turn the air conditioner on in advance.

Frost & Defrost When you select the Heat mode, frost may form in the outdoor unit due to the low temperature and high humidity.

If this happens:

◆ The heating operation is stopped.
◆ The air conditioner defrosts automatically for about 7 minutes.
◆ The steam produced on the outdoor unit in the defrost mode is safe.

After about 7 minutes, the air conditioner starts operating again normally.

High indoor and outdoor temperatures If both the indoor and outdoor temperatures high when you select the Heat mode, the fan and the compressor of the outdoor unit may stop at times. This is normal; wait until the air conditioner turns on again.

Power failure If power failure occurs when the air conditioner is operating, the air conditioner turns off. When the power returns, the air conditioner starts up again automatically.

Protection mechanism When the air conditioner is started immediately after being plugged in or stopped, the normal operation starts up after 3 minutes for the reason of protection.

Temperature and Humidity Ranges

If you check the following tables, you can use your air conditioner more efficiently.

If the air conditioner is used at... Then...

Heating capacity The air conditioner may stop operating for the reason of protection.

Low temperatures Water may leak and some malfunction may occur if the heat exchanger freezes.

Protection mechanism

Water may condense and drip from the surface of the indoor unit if you don't use the air conditioner for a long time.

Operation Outdoor Temperature Indoor Temperature Indoor Humidity

Heating	-15°C to 24°C approx. 27°C or less	-
Cooling	5°C to 43°C approx. 21°C to 32°C approx.	80% or less
Dehumidifying	5°C to 43°C approx. 18°C to 32°C approx.	-

* The standardized temperature for heating is 7°C. If the outdoor temperature drops to 0°C or below, the heating capacity can be reduced depending on the temperature condition. If the cooling operation is used at over 32°C (indoor temperature) then, it does not cool at its full capacity.

Operating Your Air Conditioner Without the Remote Control

Mechanical component diagram showing a bracket with a triangular arrow indicating direction (no text or symbols)

Icon of a power button with wireless signal symbol, no text or labels present

You can operate your air conditioner directly without the remote control.

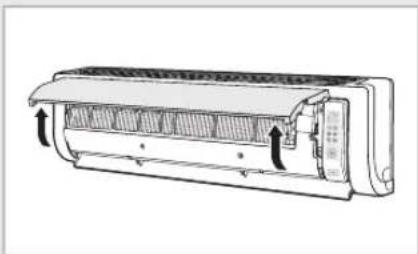

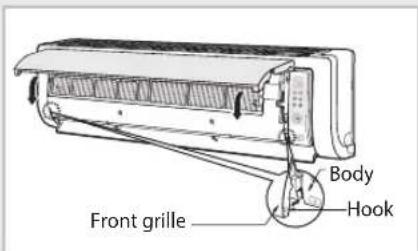

1 Open the front grille.

2 To turn the air conditioner on, press the On/Off button in the front grille of the indoor unit.

Result:

◆ The Operation indicator on the indoor unit lights up.
◆ The indoor unit beeps.
The air conditioner starts up in the appropriate mode for the room temperature. The air conditioner changes the Cool or Heat mode automatically depending on the current temperature during operation.

Room Temperature Operating Mode

Lower than 21°C Heating

Higher than 21°C Cooling

3 To turn the air conditioner off, press the On/Off button again.

Note

Even if you turned the air conditioner on with the On/Off button, you can control it with the remote control.

Cleaning Your Air Conditioner

For the best use of your air conditioner, you must clean it every 2 weeks regularly to remove the dust that accumulates on the air filter.

PORTANT

Before cleaning your air conditioner, ensure that you have switched off the breaker used for the unit.

1 Open the front grille by pulling on the tabs on the lower right and left sides of the indoor unit.
2 Detach the front grille by pulling it forwards.
3 Hold the edge of the air filter under the front grille and pull to release.
4 Remove all dust on the air filter with a vacuum cleaner or brush.
5 When you finish, insert the top of the filter into the slot and fix it to 5 tabs of the grille.
6 Clean the front grille with a damp cloth and mild detergent. (do NOT use benzene, solvents or other chemicals).
7 Reassemble the air filter and the front grille.

Note

If you have not used the air conditioner for a long time, select the Fan mode for 3 to 4 hours to dry the inside of the air conditioner.

Diagram of an air conditioner unit with airflow arrows indicating internal components (no text or symbols)

Front grille Body groove Body Air filter

Front grille Body Hook

Cleaning Anti-Allergy and Deodorizing Filter (Option)

Deodorizing Filter Anti-Allergy Filter

There are Anti-Allergy and Deodorizing filters inside your air conditioner. They remove odours and dust in your room. You should clean the filters every 3 months.

1 Open the upper front grille by pulling the lower right and left tabs of the grille.
2 Pull out the Anti-Allergy and Deodorizing filter.
3 Wash the filters with clean water, then dry them in the shade.
4 Insert the filters in their place.
5 Close the front grille.

Before contacting the after-sales service, perform the following simple checks.

They may save you the time and expense of an unnecessary call.

Problem Explanation/Solution
The air conditioner does not operate at all.	◆ Check if power is on and operate the air conditioner again.◆ Check if the circuit breaker is switched off.◆ Check if Off Timer is set.
The temperature is not adjusted.	◆ Check if you selected the Fan mode.
The air conditioner does not operate in the HEAT mode.	◆ Check if the air conditioner is cooling only model.◆ Check if the remote control is for cooling only model.
The cool(warm) air does not come out from the air conditioner.	◆ Check if set temperature higher(lower) than current temperature.◆ Check if you selected the Fan mode. Select the Cool, Heat, Auto or Dry mode.◆ Check if the air filter is blocked by dirt. Clean the air filter regularly.◆ Check if the there is cover on the outdoor unit or any obstacle.Remove the cover or obstacle.◆ Check if you installed the air conditioner under direct sunlight.◆ The window or door may be opened.◆ Check if you turn on the air conditioner just now.It takes about 3 minutes to cool or heat the room.◆ Check if the drain pipe is too long.
The fan speed is not adjusted.	◆ In Auto or Dry mode, the fan speed is selected automatically.
The remote control does not operate.	◆ Check if the battery is discharged. Replace the battery.◆ Check if the remote control sensor is blocked.◆ Check if the air conditioner is placed near strong light.
The wired remote control does not operate.	◆ Check if displayed on the wired remote control. Turn off the air conditioner and switch off the circuit breaker. Contact the service center.
The Timer is not set.	◆ Check if you pressed the button after selecting time.
The air conditioner does not turn on or off with the wired remote control.	◆ Check if you set the wired remote control for group control.
Odor is permeated in the room during operation	◆ Check if you use the air conditioner in smoky area or there is a smell.Ventilate the room or select the Fan mode for 1~2 hours.
The indoor unit indicator flashes.	◆ Press the button to turn on the air conditioner again.Switch the circuit breaker off and switch on it again.
Strange sound is heard from the air conditioner.	◆ The sound is heard when the refrigerant gas flow is changed depending on the use of the air conditioner.◆ When you press the button, noise may be heard from the drain pump inside of the air conditioner.◆ When you press the button, noise may be heard that the air conditioner sense the airflow blade.
Water drops from the outdoor unit connection part.	◆ Water may form due to the difference of the temperature.

SAMSUNG

ELECTRONICS

Contact SAMSUNG WORLD WIDE
If you have any comments or questions regarding a Samsung products, contact the SAMSUNG customer care center.

Country Customer Care Center Web Site
BELGIUM 02 201 2418 www.samsung.com/be
CZECH REPUBLIC 844 000 844 www.samsung.com/cz
DENMARK 38 322 887 www.samsung.com/dk
FINLAND 09 693 79 554 www.samsung.com/fi
FRANCE 08 25 08 65 65 (0,15	€/min) www.samsung.com/fr
GERMANY 01805 - 121213 (	€0,12/min) www.samsung.de
HUNGARY 06 40 985 985 www.samsung.com/hu
ITALIA 199 153 153 www.samsung.com/it
LUXEMBURG	02 261 03 710 www.samsung.lu
NETHERLANDS	0900 20 200 88 (€0.10/min)	www.samsung.com/nl
NORWAY	231 627 22 www.samsung.com/no
POLAND	0 801 801 881 www.samsung.com/pl
PORTUGAL	80 8 200 128	www.samsung.com/pt
SLOVAKIA	0850 123 989	www.samsung.com/sk
SPAIN	902 10 11 30	www.samsung.com/es
SWEDEN	08 585 367 87 www.samsung.com/se
U.K	0870 242 0303	www.samsung.com/uk
