USER MANUAL TX-43GXX939 PANASONIC

Operating Instructions

LED TV

English

Русский

Model No.

TX-43GXX939

TX-49GXX939

TX-55GXX939

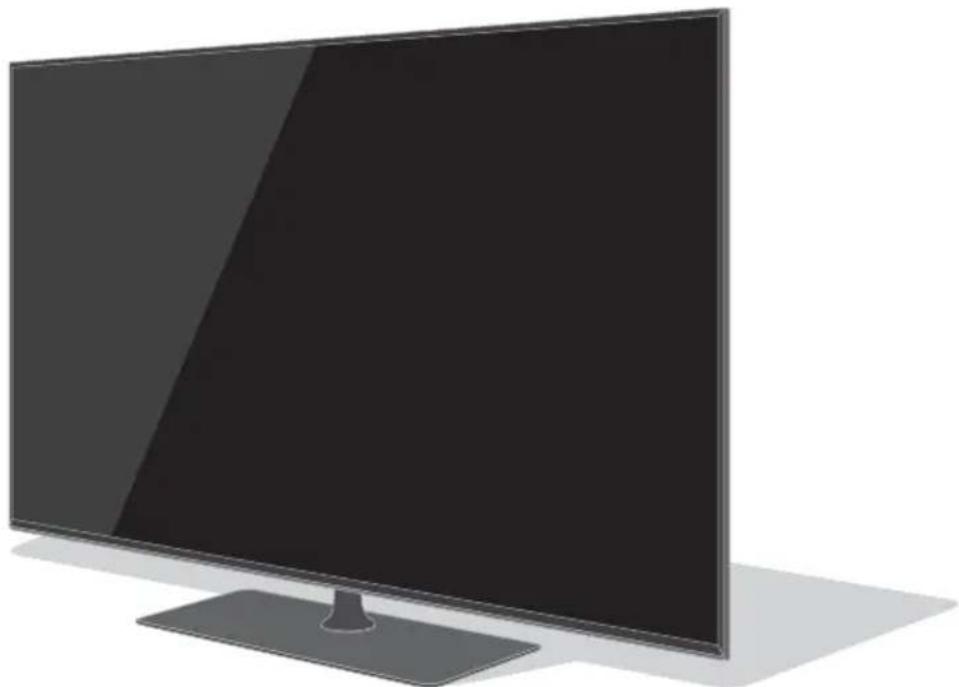

Illustration of a modern flat-screen TV with a black screen and stand (no text or symbols visible)

(image: TX-55GXX939)

For more detailed instructions, please refer to [eHELP] (Built-in Operating Instructions).

• How to use [eHELP] → (p. 23)

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before operating this product and retain them for future reference.

Please carefully read the "Safety Precautions" of this manual before use.

The images shown in this manual are for illustrative purposes only.

Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.

TQB0E2867P32

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2013-2015 Dolby Laboratories. All rights reserved.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.

DVB and the DVB logos are trademarks of the DVB Project.

x.v.Colour™ is a trademark.

DiSEqC ^TM is a trademark of EUTELSAT.

Contents

Be Sure to Read

Important Notice 3

Safety Precautions 4

Accessories 8

Installing the TV 8

Installing the wall-hanging bracket 12

Connections 13

Identifying Controls 20

First time Auto Setup 22

Watching TV....23

How to Use eHELP 23

How to Use Menu Functions 25

Changing Picture and Sound settings 26

Retuning from Setup Menu 27

Tuning and Editing Channels 29

Multi Window 31

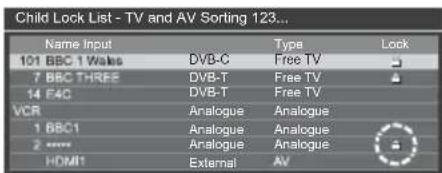

Child Lock 32

Watching External Inputs 32

Viewing Teletext 33

Using TV Guide 34

USB HDD Recording 35

Timer Programming 37

Using Media Player 38

Using Home Network 39

FAQs 41

Maintenance 42

Specifications 42

- For information about the trademarks, refer to [eHELP] (Search by Purpose > Read first > Before use > Licence).

The illustration for TX-55GXX939 is used in this manual unless otherwise mentioned. Illustrations shown may be different depending on the model.

DOLBY ATMOS

Notice for DVB / Data broadcasting / IPTV functions

- This TV is designed to meet the standards (as of August, 2018) of DVB-T / T2 (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265)) digital terrestrial services, DVB-C (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265)) digital cable services and DVB-S (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265)) digital satellite services.

Consult your local dealer for availability of DVB-T / T2 or DVB-S services in your area.

Consult your cable service provider for availability of DVB-C services with this TV.

• This TV may not work correctly with the signal which does not meet the standards of DVB-T / T2, DVB-C or DVB-S.
• Not all the features are available depending on the country, area, broadcaster, service provider, satellite and network environment.
• Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
• This TV may not work correctly with CI module that is not approved by the service provider.
• Additional fees may be charged depending on the service provider.
• Compatibility with future services is not guaranteed.

Internet apps are provided by their respective service providers, and may be changed, interrupted, or discontinued at any time.

Panasonic assumes no responsibility and makes no warranty for the availability or the continuity of the services.

Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we disclaim any liability or damage arising from operation and/or performance from usage of such other maker's peripheral devices.

Handling of customer information

Certain customer information such as IP address of your device (this TV)'s network interface will be collected as soon as you connect your Panasonic-branded smart television (this TV) or other devices to the internet (excerpted from our privacy policy). We do this to protect our customers and the integrity of our Service as well as to protect the rights or property of Panasonic. If you wish to know more about the processing of your information in this context, please refer to the full text of our privacy policy displayed at [eHELP] (Search by Purpose > Network > Network settings > Terms of Service and Settings).

When using Internet connecting function of this TV, after agreeing (in the jurisdictions where customer's consent is required to collect personal information under applicable privacy laws) to or reviewing Panasonic's terms of service / privacy policy (hereinafter referred to as terms and conditions etc.), customer information on the use of this unit may be collected and used according to terms and conditions etc.

For details of terms of service / privacy policy, refer to [eHELP] (Search by Purpose > Network > Network settings > Terms of Service and Settings).

Customer's personal information may be recorded on this TV by broadcasting organization or application provider. Before repairing, transferring or discarding this TV, erase all the information recorded on this TV according to the following procedure.

[eHELP] (Search by Purpose > Functions > Shipping Condition)

Customer information may be collected by provider via application provided by third parties on this TV or website. Please confirm the terms and conditions etc. of provider in advance.

• Panasonic will not be held responsible for collecting or using customer information via application provided by third party on this TV or website.
• When entering your credit card number, name, etc., pay special attention to the trustworthiness of the provider.
• Registered information may be registered in the server etc. of provider. Before repairing, transferring or discarding this TV, be sure to erase the information according to the terms and conditions etc. of provider.

The recording and playback of content on this or any other device may require permission from the owner of the copyright or other such rights in that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other device complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights in the content you wish to record or playback.

This product is licensed under the AVC patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard ("AVC Video") and/or (ii) decode AVC Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC Video. No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, LLC.

See http://www.mpegla.com.

This mark indicates the product operates on AC voltage.

This mark indicates a Class II or double insulated electrical appliance wherein the product does not require a safety connection to electrical earth (ground).

Transport only in upright position.

Safety Precautions

To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings and cautions below:

■ Mains plug and lead

Warning

If you detect anything unusual, immediately remove the mains plug.

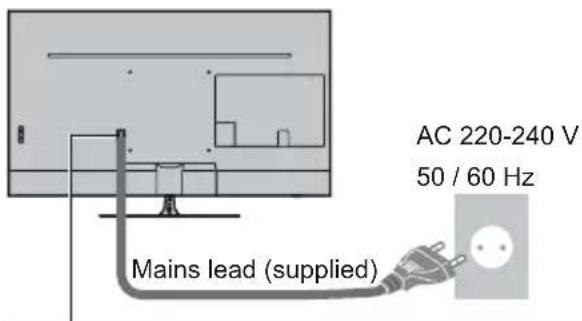

• This TV is designed to operate on AC ∼ 220-240 V, 50 / 60 Hz.
• Insert the mains plug fully into the mains socket.
• To turn Off the apparatus completely, you must pull the mains plug out of the mains socket.

Consequently, the mains plug should be easily accessible at all times.

• Disconnect the mains plug when cleaning the TV.
• Do not touch the mains plug with wet hands.

• Do not damage the mains lead.

• Do not place a heavy object on the lead.
- Do not place the lead near a high temperature object.
- Do not pull on the lead. Hold onto the mains plug body when disconnecting the plug.
- Do not move the TV with the lead plugged into a mains socket.
- Do not twist the lead, bend it excessively or stretch it.
- Do not use a damaged mains plug or mains socket.
- Ensure the TV does not crush the mains lead.

- Do not use any mains lead other than that provided with this TV.

Take care

Warning

- Do not remove covers and never modify the TV yourself as live parts are accessible and risk of electric shock when they are removed. There are no user serviceable parts inside.

- Do not expose the TV to rain or excessive moisture. This TV must not be exposed to dripping or splashing water and objects filled with liquid, such as vases, must not be placed on top of or above the TV.

Safety warning symbol with prohibition sign, explosion, and computer monitor illustration

• Do not insert foreign objects into the TV through the air vents.
• If the TV is used in an area where insects may easily enter the TV.

It is possible for insects to enter the TV, such as small flies, spiders, ants, etc. which may cause damage to the TV or become trapped in an area visible on the TV, e.g. within the screen.

- If the TV is used in an environment where there is dust or smoke.

It is possible for dust/smoke particles to enter the TV through the air vents during normal operation which can become trapped inside the unit. This may cause overheating, malfunction, deterioration in picture quality, etc.

- Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup or installation of approved wall-hanging brackets.

- Do not apply any strong force or impact to the display panel.

- Ensure that children do not climb on the TV.

- Do not place the TV on sloping or unstable surfaces, and ensure that the TV does not hang over the edge of the base.

Warning

Never place a TV in an unstable location. A TV may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the TV.
• Only using furniture that can safely support the TV.
• Ensuring the TV is not overhanging the edge of the supporting furniture.
• Not placing the TV on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the TV to a suitable support.
• Not placing the TV on cloth or other materials that may be located between the TV and supporting furniture.
  • Educating children about the dangers of climbing on furniture to reach the TV or its controls.

If your existing TV is being retained and relocated, the same considerations as above should be applied.

• This TV is designed for table-top use.
- Do not expose the TV to direct sunlight and other sources of heat.

To prevent the spread of fire, keep candles or other open flames away from this product at all times

■ Suffocation / Choking Hazard

Warning

- The packaging of this product may cause suffocation, and some of the parts are small and may present a choking hazard to young children. Keep these parts out of reach of young children.

Pedestal

Warning

- Do not disassemble or modify the pedestal.

Caution

• Do not use any pedestal other than the one provided with this TV.
• Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.
• During setup, make sure that all screws are securely tightened.
• Ensure that the TV does not suffer any impact during installation of the pedestal.
• Ensure that children do not climb onto the pedestal.
• Install or remove the TV from the pedestal with at least two people.
• Install or remove the TV according to the specified procedure.

■ Radio waves

Warning

• Do not use the TV in any medical institutions or locations with medical equipment. Radio waves may interfere with the medical equipment and may cause accidents due to malfunction.
• Do not use the TV near any automatic control equipment such as automatic doors or fire alarms. Radio waves may interfere with the automatic control equipment and may cause accidents due to malfunction.
• Keep at least 15 cm away from the TV if you have a cardiac pacemaker. Radio waves may interfere with the operation of the pacemaker.
• Do not disassemble or alter the TV in any way.

■ Built-in wireless LAN

Caution

• Do not use the built-in wireless LAN to connect to any wireless network (SSID*) for which you do not have usage rights. Such networks may be listed as a result of searches. However, using them may be regarded as illegal access.
  *SSID is a name for identifying a particular wireless network for transmission.
• Do not subject the built-in wireless LAN to high temperatures, direct sunlight or moisture.
• Data transmitted and received over radio waves may be intercepted and monitored.
• The built-in wireless LAN uses 2.4 GHz and 5 GHz frequency bands. To avoid malfunctions or slow response caused by radio wave interference when using the built-in wireless LAN, keep the TV away from other devices that use 2.4 GHz and 5 GHz signals such as other wireless LAN devices, microwave ovens, and mobile phones.
• When problems occur due to static electricity, etc., the TV might stop operating to protect itself. In this case, turn the TV off at the Mains power On / Off switch, then turn it back on.

■ Bluetoothwireless technology

Caution

- The TV uses the 2.4 GHz radio frequency ISM band (Bluetooth®). To avoid malfunctions or slow response caused by radio wave interference, keep the TV away from the devices such as other wireless LAN devices, other Bluetooth devices, microwaves, mobile phones and the devices that use 2.4 GHz signal.

Ventilation

Caution

Allow sufficient space (at least 10 cm) around the TV in order to help prevent excessive heat, which could lead to early failure of some electronic components.

10 10 10

(cm)

• Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, tablecloths and curtains.
• Whether you are using a pedestal or not, always ensure the vents at the bottom of the TV are not blocked and there is sufficient space to enable adequate ventilation.

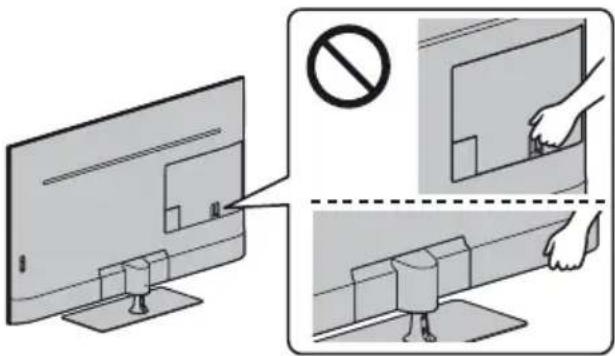

■ Moving the TV

Caution

Before moving the TV, disconnect all cables.

- At least two people are required to move the TV to prevent injury that may be caused by the tipping or falling of TV.

Diagram illustrating a device disassembly process with no stop symbol and labeled components

■ When not in use for a long time

Caution

This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live mains socket.

- Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.

■ Excessive volume

Caution

- Do not expose your ears to excessive volume from the headphones. Irreversible damage can be caused.

- If you hear a drumming noise in your ears, turn down the volume or temporarily stop using the headphones.

■ Battery for the Remote Control

Caution

- Incorrect installation may cause battery leakage, corrosion and explosion.

- Replace only with the same or equivalent type.

- Do not mix old and new batteries.

- Do not mix different battery types (such as alkaline and manganese batteries).

- Do not use rechargeable batteries (Ni-Cd, etc.).

- Do not burn or break up batteries.

- Do not expose batteries to excessive heat such as sunshine, fire or the like.

• Make sure you dispose of batteries correctly.

- Remove the battery from the unit when not using for a prolonged period of time to prevent battery leakage, corrosion and explosion.

LED TV

Declaration of Conformity (DoC)

"Hereby, Panasonic Corporation declares that this TV is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU."

If you want to get a copy of the original DoC of this TV, please visit the following website:

http://www.ptc.panasonic.eu/doc

Authorized Representative:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hamburg, Germany

5.15 - 5.35 GHz band of wireless LAN is restricted to indoor operation only in the following countries.

Austria, Belgium, Bulgaria, Czech Republic, Denmark, Estonia, France, Germany, Iceland, Italy, Greece, Spain, Cyprus, Latvia, Liechtenstein, Lithuania, Luxembourg, Hungary, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovenia, Slovakia, Turkey, Finland, Sweden, Switzerland, Croatia

Maximum radio-frequency power transmitted in the frequency bands

Type of wireless	Frequency band M	Maximum EIRP
Wireless LAN	2 412-2 472 MHz	20 dBm
	5 150-5 250 MHz	23 dBm
	5 250-5 350 MHz	23 dBm
	5 470-5 725 MHz	23 dBm
Bluetooth 2 402-2	480 MHz 9 dBm

Accessories

Standard accessories

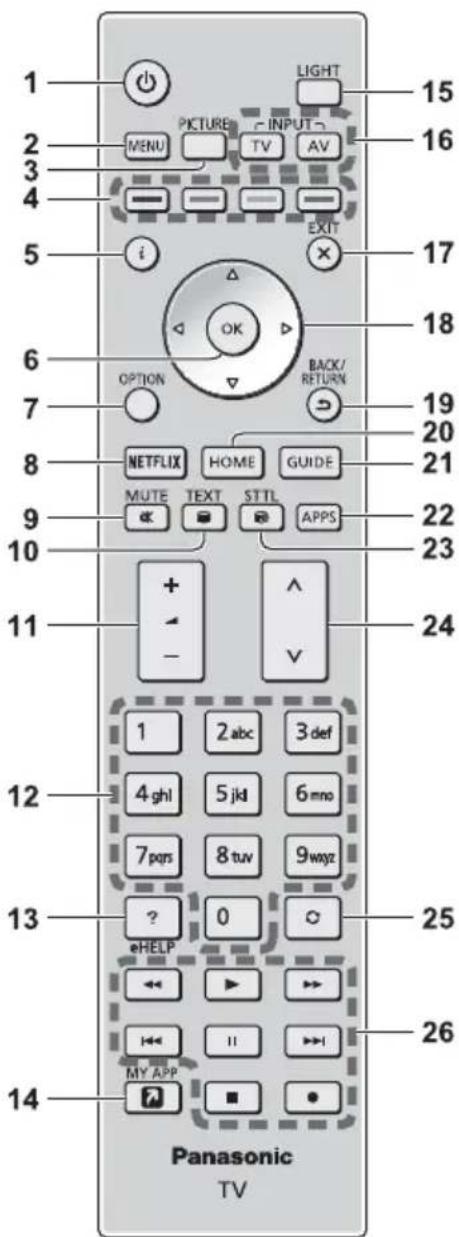

Remote Control

→ (p. 20)

N2QAYA000152

Pedestal

→ (p. 8)

Cable tie

→ (p. 18)

Mains lead

→ (p. 14)

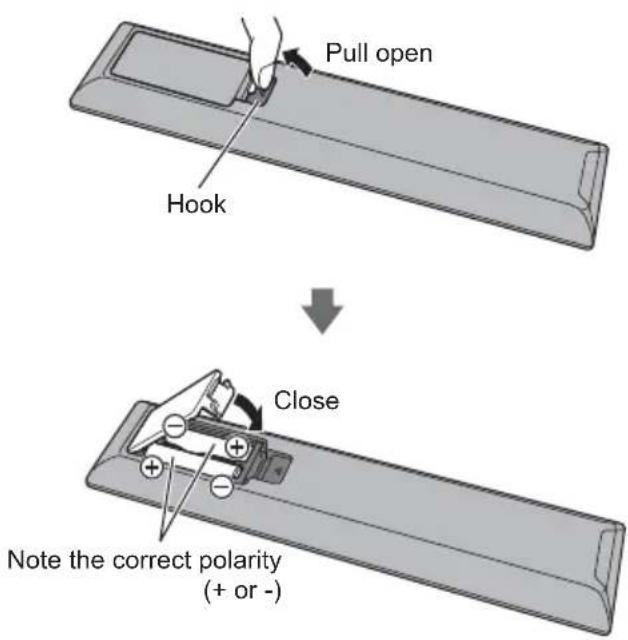

Batteries (2)

R03

→ (p. 21)

Operating Instructions

Pan European Guarantee Card

- Accessories may not be placed all together. Take care not to throw them away unintentionally.

Installing the TV

Assembling / Removing the pedestal

43-inch model	49-inch model55-inch model
Assembly screw (10)	Assembly screw (4)
	M4 × 12

⑧ Assembly screw (2)

M5 × 15

43-inch model 49-inch model	55-inch model
C Main bracketD PoleE Support bracket	C Bracket

F Base

3D illustration of a conical object placed on a flat surface (no text or symbols)

© Cover

3D illustration of a metal bracket with curved and straight sections (no text or symbols)

Preparations

Take out the pedestal and the TV from the packing case and put the TV onto a work table with the screen panel down on the clean and soft cloth (blanket, etc.)

• Use a flat and firm table bigger than the TV.
• Do not hold the screen panel part.
  • Make sure not to scratch or break the TV.

Assembling the pedestal

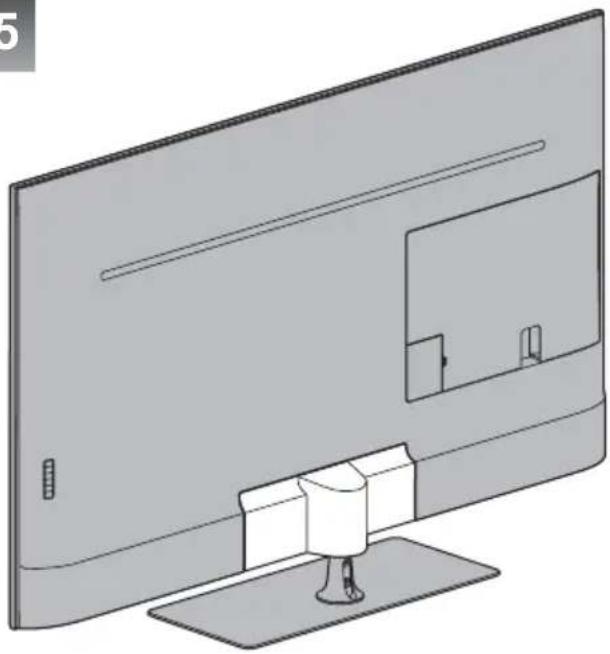

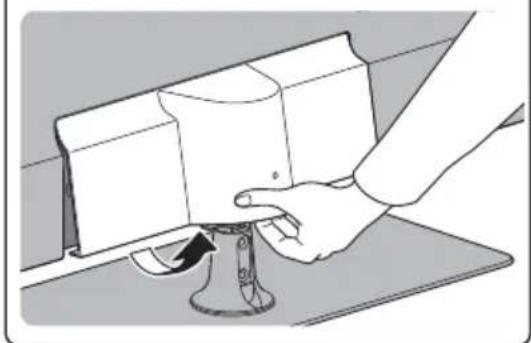

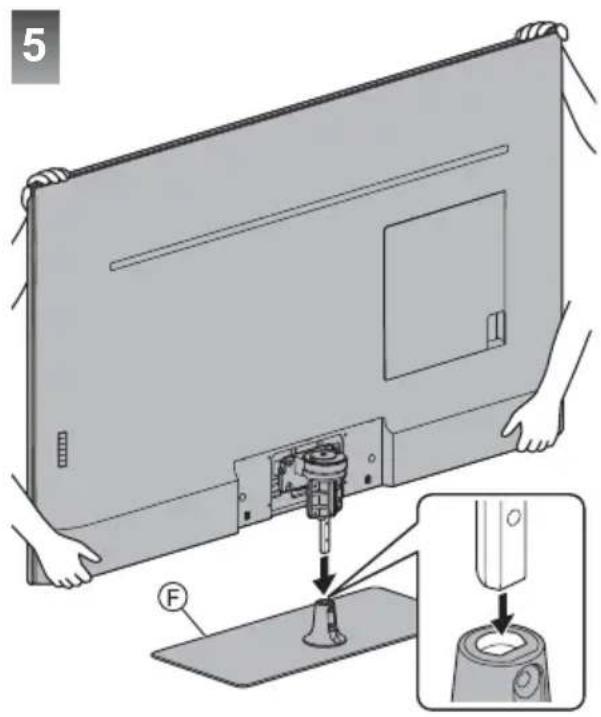

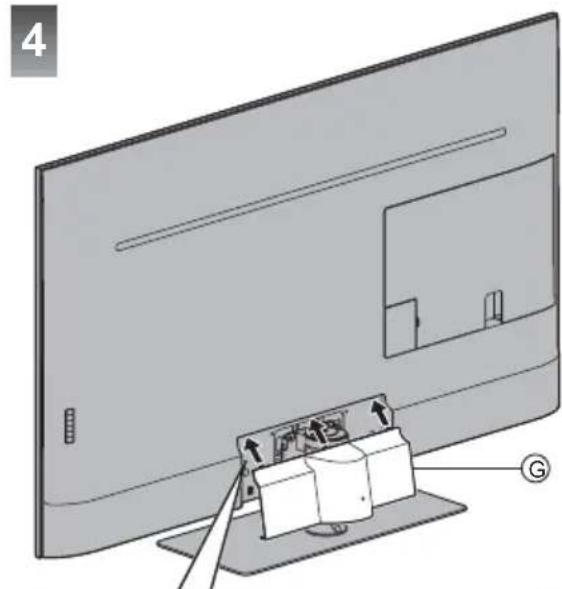

• Make sure that all screws are securely tightened. 43-inch model

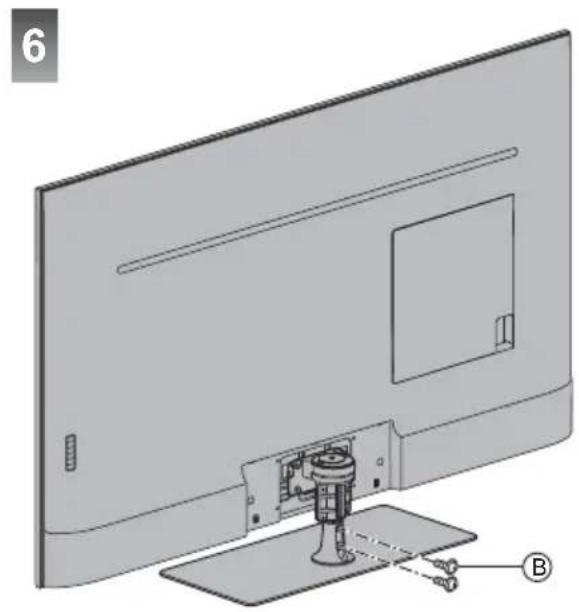

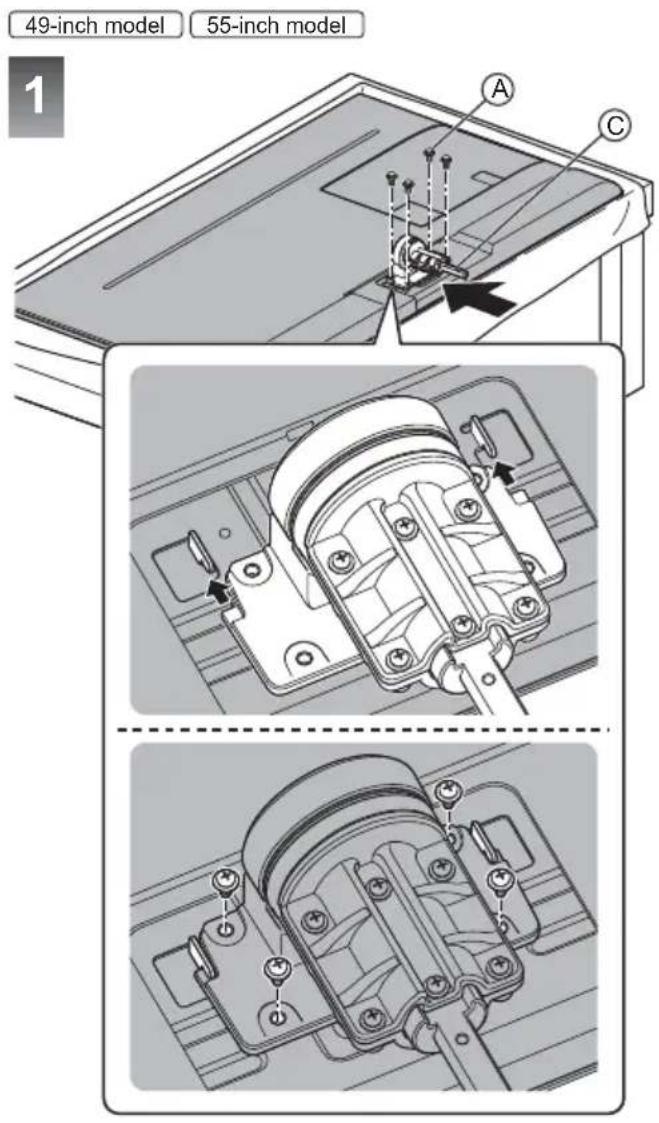

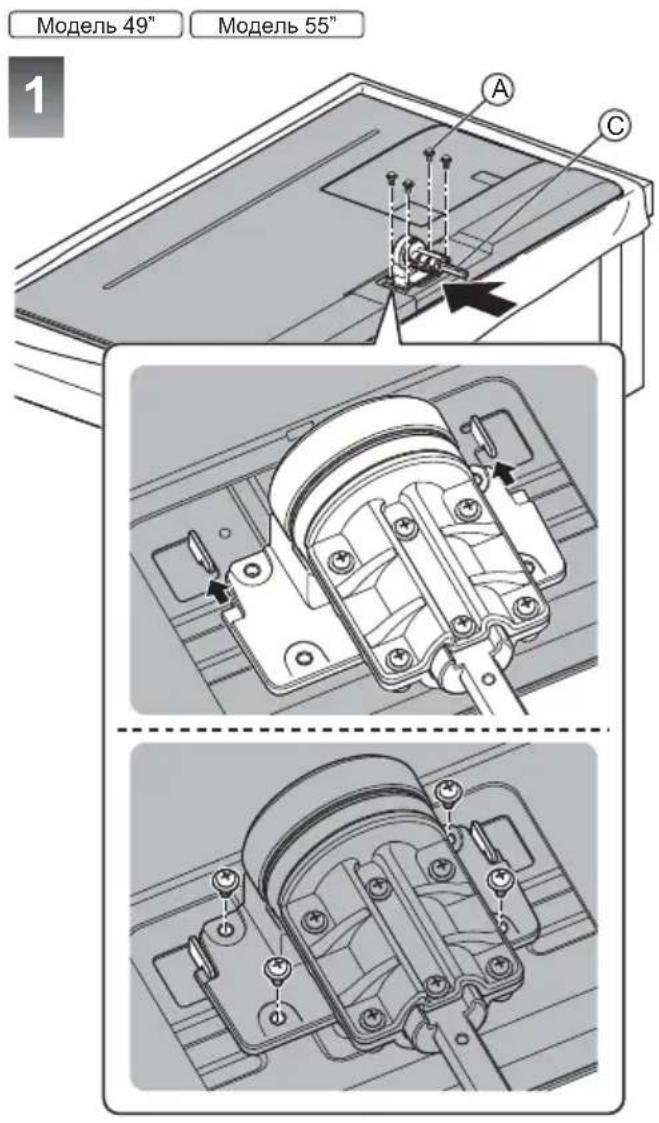

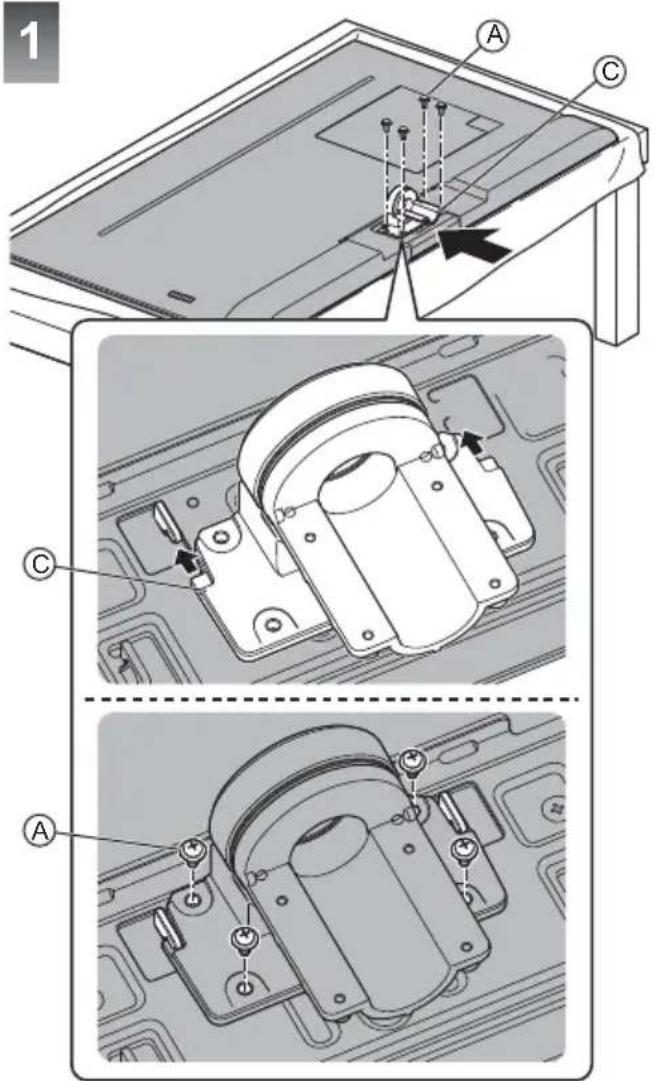

1 A C C A

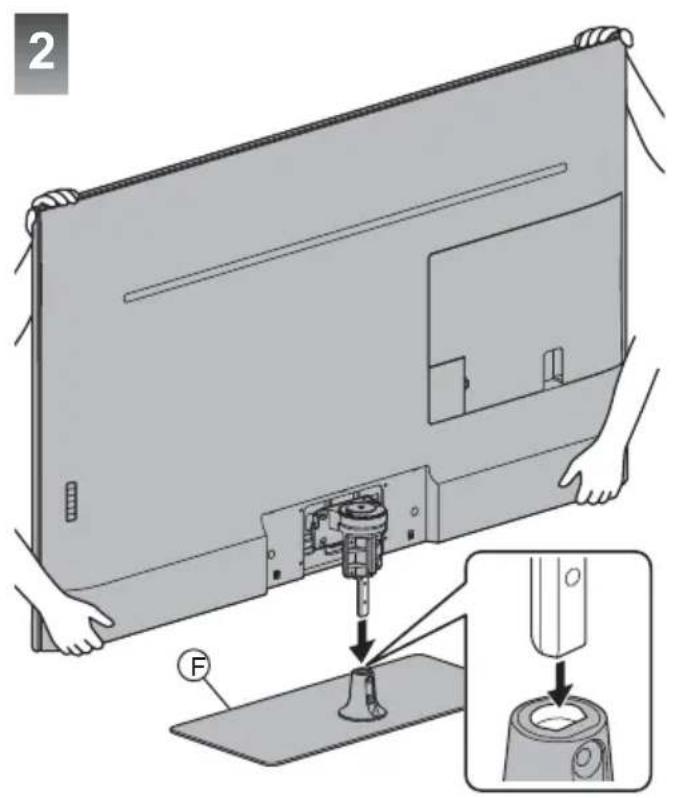

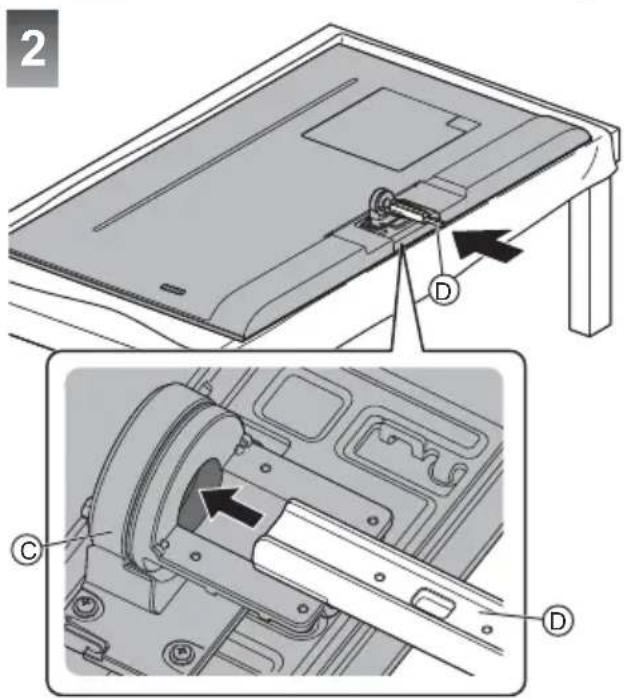

2 D C D

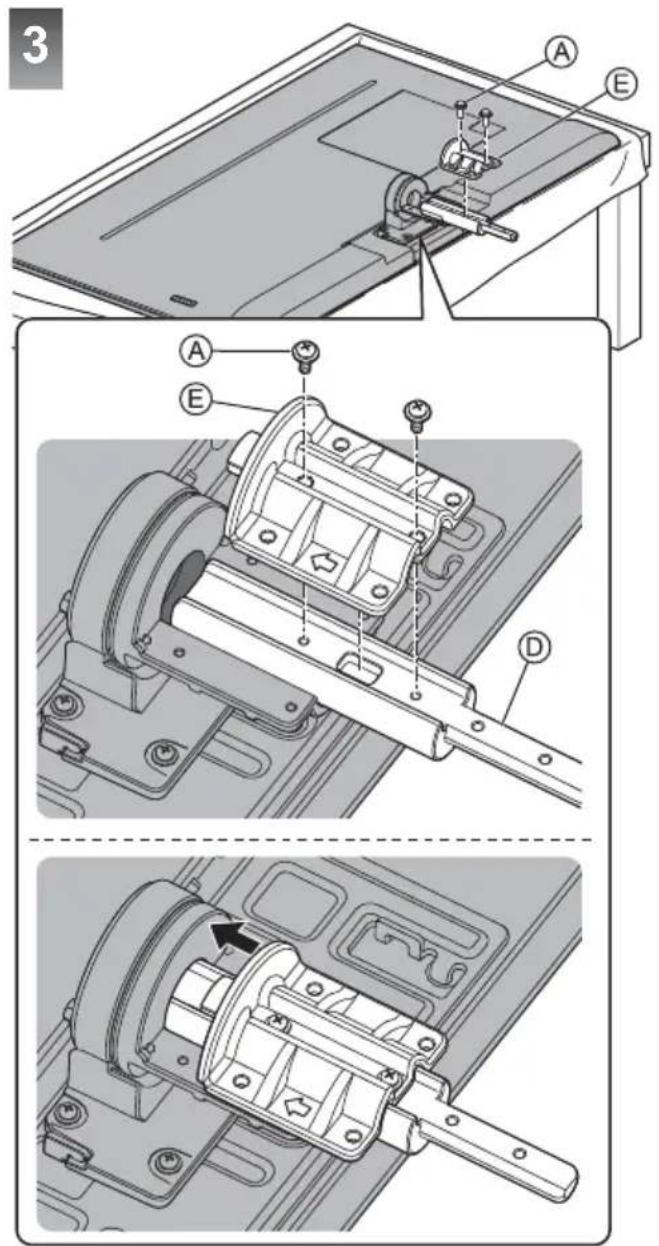

3 A E A E D

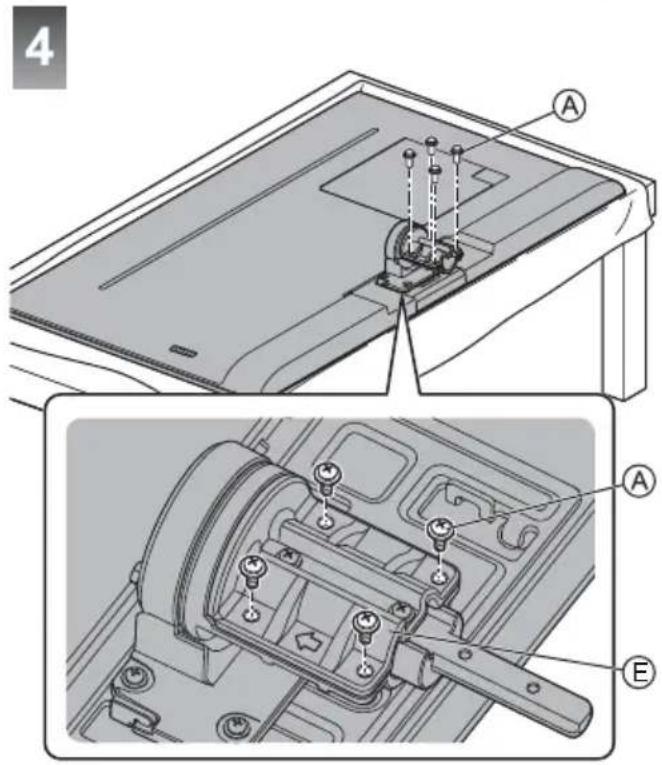

4 A A E

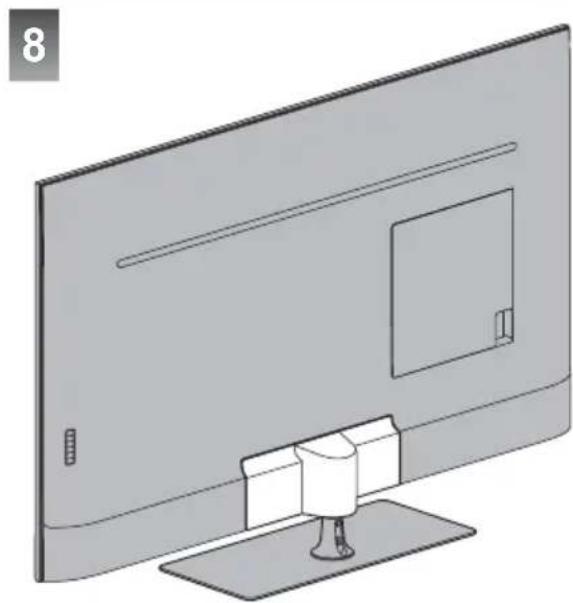

5 F

Diagram of a flat-screen TV with a mounted device and base panel, showing no text or symbols

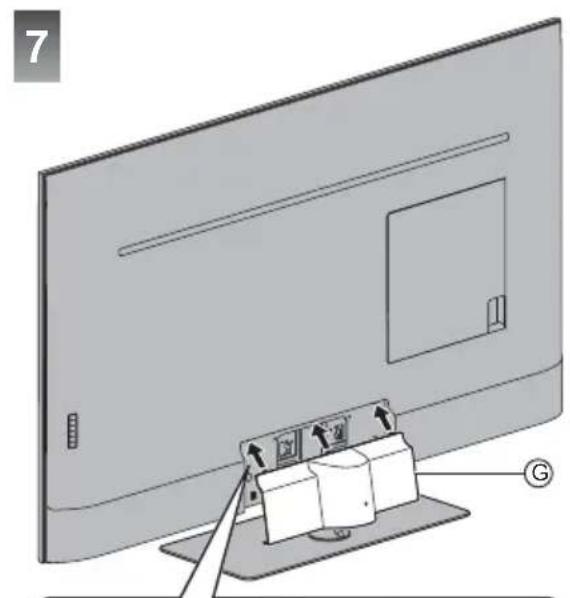

7 G

Diagram illustrating a sewing machine operation with labeled steps and directional arrows indicating movement.

Illustration of a flat-screen monitor with a stand and lid, no text or symbols present

49-inch model 55-inch model 1 A B C

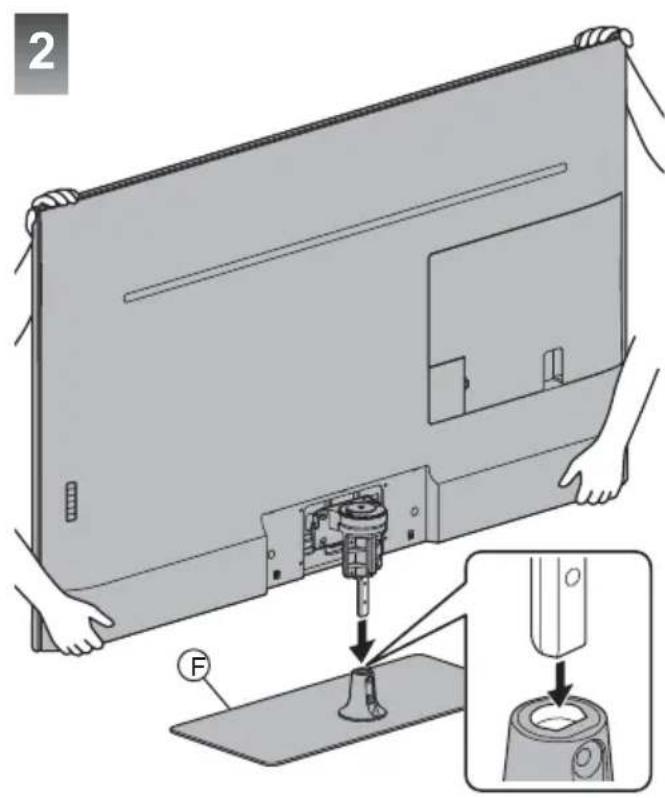

2 F

Diagram of a computer monitor with a mechanical assembly and labeled component (B), no text or symbols present.

4 G

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

Illustration of a hand using a sewing machine to press or install a box (no text or symbols visible)

5

Illustration of a modern flat-screen monitor with a small screen and stand (no text or symbols visible)

Adjusting the panel to your desired angle

- Do not place any objects within the full rotation range.

15° 15°

(View from the top)

Removing the pedestal

Be sure to remove the pedestal in the following procedures when you use the wall-hanging bracket or repack the TV.

43-inch model

1 Remove the cover ©.
2 Remove the assembly screws Ⓑ from the base.
3 Lift the TV and pull out the pole from the base.
4 Put the TV onto a work table with the screen panel down on the clean and soft cloth.
5 Remove the assembly screws Ⓐ from the bracket.
6 Pull out the pole from the main bracket.
7 Remove the assembly screws Ⓐ from the main bracket.
8 Remove the bracket.

49-inch model 55-inch model

1 Remove the cover Ⓖ.
2 Remove the assembly screws Ⓑ from the base.
3 Lift the TV and pull out the pole from the base.
4 Put the TV onto a work table with the screen panel down on the clean and soft cloth.
5 Remove the assembly screws Ⓐ from the bracket.
6 Remove the bracket.

Installing the wall- hanging bracket

Please contact your local Panasonic dealer to purchase the recommended wall-hanging bracket.

- Holes for wall-hanging bracket installation Rear of the TV

a b

43-inch model

49-inch model

a: 200 mm

b: 200 mm

55-inch model

a: 300 mm

b: 300 mm

(View from the side)

Depth of screw minimum: 9 mm maximum: 21 mm Diameter: M6

Screw for fixing the TV onto the wall-hanging bracket (not supplied with the TV)

Warning

• Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and product damage. In order to maintain the unit's performance and safety, be absolutely sure to ask your dealer or a licensed contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your warranty.
• Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV from falling off.
• Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage.
  • Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before hanging bracket.
• To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use.

Connections

• External equipment and cables shown are not supplied with this TV.
• Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any cables.
• Check the terminal type and cable plugs are correct for connection.
  • Use a fully wired HDMI compliant cable.
• Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor, otherwise distortion of image / sound may occur or operation of other equipment may be affected.
• Please also read the manual of the equipment being connected.

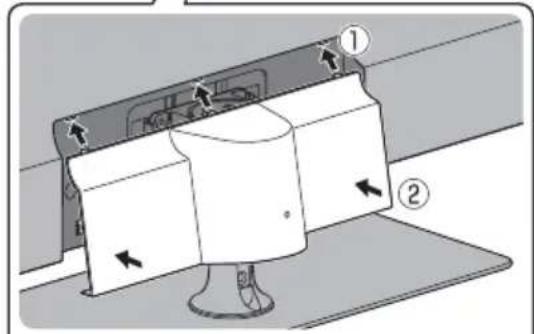

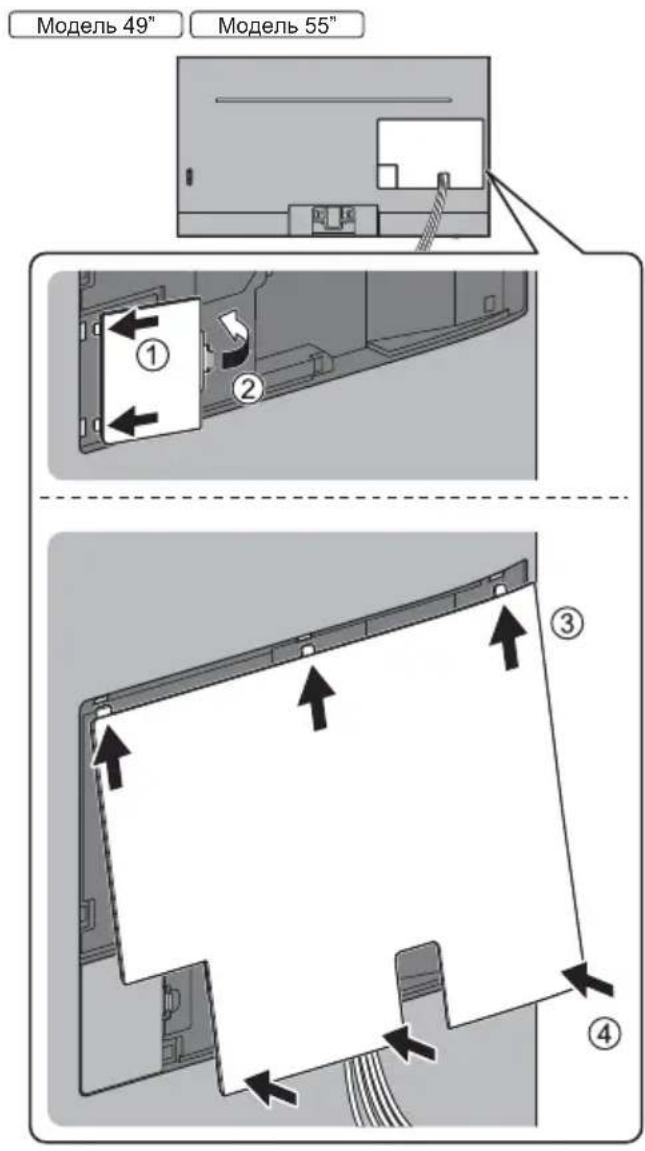

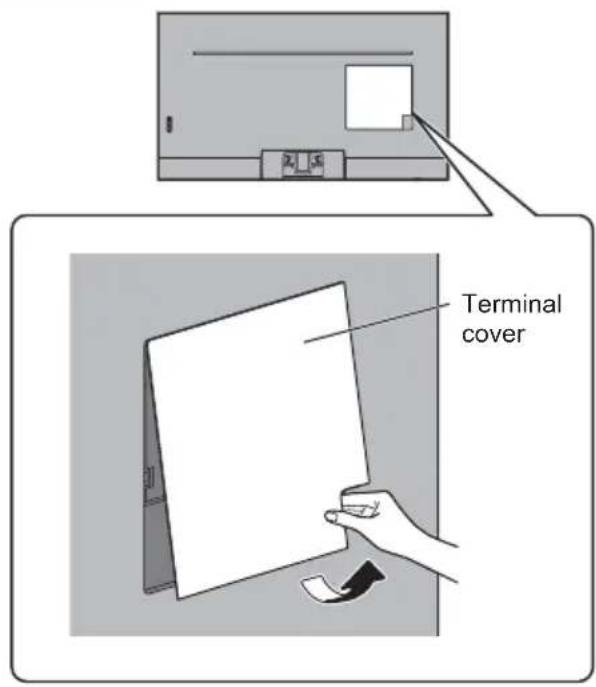

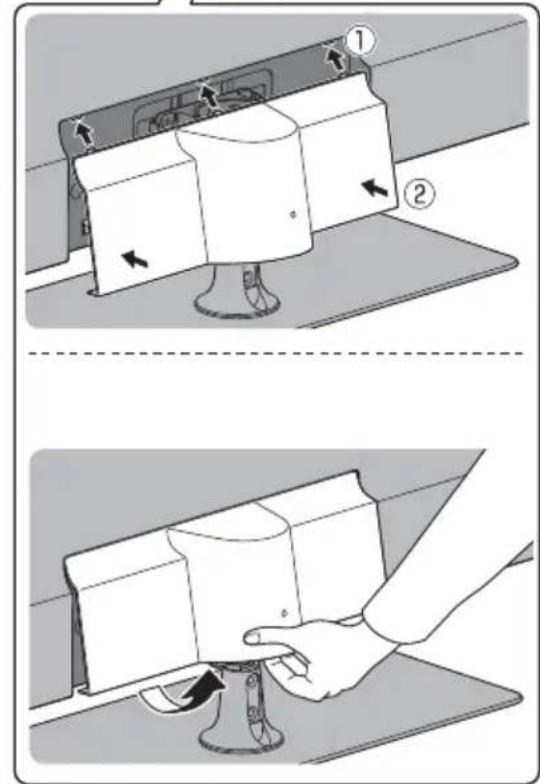

Removing the cable cover / terminal cover from the TV

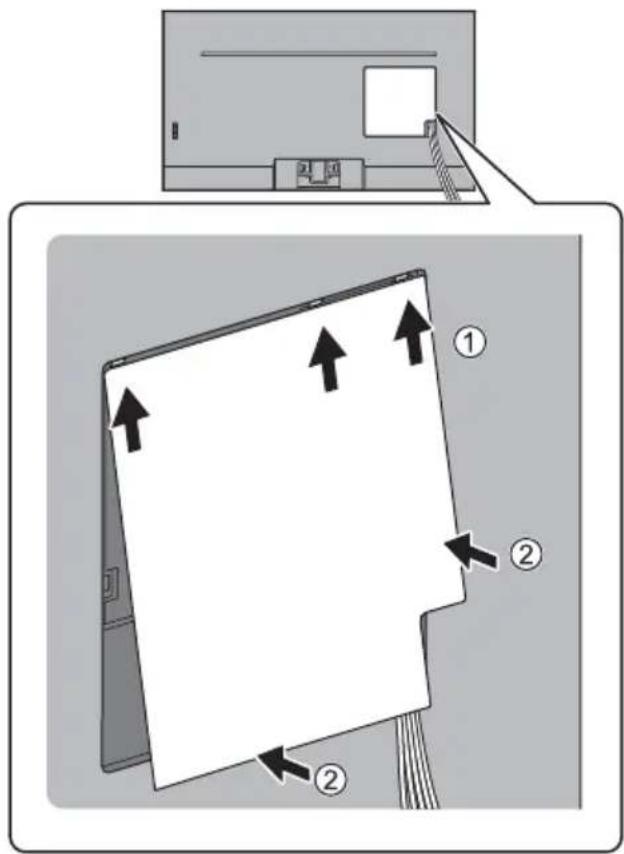

• Be sure to remove the cable cover / terminal cover before connecting or disconnecting cables.
• When the connections are completed, attach the cable cover / terminal cover. (p. 18)

43-inch model

Terminal cover

49-inch model 55-inch model

Cable cover Terminal cover

Terminals

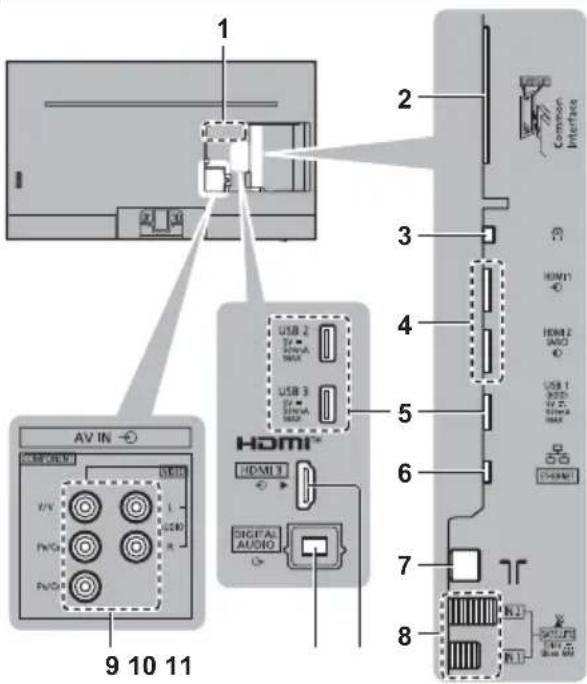

AV IN COMPONENT V/V Pv/Cp Pv/Cp 9 10 11 USB 2 Tr SMA MAX USB 3 Tr SMA MAX HDMI™ HDMI 3 DIGITAL AUDIO 2 3 4 5 6 7 8 Common Interface HDMI1 HDMI2 AVIO USB 1 AVIO T1-V2 T1-V3 T1-V4 T1-V5 T1-V6 T1-V7 T1-V8 T1-V9 T1-V10 T1-V11

1 Model name plate
2 Cl slot 1 - 2 (p. 17)
3 Headphone jack (p. 17)
4 HDMI1 - 2 (p. 15, 16)
5 USB 1 - 3 port --- This symbol indicates DC operation.
6 ETHERNET terminal (p. 15)
7 Terrestrial / cable terminal (p. 14)
8 Satellite terminal (p. 14)
9 AV IN (COMPONENT / VIDEO) (p. 16)
10 DIGITAL AUDIO

11 HDMI3

• To watch content in 4K format, use HDMI terminal.

→ (p. 16)

Basic connections

■ Mains lead

AC 220-240 V 50 / 60 Hz Mains lead (supplied)

Insert the mains plug firmly into place.

- When disconnecting the mains lead, be absolutely sure to disconnect the mains plug from the mains socket first.

Aerial

TV Cable 1 2

① RF cable
② Terrestrial aerial

• For DVB-C, DVB-T, Analogue

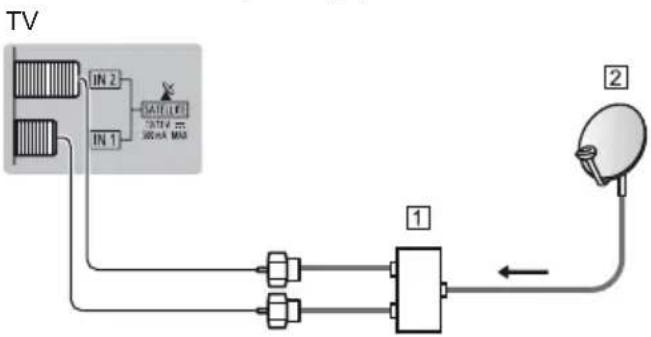

Satellite connection

- For DVB-S

■ Dual Tuner (DiSEqC)

1 Satellite cables with Multiswitch
② Satellite dish

■ Dual Tuner (Single Cable System)
TV

① Satellite cable with Single Cable router
② Satellite dish

■ Single Tuner
TV

① Satellite cable
② Satellite dish

- To ensure your satellite dish is correctly installed, please consult your local dealer. Also consult the received satellite broadcasting companies for details.

DVB-via-IP server connection

This TV can be configured as a DVB-via-IP server to provide broadcast streaming to another TV supporting DVB-via-IP client function or SAT>IP compatible devices.

TV

① LAN cable (Shielded)
• Use Shielded Twist Pair (STP) LAN cable.
② Hub / Router
③ DVB-via-IP client (Panasonic TV, etc.)

- This function may not be available depending on network condition and broadcast.

- Dual tuner function (watching or recording 2 programmes simultaneously, etc.) is not available while using DVB-via-IP server function.

- For details, refer to [eHELP] (Search by Purpose > Functions > DVB-via-IP).

DVB-via-IP client connection

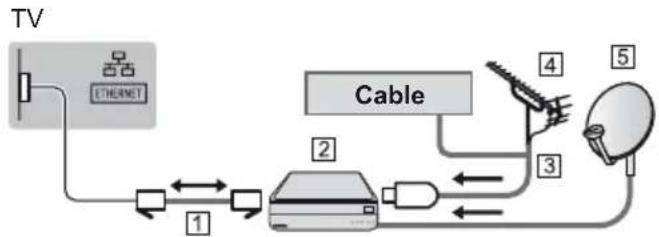

This TV has DVB-via-IP client function and can connect to DVB-via-IP server or SAT>IP compatible servers to receive broadcast streaming.

- It is recommended to connect to DVB-via-IP server with a LAN cable.

■ Wired connection

1 LAN cable (Shielded)

• Use Shielded Twist Pair (STP) LAN cable.

② DVB-via-IP server
3 RF cable
4 Terrestrial aerial
5 Satellite dish

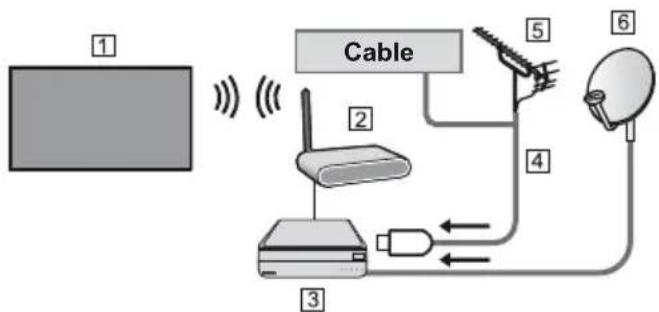

■ Wireless connection

Built-in wireless LAN (Rear of the TV)
② Access point
③ DVB-via-IP server
4 RF cable
5 Terrestrial aerial
6 Satellite dish

• This function may not be available depending on network condition and broadcast.
• For information about the connections, read the manual of the DVB-via-IP server.
• For details, refer to [eHELP] (Search by Purpose > Functions > DVB-via-IP).

AV devices

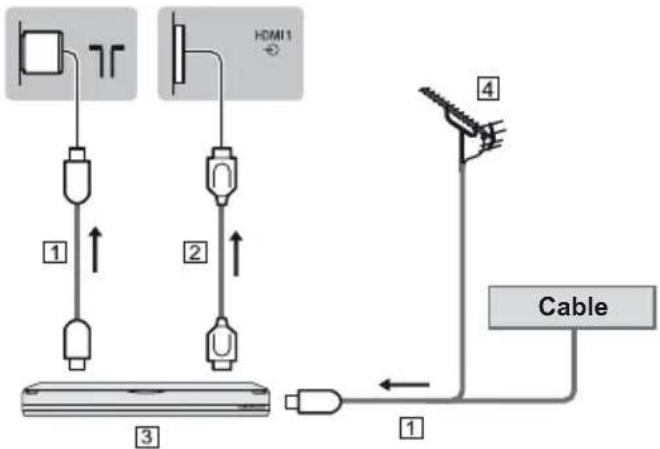

■ DVD Recorder / Blu-ray Recorder, etc.
TV

① RF cable
② HDMI cable
③ DVD Recorder / Blu-ray Recorder, etc.
4 Terrestrial aerial

■ Set top box
TV

① HDMI cable
② Set top box

Network

A broadband network environment is required to be able to use internet services.

• If you do not have any broadband network services, please consult your retailer for assistance.
  • Prepare the internet environment for wired connection or wireless connection.
• Setup of the network connection will start when first using the TV. (p. 22)

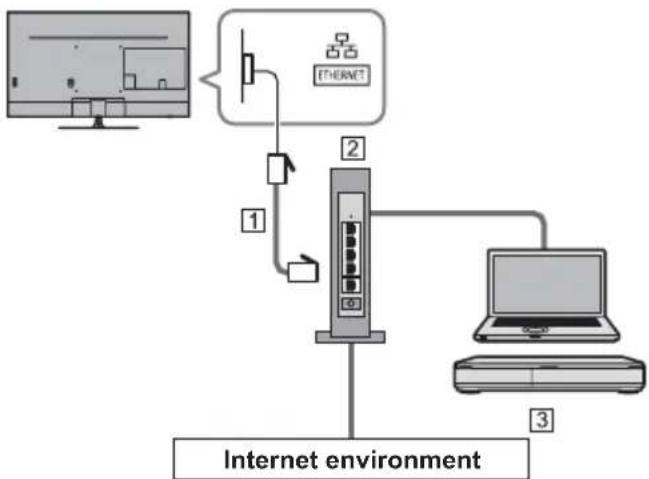

■ Wired connection
TV

① LAN cable (Shielded)

• Use Shielded Twist Pair (STP) LAN cable.

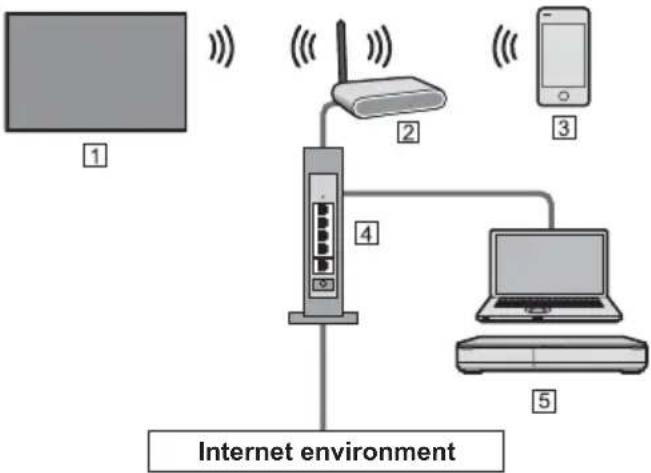

■ Wireless connection

① ② Internet environment

Built-in wireless LAN (Rear of the TV)
② Access point

Connections for 4K / HDR compatible equipment

TV HDMI1 ① ②

① HDMI cable
② 4K / HDR compatible equipment

• Connect the 4K compatible equipment to HDMI terminal using a 4K compatible cable and you can watch content in 4K format.
  • Supporting HDR does not increase the peak brightness capabilities of the TV panel.

■ [HDMI Auto Setting] (Setup Menu)

Reproduces the image more precisely with the expanded colour gamut when connecting the 4K compatible equipment. Select the mode depending on the equipment.

[Mode1]:

For better compatibility. Set to [Mode1] when the image or sound in HDMI input is not played properly. [Mode2]:

For the 4K compatible equipment that has the function to output the image precisely with the expanded colour gamut

• To change the mode
1. Select the HDMI input mode connected to the equipment.
2. Display the menu and select [HDMI Auto Setting] (Setup Menu).
- For information about the valid format, refer to [eHELP] (Search by Purpose > Watching > 4K resolution > HDMI Auto Setting).

Other connections

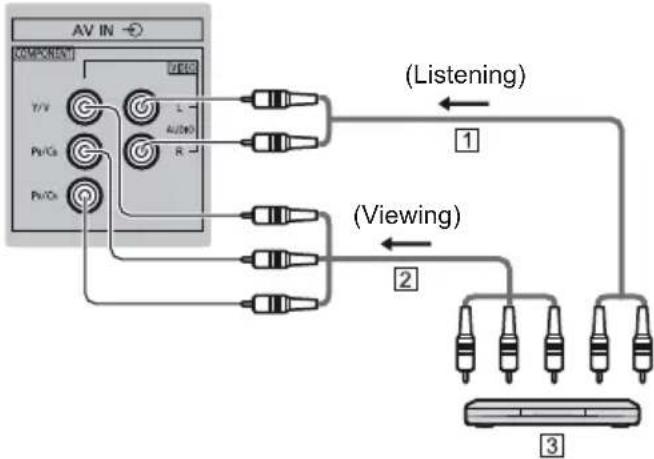

■ DVD Player

COMPONENT equipment)

TV

① Audio cable (Shielded)
② Component video cable (Shielded)
③ DVD Player

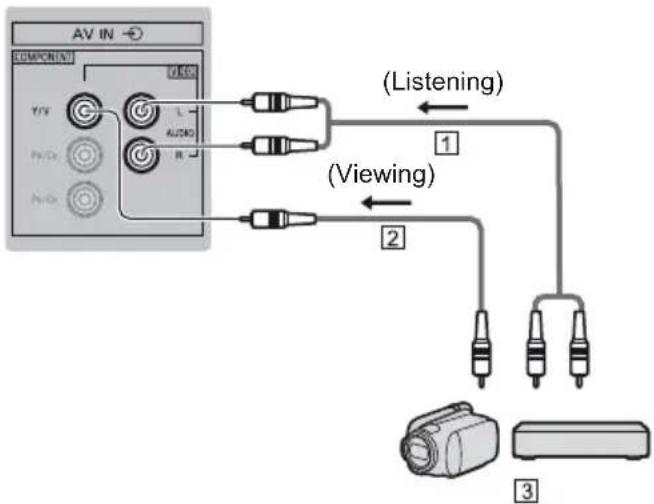

■ Camcorder / Game equipment (VIDEO equipment)

TV

① Audio cable (Shielded)
② Composite video cable (Shielded)
③ Camcorder / Game equipment

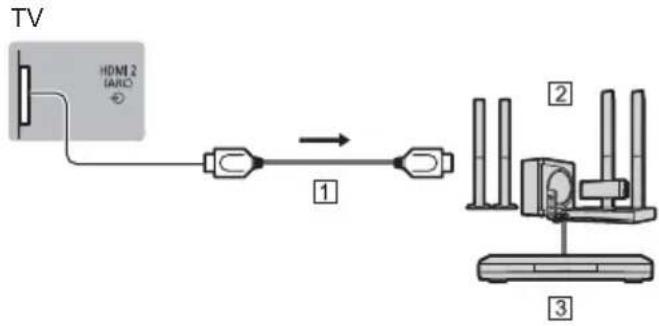

■ Amplifier (listening with external speakers)

- To enjoy multi-channel sound from external equipment (e.g. Dolby Digital 5.1ch), connect the equipment to the amplifier. For information about the connections, read the manuals of the equipment and amplifier.

① HDMI cable
② Amplifier with speaker system
3 External equipment (DVD Player, etc.)

- Use HDMI2 to connect the TV to an amplifier which has ARC (Audio Return Channel) function.

If connecting to an amplifier without ARC function, use DIGITAL AUDIO.


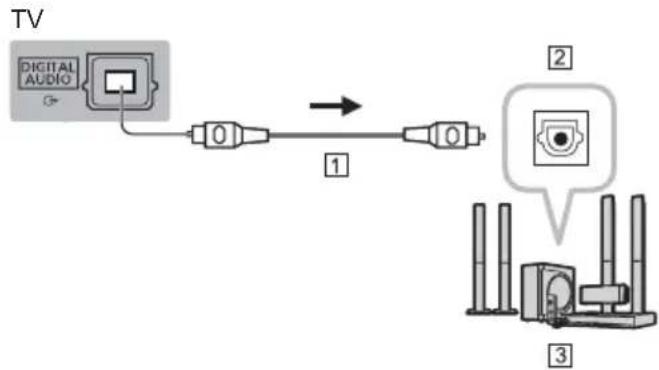

1 Optical cable
② DIGITAL AUDIO IN
③ e.g. Amplifier with speaker system

■ Headphones

- For information about the headphone terminal output settings, refer to [eHELP] (Search by Purpose > Settings > Sound).

• Turn the TV off with Mains Power On / Off switch whenever inserting or removing the CI module.
• If a smart card and a CI module come as a set, first insert the CI module, then insert the smart card into the CI module.
• Insert or remove the CI module completely in the correct direction as shown.
• Normally encrypted channels will appear. (Viewable channels and their features depend on the CI module.)

If encrypted channels do not appear

[Common Interface] in the Setup Menu

• There might be some CI modules in the market with older firmware versions that do not work fully interoperable with this new CI+ v1.4 TV. In this case, please contact your content provider.
• For details, refer to [eHELP] (Search by Purpose > Functions > Common Interface), read the manual of the CI module, or check with the content provider.
• Be sure to remove the CI module card, etc. before repairing, transferring or discarding.

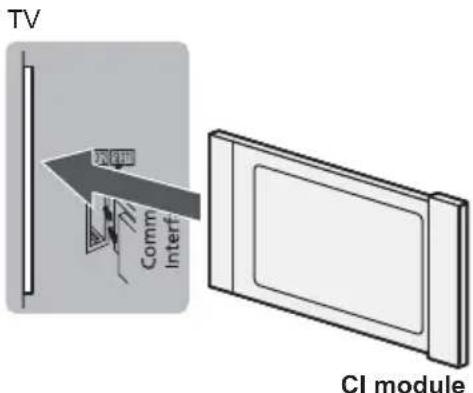

TV Comm Interf CI module

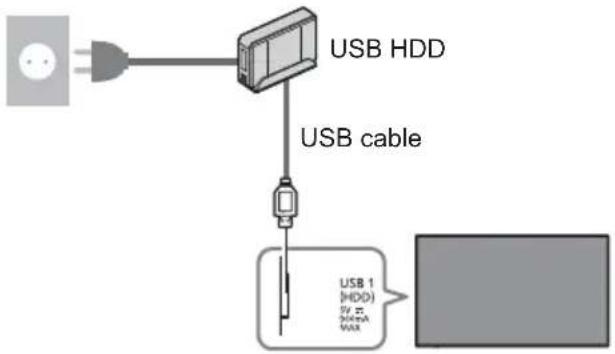

■ USB HDD (for recording)

• Use USB 1 port for connecting the USB HDD.
- For details, refer to [eHELP] (Search by Purpose > Recording).

■ VIERA Link

• Use HDMI1 - 3 for VIERA Link connection.
- For details, refer to [eHELP] (Search by Purpose > Functions > VIERA Link "HDAVI Control™").

Cable arrangement

Fix the cables using the cable clamp, cable tie, etc. and then attach the terminal cover to the TV.

■ Fixing the cables using the cable tie

Top-down schematic of a monitor layout with no visible text, numbers, or symbols

Attach the cable tie

Insert the cable tie in a hole

Hole

Bundle the cables

Set the tip in the hooks

Hooks

To loosen:

Keep pushing the knob

Knob

To remove from the TV:

Snaps

Keep pushing both side snaps

• Fix cables as necessary.
- When using the optional accessory, follow the option's assembly manual to fix cables.

■ Attaching the cable cover / terminal cover

• Do not apply load to the cable cover / terminal cover.
• Be careful not to nip the cables between the TV and the cable cover / terminal cover.
• When using USB 2 port, USB 3 port, HDMI3 terminal or DIGITAL AUDIO, you cannot attach the cable cover. Keep the removed cable cover for future use.
• When using AV IN terminal, you cannot attach the terminal cover. Keep the removed cover for future use.

43-inch model

Diagram illustrating a device's front view and internal movement, labeled with numbered arrows indicating movement directions.

49-inch model 55-inch model ① ② ③ ④

Identifying Controls

Remote Control

1 2 3 4 5 6 7 8 9 10 11 12 13 14 PANASONIC TV 1 2 3 def 4 ghl 5 jkl 6 mno 7 pqs 8 tuv 9 wayt ? eHELP 0 I EXIT OK OPTION BACK/ RETURN NETFLIX HOME GUIDE MUTE TEXT STTL APPS ^ V 15 16 17 18 19 20 21 22 23 24 25 26

1 [☐]: Switches TV On or Off (Standby)

2 [Main Menu]

- Press to access Picture, Sound, Network, Timer, Setup and Help Menus, etc.

3 PICTURE

• Changes Viewing Mode.

4 Coloured buttons

(red-green-yellow-blue)

- Used for the selection, navigation and operation of various functions.

5 Information

• Displays channel and programme information.

6 OK

• Confirms selections and choices.
- Press after selecting channel positions to quickly change channel.

7 [Option Menu]

- Easy optional setting for viewing, sound, etc.

8 Netflix

• Accesses NETFLIX service directly.
• A broadband network environment is required in order to fully use this function.
• This service may be stopped or changed without notice.

9 Sound Mute On / Off

10 Teletext button

11 Volume Up / Down

12 Numeric buttons

• Changes channel and teletext pages.
- Sets characters.
- When in Standby mode, switches TV on.

13 [eHELP]

• Displays [eHELP] (Built-in Operating Instructions).

14 [My App]

• Assigns a favourite application. After setting, starts the application easily by pressing this button.
• For details, refer to [eHELP] (Search by Purpose > Home > Apps).

15 Light

- Lights the buttons for about 5 seconds. Press again to turn off the button lights.

16 Input mode selection

• TV - switches to DVB-S / DVB-C / DVB-T / DVB-via-IP / Analogue.
• AV - switches to AV input mode from Input Selection list.

17 Exit

- Returns to the normal viewing screen.

18 Cursor buttons

• Makes selections and adjustments.

19 Return

- Returns to the previous menu / page.

20 HOME

• Displays [Home].
- For details, refer to [eHELP] (Read first > Features).

21 TV Guide

• Displays Electronic Programme Guide.

22 APPS

• Displays [Apps] (applications list).

23 Subtitles

• Displays subtitles.

24 Channel Up / Down

25 Last view

- Switches to previously viewed channel or input mode.

26 Operations for contents, connected equipment, etc.

■ Installing / Removing batteries

Pull open Hook ↓ Close Note the correct polarity (+ or -)

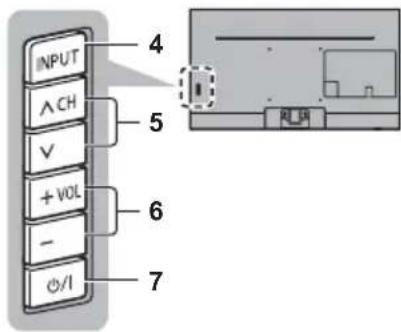

Indicator / Control panel

- When pressing 4, 5, 6 buttons, the control panel guide appears on the right side of the screen for 3 seconds to highlight which button has been pressed.

1 2,3

INPUT ^CH V + VOL - Ø/I 4 5 6 7

Rear side of the TV

1 Power LED

Red:

Standby

Green:

On

- Depending on the ambient brightness, adjusts the brightness of LED to easy-to-view levels automatically.

Orange:

Standby with some functions (recording, etc.) active

- The LED blinks when the TV receives a command from the remote control.

2 Ambient sensor

- Senses brightness to adjust picture quality when [Ambient Sensor] in the Picture Menu is set to [On].

3 Remote control signal receiver

- Do not place any objects between the TV remote control signal receiver and remote control.

4 Input mode selection

- Press repeatedly until you reach the desired mode.

[Main Menu]

- Press and hold for about 3 seconds to display main menu.

OK (when in the menu system)

5 Channel Up / Down

- Cursor Up / Down (when in the menu system)

6 Volume Up / Down

- Cursor Left / Right (when in the menu system)

7 Mains power On / Off switch

• Use to switch the mains power.

- To turn Off the apparatus completely, you must pull the mains plug out of the mains socket.

• [⏻/]: Standby / On

First time Auto Setup

When the TV is turned on for the first time, it will automatically search for available TV channels and give options to set up the TV.

• These steps are not necessary if the setup has been completed by your local dealer.
- Please complete connections (p. 13 - 18) and settings (if necessary) of the connected equipment before starting Auto Setup. For information about the settings for the connected equipment, read the manual of the equipment.

1 Plug the TV into a live mains socket and turn the power on

• Takes a few seconds to be displayed.

Pure electrical control panel icon without any text or symbols

2 Select the following items

Set up each item by following the on-screen instructions.

Example:

Please select your viewing environment. Home Shop

■ How to use the remote control

Move the cursor

Access the item / store the setting

Return to the previous item (if available)

Select the language

Select your country

Select [Home]

Select [Home] for use in a home viewing environment.

• [Shop] is for shop display.
- To change the viewing environment later on, the set will need to have all settings initialised by accessing Shipping Condition.

Set up the network connection

- Depending on the country you select, select your Region or store the Child Lock-PIN number ("0000" cannot be stored).

Tick the TV signal mode to tune, and then select [Start Auto Setup]

• Auto Setup screen varies depending on the country and the signal mode you select.
  • [DVB-S Antenna Setup]

Ensure the satellite connections are completed (p. 14) and select the tuner mode ([Dual Tuner] / [Single Tuner]).

• [DVB-C Network Settings]

Normally set [Frequency] and [Network ID] to [Auto]. If [Auto] is not displayed or if necessary, enter [Frequency] and [Network ID] specified by your cable provider with numeric buttons.

Auto Setup is now complete and the TV is ready for viewing.

If tuning has failed check the Satellite cable, RF cable, and the network connection, and then follow the on-screen instructions.

Note

• The TV goes into Standby mode when no operation is performed for 4 hours if [Auto Standby] in the Timer Menu is set to [On].
• The TV goes into Standby mode when no signal is received and no operation is performed for 10 minutes if [No signal Power off] in the Timer Menu is set to [On].
  • To retune all channels

[Auto Setup] in [Tuning Menu] (Setup Menu)

• To add the available TV signal mode later
[Add TV Signal] in [Tuning Menu] (Setup Menu)
• To initialise all settings
[Shipping Condition] in [System Menu] (Setup Menu)

Watching TV

1 Turn power on

or

(Remote Control)

- Mains power On / Off switch should be on.

→ (p. 21)

2 Select the mode

TV Selection DVB-S DVB-C DVB-T DVB-via-IP Analogue

- Selectable modes vary depending on the channels stored.

3 Select a channel

or

• To select a channel position with 2 or more-digit, e.g. 399

How to Use eHELP

[eHELP] is the detailed operating instructions built into the TV, and gives a more detailed explanation for a better understanding of the operation of each feature.

1 Display [eHELP]

or

- If the [eHELP] has been accessed previously since the TV was turned on, the confirmation screen is displayed to select whether to go to the [First page] or to the [Last viewed page].

2 Select the menu

Screenshot of a software interface with search and document icons, likely for user search or download.

• To access [How to use]

[Keyword Search]: Search the content of eHELP in the keyword.

[Search by Purpose]: Search the content of eHELP for each item.

[Support]: Access the support information (FAQs, etc.).

3 Select the item

Example:

- To return to the previous screen / field BACK/ RETURN

- To scroll the description (if more than 1 page) While the description is highlighted

• To open the reference screen ( → )

- To display the menu related to the description (only for some descriptions)

(red)

- To check the features of this TV Search by Purpose > Read first > Features

How to Use Menu Functions

Various menu items allow you to make settings for the picture, sound, and other functions.

1 Display the menu

MENU

- Displays the functions that can be set (varies according to the input signal).

2 Select the menu

3 Select the item

Example: [Sound]

Mouse Entry

• To exit the menu screen

• To return to the previous screen

• To change menu pages

■ Choose from among alternatives

■ Adjust using the slide bar

■ Go to the next screen

Child Lock

access

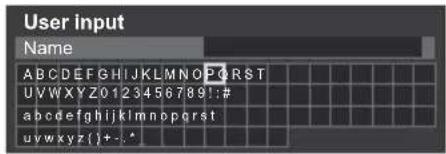

■ Enter characters by free input menu

You can enter names or numbers freely for some items.

User input Name ABCDEFGHIJKLMNOPQRSTUVWXYZ01234567891:#

1 Set characters one by one

2 Store

- You can set characters by using numeric buttons.

■ To reset the settings

• Picture or sound settings only

[Reset to Defaults] in the Picture Menu or Sound Menu

• To initialise all settings

[Shipping Condition] in [System Menu] (Setup Menu)

Changing Picture and Sound settings


1 Display the menu and select [Picture]


① select

② access

2 Select [Viewing Mode]

①select

②access

3 Select the picture mode

You can select your favourite mode for each input.

[Dynamic]:

Improves contrast and sharpness for viewing in a bright room.

[Normal]:

Normal use for viewing in a normal lighting condition.

[Cinema]:

Improves the performance of contrast, black and colour reproduction for watching movies in a darkened room.

[True Cinema]:

Reproduces the original image quality precisely without any revision.

[Custom]:

Adjusts each menu item manually to suit your favourite picture quality.

[Sport]:

Improves picture quality for watching sports, etc.

[Game]:

Improves picture quality for playing games, etc.

[Dolby Vision Vivid]:

Reproduces Dolby Vision content precisely in a bright room.

[Dolby Vision Bright]:

Reproduces Dolby Vision content precisely in a normal lighting condition.

[Dolby Vision Dark]:

Reproduces Dolby Vision content precisely in a darkened room.

• The following items can be adjusted and stored for each mode.
  [Backlight] / [Contrast] / [Brightness] / [Colour] / [Tint] /
  [Sharpness] / [Colour Temperature] / [Vivid Colour] /
  [Colour Remaster] / [Rec.2020 Colour Remaster] /
  [Adaptive Backlight Control] / [Ambient Sensor] /
  [HDR Brightness Setting] / [Noise Reduction] /
  [MPEG Remaster] / [Resolution Remaster] /
  [Dynamic Range Remaster] /
  [Intelligent Frame Creation] / [Clear Motion]

• For information about the other items, refer to [eHELP] (Search by Purpose > Settings > Picture).

• To reset the current [Viewing Mode] to the default settings → [Reset to Defaults] in the Picture Menu

Sound

1 Display the menu and select [Sound]

Sound

①select

② access

2 Select [Mode]

① select

② access

3 Select the sound mode

You can select your favourite mode for each input.

[Standard]:

Provides the suitable sound quality for all types of scenes.

[Music]:

Improves sound quality for watching music videos, etc.

[Speech]:

Improves sound quality for watching news, drama, etc.

[Stadium]:

Improves sound quality for watching sports, etc.

[User]:

Adjusts the sounds manually using the equaliser to suit your favourite sound quality.

The following items can be adjusted and stored for each mode.

[Bass] / [Treble] / [Surround] / [Bass Boost]

For the User mode, [Equaliser] is available in the Sound Menu instead of [Bass] and [Treble]. Select [Equaliser] and adjust the frequency.

• This function is effective only for the sound from TV speakers.
• For information about the other items, refer to [eHELP] (Search by Purpose > Settings > Sound).
  • To reset the current [Mode] to the default settings
  → [Reset to Defaults] in the Sound Menu

Retuning from Setup Menu

Automatically retunes the channels received in the area.
- This function is available if channel tuning is already performed.
- Only the selected mode is retuned. All the previous tuning settings are erased.
- Child Lock PIN number is required to retune locked channels.
• If tuning has not been done completely → [Manual Tuning] in [Tuning Menu] (Setup Menu)
- For details, refer to [eHELP] (Search by Purpose > Watching > Tuning and editing channels > Auto Setup).

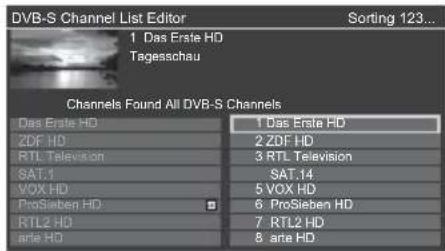

DVB-S

1 Select DVB-S

2 Display the menu and select [Setup]

3 Select [DVB-S Tuning Menu]

4 Set [Antenna System] and [LNB Configuration]

DVB-S Tuning Menu

Antenna System DiSEqC 1.0

LNB Configuration

1 Select [Antenna System] and set
2 Select [LNB Configuration]

- Select [Dual Tuner Mode] and set to [On] to use dual tuner function.

3 Set [LNB] and [Satellite]

- Select [IN 1] / [IN 2] in [Signal Input] to set for each tuner.

4 Store

5 Select [Auto Setup]

6 Set [Search Mode] / [Scan Mode]

• After settings, select [Start scan].

7 A confirmation screen is displayed and press the OK button to start Auto Setup (Settings are made automatically)

When the operation is completed, the channel at the lowest position will be displayed.

DVB-C, DVB-T, Analogue

1 Select DVB-C, DVB-T or Analogue

2 Display the menu and select [Setup]

3 Select [DVB-C Tuning Menu], [DVB-T Tuning Menu] or [Analogue Tuning Menu]

- The menu name varies depending on the TV mode.

4 Select [Auto Setup]

5 Set [DVB-C Auto Setup Settings] (DVB-C)

• After settings, select [Start scan].

6 A confirmation screen is displayed and press the OK button to start Auto Setup (Settings are made automatically)

When the operation is completed, the channel at the lowest position will be displayed.

DVB-via-IP

1 Select DVB-via-IP

2 Display the menu and select [Setup]

Setup

① select

② access

3 Select [DVB-via-IP Tuning Menu]

4 Select [Auto Setup]

5 A confirmation screen is displayed and press the OK button to access

6 Select a server from [Server List]

7 Select [Client Settings]

- Select the network environment between the client and the server.

8 Select [Search Channels]

9 Set [DVB-via-IP Search Mode] and select [Start Auto Setup]

- Set DVB-via-IP Configuration to tune DVB channels. When the operation is completed, the channel at the lowest position will be displayed.

Tuning and Editing Channels

You can retune channels, create your favourite channel lists, skip unwanted channels, etc.

- For details, refer to [eHELP] (Search by Purpose > Watching > Tuning and editing channels).

1 Select the mode

2 Display the menu and select [Setup]

Setup

① select

(1)基因通过控制 通过控制

② access

3 Select [DVB-S Tuning Menu], [DVB-C Tuning Menu], [DVB-T Tuning Menu], [DVB-via-IP Tuning Menu] or [Analogue Tuning Menu]

①select

②access

- The menu name varies depending on the TV mode.

4 Select one of the functions

①select

②access

- The function items vary depending on the TV mode and country you select.

[Channel List Editor]

- For information about [Channel List] (Analogue), refer to [eHELP] (Search by Purpose > Watching > Tuning and editing channels > Channel List Editor).

■ Edit DVB channels

You can edit the list of All DVB Channels by adding / deleting and moving channels.

- Channels not in all DVB channels list cannot be displayed except in this function.

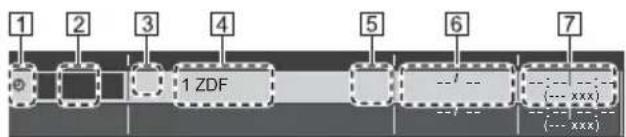

1 Select a channel to edit Encrypted channel) Example: DVB-S

DVB-S Channel List Editor 1 Das Erste HD Tagesschau Channels Found All DVB-S Channels Das Erste HD ZDF HD RTL Television SAT.1 VOX HD ProSieben HD RTL2 HD arte HD 1 Das Erste HD 2 ZDF HD 3 RTL Television SAT.14 5 VOX HD 6 ProSieben HD 7 RTL2 HD 8 ante HD Sorting 123...

• To swap / move the channel position

(green)

Set the new position

or

Store

(green)

• To delete the channel

(blue)

• To delete all channels

(yellow)

• To add channel

Select a channel from [Channels Found]

Add it to All DVB Channels

• To sort channel names in alphabetical order

(red)

• To add all channels (if available)

(yellow)

(green)

(depending on the broadcaster)

• To add consecutive channels to the list at once (if available)

(yellow)

① make the channel block ② add

• To change the category of [Channels Found]

(blue)

2 Store

• To exchange channel list (DVB-S)

[Exchange Channel List] in [Other Settings] (Setup Menu)

• Follow the on-screen instructions.
• During the operation, remove USB devices other than the USB Flash Memory used for this function.

Note

- If a VCR is connected only with the RF cable in Analogue, edit [VCR].

[Favourites Editor]

■ List favourite DVB channels

Create your favourite channel lists from various broadcasters (up to 4: [Favourites]1 to 4).

The favourites lists are available from "Category" in the information banner and the TV Guide screen.

1 Select a channel to list (○ Encrypted channel)

Example: DVB-S

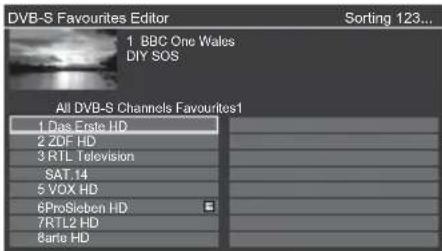

DVB-S Favourites Editor 1 BBC One Wales DIY SOS All DVB-S Channels Favourites1 1 Das Erste HD 2 ZDF HD 3 RTL Television SAT.14 5 VOX HD 6ProSieben HD 7RTL2 HD 8arte HD Sorting 123...

• To sort channel names in alphabetical order (red)
  • To display other favourites (green)
  • To change the category ( blue )

2 Add it to the favourites list

Example: DVB-S

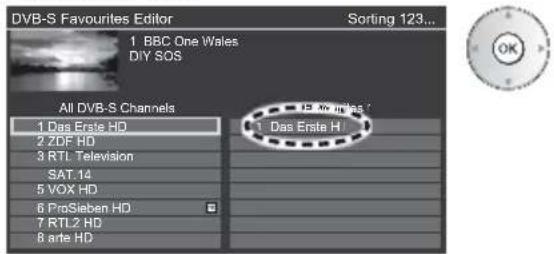

DVB-S Favourites Editor Sorting 123... 1 BBC One Wales DIY SOS All DVB-S Channels 1 Das Erste HD 2 ZDF HD 3 RTL Television SAT.14 5 VOX HD 6 ProSieben HD 7 RTL2 HD 8 arte HD 12 No lines ? Das Erste H

• To add consecutive channels to the list at once

(yellow)

① make the channel block ② add

• To add all channels to the list

(yellow)

(green)

3 Store

■ Edit DVB favourites list

You can edit the favourites list while the cursor is on the channel in the favourites list.

• To move the channel

(green)

Select the new position

Store

(green)

• To delete the channel

(blue)

• To delete all channels

(yellow)

• To name the favourites

(red)

Enter characters (maximum 10 characters)

① select

② set

Store

BACK/RETURN

[Update Channel List]

By updating the DVB channel list, you can add new channels, delete removed channels or change channel names and positions automatically.

• The channel list is updated while keeping your settings in [Favourites Editor], [Channel List], [Child Lock], etc.
• Depending on the signal condition, the update may not work properly.

Multi Window

Displays two windows at once for viewing the TV programmes or external input (AV / COMPONENT / HDMI) as shown below (example).

- For details, refer to [eHELP] (Search by Purpose > Functions > Multi Window).

Display [Apps] and select [Multi Window]

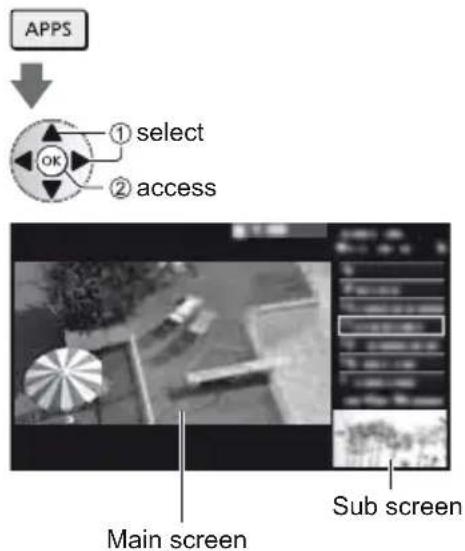

APPS ① select ② access Main screen Sub screen

Child Lock

You can lock specific channels / AV input terminals to restrict access to them.

When the locked channel / input is selected, a message appears. Enter the PIN number to watch.

- For details, refer to [eHELP] (Search by Purpose > Functions > Child Lock).

1 Display the menu and select [Setup]

① select

2 Select [Child Lock]

①select

②access

1 Enter the PIN number (4 digits)

• Enter the PIN number twice at first setting.
• Make a note of the PIN number in case you forget it.
• "0000" may be stored as the default PIN number depending on the country you select.

2 Select [Child Lock List] and set the channel / input to be locked

Child Lock List - TV and AV Sorting 123... Name Input 101 BBC 1Vabs 7 BBC THREE 14 E4C VCR 1 BBC1 2 **** HDMI1 DVB-C DVB-T DVB-T Analogue Analogue Analogue Analogue External Type Free TV Free TV Free TV Analogue Analogue Analogue Analogue AV Lock

① select

② lock / unlock

: Appears when the channel / input is locked

• To lock all
• To cancel all locks
• To sort channel names in alphabetical order
• To jump to the head of the next channel / input group

Watching External Inputs

Connect the external equipment (VCR, DVD, etc.) and you can watch through the input.

- For details, refer to [eHELP] (Search by Purpose > Watching > External equipment).

1 Display the input selection menu

2 Select the input mode connected to the equipment

① select

② watch

• You can also select the input pressing the AV button. Press repeatedly until the desired input is selected.
• You can select [COMPONENT] and [VIDEO] in [AV].

Operating the equipment with TV's remote control

You can operate the content in Media Player / media server, recording functions or the connected equipment with the following buttons of this TV's remote control.

←◀ →▶ ←◀ 11 →▶! MY APP ■ ● Panasonic TV

■ How to change the code

Each Panasonic product has its own remote control code. Change the code according to the product for operation.

Press and hold Standby On / Off switch during the following operations

Enter the appropriate code, see table below

Type of the equipment, features Code
DVD Recorder, DVD Player, Blu-ray Disc Player	70
Player theatre, Blu-ray Disc theatre	71
VCR 72
Using in USB HDD Recording, Media Player, in-house streaming or VIERA Link	73 (default)

Viewing Teletext

Teletext services are the text information provided by the broadcaster.

The features may vary depending on the broadcaster.

- For details, refer to [eHELP] (Search by Purpose > Watching > Teletext).

Teletext mode

■ TOP mode (For TOP text broadcasting)

TOP is a particular improvement of the standard teletext service that results in easier search and effective guide.

• Fast overview of the teletext information available
• Easy to use step-by-step selection of the topical subject
  • Page status information on the bottom of the screen
  • Available page up / down

• To select among subject blocks

• To select next subject within the subject block (After the last subject, it moves to the next subject block.)

■ FLOF (FASTEXT) mode

(For FLOF (FASTEXT) broadcasting)

In FLOF mode, four differently coloured subjects are situated on the bottom of the screen. To access more information about one of these subjects, press the appropriate coloured button. This facility enables fast access to information on the subjects shown.

■ List mode

In List mode, four differently coloured page numbers are situated on the bottom of the screen. Each of these numbers can be changed and stored in the TV's memory.

■ To change mode

[Teletext] in [Display Settings] (Setup Menu)

Viewing Teletext

1 Switch to Teletext

- Displays the index page (content varies depending on the broadcaster).

Sub page number

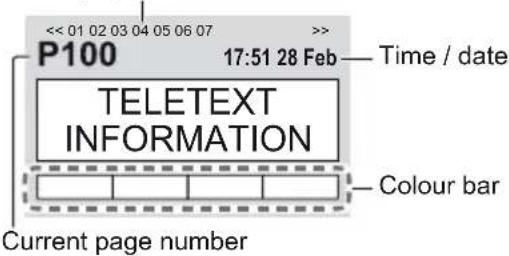

<< 01 02 03 04 05 06 07 P100 17:51 28 Feb TELETEXT INFORMATION Colour bar Current page number

2 Select the page

or or

Coloured buttons

(Corresponds to the colour bar)

■ Watch TV and teletext in two windows at once

• Operations can be made only in teletext screen.

Set [Picture and text] to [On] /

(Press twice)

[Off]

■ To adjust contrast

(Press three times)

■ To return to TV

Using TV Guide

TV Guide - Electronic Programme Guide (EPG) provides an on-screen listing of the programmes currently broadcast and the forthcoming broadcasts over the next seven days (depending on the broadcaster).

• When this TV is turned on for the first time, or the TV is switched off for more than a week, it may take some time before TV Guide is completely shown.
  • Not valid in Analogue
• For details, refer to [eHELP] (Search by Purpose > Watching > TV Guide).

1 Select DVB-S, DVB-C, DVB-T or DVB-via-IP

2 Display TV Guide

• To change the layout. ([Landscape] / [Portrait]) OPTION

View [Landscape] to see several channels.

View [Portrait] to see one channel by time.

- The availability of this function depends on the country you select.

Example: [Landscape]

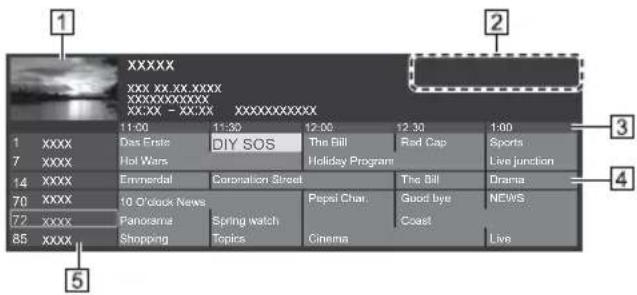

XXXXX XXXX XX.XX.XXXX XXXXXXXXXX XX.XX - XX.XX XXXXXXXXXXXXX 11:00 11:30 12:00 12:30 1:00 1 XXXX Das Erste DIY SOS The Bill Red Cap Sports 7 XXXX Hot Wars Holiday Program Live junction 14 XXXX Emmerdal Coronation Street The Bill Drama 70 XXXX 10 O'clock News Pepsi Char Good bye NEWS 72 XXXX Panorama Spring watch Coast 85 XXXX Shopping Topics Cinema Live

① TV screen
② Date / Search / Category
③ Time
4 Programme
5 Channel position and name

■ To watch the programme

1 Select the current programme

① select

② access

- The current programme is displayed on the top left of the screen.

2 Select [View]

① select

② watch

• To use [Timer Programming] or [Signal Supported Recording] (if available) → (p. 37)

■ [Timer Programming]

Select the forthcoming programme

①select

②access

• To check / change / cancel a timer event → (p. 37)

■ To return to TV

USB HDD Recording

You can record the digital TV programmes to the connected USB HDD and enjoy playing back in various ways.

- For details, refer to [eHELP] (Search by Purpose > Recording).

■ Preparation

Connect the USB HDD to the USB 1 port with the USB cable.

• Be sure to remove the terminal cover before connecting or disconnecting cables.
  • Prepare the USB HDD for the exclusive use of recording with this TV.
• Be sure to connect the USB HDD to the mains socket.
  • To remove the USB HDD safely from the TV → [Safely remove USB] in [USB Device Setup] (Setup Menu)
• Check the terminal type and cable plugs are correct for connection.

Mains socket

Setting for USB HDD

Format and set up the USB HDD with this TV in order to use it for recording.

• Please note that USB HDD will be formatted and all data in it will be erased after this setup.
• Before setting, connect the USB HDD and be sure to turn on the USB HDD.

1 Display the menu and select [Setup]

Setup

① select

② access

2 Select [USB Device Setup]

① select

② access

3 Select the USB HDD for recording and start setup

USB Device Setup Product Name USB Drive A USB Flash Disk

①select

②start setup

• Follow the on-screen instructions.

Recording

1 Display the menu and select [Setup]

Setup

① select

② access

2 Select [Recording Setup]

①select

②access

[One Touch Recording]

Records the current programme to the USB HDD immediately.

- Confirm the remote control code is "73". (p. 32)

Select the maximum recording time

Recording Setup

One Touch Recording 180 minutes

select

access / store

■ To start One Touch Recording

[REW LIVE TV]

Records the current programme to the USB HDD constantly within the maximum recordable time.

- Confirm the remote control code is "73". (p. 32)

Select [Auto] to start [REW LIVE TV]

Recording Setup

REW LIVE TV Auto

select

access / start [REW LIVE TV]

- When you select [Auto], recording will start automatically.

- This recording may not start if another recording is in progress, TV signal condition is bad or there are no images displayed.

■ To operate [REW LIVE TV]

• To pause

• To search backward (up to 90 minutes)

- After pausing or searching backward, the following buttons are available for operation.

1 Search backward

② Playback / Pause

3 Search forward

4 Return to the current programme

■ To stop [REW LIVE TV]

Recording Setup : REW LIVE TV Auto Off

select [Off]

store

• If you stop [REW LIVE TV], the recorded content for [REW LIVE TV] will be deleted.
• [REW LIVE TV] is stopped and the recorded content is deleted automatically in the following conditions: (Even if [REW LIVE TV] stops for the following conditions, as long as the setting is [Auto], a new recording starts automatically in a condition that makes the recording available.)

• Other channels selected
- Locked channel selected
- Invalid channel selected
- No TV signal
- External input selected
- When the full-screen application (TV Guide, Media Player, eHELP, etc.) is launched
- When the TV enters Standby or is turned off

Timer Programming

This function allows you to select programmes that you want to record to the USB HDD.

- For details, refer to [eHELP] (Search by Purpose > Recording > Timer Programming).

1 Select DVB-S, DVB-C, DVB-T or DVB-via-IP

2 Display the menu and select [Timer]

3 Select [Timer Programming]

①select

②access

4 Start making the settings

[USB HDD Rec.]:

Records the programme to the USB HDD.

To select the appropriate CI module for the programme to record

(yellow)

5 Select and set the item

(channel, date, start time, end time)

- 4 and 7 can also be entered with numeric buttons.

① !: Overlapped timer events
② Function [USB HDD Rec.]
③ TV mode

[1] DVB-C

DVB-T

• You cannot change the mode within the menu.

④ Channel position, channel name, etc.

5 [Signal Supported Recording] (if available)

- This function is Timer Programming which is controlled by information from the TV Guide; if programme start and end times are changed by the broadcaster, the timer event will follow the change. Note that this function only works reliably if correct information is received from broadcasters.

6 Date
7 Start time / End time / Duration (automatic display)

6 Store

■ To edit a timer event

① select the event

② access

Correct as necessary

• To delete a timer event

(red)

Using Media Player

Media Player allows you to enjoy photo, video or music recorded on the USB Flash Memory, and content recorded with this TV to the formatted USB HDD.

- For details, refer to [eHELP] (Search by Purpose > Media Player).

Easy List View:

Still pictures / moving pictures recorded with digital cameras are displayed.

Mix Folder View:

All files grouped by folder are displayed.

Recorded TV mode (For exclusive USB HDD):

TV programmes recorded on the USB HDD with this TV are played back.

■ To insert or remove the USB Flash Memory

- Be sure to remove the cable cover before inserting or removing the USB Flash Memory

Ensure alignment is straight and complete when inserting or removing.

Diagram showing a rectangular device emitting a white arrow to a vertical panel (no text or symbols)

• Connect the USB Flash Memory to the USB 1, 2 or 3 port.
  • To remove the USB Flash Memory safely from the TV
  [Safely remove USB] in [USB Device Setup] (Setup Menu)
• Check the terminal type and devices are correct for connection.
  • For the USB HDD Connection → (p. 35)

1 Insert the USB Flash Memory to the TV

- To play back content in the USB HDD, ensure the connection and settings are completed.

2 Display [Home] and select [Devices]

HOME

3 Select the device (USB Flash Memory / USB HDD)

4 Select the content

Contents Select Easy List View Mix Folder View Recorded TV

5 The thumbnail view is displayed

Example:

Screenshot of a software interface with menu options and tool icons, showing a dropdown with 'OK' and 'Cancel' buttons.

• To display / hide information of the highlighted content ⓘ

Note

• Select the appropriate device and content for playing back each file.
• You can use the following buttons during playback. Confirm the remote control code is "73". (p. 32)

Using Home Network

Home network

To use in-house streaming, you need a home network environment and you can operate the features without a broadband network environment.

- For details, refer to [eHELP] (Search by Purpose > Network).

Network connections

■ Wireless connection (For home network and internet service)

Built-in wireless LAN (Rear of the TV)
2 Access point
③ Smartphone, etc.
4 Hub / Router
5 Media server (PC, etc.)

■ Wired connection (For home network and internet service)

- Be sure to remove the terminal cover before connecting or disconnecting cables.

1 LAN cable (Shielded)
• Use Shielded Twist Pair (STP) LAN cable.
② Hub / Router
③ Media server (PC, etc.)

Network settings

- Ensure the connections are completed before starting network setup.

1 Display the menu and select [Network]

Network

① select

② access

2 Select [Network Connection]

• Follow the on-screen instructions.

Using home network features

- Ensure the preparations of the media server, network connections and network settings are completed.

■ Playback of sharing content stored in the media server

Store photo, video or music content into the Media server connected to your home network. And then you can enjoy the content on this TV.

1 Display [Home] and select [Devices]

① select

② access

2 Select the media server

① select

② access

3 Select the file

① select

② access

• Depending on the condition of media server, you may need to select the folder before selecting the file.
  • To display / hide information of the highlighted file

Note

• Non-playable files are also listed but cannot be selected.
• You can use the following buttons during playback. Confirm the remote control code is "73". (p. 32)

■ Playback of sharing content on this TV with the DMC (Digital Media Controller) network equipment

You can enjoy content stored in the media server by controlling with the DMC network equipment connected to your home network.

- For details, refer to [eHELP] (Search by Purpose > Network).

■ Sharing the content of this TV with another piece of network equipment

You can enjoy the content of this TV with another network equipment connected to your home network.

- For details, refer to [eHELP] (Search by Purpose > Network).

FAQs

Before requesting service or assistance, please follow these simple guides to solve the problem.

- For details, refer to [eHELP] (Support > FAQs).

The TV does not switch on

- Check the mains lead is plugged into the TV and the mains socket.

The TV goes into Standby mode

• Auto power standby function is activated.

The remote control does not work or is intermittent

• Are the batteries installed correctly? → (p. 21)
• Has the TV been switched on?
• The batteries may be running low. Replace them with new ones.
• Point the remote control directly at the TV's remote control signal receiver (within about 7 m and a 30 degree angle of the signal receiver).
• Situate the TV away from sunshine or other sources of bright light so they do not shine on the TV's remote control signal receiver.

No image is displayed

• Check the TV is turned on.
• Check the mains lead is plugged into the TV and the mains socket.
• Check the correct input mode is selected.
• Check the setting of [AV] ([COMPONENT] / [VIDEO]) in [Input Selection] to match the signal being output by the external equipment.
• Is [Backlight], [Contrast], [Brightness] or [Colour] in the Picture Menu set to the minimum?
• Check all required cables and connections are firmly in place.

An unusual image is displayed

- This TV has a built-in Self Test. Makes a diagnosis of picture or sound problems.

→ [TV Self Test] (Help Menu)

- Turn the TV off with Mains power On / Off switch, then turn it on again.

- If the problem persists, initialise all settings.

[Shipping Condition] in [System Menu] (Setup Menu)

The image or sound from external equipment are unusual when the equipment is connected via HDMI

- Set [HDMI Auto Setting] (Setup Menu) to [Mode1]

→ (p. 16)

Parts of the TV become hot

- Parts of the TV may become hot. These temperature rises do not pose any problems in terms of performance or quality.

When pushed with a finger, the display panel moves slightly and makes a noise

- There is a little gap around the panel to prevent damage to the panel. This is not a malfunction.

About the inquiry

- Please contact your local Panasonic dealer for assistance.

If you make an inquiry from a place where this TV is not present, we cannot answer about contents that require visual confirmation for connection, phenomenon, etc. of this TV itself.

Maintenance

First, remove the mains plug from the mains socket.

Display panel, Cabinet, Pedestal

Regular care:

Gently wipe the surface of the display panel, cabinet, or pedestal by using a soft cloth to remove dirt or fingerprints.

For stubborn dirt:

(1) First clean the dust from the surface.
(2) Dampen a soft cloth with clean water or diluted neutral detergent (1 part detergent to 100 parts water).
(3) Wring out the cloth firmly. (Please note, do not let liquid enter the TV inside as it may lead to product failure.)
(4) Carefully wipe moisten and wipe away the stubborn dirt.
(5) Finally, wipe away all the moisture.

Caution

• Do not use a hard cloth or rub the surface too hard, otherwise this may cause scratches on the surface.
• Take care not to subject the surfaces to insect repellent, solvent, thinner or other volatile substances. This may degrade surface quality or cause peeling of the paint.
• The surface of the display panel is specially treated and may be easily damaged. Take care not to tap or scratch the surface with your fingernail or other hard objects.
• Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time. This may degrade surface quality.

Mains plug

Wipe the mains plug with a dry cloth at regular intervals. Moisture and dust may cause fire or electrical shock.

Specifications

TV

Model No.

43-inch model : TX-43GXX939
49-inch model : TX-49GXX939
55-inch model : TX-55GXX939

Dimensions (W × H × D)

43-inch model

962 mm × 646 mm × 226 mm (With Pedestal)
962 mm × 563 mm × 60 mm (TV only)

49-inch model

1 095 mm × 715 mm × 237 mm (With Pedestal)
1 095 mm × 638 mm × 60 mm (TV only)

55-inch model

1 231 mm × 791 mm × 237 mm (With Pedestal)
1 231 mm × 714 mm × 60 mm (TV only)

Mass

43-inch model

17.0 kg Net (With Pedestal)
12.0 kg Net (TV only)

49-inch model

21.5 kg Net (With Pedestal)
16.0 kg Net (TV only)

55-inch model

24.5 kg Net (With Pedestal)
19.0 kg Net (TV only)

Power source

AC 220-240 V, 50 / 60 Hz

Panel

LED LCD panel

Sound

Speaker output

20 W (10 W + 10 W)

Headphones

Connection terminals

AV input (COMPONENT / VIDEO)

VIDEO

Pin jack × 1

1.0 V[p-p] (75 Ω)

AUDIO L - R

Pin jack × 2

0.5 V[rms]

Y

1.0 V[p-p] (including synchronisation)

P_B/C_B, P_R/C_R

±0.35 V[p-p]

HDMI1 / 2 / 3 input

TYPE A Connectors

HDMI1 / 3:

4K, Content Type, Deep Colour, x.v.Colour™

HDMI2:

4K, Content Type, Audio Return Channel, Deep Colour, x.v.Colour™

- This TV supports "HDAVI Control 5" function.

Card slot

Common Interface slot (complies with CI Plus) × 2

ETHERNET

RJ45, IEEE802.3 10BASE-T / 100BASE-TX

USB 1/2/3

USB 1: DC==5 V, Max. 900 mA [SuperSpeed USB (USB 3.0)]

USB 2 / 3: DC=5 V, Max. 500 mA [Hi-Speed USB (USB 2.0)]

DIGITAL AUDIO output

PCM / Dolby Audio, Fibre optic

Receiving systems / Band name

DVB-S / S2

Digital satellite services (MPEG2, MPEG4-

AVC(H.264) and MPEG HEVC(H.265))

Receiver frequency range - 950 MHz to 2 150 MHz

DiSEqC - Version 1.0

DVB-C

Digital cable services (MPEG2, MPEG4-

AVC(H.264) and MPEG HEVC(H.265))

DVB-T / T2

Digital terrestrial services (MPEG2, MPEG4-AVC(H.264) and MPEG HEVC(H.265))

PAL B, G, H, I

SECAM B, G

SECAM L, L'

VHF E2 - E12

VHF A - H (ITALY)

CATV (S01 - S05)

CATV S11 - S20 (U1 - U10)

VHF H1 - H2 (ITALY)

UHF E21 - E69

CATV S1 - S10 (M1 - M10)

CATV S21 - S41 (Hyperband)

PAL D, K

SECAM D, K

VHF R1 - R2

VHF R3 - R5

VHF R6 - R12

UHF E21 - E69

PAL 525/60

Playback of NTSC tape from some PAL Video recorders (VCR)

M.NTSC

Playback from M.NTSC Video recorders (VCR)

NTSC (AV input only)

Playback from NTSC Video recorders (VCR)

Satellite dish input

Female F-type 75 Ω × 2

Aerial input

VHF / UHF

Operating conditions

Temperature

0^ C - 35^ C

Humidity

20% - 80% RH (non-condensing)

Built-in wireless LAN

Standard compliance and Frequency range\*1

IEEE802.11a/n/ac

5.180 GHz - 5.320 GHz, 5.500 GHz - 5.580 GHz,

5.660 GHz - 5.700 GHz

IEEE802.11b/g/n

2.412 GHz - 2.472 GHz

Security

WPA2-PSK (TKIP/AES)

WPA-PSK (TKIP/AES)

WEP (64 bit/128 bit)

Bluetooth wireless technology ^*2

Standard Compliance

Bluetooth 4.2

Frequency Range

2.402 GHz - 2.480 GHz

*1: The frequency and channel differ depending on the country.
*2: Not all the Bluetooth compatible devices are available with this TV. Up to 5 devices can be used simultaneously.

(Note)

• Design and Specifications are subject to change without notice. Mass and Dimensions shown are approximate.
• For information about the power consumption, display resolution, etc., refer to Product Information Sheet.
• For information about the open source software, refer to [eHELP] (Search by Purpose > Read first > Before use > Licence).

[NO TEXT]

[Non-Text]

The results of the first two years are: 2016, 2017, and 2018. The results of the second year are: 2016, 2017, and 2018.

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line, which is a stylistic or background element (like a rule line on paper). According to Rule 2, such lines must be ignored by the OCR result. The OCR content provided is "", which consists of no characters. Since the OCR output correctly ignores the stylistic line, it complies with Rule 2. Therefore, the OCR result is consistent with the Ground Truth.

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

[EMPTY]

[Non-Text]

(No text to output)

[Non-Text]

(No text to output)

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

[NO TEXT]

[Non-Text]

[EMPTY]

[Non-Text]

[Non-Text]

Disposal of Old Equipment and Batteries

Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Customer's Record

The model number and serial number of this product may be found on the model name plate and serial number label located on the rear panel (when the cable cover is removed.). You should note this serial number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid in identification in the event of theft or loss, and for Warranty Service purposes.

Model Number Serial Number

Panasonic®

Illustration of a modern flat-screen monitor with a black screen and stand (no text or symbols visible)

(рис.: TX-55GXX939)

Diagram illustrating a device setup with a monitor, a switch, and a prohibition symbol indicating no protection.

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, D-22525 Hamburg, Германия

Simple 3D illustration of a conical object placed on a rectangular base (no text or symbols)

© Крышка

3D illustration of a metal bracket with curved and straight sections (no text or symbols)

Подготовка

1 A C C A

2 D C D

3 A E A E D

4 A A E

5 F

Diagram of a flat-screen TV with a mounted device and base panel, showing no text or symbols

7 G

Diagram illustrating a sewing machine operation with labeled steps and directional arrows indicating movement.

Illustration of a flat-screen monitor with a side-mounted stand and a door, no text or symbols present.

Модель 49" Модель 55" 1 A C

2 F

Diagram of a computer monitor with an open rear panel and a labeled component (B), showing internal components without any text or symbols.

4 G

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or operation.

Illustration of a hand using a sewing machine to press or install a box (no text or symbols visible)

5

Illustration of a modern flat-screen monitor with a small screen and stand (no text or symbols visible)

Simple line drawing of a monitor with a circular button on the front panel (no text or symbols)

Diagram illustrating a device's internal structure with numbered arrows indicating movement or assembly steps

Модель 49" Модель 55"

Pure electrical control panel icon without any text or symbols

Screenshot of a software interface with search and document icons, likely for user search or download.
