Product Type	Subwoofer
Brand	JL Audio
Model	10TW3
Size	10 inches
Impedance	2 ohms or 4 ohms (Dual Voice Coil)
RMS Power Handling	400 watts
Peak Power Handling	800 watts
Frequency Response	21 Hz - 200 Hz
Sensitivity	83 dB (2.83V/1m)
Mounting Depth	3.5 inches
Mounting Cutout	9.125 inches
Sealed Enclosure Volume	0.5 - 0.65 cubic feet
Ported Enclosure Volume	0.8 - 1.2 cubic feet
Weight	10.5 lbs
Voice Coil Type	Dual 4-ohm or Dual 2-ohm
Cone Material	Polypropylene with mineral coating
Surround Material	Rubber
Recommended Amplifier Power	200 - 500 watts RMS
Maintenance	Clean with a dry cloth; avoid liquids
Safety	Do not exceed rated power; ensure proper enclosure

Frequently Asked Questions - 10TW3 JL Audio

What is the mounting depth of the JL Audio 10TW3?

The mounting depth is only 3.5 inches, making it ideal for shallow-mount applications.

What is the RMS power handling of the 10TW3?

The 10TW3 can handle 400 watts RMS and 800 watts peak.

What are the available impedance options?

The 10TW3 is available in Dual 2-ohm (D2) and Dual 4-ohm (D4) voice coil configurations.

What enclosure volume is recommended for the 10TW3?

For a sealed enclosure, use 0.5 - 0.65 cu ft. For a ported enclosure, use 0.8 - 1.2 cu ft.

Can I install the 10TW3 under a seat?

Yes, its shallow mounting depth and compact design allow installation in tight spaces like under seats.

What amplifier should I pair with the 10TW3?

Amp with 200-500 watts RMS at the desired impedance (2 or 4 ohms) is recommended.

Does the 10TW3 require a free-air installation?

No, it requieres an enclosure. Free-air use is not recommended and may damage the subwoofer.

How do I clean the 10TW3?

Gently wipe the cone and surround with a dry cloth. Avoid liquids or cleaning solvents.

What is the sensitivity of the 10TW3?

Sensitivity is 83 dB at 2.83V/1m, which is typical for a high-excursion subwoofer.

Is the 10TW3 compatible with a sealed enclosure?

Yes, it performs well in a sealed enclosure, offering tight, accurate bass.

USER MANUAL 10TW3 JL Audio

Two black audio speakers with white branding, shown from different angles (no text or symbols visible)

10TW3 Subwoofer Driver

Congratulations on your purchase of a JL Audio subwoofer component. Your JL Audio subwoofer is a precision loudspeaker which has been engineered to produce the highest quality sub-bass performance in your vehicle. Authorized JL Audio dealers have extensive technical information for many different applications of your new speaker. They also have the knowledge, skills and tools to build a high-quality enclosure that will maximize the performance of your speaker. We highly recommend that you have your enclosure built by an authorized JL Audio dealer.

Inside you will find specifications and two recommended enclosures for your speaker; one is a sealed enclosure, the other is a ported design. Both types of enclosures will give you excellent sound quality and low-frequency extension. The sealed enclosure is a better choice if space is extremely tight, but the ported enclosure will produce 3dB more output at the same power if you have the extra space to work with.

JL AUDIO 10TW3-D4 / 10TW3-D8

JLAUDIO. 10TW3 A2 A1 B C D E

10TW3 SUBWOOFER PHYSICAL SPECIFICATIONS
Nominal Diameter:	10.0 in 250 mm
Overall Major Diameter (A1):	11.2 in 284 mm
Overall Minor Diameter (A2):	10.5 in 267 mm
Mounting Hole Diameter (B):	9.625 in 244 mm
Bolt Hole Circle (C):	10.5 in 267 mm
Magnet Diameter (D):	5.1 in 130 mm
Mounting Depth (E):	3.25 in 83 mm
Net Weight:	10.1 lbs 4.6 Kg
Driver Displacement:	0.019 ft ^3 0.54 liters

SUBWOOFER 10TW3-D4 10TW3-D8
Free Air Resonance (Fs):	32.300 Hz	39.262 Hz
Electrical "Q" (Qes):	0.656	0.825
Mechanical "Q" (Qms):	1.350	9.840
Total Speaker "Q" (Qts):	0.620	0.761
Equivalent Compliance (Vas):	0.700 ft ^2 19.82 litres	0.510 ft ^3 14.44 litres
One-way, Linear Excursion(Xmax)*:	0.60 in15.2 mm	0.60 in15.2 mm
Efficiency (1W/1m)**:	82.10 dB SPL	82.27 dB SPL
Effective Piston Area (Sd):	56.532 in ^2 0.0365 m ^2	56.532 in ^2 0.0365 m ^2
DC Resistance (Re)***:	9.036 ohm	15.008 ohm
Nominal Impedance:	Dual 4-ohmvoice coils	Dual 8-ohmvoice coils
Power Handling (continuous):	400 W	400 W

10TW3 Dual Voice Coil Wiring

Please Note: The TW3 is a dual voice coil driver. BOTH voice coils must be connected to the amplifier (in series or parallel) for the speaker to operate properly. To accomplish this, each TW3 features a pair of main input connection push-terminals for each voice coil. Verify that the connections are properly configured based on these wiring diagrams to achieve the desired load prior to sending signal to the subwoofer.

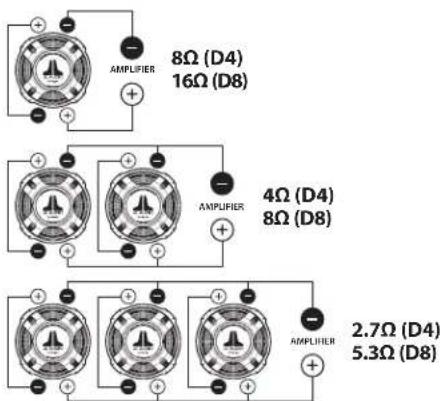

Voice Coils Wired in Series

(Multiple speakers wired in Parallel)

8Ω (D4) 16Ω (D8) 4Ω (D4) 8Ω (D8) 2.7Ω (D4) 5.3Ω (D8)

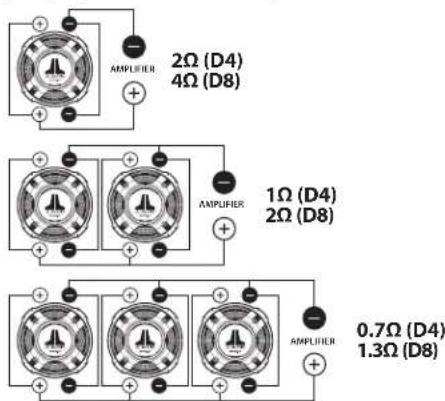

Voice Coils Wired in Parallel

(Multiple speakers wired in Parallel)

2Ω (D4) 4Ω (D8) 1Ω (D4) 2Ω (D8) 0.7Ω (D4) 1.3Ω (D8)

All specifications are subject to change without notice.

SUBWOOFER RECOMMENDED SEALED ENCLOSURE
	Volume (nct int.)	External Dimensions (Width x Height x Depth)	F3 (Hz)	Fc (Hz)	Qtc
10TW3-D4	0.50 ft^3 14.2 liters	16 in. x 13,875 in. x 6.5 in.406 mm x 352 mm x 165 mm	40.095	0.04 0.9606
10TW3-D8	0.575 ft^3 16.3 liters	16.75 in. x 15 in. x 6.5 in.425 mm x 381 mm x 165 mm	41.615	3.93 1.0453

D H W

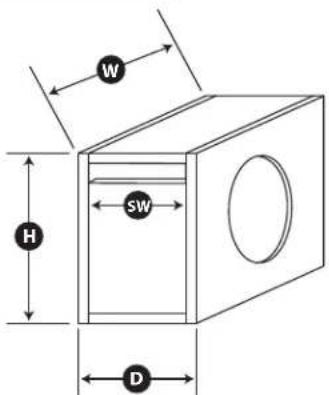

SUBWOOFER RECOMMENDED PORTED ENCLOSURE
	Volume (nct int.)	Enclosure External Dimensions (Width x Height x Depth)	Slot Port Internal Dimensions (Slot Width x Slot Height x Slot Length)	Tune to: (Hz)	F3 (Hz)
10TW3-D4	0.60 ft ^3 17 liters	30 in. x 14.625 in. x 5.125 in. 762 mm x 372 mm x 130 mm	3.625 in. x 2.125 in. x 31.0625 in 92 mm x 54 mm x 789 mm	32.14 32.11
10TW3-D8	0.75 ft ^3 21.2 liters	30 in. x 16.375 in. x 5.25 in. 762 mm x 416 mm x 133 mm	3.75 in. x 2.125 in. x 26.8125 in 95 mm x 54 mm x 681 mm	31.33 29.54

• The enclosure recommendations listed are external dimensions which assume the use of 3/4" (19mm) thick material. If you are using 5/8" (16mm) thick material, subtract 1/4" (6.5mm) from each dimension. Do not use any material with a thickness of less than 5/8" (16mm) as this may compromise the rigidity of the enclosure.
• Enclosure volumes listed are net internal volumes! Box volume displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions listed have already taken this into account.
• When using two subwoofers in a common enclosure simply double the required volume.
  • We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and amplifiers. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.

W SW H D

SH PL Cutaway View

Port Wall Length: 10TW3-D4: 26.375 in (670 mm) 10TW3-D8: 25 in (635 mm) (End correction accounted for)

Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.

When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

All specifications are subject to change without notice.

RECOMMENDED CONTINUOUS (RMS) POWER RANGE FOR ONE SUBWOOFER DRIVER:

125W250W500W1000W75W 10TW3 LEGEND: MINIMUM OPTIMUM MAXIMUM WARRANTY VOID

MEDIUM GRAY (MINIMUM):

From a reliability standpoint, this zone represents a very comfortable operating power range for each driver. This level of power will not stress the woofer but will not extract all of its performance potential, either.

Use of less than the minimum power level will not damage the woofer, but may result in unsatisfactory performance.

This zone represents the best compromise between long-term reliability, high-output and low-distortion performance. This power level is lower than the woofer's continuous power rating (as published in its specifications), but you will still be taking advantage of the woofer's, low-distortion performance range without undue risk of failure.

DARK GRAY (MAXIMUM):

Slightly more SPL will be gained by pushing the power into this zone, but typically not more than 2dB, compared to the light gray zone. The subwoofer driver is designed to operate safely up to this power range, but not beyond. Operate with caution.

BLACK (WARRANTY VOID):

We do not recommend operating woofers at this level of power. In this zone, there is a very high probability that the driver will fail due to excessive heat and/or mechanical stress.

Subwoofer drivers operated at these levels of power are NOT covered under warranty.

JL Audio offers an extensive line of high-performance subwoofer drivers to fit a wide variety of enclosure and power applications. When designing systems with our drivers, it is very important to achieve a good power match between the subwoofer amplifier and the subwoofer driver's capabilities. The power levels listed in the above chart represent continuous (RMS) amplifier power per woofer and assume that the user will regularly make full use of that power without drastically overdriving the amplifier(s). Make sure you factor system impedance and the total number of subwoofers into your calculations. Adhering to these power recommendations will result in systems that are both reliable and enjoyable.

JL AUDIO LIMITED WARRANTY (USA)

Automotive Subwoofer Components

JL AUDIO warrants this speaker to be free of defects in materials and workmanship for a period of one (1) year from the original date of purchase.

Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.

This warranty is not transferable and applies only to the original purchaser of the product from an authorized JL AUDIO dealer. Warranty is voided if the factory-applied product serial number is removed or defaced.

Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, JL AUDIO will, at its discretion, repair or replace the defective product with new or remanufactured product at no charge.

Any applicable implied warranties are limited in duration to the period of the express warranty as provided herein beginning with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you need service on your JL AUDIO product:

All warranty returns should be sent to JL AUDIO freight prepaid through an authorized JL AUDIO dealer and must be accompanied by proof of purchase (a copy of the original sales receipt.) Direct returns from consumers or non-authorized dealers will be refused unless specifically authorized by JL AUDIO with a valid return authorization number. Warranty expiration on products returned without proof of purchase will be determined from the manufacturing date code. Coverage may be invalidated as this date is previous to purchase date. Return only defective components. Non-defective items received will be returned freight-collect. Customer is responsible for shipping charges and insurance in sending the product to JL AUDIO. Freight damage on returns is not covered under warranty. Always include proof of purchase (sales receipt).

For Service Information in the U.S.A. please call:

JL Audio customer service: [phone] during normal business hours (Eastern Time)

JL Audio, Inc

10369 North Commerce Parkway, Miramar, FL 33025

International Warranties:

Products purchased outside the United States of America are covered only by that country's distributor and not by JL Audio, Inc.
