Type of Product	Hi-Fi System
Brand	BOSS
Model	PHANTOM 900
Power Output	200W RMS
Number of Speakers	2 (stereo pair)
Connectivity	Bluetooth, USB, AUX input
Disc Playback	CD / CD-R / CD-RW
Radio Tuner	FM/AM with presets
Dimensions (Main Unit)	430 x 130 x 320 mm
Weight (Main Unit)	5.2 kg
Dimensions (Speakers Each)	240 x 380 x 260 mm
Weight (Speakers Each)	4.8 kg
Power Supply	AC 110-240V, 50/60Hz
Power Consumption	80W (standby <1W)
Remote Control	Included (batteries not included)
Audio Formats Supported	MP3, WMA, WAV
Equalizer Presets	Rock, Pop, Jazz, Classical, Flat
Display Type	LED backlit LCD
Cleaning Instructions	Wipe with a soft dry cloth. Do not use liquids or sprays.
Safety Features	Overload protection, ventilation slots
Repairability	Spare parts available from BOSS service centers. Refer to manual for disassembly.
Warranty	1 year (check local regulations)

Frequently Asked Questions - PHANTOM 900 BOSS

How do I connect my smartphone via Bluetooth?

Press the Source button repeatedly until Bluetooth appears on the display. Activate Bluetooth on your smartphone and select BOSS PHANTOM 900 from the list. If prompted, enter 0000 as the PIN.

What should I do if the CD does not play?

Ensure the disc is inserted with the label side up. If the disc is scratched or dirty, clean it with a soft, lint-free cloth from the center outward. Also check if the disc format is supported (CD, CD-R, CD-RW).

Can I use the system without speakers?

No, the system requires the supplied speakers to operate. Do not connect other speakers with different impedance as it may damage the amplifier.

How do I set the clock?

Press and hold the Clock button until the hour flashes. Use the + and - buttons to set the hour, then press Clock again to set the minute. Repeat to confirm.

What is the maximum USB drive capacity supported?

The USB port supports drives up to 32 GB formatted in FAT32. Larger drives may not be recognized.

How do I improve FM radio reception?

Extend the FM antenna fully and adjust its position for best reception. If reception is poor, try moving the system away from other electronic devices or metal objects.

Why is there no sound from the speakers?

Check that the volume is not set to minimum (0) and that the system is not muted. Ensure the speaker wires are securely connected to the correct terminals. Also verify the correct source is selected.

Can I play music from my TV?

Yes, if your TV has an audio output (e.g., headphone jack or RCA out), you can connect it to the AUX input on the system using a suitable cable.

How do I factory reset the system?

With the system in standby mode, press and hold the Source button for 5 seconds until RESET appears on the display. Release the button. All settings will be restored to defaults.

What type of batteries does the remote control use?

The remote requires two AAA batteries (not included). Insert them with correct polarity (+/-).

USER MANUAL PHANTOM 900 BOSS

WEATHER RATED CHROME SPEAKERS

FEATURING BUILT-IN AMPLIFIER SYSTEM

Close-up of a black car hood with transparent plastic arms and two black circular base feet, against a white background with faint watermark text (no readable signage or symbols)

BOSS®

AUDIO SYSTEMS

111 POWERSPORTS

Congratulations

On your new purchase of a Phantom 900 off-road amplified speaker system. It has been designed, engineered and manufactured to bring you the highest level of performance and quality, for years of listening pleasure.

Thank you For making Boss Audio Systems your choice for motorcycle audio entertainment.

Please read through these instructions carefully so you will know how to operate your speaker properly. After you have finished reading this instructions, keep this document in a safe place for future reference.

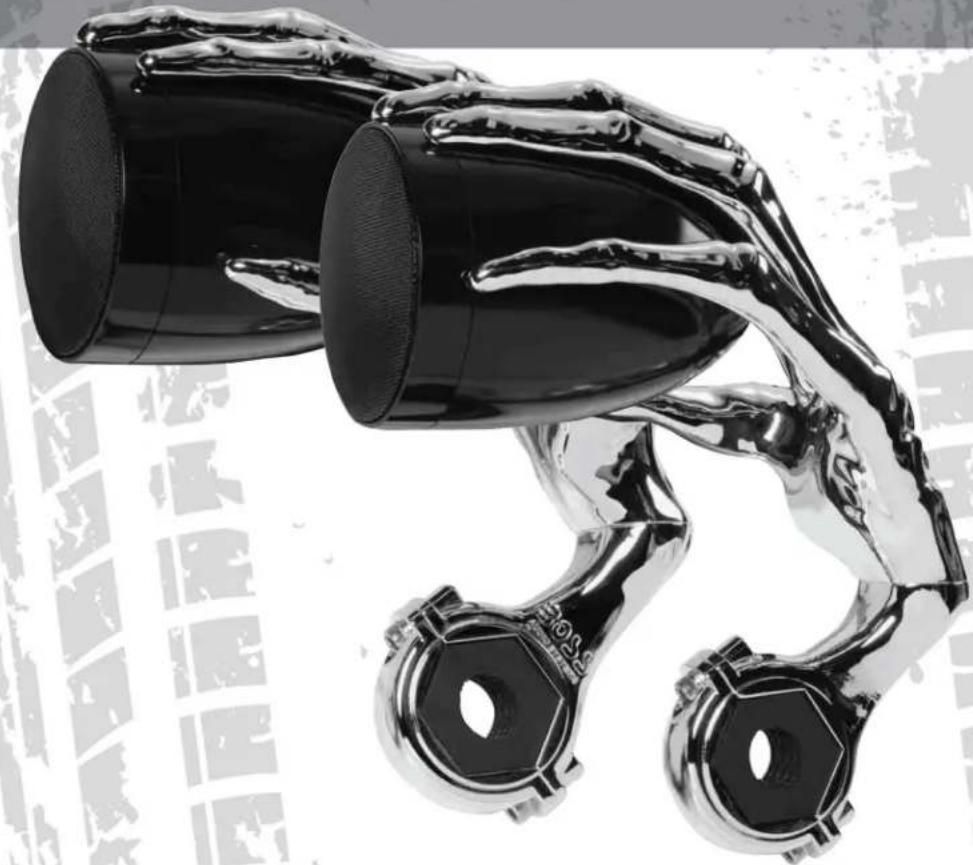

Phantom 900 Motorcycle / UTV Amplified Speakers

Contents

Phantom 900 speakers w/clamps .... 2 pcs

Mounting inserts:

1" diameter ( installed ) 4 pcs

1.25" diameter 4 pcs

1.5" diameter 4 pcs

5mm Hex wrench 1 pc

6mm Hex wrench 1 pc

Features

Your new Phantom 900 speakers feature the following:

• 3.5mm audio input
- Adjustable speaker clamps
• Weatherproof volume control
• Weatherproof speakers
- Bluetooth audio streaming
• Built-in class D amplifier

Phantom 900 Motorcycle / UTV Amplified Speakers

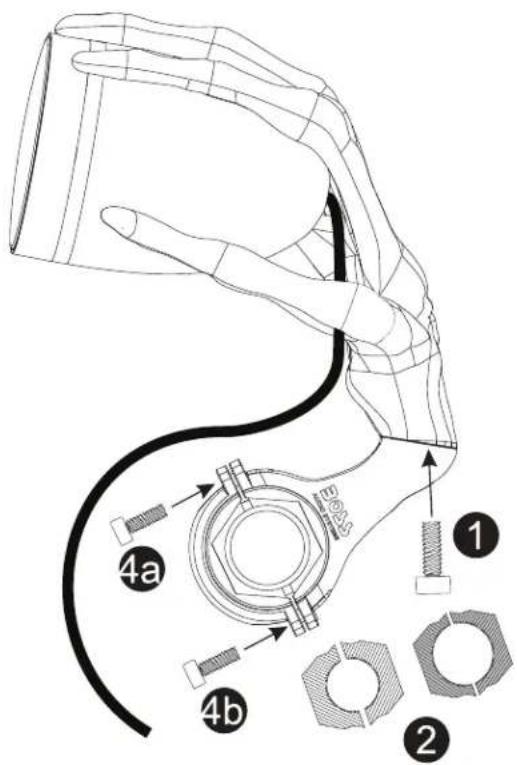

Installation / Mounting

1. Adjust the direction of the speaker and screw the bracket to the bottom of the speaker.
2. Select the rubber inserts that fit your mounting bar and place them into the brackets.
3. Find a safe, ideal mounting location and fit the brackets over the chosen bars.
4. Fasten the mounting screws after you review the safety of the mounting location.

Reminder

• The components and wiring should not be installed around any moving parts, keep away from ignition parts, fuel lines, or any hot exhaust components.
• Speakers should not be installed where they might inhibit safety features on the vehicle (i.e. lights, horns, brake levers, etc.).

BOSS®

AUDIO SYSTEMS

Phantom 900 Motorcycle / UTV Amplified Speakers

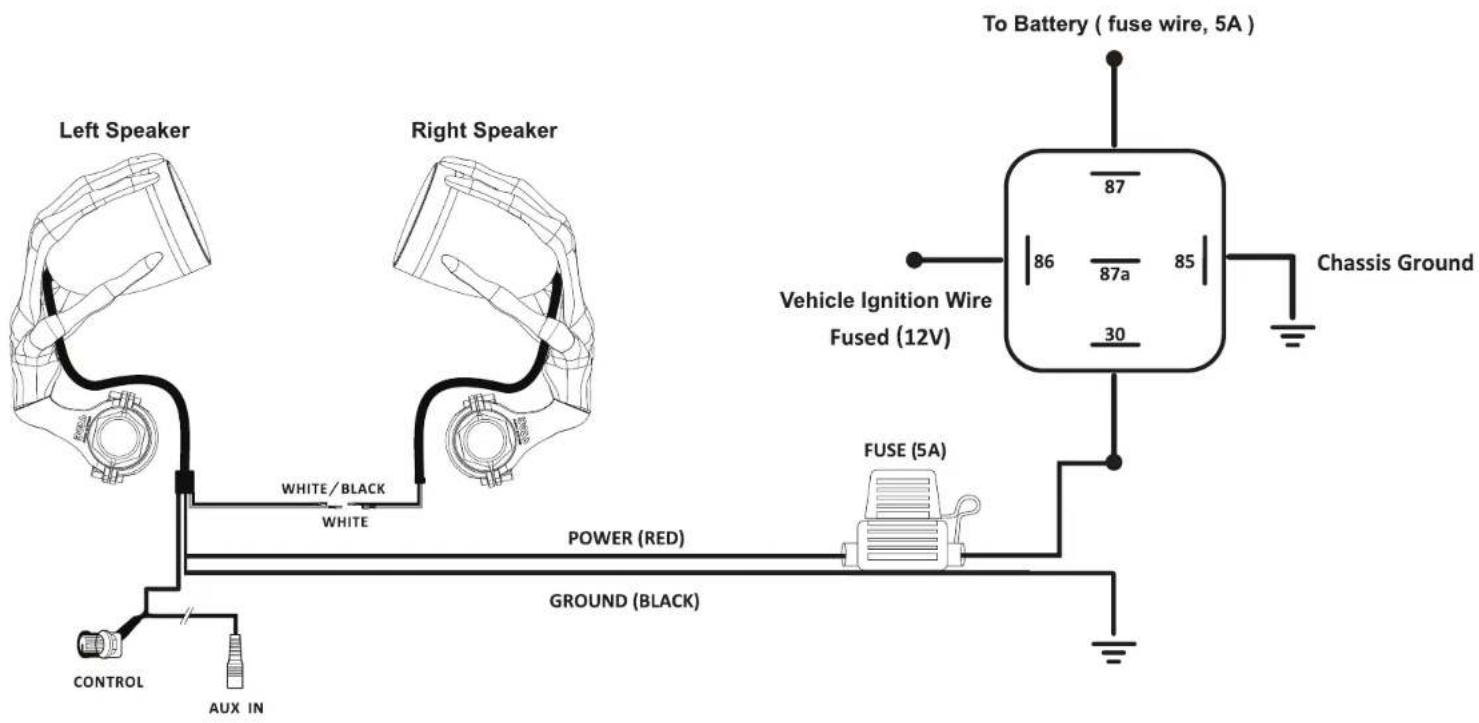

Wiring

1. Be sure to run the wiring securely and far away from any moving components.
2. Connect the power cable to the power source. You will need to connect the 12V red wire to a fused 5A (not included) switched power source.
3. Use the 3.5mm stereo jack to connect to your source of music (MP3 player, mobile device, etc.).
4. Use your player device and wired remote volume controller to control the volume.

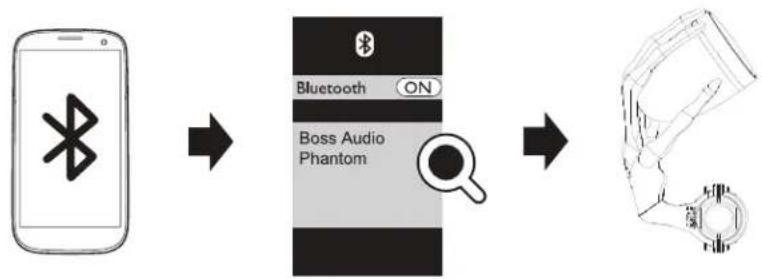

Bluetooth Connection

1. Go into the Settings Menu of your mobile device.
2. Enter the Bluetooth menu.
3. Search for and select "Boss Audio Phantom" from the available devices.
4. If prompted, enter passcode "0000".

Phantom 900 Motorcycle / UTV Amplified Speakers

Specifications

THD: < 0.1%

S/N: >75 dB

Channel separation: >50 dB

Frequency response: 50Hz - 20 KHz

Input sensitivity: ---- Max 400 mv

Speaker wires: 3.3'

Volume control wires: 4.9'

Audio input cable: 0.8'

Power cable: 3.3'

Mounting diameter: 1", 1.25", 1.5" only

Dimensions: HxDxW 11.46" x 6.38" x 4.77"

Unit weight: 5.22lbs / 2.37 kg

Specification subject to change without notice.

Trouble shooting

SYMPTOM

SOLUTION

No sound Unit or Device is MUTED

Audio is distorted ---- Bluetooth is out of range

No Power-on tone ---- Check fuse or wiring

Bluetooth not connecting ---- Switch off power for 10 secs

Phantom 900 Motorcycle / UTV Amplified Speakers

Z

NOTES

All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of BOSS AUDIO SYSTEMS.

Copyright © 2019 BOSS AUDIO SYSTEMS.

USER'S MANUAL

PHANTOM 900

BLUETOOTH® | 3" (76 mm)

WEATHER RATED CHROME SPEAKERS

BOSS®

AUDIO SYSTEMS

BOSS Audio Systems

3451 Lunar Court • Oxnard, CA 93030

www.bossaudio.com

800-999-1236 US Toll-free

805-751-4853 Customer Service

Tech Support: www.bossaudio.com/support/technical-support

0119

BOSS®

AUDIO SYSTEMS

3451 Lunar Court • Oxnard, CA 93030

Customer Service:

US Toll-free: 800-999-1236

Customer Service: 805-751-4853

ONLINE: www.bossaudio.com/support/technical-support

ONLINE PRODUCT REGISTRATION:

Scan this QR Code with your smart device, fill-in the online form to register your product. Or fill-in the online form by visiting: www.bosssaudio.com/support/product-registration

We hope you are enjoying your new BOSS Audio Systems product. We are always working to improve our products and provide a great customer experience. We welcome your feedback. Please consider writing a review for your new product on our website. We look forward to hearing about your experience.

FOLD HERE

PLACE

POSTAGE

HERE

BOSS®

AUDIO SYSTEMS

3451 Lunar Court

Oxnard, CA 93030

BOSS®

AUDIO SYSTEMS

LIMITED

WARRANTY

This product has a manufacturer's warranty against defects in materials and workmanship to the original purchaser for a period of one year from the date-of-purchase (DOP). This manufacturer warranty is non-transferable. The warranty is for repair or replacement at the sole discretion of BOSS AUDIO SYSTEMS (BAS). For service under this warranty you need to return the product to BAS. If replaced, BAS reserves the right to replace it with a new or reconditioned product of the same or similar design.

Your product may qualify for a free extended warranty. Please see www.bossaudio.com for the qualifications and details of this program.

Obtain Warranty Service

Within the first 30 days from the original DOP, BAS will provide a return shipping label for any defective product shipped from within the 50 US States. After the first 30 days you are responsible for the freight charges incurred to send the product back to BAS. To send a product in for warranty service you will need the following:

• A Return Authorization number (RA#). Please contact our Customer Service to receive a RA#.
• A legible copy of the proof-of-purchase with your name, the name of the authorized dealer, the DOP and the model number of the product requiring service.
• Enclose a note stating the problem or issues with the product, your daytime phone number, email and return shipping address (within the USA, no P.O. Box please).

This warranty does not cover any product subjected to abuse, neglect, incorrect wiring, water or physical damage or any attempt to repair or modify the product by anyone other than an BAS Repair Technician. Any damages, resulting from legal action for breach of expressed or implied warranty shall be limited to the cost of the original purchase price of the product. All liability for coincidental damages are excluded under this warranty. The Customer agrees to retain the original proof-of-purchase for establishing the effective date of this warranty. If BAS or an Authorized Dealer replace your product under warranty, the replacement product shall be considered a transaction under the original warranty, and does not extend the original warranty period.

FOLD HERE

0217

To register this product fill-in this form and mail this card to the address shown on the reverse side.

For online registration, see reverse side of this card for instructions.

NAME		AGE
ADDRESS
CITY	STATE	ZIP
E-MAIL	PHONE
MODEL NO.	DATE OF PURCHASE	PURCHASE PRICE
PURCHASED FROM	INSTALLED BY
SERIAL NUMBER (If applicable)

VEHICLE: YEAR, MAKE AND MODEL
