USER MANUAL Performance Series CCM682 BOWERS & WILKINS

Welcome to Bowers & Wilkins and the CCM6 Series

Thank you for choosing Bowers & Wilkins. When John Bowers first established our company he did so in the belief that imaginative design, innovative engineering and advanced technology were keys that could unlock the enjoyment of audio in the home. His belief is one that we continue to share and it inspires every product we design.

The CCM6 Series of ceiling mount speakers is designed to offer easy installation and high quality audio reproduction for discrete custom install applications. This manual describes the installation of CCM6 Series speakers within conventional stud and sheetrock (joist and plasterboard) ceilings. It begins by listing the contents of the CCM6 series carton.

Beefen's Wilkins Beefen's Wilkins Zeppelin and Zeppelin's The best fit to happen to your iPod! Quality of Best Fit A year's supply of paper high quality downloads for only £3.95 + Melepharma SOP 1 MSS Games MSS Games Beefen's Wilkins is a good fit with a new version of the best fit. We have already been a good fit. We have already been a good fit. We have already been a good fit.

Bali Boxes & Wilkins View the complete BILI range speakers Bali Boxes will create a new version of BILI. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI range. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI ranks. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI ranking. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI rank. We have to view the complete BILI top rank. We have to view the complete BILI top rank. We have to view the complete BILI top rank. We have to view the complete BILI top rank. We have to view the complete BILI top rank. We have to view the complete BILI top rank. We have to view the complete BILI top rank. We have to view the complete BILI top rank. We have to view the complete BILI top rank. We have to view the complete BILI top ranks in all four positions, but we can see that at least one position, we can see that at least two positions, we can see that at least three positions, we can see that at least four positions, we can see that at least five positions, we can see that at least six positions, we can see that at least eight positions, we can see that at least nine positions, we can see that at least 10 positions, we can see that at least 11 positions, we can see that at least 12 positions, we can see that at least 13 positions, we can see that at least 14 positions, we can see that at least 15 positions, we can see that at least 16 positions, we can see that at least 17 positions, we can see that at least 18 positions, we can see that at least 19 positions, we can see that at least 20 positions, we can see that at least 21 positions, we can see that at least 22 positions, we can see that at least 23 positions, we can see that at least 24 positions, we can see that at least 25 positions, we can see that at least 26 positions, we can see that at least 27 positions, we can see that at least 28 positions, we can see that at least 29 positions, we can see that at least 30 positions, we can see that at least 31 positions, we can see that at least 32 positions, we can see that at least 33 positions, we can see that at least 34 positions, we can see that at least 35 positions, we can see that at least 36 positions, we can see that at least 37 positions, we can see that at least 38 positions, we can see that at least 39 positions, we can see that at least 40 positions, we can see that at least 41 positions, we can see that at least 42 positions, we can see that at least 43 positions, we can see that at least 44 positions, we can see that at least 45 positions, we can see that at least 46 positions, we can see that at least 47 positions, we can see that at least 48 positions, we can see that at least 49 positions, we can see that at least 50 positions, we can see that at least 51 positions, we can see that at least 52 positions, we can see that at least 53 positions, we can see that at least 54 positions, we can see that at least 55 positions, we can see that at least 56 positions, we can see that at least 57 positions, we can see that at least 58 positions, we can see that at least 59 positions, we can see that at least 60 positions, we can see that at least 61 positions, we can see that at least 62 positions, we can see that at least 63 positions, we can see that at least 64 positions, we can see that at least 65 positions, we can see that at least 66 positions, we can see that at least 67 positions, we can see that at least 68 positions, we can see that at least 69 positions, we can see that at least 70 positions, we can see that at least 71 positions, we can see that at least 72 positions, we can see that at least 73 positions, we can see that at least 74 positions, we can see that at least 75 positions, we can see that at least 76 positions, we can see that at least 77 positions, we can see that at least 78 positions, we can see that at least 79 positions, we can see that at least 80 positions, we can see that at least 81 positions, we can see that at least 82 positions, we can see that at least 83 positions, we can see that at least 84 positions, we can see that at least 85 positions, we can see that at least 86 positions, we can see that at least 87 positions, we can see that at least 88 positions, we can see that at least 89 positions, we can see that at least 90 positions, we can see that at least 91 positions, we can see that at least 92 positions, we can see that at least 93 positions, we can see that at least 94 positions, we can see that at least 95 positions, we can see that at least 96 positions, we can see that at least 97 positions, we can see that at least 98 positions, we can see that at least 99 positions, we can see that at least 100 positions, we can see it.

www.bowers-wilkins.com

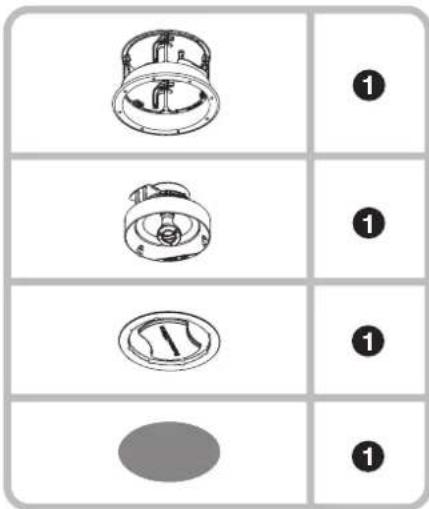

2. CCM6 Series Basics1. CCM6 Carton Contents

Diagram showing four views of a mechanical component with numbered callouts (①) for identification.

CCM6 Series speaker assembly (baffle, frame and bezel, grille)

Cut-out template

Paint mask

Document pack containing Quick Start Guide and • Warranty information

Environmental Information

All Bowers & Wilkins products are designed to comply with international directives on the Restriction of Hazard

Substances (RoHS) in electrical and electronic equipment and the disposal of Waste Electrical and Electronic Equipment (WEEE). These symbols indicate compliance and that the products must be appropriately recycled or processed in accordance with these directives. Consult your local waste disposal authority for guidance.

CCM662, CCM663, CCM664, CCM665, CCM663SR, CCM664SR

Ø 202mm (8in)

202mm (9in) 133mm (5.2in)

CCM6 Series ceiling mount speakers comprise a baffle carrying the speaker drivers and crossover, a mounting frame (with integrated bezel), and a magnetically secured grille. The frame is connected via side mounted terminals to the speaker cables, with the baffle connecting automatically as it is inserted in the frame.

Note: A square grille is optionally available for CCM6 Series speakers. Contact your local Bowers & Wilkins retailer for more information.

CCM6 Series speakers require ceiling aperture dimensions described in the following table:

Model Aperture Diameter

CCM662 202mm (8 in)

CCM663 202mm (8 in)

CCM664 202mm (8 in)

CCM665 202mm (8 in)

CCM663SR 202mm (8 in)

CCM664SR 202mm (8 in)

CCM682 251mm (9.9 in)

CCM683 251mm (9.9 in)

CCM684 251mm (9.9 in)

CCM682, CCM683, CCM684

O 251mm (9.9in)

251mm (9.9in) 133mm (5.2in)

All CCM6 Series speakers require clear depth behind the sheetrock (plasterboard) of 140mm (5.51 in). The diagrams above illustrate these dimensions.

Note: If CCM6 Series speakers are to be installed in "new build" projects, pre-mount kits and back boxes are available. Contact your local Bowers & Wilkins retailer for more information.

Before installing CCM6 Series speakers you should ensure that the ceiling locations chosen are free of obstructions such as pipe work, ducting or wiring that will interfere with the installation. In existing dry-wall construction, use a stud-finding tool to help you map the ceiling construction and a pipe detector to scan the proposed installation locations.

The appropriate position for CCM6 Series speakers within the listening environment will depend on their specific application:

General Background Audio Applications:

For applications where single CCM6 Series speakers are required to operate independently to provide background audio, they can be located substantially as installation convenience and architecture dictate. The only acoustic constraint to bear in mind is that corner locations will result in significantly emphasised low frequencies and should be avoided.

Stereo Audio Applications:

For applications where a pair of CCM6 Series speakers is to be used for conventional stereo reproduction, they should be located between 3m (10 ft) and 5m (16.5ft) apart and a similar distance in front of the listening area. Try to avoid corner locations for the speakers and to ensure that acoustic environment around each speaker is similar.

Note: Different acoustic environments might be, for example, a bare wall and a heavily curtained window.

Multi-channel Audio Applications

For applications where multiple CCM6 Series speakers are to be used for multi-channel audio visual systems, the front and centre speakers should be located approximately 0.5m (20 in) in front of the plane of the screen. The centre speaker should be on the centre line of the screen and the front speakers each laterally within approximately 0.5m (20 in) of the sides of the screen. Surround channel CCM6 Series speakers should be located just behind and either side of the listening position. Try to avoid corner locations for any of the speakers and to ensure that the acoustic environment around each front and surround speaker is similar.

Note: Different acoustic environments might be, for example, a bare wall and a heavily curtained window.

The high frequency radiation characteristics of some CCM6 Series models can be adjusted by tilting their tweeters. In these cases, CCM6 Series speakers should be oriented so that the red arrow on the frame flange points towards the listening area. Tweeter tilting is also accompanied on some models by corresponding equalisation options selected via a switch on the baffle. See Section 4.8 for more information.

Note: The nature of the installation of ceiling speakers means that it is sometimes impractical to locate them in an acoustically ideal position. In these cases they should be located as close as is practical to the ideal positions. Your local Bowers & Wilkins retailer will be able to offer advice if required.

Note: CCM6 Series drive units create stray magnetic fields. We recommend that magnetically sensitive items such as CRT screens and magnetic cards for example, are kept at least 0.5m (20 in) from the speaker. LCD, OLED and plasma screens are not affected by magnetic fields.

1. Installing CCM6 Series Speakers


CCM663SR - CCM664SR SURROUND STRET

To install a CCM6 Series speaker proceed as described in the following paragraphs:
4.1 Using the supplied cut-out template, mark a cut line on the existing ceiling. Check the cut line defines the correct diameter. Cut along the line with an appropriate tool to create a round aperture in the ceiling.
Note: Ensure that there is enough free space internally adjacent to the aperture for the spring clamps.
Note: To reduce the possibility of the ceiling buzzing or rattling, adhesive mastic can be applied between the studs and sheetrock in the vicinity of the speaker aperture.
4.2 If speaker cable is already present in the ceiling space, pull the cable down through the aperture. If speaker cables are not already installed this should be done at this stage. It is likely that you will need to gain access through the floor above to route the cables through the ceiling space.
Leave enough spare cable through the aperture to ease connection to the speaker back box, but not so much that it is likely to buzz or rattle when pushed back up into the ceiling space. Approximately 1.0m (3 ft) is appropriate.
Note: Always use high quality, low resistance speaker cable. Low resistance is especially important if the length of cable from amplifier to speaker exceeds 5m. Your local Bowers & Wilkins retailer will be able to offer advice on speaker cable selection if required.

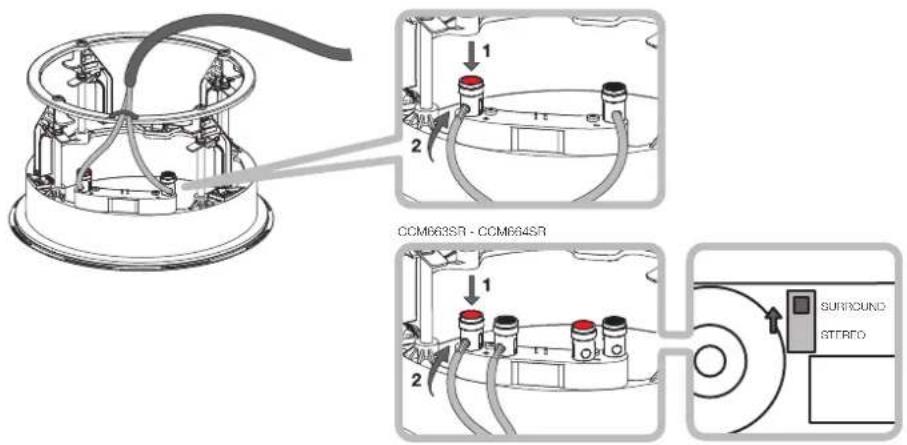

4.3 Now connect the speaker cable to the spring terminals on the side of the frame. Ensure that the speaker connection polarity is correct: the cable connected to the positive terminal on the amplifier should be connected to the red spring terminal on the frame. Similarly, the cable connected to the negative terminal on the amplifier should be connected to the black spring terminal on the frame. The diagram above illustrates cable connection.
When connecting a CCM664SR or CCM663SR in surround mode, simply connect the speaker cable to either the left or right set of terminals. Please ensure that the switch on the back is set to surround.
Note: If an amplifier is already connected to the cable it should be switched off while connections are being made to the frame.

Illustration of a hand using a red clamp to adjust or install a mechanical component, with no visible text or symbols.

4.4 With the frame connected it may be lifted up into the ceiling aperture. On speakers with tilting tweeters, correct frame orientation must be established at this stage: the red arrow on the frame flange should be pointing towards the listening area.

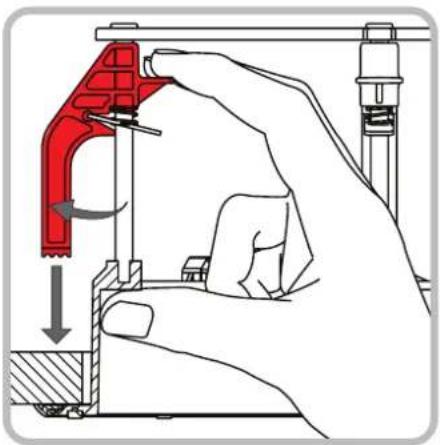

Ensure that the four QuickDog™ (spring clamps) are rotated so that they will pass through the aperture then lift the frame up so that the flange is flush on the ceiling. Take care that the cable is not trapped. Now reach inside the aperture with one hand, rotate the QuickDogs™ outwards and, using two fingers and thumb, pull each QuickDog™ downwards so that the frame is fixed securely. The diagram above illustrates insertion of the frame.
Note: To release a QuickDog™ push the metal tab, located just below the finger platform, upwards.

Simple line drawing of a rectangular plate with a circular vent and a spray bottle, no text or symbols present.

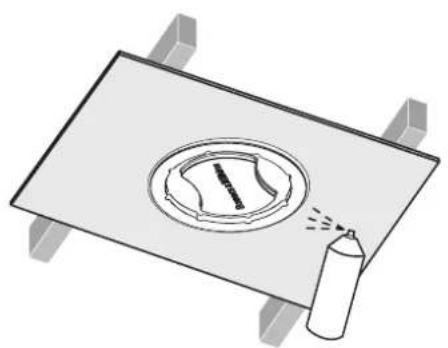

4.5 If the frame flange is to be painted it should be done at this stage. Any conventional, domestic paint may be applied by brushing, rolling or spraying. Use the supplied paint mask to avoid getting paint in the cavity. Painting without using the paint mask risks contamination of the internal connection terminals or the grille attachment magnets. The diagram above illustrates painting using the paint mask.

Note: If the grille is to be painted this should be done "off-line" before it is fitted.

Note: The bezel is loosely fitted to the frame when the speaker is shipped and can come away during handling. This is not a problem as the bezel is held in position when the QuickDogs™ are secured.

Technical diagram showing mechanical assembly with warning labels and a 1x speed limit indicator

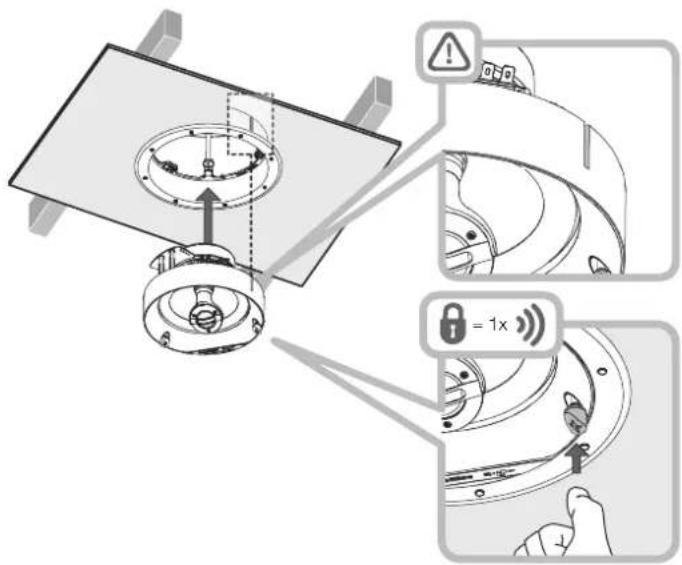

4.6 The baffle can now be fitted into the frame. Ensure that the connector on the baffle is oriented correctly with the connector in the frame. The baffle is held in the frame by three push-lock fasteners. Push-lock fasteners are secured by pushing the head inwards – either with a thumb or a screwdriver. As they secure, the fasteners will click. The baffle will then be secure in the frame. The diagram above illustrates inserting the baffle and securing the push-lock fasteners.

Note: Push-lock fasteners are released by turning anticlockwise with a screwdriver.

Diagram showing three objects emitting a beam of light from a fixed platform, with no text or symbols present.

4.7 The tweeter can be tilted towards the listening position and corresponding equalisation options selected on some CCM6 Series models. The options are listed in the following table:

Model Tweeter Tilt EQ Options

CCM662 Yes Yes

CCM663 Yes Yes

CCM664 Yes Yes

CCM665 No No

CCM663SR No No

CCM664SR No No

CCM682 Yes Yes

CCM683 Yes Yes

CCM684 Yes Yes

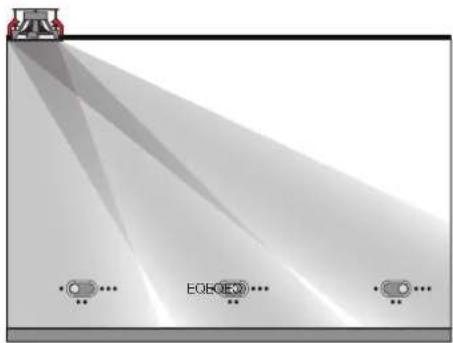

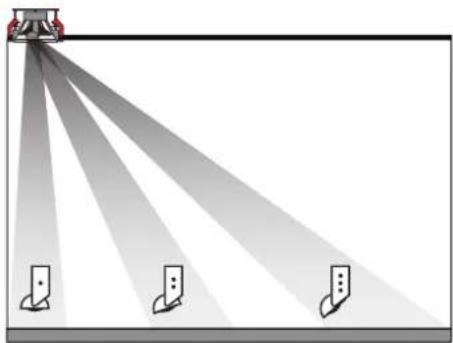

To tilt the tweeter simply hold it in one hand (taking care not to touch the dome) and angle it towards the listening position. Tilt angle indicators at 15° and 30° are provided, indicated by the dots on the tweeter body. The dots also correspond to the three way equalisation switch settings. Match the switch setting to the number of tilt dots. The diagram above illustrates tilting the tweeter and selecting equalisation settings.

Diagram showing a vehicle with a red roof and three circular switches labeled 'EQEQEQ' at the bottom (no text or symbols on the diagram itself)

3D diagram of a rectangular plate with a circular recess and two side supports, featuring a small U-shaped magnet symbol (no text or labels)

4.8 The grille can now be fitted. The grille is held in place magnetically so simply needs to be aligned with the groove in the frame flange where it will click into place. The diagram above illustrates fitting the grille.

Note: If the optional square grille is to be used the bezel must first be removed. The bezel simply pulls away from the frame. If a bezel is to be replaced it is a simple push-fit into the frame.

The CCM6 Series speaker is now installed and ready for use.
