INDW60 - Dishwasher NEW WORLD - Free user manual and instructions

Type	Built-under Dishwasher
Brand	New World
Model	INDW60

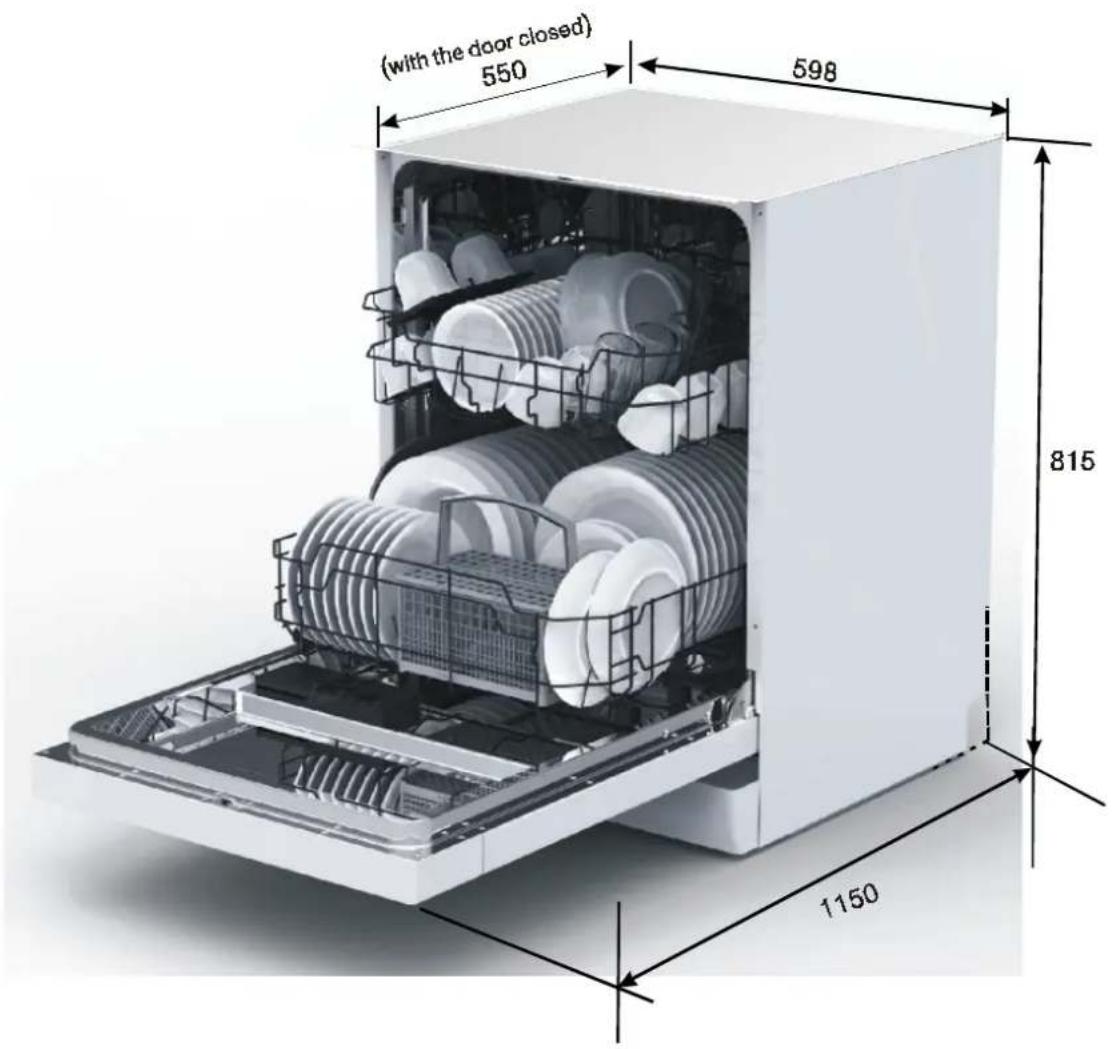

Dimensions (H x W x D)	815 x 598 x 550 mm
Capacity	12 place settings
Energy Efficiency Class	A++
Annual Energy Consumption	258 kWh
Annual Water Consumption	3080 litres
Noise Level	49 dB(A)
Number of Programs	6 (Intensive, Normal, ECO, Glass, 90 min, Rapid)
Water Softener	Adjustable with salt consumption settings (H1-H6)
Rinse Aid Dispenser	Yes, with adjustable dosage (settings 1-6)
Salt Indicator	Electric warning light on control panel
Rinse Aid Indicator	Electric warning light on control panel
Overflow Protection	Yes, automatic shut-off and drain
Tub Material	Stainless steel

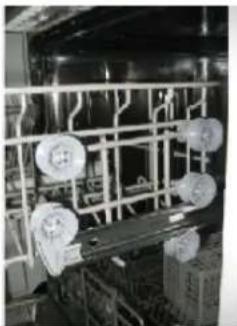

Adjustable Upper Basket	Yes, height adjustable via wheels
Delay Start	1-24 hours
Power Consumption	1930 W
Voltage / Frequency	220-240 V ~ 50 Hz
Water Pressure	0.04 - 1.0 MPa (0.4 - 10 bar)
Filter System	3-part (coarse, main, fine) – clean weekly
Safety Features	Child lock (supervision required), earth connection, door switch

Frequently Asked Questions - INDW60 NEW WORLD

How do I start a wash cycle?

Open the door, press the On/Off button, select a program using the Program button, then close the door. The dishwasher will start after about 10 seconds. Ensure the water tap is open and detergent is added.

How to load the baskets for best results?

Place larger items (pots, pans) in the lower basket and delicate items (glasses, cups) in the upper basket. Ensure spray arms can rotate freely. Sharp utensils should be placed with points down. Do not overload.

How to add dishwasher salt?

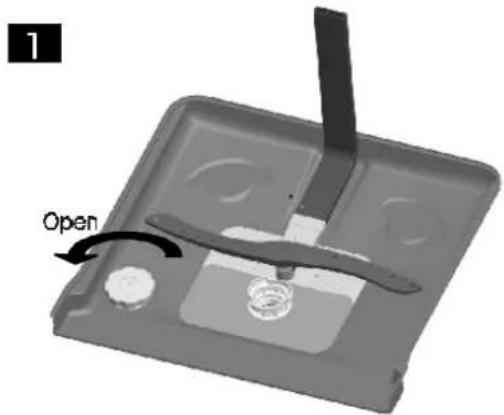

Remove the lower basket, unscrew the salt container cap, add about 1.5 kg of dishwasher salt using the supplied funnel, then fill with water. Screw the cap back on and run a short program immediately to avoid corrosion.

How do I adjust the rinse aid dosage?

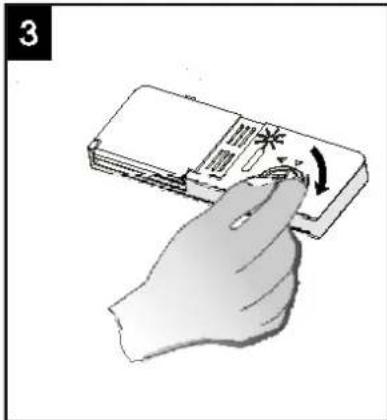

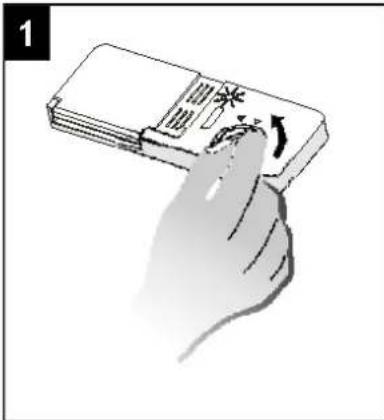

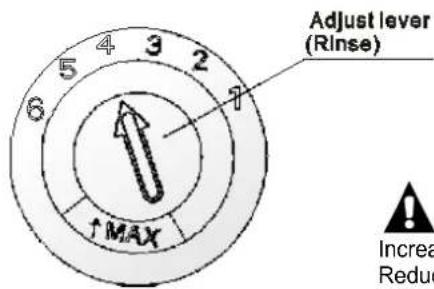

Open the rinse aid dispenser cap, adjust the dial (settings 1-6). Start at setting 4. Increase if spots appear, decrease if sticky white stains occur. Factory setting is 4.

What do the error codes E1 and E4 mean?

E1 indicates longer inlet time – check faucet is open and water pressure is adequate. E4 indicates overflow – turn off main water supply and remove water from base before restarting. Contact service if problem persists.

How to clean the filters?

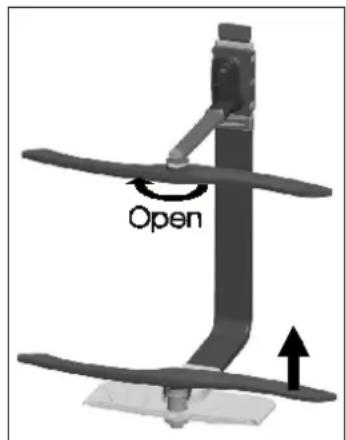

Turn the coarse filter anticlockwise to remove the filter assembly. Rinse under running water and use a brush to clean. Reassemble and reinsert. Clean once a week for optimal performance.

Can I use regular dish soap?

No, only use detergent specifically designed for dishwashers. Regular soap or laundry detergent will cause excessive suds and damage the appliance.

Why are my dishes not drying properly?

Check rinse aid level and increase dosage if needed. Use a longer program with drying phase. Unload after 15 minutes cooling. Ensure items are not stacked too tightly.

What are the minimum and maximum water pressure requirements?

The dishwasher requires a water pressure between 0.04 MPa (0.4 bar) and 1.0 MPa (10 bar). If pressure is too low, the inlet time may be extended.

How do I install the dishwasher under a counter?

Ensure a 820 mm high, 600 mm wide space. Connect cold water supply, drain hose (max 1000 mm high), and power. Level using adjustable feet. Secure with brackets to worktop or sides. Refer to the installation section in the manual.

USER MANUAL INDW60 NEW WORLD

Cutaway view of a white kitchen appliance showing internal compartments and storage racks (no text or symbols visible)

Read this Manual

Dear Customer,

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
- Keep it as a refer in the later days.
■ Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.
If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1
2) Quick operation guide....5
3) Operation Instructions....6
Control Panel....6 Dishwasher Features....6

4) Prior using for the first time....7

A Water S oftener....7、
B Loading the Salt into the Softener....8、
C Fill the Rinse A id Dispenser....8、
、D Function of Detergent 9

5) Loading the Dishwasher Basket....12

Attention before or after loading the Di shwasher Baskets.... 12

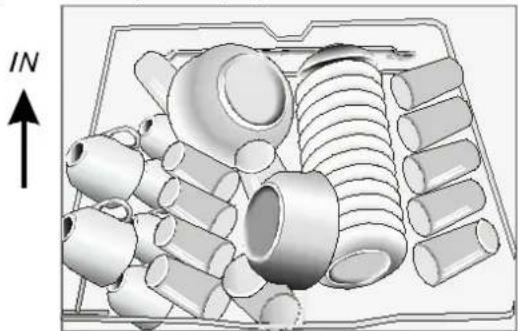

Loading the uppe Basket 13

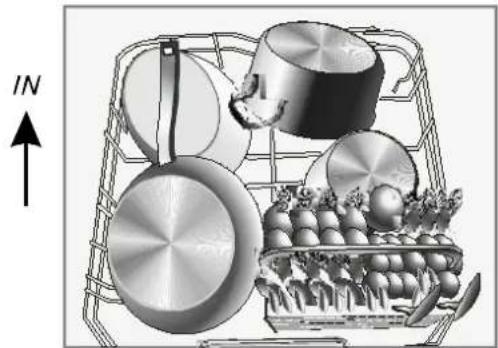

Loading the Low Basket 13

6) Starting a washing programme....14

Wash Cycle Table....14

Turning on the Appliance.... 14

Change the Programme....15

At the end of the Wash Cycle....15

7) Maintenance and cleaning....16

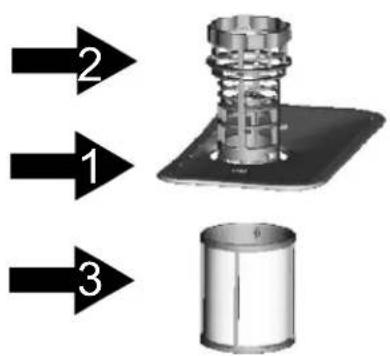

Filtering System....16

Caring for the Dishwasher....17.

8) Installation Instruction....18

Installation preparation 18

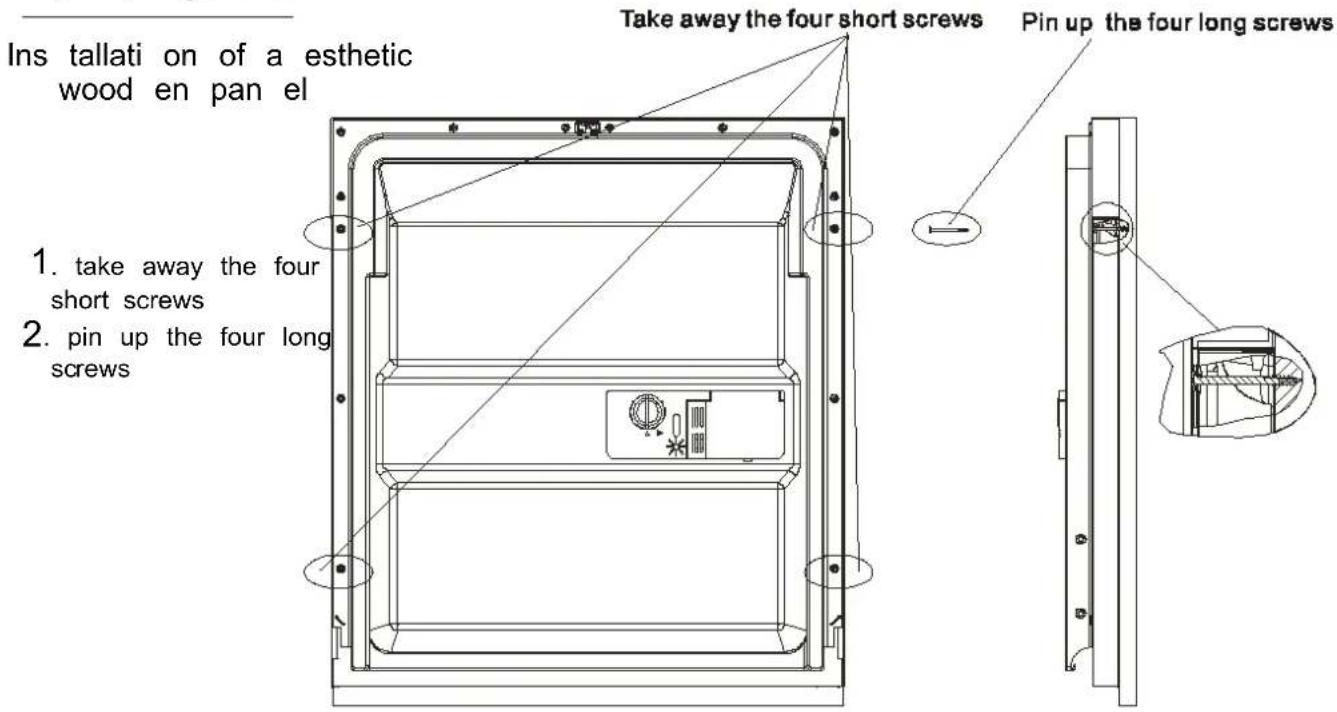

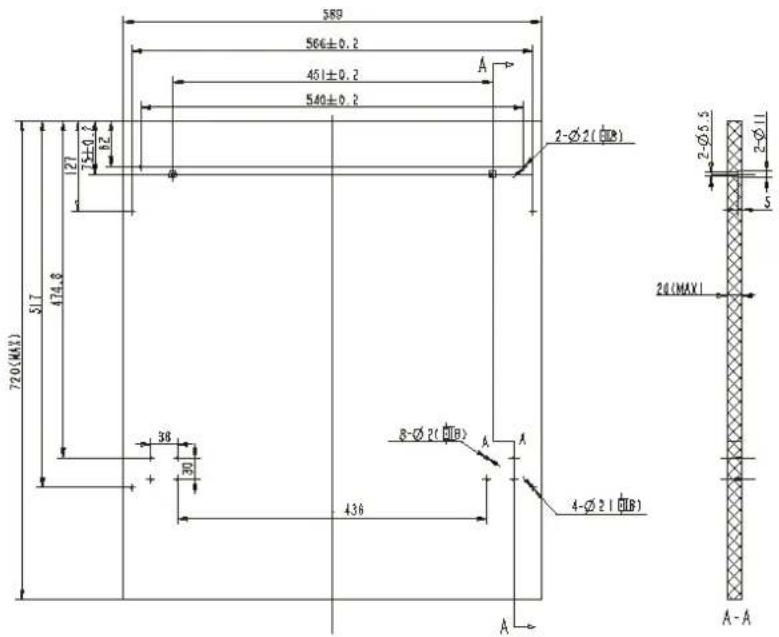

Aesthetic panel's dimensio ns and installation...19

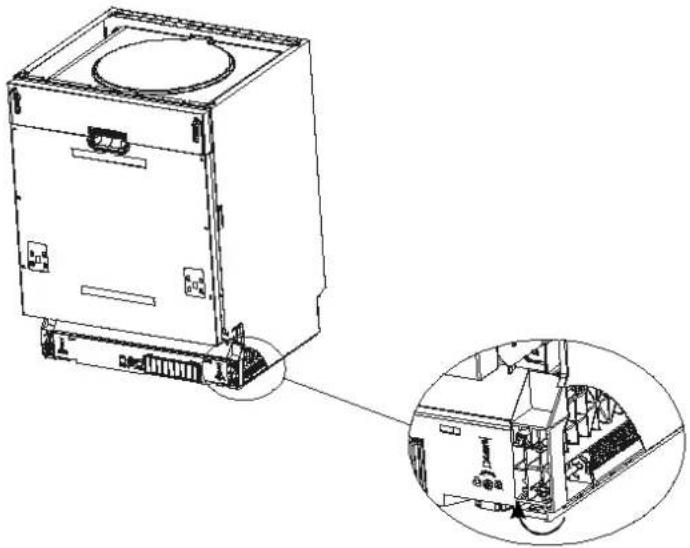

Tension adjustment of the door spring .....21

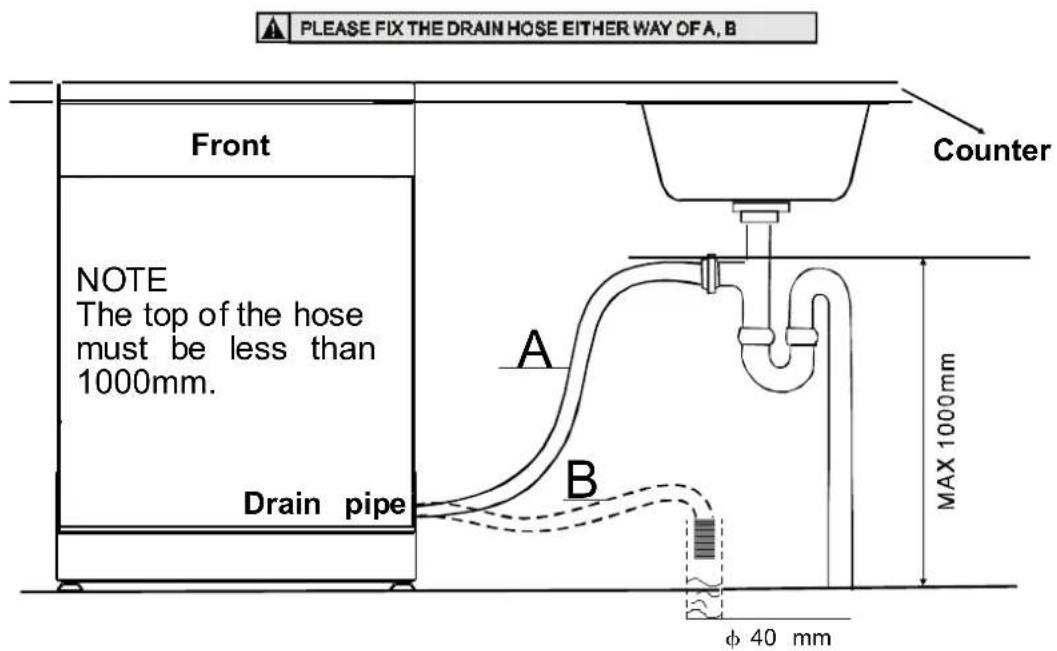

Connection of drain hoses 21

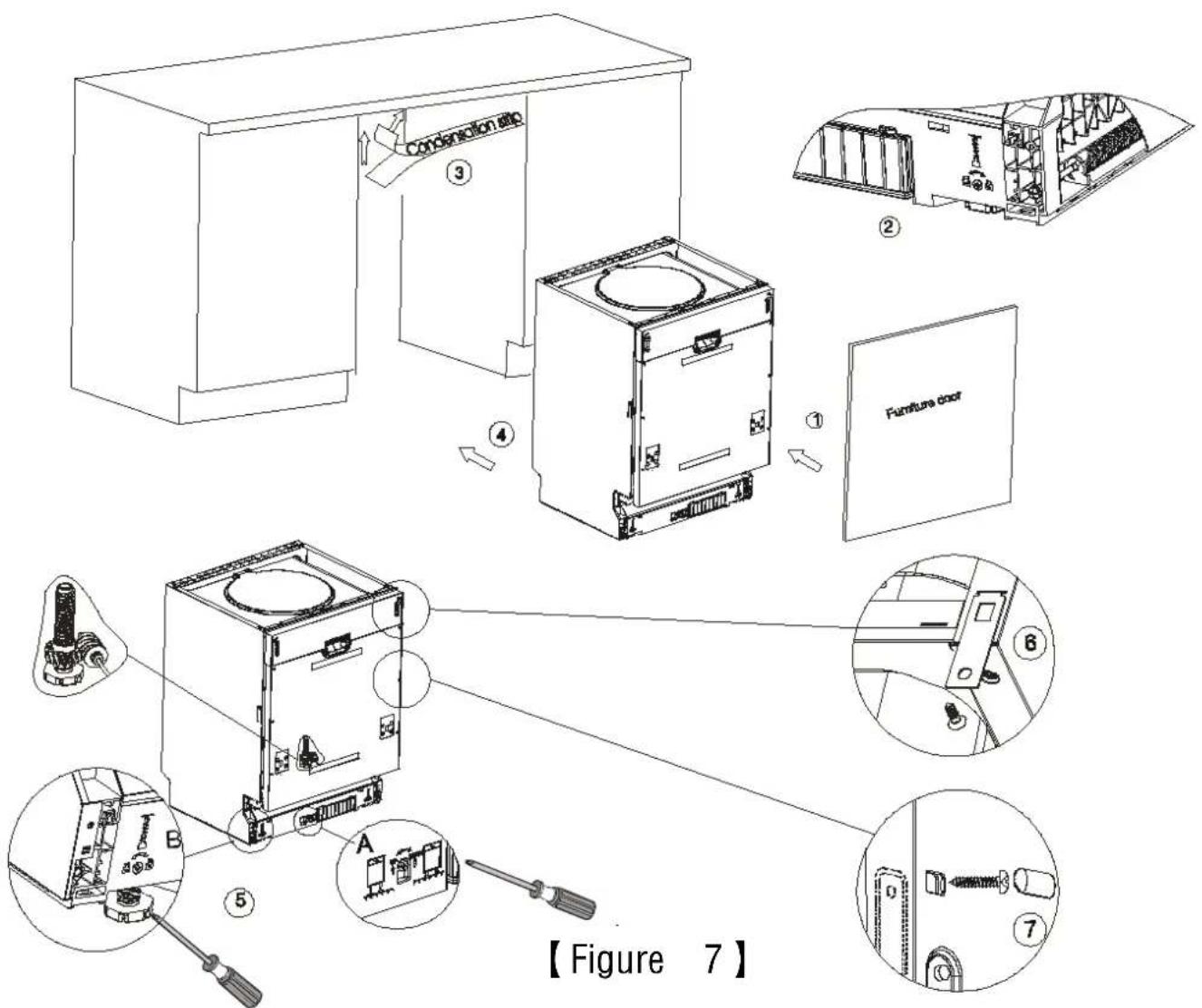

Dishwasher installation steps 22

About Electricity Connecting....23

Cold Water Connection.... 24

9) Troubleshooting Tips....25

Before e calling for service....25

Error codes..... 26

Technica I information....27

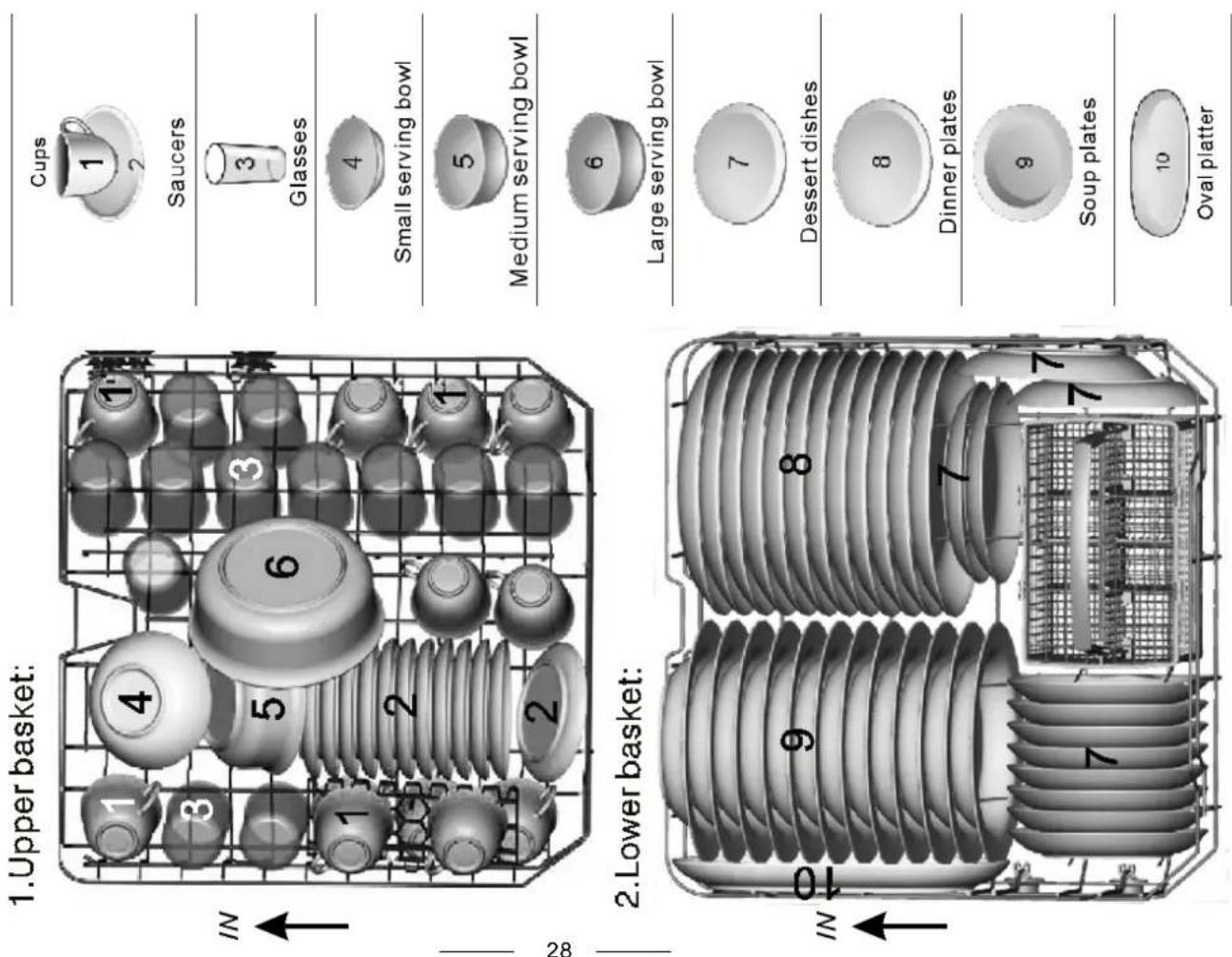

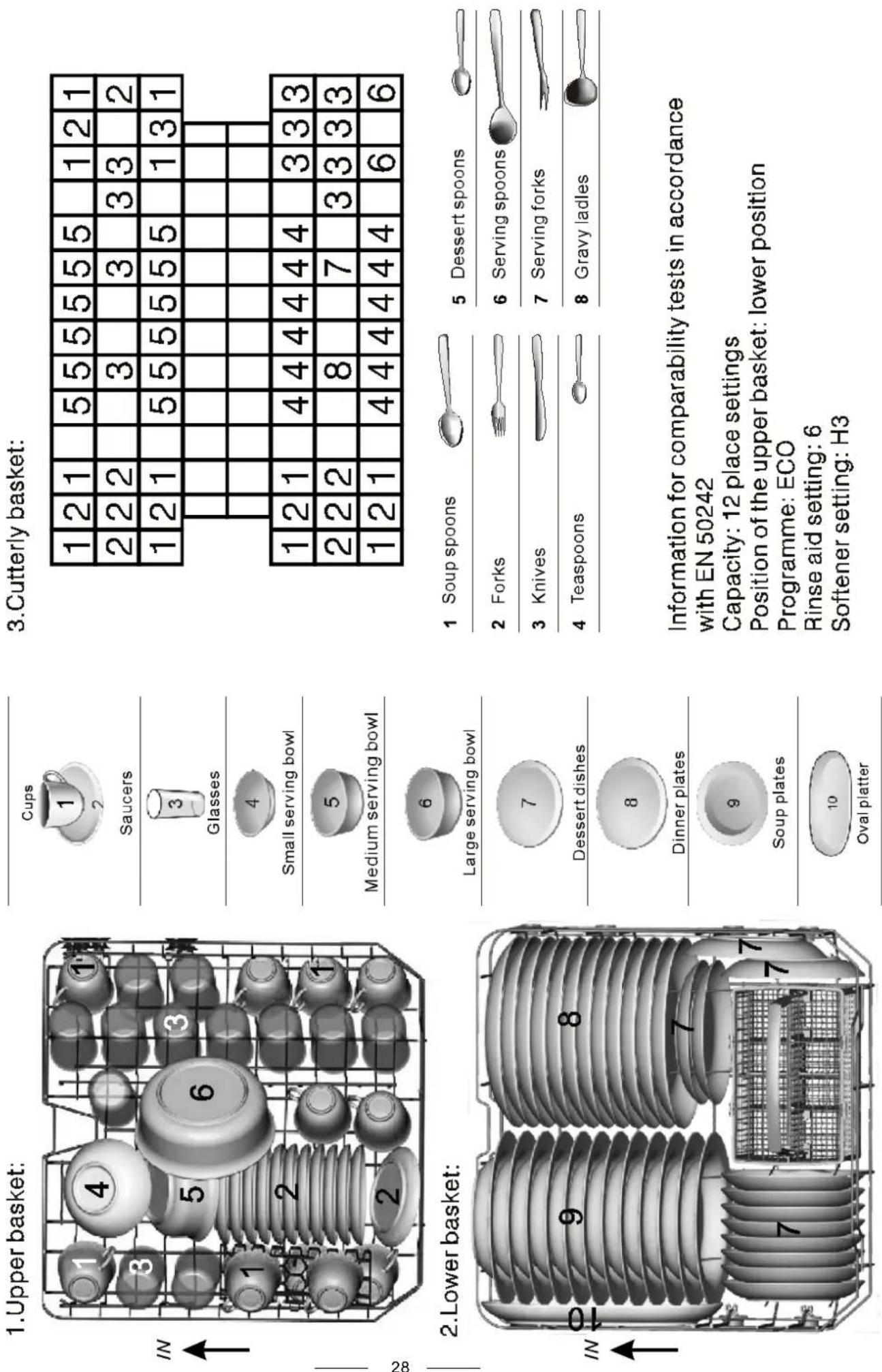

Loading the baskets according to En50242

1. IMPORTANT SAFETY INFORMATION

WARNING!

When using your dishwasher, follow the precautions listed below:

■ This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm houses;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. For EN60335-1

■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1)

■ This appliance is for indoor use only, for household use only.

■ To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

■ Please unplug before cleaning and maintenance the appliance.

■ Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.

■ This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
■ The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
■ Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
■ Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
■ Do not modify the plug provided with the appliance; If it does not fit the outlet.
■ Have a proper outlet installed by a qualified electrician.
■ Do not abuse, sit on, or stand on the door or dish rack the dishwasher.
■ Do not operate your dishwasher unless all enclosure panels are properly in place.
■ Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
■ Do not place any heavy objects on or stand on the dc when it is open. The appliance could tip forward.
■ When loading items to be washed:

1) Locate sharp items so that they are not likely to damage the door seal;

■2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
■Check that the detergent powder is empty after completion of the wash cycle.
■Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
■For plastic itemson so marked, check the manufacturer's recommendations.
■Use only detergent and rinse additives designed for an automatic dishwasher.
■Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
■Children should be supervised to ensure that they do no play with the appliance.
■The door should not be left open, since this could increase the risk of tripping.
If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
■During installation, the power supply must not be excessively or dangerously bent or flattened.
■Do not tamper with controls.
■The appliance is to be connected to the water mains u new hose sets and that old hose-sets should not be re
■The maximum number of place settings to be washed is 12.
■The maximum permissible inlet water pressure is 1MPa.
■The minimum permissible inlet water pressure is 0.04MP

Disposal

■ Dispose of the dishwasher packaging material correctly.
■ All packaging materials can be recycled.
■ Plastic parts are marked with the standard international abbreviations:

PE for polyethylene, e.g. sheet wrapping material PS for polystyrene, e.g. padding material POM—polyoxymethylene, e.g. plastic clips PP—polypropylene, e.g. Salt filler ABS—Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
■ For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
■ For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.
■ DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

2. Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the ap pliance

Open the door, press the On/Off button to switch on the appliance.

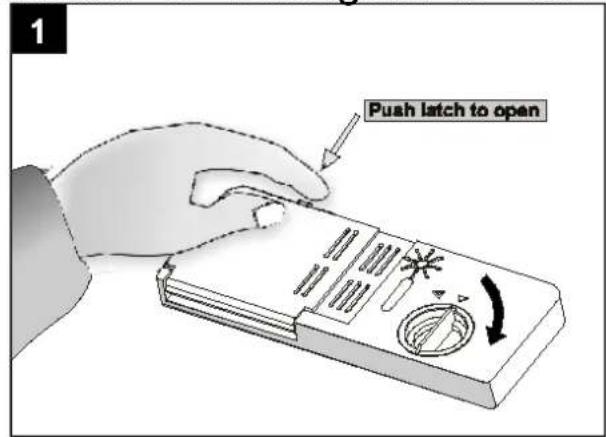

Fill the dete rgent dispenser

Compartment A:

With each wash cycle.

Compartment B:

For programmes with pre-wash only.

(Follow the user instructions!)

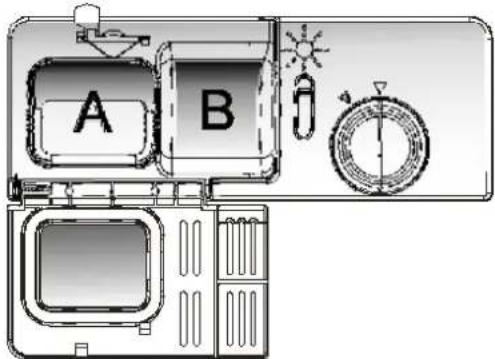

A B C

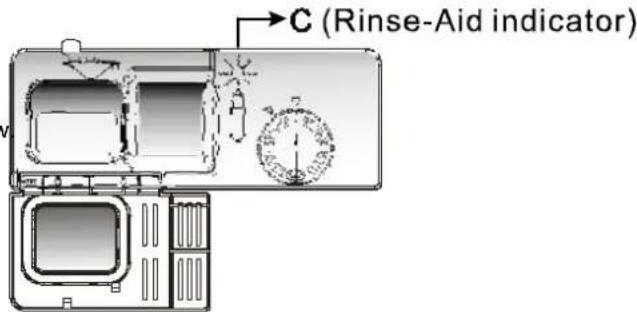

Check the rinse aid level

Mechanical indicator C.

Electric indicator on control panel (if provided).

Check the regeneration salt level

(On models with water softener system only.)

Electric indicator on control panel (if provided).

If there is no salt warning light in the control panel

(for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run.

Load the baskets

Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.

Select a programme

Press the Programme Button until the selected programme lights up. (See the section entitled "Operation instruction")

Turn on the water tap ,close the door . The machine will start working after about 10 seconds.Running

- Changing the programme

1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drain ed. If this is the case, the detergent dispenser must be refilled.

2. Press the Programme Button for more than 3 seconds to cancel the running programme.

3. Select a new programme.

4. Restart the dishwasher.

WARNING!

- Add forgotten dishe s in dishwasher.

the 1.Open the door a little to stop the dishwasher.

1. After the spray arms stop working, you can open the door compl

3.Add the forgotten dishes.

1. Close the door, the dishwasher will start running again after 10 seconds.

Open the door care fully. Hot steam may escape when the door is open

- If the app liance is switch off during a wash cycle.

If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and o perate the dishwasher according to the original Power-on state).

Switch off the applianc

When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop.

Turn off the appliance using the On/Off Button.

Turn off the water tap, unload the baskets

Warning: wait a few minutes (about 15 m inutes) before unloading the d ishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break.

They will also dry better.Unload the appliance, starting from the lower b asket.

3. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operatin g instructions before using g it for the first time.

Control Panel

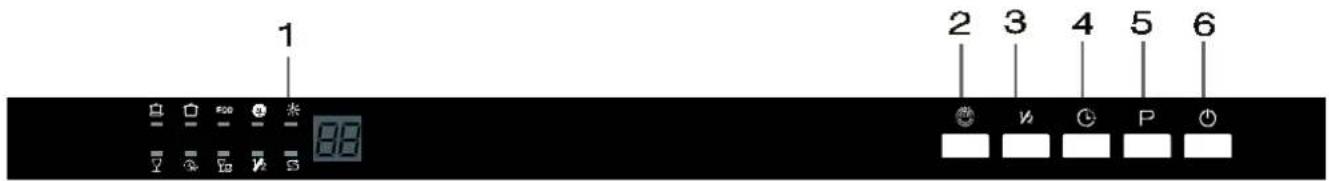

1 2 3 4 5 6 88

1. D isp lay sc re en and lamp: to show the er ror delay time e tc.

2. Rinse Aid indicator: * Indicates when the dispenser needs to be refilled.

3. Add salt indicator: Indicates when the dispenser needs to be refilled.
4. Delay time or error codes indicator
5. Program indicators:
   • Extra drying indicators:
6. Half load functions indicator lig ht : To show half load function.

code 2. Extra drying function choose Button: To choose Extra drying function

Note: only intensive, normal, ECO, 1 hour programs have extra drying function

1. Half load functions Button: To select half load function. With this Half load function you can only use it when you have only about or less than 5 place setting dish wave, and you will see less water and energy consumption can only be used within the ESO, and a hour
   4.Delay Button : To press the button to delay.
2. Program Button : To press the button to select a wash Program.
3. On/off Button: To turn on/off the power supply.

Dishwasher Features

Front view

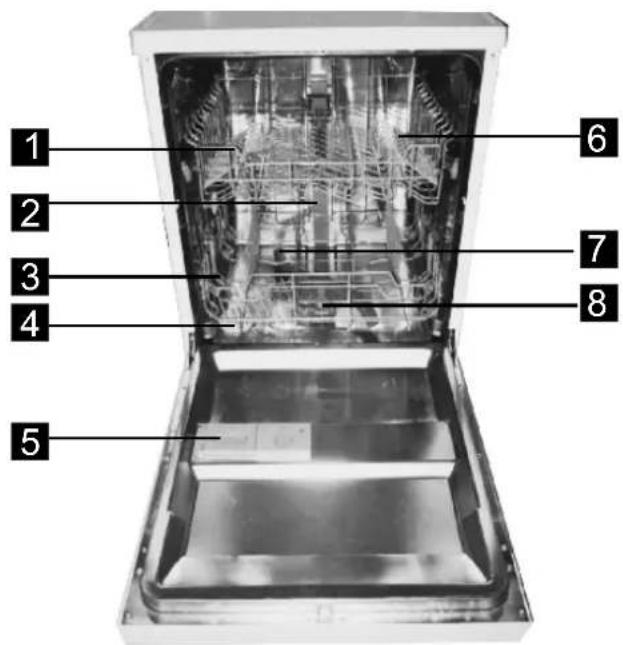

1 2 3 4 5 6 7 8

1 Upper Basket
2 Inner pipe
3 Lower Basket

4 Salt Container
5 Dispenser
6 Cup Shelf

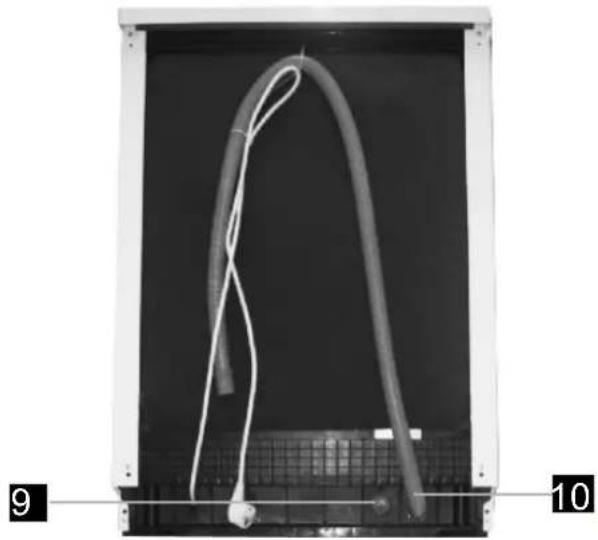

Back View

Close-up of a flexible cable or wire with a curved, looped structure inside a transparent enclosure (no text or symbols visible)

7 Spray arms
8 Filter assembly
9 Inlet pipe connector

10 Drain pipe

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener

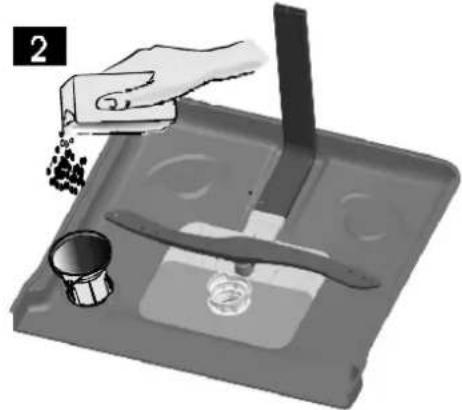

B. Add 1.5Kg dishwasher salt and then full fill the salt container with water

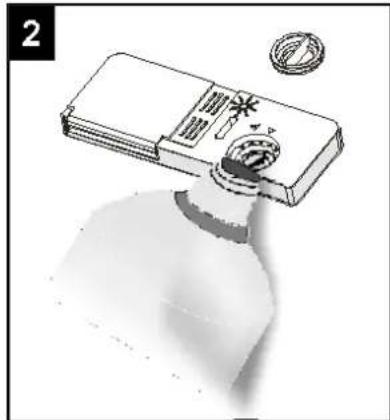

C. Fill the rinse aid dispenser

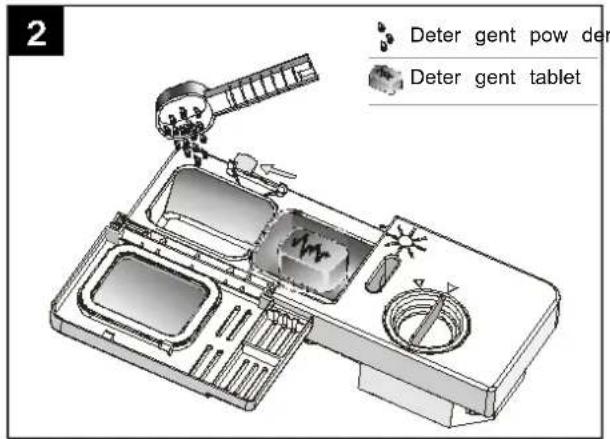

D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.

The higher the content of these minerals and salts, the harder your water is.

The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Open the door, Switch on the appliance;
2. Press the Program button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switched on( The Salt and Rinse aid warning lights will be on periodically when it get in the set model );
3. Press the Program button to select the proper set according to your local environment, the sets will change in the following sequence: H1->H2->H3->H4->H5->H6;
4. Press the Power button to end the set up model.

WATER HARDNESS				Select or Posi ti	S alt consumption on (gram/cycl e)
^ dH	^ fH	^ Clar ke	mmol /l
0~ 5	0~9	0~6	0~0.94	H1	0
6-11	10- 20	7-14	1. 0-2.0	H2	9
12- 17	21- 30	15- 21	2. 1-3. 0	H3	12
18- 22	31- 40	22- 28	3. 1-4.0	H4	20
23- 34	41- 60	29- 42	4. 1-6. 0	H5	30
35- 55	61- 98	43- 69	6. 1-9.8	H6	60

Note:1

1^ = 1.25^ rke=1.78 fH=0.1 78mm ol/l

^a dH: German degree

^° fH : French degree

°C lark: British de gr ee

Note:2

Th e ma nuf acto ry se tting: H3 (EN 50242)

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, y ou m ay sk ip this se ction.

WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.

The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt int ended for use with dis hwasher.

The salt con tai ner is loca ted beneath the low er basket an d should be fil led as explaine d in the following g:

Attenti on!

■ Only use sa lt specific ally design ed for the u se in dishw ashe rs! Every other type o f salt not sp ecifically desi gned for the use in a dishwasher, especia lly table salt, will dam age the water so ftener. In c ase of dama ges caused by the u se of unsu itable salt the m anu facturer does not give any wa rr an ty nor is lia ble for any d ama ges caused.

■ Only fill with salt just before e starting one of the complete wa shin g programs. This will prevent any grains of salt or salty water r, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1 Open

Illustration of a hand cleaning a tray with a brush and a small container (no text or symbols)

A After the lower basket has been removed, unscrew and remove the cap from the salt container.
B Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
C Full fill the salt c onta iner with h water, l t i s normal for a s mall a mount of water t2 come out of t he salt con ta iner.
D After filling the container , sc re w th e ca p tight ly bac k clockwise e.
E The salt warning light will stop being after the salt container has been filled with salt.
F Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

1. The sa It co ntainer must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run.

1. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

C. Fill the Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also im proves drying by all owing water to roll of the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse ai d f or dishwasher. Never f ill t he r inse ai d dispenser with any other substances ( e.g. Di shwasher cl eani ng agent, I liquid deter gent) . This would damage the appl iance .

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the co lour of the optical level indicator" C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full.

C (Rinse-Aid indicator)

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below

Full

3 / 4 full
1 / 2 full
1 / 4 full - Should refill to eliminate spotting
Empty

1

Illustration of a device with a bulb and a coin, no visible text or symbols

Illustration of a hand pressing down on a card with a scroll wheel (no text or symbols)

1 To open the dispenser, turn the cap to the "op en" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to over fill.
3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

Adjust lever (Rinse) ↑MAX Increase Reduce

The rinse ai d dispenser has six or four settings. Alway s start with the dispenser set on "4". If s pots and poor dryi ng are a problem, incre ase the amount of rin aid disp ensed by removing th e d ispenser lid and rotating the dial to "5". If the dishes stil I are not dryi ng properly or are sh ow s pots, adj ust the dial to the r hig her lever until y our dishes are spo t- free. Th e recomm end ed set ting is "4 (Fac tor y value is "4".)

NOTE:

Increa se the do se if the re are d rops of water or lime sp ots on t he dishes af ter was Reduce it i f there a re sticky whitish stain s on your d ish es or a bluish film on gl asswa knife blade s.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Mo st of the commercial qu ality detergen ts are suitable for this pu rpos e.

Attention!

Proper Use of Detergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dish es.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phospha te and without ch lorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only ^6 dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

1 Push latch to open

2 Deter gent pow det Deter gent tablet

NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

!WARNING!

Dishwasher detergent is corrosive!

Take care to keep it out of reach of children.

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.

B The place of pre-wash cycle detergent place d.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

A B

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wooden, horn china or mother-of-pearl handles
■ Plastic items that are not heat resistant
■ Older cutlery with glued parts that are not temperature resistant
■ Bonded cutlery items or dishes
■ Pewter or cooper items
■ Crystal glass
■ Steel items subject to rusting
■ Wooden platters
■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after a large number of washes

■ Silver and aluminum parts have a tendency to discolour during washing

■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.

2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.

3. All utensils are stacked securely and can not tip over.

4. All utensils are placed in the way that the spray arms can rotate freely during washing.

5. Items such as cups, glasses, pots/pans, etc. are faced downwards.

6. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
7. All utensils are stacked securely and can not tip over.
8. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot co llect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
• Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lig hter dishware such as glasses, coffee and tea cups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasse s, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

3D mechanical assembly diagram showing bolt, nut, and housing components with an upward force arrow (no text or labels)

Please be reminded that:

Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

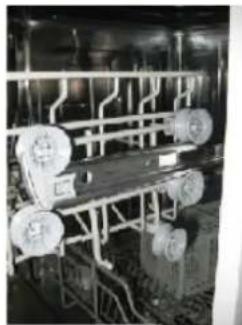

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper /lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms..

Lower position Upper position

Industrial machinery setup with rollers and piping (no visible text or symbols)

Interior view of an industrial facility with white structural framework and circular components (no visible text or symbols)

Wheels

Loading the Lower Basket

We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Illustration of a basket containing various kitchen utensils and produce, with an upward arrow labeled 'IN' indicating direction (no text or symbols on main objects)

Folding back the cup shelves

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Architectural structural diagram showing scaffolding and beams (no text or labels)

Technical line drawing of a mechanical assembly or structural component (no visible text or symbols)

Folding Sp ikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

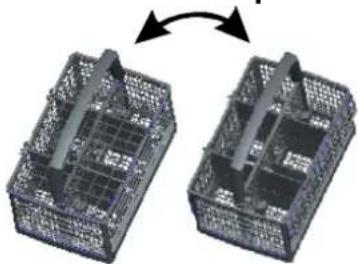

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

WARNING!

• Do not let any item extend through the bottom.
  ■ Always load sharp utensils with the sharp point down!

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

Two 3D architectural or structural models with grid patterns, shown in side and top views (no text or symbols)

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Intensive	For heavie st s oiled cro ckery, and normally s oiled pots pa ns dishes etc with dri ed on soilin g.	Prewash (5 0°C)Wash (60°C)RinseRinseRinse (70°C)Drying	5/25g	160	1.6	18.5
Norm al [TX24]	For normally soiled loads, such as pots, plates,glasses and lightly soiled pans.	Prewash( 45°C )Wash (55 °C)RinseRinse (65°C)Drying	5/25g	180	1.2	15
ECO (* EN 50242)	This is standard programme, it is suitable to clean normally soiled tableware and it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.	PrewashWash (45 °C)Rinse (65°C)Drying	5/25g	190	0.91	11
Glass [3W77]	For lightly soiled crockery and glass	Pre-wash wash(40 °C)RinseRinse (60°C)Drying	5/25g	120	0.85	14.5
90 mi n	For lightly soiled loads that do not need exceptlent drying efficiency.	Wash(65°C)RinseRinse (65°C)Drying	30g	90	1.35	12.5
Rapi d	A shorter wash for lightly soiled loads and quick wash.	Wash (45 °C)RinseRinse (55°C)	20g	30	0.75	11.0

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

■ Capacity: 12 setting
■ Position Upper basket: upper wheels on rails
■ Rinse aid setting: 6
■ PI:0.49w; Po:0.45w.

Turning On the Appliance

Starting a cycle wash

1 Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled "Loading the Dishwasher 7).
2 Pour in the detergent (see the section entitled Salt, Detergent and Rinse Aid).
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
4 Open the door, press the ON/OFF Button, and the ON/OFF light will turn on.
5 Press the program Button, the wash program will be changed as follows direction:
Inten sive->Normal->EC O->Glass->90RMapid
If a program is selected, the response light will light. Then close the door, the dishwasher begins to start.

Change the Program...

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been re leased, and the appliance may have already drain ed the wash water. If this is the case, the detergent disp enser must be refilled (see the section entitled " L oading the Detergent " ).
2 Open the door ,press the Program but more than a second be in standby state, then you can change the program to the desired cycle setting (see the section entitled " Starting a wash cycle. . ." ).

NOTE:

If you open the dooduritge amvalsinecycle pause. The program light will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1 Open the door a little.
4 Close the door
2 After the spray arms stop working, you can open the door completely.
5 The dishwasher will run after 10 seconds.
3 Add forgotten dishes.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ Sw itch Off the D ishwasher

The program light is on but is not blinking, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the ON/OFF button.

2. Turn off the water tap!

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Un loading the dishwa sher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

2 1 3

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Main filter 1

Food and soil particle s trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarse filter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being deposited on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly for this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filter s.
■ Improper replacement of the filter may reduce the per formance level of the appliance and damage dishes and utensils.

1

Open

Step 1 Turn the filter in anti-clockwise direction,:

2

3D rendered mechanical component with a black arrow indicating direction (no text or symbols)

Step 2 lift the filter a ssy up

NOTE: When following this procedure from step1 to step 2, the filter system will be removed; when following it from Step 2 to Step 1, the filter system will be installed.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dish washer, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwash er.

Cleaning The Door

Exterior view of a modern office building (no signage)

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Evetymetan washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwa sher ca nn ot work because of the ice, please co ntac t p professional s ervic e persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clo g the spray arm jets and bearings.

To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

Open

How to Keep Your Dishwasher in Shape

■ After Eve ry Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plu g

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solve nts or Abrasi ve Cle aning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When no t in U se for a LongTim e It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving t he Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seal s

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Attention:

The installation of the pipes and electrical equipments should be done by professionals.

Warning

Electrical Shock Hazard Disconnect electrica I power before installing dishwasher.

Failure to do so can result in death or electrical shock.

• Installation preparation

The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

Note: please check the accompanying in stallation accessories(hook for aesthetic panel,screw)

Please carefully read the installation instruction.

Illustrations of cabinet dimensions and installation position of the dishwasher

Preparat ions should be made before moving the dishwasher to the installation place.

1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figu re 1).
2 If dishwasher is in stalled at the corner of the cabinet, there should be some space (illustrate d in figure 2) when the door is opened.

【】Fig ure1

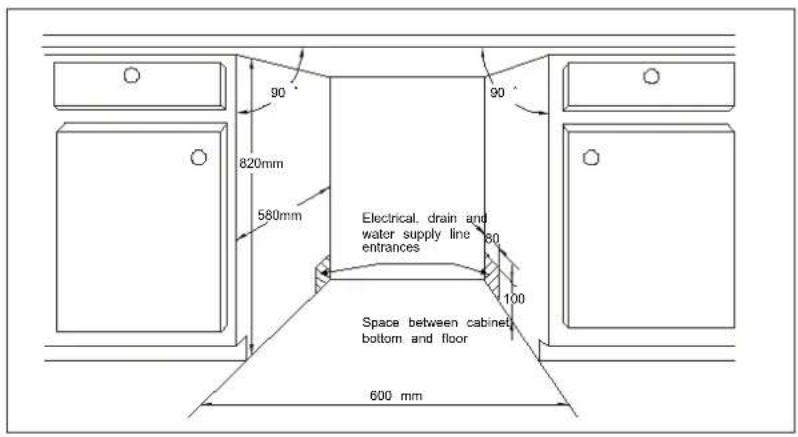

Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

90 820mm 580mm Electrical drain and water supply line entrances 80 100 Space between cabinet bottom and floor 600 mm

【 】Figure2

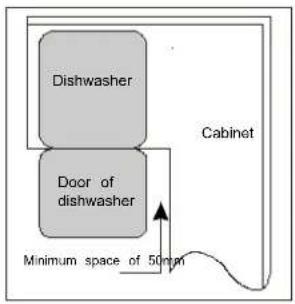

Minimum space when the door is opened

Dishwasher Door of dishwasher Cabinet Minimum space of 50mm

● Aesthetic panel's dimensions and installation

1 The aesthetic wooden panel could be processed according to the Figure 3.

【Figure3】

The aesthetic panel should be p rocessed in accordance with the illustrat ed dimensions

(Unit: mm)

589 506±0.2 451±0.2 540±0.2 A 127 75±0.2 82 720(MM) 317 474.8 38 30 436 2-Ø2(∅B) 2-Ø5.5 2-Ø11 26(MAX) 8-Ø2(∅B) A A 4-Ø2(∅B) A-A

2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts(See figure 4b).

【 】Figure4a

Technical line drawing of a mechanical assembly with no visible text or symbols

【 】Figure4b

Ins tallati on of a esthetic wood en pan el 1. take away the four short screws 2. pin up the four long screws Take away the four short screws Pin up the four long screws

- Tension adjustment of the door spring

The door springs are set at the factory to t he proper tension for th e outer door. If aesthetic woode n panel are instal led, you will have to adjust the door spring tensi on. Rotate the a djusti ng screw to drive t he ad justor to strain or relax t he ste el cab le (see fi gure 5).

Door spring tension is correct when the door remains horizontal in the fully opened position, yet rises to a close with h the slight lift of a finger.

Technical line drawing of a front-loading washing machine with an inset close-up showing internal components (no text or labels)

【 】Figure5

Tension adjustment of the door spring

- Connection of drain hoses

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

PLEASE FIX THE DRAIN HOSE EITHER WAY OF A, B Front NOTE The top of the hose must be less than 1000mm. Drain pipe Counter A B MAX 1000mm φ 40 mm

- Dishwasher installation steps

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.
2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tight en the left and right door springs. Failure to do this could cause damage to your dishwas her (Illustration 2).
3 Connect the inl et hose to the cold water supply
4 Connect the drain hose. Refer to diagram (Figure 6)
5 Connect the po wer cord
6 Affix the condensation strip under the work sur face of cabinet. Please ensure the condensation strip is flush with edge of work surface.
7 Place the dishwasher into position.(Illustration 4)
8 Level the dishwasher. The rear food can be ad justed from t he front of the dishwasher by turning the Allen screw in the middle of the base of dishwasher use an Allen key (Illustration 5A). To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level (Illustration 5B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Normal work's surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws (Illustration 6).
B. Marble or granite work top: Fix the side with Screw. (Illustration 7).

③ ② ④ Furniture door ⑤ A ⑥ ⑦ 【Figure 7】

Dis hwasher must be le vel for proper dish rack operati on and wash perfor mance.

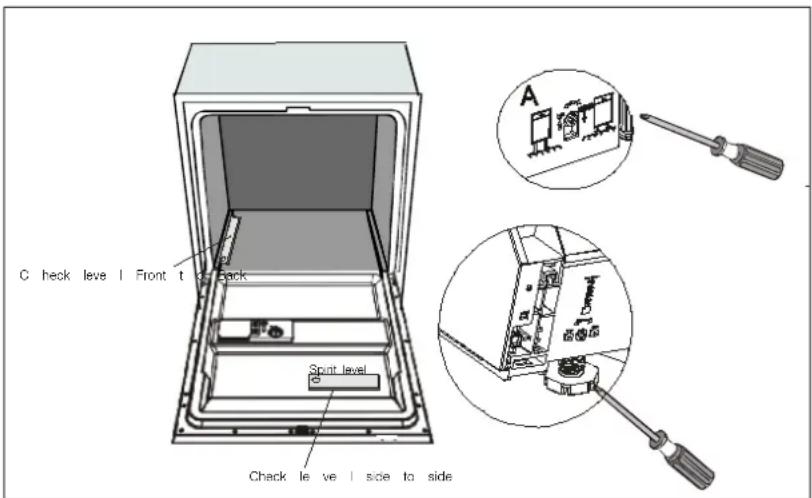

1 Place a spirit level on door and rack track inside the tub as show n to check t hat dishwa sher is level.
2 level the dishwasher by a adjusting the three levelling legs individually.
3 When I evel the dish washe r, plea se pa y attention not to let the dishwasher tip over

【 】Figure 8

Illustration of feet adjustment

NOTE:

The maximum adjustment

height of the fee t is 50 mm.

C check level | Front t back Spot level Check level | side to side A B

About Power Connection

! WARNING!

For personal safety:

■ Do not use an extension cord or an adapter plug with this appliance.
■Do not, under any circumstances, cut or remove the earthing
■Connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠️ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

Line drawing of hands holding a pipe fitting (no text or symbols)

Connect the cold water supply hose to a three ded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING!

Please clo se the hydrant after using.

Positioning the Appliance

Positio n the a appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run in to the sink, making sure to avoid bending or crimping it. The top of the hose must be less than 1000mm.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

1 The dish was he is level and fixed properly
② The inlet valve is open
3 There is a leakage at the connections of the conducts
4 The wires are t ightly connected
5 The power is switched on
6 The inlet and drain hoses are knotted
7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

9. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
	Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
water not pumped form dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged	Check coarse the filter (see section titled )" Cleaning The Filter "
	Kitchen sink clogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.
	Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.
	A programme was not run after dishwasher salt was added.Traces of salt have gotten into the wash cycle.	Always run the quick wash programme .without any crockery in the dishwasher and without selecting the Turbo function (if present),after adding dishwasher salt.
	The lid of the softer is loose	Check the lip .Ensure the fix is fine.
Knocking noise in the wash cabinet	A sp ay arm is knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the sp ay arm.r
Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme,and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function.if in doubt, contact a suitably qualified plumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	The dishes were not loaded correctly.	See notes in " Loading the Dishwasher Baskets ".
		The programme was not powerful enough.	Select a more intensive programme.See" Wash Cycle Table ."
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Items are blocking the path of sp ay arms.r	Rearrange the items so that the sp ay can rotate freely.
		The filter combination in the base of wash cabinet is not clean or is not correctly fitted.This may cause the sp ay arm jets to get blocked.	Clean and/or fit the filter combination correctly.Clean the sp ay arm jets. See "Cleaning the Spray Arms".
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
	Black or gray marks on dishes	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
	Detergent left in dispenser cups	Dishes block detergent cups.	Re-loading the dishes properly.
Unsatis-factory drying result	The dishes are not drying	Improper loading	Load the dishwasher as suggested in the directions.
		Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
		Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once t he dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
		Wrong program has been selected	In short program the washing temperature is lower.This also lowers cleaning performance. Choose a program with a long washing time.
		Use of cutlery with a low-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longer inlet time.	Faucets is not opened, or water intake is restricted,or water pressure is too low.
E4	Overflow.	Some element of dishwasher leaks .

⚠ WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.

■ If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

(with the door closed) 550 598 815 1150

Height : 815mm
Width : 598 mm
Depth : 550mm	(wit h the door c)os
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 12 place settings

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer	NEW WORLD
Type / Description	NW INDW60
Standard place settings	12
Energy efficiency class 1	A++
Annual energy consumption 2	258 kWh
Energy consumption of the standard cleaning cycle	0.91 kWh
Power consumption of off-mode	0.45 W
Power consumption of left-on mode	0.49 W
Annual water consumption 3	3080 liter
Drying efficiency class 4	A
Standard cleaning cycle 5	ECO 45°C
Program duration of the standard cleaning cycle	190 min
Noise level	49 dB(A) re 1 pW
Mounting	build under
Could be built-in	Yes
Height	81.5 cm
Width	59.8 cm
Depth (with connectors)	55 cm
Power consumption	1930 W
Rated voltage / frequency	220-240 V~ 50 Hz
Water pressure (flow pressure) 0.4-10 bar = 0.04-1 MPa

NOTE:

1 A + + + (highest efficiency) to D (lowest efficiency)
② Energy consumption 258 KWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption 3080 litres per year, based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A (highest efficiency) to G (lowest efficiency)
5 This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery:

• LVD 2006/95/EC
• EMC2004/108/EC
• EUP 2009/125/EC

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.

Additional features of this d ishwash er are:

Overflow protection

You r dishwasher has an overfill protection prog ram which automatically shu ts off the inlet valve and starts th e drain pump if the water is overflowing.

6 wash program s

You can choose desired program according to the soiled le vel.

Time delay feature

Th is allows t he start o f the prog ramme to be delay between 1 and 24 hou rs, enabling you to benefit full y from cheaper el ectrici ty! O r just to benefit from the convenience of the pro grammin g fini shing whe n you wa nt to.

12 place settings

Be suf ficient fo r norma l use.

Error alarm

To a lert you to any err ors or pro blems with the prog ram whi le it is run. ning

Adjustable upper basket

Flexib le dish lo ading av ailable. Adjust t he uppe r baske t for larg e or awkward loa ds

Stainless steel tub

.No need to wo rry about staining

Salt Warning Indic ator

If the s alt is runn ing low, t he warni ng indica tor will light on the pane l, alertin g you to to p it up. T his ensure s the bes t results f rom your machine

Broad applied voltage

The b road scope of the a pplied vol tage ,redu ce the co de of elec tric condi tion.

Rinse aid Warning Indicator

If the rin se aid is r unni ng low, the warn ing indicat or will light on the pa nel, alertin g you to to p it up. This ens ures the b est result s from you r machine

111

newworld®

Stoney lane, prescot, Merseyside, L35 2XW

Customer Care

In case of difficulty within the UK and Northern Ireland, please

call the customer care help line on 0844 815 3747

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.
