ZHC4603 - Food processor Zephir - Free user manual and instructions

Product Type	Food processor / mini chopper
Brand	Zephir
Model	ZHC4603
Bowl Capacity	0.6 liters
Blade Material	Stainless steel
Bowl Material	Plastic
Non-Slip Mat	Included, ribbed side down
Splash Guard	Included, ensures operation
Power Unit	Detachable, press to pulse
Main Functions	Chopping, mixing, pulsing
Maximum Continuous Operation	10 seconds, then 1 minute cool down
Maximum Meat Capacity	200g (cut into 1-2 cm cubes)
Maximum Herb Capacity	50g (stalks removed)
Maximum Nut Capacity	300g (stalks removed)
Maximum Cheese Capacity	100g (cut into 1-2 cm cubes)
Maximum Bread Capacity	75g (cut into 1-2 cm cubes)
Maximum Onion Capacity	250g (cut into ~2 cm pieces)
Maximum Biscuit Capacity	150g (broken into pieces)
Maximum Soft Fruit Capacity	300g (stalks removed)
Cleaning	Wipe power unit with damp cloth; wash other parts by hand or top rack dishwasher
Safety Features	Blade safety, splash guard interlock, automatic shutdown when overloaded, sharp blade warning
Not Suitable For	Ice cubes, coffee beans, spices, chocolate, hot liquids, hard foods
Disposal	Separate collection for electrical equipment (WEEE)

Frequently Asked Questions - ZHC4603 Zephir

How do I use the Zephir ZHC4603 food processor?

Ensure the unit is fully assembled. Place the non-slip mat, bowl, knife blade (sharp, handle carefully), add ingredients, fit splashguard (slots over handles), attach power unit, plug in, and press down for short pulses. Do not run continuously over 10 seconds; allow 1 minute cool down.

What is the maximum capacity of the bowl?

The maximum capacity is 0.6 liters. Do not exceed this level to avoid overflowing.

Can I chop ice or coffee beans?

No. Hard foods like ice cubes, coffee beans, spices, or chocolate will damage the blade. Only use for suitable ingredients as per the processing guide.

How should I clean the food processor?

Unplug first. Wipe the power unit and non-slip mat with a damp cloth. Wash the bowl, blade, and splash guard by hand or on the top rack of the dishwasher. Handle the sharp blade carefully.

Can I process hot liquids or foods?

No. Do not use for mixing hot foods or boiling liquids. The appliance is designed for cold or room-temperature ingredients only.

What safety precautions should I take?

Keep away from children. Always unplug before assembling/disassembling or cleaning. Handle the sharp blade with care – hold by the top. Do not operate without splashguard. Never immerse motor unit in water.

What if the blade jams?

Switch off immediately and unplug. Remove the ingredients causing the blockage. Do not use force. If problem persists, contact technical support.

Can I use the appliance continuously?

No. Do not run for more than 10 seconds continuously. Let it cool for at least 1 minute between cycles to prevent overheating.

Is the ZHC4603 dishwasher safe?

Only the bowl, blade, and splashguard are top-rack dishwasher safe. The power unit and non-slip mat must be wiped clean, never immersed.

What is the warranty and where to get support?

Contact Westim S.p.A. at www.uniorservice.com or call 06 8720311 (Italy). For other countries, refer to local service centers. Keep the purchase receipt.

USER MANUAL ZHC4603 Zephir

White portable water purifier with clear lid and side panel, no visible text or symbols

MANUALE D'ISTRUZIONI

White and gray portable shower unit with transparent lid and ventilation slots (no visible text or symbols)

INSTRUCTION MANUAL

SAFETY

1. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
2. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of
3. experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
4. Children shall not play with the appliance
5. Remove the packaging and make sure that the appliance is intact. If in doubt, do not use it and contact our Technical Assistance Centre. Packaging materials (plastic bags, polystyrene, staples etc.) must be kept out of the reach of children as they could be hazardous.
6. The blades are sharp, handle with care. Hold the knife blade at the top away from the cutting edge, both when handing and cleaning.
7. Do not plug the appliance into the power supply unit it is fully assembled and always unplug before die-assembling the appliances or handling the knife blade.
8. Remove the knife blade before emptying the bowl.
9. Never use and unauthorized attachment.
10. Don't let children play with this appliance.
11. Never use a damaged appliance. Call the technical Service for assistance.
12. Never let the power unit, cord or plug get wet.
13. Don't let excess cord hang over the edge of a table or workshop or touch hot surface.
14. Never misuse your food chopper and lonely use it for its intended domestic use.
15. Do not use if there is any visible damage to the appliance.
16. Keep all packaging (plastic bags, foam, screws) out of the reach of children or persons with reduced physical or mental capabilities, as this could compromise their safety
17. It ' may not use this unit in the presence of children who may approach and enter into contact with the unit itself.
18. If the power cord or the unit to be defective, contact the service center or a qualified electrician to repair or replace if necessary. Not groped any repairs yourself.
19. This appliance has been designed as domestic mini chopper. Don't use the appliance for different purposes
20. Don't use the unit near bath-tubs, basins, showers.
21. Never use the appliance outside.
22. Don't use any extension cable to power the unit.
23. Don't install the unit upon unstable or inclined surfaces.
24. Don't operate in environments where are present flammable or explosive materials and substancies, or where corrosive and dangerous vapours and substancies are present.
25. Do not use the appliance for mixing hot foods and boiling liquids.

26. Do not operate the appliance when it is empty, as it could get damaged.

27. Do not allow the ingredients to exceed the maximum level indicated on the container (0,6L) in order to avoid overflowing.

28. Only use the appliance with the accessories supplied, so as not to compromise safe use

29. Before starting the appliance, ensure that the motor body and the accessories are mounted correctly.

30. Warning: do not remove the cover while the appliance is still running or before the blades have come

31. to a complete stop. Remove any accessories only once the appliance has stopped and unplug it from the mains.

32. Never touch any moving parts.

33. Never use the appliance if the blade is damaged.

34. If the blades block switch off the appliance (by releasing the button) and remove the plug

35. from the mains before removing the ingredients that have caused the blades to block.

36. Make sure that the motor body does not come into contact with water or other liquids and do not put them in the dishwasher.

37. Do not touch the appliance with wet hands or feet or bare food.

38. Before starting the appliance, ensure that the motor body and the accessories are mounted correctly.

39. Do not remove the cover while the appliance is still running or before the blades have come to a complete stop. Remove any accessories only once the appliance has stopped and unplug it from the mains.

40. Never touch any moving parts.

41. Never use the appliance if the blade is damaged.

42. Make sure that the motor body does not come into contact with water or other liquids and do not put them in the dishwasher. If by chance they get wet or go under water, pull out the mains plug immediately, dry carefully and check that no liquid has entered inside; if in doubt, contact professionally qualified personnel.

43. Do not place heavy objects on the cables or heat sources close to them. The cables may be damaged;

44. This product is intended solely for domestic use.

45. Before carrying out any cleaning or maintenance, disconnect the appliance from the mains by removing the plug.

46. Do not use aerosols sprays (eg . insecticides , hair spray , etc. ), it may cause damage to the housing;

47. In case of abnormal situations immediately turn off the power and contact your dealer or service center;

48. Do not use this unit connected to programmers, external timer, remote control system of separate timer or any other device that can switch automatically.

49. Do not use power sockets flying or damaged cables.

50. When you hold it firmly pulls the plug to avoid electric shock, short circuit or fire;

51. Do not attach safety switches with tape, for fire hazard;

52. It is absolutely prohibited to disassemble or repair the unit by the danger of electric shock if necessary contact your dealer or service center;

53. Do not use the appliance near a bathtub, shower, swimming pool;
54. Do not use the machine near flammable objects;
55. Do not place objects on the unit to fire hazard;
56. Before connecting to the mains supply, make sure the voltage is correct as reported on the label of the product and that the installation complies with current regulations;
57. Do not touch the power connection with wet hands;
58. Do not use the product for purposes other than those for which it was built;
59. If the external flexible cable is damaged it must be replaced by a qualified technician in order to avoid accidents;
60. Children should be supervised to ensure that they do not play with the appliance;
61. Never leave the appliance on unattended.
62. Take precautions when handling sharp blades during all operations including cleaning.
63. Always disconnect the unit from the when left unattended and before you mount it, disassemble and clean it;
64. The appliance is not intended for, use by children without supervision.
65. Turn off and unplug it before changing accessories or before approaching the parts that are in motion when working.
66. This appliance must only be used for the purpose for which it has been manufactured, i.e. for additional electrical heating in rooms. Any other use is considered improper and therefore dangerous. The manufacturer is not responsible for any damage caused by improper, incorrect or unreasonable use.

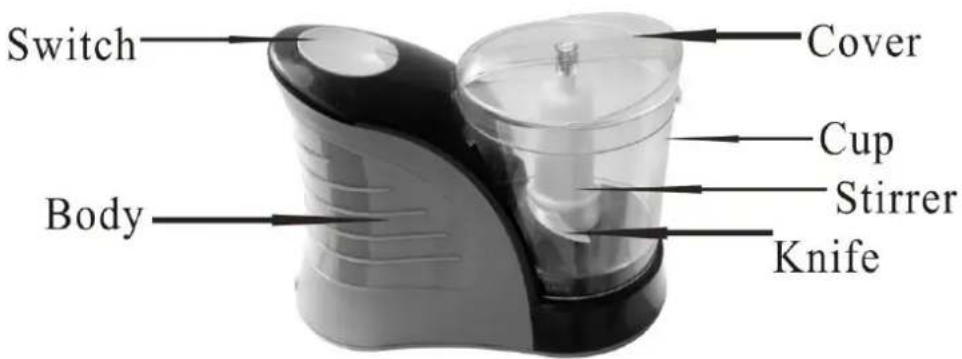

DESCRIPTION

TO USE THE FOOD CHOPPER

1. Remove all packaging including the plastic blade covers from the knife blade. These covers should be discarded as they are to protect the blade during manufacture and transit only.
2. Wash the parts: see "cleaning".
3. Place the non slip mat onto the work-surface, rib side down.
4. Position the bowl onto the middle of the non slip mat.
5. Fit the knife blade over the pin in the bowl.

6. Add your food, see processing guide.

7. Cut large pieced of food into 1-2 cm (1/2-3/4 in pieces).

8. Don't chop hard foods such as coffee beans, ice cubes, spices or chocolate-you'll damage the blade.

9. Fit the splashguard. Make sure the slots in the splashguard fit over the handles in the rim of the bowl.

- The super chopper will not operate unless the splashguard in fitted.

1. Fit the power unit.

- The power unit will only fit correctly in two positions.

1. Plug in. press down on the power unit for short lengths of time to produce a pulsing action-this will avoid over processing the ingredients.

2. If the machine labors, remove some of the mixture and continue processing in several batches.

3. Stop the machine and scrape down if necessary.
4. Do not run the super chopper continuously for longer than 10 seconds. Leave to cool for 1 minute in between each 10 seconds operation.
5. After use. Unplug and dismantle.

CLEANING AND STORAGE

Never immerse in water or other liquids.

1. Always switch off and unplug before cleaning.
2. Handle the cutting blade with care they are extremely sharp.
3. Some food will discolor. It won't harm the plastic or affect the flavor of your food.
4. Wipe power unit and slip mat with a damp cloth, and then dry.
5. Wash other parts by hand, then dry the thoroughly or wish on the top rack or your dishwasher.
6. Always undertake a cleaning cycle before putting the unit in a safe place.
7. Never immerse in water or other liquids.

PROCESSING GUIDE

Food	Maximum Capacity	Preparation
Meat	200g	Remove bones, fat and gristle. Cut into 1-2 cm (1/2-1/4 in cubes)
Herbs eg. parsley	50g	Remove stalks
Nuts eg. almonds	300g	Remove stalks
Cheese eg. Cheddar	100g	Cut into 1-2cm (1/2-1/4 in cubes)
Bread	75g	Cut into 1-2cm (1/2-1/4 in cubes)
Hardboiled eggs	6	Halve or quarter depending upon size
Onions	250g	Cut into approximate 2 cm (1/4in) pieces
Biscuits	150g	Break into pieces
Soft fruit eg. raspberries	300g	Remove stalks

www.uniorservice.com

WESTIM S.p.A.

Via Roberto Bracco 42/E

00137, Roma

Tel. [phone]

Italiano

Disposal of old electrical & electronic equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or in its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Français
